Optical Coherence Tomography Angiography (OCTA) Captures Early Micro-Vascular Remodeling in Non-Melanoma Skin Cancer During Superficial Radiotherapy: A Proof-of-Concept Study

by
Gerd Heilemann
1,*,
Giulia Rotunno
2,*,
Lisa Krainz
3,
Francesco Gili
2,
Christoph Müller
4,
Kristen M. Meiburger
2,
Dietmar Georg
1,
Joachim Widder
1,
Wolfgang Drexler
3,
Mengyang Liu
3 and
Cora Waldstein
1
1
Department of Radiation Oncology, Comprehensive Cancer Center Vienna, Medical University Vienna, 1090 Vienna, Austria
2
PolitoBIOMed Lab, Department of Electronics and Telecommunications, Politecnico di Torino, 10129 Torino, Italy
3
Center for Medical Physics and Biomedical Engineering, Medical University Vienna, 1090 Vienna, Austria
4
Department of Dermatology, Medical University Vienna, 1090 Vienna, Austria
*
Authors to whom correspondence should be addressed.
Diagnostics 2025, 15(21), 2698; https://doi.org/10.3390/diagnostics15212698 (registering DOI)
Submission received: 18 September 2025 / Revised: 20 October 2025 / Accepted: 22 October 2025 / Published: 24 October 2025
(This article belongs to the Collection Biomedical Optics: From Technologies to Applications)
Review Reports Versions Notes

Abstract

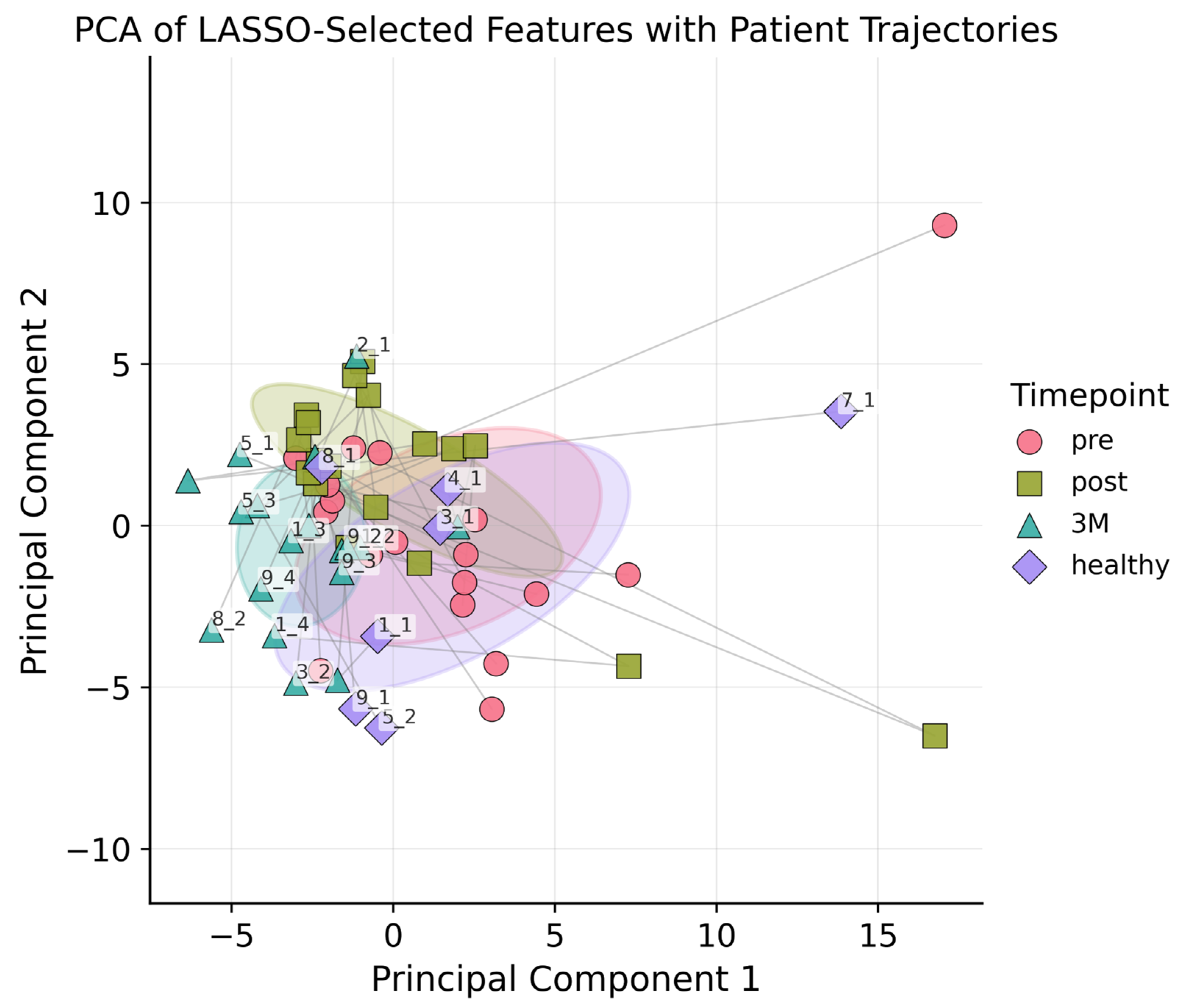

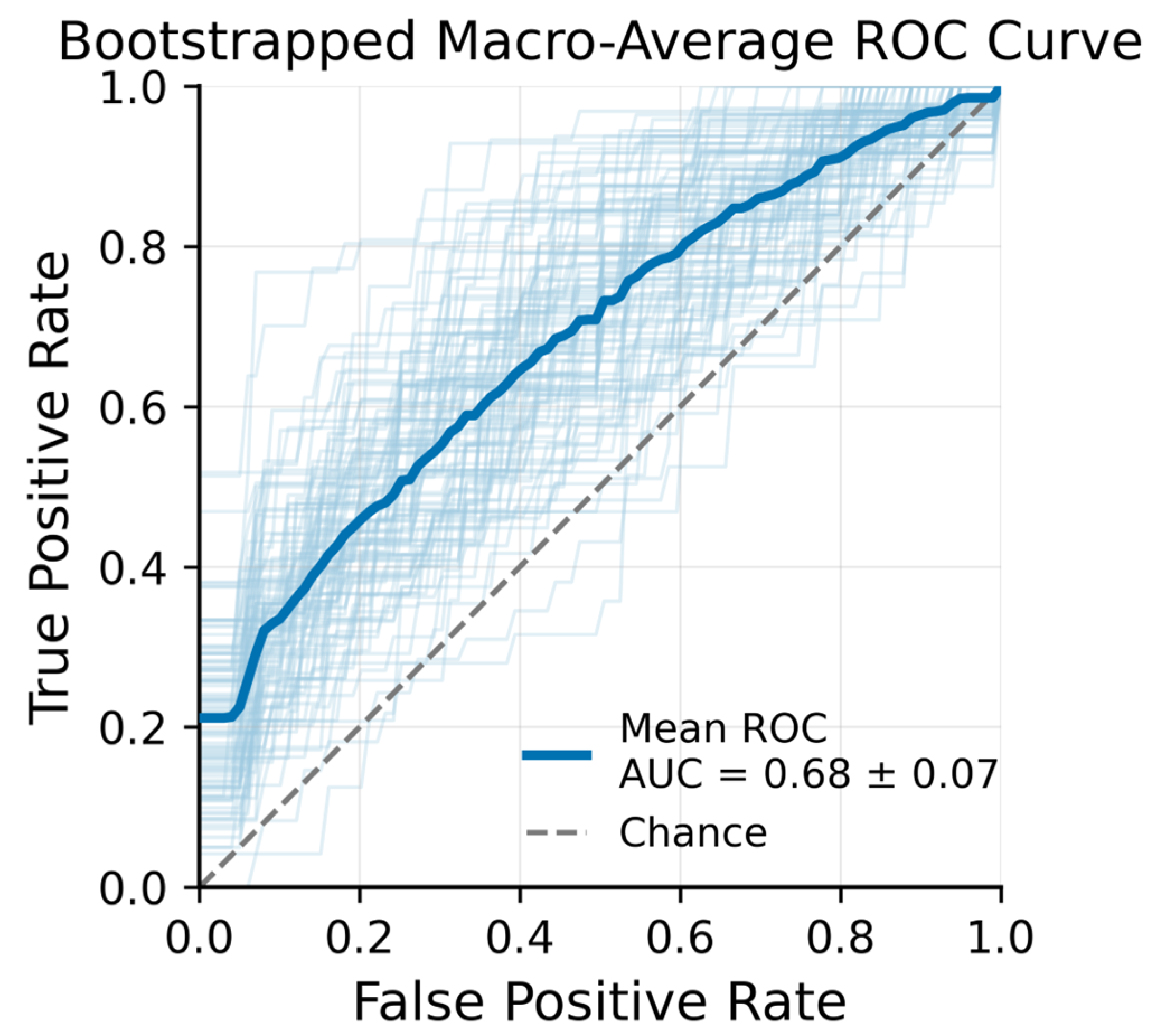

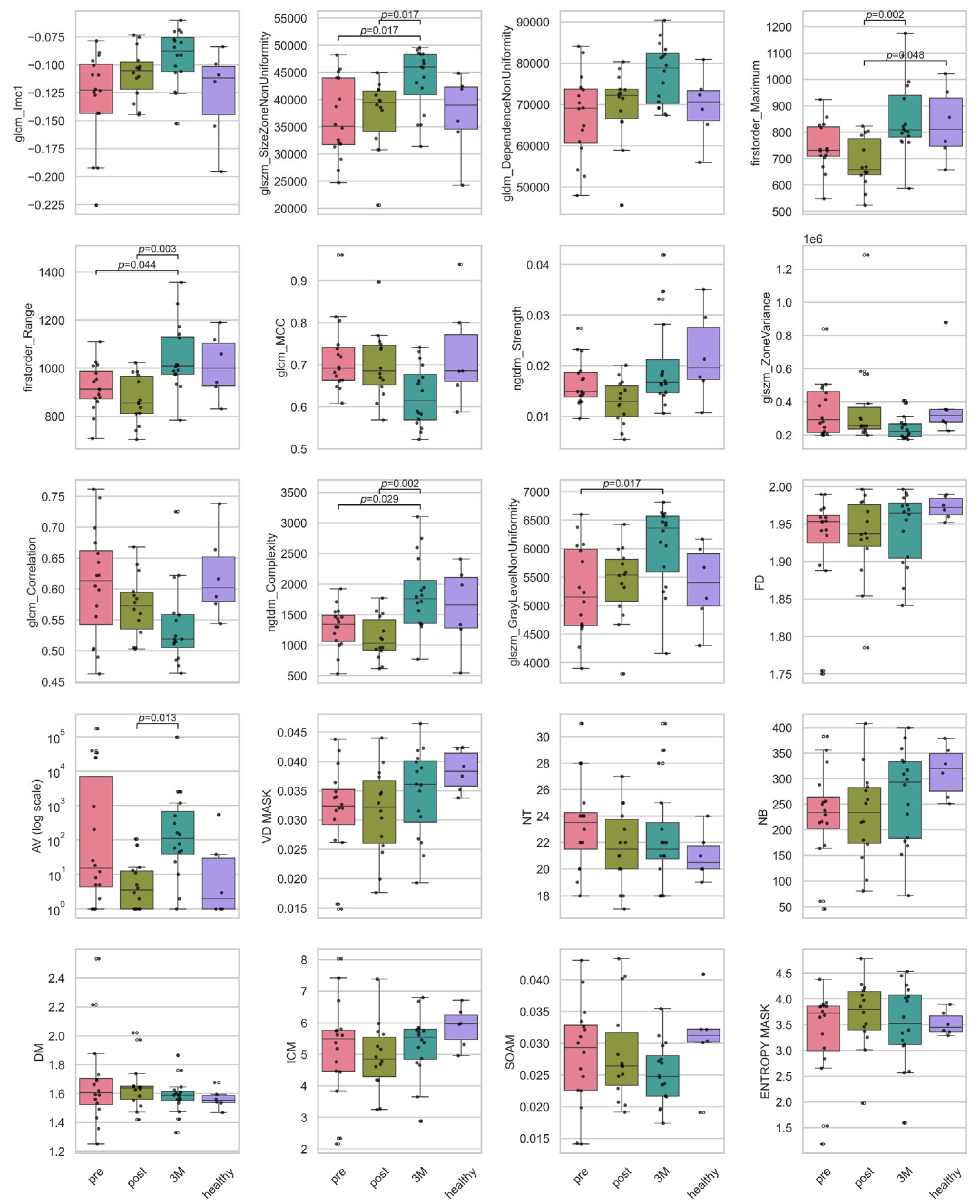

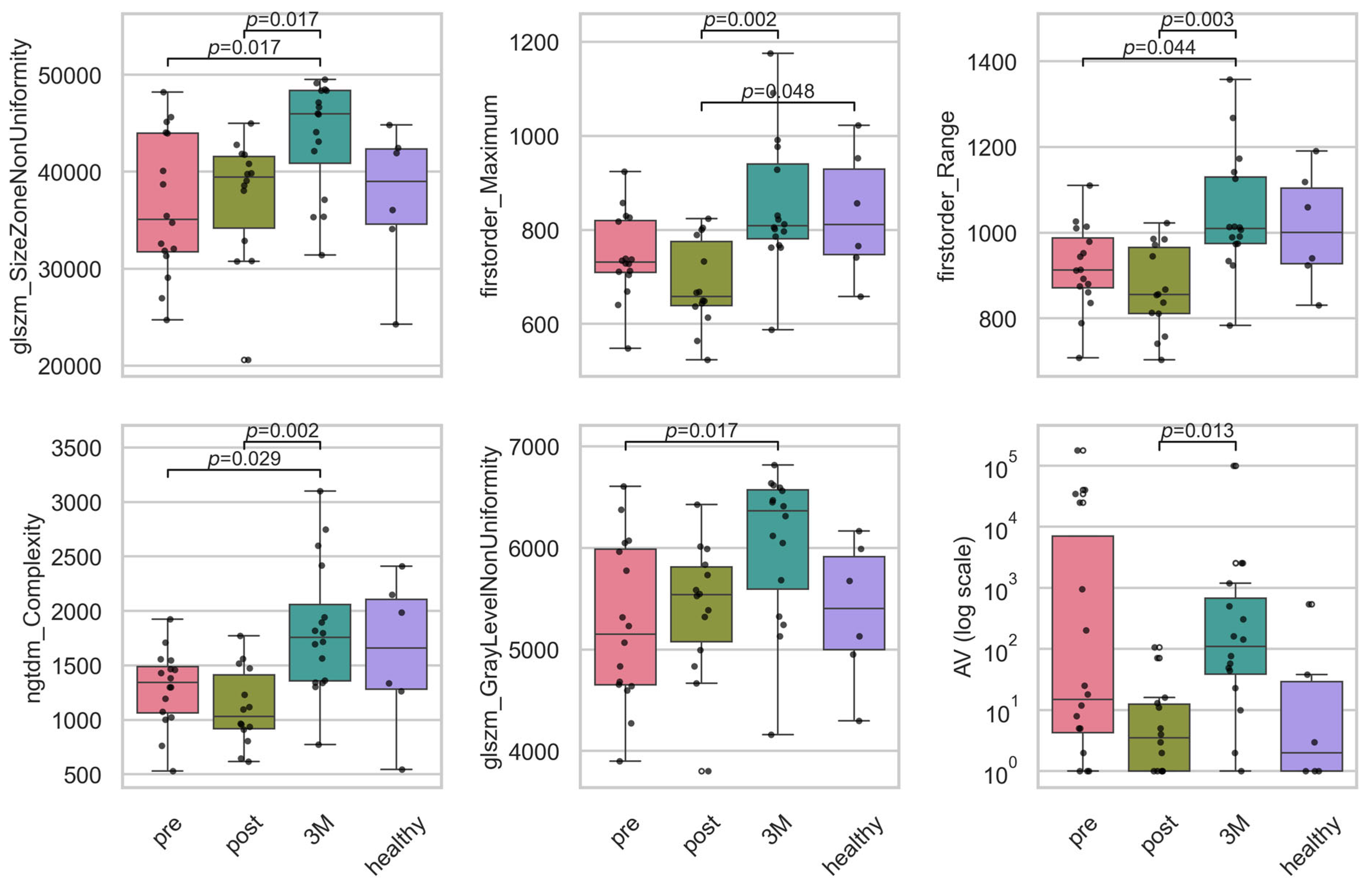

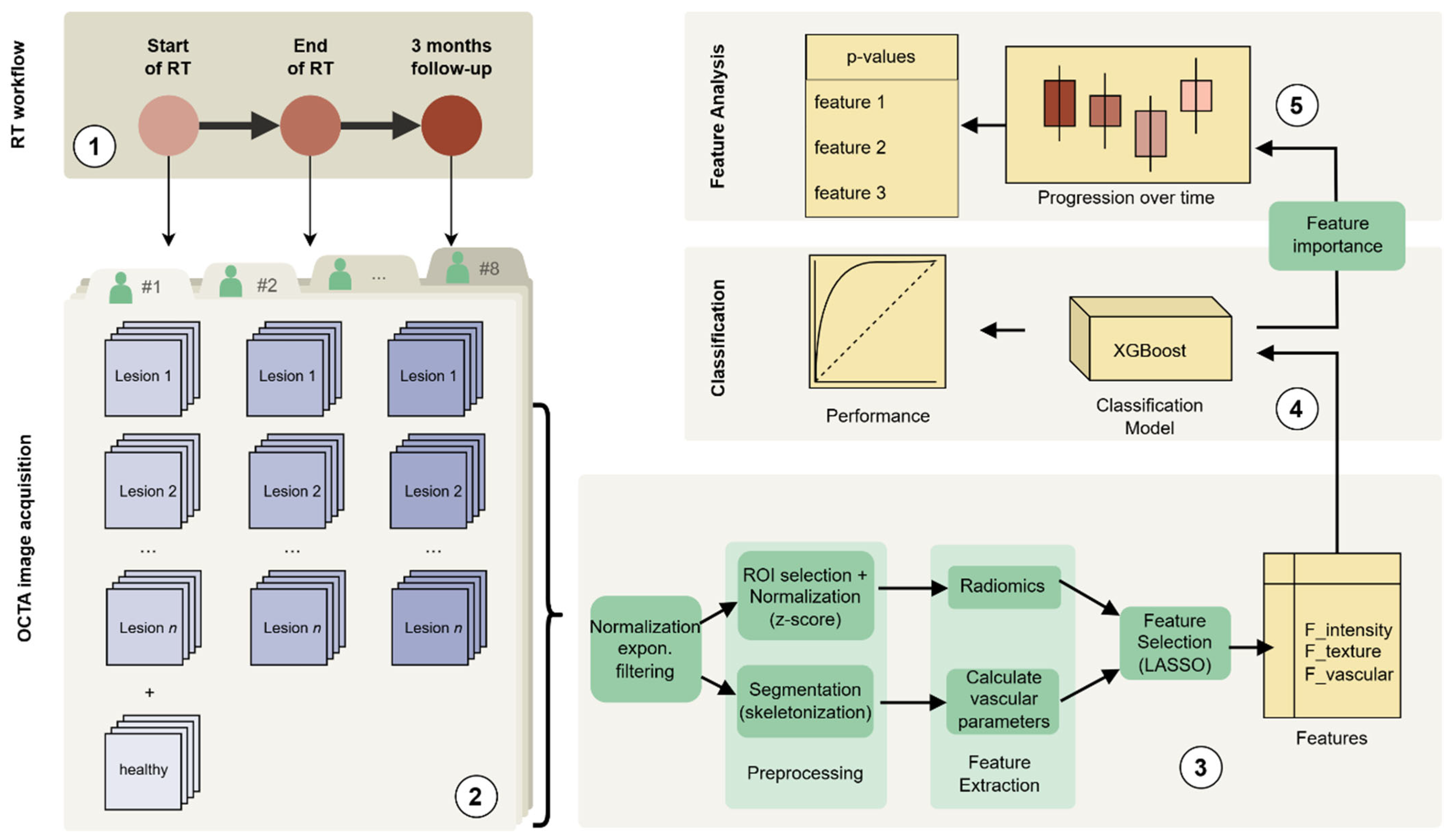

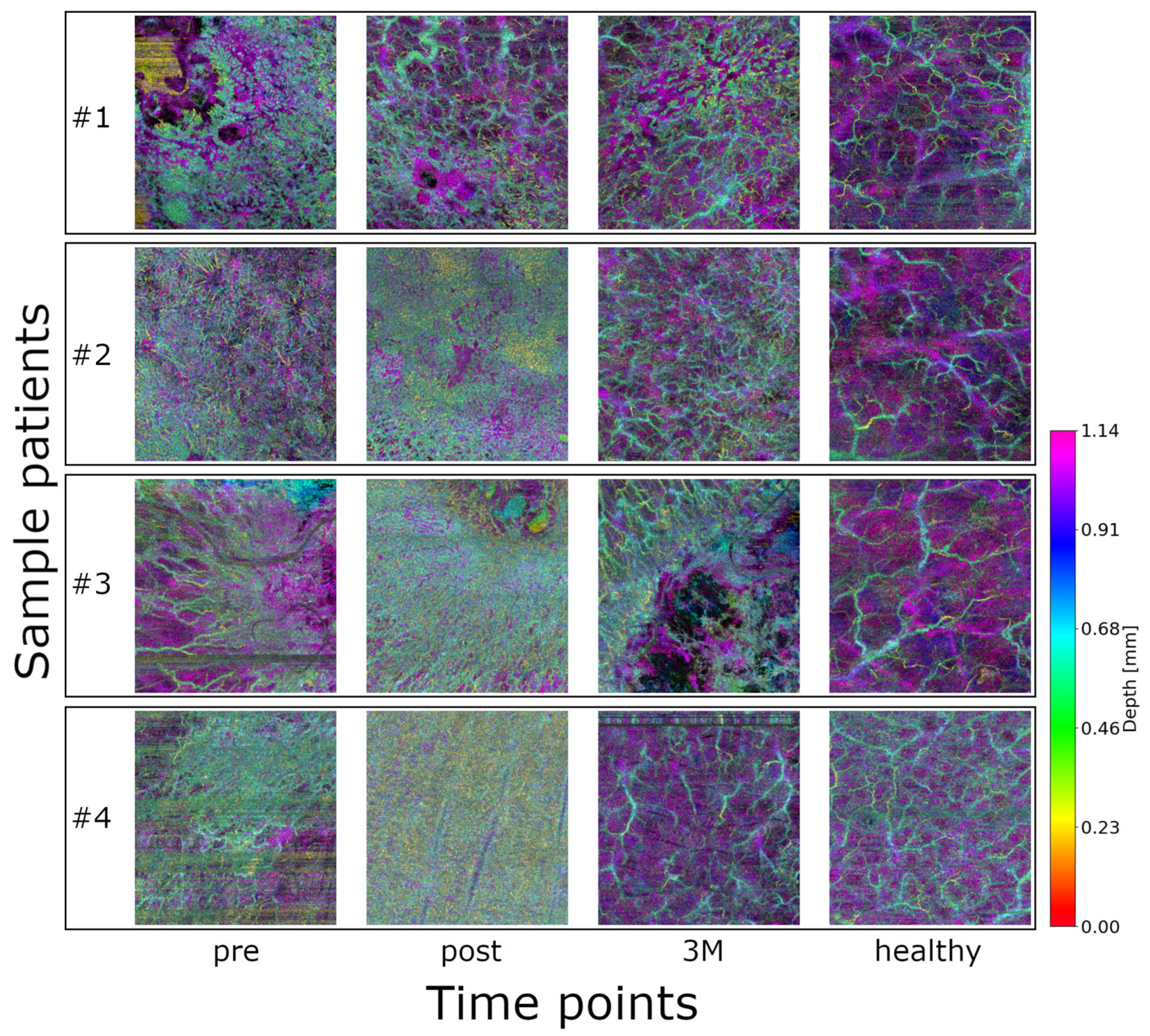

Background/Objectives: This proof-of-concept study evaluated whether optical coherence tomography angiography (OCTA) can non-invasively capture micro-vascular alterations in non-melanoma skin cancer (NMSC) lesions during and after superficial orthovoltage radiotherapy (RT) using radiomics and vascular features analysis. Methods: Eight patients (13 NMSC lesions) received 36–50 Gy in 6–20 fractions. High-resolution swept-source OCTA volumes (1.1 × 10 × 10 mm3) were acquired from each lesion at three time points: pre-RT, immediately post-RT, and three months post-RT. Additionally, healthy skin baseline was scanned. After artifact suppression and region-of-interest cropping, (i) first-order and texture radiomics and (ii) skeleton-based vascular features were extracted. Selected features after LASSO (least absolute shrinkage and selection operator) were explored with principal-component analysis. An XGBoost model was trained to classify time points with 100 bootstrap out-of-bag validations. Kruskal–Wallis tests with Benjamini–Hochberg correction assessed longitudinal changes in the 20 most influential features. Results: Sixty-one OCTA volumes were analyzable. LASSO retained 47 of 103 features. The first two principal components explained 63% of the variance, revealing a visible drift of lesions from pre- to three-month post-RT clusters. XGBoost achieved a macro-averaged AUC of 0.68 ± 0.07. Six features (3 texture, 2 first order, 1 vascular) changed significantly across time points (adjusted p < 0.05), indicating dose-dependent reductions in signal heterogeneity and micro-vascular complexity as early as treatment completion, which deepened by three months. Conclusions: OCTA-derived radiomic and vascular signatures tracked RT-induced micro-vascular remodeling in NMSC. The approach is entirely non-invasive, label-free, and feasible at the point of care. As an exploratory proof-of-concept, this study helps to refine scanning and analysis protocols and generates knowledge to support future integration of OCTA into adaptive skin-cancer radiotherapy workflows.
Keywords: optical coherence tomography angiography; vascularization; radiotherapy; radiomics; non-melanoma skin cancer optical coherence tomography angiography; vascularization; radiotherapy; radiomics; non-melanoma skin cancer
