Autocatalytic Networks at the Basis of Life’s Origin and Organization

by 1,* and 2
1, Lausanne, Switzerland
Biomathematics Research Centre, University of Canterbury, Private Bag 4800, Christchurch, New Zealand
Author to whom correspondence should be addressed.
Received: 1 September 2018 / Revised: 27 November 2018 / Accepted: 7 December 2018 / Published: 8 December 2018
(This article belongs to the Special Issue Systems Protobiology: Origin of Life by Mutually Catalytic Networks)


Life is more than the sum of its constituent molecules. Living systems depend on a particular chemical organization, i.e., the ways in which their constituent molecules interact and cooperate with each other through catalyzed chemical reactions. Several abstract models of minimal life, based on this idea of chemical organization and also in the context of the origin of life, were developed independently in the 1960s and 1970s. These models include hypercycles, chemotons, autopoietic systems, (M,R)-systems, and autocatalytic sets. We briefly compare these various models, and then focus more specifically on the concept of autocatalytic sets and their mathematical formalization, RAF theory. We argue that autocatalytic sets are a necessary (although not sufficient) condition for life-like behavior. We then elaborate on the suggestion that simple inorganic molecules like metals and minerals may have been the earliest catalysts in the formation of prebiotic autocatalytic sets, and how RAF theory may also be applied to systems beyond chemistry, such as ecology, economics, and cognition.

1. Life’s Organization

Consider the following experiment. Take some E. coli bacteria, put them in a petri dish with appropriate nutrients (such as glucose and some salts), and let them stand for a few days. Soon enough, the petri dish will be full of happily eating and reproducing bacteria. Now take those same E. coli bacteria and grind them up into their constituent molecules, place those molecules in a petri dish in a sterile environment with the same nutrients, and watch what happens. Nothing.
Next, consider an experiment that was performed more than 50 years ago [1]. Take some dried fertilized eggs from the common brine shrimp known as Artemia (Figure 1), store them at 2 ° Kelvin for about six days, then slowly warm them back up to room temperature, and watch what happens. The eggs hatch and the larvae grow into adults, which mate and lay eggs. In other words, after having been stored at close to absolute zero temperature for almost a week, Artemia continues its normal life cycle.
In both experiments, the first one with E. coli and the second one with Artemia, life was killed off. However, in the second experiment, the living state could be regenerated. What made the difference between these two experiments?
In the second experiment, with Artemia, life’s organization was not destroyed. Clearly, life is more than just the collection of its constituent molecules. There is something specific about the way in which these molecules are organized into a particular reaction network that gives living systems their special properties.

2. Formal Models

Already in the 1960s and 1970s formal models of minimal life, some also attempting to model a possible origin of life, were developed independently by different researchers in different places, largely based on the notion of life as an organized chemical reaction network. These models include:
  • hypercycles (Eigen & Schuster, Germany),
  • chemotons (Gánti, Hungary),
  • autopoietic systems (Maturana & Varela, Chile),
  • (M,R) systems (Rosen, USA/Canada),
  • collectively autocatalytic sets (Kauffman, USA).
These models have several elements in common but they also have their differences.
Hypercycles were originally introduced as a possible way to overcome the error threshold in the template-based self-replication of biological polymers [3]. They consist of a cyclic arrangement of catalytic polymers, each one catalyzing both its own replication as well as that of the next one in the cycle. They have been studied extensively both mathematically and with computer simulations [4,5,6], and were quickly viewed as a possible mechanism in the context of the origin of life [7]. However, as far as we are aware, there are no published experimental chemical examples of hypercycles.
Chemotons were introduced as a minimal formal model of a living cell [8]. They involve three chemically coupled subsystems: (1) An autocatalytic metabolism, (2) a genetic system, and (3) a membrane. Like hypercycles, chemotons have been studied extensively both mathematically and with computer simulations [9]. However, a chemoton is generally considered to be too complex to serve as a plausible model for the origin of life. Furthermore, although a living cell is, by definition, an instance of a chemoton, there appear to be no published experimental chemical examples of chemotons.
Autopoietic systems [10] and (M,R) systems [11] are both abstract models of living systems focusing on functional closure. In other words, such systems produce their own components in such a way as to maintain their own internal (network) structure through which these components are produced. However, these models were formulated without any specific chemical basis. They are conceptually related [12], but have mostly remained at a highly abstract level. However, some simple autopoietic chemical systems have been constructed experimentally [13].
Finally, the concept of collectively autocatalytic sets was introduced to capture the notion of the collective replication of entire sets of molecules, which can be expected to emerge spontaneously in systems with a large enough diversity of molecule types [14]. Autocatalytic sets consist of a set of molecule types that mutually catalyze each other’s formation from a basic food source, thus focusing on catalytic closure as a specific (chemically-based) instance of functional closure. They were studied both mathematically and with computer simulations [15,16,17,18,19] and, contrary to most of the other models, various experimental chemical examples of autocatalytic sets do exist [20,21,22,23,24]. The notion of autocatalytic sets has been studied more extensively as RAF theory [25], which will be the focus of the remainder of this paper.

3. Catalysis: The Secret to Life?

A catalyst is a molecule that speeds up the rate at which a chemical reaction happens, without being used up in that reaction. Catalysis is ubiquitous in living systems. The majority of biological reactions are catalyzed, and catalysts are essential in determining and regulating the functionality of the chemical reaction networks that support life [26].
Not only do catalysts significantly increase the rates at which these reactions happen, but they also synchronize these rates more closely. For example, Figure 2 shows a comparison of uncatalyzed and (enzymatically) catalyzed rates for several biological reactions [27]. The rate increase from uncatalyzed to catalyzed reactions is many orders of magnitude. Furthermore, the range of rates decreases from roughly 15 orders of magnitude to only about three or four orders of magnitude. Both of these properties—an increase in the absolute rates and a decrease in the range of rates—are important for ensuring that living systems function properly [27].
In modern-day organisms, catalysis is typically carried out by highly evolved enzymes. An enzyme is a protein that is folded into a specific three-dimensional structure which allows it to bind efficiently to other substrates. This way, these other substrates are held in the right place so they can undergo a chemical reaction. Furthermore, this reaction is often facilitated by yet another element, often referred to as a cofactor, which is also held in place by the protein, and which serves as the actual catalyst. This cofactor can be a simple inorganic molecule such as a metal ion, or an organically produced molecule such as a vitamin or ATP. It is possible—perhaps even likely—that these cofactors on their own (i.e., without an encasing protein) were the original catalysts at the origin of life, a topic we will briefly return to below.
As a final remark, given the ubiquity of catalysis in living systems, it seems that life does not so much “invent” new chemistry, but rather uses chemistry that happens anyway, evolving efficient catalysts to speed up those reactions that are in some way useful for its own maintenance and reproduction. This way, a (self-)catalyzed reaction sub-network arises out of a background of all possible chemical reactions.

4. Autocatalytic Sets

Combining the notion of life as an organized chemical reaction network and the importance of catalysis in living systems, Kauffman introduced the concept of an autocatalytic set [14,15,16]. Simply put, an autocatalytic set is a set of molecules that mutually catalyze each other’s formation through chemical reactions from a basic food source. The notion of an autocatalytic set can be formalized in various ways. The one that seems the most relevant to settings such as the origin of life is the concept of a RAF (Reflexively Autocatalytic and Food-generated) set. This is a (sub)set R of reactions that simultaneously satisfies the following two conditions:
  • Reflexively Autocatalytic (RA): Each reaction r R is catalyzed by at least one molecule type that is either a product of R or is present in the food set F; and
  • F-generated (F): All reactants involved in reactions in R can be created from the food set F by using a series of reactions only from R itself.
The food set F is a subset of molecule types that can be assumed to be available in the environment (i.e., they do not necessarily have to be produced by any of the reactions). A simple example of a Reflexively Autocatalytic and F-generated (RAF) set is shown in Figure 3. A mathematically rigorous definition of RAF sets is provided in [28,29].
An autocatalytic set thus forms a catalytically closed (RA) and self-sustaining (F) reaction network (or RAF). They have been studied extensively both mathematically and computationally as RAF theory [25]. These studies have shown that RAF sets are highly likely to exist in simple polymer models, also at realistic (and modest) levels of catalysis (defined as the average number of reactions catalyzed per molecule type) [28,31,32]. Moreover, these results hold under a wide variety of model assumptions [29,30,33,34,35,36].
Furthermore, RAF sets often consist of many hierarchical levels of subRAFs [37,38]. For example, the RAF set in Figure 3, consisting of five reactions (labeled r 1 to r 5 ) contains the smaller subRAFs { r 1 , r 2 } (indicated in red) and { r 3 , r 4 , r 5 } (indicated in blue). This property provides one of the necessary conditions for autocatalytic sets to be potentially evolvable [39,40,41,42]. The concept of autocatalytic sets has also been studied in related models and contexts, all giving rise to similar results in terms of the probability of their existence and potential evolvability [17,18,19,43,44,45,46,47,48,49,50,51].
However, autocatalytic sets are not just a theoretical concept. Several experimental examples have been created in the lab, either with nucleic acids or with proteins [20,21,22,23,24]. The earliest examples consisted simply of a system of two mutually catalytic nucleotide sequences, but later examples involved a set of nine peptides that mutually catalyze each other’s formation from shorter peptide fragments in various ways [22], or up to 16 ribozymes (catalytic RNA molecules) in a network of mutual catalysis [23]. Moreover, several of these experimental examples have been studied in more detail using the formal RAF framework, providing additional insights, and bringing theory and experiments closer together [52,53,54].
Note that although these experimental examples are indeed autocatalytic sets, they are not hypercycles. A hypercycle is a special (and rather restricted) instance of the more general notion of autocatalytic sets, one in which all molecule types also catalyze their own formation in addition to the formation of one or more of the other molecule types. However, in general, none of the molecule types in an autocatalytic set need to be self-replicators (although they could be).
Finally, the RAF framework has also been applied to the metabolic network of E. coli, showing that it forms an autocatalytic set comprising almost the entire network [55]. This brings the concept of autocatalytic sets back to the original notion of life as an organized chemical reaction network in which catalysis plays a crucial role. Indeed, an essential property of living systems is that they produce their own catalysts and, moreover, these catalysts mutually catalyze each other’s formation. This is exactly what allows living systems to evolve, diversify, and become more complex [26,56]. We therefore argue that autocatalytic sets are a necessary (although not sufficient) condition for life-like behavior.
The next section presents some more technical details of RAF theory.

5. RAF Theory

We refer to a catalytic reaction system (CRS) as a set of molecule types (including a food set), a set of reactions, and a pattern of catalysis (describing which molecules catalyze which reactions). Note that an arbitrary CRS does not necessarily contain a subset of reactions that forms a RAF. However, when such a RAF subset does exist, there is a unique maximal one (containing all other possible RAFs) and this unique maxRAF can be found by an efficient algorithm that runs in polynomial time in the size of the original CRS [28].
The maxRAF together with all of its subRAFs form a partially ordered set (poset) under set inclusion. The minimal elements of this poset are called irreducible RAFs (irrRAFs): Removing any reaction from an irrRAF results in a set that no longer is (or contains) a RAF. In other words, they are in some sense the “smallest” RAFs, and presumably the first ones to emerge in a dynamical sense. Finding irrRAFs in any CRS can also be done in polynomial time (i.e., efficiently); however, there can be exponentially many of them (in terms of the number of reactions in the maxRAF), so enumerating all of them can, in general, cannot be done efficiently [28,30,57]. Figure 4 shows the poset of subRAFs for the maxRAF of Figure 3.
The poset of (sub)RAFs provides a formal structure to enumerate and investigate the possible ways in which small RAFs (starting with irrRAFs, at the bottom) might have evolved to larger, more complex RAFs (for example by generating more efficient catalysts, a topic we will return to below). As another example, the experimental peptide autocatalytic network described in [22] has a maxRAF of nine reactions, but it contains a total of 305 subRAFs altogether, including six irrRAFs.
However, the main subRAFs of interest, from a dynamical point of view, are those that are closed. This means that any reaction for which all reactants and at least one catalyst are currently available from within the subRAF will be included in it. For example, as the poset in Figure 4 shows, the subRAF { r 3 , r 4 , r 5 } contains an even smaller subRAF { r 3 , r 4 } . However, this smaller subRAF is not closed: Reactions r 3 and r 4 together create the necessary reactant and catalyst for r 5 , which can thus also proceed catalyzed. In other words, the subRAF { r 3 , r 4 , r 5 } is a closed RAF, but none of its subRAFs are. The RAF of Figure 3 contains two closed RAFs (including the maxRAF itself), which are indicated by the red ovals in the poset in Figure 4. As another example, the experimental 16-ribozyme system from [23] has only one closed RAF (namely the maxRAF). However, a simpler 7-ribozyme subsystem of this network investigated in [52] has two closed RAFs (out of 67 subRAFs in total).
A maxRAF is, by definition, always closed, but it may contain other closed RAFs within it, as the above examples show. Closed RAFs are closely connected to “organizations” in chemical organization theory (COT) [58]. Thus, the theory of chemical organizations can be used to detect and enumerate closed RAFs [59]. Although many basic questions concerning the organization of the RAF poset can be solved by efficient (polynomial-time) algorithms, some questions, such as finding (or even calculating the size of) the smallest RAF, have been shown to be NP-hard, i.e., they cannot be solved efficiently [57].
If there are closed RAFs in the poset other than the maxRAF, it implies that some reactions in the maxRAF do not immediately have all their reactants and/or catalysts present (i.e., when the system is initialized with just the food molecules). For example, in the subRAF { r 1 , r 2 } that is part of the maxRAF of Figure 3, reaction r 1 provides a necessary reactant for reaction r 2 , which in turn provides the required catalyst for r 1 . In other words, none of these two reactions can proceed catalyzed when only food molecules are present. This means that reaction r 1 will have to happen “spontaneously” (uncatalyzed) initially, before the subRAF { r 1 , r 2 } can come into existence dynamically.
This requirement for initial spontaneous reactions, however, provides one of the basic requirements for autocatalytic sets to be (potentially) evolvable [39,40,41,42]. Since such spontaneous reactions are rare stochastic events, different repetitions of the same experiment or simulation can give rise to different combinations of subRAFs coming into existence dynamically, potentially giving rise to different types of “protocells” that can then compete with each other (e.g., for food resources) and undergo a rudimentary form of evolution [42]. In this form of evolution, inheritance is compositional (in terms of which subRAF are currently present, dynamically), and mutations are the (spontaneous) gain or loss of a (closed) subRAF.
A stronger concept of autocatalytic sets that requires catalysts to be already available the first time they are required leads to the more restrictive notion of a “constructively autocatalytic and food-generated” (CAF) set. CAF sets turn out to require much higher levels of catalysis to form than RAFs, and they clearly lack any compositional variety for evolution to act on (there is always only one closed CAF, namely the maxCAF). On the other hand, a notion weaker than RAFs is that of “pseudo-RAFs” (p-RAFs), in which the reactants and at least one catalyst for each reaction are produced either by some other reaction within the set (not necessarily starting from the food set) or are already present in the food set. However, this notion is also biochemically less relevant to early life than RAFs, since p-RAFs may not be food-generated (and thus not self-maintaining). These different notions are contrasted with true RAFs in Figure 5. Note that every CAF is a RAF, and every RAF is a p-RAF. The notion of a RAF thus represents a set that is able to form from a food set, yet without being too restrictive regarding the immediate availability of catalysts (i.e., some catalysts may have to be formed through reactions that are initially spontaneous and only catalyzed later).
We now turn to the probability of RAFs forming in random polymer models. For Kauffman’s original binary polymer model [16], the probability of a RAF arising undergoes a sharp transition from 0 to 1 as the expected number of reactions catalyzed by each molecule passes a certain threshold. It can be proven mathematically [32] that this threshold grows slowly (logarithmically) with the size of the CRS (and thus linearly with length of the longest polymer), and simulations show that for moderate-sized instances of the binary polymer model (involving on the order of 10 3 to 10 6 reactions), this critical catalysis rate requires each molecule to catalyze between one and two reactions on average. By contrast, CAFs require exponentially higher levels of catalysis [32]. An interesting feature of RAFs at catalysis rates where they are just starting to emerge in the binary polymer model is that small RAFs are highly unlikely to be present (this can be proven formally, and is also supported by simulations) [57]. However, if the catalysis rates are more heterogeneous across the molecule types, then it can be mathematically demonstrated that small RAFs also appear [36].
RAF theory has also been extended to allow for the incorporation of reaction rates, or to allow some molecule types to inhibit reactions [36,38,60]. Reaction rates (i.e., kinetic constants) are of course important in studying the actual dynamical behavior of RAF sets, which can be done through simulations using the standard Gillespie algorithm [61,62].

6. Cofactors and Coevolution

In modern-day life the chemical reactions making up an organism’s metabolism are catalyzed by highly evolved enzymes (=protein + cofactor). However, there is increasing evidence that many biological reactions can be catalyzed by inorganic elements alone [63,64,65,66]. Furthermore, many modern-day enzymes still use these inorganic elements as their cofactors [67,68].
Thus, it seems plausible that the earliest catalysts, at the origin of life, were inorganic elements that were around on the early earth anyway. These inorganic elements by themselves would likely have been much less efficient than when they are a cofactor in an enzyme, but any positive catalytic efficiency would have provided an advantage early on, compared to a background of only spontaneous (i.e., low-rate) reactions. Moreover, many of these inorganic elements would have been able to catalyze multiple reactions. Catalytic specificity probably only arose once proteins were around.
This provides a logical narrative in terms of increasingly large and complex autocatalytic sets. The first autocatalytic sets would have arisen with inorganic elements as their catalysts. Once these autocatalytic sets had established themselves, this opened up the possibility of producing more complex (organic) molecules, some of which could form more efficient catalysts, or incorporate the original inorganic elements as their cofactor making them more efficient and more specific. This, in turn, could then lead to yet more molecular complexity and catalytic efficiency, and so on until something resembling a modern-day metabolic network was formed [69]. The importance of cofactors in this process has been stressed before [55,70].
Related to this, modern life is based on two types of polymers: Nucleic acids and proteins. Both are necessary for each other’s formation. However, the standard paradigm in origin of life research, that of an RNA world, assumes that RNA arose and established itself first, with DNA and proteins relative late-comers. The standard paradigm has been questioned by many though, and one could ask whether the different types of polymers might have coevolved right from the start [71].
As mentioned above, experimental autocatalytic sets have been constructed in the lab either with RNA or with peptides [22,23,24]. It would be interesting to see if they can be made with both types of polymers together. Simulation studies have shown that in models of “partitioned” biochemical networks, where chemical reactions can happen only within one partition but catalysis can happen both within and between partitions, autocatalytic sets also have a high probability of existing, and for similar levels of catalysis as in the original (single-polymer type) models [35].
Since the formal RAF framework has already been successfully applied to the existing experimental systems, providing useful additional insights [52,53,54], such theoretical and computational studies could hopefully also serve as a guide in constructing experimental autocatalytic sets with both RNA and peptides. Furthermore, simulation studies of “partitioned” autocatalytic sets within protocells, following recent initial dynamical studies of autocatalytic sets in compartments [42], could provide additional insights into the possible early evolution of such two-polymer type systems.

7. Beyond Chemistry

Finally, it is possible to apply the formal RAF framework to systems beyond chemistry and the origin of life. In fact, since RAF sets are defined in a graph-theoretical way, they are not restricted to chemical reaction networks only. In principle, the nodes in a “reaction graph” could represent any kinds of entities (dots) and transformations (boxes) between those entities. For example, in modeling early life, one can regard the formation of a lipid boundary leading to an early protocell as the generation of a “higher-level” catalyst for the reactions that involve the molecules that are concentrated within the boundary (here, the catalyst is an aggregate structure rather than a single molecule) [13,72].
A more far-reaching extension was suggested recently by viewing ecosystems as a network of mutually dependent autocatalytic sets (representing species), enabling each other’s emergence and existence [73,74]. As another example, one could think of economic production functions as the equivalent of chemical reactions, where some of the produced goods in turn act as catalysts for other production functions. With this analogy in place, one could think of the economy as a whole as a catalytically closed and self-sustaining autocatalytic set [25,75]. As a final example, the RAF concept has also been applied to cognition and the origin of culture [76].

8. Conclusions

Already by the early 1970s, several formal models were developed (independently) based on the notion of life as an organized chemical reaction network. So far, only one of those models (autocatalytic sets) has both been studied and understood in detail mathematically and computationally and has several experimentally constructed chemical examples. Furthermore, it has been shown formally that the metabolic network of actual living organisms (or at least that of E. coli) can indeed be represented as an autocatalytic (RAF) set.
RAF sets have been shown to form easily in simple polymer models of chemical reaction networks, under a wide variety of model assumption, and to be, in principle, evolvable [25]. Similar computational models have shown that they are also sustainable when enclosed within small vesicles such as lipid membranes [46]. Moreover, they have been shown to form and sustain themselves in experimental laboratory settings [22,23,24].
It is plausible that the earliest catalysts in autocatalytic sets were inorganic elements such as metal ions, and that these were later incorporated as cofactors within proteins to become more efficient and specific, giving rise to larger and more complex autocatalytic sets over time. Finally, the formal RAF framework can be applied to systems beyond chemistry, such as ecosystems, the economy, and cognition. Thus, the framework represents a mathematically sound and versatile tool for studying autocatalytic sets as the basis of life’s origin and organization.

Author Contributions

Conceptualization, W.H.; writing—original draft preparation, W.H.; writing—review & editing, W.H., M.S.


This research received no external funding.


We thank our autocatalytic network of collaborators for the many stimulating discussions and opportunities to work together over the years.

Conflicts of Interest

The authors declare no conflict of interest. The funding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Skoultchi, A.I.; Morowitz, H.J. Information storage and survival of biological systems at temperatures near absolute zero. Yale J. Biol. Med. 1964, 37, 158–163. [Google Scholar] [PubMed]
  2. Gajardo, G.M.; Beardmore, J.A. The brine shrimp Artemia: Adapted to critical life conditions. Front. Physiol. 2012, 3, 185. [Google Scholar] [CrossRef] [PubMed]
  3. Eigen, M. Selforganization of matter and the evolution of biological macromolecules. Naturwissenschaften 1971, 58, 465–523. [Google Scholar] [CrossRef] [PubMed]
  4. Eigen, M.; Schuster, P. The Hypercycle; Springer: Berlin/Heidelberg, Germany, 1979. [Google Scholar]
  5. Boerlijst, M.C.; Hogeweg, P. Spiral wave structure in pre-biotic evolution: Hypercycles stable against parasites. Phys. D 1991, 48, 17–28. [Google Scholar] [CrossRef]
  6. Boerlijst, M.C.; Hogeweg, P. Spatial gradients enhance persistence of hypercycles. Phys. D 1995, 88, 29–39. [Google Scholar] [CrossRef][Green Version]
  7. Maynard Smith, J. Hypercycles and the origin of life. Nature 1979, 280, 445–446. [Google Scholar] [CrossRef]
  8. Gánti, T. Organization of chemical reactions into dividing and metabolizing units: The chemotons. BioSystems 1975, 7, 15–21. [Google Scholar] [CrossRef]
  9. Gánti, T. The Principles of Life; Oxford University Press: Oxford, UK, 2003. [Google Scholar]
  10. Varela, F.J.; Maturana, H.R.; Uribe, R. Autopoiesis: The organization of living systems, its characterization and a model. BioSystems 1974, 5, 187–196. [Google Scholar] [CrossRef]
  11. Rosen, R. Life Itself; Columbia University Press: New York, NY, USA, 1991. [Google Scholar]
  12. Letelier, J.C.; Marín, G.; Mpodozis, J. Autopoietic and (M,R) systems. J. Theor. Biol. 2003, 222, 261–272. [Google Scholar] [CrossRef]
  13. Walde, P.; Wick, R.; Fresta, M.; Mangone, A.; Luigi Luisi, P. Autopoietic Self-Reproduction of Fatty Acid Vesicles. J. Am. Chem. Soc. 1994, 116, 11649–11654. [Google Scholar] [CrossRef]
  14. Kauffman, S.A. Cellular homeostasis, epigenesis and replication in randomly aggregated macromolecular systems. J. Cybern. 1971, 1, 71–96. [Google Scholar] [CrossRef]
  15. Kauffman, S.A. Autocatalytic sets of proteins. J. Theor. Biol. 1986, 119, 1–24. [Google Scholar] [CrossRef]
  16. Kauffman, S.A. The Origins of Order; Oxford University Press: Oxford, UK, 1993. [Google Scholar]
  17. Farmer, J.D.; Kauffman, S.A.; Packard, N.H. Autocatalytic replication of polymers. Phys. D 1986, 22, 50–67. [Google Scholar] [CrossRef]
  18. Bagley, R.J.; Farmer, J.D. Spontaneous emergence of a metabolism. In Artificial Life II; Langton, C.G., Taylor, C., Farmer, J.D., Rasmussen, S., Eds.; Addison-Wesley: Boston, MA, USA, 1991; pp. 93–140. [Google Scholar]
  19. Bagley, R.J.; Farmer, J.D.; Fontana, W. Evolution of a metabolism. In Artificial Life II; Langton, C.G., Taylor, C., Farmer, J.D., Rasmussen, S., Eds.; Addison-Wesley: Boston, MA, USA, 1991; pp. 141–158. [Google Scholar]
  20. Sievers, D.; von Kiedrowski, G. Self-replication of complementary nucleotide-based oligomers. Nature 1994, 369, 221–224. [Google Scholar] [CrossRef]
  21. Kim, D.E.; Joyce, G.F. Cross-catalytic replication of an RNA ligase ribozyme. Chem. Biol. 2004, 11, 1505–1512. [Google Scholar] [CrossRef]
  22. Ashkenasy, G.; Jegasia, R.; Yadav, M.; Ghadiri, M.R. Design of a directed molecular network. Proc. Natl. Acad. Sci. USA 2004, 101, 10872–10877. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Vaidya, N.; Manapat, M.L.; Chen, I.A.; Xulvi-Brunet, R.; Hayden, E.J.; Lehman, N. Spontaneous network formation among cooperative RNA replicators. Nature 2012, 491, 72–77. [Google Scholar] [CrossRef] [PubMed]
  24. Arsène, S.; Ameta, S.; Lehman, N.; Griffiths, A.D.; Nghe, P. Coupled catabolism and anabolism in autocatalytic RNA sets. Nucleic Acids Res. 2018, 46, 9660–9666. [Google Scholar] [CrossRef]
  25. Hordijk, W.; Steel, M. Chasing the tail: The emergence of autocatalytic networks. BioSystems 2017, 152, 1–10. [Google Scholar] [CrossRef]
  26. Szöke, A.; Scott, W.G.; Hajdu, J. Catalysis, evolution and life. FEBS Lett. 2003, 553, 18–20. [Google Scholar] [CrossRef][Green Version]
  27. Wolfenden, R.; Snider, M.J. The depth of chemical time and the power of enzymes as catalysts. Acc. Chem. Res. 2001, 34, 938–945. [Google Scholar] [CrossRef] [PubMed]
  28. Hordijk, W.; Steel, M. Detecting autocatalytic, self-sustaining sets in chemical reaction systems. J. Theor. Biol. 2004, 227, 451–461. [Google Scholar] [CrossRef][Green Version]
  29. Hordijk, W.; Kauffman, S.A.; Steel, M. Required levels of catalysis for emergence of autocatalytic sets in models of chemical reaction systems. Int. J. Mol. Sci. 2011, 12, 3085–3101. [Google Scholar] [CrossRef] [PubMed]
  30. Hordijk, W.; Steel, M. Predicting template-based catalysis rates in a simple catalytic reaction model. J. Theor. Biol. 2012, 295, 132–138. [Google Scholar] [CrossRef][Green Version]
  31. Steel, M. The emergence of a self-catalysing structure in abstract origin-of-life models. Appl. Math. Lett. 2000, 3, 91–95. [Google Scholar] [CrossRef]
  32. Mossel, E.; Steel, M. Random biochemical networks: The probability of self-sustaining autocatalysis. J. Theor. Biol. 2005, 233, 327–336. [Google Scholar] [CrossRef]
  33. Hordijk, W.; Hasenclever, L.; Gao, J.; Mincheva, D.; Hein, J. An investigation into irreducible autocatalytic sets and power law distributed catalysis. Nat. Comput. 2014, 13, 287–296. [Google Scholar] [CrossRef]
  34. Hordijk, W.; Wills, P.R.; Steel, M. Autocatalytic sets and biological specificity. Bull. Math. Biol. 2014, 76, 201–224. [Google Scholar] [CrossRef]
  35. Smith, J.; Steel, M.; Hordijk, W. Autocatalytic sets in a partitioned biochemical network. J. Syst. Chem. 2014, 5, 2. [Google Scholar] [CrossRef][Green Version]
  36. Hordijk, W.; Steel, M. Autocatalytic sets in polymer networks with variable catalysis distributions. J. Math. Chem. 2016, 54, 1997–2021. [Google Scholar] [CrossRef][Green Version]
  37. Hordijk, W.; Steel, M.; Kauffman, S. The structure of autocatalytic sets: Evolvability, enablement, and emergence. Acta Biotheor. 2012, 60, 379–392. [Google Scholar] [CrossRef]
  38. Hordijk, W.; Smith, J.I.; Steel, M. Algorithms for detecting and analysing autocatalytic sets. Algorithms Mol. Biol. 2015, 10, 15. [Google Scholar] [CrossRef] [PubMed]
  39. Vasas, V.; Fernando, C.; Santos, M.; Kauffman, S.; Sathmáry, E. Evolution before genes. Biol. Direct 2012, 7, 1. [Google Scholar] [CrossRef] [PubMed][Green Version]
  40. Hordijk, W.; Steel, M. Conditions for evolvability of autocatalytic sets: A formal example and analysis. Orig. Life Evol. Biosph. 2014, 44, 111–124. [Google Scholar] [CrossRef] [PubMed]
  41. Hordijk, W. Evolution of autocatalytic sets in computational models of chemical reaction networks. Orig. Life Evol. Biosph. 2016, 46, 233–245. [Google Scholar] [CrossRef]
  42. Hordijk, W.; Naylor, J.; Krasnogor, N.; Fellermann, H. Population dynamics of autocatalytic sets in a compartmentalized spatial world. Life 2018, 8, 33. [Google Scholar] [CrossRef] [PubMed]
  43. Wills, P.R.; Henderson, L. Self-organisation and information-carrying capacity of collectively autocatalytic sets of polymers: Ligation systems. In Unifying Themes in Complex Systems: Proceedings of the First International Conference on Complex Systems; Bar-Yam, Y., Ed.; Perseus Books: New York, NY, USA, 2000; pp. 613–623. [Google Scholar]
  44. Filisetti, A.; Graudenzi, A.; Serra, R.; Villani, M.; De Lucrezia, D.; Fuchslin, R.M.; Kauffman, S.A.; Packard, N.; Poli, I. A stochastic model of the emergence of autocatalytic cycles. J. Syst. Chem. 2011, 2, 2. [Google Scholar] [CrossRef][Green Version]
  45. Filisetti, A.; Villani, M.; Damiani, C.; Graudenzi, A.; Roli, A.; Hordijk, W.; Serra, R. On RAF sets and autocatalytic cycles in random reaction networks. Commun. Comput. Inf. Sci. 2014, 445, 113–126. [Google Scholar]
  46. Serra, R.; Villani, M. Modelling Protocells; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
  47. Jain, S.; Krishna, S. Autocatalytic sets and the growth of complexity in an evolutionary model. Phys. Rev. Lett. 1998, 81, 5684–5687. [Google Scholar] [CrossRef]
  48. Jain, S.; Krishna, S. A model for the emergence of cooperation, interdependence, and structure in evolving networks. Proc. Natl. Acad. Sci. USA 2001, 98, 543–547. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Jain, S.; Krishna, S. Large extinctions in an evolutionary model: The role of innovation and keystone species. Proc. Natl. Acad. Sci. USA 2002, 99, 2055–2060. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. Segre, D.; Lancet, D.B.E.D. Compositional genomes: Prebiotic information transfer in mutually catalytic noncovalent assemblies. Proc. Natl. Acad. Sci. USA 2001, 97, 219–230. [Google Scholar] [CrossRef]
  51. Markovitch, O.; Lancet, D. Excess mutual catalysis is required for effective evolvability. Artif. Life 2012, 18, 243–266. [Google Scholar] [CrossRef] [PubMed]
  52. Hordijk, W.; Steel, M. A formal model of autocatalytic sets emerging in an RNA replicator system. J. Syst. Chem. 2013, 4, 3. [Google Scholar] [CrossRef][Green Version]
  53. Hordijk, W.; Vaidya, N.; Lehman, N. Serial transfer can aid the evolution of autocatalytic sets. J. Syst. Chem. 2014, 5, 4. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Hordijk, W.; Shichor, S.; Ashkenasy, G. The influence of modularity, seeding, and product inhibition on peptide autocatalytic network dynamics. ChemPhysChem 2018, 19, 2437–2444. [Google Scholar] [CrossRef]
  55. Sousa, F.L.; Hordijk, W.; Steel, M.; Martin, W.F. Autocatalytic sets in E. coli metabolism. J. Syst. Chem. 2015, 6, 4. [Google Scholar] [CrossRef]
  56. Ruiz-Mirazo, K.; Briones, C.; de la Escosura, A. Chemical roots of biological evolution: The origins of life as a process of development of autonomous functional systems. Open Biol. 2017, 7, 170050. [Google Scholar] [CrossRef]
  57. Steel, M.; Hordijk, W.; Smith, J. Minimal autocatalytic networks. J. Theor. Biol. 2013, 332, 96–107. [Google Scholar] [CrossRef][Green Version]
  58. Dittrich, P.; Speroni di Fenizio, P. Chemical Organization Theory. Bull. Math. Biol. 2007, 69, 1199–1231. [Google Scholar] [CrossRef]
  59. Hordijk, W.; Steel, M.; Dittrich, P. Autocatalytic sets and chemical organizations: Modeling self-sustaining reaction networks at the origin of life. New J. Phys. 2018, 20, 015011. [Google Scholar] [CrossRef]
  60. Steel, M.; Hordijk, W.; Xavier, J.C. Autocatalytic networks in biology: Structural theory and algorithms. J. R. Soc. Interface 2018. under review. [Google Scholar]
  61. Gillespie, D.T. A general method for numerically simulating the stochastic time evolution of coupled chemical reactions. J. Comput. Phys. 1976, 22, 403–434. [Google Scholar] [CrossRef]
  62. Gillespie, D.T. Exact stochastic simulation of coupled chemical reactions. J. Phys. Chem. 1977, 81, 2340–2361. [Google Scholar] [CrossRef][Green Version]
  63. Schwartz, A.W.; de Graaf, R.M. The prebiotic synthesis of carbohydrates: A reassessment. J. Mol. Evol. 1993, 36, 101–106. [Google Scholar] [CrossRef]
  64. Zhang, X.V.; Martin, S.T. Driving parts of Krebs cycle in reverse through mineral photochemistry. J. Am. Chem. Soc. 2006, 128, 16032–16033. [Google Scholar] [CrossRef] [PubMed]
  65. Muchowska, K.B.; Varma, S.J.; Chevallot-Beroux, E.; Lethuillier-Karl, L.; Li, G.; Moran, J. Metals promote sequences of the reverse Krebs cycle. Nat. Ecol. Evol. 2017, 1, 1716–1721. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Varma, S.J.; Muchowska, K.B.; Chatelain, P.; Moran, J. Native iron reduces CO2 to intermediates and end-products of the acetyl-CoA pathway. Nat. Ecol. Evol. 2018, 2, 1019–1024. [Google Scholar] [CrossRef]
  67. Christen, P.; Mehta, P.K. From cofactor to enzymes: The molecular evolution of pyridoxal-5-phosphate-dependent enzymes. Chem. Rec. 2001, 1, 436–447. [Google Scholar] [CrossRef]
  68. Rees, D.C.; Howard, J.B. The interface between the biological and inorganic worlds: Iron-sulfur metalloclusters. Science 2003, 300, 929–931. [Google Scholar] [CrossRef]
  69. Goldford, J.E.; Segrè, D. Modern views of ancient metabolic networks. Curr. Opin. Syst. Biol. 2018, 8, 117–124. [Google Scholar] [CrossRef]
  70. Weiss, M.C.; Sousa, F.L.; Mrnjavac, N.; Neukirchen, S.; Roettger, M.; Nelson-Sathi, S.; Martin, W.F. The physiology and habitat of the last universal common ancestor. Nat. Microbiol. 2016, 1, 16116. [Google Scholar] [CrossRef] [PubMed]
  71. Carter, C.W., Jr.; Wills, P.R. Did Gene Expression Co-evolve with Gene Replication? In Origin and Evolution of Biodiversity; Pontarotti, P., Ed.; Springer: Berlin/Heidelberg, Germany, 2018; pp. 293–313. [Google Scholar]
  72. Hordijk, W.; Steel, M. Autocatalytic sets and boundaries. J. Syst. Chem. 2015, 6, 1. [Google Scholar] [CrossRef] [PubMed]
  73. Cazzolla Gatti, R.; Hordijk, W.; Kauffman, S. Biodiversity is autocatalytic. Ecol. Model. 2017, 346, 70–76. [Google Scholar] [CrossRef]
  74. Cazzolla Gatti, R.; Fath, B.; Hordijk, W.; Kauffman, S.; Ulanowicz, R. Niche emergence as an autocatalytic process in the evolution of ecosystems. J. Theor. Biol. 2018, 454, 110–117. [Google Scholar] [CrossRef] [PubMed][Green Version]
  75. Kauffman, S.A. Economics and the Collectively Autocatalytic Structure of the Real Economy. 2011. Available online: (accessed on 28 November 2018).
  76. Gabora, L.; Steel, M. Autocatalytic networks in cognition and the origin of culture. J. Theor. Biol. 2017, 431, 87–95. [Google Scholar] [CrossRef] [PubMed]

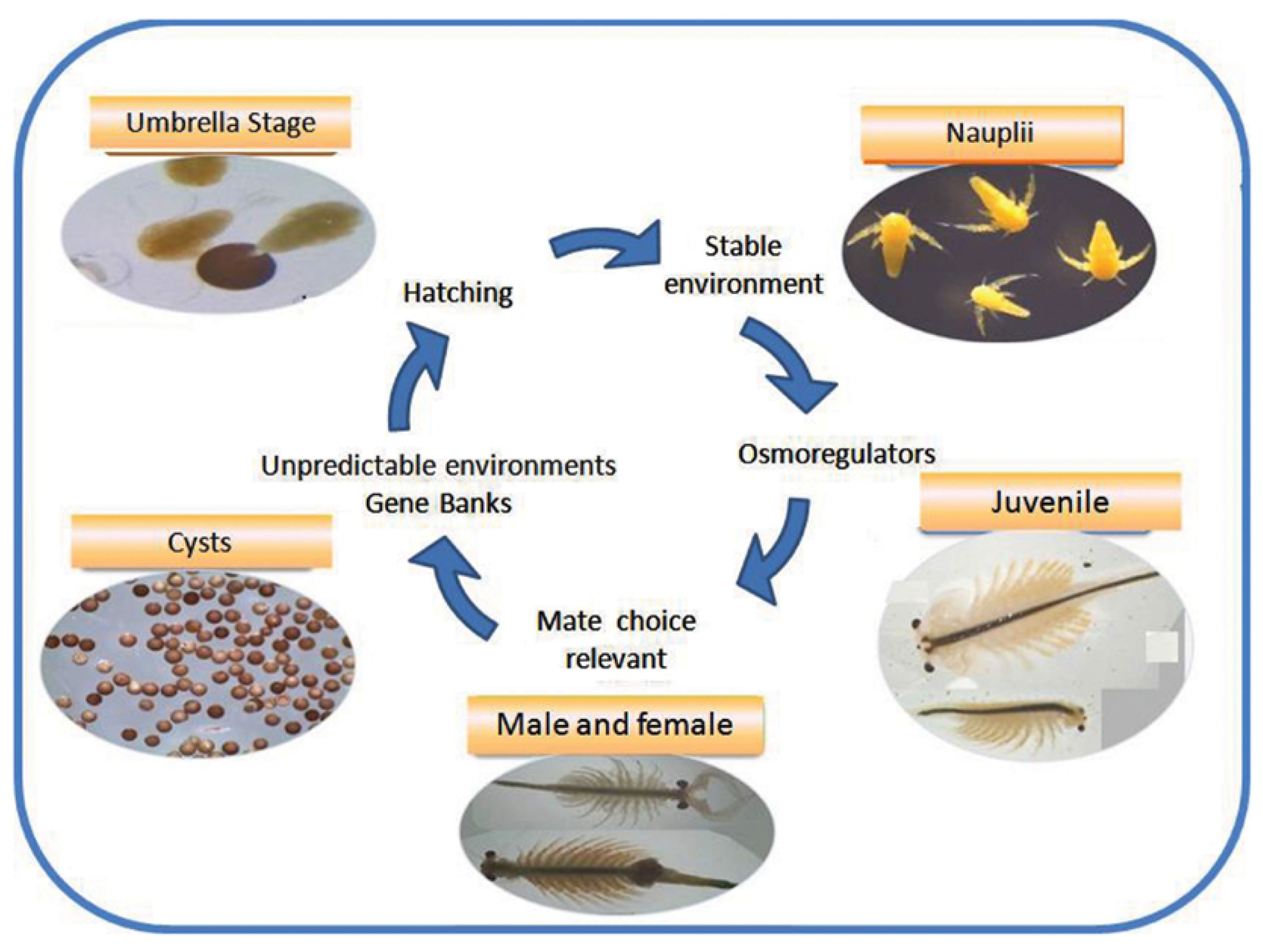

Figure 1. Artemialife cycle. The life cycle of the common brine shrimp Artemia. Figure reproduced from [2].
Figure 1. Artemialife cycle. The life cycle of the common brine shrimp Artemia. Figure reproduced from [2].
Life 08 00062 g001

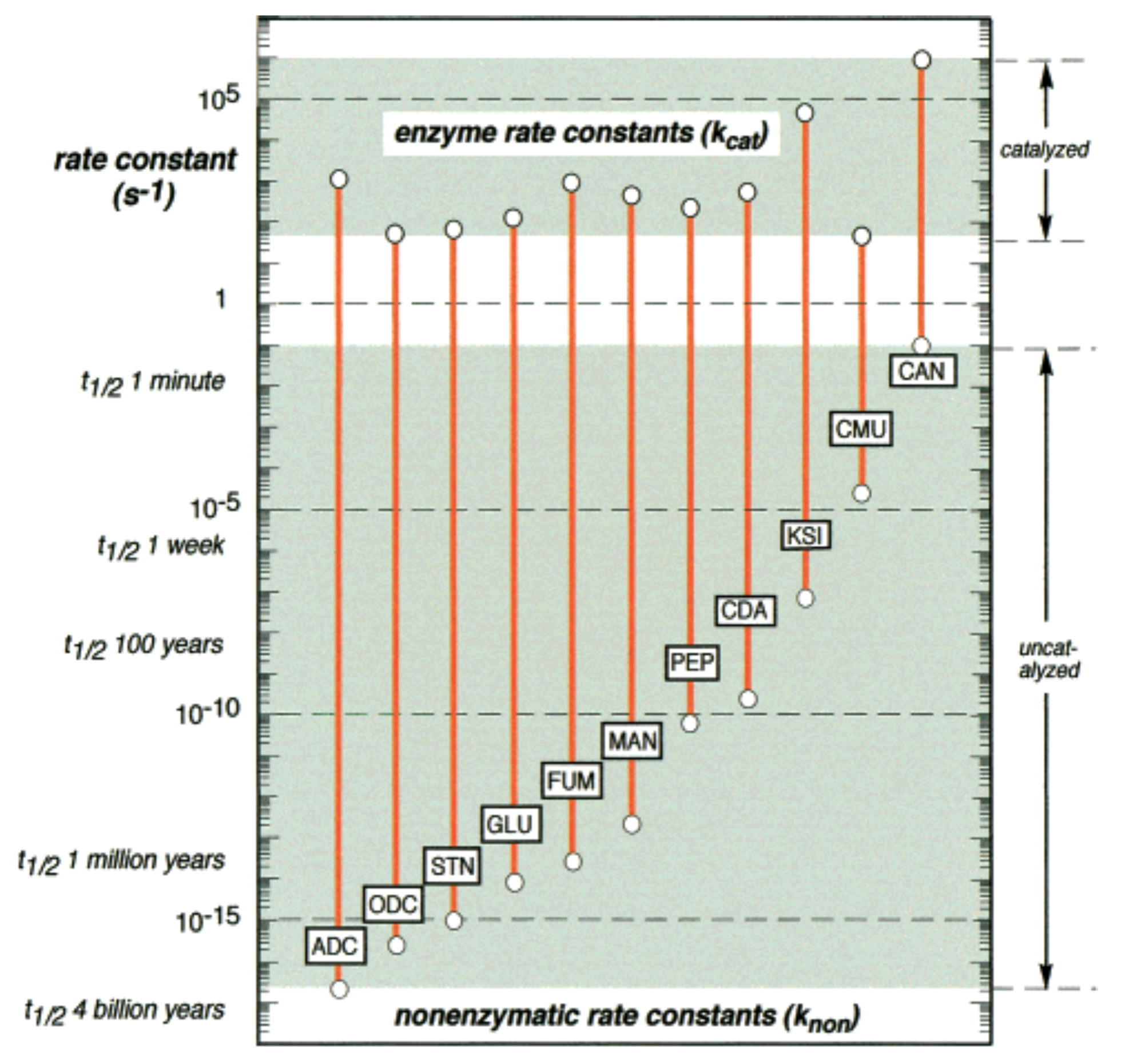

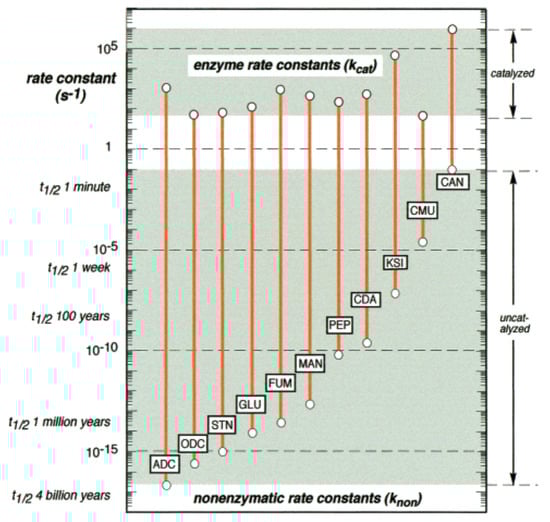

Figure 2. Catalysis. The rate enhancements of several representative reactions under the influence of enzymes. Reproduced from [27].
Figure 2. Catalysis. The rate enhancements of several representative reactions under the influence of enzymes. Reproduced from [27].
Life 08 00062 g002

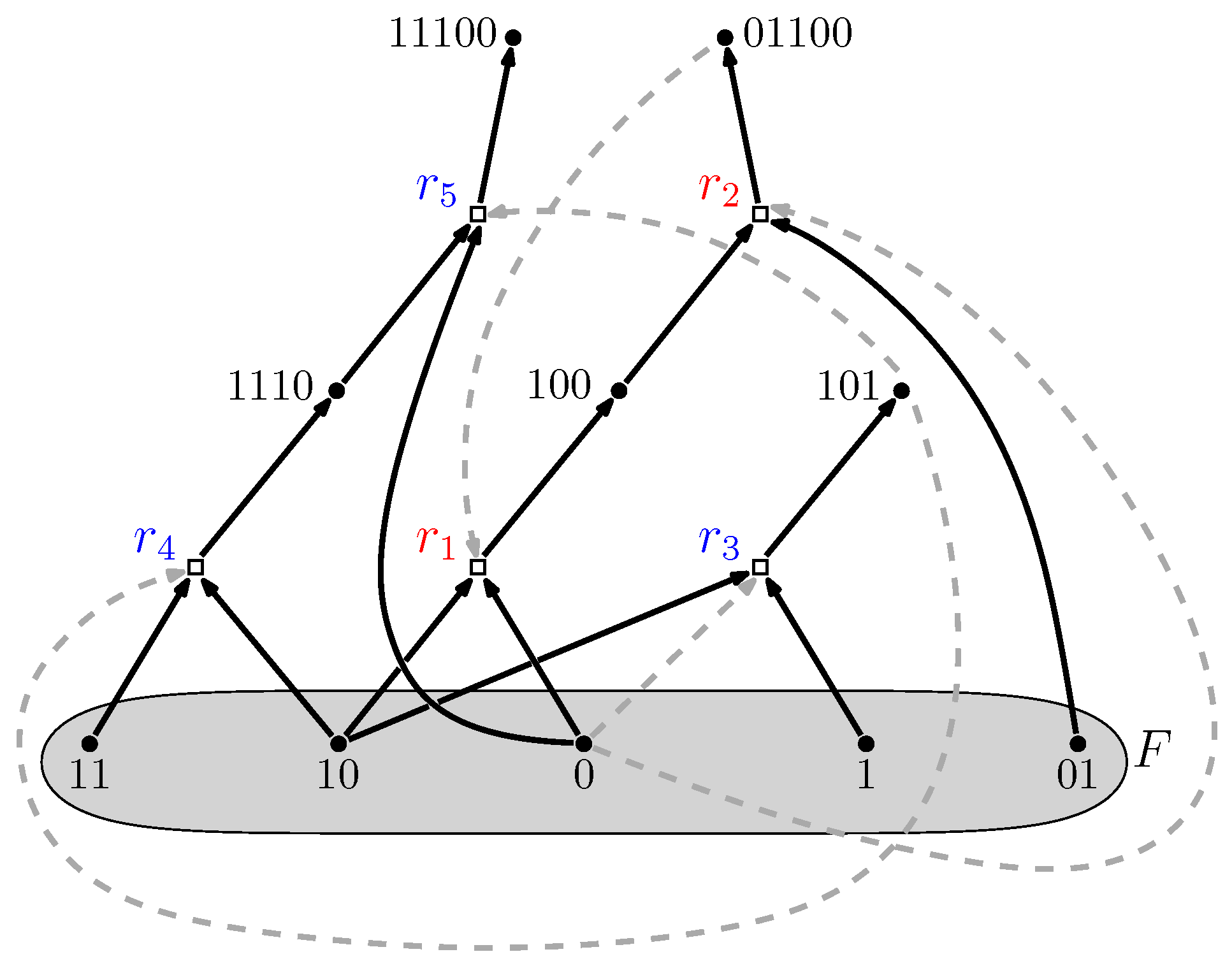

Figure 3. Autocatalytic set. An example of an autocatalytic (RAF) set that appeared in a simple polymer model where molecules are “bit string polymers” that can be ligated together into longer ones. Dots represent molecule types (labeled by bit strings); boxes represent reactions (ligations). Solid arrows indicate molecule types going into (reactants) and coming out of (products) a reaction; dashed arrows indicate which molecule types catalyze which reactions. The food set F consists of the monomers and dimers (i.e., bit strings of lengths one and two). Adapted from [30].
Figure 3. Autocatalytic set. An example of an autocatalytic (RAF) set that appeared in a simple polymer model where molecules are “bit string polymers” that can be ligated together into longer ones. Dots represent molecule types (labeled by bit strings); boxes represent reactions (ligations). Solid arrows indicate molecule types going into (reactants) and coming out of (products) a reaction; dashed arrows indicate which molecule types catalyze which reactions. The food set F consists of the monomers and dimers (i.e., bit strings of lengths one and two). Adapted from [30].
Life 08 00062 g003

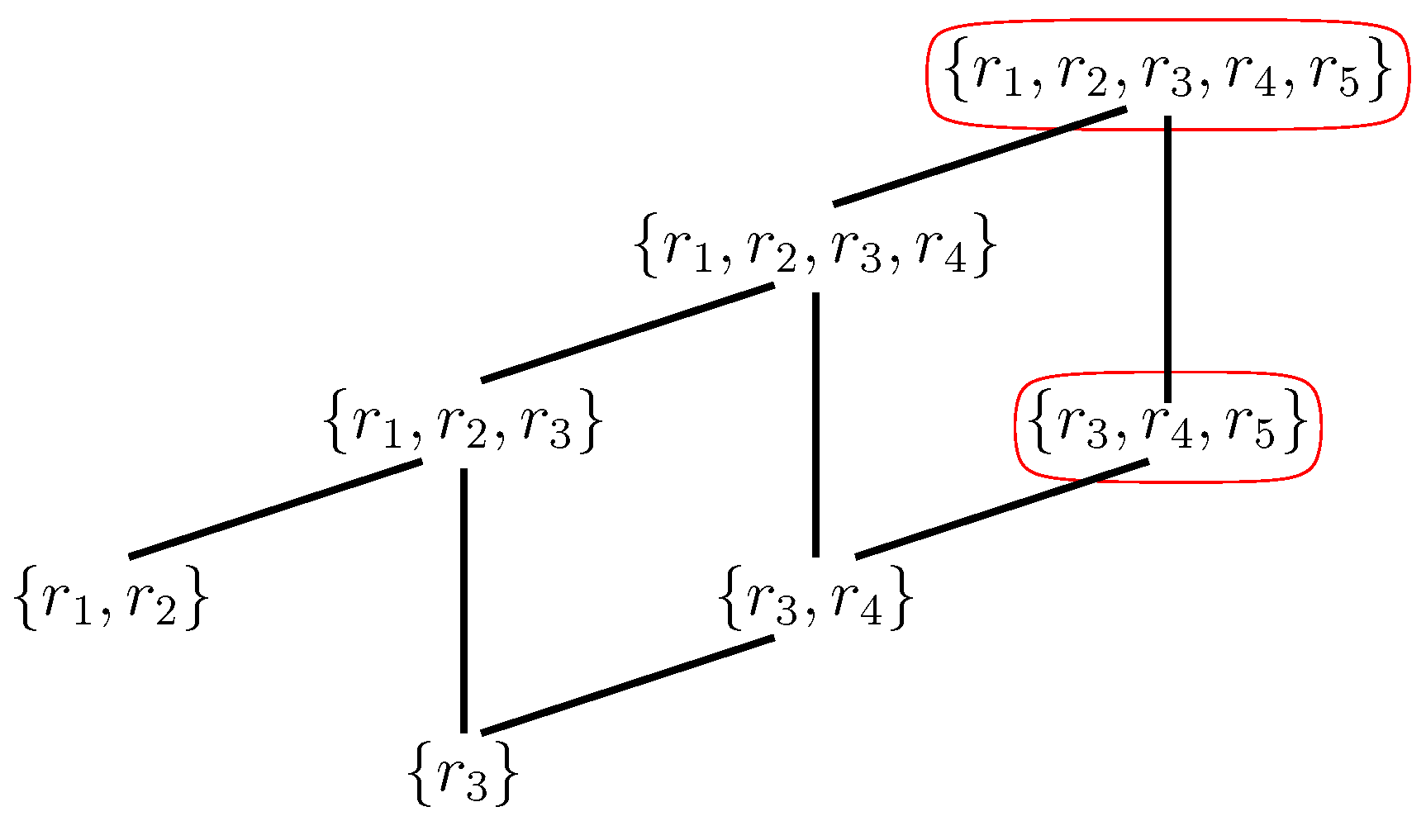

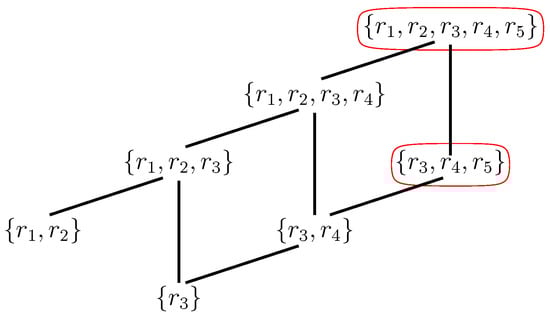

Figure 4. Poset of RAFs. The partially ordered set (poset) of all subRAFs that exist within the maxRAF of Figure 3. The maxRAF itself is at the top, while there are two irrRAFs at the bottom. The red ovals are explained in the text below.
Figure 4. Poset of RAFs. The partially ordered set (poset) of all subRAFs that exist within the maxRAF of Figure 3. The maxRAF itself is at the top, while there are two irrRAFs at the bottom. The red ovals are explained in the text below.
Life 08 00062 g004

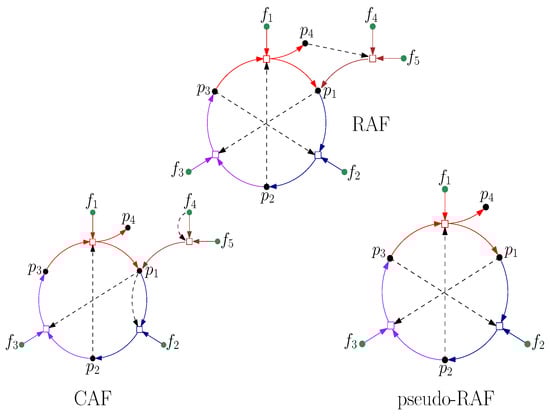

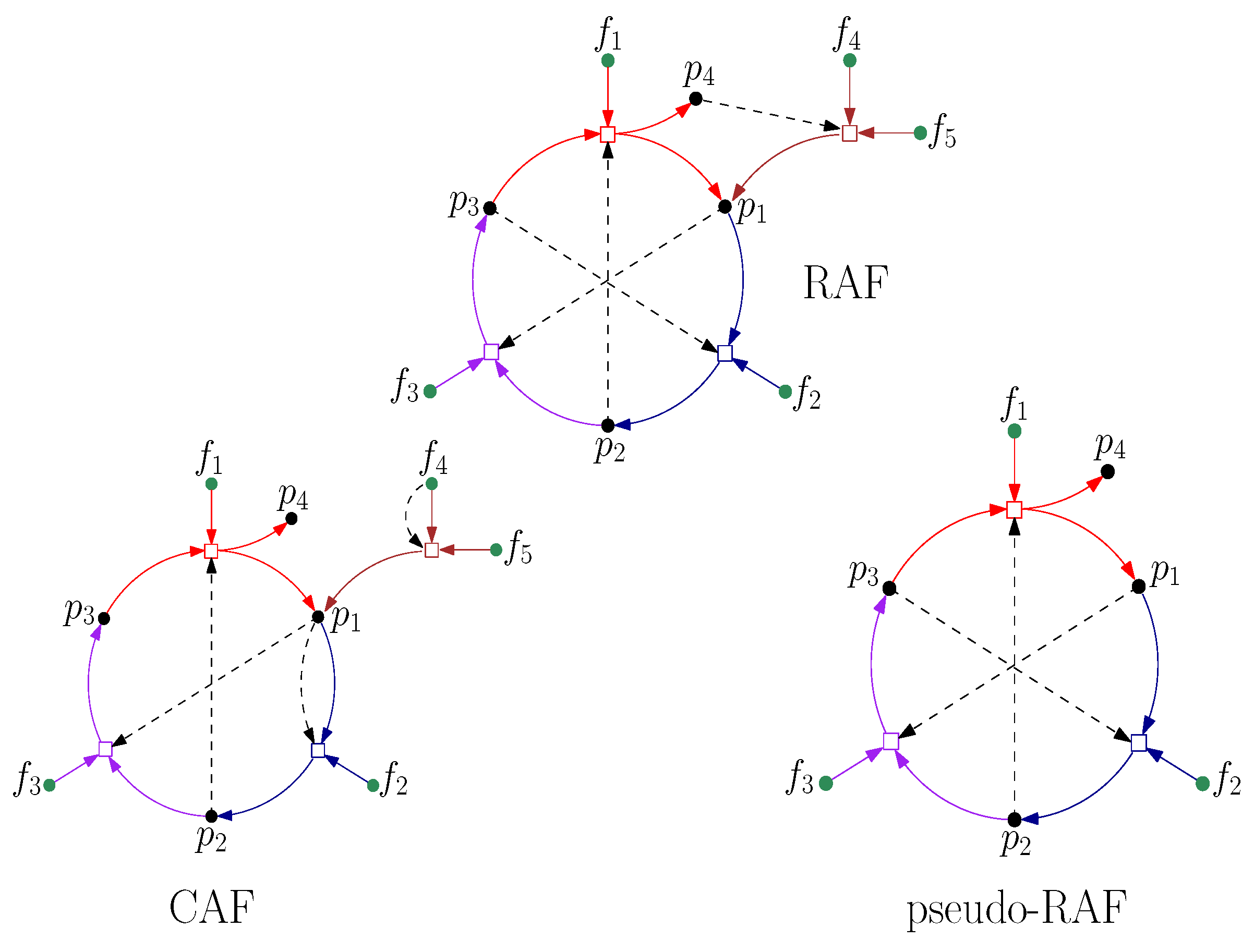

Figure 5. Top: A RAF that is not a CAF, with food set { f 1 , , f 5 } . Notice that several of the reactions need to happen spontaneously before all required catalysts are produced. Bottom: A constructively autocatalytic F-generated set (CAF) (left) and a pseudo-RAF (right).
Figure 5. Top: A RAF that is not a CAF, with food set { f 1 , , f 5 } . Notice that several of the reactions need to happen spontaneously before all required catalysts are produced. Bottom: A constructively autocatalytic F-generated set (CAF) (left) and a pseudo-RAF (right).
Life 08 00062 g005

Share and Cite

MDPI and ACS Style

Hordijk, W.; Steel, M. Autocatalytic Networks at the Basis of Life’s Origin and Organization. Life 2018, 8, 62.

AMA Style

Hordijk W, Steel M. Autocatalytic Networks at the Basis of Life’s Origin and Organization. Life. 2018; 8(4):62.

Chicago/Turabian Style

Hordijk, Wim, and Mike Steel. 2018. "Autocatalytic Networks at the Basis of Life’s Origin and Organization" Life 8, no. 4: 62.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
