# Population Dynamics of Autocatalytic Sets in a Compartmentalized Spatial World

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Background

- Reflexively autocatalytic (RA): each reaction in $\mathcal{R}$ is catalysed by at least one molecule from $\mathcal{R}$ itself; and
- F-generated (F): all reactants in $\mathcal{R}$ can be created from some food set F by using a sequence of reactions from $\mathcal{R}$ itself.

## 3. Methods

## 4. Results

#### 4.1. Dynamics of a Single Compartment

#### 4.2. Dynamics of a Population of Compartments

#### 4.3. The Influence of a Toxic Element

#### 4.4. The Influence of a Permeable Inducer

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. Simulation Parameters

Parameter | Value |
---|---|

Figure 4, Figure 5 and Figure 6 | |

Spontaneous rates | |

c${}_{100}$,c${}_{110}$ | 0.02 |

c${}_{11100}$,c${}_{111}$,c${}_{010}$ | 0.003 |

c${}_{1010}$,c${}_{0111}$ | 0.005 |

c${}_{00100}$ | 0.001 |

Catalysed rates | |

c${}_{11100}$,c${}_{111}$,c${}_{010}$ | 0.005 |

c${}_{1010}$ | 0.03 |

c${}_{00100}$ | 0.02 |

c${}_{0111}$ | 0.01 |

Figure 6 | |

Catalysed rates | |

c${}_{01111}$ | 0.005 |

Figure 7 | |

Spontaneous rates | |

c${}_{110}$,c${}_{011}$ | 0.0001 |

Catalysed rates | |

c${}_{110}$,c${}_{011}$ | 0.05 |

c${}_{[011+110\phantom{\rule{4.pt}{0ex}}->\phantom{\rule{4.pt}{0ex}}01+1+110]}$ | 0.05 |

c${}_{[0+11+01\phantom{\rule{4.pt}{0ex}}->\phantom{\rule{4.pt}{0ex}}011+01]}$ | 0.5 |

Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 | |

World size | 20 × 20 |

Compartments | 100 |

Compartment radius | 0.5 |

Voxel size | 2.5 × 2.5 |

Numerical time step | 0.01 |

Figure 5 | |

Diffusion coefficients | |

D${}_{0}$,D${}_{1}$,D${}_{00}$,D${}_{01}$,D${}_{10}$,D${}_{11}$ | 20 |

D${}_{010}$,D${}_{100}$,D${}_{110}$,D${}_{111}$,D${}_{1010}$,D${}_{00100}$,D${}_{01111}$,D${}_{11100}$ | 10 |

Decay rate | |

K${}_{0}$,K${}_{1}$,K${}_{00}$,K${}_{01}$,K${}_{10}$,K${}_{11}$ | 0.013 |

K${}_{010}$,K${}_{100}$,K${}_{110}$,K${}_{111}$,K${}_{1010}$,K${}_{00100}$,K${}_{01111}$,K${}_{11100}$ | 0 |

## References

- Hordijk, W.; Hein, J.; Steel, M. Autocatalytic sets and the origin of life. Entropy
**2010**, 12, 1733–1742. [Google Scholar] [CrossRef] - Kauffman, S.A. Approaches to the origin of life on earth. Life
**2011**, 1, 34–48. [Google Scholar] [CrossRef] [PubMed] - Nghe, P.; Hordijk, W.; Kauffman, S.A.; Walker, S.I.; Schmidt, F.J.; Kemble, H.; Yeates, J.A.M.; Lehman, N. Prebiotic network evolution: Six key parameters. Mol. BioSyst.
**2015**, 11, 3206–3217. [Google Scholar] [CrossRef] [PubMed] - Hordijk, W.; Steel, M. Chasing the tail: The emergence of autocatalytic networks. BioSystems
**2017**, 152, 1–10. [Google Scholar] [CrossRef] [PubMed] - Hordijk, W.; Steel, M. Conditions for evolvability of autocatalytic sets: A formal example and analysis. Orig. Life Evol. Biosph.
**2014**, 44, 111–124. [Google Scholar] [CrossRef] [PubMed] - Vasas, V.; Szathmáry, E.; Santos, M. Lack of evolvability in self-sustaining autocatalytic networks constrains metabolism-first scenarios for the origin of life. Proc. Natl. Acad. Sci. USA
**2010**, 107, 1470–1475. [Google Scholar] [CrossRef] [PubMed] - Vasas, V.; Fernando, C.; Santos, M.; Kauffman, S.; Sathmáry, E. Evolution before genes. Biol. Direct
**2012**, 7, 1. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Rasmussen, S.; Bedau, M.A.; Chen, L.; Deamer, D.; Krakauer, D.C.; Packard, N.H.; Stadler, P.F. (Eds.) Protocells; MIT Press: Cambridge, MA, USA, 2008. [Google Scholar]
- Fellermann, H. Wet artificial life: The construction of artificial living systems. In Principles of Evolution; Springer: Berlin/Heidelberg, Germany, 2011; pp. 261–280. [Google Scholar]
- Serra, R.; Villani, M. Modelling Protocells; Springer: Berlin, Germany, 2017. [Google Scholar]
- Carletti, T.; Serra, R.; Poli, I.; Villani, M.; Filisetti, A. Sufficient conditions for emergent synchronization in protocell models. J. Theor. Biol.
**2008**, 254, 741–751. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mavelli, F.; Ruiz-Mirazo, K. Theoretical conditions for the stationary reproduction of model protocells. Integr. Biol.
**2013**, 5, 324–341. [Google Scholar] [CrossRef] [PubMed] - Bigan, E.; Pauleve, L.; Steyaert, J.; Douady, S. Necessary and sufficient conditions for protocell growth. J. Math. Biol.
**2016**, 73, 1627–1664. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Damer, B.F.; Deamer, D.W. Coupled phases and combinatorial selection in fluctuating hydrothermal pools: A scenario to guide experimental approaches to the origin of cellular life. Life
**2015**, 5, 872–887. [Google Scholar] [CrossRef] [PubMed] - Rajamani, S.; Vlassov, A.; Benner, S.; Coombs, A.; Olasagasti, F.; Deamer, D.W. Lipid-assisted synthesis of RNA-like polymers from mononucleotides. Orig. Life Evol. Biosph.
**2008**, 38, 57–74. [Google Scholar] [CrossRef] [PubMed] - De Guzman, V.; Shenasa, H.; Vercoutere, W.; Deamer, D.W. Generation of oligonucleotides under hydrothermal conditions by non-enzymatic polymerization. J. Mol. Evol.
**2014**, 78, 251–262. [Google Scholar] [CrossRef] [PubMed] - Segré, D.; Ben-Eli, D.; Deamer, D.W.; Lancet, D. The lipid world. Orig. Life Evol. Biosph.
**2001**, 31, 119–145. [Google Scholar] [CrossRef] [PubMed] - Gross, R.; Fouxon, I.; Lancet, D.; Markovitch, O. Quasispecies in population of compositional assemblies. BMC Evol. Biol.
**2014**, 14, 265. [Google Scholar] [CrossRef] [PubMed] - Markovitch, O.; Lancet, D. Multispecies population dynamics of prebiotic compositional assemblies. J. Theor. Biol.
**2014**, 357, 26–34. [Google Scholar] [CrossRef] [PubMed] - Markovitch, O.; Lancet, D. Excess Mutual Catalysis Is Required for Effective Evolvability. Artif. Life
**2012**, 18, 243–266. [Google Scholar] [CrossRef] [PubMed] - Serra, R.; Filisetti, A.; Villani, M.; Graudenzi, A.; Damiani, C.; Panini, T. A stochastic model of catalytic reaction networks in protocells. Nat. Comput.
**2014**, 13, 367–377. [Google Scholar] [CrossRef] [Green Version] - Villani, M.; Filisetti, A.; Graudenzi, A.; Damiani, C.; Carletti, T.; Serra, R. Growth and division in a dynamic protocell model. Life
**2014**, 4, 837–864. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kauffman, S.A. Cellular homeostasis, epigenesis and replication in randomly aggregated macromolecular systems. J. Cybern.
**1971**, 1, 71–96. [Google Scholar] [CrossRef] - Kauffman, S.A. Autocatalytic sets of proteins. J. Theor. Biol.
**1986**, 119, 1–24. [Google Scholar] [CrossRef] - Kauffman, S.A. The Origins of Order; Oxford University Press: Oxford, UK, 1993. [Google Scholar]
- Hordijk, W.; Steel, M. Detecting autocatalytic, self-sustaining sets in chemical reaction systems. J. Theor. Biol.
**2004**, 227, 451–461. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hordijk, W.; Kauffman, S.A.; Steel, M. Required levels of catalysis for emergence of autocatalytic sets in models of chemical reaction systems. Int. J. Mol. Sci.
**2011**, 12, 3085–3101. [Google Scholar] [CrossRef] [PubMed] - Hordijk, W.; Smith, J.I.; Steel, M. Algorithms for detecting and analysing autocatalytic sets. Algorithms Mol. Biol.
**2015**, 10, 15. [Google Scholar] [CrossRef] [PubMed] - Mossel, E.; Steel, M. Random biochemical networks: The probability of self-sustaining autocatalysis. J. Theor. Biol.
**2005**, 233, 327–336. [Google Scholar] [CrossRef] [PubMed] - Smith, J.; Steel, M.; Hordijk, W. Autocatalytic sets in a partitioned biochemical network. J. Syst. Chem.
**2014**, 5, 2. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hordijk, W.; Steel, M.; Kauffman, S. The structure of autocatalytic sets: Evolvability, enablement, and emergence. Acta Biotheor.
**2012**, 60, 379–392. [Google Scholar] [CrossRef] [PubMed] - Hordijk, W.; Steel, M. A formal model of autocatalytic sets emerging in an RNA replicator system. J. Syst. Chem.
**2013**, 4, 3. [Google Scholar] [CrossRef] [Green Version] - Sousa, F.L.; Hordijk, W.; Steel, M.; Martin, W.F. Autocatalytic sets in E. coli metabolism. J. Syst. Chem.
**2015**, 6, 4. [Google Scholar] [CrossRef] [PubMed] - Farmer, J.D.; Kauffman, S.A.; Packard, N.H. Autocatalytic replication of polymers. Physica D
**1986**, 22, 50–67. [Google Scholar] [CrossRef] - Steel, M.; Hordijk, W. Tractable models of self-sustaining autocatalytic networks. J. Math. Chem.
**2018**. under review. [Google Scholar] - Hordijk, W.; Steel, M. Autocatalytic sets in polymer networks with variable catalysis distributions. J. Math. Chem.
**2016**, 54, 1997–2021. [Google Scholar] [CrossRef] [Green Version] - Hordijk, W.; Steel, M.; Dittrich, P. Autocatalytic sets and chemical organizations: Modeling self-sustaining reaction networks at the origin of life. New J. Phys.
**2018**, 20, 015011. [Google Scholar] [CrossRef] - Naylor, J.; Fellermann, H.; Ding, Y.; Mohammed, W.K.; Jakubovics, N.S.; Mukherjee, J.; Biggs, C.A.; Wright, P.C.; Krasnogor, N. Simbiotics: A multiscale integrative platform for 3D modeling of bacterial populations. ACS Synth. Biol.
**2017**, 6, 1194–1210. [Google Scholar] [CrossRef] [PubMed] - Gillespie, D.T. A general method for numerically simulating the stochastic time evolution of coupled chemical reactions. J. Comput. Phys.
**1976**, 22, 403–434. [Google Scholar] [CrossRef] - Gillespie, D.T. Exact stochastic simulation of coupled chemical reactions. J. Phys. Chem.
**1977**, 81, 2340–2361. [Google Scholar] [CrossRef] [Green Version] - Wolfenden, R.; Snider, M.J. The depth of chemical time and the power of enzymes as catalysts. Acc. Chem. Res.
**2001**, 34, 938–945. [Google Scholar] [CrossRef] [PubMed] - Woese, C.R.; Fox, G.E. Phylogenetic structure of the prokaryotic domain: The primary kingdoms. Proc. Natl. Acad. Sci. USA
**1977**, 74, 5088–5090. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Woese, C.R. On the evolution of cells. Proc. Natl. Acad. Sci. USA
**2002**, 99, 8742–8747. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Martin, W.; Baross, J.; Kelley, D.; Russell, M.J. Hydrothermal vents and the origin of life. Nat. Rev. Microbiol.
**2008**, 6, 805–814. [Google Scholar] [CrossRef] [PubMed] - Ameta, S.; Arsene, S.; Nghe, P.; Lehman, N.; Griffiths, A.D. Autocatalytic sets of RNA replicators in origin of life. In Proceedings of the 2017 XVIIIth International Conference on Origin of Life, San Diego, CA, USA, 16–21 July 2017. [Google Scholar]
- Vaidya, N.; Manapat, M.L.; Chen, I.A.; Xulvi-Brunet, R.; Hayden, E.J.; Lehman, N. Spontaneous network formation among cooperative RNA replicators. Nature
**2012**, 491, 72–77. [Google Scholar] [CrossRef] [PubMed] - Sievers, D.; von Kiedrowski, G. Self-replication of complementary nucleotide-based oligomers. Nature
**1994**, 369, 221–224. [Google Scholar] [CrossRef] [PubMed] - Kim, D.E.; Joyce, G.F. Cross-catalytic replication of an RNA ligase ribozyme. Chem. Biol.
**2004**, 11, 1505–1512. [Google Scholar] [CrossRef] [PubMed] - Ashkenasy, G.; Jegasia, R.; Yadav, M.; Ghadiri, M.R. Design of a directed molecular network. Proc. Natl. Acad. Sci. USA
**2004**, 101, 10872–10877. [Google Scholar] [CrossRef] [PubMed] [Green Version]

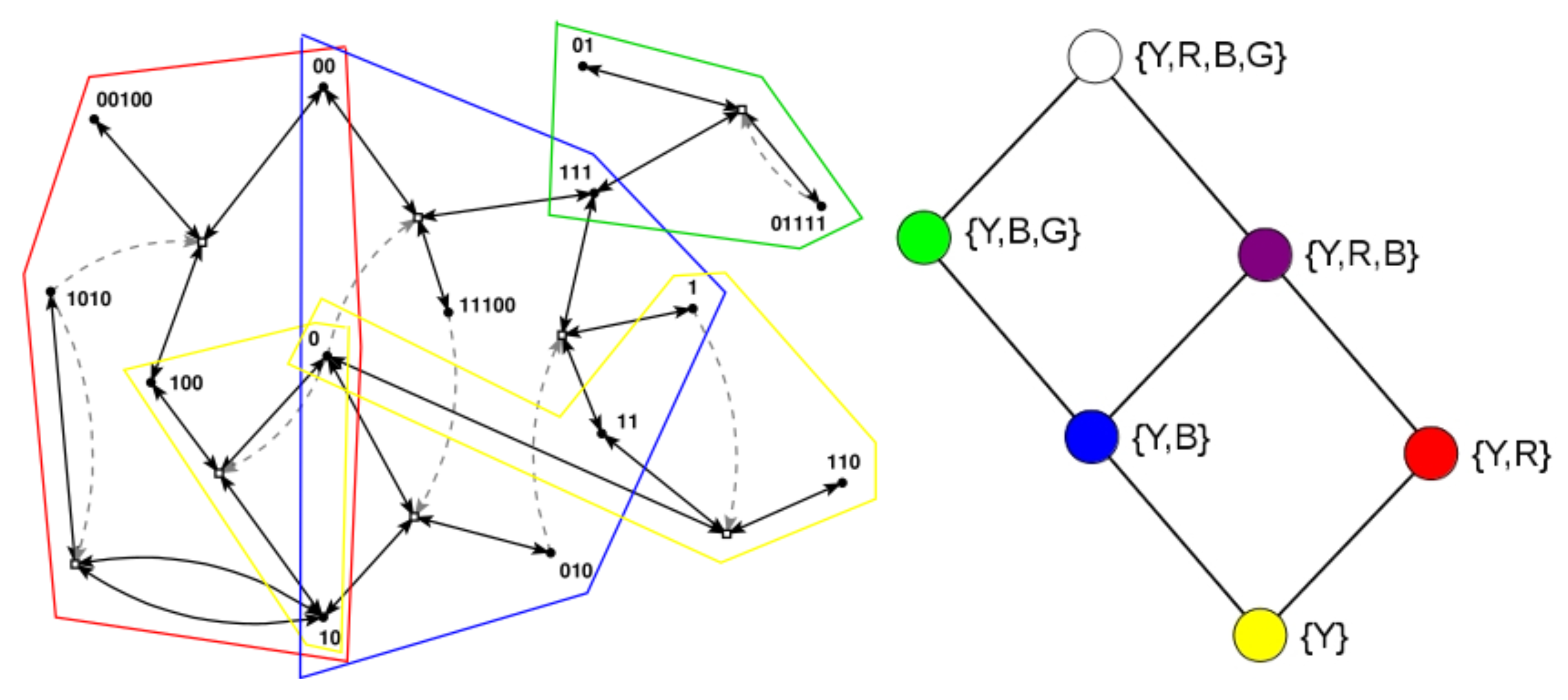

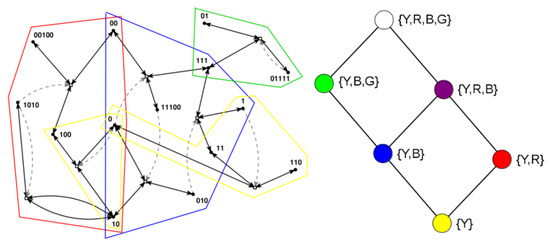

**Figure 1.**RAF set example.

**Left**: an example of an RAF set as found in an instance of the binary polymer model. Black dots (labeled with bit strings) represent the molecule types, and white boxes represent reactions. Solid black arrows indicate molecules going into and coming out of a reaction, while dashed gray arrows indicate catalysis. Coloured polygones indicate some of the RAF subsets (see text).

**Right**: the six closed RAFs (colour coded) and their mutual subset relationships.

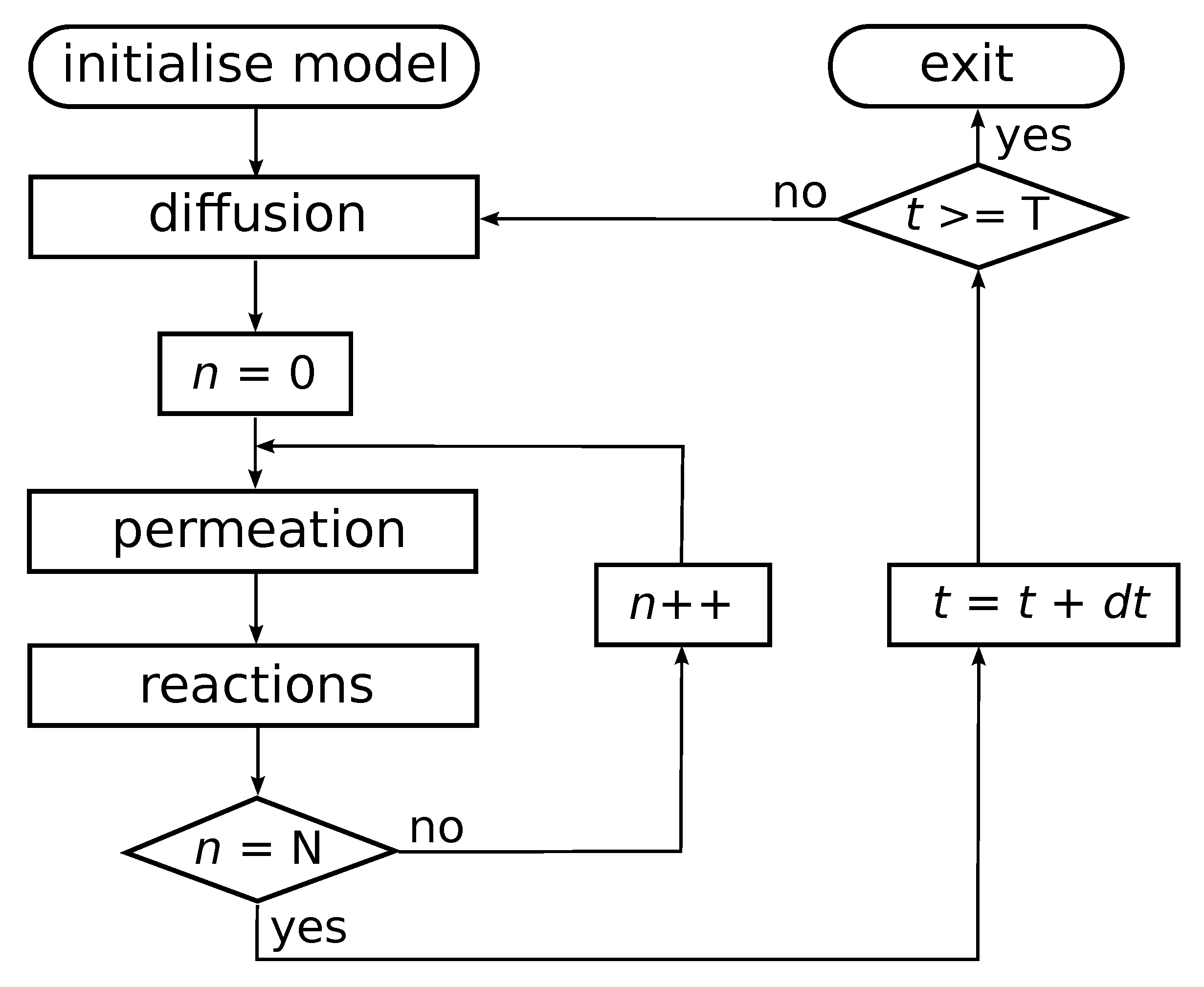

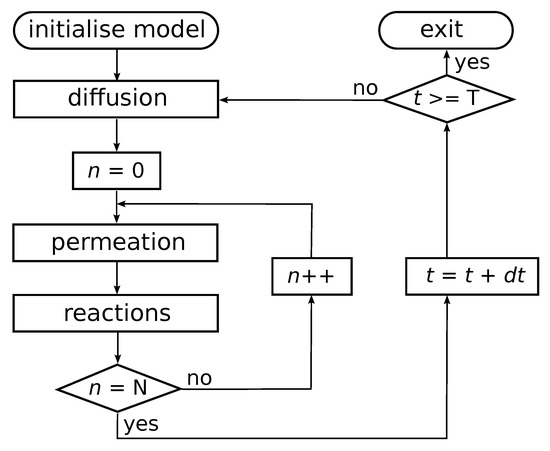

**Figure 2.**Flow diagram of the simulation algorithm. After initializing the model with N compartments, the outer loop iterates the system through time. In each iteration, the algorithm first solves for diffusion and decay of molecules in the environment using a finite difference approximation to the Fick equation. Then, for each compartment in the simulation, intracompartment molecular counts are updated by first solving permeation processes, and then running a Gillespie algorithm within each compartment. The algorithm is stopped after T time units have been simulated.

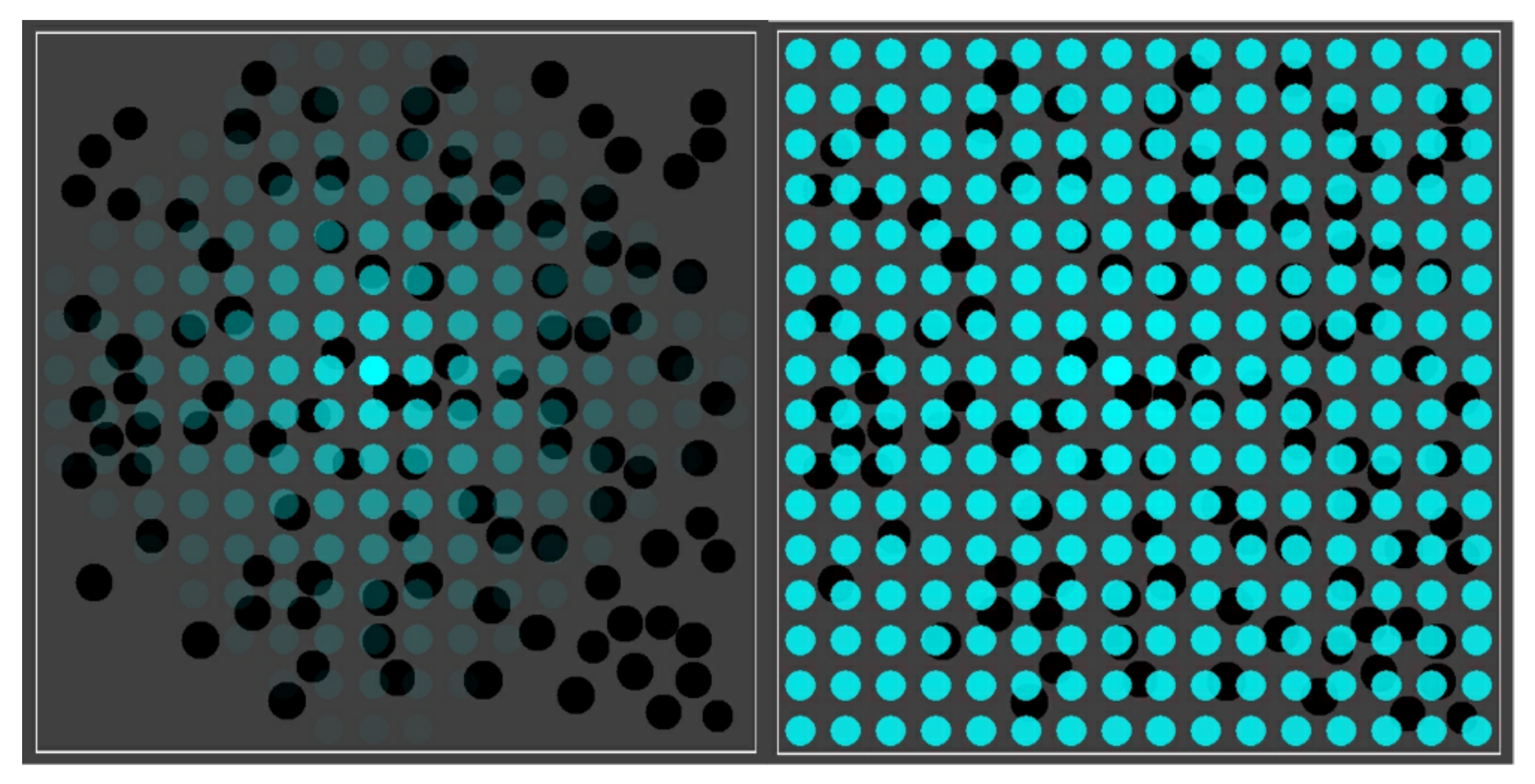

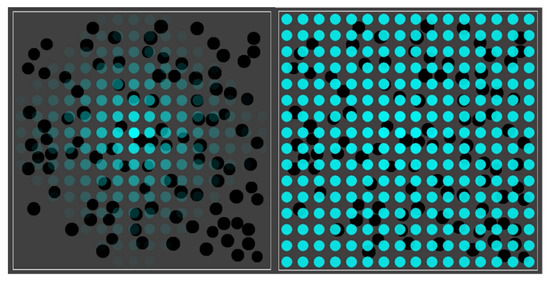

**Figure 3.**The basic simulation setup. A 16 × 16 grid with 100 randomly distributed compartments (black spheres) and concentration of food molecules (blue spheres) throughout the grid.

**Left**: shortly after starting the simulation.

**Right**: after an equilibrium distribution of food molecules has been reached.

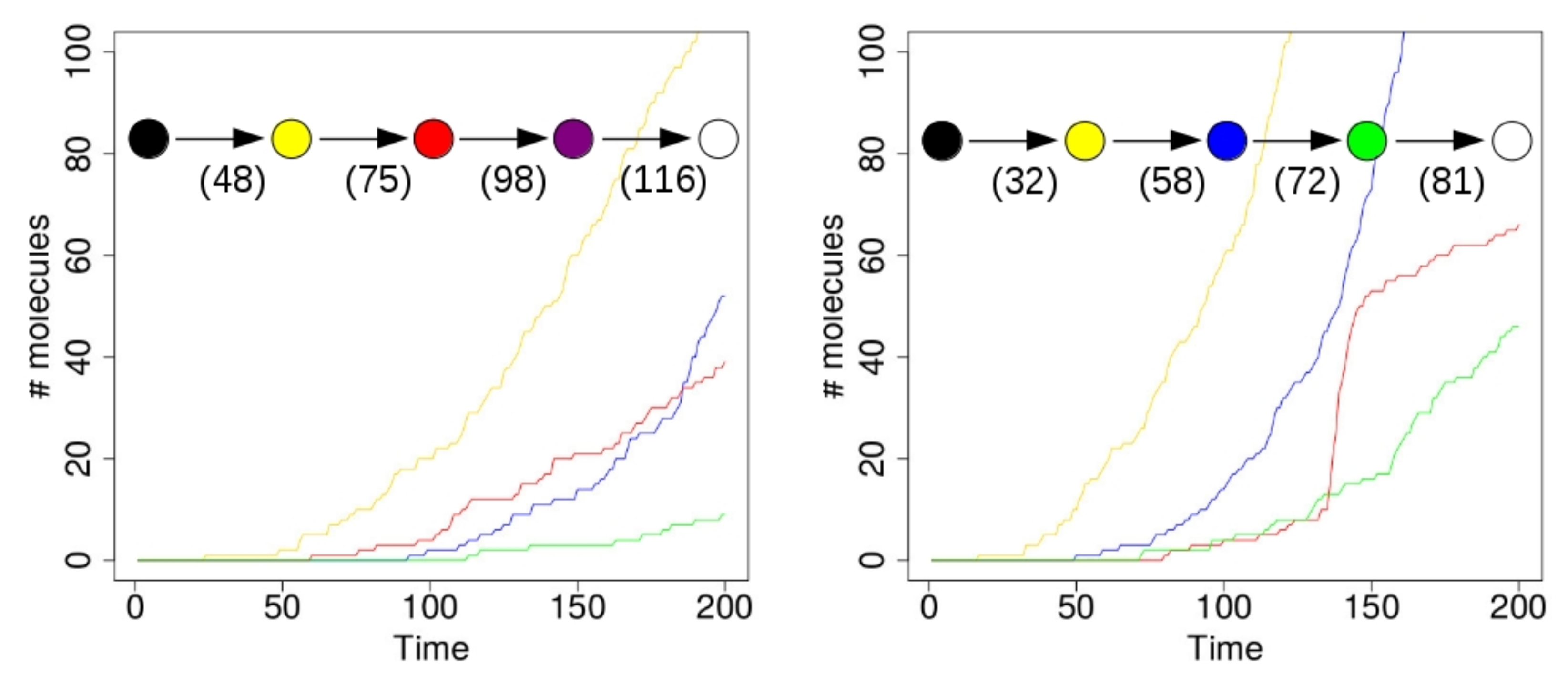

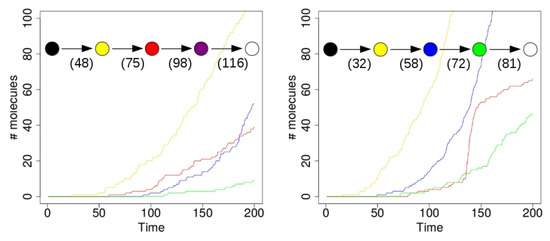

**Figure 4.**A single compartment.

**Left**: a simulation run with a single compartment where the red RAF subset appears first.

**Right**: a simulation run with a single compartment where the blue RAF subset appears first. Insets: the sequence of compartment colour changes in the simulations. Numbers indicate at which time steps during the simulation the respective colour changes happened.

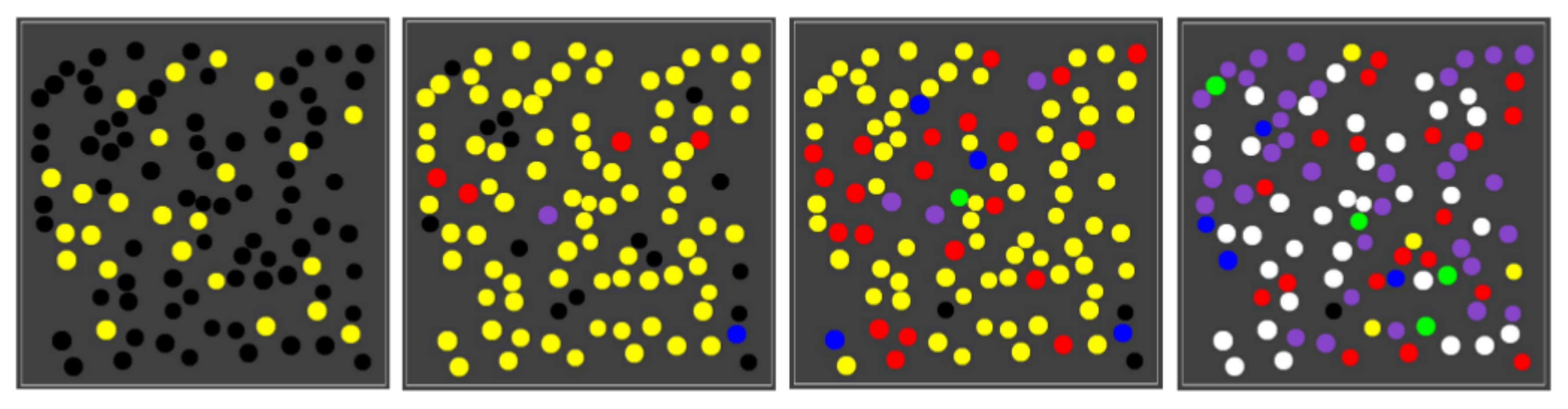

**Figure 5.**A population of compartments. Four snapshots over time from a simulation with 100 compartments.

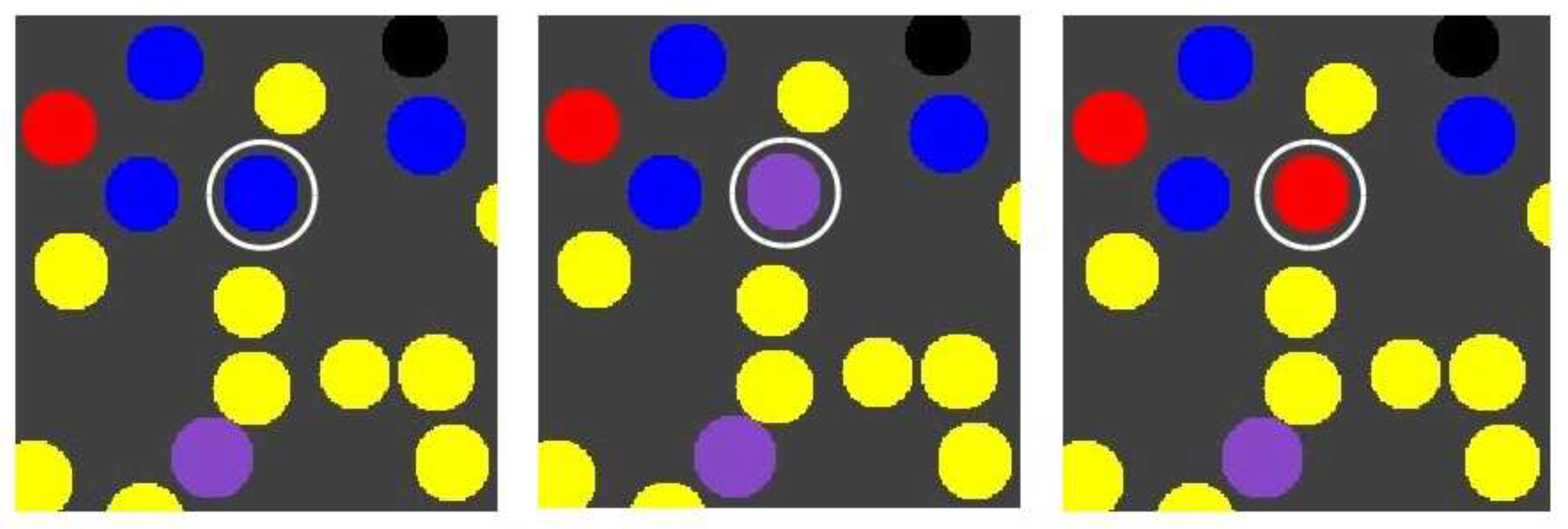

**Figure 6.**The influence of a toxic element. The production of a toxic element by the red RAF subset can cause the blue RAF subset to be lost again, making a compartment change from blue to purple to red (indicated by the white circle).

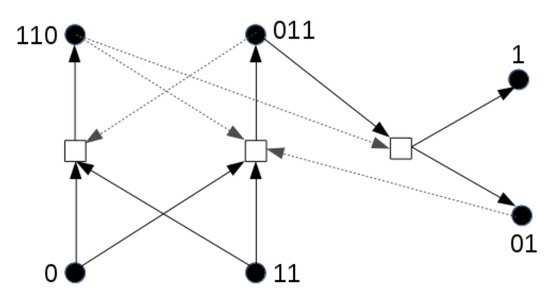

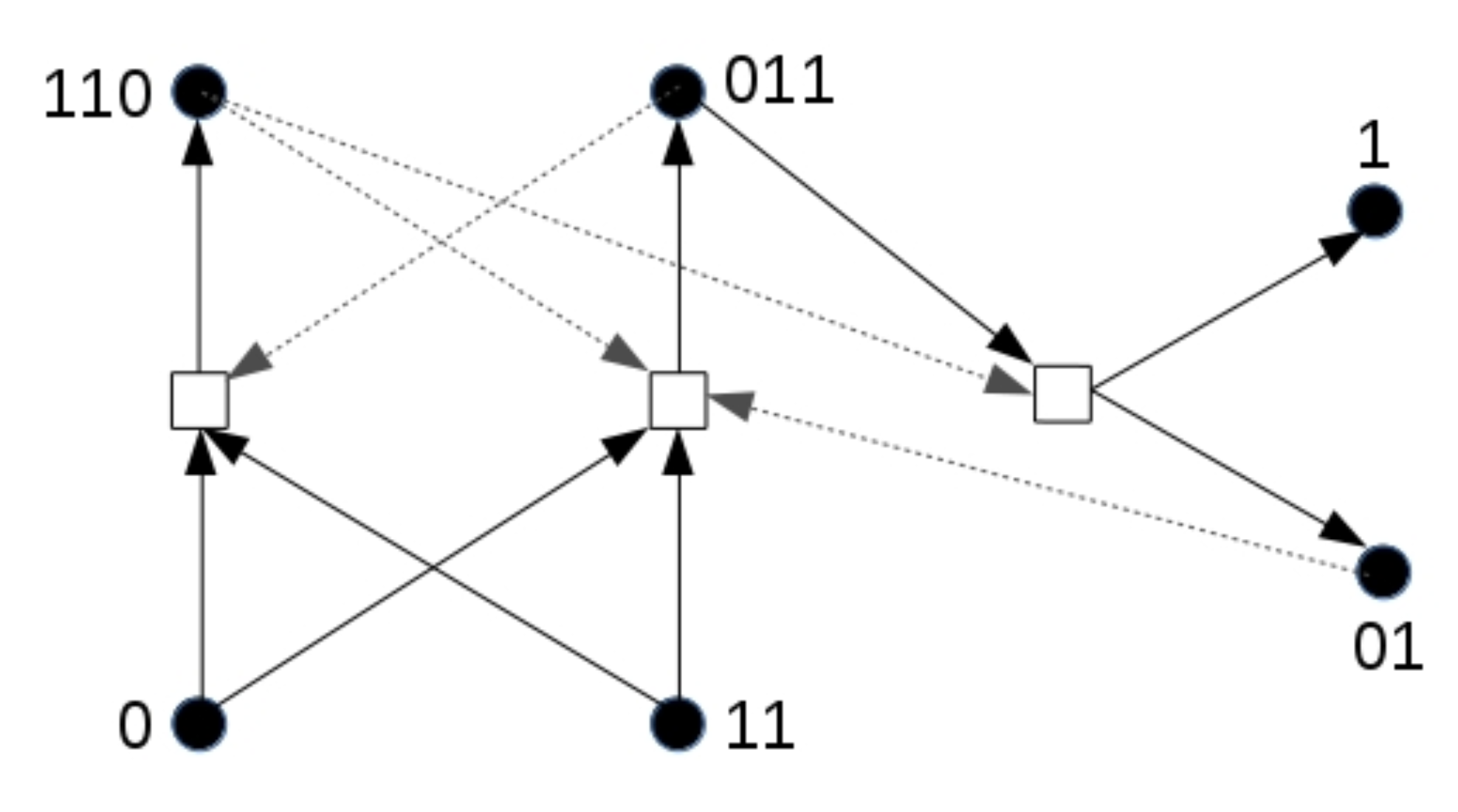

**Figure 7.**A reaction network with an inducer. The reaction network used to show the influence of an inducer (molecule type 01). As before, dashed arrows indicate catalysis.

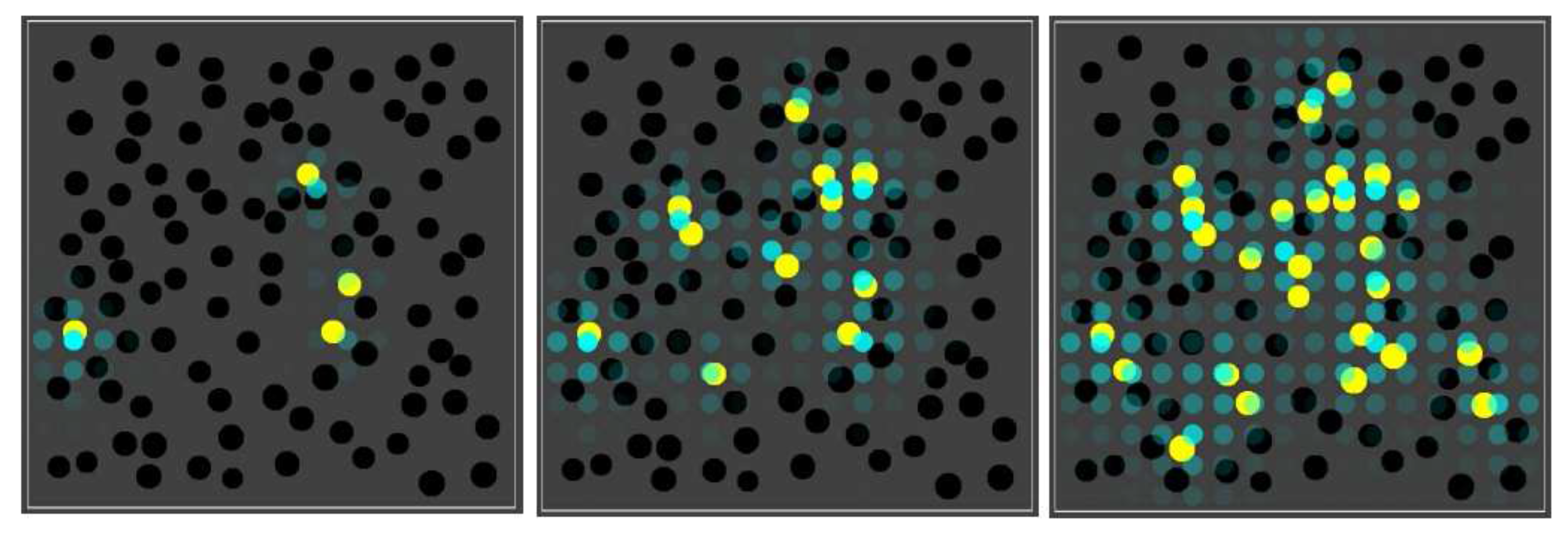

**Figure 8.**The influence of a permeable inducer. Three snapshots over time from a simulation where the RAF set produces an permeable inducer that can diffuse through the lattice. The blue spheres indicate the concentration of this inducer in the different grid locations.

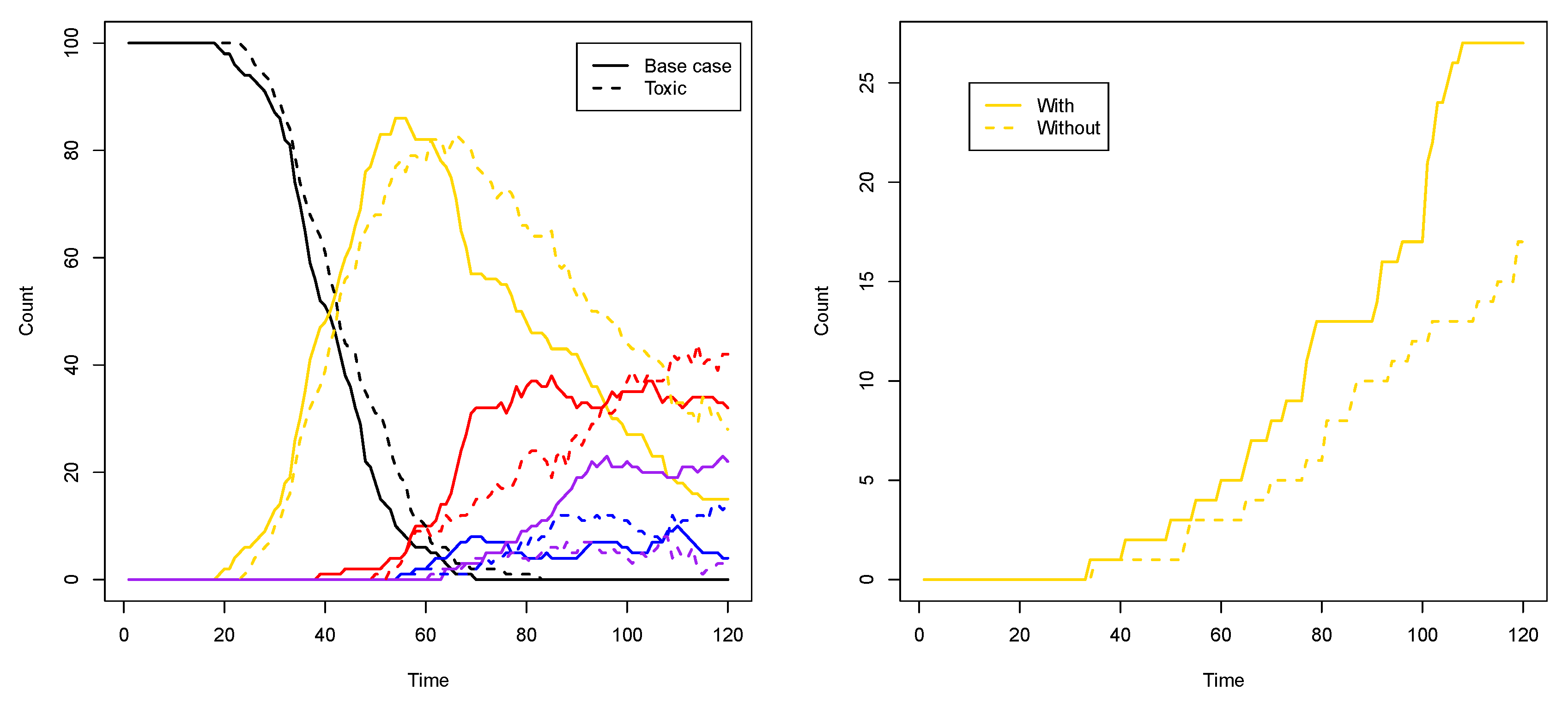

**Figure 9.**Compartment counts.
