The Role of Active Site Residues in ATP Binding and Catalysis in the Methanosarcina thermophila Acetate Kinase

Department of Genetics and Biochemistry, Clemson University, Clemson, SC 29634, USA
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Life 2015, 5(1), 861-871;
Received: 8 January 2015 / Revised: 2 March 2015 / Accepted: 4 March 2015 / Published: 12 March 2015
(This article belongs to the Special Issue Archaea: Evolution, Physiology, and Molecular Biology)


Acetate kinase (ACK), which catalyzes the reversible phosphorylation of acetate by ATP, is a member of the acetate and sugar kinase/heat shock cognate/actin (ASKHA) superfamily. ASKHA family members share a common core fold that includes an ATPase domain with five structural motifs. The PHOSPHATE1 motif has previously been shown to be important for catalysis. We have investigated the role of two of these motifs in the Methanosarcina thermophila ACK (MtACK) and have shown that residues projecting into the ACK active site from the PHOSPHATE2 and ADENOSINE loops and a third highly conserved loop designated here as LOOP3 play key roles in nucleotide triphosphate (NTP) selection and utilization. Alteration of Asn211 of PHOSPHATE2, Gly239 of LOOP3, and Gly331 of ADENOSINE greatly reduced catalysis. In particular, Gly331, which is highly conserved throughout the ASKHA superfamily, has the greatest effect on substrate selection. Alteration at this site strongly skewed MtACK toward utilization of purines over pyrimidines, unlike the wild type enzyme that shows broad NTP utilization. Further investigation into differences between the ATPase domain in MtACK and other acetate kinases that show different substrate preferences will provide us with a better understanding of the diversity of phosphoryl donor selection in this enzyme family.

Graphical Abstract

1. Introduction

Acetate kinase (ACK; EC, a member of the acetate and sugar kinase/heat shock cognate/actin (ASKHA) superfamily, catalyzes the reversible phosphorylation of acetate by ATP and is central to energy-yielding metabolism of anaerobes [1,2,3]. ACK functions with phosphotransacetylase (PTA; EC to activate acetate to acetyl-CoA in the first step of the pathway for conversion of the methyl group to methane by Methanosarcina species from the Archaea [4]. During growth on carbon monoxide, the ACK-PTA pathway can also operate in the opposite direction for ATP production/synthesis [5,6].
Blattler and Knowles [7] showed that the reactions catalyzed by ACK, glycerol kinase, and hexokinase, all of which belong to the ASKHA superfamily, proceed with a net inversion of configuration of the transferred phosphoryl group indicating an odd number of phosphoryl transfers. Later studies with the Methanosarcina thermophila ACK (MtACK) showed that MgADP-AlF3-acetate forms a transition state analog in the active site and leads to an abortive complex [8]. A structure of ACK with this transition state analog revealed ADP-AlF3-acetate in a linear array in the active site [9], providing definitive support for the direct phosphoryl transfer mechanism. Based on analysis of site-altered enzyme variants and MtACK structural studies, Gorrell et al. [9] postulated a mechanism detailing the roles of active site residues in catalysis. The active site residues implicated in this mechanism are conserved among ACKs, consistent with their key roles in catalysis.
ASKHA family members have in common an ATPase domain with similar three-dimensional structure in which two subdomains form an active site cleft in which ATP at the bottom [1,2]. This ATPase domain consists of five sequence motifs, of which PHOSPHATE1, PHOSPHATE2, and ADENOSINE are involved in binding ATP and the CONNECT 1 and CONNECT 2 regions connect the two subdomains. The PHOSPHATE1 region is in one subdomain and the PHOSPHATE2 and ADENOSINE regions are in the other subdomain on the opposite side of the active site.
Several residues in the PHOSPHATE1 motif have been shown to be important for MtACK activity [10]. Crystal structures for MtACK show that residues in the PHOSPHATE1 loop are not within a distance for direct interaction with ATP [2,10]. However, ACK like other members of the ASKHA superfamily undergoes domain closure upon ligand binding [2,9,11] and this may bring the PHOSPHATE1 motif into close enough proximity to interact with the phosphate groups of ATP.
Here we investigated the roles of the conserved sequence motifs of the ATPase domain in nucleotide triphosphate (NTP) substrate selection and utilization. We focused on two highly conserved residues, Asn211 in PHOSPHATE2 and Gly331 in ADENOSINE, as these residues are very highly conserved in bacterial and archaeal ACKs but differ in either the fungal Cryptococcus neoformans ACK [12], which shows a strong preference for ATP over other NTPs, or the protist Entamoeba histolytica ACK, which utilizes PPi instead of ATP [13]. We also examined Gly239, which projects into the active site as part of a highly conserved region, designated here as LOOP3, and hydrogen bonds with Asn211. Our results indicate that all three residues play a role in NTP selection and utilization, with Gly331 as a primary determinant.

2. Experimental Section

2.1. Materials

Chemicals were purchased from Fisher Scientific, VWR Scientific Products, Sigma Chemical or Gold Biotechnology. Oligonucleotides for site-directed mutagenesis were purchased from Integrated DNA Technologies.

2.2. Site-Directed Mutagenesis

Site-directed mutagenesis of the M. thermophila ack gene in pETack [14] was performed using the QuikChange Site-Directed Mutagenesis Kit (Stratagene) according to the manufacturer’s instructions. Mutagenic primers were 33–36 nucleotides in length with the altered site(s) located in the middle. Mutations were confirmed by sequencing at the Clemson University Genomics Institute.

2.3. Heterologous Production and Purification of MtACK Enzymes

Cloning of the M. thermophila ack gene into pET15b has been previously described [14]. This construct provides for the addition of an N-terminal His6 tag for one-step affinity purification. The wild type and variant ACKs were heterologously produced in Escherichia coli BL21(DE3) (Novagen). Cells harboring the expression construct were grown at 37 °C shaking at 200 rpm until an A600 of ~0.8 was reached, and recombinant protein production was induced by the addition of IPTG to a final concentration of 0.5 mM. Cells were grown overnight at ambient temperature and harvested by centrifugation. Cell pellets were resuspended in buffer A (25 mM Tris, 150 mM NaCl, 10% glycerol, 20 mM imidazole, pH 7.4) and disrupted by three passages through a French pressure cell at ~138 MPa. The cell lysate was clarified by ultracentrifugation (2 h, 100,000× g). The supernatant was applied to a 5 mL HisTrap HP column (GE Healthcare) that had been equilibrated with buffer A. After extensive washing to remove unbound protein, the column was developed with a linear gradient from 20 mM to 500 mM imidazole. The protein peak was collected, dialyzed overnight in 25 mM Tris, 10% glycerol, pH 7.0, aliquoted, and stored at −20 °C. Protein concentration was determined by the Bradford method [15] using Bio-Rad Protein Assay Dye Reagent. The purity of each enzyme was determined by SDS-PAGE.

2.4. Enzymatic Assay for ACK Activity

Enzymatic activity was determined using the hydroxamate assay [16,17,18], which detects acetyl phosphate production by conversion to acetyl hydroxamate and subsequently to a ferric hydroxamate complex that can be detected spectrophotometrically at 540 nm. Although 65 °C is the optimal temperature for the enzyme [19], other studies on this enzyme have typically been performed at 37 °C [9,11,14,20,21,22], so all assays in this study were performed at that temperature for consistency. Assays were performed in 0.3 mL volumes in a reaction mixture containing 50 mM Tris (pH 7.5) and 300 mM hydroxylamine-HCl (pH 7.0) with the MgCl2:ATP and acetate concentrations varied. Reactions were initiated by the addition of enzyme and terminated by the addition of 1 volume of 10% trichloroacetic acid and 1 volume of 2.5% FeCl3 in 2 N HCl. The absorbance at 540 nm was compared against a standard curve prepared with acetyl phosphate to determine the amount of product formed. Reactions were performed in triplicate.
Assay optimization was performed iteratively to determine the final substrate concentrations to be used for each enzyme variant in determination of apparent kinetic parameters. Apparent kinetic parameters were determined by varying the concentration of one substrate while keeping the other constant at the optimal concentration. Nonlinear regression was used to fit the data to the Michaelis-Menten equation using KaleidaGraph (Synergy Software). Data shown represent the mean ± standard deviation.

3. Results and Discussion

3.1. The PHOSPHATE2, ADENOSINE, and LOOP3 Regions of Methanosarcina ACK Are Highly Conserved

Aceti and Ferry have previously shown that Methanosarcina thermophila ACK (MtACK) has a broad NTP substrate range, with the highest activity observed with ATP and TTP, and substantial activity with ITP, UTP, GTP, and CTP [16]. Likewise, the Salmonella typhimurium ACK (StACK) also has a broad NTP substrate range [23], but this is not the case for all ACKs. The Cryptococcus neoformans ACK (CnACK) shows a strong preference for ATP [12] (C. Ingram-Smith, T. Dang, A. Guggisberg, S. Henry, J. Welch, A. Mattison, and K. Smith, manuscript in preparation) whereas the Entamoeba histolytica ACK (EhACK) is unable to utilize NTPs as a substrate and instead uses PPi/Pi as the phosphoryl donor/acceptor pair [13]. Both of these enzymes also show a strong preference for the acetate-forming direction of the reaction, unlike MtACK which has high activity in both directions of the reaction [12,13,20]. With a number of ACK structures now available, we can begin to elucidate the molecular basis for this substrate preference or lack thereof.
Three signature sequence motifs designated as ADENOSINE, PHOSPHATE1, and PHOSPHATE2 have been identified in the ASKHA superfamily of enzymes as playing a role in ATP binding [1,2,12,24]. In MtACK, the PHOSPHATE1 motif is located in the N-terminal domain on one side of the active site. The PHOSPHATE2 and ADENOSINE motifs are in the C-terminal domain located on the opposite side of the active site and each extends into the active site toward ATP (Figure 1). Of these, the PHOSPHATE1 motif has been studied the most in MtACK, with kinetic characterization of enzyme variants individually altered at five highly conserved residues within the motif [10]. The PHOSPHATE2 and ADENOSINE motifs have received less attention, with just two residues in each having been previously examined [14,20,22].
There are two additional loops, designated here as LOOP3 and LOOP4, that extend into the active site in this area (Figure 1). The residues in LOOP3 are highly conserved, whereas only two residues in LOOP4 are conserved. PHOSPHATE2, LOOP3, and ADENOSINE position Asn211, Gly239, and Gly331in close proximity to the ATP binding pocket. Arg285 of LOOP4 is located in the pocket that binds the adenosine moiety of ATP and lies planar to the adenine ring. Asn211 in PHOSPHATE2 interacts with the β-phosphate group, and also forms a hydrogen bond with Gly239. Gly331 in ADENOSINE interacts with both the α- and β-phosphate groups and is completely conserved among ACKs with the exception of the E. histolytica enzyme, suggesting it may play a key role in determining whether the enzyme utilizes ATP or PPi.

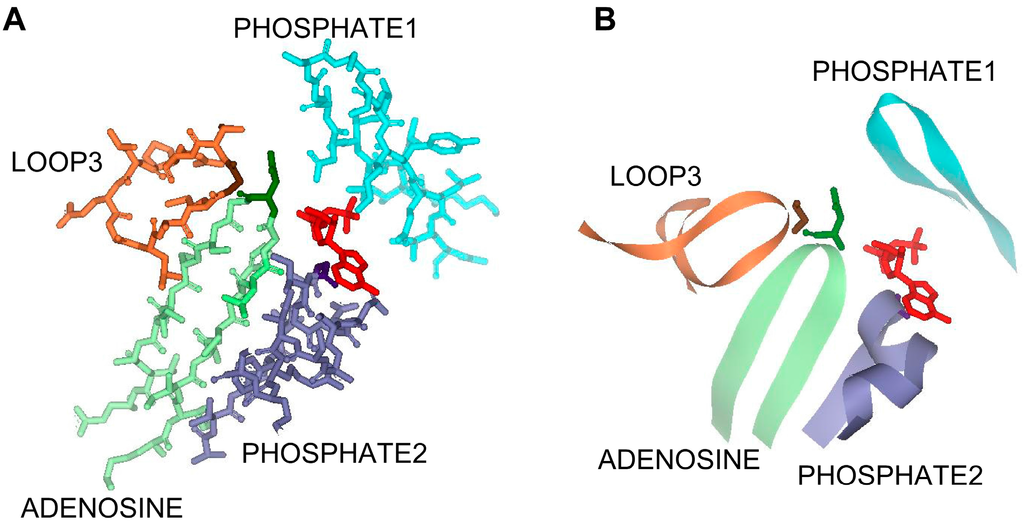

Figure 1. The active site region of the ATPase domain of MtACK (PDB: IG99) in (A) stick and (B) ribbon diagram. Residues shown conform to those in the alignment in Figure 2. ADP is shown in red, PHOSPHATE1 in light blue, PHOSPHATE2 is in light green with Asn211 in dark green, ADENOSINE is in light purple with Gly331 in dark purple, and LOOP3 is in light orange with Gly 239 shown in brown. For clarity, LOOP4 is not shown.
Figure 1. The active site region of the ATPase domain of MtACK (PDB: IG99) in (A) stick and (B) ribbon diagram. Residues shown conform to those in the alignment in Figure 2. ADP is shown in red, PHOSPHATE1 in light blue, PHOSPHATE2 is in light green with Asn211 in dark green, ADENOSINE is in light purple with Gly331 in dark purple, and LOOP3 is in light orange with Gly 239 shown in brown. For clarity, LOOP4 is not shown.
Life 05 00861 g001
Alignment of the MtACK sequence with the sequences from bacterial and eukaryotic ACKs whose structures are known shows high sequence conservation within the three signature motifs (Figure 2) as well as LOOP3 containing Gly239. Residues within LOOP4 are not well conserved with the exception of Arg285 and Asp283 with which it interacts. Notably, the four residues that project into the active site from the four regions shown are generally well conserved but are altered in either EhACK or CnACK, both of which have altered NTP utilization [12,13] (C. Ingram-Smith, T. Dang, A. Guggisberg, S. Henry, J. Welch, A. Mattison, and K. Smith, manuscript in preparation).

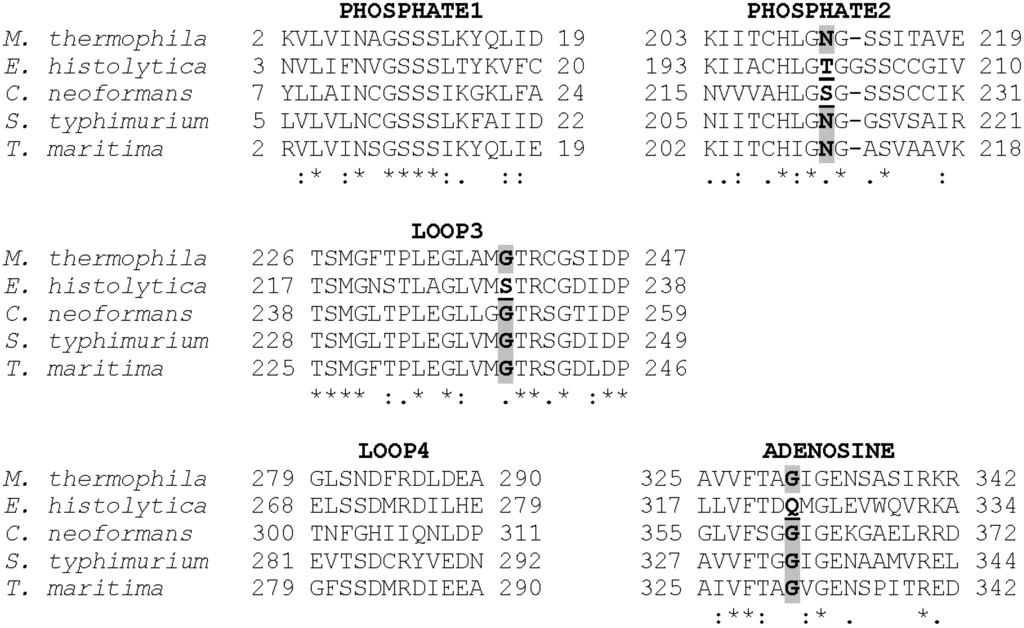

Figure 2. ACK sequence alignment showing the PHOSPHATE1, PHOSPHATE2, and ADENOSINE motifs as well as LOOP3 and LOOP4 which extend in toward the active site, as shown in Figure 1. Accession numbers: M. thermophila, GI:12084262; E. histolytica, GI:67481281; C. neoformans, GI:427930974; S. typhimurium, GI:16765664; Thermotoga maritima, GI:15643044.
Figure 2. ACK sequence alignment showing the PHOSPHATE1, PHOSPHATE2, and ADENOSINE motifs as well as LOOP3 and LOOP4 which extend in toward the active site, as shown in Figure 1. Accession numbers: M. thermophila, GI:12084262; E. histolytica, GI:67481281; C. neoformans, GI:427930974; S. typhimurium, GI:16765664; Thermotoga maritima, GI:15643044.
Life 05 00861 g002

3.2. Asn211, Gly239, and Gly331 Influence NTP Preference and Utilization

In this study, we targeted Asn211, Gly239, and Gly331 for alteration to ascertain whether any of these residues influence NTP preference and utilization. In order to investigate the contribution of interactions between the enzyme and ATP to enzymatic activity, each of these residues was individually altered to Ala to remove side chain functionality, and to the alternative residues present in EhACK or CnACK. Asn211 in PHOSPHATE2 was replaced by Thr and Ser, the residues present in EhACK and CnACK, respectively. Gly331 in ADENOSINE and Gly239 in LOOP3 were replaced by Gln and Ser, respectively, to mimic EhACK. The variants were produced in E. coli, purified, and kinetically characterized.
The Asn211, Gly239, and Gly331 variants all had reduced specific activity versus the wild type enzyme, but to differing degrees (Table 1). The Asn211Ala, Gly331Ala, and Gly239Ala changes had the least effect, reducing activity by 6 to 15-fold. The Asn211Thr variant was moderately affected, with a 44-fold decrease in activity, and the Gly331Gln, Gly239Ser, and Asn211Thr alterations were the most deleterious, resulting in 117 to 200-fold decreased activity.
We examined NTP utilization by wild type MtACK and each variant. The wild type enzyme showed broad NTP utilization, with greater than 50% activity with CTP, GTP, TTP, UTP, and ITP versus ATP (Table 1). The Gly331 alterations had the most extreme effect. Activity of both Gly331 variants with the pyrimidine nucleotides CTP, TTP, and UTP was significantly reduced, with each displaying less than 12% activity versus ATP (Table 1). Activity with GTP and ITP was also reduced, but to a much lesser extent. Thus, it appears that the Gly331 alterations changed the substrate preference of the enzyme such that pyrimidines are preferred over purines, with ATP as the favored substrate.
Table 1. Activity of MtACK wild type and variants with each nucleotide triphosphate (NTP).
Table 1. Activity of MtACK wild type and variants with each nucleotide triphosphate (NTP).
EnzymeSpecific Activity a (mol·min−1·mg−1)Percent Activity Relative to That Observed with 10 mM ATP b
Wild type883 ± 13100.0 ± 1.450.0 ± 0.485.2 ± 1.964.5 ± 0.754.8 ± 0.580.0 ± 0.5
Asn211Ala145 ± 1.6100.0 ± 1.156.4 ± 0.665.5 ± 1.178.6 ± 2.543.0 ± 0.380.0 ± 1.1
Asn211Ser4.4 ± 0.04100.0 ± 1.056.9 ± 0.665.7 ± 0.573.9 ± 0.443.7 ± 0.283.8 ± 0.7
Asn211Thr20 ± 0.1100.0 ± 0.655.7 ± 0.262.1 ± 0.995.7 ± 0.528.4 ± 0.375.4 ± 1.4
Gly239Ala61 ± 1.7100.0 ± 2.890.9 ± 1.064.3 ± 0.6142.0 ± 0.960.2 ± 1.551.8 ± 0.5
Gly239Ser4.6 ± 0.06100.0 ± 1.293.7 ± 1.072.1 ± 0.7163.4 ± 1.672.8 ± 0.756.2 ± 0.4
Gly331Ala58 ± 1.0100.0 ± 1.69.7 ± 0.549.0 ± 0.48.0 ± 0.34.4 ± 0.362.5 ± 0.1
Gly331Gln7.5 ± 0.05100.0 ± 0.611.8 ± 0.946.6 ± 0.58.1 ± 0.65.1 ± 0.469.0 ± 0.5
Notes: a Specific activity determined with 10 mM ATP; b Activities were determined at 10 mM final NTP concentration.
The Gly239 variants showed a shift in NTP utilization. Both variants displayed substantially higher activity with TTP than with ATP (Table 1), and activity (as a percentage of that observed with ATP) increased greatly with CTP as well. Only a weak increase in activity was observed with UTP. Activity with the purines GTP and ITP versus ATP decreased for both variants. Overall, the Asn211 variants had the least effect on NTP utilization. The Asn211Ala and Asn211Ser variants behaved similarly in terms of percentage activity observed with each NTP (Table 1). The percentage activity observed with CTP and ITP versus ATP was similar to that observed with the wild type enzyme. Activity with GTP and UTP decreased somewhat, and activity with TTP showed an increase. As for the Asn211Ala and Asn211Ser variants, the Asn211Thr variant showed little change in percentage activity observed with CTP and ITP, and the reduction in activity observed with GTP was similar to the other Asn211 variants. However, percentage activity observed with TTP and UTP was more substantially affected in the Asn211Thr variant. Activity with TTP was greatly enhanced and nearly equal to that observed with ATP, whereas the reduction in activity with UTP was stronger than that observed with the Asn211Ala and Asn211Thr variants.
We determined kinetic parameters for the wild type and each enzyme variant and found that the Km for ATP decreased slightly over two-fold for the Gly239 variants, but increased for all of the other variants (Table 2). The Asn211 variants had less than two-fold increased Km for ATP, but the Gly331 variants showed higher increases in the Km for ATP of 2.5-fold and 4.6-fold for the Ala and Gln variants, respectively.
Table 2. Apparent kinetic parameters for MtACK wild type and variants.
Table 2. Apparent kinetic parameters for MtACK wild type and variants.
EnzymeNTPKm (mM)kcat (s−1)kcat/Km (s−1·mM−1)Km Acetate a (mM)
WTATP4.0 ± 0.3715 ± 10180 ± 914.3 ± 0.5
-CTP3.2 ± 0.4460 ± 28148 ± 13-
-GTP7.2 ± 0.9571 ± 2280 ± 7-
-TTP2.7 ± 0.1540 ± 9202 ± 2-
-UTP2.7 ± 0.3415 ± 19152 ± 7-
-ITP4.7 ± 0.2742 ± 10158 ± 5-
Gly331AlaATP10.2 ± 0.488 ± 1.88.9 ± 0.18601 ± 8
-CTP15.7 ± 1.617 ± 0.81.1 ± 0.07-
-GTP5.3 ± 0.267 ± 1.012.6 ± 0.40-
-TTP11.2 ± 0.520 ± 0.51.8 ± 0.05-
-UTP*43 ± 8.1ND-
-ITP10.7 ± 0.284 ± 0.47.8 ± 0.17-
Gly331GlnATP18.4 ± 0.616 ± 0.20.9 ± 0.02**
-CTP11.1 ± 0.72.1 ± 0.050.2 ± 0.01-
-GTP7.4 ± 0.48.6 ± 0.151.2 ± 0.04-
-TTP12.1 ± 1.02.8 ± 0.100.2 ± 0.01-
-UTP14.2 ± 0.52.8 ± 0.030.2 ± 0.01-
-ITP10.1 ± 0.311 ± 0.11.0 ± 0.02-
Asn211AlaATP5.9 ± 0.5374 ± 1363.0 ± 5.7165 ± 20
Asn211SerATP6.8 ± 0.613 ± 0.81.9 ± 0.1140 ± 5
Asn211ThrATP7.1 ± 0.332 ± 0.74.5 ± 0.2470 ± 40
Gly239AlaATP1.7 ± 0.177 ± 2.145.7 ± 2.6113 ± 13.4
Gly239SerATP1.8 ± 0.16.8 ± 0.053.9 ± 0.1994 ± 3.0
Notes: a Kinetic parameters for NTPs were determined at saturating acetate concentration when possible. The maximum acetate concentration used was 1 M. * Enzyme was not saturable for UTP. Kinetic parameters were determined with 25 mM UTP. ** Enzyme was not saturable for acetate.
We also determined Km for the other NTPs for the wild type enzyme and the Gly331 variants since they had the most extreme changes in NTP usage. For the wild type enzyme, Km values varied less than two-fold (from 2.7 mM to 4.7 mM), with the exception of GTP for which the Km value was 7.2 mM (Table 2). Slightly lower Km values were observed with pyrimidine nucleotides than purine NTPs. Overall though, the catalytic efficiencies kcat/Km do not indicate any specific preference for purine versus pyrimidine NTPs.
For the Gly331Ala and Gly331Gln variants, the Km values for NTP substrates showed increases of 2-fold to 13-fold versus the wild type enzyme with the exception of GTP (Table 2). The Km value for GTP decreased slightly for the Gly331Ala variant and was unchanged for the Gly331Gln variant. The kcat values for the Gly331Ala variant decreased 8- to 26-fold, but there was no correlation between the level of reduction and whether the substrate was a purine or pyrimidine nucleotide. However, for the Gly331Gln variant the most severe reductions in kcat were observed with pyrimidine nucleotides (148-fold to 219-fold decrease) versus the purine nucleotides (45- to 70-fold decrease). Overall, both the Gly331Ala and Gly331Gln variants displayed a preference for purine nucleotides over pyrimidine nucleotides as judged by the catalytic efficiency kcat/Km, unlike the wild type enzyme which did not show a distinct substrate preference.
MtACK Arg285Ala, Arg285Leu, and Arg285Lys variants have previously been analyzed and shown to have 6.8 to 8.6-fold reduced kcat versus wild type, with 3 to 6-fold increased Km for ATP and ~6.8 to 11.5-fold increased Km for acetate [22], suggesting this residue is important for catalysis and substrate binding but is not essential. Given the overall lack of sequence conservation in LOOP4 and the planarity of Arg285 to the adenosine ring, we did not examine this residue further to determine if it plays any role in NTP selection.
ACK, like other members of the ASKHA enzyme superfamily, is proposed to undergo domain movement which would result in closure of the active site to sequester the substrates [2,3,11]. Of the four motifs identified in Figure 1, PHOSPHATE2, LOOP3, and ADENOSINE all reside in domain II, and only PHOSPHATE1 resides in domain I. Our results indicate that Gly331 in ADENOSINE may be responsible in large part for the broad NTP preference in MtACK. The other three motifs may play less of a role in determining substrate specificity but still play key roles in proper substrate positioning in the active site. The severe reduction in catalysis for the variants is consistent with this observation. Suboptimal substrate positioning may prevent proper domain closure, resulting in a catalytically less effective active site.

3.3. Substrate Specificity in MtACK versus Other ACKs

Yoshioka et al. [25] recently examined several residues in the ADENOSINE motif of E. coli ACK for their influence on ATP binding and ATP versus PPi specificity. Gly332, Gly333, Ile334, and Asn337 (equivalent to Ala330, Gly331, Ile332, and Asn335 of MtACK) were altered to the residue present in EhACK. The kcat was greatly reduced for each of these variants with the exception of the Asn337Glu variant, which had only ~2-fold reduced catalytic rate. All of the variants displayed an increased Km for ATP, particularly the Asn337Glu variant for which the Km increased over 45-fold. Yoshioka et al. interpreted these results to mean that Asn337 is the most crucial residue for specificity of ACK for ATP versus PPi [25]. However, the relatively minor reduction in catalysis would argue against this. Their results are fully consistent with ADENOSINE playing a key role in ATP binding though.
In the crystal structures of MtACK [2,9,12], CnACK [12], and StACK [23], the nucleotide base binds in a hydrophobic pocket and does not make specific interactions with the enzyme. That alterations at Gly331 increased the preference for purines over pyrimidines suggests that addition of a side chain at this position may allow direct or indirect contacts between ADENOSINE and the six-membered ring of purines that are not possible for pyrimidine bases. However, the decreased activity of these variants indicates that although the purine base may be better accommodated, the active site architecture is no longer optimal for proper binding and orientation of both substrates for catalysis.
It is interesting to note that MtACK and StACK work well in both directions of the reaction and display broad NTP substrate specificity ([16,23] and this work), whereas CnACK and EhACK strongly prefer the acetate-forming direction of the reaction and have narrow substrate specificity. The broad versus narrow substrate specificity may reflect the physiological role of ACK in each microbe, serving to provide tighter control over the directionality of the reaction. In Salmonella and many other bacteria, the direction in which the ACK-PTA pathway functions depends on the cell’s need for ATP for metabolic processes versus acetyl-CoA as a building block [26]. In Methanosarcina, this pathway is used for the activation of acetate as a growth and energy substrate for methanogenesis, but can also operate in the reverse direction for energy conservation during growth under non-methanogenic conditions on carbon monoxide [5,6]. In Cryptococcus and other fungi, ACK partners with xylulose 5-phosphate/fructose 6-phosphate phosphoketolase (XFP) [27,28] in a modified pentose phosphoketolase pathway similar to that used in lactic acid bacteria in the heterofermentative degradation of pentoses and hexoses. In E. histolytica, the partner enzyme for ACK is unknown but ACK is proposed to provide PPi for the unusual PPi-dependent glycolytic pathway [13].

4. Conclusions

Twelve conserved residues have previously been shown to be important for MtACK activity [9,10,11,14,20,22], and Ingram-Smith et al. [21] demonstrated that Val93, Leu122, and Pro232 are determinants for acetate binding in MtACK. These fifteen hallmark residues are highly conserved in both the prokaryotic and eukaryotic ACKs. Of these, Asn7, Ser10, Ser11, Ser12, and Lys14 belong to the PHOSPHATE1 motif.
We have identified three additional residues that are important for MtACK activity. Alterations at Asn211 and Gly239 in PHOSPHATE2 and LOOP3, respectively, reduced enzymatic activity but did not substantially influence NTP selection. Replacements at Gly331 in ADENOSINE not only reduced activity, but also changed the NTP preference of the enzyme. MtACK has a broad NTP range, with the highest activity observed with ATP followed by GTP and ITP, but with at least 50% activity with the pyrimidine NTPs. In scanning activity of the Gly331 variants with different NTPs, ATP was more strongly favored over the other purines and pyrimidine nucleotides were strongly disfavored. Our results suggest that although PHOSPHATE2 and LOOP3 may play a role in substrate positioning, the key role of the ADENOSINE motif may be in substrate specificity.


Support for this work was provided by National Science Foundation Award #920274, South Carolina Experiment Station Project SC-1700340, the Calhoun Honors College, and Clemson University.

Author Contributions

Cheryl Ingram-Smith and Kerry Smith conceived and designed the experiments. Jeffrey Wharton, Christian Reinholz, Tara Doucet, and Rachel Hesler performed the experiments. Cheryl Ingram-Smith and Kerry Smith analyzed the data. Cheryl Ingram-Smith wrote the paper. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Bork, P.; Sander, C.; Valencia, A. An ATPase domain common to prokaryotic cell cycle proteins, sugar kinases, actin, and hsp70 heat shock proteins. Proc. Natl. Acad. Sci. USA 1992, 89, 7290–7294. [Google Scholar]
  2. Buss, K.A.; Cooper, D.R.; Ingram-Smith, C.; Ferry, J.G.; Sanders, D.A.; Hasson, M.S. Urkinase: Structure of acetate kinase, a member of the ASKHA superfamily of phosphotransferases. J. Bacteriol. 2001, 183, 680–686. [Google Scholar] [PubMed]
  3. Hurley, J.H. The sugar kinase/heat shock protein 70/actin superfamily: Implications of conserved structure for mechanism. Annu. Rev. Biophys. Biomol. Struct. 1996, 25, 137–162. [Google Scholar] [CrossRef] [PubMed]
  4. Ferry, J.G. Enzymology of the fermentation of acetate to methane by Methanosarcina thermophila. Biofactors 1997, 6, 25–35. [Google Scholar] [CrossRef] [PubMed]
  5. Lessner, D.J.; Li, L.; Li, Q.; Rejtar, T.; Andreev, V.P.; Reichlen, M.; Hill, K.; Moran, J.J.; Karger, B.L.; Ferry, J.G. An unconventional pathway for reduction of CO2 to methane in co-grown Methanosarcina acetivorans revealed by proteomics. Proc. Natl. Acad. Sci. USA 2006, 103, 17921–17926. [Google Scholar] [CrossRef] [PubMed]
  6. Rother, M.; Metcalf, W.W. Anaerobic growth of Methanosarcina acetivorans C2a on carbon monoxide: An unusual way of life for a methanogenic archaeon. Proc. Natl. Acad. Sci. USA 2004, 101, 16929–16934. [Google Scholar] [CrossRef] [PubMed]
  7. Blattler, W.A.; Knowles, J.R. Stereochemical course of phosphokinases. The use of adenosine [gamma-(s)-16O,17O,18O] triphosphate and the mechanistic consequences for the reactions catalyzed by glycerol kinase, hexokinase, pyruvate kinase, and acetate kinase. Biochemistry 1979, 18, 3927–3933. [Google Scholar] [CrossRef] [PubMed]
  8. Miles, R.D.; Gorrell, A.; Ferry, J.G. Evidence for a transition state analog, MgADP-aluminum fluoride-acetate, in acetate kinase from Methanosarcina thermophila. J. Biol. Chem. 2002, 277, 22547–22552. [Google Scholar] [CrossRef] [PubMed]
  9. Gorrell, A.; Lawrence, S.H.; Ferry, J.G. Structural and kinetic analyses of arginine residues in the active site of the acetate kinase from Methanosarcina thermophila. J. Biol. Chem. 2005, 280, 10731–10742. [Google Scholar] [CrossRef] [PubMed]
  10. Miles, R.D.; Iyer, P.P.; Ferry, J.G. Site-directed mutational analysis of active site residues in the acetate kinase from Methanosarcina thermophila. J. Biol. Chem. 2001, 276, 45059–45064. [Google Scholar] [CrossRef] [PubMed]
  11. Gorrell, A.; Ferry, J.G. Investigation of the Methanosarcina thermophila acetate kinase mechanism by fluorescence quenching. Biochemistry 2007, 46, 14170–14176. [Google Scholar] [CrossRef] [PubMed]
  12. Thaker, T.M.; Tanabe, M.; Fowler, M.L.; Preininger, A.M.; Ingram-Smith, C.; Smith, K.S.; Iverson, T.M. Crystal structures of acetate kinases from the eukaryotic pathogens Entamoeba histolytica and Cryptococcus neoformans. J. Struct. Biol. 2013, 181, 185–189. [Google Scholar] [CrossRef] [PubMed]
  13. Fowler, M.L.; Ingram-Smith, C.; Smith, K.S. Novel pyrophosphate-forming acetate kinase from the protist Entamoeba histolytica. Eukaryot. Cell 2012, 11, 1249–1256. [Google Scholar] [CrossRef] [PubMed]
  14. Singh-Wissmann, K.; Ingram-Smith, C.; Miles, R.D.; Ferry, J.G. Identification of essential glutamates in the acetate kinase from Methanosarcina thermophila. J. Bacteriol. 1998, 180, 1129–1134. [Google Scholar] [PubMed]
  15. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef] [PubMed]
  16. Aceti, D.J.; Ferry, J.G. Purification and characterization of acetate kinase from acetate-grown Methanosarcina thermophila. Evidence for regulation of synthesis. J. Biol. Chem. 1988, 263, 15444–15448. [Google Scholar] [PubMed]
  17. Lipmann, F.; Tuttle, L.C. A specific micromethod for determination of acyl phosphates. J. Biol. Chem. 1945, 159, 21–28. [Google Scholar]
  18. Rose, I.A.; Grunberg-Manago, M.; Korey, S.F.; Ochoa, S. Enzymatic phosphorylation of acetate. J. Biol. Chem. 1954, 211, 737–756. [Google Scholar] [PubMed]
  19. Latimer, M.T.; Ferry, J.G. Cloning, sequence analysis, and hyperexpression of the genes encoding phosphotransacetylase and acetate kinase from Methanosarcina thermophila. J. Bacteriol. 1993, 175, 6822–6829. [Google Scholar] [PubMed]
  20. Ingram-Smith, C.; Barber, R.D.; Ferry, J.G. The role of histidines in the acetate kinase from Methanosarcina thermophila. J. Biol. Chem. 2000, 275, 33765–33770. [Google Scholar] [CrossRef] [PubMed]
  21. Ingram-Smith, C.; Gorrell, A.; Lawrence, S.H.; Iyer, P.; Smith, K.; Ferry, J.G. Characterization of the acetate binding pocket in the Methanosarcina thermophila acetate kinase. J. Bacteriol. 2005, 187, 2386–2394. [Google Scholar] [CrossRef] [PubMed]
  22. Singh-Wissmann, K.; Miles, R.D.; Ingram-Smith, C.; Ferry, J.G. Identification of essential arginines in the acetate kinase from Methanosarcina thermophila. Biochemistry 2000, 39, 3671–3677. [Google Scholar] [CrossRef] [PubMed]
  23. Chittori, S.; Savithri, H.S.; Murthy, M.R. Structural and mechanistic investigations on Salmonella typhimurium acetate kinase (AckA): Identification of a putative ligand binding pocket at the dimeric interface. BMC Struct. Biol. 2012, 12. [Google Scholar] [CrossRef]
  24. Bork, P.; Sander, C.; Valencia, A. Convergent evolution of similar enzymatic function on different protein folds: The hexokinase, ribokinase, and galactokinase families of sugar kinases. Protein Sci. 1993, 2, 31–40. [Google Scholar] [CrossRef] [PubMed]
  25. Yoshioka, A.; Murata, K.; Kawai, S. Structural and mutational analysis of amino acid residues involved in ATP specificity of Escherichia coli acetate kinase. J. Biosci. Bioeng. 2014, 118, 502–509. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Wolfe, A.J. The acetate switch. Microbiol. Mol. Biol Rev. 2005, 69, 12–50. [Google Scholar] [CrossRef] [PubMed]
  27. Glenn, K.; Ingram-Smith, C.; Smith, K.S. Biochemical and kinetic characterization of xylulose 5-phosphate/fructose 6-phosphate phosphoketolase 2 (Xfp2) from Cryptococcus neoformans. Eukaryot. Cell 2014, 13, 657–663. [Google Scholar] [CrossRef] [PubMed]
  28. Ingram-Smith, C.; Martin, S.R.; Smith, K.S. Acetate kinase: Not just a bacterial enzyme. Trends Microbiol. 2006, 14, 249–253. [Google Scholar] [CrossRef] [PubMed]
