# Development of Cutting Force Model and Process Maps for Power Skiving Using CAD-Based Modelling

## Abstract

**:**

## 1. Introduction

## 2. State of the Art

## 3. Power Skiving Process Kinematics

_{at}is the helix angle of the cutting tool, h

_{ag}the helix angle of the workgear and Σ the inclination angle.

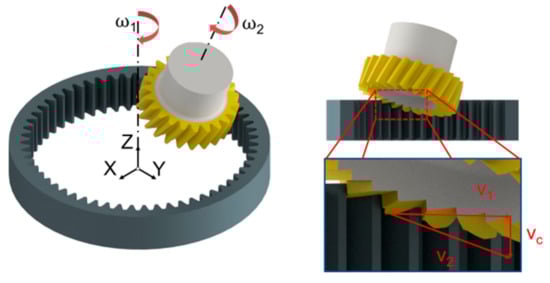

_{1}. Because of the helix angle of the tool, an additional cutting speed exists. This cutting speed, presented as V

_{c}, is responsible for the cutting motion in the process as it provides the main cutting speed for power skiving. By adding the two vectors, the cutting speed of the process can be calculated (V

_{2}).

_{at}), the pressure angle (a

_{n}), the secondary rake angle (τ), the primary rake angle (γ), the number of teeth of the tool (z

_{t}) and the module of the gear (m

_{n}). The workgear parameters include the helix angle (h

_{ag}), the module (m

_{n}) and the number of teeth of the gear (z

_{g}). Finally, the process parameters include the cutting speed (v

_{c}), the cutting feed (f

_{a}) and the depth of cut.

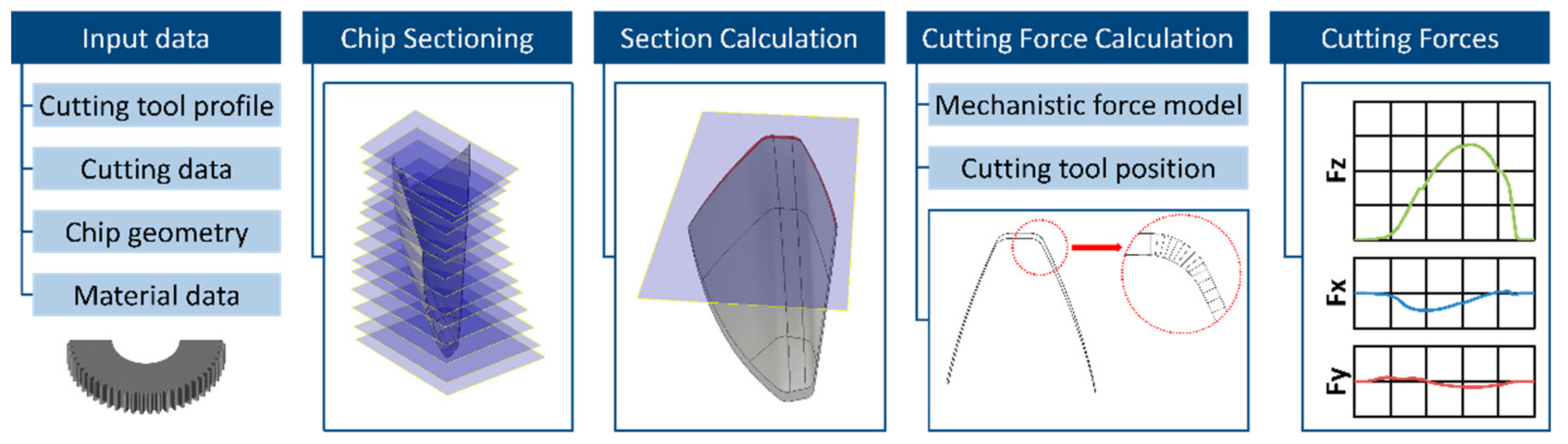

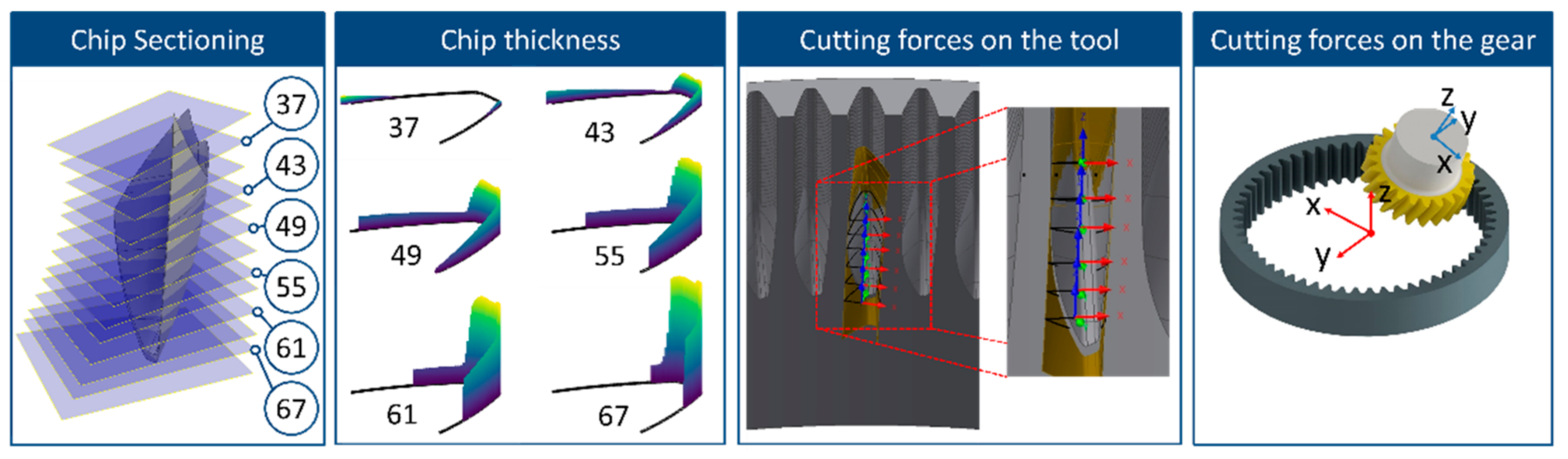

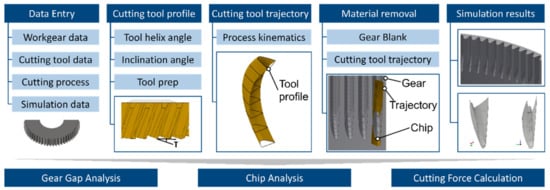

## 4. Simulation Model

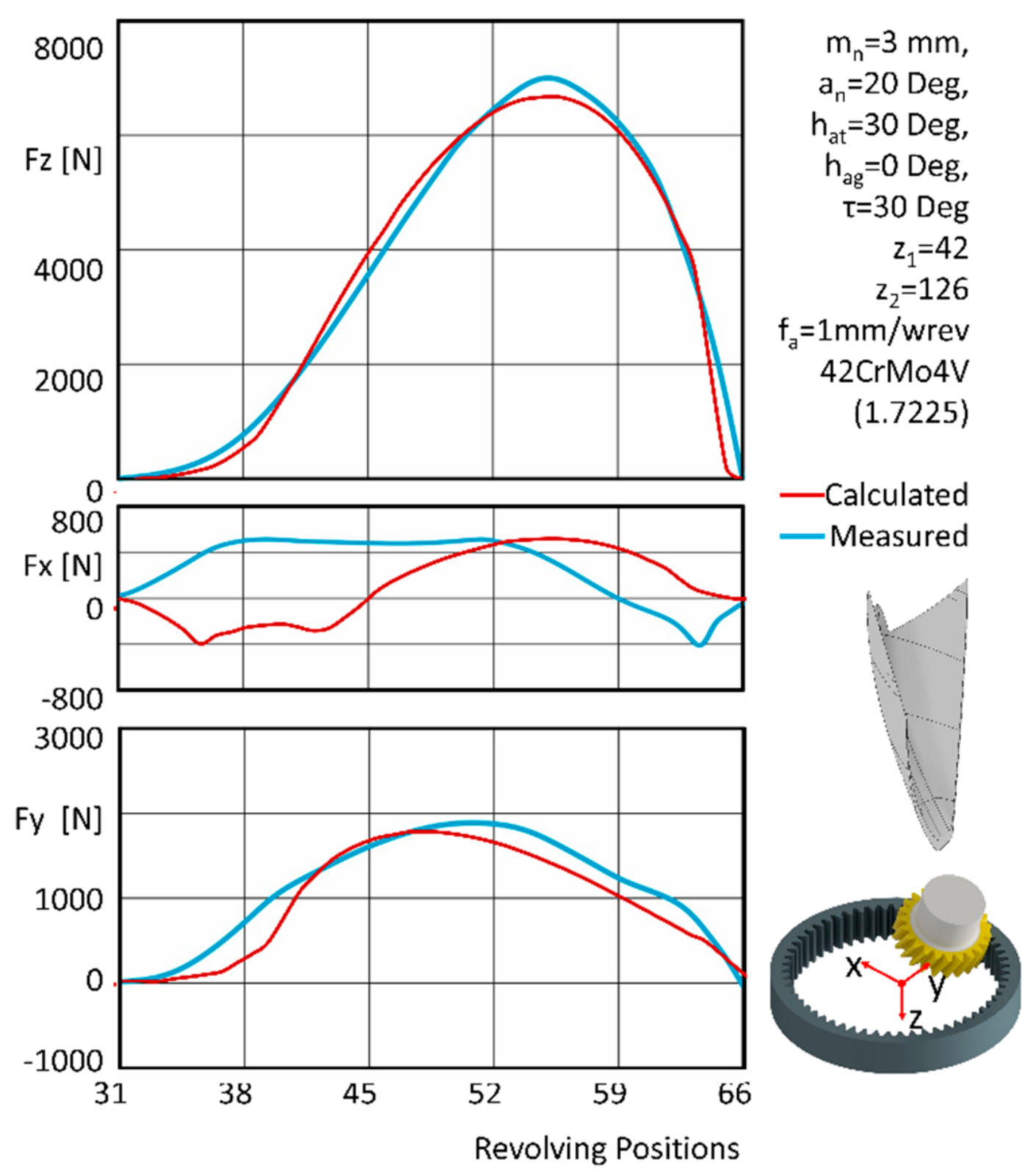

## 5. Simulation Validation

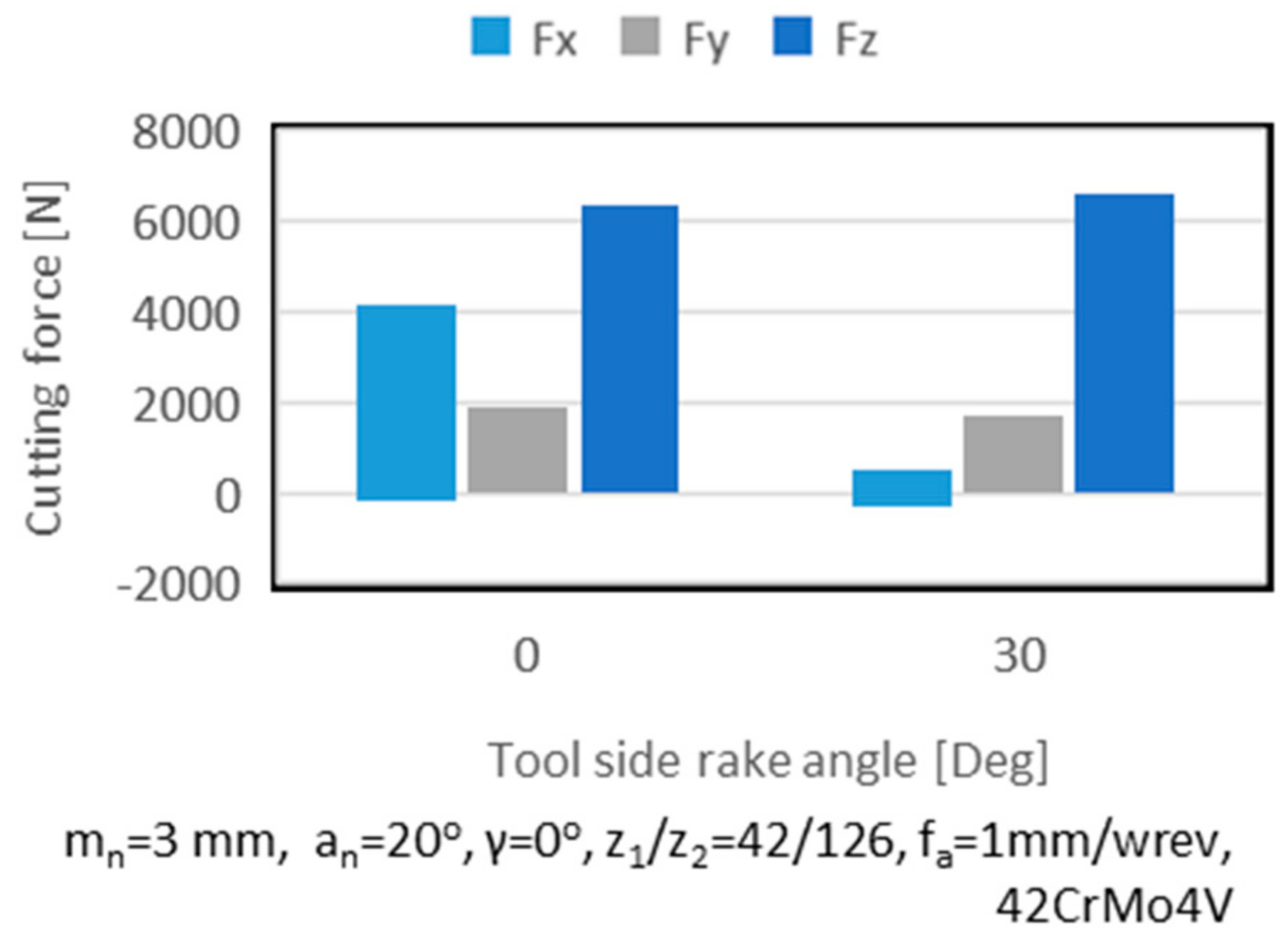

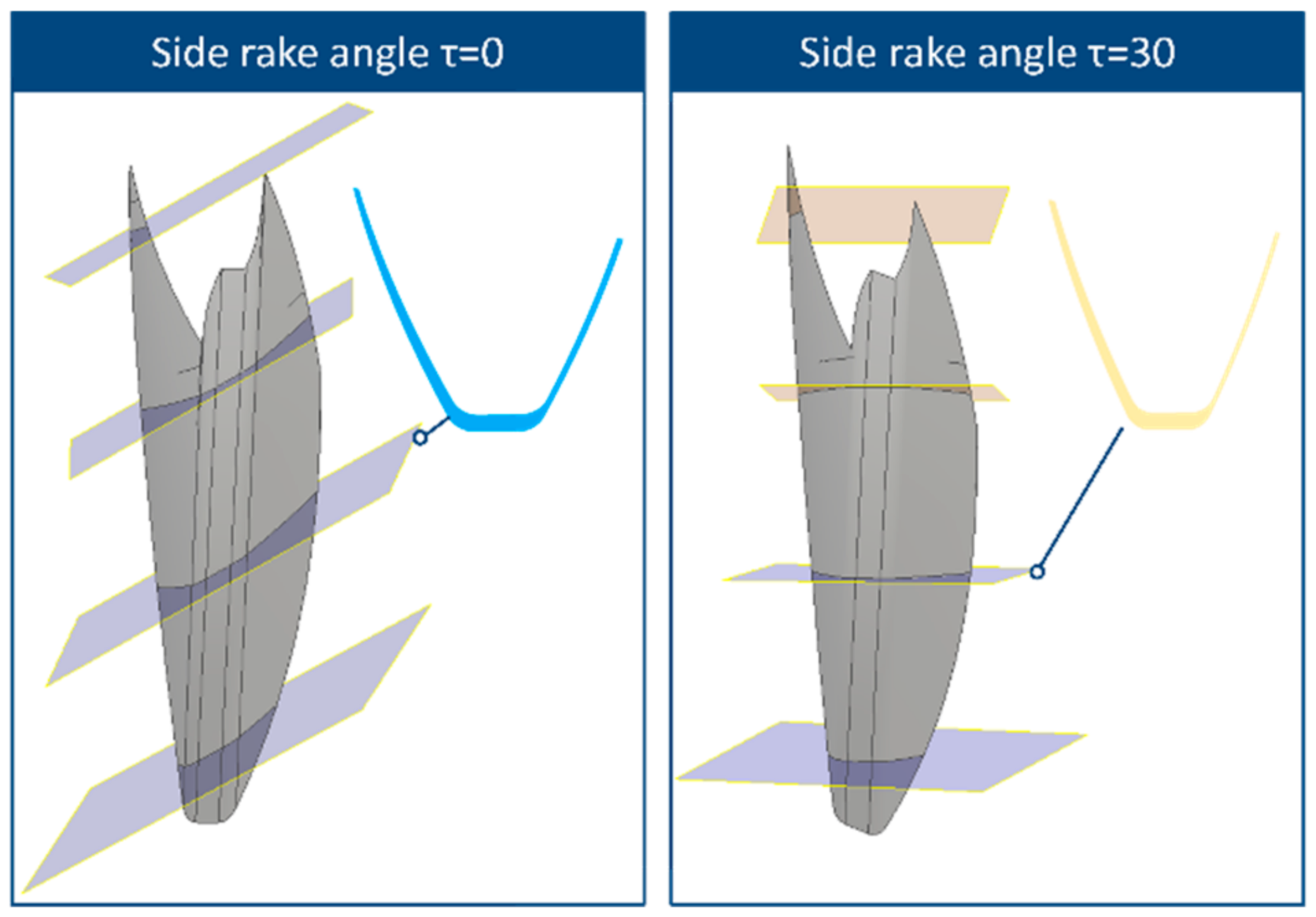

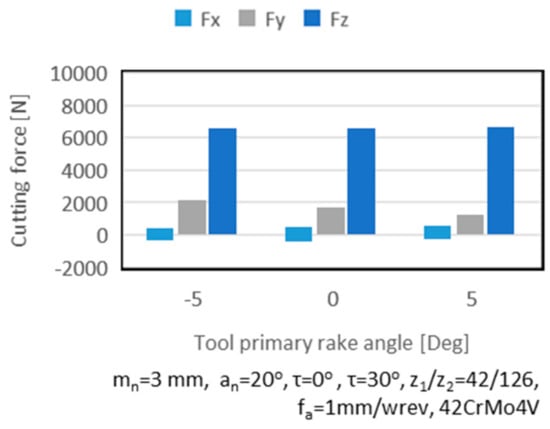

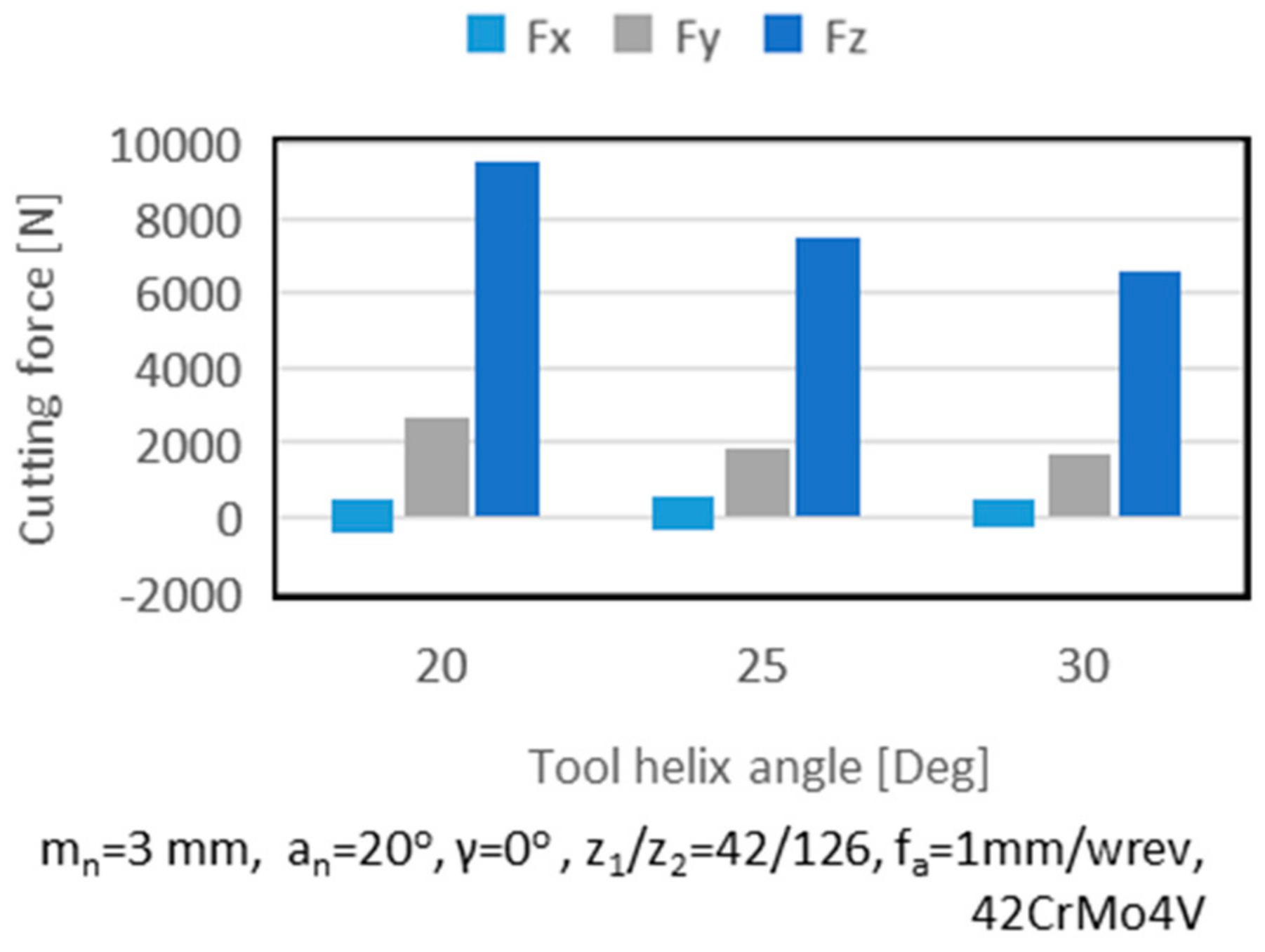

## 6. Effect of Process Parameters on Cutting Forces

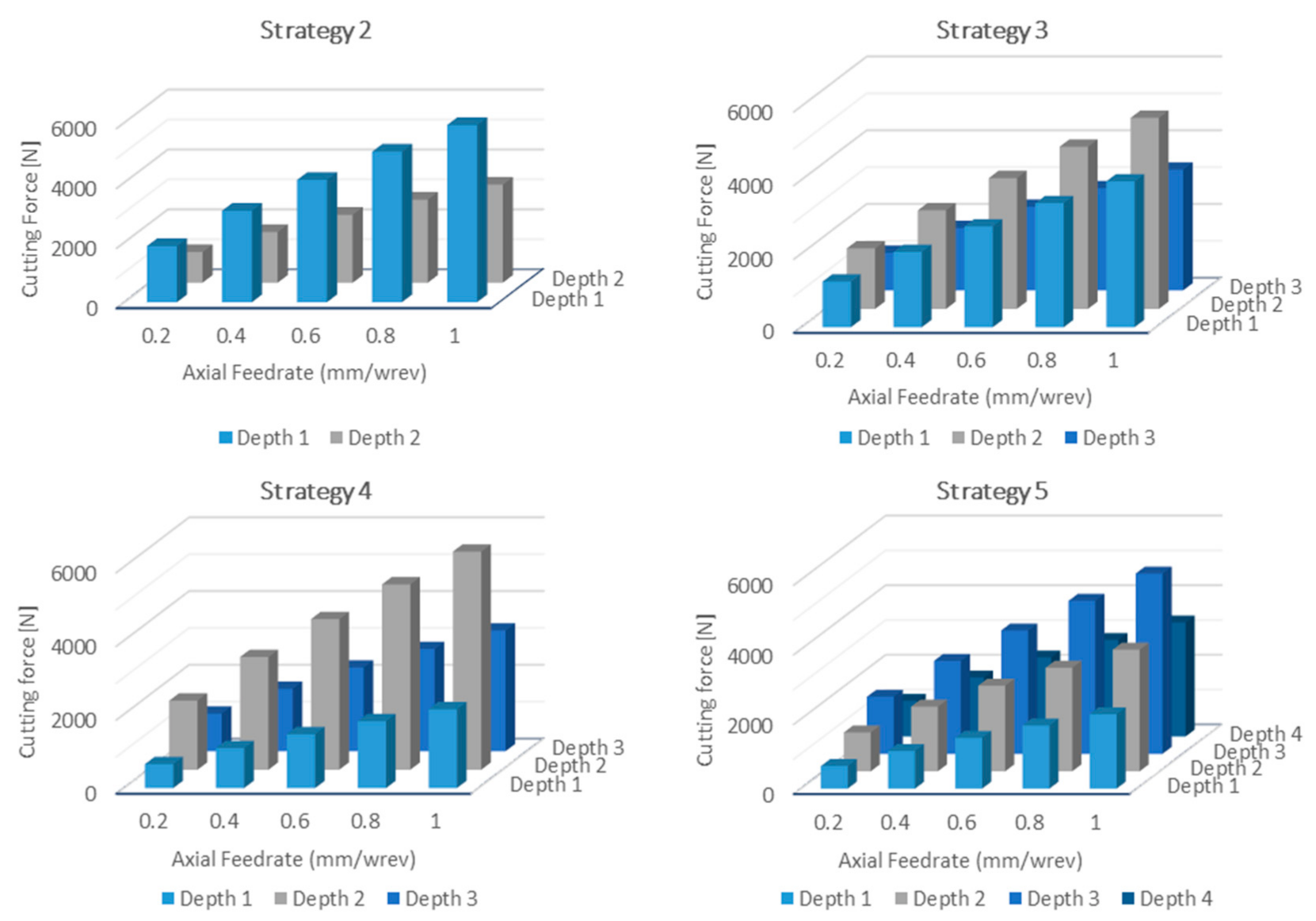

## 7. Development of Power Skiving Process Maps

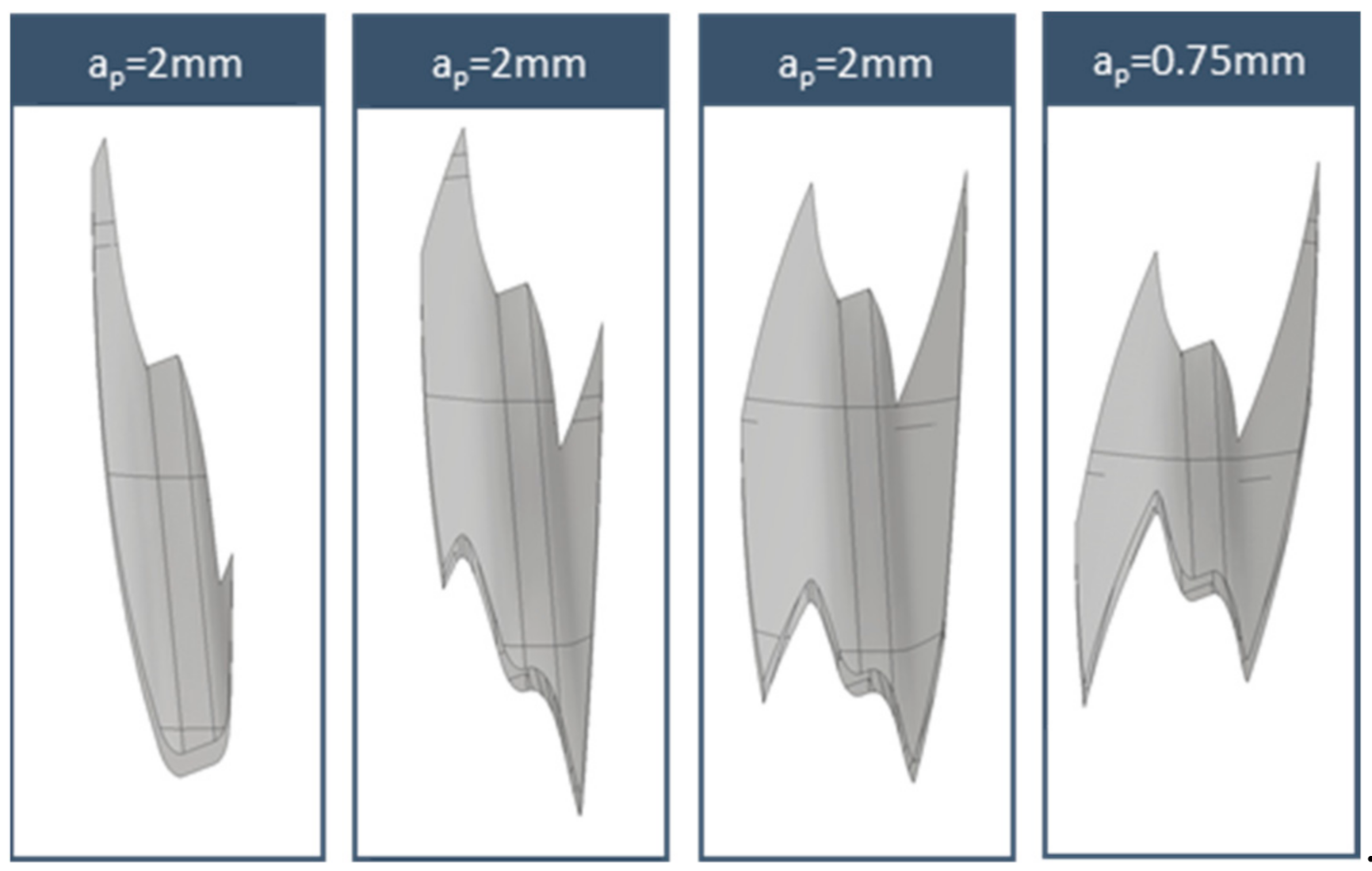

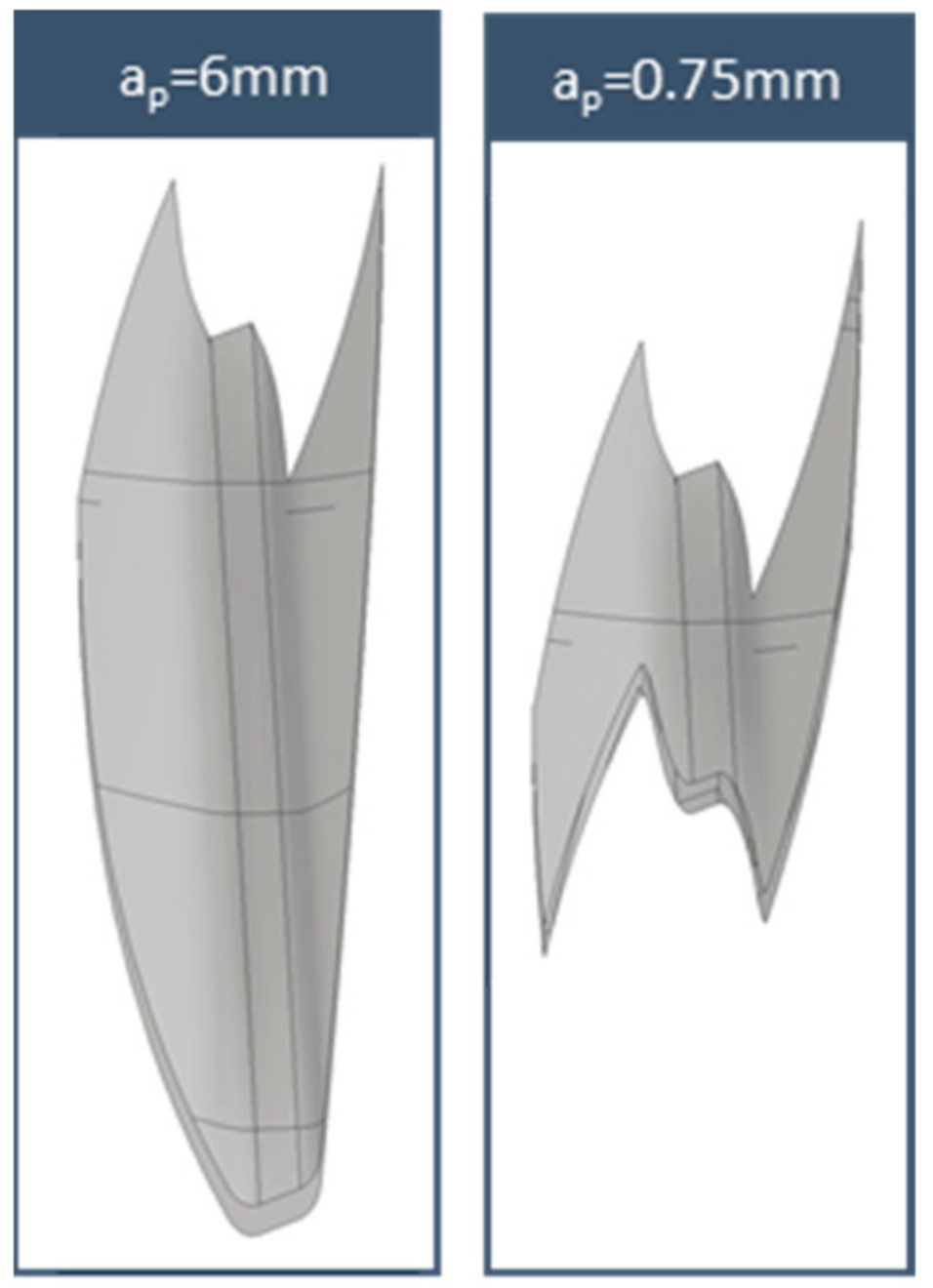

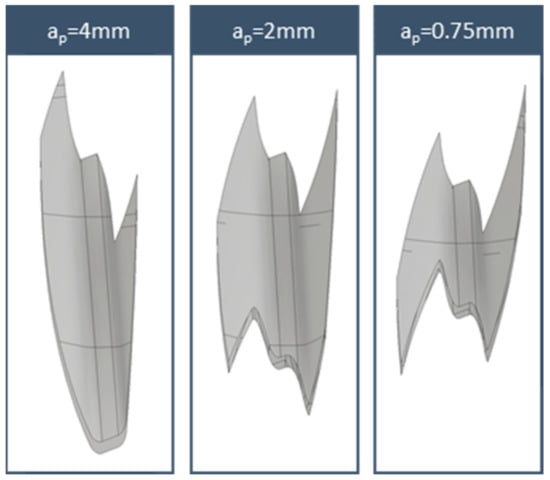

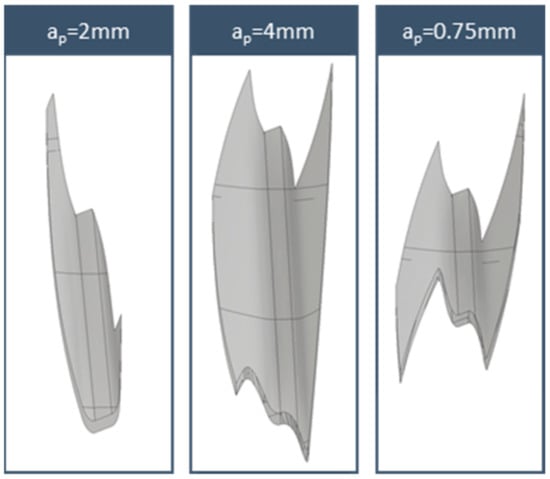

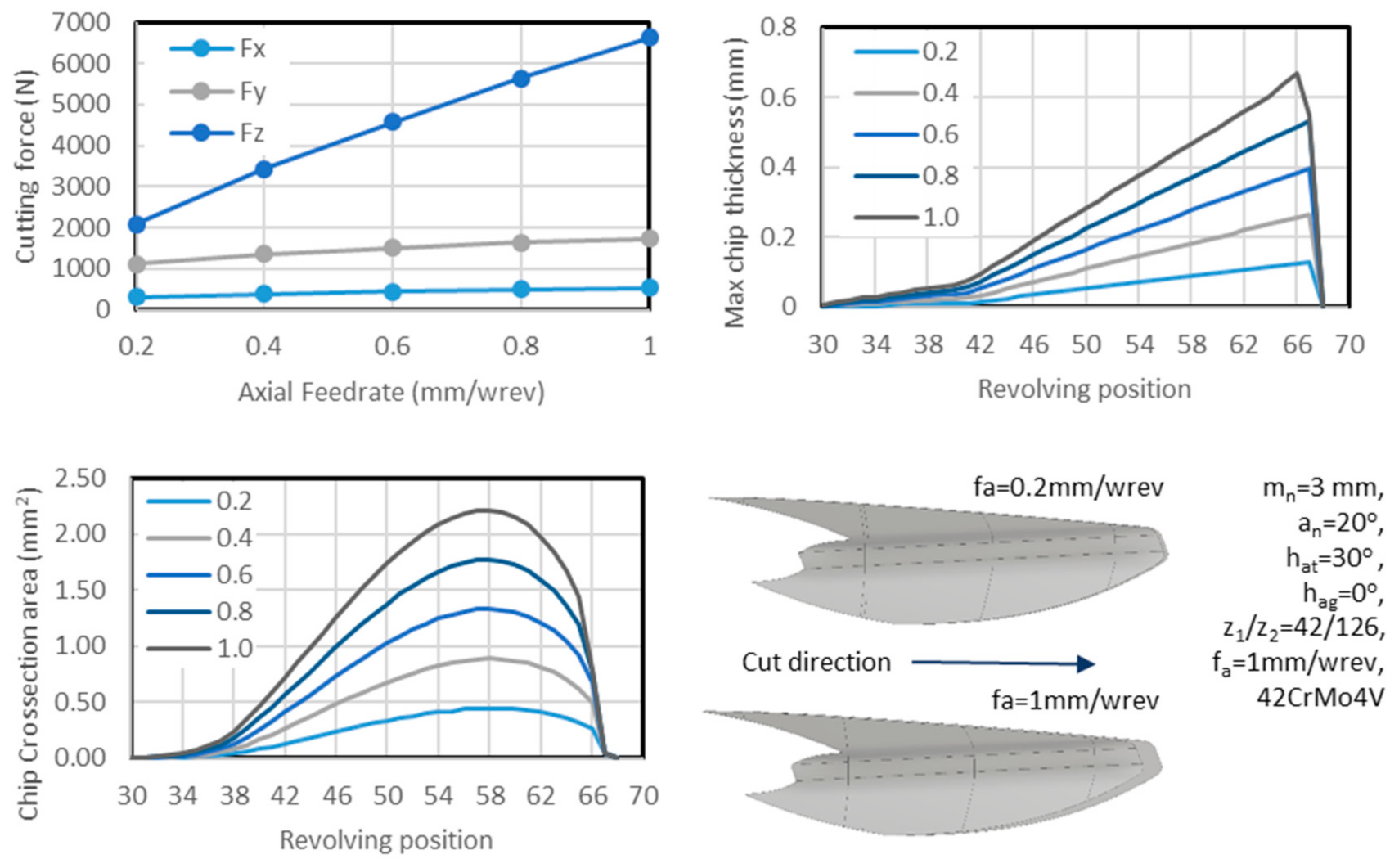

_{a}= 0.6 mm/wrev are presented in Figure 12, Figure 13, Figure 14 and Figure 15. The feedrate had a minimum effect in the macro geometry of the chip, as is presented in Figure 10. In all cases, the first depth of cut produced large chips with a general U-shaped form with the leading flank having a heavier chip load and the maximum chip thickness towards the final revolving positions. Consecutive passes tend to generate a Z- or M-type chip geometries with different widths directly linked with the depth of cut. One aspect worth noting is the increase in the chip length as the machining strategy 5 progresses.

## 8. Conclusions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References
