Adaptive Cutting Control for Roadheaders Based on Performance Optimization

Abstract

Aiming at addressing the problems of high specific energy consumption for cutting and slow response to the change of hardness in the control of existing mining roadheaders, an adaptive variable speed cutting control method based on cutting performance optimization is proposed by analyzing the working principle of roadheaders. Firstly, cylinder pressure and motor current are invoked as the criteria to judge load changes. Particle swarm optimization is utilized to optimize the cutting parameters under different impedance. Then, the relation between cutting speed, motor current and cylinder pressure is established by using fuzzy neural network to train cutting parameters and identification parameters under different conditions. Finally, the vector control of motor and electro-hydraulic servo valve is used to control the cutting speed. The results show that the cutting unit can adapt to different load signals and always keep the roadheader in the optimal working state. The rotation speed regulation of the cutting head reaches the stable state after 0.05 s, with the overshoot of 1.42%. The swing speed regulation of the cutting head reaches the stable state after 1 s, with the overshoot of 5.3%. Conclusions provide a basis for improving the cutting efficiency and prolonging the working life of the roadheader.

1. Introduction

The cutting unit bears a large load and impact load, and its power consumption accounts for about 75% of the total installed power. The cutting motor is often in the state of overload or underload because of the constant change of the cutting load which is caused by the complex and changeable physical characteristics of coal and rock. Therefore, it is necessary to dynamically adjust cutting speed according to the hardness of the coal and rock to maintain a high-efficiency cutting state [1,2]. The cutting performance of roadheader is mainly determined by structural parameters and cutting motion parameters [3]. The finite element method was used to establish the numerical model of rock cutting for investigating the variation laws of cutting force and debris size with cutting speed and rake angle [4,5]. Liu et al. [6] studied the influence of cutting angle on cutter wear and concluded that larger rake angle could reduce wear. Wang et al. [7] studied the effect of cutting depth on specific energy consumption for cutting and found that only 3% of external work is used to generate new chipping surfaces. By investigating the influence of cutting speed on cutting performance, Zhang et al. [8] explored the change rules of specific energy consumption for cutting and average cutting force with propelling speed and rotation speed.

The above research on cutting parameters and motion parameters can improve the cutting performance to a certain extent, but the performance can be further improved by adjusting the parameters according to the hardness of the coal. Yang et al. [9] used a proportional integral derivative (PID) control to maintain the power of the cutting machine motor constant by adjusting the speed of the hydraulic cylinder. Wang et al. [10] proposed a coal-rock dynamic identification method based on adaptive weight optimization and multi-sensor information fusion according to the differences in cutting current, vibration, acoustic emission, infrared thermal image and other signals at different cutting state. Faradonbeh et al. [11] established a database of machine performance and geomechanical parameters of rock. In order to obtain more accurate models for predicting the performance of roadheaders, they also analyzed the parameters through genetic programming (GP) and gene expression programming (GEP) approaches. Dolipski et al. [12] proposed an automatic cutting head speed control system with a PID controller to reduce the energy consumption of the cutting head. Wang et al. [13] established a multi-information feature library including Y-axis vibration signal, acoustic emission signal, cutting current signal and temperature signal to judge the hardness of coal and rock. Gao et al. [14] used the power supply panel as the controller to realize the automatic forming of the roadway section and the automatic traction and the speed regulation of the cutting arm. Wang et al. [15] proposed a control method to improve the speed of roadheader by using multi-sensor information fusion and solved the problem of low efficiency of roadheader by classifying the speed of cutting head to adapt to the change of coal and rock hardness. Zhao et al. [16] took the current as the control object and adjusted the motor speed by setting the rated current and using vector control to make the cutting motor operate at constant power. Cheluszka et al. [17] proposed a speed control mode of cutting head and compared the performance of the control system with and without speed feedback through experiments.

As stated previously, most studies on cutting performance focus on the design of cutting head, and the researches about motion parameters are also limited to specific loads, which leads to the inability of the roadheader to maintain the optimal cutting state in real time. Aiming at the above problem, this paper proposes an adaptive control method based on performance optimization to improve the cutting efficiency of roadheader.

The rest of the paper is structured as follows: The influences of cutting speed on loads are analyzed in Section 2. In Section 3, particle swarm optimization is utilized to calculate the cutting parameters with the best cutting performance. In Section 4, the fuzzy neural network is used to establish the mapping relationship between motor current, cylinder pressure and cutting speed to realize the hardness identification. The optimal cutting conditions under different loads are achieved by the above methods.

2. The Establishment of Mathematical Models

2.1. Working Principle of Roadheader

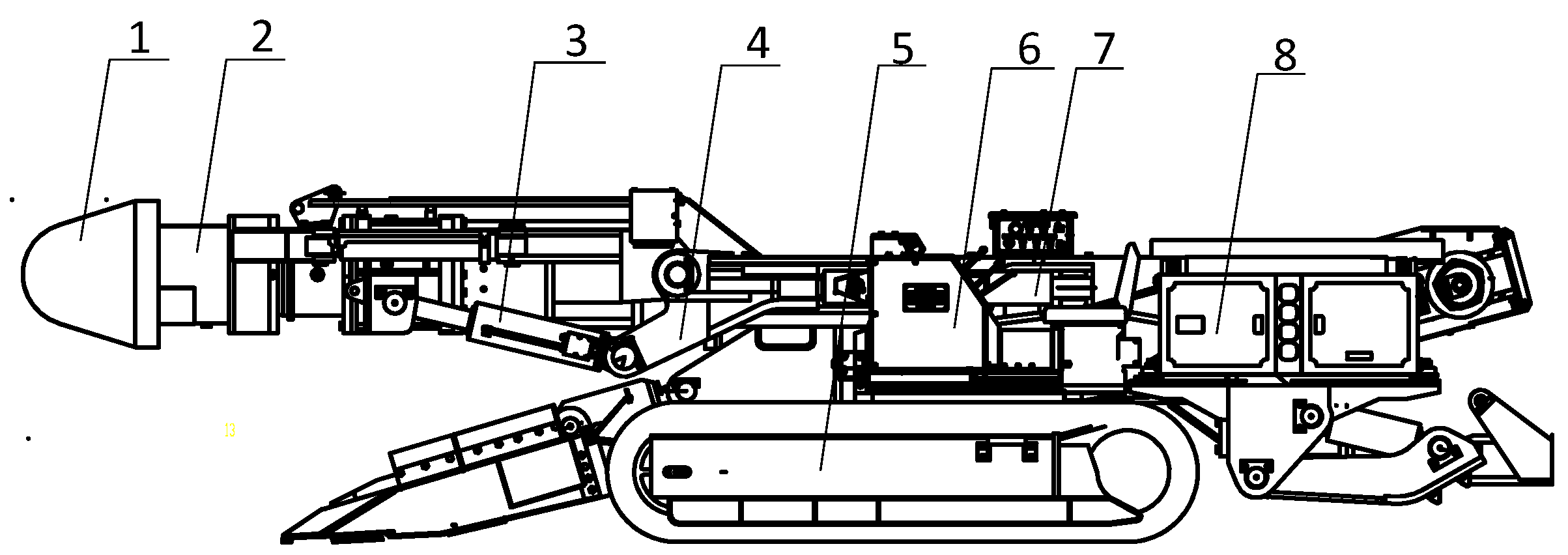

The front of the cantilever is the cutting head, which is driven by the motor to rotate the cutting head for crushing coal and rock, and the back part is connected with the revolving platform. The transverse swing process of the cantilever is driven by a pair of symmetrical rotary hydraulic cylinders. The cantilever can swing around its rotary center by extending one side of the hydraulic cylinder and synchronously shortening the other side. The cantilever vertical swing through a pair of lifting hydraulic cylinders at the same time telescopic or shortened. Its structural principle is shown in Figure 1.

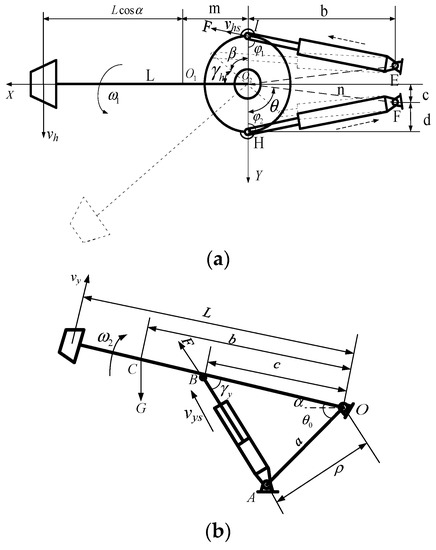

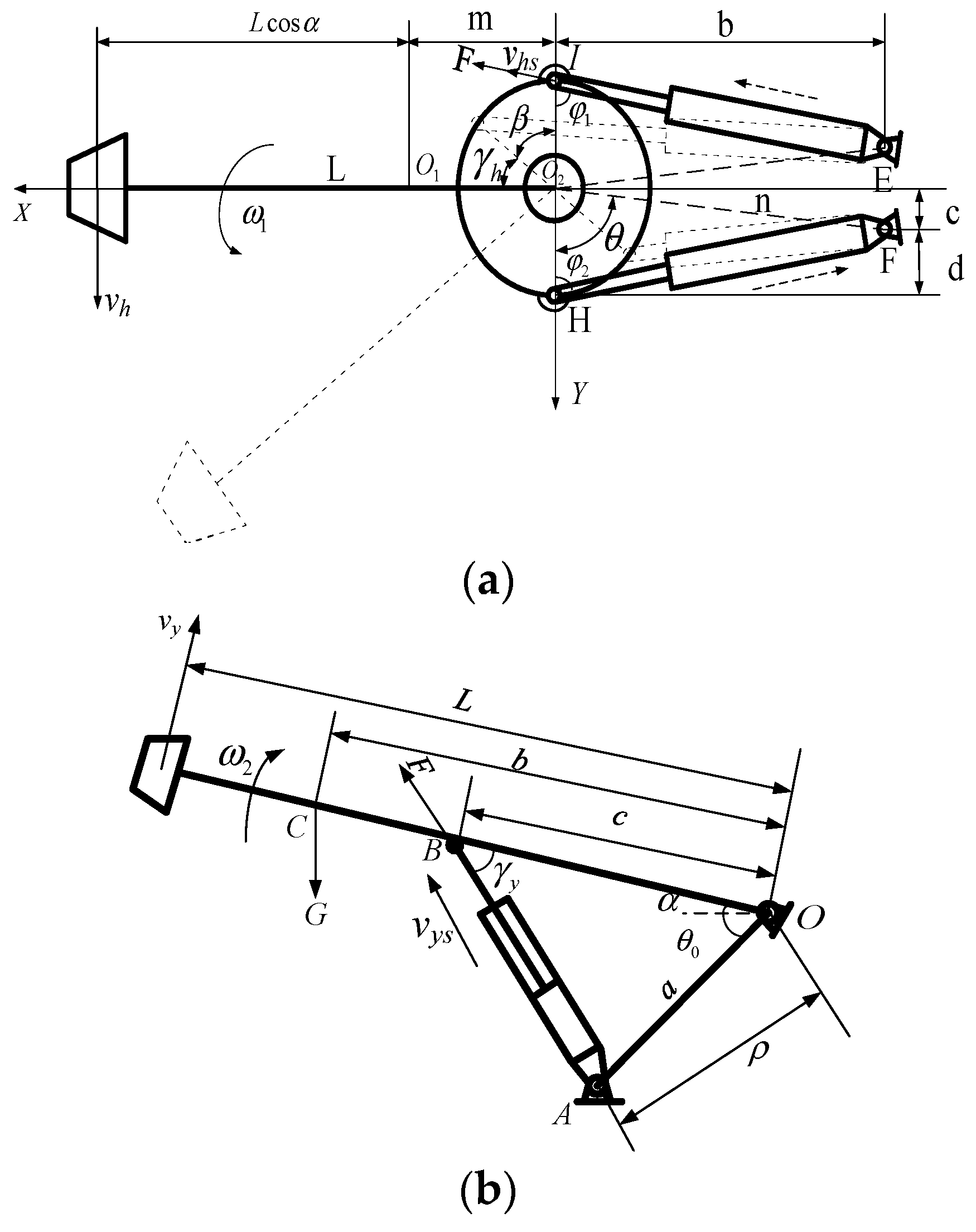

From the working principle and working process of roadheader as shown in Figure 2, the cutting performance is related to the swing speed and rotation speed of the cutting head. Therefore, it is necessary to establish the relationship between the speed of the hydraulic cylinder and the swing speed of the cutting head, as well as the influence of the swing speed v and the rotation speed n on the cutting load.

According to the working principle, the swing speed of the cutting head can be obtained as follows:

$$\{\begin{array}{c}{v}_y=L{\omega }_1=\frac{L\sin {\gamma }_y}{c}{v}_{ys}\\ v_h=(L\cos \alpha +m){\omega }_2=\frac{1}{R}(L\cos \alpha +m)v_{hs}\sin {\gamma }_h\end{array}$$

(1)

where v_y is the lifting speed, v_h is the swing speed; L is the length of the cantilever; $\gamma$ is the transmission angle; m is the distance between the projection point of the lifting center on the horizontal plane and the rotation center; $\alpha$ is the lifting angle; v_ys and v_hs are the speed of the lifting cylinder and the angling cylinder respectively.

2.2. Roadheader Cutting Head Load

The load of the cutting head is determined by the hardness of coal and rock and the cutting depth of the cutting teeth. Large loads and load fluctuations will cause the damage of the picks and decrease the working life of the roadheader [18,19].

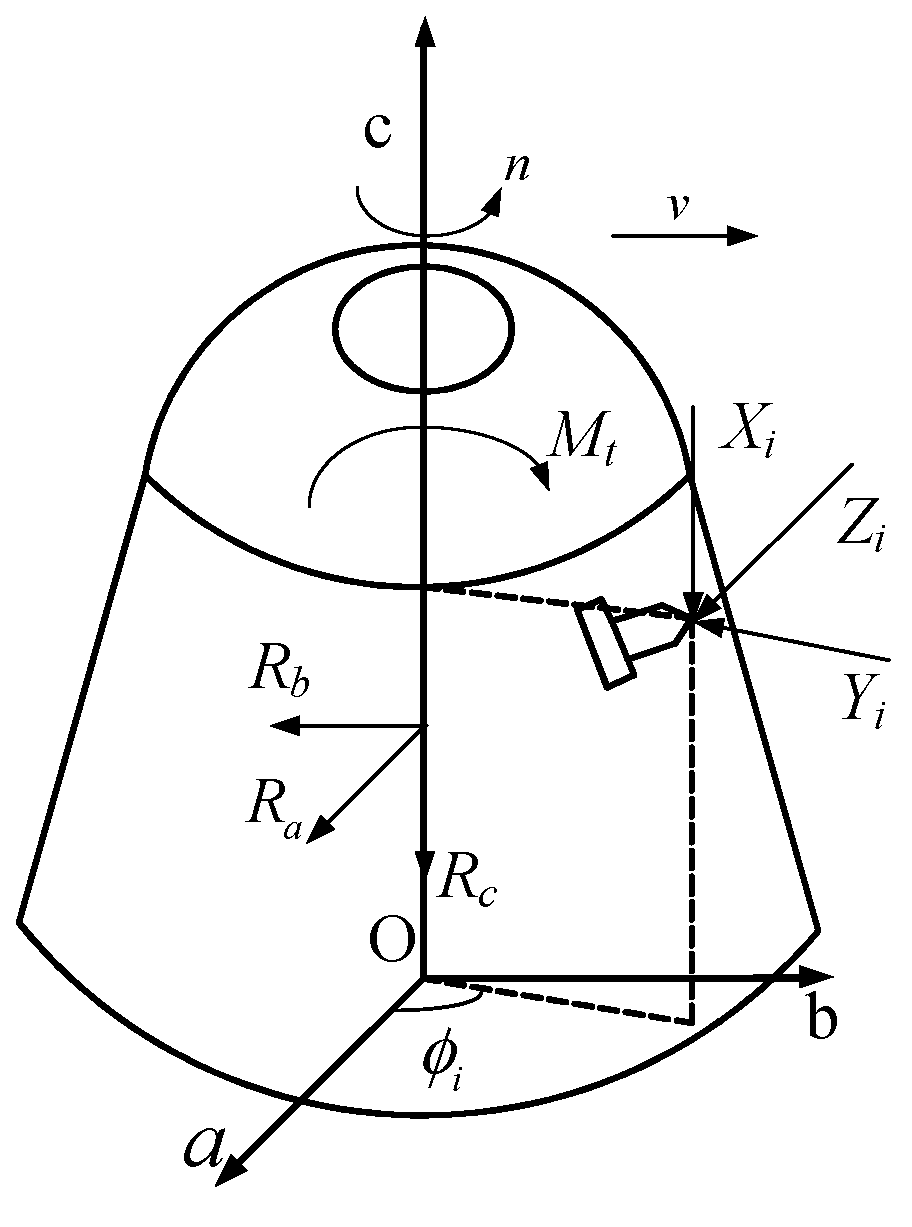

As shown in Figure 3, the force on the i-th pick can be decomposed into cutting resistance Z_i, tractive resistance Y_i and side resistance X_i. The value of parameters in the load calculation formula is shown in

Table 1. The value of parameters in the load calculation formula.

Parameter	kT	kg	ky	t	Sj	C1	C2	C3	m
Value	1.5	1.221	0.65	30	20	1	0.2	0.1	3

[20]. The pick information is shown in

Table 2. Information of cutting pick.

Pick	1	2	3	4	5	6	7	8	9	10	11	12
${\varphi }_i$ (°)	0	85	228	37	132	265	74	169	302	111	206	339
ri (mm)	560	560	560	559	553	543	533	523	513	503	493	483
Pick	13	14	15	16	17	18	19	20	21	22	23	24
${\varphi }_i$ (°)	148	243	16	185	280	53	222	317	90	259	354	127
ri (mm)	473	464	455	446	437	428	419	410	399	386	371	354
Pick	25	26	27	28	29	30	31	32	33	34	35	36
${\varphi }_i$ (°)	296	33	166	338	81	215	31	146	280	95	217	356
ri (mm)	335	315	294	270	247	222	195	168	140	110	80	50

[21].

$$\{\begin{array}{c}{Z}_i=P_k[k_T{k}_g{k}_y(0.25+0.018t{h}_i)+0.1S_j]\\ Y_i=Z_i(0.15+0.00056P_k)2.5/h_i^{0.4}\\ X_i=Z_i(C_1/(C_2+h_i)+C_3)h_i/t\end{array}$$

(2)

where P_k is the contact strength of the coal and rock; k_T, k_g and k_y are the coefficient of type, the coefficient geometrical shape and the coefficient of chamfering of cutting pick; t is the average transversal spacing; $h_i=(1000v/nm)\sin {\varphi }_i$ denotes the average cutting thickness, m is the number of cutting pick on the same cutting line; S_j is the projected area of cutting pick after blade surface in the traction direction; C₁, C₂ and C₃ are influence coefficients of breakout patterns.

The vertical force R_a, traversing force R_b, axial force R_c and load torque M_t in the cutting head can be expressed as:

$$\{\begin{array}{c}{R}_a={\displaystyle \sum _i^j(Z_i\sin {\varphi }_i-Y_i\cos {\varphi }_i)}\\ R_b={\displaystyle \sum _i^j(Z_i\cos {\varphi }_i+Y_i\sin {\varphi }_i)}\\ R_c={\displaystyle \sum _i^j{X}_i}\\ M_t={\displaystyle \sum _i^j{Z}_i{r}_i}\end{array}$$

(3)

where ${\varphi }_i$ is the position angle of a single cutting pick; r_i is the working radius of the i-th pick, j is the number of picks which participate in cutting at this moment.

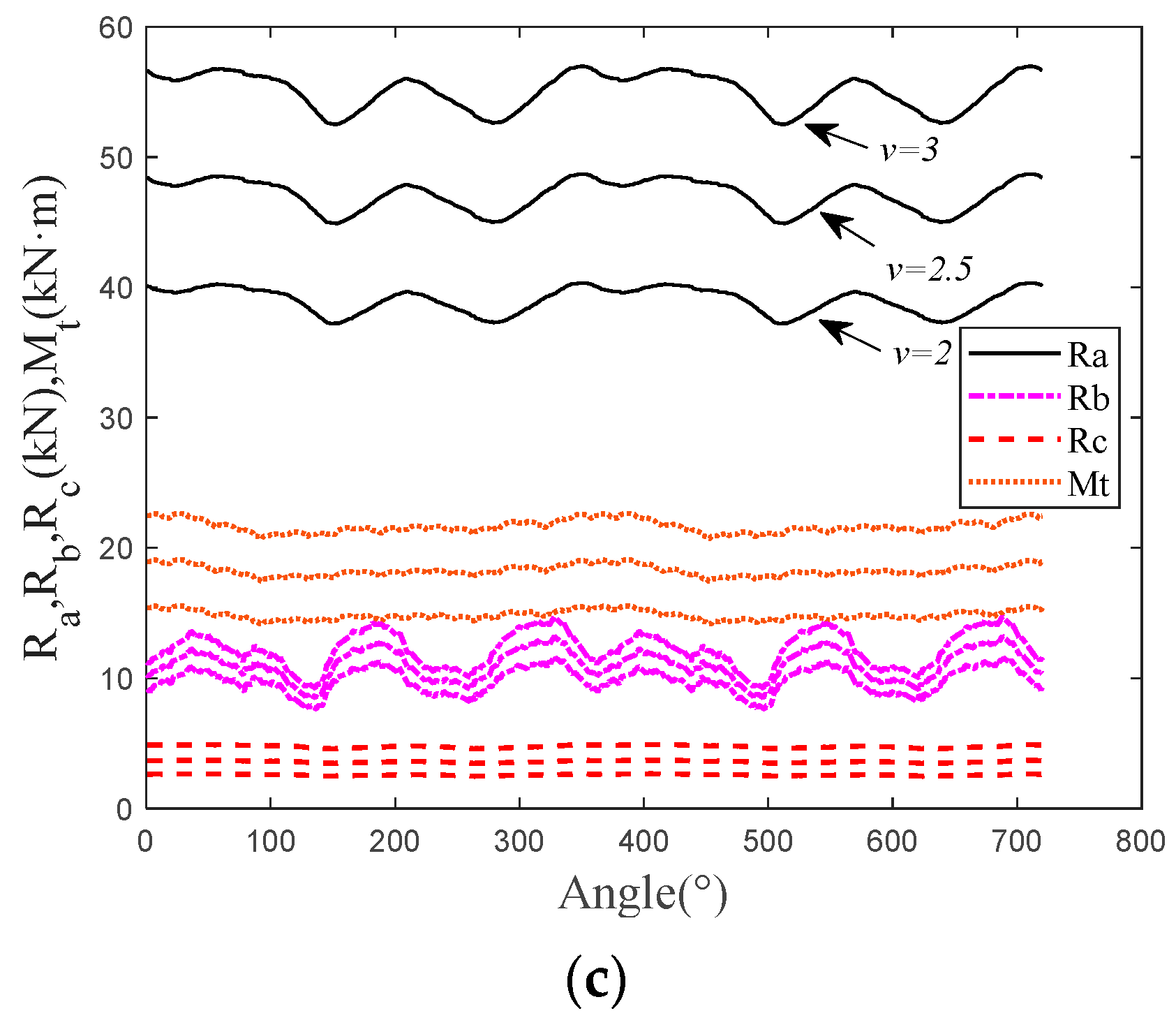

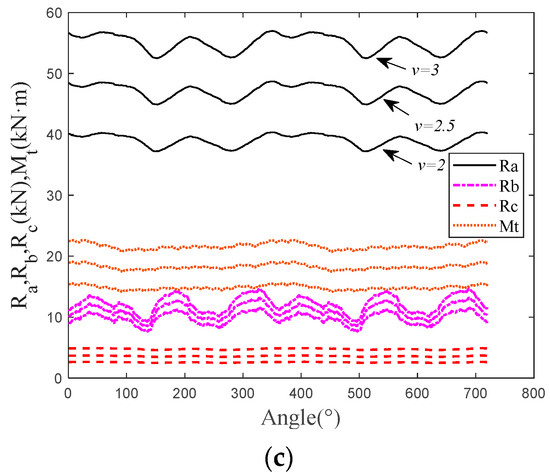

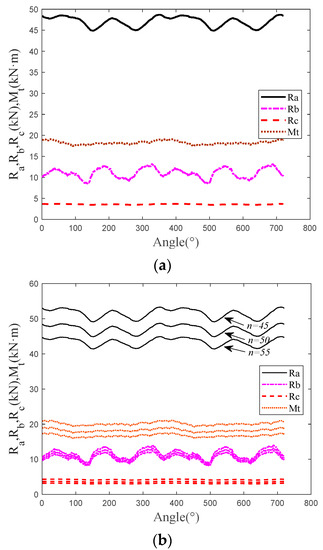

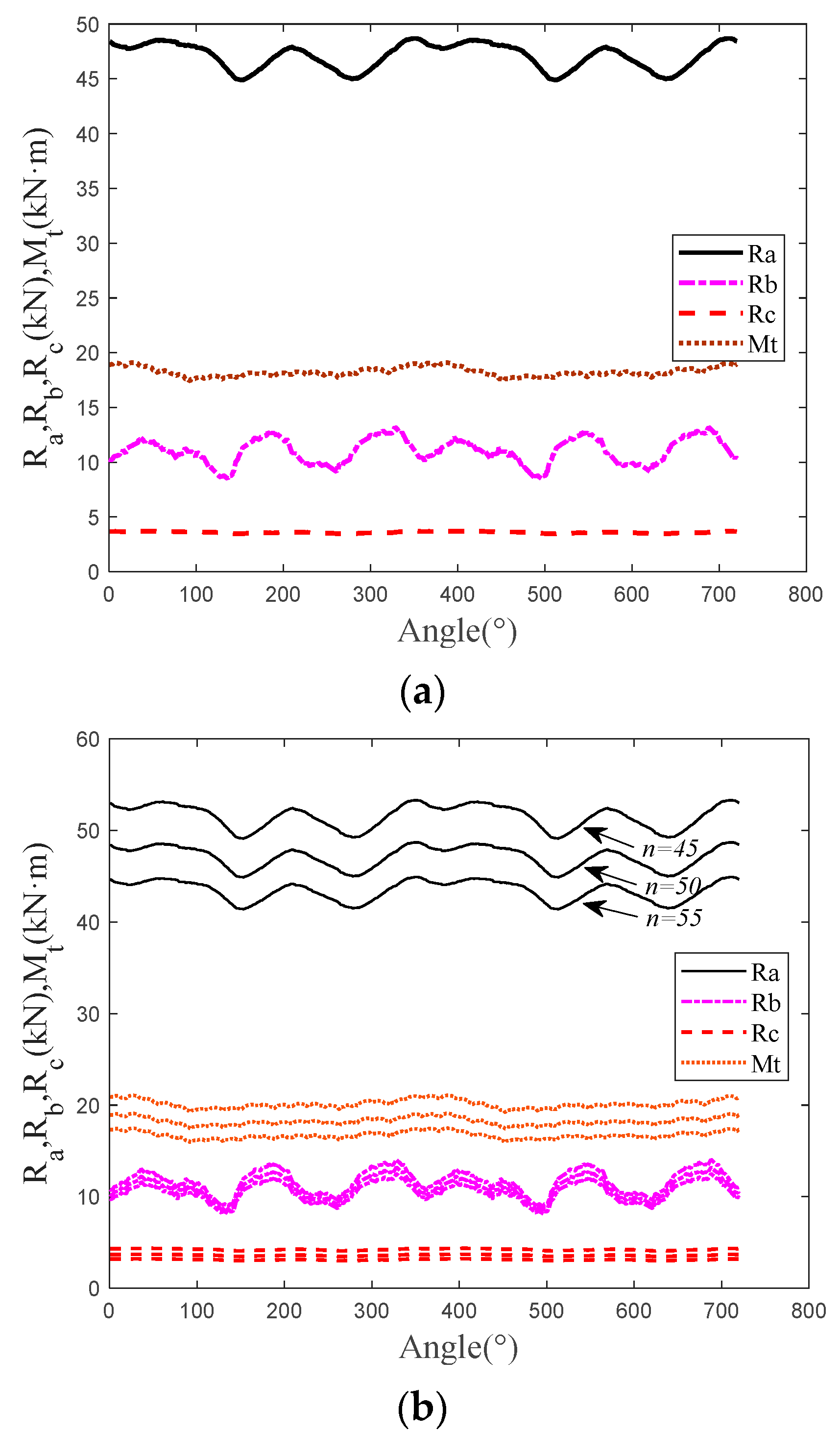

In Figure 4a, the three-way force load presents periodic variation and the sequence from high to low is R_a, R_b, R_c. In Figure 4b,c, the load and torque decrease with the increase of the rotational speed and increase with the growth of the swing speed. According to the analysis, the impact caused by the abrupt change in hardness can be reduced by decreasing the swing speed and increasing the rotation speed.

2.3. Establishment of Coal and Rock Load Identification Database

The identification of the hardness of coal and rock is the premise of adjusting the cutting parameters. By collecting the current of motor and the pressure of cylinder under different loads, the load identification database can be established.

The relationship between load torque and current is:

$$I_l=\frac{M_{t}n}{9550\times \sqrt{3}{U}_l\eta \cos \phi }$$

(4)

The effect of vertical force on the pressure of the lifting cylinder is expressed as:

$$P=\frac{R_{a}L+Gb\cos \alpha }{2Ac\sin \gamma }$$

(5)

The effect of traversing force on the pressure of the rotary cylinder is denoted as:

$$P_1=\frac{R_b(L\cos \alpha +m)}{A_{1}R\sin {\phi }_1+R{A}_2\sin {\phi }_2}$$

(6)

where U_l is the line voltage of motor; I_l is the line current of motor; $\eta$ = 0.9 represents transmission efficiency of the reducer; $\cos \phi$ refers to the motor power factor; P and P₁ are the pressure of lifting cylinder and the rotary cylinder; A, A₁ and A₂ are the working area of cylinder; ${\phi }_1$,${\phi }_2$ is the angle between the oil cylinder and the two hinge points.

From Equations (4)–(6) it can be observed that the current of the cutting motor and the pressure of the cylinder are related to the load. Hence, the impedance of coal and rock can be identified by establishing the relationship between current, pressure and impedance.

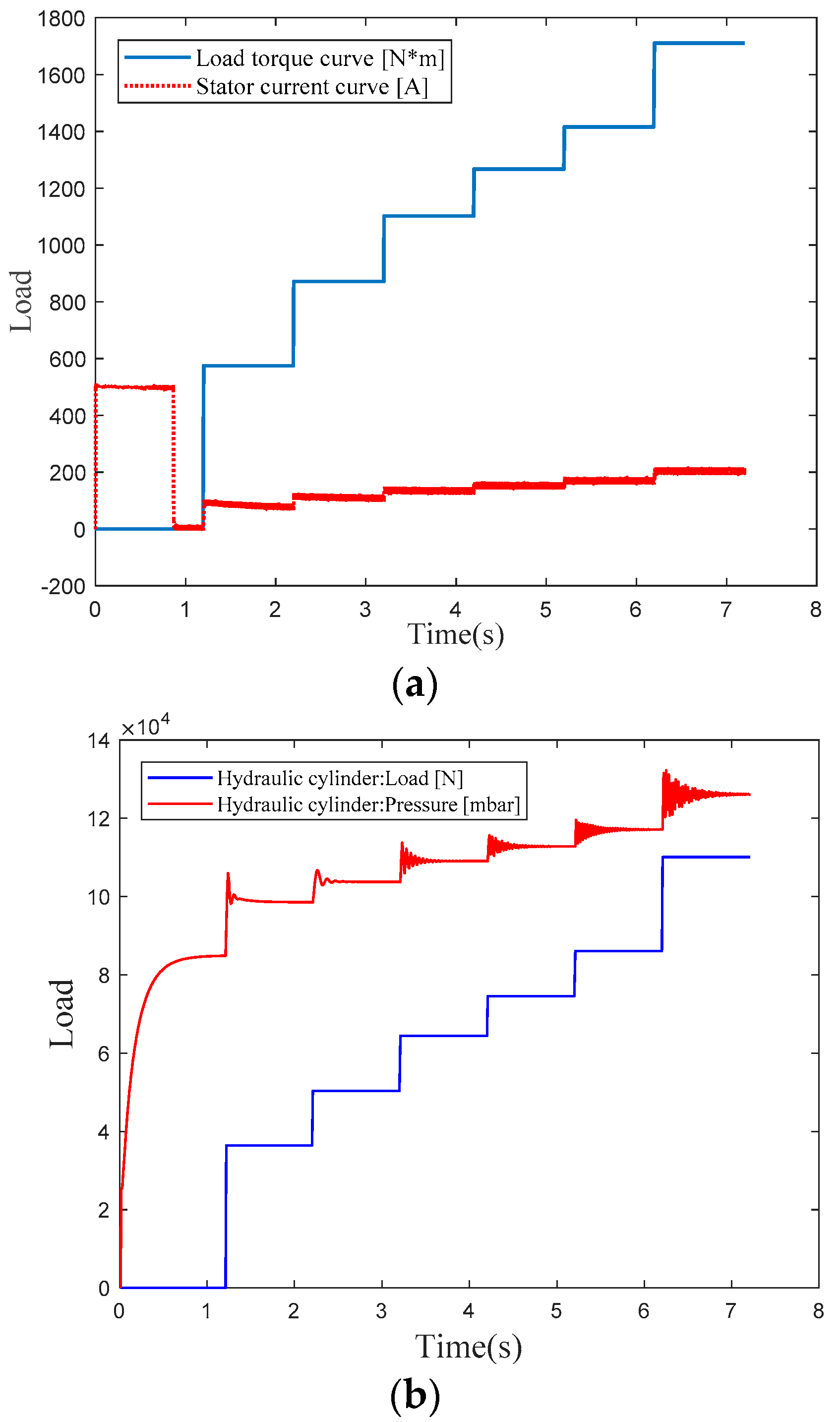

The relationship between motor current and cylinder pressure and load is shown in Figure 5. The analysis shows that the current of the cutting motor and the pressure of the driving cylinder are consistent with the changes of the cutting load. The feasibility of this method is proved by the above research. The impedance identification database was established as shown in

Table 3. Coal and rock impedance identification database.

Pk (MPa)	350	490	650	800	1000	1300
Current (A)	96	105	133	156	170	203
Pressure (MPa)	9.8	10.3	10.8	11.28	11.73	12.6

.

3. Cutting Parameter Optimization

3.1. Cutting Parameter Optimization Do Not Use the Same Titles

The cutting performance depends on the structural parameter and cutting parameters during the cutting process of the roadheader. The structural parameters were fixed at the beginning of the design, the cutting performance can only be improved by changing the swing speed v and the rotation speed n [22]:

(1)

Determination of design variables

The swing (v), and rotation (n) speeds were selected as the optimized variables, then the optimized variables is described as:

$$X={[x_1,x_2]}^T={[v,n]}^T$$

(7)

(2)

Objective function establishment

The fluctuation coefficient of three-direction load and torque M_t, and specific energy consumption for cutting H_w are used as the objective function for optimization of the cutting performance. The fluctuation coefficients of the three-direction load is:

$$K_{R_g}=\frac{1}{{\overline{R}}_g}\sqrt{\frac{1}{N}{\displaystyle \sum _{i=1}^N{(R_{gi}-{\overline{R}}_g)}^2}}$$

(8)

The fluctuation coefficients of torque is denoted as:

$$K_{M_t}=\frac{1}{{\overline{M}}_t}\sqrt{\frac{1}{N}{\displaystyle \sum _{i=1}^N{(M_{ti}-{\overline{M}}_t)}^2}}$$

(9)

The specific energy consumption for cutting is as follows:

$$H_w=\frac{2\pi n{M}_t}{3600\lambda Av}$$

(10)

where N is the number of discrete points; R_gi and M_ti are the discrete value of load; ${\overline{R}}_g$ and ${\overline{M}}_t$ are the average value of load; $\lambda$ is the bulk density of coal and rock; A is the area of the cutting head that participates in the cutting part perpendicular to the yaw direction.

For the multi-objective optimization design, the multiple objectives is transformed into several single objectives by using the linear weighting algorithm expressed as:

$$F(X)=k_1{f}_{R_a}(X)+k_2{f}_{R_b}(X)+k_3{f}_{R_c}(X)+k_4{f}_{M_t}(X)+k_5{f}_{H_w}(X)$$

(11)

where k₁, k₂, k₃, k₄ and k₅ are the optimal weight coefficients of each objective function, $f_{R_a}(X)$, $f_{R_b}(X)$, $f_{R_c}(X)$ and $f_{M_t}(X)$ are three-direction load and torque fluctuation coefficients, $f_{H_w}(X)$ is the minimum objective function of H_w.

(3)

Analysis of optimization results

Regarding the power and speed range of the cutting motor as constraints, the cutting parameters of roadheader are optimized by the particle swarm algorithm to obtain the best rotation speed and swing speed under different hardness [23]. The optimized result is shown in

Table 4. Comparison of optimization results for P_k = 350.

Pk = 350 (MPa)	N(r/min)	V(m/min)	${\mathit{K}}_{{\mathit{R}}_{\mathit{a}}}$	${\mathit{K}}_{{\mathit{R}}_{\mathit{b}}}$	${\mathit{K}}_{{\mathit{R}}_{\mathit{c}}}$	${\mathit{K}}_{{\mathit{M}}_{\mathit{t}}}$	${\mathit{H}}_{\mathit{W}}(\mathbf{k}\mathbf{W}·\mathbf{h}/{\mathbf{m}}^3)$
Before optimization	50	2.5	0.0117	0.0612	0.0236	0.0106	1.017
After optimization	48.28	2.43	0.011	0.0583	0.0215	0.0102	0.9136

.

Table 5. Motion parameters after optimization.

Pk (MPa)	350	490	650	800	1000	1300
N (r/min)	48.28	43.96	40.15	38	36.91	34.17
V (m/min)	2.43	2.18	1.92	1.7	1.508	1.38

shows the optimized motion parameters.

Compared with the traditional power control method, the fluctuation coefficient of the optimized forces in three directions is reduced by 5.98%, 4.73% and 8.89% respectively; the fluctuation coefficient of load torque is reduced by 3.77%; the specific energy consumption for cutting is reduced by 10.16%. This method can effectively improve the cutting efficiency of the roadheader.

3.2. Adaptive Variable Speed Cutting Control Strategy for Roadheader

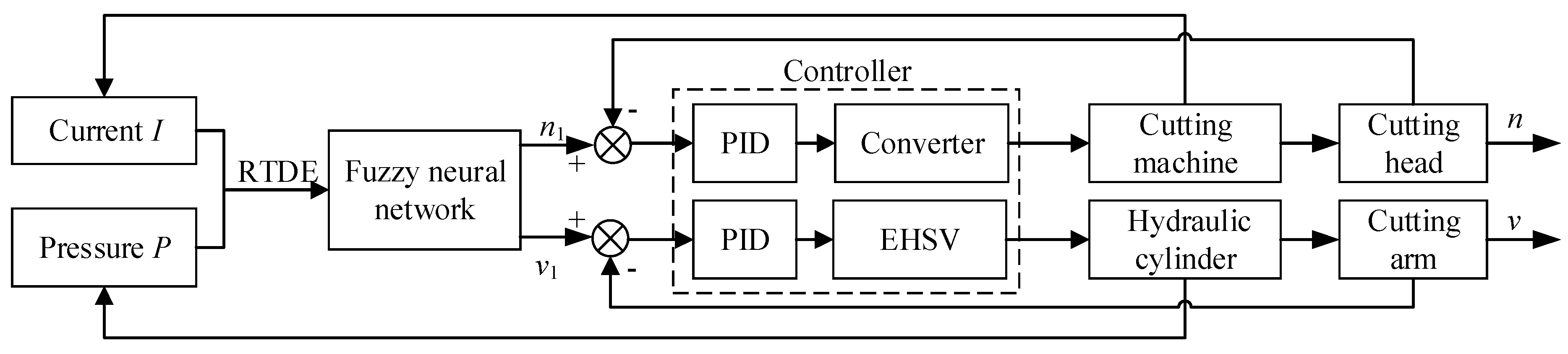

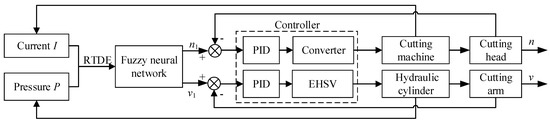

The voltage and current of the cutting motor and the pressure of the driving cylinder vary with the hardness of coal and rock. Hence, the current and pressure are used as identification criteria in this strategy. Using the swing speed v and the rotational speed n of the cutting head as the control targets, the fuzzy neural network is used to ensure that roadheader performs the optimal working state. In the control process, the real-time detection equipment (RTDE) collects the current I of the cutting motor and the pressure P of the driving cylinder, then I and P are employed as the input parameters of the fuzzy neural network. The optimal cutting parameters are output by the neural network under the under specific conditions of hardness. PID is used to reduce the deviation signal that is the difference between the optimization parameters v₁ and n₁ and the feedback signals v and n. Control signals are tracked by electro-hydraulic servo valves (EHSV) and inverter to achieve optimal cutting state as shown in Figure 6.

3.3. Fuzzy Neural Recognition of Coal and Rock Impedance

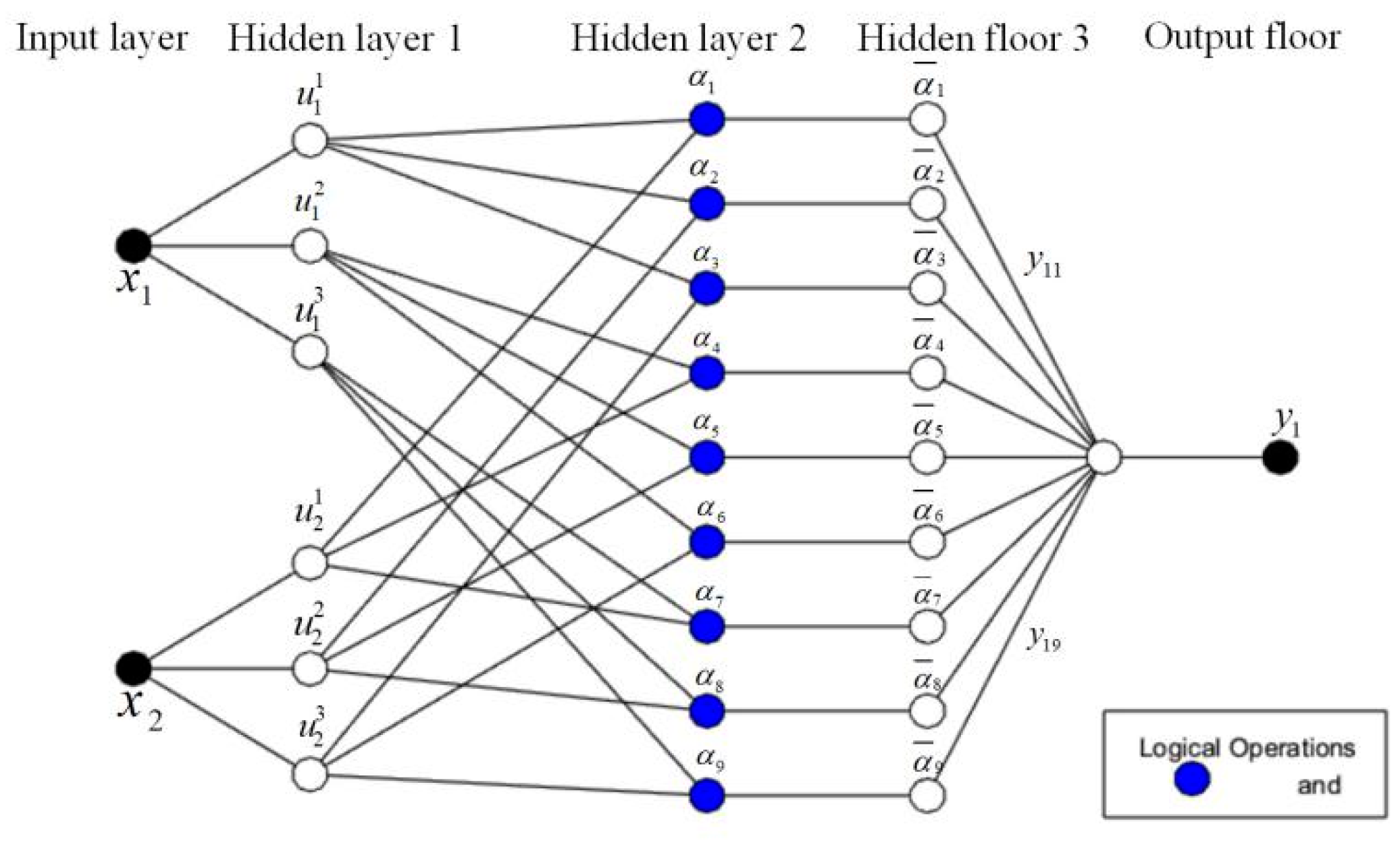

As shown in Figure 7, two neurons in the input layer of the neural network correspond to the current I and the pressure P respectively. The output of the neural network is the swing speed or rotational speed that has been optimized [24].

The network adopts the triangle function as the membership function. The first layer of the sub-network is the input layer. The second layer is the hidden layer, which is used to calculate the result of three nodes.

$$y_{ij}=p_{j0}^i+p_{j1}^i{x}_1+\cdots +p_{jn}^i{x}_n={\displaystyle \sum _{l=1}^n{p}_{jl}^i}{x}_l$$

(12)

The third layer is the output of the system:

$$y_i={\displaystyle \sum _{j=1}^m{\overline{\alpha }}_j}{y}_{ij}$$

(13)

where ${\overline{\alpha }}_j$ is the normalization of fitness, that is the calculation of the second layer to the third layer ${\overline{\alpha }}_j={\alpha }_j/{\displaystyle \sum _{i=1}^m{\alpha }_i}$.

The 500 groups of training data were collected in Section 2 and Section 3, the 6 groups of data in Table 3 were used as test data. The training results are shown in Figure 8.

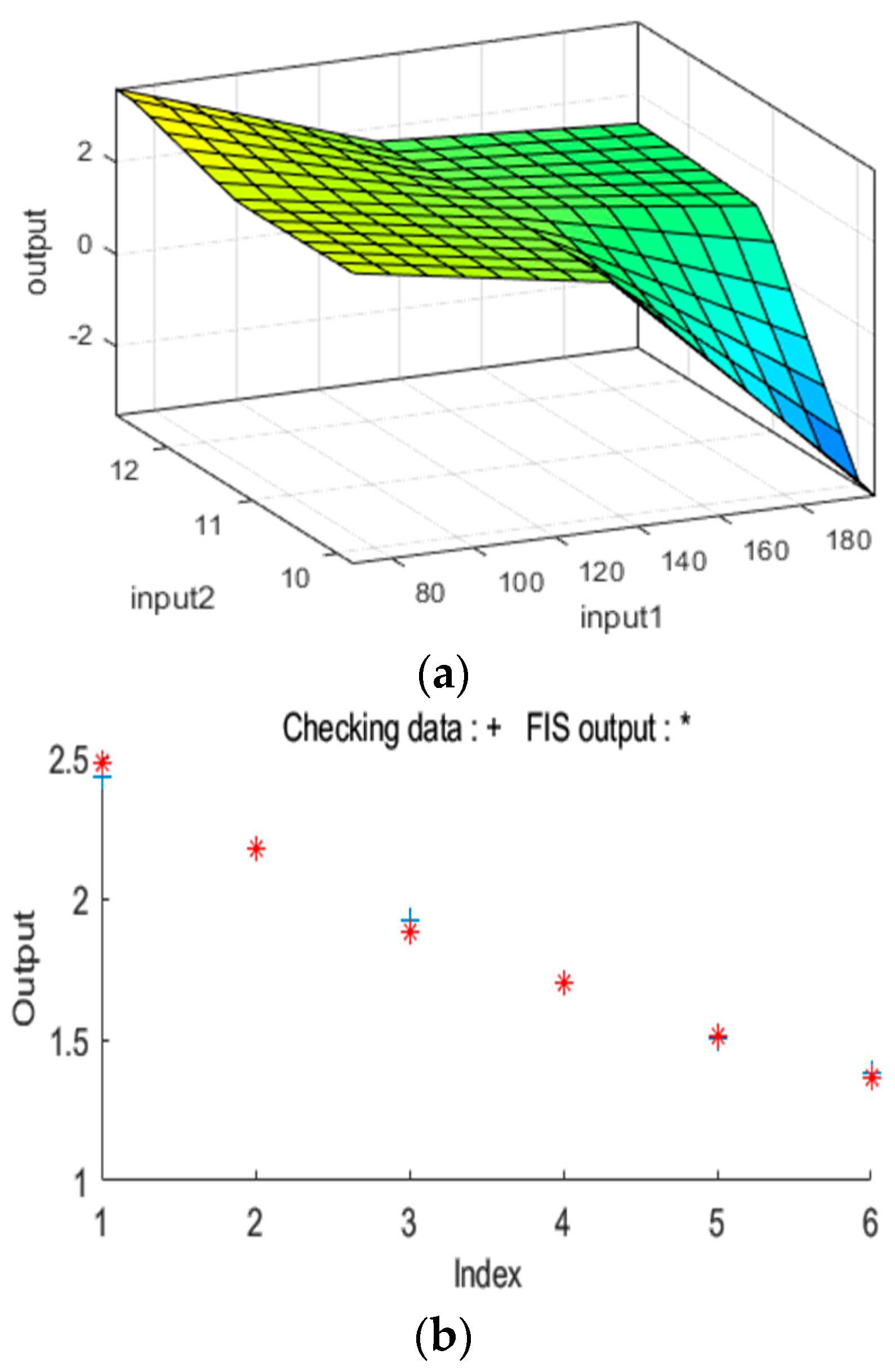

In Figure 8, input1 is the cutting motor current, and input2 is the rotary cylinder pressure. The data in Table 5 is considered as checking data, and the FIS output is the data trained by the fuzzy neural network. In Figure 8a, the output of swing speed is gradually decreasing with the increase of current I and pressure P. The maximum of swing speed is 2.55 m/min and the minimum is 1.36 m/min. As the changing trend of current and pressure in the actual work is consistent, the lack of training data with different changing trends leads to negative values in the training results in Figure 8a. Figure 8b is the comparison of the detection parameters and output parameters of the fuzzy nerve. The comparison shows that the output results are almost the same as the actual optimization results. The maximum error value of the two is 0.0446 which satisfies the requirements of the impedance identification controller.

4. Adaptive Control Simulation of Roadheader

From Table 2 and Table 3, we can see that the speed n of cutting head alters from 43.96 r/min to 38 r/min when the coal and rock hardness changes from P_k = 490 to P_k = 800, and the speed v of cutting head changes from 2.18 m/min to 1.7 m/min. Current and pressure also change with P_k. The speed of cutting motor is controlled by SVPWM as shown in Figure 9 [25,26].

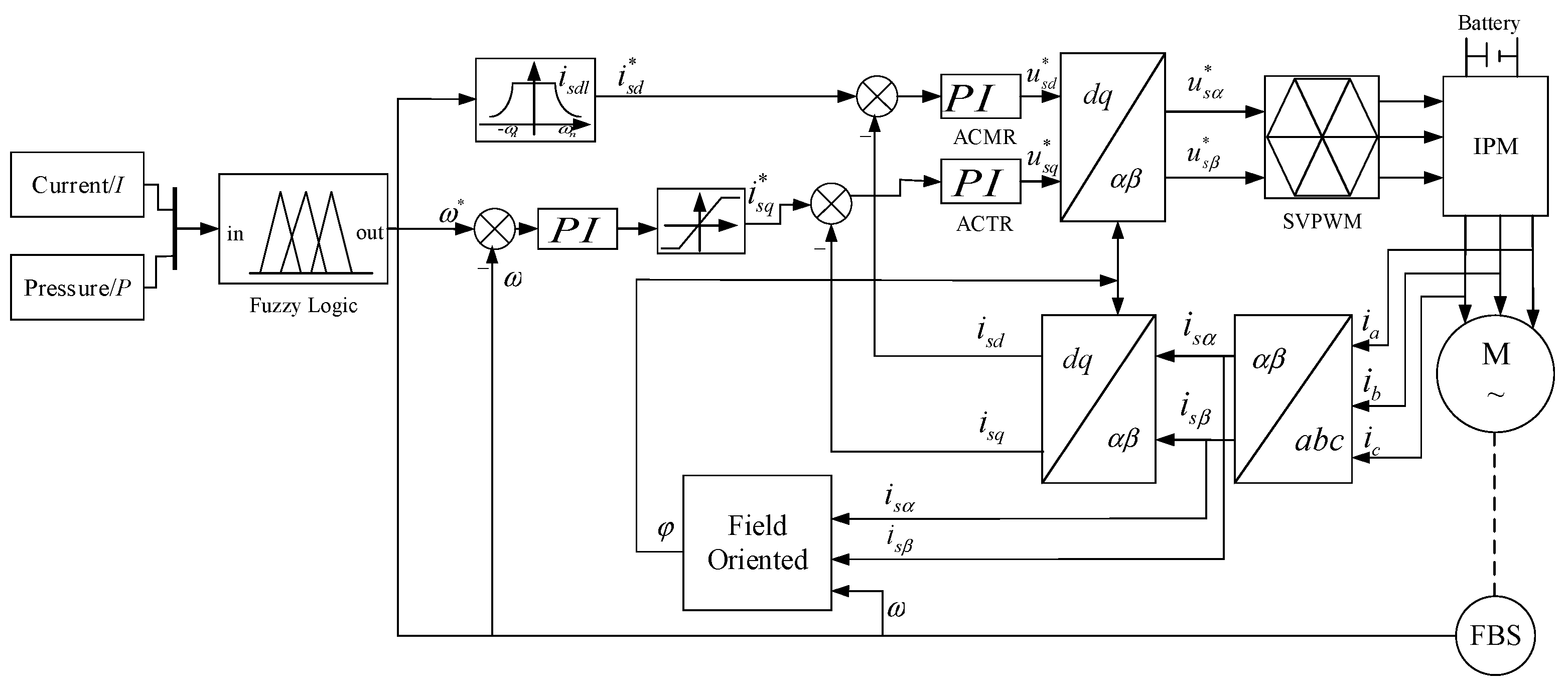

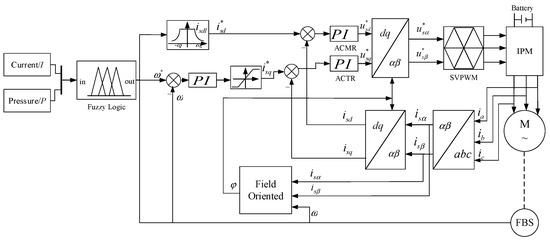

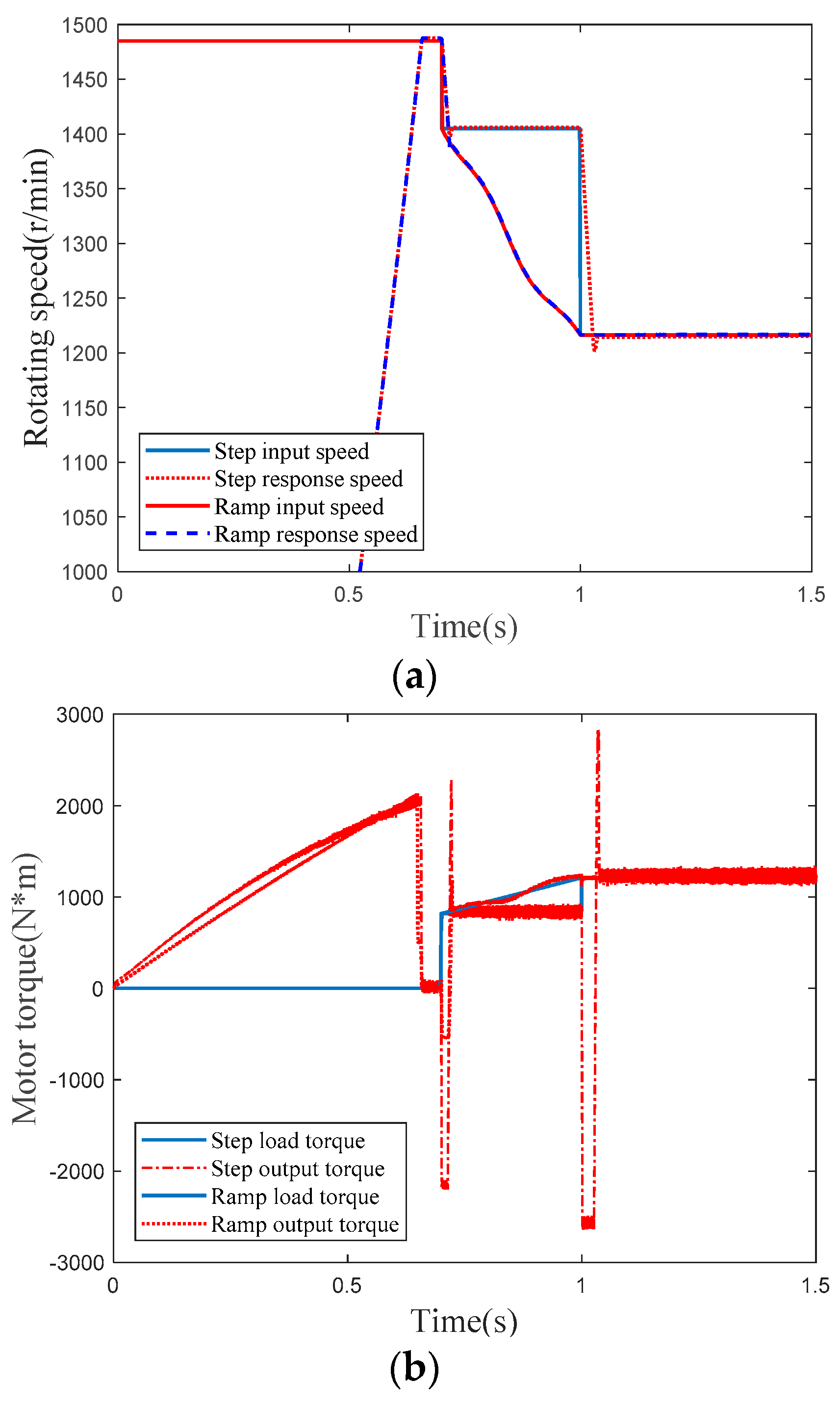

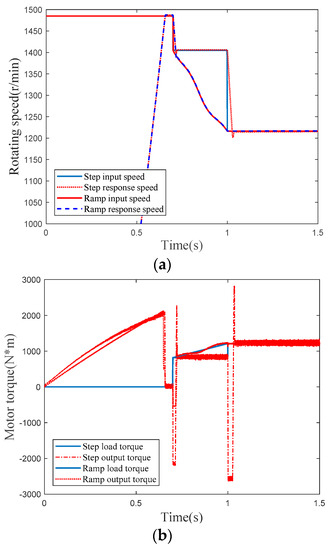

As shown in Figure 10, the motor reaches the rated speed at about 0.6 s. The cutting speed decreases from 1485 r/min to 1406 r/min when the time reaches 0.7 s. The cutting head speed decreases to 1215 r/min when the hardness of coal and rock changes again. The maximum overshoot of the system was 1.06% and the response time was 0.05 s.

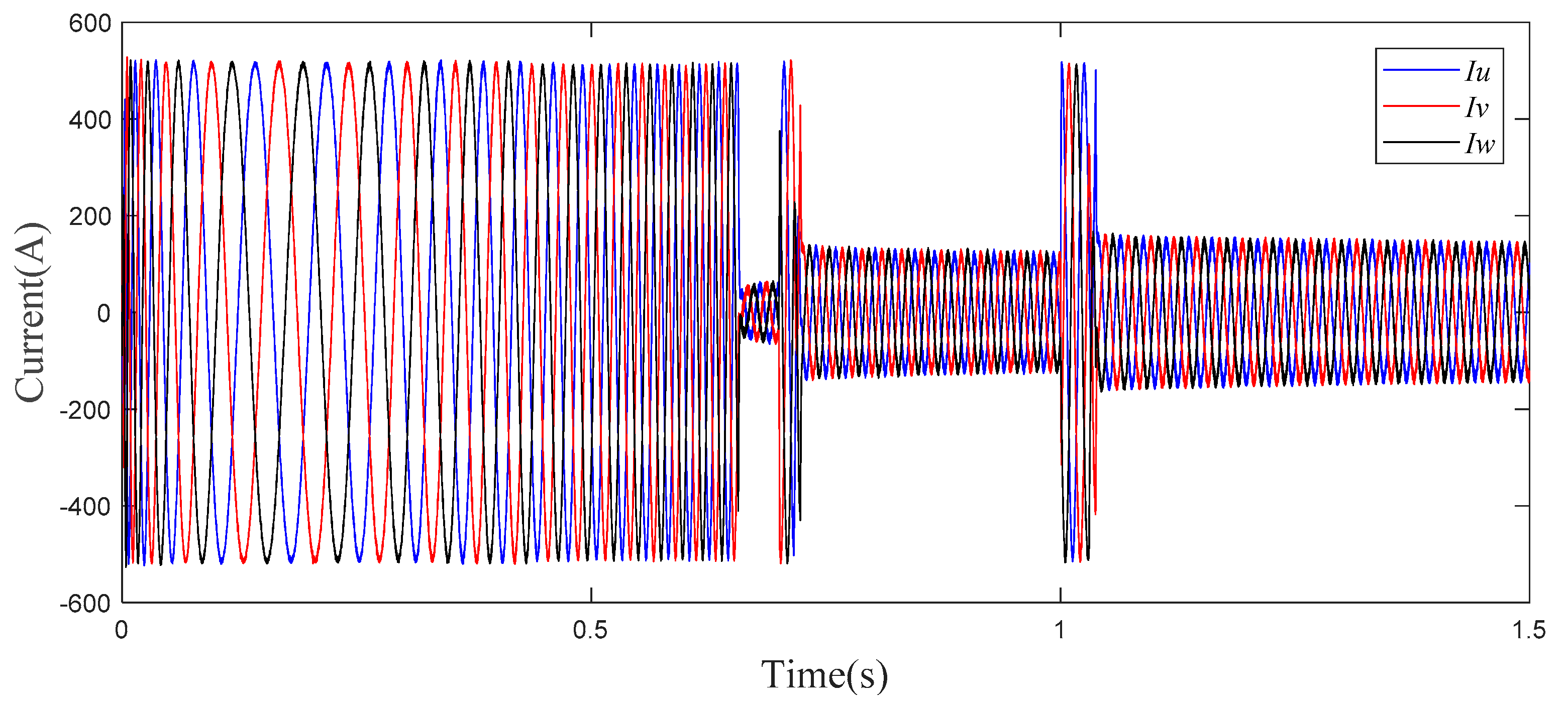

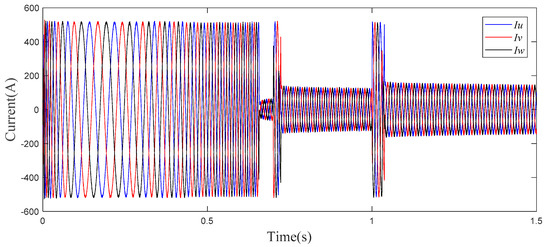

In the starting stage, the maximum torque is 2081 Nm and the maximum current is 500 A. The change trend of stator current is consistent with that of cutting load. The simulation results show that the effect of vector control is relatively ideal for both step signal and ramp signal. The vector control can quickly adjust the motor speed to ensure that it can reach the optimal cutting parameters output by neural network when the hardness of coal rock changes.

The fluctuation occurs in the ramp signal because of the approximate linear relationship between the rotation speed and the impedance of coal and rock. In Figure 11, the change of stator current can reflect the change of coal and rock impedance which verifies the feasibility of current as the identification criteria again.

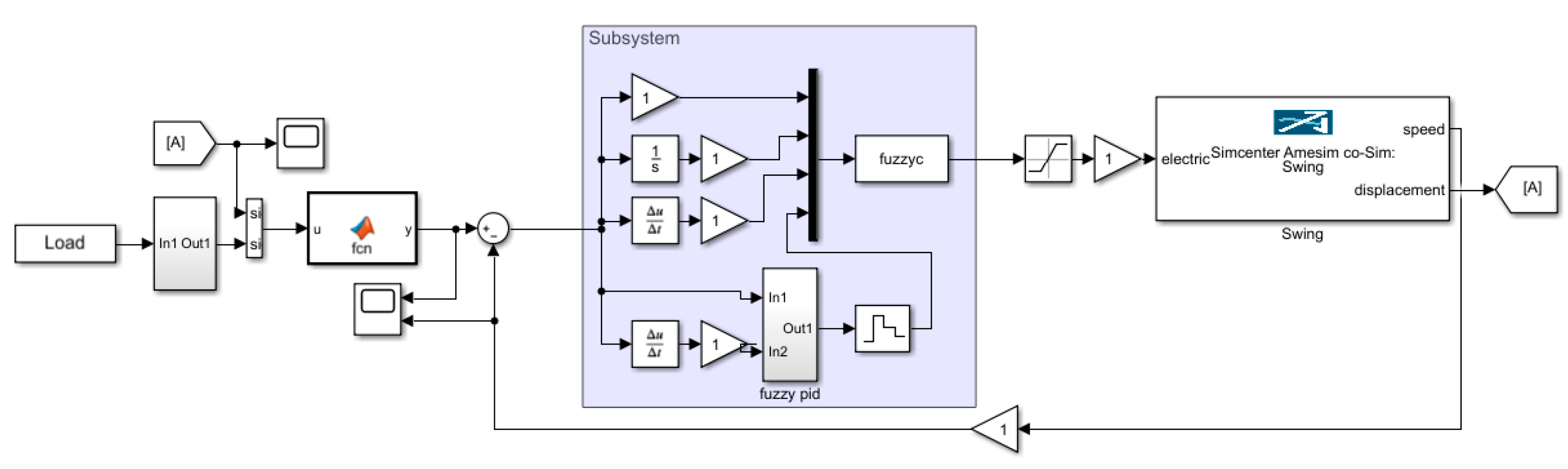

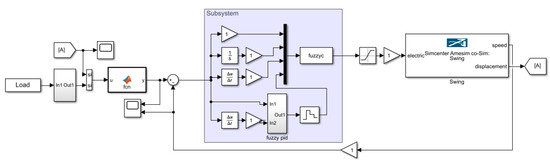

The swing speed v of cantilever is determined by current and pressure signals of system. Then, the deviation signal $\Delta v$ is obtained by comparing the output speed of network with the feedback speed of system. Deviation signal $\Delta v$ controls the current I of valve through correction, amplification and other links. Current controls the opening size and direction of the electro-hydraulic servo valve to control the cantilever swing of the roadheader [27,28].

The parameters of the hydraulic system are set as follows: D = 180 mm, where D represents the inner diameter of hydraulic cylinder; D1 = 100 mm is the hydraulic rod diameter; F = 35 MPa denotes the opening pressure of the relief valve; F1 = 1.5 MPa express the pressure drop of the electro-hydraulic servo valve. The control effect of traditional PID and fuzzy PID under step and ramp load signals is compared. The deviation between the input speed and the output speed of the hydraulic system is selected as the optimization objective. The range of PID parameters is given by the optimizer in AMESim, and the genetic algorithm is selected to optimize the target to obtain the optimal PI value of the traditional PID control. The simulation model is shown in Figure 12.

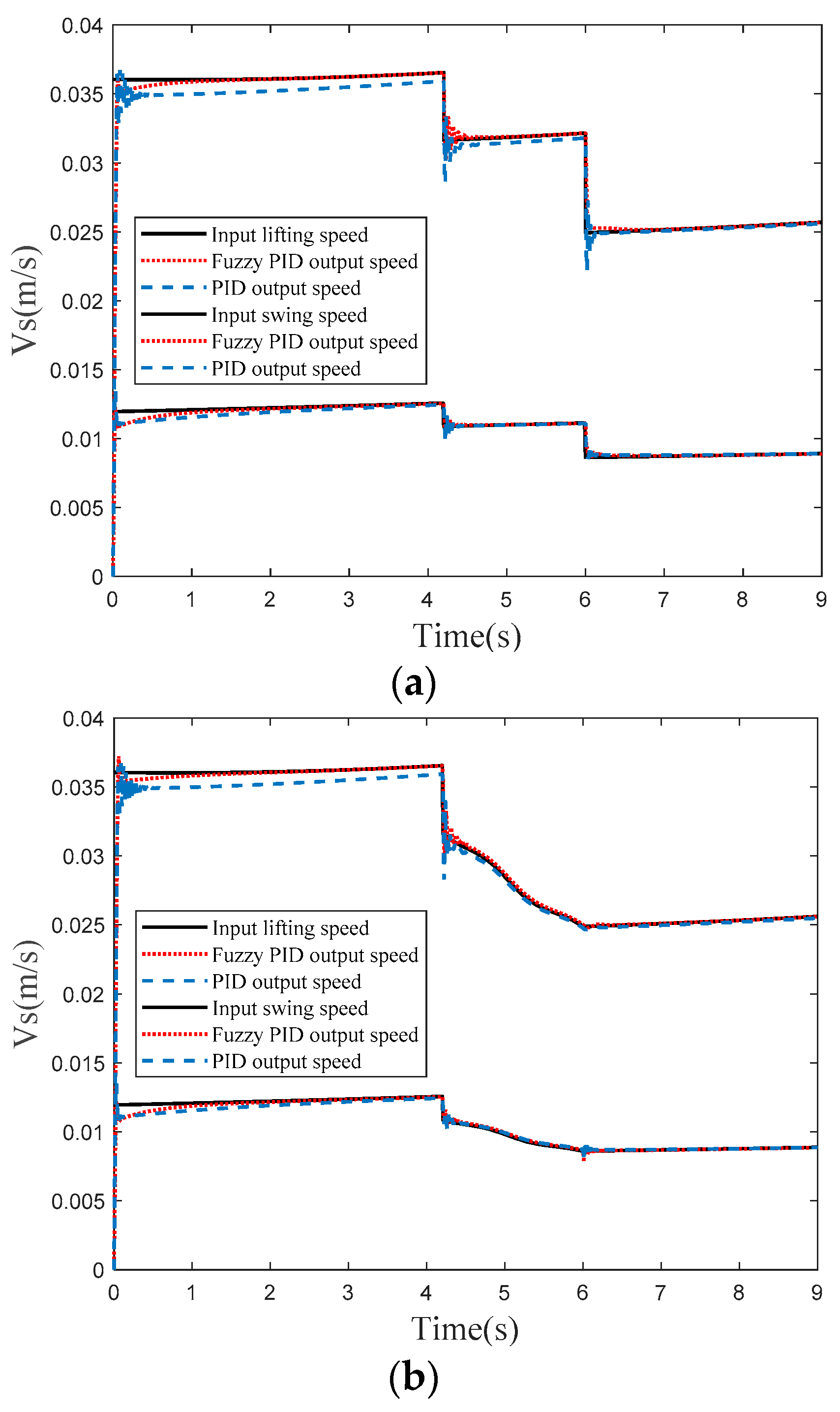

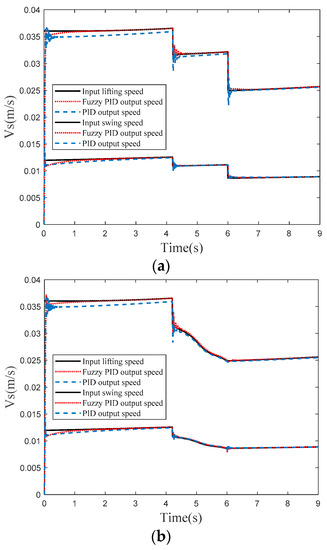

According to the simulation results shown in Figure 13, the fuzzy PID control effect is better than the traditional PID because its response time and overshoot are small. The fuzzy PID control was stabilized after 1 s and the maximum overshooting was 5.3%. Furthermore, the cutting parameters can be automatically adjusted according to different input signals to make the roadheader always in an efficient cutting state. Through the simulation of a single control mode, it can be concluded that the vector control of the motor and the servo valve of the hydraulic system have a better control effect on the cutting state. Furthermore, by using the output parameters of the fuzzy neural network, the cutting state of motor and hydraulic system can be adjusted effectively.

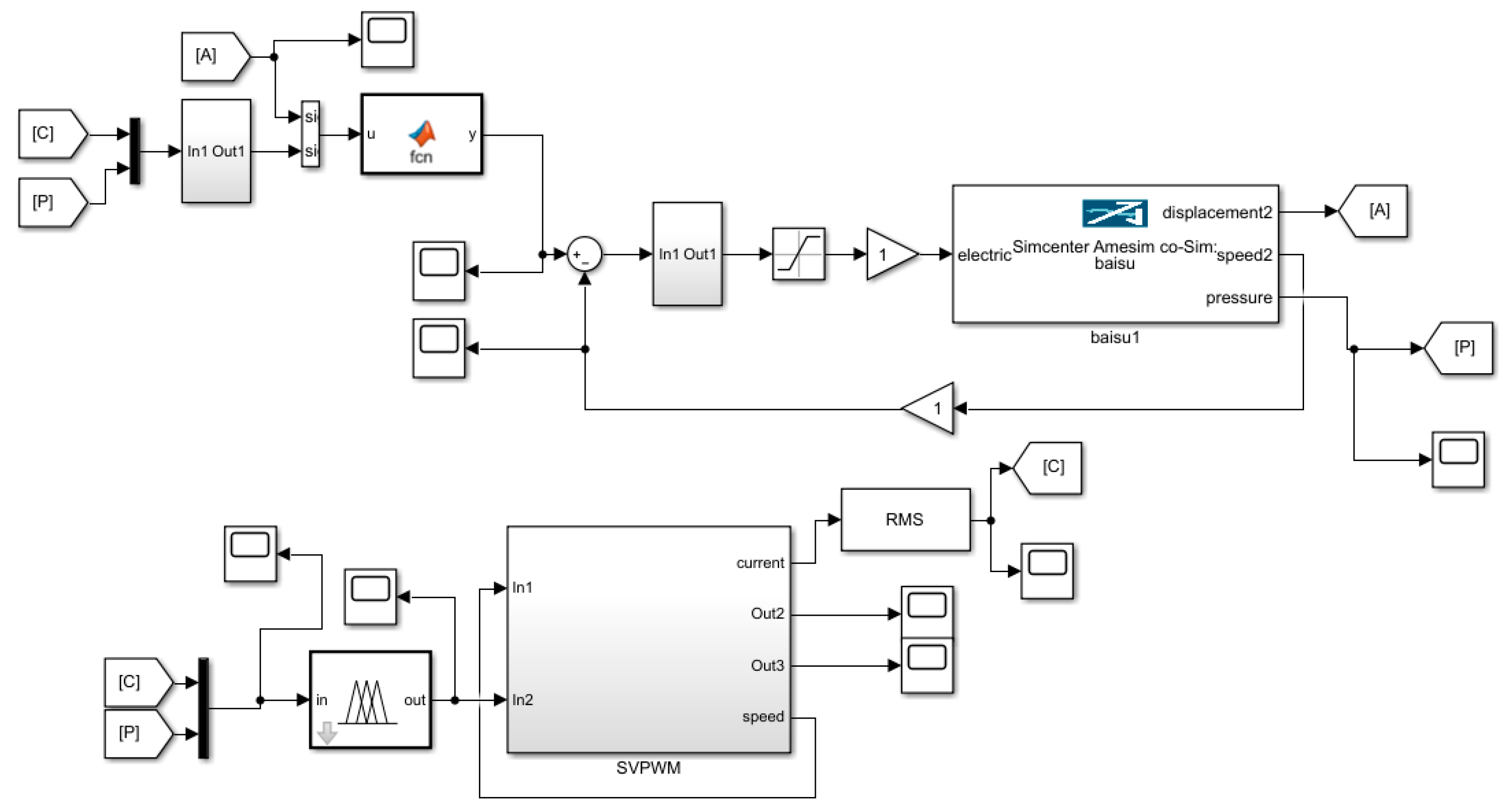

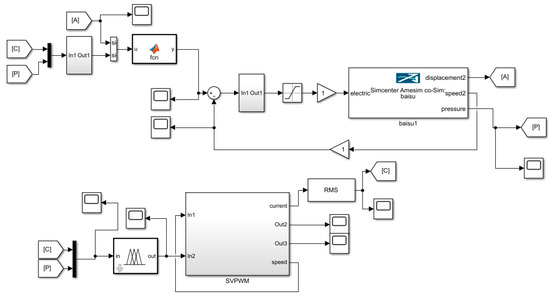

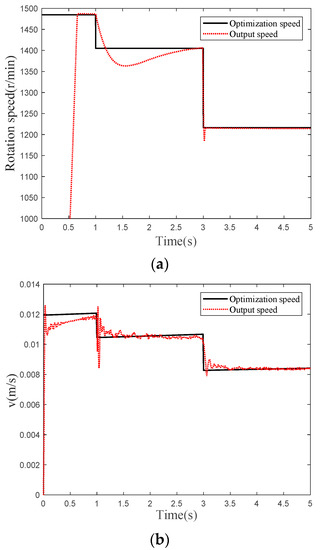

In practice the hydraulic system and the motor system always work together, so it is significant to carry out the joint simulation experiment. Figure 14 shows the co-simulation model and Figure 15 is the result of the simulation. Figure 15a shows that the motor speed deviates greatly from the optimization speed between 1 s and 3 s, which is caused by the current and pressure fluctuations at this time. The motor reaches a stable running state after 3 s, and the motor speed is basically consistent with the optimized speed at this moment. In Figure 15b, the hydraulic system fluctuates because the motor current signal and the hydraulic cylinder pressure signal are constantly changing. Similarly, there is a large deviation between the swing speed and the optimized speed between 1 s and 3 s. The swing speed of the cutting head is basically consistent with the optimization speed after 3 s, and the overall change trend is the same as the motor running condition.

Through the above simulations of the single control mode and the joint control mode, it can be found that the optimal cutting parameters under the hardness can be output by the fuzzy neural controller by collecting the current and pressure signals. The roadheader has been in the efficient cutting state through the motor vector control and servo valve to trace the network output parameters. Therefore, the control method proposed in this paper can realize adaptive control of a roadheader and improve cutting performance.

5. Conclusions

In order to improve the cutting efficiency of a roadheader, the cutting speed is determined as the variable for the optimization by analyzing the working principle of it. For this purpose, motor current and cylinder pressure are selected as identification criteria. The mapping relationship between optimization variables and identification criteria is established through fuzzy neural network. The following conclusions can be drawn from the results obtained in this study.

The influence of different motion parameters for load variation was obtained by simulating the cutting head load of roadheader. The load of cutting head decreases with the increase of rotating speed and with a decrease of swinging speed.

Load fluctuation and the specific energy consumption for cutting were selected as the optimization objectives and the cutting parameters were taken as the optimization variables. By analyzing the optimization results, it is found that the load fluctuation is reduced and the specific energy consumption for cutting is decreased by 10.16%.

The control method can automatically adjust the rotation speed of the cutting head and the swing speed of the cutting arm to adapt to load changes and ensure the cutting mechanism in a highly efficient working state.
