Design for the Automation of an AMBU Spur II Manual Respirator

Abstract

This article shows the design of a device to automatize an Ambu Spur II manual respirator. The aim of this compassionate medicine device is to provide an emergency alternative to conventional electric respirators—which are in much shortage—during the present COVID-19 pandemic. To develop the device, the classical method of product design based on concurrent engineering has been employed. First, the specifications of the machine have been determined, including the function determining the air volume provided at every moment of the breathing cycle; second, an adequate compression mechanism has been designed; third, the control circuit of the motor has been determined, which can be operated via a touchscreen and which includes sensor feedback; fourth, the device has been materialized with readily available materials and market components, mostly of low cost; and fifth, the machine has been successfully tested, complying with sanitary regulations and operating within desirable ranges. The device has been already manufactured to supply respirators to several hospitals around the Catalan Autonomous Community in Spain, but can also be replicated in developing countries such as Ecuador.

1. Introduction

Mechanical ventilation is the short-term, vital support technique most widely used worldwide. It is employed every day with patients with respiratory failure, as well as with heavily sedated patients in standard surgical procedures. The present medical crisis generated by the COVID-19 pandemic has caused a spike in respiratory failure cases that need mechanical respirators, which has triggered a shortage of such devices worldwide [1,2,3]. These shortages have led to serious consequences, especially in densely populated cities, with cases where people have had to operate manual, handheld respirators for protracted periods of time [4].

A manual respirator is a device that consists of a tube with a funnel-like face mask, an oval silicone bag, and a one-way valve that acts as the air inlet (see Figure 4b). When the bag is compressed repeatedly by an operator’s hand, it assists the patient with their breathing cycle [5]. These devices exist in various sizes that suit different ages and air volumes [6,7]. Manual respirators are meant to be used only during emergencies, given the inconvenience of requiring the constant implication of an operator that can become exhausted after protracted periods of time [8,9,10]. This also has the inconvenience of not letting the operator, usually a medical staffer, attend to other patients.

Since this is a manual device, it is impossible to control exactly the respiration parameters, such as the frequency of the cycle and the inspiration volume. The exact airflow vs. time curve that would suit a person best cannot be followed exactly either, unlike in an automatic respirator [11]. Some manual respirators are equipped with a pressure valve, which protects the patient’s lungs from overpressure, while other complements can be used to ensure a minimum threshold pressure throughout the cycle (PEEP valves) [12]. Expired gasses, except for a few special cases like divided respirators, are released to the atmosphere without any processing [13].

Automatized manual respirators, like the one described in this article, consist of a manual respirator and a compression device that automatically performs the respiration cycles [14]. While the lack of fine control over the breathing cycle (like any manual respirator) makes their long-term use not recommendable, automatized manual respirators still have the advantage of not needing the constant engagement of an operator, so they can be useful in emergencies in isolated zones, field hospitals, or poor regions [15]. The compression mechanism can also allow for the breathing cycle parameters to be loosely controlled with some sensors.

While a few models comparable to this article’s device do exist, there is no widely available commercial product capable of performing anything remotely similar. Given the present need for respirators for the pandemic, a great number of initiatives have been launched to solve this problem. Many low-cost, open-source devices have been created by researchers [16,17,18,19]. Some of such devices include OxyGEN [20], ResUHUrge [21], and Leitat [22], all of which have already been validated with patient trials. Furthermore, some older designs also exist, such as those from MIT [23].

Most of these respirators consist of a manual respirator with a compression system that controls some of the breathing cycle parameters and monitors some of the variables. Many of these control systems are purely mechanical (i.e., with no control electronics), so any modification of the breathing cycle parameters entails changing mechanical components such as cams or gears. All of this makes them rough and sometimes unreliable since the minimal resistance requirements and safety regulations are not always met [24].

On the other hand, the device in this article presents the advantages of implementing an electronic control system that can be modified with far greater flexibility while also allowing for more exact monitoring of the cycle. Furthermore, all the materials have been selected according to exact resistance criteria and complying with sanitary regulations.

2. Materials and Methods

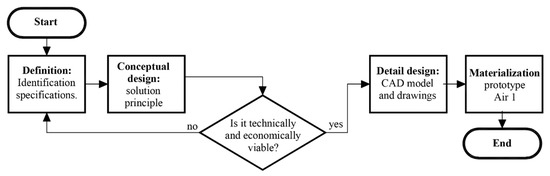

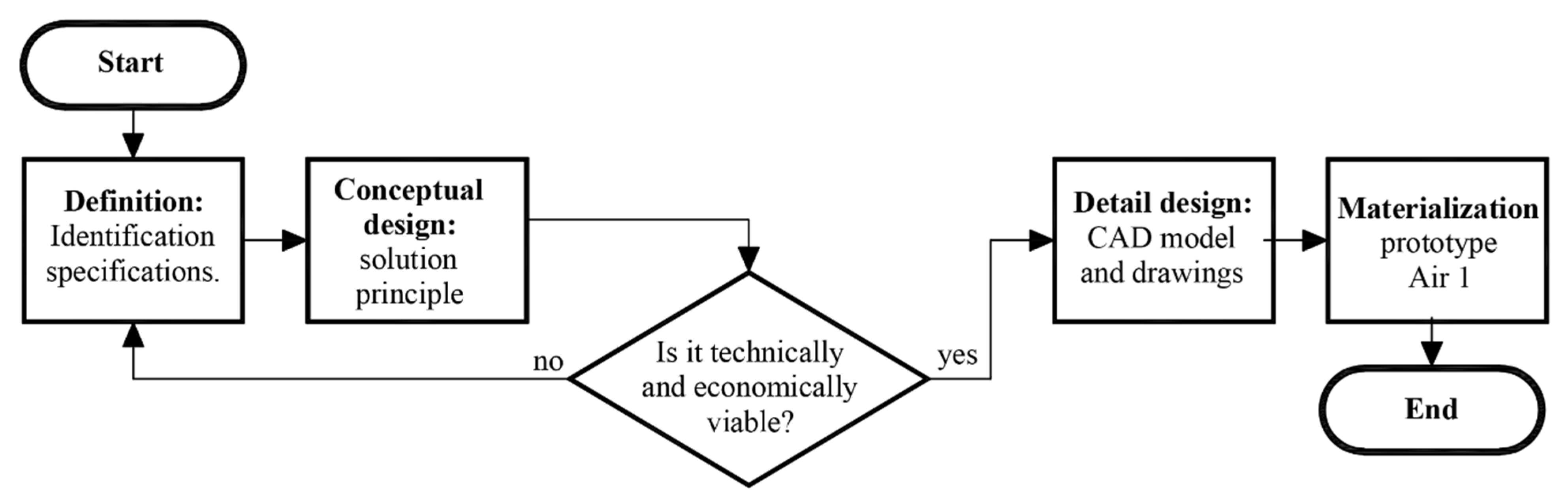

For the device’s design and fabrication process, the principles of concurrent engineering have been applied, where the design of products and processes are integrated in parallel. The following stages of the method are; (1) definitions, (2) conceptual design, (3) detail design, and (4) materialization design. Figure 1 shows the conceptual flowchart of this method.

However, it must be emphasized that before starting with any of the phases of the classical design method, an additional contextual analysis needs to be performed, where the economic and technical feasibility of the project must be in accordance with the geographical place where the process will be implemented.

2.1. Requirements

To ensure the correct implementation of the patient’s breathing cycle, the following requisites must be fulfilled:

• Provide a volume of 300 mL to 500 mL of air (or oxygenated mix) per breathing cycle.
• Maintain a positive end-expiratory pressure (PEEP) at a range between 5 cm H₂O and 25 cm H₂O. The PEEP is the pressure in the lungs above atmospheric pressure that exists at the end of expiration. This requisite is currently already implemented with a valve included in the manual respirator by default.
• Maintain the peak pressure at a range between 18 cm H₂O and 40 cm H₂O.
• Maintain the breathing cycle at about 15 respirations per minute.
• Divide the cycle into phases: inspiration (with an abrupt initial ramp), expiration (less abrupt), and a pause.

Additionally, to ensure the correct operation of the system, the following aspects must be monitored:

• Pressure provided by the AMBU in real-time
• Airflow provided by the AMBU in real-time (from which the delivered volume can be calculated).

The designed system must fulfil all these requirements while also keeping costs as low as possible and using standard commercial components.

2.2. Conceptual Design

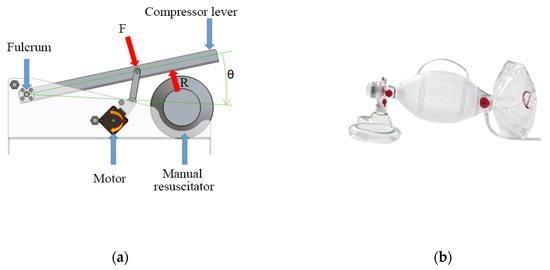

The system will consist of a manual respirator and—in order to perform a breathing cycle—a device to compress it. The compression mechanism will consist of a lever operated by an electrical motor via a four-bar linkage mechanism.

First of all, the parameters that define the breathing cycle will be determined (frequency, duration of each phase, etc.), from which the temporal evolution of the height of the compressor lever h will be extracted. Secondly, adequate dimensional parameters of the mechanism (bar lengths, positions) will be determined, from which the temporal evolution of the angle of the motor ${\varphi }_m$ will be extracted. Finally, an adequate electronic control system will be determined, with custom-built software, sensors, and selectors to modify the breathing cycle parameters. Figure 2 shows the conceptual design of the device. The mechanism is composed of a lever operated with a motor by means of a four-bar linkage. Point A is the fulcrum of the lever, while point D is the axle of the motor. The end of the lever compresses the respirator, and the height of this end can be controlled by the rotation angle of the motor. The compression height is approximately proportional to the air volume delivered to the patient’s lugs. Therefore, by controlling the rotation angle of the motor, the volume of air delivered to the patient can be adjusted according to a pre-established breathing cycle.

Unlike mechanisms employing cams, this concept has the advantage of greater flexibility, since the air intake can be easily modified by the software operating the motor. It also has the added bonus of employing fewer movable parts, thus, decreasing the overall complexity, easing the standardization most components, and allowing for the possibility to be adapted to different sizes.

2.2.1. Breathing Cycle

The contact point between the compression lever and the respirator is denoted as E, while the height from the base of the device up to E is denoted as h. The air volume delivered in each breathing cycle is determined by the maximum and minimum heights of E, $h_{max}$ and $h_{min}$. The duration of the cycle is parameterized as $t_c$, which is the inverse of the breathing frequency in cycles/min. After consulting the literature, the following concept of the parametric breathing cycle is established (see also Figure 3) [25,26]:

• Inspiration phase, divided into two subphases:

  1.1

  Ramp subphase: the lever starts at $h_{max}$ and swiftly compresses the respirator until the compression reaches $h_{min}$ and the desired volume is be delivered to the patient. The duration of this subphase is the inspiration time $t_r$, which remains at 0.3 s regardless of the cycle.

  1.2

  Inspiration proper subphase: the air is delivered to the patient’s respiratory system, where it remains for a short time to ensure adequate oxygen absorption. The total duration of the inspiration phase (thus including $t_r$) is the inspiration time $t_i$, which corresponds to 25% of $t_c$.

• Expiration phase: the lever rises until reaching $h_{max}$, and the respirator is progressively decompressed until its initial shape is reached. This phase is considerably less abrupt than the ramp subphase. The duration of the expiration phase is the expiration time $t_e$, which corresponds to 50% of $t_c$.
• Pause phase: The lever remains stationary at $h_{max}$ for the rest of the cycle. The duration of this phase is the expiration time $t_p$, which corresponds to 25% of $t_c$.

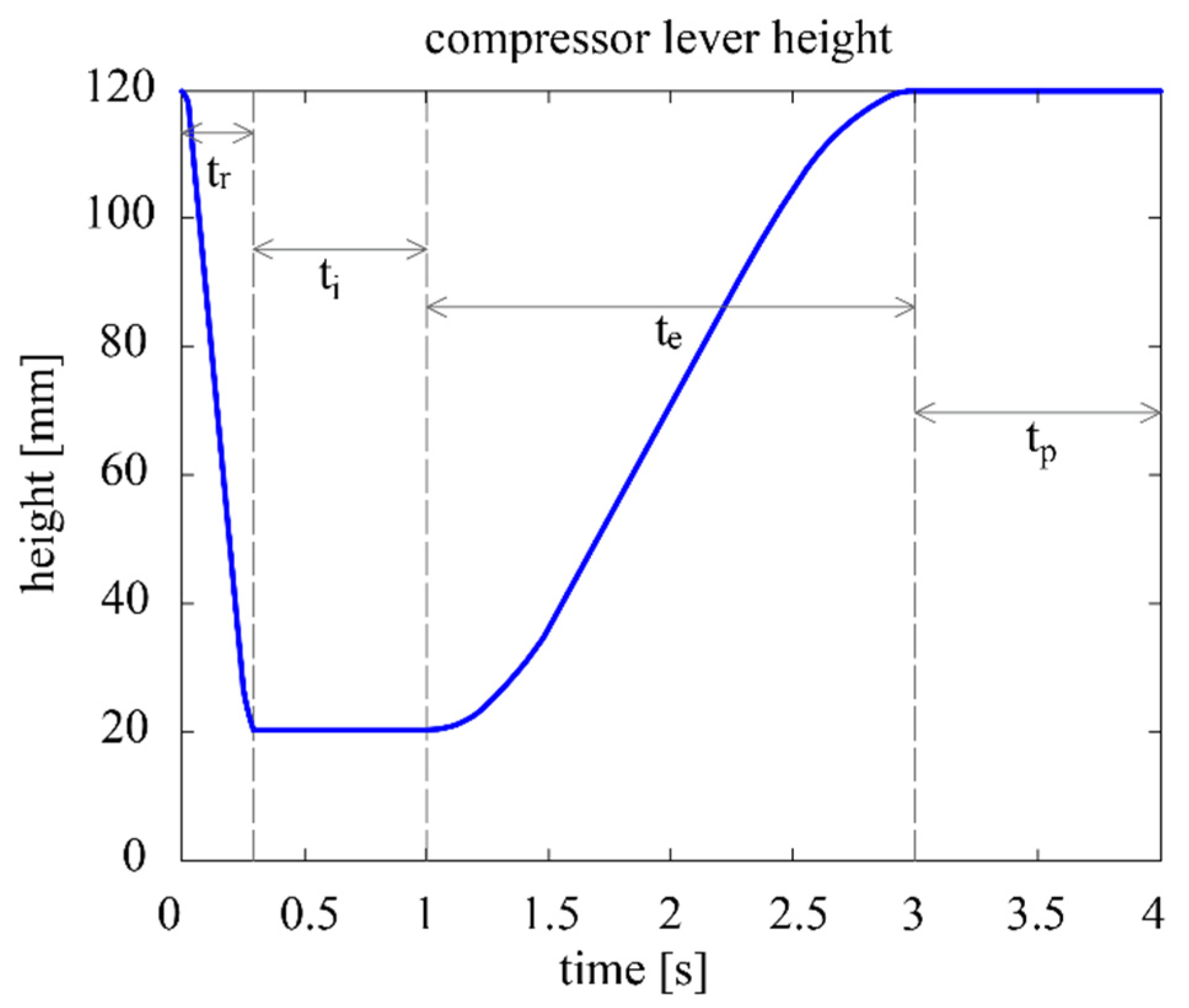

The curve that determines the evolution of height of h(t) is defined as a piecewise function. Each of the four segments of this function corresponds to the initial two subphases plus the other two phases of the cycle. Segments 1 and 3 correspond to constant functions with the minimum and maximum heights of the lever, respectively. Segments 1 and 3 are cubic functions defined by the coefficients a₁…a₄ and a₅…a_8, respectively. The values of these coefficients are determined by ensuring that the whole curve is continuous and derivable. The curve will thus have an equation of the following kind:

$$h\left(t\right)=\{\begin{array}{c}{a}_4{t}^3+a_3{t}^2+a_{2}t+a_1, if 0\le t\le t_r\\ h_{min} if t_r\le t\le t_i-t_r\\ a_8{t}^3+a_7{t}^2+a_{6}t+a_5, if t_i\le t\le t_e\\ h_{max} if t_e\le t\le t_p\end{array}$$

(1)

Once the desired height of the lever at every moment of the cycle is determined, the algorithm will now calculate the rotation of the stepper motor required to reach those heights.

2.2.2. Mechanism

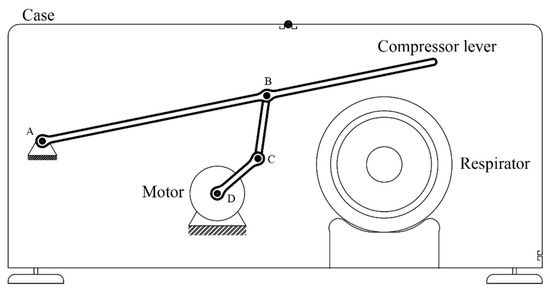

The mechanism to automatize the respirator is based on the four-bar linkage shown in Figure 4a. Figure 4b shows an AMBU Spur II manual respirator.

Once the desired compression height function h(t) is determined [27], now the necessary rotation of the motor will be found.

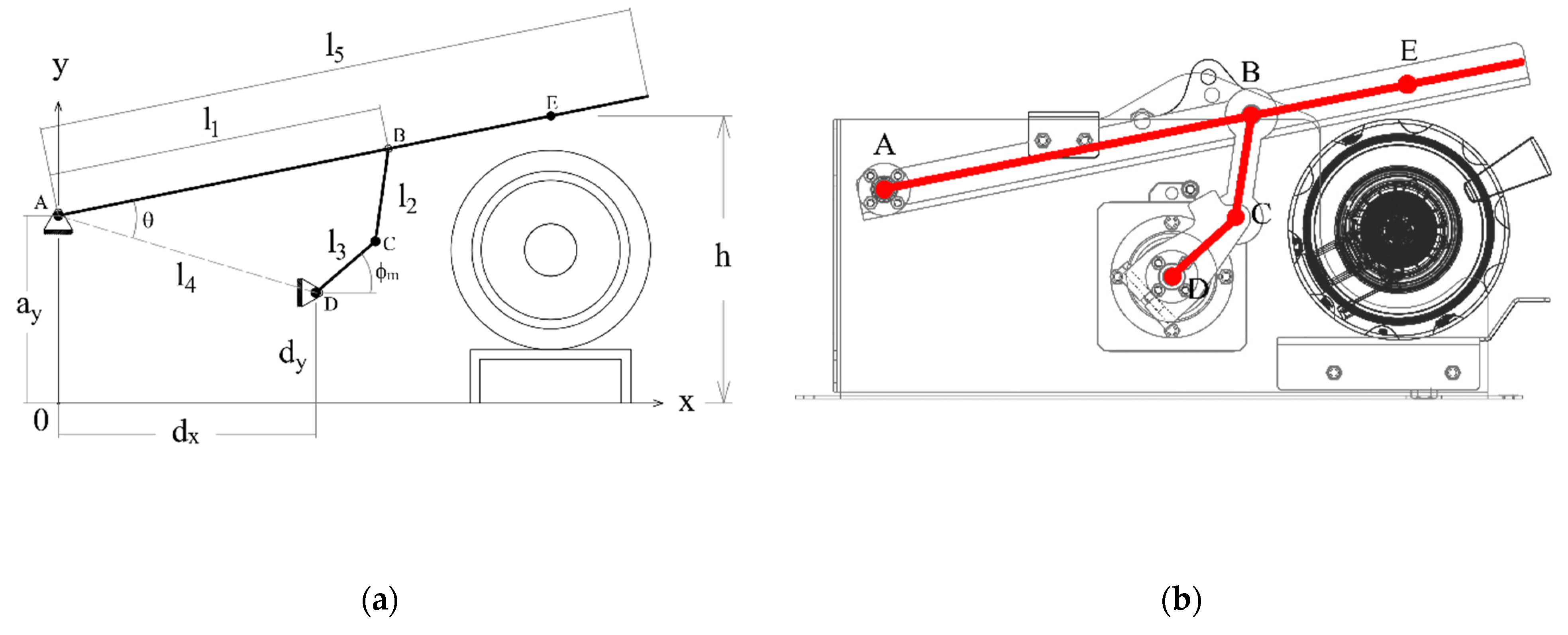

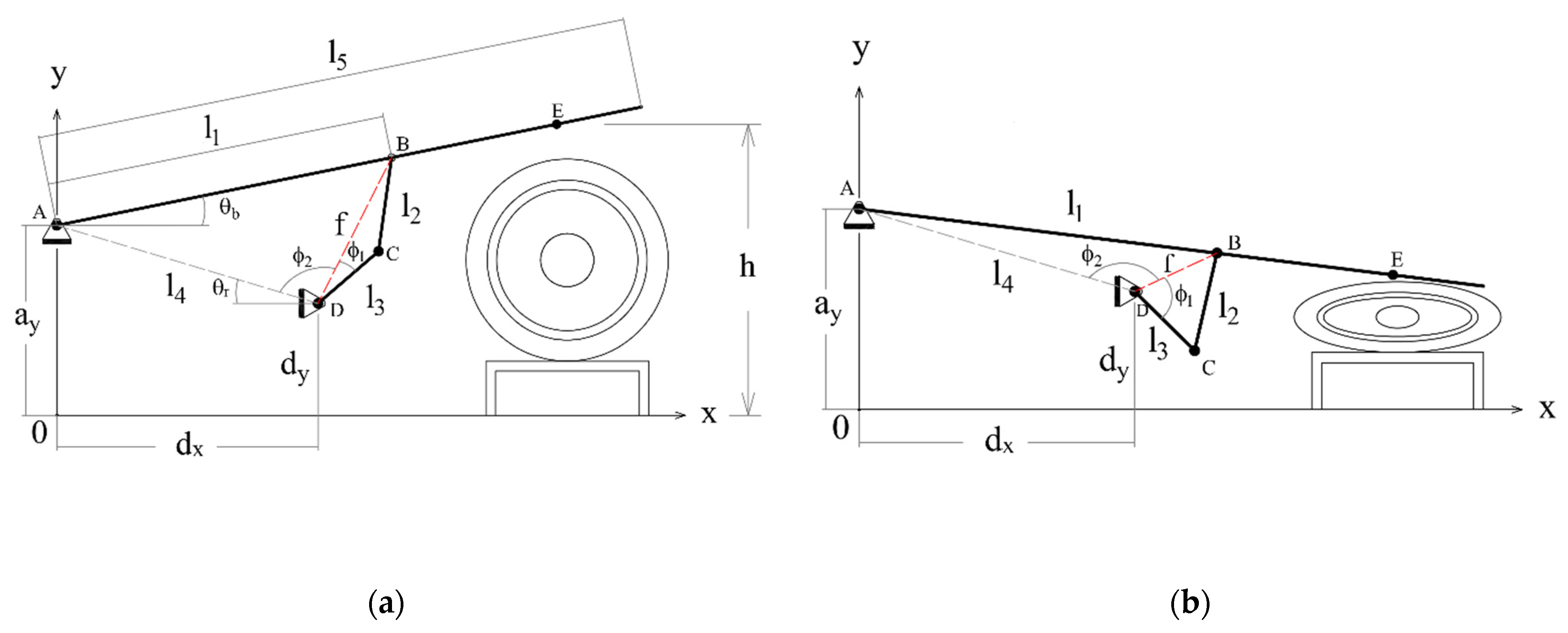

Figure 5a displays the conceptual design of the mechanism. The fulcrum of the compressor lever is at A. The vertical projection of this point to the ground will be the origin of the coordinate system O, with axes x and y, as the image shows. With this coordinate system, the coordinates of the static points A, D of the ground link will be described with the parameters a_x, a_y, d_x, and d_y.

The other parameters and variables of the mechanism will be as follows:

• The output link, with ends at A and B, has a length l₁. The output link is part of the compression lever, which also includes the contact point with the respirator E. The distance between A and E is l₅. The vertical coordinate of point E is the compression height h(t).
• The floating link has ends at B and C, and its length is l₂.
• The input link has ends at C and D, and its length is l₃. The motor rotates the shaft of the input link at D. The angle between the input link and the ground is ${\varphi }_m\left(t\right)$.

Figure 5b shows the drawing of the detail design with the conceptual mechanism superimposed.

Once all the parameters and variables are determined, the short mathematical model to relate h(t) and ${\varphi }_m\left(t\right)$ will be as follows:

First, the static points A and D are defined by their parametric position vectors in the previously defined coordinate system:

$$\overrightarrow{A} = \left\{\begin{array}{c}{a}_x\\ a_y\end{array}\right\}; \overrightarrow{D} = \left\{\begin{array}{c}{d}_x\\ d_y\end{array}\right\}.$$

(2)

Figure 5a,b show some auxiliary variables used to solve the model. The distance between A and D corresponds to the length $l_4$ of the ground link of the four-bar mechanism:

$$l_4 = \left|\right|\overrightarrow{A}-\overrightarrow{D}\left|\right|.$$

(3)

The inclination angle respect the horizontal θ_b of segment AB is (all angles in radian):

$${\theta }_b= \arcsin \left(\frac{h\left(t\right)-a_y}{l_5}\right).$$

(4)

In a similar fashion, the inclination angle θ_r of segment AD is:

$${\theta }_r= -\arctan \left(\frac{a_y-d_y}{a_x-d_x}\right).$$

(5)

The combination of these angles will thus be the angle between segments AB and AD:

$$\theta ={\theta }_b+{\theta }_r.$$

(6)

The distance f between points B and D will thus be:

$$f=\sqrt{{\left(l_1\sin \theta \right)}^2+{\left(l_1\cos \theta -l_4\right)}^2}.$$

(7)

With the law of cosines, angles ${\varphi }_1$ and ${\varphi }_2$ can be determined as:

$${\varphi }_1= \arccos \left(\frac{l_1^2-l_4^2-f}{-2f{l}_4}\right)$$

(8)

$${\varphi }_2= \arccos \left(\frac{l_2^2-f^2-l_3^2}{-2f{l}_3}\right).$$

(9)

By combining these two angles and ${\theta }_r$, the angle of the motor respect the horizontal ${\varphi }_m$ can be found:

$${\varphi }_m=\mathsf{\pi }-{\varphi }_1-{\varphi }_2-{\theta }_r.$$

(10)

Figure 6a shows a diagram representing the mechanism in its initial position. In this case, the height h of the compression point E is at its greatest, and the respirator is not compressed at all. Figure 6b shows the mechanism at the end of the inspiration phase, when the height h is at its lowest and the respirator is more or less completely squeezed. The mechanism generates an adequate trajectory for point E that fits the pre-established respiration cycle.

2.2.3. Operation

The desired volume delivered to the patient will first be established and, from this, the parameters $h_{max}$ and $h_{min}$ of the cycle will be determined. After also inputting the desired frequency, the software will create the desired breathing cycle curve and find the necessary rotation angle of the motor ${\varphi }_m\left(t\right)$. There will also be an option to regulate all the other parameters of the cycle, such as the durations of every phase and sub-phase.

Two sensors will provide feedback to the machine in order to prevent accidents. A flowmeter will be installed at the tube between the silicone bag and the face mask. By mathematically integrating the flow, the volume delivered to the patient’s lungs can be found, the cycle can be modified to ensure the adequate volume ranges are respected.

Furthermore, a pressure sensor will also be included to ensure that the values are not lower than the PEEP and not higher than the maximum threshold.

An emergency stop button will be installed in a prominent place to prevent any accidents.

It is not possible to use a completely automatic respirator with a conscious patient since their breathing reflexes and diaphragm contractions will conflict with the programmed breathing cycle. If a patient is conscious or still has breathing reflexes, they will need to be sedated completely to eliminate any conflict.

Some commercial mechanical respirators have sensors that can be used with conscious patients, detecting when they grasp for air and only then triggering the start of a new cycle only to help them. However, in the present design, this characteristic has been left for future improved versions.

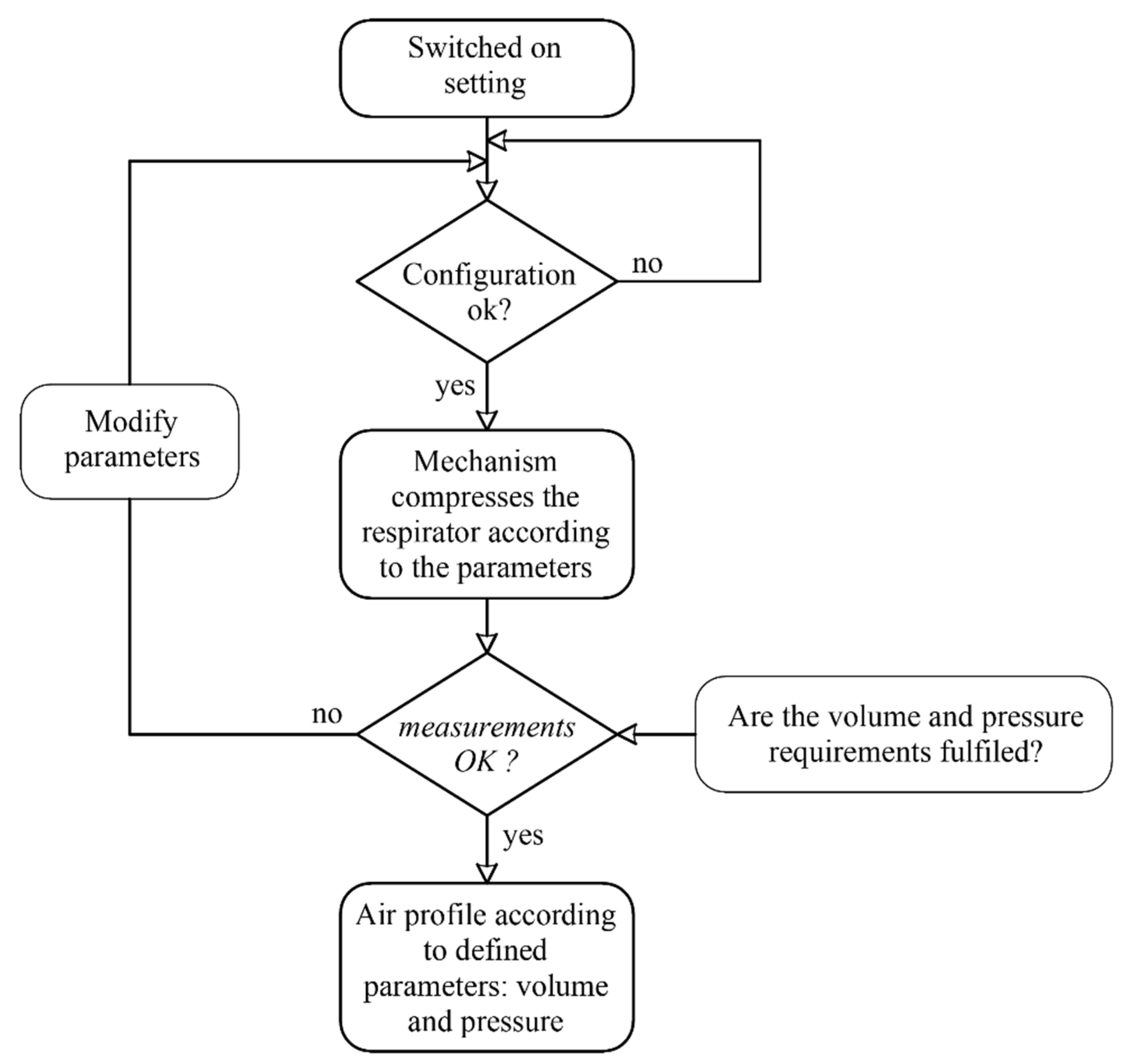

Figure 7 shows the flow diagram of the control. The system controls the rotation angle of the motor. Therefore, when the device is switched on, the motor will rotate until reaching a limit switch, with which the initial reference angle will be established. The control system collects the data of the flowmeter and the pressure sensor during the cycle, enabling the monitoring of the breathing cycle.

2.3. Design Details

This section will present the detail design of the mechanical and electrical aspects of the automation system.

2.3.1. Mechanism

The mechanism is responsible for operating the manual respirator, thus substituting a human operator. This mechanism consists of a four-bar linkage operated by a motor that moves a lever that compresses the respirator. Figure 8a shows the detail design of all the internal components, while Figure 8b shows the housing of the mechanism, with the respirator’s protective housing open. Suitable values for all the parametric dimensions of the model presented at 2.2.2 have been found in order to achieve a smooth operation.

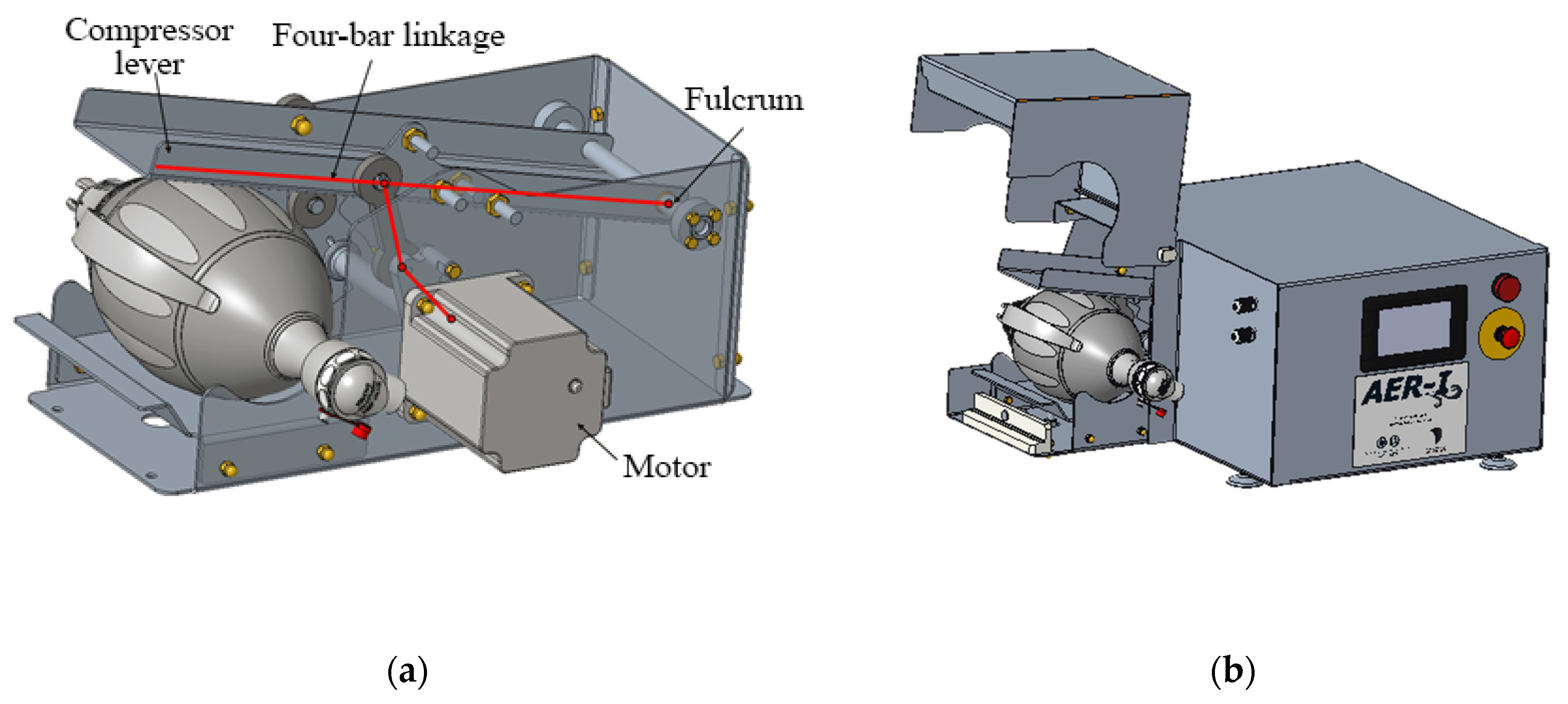

From the detail design of the mechanism, the drawings of each part of the assembly can be created and be used for the materialization phase. The design will be modular for greater ease in assembly and maintenance, and all the materials will comply with sanitary regulations.

2.3.2. Electronic Circuit

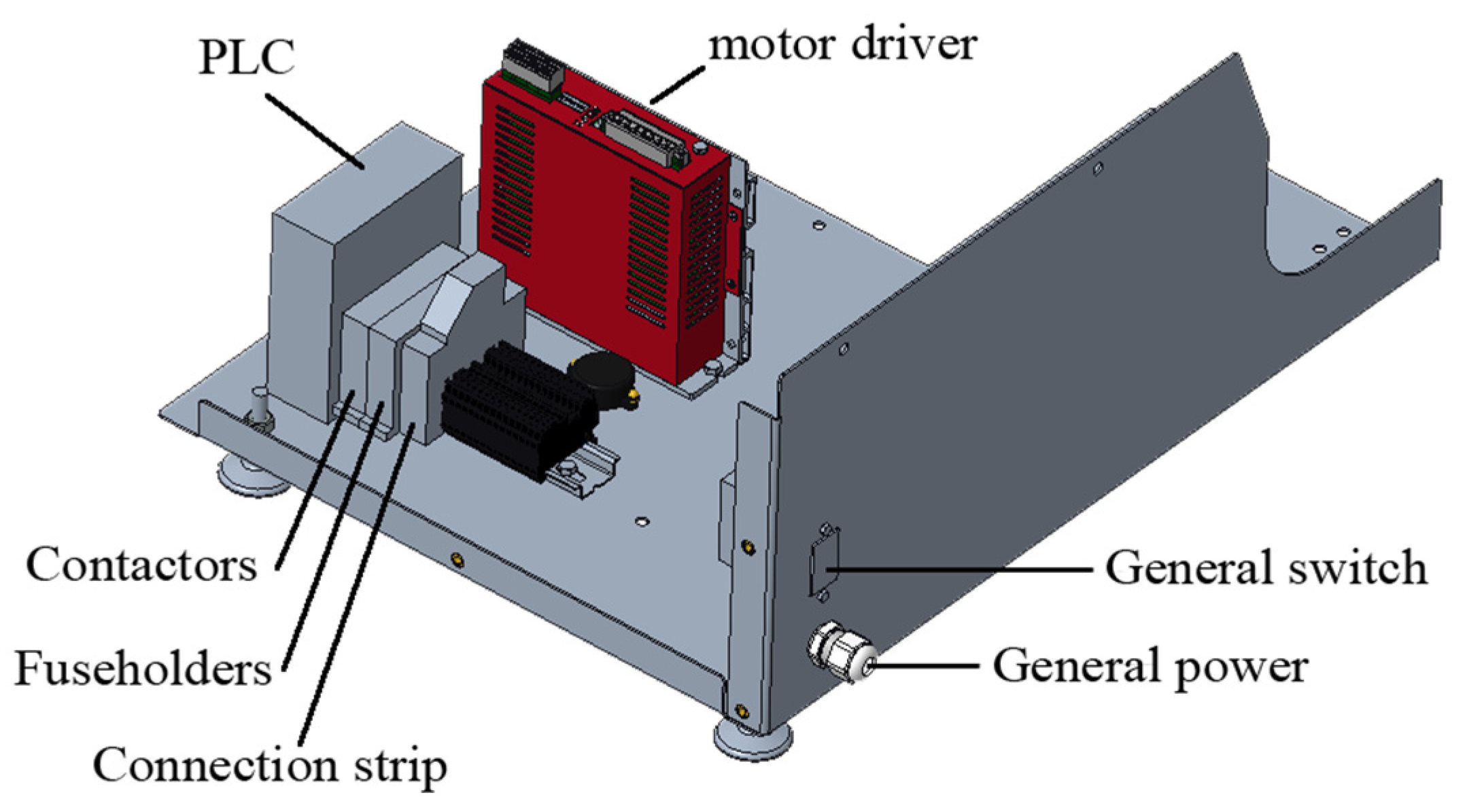

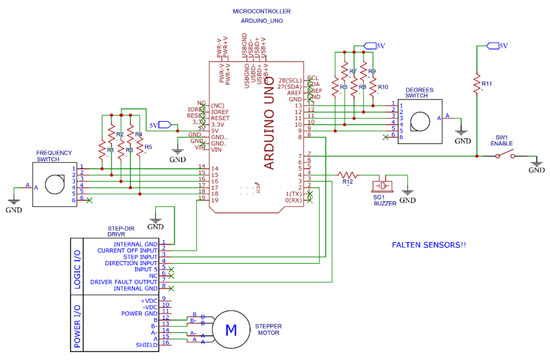

The motor is governed by commercial, electronic control components. The parameters of the breathing cycle can be modified via a touchscreen mounted to the housing. Figure 9 shows the disposition of the control components, and Figure 10 shows the scheme of the electronic circuit.

All the electronic components are readily available worldwide and low cost (See

Table 1. Bill of materials.

Quantity	Description	Cost €
2	Cooper Bussmann, 10 A Cartridge Fuse, 10 × 38 mm, Speed F	73.6
2	Phoenix Contact RIF-0-RPT-24DC/1, SPNO, 24V dc, DIN rail	13.4
20	Phoenix Contact, FBS 2-6 Jumper Bar for Modular Terminal Block	8.80
1	Panel Mount Blue LED Pilot Light Complete With Test Circuit, 22 mm Cutout, IP65	6.11
1	Schurter 1 Pole Non Fused Isolator Switch—10 A Maximum Current	23.3
1	4D Systems 4DCAPE-43T TFT LCD Colour Display/Touch Screen, 4.3in, 480 × 272 pixels	88.6
1	Phoenix Contact DIN Rail UPS, 24V dc Output—Buffer Module, input 100 → 350 V·dc, 85 → 264 V·ac	210
1	APEM Panel Mount Emergency Button—Twist to Reset, 16 mm Cutout Diameter, 2NC, Mushroom Head	18.3
4	Nu-Tech Engineering Adjustable Feet A300/001 M8 40 mm, 40 mm Dia. Stainless Steel, Stainless Steel 450 kg Static Load	76.2
20	Phoenix Contact, STTBS 2.5 BU, 500 V Spring Cage, Spring Clamp Termination, Black	14.5
1	Development kit interface USB to UART	18.9
1	ABB 2 Pole Type AC Residual Current Circuit Breaker, 25A FH200, 30 mA	84.3
100	RS PRO Insulated Crimp Bootlace Ferrule, 8 mm Pin Length, 1.7 mm Pin Diameter, 18 AWG·1 mm2 Wire Size, Red	3.94
1	Phoenix Contact Battery For Use With Energy Storage Device, 2866417, 130 × 52 × 110 mm	108
2	RS PRO Reed Switch Cylindrical 200V, NO, 500 mA	19.1
100	Molex, SL Female Crimp Terminal Contact 24AWG 16-02-0069	4.90
2	RS PRO Cylindrical Proximity Switch Magnet, 11 × 28 mm	9.06
1	Omron EMI Filter for use with VZ B0P7, VZ B1P5—169mm Length, 20 A, 200 V ac, 1.5 kW	41.9
2	Mersen 32A Rail Mount Fuse Holder for 10 × 38 mm Fuse, 1P, 690V ac/dc	9.62
1	PLC Arduino ARDBOX 20 I/Os	141
20	Phoenix Contact, ST 2.5 RD, 800 V Feed Through Terminal Block, Spring Clamp Termination	17.2
100	RS PRO Insulated Crimp Bootlace Ferrule, 8 mm Pin Length, 1.1 mm Pin Diameter, 0.34 mm2 Wire Size, Pink	8.25
1	Mean Well MDR Switch Mode DIN Rail Panel Mount Power Supply with Overvoltage and Short Circuit Protection, 1 output 15V dc 670 mA 10 W	13.9
10	Molex 50-57-9005, SL female connector	3.50
2	RS PRO 1 Gang Rotary Wirewound Potentiometer with a 6 mm Dia. Shaft—5 kΩ, ±10%, 1W Power Rating, Linear, Panel Mount	9.42
TOTAL		1028.14 €

). The machine’s code was implemented with open-source software such as IDE Arduino.

2.4. Materialization

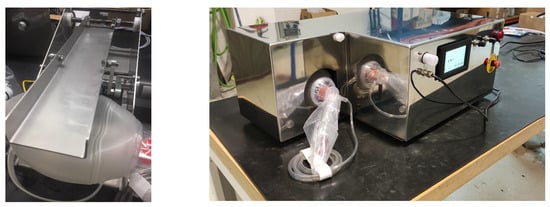

The housing of the device is made of sheet metal of AISI-304L (1.4301) stainless steel, with 2 mm thickness. The outline of each structural part is first obtained via laser cut and then bent and welded. The parts are then pickled and polished to remove all irregularities and leave a smooth superficial finish.

The lever and supports of the compression mechanism are made of the same bent stainless steel, while most of the other mobile elements are obtained via CNC machining. All the parts must undergo dimensional control according to the ISO-9001:2015 quality standard. Figure 11) shows the respirator without housing so that the mechanism can be seen, while Figure 11) shows the complete system with the housing, mechanism, electronics, and manual respirator.

The device can undergo sterilization processes with ozone or UV light.

Tests

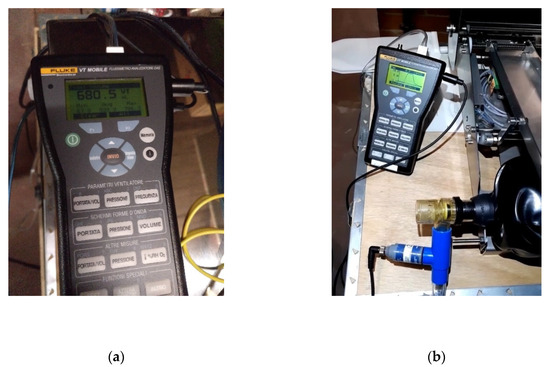

The gas flow analyzer FLUKE VT MOBILE has been used to test the reliability of the flow and pressure levels. The following magnitudes have been measured with this tool: bidirectional flow rate, volume, vacuum, pressure, and oxygen concentration. Figure 12a shows the volume measurements, while Figure 12b shows the pressure measurements.

3. Results

The following graphs show the results obtained for different configurations. Figure 13a shows the temporal evolution of the motor angle during a breathing cycle, while Figure 13b shows the temporal evolution of the motor angular velocity, both for a frequency of 15 cycles/min.

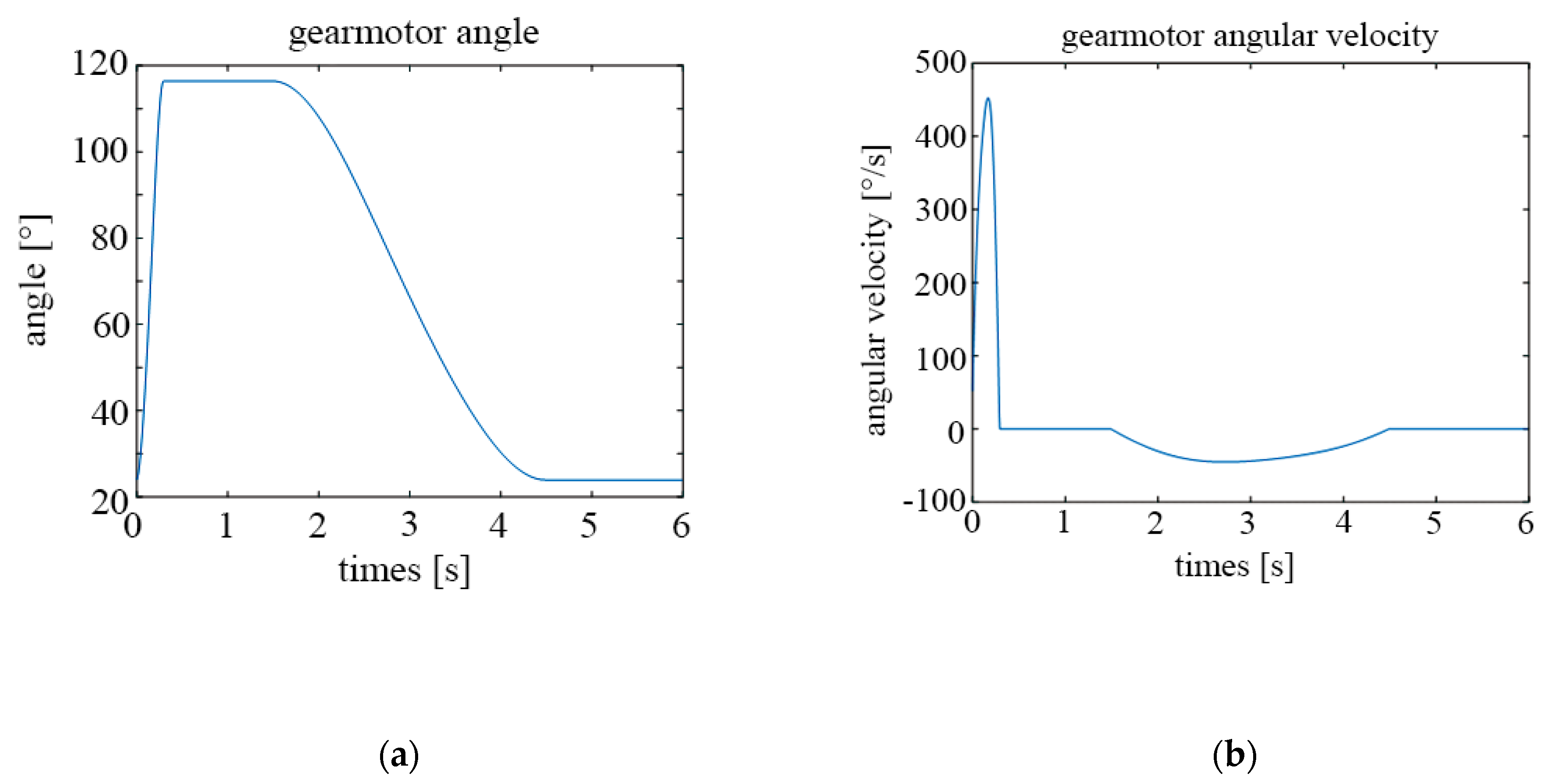

In the same vein, Figure 14a,b show the same results but with a frequency of 10 cycles per minute.

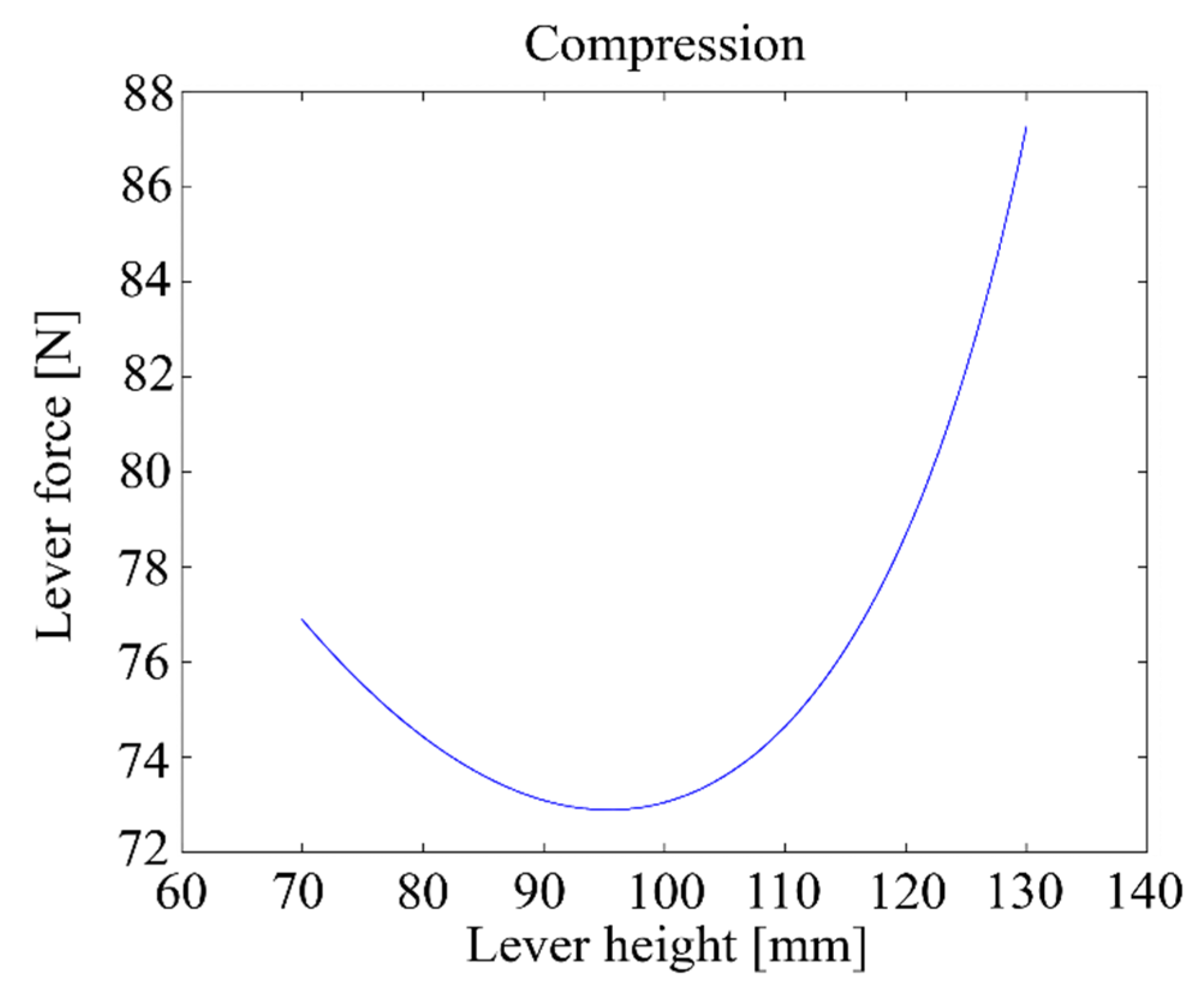

Figure 15 shows the relationship between the height h of the lever and the maximum compression force when the motor delivers a 5 Nm torque.

Table 2. Recommended operation ranges of a respirator.

Operation Parameters	Recommended Ranges
Frequency	5–30 cycles/min
Minimum pressure	0–20 cm H2O
Maximum pressure	30–60 cm H2O
Minimum volume	200 mL
Maximum volume	1000 mL

shows the ranges of operation of the designed machine, which the machine complies with.

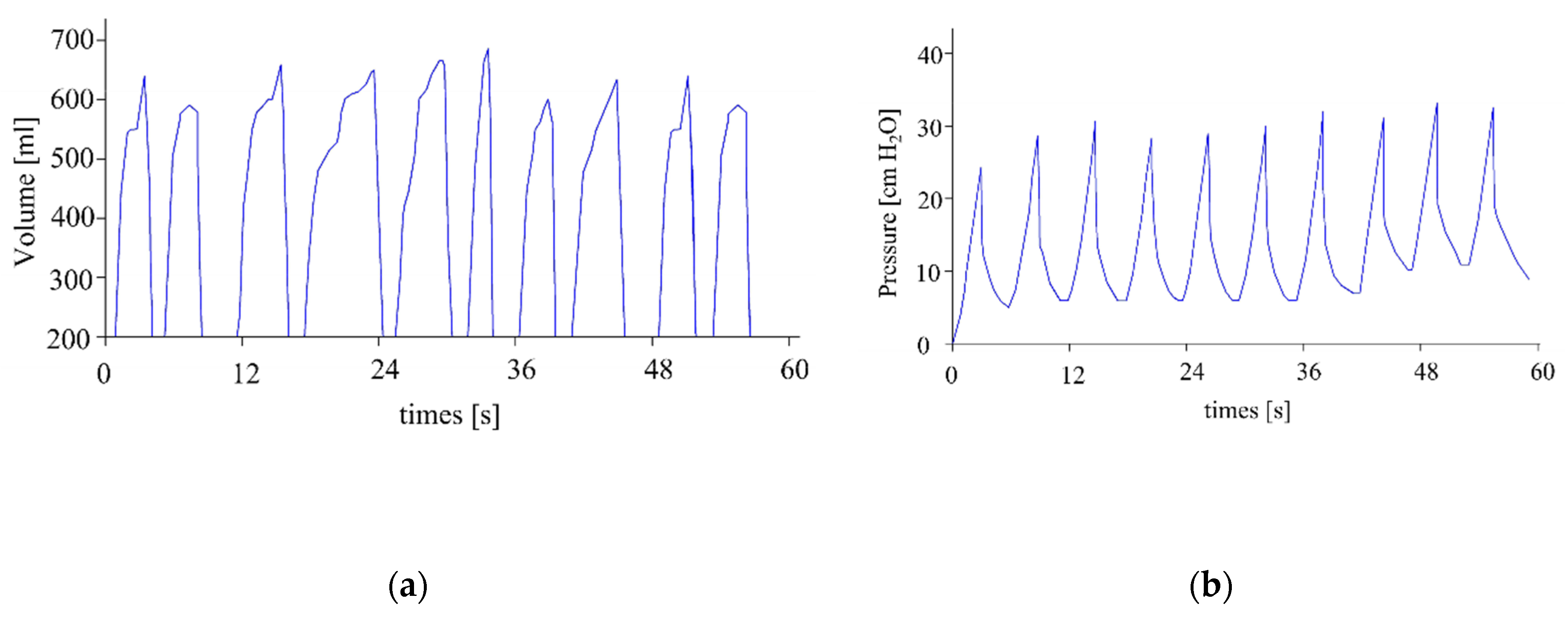

Figure 16a shows the experimental measurements of volume, while Figure 16b shows the experimental measurements of pressure. Both results are for a frequency of 10 cycles/minute, a PEEP of 10 cm H₂O, a threshold alarm maximum pressure of 1 cm H₂O, and a threshold alarm maximum pressure of 42 cm H₂O. Both measurements show that the machine operates within the recommended ranges.

Tests were performed on the prototype to simulate the working conditions of a commercial respirator. The pressure and flow sensors were tested, and an alarm was calibrated to notify when the thresholds of maximum volume, maximum pressure and minimum pressure were reached. To simulate a rise in pressure, the exit tube of the respirator was blocked progressively; while to control the volume delivered in a practical way, a balloon was attached to the mask of the respirator.

Figure 17a shows the menu with the parameters of the respiration cycle, each of which can be modified. Each slider governs a different parameter. In descending order: % of the cycle devoted to the inspiration phase, % of the inspiration phase devoted to the ramp subphase, % of the cycle devoted to the expiration phase, % of the cycle devoted to the pause phase, breathing frequency in cycles per minute, and total volume delivered to the patient in milliliters. Figure 17b touchscreen of the device with the readings of the rotation sensor of the motor in real time. Units: angle [°] per time [s].

4. Discussion

The designed device aims to automate the use of manual resuscitators of the type AMBU Spur II. Therefore, the designed system will share some of its characteristics, such as the uncontrolled expulsion of expiration gases into the atmosphere, the protection against overpressure with a safety valve, and a lack of fine-tuning minute details of the respiration cycle.

However, with this device, a medical staffer can be freed from constant work on the manual respirator, allowing them to attend several patients simultaneously [28]. The pressures and volumes provided to the patient in each cycle can be displayed graphically, allowing for easy monitoring.

The device complies with all the regulations. The cost of the prototype has been of approximately 1200 USD, while with appropriate adjustments, the cost of the final product can be reduced to 800 USD. Considering the system features protection against overpressure and warning alarms, its cost is considerably lower than most commercial respirators [8].

The mechanism is simple and its control electronics can be governed with intuitive menus displayed on a touchscreen. The design is replicable and cheap, making it a suitable alternative for developing countries.

5. Conclusions

The present COVID-19 pandemic has generated an unprecedented high number of patients with respiratory problems, which in turn has created a general shortage of mechanical ventilators. For this reason, in this article, the design of a mechanism to automate an AMBU Spur II manual resuscitator has been described. The device consists of a four-bar linkage mechanism driven by an electric motor that compresses the respirator in a very controlled manner at about 15 cycles per minute, and that can be controlled via a touchscreen.

First, all the characteristics of the breathing cycle have been established, and then, the corresponding degree of compression of the respirator has been determined. After the compression vs. time curve of the cycle has been determined, an algorithm will calculate the rotation angle of the motor needed to accomplish the cycle. The device also features sensors to monitor the pressure and volume of the delivered air in order to prevent injuries while also ensuring a minimum PEEP pressure.

The mechanism has been successfully materialized and tested, thus fulfilling the original objective: solving the shortage of mechanical respirators and freeing medical staff from having to devote all their time to a single patient, while operating a manual respirator.

The control electronics use low-cost, readily available commercial components, and have been programmed with open source software. The design uses common materials and manufacturing techniques, so, while it has been fabricated in a Western European country, its production has also been replicated in developing countries such as Ecuador.
