Autonomous Dispatch of Mobile Robots in Manufacturing Using Convolutional Neural Networks

Abstract

Material delivery plays a critical role in manufacturing efficiency, with manual retrieval introducing non-value-added (NVA) time and disrupting workflow continuity. Autonomous mobile robots (AMRs) can improve performance by enabling overlap between material transport and productive work, but their effectiveness depends on how they are deployed. In this work, a convolutional neural network (CNN)-based autonomous dispatch framework was implemented and tested in a controlled experimental setting. This study utilized a representative aerospace assembly task to evaluate three material delivery approaches across 60 runs, including manual walking, manual AMR dispatch, and autonomous AMR deployment. System performance was assessed using total operation time, panel lead times, and non-value-added time. Results showed that manual AMR dispatch significantly increased total operation time and non-value-added time due to sequential task execution. Autonomous deployment reduced this inefficiency by enabling preemptive material transport and overlap with operator activity, but did not significantly outperform manual walking under the tested conditions. Operator variability also influenced non-value-added time under automated dispatch. These results indicate that AMR effectiveness depends strongly on deployment timing and workflow synchronization, with the greatest potential benefits expected in environments that allow greater overlap between transport and productive work.

1. Introduction

Efficient material handling is a critical component of modern manufacturing systems, directly influencing productivity, workflow continuity, and overall system performance. In many industrial environments, operators repeatedly retrieve materials from designated pick up locations and transport them to workstations; while straightforward, this process introduces non-value-added (NVA) time, interrupts task continuity, and contributes to operator fatigue.

Autonomous mobile robots (AMRs) are increasingly being adopted in manufacturing environments to support material transport and reduce reliance on manual handling. By enabling material transport without direct operator involvement, AMRs offer the potential for parallelization between delivery and productive work. However, performance improvements are not guaranteed. When robot movement is initiated only after materials are required, deployment becomes sequential, leading to idle waiting time and reduced efficiency.

This highlights a key limitation in current implementations. The effectiveness of AMR integration depends not only on the presence of robotic systems, but on how and when they are deployed within the workflow. Preemptive and context-aware dispatch strategies are necessary to fully leverage the potential for overlapping robot travel with operator task execution.

Computer vision and machine learning provide a pathway for enabling such strategies. Convolutional neural networks (CNNs) can monitor manufacturing processes in real-time and support automated decision making based on workflow progression. By integrating perception with control, AMR deployment can be triggered dynamically in response to process state rather than relying on manual intervention.

With this in mind, the objective of this study was to quantify the impact of deployment strategy on AMR effectiveness and to determine the conditions under which autonomous dispatch provides measurable benefits over manual approaches. The results provide insight into the role of workflow synchronization, operator variability, and system design in realizing the full potential of AMR-based material delivery.

The remainder of this work is organized as follows. Section 2 explores related work relevant to the inclusion of AMRs and CNNs in manufacturing workflows. Section 3 presents the experimental setup, perception system, and autonomous dispatch logic. Section 4 provides a detailed analysis of system performance across three material delivery scenarios. Section 5 discusses key findings and implications for real-world deployment. Finally, Section 6 summarizes the contributions of this work.

2. Related Work

AMRs have seen increasing adoption across a range of industries due to their flexibility, autonomy, and ability to operate in dynamic environments. Beyond traditional warehouse and logistics applications, AMRs have been explored in mobile manipulation systems [1], cyber–physical production platforms [2], healthcare [3], and facilities management [4] to improve efficiency, reduce operator workload, and enhance system responsiveness.

Within manufacturing specifically, AMRs are increasingly utilized for intralogistics, offering advantages over both manual material transport and traditional automated guided vehicles that rely on fixed infrastructure [5,6]. Unlike manual transport, which requires operators to leave their workstations and introduces NVA time, AMRs enable material delivery without interrupting ongoing tasks. Their ability to autonomously navigate and integrate with dynamic manufacturing environments supports applications in workstation supply, part delivery, and production line coordination [7].

However, realizing these benefits depends on effective integration with existing production systems and control architectures [8,9]. In practice, this integration is non-trivial, as manufacturing environments involve dynamic task execution, variable processing times, and real-time material demand, making dispatch a complex problem [10]. Existing approaches largely focus on routing, scheduling, and system level integration rather than real-time, context-aware deployment strategies [11]. As a result, many implementations rely on manually triggered dispatch or predefined scheduling, resulting in sequential operation and limiting the robot’s ability to operate in parallel with ongoing tasks.

A potential solution to these limitations is the use of computer vision and machine learning to provide real-time awareness of manufacturing processes. CNNs, in particular, have been widely adopted for various tasks. For example, CNN-based systems are used to detect unsafe operator behavior and hazardous conditions to improve situational awareness and worker safety [12,13]. They are also applied to monitor manufacturing processes such as computer numerical control machining, printed circuit board etching, and additive manufacturing to support process stability and quality control [14,15,16]. Additionally, CNNs analyze sensor data for fault detection and tool condition monitoring, enabling proactive maintenance strategies [17,18].

While CNNs have been successfully applied to a wide range of perception and monitoring tasks, their use in conjunction with AMRs has primarily focused on navigation, localization, and obstacle avoidance in unstructured environments [19,20,21]. These approaches enable robot autonomy but do not incorporate process level understanding into higher level operational decisions.

Despite the extensive use of CNNs for monitoring and AMRs for material transport, limited work has explored the integration of CNN-based process monitoring with AMR dispatch logic. Prior research has primarily focused on state-aware dispatch strategies based on digital twin frameworks, sensor-driven signals, and multi-agent coordination for task allocation and routing [2,8,22]; while these methods provide system-level awareness for scheduling and coordination, they generally rely on predefined signals or structured data inputs rather than direct perception of workflow progression.

As a result, the use of real-time process state estimation through CNN-based methods to inform and optimize material delivery decisions remains largely unaddressed. This ultimately highlights the need for context-aware dispatch strategies that leverage perception driven insights to improve AMR utilization and overall manufacturing efficiency.

3. Materials and Methods

3.1. Manufacturing Testbed and Experimental Design

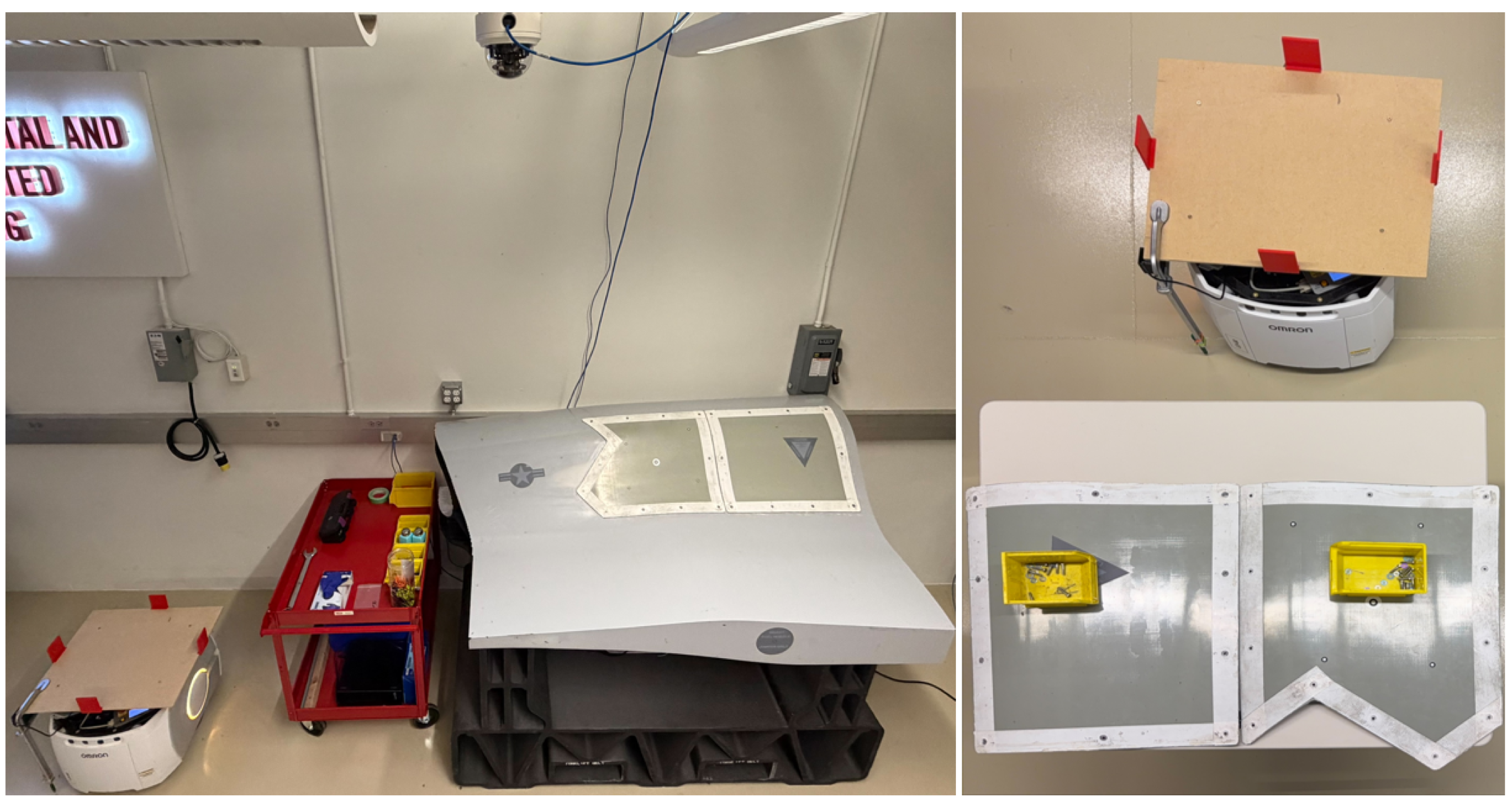

A representative aerospace assembly process was developed to evaluate the impact of material delivery strategies on manufacturing performance. The experimental testbed consisted of a fuselage model requiring sequential installation of two removable panels, as shown in Figure 1.

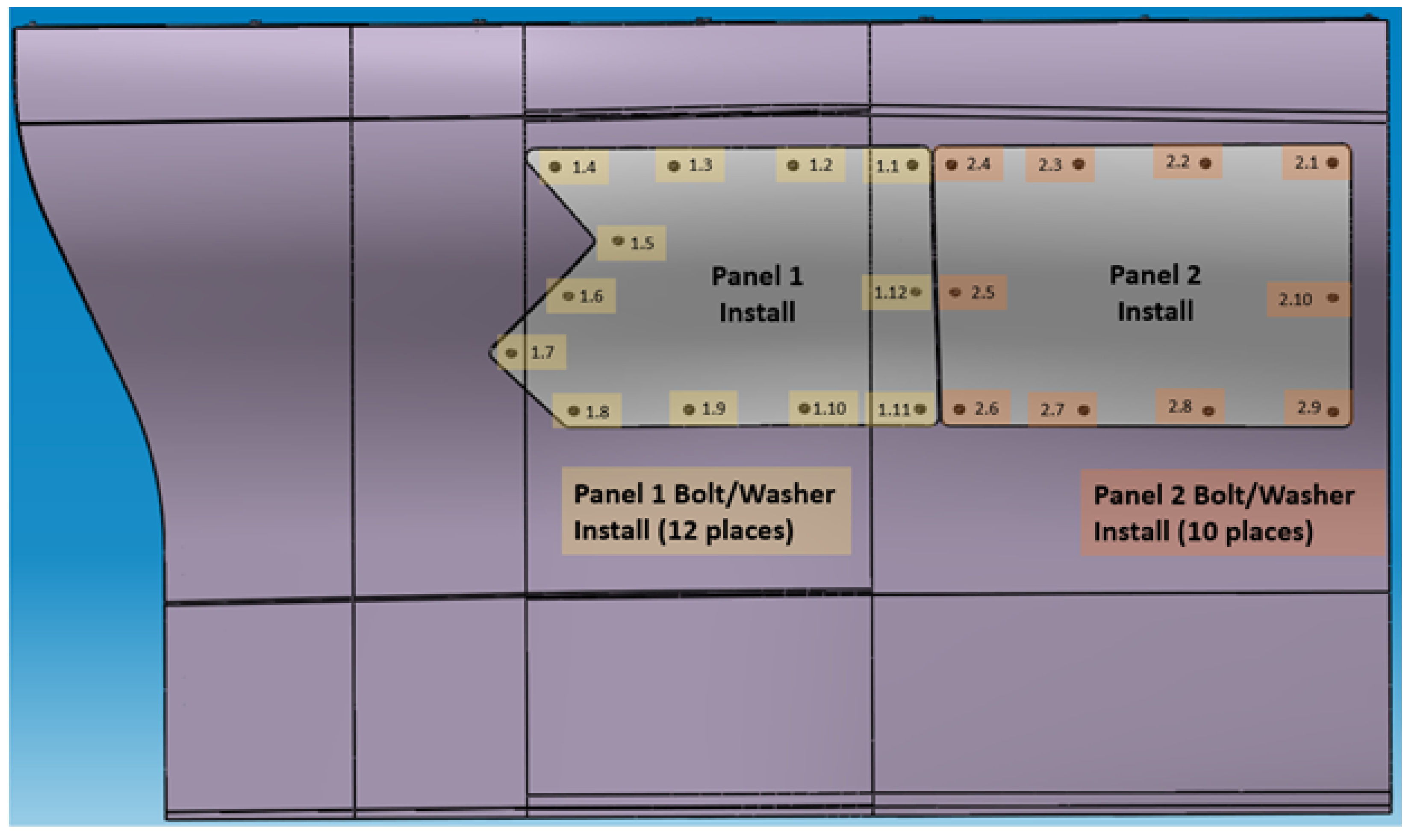

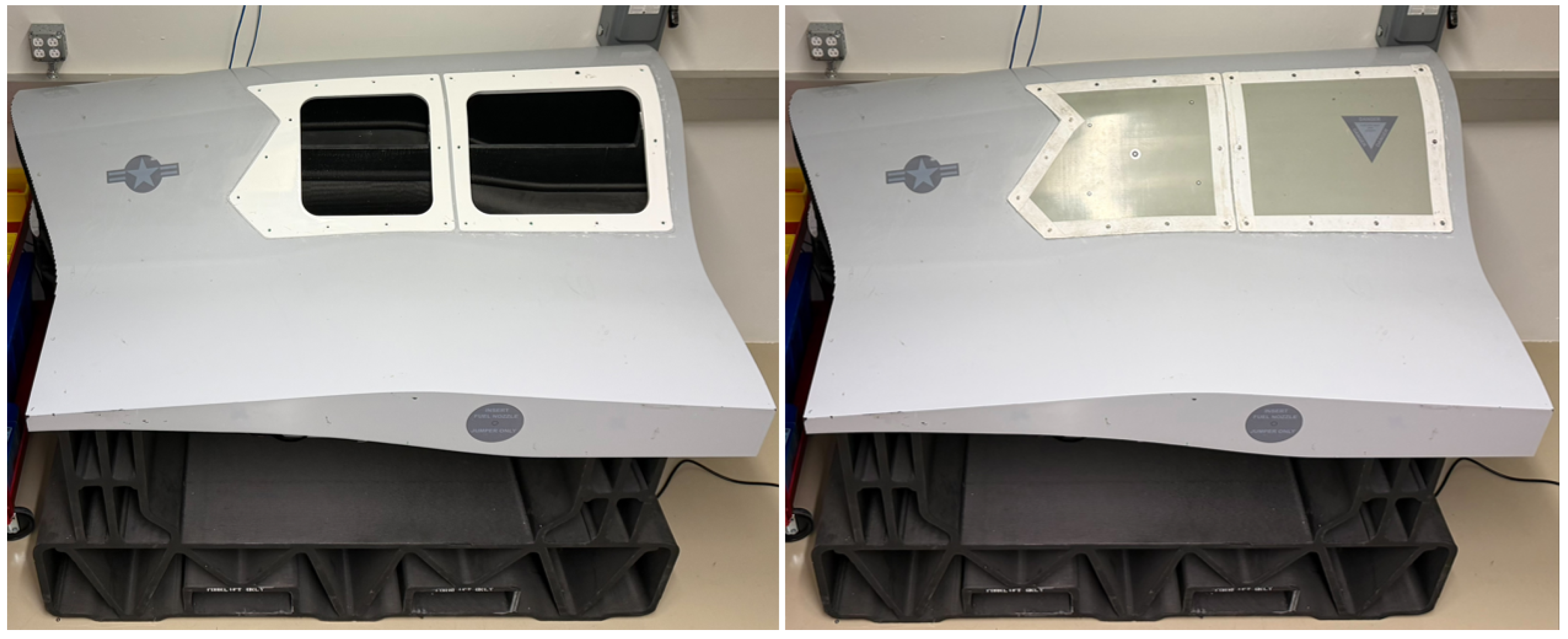

In Figure 2, the two panels are designated as Panel 1 and Panel 2, and each corresponding fastener location is explicitly labeled. The holes for each panel are numbered starting at the top-right corner and proceeding in a counterclockwise direction. These labeled positions were used to define a structured installation sequence in which Panel 1 was installed first, with bolts and washers placed in specific locations at designated steps throughout the procedure, followed by an analogous installation process for Panel 2.

Each experimental run followed a standardized sequence of operations, including tool acquisition, hole inspection, and panel placement and fastening using the previously defined installation sequence. This process was divided into discrete steps to enable detailed temporal analysis and consistent comparison across trials. Three material retrieval and delivery scenarios were evaluated, as summarized in Algorithm 1. The overarching workflow remained consistent across scenarios, with differences arising only in the method of panel acquisition and delivery.

In the first scenario, operators manually walked between the material drop off location (MDO) and the material pick up location (MPU) to retrieve panels, representing a fully manual baseline condition. In the second and third scenarios, material transport was performed using an OMRON LD-60 autonomous mobile robot platform shown in Figure 3.

Algorithm 1 Manufacturing Workflow with Scenario-Dependent Material Handling

Inspection of Tools and Fuselage Model:  Obtain wrench and ensure fit for use  Inspect Holes 1–8 for debris and document defects  Inspect Holes 9–11 for debris and document defects  Inspect Holes 12–15 for debris and document defects  Inspect Holes 16–17 for debris and document defects  Inspect Holes 18–22 for debris and document defects  Inspect confined spaces for debris and document defects    Panel 1 Acquisition:  if Scenario 1 (Manual Walking) then     Walk to MPU and retrieve Panel 1 and hardware     Return to manufacturing area    else if Scenario 2 (Manual AMR Dispatch) then     Dispatch AMR to MPU via MobilePlanner to retrieve Panel 1 and hardware     Dispatch AMR to MDO via MobilePlanner    else if Scenario 3 (Autonomous AMR Dispatch) then     Wait for AMR arrival at MDO and retrieve Panel 1 and hardware  end if    Panel 1 Installation:  Hand install initial bolts (Holes 1.1, 1.4, 1.8, 1.11)  Hand install remaining bolts (Holes 1.2, 1.3, 1.5, 1.6, 1.7, 1.9, 1.10, 1.12)  Torque all Panel 1 bolts in numerical sequence    Panel 2 Acquisition:  if Scenario 1 (Manual Walking) then     Walk to MPU and retrieve Panel 2 and hardware     Return to manufacturing area    else if Scenario 2 (Manual AMR Dispatch) then     Dispatch AMR to MPU via MobilePlanner to retrieve Panel 2 and hardware     Dispatch AMR to MDO via MobilePlanner    else if Scenario 3 (Autonomous AMR Dispatch) then     Wait for AMR arrival at MDO and retrieve Panel 2 and hardware    end if    Panel 2 Installation:  Hand install initial bolts (Holes 2.2, 2.5, 2.8, 2.10)  Hand install remaining bolts (Holes 2.1, 2.3, 2.4, 2.6, 2.7, 2.9)  Torque all Panel 2 bolts in numerical sequence    Complete Manufacturing Process:  Return tools to cart

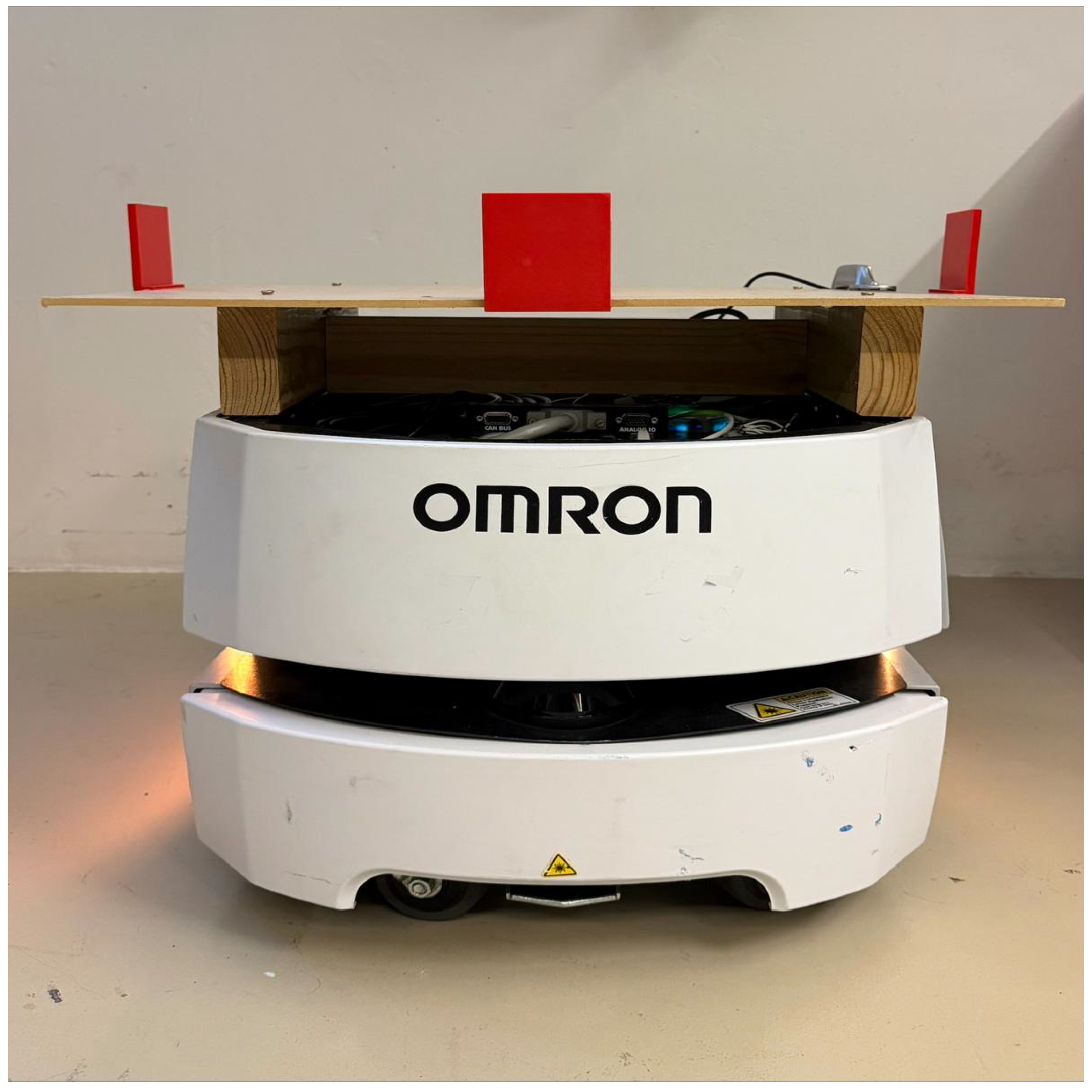

In the second scenario, operators manually dispatched the AMR to retrieve materials, with dispatch initiated only when materials were immediately required, resulting in sequential execution of tasks and robot travel. In the third scenario, AMR deployment was automatically triggered using a CNN-based perception system that monitored the manufacturing process via an overhead Rhombus security camera. This enabled preemptive material transport and potential overlap between robot travel and operator task execution. Across all scenarios, the approximate round trip travel distance between pick up and drop off locations, as shown in Figure 4, was 49 m.

A total of four operators participated in the study, with each operator completing five runs per scenario in a randomized order to reduce potential learning and fatigue effects. This resulted in a balanced experimental design with 60 total runs, enabling the evaluation of both scenario level effects and operator variability, which are explored later.

The primary response variables of interest for this work included total operation time, panel 1 lead time, panel 2 lead time, non-value-added time, and individual step durations. Time measurements were obtained through post processing of overhead video recordings captured using the Rhombus camera system. This approach ensured consistent timing data while eliminating disruption to operator workflow during experimental execution. Representative video examples of the three experimental scenarios are available at https://drive.google.com/file/d/1VuQPxw3TsS2kYm44Ue7qtzXG65GyJMnI/view?usp=sharing (accessed on 28 April 2026).

3.2. CNN-Based Perception System

To monitor the representative manufacturing process and enable automated decision making for AMR deployment, two convolutional neural network models based on the YOLOv8m-cls architecture were implemented. The medium-sized YOLOv8 classification model was selected due to its balance between accuracy and computational efficiency. Because all training and inference were performed on a desktop system equipped with an NVIDIA RTX 4070 GPU, model size was not constrained by embedded hardware limitations. This allowed for improved classification performance during deployment. Additionally, the YOLOv8 framework was chosen for its ease of implementation and integration within a Python-based workflow using the Ultralytics library in Python 3.12.7. It is important to note that this work does not aim to benchmark CNN architectures, but rather to demonstrate an autonomous dispatch system enabled through reliable visual classification.

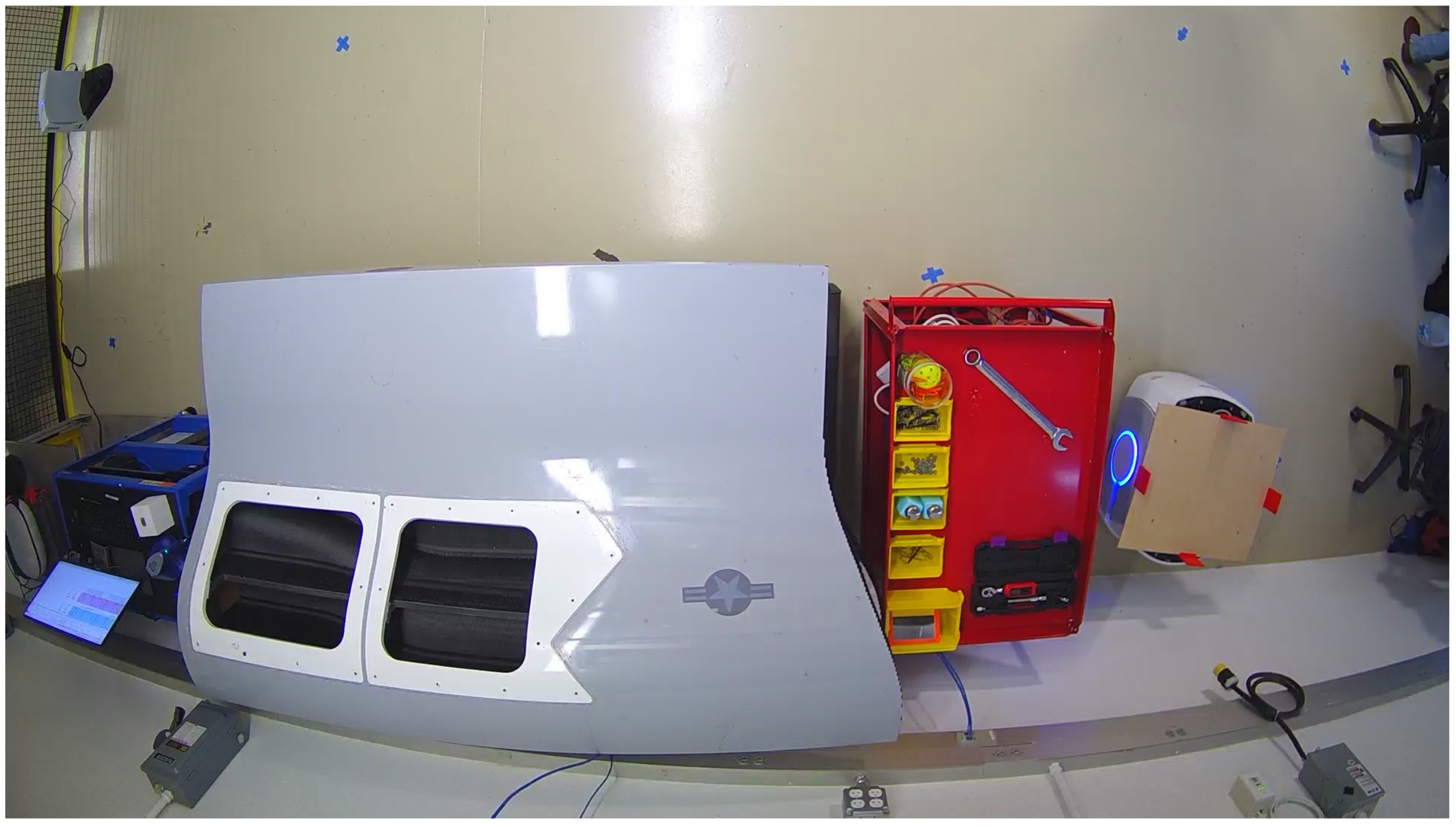

Input images for both models were obtained from an overhead Rhombus security camera providing a continuous view of the manufacturing area, as shown in Figure 5. Regions of interest (ROIs) corresponding to relevant areas of the workspace were extracted from the video stream and resized to $640\times 640$ pixels to serve as input to each CNN.

The perception system was structured into two stages. In Stage 1, CNN 1 classified the state of the material drop off location and adjacent tool cart. This model was trained to distinguish four classes representing combinations of tool presence and AMR material status, as shown in Figure 6. A numerical labeling convention was assigned to each class to facilitate integration with the autonomous dispatch logic described in the following section.

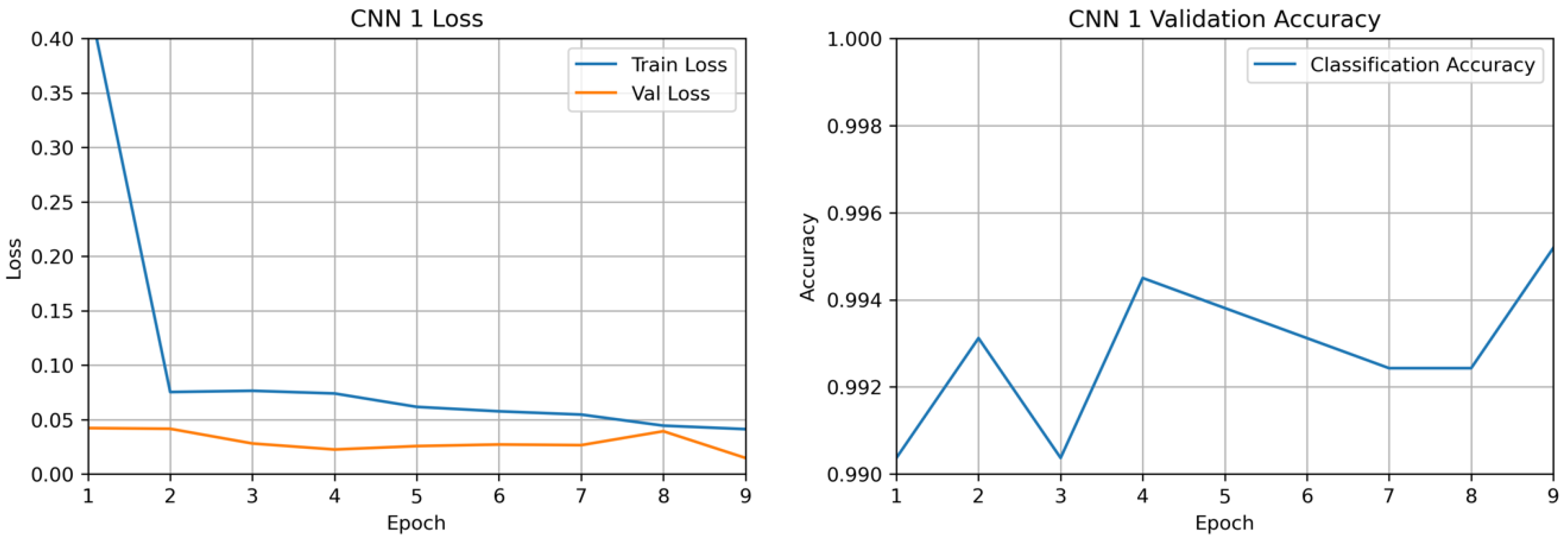

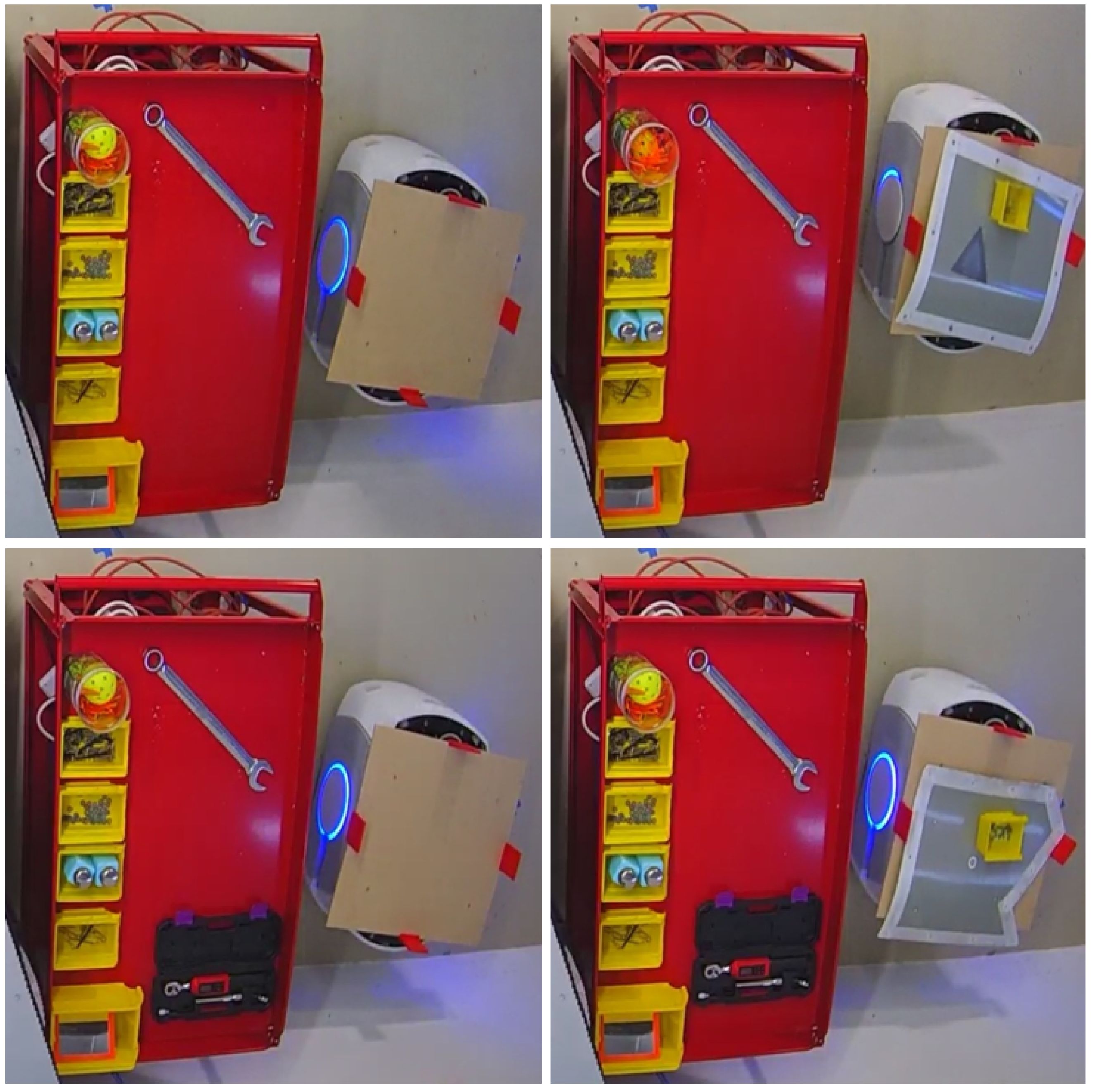

The CNN 1 dataset consisted of 12,738 labeled images distributed relatively evenly across the four classes. The dataset was randomly split into 80% training and 20% validation subsets. Training settings were configured with a maximum of 40 epochs, an input image size of $640\times 640$ pixels, a batch size of 32, and default optimization parameters. As seen in Figure 7, training and validation loss values decreased to below 0.05 within eight epochs, while classification accuracy exceeded 0.99 after a single epoch. Based on this rapid convergence, training was terminated after 9 epochs. The high performance is attributed to the strong visual separability between classes, including clear differences in AMR material and torque wrench presence. These results are not indicative of overfitting, but rather reflect the distinct and easily distinguishable features present in each class.

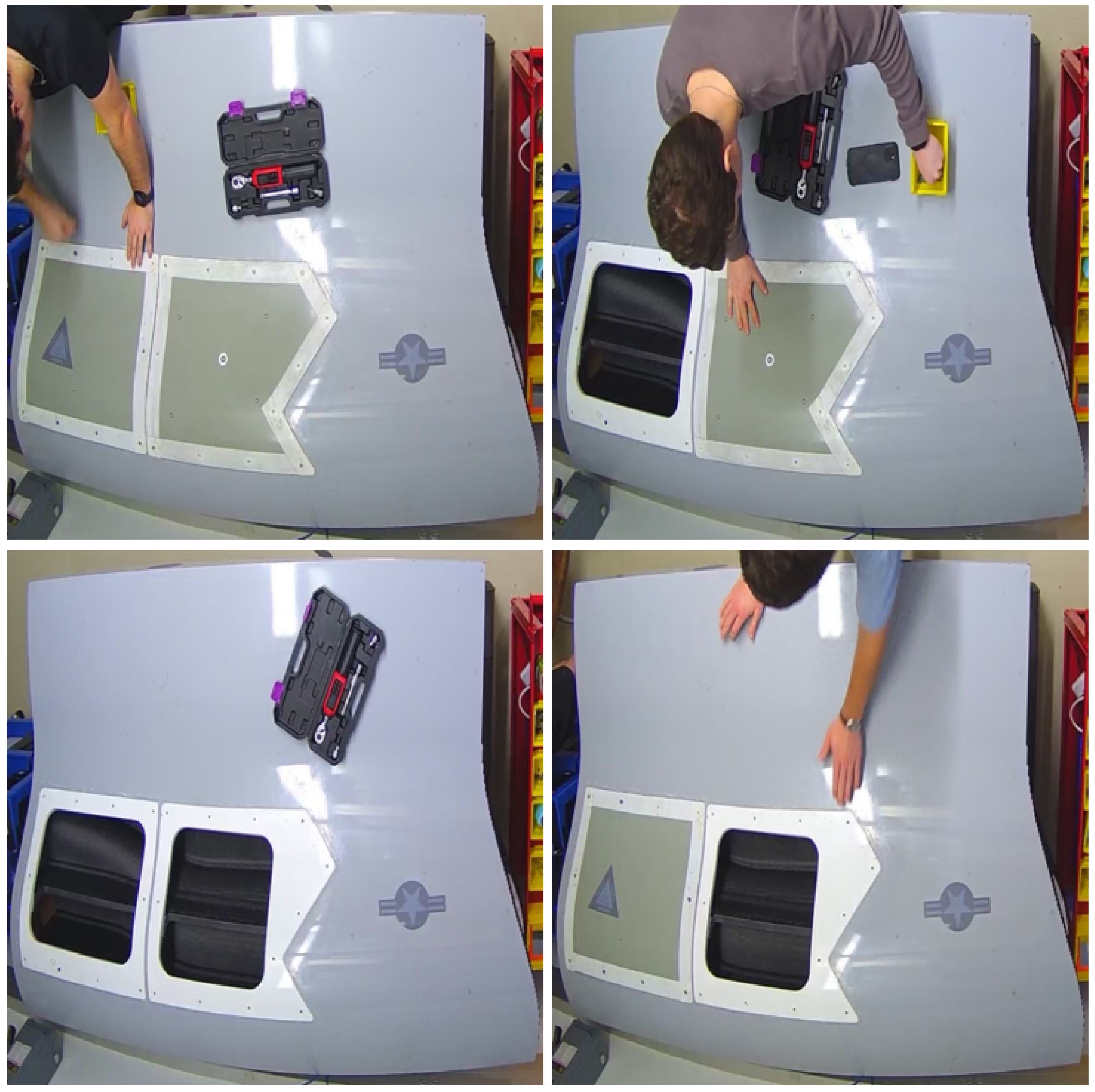

In Stage 2, CNN 2 classified the state of the fuselage model based on panel installation progress. The input to this model consisted of cropped images of the fuselage region where panel installation occurred. Four classes were defined to represent all combinations of panel presence, as shown in Figure 8. Similar to CNN 1, a numerical labeling convention was used to support integration with the dispatch logic.

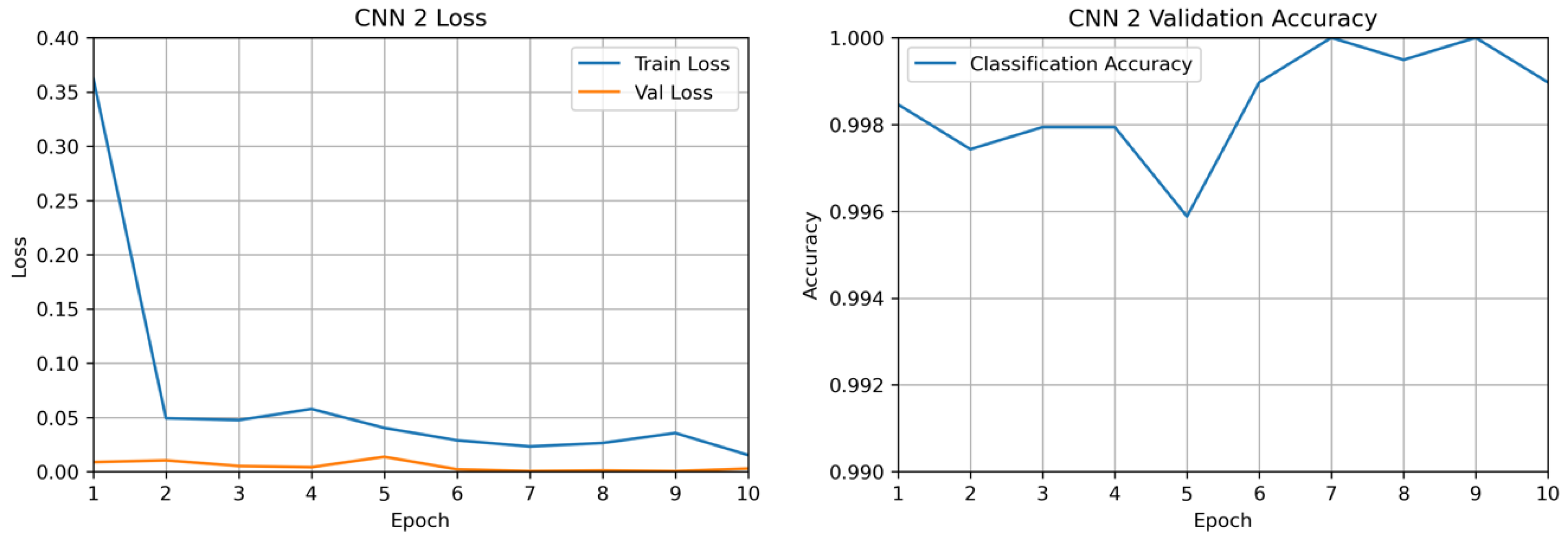

The CNN 2 dataset consisted of 9708 labeled images, with approximately 2400 images per class. An 80–20% train–validation split was used. Training settings were identical to those used for CNN 1. As seen in Figure 9, training and validation loss values decreased to below 0.05 within five epochs, while classification accuracy exceeded 0.99 after the first epoch. Consistent with this behavior, training was terminated after 10 epochs once convergence was observed. As with CNN 1, this performance is attributed to the clear visual differences between classes, specifically the presence or absence of panels on the fuselage, rather than overfitting.

3.3. Autonomous Dispatch Logic

The autonomous dispatch system was implemented through a Python-based control framework that communicated directly with the OMRON LD-60 AMR via a network socket interface. This framework enabled real-time transmission of navigation commands between predefined pick up and drop off locations based on the state of the manufacturing process.

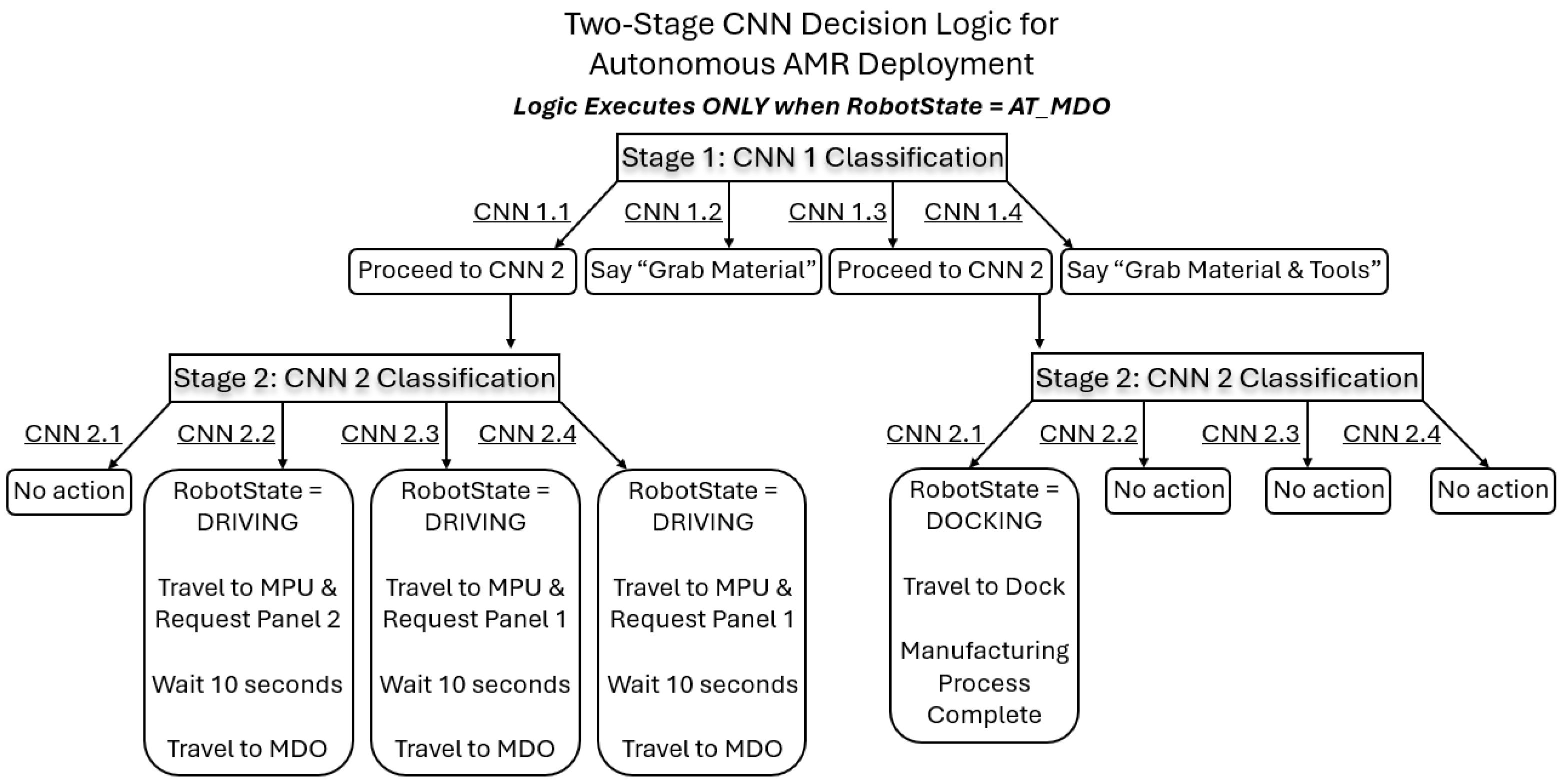

Dispatch decisions were governed by a two-stage classification pipeline that was activated only when the AMR was located at the MDO. In Stage 1, the output of CNN 1 was used to detect the current state of the workstation, including tool presence and AMR material status. Specific classifications (CNN 1.2 and CNN 1.4) triggered auditory feedback from the AMR, such as commands to “grab material” or “grab material and tools”, providing real-time guidance to the operator. Compliance with these commands was inferred through subsequent visual observations by CNN 1, as the absence of both tools and materials (CNN 1.1) resulted in progression to Stage 2 for further evaluation of material requirements.

To account for the possibility of missed commands in a noisy manufacturing environment, auditory cues were repeated at fixed time intervals of 1 min if the corresponding visual state remained unchanged. This reminder interval can be adjusted as needed, but ensured continued operator guidance until the required action was completed. A classification indicating that no material was present on the AMR while tools were present on the cart (CNN 1.3) triggered progression to Stage 2, where the state of the fuselage assembly was evaluated to determine whether the manufacturing process was complete.

In Stage 2, CNN 2 evaluated the state of the fuselage assembly to determine whether the manufacturing process had progressed to a point where additional material would soon be required or whether the process was complete. Once both panels were installed (CNN 2.1), the manufacturing process was considered complete and the AMR was docked at a nearby location outside of the manufacturing area.

When dispatch to the material pick up location was triggered (CNN 2.2–CNN 2.4), the AMR issued auditory commands to request a specific panel based on the detected assembly state. Because the MPU was not visually monitored in the current implementation, explicit confirmation that auditory commands were received or followed was not available. To facilitate material loading in the absence of visual confirmation, a fixed waiting period of 10 s was enforced at the MPU prior to returning to the MDO. As a result, in a noisy manufacturing environment, a command may be missed, leading to the AMR returning to the MDO without material after the fixed waiting period. In such cases, subsequent classification at the MDO detects the absence of material and triggers a return to the MPU, resulting in repeated retrieval attempts until material is loaded.

The duration of the fixed waiting period was selected to approximate the time spent at the MPU during material retrieval in the baseline condition represented by Scenario 1, enabling a consistent comparison across scenarios; while this simplified implementation does not guarantee successful or time-efficient material loading, a more advanced framework could incorporate visual monitoring of the MPU to confirm successful loading, provide repeated auditory cues, and enable dynamic wait times.

To improve reliability, the dispatch logic accounted for non-ideal scenarios, such as CNN 2.4, corresponding to the presence of Panel 2 without Panel 1 on the fuselage, while this condition is not expected under normal process sequencing, it may occur if panels are delivered or installed out of order. Incorporating this condition ensured that the system remained functional under variations in operator behavior or material handling.

More complex non-sequential events or additional failure modes, such as mid-process tool changes or fastener issues, were not explicitly considered in this proof-of-concept framework. Addressing such scenarios would require additional visual states, expanded classification outputs, and more sophisticated decision logic. Nonetheless, the dispatch logic presented here enables context-aware decision making for AMR deployment within the scope of a structured and highly controlled assembly process.

In order to ensure robust operation, a stability criterion of 3.5 s was enforced at both stages of the classification pipeline. More specifically, classification outputs at each stage were required to remain consistent for this duration before triggering an action. This prevented unintended AMR actions and ensured that final deployment decisions were based on stable and reliable classification results rather than transient misclassifications.

Once the stability condition was satisfied at both stages and the combined classification logic indicated that material delivery was required, a dispatch command was sent to the AMR. This enabled preemptive robot movement, allowing material transport to occur concurrently with operator task execution. The overall decision making process and control flow are illustrated in Figure 10. The Python-based dispatch control framework used in this study can be made available upon reasonable request to the corresponding author.

4. Results

Experimental results were evaluated across 60 total runs using several time-based performance metrics, including total operation time, panel 1 lead time, panel 2 lead time, non-value-added time, and individual step durations. These metrics were selected to quantify both overall system efficiency and the temporal impact of different material delivery strategies on the manufacturing process.

Statistical analysis was performed to assess differences between dispatch scenarios and to evaluate the influence of operator variability. A one-way analysis of variance (ANOVA) was used to determine whether significant differences existed between scenarios for each response metric. A two-way ANOVA was then conducted to evaluate the effects of both scenario and operator, as well as their interaction, on system performance.

Following significant ANOVA results, Tukey’s honestly significant difference (HSD) tests were performed to identify pairwise differences between scenarios and, where appropriate, between operators. These post hoc comparisons enabled direct evaluation of how each dispatch strategy influenced performance outcomes and revealed cases in which operator variability contributed to observed differences. When a significant interaction between scenario and operator was identified in the two-way ANOVA, simple effects analysis was performed by applying Tukey HSD within each operator across scenarios and within each scenario across operators to further characterize these interactions.

Additionally, paired t-tests were used to compare Panel 1 and Panel 2 lead times within each scenario to assess symmetry in panel acquisition behavior. Lead times were also examined at the operator–scenario level to evaluate consistency across individual operators. All statistical tests were conducted using a significance level of $\alpha =0.05$.

4.1. Dispatch Scenario Comparative Analysis

To evaluate the impact of material delivery strategy independent of operator specific effects, a scenario level analysis was conducted by aggregating results across all runs within each dispatch condition. Total operation time across scenarios is shown in Figure 11, where each box plot represents the distribution of all runs within a given scenario. Panel lead times and NVA time are similarly presented in Figure 12.

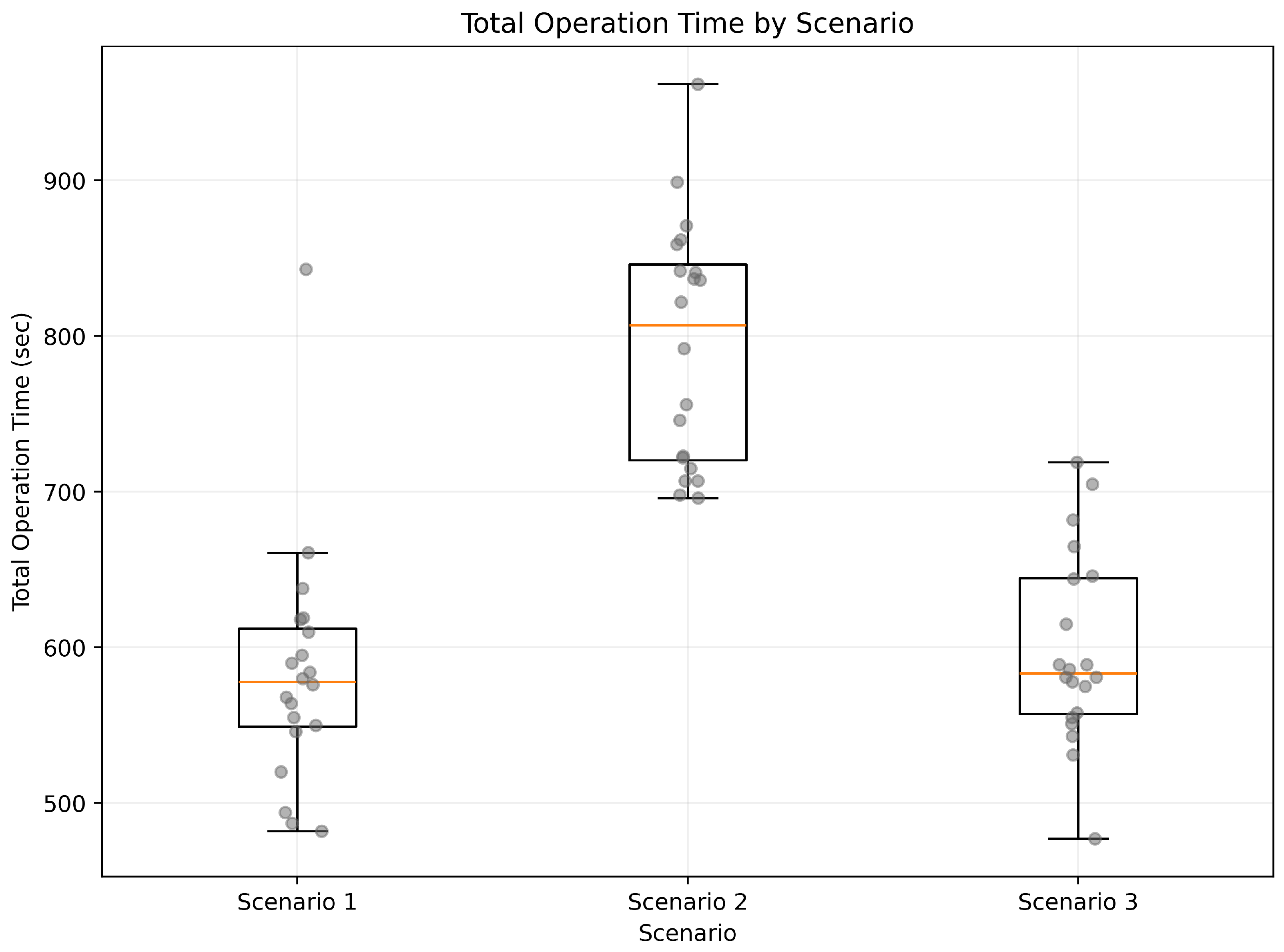

At the scenario level, Scenario 2 produced significantly higher total operation time and non-value-added time than both Scenarios 1 and 3, as reflected by the elevated box plot medians in Figure 11 and Figure 12. In contrast, Scenarios 1 and 3 exhibited similar median values for both total operation time and non-value-added time.

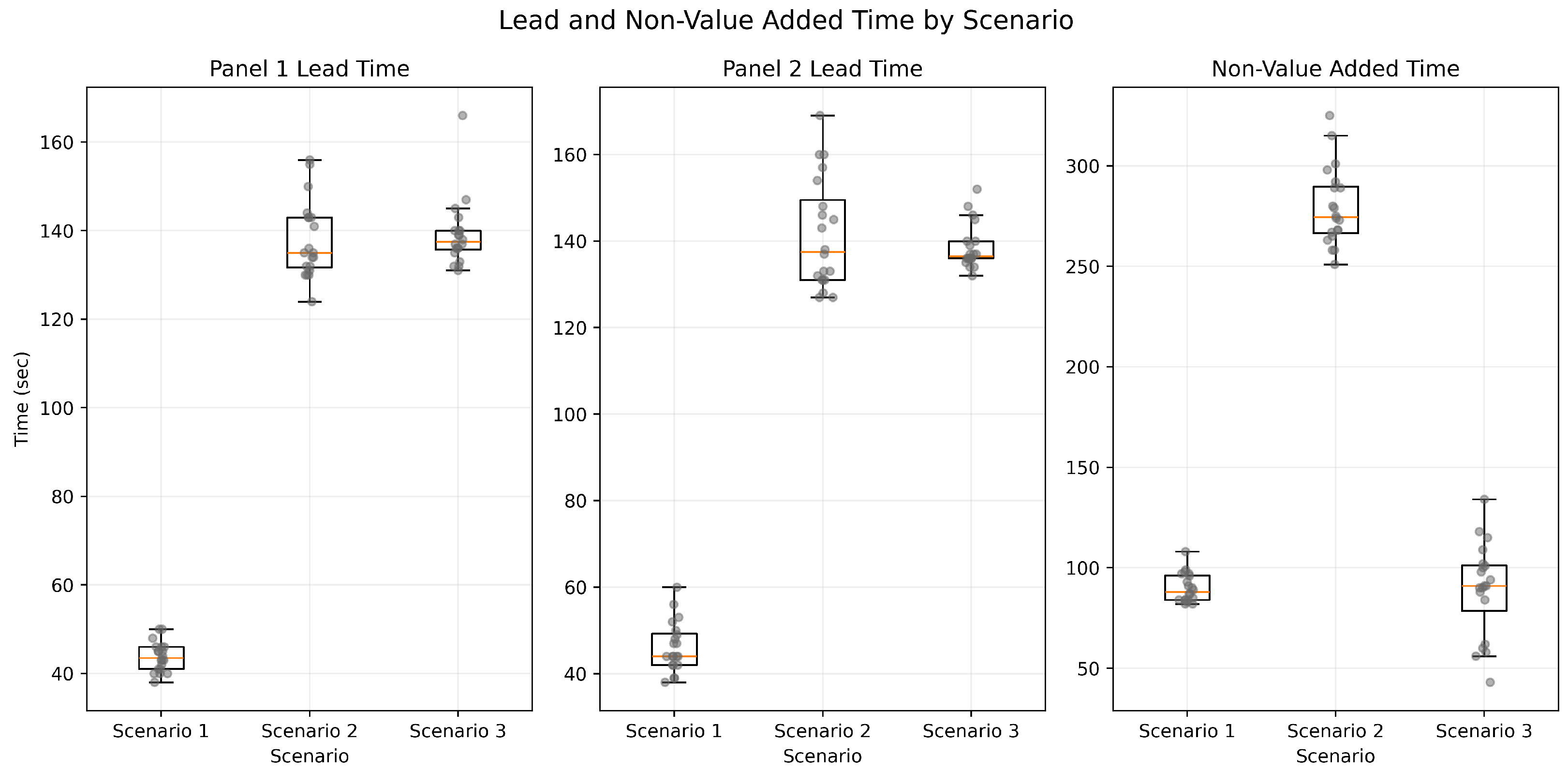

Panel lead times were significantly greater in Scenarios 2 and 3 compared to Scenario 1, as shown in Figure 12. This trend aligns with the expected behavior that AMR-based material retrieval introduces additional travel time relative to manual operator movement between the MDO and MPU.

Within each dispatch scenario, the box plot medians for Panel 1 and Panel 2 lead times were similar, as shown in Figure 12. This observation was confirmed by paired t-tests (all $p>0.05$), indicating symmetric panel acquisition behavior across workflow stages.

To quantitatively compare scenario performance, a one-way ANOVA was conducted to evaluate the effect of dispatch scenario on each time-based performance metric, with results shown in

Table 1. One-way ANOVA results evaluating the effect of dispatch scenario on time metrics.

Response Variable	F-Statistic	p-Value
Total Operation Time	51.844	<0.001
Panel 1 Lead Time	1239.917	<0.001
Panel 2 Lead Time	784.212	<0.001
Non-Value-Added Time	742.532	<0.001

.

Because the one-way ANOVA indicated a significant effect of scenario for each time metric (all $p<0.05$), Tukey’s HSD post hoc tests were conducted to determine pairwise differences, as shown in

Table 2. Tukey HSD post hoc comparisons of dispatch scenarios across performance metrics.

Response Variable	Comparison	Mean Difference (s)	Adjusted p-Value
Total Operation Time	Scenario 1 vs. 2	210.650	<0.001
	Scenario 1 vs. 3	14.500	0.806
	Scenario 2 vs. 3	−196.150	<0.001
Panel 1 Lead Time	Scenario 1 vs. 2	94.100	<0.001
	Scenario 1 vs. 3	95.300	<0.001
	Scenario 2 vs. 3	1.200	0.849
Panel 2 Lead Time	Scenario 1 vs. 2	95.300	<0.001
	Scenario 1 vs. 3	92.400	<0.001
	Scenario 2 vs. 3	−2.900	0.543
Non-Value-Added Time	Scenario 1 vs. 2	189.400	<0.001
	Scenario 1 vs. 3	−0.800	0.989
	Scenario 2 vs. 3	−190.200	<0.001

.

All statistically significant pairwise differences ($p<0.05$) are consistent with the trends observed in Figure 11 and Figure 12. Most notably, no statistically significant differences were observed between Scenarios 1 and 3 ($p>0.05$) for total operation time or non-value-added time, indicating that while automation eliminates dispatch inefficiency relative to Scenario 2, it does not significantly outperform the fully manual baseline in this study.

4.2. Operator Influence Across Dispatch Scenarios

While the previous subsection evaluated scenario level performance by aggregating across operators, this section examines whether those trends remain consistent when operator variability is explicitly considered. Because only four operators were included in this study, operator-specific results should be interpreted as preliminary. To begin, cumulative step time profiles for each operator–scenario combination are shown in Figure 13.

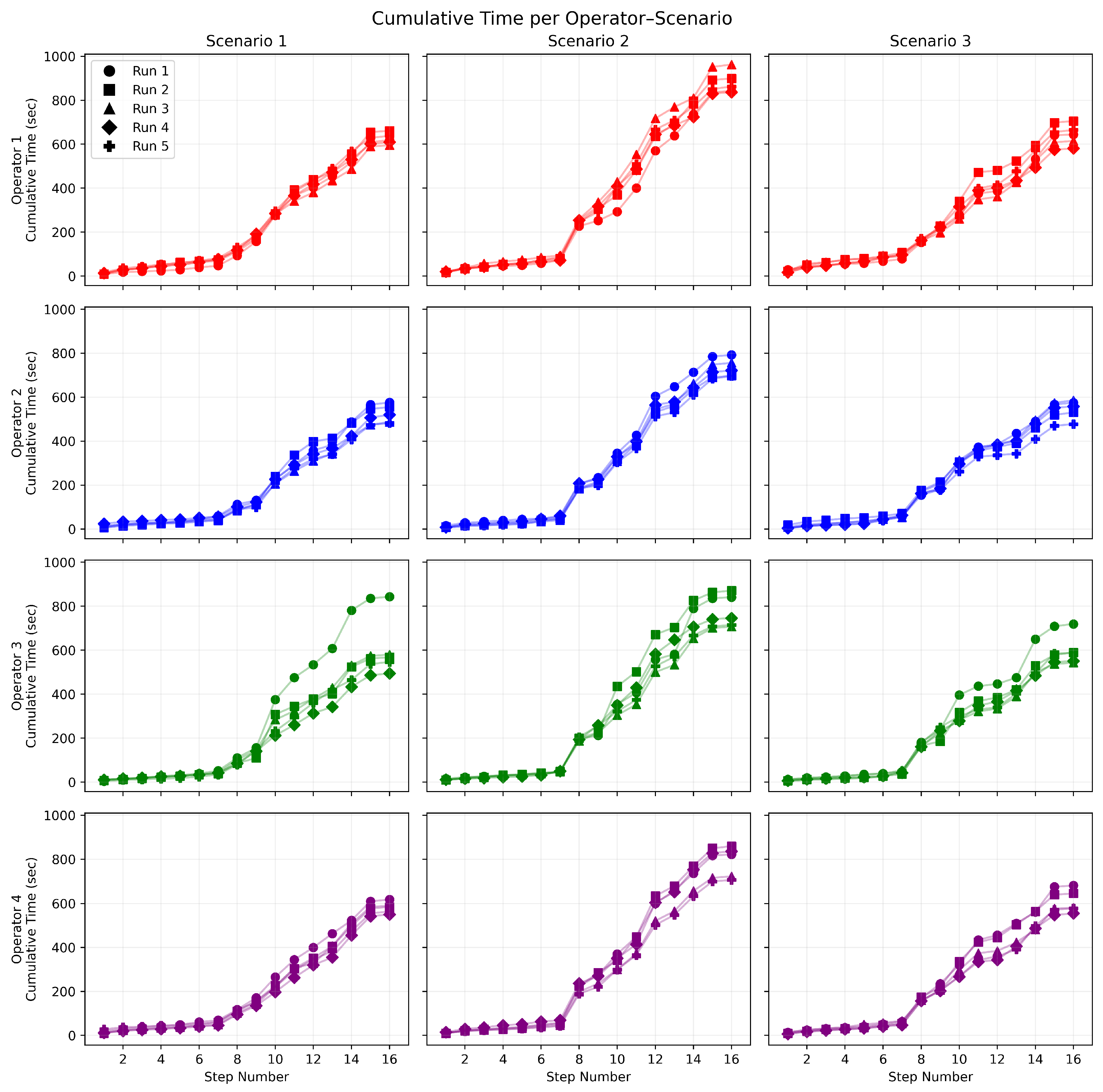

The cumulative step time plot reveals trends and variability across operators and scenarios, including occasional outlier runs within a given operator–scenario combination. For example, Run 1 for Operator 3 in Scenario 1 is notably slower than the other runs for that grouping. These profiles provide insight into execution variability and inform later discussion in Section 5 regarding autonomous deployment optimization and selection of logic initiation steps for CNN-based workflow control.

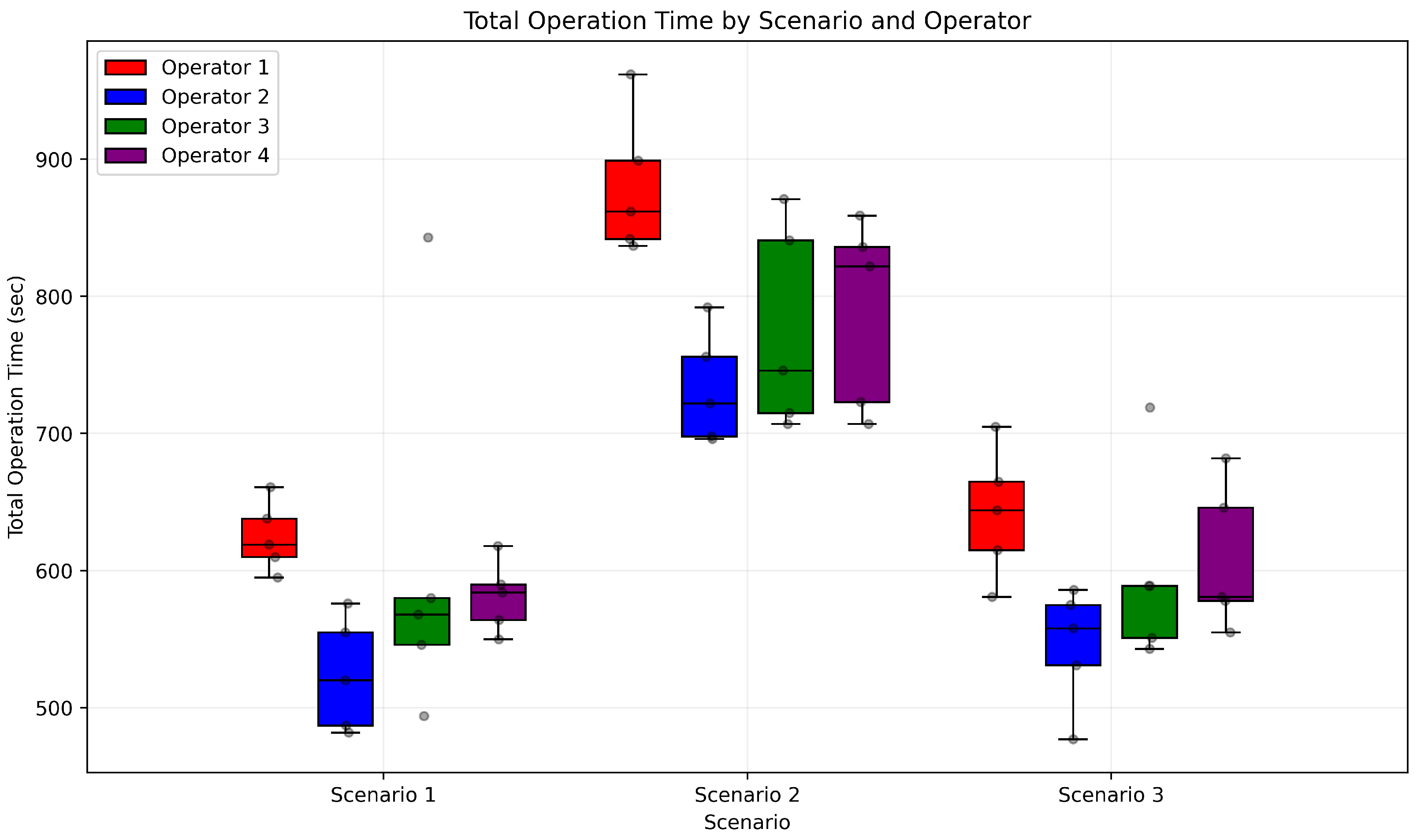

Total operation time distributions for each operator–scenario combination are shown in Figure 14.

Observable trends indicate that Operator 2 generally exhibited the fastest execution, followed by Operator 3, then Operator 4, while Operator 1 was consistently the slowest across scenarios. This highlights the presence of operator variability in total performance. However, the scenario level trends identified previously remain consistent across all operators.

To quantitatively evaluate these observations, a two-way ANOVA was conducted for total operation time, with results shown in

Table 3. Two-way ANOVA results for total operation time across operators and dispatch scenarios.

Source	Sum of Squares	df	F-Statistic	p-Value
Operator	99,117.517	3	8.182	<0.001
Scenario	553,723.300	2	68.562	<0.001
Operator × Scenario	11,446.833	6	0.472	0.825
Residual	193,831.200	48	–	–

.

The two-way ANOVA revealed significant main effects of both scenario and operator on total operation time, with no significant interaction between operator and scenario ($p>0.05$). The absence of a significant interaction indicates that the effect of scenario on total operation time is consistent across operators. Because scenario effects were previously examined using one-way ANOVA and Tukey HSD, post hoc analysis in this section focuses on the operator main effect, as shown in

Table 4. Tukey HSD post hoc comparisons for operator effect on total operation time.

Comparison	Mean Difference (s)	Adjusted p-Value
Operator 1 vs. 2	−114.933	0.044
Operator 1 vs. 3	−55.533	0.563
Operator 1 vs. 4	−56.000	0.556
Operator 2 vs. 3	59.400	0.506
Operator 2 vs. 4	58.933	0.513
Operator 3 vs. 4	−0.467	1.000

.

Post hoc analysis using Tukey’s HSD indicated that Operator 2 completed tasks significantly faster than Operator 1 (mean difference = 114.9 s, $p=0.044$), consistent with trends observed in Figure 14. No other pairwise operator comparisons were statistically significant ($p>0.05$). This indicates that while modest operator variability exists, significant total operation time differences are limited to a single operator pair and do not reflect broad systematic performance disparities.

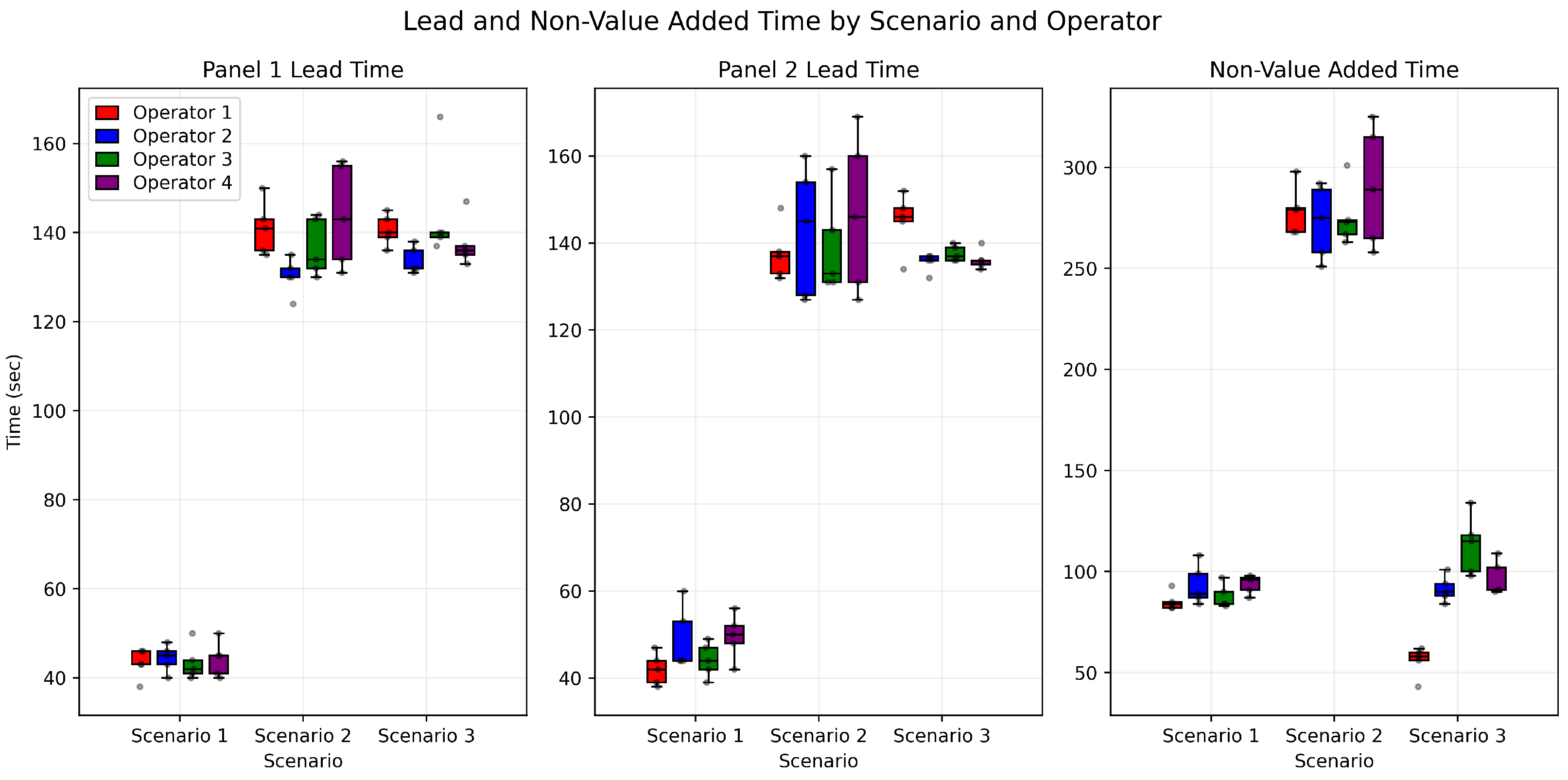

Panel lead times and non-value-added time distributions for each operator–scenario combination are shown in Figure 15.

Panel lead times were generally consistent across operators within each scenario. Non-value-added time was also relatively consistent, with the exception of Scenario 3, where Operator 1 appears as an outlier. When compared to the manual baseline in Scenario 1, the effect of automated AMR dispatch in Scenario 3 varied across operators, with some exhibiting reduced NVA time, others experiencing minimal change, and some showing slight increases. This highlights variability in how operators benefit from automation.

Within individual operator–scenario combinations, Panel 1 and Panel 2 lead times were generally statistically consistent (most $p>0.05$). A single comparison (Operator 1—Scenario 2) showed a statistically significant difference ($p=0.010$). However, no consistent bias was observed across operators or scenarios. Overall, panel acquisition behavior remained symmetric at the operator level.

A two-way ANOVA was conducted for Panel 1 lead time, with results shown in

Table 5. Two-way ANOVA results for Panel 1 lead time across operators and dispatch scenarios.

Source	Sum of Squares	df	F	p-Value
Operator	342.933	3	2.868	0.046
Scenario	119,588.933	2	1500.175	<0.001
Operator × Scenario	492.667	6	2.060	0.076
Residual	1913.200	48	–	–

.

The two-way ANOVA revealed a statistically significant main effect of dispatch scenario on Panel 1 lead time. A statistically significant main effect of operator was also observed ($p=0.046$), suggesting modest differences across operators. However, the interaction between operator and scenario was not statistically significant ($p=0.076$), indicating that the influence of the dispatch scenario on Panel 1 lead time was consistent across operators.

To further evaluate the operator effect on Panel 1 lead time, Tukey HSD post hoc comparisons were conducted, as shown in

Table 6. Tukey HSD post hoc comparisons for operator effect on Panel 1 lead time.

Comparison	Mean Difference (s)	Adjusted p-Value
Operator 1 vs. 2	−5.467	0.989
Operator 1 vs. 3	−0.133	1.000
Operator 1 vs. 4	0.267	1.000
Operator 2 vs. 3	5.333	0.989
Operator 2 vs. 4	5.733	0.987
Operator 3 vs. 4	0.400	1.000

.

Although the operator main effect reached statistical significance in the ANOVA, Tukey HSD post hoc comparisons revealed that no individual pairwise operator differences were statistically significant (all $p>0.05$). This indicates that while minor variability exists, no specific operator consistently differed from another in Panel 1 lead time. Overall, the dispatch scenario has a substantially stronger influence on Panel 1 lead time than operator identity.

A two-way ANOVA was also conducted for Panel 2 lead time, with results summarized in

Table 7. Two-way ANOVA results for Panel 2 lead time across operators and dispatch scenarios.

Source	Sum of Squares	df	F	p-Value
Operator	119.267	3	0.540	0.657
Scenario	117,521.733	2	797.569	<0.001
Operator × Scenario	615.333	6	1.392	0.237
Residual	3536.400	48	–	–

.

The results indicate a significant main effect of dispatch scenario, with no significant main effect of operator or interaction. This further supports that Panel 2 lead time is primarily driven by dispatch strategy rather than operator differences.

The results for a two-way ANOVA conducted for non-value-added time are shown in

Table 8. Two-way ANOVA results for non-value-added time across operators and dispatch scenarios.

Source	Sum of Squares	df	F	p-Value
Operator	3873.733	3	7.233	<0.001
Scenario	480,326.933	2	1345.328	<0.001
Operator × Scenario	5993.467	6	5.596	<0.001
Residual	8568.800	48	–	–

.

The analysis revealed significant main effects of both operator and scenario, as well as a significant interaction, indicating that the impact of dispatch strategy on NVA time varies across operators. Because the interaction is significant, interpretation of main effects alone is insufficient, and further simple effects analysis is required. As a result, simple effects analysis was conducted using Tukey HSD, including comparisons of scenarios within each operator in

Table 9. Simple effects analysis: Tukey HSD comparisons of dispatch scenarios within each operator (non-value-added time).

Operator	Comparison	Mean Difference (s)	Adjusted p-Value
Operator 1	Scenario 1 vs. 2	193.400	<0.001
	Scenario 1 vs. 3	−29.400	<0.001
	Scenario 2 vs. 3	−222.800	<0.001
Operator 2	Scenario 1 vs. 2	179.600	<0.001
	Scenario 1 vs. 3	−2.000	0.966
	Scenario 2 vs. 3	−181.600	<0.001
Operator 3	Scenario 1 vs. 2	188.000	<0.001
	Scenario 1 vs. 3	25.400	0.019
	Scenario 2 vs. 3	−162.600	<0.001
Operator 4	Scenario 1 vs. 2	196.600	<0.001
	Scenario 1 vs. 3	2.800	0.967
	Scenario 2 vs. 3	−193.800	<0.001

and comparisons of operators within each scenario in

Table 10. Simple effects analysis: Tukey HSD comparisons of operators within each dispatch scenario (non-value-added time).

Scenario	Comparison	Mean Difference (s)	Adjusted p-Value
Scenario 1	Operator 1 vs. 2	8.200	0.246
	Operator 1 vs. 3	2.400	0.939
	Operator 1 vs. 4	8.600	0.212
	Operator 2 vs. 3	−5.800	0.527
	Operator 2 vs. 4	0.400	1.000
	Operator 3 vs. 4	6.200	0.473
Scenario 2	Operator 1 vs. 2	−5.600	0.970
	Operator 1 vs. 3	−3.000	0.995
	Operator 1 vs. 4	11.800	0.785
	Operator 2 vs. 3	2.600	0.997
	Operator 2 vs. 4	17.400	0.526
	Operator 3 vs. 4	14.800	0.649
Scenario 3	Operator 1 vs. 2	35.600	<0.001
	Operator 1 vs. 3	57.200	<0.001
	Operator 1 vs. 4	40.800	<0.001
	Operator 2 vs. 3	21.600	0.015
	Operator 2 vs. 4	5.200	0.836
	Operator 3 vs. 4	−16.400	0.076

.

Across all operators, Scenarios 1 and 2, as well as Scenarios 2 and 3, were consistently statistically different in non-value-added time ($p<0.05$ in all cases), confirming that Scenario 2 yielded the largest non-value-added time for every operator. However, the comparison between Scenarios 1 and 3 was operator dependent. Specifically, Scenarios 1 and 3 differed significantly for Operators 1 and 3, but not for Operators 2 and 4. Thus, while automated AMR deployment in Scenario 3 uniformly reduced non-value-added time relative to Scenario 2, its performance relative to the fully manual baseline in Scenario 1 varied by operator.

Further simple effects analysis revealed no statistically significant operator differences within Scenarios 1 or 2 (all $p>0.05$), indicating comparable performance under manual walking and manual AMR dispatch conditions. In contrast, significant operator differences emerged under Scenario 3 ($p<0.05$ for multiple comparisons), suggesting that the automated AMR dispatch condition introduced variability in how effectively individual operators benefited from automation.

These findings indicate that automation consistently reduced non-value-added time relative to the manual AMR dispatch condition in Scenario 2. However, its effect relative to the fully manual baseline in Scenario 1 was heterogeneous across operators. Consequently, automation eliminates dispatch inefficiency but does not uniformly outperform manual execution for all operators.

5. Discussion

This study demonstrated that manual AMR dispatch in Scenario 2 produced significantly greater total operation time and non-value-added time than both walking in Scenario 1 and autonomous AMR dispatch in Scenario 3. At the scenario level, Scenarios 1 and 3 exhibited statistically comparable total operation and NVA times. Thus, while automation eliminated dispatch inefficiency relative to manual robot calling, it did not significantly outperform manual walking under the specific experimental conditions implemented in this study.

More specifically, manual AMR dispatch in Scenario 2 consistently underperformed because it combined the slower traversal speed of the robot with sequential task execution. Operators initiated robot movement only when a part was immediately required, resulting in unavoidable waiting time. This highlights that simply introducing an AMR into a manufacturing workflow does not guarantee efficiency gains, and that the deployment strategy of the AMR is equally important.

When comparing Scenarios 1 and 3, the similarity in performance is primarily attributable to system-level constraints. For example, the round-trip traversal distance between the MDO and MPU was relatively short at approximately 49 m, limiting the walking penalty in Scenario 1. Furthermore, the manufacturing sequence preceding Panel 1 installation was brief, which constrained the ability to fully overlap AMR travel with productive work in Scenario 3. As a result, even with an earlier dispatch, non-value-added time would still occur during Panel 1 delivery due to insufficient temporal buffer relative to AMR travel duration.

The similarity in performance is also influenced by non-optimized deployment timing. More specifically, Panel 2 delivery in Scenario 3 consistently occurred prior to material demand, while early AMR arrival is generally preferable to late delivery from a time-based perspective, it indicates that sufficient overlap existed later in the workflow and that the selected trigger point was not synchronized with the optimal arrival time. This suboptimal behavior is a direct consequence of the autonomous trigger points in this study being based on easily distinguishable workflow states. The nature of these states enabled consistent and robust autonomous trigger points in this proof-of-concept framework. Further modification to ensure optimal system synchronization would have required transitioning to more complex visual states or dispatch logic which was outside the scope of this initial study. As a result, synchronization between AMR arrival and material demand was not guaranteed, and kickoff timing was not optimized for either panel.

In principle, autonomous deployment enables parallelization of AMR travel and productive labor, allowing the slower traversal speed of the robot to be offset through temporal overlap. The effectiveness of this approach depends on selecting trigger points that align AMR travel time with cumulative task duration. Achieving this alignment would require identifying workflow states, if possible, that provide sufficient temporal buffer between kickoff and expected material demand. These states may be defined by more complex visual conditions based on partial task completion, or by maintaining easily distinguishable states and applying time offsets following their detection.

Furthermore, the significant operator × scenario interaction observed for non-value-added time in this work reflects variability in step execution speed across operators. This interaction is most pronounced in Scenario 3, where non-value-added time is driven entirely by waiting for Panel 1 delivery, as Panel 2 consistently arrived prior to demand. Differences in NVA time across operators arise from variation in execution speed between the standardized kickoff point and Panel 1 demand. More specifically, since the kickoff trigger remained fixed across all operators, faster operators progressed more quickly through intermediate steps and experienced longer waiting periods, while slower operators experienced reduced delay. This behavior highlights that the implemented trigger strategy was not only suboptimal at the system level, as previously mentioned, but also did not account for operator-specific execution differences.

This observation suggests that, in systems where sufficient temporal overlap exists and general synchronization between material demand and delivery is achieved, further performance gains could be realized by tailoring trigger points to individual operators. Operator-specific trigger selection could be informed by historical execution data, such as the cumulative step time profiles shown in Figure 13, by identifying when material demand occurs and determining appropriate kickoff points based on AMR travel duration. These triggers could be implemented through alternative visual states or by applying time offsets to existing, easily distinguishable states, as described earlier. This approach would reduce waiting time for faster operators while avoiding excessively early delivery for slower operators, enabling synchronization at the operator level. It is important to note that these operator-related findings are based on a limited sample size and may not fully generalize across broader operator populations.

In larger-scale manufacturing environments, the relative advantage of optimized autonomous deployment may become more pronounced. Facilities with longer traversal distances, such as those on the order of hundreds of meters in aerospace assembly lines, impose substantial walking penalties that accumulate across repeated tasks. When coupled with more complex manufacturing procedures containing multiple intermediate steps, greater temporal buffer may exist to enable increased overlap between AMR travel and productive labor. Under such conditions, appropriately optimized autonomous dispatch has the potential to reduce both total operation time and non-value-added time relative to manual walking. However, these outcomes are context-dependent and were not directly evaluated in the present study.

Beyond time-based metrics, AMR deployment may provide additional operational benefits relevant to manufacturing environments. Automated material transport can improve process consistency by reducing task interruptions due to material availability. AMRs also support improved predictability, repeatability, and traceability of material movement, which are critical considerations in aerospace manufacturing. Additionally, reducing manual traversal may decrease physical workload and workflow disruption for operators, while these factors were not directly quantified in this work, they represent important considerations when evaluating the broader impact of AMR integration.

6. Conclusions

Autonomous mobile robots have gained increasing interest as a means of improving efficiency and flexibility in manufacturing workflows. To evaluate their impact on material delivery, a controlled experimental study of a representative aerospace assembly process was conducted. Three scenarios were considered, including manual walking, manual AMR dispatch, and CNN-based autonomous AMR deployment.

The results showed that manual AMR dispatch produced significantly higher total operation time and non-value-added time due to sequential task execution and delayed robot deployment. Autonomous AMR deployment eliminated this inefficiency by enabling preemptive material transport and overlap between robot travel and operator task execution. However, under the conditions of this study, autonomous deployment did not significantly outperform manual walking due to limited traversal distance, minimal overlap between Panel 1 delivery and productive work, and non-optimized deployment timing.

These findings demonstrate that the effectiveness of AMR integration depends strongly on deployment strategy. When properly synchronized with workflow demand, autonomous deployment has the potential to outperform manual material retrieval, particularly in larger scale manufacturing environments where conditions may allow for greater temporal overlap between transport and productive work.

Future work will focus on extending the proposed framework to support more adaptive and comprehensive manufacturing environments. In particular, incorporating visual monitoring of both the MDO and MPU would enable the material handling process to be dynamically adjusted based on system state at both ends. Additionally, expanding the perception system to include non-sequential workflow conditions would improve robustness to variations in process execution, such as handling out-of-order operations and responding to mid-process disruptions. This would require the incorporation of more complex visual states and associated decision logic.

Furthermore, advanced visual states and decision logic could be implemented to improve synchronization between material demand and delivery at both the system and operator level. This may involve detecting partial task completion, applying timing offsets, and integrating historical execution data to inform adaptive trigger selection tailored to individual operator behavior. Such enhancements would enable more precise alignment between AMR deployment and workflow progression, ultimately improving system efficiency beyond the baseline framework presented in this work.

Overall, this study demonstrates that manual robot dispatch increases inefficiency when travel is not preemptively coordinated with workflow demand. In contrast, autonomous dispatch has the potential to reduce delays associated with material retrieval and increase overlap between transport and productive work when effectively synchronized with the manufacturing process. Ultimately, realizing these benefits requires careful synchronization of deployment triggers with human workflow timing.
