An Improved Clustering Algorithm for Multi-Density Data

and
Department of Information Technology, College of Computing and Information Technology at Khulais, University of Jeddah, Jeddah 23451, Saudi Arabia
*
Author to whom correspondence should be addressed.

Abstract

The clustering method divides a dataset into groups with similar data using similarity metrics. However, discovering clusters in different densities, shapes and distinct sizes is still a challenging task. In this regard, experts and researchers opt to use the DBSCAN algorithm as it uses density-based clustering techniques that define clusters of different sizes and shapes. However, it is misapplied to clusters of different densities due to its global attributes that generate a single density. Furthermore, most existing algorithms are unsupervised methods, where available prior knowledge is useless. To address these problems, this research suggests the use of a clustering algorithm that is semi-supervised. This allows the algorithm to use existing knowledge to generate pairwise constraints for clustering multi-density data. The proposed algorithm consists of two stages: first, it divides the dataset into different sets based on their density level and then applies the semi-supervised DBSCAN algorithm to each partition. Evaluation of the results shows the algorithm performing effectively and efficiently in comparison to unsupervised clustering algorithms.
MSC:
54B05; 90C35

1. Introduction

Clustering is utilized to arrange a dataset into a limited set of clusters based on selected similarity metrics [1]. There are different clustering categories, such as density-based algorithms that can identify clusters of distinct sizes and shapes. Hence, this algorithm does not require the specification of cluster numbers—rather, clusters are identified in a densely connected region that grows based on the direction of density, meaning that density-based algorithms identify clusters based on regions that have a high density and are separated from regions with low densities [2,3,4,5].
The DBSCAN algorithm provides all the advantages of the density-based clustering family [6]. It computes the density by counting the number of points within a circle with a given radius (referred to as Eps) surrounding the point. Core points are characterized as having a density over a predetermined threshold (called MinPts) [6]. The two provided parameters (Eps and MinPts) define a single density. Thus, clustering methods based on the DBSCAN cannot perform well with multi-density data [7,8]. Moreover, most of these methods are unsupervised and cannot utilize prior knowledge, which may be available either in the form of labeled data or pairwise constraints.
Semi-supervised clustering improves clustering performance with pairwise constraints or labeled data. Pairwise constraints are of two types: must-link and cannot-link constraints. A must-link constraint (i.e., ML(x, y)) means that the two objects x and y must be in the same cluster. Meanwhile, the cannot-link constraint (i.e., CL(x, y)) means that these two objects x and y must be in different clusters.
In this study, we present a semi-supervised clustering algorithm for clustering multi-density data, referred to as the SSMD. Our algorithm is separated into two core parts: Firstly, we divided the data into various density levels and calculate the density parameters for each density level set. Secondly, we applied pairwise constraints to get a set of clusters based on the computed parameters. We conducted experiments with real datasets. The comparison results reveal the effectiveness and efficiency of the proposed algorithm.
The main contributions are twofold: Firstly, our proposed algorithm can discover clusters of changing densities using the available pairwise constraints. Secondly, we evaluated the performance of the proposed algorithm on different experiments with varied datasets in comparison to other algorithms.
The remaining part of the paper is organized as follows: Related work is explained in Section 2. In Section 3, the SSMD algorithm is discussed in detail. Section 4 shows the performance analysis of the SSMD algorithm compared with other algorithms. Lastly, the paper is concluded in Section 5.

3. The SSMD Algorithm

Semi-supervised clustering algorithms utilize a set of class label constraints on some examples to help unsupervised clustering. We propose an active semi-supervised clustering method for a multi-density dataset (called the SSMD) that attempts to identify clusters with distinct densities and arbitrary shapes. Let D be a dataset of n points in a d-dimensional space. Each point pi, is given by pi = {pi1, pi2,…, pid}. Some supervision information is available in the form of must-link constraints ML = (pi, pj) or cannot-link constraints CL = {(pi, pj) where pi and pj belong to the same class or different classes, respectively. The SSMD algorithm has two main components: (1) Partition the dataset D into distinct density level sets. (2) Apply the Semi-DBSCAN algorithm to each density level set, where Semi-DBSCAN is an extension of DBSCAN that makes full use of existing pairwise constraints. The pseudocode of our SSMD is revealed in Algorithm 1.
First, we computed the density function for each data point (p), as shown in Equation (1). Then, the density for all the data points was sorted in descending order to evaluate the variation between each sequence point. The density variation explained how much denser or sparser the points were:
D e n p , M i n P t s = k d i s t p , k k   .
We defined kdist(p, k) as the number of p’s neighbors and k as an arbitrary positive integer that explains the k-nearest neighbor distance. The density variation of point pi with respect to pj is computed in Equation (2):
D e n V a r p i , p j = D e n p i , k − D e n p j , k D e n p i , k     .
We partitioned the dataset into a list of density level sets (DLS). The DLS contained a set of data points whose densities were approximately the same. We computed the density variation threshold ( τ ) according to the statistical characteristics of the sorted density variation list:
τ = ∑ i = 0 n D e n V a r i n   w h e r e   D e n V a r i > 0 .
Finally, we separated the data points into different densities based on the computed density variation threshold ( τ ), as follows:
p i ,   p j ∈ D L S k     i f   D e n V a r p i ,   p j ≤ τ .
After the density level partitioning, we acquired a list of density level sets (in short, the DLSList). Then, we needed to find representative Eps for each density level set. We computed the Epsi for the DLSi as follows:
E p s i = m a x D L S i   · m e d i a n D L S i m e a n D L S i   .
We defined max, median, and mean as the maximum, median, and mean values of each DLSi, respectively.
Algorithm 1 SSMD
Input:
     Dataset (D), must-link and cannot-link constraints (ML, CL), number of objects in a neighborhood (MinPts)
Output:
     Set of clusters
Begin
     Compute density value for all data points according to Equation (1)
     Sort density list in descending order
     Compute Density variation values using Equation (2)
     Generate Density Level Set (DLS) using a threshold in Equation (3)
     EpsList = EstimateEps(DLSList);
     For each DLSi in DLSList
          Semi-DBSCAN(DLSi, ML, CL, MinPts, Epsi)
     End For
     Return all clusters
End
With the density level partitioning and parameter estimation completed, we carried on the clustering process: The global parameter MinPts = k was initialized and the Semi-DBSCAN algorithm adopted for each Epsi in the EpsList in the corresponding DLS. The semi-DBSCAN algorithm is able find a set of clusters and a (probably empty) set of noise. Initially, constraints are preprocessed; constraints given by human experts may be incomplete. Some constraints are not explicitly given; for example, if we have a ML(pi, pj) and ML(pi, pk), then we have ML(pj, pk). Then, we used constraints to monitor the process of growing clusters in Semi-DBSCAN, as presented in Algorithm 2.
First, we computed the neighborhood for each unclassified data point and compared it with MinPts to determine whether it could be added to the current cluster or noise set. Then, clusters were expanded using pairwise constraints as follows:
  • Add all data points that have a must-link constraint with d to the current cluster.
  • Add all data points in d’s neighborhood that do not violate the cannot-link constraint with d to the current cluster.
Algorithm 2 Semi-DBSCAN (D, ML, CL, MinPts, Eps)
Begin
Cluster.Id: = 0;
For each d in D
    If d is UNCLASSIFIED then
        Compute d’s Eps-neighborhood neighborhood;
             If neighborhood < MinPts
                 Add d to NOISE set;
             Else
                 Add d to current cluster (ClusterId);
             For each data point o that has a must-link constraints ML(d, o)
                 Add o to current cluster (ClusterId);
             For each data point p in the neighborhood set that does not violate cannot-link constraints
                 Add p to current cluster (ClusterId);
    ClusterId = ClusterId + 1;
End

4. Experimental Results

In this section, the datasets used are presented, followed by the evaluation metrics utilized and the results of the study.

4.1. Datasets and Evaluation Metrics

In this section, the utilized datasets are presented. Table 1 outlines the datasets used. For our experiments, real datasets such as Magic and Glass were selected from the UCI repository. Hence, these datasets were labeled with the number of instances, attributes, and cluster labels, as described in Table 1.
Table 1. The Data Sets Used in the Experiments.
We utilized four clustering algorithms, i.e., C-DBSCAN [17], SSDBSCAN [18], AA-DBSCAN [12], and MPCKmean [19], along with SSMD to compare their clustering performances. Clustering performance was measured in terms of normalized mutual information (NMI) and Clustering Accuracy (ACC). NMI and Clustering accuracy were measured using Equations (6) and (7):
N M I = I X ; Y H X + H Y / 2   .
A C C = ∑ i = 1 n I t ^ i = t i n   .

4.2. Performance Analysis

In this sub-section, the performance evaluation based on NMI is presented. This evaluation result was for the proposed algorithm in comparison to the four algorithms SSDBSCAN, AA-DBSCAN, MPCKmeans, and C-DBSCAN. The goal was to find out whether or not the proposed algorithm performed better with varied constraints on distinct datasets. Hence, this experiment presented evidence that the proposed algorithm was more effective in comparison to the compared algorithms.

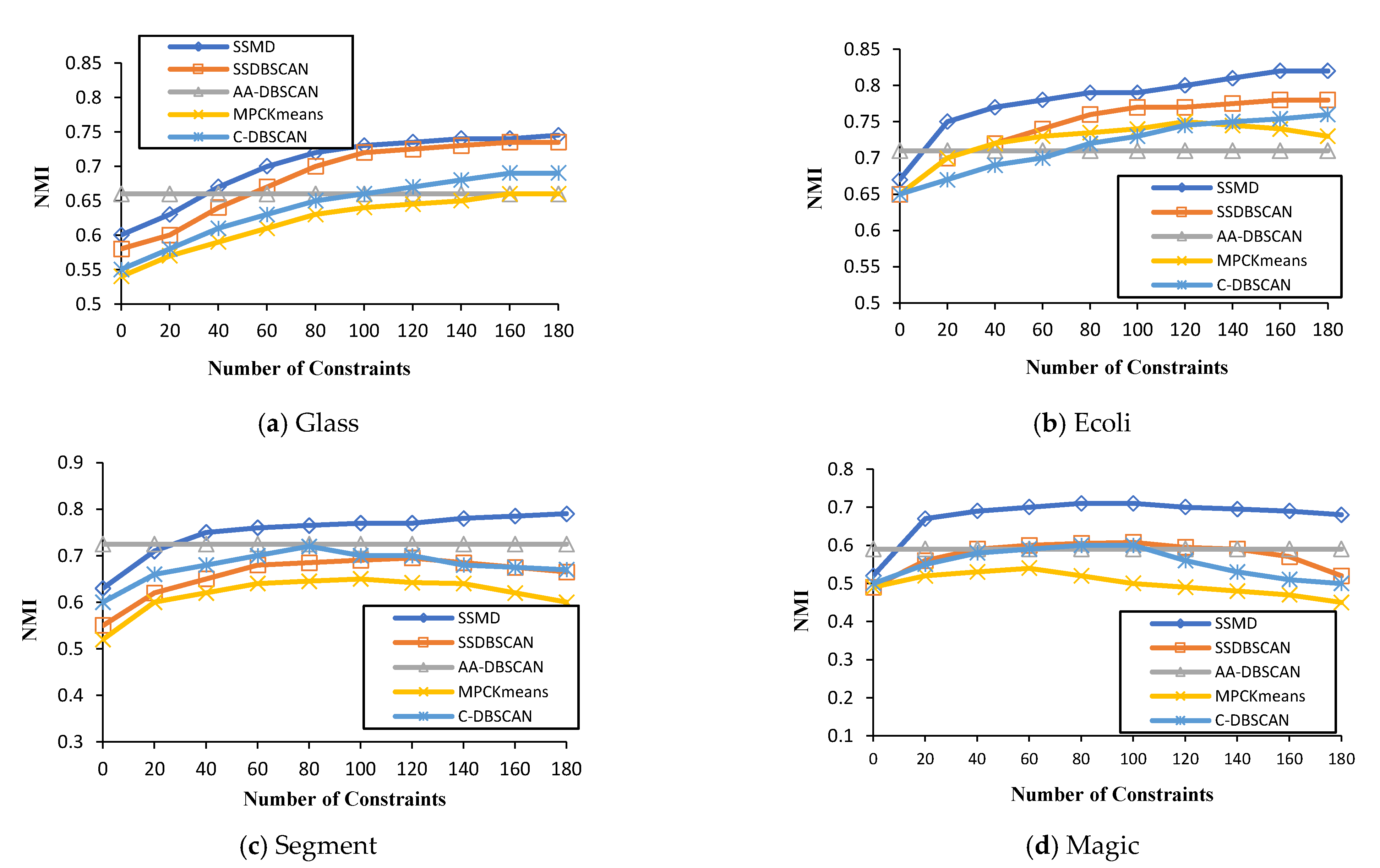

Figure 1 presents the performance results of the four different datasets (Glass, Ecoli, Segment, and Magic), as presented in Table 1. For each dataset, several constraints were utilized for the NMI.
Figure 1. Comparison of NMI.
It can be observed from Figure 1 that the SSMD algorithm generally performed better than the four other methods when the number of constraints was increased (e.g., ecoli, segment, and magic). For instance, in Figure 1a—with 20 constraints—the proposed algorithm performance was superior, with a greater than 0.6 NMI—and with 80 constraints, the proposed algorithm achieved an NMI of more than 0.7, respectively. Looking very carefully, one can see that SSDBSCAN is the second most effective, followed by C-DBSCAN. It can be seen from Figure 1, that the performance of AA-DBSCAN in all the datasets was at a constant value, as it is an unsupervised clustering algorithm. Thus, this proves the utility of semi-supervised clustering algorithms over unsupervised approaches when knowledge is available.
For the Ecoli dataset, the SSMD algorithm has also shown to be more effective, with a 0.8 NMI with 80 constraints. This was the same with the other two datasets, Segment and Magic. Considering the overall result in Figure 1, we can confidently conclude that for NMI performance evaluation, the proposed algorithm outperformed all four compared algorithms.
Additionally, we present results based on the clustering accuracy of the SSMD algorithm in comparison to other algorithms on the datasets outlined in Table 1. Hence, the results of each algorithm are displayed in varied colors in Figure 2. As seen in Figure 2, the proposed algorithm SSMD had a much higher accuracy and more stable state than SSDBSCAN and C-DBSCAN. For instance, looking at Figure 2a, the accuracy of the SSMD algorithm reached 88% when selecting 20 constraints from all constraints, and reached the highest accuracy when selecting more than 100 constraints.
Figure 2. Comparison of clustering accuracy.
Considering the general clustering performance on all datasets in Figure 2, SSDBSCAN is the second most effective algorithm for clustering accuracy on the Glass, Ecoli, and Segment datasets, followed by AA-DBSCAN and C-DBSCAN. The main advantage of the proposed algorithm is that it can attain good performance with fewer constraints and progressively maintain performance. However, we observed that the other compared algorithms required more constraints to attain a good performance. Some algorithms’ performance also subsided considerably.

4.3. Efficiency Analysis Based on Times

In this section, the clustering times for the proposed algorithm and the four compared algorithms are presented. Figure 3 gives the results for the execution times using a distinct number of pairwise constraints on the four datasets. Achieving a low execution time indicates that an algorithm has better performance, and vice versa with a high execution time. From Figure 3a, SSDBSCAN had the highest execution time with all pairwise constraints taken into consideration.
Figure 3. Comparison of the execution time.
It can be seen that the SSMD method is generally time-efficient (about 5 s on the glass dataset with 214 samples, and about 50 s on the magic dataset with 19,020 samples). Even though the SSMD is not always the fastest method for all of the data sets, it performs substantially better than its competitors.

5. Conclusions

In this paper, we proposed the SSMD algorithm, which is a semi-supervised clustering algorithm for clustering multi-density data and arbitrary shapes. The proposed algorithm partitions the dataset into distinct density level sets by examining the statistical characteristics of its variation with respect to density, and then expands the clusters using selected active pairwise constraints. We conducted experiments to assess the clustering performance and execution time on real datasets of distinct dimensions and sizes. The experimental results revealed that the SSMD attained better clustering performance in comparison to the existing state of the art. Furthermore, the SSMD had a significantly reduced the execution time in comparison to the compared algorithms in most scenarios. In the future, we intend to apply the SSMD to the manufacturing environment in order to solve real-world issues and boost production productivity in pertinent industries.

Author Contributions

Conceptualization, W.A. and A.A.A.; methodology, W.A.; software, W.A.; validation, A.A.A.; formal analysis, A.A.A.; investigation, W.A.; resources, A.A.A.; data curation, W.A; writing—original draft preparation, W.A.; writing—review and editing, A.A.A.; visualization, W.A.; supervision, A.A.A.; project administration, A.A.A.; funding acquisition, A.A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Jeddah, Saudi Arabia, under grant No. (UJ-02-069-DR).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Acknowledgments

This work was funded by the University of Jeddah, Saudi Arabia, under grant No. (UJ-02-069-DR). The authors, therefore, acknowledge with thanks the university’s technical and financial support.

Conflicts of Interest

The authors declare no conflict of interest.
