Geochronology and Geochemistry of Granitic Gneisses in the Dabie Orogen, Central China: Constraints on the Petrogenesis of Mid-Neoproterozoic Magmatic Rocks in the Northern Yangtze Block

Abstract

Mid-Neoproterozoic magmatism provides important constraints for revealing the break-up history of the Rodinia supercontinent. Large-sized mid-Neoproterozoic magmatic rocks are distributed within the Dabie Orogen located on the northern Yangtze Block. This study performed zircon LA-ICP-MS geochronology, whole-rock major and trace elements, and zircon Lu-Hf isotope analyses on orthogneisses with a mid-Neoproterozoic protolith age of the northern Dabie Orogen. The analysis results show that the intrusion times of mid-Neoproterozoic granitoids and mafic rocks are all ~750 Ma, with ε_Hf(t) values ranging from −6.60 to −2.57 and a two-stage Hf model age of ~1.8 Ga. They are characterized by light rare earth element (LREE) enrichment and heavy rare earth element (HREE) depletion. In the primitive mantle-normalized trace element diagram, these rocks are enriched in La, Ce, Th, K, Zr, Nd, and Sm and depleted in Nb, Ta, P, Ti, and Sr, with negative Eu anomaly or no significant Eu anomaly. Based on the discrimination diagrams, most of the samples are plotted into the A-type granite field, and which was formed in a post-orogenic extension setting. Comprehensive analysis shows that these mid-Neoproterozoic magmatic rocks were produced by melting of juvenile crust of the Paleoproterozoic and late Mesoproterozoic, having a heterogeneous distribution of δ¹⁸O, indicating that these rocks were developed mainly through high-temperature meteoric-hydrothermal alteration during syn-rift magmatic activity.

1. Introduction

The periodic assembly and break-up of supercontinents not only dominated a global tectonic evolution but also critically impacted the sea level, climate change, life evolution, and resource and energy effects during Earth’s evolution [1]. The Rodinia supercontinent, which assembled during the late Mesoproterozoic and broken up during the Neoproterozoic [2,3], is important in Earth’s evolution history. The break-up of the Rodinia supercontinent had remodelled the global tectonic framework and controlled the tectonic-magmatic evolution during the Neoproterozoic [4,5,6], and causing critical changes to the sea level and climate. These changes in turn resulted in the global glacial event (Snowball Earth) [1,7], oxygen enrichment [8], the origin and explosion of life [9], and other events. Therefore, the Neoproterozoic era is one of the most important periods in Earth’s evolution history.

The South China Block (SCB) is one of the most representative continents that recorded Neoproterozoic tectonic evolution [3,4,5,6,7,10,11]. The Yangtze Block, the northwestern part of the SCB, is characterized by Neoproterozoic magmatic rocks formed from the break-up of the Rodinia supercontinent, with their ages predominantly ranging from ~830 to 740 Ma [4,10,11,12,13,14,15,16,17]. Large-scale magmatic activity, include ¹⁸O-depleted magmatic rocks formation, and the formation of the juvenile crust in the Yangtze Block is key for revealing the tectonic evolution during the Neoproterozoic. Neoproterozoic magmatism occurrence has been proposed by many models, including the mantle plume rift model [4,18], the plate-arc model [10,19], and the plate-rift model [5,6]. However, the genesis mechanism of these mid-Neoproterozoic magmatic rocks remains a controversial issue.

The Luzhenguan Group, located on the northern Dabie Orogen (NDO), is composed of orthogneisses whose protoliths are mid-Neoproterozoic magmatic rocks [6,20,21,22,23,24]. Since these rocks had only undergone low-grade metamorphism [25,26], and their geochemical characteristics had not been altered by the Triassic subduction and exhumation process of the Yangtze Block or significantly affected by the Yanshanian magmatism. Therefore, they are perfect for studing the mid-Neoproterozoic tectonic evolution and magmatism of the Yangtze Block.

Based on detailed field observations, this study conducted zircon LA-ICP MS U-Pb geochronology, whole-rock major and trace element, and zircon Lu-Hf isotope analyses on the orthogneisses of the Luzhenguan Group in the NDO, providing some new evidence on the mid-Neoproterozoic tectono-magmatic evolution in the northern Yangtze Block.

2. Geological Setting and Sample Descriptions

The Dabie Orogen is situated in the eastern part of the Qinling–Tongbai–Hong’an–Dabie Orogen in Central China. This orogen is devided by the NE-trending Tanlu Fault Zone and the Shang-Ma Fault in the east and west, respectively. It is usually divided from north to south into the Beihuaiyang (BH) unit, the North Dabie (ND) unit, the high-pressure and ultra-high pressure (HP-UHP) eclogite unit, the Susong complex (SC) unit, and the Zhangbaling Group (Figure 1) [27].

The Dabie Orogen was formed due to the subduction of the SCB under the North China Block (NCB). Zircons in eclogites and their wall rocks in the orogen are usually characterized by a residual core and a metamorphic mantle, and zircon cores generally recorded mid-Neoproterozoic magmatic crystallization ages [28,29,30]. The Sr-Nd, Pb, δ¹⁸O, and δ¹³C isotopes of eclogites and their wall rocks were consistent with those of the SCB, indicating that they were developed from SCB rocks [28,29,30,31]. The subducted SCB underwent peak metamorphism at ~235 Ma, followed by fast exhumation, and finally returned to the bottom of the crust in the late Triassic [30,32,33]. During the dome-shaped uplift of the Early Cretaceous, large volumes of HP-UHP rocks overlying the ND unit during the syn-collisional stage were eroded and transferred to the surrounding basins, resulting in migmatic and magmatic rocks that widely exposed on the surface [34,35]. The HP-UHP eclogite unit and the Susong complex unit were rebuilt and distributed in the southeastern part of the Dabie Orogen.

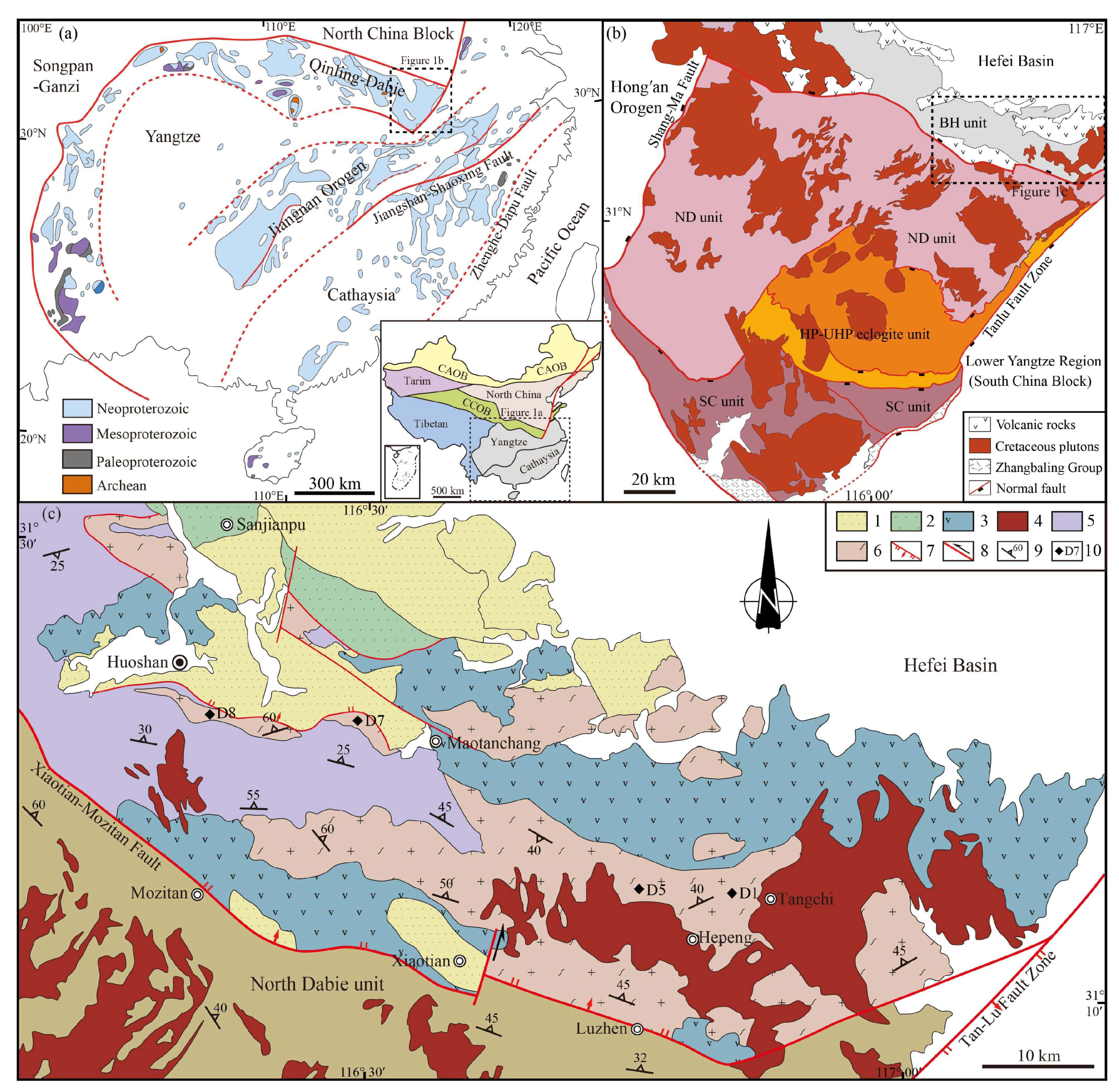

Figure 1. Sketch geological map showing the general distributions of Precambrian rocks within the South China Block (after Zhao and Cawood [36]) (a) and the Dabie Orogen (b). Geological map of the NDO and sampling location (c). In Figure 1a, the solid line is the fault and the dashed line is the buried fault. CAOB: Central Asian Orogenic Belt; CCOB: Central China Orogenic Belt; 1. Cretaceous. 2. Jurassic. 3. Volcanic rocks. 4. Early Cretaceous intrusions. 5. Foziling Group. 6. Luzhenguan Group. 7. Normal fault. 8. Strike-slip fault. 9. Metamorphic foliation. 10. Sampling location.

Figure 1. Sketch geological map showing the general distributions of Precambrian rocks within the South China Block (after Zhao and Cawood [36]) (a) and the Dabie Orogen (b). Geological map of the NDO and sampling location (c). In Figure 1a, the solid line is the fault and the dashed line is the buried fault. CAOB: Central Asian Orogenic Belt; CCOB: Central China Orogenic Belt; 1. Cretaceous. 2. Jurassic. 3. Volcanic rocks. 4. Early Cretaceous intrusions. 5. Foziling Group. 6. Luzhenguan Group. 7. Normal fault. 8. Strike-slip fault. 9. Metamorphic foliation. 10. Sampling location.

The BH unit is mainly composed of the Foziling Group, the Luzhenguan Group, and a small amount of Carboniferous strata [27], with a small amount of Early Paleozoic arc-like magmatic rocks remaining in the Foziling Group [37]. The Foziling Group is mainly composed of slate, phyllite, mica schist, quartzite, and marble, and has undergone greenschist facies metamorphism. There is a significant ~450 Ma age cluster in the detrital zircon age frequency distributions of the Foziling Group, and it is generally believed to have been formed as a Devonian flysch sedimentary sequence related to the subduction of the Palaeo-Tethys ocean [27,37,38]. The Carboniferous strata (Meishan Group) are mainly composed of conglomerates, feldspar sandstones, siltstones, and silty mudstones, with coal-bearing rocks interbedded at the bottom without significant metamorphism [27]. The formation of the BH unit was generally believed to be a product of shallower subduction [25,39] or accretion during the subduction stage [26].

The Luzhenguan Group is mainly exposed in the eastern part of the BH unit (Figure 1), which consists of a complex made of orthogneisses and metamorphic sedimentary rocks. These orthogneisses are mainly composed of granitic gneiss (Figure 2a), monzogranitic gneiss (Figure 2b), amphibolite (Figure 2c), some granodioritic gneisses and a small amount of mica schist. Their protoliths are mid-Neoproterozoic magmatic rocks with formation ages of 800–700 Ma [17,20,24], indicating past Triassic epidote amphibolite facies metamorphism [25,26,39]. Most orthogneisses of the Luzhenguan Group were weakly deformed with steep NNE-dipping foliation. Strong deformation zones occurred locally, causing the development of mylonites with an augen structure. The mylonitic foliations are mainly NE-dipping near the Xiaotian-Mozitan Fault, with a dominant dip of about 30°, while those far away from the fault are mainly S- or N-dipping. Stretching lineations in these mylonites dominantly plunge towards to NW or SE. Macroscopic asymmetric folds and S-C structures in the outcrop indicate a top-to-the-NW shear sense. Relatively, the deformation of the Foziling Group is significantly stronger, with NE-dipping foliation and NW-plunging lineation. The Luzhenguan and the Foziling Groups usually exhibit fault contacts, with the contacts’ location being a fault fracture zone and strongly weathered.

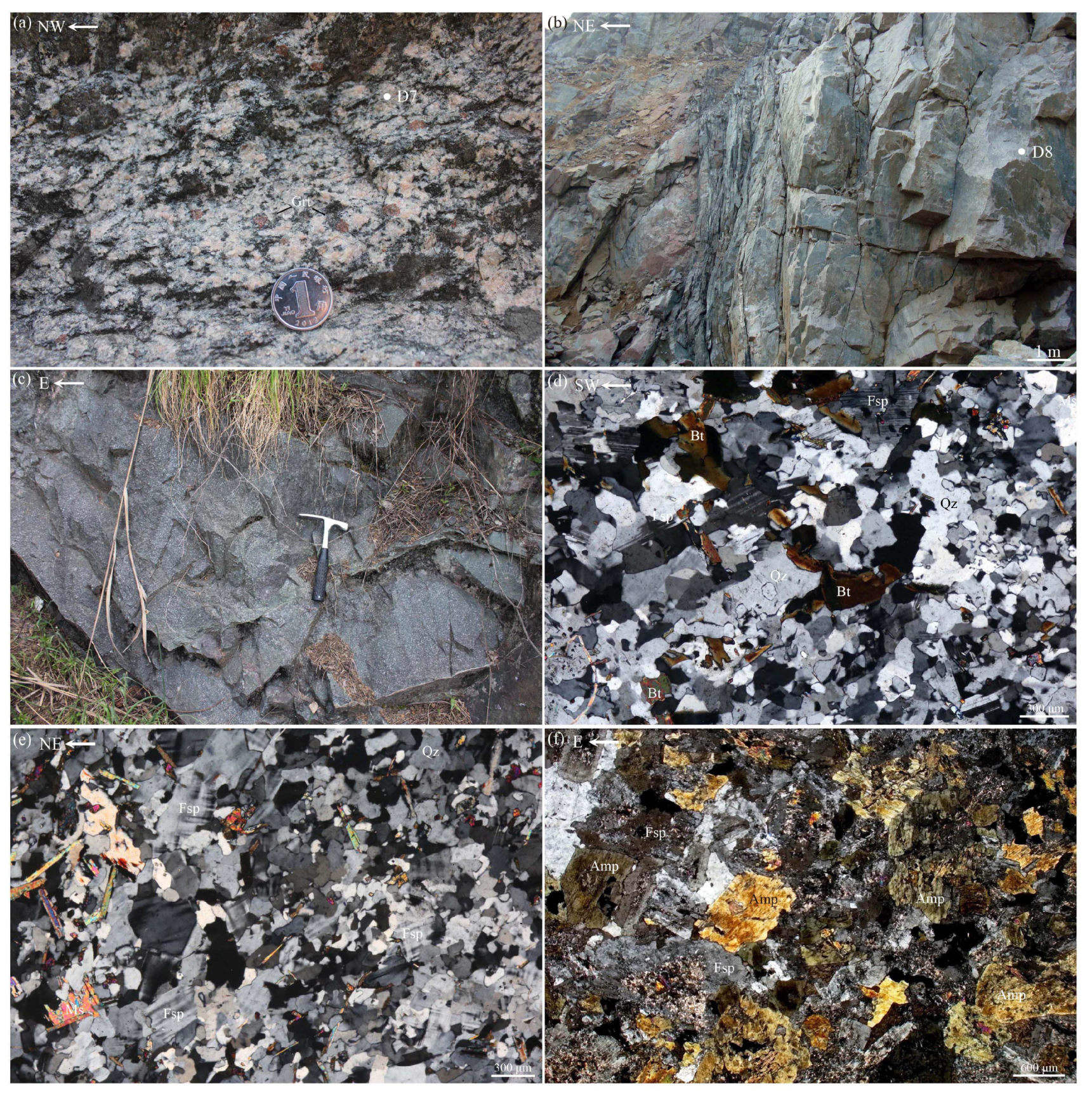

The selected samples for this study are orthogneisses from the Luzhenguan Group, of which D1 and D5 are amphibolites collected from the Hepeng area, D7 is the granitic gneiss and D8 is the monzogranitic gneiss from the Huoshan area (Figure 1). The mineral assemblage of the sample D7 is quartz + plagioclase + K-feldspar + biotite + garnet. Garnets in rocks mostly exist as aggregates, with grain sizes of ~5 mm, and the largest ones can be up to 8–9 mm (Figure 2a). Quartz is characterized by irregular shapes with general grain sizes ~200 μm. Feldspar in the rock is mainly made of plagioclase and a few K-feldspars, with grain sizes mostly greater than 500 μm, where polysynthetic twins are developed in plagioclase. The mineral assemblage of the sample D8 is mainly quartz + plagioclase + K-feldspar + muscovite, and a small amount of biotite. Minerals in the rock are mainly composed of xenomorphic grains that are not significantly oriented (Figure 2d,e). Quartz has a general grain size in the range of 200–300 μm and characterized by irregular shapes. Feldspar is significantly larger, usually greater than 500 μm, with lattice twins developed in K-feldspar and polysynthetic twins in plagioclase. Smaller sized amphibolites are exposed on the outcrop, which is usually mixed with granitic gneiss. The mineral assemblage of amphibolite is mainly plagioclase + amphibole. The minerals exhibit a subhedral or xenomorphic shape, with grain sizes mostly ~600 μm. The amphibolites show significantly weathering, which may have been caused by later fluid metasomatism.

3. Analytical Methods

Zircon separation and whole-rock powders were obtained at the Langfang Chengxin Geological Service Co., Ltd., Langfang, China. Zircons were separated using standard magnetic and heavy liquid separation techniques, as well as handpicking under a binocular microscope. The whole-rock powders analyzed were obtained by crushing fresh rock samples in an agate mortar to yield 200-mesh powders.

3.1. Zircon LA-ICP-MS U-Pb Geochronology

A total of 200 zircons from each sample were mounted on adhesive tape before being enclosed in epoxy resin. After polishing to around half their original thickness, the internal structures of these zircons were examined under cathodoluminescence (CL) using a JXA-8100 electron microprobe (JEOL Instruments, Tokyo, Japan) equipped with a CL3 + CL detector (Gatan, Pleasanton, CA, USA).

Zircon U-Th-Pb data were obtained using laser ablation followed by inductively coupled plasma–mass spectrometry (LA-ICP-MS) at the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Wuhan, China. The analyses were conducted using an Agilent 7500a ICP-MS apparatus (Agilent Technologies, Santa Clara, CA, USA) with a 193 nm GeoLas 2005 laser. The analyses were carried out with a laser beam diameter of 32 μm. Each analysis includes background collection for 20–30 s (gas blank), followed by data collection from the sample for 50 s. Zircon 91500 was used as an external standard for calibration. Zircon standards GJ-1 and SK10-2 were used as the secondary standard and analyzed to correct mass discrimination. The methodology employed here was the same as that described by Liu et al. [40], with uncertainties on individual analyses quoted at the 1σ level. We employed the approach outlined by Andersen [41] for common Pb corrections. The resulting data were calculated using the ICP-MS-Data Cal 8.0 and Isoplot 3.14 [42] software packages and are given in Table S1.

3.2. Zircon Lu-Hf Isotope Analyses

Zircon Lu-Hf isotope analysis was conducted using a Neptune Plus MC-ICP-MS (Thermo Fisher Scientific, Bremen, Gemany) coupled plasma mass spectrometer equipped with a GeoLas 2005 laser (LA-MC-ICP-MS) at the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Wuhan, China. This analysis used a 44 μm spot size with an applied energy density of 5.3 J/cm². Standard 91500 (reference value: ¹⁷⁶Hf/¹⁷⁷Hf = 0.282308 ± 0.0000040) and GJ1 (reference value: ¹⁷⁶Hf/¹⁷⁷Hf = 0.282021 ± 0.000011) zircons were reanalyzed as unknowns to verify the data’s quality during the analysis. Details on the analytical approaches and data-reduction techniques are given by Hu et al. [43]. Initial ¹⁷⁶Hf/¹⁷⁷Hf ratios and ε_Hf(t) values were calculated at their ²⁰⁶Pb/²³⁸U age for each zircon grain. The resulting data were calculated using the ICP-MS-Data Cal 8.0 software [40], and the zircon Lu-Hf isotopic data are given in Table S2.

3.3. Whole-Rock Geochemical Analyses

Whole-rock major and trace element contents were analyzed at the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Wuhan, China. Major element concentrations were determined via X-ray fluorescence using a Rigaku RIX 2100 instrument (Rigaku Corporation, Tokyo, Japan). Both the analytical precision and accuracy of the analysis are generally around 1%–5%. Trace element and REE concentrations were determined via ICP-MS using an Agilent 7500a instrument. The analytical accuracies are better than ±5%. The analytical procedure was described in detailed by Liu et al. [40].

4. Analytical Results

4.1. Zircon LA-ICP-MS U-Pb Ages

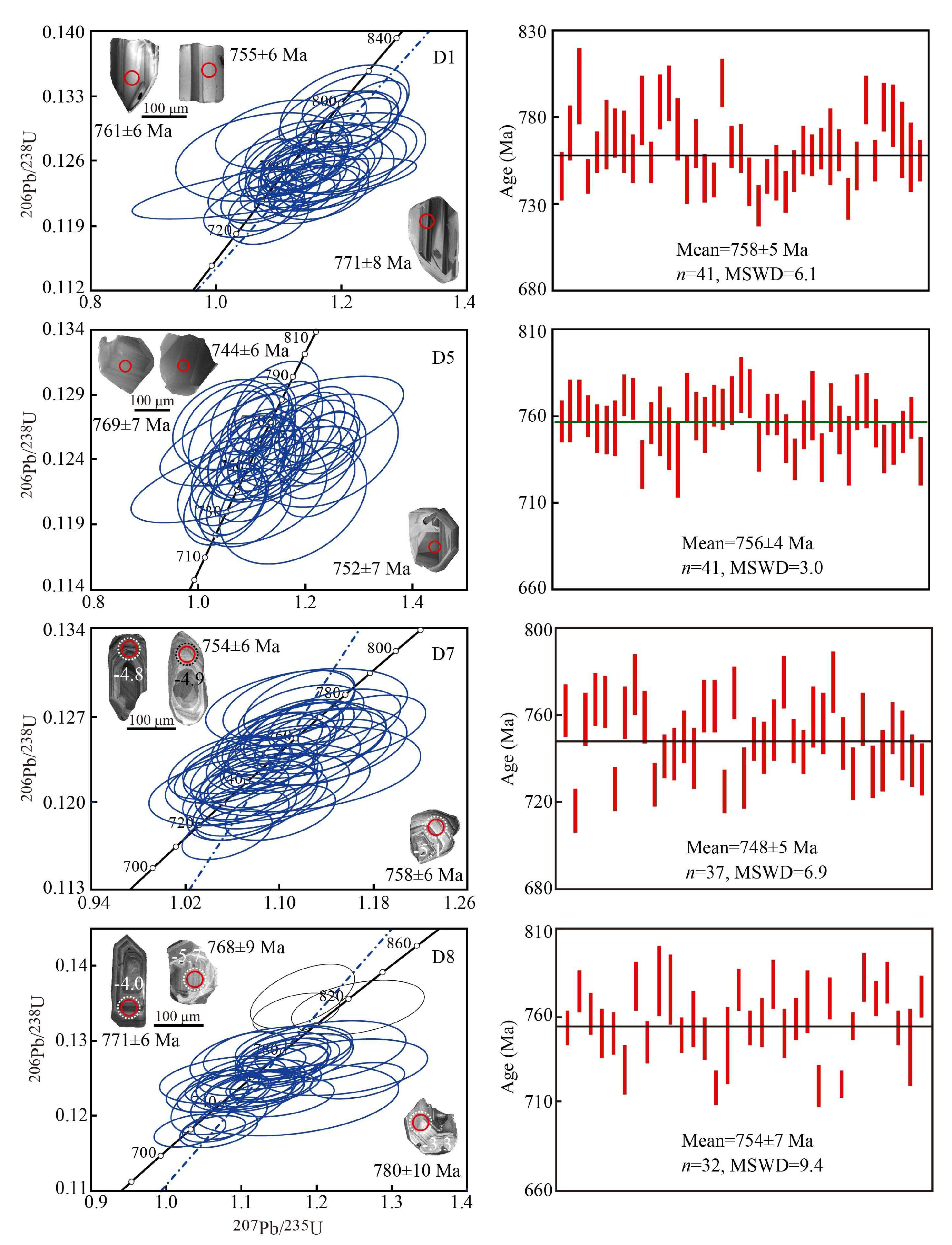

In this study, four samples (D1, D5, D7, and D8) were collected to perform zircon LA-ICP-MS U-Pb dating. Samples D1 and D5 are amphibolites, while the others are gneisses. Zircons in D1 and D5 were abraded and rounded shapes with a size range of ~200 μm (Figure 3). Based on the CL images, zircons exhibit clear oscillatory zoning, and their high Th/U ratios of >0.1 (Table S1) indicate that these zircons are magmatic [44]. A total of 41 Neoproterozoic ²⁰⁶Pb/²³⁸U ages with concordance values of 90%–100% were obtained for each sample, yielding weighted mean ages of 758 ± 5 Ma for D1 and 756 ± 4 Ma for D5 (Figure 3). The mean squared weighted deviations (MSWDs) are 6.1 and 3.0, respectively.

Zircons in D7 and D8 were abraded and rounded or short prisms in the size range of 100–200 μm (Figure 3). Based on the CL images, zircons exhibit clear oscillatory zoning, with high Th/U ratios of >0.1 (Table S1), indicating that these zircons are magmatic [44]. More than 32 Neoproterozoic ²⁰⁶Pb/²³⁸U ages with concordance values of 90%–100% were obtained for each sample, yielding weighted mean ages of 748 ± 5 Ma for D7 and 754 ± 7 Ma for D8 (Figure 3). The mean squared weighted deviations (MSWDs) are 6.9 and 9.4, respectively.

4.2. Zircon Lu-Hf Analysis

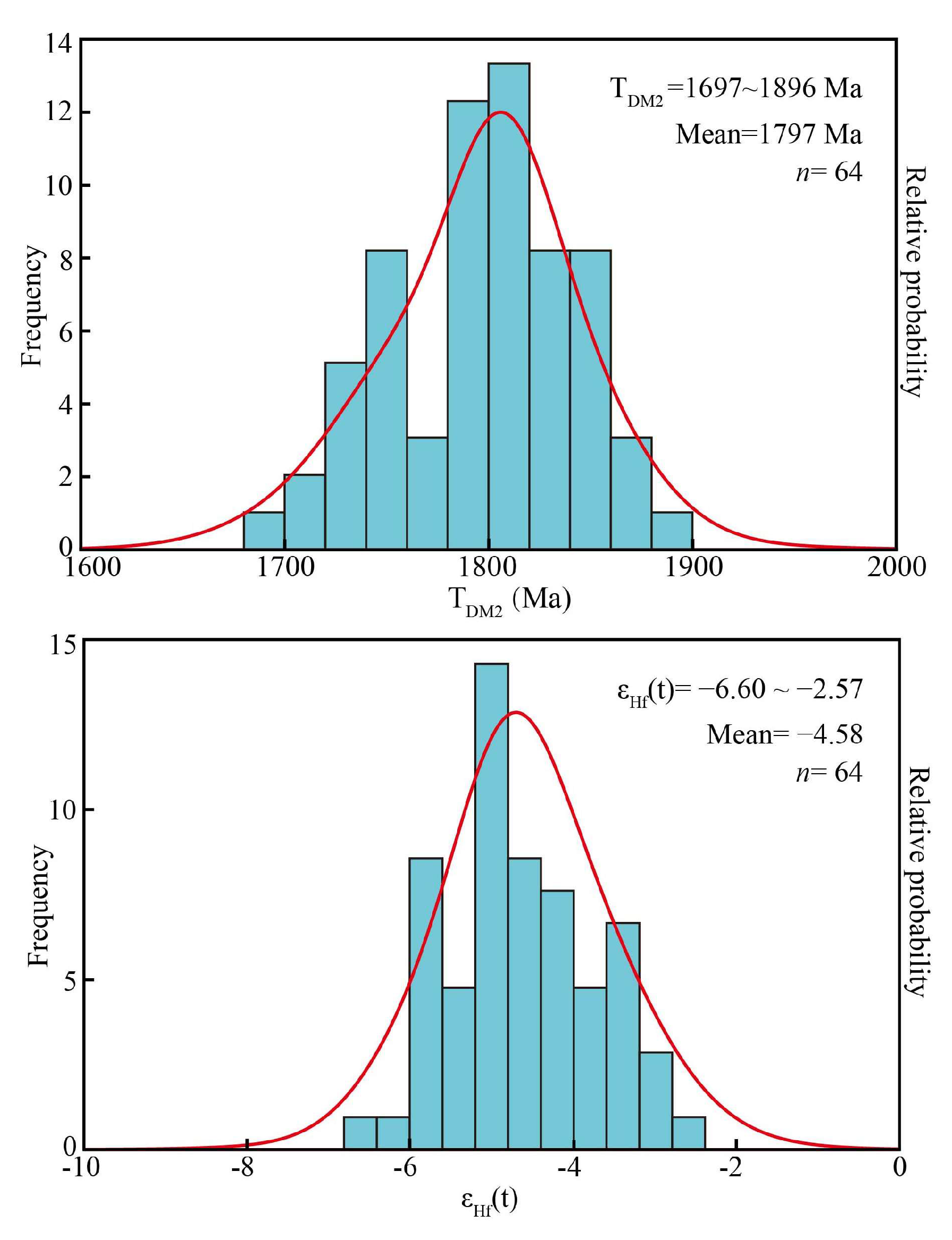

In this study, samples D7 and D8 were collected to perform zircon Lu-Hf isotope analyses. These analyses were conducted on the same grain as that for the LA-ICP-MS U-Pb dating ananlysis. A total of 64 Lu-Hf isotope analyses were performed on zircons from samples D7 and D8. Most have relatively consistent initial ¹⁷⁶Hf/¹⁷⁷Hf values (0.282143–0.282255), with negative ε_Hf(t) values ranging from −6.60 to −2.57 and a weighted mean value of −4.58 (Figure 4), two-stage Hf model ages (T_DM2(Hf)) from 1896 to 1697 Ma and a weighted mean age of 1797 Ma (Figure 4).

4.3. Whole-Rock Major and Trace Element Compositions

The selected samples for this study are granitic gneisses (D7-1–D7-6) and monzogranitic gneisses (D8-1–D8-6). They contain relatively low SiO₂ (60.0–65.8 wt.% except 70.6 wt.% of D8-2), TiO₂ (0.28–0.89 wt.%), FeO^T (1.68–3.39 wt.%), CaO (0.60–2.64 wt.%), and MgO (0.15–1.26 wt.%) and high Al₂O₃ (14.7–19.5 wt.%), and Na₂O + K₂O (9.51–12.5 wt.%) contents (Table 1). The majority of these samples are classified as an alkaline field on a SiO₂ vs. K₂O + Na₂O diagram (Figure 5a) and a shoshonitic field of an SiO₂ vs. K₂O diagram (Figure 5b). The A/CNK values range from 0.83 to 1.08, suggesting a metaluminous to weakly peraluminous composition (Figure 5c). The (Na₂O + K₂O)/Al₂O₃ values are relatively low, ranging from 0.59 to 0.68, and the FeO^T/MgO values range from 3.73 to 15.4.

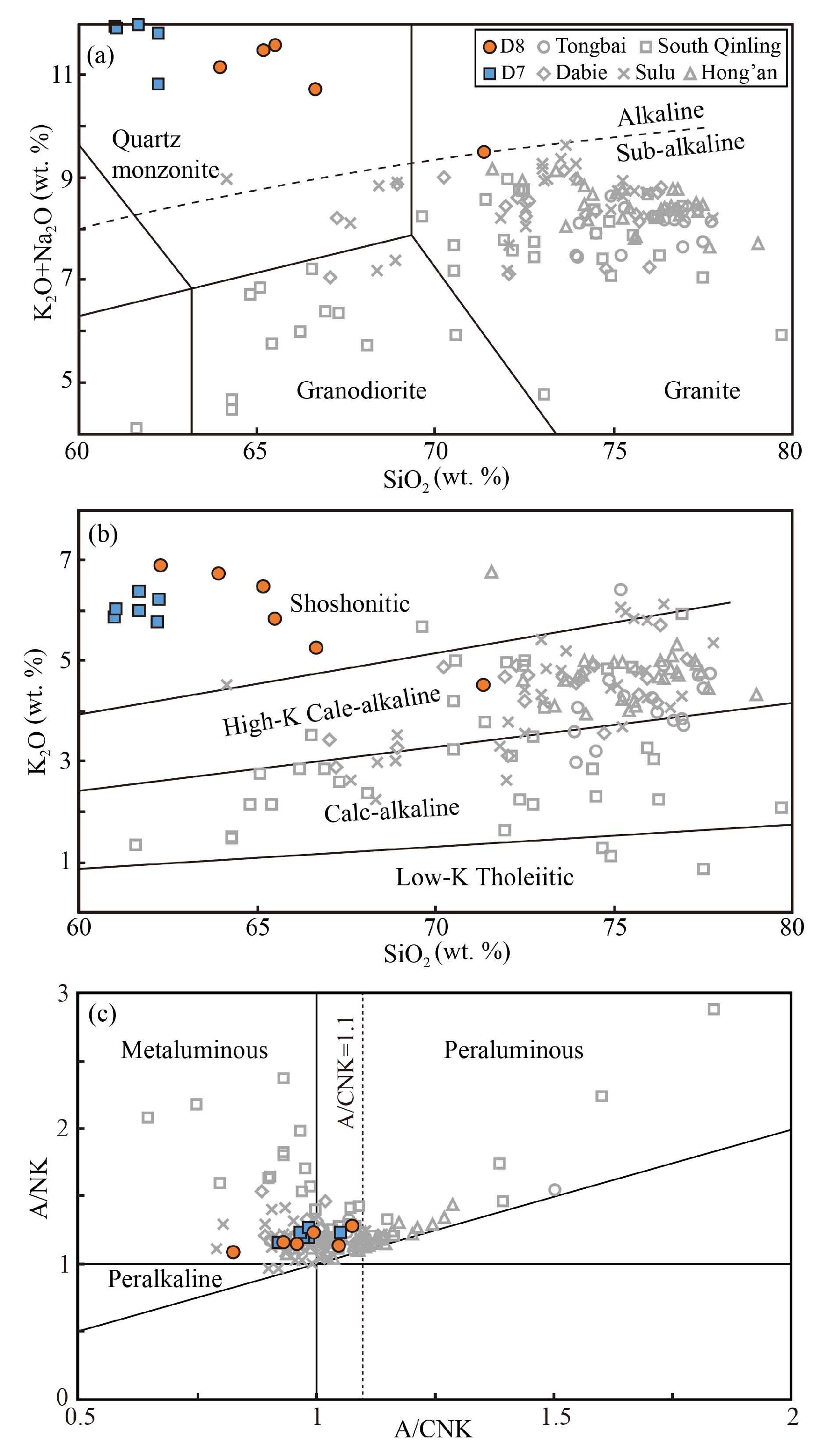

Figure 5. (a) TAS diagram (after Middlemost [45]); (b) K₂O vs. SiO₂ diagram (after Rickwood [46]); (c) A/NK vs. A/CNK diagram (after Maniar et al. [47]) for the granite gneisses in the NDO. The legends for subfigures (b,c) are the same as those for subfigure (a). Data of the South Qinling are from Wu et al. [48], Wang et al. [49], and the references therein. Data of the Tongbai Orogen are from Qiu et al. [50]. Data of the Hong’an Orogen are from Xu et al. [51] and Chen et al. [52]. Data of the Dabie Orogen are from Li et al. [53], Tuo et al. [54], and Chen et al. [52]. Data of the Sulu Orogen are from He et al. [55], Wang et al. [56], and the references therein.

Figure 5. (a) TAS diagram (after Middlemost [45]); (b) K₂O vs. SiO₂ diagram (after Rickwood [46]); (c) A/NK vs. A/CNK diagram (after Maniar et al. [47]) for the granite gneisses in the NDO. The legends for subfigures (b,c) are the same as those for subfigure (a). Data of the South Qinling are from Wu et al. [48], Wang et al. [49], and the references therein. Data of the Tongbai Orogen are from Qiu et al. [50]. Data of the Hong’an Orogen are from Xu et al. [51] and Chen et al. [52]. Data of the Dabie Orogen are from Li et al. [53], Tuo et al. [54], and Chen et al. [52]. Data of the Sulu Orogen are from He et al. [55], Wang et al. [56], and the references therein.

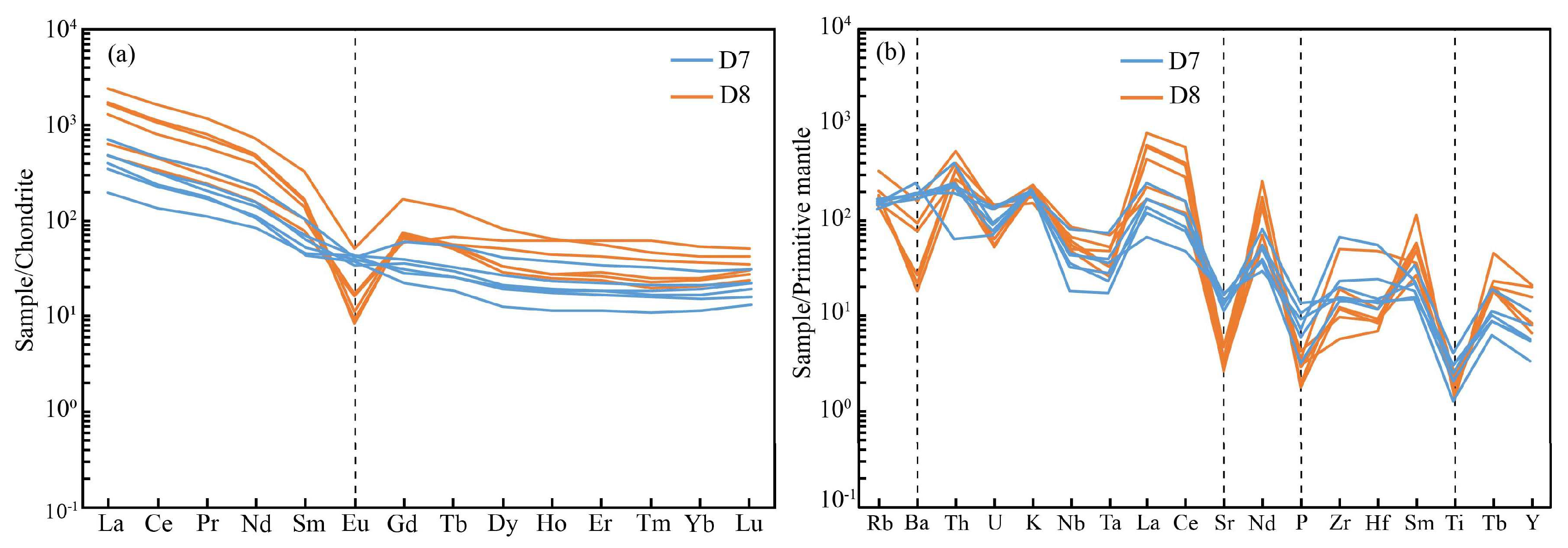

The chondrite-normalized rare earth element (REE) shows that these samples are enriched in light rare earth elements (ΣLREEs = 190–2073 ppm) and depleted in heavy rare earth elements (ΣHREEs = 28.5–176 ppm), with (La/Yb)_N = 8.90–79.5 and (La/Sm)_N = 4.42–10.4 (Table 1). Sample D7 exhibits no significant anomalies of Eu*, ranging from 0.08 to 0.24, while sample D8 shows strong negative anomalies of Eu*, ranging from 0.53 to 1.25. These rock samples are enriched in La, Ce, Th, K, Zr, Nd, and Sm, depleted in Nb, Ta, P, Ti, Sr in the primitive mantle-normalized trace element diagram (Figure 6). In contrast, sample D8 is depleted in Ba, while D7 shows weak enrichment.

Table 1. Whole-rock major and trace element compositions of samples from the NDO.

Samples	D7-1	D7-2	D7-3	D7-4	D7-5	D7-6	D8-1	D8-2	D8-3	D8-4	D8-5	D8-6
Major elements (wt.%)
SiO2	61.5	60.9	61.4	60.1	60.6	60.0	65.8	70.6	63.7	63.6	63.0	60.9
TiO2	0.54	0.46	0.67	0.89	0.28	0.65	0.33	0.29	0.40	0.48	0.41	0.51
Al2O3	18.2	19.2	19.4	19.3	19.2	19.5	17.9	14.7	16.6	17.2	18.3	18.6
FeOT	4.43	3.42	2.93	3.30	2.99	3.07	1.68	2.73	2.31	2.61	2.95	3.39
MnO	0.10	0.13	0.20	0.19	0.11	0.17	0.05	0.08	0.08	0.21	0.09	0.15
MgO	0.90	0.77	0.72	0.70	0.42	0.68	0.45	0.50	0.15	0.25	1.26	0.29
CaO	2.28	1.87	1.49	2.01	2.36	2.34	1.90	0.60	2.64	1.97	1.47	1.72
Na2O	4.96	5.87	5.49	5.98	5.92	5.75	5.36	4.91	5.58	4.86	4.31	5.42
K2O	5.74	5.97	6.17	5.82	6.32	5.96	5.23	4.50	5.71	6.36	6.68	6.78
P2O5	0.16	0.13	0.23	0.29	0.07	0.20	0.07	0.07	0.04	0.04	0.09	0.06
LOI	1.02	1.04	1.12	1.11	1.45	1.33	0.56	0.69	2.55	2.15	1.19	1.99
Total	98.8	98.7	98.6	98.6	98.3	98.4	98.8	99.0	97.2	97.6	98.6	97.8
A/CNK	0.98	0.99	1.05	0.97	0.92	0.97	1.00	1.05	0.83	0.93	1.08	0.96
A/NK	1.27	1.19	1.23	1.19	1.16	1.23	1.24	1.14	1.08	1.16	1.28	1.14
K2O + Na2O	10.8	12.0	11.8	12.0	12.5	11.9	10.7	9.51	11.6	11.5	11.2	12.5
(K2O + Na2O)/Al2O3	0.59	0.62	0.60	0.61	0.64	0.60	0.59	0.64	0.68	0.65	0.60	0.66
FeOT/MgO	4.92	4.44	4.07	4.71	7.12	4.51	3.73	5.46	15.4	10.4	2.34	11.7
Trace and rare earth elements (ppm)
Ba	1359	1251	1292	1251	1170	1666	657	541	183	153	1107	127
Rb	94.3	83.3	99.2	104	91.2	95.4	125	94.1	86.1	112	204	117
Sr	349	290	240	273	294	362	70.9	56.4	98.6	72.7	59.2	55.1
Zr	734	257	223	168	159	172	559	62.1	139	206	105	127
Nb	25.9	23.0	31.4	57.3	13.0	32.3	47.6	34.8	38.4	33.0	60.6	42.2
Ni	2.29	—	0.24	2.61	0.09	2.00	1.53	0.52	—	—	—	—
Co	3.89	2.86	4.31	5.93	2.33	4.44	1.63	5.76	0.87	0.88	3.56	0.97
Zn	83.5	48.6	93.4	164	52.4	86.4	16.4	21.3	30.4	71.1	37.9	64.7
Cr	13.8	9.03	9.65	11.7	10.2	10.0	7.78	7.31	4.50	6.98	5.67	7.11
La	114	80.4	114	164	93.4	46.5	151	563	390	411	115	301
Ce	197	136	197	280	148	84.1	281	998	653	692	208	500
Pr	19.9	15.9	22.4	32.4	16.7	10.5	28.3	110	70.0	76.8	22.9	54.8
Nd	67.2	52.4	73.0	108	50.0	39.1	92.9	348	220	238	73.3	179
Sm	10.4	7.86	9.65	15.3	6.57	6.80	15.8	50.0	24.2	25.6	11.9	20.9
Eu	2.51	2.25	1.93	2.42	2.13	2.54	0.99	2.92	0.49	0.64	0.93	0.55
Gd	8.20	6.20	7.28	12.6	4.63	5.68	13.3	33.6	14.3	15.6	12.3	13.9
Tb	1.21	0.97	1.12	2.01	0.69	0.93	2.12	4.93	1.93	2.10	2.48	1.96
Dy	6.81	5.04	5.41	10.4	3.24	4.77	12.7	20.9	7.39	8.30	15.6	8.60
Ho	1.34	1.05	1.08	2.07	0.65	1.00	2.49	3.65	1.44	1.59	3.44	1.56
Er	3.65	3.05	3.07	5.51	1.89	2.76	6.92	9.34	3.96	4.83	10.1	4.40
Tm	0.55	0.46	0.43	0.82	0.28	0.41	0.99	1.18	0.51	0.64	1.55	0.59
Yb	3.53	3.20	2.78	5.00	1.91	2.55	6.31	7.16	3.52	4.33	9.29	3.98
Lu	0.55	0.55	0.48	0.77	0.33	0.40	0.90	1.05	0.59	0.78	1.31	0.68
Y	36.5	25.6	26.1	49.7	14.9	25.1	70.3	93.9	30.0	36.2	88.9	37.2
Cs	0.56	0.59	0.74	0.99	0.30	0.63	0.54	0.55	0.99	1.65	1.12	2.77
Ta	0.93	1.12	1.59	3.00	0.71	1.48	2.11	1.93	1.31	1.03	2.88	1.34
Hf	17.0	7.34	4.63	3.68	4.49	4.24	14.5	2.15	2.78	3.61	2.71	2.52
Li	5.90	5.95	9.70	11.4	4.48	7.42	6.97	6.84	4.01	8.01	8.82	7.48
Be	2.28	1.61	1.43	1.59	1.78	1.61	3.55	1.58	1.18	0.96	3.62	0.97
Sc	4.65	5.50	5.67	9.73	2.75	5.11	4.66	8.57	10.1	13.1	5.24	17.0
V	26.8	22.1	30.7	30.2	14.3	33.6	8.01	10.5	3.57	4.05	10.8	4.18
Cu	3.89	10.8	4.50	2.44	1.83	4.79	2.22	4.26	1.02	1.76	1.29	1.53
Ga	26.7	26.1	28.6	31.0	25.6	24.2	25.0	42.3	35.1	36.5	26.7	32.6
Mo	—	1.67	1.97	0.99	2.21	0.90	—	8.45	1.71	1.64	0.22	0.87
Cd	—	0.10	0.20	0.15	0.11	0.09	—	0.02	0.08	0.14	0.01	0.08
In	—	0.05	0.06	0.09	0.03	0.05	—	0.13	0.11	0.15	0.11	0.18
Sn	1.21	0.93	0.91	1.06	0.79	0.82	3.05	2.37	0.59	0.61	2.55	0.67
Sb	—	0.58	0.63	0.50	0.25	0.50	—	0.35	0.33	0.29	0.48	0.21
Te	—	0.11	0.05	0.04	0.01	0.08	—	0.02	0.01	0.04	0.01	0.03
W	—	0.25	0.72	0.46	0.26	0.28	—	0.63	0.23	0.58	0.24	0.39
Tl	—	0.34	0.44	0.41	0.37	0.39	—	0.42	0.40	0.52	0.82	0.49
Pb	21.6	23.8	21.6	18.2	21.6	20.1	6.04	8.16	16.5	16.8	5.11	14.0
Bi	—	0.05	0.25	0.08	0.03	0.02	—	0.30	0.05	0.03	0.08	0.03
Th	16.4	19.4	20.3	32.8	18.9	5.33	32.5	22.6	28.9	29.0	43.4	20.9
U	2.71	2.86	1.83	2.00	1.58	1.48	2.96	2.90	1.13	1.30	2.72	1.10
Zr + Nb + Ce + Y	993	442	477	555	335	313	958	1189	860	967	463	707
10,000 × Ga/Al	2.73	2.53	2.75	2.99	2.48	2.31	2.61	5.37	3.88	3.91	2.72	3.24
Y + Nb	62.4	57.5	107	27.9	57.4	48.6	118	129	68.4	69.2	150	79.4
Yb + Ta	4.46	4.32	4.37	8.00	2.62	4.03	8.42	9.09	4.83	5.36	12.2	5.32
ΣREE	473	466	691	346	233	341	686	2249	1422	1518	577	1130
ΣLREE	411	418	602	317	190	294	570	2073	1358	1444	432	1057
ΣHREE	62.3	47.7	88.9	28.5	43.6	46.1	116	176	63.6	74.3	145	72.9
(La/Yb)N	23.2	29.5	23.5	35.1	13.1	18.0	17.2	56.5	79.5	68.2	8.90	54.2
(La/Sm)N	7.08	7.66	6.94	9.18	4.42	6.60	6.17	7.28	10.4	10.4	6.24	9.29
(Gd/Yb)N	1.92	2.16	2.08	2.00	1.85	1.61	1.74	3.88	3.35	2.98	1.10	2.88
Eu*	0.83	0.70	0.53	1.18	1.25	0.99	0.21	0.22	0.08	0.10	0.24	0.10

Eu* = Eu_N/(Sm_N × Gd_N)^1/2; A/CNK = molar Al₂O₃/(CaO + Na₂O + K₂O); A/NK = molar Al₂O₃/(Na₂O + K₂O); N denotes the chondrite-normalized values of Sun and McDonough [57].

Table 1. Whole-rock major and trace element compositions of samples from the NDO.

Samples	D7-1	D7-2	D7-3	D7-4	D7-5	D7-6	D8-1	D8-2	D8-3	D8-4	D8-5	D8-6
Major elements (wt.%)
SiO2	61.5	60.9	61.4	60.1	60.6	60.0	65.8	70.6	63.7	63.6	63.0	60.9
TiO2	0.54	0.46	0.67	0.89	0.28	0.65	0.33	0.29	0.40	0.48	0.41	0.51
Al2O3	18.2	19.2	19.4	19.3	19.2	19.5	17.9	14.7	16.6	17.2	18.3	18.6
FeOT	4.43	3.42	2.93	3.30	2.99	3.07	1.68	2.73	2.31	2.61	2.95	3.39
MnO	0.10	0.13	0.20	0.19	0.11	0.17	0.05	0.08	0.08	0.21	0.09	0.15
MgO	0.90	0.77	0.72	0.70	0.42	0.68	0.45	0.50	0.15	0.25	1.26	0.29
CaO	2.28	1.87	1.49	2.01	2.36	2.34	1.90	0.60	2.64	1.97	1.47	1.72
Na2O	4.96	5.87	5.49	5.98	5.92	5.75	5.36	4.91	5.58	4.86	4.31	5.42
K2O	5.74	5.97	6.17	5.82	6.32	5.96	5.23	4.50	5.71	6.36	6.68	6.78
P2O5	0.16	0.13	0.23	0.29	0.07	0.20	0.07	0.07	0.04	0.04	0.09	0.06
LOI	1.02	1.04	1.12	1.11	1.45	1.33	0.56	0.69	2.55	2.15	1.19	1.99
Total	98.8	98.7	98.6	98.6	98.3	98.4	98.8	99.0	97.2	97.6	98.6	97.8
A/CNK	0.98	0.99	1.05	0.97	0.92	0.97	1.00	1.05	0.83	0.93	1.08	0.96
A/NK	1.27	1.19	1.23	1.19	1.16	1.23	1.24	1.14	1.08	1.16	1.28	1.14
K2O + Na2O	10.8	12.0	11.8	12.0	12.5	11.9	10.7	9.51	11.6	11.5	11.2	12.5
(K2O + Na2O)/Al2O3	0.59	0.62	0.60	0.61	0.64	0.60	0.59	0.64	0.68	0.65	0.60	0.66
FeOT/MgO	4.92	4.44	4.07	4.71	7.12	4.51	3.73	5.46	15.4	10.4	2.34	11.7
Trace and rare earth elements (ppm)
Ba	1359	1251	1292	1251	1170	1666	657	541	183	153	1107	127
Rb	94.3	83.3	99.2	104	91.2	95.4	125	94.1	86.1	112	204	117
Sr	349	290	240	273	294	362	70.9	56.4	98.6	72.7	59.2	55.1
Zr	734	257	223	168	159	172	559	62.1	139	206	105	127
Nb	25.9	23.0	31.4	57.3	13.0	32.3	47.6	34.8	38.4	33.0	60.6	42.2
Ni	2.29	—	0.24	2.61	0.09	2.00	1.53	0.52	—	—	—	—
Co	3.89	2.86	4.31	5.93	2.33	4.44	1.63	5.76	0.87	0.88	3.56	0.97
Zn	83.5	48.6	93.4	164	52.4	86.4	16.4	21.3	30.4	71.1	37.9	64.7
Cr	13.8	9.03	9.65	11.7	10.2	10.0	7.78	7.31	4.50	6.98	5.67	7.11
La	114	80.4	114	164	93.4	46.5	151	563	390	411	115	301
Ce	197	136	197	280	148	84.1	281	998	653	692	208	500
Pr	19.9	15.9	22.4	32.4	16.7	10.5	28.3	110	70.0	76.8	22.9	54.8
Nd	67.2	52.4	73.0	108	50.0	39.1	92.9	348	220	238	73.3	179
Sm	10.4	7.86	9.65	15.3	6.57	6.80	15.8	50.0	24.2	25.6	11.9	20.9
Eu	2.51	2.25	1.93	2.42	2.13	2.54	0.99	2.92	0.49	0.64	0.93	0.55
Gd	8.20	6.20	7.28	12.6	4.63	5.68	13.3	33.6	14.3	15.6	12.3	13.9
Tb	1.21	0.97	1.12	2.01	0.69	0.93	2.12	4.93	1.93	2.10	2.48	1.96
Dy	6.81	5.04	5.41	10.4	3.24	4.77	12.7	20.9	7.39	8.30	15.6	8.60
Ho	1.34	1.05	1.08	2.07	0.65	1.00	2.49	3.65	1.44	1.59	3.44	1.56
Er	3.65	3.05	3.07	5.51	1.89	2.76	6.92	9.34	3.96	4.83	10.1	4.40
Tm	0.55	0.46	0.43	0.82	0.28	0.41	0.99	1.18	0.51	0.64	1.55	0.59
Yb	3.53	3.20	2.78	5.00	1.91	2.55	6.31	7.16	3.52	4.33	9.29	3.98
Lu	0.55	0.55	0.48	0.77	0.33	0.40	0.90	1.05	0.59	0.78	1.31	0.68
Y	36.5	25.6	26.1	49.7	14.9	25.1	70.3	93.9	30.0	36.2	88.9	37.2
Cs	0.56	0.59	0.74	0.99	0.30	0.63	0.54	0.55	0.99	1.65	1.12	2.77
Ta	0.93	1.12	1.59	3.00	0.71	1.48	2.11	1.93	1.31	1.03	2.88	1.34
Hf	17.0	7.34	4.63	3.68	4.49	4.24	14.5	2.15	2.78	3.61	2.71	2.52
Li	5.90	5.95	9.70	11.4	4.48	7.42	6.97	6.84	4.01	8.01	8.82	7.48
Be	2.28	1.61	1.43	1.59	1.78	1.61	3.55	1.58	1.18	0.96	3.62	0.97
Sc	4.65	5.50	5.67	9.73	2.75	5.11	4.66	8.57	10.1	13.1	5.24	17.0
V	26.8	22.1	30.7	30.2	14.3	33.6	8.01	10.5	3.57	4.05	10.8	4.18
Cu	3.89	10.8	4.50	2.44	1.83	4.79	2.22	4.26	1.02	1.76	1.29	1.53
Ga	26.7	26.1	28.6	31.0	25.6	24.2	25.0	42.3	35.1	36.5	26.7	32.6
Mo	—	1.67	1.97	0.99	2.21	0.90	—	8.45	1.71	1.64	0.22	0.87
Cd	—	0.10	0.20	0.15	0.11	0.09	—	0.02	0.08	0.14	0.01	0.08
In	—	0.05	0.06	0.09	0.03	0.05	—	0.13	0.11	0.15	0.11	0.18
Sn	1.21	0.93	0.91	1.06	0.79	0.82	3.05	2.37	0.59	0.61	2.55	0.67
Sb	—	0.58	0.63	0.50	0.25	0.50	—	0.35	0.33	0.29	0.48	0.21
Te	—	0.11	0.05	0.04	0.01	0.08	—	0.02	0.01	0.04	0.01	0.03
W	—	0.25	0.72	0.46	0.26	0.28	—	0.63	0.23	0.58	0.24	0.39
Tl	—	0.34	0.44	0.41	0.37	0.39	—	0.42	0.40	0.52	0.82	0.49
Pb	21.6	23.8	21.6	18.2	21.6	20.1	6.04	8.16	16.5	16.8	5.11	14.0
Bi	—	0.05	0.25	0.08	0.03	0.02	—	0.30	0.05	0.03	0.08	0.03
Th	16.4	19.4	20.3	32.8	18.9	5.33	32.5	22.6	28.9	29.0	43.4	20.9
U	2.71	2.86	1.83	2.00	1.58	1.48	2.96	2.90	1.13	1.30	2.72	1.10
Zr + Nb + Ce + Y	993	442	477	555	335	313	958	1189	860	967	463	707
10,000 × Ga/Al	2.73	2.53	2.75	2.99	2.48	2.31	2.61	5.37	3.88	3.91	2.72	3.24
Y + Nb	62.4	57.5	107	27.9	57.4	48.6	118	129	68.4	69.2	150	79.4
Yb + Ta	4.46	4.32	4.37	8.00	2.62	4.03	8.42	9.09	4.83	5.36	12.2	5.32
ΣREE	473	466	691	346	233	341	686	2249	1422	1518	577	1130
ΣLREE	411	418	602	317	190	294	570	2073	1358	1444	432	1057
ΣHREE	62.3	47.7	88.9	28.5	43.6	46.1	116	176	63.6	74.3	145	72.9
(La/Yb)N	23.2	29.5	23.5	35.1	13.1	18.0	17.2	56.5	79.5	68.2	8.90	54.2
(La/Sm)N	7.08	7.66	6.94	9.18	4.42	6.60	6.17	7.28	10.4	10.4	6.24	9.29
(Gd/Yb)N	1.92	2.16	2.08	2.00	1.85	1.61	1.74	3.88	3.35	2.98	1.10	2.88
Eu*	0.83	0.70	0.53	1.18	1.25	0.99	0.21	0.22	0.08	0.10	0.24	0.10

Eu* = Eu_N/(Sm_N × Gd_N)^1/2; A/CNK = molar Al₂O₃/(CaO + Na₂O + K₂O); A/NK = molar Al₂O₃/(Na₂O + K₂O); N denotes the chondrite-normalized values of Sun and McDonough [57].

5. Discussion

5.1. Petrologic Genesis and Tectonic Setting

The period range of ~830–740 Ma was a prominent period of widespread magmatism in the SCB, corresponding to rift magmatic activity during the break-up of the Rodinia supercontinent [4,10,21,22,58]. The intrusion time of granitic gneisses in the NDO is ~750 Ma, which is consistent with the intrusion time of the coexisting mafic rocks, indicating that the protolith of these gneisses should have formed during the mid-Neoproterozoic bimodal magmatism [21,22,23,24].

The A/CNK values of these rock samples are relatively low (0.83–1.08), indicating that they belong to a metaluminous to weakly peraluminous series, and their Na₂O content is high, which is different from typical S-type granite [59]. Although muscovites or garnets are more typical of S-type granites, highly fractionated I-type granites may contain a few these minerals. Therefore, muscovites and garnets are not effective indicators for identifying S-type granites [60,61]. A-type granites are generally characterized by depletions in Ba, Sr, P, and Ti, with significantly negative Eu anomalies, and high Zr, Nb, Ce, and Y contents due to their alkali rich properties [59,61,62,63]. Relatively, I-type granites are characterized by weak negative anomalies or no anomalies. Samples D8-1~D8-6 exhibit significant negative Eu anomalies, with depletions in Ba, Sr, P, and Ti, and should be classified as A-type granite; samples D7-1~D7-6 show no significant negative Eu anomaly, with weak enrichment of Ba, and its characteristics are similar to those of I-type granite or I-A transition-type rocks. Based on the compilation of trace elements in the northern Yangtze Block, the mid-Neoproterozoic granites in any area of the Qinling–Tongbai–Hong’an–Dabie orogenic belt and the Sulu Orogen exhibit the coexistence of I-type and A-type granites (Figure 7). This was usually explained as the remelting of the former arc-like magmatic rocks [5,17,23], resulting in rocks exhibiting both arc-like and rift magmatism geochemical characteristics.

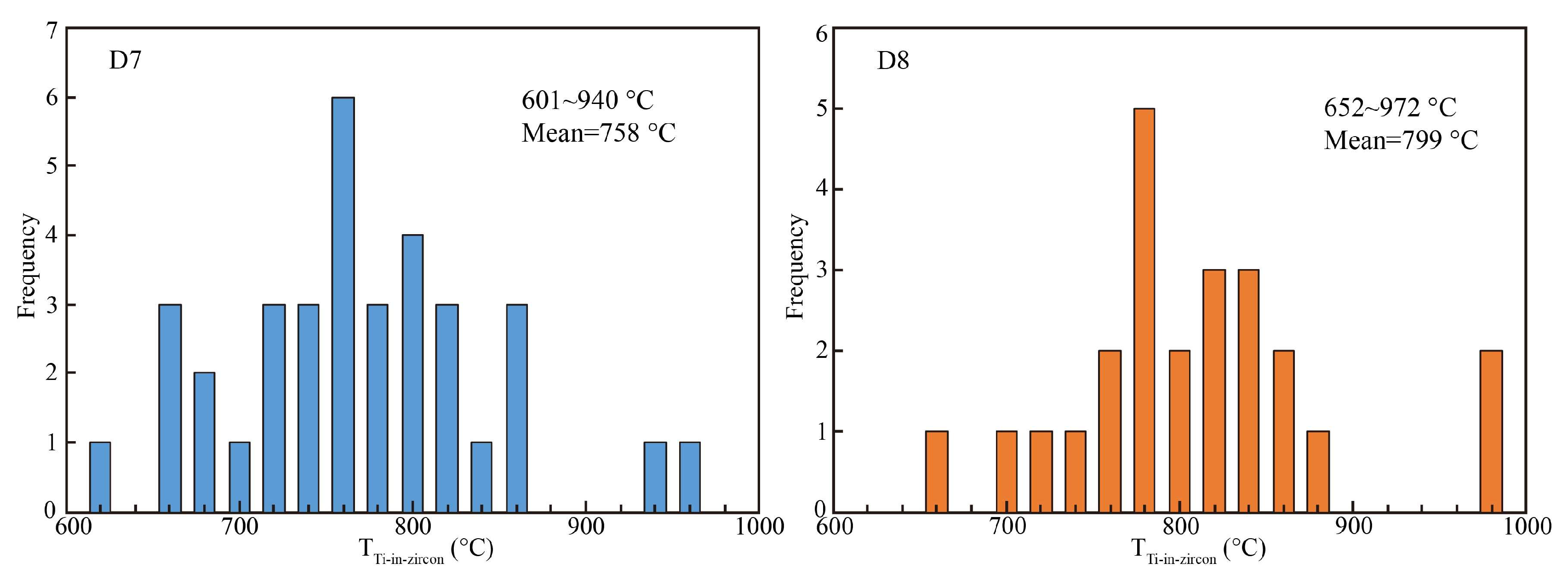

A-type granite usually has a relatively high crystallization temperature (>800 °C) [64]. The distribution of Ti in zircon is mainly controlled by temperature, whose elucidation resulted in the development of the Ti-in-zircon geothermometer [65]. The T_Ti-in-zircon values of sample D7 mainly range from 660 °C to 940 °C with a mean temperature of 758 °C, while those of sample D8 mainly range from 700 °C to 880 °C with a mean temperature of 799 °C (Figure 8), indicating that these rocks were formed in a relatively high-temperature melting condition. This is consistent with the conclusion that those Neoproterozoic magmatic rocks were formed as coexistence of I-type and A-type granites.

The Ga/Al ratio is the most effective metric for distinguishing A-type granite [62]. The 10,000 × Ga/Al values of these granitic gneisses in the NDO range from 2.31 to 5.37 and are mostly more than 2.6. In the 10,000 × Ga/Al vs. Zr, Ce, and Y diagram, these elements are mainly plotted in the field of the A-type granite region (Figure 9). The Zr + Nb + Ce + Y values of these samples range from 313 × 10⁻⁶ to 1189 × 10⁻⁶ and are mostly greater than 350 × 10⁻⁶. In the (Zr + Nb + Ce + Y) vs. FeO^T/MgO diagram, these elements are also mainly plotted in the field of A-type granite (Figure 9).

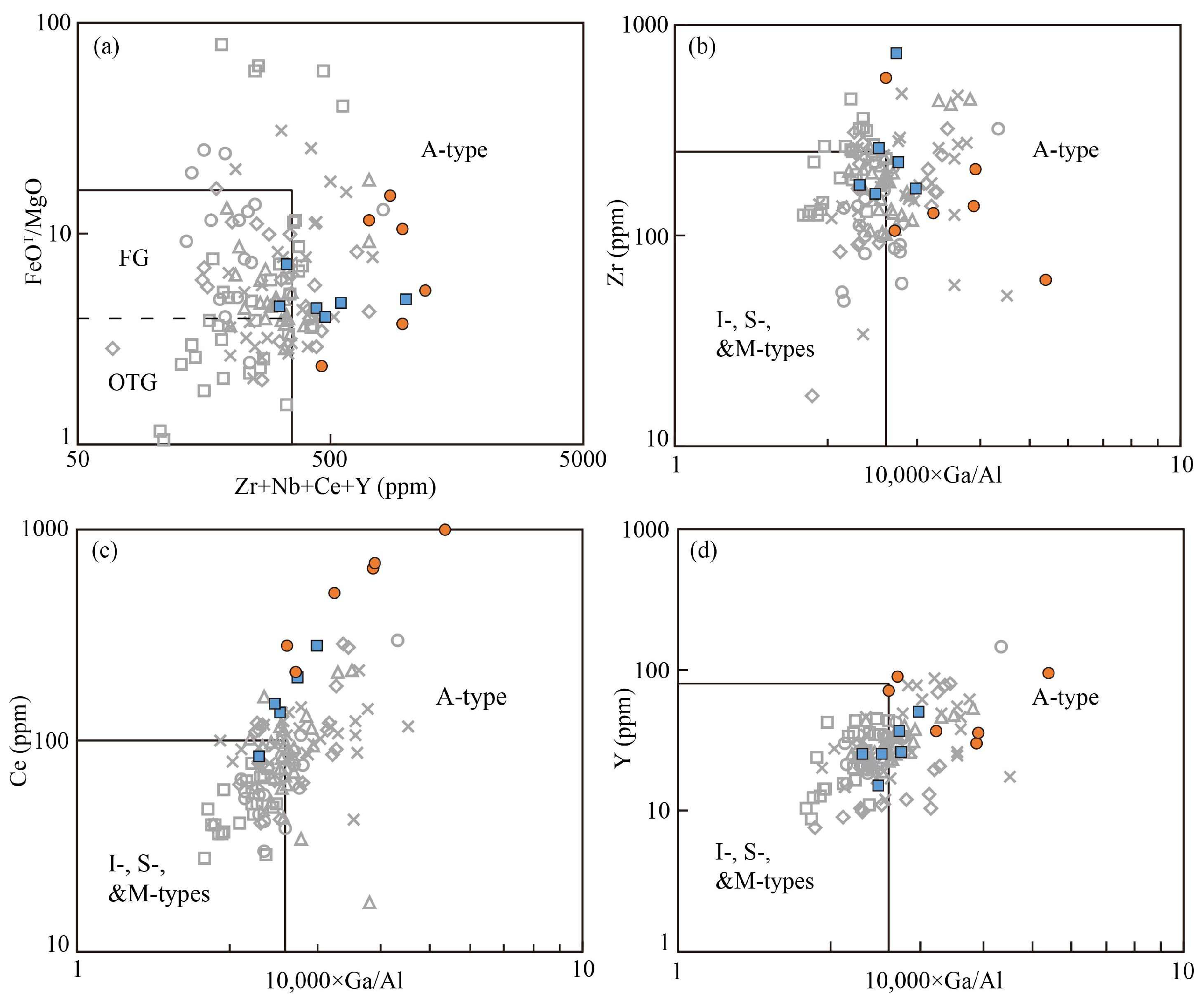

Figure 9. (a) (Zr + Nb + Ce + Y) vs. FeOT/MgO; (b) 10,000 × Ga/Al vs. Zr; (c) 10,000 × Ga/Al vs. Ce, and (d) 10,000 × Ga/Al vs. Y diagrams (after Whalen et al. [62]). Data of the South Qinling, Tongbai, Hong’an, Dabie, and Sulu orogens are from the same references as those in Figure 5. Legend symbols are the same as those in Figure 5.

Figure 9. (a) (Zr + Nb + Ce + Y) vs. FeOT/MgO; (b) 10,000 × Ga/Al vs. Zr; (c) 10,000 × Ga/Al vs. Ce, and (d) 10,000 × Ga/Al vs. Y diagrams (after Whalen et al. [62]). Data of the South Qinling, Tongbai, Hong’an, Dabie, and Sulu orogens are from the same references as those in Figure 5. Legend symbols are the same as those in Figure 5.

Generally, A-type granite has a high Th concentration, while S-type granite has a high U concentration, and I-type granite has a moderate concentration. Additionally, the Th/U valuse of A-type and I-type granites are generally greater than 1, while those of S-type granites may exhibit both Th/U > 1 and Th/U < 1. Therefore, the whole-rock Th and U contents of these samples can be used to distinguish granite types [63]. In the log (Ce/U) vs. log (Th/U) diagram, all the log (Ce/U) values of these samples are greater than −2, indicating that they are not S-type granite. In the Th vs. U diagram, all data points are located to the right of the Th/U = 1 line (Figure 10), indicating that the rock is not a S-type granite, but more in line with the characteristics of an A-type granite.

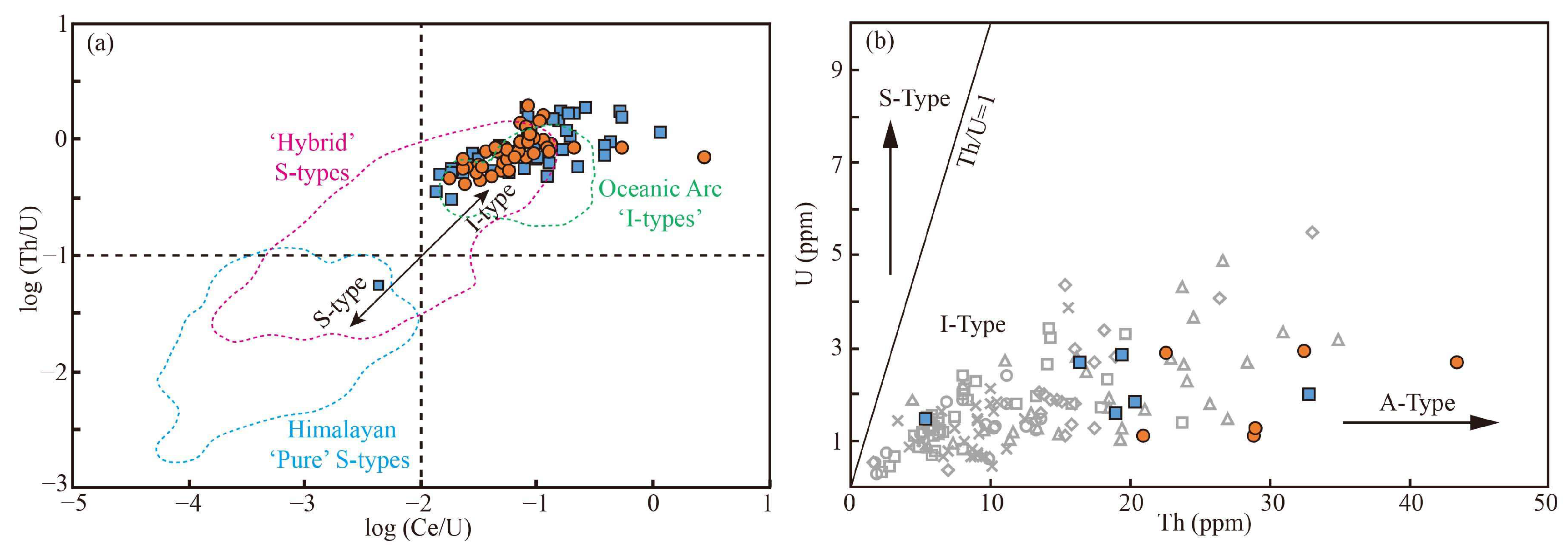

Figure 10. Diagram of (a) zircon log(Ce/U) vs. log(Th/U)(Ce/U) vs. log (after Roberts et al. [66]) and (b) whole rock Th vs. U concentrations (after Regelous et al. [63]). Data of the South Qinling, Tongbai, Hong’an, Dabie, and Sulu orogens are from the same references as those in Figure 5. Legend symbols are the same as those in Figure 5.

Figure 10. Diagram of (a) zircon log(Ce/U) vs. log(Th/U)(Ce/U) vs. log (after Roberts et al. [66]) and (b) whole rock Th vs. U concentrations (after Regelous et al. [63]). Data of the South Qinling, Tongbai, Hong’an, Dabie, and Sulu orogens are from the same references as those in Figure 5. Legend symbols are the same as those in Figure 5.

I-Type granite development was usually associated with subduction, while A-type granite is mainly produced in an intraplate tectonic or post-collisional setting [63,66]. The strong enrichment of large-ion lithophile elements (LILEs) and LREEs, as well as the negative anomalies of P and high-field-strength elements (HFSEs), is a common feature of the trace element distribution in the continental crust, typically indicating the geochemical characteristics of subduction-related magma [67]. The mid-Neoproterozoic magmatic rocks in the NDO exhibit strong LREE enrichment and P and HFSE (Ba and Nb) depletion, demonstrating the characteristics of arc-like magmatic rocks. Previous studies have also shown that the mid-Neoproterozoic granites, which serves as protolith of HP-UHP eclogites in the Dabie Orogen, were characterized by the coexistence of “arc-like” and “rift” magmatic rocks in geochemical features. It is a product of the remelting of crustal material from the former arc-like magmatic rocks in an extensional setting [23]. In the Y vs. Nb, and (Y + Nb) vs. Rb discrimination diagrams, these samples all fall into both the WPG and VAG field (Figure 11), indicating that they were formed in a post-collisional tectonic setting, which is consistent with the evolution history of the mid-Neoproterozoic rift activity that occurred in the northern Yangtze Block.

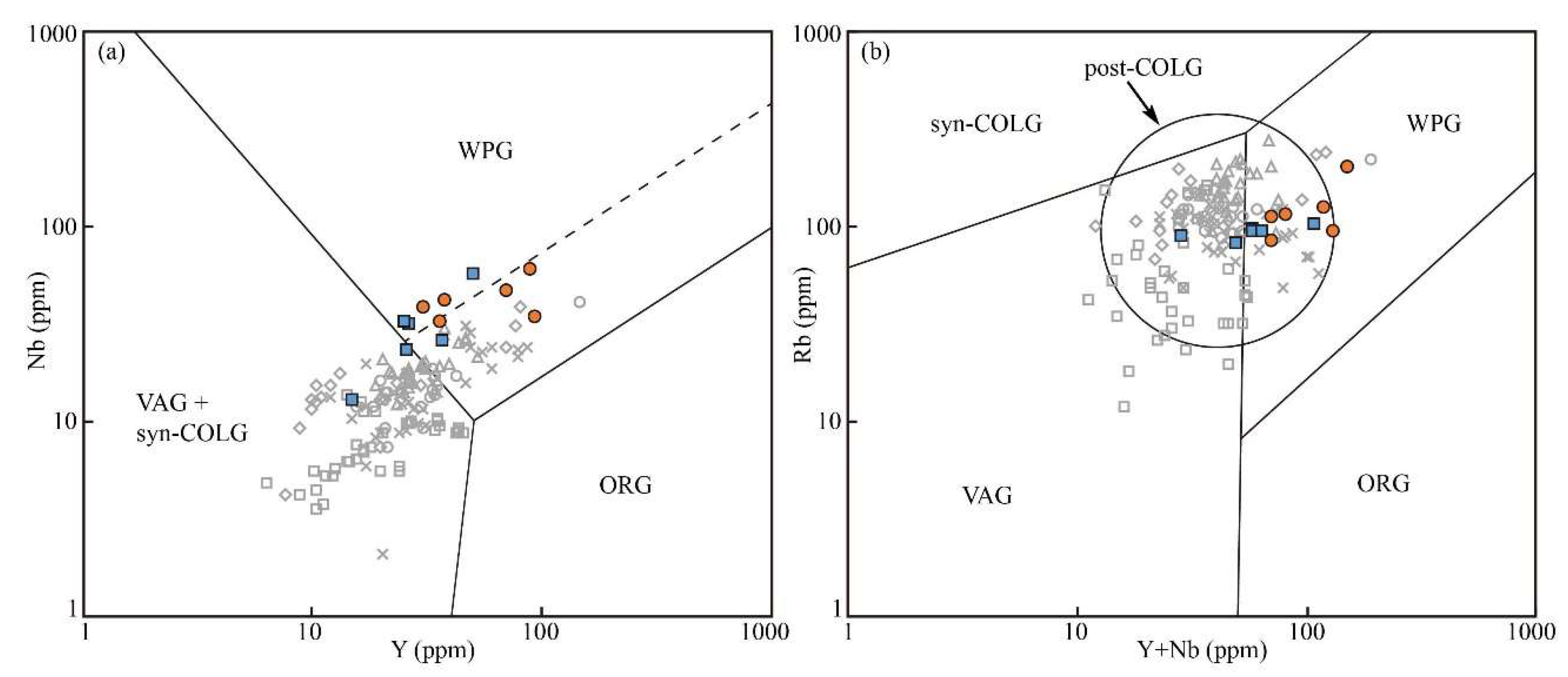

Figure 11. Y-Nb (a) and (Y+Nb)-Rb (b) discriminat diagrams for granitic gneisses in the NDO (after Pearce et al. [68]). Data of the South Qinling, Tongbai, Hong’an, Dabie, and Sulu orogens are from the same references as those in Figure 5. Legend symbols are the same as those in Figure 5.

Figure 11. Y-Nb (a) and (Y+Nb)-Rb (b) discriminat diagrams for granitic gneisses in the NDO (after Pearce et al. [68]). Data of the South Qinling, Tongbai, Hong’an, Dabie, and Sulu orogens are from the same references as those in Figure 5. Legend symbols are the same as those in Figure 5.

5.2. Implication for the Neoproterozoic Tectono-Magmatic Evolution

The diffusion rate of oxygen in zircon is very low [69]. Under metamorphic conditions from greenschist to low amphibolite facies, zircon is almost unaffected by hydrothermal alteration and metamorphism, effectively preserving its original oxygen isotope information. The δ¹⁸O value of the mantle is 5.3 ± 0.6 ‰. Rocks derived from the mantle exhibit an oxygen isotope ratio close to this value. The δ¹⁸O value of zircons crystallized from igneous rocks differentiated from mantle-derived magma is close to the δ¹⁸O value of the mantle. If the oxygen isotope ratio of magma is lower than this value, the production of magma may be result of crustal rocks that have undergone high-temperature hydrothermal alteration, which maybe occur between oceanic crust rocks and high-temperature seawater or between continental crust rocks and atmospheric precipitation [21]. The Luzhenguan Group on the NDO has mainly undergone low-amphibolite facies metamorphism, and its low δ¹⁸O values were usually explained by the high-temperature meteoric-hydrothermal alteration during Neoproterozoic syn-rift magmatism [5,21,22,31,70]. The development of inhomogeneous δ¹⁸O values within these magmatic rocks may be related to the heterogeneity of hydrothermal alterations at different scales.

The break-up of the Rodinia supercontinent caused extensive mid-Neoproterozoic magmatism in the Yangtze Block, which mainly from ~830 to 740 Ma [4,10,20,21,58]. The syn-rift magmatism in the Jiangnan Orogen, located on the southeastern flank of the Yangtze Block, mainly occurred at ~780 Ma, with positive zircon ε_Hf(t) values and two-stage Hf model ages ranging from 1.12 to 1.21 Ga and exhibiting trace element characteristics similar to those of arc-like magmatic rocks [6]. In the Dabie Orogen on the northeastern Yangtze Block, the syn-rift magmatism mainly occurred ~750 Ma [20,21,24,30]. The two-stage Hf model ages of mid-Neoproterozoic magmatic rocks with positive ε_Hf(t) values are mostly between 0.82 and 1.24 Ga, while the two-stage Hf model ages of those with negative ε_Hf(t) values are ~1.82 Ga [30]. Recently, mid-Neoproterozoic magmatic rocks with negative ε_Hf(t) values and two-stage Hf model ages of 2.3–1.8 Ga been discovered in the Dabie Orogen [53], as well as a large number of magmatic rocks formed in the Neoarchean–Paleoproterozoic [71,72,73]. This study shows that the mid-Neoproterozoic magmatic rocks on the NDO are characterized by negative ε_Hf(t) values and two-stage Hf model ages of ~1.8 Ga (Figure 6) and ε_Hf(t) values of ~−4.58 (Figure 4 and Figure 12), and these rocks may have been formed from the remelting of the juvenile crust related to the evolution of the Columbia supercontinent. The Zhangbaling tectonic belt [74,75] and the Sulu Orogen [55], both located on the northeastern Yangtze Block, are composed of developed mid-Neoproterozoic magmatic rocks formed by the remelting of the Neoarchean–Paleoproterozoic crust. Based on these results, it can be concluded that the formation mechanism of the mid-Neoproterozoic magmatic rocks in the northern Yangtze Block is more complex than that in the southeastern region. The subduction of the oceanic plate on the western and northern Yangtze Block at 1.3–1.1 Ma, resulting in the development of large-scale arc-like magmatic rocks and the growth of the juvenile crust. After a prolonged orogenic evolution period, the crust may have transformed into an intraplate extensional setting no later than 790 Ma [17,53,55]. After the subduction of the oceanic plate, a complex arc-continent collision occurred and resulted in the mixed development of the Neoarchean–Paleoproterozoic and late Mesoproterozoic crusts in the northern Yangtze Block. Eventually, magmatic rocks with different two-stage Hf model ages were formed during the mid-Neoproterozoic syn-rift magmatism.

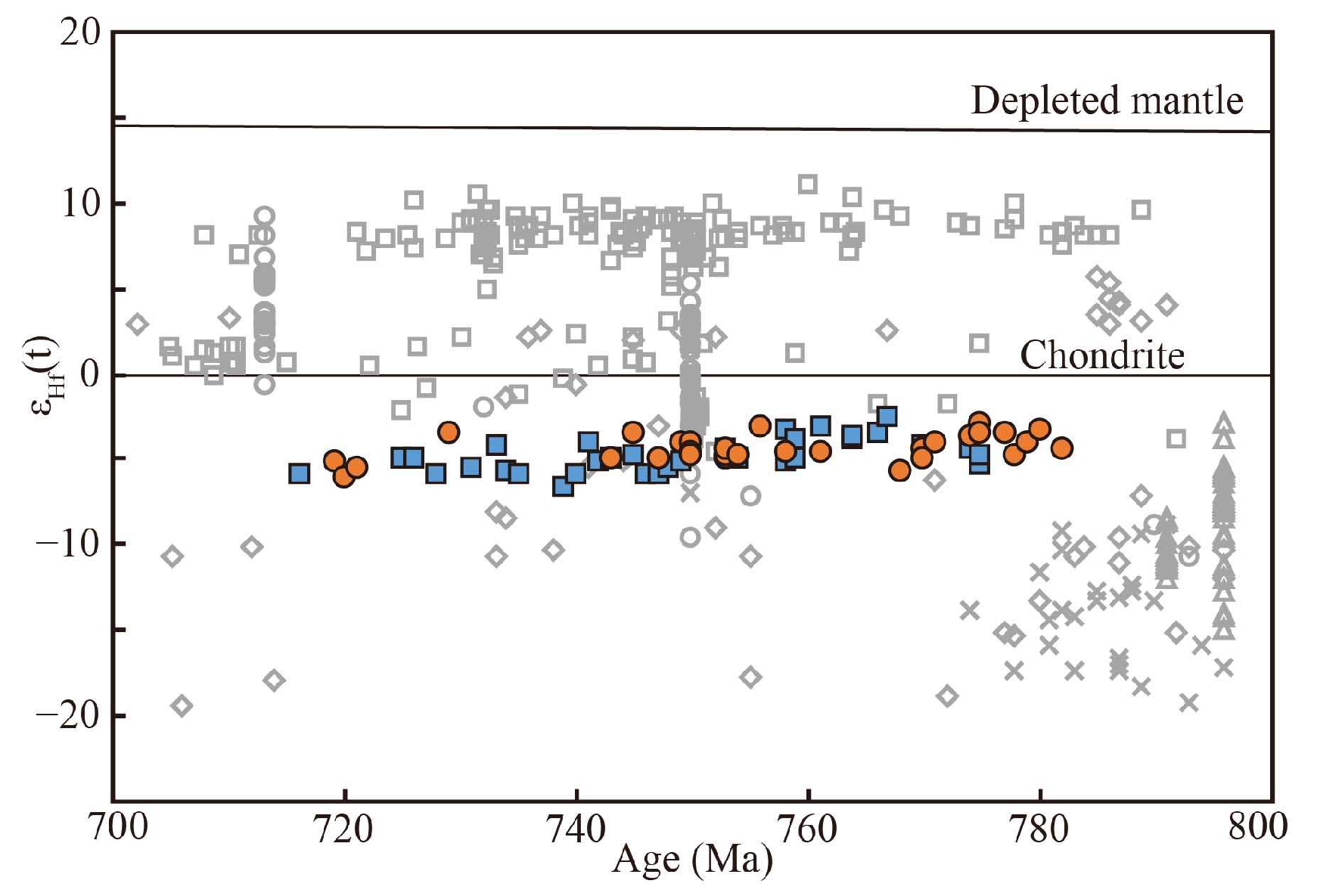

Figure 12. Summary of ε_Hf(t) data from the northern Yangtze Block. Data of the South Qinling are from Wu et al. [48], and the references therein. Data of the Tongbai Orogen are from Zhang et al. [76], and the references therein. Data of the Hong’an Orogen are from Xu et al. [51]. Data of the Dabie Orogen are from Zheng et al. [26,30] and Dai et al. [77]. Data of the Sulu Orogen are from He et al. [78], Zhao et al. [79], and the references therein. Legend symbols are the same as those in Figure 5.

Figure 12. Summary of ε_Hf(t) data from the northern Yangtze Block. Data of the South Qinling are from Wu et al. [48], and the references therein. Data of the Tongbai Orogen are from Zhang et al. [76], and the references therein. Data of the Hong’an Orogen are from Xu et al. [51]. Data of the Dabie Orogen are from Zheng et al. [26,30] and Dai et al. [77]. Data of the Sulu Orogen are from He et al. [78], Zhao et al. [79], and the references therein. Legend symbols are the same as those in Figure 5.

Although the mid-Neoproterozoic rocks in the northern Yangtze Block are formed by the remelting of rocks from different ages, they all exhibit the characteristics of a heterogeneous δ¹⁸O distribution [5,6,20,21,26,30,48,76,77,79,80], indicating that these low δ¹⁸O features may not have been inherited from the Neoarchean–Paleoproterozoic and late Mesoproterozoic crusts but are more likely to have been caused by the high-temperature meteoric-hydrothermal alteration during the syn-rift magmatism.

6. Conclusions

(1) The intrusion time of Neoproterozoic granitic and mafic rocks in the NDO is ~750 Ma, with ε_Hf(t) values ranging from −6.60 to −2.57 and a two-stage Hf model age of ~1.8 Ga, indicating that they were developed from the remelting of the Paleoproterozoic juvenile crust.

(2) Geochemical analysis shows that these mid-Neoproterozoic granitic rocks in the NDO are enriched in LREEs and depleted in HREEs, with (La/Yb)_N = 8.90–79.5. These rocks are enriched in La, Ce, Th, K, Zr, Nd, and Sm and depleted in Nb, Ta, P, Ti, and Sr, with negative Eu anomaly or no distinct Eu in the primitive mantle-normalized trace element diagram. These mid-Neoproterozoic granitic rocks are A-type granites displaying both arc-like and rift magmatism characteristics.

(3) The two-stage Hf model ages of mid-Neoproterozoic granitic rocks in the NDO are varied, indicating the remelting of rocks from different ages. However, these rocks all show a heterogeneous δ¹⁸O distribution, indicating that low δ¹⁸O content was likely resulted from the high-temperature meteoric-hydrothermal alteration during the syn-rift magmatism.
