Comparative Studies of Quaternary Ammonium Salts on the Aggregation and Dispersion Behavior of Kaolinite and Quartz

Abstract

Fine particles in the presence of flotation reagents exhibit different dispersion and aggregation behaviors in a mineral suspension, and affect the flotation separation processes. In this study, the effects of three quaternary ammonium salts (i.e., dodecyltrimethylammonium chloride (DTAC), tetradecyltrimethylammonium chloride (TTAC), and hexadecyltrimethylammonium chloride (CTAC)) on the dispersion and aggregation behaviors of kaolinite and quartz were studied. The mechanism was systematically investigated using sedimentation tests, reagent adsorption analysis, zeta potential measurements, and SEM analysis. In the absence of reagents, the kaolinite and quartz particles exhibited good aggregation behaviors at acid and neutral pHs compared with alkaline conditions. Except for CTAC, the presence of DTAC and TTAC improved the aggregation behavior of both minerals in neutral and alkaline conditions. More, the sedimentation yields of both minerals were increased significantly with increasing the concentration of DTAC and TTAC. However, the increasing concentration of CTAC resulted in an increase in the dispersion of kaolinite and quartz particles under the same conditions. At neutral and alkaline conditions, the zeta potentials and adsorbed amounts of all three salts on the mineral surfaces were increased significantly with increasing the concentrations of salts, and the adsorbed amount adopted the following sequence: CTAC > TTAC > DTAC. The zeta potential results showed that the stronger adsorption of quaternary ammonium salts on mineral surfaces at neutral and alkaline conditions was mainly because of electrostatic interactions.

1. Introduction

Kaolinite, as a valuable industrial mineral, plays an essential role in many advanced industries, such as papermaking [1,2], sewage treatment [3,4,5], biotechnology [6], pharmaceuticals, and cosmetics [7]. Quartz, which is one of the most abundant minerals in the Earth’s crust, can be used both as a bulk product (e.g., quartz sands in the glass or foundry industry) and as a high-tech material (e.g., piezo or optical quartz) [8,9]. At the same time, the research on kaolinite and quartz is also a very important prospect in mineral processing. However, in some natural materials such as coal [10], iron [11], and diasporic bauxite [12,13,14,15], kaolinite and quartz are considered gangue minerals, and are required to be removed in the early stage processes using appropriate methods.

So far, flotation is still the most recognized method for the separation of kaolinite and quartz from valuable minerals. During a flotation process, many kinds of interaction forces, such as Van der Waals force and electrostatic force, are involved, in which the mineral particles show different dispersion and aggregation behaviors. Previous research has showed that the pH of pulp plays a vital role in the dispersion and aggregation behaviors of fine kaolinite particles [16,17]. It was found that the basal plane and edge plane of the kaolinite particles strongly aggregated under acidic to neutral conditions. However, the basal plane and edge plane of the kaolinite particles showed dispersion under alkaline conditions. Taking advantage of atomic force microscopy (AFM), further research on the surface charged density of the silica and alumina surfaces of the kaolinite particles were conducted [17,18]. The aluminum–oxygen octahedron surface was found to be positively charged at pH <6 and negatively charged at pH >8, whereas, the silicon–oxygen tetrahedron surface remained negatively charged at pH >4. Mineral particles with the same charges repel each other, and particles with different charges attract each other; as a result, mineral particles in the flotation pulp show different aggregation or dispersion behavior in different pH conditions. In addition to pH, reagents added to the pulp system also have a significant effect on the aggregation and dispersion behavior of mineral particles. Rao et al., found that the kaolinite particles in an aqueous aluminum salt solution only coagulated at a medium AlCl₃ concentration, and formed a stable dispersion at a high salt concentration, which is mainly caused by the Stern-layer adsorption of hydrolyzed aluminum species on the kaolinite surface [19]. Lagaly and Ziesmer studied the coagulation of sodium montmorillonite dispersions by inorganic and organic cations, and the influence of some compounds of practical interest, such as phosphates, and cationic and anionic surfactants [20]. They found that coagulation mainly occurs between the negative edges and the negative face in most cases. Phosphates, polyphosphate, and tannate increased the edge charge density and changed the type of coagulation.

As far as the authors know, the aggregation and dispersion behavior of kaolinite and quartz in a quaternary ammonium cationic surfactant system has been rarely documented. Quaternary ammonium salts, with the structural feature of four alkyl groups attached to a central cationic nitrogen atom (R₄N⁺), are perpetually charged, regardless of the solution pH [21]. Therefore, as strong cationic surfactants, the properties of quaternary ammonium salts are almost unchanged in different solution conditions. However, the properties of quaternary ammonium salts with different carbon chain lengths are quite different. Our previous research has investigated the flotation behaviors of kaolinite in the presence of different quaternary ammonium salts, such as decyltrimethylammonium (103C), dodecyltrimethylammonium chloride (DTAC), tetradecyltrimethylammonium chloride (TTAC), and cetyltrimethylammonium chloride (CTAC) [22]. We found that, the longer the hydrocarbon chain of the surfactant, the more likely it was to be adsorbed by fine kaolinite particles, which led to a lower flotation recovery. However, the effect of quaternary ammonium salts on the aggregation and dispersion behavior of kaolinite has not been studied yet.

Kaolinite [Al₂O₃·2SiO₂·2H₂O] has a 1:1 structure, with a single layer of the crystal structure composed of an aluminum–oxygen octahedron and silicon–oxygen tetrahedron, with the adjacent layers held together by hydrogen bonding [23,24]. Quartz [SiO₂] is a lattice crystal composed of a silicon–oxygen tetrahedron, in which each silicon atom is connected with four oxygen atoms by four single bonds to form a silicon–oxygen tetrahedron [25]. On the one hand, the crystal structure of kaolinite and quartz has one thing in common, namely the silicon–oxygen tetrahedron. On the other hand, under a low pH, we found that the kaolinite particles were spontaneously aggregated, while the quartz particles were dispersed. Therefore, a comparative study on the dispersion and aggregation behavior of kaolinite and quartz has a certain guiding significance for the subsequent flotation. In this study, the dispersion and aggregation of typical silicon-containing minerals, kaolinite and quartz, under different quaternary ammonium salts were investigated. The adsorption mechanism of the quaternary ammonium cationic surfactants on these two kinds of mineral surfaces, together with the dispersion and aggregation behavior, are discussed.

2. Materials and Methods

2.1. Materials and Chemicals

The kaolinite and quartz samples were obtained from Xiaoyi in Shanxi Province and Donghai in Jiangsu Province, China, respectively. The samples were hand-picked, ground in a porcelain mill, and dry sieved through a 74-μm diameter screen, following by a wet sieve process through a screen with a 36-μm diameter. The undersize products were dried at a low temperature and bottled for future use. Chemical composition analysis and X-ray diffractometry (XRD) were conducted to examine the purity of the kaolinite and quartz. The results presented in

Table 1. Chemical composition of the purified sample (mass fraction, %).

Components	Al2O3	SiO2	Fe2O3	TiO2	CaO	MgO	K2O	Na2O	LOI a
Kaolinite	39.2	43.67	0.32	1.98	0.01	0.068	0.094	0.028	13.98
Quartz	0.77	94.95	0.01	0.01	0.04	0	0.01	0	3.47

^a Loss on ignition.

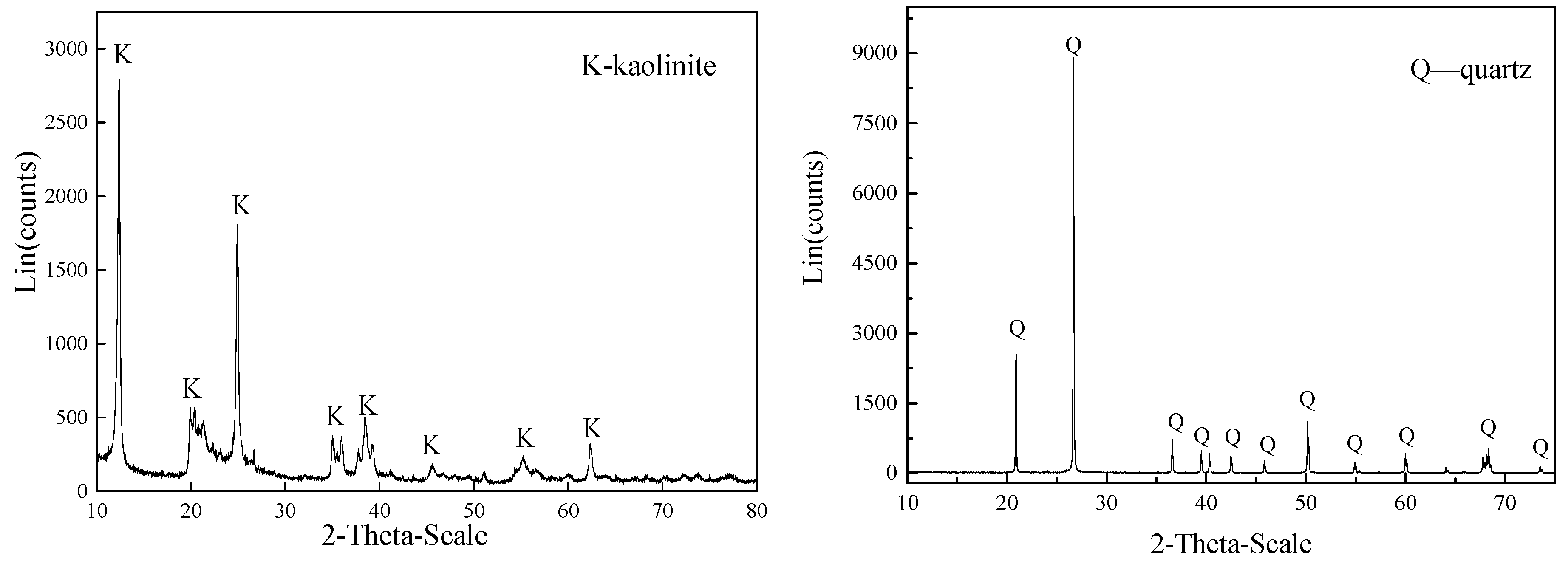

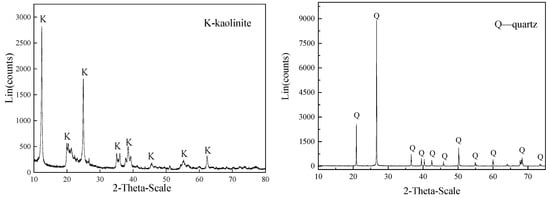

and Figure 1 show that the purity of the mineral samples was approximately 90%, which satisfied the experimental demands in this work.

The specifications of the three types of quaternary ammonium salts used in this work are shown in

Table 2. Specifications of the three types of quaternary ammonium salts.

Quaternary Ammonium Salts	Abbreviation	Molecular Formula	Weight Molecular	Carbon Chain Length
Dodecyltrimethylammonium chloride	DTAC	C12H25(CH3)3NCl	263.90	12
Tetradecyltrimethylammonium chloride	TTAC	C14H29(CH3)3NCl	291.94	14
Hexadecyltrimethylammonium chloride	CTAC	C16H33(CH3)3NCl	320.00	16

. The dodecyltrimethylammonium chloride (DTAC; C₁₂H₂₅(CH₃)₃NCl) and tetradecyltrimethylammonium chloride (TTAC; C₁₄H₂₉(CH₃)₃NCl) were purchased from Nanjing Robiot Co., Ltd., China. The hexadecyltrimethylammonium chloride (CTAC; C₁₆H₃₃(CH₃)₃NCl) was purchased from Sinopharm Chemical Reagent Co., Ltd., China. All of the reagents were in analytical grade.

2.2. Sedimentation Tests

In each of the tests, the ore samples (3 g), distilled water (150 mL), and the required reagents were added to a 250 mL beaker and agitated for 5 min using a magnetic stirring machine. Following the pH adjustment with a stirring time of 2 min, the desired reagent was added to the suspension and conditioned for an extra 2 min. Afterwards, the mixture was transferred to a 250 mL settling bottle, at which the required volume of the distilled water (250 mL) and pH was adjusted again. The bottle was inverted 10 times, and after being left to stand for 5 min, the supernatant was extracted using a siphon to reduce the settling height to 25 mm. After the pulp had been left to dry in the settling bottle, it was then weighed, and the sedimentation yield of the minerals was calculated according to Equation (1).

$$\mathsf{\gamma }=\left(m/M\right)\times 100\%,$$

(1)

where, γ (%) is the sedimentation yield, m (g) is the mass of mineral remained in the settling bottle, and M (g) is total mass of the mineral added into the bottle. Smaller values of γ indicate a greater dispersity, whereas, larger values indicate a smaller dispersity of the mineral.

2.3. Adsorbed Amount Measurements

The adsorption of quaternary ammonium salts on the mineral surface was determined by using total organic carbon (TOC) measurements (TOC-LCPH Analyzer, Shimadzu, Kyoto, Japan). For this, 2 g of a mineral sample was placed into the 200 mL plexiglass filled with 40 mL mixed surfactant solution whose concentration is known. The suspension was agitated for 40 min in a vapor-bathing vibrator, and then centrifuged at 9000 r/min for 30 min. Finally, the supernatant was collected for the TOC measurements. All of the TOC experiments were performed at 25 °C.

The results of the TOC measure were transferred to the molar concentration, and the adsorption of the quaternary ammonium salts on the mineral surface was calculated according to Equation (2).

$$\Gamma =\left(C_0-C\right)\cdot V/m,$$

(2)

where, $\Gamma$ is the adsorption $\left(\mathrm{mol}/\mathrm{g}\right)$, $C_{0 }\left(\mathrm{mol}/\mathrm{L}\right)$ and $C \left(\mathrm{mol}/\mathrm{L}\right)$ are the initial and supernatant concentration, respectively; $V \left(\mathrm{L}\right)$ is the volume of the solution; and $m \left(\mathrm{g}\right)$ is the mineral mass.

2.4. Zeta Potential Measurements

Zeta potential measurements were conducted using a zetasizer (Zetasizer Nano Z, Malvern Instruments Ltd., UK). Ore samples (0.06 g), with a particle size of less than 5 μm, and distilled water (50 mL), were added to a 100-mL beaker and stirred using a magnetic stirrer for 5 min. Following the pH adjustment by HCl or NaOH with a stirring time of 2 min, the desired reagent was added to the suspension and conditioned for an extra 2 min. After being left to settle for 5 min, a small amount of supernatant was drawn from the sample for the zeta potential measurements. Each measurement was repeated six times, and an average value was calculated from the data.

2.5. SEM Measurements

The morphology of the mineral samples before and after the adsorption of reagents was observed by scanning electron microscopy (Helios Nanolab 600, FEI Corporation, Hillsboro, Oregon, USA).

Ore samples (0.6 g) and distilled water (50 mL) were added to a 100-mL beaker and stirred using a magnetic stirrer for 5 min. Following the pH adjustment by HCl or NaOH with a stirring time of 2 min, the desired reagent was added to the suspension, and conditioned for extra 2 min. By using a syringe, 2.5 mL of the pulp was drawn from the mixture and diluted 20 times while maintaining a constant pH. One drop (diameter of ca. 5 mm) of the diluted solution was placed onto a glass slide using a 5 mL syringe. After the samples had dried, they were spray coated with a layer of platinum.

3. Results and Discussion

3.1. The Effect of Quaternary Ammonium Salts on Sedimentation Behavior of Kaolinite and Quartz

Different mineral particles possess different dispersion and aggregation behaviors that significantly affect their separation mechanism. For example, in the reverse flotation of bauxite, the dispersion and aggregation behavior of the pulp suspension plays a crucial role in the selective separation of silicate minerals [26]. Therefore, in this section, the sedimentation behaviors of kaolinite and quartz at different pHs, concentrations, and carbon chain lengths of quaternary ammonium salts were discussed.

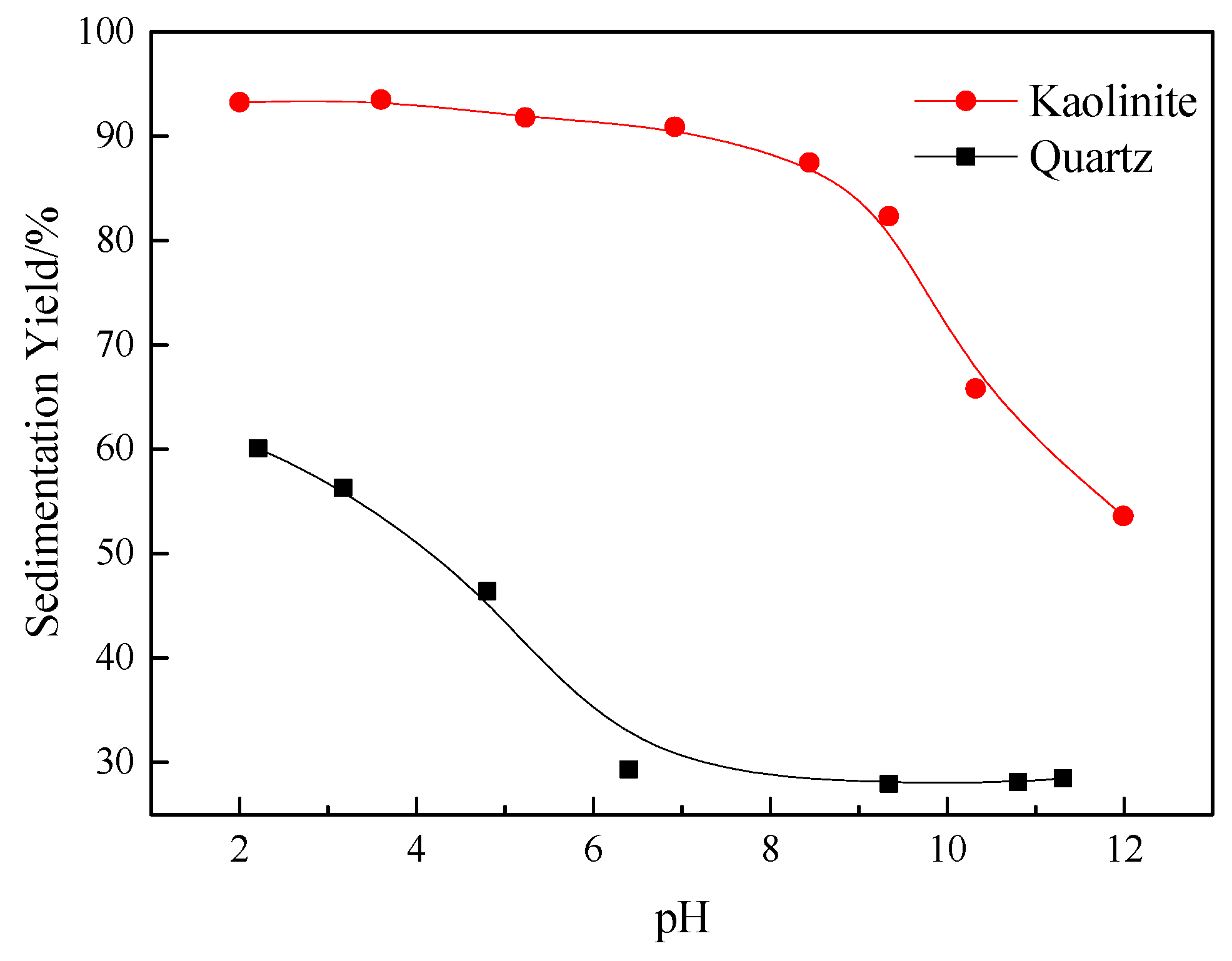

Figure 2 shows the effect of pH on the sedimentation and aggregation behaviors of kaolinite and quartz. As shown, the kaolinite particles exhibited a strong aggregation from an acid to natural pH, and their sedimentation yields were consistently above 90% in a wide pH range of 2–8. Compared with kaolinite, the sedimentation yields of the quartz particles were quite low, and decreased further from 60% to 25% when the solution pH was increased from 2 to 12. In alkaline conditions, both minerals exhibited dispersion behaviors; however, the quartz particles were dispersed significantly more than the kaolinite ones.

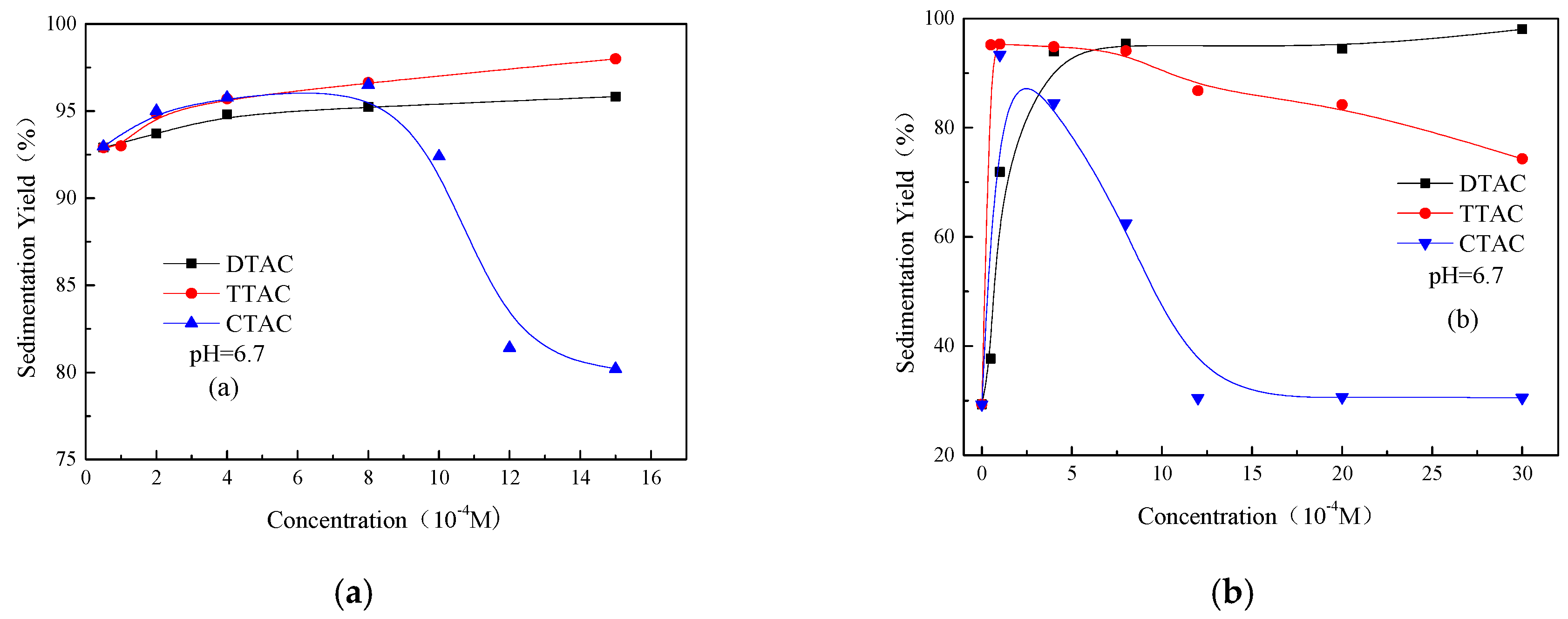

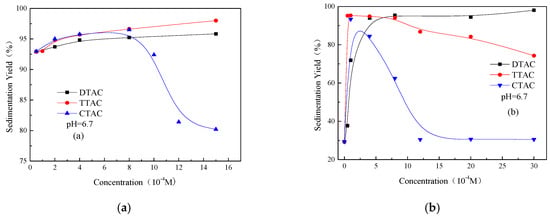

Figure 3 shows the effect of different concentrations of three quaternary ammonium salts on the sedimentation behavior of kaolinite and quartz at a nearly neutral condition (pH 6.7). As shown in Figure 3a, the increasing concentration of DTAC and TTAC continuously increased the sedimentation yields of the kaolinite particles, indicating that both surfactants had a better aggregation effect on kaolinite. However, TTAC exhibited a stronger aggregation effect than DTAC, the reason for which may be the longer carbon chain of TTAC in comparison to DTAC. CTAC, on the other hand, showed quite different sedimentation behavior from DTAC and TTAC. Firstly, kaolinite showed an increasing trend of sedimentation yields with the increasing concentration of CTAC from 0 to 8 × 10⁻⁴ M. However, as the concentration was increased from 8 × 10^-4 M, kaolinite exhibited a decreasing trend of sedimentation yields. This indicates a boundary from the aggregation to dispersion of the kaolinite particles.

As shown in Figure 3b, all of the three quaternary ammonium salts exhibited different effects on the quartz particles. The increasing concentration of DTAC increased and achieved stable sedimentation yields of quartz of greater than 90%. In the case of TTAC, sedimentation increased rapidly to a maximum value of 95%, after which it decreased gradually to 74%. The sedimentation yield of quartz increased with the increasing concentration of CTAC, and peaked at the concentration of 1 × 10⁻⁴ M. A further increase to 1.2 × 10⁻³ M resulted in a reduction to 27% where the quartz particles completely dispersed. These results indicate that under neutral conditions, quartz particles exhibited a strong aggregation at low concentrations of all three salts. When the concentration of TTAC and CTAC was increased beyond 1 × 10⁻⁴ M, the quartz particles gradually dispersed. Finally, CTAC exhibited stronger effects on the quartz particles than TTAC.

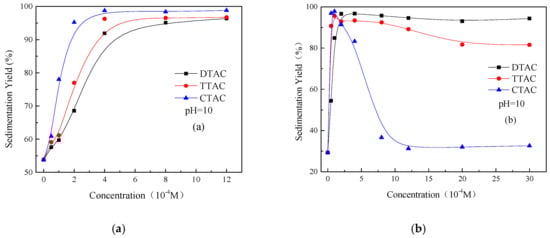

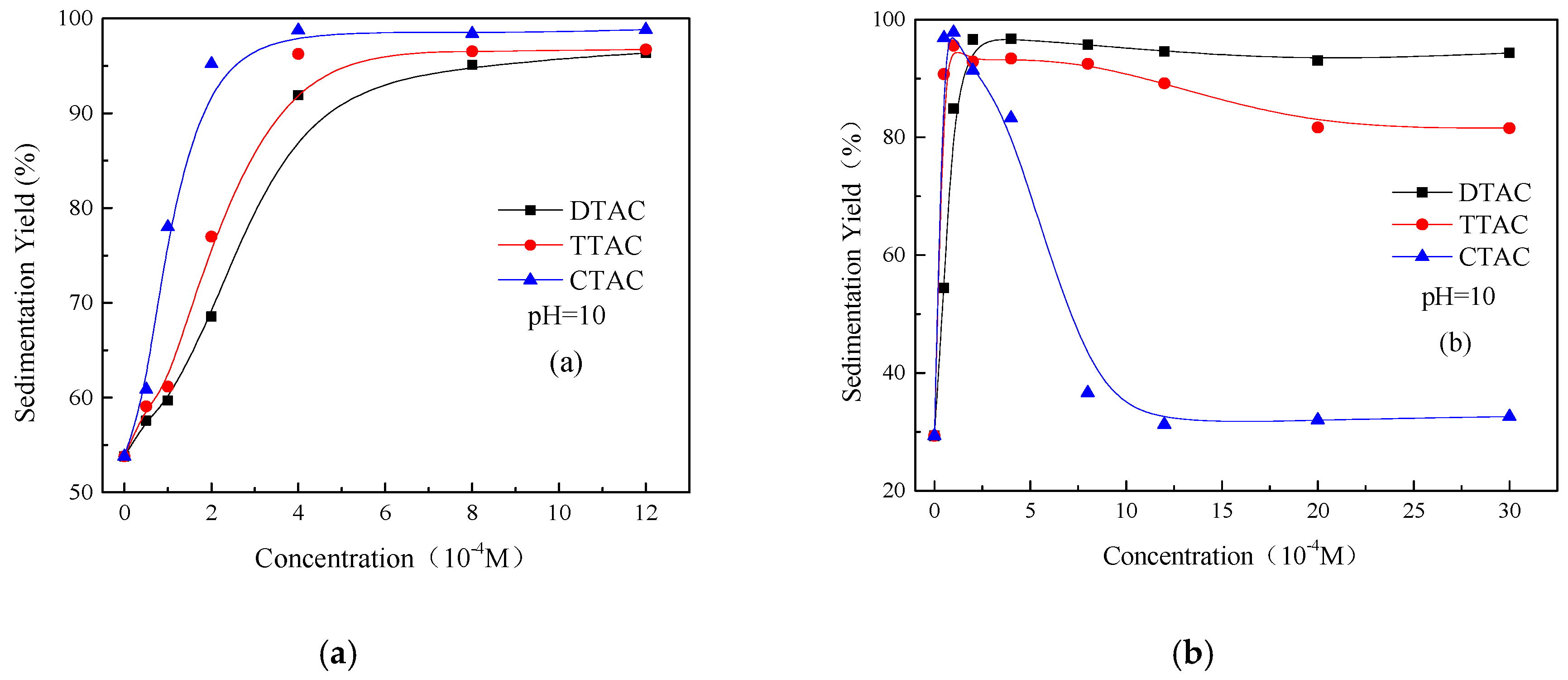

Figure 4 shows the effect of different concentrations of three quaternary ammonium salts on the sedimentation behavior of kaolinite and quartz at pH 10. As can be observed in Figure 4a, the sedimentation yield of the kaolinite particles was increased with the increasing concentration of all three of the quaternary ammonium salts. However, at a concentration above of 4 × 10⁻⁴ M, the sedimentation yield remained stable and unchanged. However, if the concentration is kept constant, the carbon chain length of the salts becomes the defining factor for the sedimentation yield of kaolinite, and can be placed in the following order of effectiveness: CTAC > TTAC > DTAC.

Figure 4b reveals that the influence of three quaternary ammonium salts on the dispersion and aggregation behaviors of quartz at pH 10 was the same as that observed at pH 6.7 (Figure 3b). However, compared to the results shown in Figure 3b, it can be observed that the concentrations of CTAC required for the complete dispersion were decreased from 1.2 × 10⁻³ M to 8 × 10⁻⁴ M. These results show that, at an alkaline pH, the quartz particles exhibited a strong aggregation, even at lower concentrations of DTAC. However, when the concentration of CTAC was reached at 8 × 10⁻⁴ M, the dispersity of the quartz showed a great improvement. Finally, the CTAC concentration required for the complete dispersion of the quartz particles was lower than that observed under neutral conditions.

3.2. Adsorption of Quaternary Ammonium Salts on Kaolinite and Quartz Surfaces

It is reported that the hemi-micelle theory is based on the adsorption of amine ions on the surface of quartz [27,28]. The adsorption model proposed by Somasundaran et al. is particularly successful in describing the adsorption of cationic surfactants on the surface of bauxite [29]. Their investigation divided the adsorption isotherm into four different regions (regions i–iv), where surfactants show different adsorption behaviors on mineral surfaces. In region (i), the surfactant in the form of a monomer is adsorbed by electrostatic attraction. In region (ii), the adsorption of the surfactants occurs in the form of hemi-micelle. In region (iii), the adsorption of surfactants on the surface of the minerals continues, and the adsorption of a second molecular layer gradually formed. Finally, in region (iv), that is, the stationary region of the adsorption isotherm, the surfactant on the surface of the mineral takes the form of a double layer adsorption.

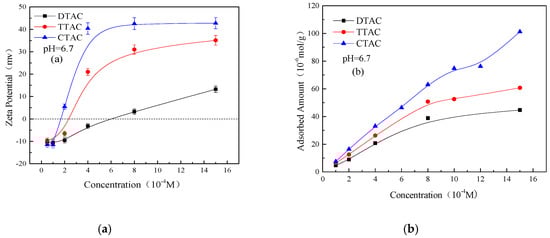

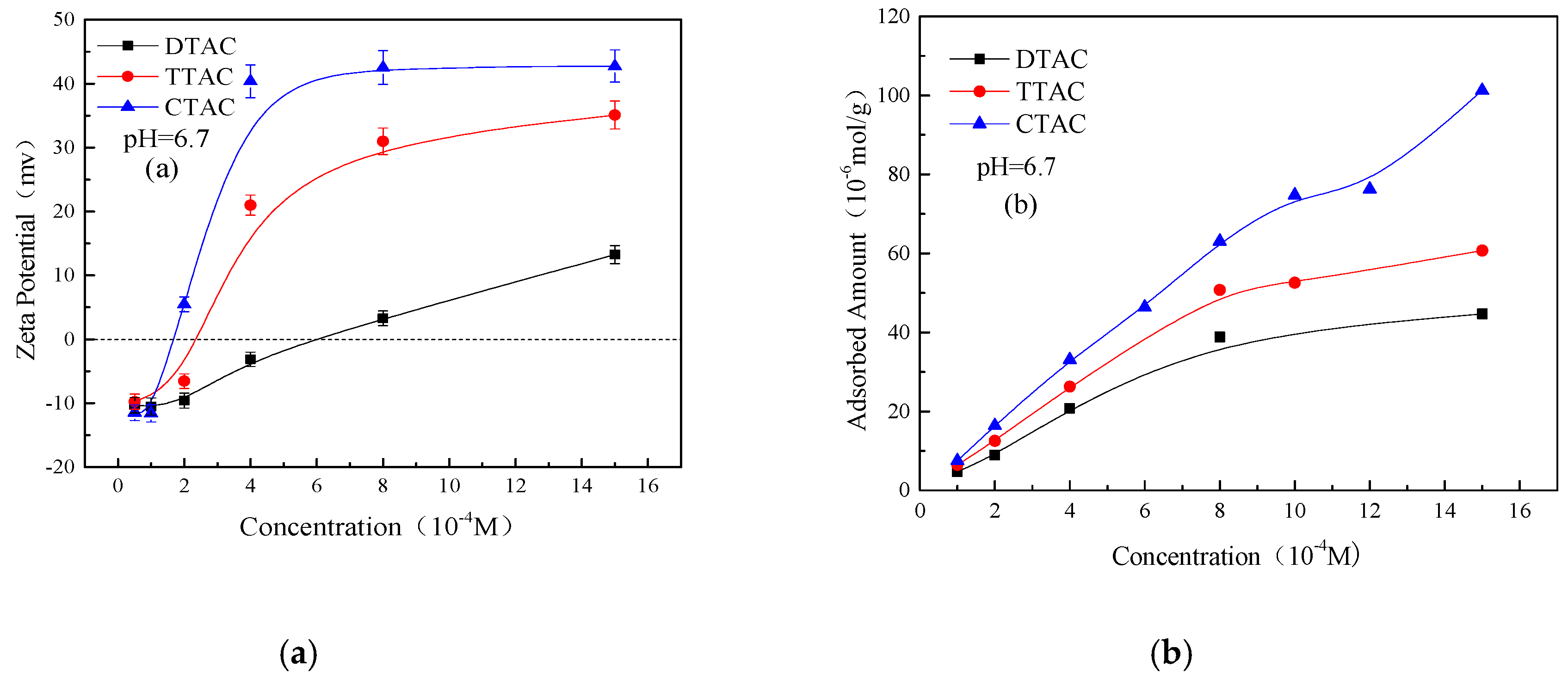

Figure 5 shows the Zeta potentials and adsorbed amounts on kaolinite surface as a function of the different concentrations of quaternary ammonium salts at a neutral pH. As can be noted, the adsorption amount analysis closely followed the Zeta potential measurements. The increasing concentration of all three salts increased the Zeta potentials of the kaolinite particles towards a more positive side. Similarly, the adsorbed amount of all three salts on the kaolinite surface was increased with increasing their concentration. Moreover, the adsorption affinity of the quaternary ammonium salts was closely related to the length of their carbon chain; the longer the carbon chain, the stronger the adsorption affinity.

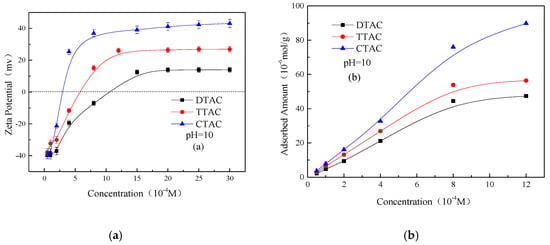

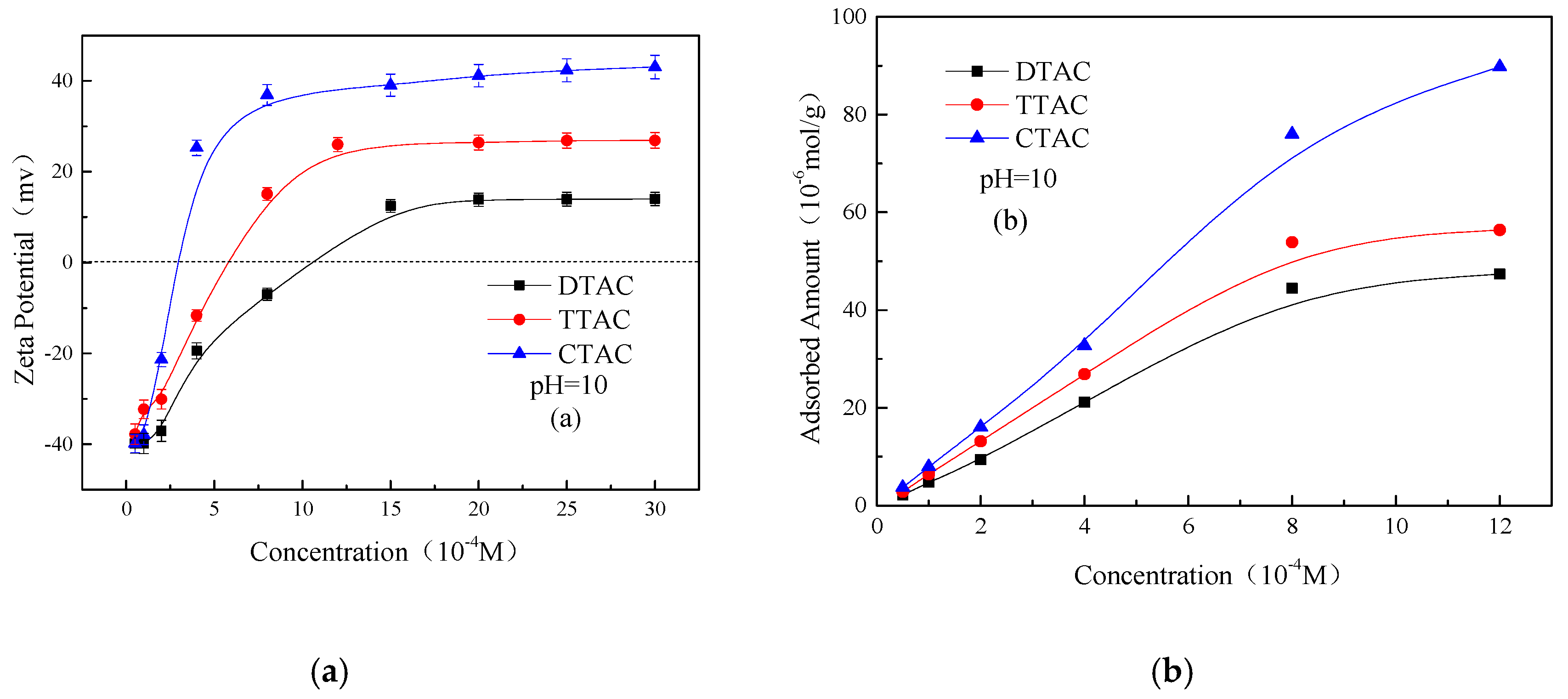

Figure 6 shows the Zeta potentials and adsorbed amounts on the kaolinite surface as a function of the different concentrations of quaternary ammonium salts at alkaline conditions. It can be observed, that the increasing concentration of all three salts increased both the Zeta potentials and their amount of adsorption on the surface of kaolinite. However, compared with neutral conditions (Figure 5a), the adsorbed amount of salts at alkaline conditions was much larger. The greater adsorption of salts at alkaline conditions was mainly due to the highly negative surface of kaolinite, while at neutral conditions, the kaolinite surface was positive, which electrostatically repulsed the surrounding salts.

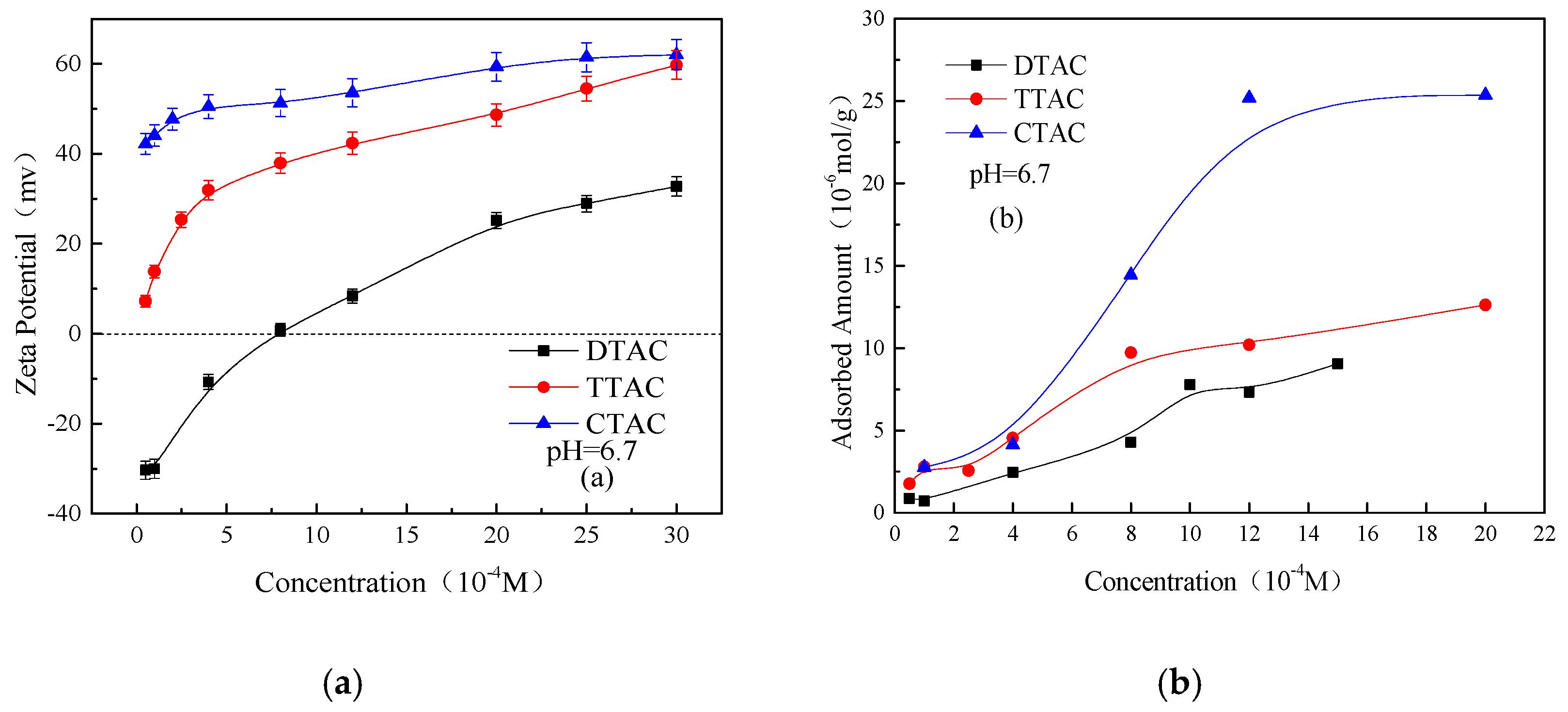

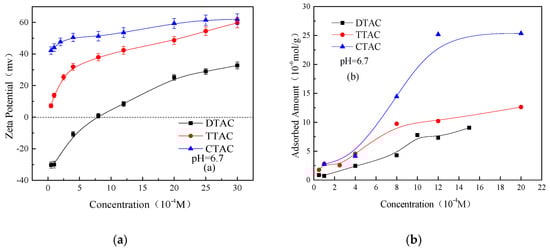

The Zeta potentials and adsorbed amount of salts on the quartz surface as a function of the different concentrations of quaternary ammonium salts at a neutral condition are shown in Figure 7. Both the Zeta potentials and adsorbed amounts of all three salts were increased significantly with increasing their concentrations, and the adsorbed amount adopted the following sequence: CTAC > TTAC > DTAC. Initially the adsorbed amount of salts on the quartz particles showed a rapid rise with the increasing concentration, and then exhibited a slower increase once the concentration was reached at 8 × 10⁻⁴ M. This indicates that the TTAC molecule layer began to form at a concentration of 8 × 10⁻⁴ M. The adsorbed amount of CTAC on the quartz surface increased rapidly and remained stable at concentrations >1.2 × 10⁻³ M, as did the sedimentation yield. This indicates that the CTAC molecule layer on the quartz had become saturated.

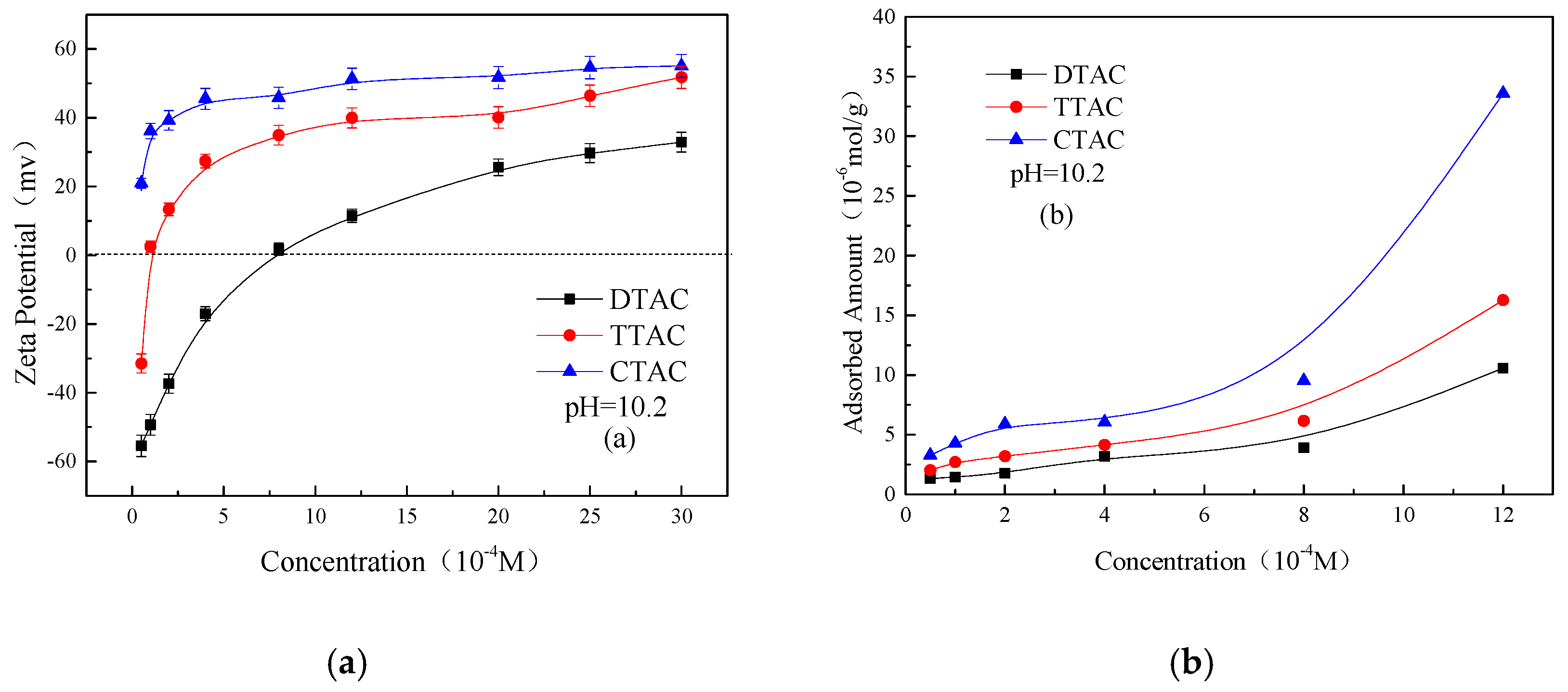

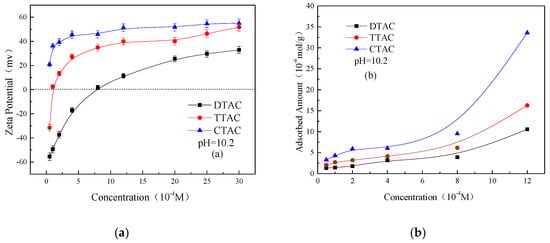

It is observed from Figure 8 that the alkaline samples showed a greater adsorbed amount in comparison to that of the neutral samples. This may be attributed to the highly negative surface of the quartz particles at an alkaline condition, which strengthens the electrostatic interactions between the quartz particles and quaternary ammonium salts.

3.3. SEM Image Analysis

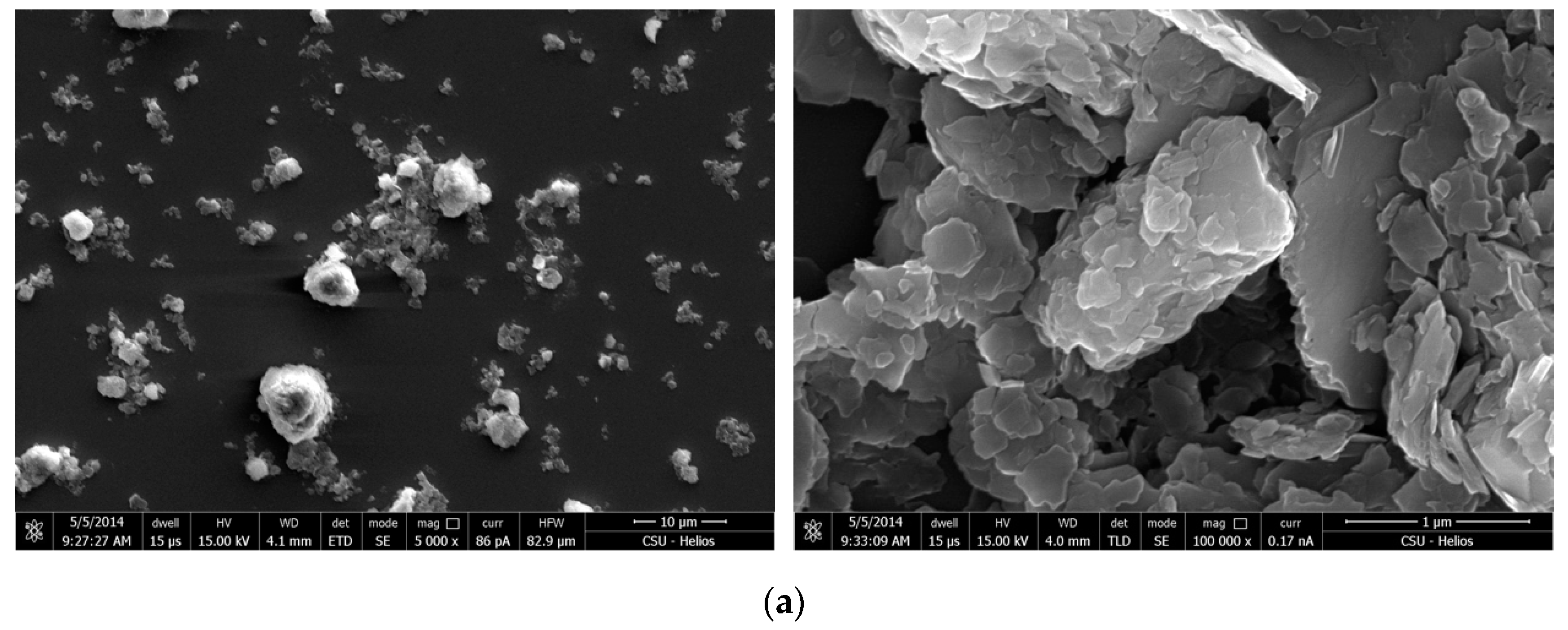

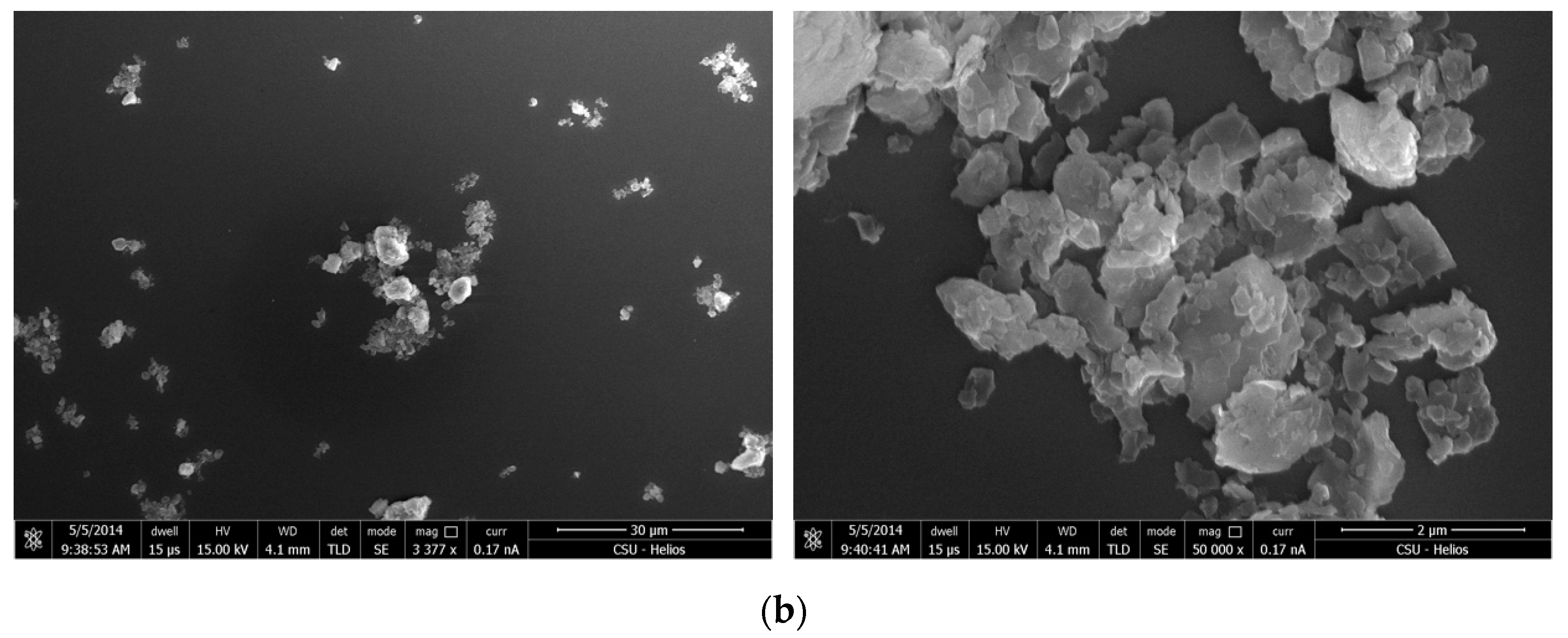

Figure 9 shows the SEM micrographs of kaolinite under neutral and acid conditions in the absence of ammonium salts. As shown in the micrographs, kaolinite exhibited a pronounced lamellar structure at acid conditions. Therefore, the strong aggregation of kaolinite at acid conditions was mainly due to the presence of a lamellar form, and the aggregation occurred from either the basal to basal plane, or the edge to basal plane. Figure 9b shows that the aggregation also occurred at neutral conditions; however, it was not as pronounced as that at the acidic samples. The kaolinite aggregates mainly occurred between the basal planes. Marek et al. proposed that nano-scale micro-bubbles existed on the hydrophobic surface of clay minerals, which was later confirmed by AFM [18,30,31]. Because of the existence of broken bonds at the edge of the surface, kaolinite may absorb on the micro-bubbles that present in the water. The bubbles create a bridging effect, which results in long-range hydrophobic attractions across the basal plane of the kaolinite structure and increases their aggregation.

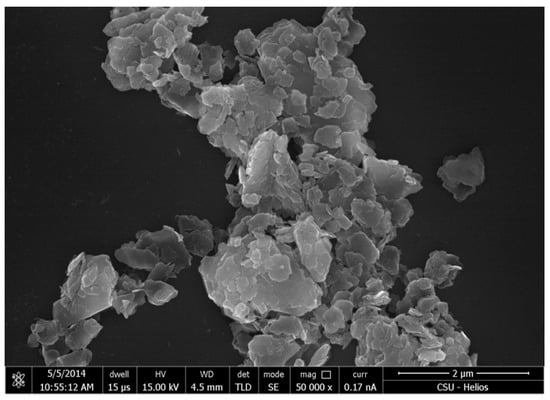

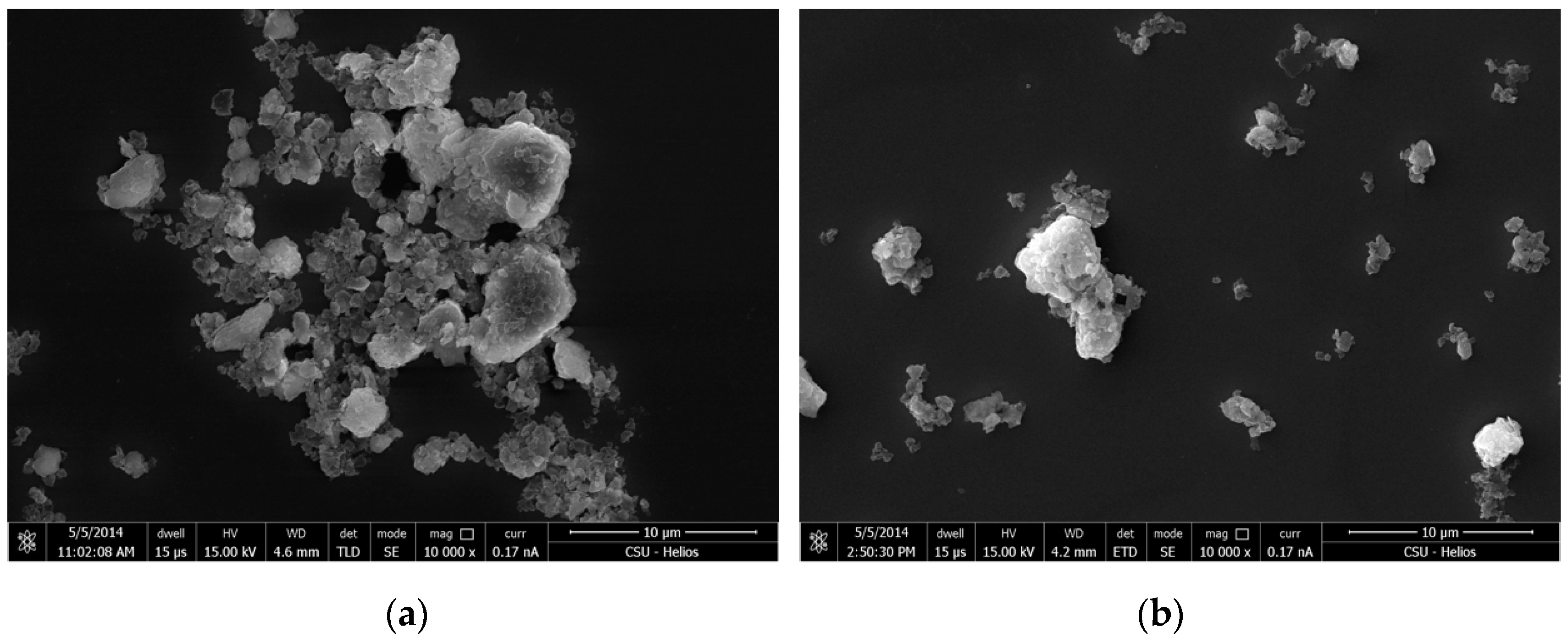

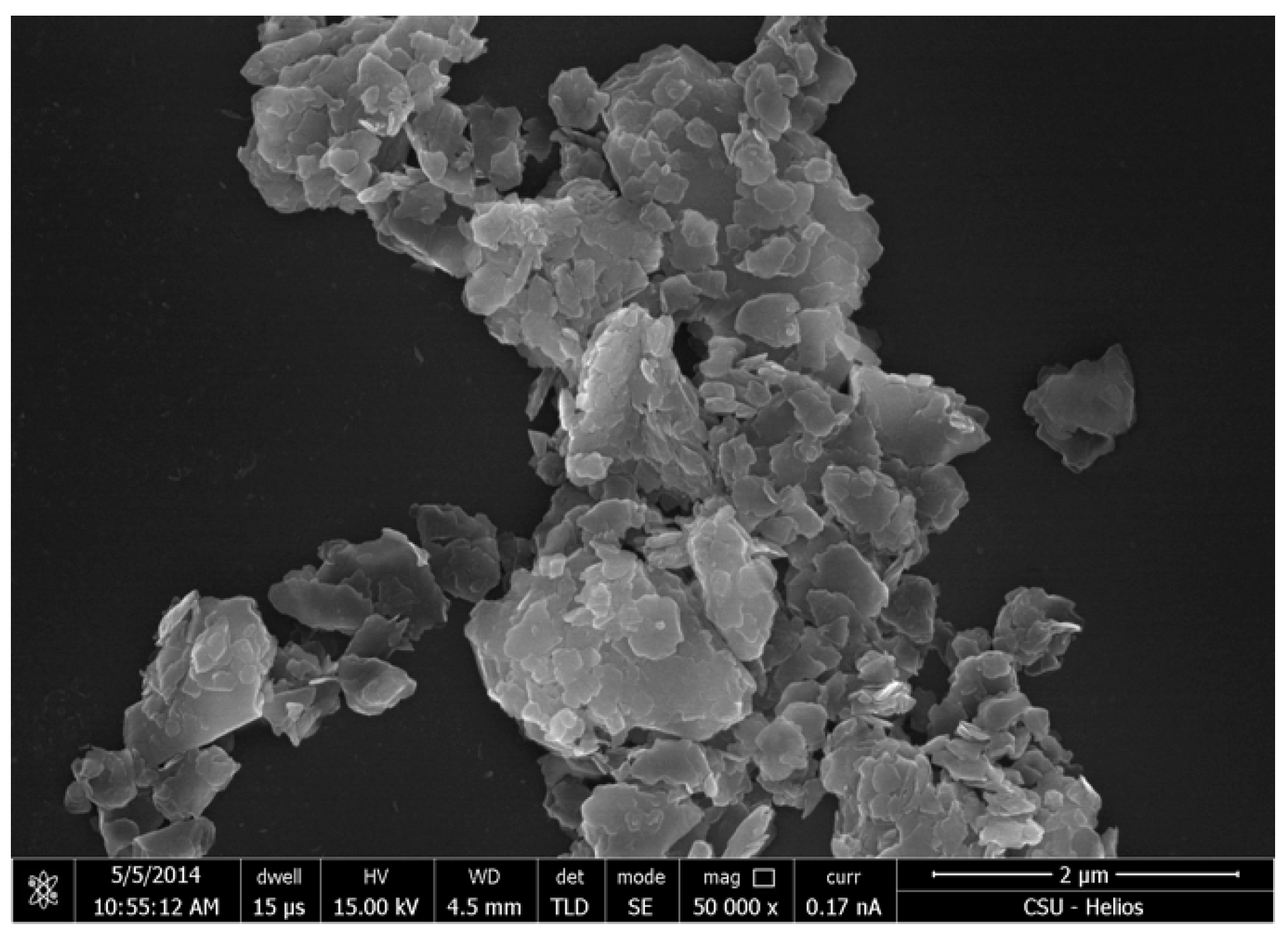

The SEM micrographs of kaolinite in the presence of quaternary ammonium salts at different pH conditions are shown in Figure 10, Figure 11 and Figure 12. As the aggregation occurred via the basal or edge planes of the kaolinite structure where the adsorption energy of quaternary ammonium salts on the (001) face is lower than that of the (00$\stackrel{\_}{1}$) face. Thus, the effect of the quaternary ammonium salts on the (001) face under the effect of special affinity can be seen from Figure 10.

The edge face of the kaolinite particles was negatively charged at neutral and alkaline conditions, and the quaternary ammonium salts adsorbed on the edge surface by electrostatic adsorption. Kaolinite formed aggregation between the edge planes via the interaction effects of their non-polar hydrocarbon chains (Figure 11a and Figure 12).

By comparing Figure 11a with 11b, it can be observed that the aggregation of the CTAC was smaller than that of DTAC at a concentration of 1.2 × 10⁻³ M. This may be a result of the double lay adsorption that occurred between CTAC on the kaolinite surface. Thus, the hydrophobicity of kaolinite decreased as the kaolinite particles began to disperse.

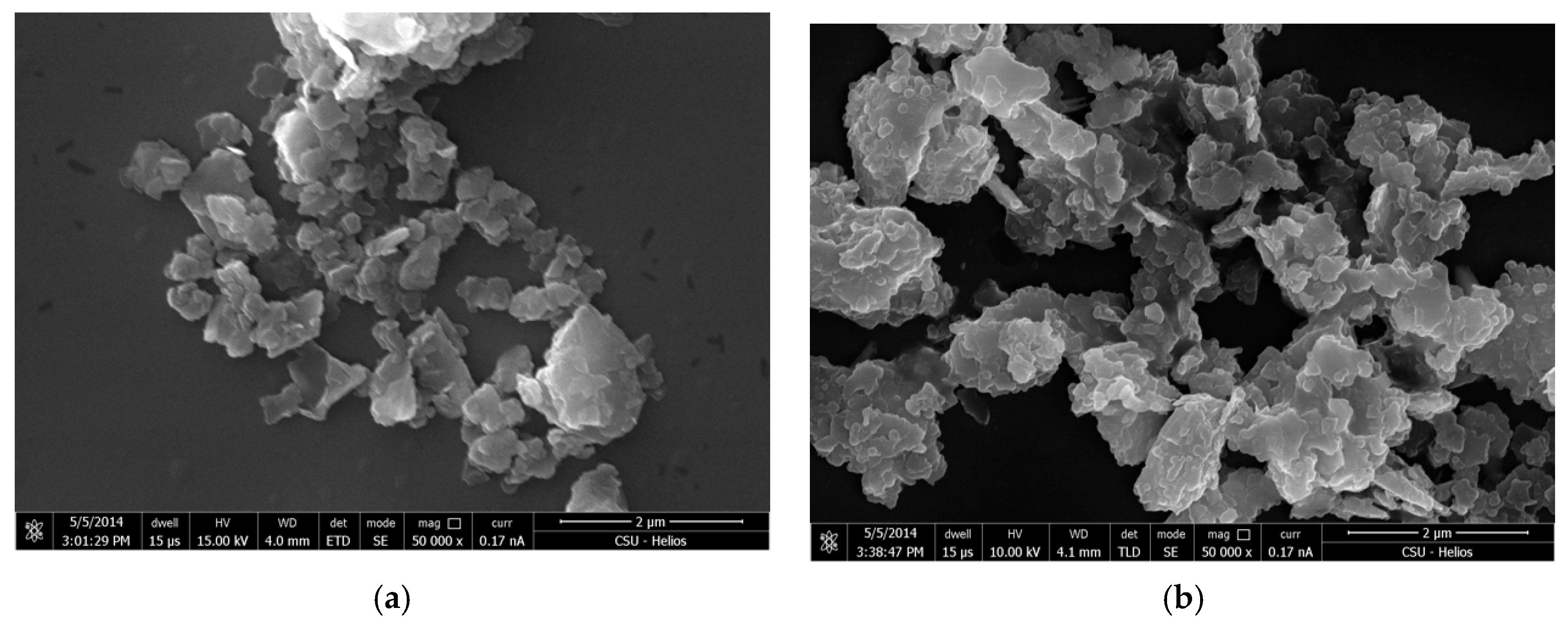

As shown in Figure 12, compared with CTAC, the aggregation of kaolinite with DTAC was not much more effective at alkaline conditions. The results indicate that the longer the quaternary ammonium carbon chain, the stronger the effect it had on the aggregation of kaolinite, as well as acting to increase the sedimentation yield of the kaolinite.

4. Conclusions

This research has systematically studied the effects of three quaternary ammonium salts (i.e., DTAC, TTAC, and CTAC) on the aggregation and dispersion behaviors of kaolinite and quartz. The main outcomes can be described as follows:

(1)

In the absence of reagents, the kaolinite particles showed an improved aggregation behavior in neutral and acid conditions, at which the sedimentation yield of kaolinite was over 90%. Under the same experimental conditions, the quartz particles exhibited a comparatively lower aggregation behavior, and their sedimentation yield was less than 60%.

(2)

Except for CTAC, the additions of DTAC and TTAC increased the aggregation of the kaolinite and quartz particles in neutral and alkaline conditions. The aggregation yields of both minerals were increased significantly with the increasing the concentration of DTAC and TTAC. However, under the same conditions, the increasing concentration of CTAC resulted in an increase in the dispersion of kaolinite and quartz particles.

(3)

In neutral and alkaline conditions, increasing the concentration of the quaternary ammonium salts increased the Zeta potentials as well as the adsorbed amounts of all three salts on the two minerals. Moreover, the effect of CTAC on the adsorption amounts and Zeta potentials of two minerals was much greater than those of DTAC and TTAC. The greater affinity of CTAC towards the minerals was mainly due to its longer carbon chain compared to that of DTAC and TTAC; the longer the carbon chain, the greater the effect on the Zeta potential and adsorbed amount on the kaolinite and quartz surface.

(4)

The aggregation of kaolinite and quartz particles in the presence of quaternary ammonium salts mainly occurred either from basal to basal, or basal to edge planes in acidic conditions, whereas that in alkaline and neutral conditions mainly occurred between the basal planes.
