Effects of High-Order Simulations on the Simultaneous Stochastic Optimization of Mining Complexes

COSMO—Stochastic Mine Planning Laboratory, Department of Mining and Materials Engineering, McGill University, Montreal, QC H3A 0E8, Canada
*
Authors to whom correspondence should be addressed.
Minerals 2019, 9(4), 210; https://doi.org/10.3390/min9040210
Received: 19 February 2019 / Revised: 24 March 2019 / Accepted: 26 March 2019 / Published: 31 March 2019
  |
PDF [4829 KB, uploaded 31 March 2019]
  |

Abstract

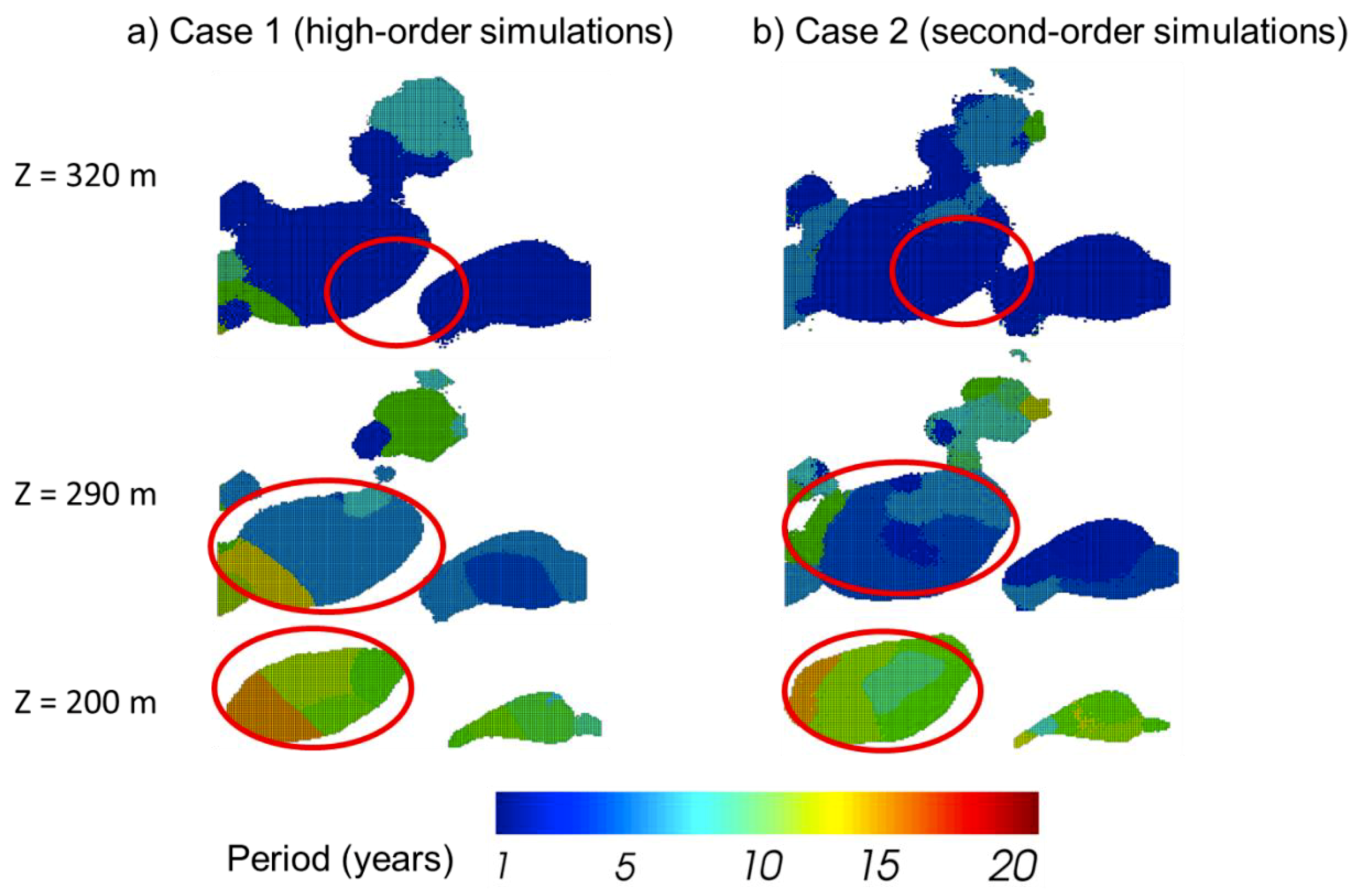

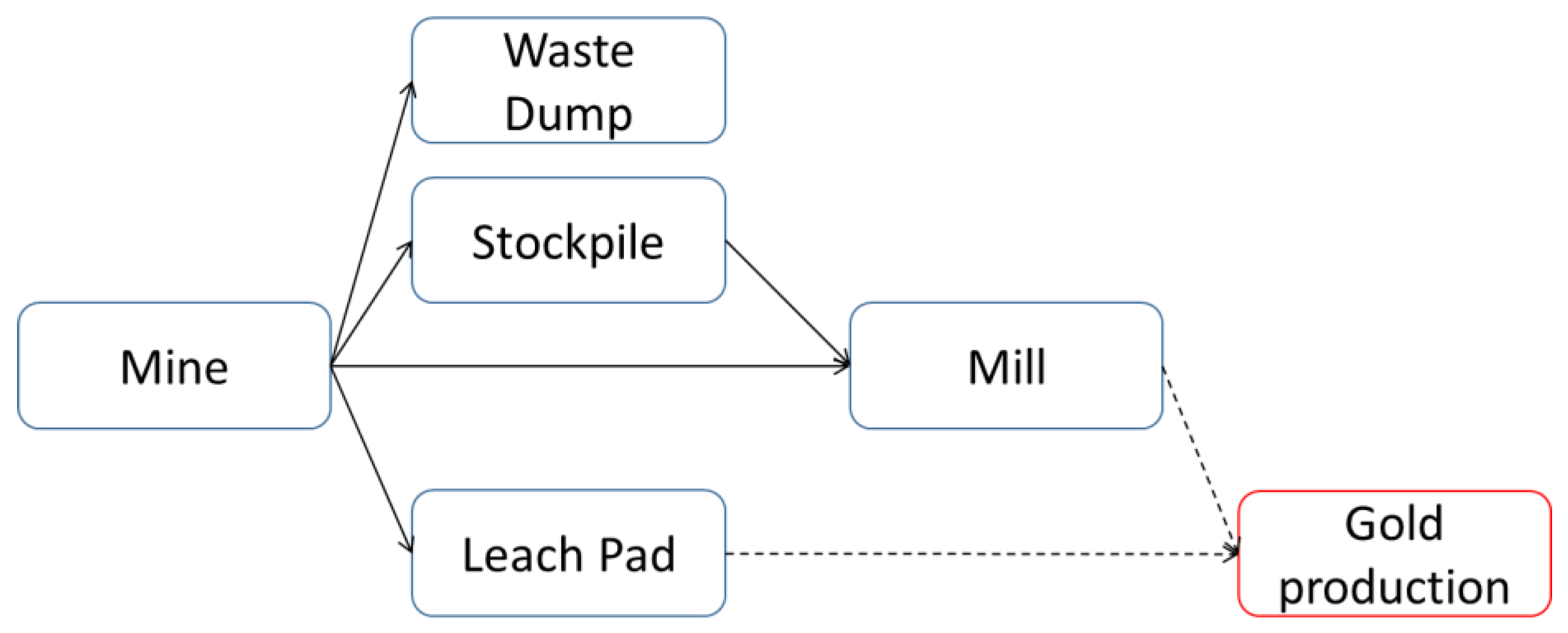

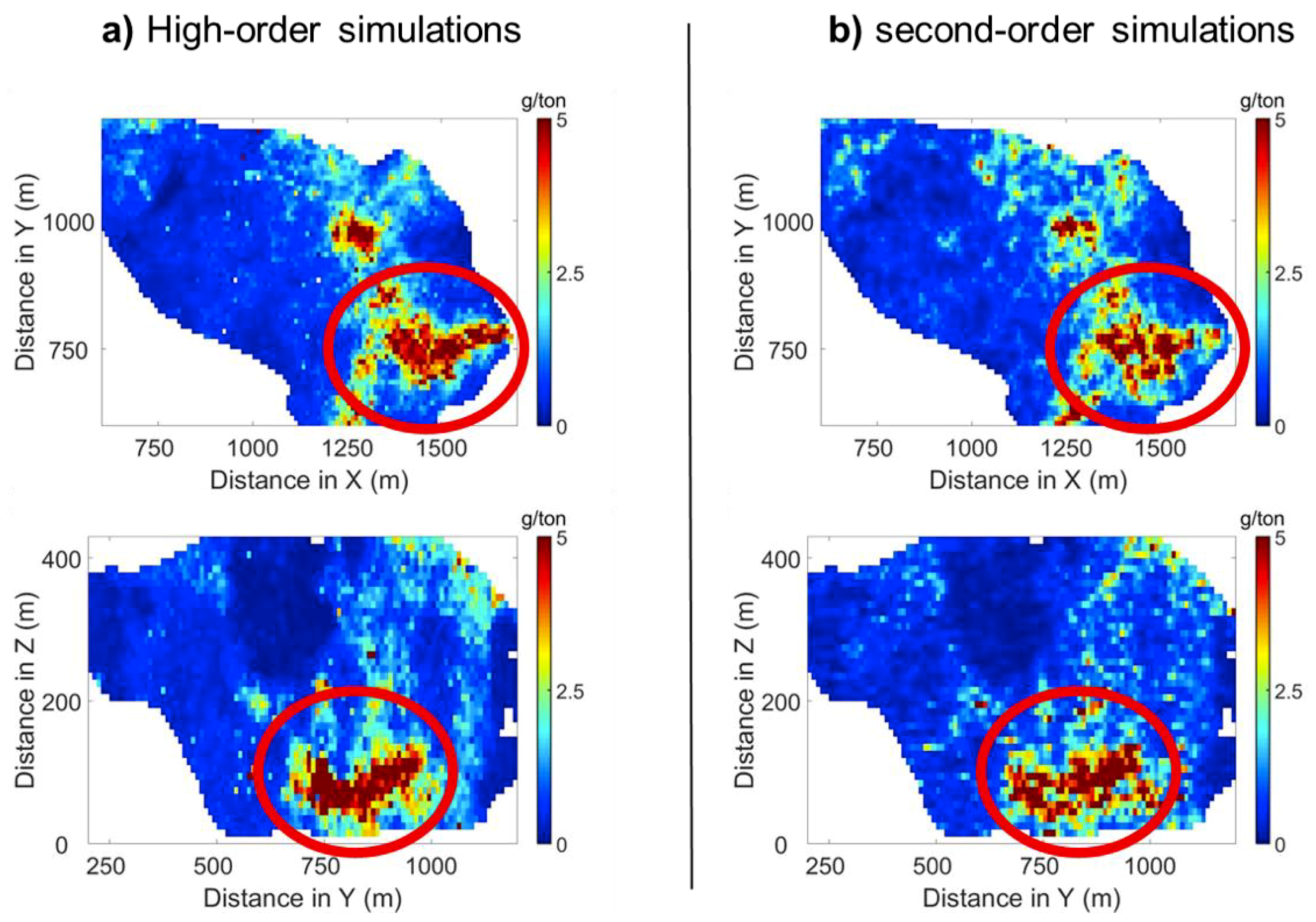

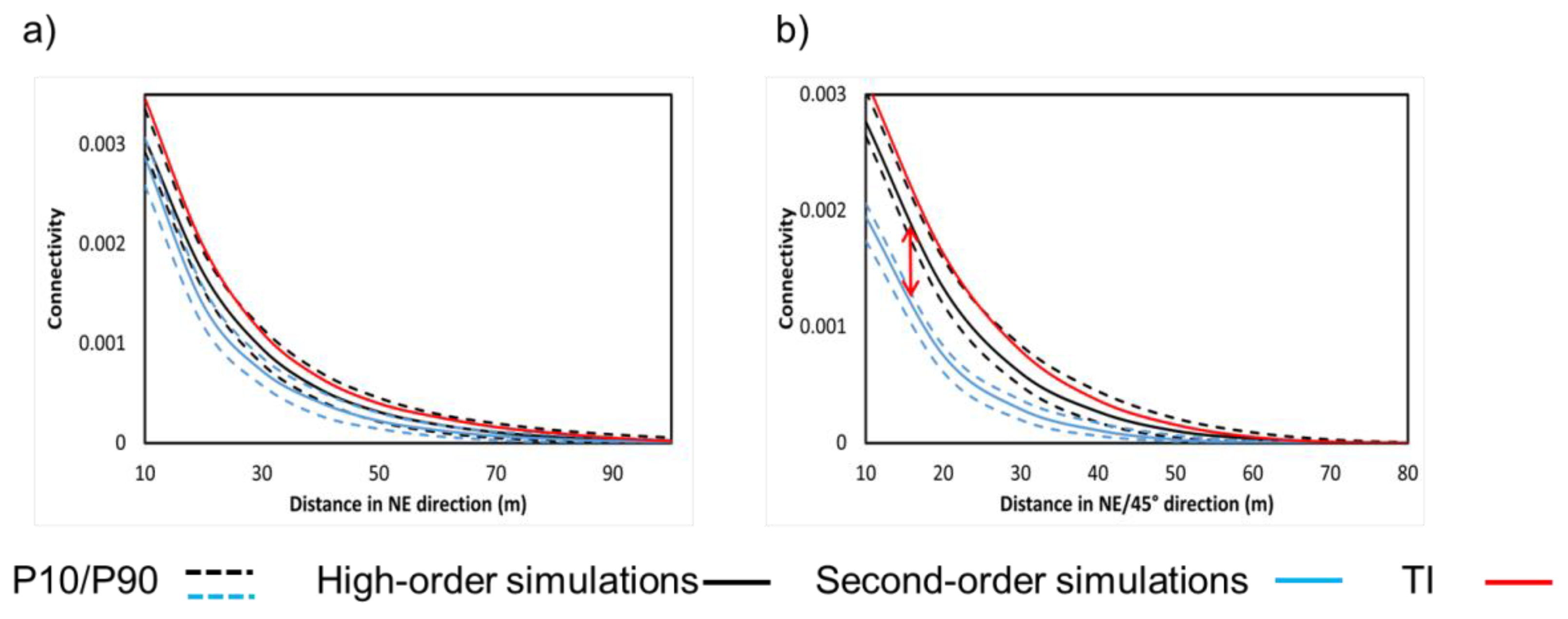

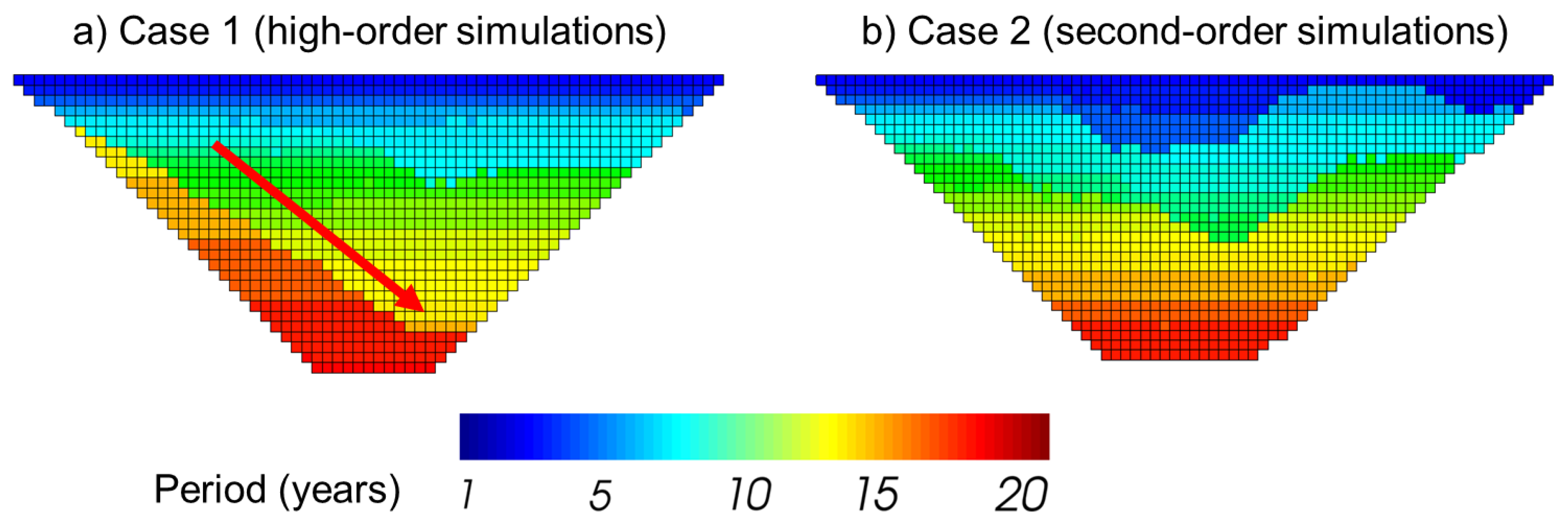

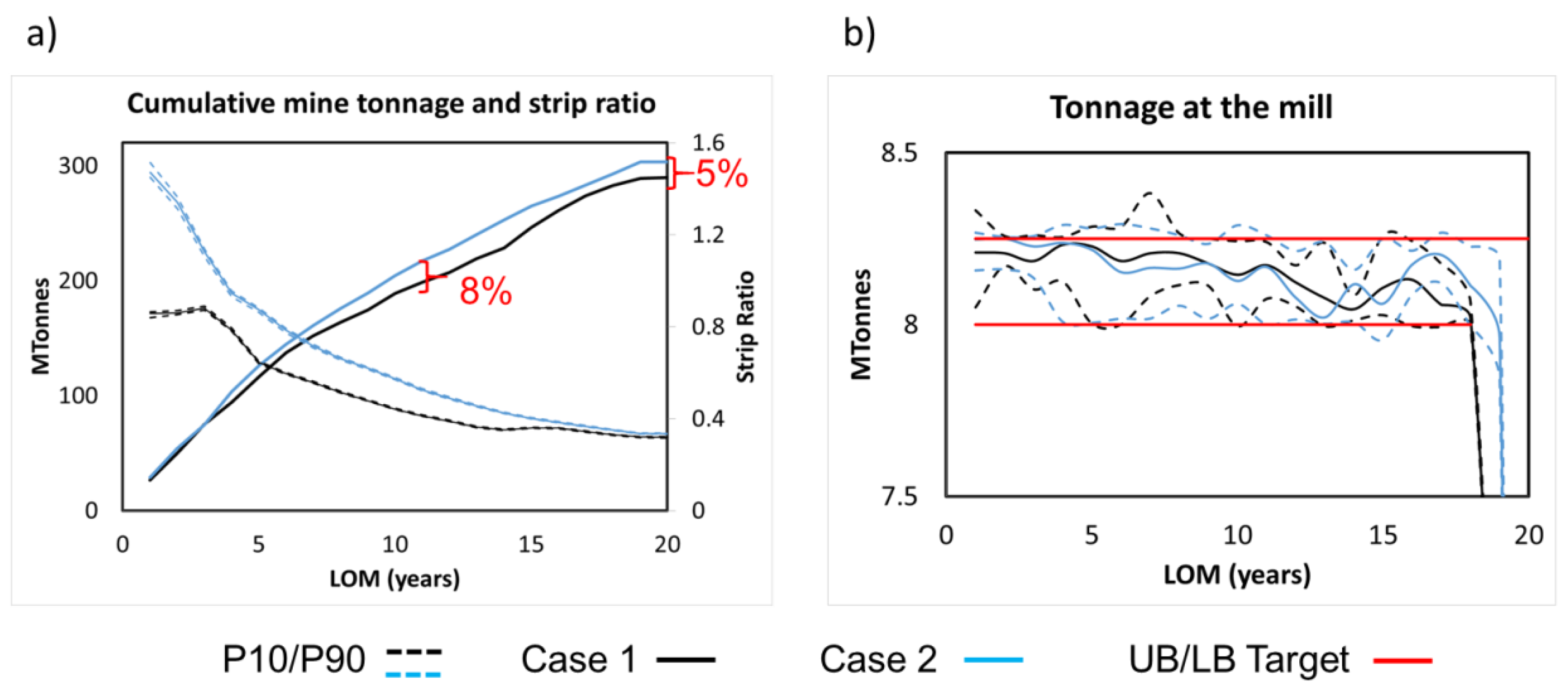

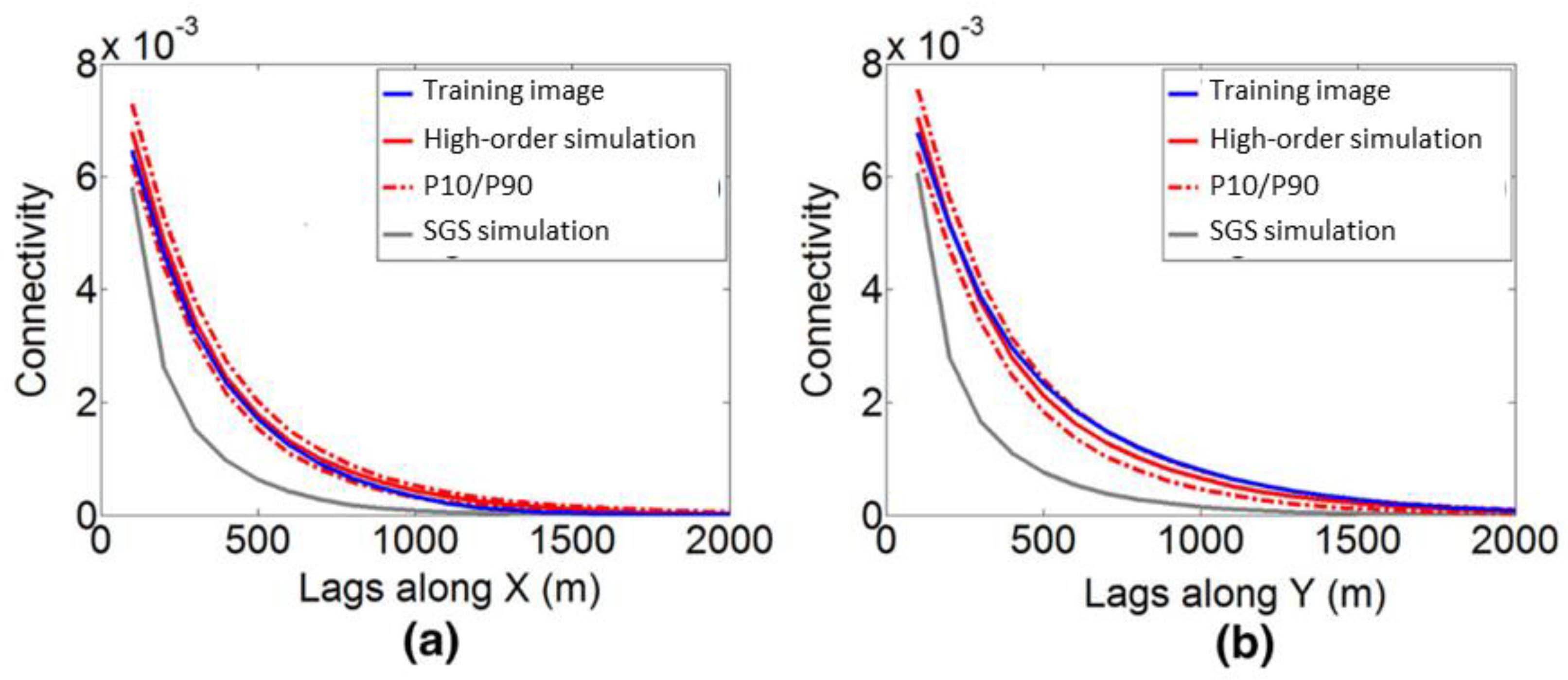

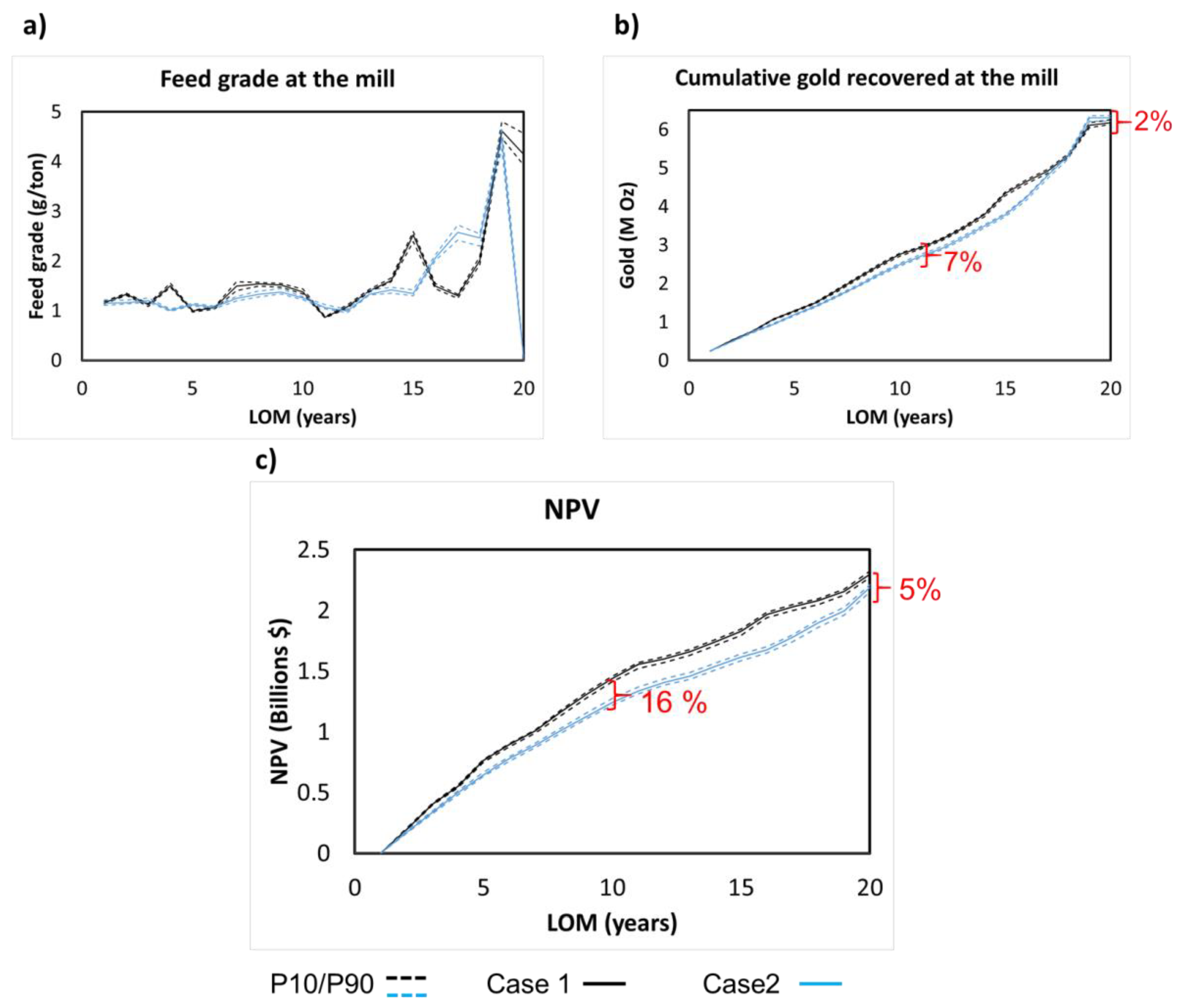

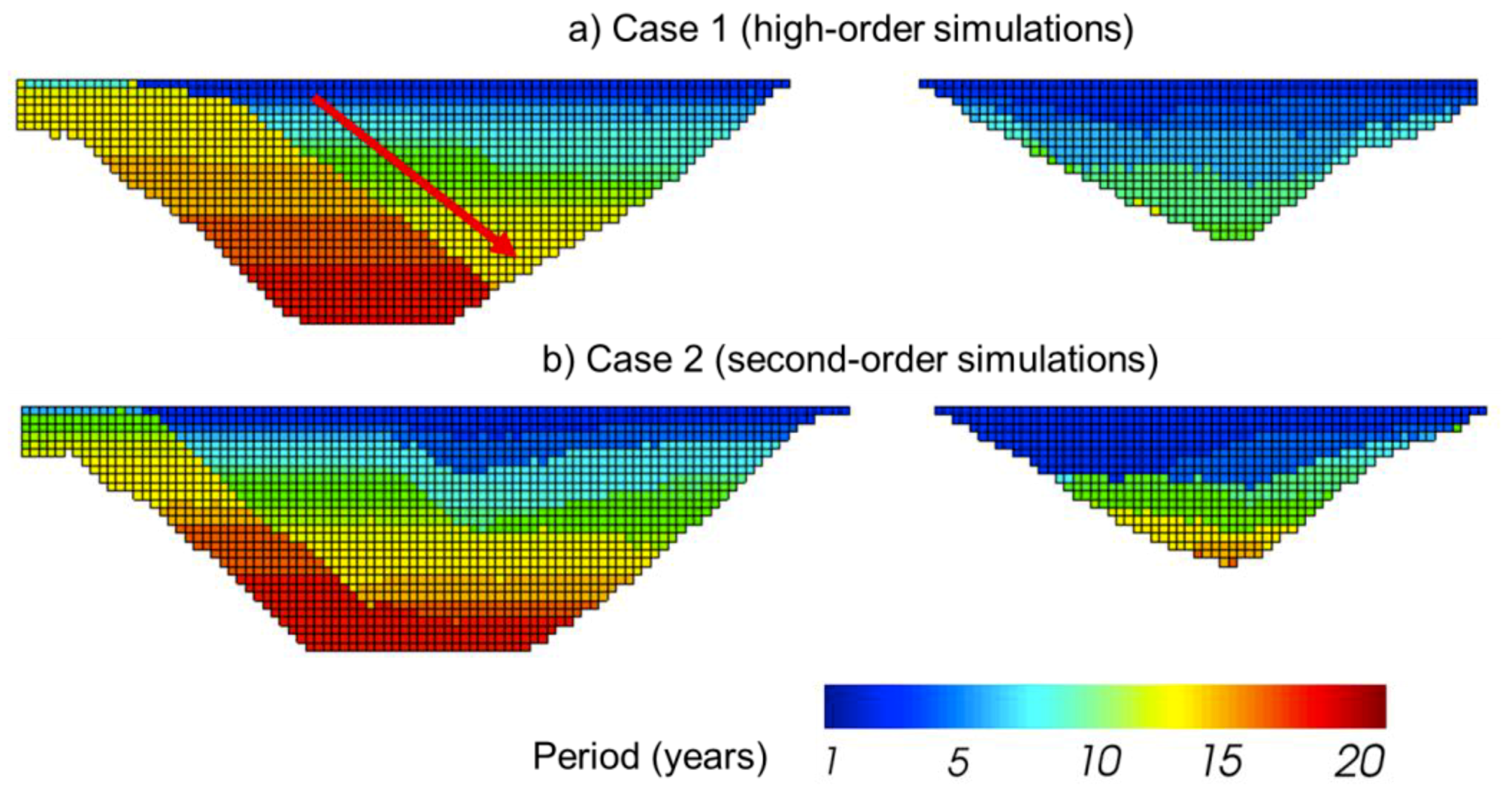

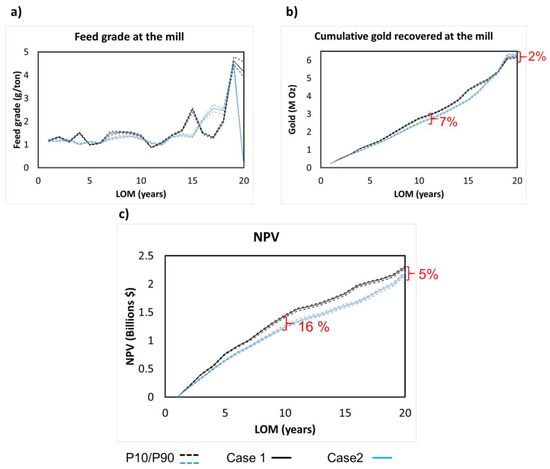

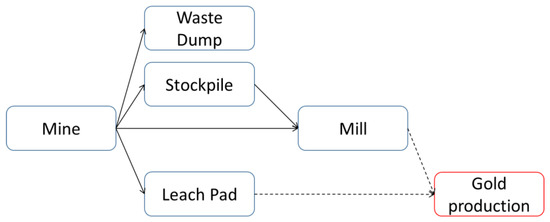

A mining complex is composed of mines, mineral processing streams, stockpiles, and waste facilities, which culminate with generated products that are delivered to customers. The supply uncertainty and variability of materials extracted from the mines, which flow through a mining complex to generate products, can be quantified through geostatistical simulations and can be used as inputs to the simultaneous optimization of mining complexes. A critical aspect to consider is that mineral deposits are characterized by spatially complex, non-Gaussian geological properties and multiple-point connectivity of high-grades, features that are not captured by conventional second-order simulation methods. This paper investigates the benefits of simultaneously optimizing a mining complex where the simulations of the mineral deposit are generated by a high-order, direct-block simulation approach. The optimized life-of-mine (LOM) production schedule is compared to a case in which the same setting is optimized by having the related simulations generated using a second-order simulation method. The comparison shows that the incorporation of simulations that reproduce the spatial connectivity of high-grades results in a more informed LOM production schedule. The sequence of extraction is driven by the spatial connectivity of high-grades, resulting in a mill throughput with better material quality and reduced waste extraction. Furthermore, the discounted cash-flow increases by more than 5% as compared to the case in which the second-order simulations are used. View Full-Text
Keywords: simultaneous optimization of mine complexes; high-order simulation; direct block support simulation; connectivity of high-grades simultaneous optimization of mine complexes; high-order simulation; direct block support simulation; connectivity of high-grades
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

de Carvalho, J.P.; Dimitrakopoulos, R. Effects of High-Order Simulations on the Simultaneous Stochastic Optimization of Mining Complexes. Minerals 2019, 9, 210.
