Low-Carbon Binder for Cemented Paste Backfill: Flowability, Strength and Leaching Characteristics

1
College of Resources and Civil Engineering, Northeastern University, Shenyang 110819, China
2
Science and Technology Innovation Center of Smart Water and Resource Environment, Northeastern University, Shenyang 110819, China
3
China Railway Construction Heavy Industry Co. Ltd., Changsha 410100, China
*
Author to whom correspondence should be addressed.
Minerals 2019, 9(11), 707; https://doi.org/10.3390/min9110707
Received: 5 September 2019 / Revised: 8 November 2019 / Accepted: 10 November 2019 / Published: 15 November 2019
(This article belongs to the Special Issue Alkali Activated Materials: Advances, Innovations, Future Trends)

Abstract

Blast furnace slag was used as the main raw material to prepare the alkali activated slag (AAS), a low-carbon binder, for cemented paste backfill (CPB). The optimum parameters for preparing the AAS binders using an orthogonal experiment were obtained. Under the optimum conditions (NaOH content was 3 wt. %, Ordinary Portland cement (OPC) content was 7 wt. %, and gypsum dosage was 4 wt. %), the 28 days compressive strength of the binder was 29.55 MPa. The flow ability of the fresh CPB slurry decreased with solid content due to the increased yield stress, while the flow ability increased when rising the binder dosage. A predictive model for the compressive strength of CPB samples was reached through multivariate analysis and the R2 values were higher than 0.9. Sensitivity analysis showed that the solid content is the most important parameter which influences on the development of the CPB strength with a correlation coefficient of 0.826. From the Toxicity Characteristic Leaching Procedure (TCLP) tests, the leaching concentrations of Pb and Cd were below the threshold. As a result, the AAS has potential application as an alternative binder and cemented paste backfill.
Keywords: backfill; alkali activated slag; water film; compressive strength; TCLP backfill; alkali activated slag; water film; compressive strength; TCLP

1. Introduction

Mining is the foundation of modern industry. Advanced mining industry is the need of developing the metallurgical and all other industries at a high speed and realizing the modernization of agriculture, national defense and science and technology. However, while making irreplaceable contribution to modern industrial civilization, mining also causes serious damage to ecological environment. Especially, the accumulation of tailings occupies a large amount of land and causes landslides and debris flows, resulting in the destruction or damage of vegetation to varying degrees and destroy the ecological balance of the mining area and even the surrounding areas. Therefore, the comprehensive utilization of tailings is an inevitable choice to promote the sustainable development of China’s mining industry and promote the construction of green mines.
With the gradual transfer of mining to deep ore body, deep well mining is faced with the problem of high in-situ stress. As a result, cemented back filling (CPB), which uses ordinary Portland cement (OPC) as main binder materials, has become the preferred, safest and most productive mining method for deep well mining. It has been reported that the production of OPC contributes to at least 8% of global CO2 emissions because its production requires high kiln temperature (1450–1550 °C) which could lead to limestone decomposition [1]. As well, the manufacturing process consumes a large amount of non-renewable resources, such as limestone, and causes significant over-exploitation of natural reserves. Therefore, it is urgent to develop an alternative binder with lower environmental and energy costs.
Alkali activated materials (AAM) have been widely identified as a “sustainable cement binder”, using a silica- and alumina-containing solid precursor mixing with an alkali source at ambient or elevated temperature [2]. Since many industry by-products, such as blast furnace slag and fly ash can be used as the raw materials, AAM is considered as an alternative to the OPC [3], which has been used in many industry aspects including CPB. Blast furnace slag (BFS) seems to be widely used in China due to the rapidly developed steel industries in recent years [4]. Jiang et al. [5] used blast furnace slag as aluminosilicate precursor and sodium silicate/sodium hydroxide as alkali activator to prepare CPB binders and explored the solid content, binder dosage, activator to binder ratio, sodium silicate to sodium hydroxide ratio, and curing temperature on fresh and hardened properties of CPB mass. The results showed that for a given backfill recipe and curing time, CPB matrix using alkali activated slag provided far better workability and compressive strength performance than OPC-CPB matrix. G et al. [6] investigated the strength and microstructural development of full and coarse sulphidic tailings CPB using sodium silicate activated slag as binder. The results proved that sodium silicate activated slag with varying silicate modulus for both full and coarse sulphidic tailings produced 1.5–3.5-fold compressive strengths in the long-term compared to OPC samples. Cihangir et al. [7] used alkali-activated neutral and acidic blast furnace slags blended with aqueous sodium silicate and sodium hydroxide as alternative binders to OPC for CPB of high-sulphide mill tailings. Poor mechanical performance was observed in the CPB samples prepared from OPC. However, CPB samples of alkali activated slag were found to produce remarkably higher strengths (1.54–4.74 MPa at 360 days) and stability over 360 days of curing. While Zhao Y. et al. [8] using a new binder called Mine Cement (MC), mainly consisting of blast furnace slag, OPC, cement kiln dust, gypsum and limestone, for mine back filling, which shown good feasibility. All these studies revealed the feasibility of using alkali activated materials as a new binder in the CPB and good performance was observed.
In this study, orthogonal test was used to explore the effect of sodium hydroxide content, OPC and gypsum dosage on the properties of alkali activated binder and determine the mix proportion the binder to be used in CPB. The rheological and strength properties including multivariate analysis and sensitivity analysis were then studied. TCLP tests were used to explore the leaching properties of the prepared CPB samples.

2. Materials and Methods

2.1. Materials

Materials used in this research include blast furnace slag (BFS), provided by Hanwang group Fushun, China. Ordinary Portland cement (OPC) and gypsum, obtained from Jinfeng Materials Co., Ltd. in Kaifeng, China. The chemical compositions of above-mentioned materials are presented in Table 1. Fine aggregate used was mine tailings (MT) which is collected from an iron mine located in the Fushun, China. MT are dried at 105 °C for 24 h before used. The particle size distribution of MT could be found in the Figure S1 in supplementary materials. The leaching concentrations of heavy metals in original tailings are shown in Table 2.
Sodium hydroxide (NaOH) solution is used as alkaline activator because it is widely available and less expensive. NaOH pellets of 98% purity are dissolved in distilled water to obtain NaOH solution of required molarity and stored at room temperature for 24 h before its use.

2.2. Methods

Factorial design was used to determine the optimal binder combination to improve the efficiency and properties of CPB samples. Orthogonal array, L9 (33) (Table 3) to represent a full factorial experiment were used in the present study (Table 2). The component variables for each of the mixes (T-1 to T-9) are presented in Table 4. The effect of NaOH content, OPC dosage and content of gypsum on the 28 days compressive strength of binder samples were analyzed in this approach by conducting the range analysis and calculating the K value and range value (R). The most prominent factor has the highest R value. The mixture ratio was selected based on the range analysis.
To prepare the samples, BFS, OPC, gypsum and MT were dry mixed for 5 min to obtain a homogenous mixture. NaOH solution was then poured into the mixture and mixed for another 5 min. After that, the pastes were poured into molds with diameter of 50 mm and height of 100 mm and vibrated for 2 min to remove air bubbles and then sealed in plastic bags and cured at room temperature. After 24h, demolded and cured at 23 °C and 90% relative humidity until testing. It should be noted that MT was introduced in the samples, expect the samples used for orthogonal tests in Table 4.
Compressive strength tests were performed by using a computer-controlled mechanical press with a loading capacity of 50 kN and a displacement loading speed of 1 mm per minute, according to the ASTM D2166/D2166M-16 [10] standard. For each mix formulation, triplicate tests were conducted and the average values were recorded.
The fragments after compressive strength test were collected and impregnated using isopropanol to stop the hydration process and then dried under vacuum at 40 °C. After that, the treated fragments were grounded to fine powder. X-ray diffraction (XRD) analysis was carried out using an X’ Pert Pro XRD (Philips, Amsterdam, The Netherlands) at a scanning rate of 0.1 deg·s−1 in the 2θ range of 10° to 70°.
The flow spread of the fresh CPB samples was determined by the mini-slump test following the ASTM C1437-15 [11], using a copper cone with standard dimensions of height of 50 mm and 70 mm top and 100 mm base diameters. The CPB samples were filled into the cone and then the cone was lifted vertically. The diameters of the resulted paste spread were then measured along two perpendicular directions.
The yield stress of the fresh CPB samples were measured using a Haake rheometer with a four-blade vane at a low rotational rate (0.2 rpm) due to the accuracy [12].
The water film thickness (WFT) around particles in fresh CPB slurry can be obtained from the following equations
WFT   =     u   w   u   s A s
where uw is the water ratio of the CPB mix (the ratio of the volume of water to the solid volume of all the particles). The voids ratio us can be obtained as uw = (1 − Φ)/Φ, where Φ is the packing density of all the particles. As is the specific surface area of all the solid particles.
The leaching properties of the CPB samples were examined by ICP-OES (iCAP 7200, Thermofisher, Waltham, MA, USA) according to the standard of HJ/T 300-2007 [13]. During this process, 60 g tailings or CPB samples were dried at 105 °C for 24 h, before mixing with the extraction solution (a mixture of 1 L distilled water and 17.25 mL CH3CH2COOH) at a pH of 2.64. The liquid supernatant was then collected using a 0.45 mm pore size membranes after vibrating at 30 ± 2 rpm speed for 18 days at 23 °C and analyzed by ICP-OES.

3. Result and Discussion

3.1. Mix Proportion for Binder

Table 4 shows that the OPC dosage has the greatest impact on the compressive strength of the samples followed by the ratio of gypsum. The weakest impact is the NaOH content.
Previous studies [14,15] reported that AAS enjoys higher shrinkage compared with OPC, especially when using blast furnace slag as the precursor materials [16]. As a result, a small amount of OPC was included in the binder in order to reduce the shrinkage of CPB, because higher shrinkage will lead to the subsidence of the backfilling bodies [17,18]. On the other hand, several findings reported indicate the influence of OPC inclusion on the mechanical and rheological properties of the AAS samples. Nath et al. [19] found that both a general decreasing trend in slump and flowability of AAS mortar were influenced due to the inclusion of OPC, while the compressive strength increase. The addition of OPC may alter the alkali activated environment, because the hydration of OPC could generate portlandite which has been found to increase the early strength of the AAS samples [19]. However, excess amount of OPC may be harmful to the mechanical performance result from the unsatisfactory workability of the slurry.
Alkali activated solution (NaOH solution in this study) has significant effect on both the compressive strength and structure of C–S–H in the process of alkali activated process. Generally speaking, Si4+, Al3+, Ca2+ and other minor ions begin to leach when raw materials come into contact with NaOH solution and the amount of leaching is dependent on the OH concentration [20]. The surface hydrolysis of the raw material particles is also found to be relevant to the alkali solution concentration [21]. The compressive strength of alkali activated materials is reported to be sensitive to the degree of hydration reaction, which is strongly affected by the soluble ions of the alkali activated system [22]. On the other hand, the structure of C–S–H is also influenced by the type of the alkali activator. Compared with the Na2SiO3 solution activated slag, the C–(A)–S–H formed in the NaOH solution activated slag had a higher structural order and degree of cross-linking [23,24]. While higher dosage of NaOH could result in a decrease in the compressive strength of the alkali activated samples and similar results have been reported [25]. On the other hand, it should be highlighted here is that small dosage of OPC was used in the binder production. It has been reported that minor amounts of NaOH could improve the compressive strength of the low carbon cementitious materials, including fly ash, slag, OPC and gypsum [26]. While the high dosage of NaOH is not beneficial for the compressive strength of the binder samples [26], because NaOH lowers the total volume of hydration product, especially the volume of ettringite [27].
The compressive strength increase of the samples with gypsum is predominantly governed by the formation of ettringite [Ca6Al2(SO4)3(OH)12·26H2O, AFt, PDF# 00-041-1451] [28], which results from the introduction of SO42− to the alkali activated environment along with gypsum. Also, it has been reported that the incorporation of gypsum leads to an increased reaction of C3A and C4AF in the OPC [29]. On the other hand, the clusters of finer ettringite crystals are found to be more effectively filled the pore spaces, leading to a denser matrix and higher compressive strength. However, higher dosage of gypsum decreases the compressive strength of samples. Ettringite possesses positive surface charge [30], electrostatic attraction can exist between the ettringite and slag particle which possesses negative surface charge. This could result in the bad workability of the binder slurry, then increase the porosity of the binder samples and decrease the compressive strength, which has been found to be dependent heavily on the porosity. Similar results have been reported in [31,32]. Based on the studies mentioned above, the optimal combination of binder is A1B1C1, the best NaOH content is 3 wt. %, the optimal mass ratio of OPC is 7 wt. %, and the best gypsum dosage is 4 wt. %. Under these conditions, the final 28 days compressive strength of the binder is 29.55 MPa.

3.2. Flowability of the CPB Slurry

The flow spread and yield stress results of CPB mortar samples are illustrated in Table 5 and Figure 1a,b. It is obvious that the flow spread decreased with the increasing of solid content. Water can cover the surface of binder and tailings particles as a water film, playing a role in lubrication during the flow of CPB slurry. The increase of solid content can enhance the inter-particle contact [33], which will increase the force of friction between particles and decrease the lubrication effect of water and then hinder the flowability. On the other hand, contrary to the influence of the solid content, rising the binder dosage seems to be beneficial to the workability of CPB slurry. One of the critical factors affecting the workability of CPB slurry is the reaction of the binders, where dissolution of binders particles into solution and formation of reaction products in the binders particles surface and solution [12,34]. This will lead to the changing of the inter-particle force through the formation of new bonds and then the workability.
The yield stress of the CPB mortar samples are illustrated in Figure 1b. From the curves plotted, this rheological property gradually increased with the increase of the solid content rising. The flow spread also supported increasing in yield stress of the CPB slurry. A decrease of ~67% flow spread was observed when solid content increased from 70% to 80% at the 12% binder dosage. The rising in particle aggregation in the CPB slurry resulted in the determination of hydrodynamic forces through the inter-particle forces [6,35]. Also, it can be seen that at the same solid content the yield stress decreased when increasing the binder dosage. Therefore, it can be concluded that the rheological properties of a CPB sample determine not only the solid content but also the binder dosage.
The water film thickness (WFT) of CPB samples are tabulated in Table 5. To better understand how the WFT is related to flow spread, the WFT is plotted versus flow spread in Figure 1c. Generally, from Figure 1c, it can be seen that the flow spread increased with the WFT at almost a constant rate. Regression analysis has been used to study the effect of WFT, deriving a best-fit curve for the flow spread-WFT relation. The straight-line form, coupled with the high R2 value of 0.9, reveals that the flow spread-WFT relation is generally linear. As has been shown by Zhang et al. [36,37], there are two types of water in cemented paste: filling water and excess water. The filling water can fill into the voids between solid particles, which does not contribute to the workability of the slurry. While the excess water can form a water film on the surface of the solid particles and enhance the flowability of the slurry. As the particles in the CPB slurry could not easily roll over each other, large WFT can provide lubrication to the binder and aggregate particles and then the slurry would become quite flowable [37]. While when the WFT is small, particles are not sufficiently lubricated and the friction force between inter-particles could hinder the hydrodynamic movement of the slurry, contributing to the decrease the flow spread.

3.3. Strength Properties

Strength properties of the CPB samples are studied in this section in order to reach a predictive model for the compressive strength of CPB samples. Table 6 shows the compressive strength of CPB samples with various binder dosage, solid content and curing periods through experimental studies.

3.3.1. Multivariate Analysis

The compressive strength of CPB samples is closely related to a single factor, but generally speaking, the growth of its compressive strength is determined by the combined action of all influencing factors. The curing period of the CPB samples was set as an invariant to study the compressive strength characteristics of CPB samples under the combining effect of solid content and binder dosage. Since the experimental scheme selected in the test process cannot completely cover all the intensity data needed in the practical application process, the estimation based on the previous test data and experience lacks objectivity. In order to predict more accurately, MATLAB software (2015b, MathWorks, Natick, MA, USA) was used to conduct fitting analysis on the test results of different proportion schemes of slag cementing materials cementing the whole tailings. By using the method of fitting analysis, strength data are analyzed to determine the fitting equation of strength at different ages, which can be used to predict the compressive strength of CPB samples. The compressive strength at different curing period is a dependent variable, set as y, two independent variables are binder dosage and solid content, set as x1 and x2, respectively. The fitting equation and correlation coefficient R2 values are shown in Table 7.
It can be seen from Table 7 that the correlation coefficient R2 values of the fitted curves at 7, 14 and 28 days are all greater than 0.95, indicating that the fitted curves at these three ages are of high accuracy and can basically reflect the quantitative relationship between the compressive strength of CPB samples and the binder dosage and solid content. Compared with the R2 values at 7, 14 and 28 days, the correlation coefficient R2 value of the fitting curve at 3 days age is about 0.90, and its accuracy is relatively low.
Based on the formula listed in Table 7, the compressive strength value and the error value at different binder dosage and solid content are shown in Table 8.From Table 8, it can be seen that the error values between the predicted and experimental compressive strength of CPB samples maintained at approximately 0.1 MPa. While this error values for the CPB samples cured for 28 days is larger, ~0.2 MPa. Anyway, the overall predicted values are close to the experimental values, that means the secondary multivariate fitting equation can used to predict the compressive strength values of CPB samples at different solid content and binder dosage with various curing periods.

3.3.2. Sensitivity Analysis

Based on the above analysis, all factors including binder dosage, solid content and curing period have great influence on the compressive strength of CPB samples, however, the sensitivity degree is different. Then the grey correlation analysis method is used to obtain the corresponding correlation coefficient, aiming at studying the degree of influence of the above three factors on the compressive strength of CPB samples and judging the primary and secondary influencing factors. Grey correlation analysis reflects the degree of correlation between two variables in the development process through the degree of correlation degree. The compressive strength of the CPB samples is set as the mother factor, solid content, binder dosage and curing period are taken as sub-factors to establish the corresponding grey correlation model. The correlation degree between three factors and the compressive strength is obtained respectively.
According to the orthogonal test design principle of L16(43), 16 groups of test data in Table 9 are selected for grey correlation analysis. In order to make the data comparable, ensure the accuracy of the grey correlation analysis model and the accuracy of the system analysis results, the original data need to be un-dimensioned processed. In this paper, the initial value transformation method is selected for dimensionless data processing, that is:
Xi = (xi(1), xi(2), …, xi(n))
Xi0 = Xi(k)/xi(1) = ((xi0(a), xi0(2), …, xi0(n))
where Xi is behavior sequence of i, and X0i is the behavior sequence after initialization processing; The correlation coefficient (ζoi(k)) between the sub-factor and mother factor can be express as:
ζ oi ( k )   =   m + ρ M Δ i ( k ) + ρ M
where ρ is the resolution coefficient extending from 0 to 1, and 0.5 is used in this paper.
M = min min Δi(k)
M = max maxΔi(k)
Δ i ( k )   =   | x 1 0 ( k ) x i 0 ( k ) |
where k = (1, 2, 3, … n) is number of levels, I = (1, 2, 3, … m) is the number of factors series, and M and m are the maximum and minimum in Δi(k), respectively. Then the correlation coefficient (ζoi(k)) can be expressed as:
ζ i ( k ) = 1 n k = 1 n ζ o i ( k )
The compressive strength of the 16 groups of CPB samples are taken as the reference sequence, that is I = 0. I = 1, 2, 3 represent binder dosage, curing period and solid content. The calculation results using the matrix calculation method in linear algebra are listed in Table 9. It can be seen from Table 9 that the influence degree of binder content, curing period and solid content on the compressive strength of the CPB samples is different, and the corresponding correlation coefficient is 0.759, 0.737 and 0.826 respectively, indicating that these factors have important influences on the development of CPB strength.
Meanwhile, within the scope studied in this paper, the compressive strength of the CPB samples is the most sensitive to solid content, which enjoys the larger correlation coefficient value. While the curing period is the least sensitive factor. At the same binder dosage, higher solid content means less water in the slurry, resulting in a higher pH environment, which will enhance the hydration degree of the slag and generate higher amount of hydration product. In general, higher hydration product could enhance the compressive strength of the CPB samples.

3.4. Leaching Properties

From Table 2 in the Section 2.1, only the Pb and Cd concentration in the leachate exceeds the threshold according to GB 16889-2008, so in this study, only the leaching properties of Pb and Cd was explored. The effect of different binder content (12%, 16% and 20%) and curing period (3d, 7d, 28d) on Pb and Cd concentration in the leachate is displayed in Figure 2.
According to the GB16889-2008, the limit values of Cd and Pd concentration are 0.15 and 0.25 mg/L. Obviously, the leaching concentration of Pb was below the threshold with all the binder concentration and curing period. While for Cd, in general, the leaching concentration decreased with the increasing of binder content. When using 12% binder content, the leaching concentration of Cd was 0.23, 0.18 and 0.25 mg/L at 3, 7 and 28 days curing respectively, which exceeded the leaching threshold. Increasing the binder content to 16% and 20% contributed to the reduction of leaching concentration of Cd to below the threshold. This result can be explained as follows.
Firstly, in the process of alkali activation process, Si and Al ions can leaching from the slag and polycondensation reaction will happen under the alkali solution, resulting into (SiO(OH)3), (SiO2(OH)2)2−, (SiO3(OH))3− and (Al(OH)4) and then form amorphous three-dimensional network structure [38,39,40]. During this process, the heavy metal ions, such as Pb, Cd, Zn and Cr, can be encapsulated into the structure resulting from the coating effect of amorphous gels [38]. On the other hand, the gels generated from the alkali activation, such as C–S–H, C–A–S–H and N–A–S–H, have a poorly ordered and layered structure. These gels possess higher specific surface area and adsorption capacity and could adsorb heavy metals onto their surface [41]. Gineys et al. [42] summarized the potential positions occupied by heavy metals in the structure of C–S–H. Many studies found that the adsorption phenomenon of heavy metals onto the surface C–S–H. The alkali activated materials were also prepared into adsorbent for removal heavy metals from aqueous solution [43,44,45,46,47,48,49,50,51,52,53]. Then the adsorption of heavy metal onto the surface of the alkali activated gels could be regards as one of the mechanisms of the immobilization. As a result, when using higher binder content in the present study, more gels can generate, enhancing the encapsulation and adsorption effect. Secondly, ettringite (AFt, 3CaO·Al2O3·3CaSO4·32H2O) is one of the hydration products in the cement system which has a needle-like structure and also be found in the alkali activated process [54], which has a needle-like structure. It has been reported that the sulfates in the channels of AFt are tend to be replaced by the oxyanions with similar structure, such as CrO42−, SeO42−, VO42− and PbO44− [55,56,57,58]. Compared with AFt, monosulfate (AFm, 3CaO·Al2O3·CaSO4·12H2O), a conversion product of AFt after one day hydration [13,59] seems to be more seem to possess better immobilization effects on oxyanions due to the layered structure [54,60,61]. Furthermore, the structure of alkali activated materials could be expressed as Mn[–(Si–O)z–Al–O]n·mH2O, where M stands for an alkali metal cation, such as Na, K and Li [62]. The heavy metal ions (Zn2+, Cu2+, Cd2+ and Cr3+) have also been reported to be a substitute of the alkali metal cation [63,64,65], which is deemed to be one of the immobilization mechanisms.
Another phenomenon was noticed was the increased Cd concentration in the leachate after curing for 28d, similar results has been reported in previous studies [66,67]. In the process of alkali activated process, the pH of the slurry will decrease due to the hydration of BFS, which will increase the mobility of Cd and then the leaching concentration will increase.

4. Conclusions

In this paper, a new low-carbon binder, alkali activated slag (AAS), has been prepared. From orthogonal tests, the influences of NaOH content, OPC dosage and ratio of gypsum on the 28 days compressive strength of binder samples were studied. Flow spread and yield stress tests were used to explore the rheological properties of the CPB slurry. A predictive model of the compressive strength of CPB samples was reached through multivariate analysis. TCLP tests were used to explore the leaching properties of the toxic elements from the CPB samples. Based on the results of the experimental tests performed, the following conclusions can be drawn:
(1) Based on the orthogonal tests, the optimal combination of binder was A1B1C1, the best NaOH content was 3 wt. %, the optimal mass ratio of OPC was 7 wt. %, and the best gypsum dosage was 4 wt. %. Under these conditions, the final 28 days compressive strength of the binder was 29.55 MPa;
(2) Increasing the solid content could increase the yield stress of the CPB slurry and then decrease the flow ability. While higher binder dosage content decreased the yield stress of the slurry and increased the flow ability;
(3) The compressive strength predictive model was used through the strength properties analysis. The correlation coefficient R2 values of the fitting equations were higher than 0.9, indicating a good predictive efficiency. Sensitivity analysis showed that the solid content is the most important influences on the development of the CPB strength with a correlation coefficient of 0.826;
(4) The leaching concentration of Pb was below the threshold using AAS as an alternative binder for cemented paste backfill. The leaching concentration of Cd decreased with tFhe increasing of binder content. Increasing the binder content to 16% and 20% reduced the leaching concentration of Cd to below the threshold.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/9/11/707/s1, Figure S1: Particle size distribution of tailings, Figure S2: XRD results, Figure S3: Microstructure after curing for 60 days, Table S1: Main components oftailings/wt. %

Author Contributions

All authors conceived and designed the experiments; J.X. and Y.Z. performed the experiments and analyzed the results; Y.Z. wrote the original draft; J.Q., X.S., H.L., and Z.G. reviewed and edited the manuscript.

Funding

The authors gratefully acknowledge the financial support from National Science and Technology Support Plan, 2018YFC0604604, National Science Foundation, 51774066 and Research and development project, Liaoning, 2019JH2/10300051.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luukkonen, T.; Abdollahnejad, Z.; Yliniemi, J.; Kinnunen, P.; Illikainen, M. One-part alkali-activated materials: A review. Cem. Concr. Res. 2018, 103, 21–34. [Google Scholar] [CrossRef]
  2. Zhu, W.; Teoh, P.J.; Liu, Y.; Chen, Z.; Yang, E.-H. Strategic utilization of municipal solid waste incineration bottom ash for the synthesis of lightweight aerated alkali-activated materials. J. Clean. Prod. 2019, 235, 603–612. [Google Scholar] [CrossRef]
  3. Zhu, W.; Chen, X.; Zhao, A.; Struble, L.J.; Yang, E.-H. Synthesis of high strength binders from alkali activation of glass materials from municipal solid waste incineration bottom ash. J. Clean. Prod. 2019, 212, 261–269. [Google Scholar] [CrossRef]
  4. Zhang, X.; Han, Y.; Sun, Y.; Li, Y. Innovative utilization of refractory iron ore via suspension magnetization roasting: A pilot-scale study. Powder Technol. 2019, 352, 16–24. [Google Scholar] [CrossRef]
  5. Jiang, H.; Qi, Z.; Yilmaz, E.; Han, J.; Qiu, J.; Dong, C. Effectiveness of alkali-activated slag as alternative binder on workability and early age compressive strength of cemented paste backfills. Constr. Build. Mater. 2019, 218, 689–700. [Google Scholar] [CrossRef]
  6. Ishwarya, G.; Singh, B.; Deshwal, S.; Bhattacharyya, S.K. Effect of sodium carbonate/sodium silicate activator on the rheology, geopolymerization and strength of fly ash/slag geopolymer pastes. Cem. Concr. Compos. 2019, 97, 226–238. [Google Scholar] [CrossRef]
  7. Cihangir, F.; Ercikdi, B.; Kesimal, A.; Turan, A.; Deveci, H. Utilisation of alkali-activated blast furnace slag in paste backfill of high-sulphide mill tailings: Effect of binder type and dosage. Miner. Eng. 2012, 30, 33–43. [Google Scholar] [CrossRef]
  8. Zhao, Y.; Soltani, A.; Taheri, A.; Karakus, M.; Deng, A. Application of Slag–Cement and Fly Ash for Strength Development in Cemented Paste Backfills. Minerals 2019, 9, 22. [Google Scholar] [CrossRef]
  9. GB 16889-2008. Domestic Waste Landfill Control Standards; Chinese Academy of Environmental Sciences: Beijing, China, 2008. [Google Scholar]
  10. ASTM D2166/D2166M-16. Standard Test Method for Unconfined Compressive Strength of Cohesive Soil; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
  11. ASTM C1437-15. Standard Test Method for Flow of Hydraulic Cement Mortar; ASTM International: West Conshohocken, PA, USA, 2015. [Google Scholar]
  12. Kashani, A.; Provis, J.L.; Qiao, G.G.; van Deventer, J.S.J. The interrelationship between surface chemistry and rheology in alkali activated slag paste. Constr. Build. Mater. 2014, 65, 583–591. [Google Scholar] [CrossRef]
  13. Guo, B.; Liu, B.; Yang, J.; Zhang, S. The mechanisms of heavy metal immobilization by cementitious material treatments and thermal treatments: A review. J. Environ. Manag. 2017, 193, 410–422. [Google Scholar] [CrossRef]
  14. Tu, W.; Zhu, Y.; Fang, G.; Wang, X.; Zhang, M. Internal curing of alkali-activated fly ash-slag pastes using superabsorbent polymer. Cem. Concr. Res. 2019, 116, 179–190. [Google Scholar] [CrossRef]
  15. Thomas, J.J.; Allen, A.J.; Jennings, H.M. Density and water content of nanoscale solid C–S–H formed in alkali-activated slag (AAS) paste and implications for chemical shrinkage. Cem. Concr. Res. 2012, 42, 377–383. [Google Scholar] [CrossRef]
  16. Lee, N.K.; Jang, J.G.; Lee, H.K. Shrinkage characteristics of alkali-activated fly ash/slag paste and mortar at early ages. Cem. Concr. Compos. 2014, 53, 239–248. [Google Scholar] [CrossRef]
  17. Qiu, J.; Yang, L.; Sun, X.; Xing, J.; Li, S. Strength Characteristics and Failure Mechanism of Cemented Super-Fine Unclassified Tailings Backfill. Minerals 2017, 7, 58. [Google Scholar] [CrossRef]
  18. Yang, L.; Qiu, J.; Jiang, H.; Hu, S.; Li, H.; Li, S. Use of Cemented Super-Fine Unclassified Tailings Backfill for Control of Subsidence. Minerals 2017, 7, 216. [Google Scholar] [CrossRef]
  19. Nath, P.; Sarker, P.K. Use of OPC to improve setting and early strength properties of low calcium fly ash geopolymer concrete cured at room temperature. Cem. Concr. Compos. 2015, 55, 205–214. [Google Scholar] [CrossRef]
  20. Görhan, G.; Kürklü, G. The influence of the NaOH solution on the properties of the fly ash-based geopolymer mortar cured at different temperatures. Compos. Part B Eng. 2014, 58, 371–377. [Google Scholar] [CrossRef]
  21. Rattanasak, U.; Chindaprasirt, P. Influence of NaOH solution on the synthesis of fly ash geopolymer. Miner. Eng. 2009, 22, 1073–1078. [Google Scholar] [CrossRef]
  22. Phoo-ngernkham, T.; Maegawa, A.; Mishima, N.; Hatanaka, S.; Chindaprasirt, P. Effects of sodium hydroxide and sodium silicate solutions on compressive and shear bond strengths of FA–GBFS geopolymer. Constr. Build. Mater. 2015, 91, 1–8. [Google Scholar] [CrossRef]
  23. Puertas, F.; Fernández-Jiménez, A.; Blanco-Varela, M.T. Pore solution in alkali-activated slag cement pastes. Relation to the composition and structure of calcium silicate hydrate. Cem. Concr. Res. 2004, 34, 139–148. [Google Scholar] [CrossRef]
  24. Zuo, Y.; Nedeljković, M.; Ye, G. Pore solution composition of alkali-activated slag/fly ash pastes. Cem. Concr. Res. 2019, 115, 230–250. [Google Scholar] [CrossRef]
  25. Ahmari, S.; Zhang, L. Production of eco-friendly bricks from copper mine tailings through geopolymerization. Constr. Build. Mater. 2012, 29, 323–331. [Google Scholar] [CrossRef]
  26. Wu, M.; Zhang, Y.; Jia, Y.; She, W.; Liu, G.; Wu, Z.; Sun, W. Influence of sodium hydroxide on the performance and hydration of lime-based low carbon cementitious materials. Constr. Build. Mater. 2019, 200, 604–615. [Google Scholar] [CrossRef]
  27. Mota, B.; Matschei, T.; Scrivener, K. Impact of NaOH and Na2SO4 on the kinetics and microstructural development of white cement hydration. Cem. Concr. Res. 2018, 108, 172–185. [Google Scholar] [CrossRef]
  28. Jeong, Y.; Oh, J.E.; Jun, Y.; Park, J.; Ha, J.-h.; Sohn, S.G. Influence of four additional activators on hydrated-lime [Ca(OH)2] activated ground granulated blast-furnace slag. Cem. Concr. Compos. 2016, 65, 1–10. [Google Scholar] [CrossRef]
  29. de la Grée, G.C.H.D.; Yu, Q.L.; Brouwers, H.J.H. Assessing the effect of CaSO4 content on the hydration kinetics, microstructure and mechanical properties of cements containing sugars. Constr. Build. Mater. 2017, 143, 48–60. [Google Scholar] [CrossRef]
  30. Tian, H.; Kong, X.; Su, T.; Wang, D. Comparative study of two PCE superplasticizers with varied charge density in Portland cement and sulfoaluminate cement systems. Cem. Concr. Res. 2019, 115, 43–58. [Google Scholar] [CrossRef]
  31. Park, H.; Jeong, Y.; Jun, Y.; Jeong, J.-H.; Oh, J.E. Strength enhancement and pore-size refinement in clinker-free CaO-activated GGBFS systems through substitution with gypsum. Cem. Concr. Compos. 2016, 68, 57–65. [Google Scholar] [CrossRef]
  32. Neto, A.A.M.; Cincotto, M.A.; Repette, W. Mechanical properties, drying and autogenous shrinkage of blast furnace slag activated with hydrated lime and gypsum. Cem. Concr. Compos. 2010, 32, 312–318. [Google Scholar] [CrossRef]
  33. Simon, D.; Grabinsky, M. Apparent yield stress measurement in cemented paste backfill. Int. J. Min. Reclam. Environ. 2013, 27, 231–256. [Google Scholar] [CrossRef]
  34. Steins, P.; Poulesquen, A.; Diat, O.; Frizon, F. Structural Evolution during geopolymerization from an early age to consolidated material. Langmuir 2012, 28, 8502–8510. [Google Scholar] [CrossRef] [PubMed]
  35. Yammine, J.; Chaouche, M.; Guerinet, M.; Moranville, M.; Roussel, N. From ordinary rhelogy concrete to self compacting concrete: A transition between frictional and hydrodynamic interactions. Cem. Concr. Res. 2008, 38, 890–896. [Google Scholar] [CrossRef]
  36. Zhang, C.; Wang, A.; Tang, M.; Liu, X. The filling role of pozzolanic material. Cem. Concr. Res. 1996, 26, 943–947. [Google Scholar] [CrossRef]
  37. Fung, W.W.S.; Kwan, A.K.H. Role of water film thickness in rheology of CSF mortar. Cem. Concr. Compos. 2010, 32, 255–264. [Google Scholar] [CrossRef]
  38. Ji, Z.; Pei, Y. Bibliographic and visualized analysis of geopolymer research and its application in heavy metal immobilization: A review. J. Environ. Manag. 2019, 231, 256–267. [Google Scholar] [CrossRef]
  39. Xing, J.; Zhao, Y.; Qiu, J.; Sun, X. Microstructural and Mechanical Properties of Alkali Activated Materials from Two Types of Blast Furnace Slags. Materials (Basel) 2019, 12, 2089. [Google Scholar] [CrossRef]
  40. Qiu, J.; Zhao, Y.; Xing, J.; Sun, X. Fly Ash/Blast Furnace Slag-Based Geopolymer as a Potential Binder for Mine Backfilling: Effect of Binder Type and Activator Concentration. Adv. Mater. Sci. Eng. 2019, 2019, 1–12. [Google Scholar] [CrossRef]
  41. Li, Y.; Min, X.; Ke, Y.; Fei, J.; Liu, D.; Tang, C. Immobilization potential and immobilization mechanism of arsenic in cemented paste backfill. Miner. Eng. 2019, 138, 101–107. [Google Scholar] [CrossRef]
  42. Gineys, N.; Aouad, G.; Damidot, D. Managing trace elements in Portland cement—Part I: Interactions between cement paste and heavy metals added during mixing as soluble salts. Cem. Concr. Compos. 2010, 32, 563–570. [Google Scholar] [CrossRef]
  43. Qiu, J.; Zhao, Y.; Xing, J.; Sun, X. Fly ash-based geopolymer as a potential adsorbent for Cr(VI) removal. DWT 2017, 70, 201–209. [Google Scholar] [CrossRef]
  44. Rasaki, S.A.; Bingxue, Z.; Guarecuco, R.; Thomas, T.; Minghui, Y. Geopolymer for use in heavy metals adsorption, and advanced oxidative processes: A critical review. J. Clean. Prod. 2019, 213, 42–58. [Google Scholar] [CrossRef]
  45. Bumanis, G.; Novais, R.M.; Carvalheiras, J.; Bajare, D.; Labrincha, J.A. Metals removal from aqueous solutions by tailored porous waste-based granulated alkali-activated materials. Appl. Clay Sci. 2019, 179, 105147. [Google Scholar] [CrossRef]
  46. Shao, N.; Tang, S.; Liu, Z.; Li, L.; Yan, F.; Liu, F.; Li, S.; Zhang, Z. Hierarchically Structured Calcium Silicate Hydrate-Based Nanocomposites Derived from Steel Slag for Highly Efficient Heavy Metal Removal from Wastewater. ACS Sustain. Chem. Eng. 2018, 6, 14926–14935. [Google Scholar] [CrossRef]
  47. Kuwahara, Y.; Tamagawa, S.; Fujitani, T.; Yamashita, H. A novel conversion process for waste slag: synthesis of calcium silicate hydrate from blast furnace slag and its application as a versatile adsorbent for water purification. J. Mater. Chem. A 2013, 1, 7199. [Google Scholar] [CrossRef]
  48. Wu, J.; Zhu, Y.-J.; Chen, F. Ultrathin calcium silicate hydrate nanosheets with large specific surface areas: synthesis, crystallization, layered self-assembly and applications as excellent adsorbents for drug, protein, and metal ions. Small 2013, 9, 2911–2925. [Google Scholar] [CrossRef]
  49. Siyal, A.A.; Shamsuddin, M.R.; Rabat, N.E.; Zulfiqar, M.; Man, Z.; Low, A. Fly ash based geopolymer for the adsorption of anionic surfactant from aqueous solution. J. Clean. Prod. 2019, 229, 232–243. [Google Scholar] [CrossRef]
  50. Chen, X.; Guo, Y.; Ding, S.; Zhang, H.; Xia, F.; Wang, J.; Zhou, M. Utilization of red mud in geopolymer-based pervious concrete with function of adsorption of heavy metal ions. J. Clean. Prod. 2019, 207, 789–800. [Google Scholar] [CrossRef]
  51. Demir, F.; Derun, E.M. Modelling and optimization of gold mine tailings based geopolymer by using response surface method and its application in Pb2+ removal. J. Clean. Prod. 2019, 237, 117766. [Google Scholar] [CrossRef]
  52. Ferone, C.; Capasso, I.; Bonati, A.; Roviello, G.; Montagnaro, F.; Santoro, L.; Turco, R.; Coiifi, R. Sustainable management of water potabilization sludge by means of geopolymers production. J. Clean. Prod. 2019, 229, 1–9. [Google Scholar] [CrossRef]
  53. Novais, R.M.; Carvalheiras, J.; Tobaldi, D.M.; Seabra, M.P.; Pullar, R.C.; Labrincha, J.A. Synthesis of porous biomass fly ash-based geopolymer spheres for efficient removal of methylene blue from wastewaters. J. Clean. Prod. 2019, 207, 350–362. [Google Scholar] [CrossRef]
  54. Chrysochoou, M.; Dermatas, D. Evaluation of ettringite and hydrocalumite formation for heavy metal immobilization: literature review and experimental study. J. Hazard. Mater. 2006, 136, 20–33. [Google Scholar] [CrossRef] [PubMed]
  55. Lasheras-Zubiate, M.; Navarro-Blasco, I.; Fernández, J.M.; Alvarez, J.I. Encapsulation, solid-phases identification and leaching of toxic metals in cement systems modified by natural biodegradable polymers. J. Hazard. Mater. 2012, 233, 7–17. [Google Scholar] [CrossRef] [PubMed]
  56. Mollah, M.Y.A.; Kesmez, M.; Cocke, D.L. An X-ray diffraction (XRD) and Fourier transform infrared spectroscopic (FT-IR) investigation of the long-term effect on the solidification/stabilization (S/S) of arsenic(V) in Portland cement type-V. Sci. Total Environ. 2004, 325, 255–262. [Google Scholar] [CrossRef] [PubMed]
  57. Macias, A.; Kindness, A.; Glasser, F.P. Impact of carbon dioxide on the immobilization potential of cemented wastes: Chromium. Cem. Concr. Res. 1997, 27, 215–225. [Google Scholar] [CrossRef]
  58. Baur, I.; Johnson, C.A. The solubility of selenate-AFt (3CaO·Al2O3·3CaSeO4·37.5H2O) and selenate-AFm (3CaO·Al2O3·CaSeO4·xH2O). Cem. Concr. Res. 2003, 33, 1741–1748. [Google Scholar] [CrossRef]
  59. Chen, Q.Y.; Tyrer, M.; Hills, C.D.; Yang, X.M.; Carey, P. Immobilisation of heavy metal in cement-based solidification/stabilisation: A review. Waste Manag. 2009, 29, 390–403. [Google Scholar] [CrossRef]
  60. Zhang, M.; Reardon, E.J. Removal of B, Cr, Mo, and Se from wastewater by incorporation into hydrocalumite and ettringite. Environ. Sci. Technol. 2003, 37, 2947–2952. [Google Scholar] [CrossRef]
  61. Segni, R.; Vieille, L.; Leroux, F.; Taviot-Guého, C. Hydrocalumite-type materials: 1. Interest in hazardous waste immobilization. J. Phys. Chem. Solids 2006, 67, 1037–1042. [Google Scholar] [CrossRef]
  62. Van Jaarsveld, J.G.S.; Van Deventer, J.S.J.; Lorenzen, L. Factors affecting the immobilization of metals in geopolymerized flyash. Metall. Mater. Trans. B 1998, 29, 283–291. [Google Scholar] [CrossRef]
  63. Zhang, J.; Provis, J.L.; Feng, D.; van Deventer, J.S.J. Geopolymers for immobilization of Cr6+, Cd2+, and Pb2+. J. Hazard. Mater. 2008, 157, 587–598. [Google Scholar] [CrossRef]
  64. Palomo, A.; Palacios, M. Alkali-activated cementitious materials: Alternative matrices for the immobilisation of hazardous wastes: Part II. Stabilisation of chromium and lead. Cem. Concr. Res. 2003, 33, 289–295. [Google Scholar] [CrossRef]
  65. Perera, D.S.; Aly, Z.; Vance, E.R.; Mizumo, M. Immobilization of Pb in a Geopolymer Matrix. J. Am. Ceram. Soc. 2005, 88, 2586–2588. [Google Scholar] [CrossRef]
  66. Li, X.; Chen, Q.; Zhou, Y.; Tyrer, M.; Yu, Y. Stabilization of heavy metals in MSWI fly ash using silica fume. Waste Manag. 2014, 34, 2494–2504. [Google Scholar] [CrossRef]
  67. Ma, W.; Chen, D.; Pan, M.; Gu, T.; Zhong, L.; Chen, G.; Yan, B.; Cheng, Z. Performance of chemical chelating agent stabilization and cement solidification on heavy metals in MSWI fly ash: A comparative study. J. Environ. Manag. 2019, 247, 169–177. [Google Scholar] [CrossRef]
Figure 1. Flowability of CPB slurry. (a) Relationship between solid content and flow spread, (b) Relationship between solid content and yield stress, (c) Relationship between WFT and flow spread.
Figure 1. Flowability of CPB slurry. (a) Relationship between solid content and flow spread, (b) Relationship between solid content and yield stress, (c) Relationship between WFT and flow spread.
Minerals 09 00707 g001

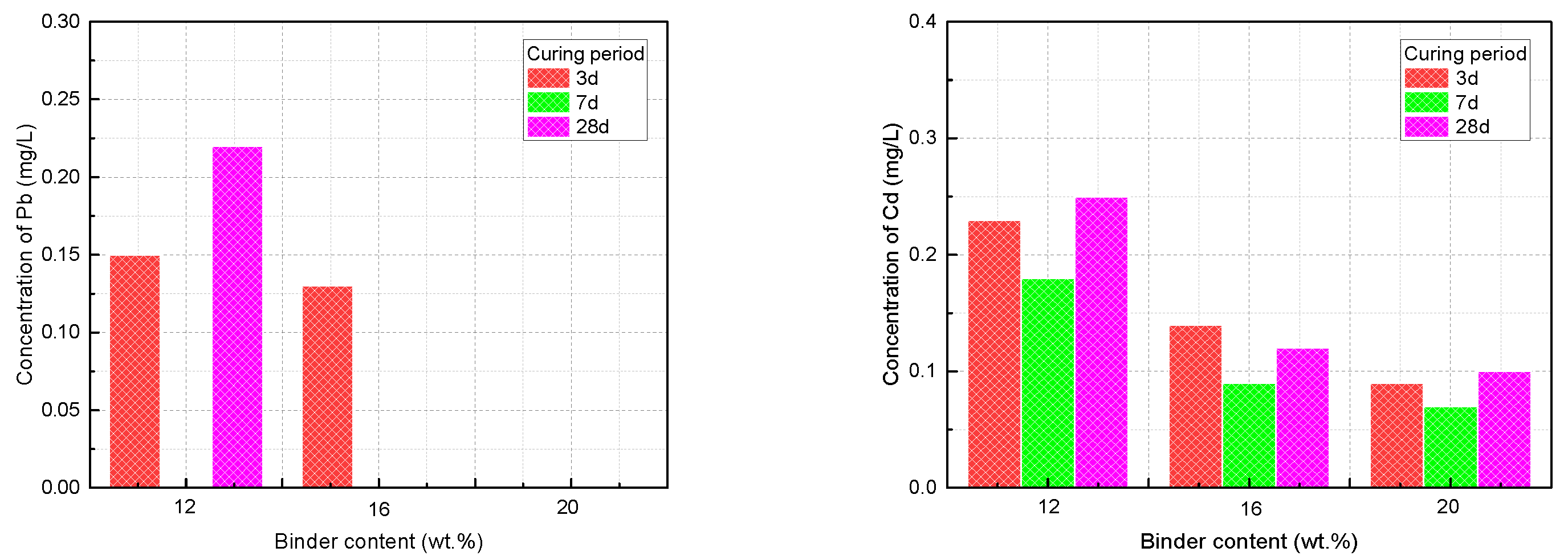

Figure 2. Leaching concentration of Cd and Pb with different binder content and curing period.

Figure 2. Leaching concentration of Cd and Pb with different binder content and curing period.
Minerals 09 00707 g002
Table 1. Main components of raw materials/wt. %.
Table 1. Main components of raw materials/wt. %.
MaterialsCaOSiO2Al2O3MgOK2OFe2O3Na2OBET Surface Area (m2/kg)
BFS48.8335.468.993.070.870.630.51567.87
OPC57.2121.655.844.790.451.770.86586.22
Gypsum38.850.290.012.3200.060521.09
Table 2. Leaching concentration of heavy metals in mine tailings.
Table 2. Leaching concentration of heavy metals in mine tailings.
Heavy MetalsLeaching Concentration (mg/L)GB 16889-2008 [9] (mg/L)
Cu0.55 ± 0.0340.00
Pb0.65 ± 0.060.25
Zn2.68 ± 0.12100.00
Cd0.39 ± 0.040.15
Table 3. Factor level table of orthogonal test.
Table 3. Factor level table of orthogonal test.
FactorsLevel 1Level 2Level 3
A: NaOH content (wt. %)345
B: OPC dosage (wt. %)789
C: gypsum content (wt. %)456
Table 4. L9 (33) orthogonal array.
Table 4. L9 (33) orthogonal array.
No. T-jABCCompressive Strength/MPa
T-11 (3%)1 (7%)1 (4%)29.55
T-212 (8%)2 (5%)26.71
T-313 (9%)3 (6%)22.00
T-42 (4%)1225.91
T-522322.66
T-623124.28
T-73 (5%)1326.75
T-832125.64
T-933221.68
Kj1788279-
Kj2727574-
Kj3746771-
R1.84.82.7-
Optimal levelA1B1C1-
OrderB > C > A-
A1B1C1-
Table 5. Flowability of the CPB slurry.
Table 5. Flowability of the CPB slurry.
Binder Dosage (wt. %)Solid Content a (wt. %)Flow Spread (cm)Yield Stress (Pa)WFT (μm)
87047.61.220.3311
7338.63.150.2757
7626.96.980.2121
8016.611.150.1600
127039.60.820.4230
7331.12.180.3268
7622.16.010.2609
8012.99.030.1762
167039.60.650.4897
7331.11.390.3690
7622.14.190.2972
8012.96.710.1932
207042.60.560.5234
7337.61.040.4523
7626.92.980.3031
8016.65.020.2057
a solid includes binder, MT and NaOH.
Table 6. Compressive strength of CPB samples.
Table 6. Compressive strength of CPB samples.
Binder Dosage (wt. %)Solid Content (wt. %)Compressive (MPa)
3 Days7 Days14 Days28 Days
20%700.691.122.262.72
730.941.552.522.85
761.151.702.663.40
801.682.643.774.87
16%700.510.691.782.13
730.650.961.912.36
760.891.482.523.03
801.031.662.873.85
12%700.640.850.921.15
730.840.911.081.26
760.911.111.271.66
800.961.231.762.20
8%700.260.440.600.90
730.460.610.781.17
760.590.930.981.26
800.891.021.231.61
Table 7. Results of fitting analysis.
Table 7. Results of fitting analysis.
Curing Period (d)Fitting EquationStandard ErrorsCorrelation Coefficient (R2)
3y1 = 27.5665 − 19.2973x12 + 50.6791x22 − 24.0004x1 − 75.1738x2 + 45.9925x1x20.13680.9016
7y2 = 60.3656 − 27.5251x12 + 105.9263x22 − 53.7166x1 − 160.9699x2 + 94.3906x1x20.14280.9578
14y3 = 100.3304 − 112.6050x12 + 192.4251x22 + 5.1676x1 − 282.8351x2 + 64.1722x1x20.18070.9614
28y4 = 151.7099 − 129.9277x12 + 280.8141 x22 − 7.3326x1 − 418.3366x2 + 119.5032x1x20.25250.9549
Table 8. The predicted value and deviation of AAS-CPB strength.
Table 8. The predicted value and deviation of AAS-CPB strength.
Binder Dosage (Wt. %)Solid Content (Wt. %)3 Days7 Days14 Days28 Days
Predicted ValueDeviationPredicted ValueDeviationPredicted ValueDeviationPredicted ValueDeviation
20%70%0.6200.0690.9600.1602.1180.1412.4320.287
73%0.8840.0561.4830.0672.3690.1502.8260.024
76%1.2390.0891.8960.1962.8670.2073.6240.224
80%1.8540.1742.8130.1734.1030.3335.4080.538
16%70%0.6070.0970.7850.0951.8540.0742.2500.120
73%0.7570.1050.8730.0871.9450.0352.3450.014
76%0.9960.1061.4500.0292.3820.1372.9450.085
80%1.1580.1281.8510.1913.2040.3344.3310.481
12%70%0.6130.0270.7050.1441.1350.2151.3830.233
73%0.7920.0480.8740.0361.1460.0661.4270.167
76%0.7750.1351.0340.0761.4030.1331.8780.218
80%1.1090.1491.4770.2472.1180.3582.7650.565
8%70%0.3400.0800.5510.1110.5160.0830.8050.094
73%0.4610.0010.5490.0610.5790.2010.9610.209
76%0.6090.0190.7380.1910.7880.1911.0220.238
80%0.9480.0581.1860.1661.5380.3082.0890.479
Table 9. Calculation results of correlation degree.
Table 9. Calculation results of correlation degree.
No.ζ01(k)ζ02(k)ζ03(k)
11.0001.0001.000
20.7630.9790.769
30.5840.8320.592
40.3990.6380.404
50.9620.9580.949
60.9230.7511.000
70.5350.8880.571
80.5190.4480.548
90.8310.9260.945
100.7580.8790.863
110.8280.5460.923
120.7520.3480.837
130.8190.9330.965
140.8090.8030.939
150.8460.5320.979
160.8160.3330.930
Correlation degree0.7590.7370.826
