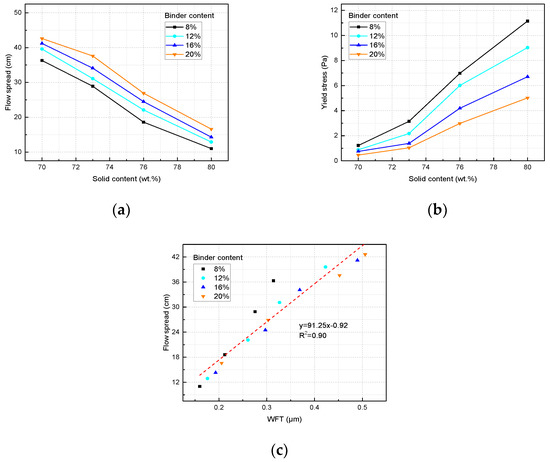

Blast furnace slag was used as the main raw material to prepare the alkali activated slag (AAS), a low-carbon binder, for cemented paste backfill (CPB). The optimum parameters for preparing the AAS binders using an orthogonal experiment were obtained. Under the optimum conditions (NaOH content was 3 wt. %, Ordinary Portland cement (OPC) content was 7 wt. %, and gypsum dosage was 4 wt. %), the 28 days compressive strength of the binder was 29.55 MPa. The flow ability of the fresh CPB slurry decreased with solid content due to the increased yield stress, while the flow ability increased when rising the binder dosage. A predictive model for the compressive strength of CPB samples was reached through multivariate analysis and the R2

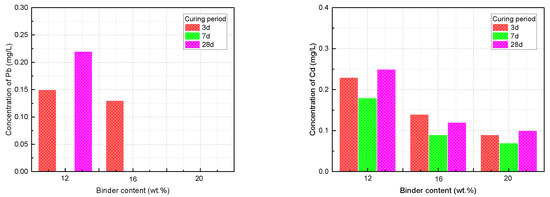

values were higher than 0.9. Sensitivity analysis showed that the solid content is the most important parameter which influences on the development of the CPB strength with a correlation coefficient of 0.826. From the Toxicity Characteristic Leaching Procedure (TCLP) tests, the leaching concentrations of Pb and Cd were below the threshold. As a result, the AAS has potential application as an alternative binder and cemented paste backfill.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
