Fe-Ni-P-S Melt Pockets in Elga IIE Iron Meteorite: Evidence for the Origin at High-Pressures Up to 20 GPa ^†

Abstract

Here we report new data on high-pressure microstructures in Elga group IIE iron meteorites, made of solidified Fe-Ni-P-S melt pockets and microcrystalline aggregates, which could be formed only at high pressures and temperatures according to the experimental data. The bulk composition of the melt pockets and crystals correspond to the Fe₃P-Fe₃S solid solution with the closure of an immiscibility gap at pressures near 20 GPa in static experiments. Some other melt pockets fit with the Fe₂S-Fe₂P compositions, which could also correspond to high pressures and temperatures. The results suggest a late shock episode during the formation of the IIE iron parent body, which may be prior or due to the final disruption that caused the meteorite arrival to Earth. It also has an important implication to the shock features in other meteorites, such as ureilite.

1. Introduction

The shock-melt veins and high-pressure minerals are common in chondritic and martian meteorites and rare in other types of meteorites, including lunar samples [1,2]. Shock-induced deformations, melt pockets, and other microstructural features are also common for iron meteorites [3,4,5]. However, there have been scarce findings of high-pressure minerals, including stishovite in group IVA iron meteorite Muonionalusta [6], (Fe,Ni)₂P-allabogdanite in anomalous Ni-rich ataxites Onello, Santa Catharina, and Barbianello [7,8,9] and tuite in IIE iron Elga [10].

Elga represents IIE iron meteorite group, which contains 5–20% of silicate inclusions in the metallic matrix [10,11,12,13,14,15,16,17,18]. In the studied samples, the metal part includes kamacite with rare taenite inclusions and abundant zones with plessite textures. Large rounded troilite and irregular schreibersite (Fe,Ni)₃P inclusions are abundant. Rounded or irregular shape silicate inclusions caould be divided into three major types, including (1) silicate glass with abundant large Cr-diopside and minor small enstatite crystals; (2) silicate glass with tiny quenched crystals of enstatite, plagioclase, and cristobalite; (3) silicate/phosphate inclusions with liquid immiscibility. One additional group of inclusions, which consist of granular olivine, Cr-diopside, and enstatite were reported by Osadchii et al. [14]. The major phases of silicate inclusions are Cr-diopside and enstatite; accessory minerals are represented by chromite, ilmenite, rutile, armalcolite, aenigmatite, and phosphate minerals [16,17,18]. Solidified shock melt is represented by an immiscible fine-grained mixture of silicate-phosphate and metallic parts [10,13,17]. The metal captured to shocked zone appears as Fe-Ni-P or Fe-Ni-P-S-bearing symplectite-like or cryptocrystalline melt pockets. Tuite was identified by Raman spectroscopy in shock-melted zones at the boundary of silicate inclusions [10].

Here for the first time, we report new evidence for high-pressure microstructures in Elga, made of Fe-Ni-P-S aggregates, which could be formed only at high pressures and temperatures according to the experimental phase diagrams [19,20].

2. Materials and Methods

The Elga meteorite was found in 1959 in Yakutia (Russia) [11,17]. The main mass of 23 kg is in the Central Siberian Geological Museum, Novosibirsk. We studied six polished slices of the meteorite from the working collection, 5–7 g each. Polished sample sections (Figure 1) were characterized using a Tescan MYRA 3 LMU scanning electron microscope coupled with an INCA energy-dispersive X-ray microanalysis system 450 equipped with the liquid nitrogen-free Large area EDS X-Max-80 Silicon Drift Detector (Oxford Instruments) at the Sobolev Institute of Geology and Mineralogy, Novosibirsk. The energy-dispersive X-ray spectra (EDS) were collected by sharp 1–2 μm or scattered over a sample area electron beam at 20 kV accelerating voltage and 1 nA beam current. Counting times for spectra collection were 30–60 s. No beam damage or change in measured composition with time was observed when using the current setting. The EDS spectra were optimized for the quantification using the standard XPP (exponential model of Pouchou and Pichoir matrix correction) procedure included in the INCA Energy 450 software. Calibrated EDS spectra from the used device were reported to be of the same or even better quality as the wavelength dispersive analysis in many recent work [21,22,23]. In addition to standard minerals, oxides, and metals, mentioned in these papers, we used synthetic Fe₃P, Ni₃P, and FeS as internal standards for EDS analyses.

The crystal structure of the single crystal and nanocrystalline (Fe,Ni)₃(P,S) was confirmed using the Electron Backscatter Diffraction (EBSD) of the chemo-mechanically polished plates. Colloidal silica was used for the final sample polishing. The EBSD data were collected on a Hitachi S-3400 N scanning electron microscope equipped with an Oxford Instruments HKL detector with an accuracy of misorientations of 0.5–1.0° at 20 kV accelerating voltage, 8 nA beam current, 15.5 mm working distance, and 70° tilt angle. The Kikuchi patterns of individual points were automatically indexed by the Oxford data collection software. The spatial resolution of EBSD was less than 1 μm.

3. Results

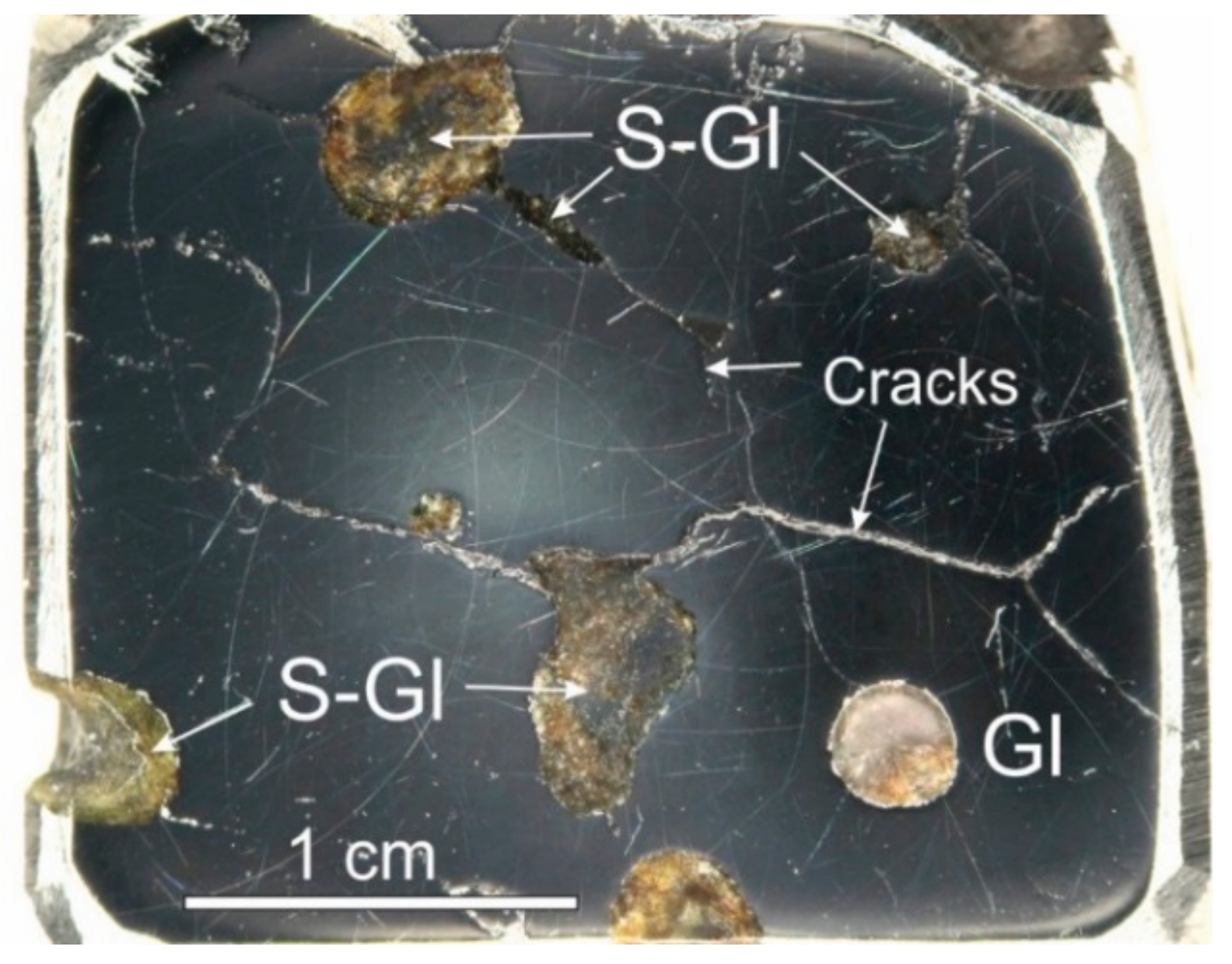

Schreibersite and troilite in Elga often form rim zones around silicate inclusions and located in fractures along the metal sub-grains (Figure 1). Representative compositions of the primary phases are shown in

Table 1. Average composition (wt.%) of primary minerals from the Elga meteorite.

Mineral	n	Cr	Fe	Co	Ni	P	S	O	Total
Kamacite	124		91.91	0.77	7.08	0.17			99.93
SD			2.58	0.14	0.62	0.13
Taenite	60		76.22	0.48	23.10	0.05			99.85
SD			3.25	0.15	3.31	0.05
Schreibersite	56		61.16	0.41	22.66	15.35	0.02	0.22	99.82
SD			2.49	0.12	2.45	0.73	0.01	0.21
Troilite	60	0.13	63.08	0.01		0.07	36.25		99.54
SD		0.07	1.17	0.01		0.05	1.24

n—number of analyses. SD—standard deviation.

. In the fractures, schreibersite and troilite are severely crumpled and re-melted

Various Fe-Ni-P and Fe-Ni-P-S melt pockets can be distinguished in the fractures and near silicate inclusions (Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7). In this paper, we consider only Fe-Ni-P-S aggregates. They can be subdivided into the following types according to their bulk compositions: (a) FN3–corresponding to stoichiometric (Fe,Ni)₃(P,S); (b) FN2–corresponding to stoichiometric (Fe,Ni)₂(P,S); (c) FN3-Ox–partially oxidized (Fe,Ni)₃(P,S); (d) FN2-Ox–partially oxidized (Fe,Ni)₂(P,S); (e) FNX–other compositions with the P and S contents deviating from stoichiometric proportions; and (f) FNX-Ox – partially oxidized (Fe,Ni)_n(P,S) (

Table 2. Average compositions (wt %) of Fe–Ni–P–S melt pockets and crystalline aggregates from the Elga IIE iron meteorite.

Type	FN3		FN3		FN3-Ox		FN3-Cryst		FN2
Site	14-15		23-24		13		13		15,19
Fe	68.79	0.63	62.78	2.88	62.78	2.31	66.85	0.96	66.19		0.94
Co	0.55	0.07	0.49	0.13	0.66	0.16	0.50	0.09	0.45		0.07
Ni	13.79	0.39	19.60	2.61	15.85	0.55	15.04	0.79	11.16		0.48
P	10.31	0.50	9.26	0.10	10.15	0.39	11.06	0.11	5.44		0.20
S	4.88	0.55	6.15	0.18	4.69	0.21	4.36	0.15	16.07		0.32
O	1.13	0.14	1.18	0.11	5.65	2.38	1.53	0.06	0.44		0.49
Total	99.45	0.55	99.46	0.72	99.77	0.71	99.33	0.23	99.74		0.23
Atomic ratios per 12 atoms. M = Fe + Ni + Co
Fe	7.537		6.892		7.178		7.349		6.905
Ni	1.438		2.048		1.725		1.573		1.107
Co	0.057		0.051		0.071		0.052		0.045
P	2.037		1.832		2.093		2.192		1.023
S	0.931		1.177		0.933		0.834		2.919
M	9.032		8.991		8.974		8.974		8.057
P+S	2.968		3.009		3.026		3.026		3.943
Type	FN3		FNX		Fe-mix			Fe-mix
Site	9,23a		8-9,23a		27			28
Fe	68.18	0.41	81.44		0.74	68.85	1.33	77.79		1.02
Co	0.56	0.11	0.77		0.09	0.54	0.11	0.70		0.07
Ni	14.88	0.06	10.64		0.45	15.47	1.65	11.49		0.43
P	6.53	0.30	3.60		0.20	8.18	1.40	4.71		0.41
S	9.00	0.27	3.29		0.24	5.50	1.71	4.08		0.69
O	0.91	0.21	0.59		0.13	0.98	0.08	0.72		0.11
Total	100.06	0.48	100.33		0.36	99.53	0.56	99.49		0.10
Atomic ratios per 12 atoms. M = Fe + Ni + Co
Fe	7.415		9.351			7.620		8.891
Ni	1.540		1.162			1.630		1.249
Co	0.058		0.084			0.056		0.076
P	1.281		0.744			1.633		0.970
S	1.706		0.658			1.061		0.813
M	9.013		10.597			9.306		10.216
P+S	2.987		1.403			2.694		1.784

FN3 = (Fe,Ni)₃(P,S); FN2 = (Fe,Ni)₂(P,S); FNX = intermediate alloy mixtures. Fe-mix = mixture with (Fe,Ni)-metal. Ox = partially oxidized aggregate. Cryst—crystalline zone shown Figure 4. Next to the sample composition is one standard deviation of several analyses listed in Table S1.

and Table S1 in Supplementary Materials).

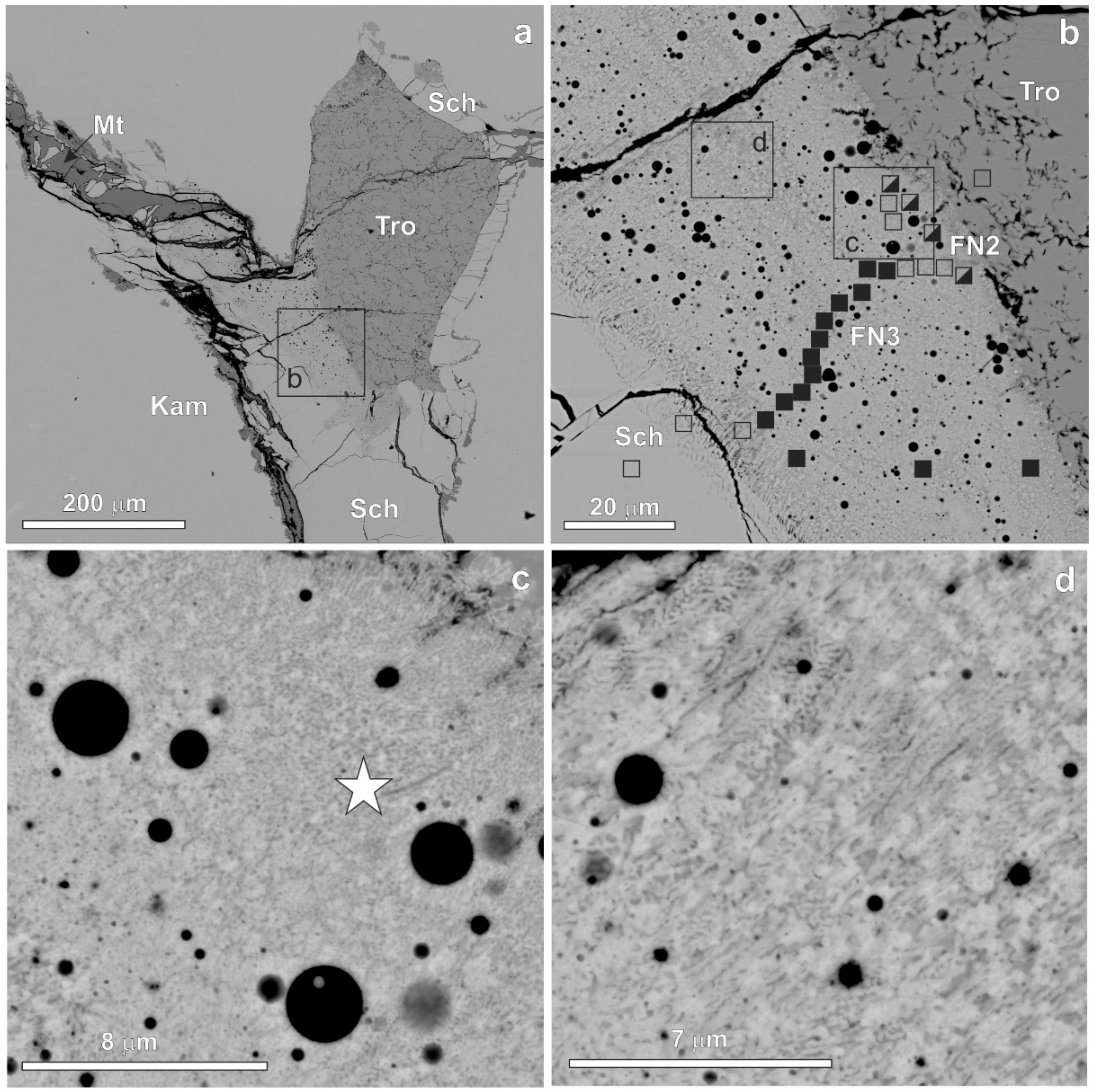

FN3 appears as a micro- or nanocrystalline mixture of two or three phases at the boundary between schreibersite and troilite, where melt pockets could form zoned patterns with FN2 near troilite, intermediate compositions between FN2 and FN3 (Figure 2 and Table S2), and FN3 aggregates partially contaminated by metal. In the latter, FN3 is represented by cryptocrystalline zones surrounded by FNX (Figure 3 and Table S1).

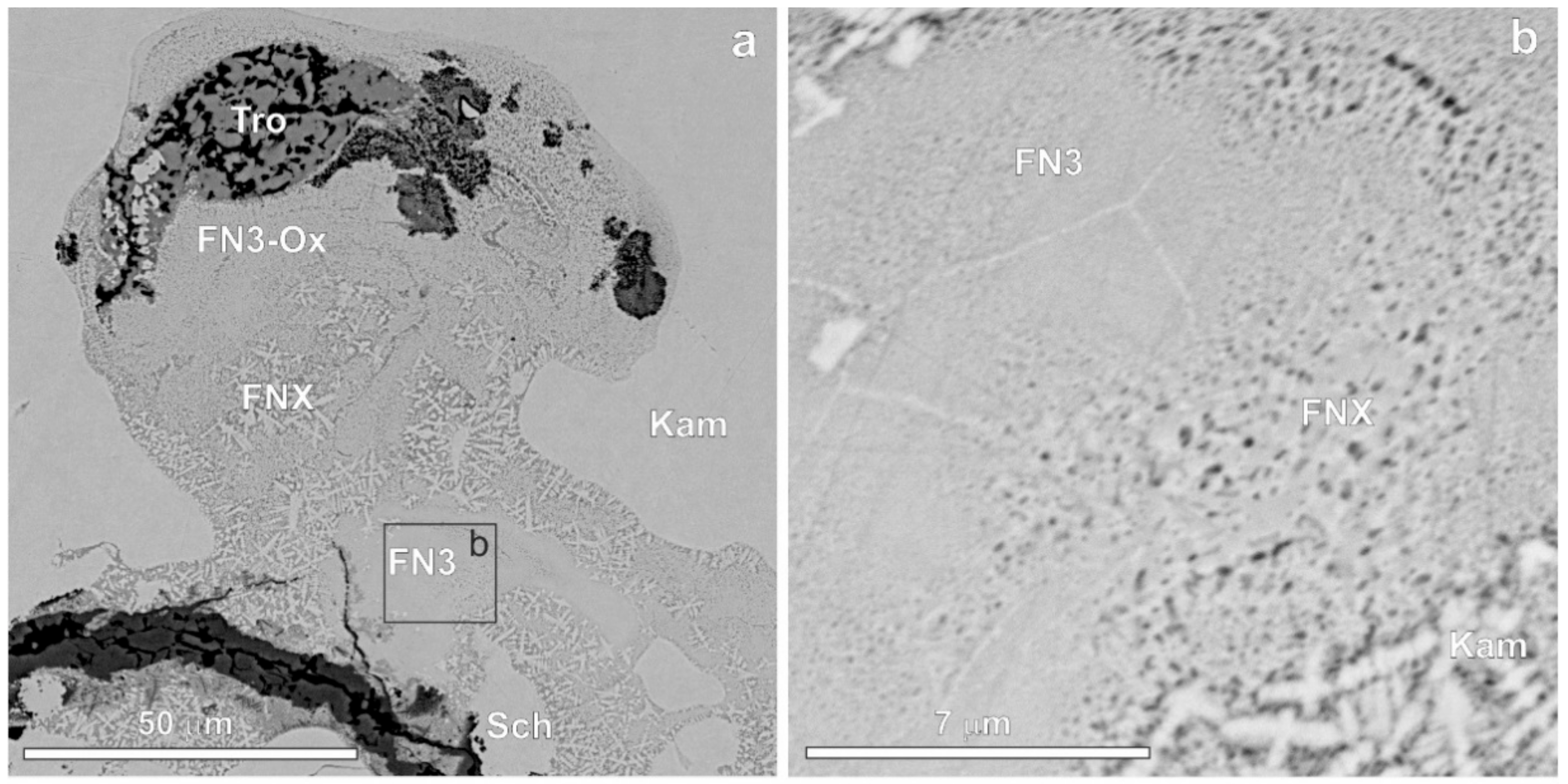

FN3 can also form crystal-like aggregates surrounded by a partially oxidized quenched zone with the same composition (Figure 4). Preliminary transmission electron microscope data indicate the nanocrystalline nature of this crystal-like aggregate. It consists of 10–20 nm crystals representing a mixture of S-containing schreibersite and S-bearing area with unknown composition.

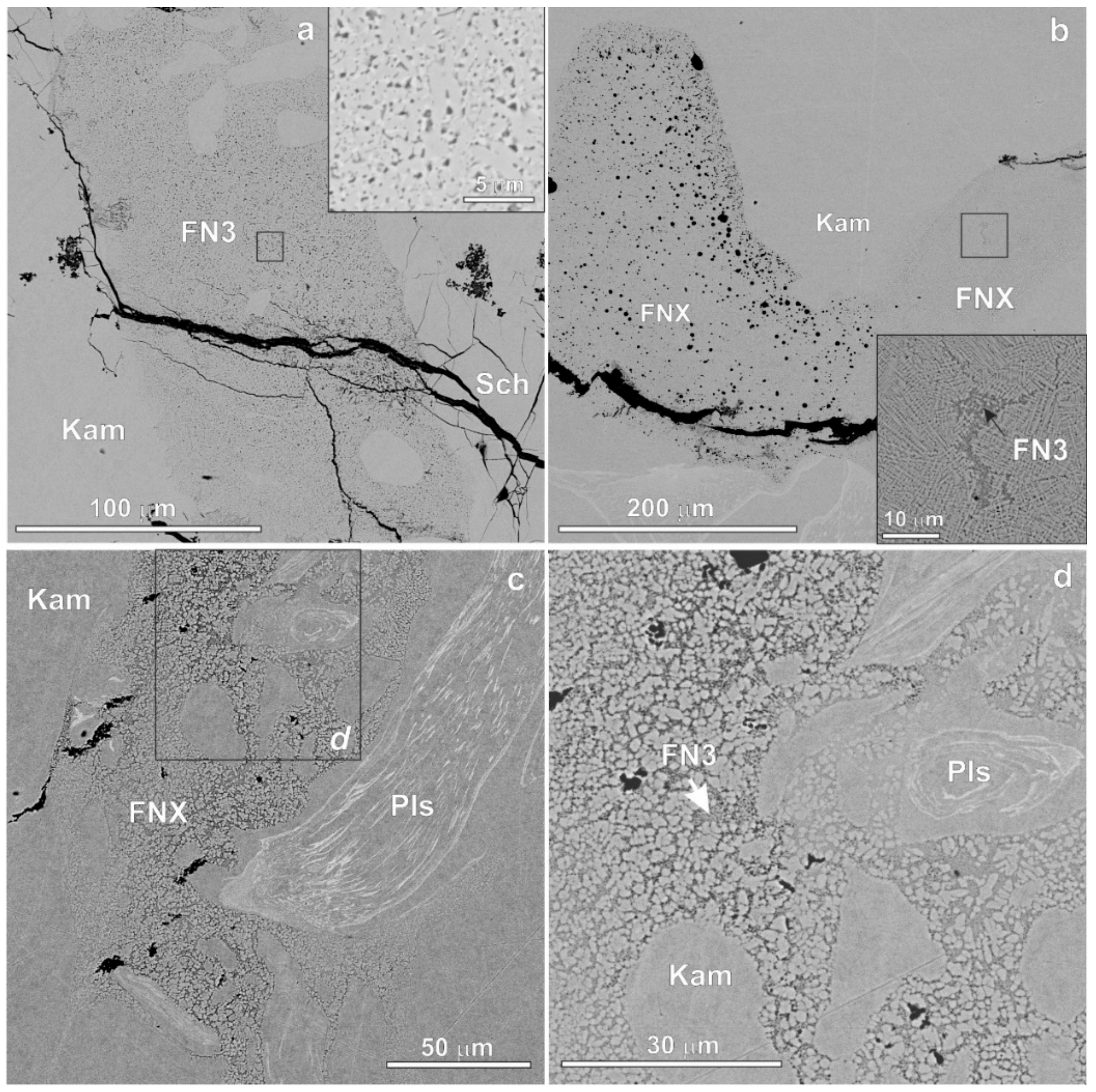

Another appearance of FN3 is connected with quenched textures, which may have crystallized from the melt (Figure 5a). Finally, it can form interstitial zones in non-stoichiometric mixtures with (Fe,Ni)-metal (Figure 5b,c). The composition of FN3 varies from (Fe,Ni)₃P_0.8S_0.2 to (Fe,Ni)₃P_0.4S_0.6 (Figure 6, Table 2). The EBSD analyses on nanocrystalline aggregates of FN3 and single crystal-like areas of FN3 indicate the presence of a phase with the $I\overline{4}$ schreibersite-type structure [24] and mean angular deviation (MAD) of measurements between 0.1° and 0.3° (Figure 7). No troilite or kamacite could be identified in such aggregates suggesting the presence of crystalline FN3 or a nanocrystalline mixture with the FN3 composition. In Figure 2 and Figure 4, we could recognize two phases in the BSE images of Fe-Ni-P-S aggregates. It is obvious that one needs to add 20 to 60 mol.% (Fe,Ni)-metal to fit the compositions of FN3 (Figure 6), which is not the case. The FN3 compositions were also observed in some microcrystalline Fe-Ni-P-S aggregates with a grain size of 0.1–2.0 µm, where we could identify schreibersite, troilite, and kamacite (e.g., Figure 5a). In this case, it is difficult to suggest that this is a former high-pressure FN3 phase; however, a close resemblance to the stoichiometric compositions may not be accidental.

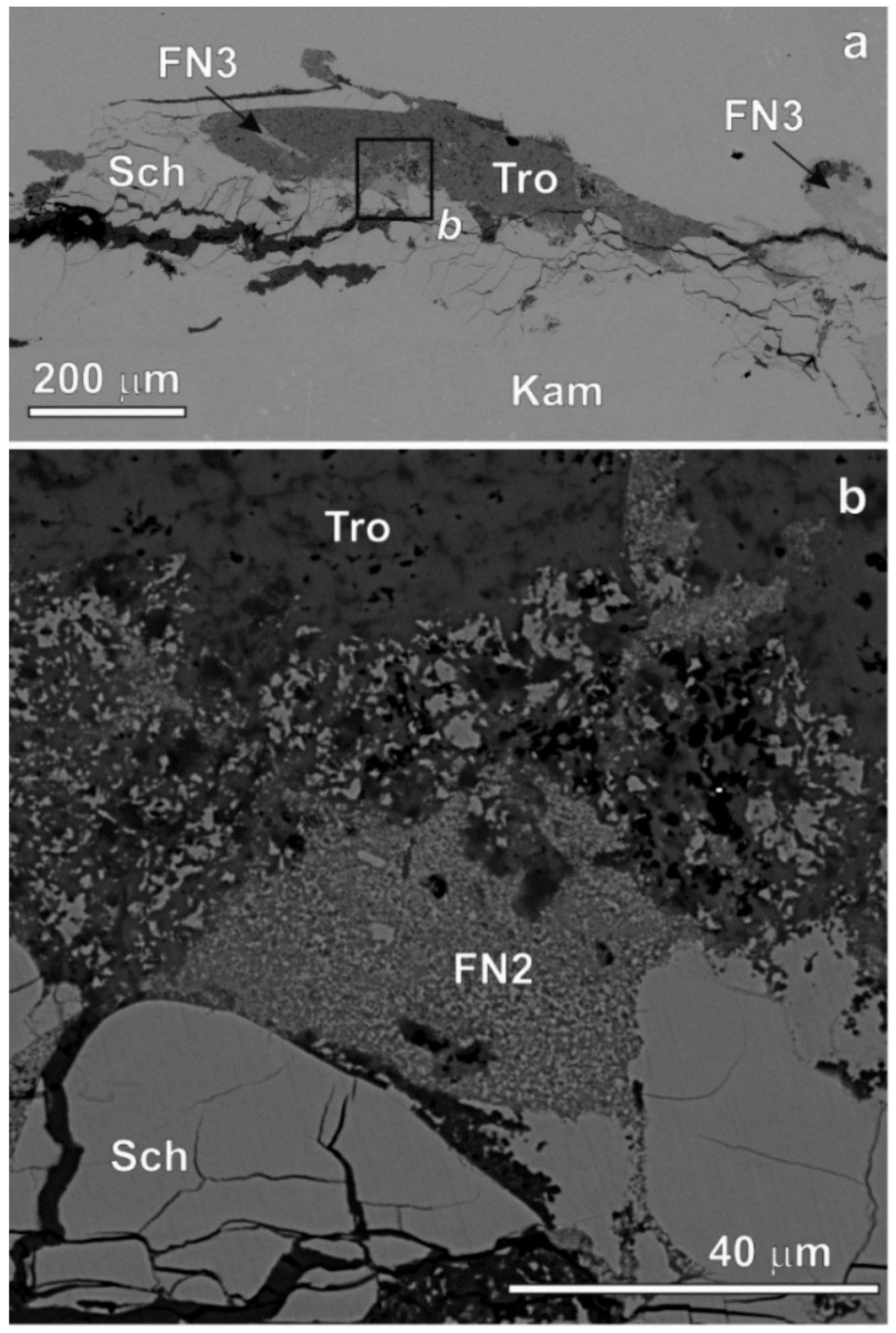

FN2 form micro- and nanocrystalline mixtures of dendritic crystals and appears near the boundary with troilite along with FN3 aggregates (Figure 2) or as interstitial pockets in the non-stoichiometric FNX zones (Figure 5b). Sometimes FN2 looks like a mechanical mixture of troilite and schreibersite crystals (Figure 8). Its composition varies from (Fe,Ni)₂P_0.5S_0.5 to (Fe,Ni)₂P_0.2S_0.8 (Figure 6, Table 2), and it is easy to identify troilite microcrystals by EBSD measurements.

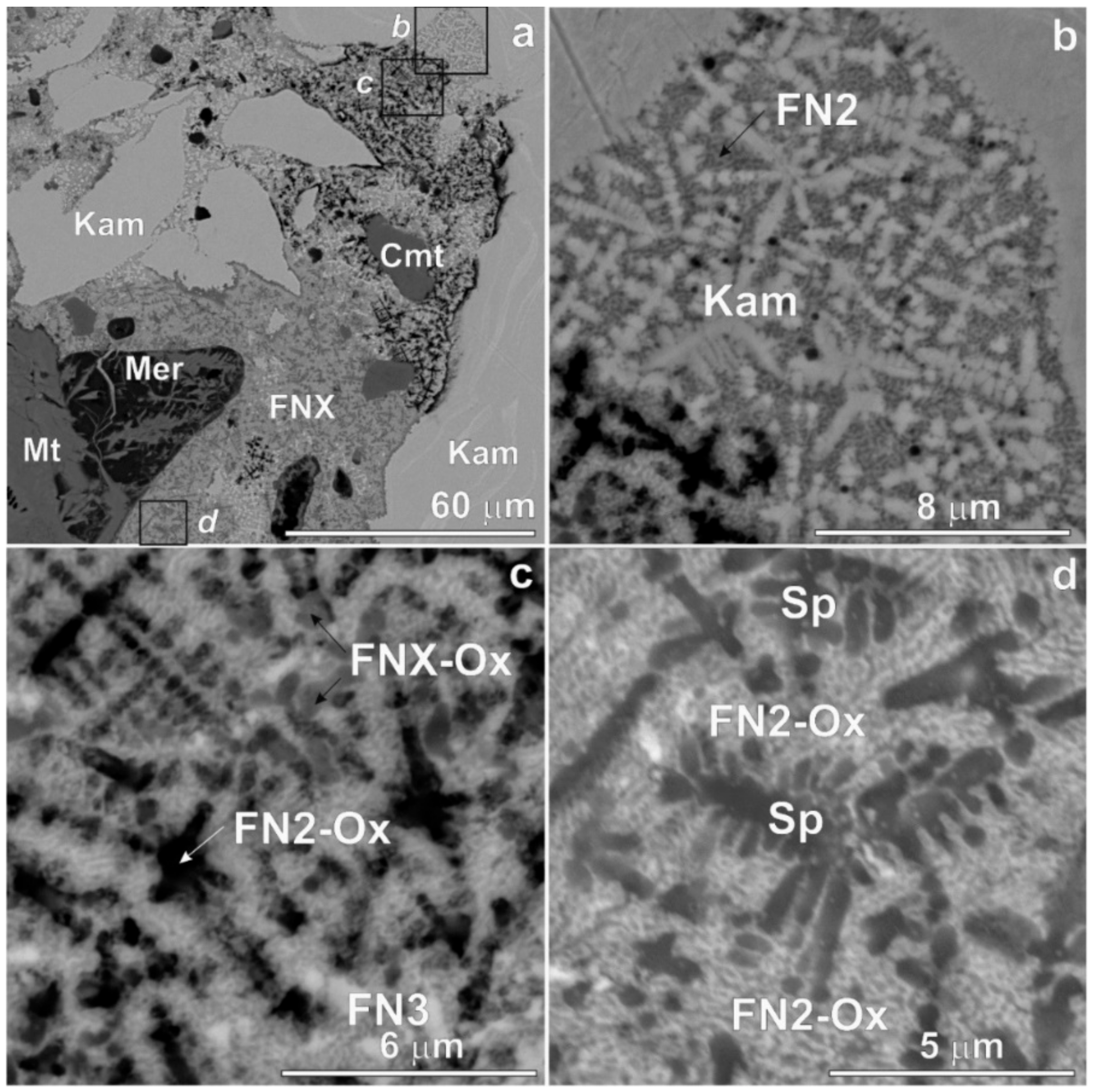

The oxidized regions of FN3 and FN2 appear due to partial oxidation of the metal or alloy with the formation of magnetite or trevorite (Figure 9, Table S3). In this case, the stoichiometry could remain the same or slightly deviate from the original FN3 or FN2 (Figure 6). The composition of the various FNX and FNX-Ox aggregates deviates from stoichiometric FN3 and FN2 due to the admixture of the metallic phase (Figure 6). Some of them correspond to the composition of the miscible Fe-Ni-P-S melts (Figure 5 and Figure 6) and could be formed at low to zero pressures [25,26].

4. Discussion

4.1. High-Pressure Origin of (Fe,Ni)₃(P,S)

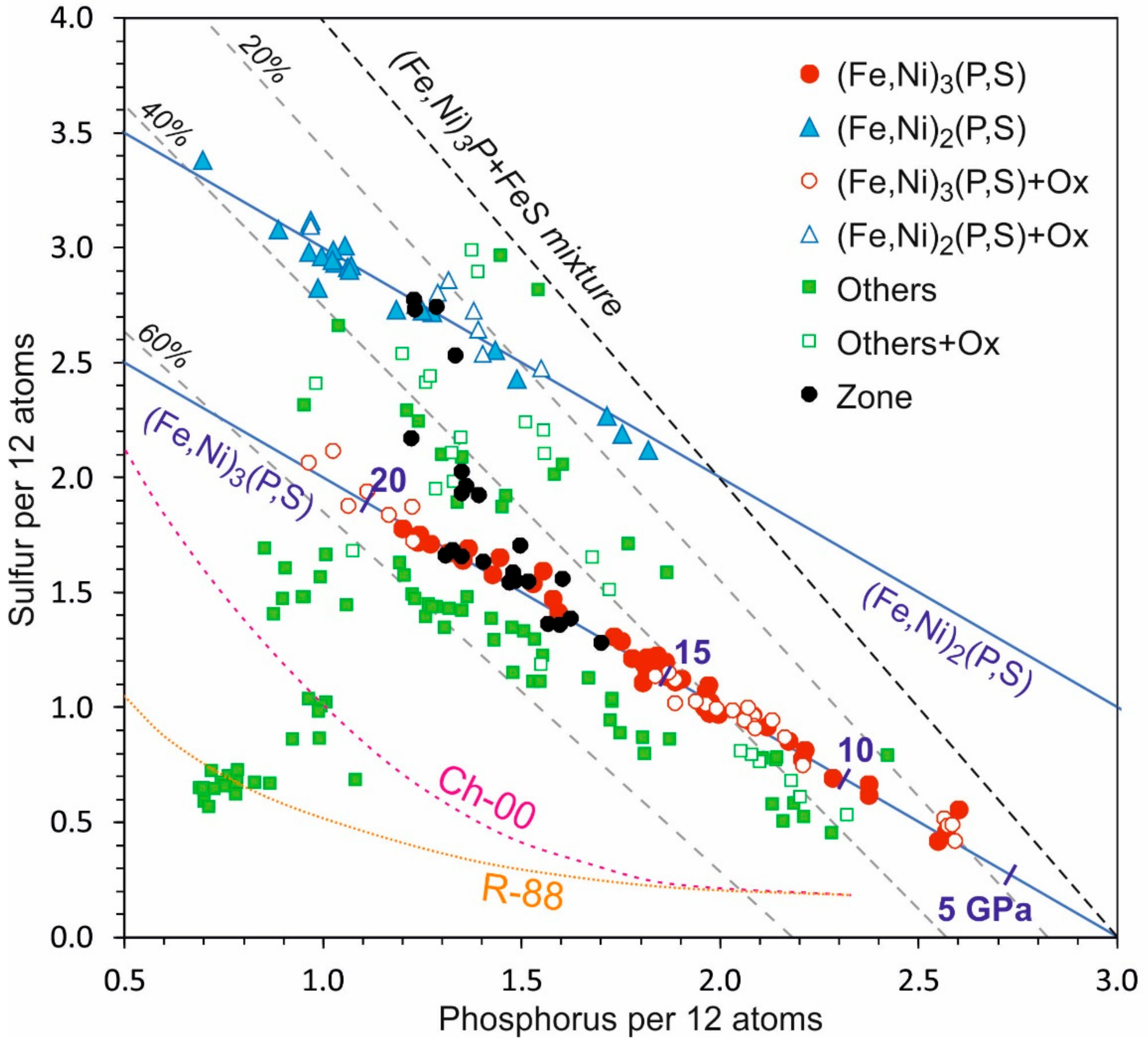

Fe₃P and Fe₃S are isostructural at high pressure and form a complete solid solution at P > 20 GPa [19]. This may indicate partial solubility of sulfur in Fe₃P at lower pressures. Gu et al. [20] calibrated the pressure dependence of sulfur solubility in tetragonal Fe₃P and argued that it could be used as a pressure marker for natural Fe–Ni alloys containing P and S. They predicted that this solid solution could be found in meteorites, as it is the case in the studied Elga sample. We plotted calibration of Gu et al. [20] in Figure 6 and argue that most FN3 crystals and nanocrystalline aggregates correspond to pressures of 10–20 GPa according to the static high-pressure experiments. This calibration may be slightly distorted by the addition of Ni to the system since Ni₃S, isostructural with schreibersite, appears at pressures about 5 GPa [27]. There is no experimental data to evaluate the pressure effect of Ni substitution for Fe in Fe₃(P,S). However, assuming a linear relationship between the stability pressures of Ni₃S and Fe₃S, we can suggest that 20 mol. % of Ni in (Fe,Ni)₃(P,S) would reduce the estimated pressures for 2–3 GPa [28]. Thus, the pressure estimations for the FN3 aggregates would be at least 7–17 GPa. Previous findings of tuite, which is stable at pressures above 12 GPa [29,30] in the shocked zones of silicate inclusions in Elga are consistent with the data for the FN3 aggregates.

The origin of FN2 is presently not clear. Gu et al. [20] reported that Fe₂P dissolves S at high pressures. However, quantitative data on the S solubility in Fe₂P as a function of pressure are not yet available. The close textural relations between FN3 and FN2 in the Elga meteorite and the lack of stable sulfides with the Fe₂S stoichiometry in the studied pressure range [31,32] indicate the possibility of a high-pressure origin for FN2. In this regard, the stoichiometric composition of these aggregates is unlikely to be accidental (Figure 6).

4.2. The Implication of the Results for Putative Impact Events during the Formation of IIE Iron Meteorites and Ureilites

Silicate-bearing iron meteorites are important for understanding the early evolutionary processes in the solar system that affected planetesimals and small bodies. Group IIE iron meteorites often contain 5–20% of silicates as inclusions, varying in composition from mafic to felsic and ultrafelsic. These inclusions show genetic relations to H-chondrites, as revealed by their isotopic and geochemical characteristics [33,34]. The origin of IIE irons with fractionated (non-chondritic) silicate inclusions, such as Elga meteorite, is best explained by a model of disruption and reassembly of partially molten asteroids with complex impact history, when some impact events are related to the formation of silicate inclusions and some to deformation and recrystallization along narrow zones in meteorites [34]. The formation of high-pressure minerals on a microscopic scale could be related to the late impacts. However, presumable extremely high-pressures exceeding 15 GPa recorded by Fe-Ni–P–S aggregates in the Elga indicate that the impact events were almost as intense as during the formation of high-pressure minerals in chondrites, where pressures exceeding 25 GPa were recorded [2].

S-bearing inclusions (S/(S + P) ≈ 0.12) with a bulk composition close to the (Fe,Ni)₃(S,P) stoichiometry were found inside the diamond grains in Almahata Sitta ureilite [28]. These inclusions are interpreted to have been recrystallized to nanocrystalline aggregates of troilite, kamacite, and schreibersite by decompression. The authors relate the origin of these inclusions to pressures above 20 GPa inside the ureilite parent body. We show that these phases could be formed by the shock processes and do not support the idea about the origin of ureilites and their diamonds under the static high-pressure and high-temperature conditions. In our opinion, the FN3 aggregates in ureilitic diamonds, as well as diamonds themselves, were formed dynamically during a strong disruption impact event. This strong impact could cause the formation of enlarged diamond crystals (up to 100 µm) that exceed the normal size of impact diamond crystals (<5 µm) and is considered to be important evidence for the formation of ureilite diamonds in the deep interior of the ureilite parent body [35].
