Verneite, Na2Ca3Al2F14, a New Aluminum Fluoride Mineral from Icelandic and Vesuvius Fumaroles

1
Department of Geosciences and Natural Resource Management, University of Copenhagen, Øster Voldgade 10, DK-1350 København K, Denmark
2
Department of Earth and Geo-environmental Sciences, University of Bari “A. Moro”, via E. Orabona 4, I-70125 Bari, Italy
3
Autorità di Bacino Distrettuale dell’Appennino Meridionale Sede Puglia, Str. Prov. Per Casamassima km 3, I-70010 Valenzano (BA), Italy
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(12), 553; https://doi.org/10.3390/min8120553
Received: 26 October 2018 / Revised: 19 November 2018 / Accepted: 21 November 2018 / Published: 28 November 2018
(This article belongs to the Special Issue New Mineral Species and Their Crystal Structures)
  |
PDF [3195 KB, uploaded 28 November 2018]
  |

Abstract

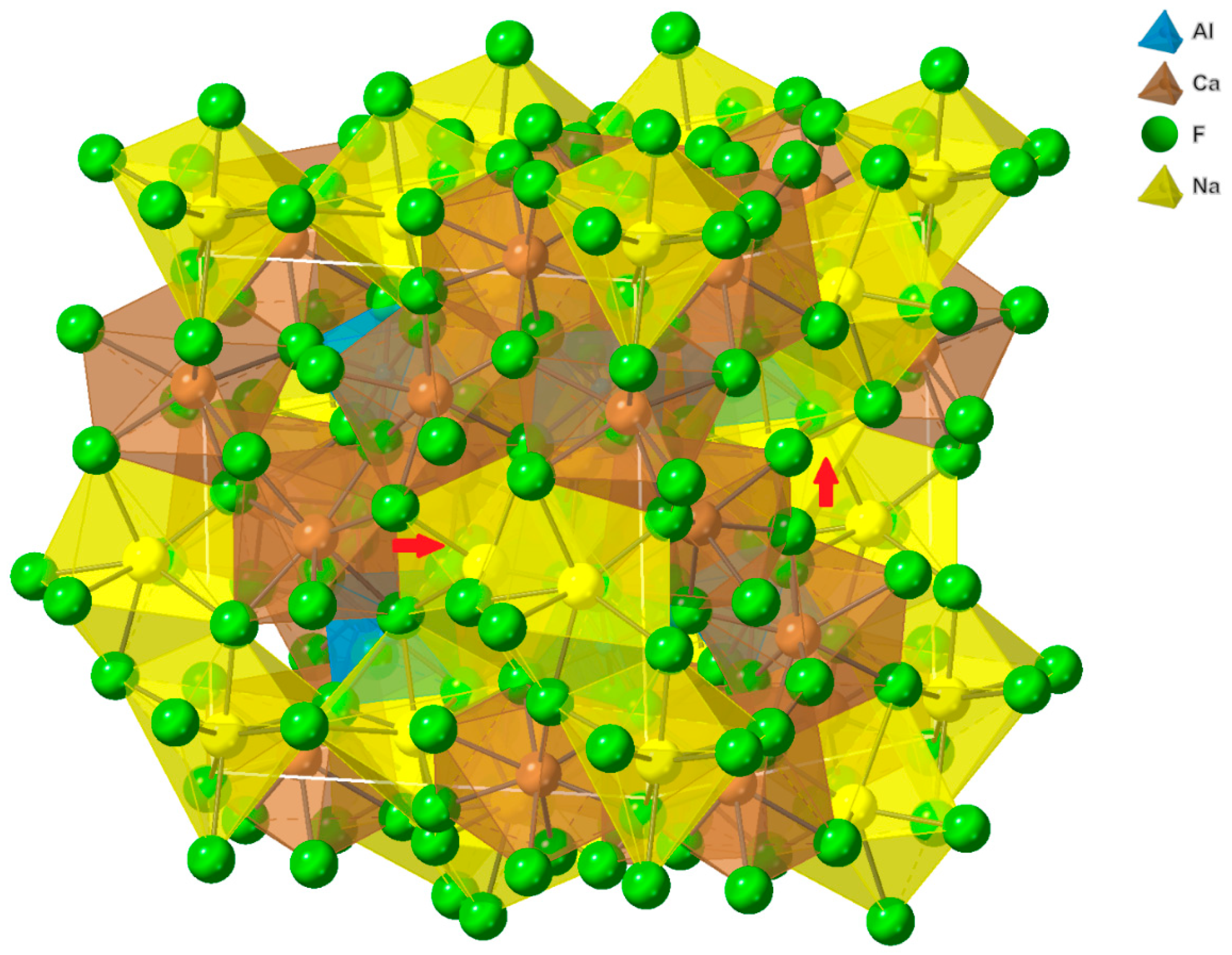

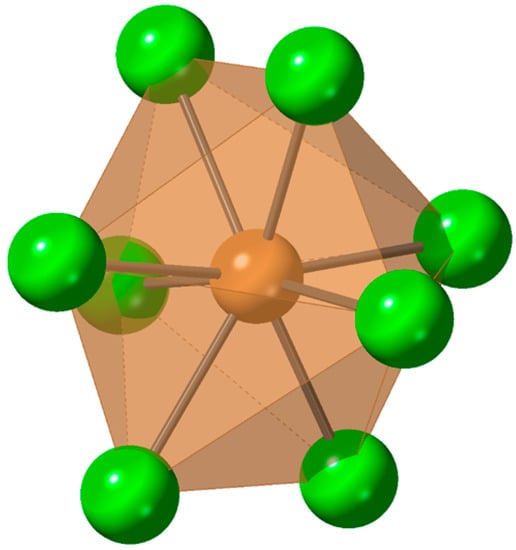

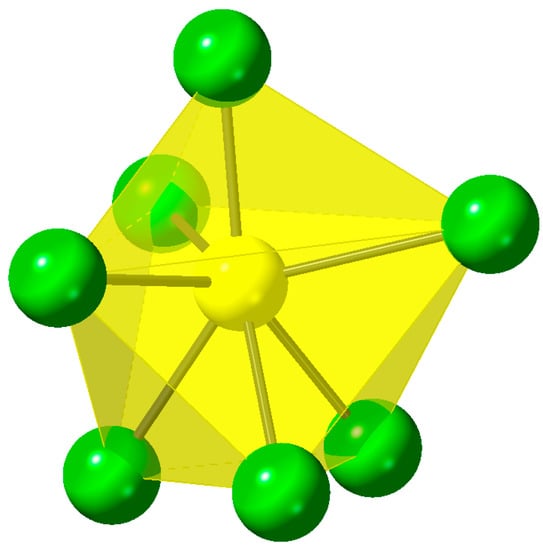

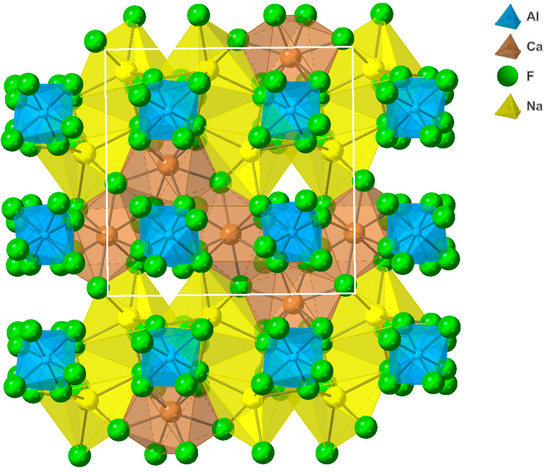

Verneite, Na2Ca3Al2F14, is a new mineral first discovered in fumarolic samples from both Hekla, Iceland and Vesuvius, Italy. Additional occurrences are so far from Eldfell and Fimmvörduhals, both on Iceland. Verneite is cubic, I213, a = 10.264(1) Å, V = 1081.4(3) Å3, Z = 4, and corresponds to the known synthetic compound. The empirical formula is Na2.01Ca2.82Al2.17F14.02 (scanning electron microscopy with energy dispersive spectrometer from an unpolished sample). It appears in crystals up to 20 μm in diameter, with {110}, {100}, and {111} as the main forms. In the crystal structure of its synthetic analogue, Na is coordinated by 7 F atoms in the form of a capped octahedron, Ca with 8 F atoms in the form of a bisdisphenoid, and Al with 6 F atoms in the form of an octahedron. The crystal structure of Na2Ca3Al2F14 contains sinuous chains of Ca coordination polyhedra interlacing with similarly sinuous chains of Na coordination polyhedra and forming together with them layers parallel to {100}. The intersecting layers parallel to three equivalent crystallographic planes form a three-dimensional mesh with Al coordinations imbedded in its holes. The characteristics of Ca coordinations in fluorides, as well as their relations to other ternary Na–Ca–Al fluorides are discussed. Verneite is named after Jules Verne. View Full-Text
Keywords: verneite; new mineral; crystal structure; Hekla; Vesuvius; Eldfell; aluminofluoride verneite; new mineral; crystal structure; Hekla; Vesuvius; Eldfell; aluminofluoride
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Balić-Žunić, T.; Garavelli, A.; Pinto, D.; Mitolo, D. Verneite, Na2Ca3Al2F14, a New Aluminum Fluoride Mineral from Icelandic and Vesuvius Fumaroles. Minerals 2018, 8, 553.
