Effect of Hydrothermal Activity on Organic Matter Enrichment of Shale: A Case Study of the Upper Ordovician and the Lower Silurian in the Lower Yangtze, South China

by
Yizhou Huang
1,2,†,
Zhenxue Jiang
1,2,*,
Kun Zhang
1,2,3,4,5,*,†,
Yan Song
1,3,4,
Shu Jiang
5,6,7,
Weiwei Liu
8,
Ming Wen
1,2,
Xin Li
1,2,
Xuelian Xie
9,
Tianlin Liu
1,2,
Xiangni Cao
1,2,
Yue Sun
1,2,
Lin Zhu
1,2 and
Dongchu Shu
10
1
State Key Laboratory of Petroleum Resources and Prospecting, China University of Petroleum (Beijing), Beijing 102249, China
2
Unconventional Natural Gas Institute, China University of Petroleum (Beijing), Beijing 102249, China
3
Unconventional Petroleum Collaborative Innovation Center, China University of Petroleum (Beijing), Beijing 102249, China
4
Research Institute of Petroleum Exploration and Development, Beijing 100083, China
5
Energy and Geoscience Institute, University of Utah, Salt Lake City, UT 84108, USA
6
School of Geoscience, Research Institute of Unconventional Oil & Gas and Renewable Energy, China University of Petroleum (East China), Qingdao 266480, China
7
Key Laboratory of Strategy Evaluation for Shale Gas, Ministry of Land and Resources, Beijing 10083, China
8
Jiangxi Provincial Natural Gas Company, Ltd., Nanchang 330000, China
9
Guangzhou Marine Geological Survey, Guangzhou 510075, China
10
Zhejiang Oilfield Company, CNPC, Hangzhou 310023, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Minerals 2018, 8(11), 495; https://doi.org/10.3390/min8110495
Submission received: 27 July 2018 / Revised: 18 October 2018 / Accepted: 23 October 2018 / Published: 1 November 2018
Browse Figures
Versions Notes

Abstract

:
The effect of organic matter on hydrocarbon potential, storage space, and gas content of shale is well-known. Additionally, present-day content of sedimentary organic matter in shale is controlled by depositional and preservation processes. Therefore, a study of the enrichment mechanisms of sedimentary organic matter provides a scientific basis for the determination of favorable areas of shale gas. In this study the Upper Ordovician Xinkailing Fm. and the first member of the Lower Silurian Lishuwo Fm. were examined. Stratigraphic sequences were identified through conventional logs and elemental capture spectrum data. Oxygen isotope analysis was applied to recover paleotemperature of seawater in the study area. The excess silicon content was calculated and the origin of the silica was determined by the Fe-Al-Mn ternary plot. The enrichment mechanism of organic matter was analyzed by two aspects: redox conditions and paleoproductivity. As a result, the stratigraphic interval was divided into two 3rd-order sequences. Through oxygen isotope, the paleotemperature of seawater was 62.7–79.2 °C, providing evidence of the development of hydrothermal activity. Analysis of excess siliceous minerals identified two siliceous mineral origins: terrigenous and hydrothermal. It also revealed an upwards decreasing tendency in hydrothermal activity intensity. Strong hydrothermal activity during the Late Ordovician, recognized as TST1, formed a weak-oxidizing to poor-oxygen environment with high paleoproductivity, which promoted organic matter enrichment. During the Late Ordovician to the Early Silurian, identified as RST1, TST2, and RST2, weakening hydrothermal activity caused the decline of paleoproductivity and increased oxidation of bottom waters, leading to a relative decrease of organic matter content in the shale. Therefore, favorable areas of shale gas accumulation in the Upper Ordovician and Lower Silurian are determined stratigraphically as the TST1, with a high total organic carbonate content. Geographically, the hydrothermally-active area near the plate connection of the Yangtze and the Cathaysian is most favorable.

1. Introduction

Since 2000, the shale gas industry has achieved great success in the United States, thanks to new ideas and advanced technology [1,2,3]. Energy Information Administration (EIA) [4] data for 2016 show that the gross withdrawal of natural gas from shale gas wells in American was 16.58 × 109 cubic feet, accounting for 50.81% in the total gross withdrawal of 32.64 × 109 cubic feet. There is a huge resource of shale gas in China as well, and preliminary commercial development has begun in areas including Jiaoshiba, Weiyuan, Changning, Dingshan etc., starting in 2010 [5,6,7,8,9,10]. Identification of the most favorable stratigraphic intervals, both vertically and laterally, is urgent [11,12,13]. Organic matter, the source of shale gas generation, develops organic pores during thermal maturation, providing storage sites for generated gas. Interconnection of the pores provides permeability [14,15,16,17,18]. As such organic matter abundance is one of the key indicators of shale gas evaluation. The present-day total organic carbon (TOC) content in shale is largely influenced by thermal evolution and the original abundance of sedimentary organic matter [19,20], which means it is mainly controlled by depositional and preservation processes of organic matter under a certain thermal evaluation. Therefore, this paper is focused on the geological factors controlling the original abundance of sedimentary organic matter and the enrichment mechanism of sedimentary organic matter.
Stratigraphic sequence establishment is needed in the study of sedimentary environments. Classic sequence stratigraphy is based on clastic rocks on passive continental margins [21,22,23,24,25,26,27], and has reduced accuracy when it is applied to shale deposited in deep-water environments [28,29]. Thus, the classic theory incompletely suits the exploration and development of shale gas. In recent decades, large-scale exploration and development of shale gas is enhanced by new technology, providing new methods and data for the research on sequence stratigraphy of shale gas and mechanisms of organic matter deposition. For example, the maturity of elemental capture spectroscopy (ESC) allows the study of various elements in shale, making it possible to assess redox conditions of shale deposition.
Previous work has used oxidation–reduction indicators to determine sequences in deep-water environments. Chen et al. [30] identified sequence boundaries by way of U/Th, well logs, and lithology, and identified the Longmaxi Fm. as a 3rd-order sequence. Yuan et al. [31] and Wang et al. [32] used difference of elements accumulation in deposition processes, applying the indicators Ca/(Ca + Fe) and Ti/Al for the characterization of different sedimentary environments and changes in water depth. Zhang et al. [33,34,35] proposed a sequence division method for shale by lithology, well logging, and outcrop data, using U/Th as the principle index, Ca/(Ca + Fe) and Ti/Al as supporting indices.
The study of Fleming and Revelle [36] indicates paleoproductivity is the main control on the organic matter enrichment. Pedersen and Calvert [37] demonstrated paleoproductivity to be the main control on the generation of the organic-rich shale. This finding led to a model that considered reducing bottom waters and paleoproductivity as the most important factors of organic matter enrichment [38]. In previous studies, the geochemical indices widely used for paleoproductivity are P, Ba [39,40,41,42,43,44,45], Ni, and Cu [46,47,48,49,50,51,52]. Additionally, the geochemical parameters commonly applied to redox conditions are mainly redox-sensitive metal elements and their ratios [46,51,53,54,55,56], such as U/Th, V/(V + Ni), V/Cr, Ni/Co, and Mo [55,57,58,59,60]. Holdaway and Clayton [61] defined no-terrigenous siliceous minerals as excess silicon, and proposed a quantitative calculation method. In addition, based on large amount of statistics, Wedepohl [62], Adachi et al. [63], and Yamamoto [64] proposed an Al-Fe-Mn method to identify the genesis of excess silicon (hydrothermal or biologic origin) widely applied under pelagic settings [33,34,35,60,65]. All these techniques help to reveal the influence of sedimentary environments on organic matter enrichment.
In this paper, stratigraphic sequences are divided mainly by well logs and ECS data to form a sequence stratigraphic framework for the study area. Additionally, oxygen isotope was analyzed to recover paleotemperature of seawater and verify existence of hydrothermal activity. The existence of the excess silicon is determined, with its content calculated and origin confirmed by an Al-Fe-Mn ternary plot. The excess silicon content is applied to study the geological factors controlling the original abundance of sedimentary organic matter. Then, the mechanism of the organic matter enrichment is further analyzed and a model is proposed to explain the organic matter enrichment in shale of the Late Ordovician to the Early Silurian in the Lower Yangtze Region, South China.

2. Geological Settings

2.1. Sedimentary and Stratigraphy

According to previous research [33,34,66,67,68], well X is located in the southern part of the Lower Yangtze, which is described as a deep-water shelf controlled by a foreland basin in the Late Ordovician and Early Silurian. The southern part of the Lower Yangtze generally transformed from shallow-water shelf into onshore and ancient land northwestwards, while the Cathaysia plate in the south changed dramatically from shallow-water shelf into and ancient land [34,35,67,68]. The location of Well X is near the connection of the Cathaysia and the Yangtze plates (Figure 1).
The research interval is the Upper Ordovician Xinkailing Fm. and the first member of the Lower Silurian Lishuwo Fm., which is a shale stratum widely spread across the Yangtze plate. The lithology of the research interval is divided into two parts. The Xinkailing Fm. and the lower part of the first member of the Lishuwo Fm. are dominated by a combination of black siliceous shale and gray black calcareous shale. Shale, silty shale, and siltstone, grey green and yellow green in color, occur in the upper part of the first member of the Lishuwo Fm.

2.2. Tectonic Evolution

The Yangtze and Cathaysia plates in southern China formed in the Early Mesoproterozoic and united to the South China plate in Middle and Late Neoproterozoic. Up to the early Paleozoic, the Yangtze plate and Cathaysia plate separated again under tension and an intracontinental basin, which is narrow and enclosed, formed in the study area [68,69,70]. The Lower Yangtze experienced a large-scale marine transgression in the Early Cambrian, which contributed to the extensive distribution of organic-rich shale in the Lower Cambrian. Its lithology is dominated by shale and silty shale. This was followed by a regression, causing the water body to become shallower and the lithology to gradually change to siltstone and sandstone [71]. The Yangtze and Cathaysia plates were under compression, resulting in more frequent plate activities and an intracontinental orogeny until the Ordovician [68,69,70]. The water body became even shallower, resulting in a transition in the lithology from a clastic rock depositional system into a carbonate sedimentary system. During the Late Ordovician and the Early Silurian, the Lower Yangtze region experienced another large scale of transgression, and this was when the organic-rich shale in the Xinkailing Fm. and the first member of the Lishuwo Fm. were deposited. Finally, the two plates were formally joined again to the Southern China plate at the end of the Silurian [69,70,71].

3. Samples, Experiments, and Data Source

Forty-two crushed samples from the Xinkailing Fm. and the first member of Lishuwo Fm. in Well X were tested for present-day TOC content using an OG-2000V analyzer (Guangzhou ZHIYUAN Electronics Co., Ltd., Guangzhou, China) (Table 1). Ninety-one drill cutting samples from the same interval were tested by an Axios-MAX (Malvern Panalytical, Malvern, UK), X-ray fluorescence spectrometer, to obtain the abundance of Al, Fe, Mn, and Ba (Table 2).
To calculate and analyze the data comprehensively, the data of ESC from Schlumberger were collected. Conventional well logs of gamma-ray (GR), acoustic velocity (AC), density (DEN), neutron porosity (CNL), U and Th sampled every 0.125 m, provided element data for Si, Ca, Fe, Al, and Ti.
Two core samples from the Xingkailing Fm. and one core sample from Lishuwo Fm. in Well X were selected for oxygen isotope analysis by mass spectrometer MAT-251EM (Thermo Fisher Scientific, Waltham, MA, USA) in Nanjing University. The information of samples is shown in Table 3. The samples were crushed to 200 mesh, calcined, removed of organic matter, and then soaked in HCl to remove siderite and other sulfides. The purified sample (SiO2) was reacted with BrF5 at a constant temperature of 550 °C to form SiF4 gas. The purified SiF4 gas was obtained by liquid nitrogen cold trap and other purification processes. The mass spectrometer agrees with the international standard SMOW, and its analytical accuracy is (+0.2‰).

4. Results and Discussion

4.1. Stratigraphic Sequence

Sequence stratigraphy theory [24] has been widely applied to guiding conventional oil and gas exploration. However, due to the weak response of the deep-water environment to changes of sea level, it is difficult to identify the boundary between the low-stand and high-stand system tracts. While the T-R cycle, which emphasizes the depth changes of water body, dividing a sequence into a transgressive system tract (TST) and a regressive system (RST), is more suitable for the sedimentary characteristics of deep-water environments where shale deposited [72].
Uranium is easily reduced to precipitate uranium black, a uranium-rich ore, or to be adsorbed by other substances. Thorium is easily hydrolyzed in a weak alkaline solution and become an oxide or hydroxide precipitate [73]. Together, their ratios can indicate redox environments [58]. Generally speaking, its variation indicates the process of transgression and regression [30,32,57,58,74,75]. It is well-known that Ca responds to sedimentary process [76,77]. Due to the difference of migratory process of Ca and Fe, Yuan et al. [31] and Wang et al. [32] provides evidence that there is a positive correlation between Ca/(Ca + Fe) and salinity of the water body [31]. The decrease in Ca/(Ca + Fe) reflects transgression [31,32,76]. Al and Ti are inactive in chemical weathering [31,32,78]. In pure argillaceous shale deposition, Ti/Al can be used to determine distance from provenance as an indicator of shoreline migration [32]. As such, Ti/Al values reflect transgression and regression indirectly [32,76,78,79]. Therefore, the above parameters can be used as markers for sequence stratigraphy in deep-water sediments lacking obvious lithology changes. In this paper, the sequence stratigraphy is identified by U/Th primarily and by Ca/(Ca + Fe) and Ti/Al supportively.

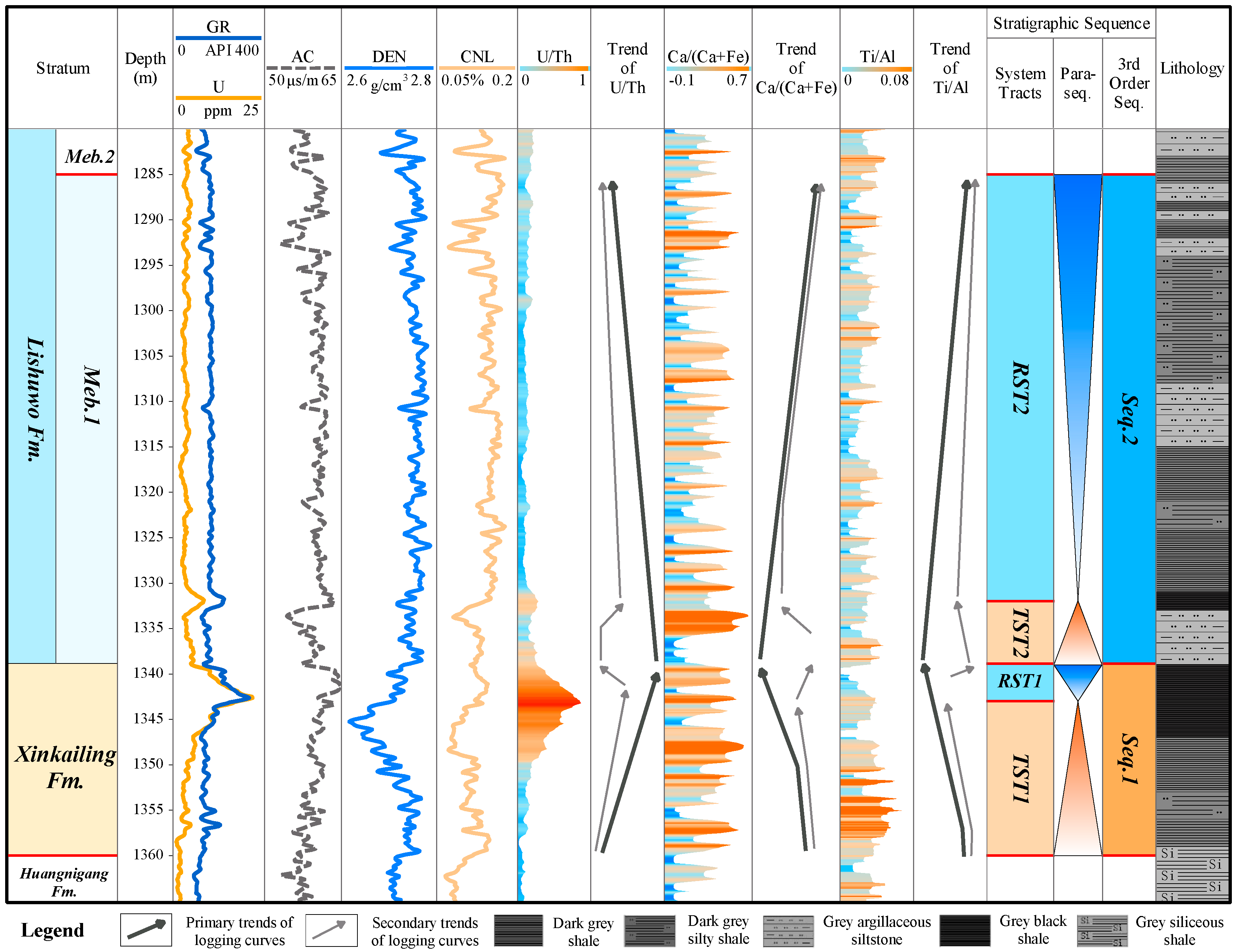

As Figure 2 shows, U/Th tends to increase and then decrease in the Xinkailing Fm. and the first member of the Lishuwo Fm., including two smaller cycles of rises and falls. There are corresponding tendencies of decrease first and then increase in Ca/(Ca + Fe) and Ti/Al, with two smaller ascending and descending cycles. According to the data from International Commission on Stratigraphy (ICS) [80], the duration of the Xinkailing Fm. and the first member of the Lishuwo Fm. is about 4.4 Ma (445.2–440.8 Ma). A 2nd-order sequence is about 10–25 Ma, and a 3rd-order sequence is about 1–3 Ma [81]. Using the trends of curves from well logs and ECS data, the Xinkailing Fm. and the first member of the Lishuwo Fm. is divided into two 3rd-order sequences, Seq.1 and Seq.2 (Figure 2). Seq.1 is composed of a long transgressive system tract (TST1) and short regressive system tract (RST1), while Seq.2 contains a short transgressive system tract (TST2) and a long regressive system tract (RST2).

4.2. Hydrothermal Activity

4.2.1. Oxygen Isotope Analysis

The oxygen isotope of siliceous rocks can be used to calculate the temperature of the ancient sea [82]. The oxygen isotope method to obtain paleotemperature of seawater for siliceous rocks is shown in the following two equations.
δ 18 O ( s h a l e ) − δ 18 O ( w a t e r ) = 3.09 × 10 6 T 2 − 3.29
t = 5.0 − 4.1 × ( δ 18 O ( s h a l e ) − δ 18 O ( w a t e r ) − 40 )
δ 18 O ( s h a l e ) is the oxygen isotope composition of the shale. δ 18 O ( w a t e r ) is the oxygen isotope composition of the sedimentary medium (seawater). In Equation (1), T is thermodynamic temperature of ancient seawater, t is centigrade degree of ancient seawater. In the two equations above, the oxygen isotope composition of sedimentary medium is unknown, but previous studies have shown that the oxygen isotope composition of seawater has little change from ancient times to the present. Therefore, it is assumed that the oxygen isotope composition of ancient seawater is the same as that of present-day seawater, as 0 [82,83].
According to the above hypothesis, paleotemperature of seawater in the Upper Ordovician-Lower Silurian in the study area calculated by Equation (1) was 62.7–77.1 °C (Table 4), and that calculated by Equation (2) is 70.2–79.2 °C. The content of Fe and S of the intervals is 4.9% and 0.7% respectively, relatively low when compared to other rock types. Furthermore, iron and sulfate reduction were not observed during the description of thin sections. Since the absence of minerals resulting from diagenetic precipitation in the thin section observation and the low content of Fe and S shown in the ECS data, this temperature was more likely to represent a depositional signal rather than a diagenetic process, which basically verity the existence of hydrothermal activity during the period.

4.2.2. Excess Silicon Analysis

To accurately analyze the enrichment mechanism of sedimentary organic matter in the shale of the Xinkailing Fm. and the first member of the Lishuwo Fm. in the Lower Yangtze, the concept of excess silicon is used. Siliceous mineral genesis can be divided into terrigenous clastic sediments deposited in normal conditions, and hydrothermal and biological origin, silica under special circumstances [84,85,86,87]. Excess silicon content (Siex), which can be calculated by the following equation:
S i e x = S i s − [ ( S i A l ) b g × A l s ]
where, S i s is the silicon content of the samples; A l s is the aluminum content of the samples; ( S i A l ) b g is equal to 3.11, the average of the ratio of silicon and aluminum in shales [62].
The excess siliceous mineral content of Xinkailing Fm. and the first member of the Lishuwo Fm. in Well X, calculated by Equation (3), reveals a range of 0–22.70%. S i e x in TST1 is relatively high and greater than 5% in most of the interval. During RST1, S i e x decreases. In TST2, S i e x declines continually. Until RST2, S i e x is less than 5% in most of the interval and even the excess siliceous minerals do not exist. Generally speaking, the excess siliceous mineral decreases upwards in the Xinkailing Fm. and the first member of the Lishuwo Fm., whose high-value sector is in TST1.

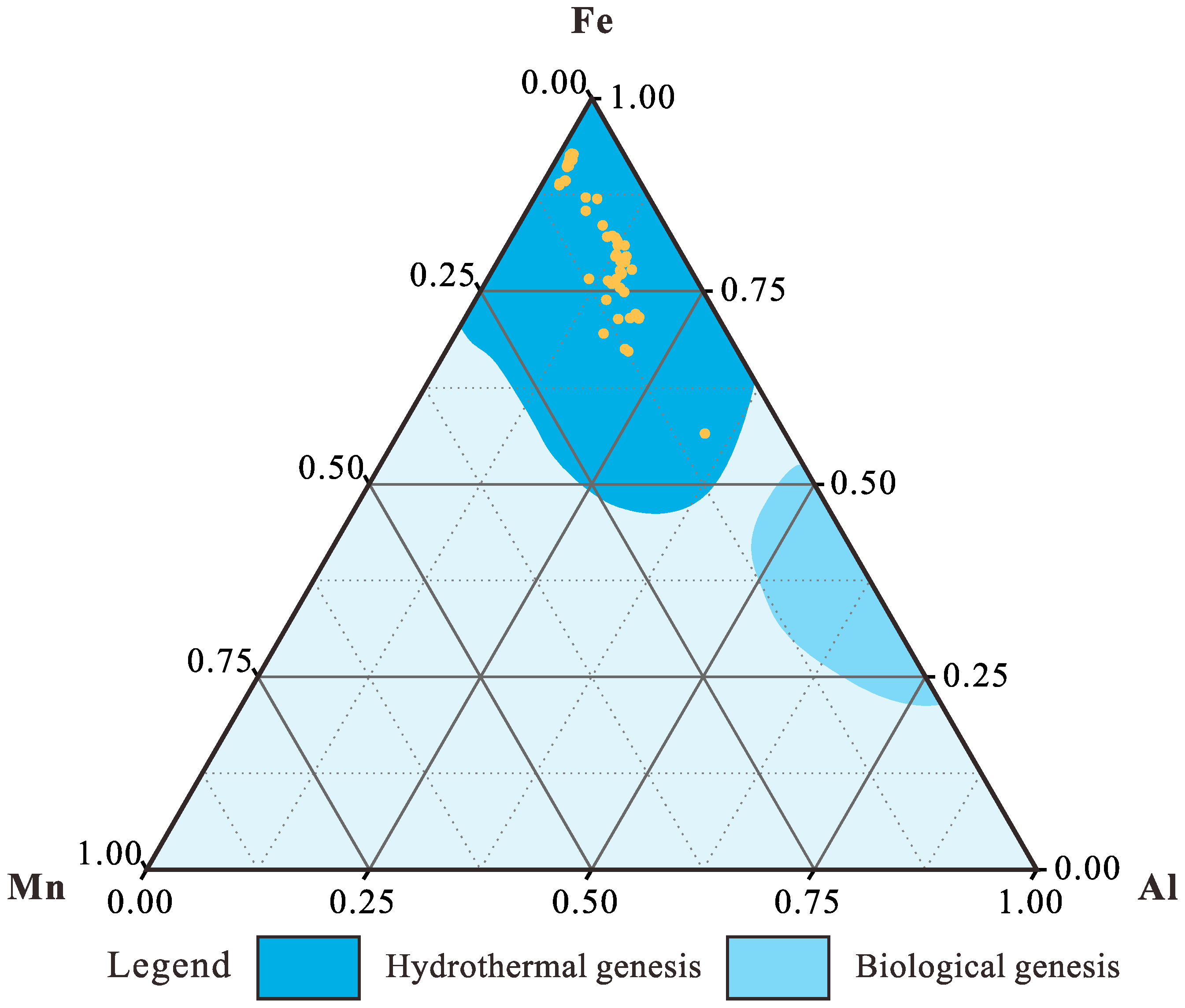

The measured values of the content of Al, Fe, and Mn were collected in the intervals containing excess siliceous minerals. The data points are plotted on a ternary in Figure 3, showing that all the points lie in the hydrothermal origin area. Due to the applicable environments of Al-Fe-Mn method, which is generally deep-water marine environments and influences of other possibilities such as circulation, weathering, stratification, and diagenetic process, alternative explanations of this result need to be discussed. According to regional geological settings, the study area is located in a narrow and long intracontinental sea which is relatively enclosed and was far away from the coastline. Its communication with the open ocean kept slowly but constantly [68,69,70]. While magmatism leading to hydrothermal activity occurred frequently during the sedimentary period [69,70,71], which makes it a relatively higher possibility that the siliceous minerals of these intervals were derived of hydrothermal activity.

4.2.3. Intensity of Hydrothermal Activity

Through the studies above, it indicates that S i e x in the Xinkailing Fm. and the first member of the Lishuwo Fm. in study area were derived of hydrothermal activity. Therefore, in the Xinkailing Fm. and the first member of the Lishuwo Fm. in the Lower Yangtze, S i e x generally stands for hydrothermal silicon, making it a relatively reliable indicator of regional hydrothermal activity intensity, which may not be applicable in other areas where biogenic silicon dominants.
In this paper, the intervals with S i e x of 0–5% are defined to be a weak sector of hydrothermal activity, 5–10% as a relatively weak sector, 10–15% as a relatively strong sector, and 15–20% as a strong sector. The results are presented in Figure 4. It shows that in the Xinkailing Fm. and the first member of the Lishuwo Fm. in the Lower Yangtze, the hydrothermal activity intensity experienced was the strongest in TST1, and then weakened upwards from RST1 and TST2 to RST2.

4.3. Mechanism of Organic Matter Enrichment

According to previous work [88], the siliceous minerals from the organic-rich shale are biogenic in the Upper Ordovician Wufeng Fm. and the bottom of the Lower Silurian Longmaxi Fm. in the Sichuan basin. From this, it is clear that the siliceous minerals of the Upper Ordovician-Lower Silurian in the Lower Yangtze region are not only biogenic (Wufeng-Longmaxi Shale) but of hydrothermal origin (the Xinkailing-Lishuwo Shale). This makes the Upper Ordovician-Lower Silurian a good candidate to explore the effect of hydrothermal activity on organic matter enrichment.
Besides controlling the accumulation of siliceous minerals in shale, there are two ways for hydrothermal activity to influence the abundance of sedimentary organic matter, by the control of redox environments and paleoproductivity.

4.3.1. Redox Environments

Sun [89] and Sun et al. [90] and Zhang et al. [91] demonstrated that reduced hydrothermal fluids can create an anoxic environment in the bottom waters where hydrothermal fluid is introduced, thus promoting the preservation of organic matter.
The index of U/Th is widely used to determine redox conditions and applied to the study of sedimentary environments of shale gas [58]. In this paper, ECS data of U and Th was used, with samples being collected every 0.125 m, making the trend changes of redox conditions obvious when observed. Value greater than 1.25 usually reflects anoxic environments, 0.75–1.25 reflect poor-oxygen environments and less than 0.75 reflect oxidizing environments [58].

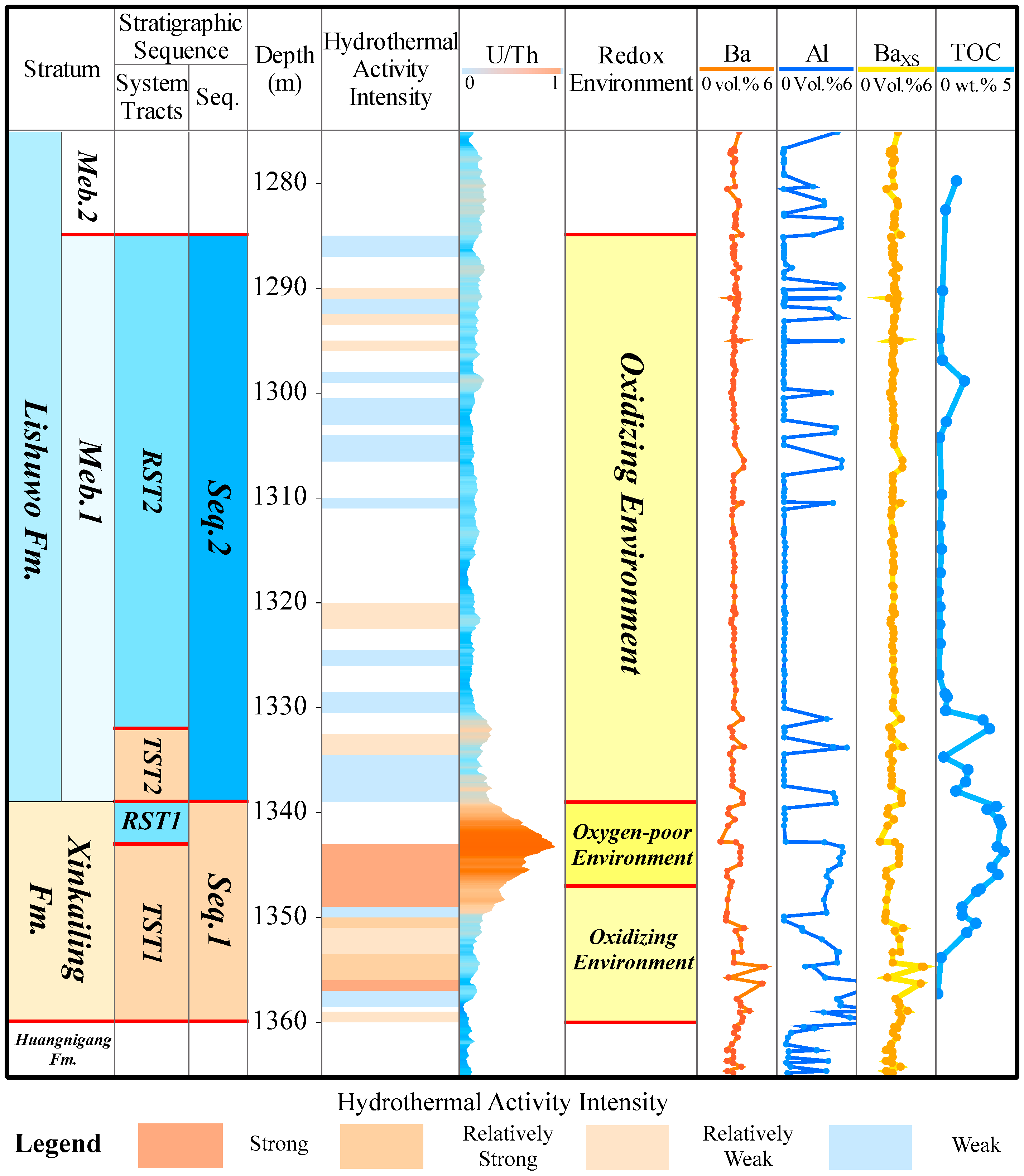

As presented in Figure 5, the content of hydrothermal siliceous minerals is greater than 5% in most intervals of TST1, which reveals a hydrothermal activity intensity reaching relatively strong. Furthermore, the U/Th is 0.5–1 in TST1, indicating weak oxidizing to poor-oxygen environments. Therefore, the hydrothermal activity weakened upwards gradually during RST1. During RST2, siliceous minerals are mainly terrigenous, with hydrothermal siliceous minerals being less than 5%, or nonexistent. In this time, U/Th is 0–0.25, corresponding to strong oxidizing environments.

4.3.2. Paleoproductivity

Paleoproductivity could be closely connected to hydrothermal activity in the areas where hydrothermal activity exists. Through the study of Halbach et al. [92] on hydrothermal activity in the Fuji basin, it is seen that, compared to the normal surface layer of the water body, paleoproductivity is 1–3 orders of magnitudes higher in biomass in hydrothermally-active areas. The hydrothermal fluids carry with a large mass of nutrients necessary for marine organisms, such as Si, N, P, Fe, and Zn. Thus, which promote the growth of organisms [93,94]. This results in a large number of organisms being deposited on the basin bottom, resulting in organic matter enrichment in source rocks.
Barium is often used to reflect paleoproductivity. Trace elements in rocks consist of two parts, terrestrial and authigenic. Only the authigenic components indicate the characteristics of paleo sedimentary environments. Biological barium (excess barium, B a X S ) is used as an indicator of paleoproductivity, whose content is obtained from total barium content subtracting estimated content of terrigenous barium [39]. The content of B a X S is accessible by the following equation:
B a X S = B a s − A l s × ( B a A l ) P A A S
where, B a s is the total barium content of samples; A l s is the total aluminum content of samples; ( B a A l ) P A A S is a constant of 0.0077, the ratio of barium and aluminum of post-Archean Australian shale [95].
B a X S content of the Xinkailing Fm. and the first member of the Lishuwo Fm. in Well X is calculated by Equation (4), as shown in Figure 5. It revealed that during TST1, the content of hydrothermal siliceous minerals is high, reflecting strong hydrothermal activity. B a X S is higher in TST 1, than in RST1, TST2 and RST2, which experienced a relatively weaker hydrothermal activity, indicating that there is a greater paleoproductivity in TST1.
Accordingly, it can be said, it is found out that the hydrothermal activity in the early Late Ordovician created a high-productive water body and environments of weak-oxidizing to poor-oxygen, which promoted the deposition of organic-rich shale in TST1 with TOC content of 2–4% (Figure 5). A decrease of hydrothermal activity intensity in the Late Ordovician-Early Silurian, resulted in weakening paleoproductivity and water oxidizability increased accordingly. As a result, in shale deposited during RST1, TST2, and RST2, had decreased TOC content of 2%, or less, in most parts of the interval (Figure 5).

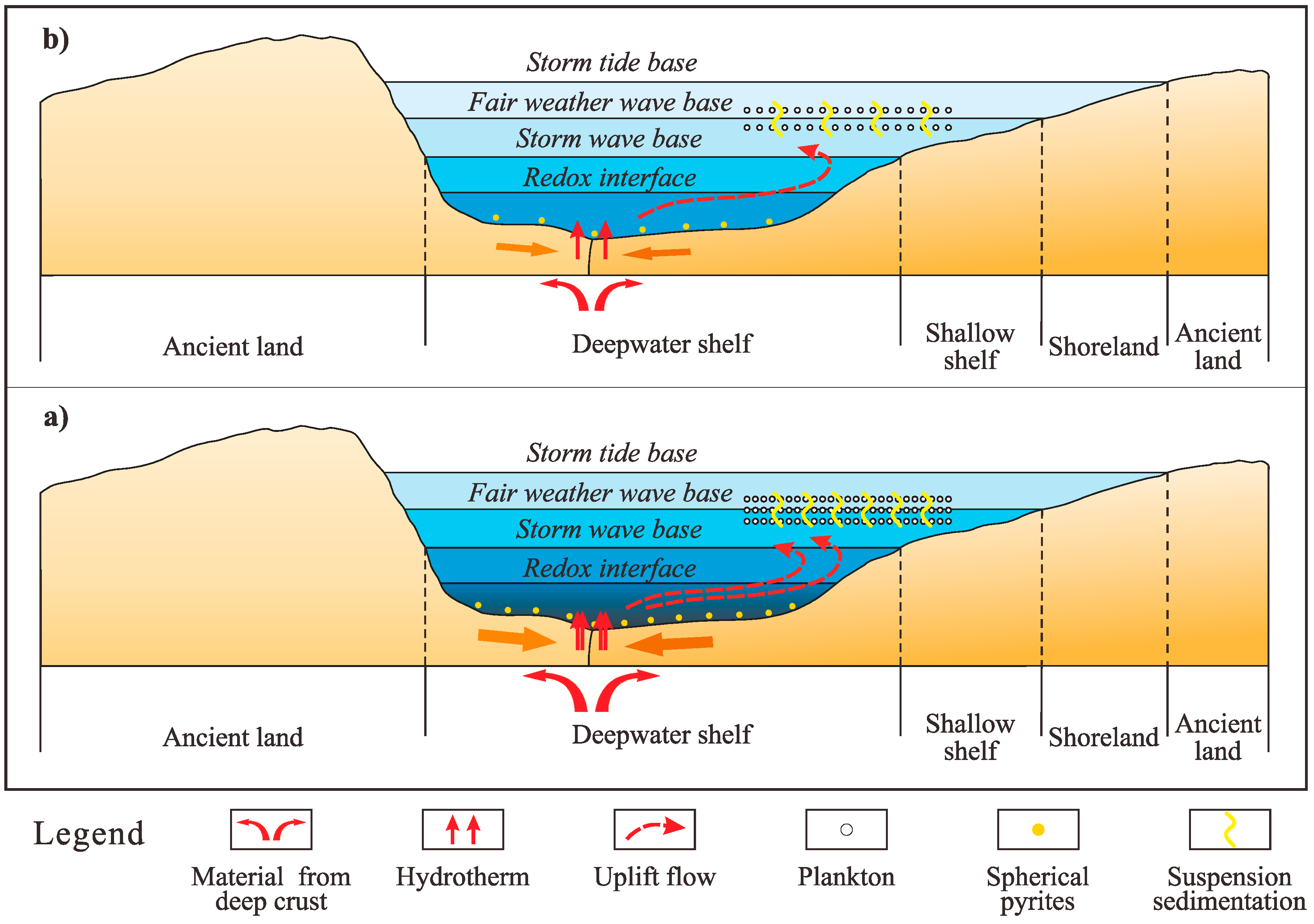

4.3.3. Model of Regional Organic Matter Enrichment

In the study above, in this area, the effect of hydrothermal activity distinguished from other controlling factors of organic matter enrichment and it is investigated one of the key drivers of the regional enrichment of sedimentary organic matter. The strong hydrothermal activity of the Xinkailing Fm. and the first member of the Lishuwo Fm. in the Lower Yangtze is related to the magmatism caused by the active plate movements between the Yangtze and Cathaysia plates in the Late Ordovician and the Early Silurian [96,97].
In TST1 of the Late Ordovician, there are frequent plate motions between the Yangtze and Cathaysia plates, bringing a source of hydrothermal fluids to the junction of the plates. This caused an increase in nutrient levels leading to higher paleoproductivity and reduction of bottom waters, which enhanced the preservation of organic matter and deposition of the organic-rich shale during TST1 (Figure 6a). During RST1–RST2 in the Late Ordovician and the Early Silurian, the decreased plate movements reduced the intensity of hydrothermal activity, which decreased paleoproductivity and changed the redox environments into strong oxidizing environments. In addition, the terrigenous clay minerals and siliceous clasts are increased, forming a shale interval in RST1, TST2, and RST2, which contains a small amount of hydrothermal siliceous minerals and relatively lower TOC (Figure 6b).
We demonstrate that hydrothermal activity controls the redox environments of bottom waters and the paleoproductivity of surface layer of water, consequently affecting the regional enrichment of sedimentary organic matter and the present-day TOC content in shale. This indicates that in the Upper Ordovician and Lower Silurian in Lower Yangtze, the favorable stratigraphic interval is the TST1 with a relatively higher TOC. Areal-ly, the favorable area is the hydrothermally-active area, which is located near the connection of the plates, the Yangtze and the Cathaysia.

5. Conclusions

Due to the inapplicability of the classic sequence stratigraphy for the deep-water sediments and the significance of studying sedimentary environments of organic-rich shale, this paper focuses on the Upper Ordovician Xinkailing Fm. and the first member of the Lower Silurian Lishuwo Fm. Oxygen isotope analysis was applied to recover the paleotempreture of seawater. Well logs and ECS data are used to obtain the content of excess silicon and to determine the siliceous minerals’ origin using an Al-Fe-Mn ternary diagram. Through these evidences basically proved the existence of hydrothermal activity. Afterwards, the enrichment mechanism of organic matter is analyzed by two aspects: redox environments and paleoproductivity. These analysis lead to the following conclusions.
  • Two 3rd-order sequences are identified in the Xinkailing Fm. and the first member of the Lishuwo Fm., when the paleotemperature of seawater was 62.7–79.2 °C, verifying the existence of hydrothermal activity. Within these units, siliceous minerals are terrigenous and hydrothermal, and the intensity of hydrothermal activity decreases upwards, being strongest during TST1.
  • Hydrothermal activity promotes paleoproductivity and reduces bottom waters, which are favorable for the preservation of organic matter. In the Late Ordovician, the active hydrothermal activity promotoed high paleoproductivity and weak-oxidizing to poor-oxygen environments and resulted in the deposition of organic-rich shale during TST1. Subsequently, hydrothermal activity weakened during RST1, TST2, and RST2, paleoproductivity decreased and oxidation increased, leading to a relatively lower TOC in the shale of these intervals.
  • In the Upper Ordovician and Lower Silurian in Lower Yangtze, the stratigraphically favorable interval is TST1, which has a relatively higher TOC. Geographically, the favorable area is an active area of hydrothermal activity located near the connection of the plates, the Yangtze and the Cathaysia.
However, as we know, except for hydrothermal activity, there are factors including ocean circulation, chemical weathering, terrestrial runoff, and water body stratification that may have influences on organic matter enrichment in different situations. Also, iron and sulfate reduction resulting from diagenetic processes may cause an inaccurate result of Al-Fe-Mn analysis. Even though it is based on experimental data and previous geological settings this study demonstrated hydrothermal activity is one of the key controlling factors of regional organic matter enrichment, the possibilities of other alternative drivers could not be completely excluded. To clarify the whole process and all the details of organic matter enrichment in the study area, more related research still remains to be done.

Author Contributions

Conceptualization: Y.H. and K.Z.; Data curation: X.C., Y.S., and L.Z.; Formal analysis: Y.H., X.X., and T.L.; Methodology: K.Z. and X.L.; Project administration: Z.J.; Resources: W.L. and D.S.; Supervision: S.J., Z.J., C.J., and Y.S.; Writing (original draft): Y.H.; Writing (review and editing): K.Z., M.W. and Y.H.

Funding

This research is supported by National Science and Technology Major Project (No. 2017ZX05035-002), the Science Foundation of the Ministry of Land and Resources of China (No. 12120114046701), the National Natural Science Foundation of China (No. 41472112 and No. 41728004) and open fund from Sinopec Key Laboratory of Shale Oil/Gas Exploration and Production Technology.

Acknowledgments

Thanks to all the financings supporting the research, which are the National Science and Technology Major Project, the Science Foundation of the Ministry of Land and Resources of China, the National Natural Science Foundation of China and Sinopec Key Laboratory of Shale Oil/Gas Exploration and Production Technology. Additionally, thanks to all co-authors who worked with me through the whole research. Last but not least, much thanks to all the reviewers and the editor’s office for their critical comments, constructive suggestions and distinguished work.

Conflicts of Interest

The authors declare no conflict of interest.
