Article

Characterization of a Fine-Grained Interstratification of Turbostratic Talc and Saponite

1
Competence Center for Material Moisture (CMM), Karlsruhe Institute of Technology, Hermann-von-Helmholtz-Platz 1, D-76344 Eggenstein-Leopoldshafen, Germany
2
Chair of Foundation Engineering, Soil- and Rock Mechanics, Ruhr-University Bochum, Universitätsstraße 150, 44780 Bochum, Germany
3
Clariant Produkte (Deutschland) GmbH, BU Functional Minerals, BL Adsorbents, Ostenrieder Str. 15, 85368 Moosburg, Germany
4
Clariant Produkte (Deutschland) GmbH, Competence Center Colorants & Functional Chemicals, Group Technology & Innovation, Industriepark Höchst, Gebäude G 860 (CIC), 65926 Frankfurt, Germany
*
Author to whom correspondence should be addressed.
Minerals 2017, 7(1), 5; https://doi.org/10.3390/min7010005
Submission received: 8 November 2016 / Revised: 19 December 2016 / Accepted: 23 December 2016 / Published: 5 January 2017

Abstract

:
Interstratifications of talc and trioctahedral smectites from different provenances are used as indicators for geological environments and for geotechnical and technical applications. However, comprehensive layer characterization of these interstratifications is rare. Sample EX M 1694, a clay with red-beige appearance from the Madrid basin was studied by X-ray diffraction analysis, X-ray fluorescence analysis, Fourier transformation infrared spectroscopy, simultaneous thermal analysis, gas adsorption measurements, cation exchange capacity, and environmental scanning electron microscopy. More than 95% of particles in EX M 1964 belong to the clay fraction <2 µm. It contains 75% interstratification of 30% turbostratic talc, and 70% saponite type III and 25% turbostratic talc. The turbostratic talc(0.3)/saponite interstratification is characterized by a low number of layers per stack (3), small lateral dimension of layers (60–80 nm) and, accordingly, a high specific surface area (283 m2/g) with nearly equal surface area of micro- and mesopores. Thus, the studied material can be used as mined for adsorption, in contrast to acid-treated clays that produce hazardous waste during production. Low particle size of the interstratification drastically reduced thermal stability and dehydroxylation was superimposed by recrystallization of high temperature phases already at 816 °C, which is low for trioctahedral 2:1 layer minerals.

1. Introduction

Interstratifications of talc and trioctahedral smectite layers are formed as an abundant mineral in lake and/or spring deposits of Miocene to Pleistocene age and in serpentinized rocks formed by a transformation of ultramafic rocks at low temperature.
Turbostratic talc/trioctahedral smectite interstratifications occur, for example, in the Province Parma (Italy) [1], in the Armagosa Desert (Nevada) [2], and in the Madrid basin (Spain) [3,4,5,6], which is the most extensive studied locality. The interstratifications are often very fine-grained and analysis and description of the interstratification is still difficult. Turbostratic talc has the same chemical composition as talc, but displays a fully turbostratic structure [7,8,9] and was called kerolite or disordered talc in the past. The term kerolite was discredited by the International Mineralogical Association (IMA)/Commission on new minerals, nomenclature, and classification (CNMNC) in 2008 [10,11], but is still in use in recent literature e.g., Guggenheim [12], because turbostratic talc is regarded as a variety of talc. Nevertheless, in this paper turbostratic talc will be used according to IMA regulations. Stacks of turbostratic talc contain less than 4–5 layers and show broad basal reflections with an increased basal spacing of about 0.96 ± 0.005 nm compared to talc (0.936 nm; [13]). In the talc structure the oxygen atoms of adjacent layers are partially packed together, thereby, the layers are close together. If the distance between the oxygen atoms changed with rotation of layers, the layers would be 0.027 nm further apart. Thus, the sum of the basal reflection of talc 0.936 nm plus 0.027–0.029 nm due to disorder, gives 0.963–0.965 nm, which corresponds with the observed spacing of turbostratic talc [7]. Specific surface area, determined by gas adsorption methods, is about 200 m2/g, which also indicates small particle size. Compared to talc, turbostratic talc is supposed to hold additional water in the structure, which is probably mainly surface-held water [7].
One challenge is to identify the character of the trioctahedral smectite (saponite vs. stevensite) in the interstratifications. Stevensite and saponite are hydrous magnesium silicates belonging to the smectite group [14] with a 060 reflection at 0.152 nm. Stevensite differs from saponite by a complete absence of trivalent cations (Al and Fe(III)). The resulting layer charge of stevensite is caused by a deficiency of octahedral cations. The layer charge of stevensite is at the lower limit (near 0.2 per formula unit, p.f.u.) for known layer charges of smectite [15,16]. In contrast, saponite shows a larger variability in chemical composition. Saponites are characterized by a higher layer charge p.f.u. (0.3–0.5) that is more common for smectites. Saponite type I is characterized by tetrahedral substitutions without octahedral substitutions [16,17], whereas saponite type II is characterized by an additional positive octahedral charge [18]. Furthermore, saponites may be either iron-free or have octahedral iron, which results in saponite type III [16,18]. Type II saponites show a tendency of a small number of octahedral vacancies [15]. Examples of common formulae are:
  • Stevensite: M 0 . 2 + ( Si 4 ) ( Mg 2 . 9 ) O 10 ( OH ) 2 ;
  • Saponite: type I; M 0 . 3 + ( Si 3 . 7 Al 0 . 3 ) ( Mg 3 ) O 10 ( OH ) 2 ;
  • type II: M 0 . 3 + ( Si 3 . 6 Al 0 . 4 ) ( Mg 2 . 9 Al 0 . 1 ) O 10 ( OH ) 2 ;
  • type III: M 0 . 3 + ( Si 3 . 72 Al 0 . 28 ) ( Mg 2 . 51 Al 0 . 19 Fe 0 . 13 3 + ) O 10 ( OH ) 2 .
From the different layer structure of saponite and stevensite, the distance of charge to the layer surface is obviously different, which will determine hydration and sorption properties significantly [19,20].
The aim of the present study was the unambiguous characterization of a clay from the Madrid basin, which shows exceptional suitability as adsorbent material in biotechnology processes [21], and as adsorbent for mycotoxins [22]. In addition, pesticide removal from water has been demonstrated [23] for this clay. This clay can be also used to bind contaminants from the manufacture of paper [24]. Our study was initiated to better understand the structure—functionality relation of this material to potentially enhance its industrial use. The identification of smectite is important as saponite and stevensite vary in charge distribution influencing the absorption behavior of the material.

2. Material

Sample EX M 1694 (Clariant-internal distinct sample/clay quality, Clariant Produkte (Deutschland) GmbH, Frankfurt, Germany), a clay with a red-beige appearance from the Madrid basin, Spain) was studied to identify its mineralogical and chemical characteristics, especially the mineralogy of the interstratification.

3. Methods

Most methods to characterize 2:1 layer silicates were described in detail by Wolters et al. [25] and Steudel et al. [26]. Hence, only a brief description is provided here supplemented by detailed description of new methods. The methods were applied to the raw material as received and to the clay fraction (<2 µm; Na-exchanged), but the results here are focused primarily on the clay fraction.

3.1. Sample Preparation and Size Fractionation

The raw material (500 g) was divided by a rotating sample splitting device (rotary sample divider laborette 27, Fritsch, Idar-Oberstein, Germany) to obtain about 30 g of representative samples for mineralogical characterization. Chemical pre-treatments after Tributh and Lagaly [27] were applied to remove traces of carbonates, iron oxides, and organic matter [25]. Size fractionation was initiated to remove coarse crystallites of non-clay minerals and to enrich particles of <2 µm. For size separation, the material was first suspended in deionized water (800 mL) by mixing in an ultrasonic bath (30 min, Merck Eurolab, Darmstdt, Germany) and shaken overnight. The homogenous suspension was transferred into a 5 L beaker by passing a 63 µm sieve, which allowed separation of larger particles. The remaining suspension was diluted with deionised water to a solid content of about 1%. The <2 µm fraction was obtained by repeated gravitational sedimentation. The large volume was flocculated with NaCl (20× CEC, see below). Excess salt in the sediment was removed by dialysis (conductivity of surrounding deionized water <5 µS/cm). The dialysis tube (Nadir®, Carl Roth GmbH, Karlsruhe, Germany) consisted of cellulose hydrate with a width of 62.8 mm and a diameter of 40 mm. The chloride-free clay fraction was dried at 60 °C, gently manually ground (agate mortar) and stored in closed sample containers.

3.2. X-ray Diffraction (XRD) Analysis

The XRD patterns of the powdered bulk material and the clay fraction (<2 µm) were used for mineral identification and quantification. Mineral identification proceeded further by XRD patterns of oriented samples prepared from the clay fraction. Oriented samples were prepared by dispersing about 80 mg of the Na-exchanged <2 µm fraction in 2 mL deionized water. Samples were dried under atmospheric conditions at room temperature. After analyzing, the air dried samples were solvated for 48 h with ethylene glycol (EG) in a desiccator at 60 °C.
Measurements were performed with a Siemens D5000 (Bruker AXS GmbH, Karlsruhe, Germany) instrument equipped with a graphite diffracted-beam monochromator (CuKα, 40 kV, 40 mA, from 2°–45° 2θ, step width 0.02° 2θ, 3 s/step, divergence and antiscatter slit 0.6 mm, detector slit 1.0 mm). The mineral names were abbreviated according to Whitney and Evans [28].

3.3. Modeling of the One-Dimensional X-ray Pattern

“NEWMOD” was used to model one-dimensional X-ray pattern of different interstratifications to compare them with a measured XRD pattern of EG-solvated oriented specimen from our sample [29]. The EG-treated pattern was used to model the XRD data because the EG fixes the layer-to-layer space. In the air-dried state the basal spacing is sensitive to ambient humidity and the type of interlayer cations. Thus, it is difficult to determine the hydration state of the sample. Air-dried sample data are included here as a baseline to observe changes by EG solvation. A talc/smectite interstratification was selected for modeling. According to Moore and Reynolds [18], talc can be simulated by a trioctahedral mica model with zero values for K and Fe and by changing d(001) from 1.0 to 0.933 nm. A d(001) of 0.96 nm for turbostratic talc was applied during the modeling. For the swelling layers the following structure was selected: trioctahedral smectite-2Gly with a d(001) of 1.69 nm.

3.4. Infrared Spectroscopy—Attenuated Total Reflection Spectroscopy (ATR)

A Bruker IFS 55 EQUINOX spectrometer, equipped with a DTGS (deuterated triglycine sulphate) (Bruker Optik GmbH, Ettlingen, Germany) detector was employed to obtain IR-spectra. 64 scans in the 4000–400 cm−1 spectral range were recorded with a scanner velocity of 5 kHz and a resolution of 4 cm−1. For the ATR measurements, a MIRacle single reflection diamond ATR cell (PIKE Technologies, Madison, WI, USA) was used. Sample preparation was simple: a small amount of powder was pressed on the diamond surface by a stainless steel-tipped anvil.
Band component analysis was undertaken using the Jandel Peakfit software package, (Version 4.12, Jandel Scientific, SeaSolve Software, Framingham, MA, USA), which enables the type of fitting function to be selected and allows specific parameters to be fixed or varied accordingly. The band fitting was done over a region from 1300 to 830 cm−1 using a Voigt function. A linear two-point background was chosen and fitting runs were repeated until reproducible results were obtained with a squared correlation parameter R2 better than 0.998.

3.5. X-ray Fluorescence (XRF) Analysis

The chemical composition of the raw material and of the clay fraction (<2 µm; Na-exchanged) was determined by XRF using molten pellets with lithium tetraborate (mixing ratio 1:7). XRF analyses were performed on a Philips MagiXPRO spectrometer (PANalytical B.V., Almelo, The Netherlands, Company of Spectris plc., Egham, UK) equipped with a rhodium X-ray tube operated at 3.2 KW. The loss-on-ignition was determined prior to XRF by heating the samples at 1000 °C (2 h).

3.6. Simultaneous Thermal Analysis (STA)

The measurements were performed on a STA 449 C Jupiter (NETZSCH-Gerätebau GmbH, Selb, Germany) equipped with a thermogravimetric/differential scanning calorimetry (TG/DSC) sample holder. The STA is connected to a quadrupole mass spectrometer 403 C Aëolos (InProcess Instruments (IPI)/NETZSCH-Gerätebau GmbH, Selb, Germany) to detect the evolved gases from the sample during heating. All samples were allowed to equilibrate at a relative humidity (r.h.) of 53% in a desiccator above a saturated Mg(NO3)2 solution for at least 48 h. Conventional Pt/Rh crucibles (diameter 5 mm and height 5 mm) with a loosely-fitting perforated lid were filled with 80 mg of sample material. The measurements in the temperature range between 35 and 1100 °C with a heating rate of 10 K/min and an isothermal segment at 35 °C for 10 min were obtained under flowing synthetic air (SynA, 50 mL/min) mixed with nitrogen (20 mL/min) from the protective gas flow. The STA is connected to a pulse box (PulseTA, NETZSCH-Gerätebau GmbH, Selb, Germany) to inject a fixed volume of CO2 (1 mL) in the flowing gas. Recording of the evolved CO2 from sample and injected CO2 allows the quantification of the evolved CO2 e.g., from the oxidation of organic matter or from the decomposition of carbonates, [30]. Therefore, a 40 min isothermal segment is performed at the end of the measurement to inject CO2 three times.

3.7. Cation Exchange Capacity (CEC) and Exchangeable Cations

To determine the CEC, the exchangeable cations were replaced by copper triethylenetetramine (Cu-trien) [31]. Prior to this exchange, the samples were also stored at 53% r.h. for at least 24 h. Fifty milligrams of the samples were dispersed in 5 mL 0.01 M Cu-complex solution. Ten milliliters of deionized water were added and the dispersions were shaken for 3 h. The dispersions were centrifuged once at a minimum of 3500 rpm for 10 min; afterwards, the clear blue supernatants (1 mL) were transferred into cuvettes (1.5 mL; semi-micro; disposable, Plastibrand, Brand GmbH & Co. KG, Wertheim, Germany). The depletion of the Cu-trien cations in the sample solutions was determined by photometry at 580 nm using a calibration series with different concentrations of Cu-trien. The CEC was related to the dry weight of the completely dehydrated material calculated with respect to water content determined by simultaneous thermal analysis (STA).
Exchangeable cations (Na+, Ca2+, K+, Mg2+) were determined with an optical emission spectrometer, where inductively-coupled plasma is used for excitation of the cations (ICP-OES; Jobin Yvon JY 38 S, HORIBA Europe GmbH, Oberursel, Germany). For the analysis, 5 mL of the supernatant solution from CEC determination were transferred with a pipette (Eppendorf GmbH, Wesseling-Berzdorf, Germany) into a vial and diluted with deionized water in volume ratios of 1:1, 1:2, or 1:4 depending on the expected ion concentration from the CEC results. Ten to 20 μL of HNO3 (65% supra pure) were added to decompose the Cu-trien complex and to stabilize the solutions.

3.8. Environmental Scanning Electron Microscope (ESEM)

Particle morphologies were examined by a Philips XL 30 FEG environmental scanning electron microscope (ESEM) (FEI Europe, Eindhoven, The Netherlands). Small amounts of sample powder were glued on aluminum SEM-holders using conductive tapes (Leit-C, Plano GmbH, Wetzlar, Germany). To improve the image quality, the samples were sputtered with a thin conductive layer (5 nm Au/Pd 80/20) and were investigated in low-vac mode at a chamber pressure of 1 Torr (130 Pa) using an acceleration voltage of 15 kV.

3.9. Specific Surface Area (AS)

N2 adsorption/desorption isotherms were recorded using either a Quantachrome Autosorb-1MP (Quantachrome Instruments, Boynton Beach, FL, USA) or an ASAP2010 (Micromeritics). To remove gaseous surface contaminants from the sample surfaces, the samples were held 24 h under vacuum at 95 °C prior to the gas sorption cycle. Specific surface area (AS) was calculated by applying BET theory [32]. Six to 11 adsorption points in the range of p/p0 from 0.01 to 0.2 were used for BET evaluation. The density functional theory (DFT) was applied to calculate micro- (<2 nm), meso- (2–50 nm) and macropore (>50 nm) volumes and areas (for definition of pore ranges see [33]) from the N2 adsorption isotherm. For this purpose, the DFT kernel provided by the Quantachrome evaluation program was used. The DFT kernel is based on N2 adsorbed at 77 K on silica surfaces with cylindrical pores and the non-local density functional theory (NLDFT) adsorption branch model [34]. The AS was used to determine the range of square length (L) of the particles and layer (n) per stack [35,36,37].

4. Results and Discussion

4.1. Mineralogy

A broad diffraction peak below 10° (2θ) in the powder pattern of both the bulk sample (data not shown) and the clay fraction (Figure 1) revealed small coherent scattering domains. A 060 reflection at 0.152 nm revealed the existence of mainly trioctahedral clay minerals. No 060 reflection for dioctahedral clay minerals was observable). A small diffraction peak at the low angle side of the 0.319 nm reflection indicated traces of quartz in the bulk sample. Further impurities were calcite and gypsum, which could be proved by a peak in the mass spectrometer (MS) curve of evolved CO2 (m/z = 44) and SO2 (m/z = 64) during STA. The amount of calcite and gypsum was under the detection limit of XRD. The amount of the interstratification in the raw material and in the clay fraction was >97% and >99%, respectively. The powder pattern of the clay fraction showed typical hk reflections of the trioctahedral clay minerals at 0.455 nm and 0.257 nm (Figure 1). An additional reflection at 0.319 nm was observable, which was identified as the 005/003 reflection of the interstratification [9].
In the air-dried oriented pattern of the clay fraction (Figure 2) the first basal reflection is very broad and has a small shoulder at higher 2θ values, typical for interstratifications. Small particle sizes and turbostratic stacking produced line broadening in the X-ray pattern. After treatment with ethylene glycol, the broad diffraction peak splits in two diffraction peaks, due to the swelling of the smectite layers in the interstratification (Figure 2). Both the Na-exchanged and Ca-exchanged material showed after EG solvation the same expansion behavior (data not shown).
The FTIR spectra of the clay fraction of sample EX M 1694 were dominated by only a few features (Figure 3a). In detail, these features are a small band at 3675 cm−1, which is at the same position as a talc-like Mg3OH stretching vibration. The substitution of Al for Si, which transforms talc to Mg-rich smectite, leads to a remarkable broadening and to a slight displacement (5–10 cm−1) of absorption bands of talc in the region below 1200 cm−1 (Figure 3a), which is in good agreement to Russel and Fraser [38]. The very broad band between 3650 and 3000 cm−1 shows three maxima at 3621, 3420, and 3220 cm−1. They can all be assigned to stretching vibrations of adsorbed water molecules on the clay surfaces [38]. The fingerprint region is dominated by a strong band at around 990 cm−1 (Figure 3a), having a number of shoulders on both sides. A spectrum deconvolution reveals four bands at 1092, 1057, 1015, and 973 cm−1 (Figure 3b), which can all be attributed to Si-O stretching modes, a common feature in clay mineral spectra [39].
The peak deconvolution reveals two more weak bands at 915 and 880 cm−1. Both band positions are not reported for trioctahedral clay minerals, but are assigned to Al-OH-Al and Al-OH-Fe bending vibrations by Gates [40]. In addition, Cuadros et al. [10] attributed a band around 790 cm−1 in a talc-smectite interstratification to Fe-Mg-☐-OH sites and a band around 800 cm−1 to Fe-Fe-☐-OH sites [41].
The sharp band at 665 cm−1 is assigned to a Mg2-R-OH bending mode with R = Mg for talc and R = Fe, Al for saponite. Its position is slightly lower than in talc (670 cm−1) but higher than in saponite (655 cm−1). This possibly occurs due to the interstratification of both types of layers and few substitutions in saponite layers.
The strong feature below 500 cm−1 seems to be a mixture of talc and saponite vibrations and is obviously not easy to assign. It has two maxima (440 and 421 cm−1) and a shoulder at 464 cm−1. This shoulder was assigned by Farmer [42] to a perpendicular Mg3-OH bending vibration, while other authors attributed all bands to bending vibrations of the Si–O tetrahedra [43] or to vibrations of Si–O–Mg (464, 440 cm−1) and Si–O units (421 cm−1) [44].
The differential scanning calorimetric (DSC) curves (Figure 4) show one endothermic peak in the region below 200 °C, which is associated with a maximum (130 °C) in the mass spectrometer (MS) curve of H2O (m/z = 18), which reflects the release of adsorbed and interlayer water of a smectitic phase. Between 200 °C and 500 °C, a broad exothermic reaction occurs, which can be associated with the oxidation of some surface attached organic matter due to released H2O and CO2. Two further reactions were observed at higher temperatures (>500 °C) in the DSC curve. The first reaction was endothermic, but the peak maximum could not be determined in the DSC curve because the reaction is superposed by an exothermic reaction. The reactions are associated with gas emissions in the MS curve of H2O (m/z = 18) and CO2 (m/z = 44) and a mass loss of 4.1%. The H2O release at 700 °C and above can be attributed to the dehydroxylation of trioctahedral clay minerals. Dehydroxylation (endothermal) occurs simultaneously with decomposition of clay minerals and recrystallization (exothermal) of high temperature phases. Thus, the maximum of the dehydroxylation peak (816 ± 1 °C) could only be determined by DTG and from the MS curve of evolved H2O (m/z = 18). The small CO2 release can be attributed to the decomposition of a carbonate, which also occurred simultaneously to the dehydroxylation of the clay mineral components. A small amount of carbonates (<1%) were determined by PulseTA.
Chemical analysis showed that the raw material and the clay fraction contain Si and Mg as main elements, which is consistent with the existence of Mg-rich clay mineral components, which are trioctahedral. The amount of Al was below 2% and the amount of Fe was below 1% (Table 1). The LOI of the raw material and for the clay fraction was 21.33 wt % and 18.08 wt %, respectively. The nickel content of the both materials averaged <10 ppm. The low Ni content is related to the composition of the parent rocks. The raw material has a Ca2+/Mg2+ ratio of about 1:2 in the interlayer.
A comparison of ESEM images of the raw material and the clay fraction of EX M 1694 (Figure 5a,b) indicates, that the clay mineral particles formed small aggregates of about 4 µm and show floccules of micro aggregates. These aggregates show the typical fluffy or cloud-like smectite-morphology (Figure 5b).
The layer charge had to be derived from the structural formula because layer charge measurements based on Lagaly [45] were not possible, owing to very broad peaks of low intensities in XRD patterns of n-alkylammonium exchanged samples. The specific surface area (AS) of the raw material and the clay fraction is 278 m2/g and 283 m2/g, respectively. The AS revealed three layers per stack (n = 3) and a very small lateral layer dimension between 60 and 80 nm.

4.2. Interstratification Studies

First, a turbostratic talc/smectite interstratification was modelled. The best result was reached using the following parameter ((Reichweite = 0, d(001) for turbostratic talc = 0.96 nm, smectite content = 0.7, LowN = 1; HighN = 5; δ = 2). Not all features in the XRD pattern could be reproduced with a turbostratic talc/smectite interstratification (Figure 6a). Therefore, a turbostratic talc pattern (Figure 6b) was modelled, too. The parameter LowN, HighN, and δ were the same as already chosen for the interstratification. The d(001) for the turbostratic talc was fixed to 0.96 nm. The two modelled patterns (Figure 6b) were mixed in the ratio: 75% turbostratic talc/smectite interstratification and 25% turbostratic talc. Figure 6c,d shows that all features could now be reproduced. The masked range (Figure 6a–d) of the pattern was excluded, because in this region the d(02,11) reflection of trioctahedral clay minerals is located [9]. The occurrence of this reflection indicated that the particles were not completely oriented parallel to the sample holder. The variation of the Fe content from 0 to 0.1 has no significant influence in the patterns, therefore the iron content in the smectite component was fixed to 0.05 p.f.u. according to the chemical composition (Table 1). HighN and δ were very low to reproduce the broad diffraction peaks. Higher values would produce very sharp diffraction peak profiles. The low values agreed with the results of BET measurements.
According to the modeling results, the structural formula of the smectite in the interstratification was calculated [46] using the chemical analysis of the clay fraction (Table 1). Based on Cuadros et al. [10], we assumed that the chemical variability of turbostratic talc and talc is low compared to smectite. Thus, we applied the ideal talc formula ( Si 4 . 0 ) ( Mg 3 . 0 ) O 10 ( OH ) 2 for both talc components. The structural formula for smectite (70%) was then calculated as: M 0 . 31 + ( Si 3 . 77 Al 0 . 23 ) ( Mg 2 . 84 Fe 0 . 05 Al 0 . 03 ) O 10 ( OH ) 2 . M+ includes the interlayer cations Na, Ca, and K. The determined structural formula for the smectite component is typical for a saponite type III rather than for stevensite, which was found by Martin de Vidales [3] in similar materials.
The H2O release below 300 °C was higher than expected for a mixture of a Na-rich swelling clay mineral (average H2O content at 53% r.h. at about 12.5%, unpublished data) and a fine-grained non-swelling clay mineral (maximum H2O content at 53% r.h. of 5%). The high H2O binding ability is caused by the extreme small material grains and large surface area.
To determine the mass loss resulting from dehydroxylation of the clay mineral components the overall mass loss between 600 °C and 1100 °C was corrected by the mass loss caused by thermal carbonate decomposition. Even 1% calcite would result in a mass loss of 0.44%, which would cause an overestimation of OH from overall mass loss in TG above 600 °C. Talc contains 4.6% water as hydroxyl groups and saponite 4.66%. The investigated sample consists of 75% turbostratic talc (0.3)/smectite interstratification and 25% turbostratic talc. Thus, the amount of turbostratic talc from the interstratification corresponds to 22.5% of total layers and the sum of turbostratic talc corresponds to 47.5%. The amount of saponite from the interstratification totaled 52.5% of all layers. The amount of OH from 47.5% talc is 2.19% and from 52.5% saponite is 2.45% (2.19% + 2.45% = 4.64%). The carbonate content in the clay sample fraction was 0.36%, which results in a mass loss of 0.16%. With the carbonate correction, the mass lost owing to dehydroxylation is 4.66% instead of 4.82% (uncorrected) and this is equivalent to the theoretical value. This result indicates no additional surface hydroxyl groups. The CEC of the raw material (37 cmol(+)/kg) is equal to the CEC of the clay fraction (40 cmol(+)/kg). The calculated layer charge of the pure smectite (0.31 p.f.u.; Msmectite = 385.35 g/mol) revealed a CEC of 80 cmol(+)/kg. Thus, 52.5% saponite had a CEC of 42 cmol(+)/kg, which equates the measured CEC (40 cmol(+)/kg) of the clay fraction.
According to Faust & Murata [47], Veniale and Van der Marel [48], Grimshaw [49], Alietti and Mejsner [1], and Post [50], the endothermic decomposition of pure talc and saponite, as well as talc-saponite interstratifications involves crystallization of enstatite and cristobalite. Decomposition (endothermic) and recrystallization (exothermic) are out of the temperature range (up to 1100 °C) of conventional STA measurement systems [1,48,49,50]. In contrast, the investigated turbostratic talc-saponite interstratification showed an exothermic peak with a maximum at 815 °C superimposing with the endothermic dehydroxylation of the interstratification. The low temperature of dehydroxylation and decomposition for turbostratic talc-saponite interstratification is again caused by the small particle size.

4.3. Surface Properties of the Interstratification

The specific surface area of the raw material is 278 m2/g and is only slightly lower than the specific surface area of the clay fraction at 283 m2/g, and is comparable to engineered adsorption materials (Table 2, [51]).
Engineered adsorption materials that are produced by acid treatment of smectitic clays to adjust surface area and porosity [52] generate hazardous waste. The studied material can be used as mined and, in addition, possesses a small amount of macropores, but large numbers of micropores (50%) and mesopores (50%). Therefore, it might not only be suitable for further (bio)-separation processes of low molecular substances without pretreatment, but also for adsorption of macromolecules, like proteins and enzymes.

5. Conclusions

Sample EX M 1694 from the Madrid basin (Spain) is similar to the pink clay from the same provenance studied by Martin de Vidales [3] and Cuevas et al. [4], but the interstratification consists of 30% turbostratic talc and 70% saponite type III rather than turbostratic talc and stevensite (due to tetrahedral and octahedral substitutions). In addition to the interstratification (75%), the sample contained 25% turbostratic talc. The fine grained natural material with small lateral layer dimension and low number of layers per stack possesses a large surface area comparable to engineered sorption materials. Therefore, it is highly suitable for application as mined without chemical pretreatment, which reduces the environmental burden. Furthermore, low particle size reduces thermal stability and dehydroxylation, and recrystallization takes place well below 1000 °C. The exceptional suitability of the studied material for absorbents in biotechnology processes, for mycotoxins and pesticides can be explained by its physical and chemical properties.

Acknowledgments

We are grateful to Katherina Rüping and Doreen Rapp for their help in the laboratory. The authors acknowledge Marita Heinle (Karlsruhe Institute of Technology, KIT) for ICP-OES analyses, Utz Kramar (Karlsruhe Institute of Technology, KIT) for XRF analyses and Peter Weidler (Karlsruhe Institute of Technology, KIT) for gas adsorption measurements. We are very grateful to Javier Cuadros, Steve Guggenheim, and two anonymous reviewer for discussions that improved the manuscript.

Author Contributions

Friedrich Ruf, Ulrich Sohling, Rainer Schuhmann, and Katja Emmerich conceived the project and designed the overall experimental strategy. Friedrich Ruf and Ulrich Sohling selected the sample. Annett Steudel performed the XRD, the STA and the CEC experiments and analyzed the data. Annett Steudel performed the modeling of the one-dimensional X-ray pattern. Frank Friedrich performed and evaluated the FTIR and ESEM experiments. All authors participated in writing the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alietti, A.; Mejsner, J. Structure of a talc/saponite mixed-layer mineral. Clays Clay Miner. 1980, 28, 388–390. [Google Scholar] [CrossRef]
  2. Eberl, D.D.; Jones, G.; Khoury, H.N. Mixed-layer kerolite/stevensite from the Amargosa Desert, Nevada. Clays Clay Miner. 1982, 57, 115–133. [Google Scholar] [CrossRef]
  3. De Vidales, J.L.M.; Pozo, M.; Alia, J.M.; Garcia-Navarro, F.; Rull, F. Kerolite-stevensite mixed-layers from the Madrid basin, Central Spain. Clay Miner. 1991, 26, 329–342. [Google Scholar] [CrossRef]
  4. Cuevas, J.; Pelayo, M.; Rivas, P.; Leguey, S. Characterization of Mg-clays from the Neogene of the Madrid basin and their potential as backfilling and sealing material in high level radioactive waste disposal. Appl. Clay Sci. 1993, 7, 383–406. [Google Scholar] [CrossRef]
  5. Pozo, M.; Casas, J. Origin of kerolite and associated Mg clays in palustrine-lacustrine environments. The Esquivias deposit (Neogene Madrid Basin, Spain). Clay Miner. 1999, 34, 395–418. [Google Scholar] [CrossRef]
  6. De Santiago Buey, C.; Suarez Barrios, M.; Garcia Romero, E.; Dominiguez Diaz, M.C.; Doval Montoya, M. Electron microscopic study of the illite-smectite transformation in the bentonites from Cerro del Aquila (Toledo, Spain). Clay Miner. 1998, 33, 501–510. [Google Scholar] [CrossRef]
  7. Brindley, G.W.; Bish, D.L.; Wan, H.-M. The nature of kerolite, its relation to talc and stevensite. Mineral. Mag. 1977, 41, 443–452. [Google Scholar] [CrossRef]
  8. Bailey, S.W. Summary of recommendations of AIPEA nomenclature committee on clay minerals. Am. Mineral. 1980, 65, 1–7. [Google Scholar]
  9. Brindley, G.W.; Brown, G. Crystal Structures of Clay Minerals and Their X-ray Identification; Monograph 5; Mineralogical Society: London, UK, 1980; p. 539. [Google Scholar]
  10. Cuadros, J.; Vesselin, M.D.; Fiore, S. Crystal chemistry of the mixed-layer sequence talc-talc-smectite-smectite from submarine hydrothermal vents. Am. Mineral. 2008, 93, 1338–1348. [Google Scholar] [CrossRef]
  11. Nickel, E.H.; Nichols, M.C. IMA/CNMNC List of Mineral Names. Available online: http://nrmima.nrm.se//MINERALlist.pdf (accessed on 22 May 2008).
  12. Guggenheim, S. Introduction to Mg-rich clay minerals: Structure and composition. In Magnesian Clays: Characterization, Origin and Applications; Pozo, M., Galan, E., Eds.; AIPEA Educational Series: Bari, Italy, 2015; pp. 1–62. [Google Scholar]
  13. Perdikatsis, B.; Burzlaff, H. Strukturverfeinerung am Talk Mg3[(OH)2Si4O10]. Z. Kristallogr. 1981, 156, 177–186. [Google Scholar] [CrossRef]
  14. Guggenheim, S.; Adams, J.M.; Bain, D.C.; Bergaya, F.; Brigatti, M.F.; Drits, V.A.; Formoso, M.L.L.; Galán, E.; Kogure, T.; Stanjek, H. Summary of recommendations of nomenclature committees relevant to clay mineralogy: Report of the association Internationale pour l’etude des argiles (aipea) nomenclature committee for 2006. Clays Clay Miner. 2006, 54, 761–772. [Google Scholar] [CrossRef]
  15. Newman, A.C.D. Chemistry of Clays and Clay Minerals; Monograph 6; Mineralogical Society: London, UK, 1987; p. 480. [Google Scholar]
  16. Köster, H.M.; Schwertmann, U. Beschreibung einzelner Tonminerale. In Tonminerale und Tone: Struktur, Eigenschaften, Anwendung und Einsatz in Industrie und Umwelt; Jasmund, K., Lagaly, G., Eds.; Steinkopff Verlag: Darmstadt, Germany, 1993; pp. 33–88. [Google Scholar]
  17. Mackenzie, R.C. Saponite from Allt Ribhein, Fiskavaig Bay, Skye. Mineral. Mag. 1957, 31, 672–680. [Google Scholar] [CrossRef]
  18. Moore, D.M.; Reynolds, R.C., Jr. X-ray Diffraction and the Identification and Analysis of Clay Minerals; Oxford University Press: New York, NY, USA, 1997; p. 378. [Google Scholar]
  19. Ferrage, E.; Sakharov, B.A.; Michot, L.J.; Lanson, B.; Delville, A.; Cuello, G.J. Water organization in Na-saponite: An experimental validation of numerical data. Geochim. Cosmochim. Acta 2010, 74, A289. [Google Scholar]
  20. Ferrage, E.; Lanson, B.; Sakharov, B.A.; Geoffroy, N.; Jacquot, E.; Drits, V.A. Investigation of dioctahedral smectite hydration properties by modeling of X-ray diffraction profiles: Influence of layer charge and charge location. Am. Mineral. 2007, 92, 1731–1743. [Google Scholar] [CrossRef] [Green Version]
  21. Temme, H.; Sohling, U.; Suck, K.; Ruf, F.; Niemeyer, B. Separation of aromatic alcohols and aromatic ketones by selective adsorption on kerolite-stevensite clay. Colloids Surf. A 2011, 377, 290–296. [Google Scholar] [CrossRef]
  22. Sohling, U.; Haimerl, A. Use of Stevensite for Mycotoxin Adsorption. Patent WO 2006119967, 17 July 2012. [Google Scholar]
  23. Ureña-Amate, M.D.; Socías-Viciana, M.; González-Pradas, E.; Saifi, M. Effects of ionic strength and temperature on adsorption of atrazine by a heat treated kerolite. Chemosphere 2005, 59, 69–74. [Google Scholar] [CrossRef] [PubMed]
  24. Sohling, U.; Ruf, F. Stevensite and/or Kerolite Containing Adsorbents for Binding Interfering Substances during the Manufacture of Paper. Patent WO 200702941, 1 March 2007. [Google Scholar]
  25. Wolters, F.; Lagaly, G.; Kahr, G.; Nüesch, R.; Emmerich, K. A comprehensive characterization of dioctahedral smectites. Clays Clay Miner. 2009, 57, 115–133. [Google Scholar] [CrossRef]
  26. Steudel, A.; Batenburg, L.; Fischer, H.; Weidler, P.G.; Emmerich, K. Alteration of swellable clays by acid treatment. Appl. Clay Sci. 2009, 44, 105–115. [Google Scholar] [CrossRef]
  27. Tributh, H.; Lagaly, G. Aufbereitung und Identifizierung von Boden- und Lagerstättentonen Teil I: Aufbereitung der Proben im Labor. GIT Fachzeitschrift für das Laboratorium 1986, 30, 524–529. [Google Scholar]
  28. Whitney, D.L.; Evans, B.W. Abbreviations for names of rock-forming minerals. Am. Mineral. 2010, 95, 185–187. [Google Scholar] [CrossRef]
  29. NEWMOD for WindowsTM: The Calculation of One-Dimensional X-ray Diffraction Patterns of Mixed-Layered Clay Minerals; Reynolds, R.C., Jr. and Reynolds, R.C., III.: Hanover, NH, USA, 1996; p. 25.
  30. Emmerich, K. Thermal analysis in the characterization and processing of industrial minerals. In Advances in the Characterization of Industrial Minerals; EMU, Notes in Mineralogy: London, UK, 2011; pp. 129–170. [Google Scholar]
  31. Meier, L.P.; Kahr, G. Determination of the cation exchange capacity (CEC) of clay minerals using the complexes of copper(II) ion with triethylenetetramine and tetraethylenepentamine. Clays Clay Miner. 1999, 47, 386–388. [Google Scholar] [CrossRef]
  32. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  33. Sing, K.S.W.; Everett, D.H.; Haul, R.A.W.; Moscou, L.; Pierotti, R.A.; Rouquerol, J.; Siemieniewska, T. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  34. Lowell, S.; Shields, J.E.; Thomas, M.A.; Thommes, M. Characterization of porous solids and powders. In Surface Area, Pore Size and Density; Springer: Berlin, Germany, 2006; p. 347. [Google Scholar]
  35. White, G.N.; Zelazny, L.W. Analysis and implications of the edge structure of dioctahedral phyllosilicates. Clays Clay Miner. 1988, 36, 141–146. [Google Scholar] [CrossRef]
  36. Tournassat, C.; Neaman, A.; Villiéras, F.; Bosbach, D.; Charlet, L. Nanomorphology of montmorillonite particles: Estimation of the clay edge sorption site density by low-pressure gas adsorption and AFM observations. Am. Miner. 2003, 88, 1989–1995. [Google Scholar] [CrossRef]
  37. Delavernhe, L.; Steudel, A.; Darbha, G.K.; Schäfer, T.; Schuhmann, R.; Wöll, C.; Geckeis, H.; Emmerich, K. Influence of mineralogical and morphological properties on the cation exchange behavior of dioctahedral smectites. Colloids Surf. A 2015, 481, 591–599. [Google Scholar] [CrossRef]
  38. Russel, J.D.; Fraser, A.R. Infrared methods. In Clay Mineralogy: Spectroscopic and Chemical Determinative Methods; Wilson, M.J., Ed.; Chapman & Hall: London, UK, 1994; pp. 11–67. [Google Scholar]
  39. Farmer, V.C. The Infrared Spectra of Minerals; Monograph 4; Mineralogical Society: London, UK, 1974; p. 331. [Google Scholar]
  40. Gates, W.P. Infrared Spectroscopy and the Chemistry of Dioctahedral Smectites. In The Application of Vibrational Spectroscopy to Clay Minerals and Layered Double Hydroxides; Workshop Lectures; Kloprogge, J.T., Ed.; The Clay Mineral Society: Boulder, CO, USA, 2005; Volume 13, pp. 125–168. [Google Scholar]
  41. Cuadros, J.; Altaner, S.P. Compositional and structural features of the octahedral sheet in mixed-layer illite/smectite from bentonites. Eur. J. Miner. 1988, 10, 111–124. [Google Scholar]
  42. Farmer, V.C. The infra-red spectra of talc, saponite, and hectorite. Mineral. Mag. 1958, 31, 829–844. [Google Scholar] [CrossRef]
  43. Kloprogge, J.T.; Frost, R.L. The effect of synthesis temperature on the FT-Raman and FT-IR spectra of saponites. Vib. Spectrosc. 2000, 23, 119–127. [Google Scholar] [CrossRef]
  44. Van der Marel, H.W.; Beutelspacher, H. Atlas of Infrared Spectroscopy of Clay Minerals and Their Admixtures; Elsevier: Amsterdam, The Netherlands, 1976; p. 191. [Google Scholar]
  45. Lagaly, G. Layer Charge Determination by Alkylammonium Ions. In Layer Charge Characteristics of 2:1 Silicate Clay Minerals; Mermut, A.R., Ed.; The Clay Minerals Society: Aurora, CO, USA, 1994; Volume 6, pp. 1–46. [Google Scholar]
  46. Stevens, R.E. A system for calculating analyses of micas and related minerals to end members. US Geol. Surv. Bull. 1945, 950, 101–119. [Google Scholar]
  47. Faust, G.T.; Murata, K.J. Stevensite, redefined as a member of the montmorillonite group. Am. Mineral. 1953, 38, 973–978. [Google Scholar]
  48. Veniale, F.; Van der Marel, H.W. A regular Talc-Saponite mixed layer mineral from Ferriere, Nure Valley (Piacenza Province, Italy). Contrib. Mineral. Petrol. 1968, 17, 237–254. [Google Scholar] [CrossRef]
  49. Grimshaw, R.W. The Chemistry and Physics of Clays and Allied Ceramic Materials, 4th ed.; Ernest Benn Limited: London, UK, 1971; p. 1024. [Google Scholar]
  50. Post, J.L. Saponite from Near Ballarat, California. Clays Clay Miner. 1984, 32, 147–153. [Google Scholar] [CrossRef]
  51. Sohling, U.; Ruf, F.; Schurz, K.; Emmerich, K.; Steudel, A.; Schuhmann, R.; Weidler, P.G.; Ralla, K.; Riechers, D.; Kasper, C.; et al. Natural mixture of silica and smectite as a new clayey material for industrial applications. Clay Miner. 2009, 44, 525–537. [Google Scholar] [CrossRef]
  52. Komadel, P.; Madejová, J. Acid activation of clay minerals. In Handbook of Clay Science, 2nd ed.; Bergaya, F., Theng, B.K.G., Lagaly, G., Eds.; Elsevier: Amsterdam, The Netherlands, 2006; pp. 263–287. [Google Scholar]

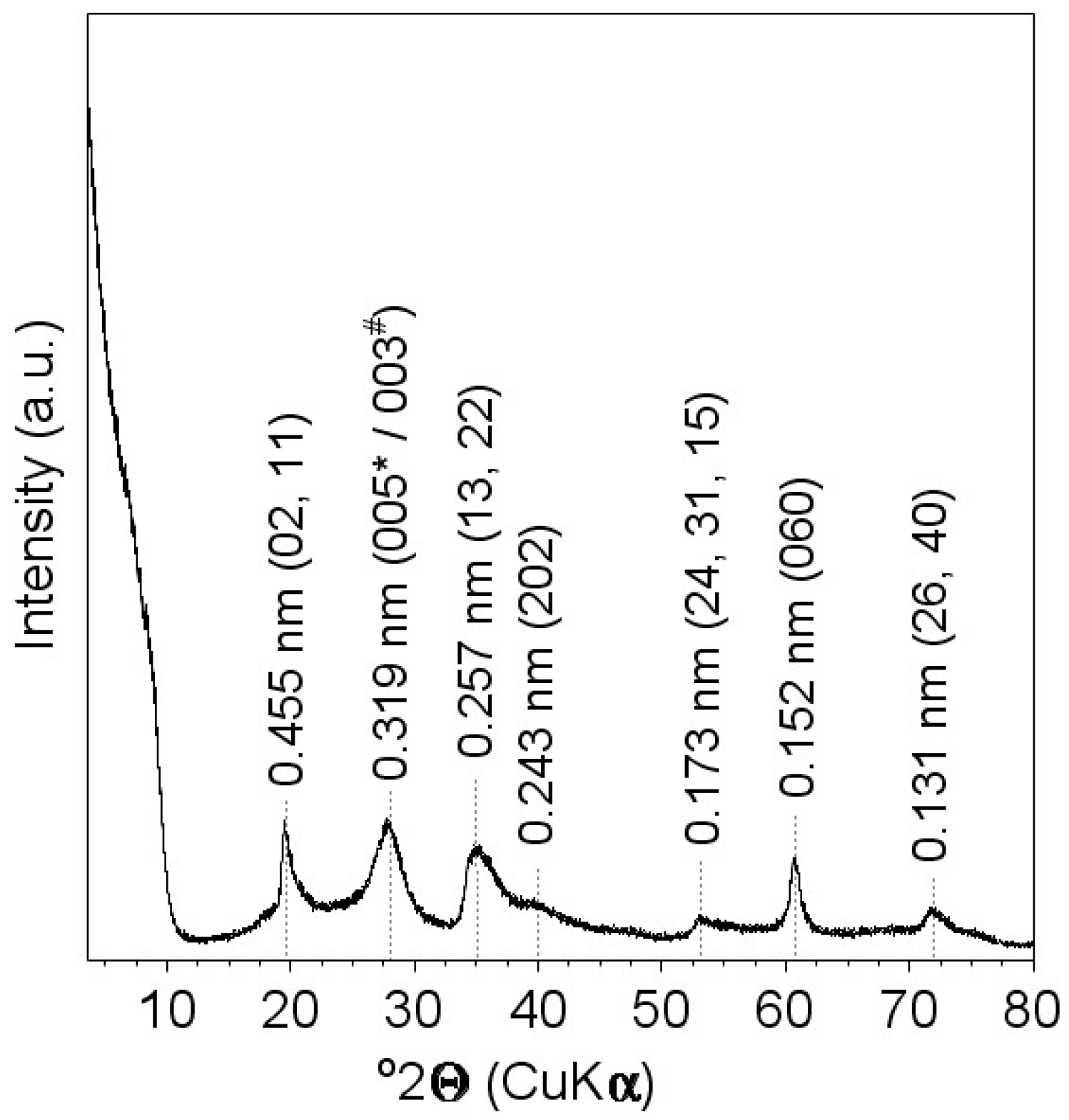

Figure 1. Powder pattern of the clay fraction <2 µm. In addition to the hkl reflections one 001 reflection of the interstratification contribution from (*) saponite and (#) turbostratic talc could be detected.
Figure 1. Powder pattern of the clay fraction <2 µm. In addition to the hkl reflections one 001 reflection of the interstratification contribution from (*) saponite and (#) turbostratic talc could be detected.
Minerals 07 00005 g001

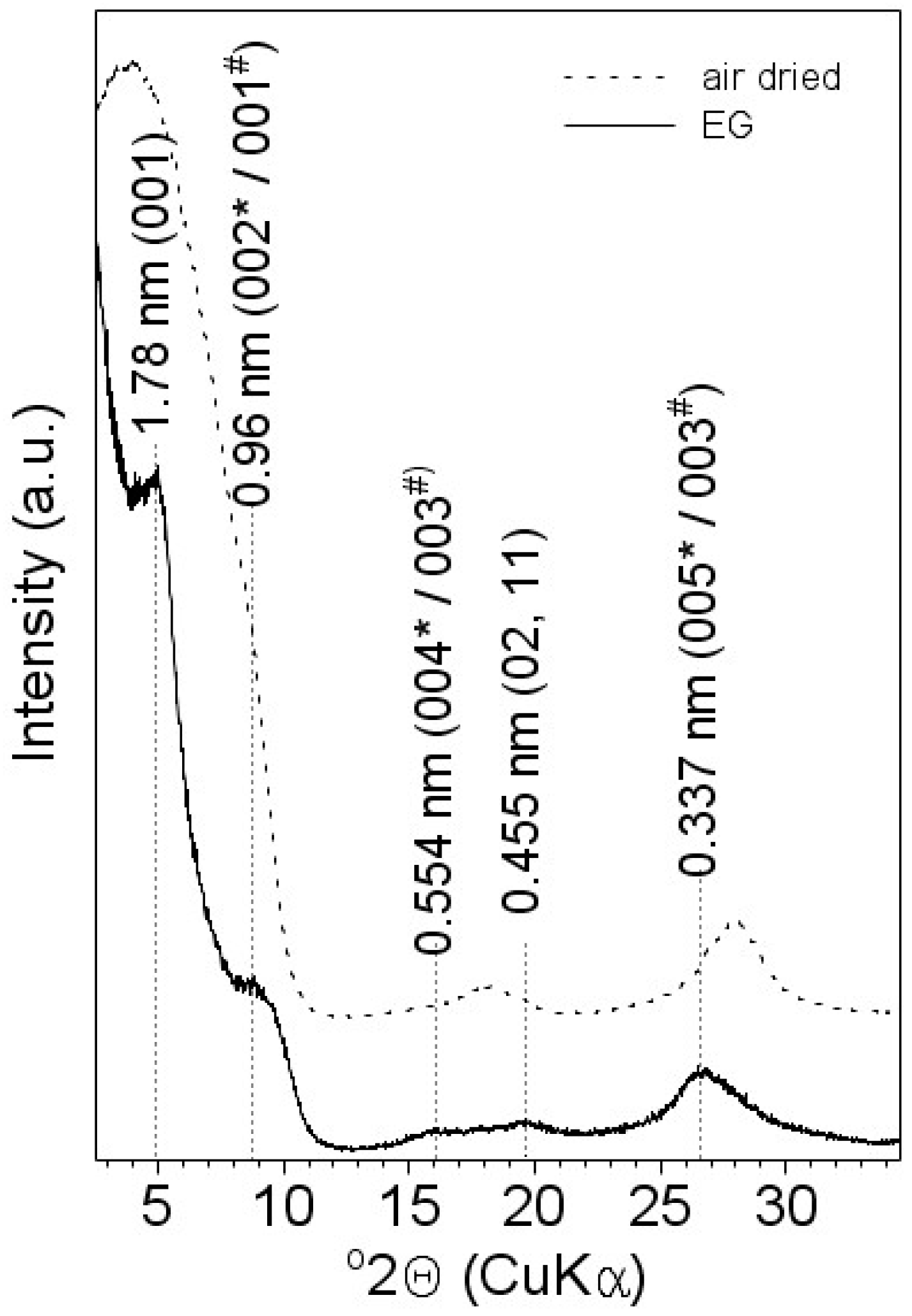

Figure 2. XRD patterns of the oriented clay fraction sample <2 µm. Non-rational basal reflections in the EG treated pattern with contributions from saponite (*) and turbostratic talc (#) are indicated.
Figure 2. XRD patterns of the oriented clay fraction sample <2 µm. Non-rational basal reflections in the EG treated pattern with contributions from saponite (*) and turbostratic talc (#) are indicated.
Minerals 07 00005 g002

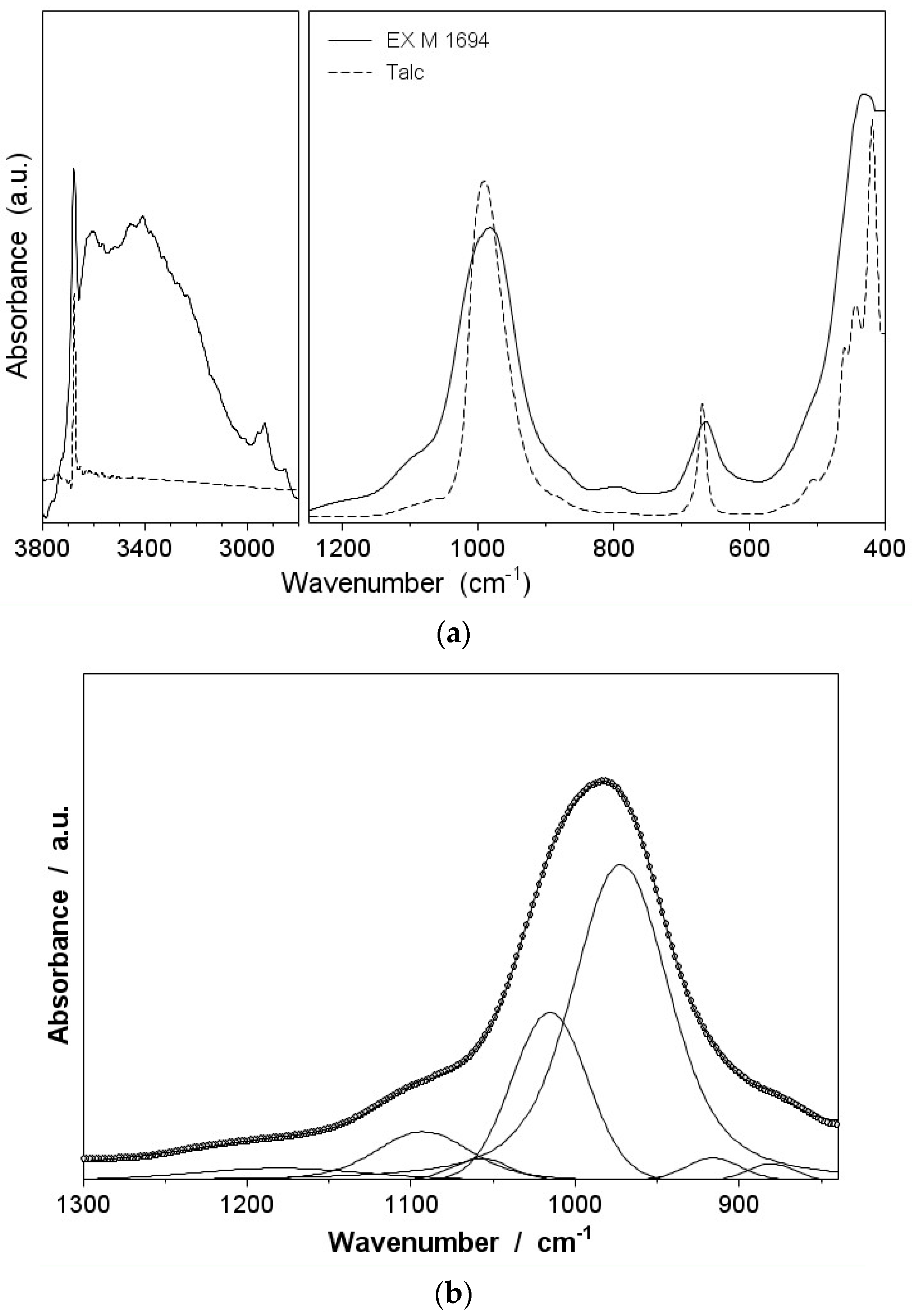

Figure 3. (a) Comparison of FTIR-ATR spectra of sample EX M 1694 and of talc; (b) Results of the spectrum deconvolution in the region between 830 and 1300 cm−1. The band positions are at 880, 916, 973, 1015, 1057, 1092 cm−1.
Figure 3. (a) Comparison of FTIR-ATR spectra of sample EX M 1694 and of talc; (b) Results of the spectrum deconvolution in the region between 830 and 1300 cm−1. The band positions are at 880, 916, 973, 1015, 1057, 1092 cm−1.
Minerals 07 00005 g003
Figure 4. STA measurement of the clay fraction under SynA/N2: (a) DSC curve; (b) TG curve; (c) DTG curve; (d) MS curve of H2O; and (e) MS curve of CO2.
Figure 4. STA measurement of the clay fraction under SynA/N2: (a) DSC curve; (b) TG curve; (c) DTG curve; (d) MS curve of H2O; and (e) MS curve of CO2.
Minerals 07 00005 g004
Figure 5. ESEM images (a) distribution of micro aggregates in the raw material; and (b) typical fluffy smectite morphology of the particles in the clay fraction.
Figure 5. ESEM images (a) distribution of micro aggregates in the raw material; and (b) typical fluffy smectite morphology of the particles in the clay fraction.
Minerals 07 00005 g005
Figure 6. EG-treated XRD pattern of the oriented clay fraction sample in comparison to the modeled pattern by NEWMOD: (a) turbostratic talc (0.3)/saponite interstratification model; (b) turbostratic talc(0.3)/saponite interstratification model + turbostratic talc model; (c) mixture of interstratification (0.75) model + turbostratic talc model; and (d) enlarged view of (c).
Figure 6. EG-treated XRD pattern of the oriented clay fraction sample in comparison to the modeled pattern by NEWMOD: (a) turbostratic talc (0.3)/saponite interstratification model; (b) turbostratic talc(0.3)/saponite interstratification model + turbostratic talc model; (c) mixture of interstratification (0.75) model + turbostratic talc model; and (d) enlarged view of (c).
Minerals 07 00005 g006
Table 1. Chemical composition of raw material and clay fraction (normalized to ignited conditions).
Table 1. Chemical composition of raw material and clay fraction (normalized to ignited conditions).
EX M 1694SiO2Al2O3MgOFe2O3Na2OCaOK2OTotal
Raw material (wt %)62.761.7633.560.610.040.860.41100
Clay fraction * (wt %)63.821.8432.200.551.360.040.18100
* <2 µm Na-exchanged.
Table 2. Surface and porosity characteristics of the talc-saponite interstratification in comparison to an acid-modified bentonite based on BET (p/p0 = 0.01–0.2) and DFT calculations.
Table 2. Surface and porosity characteristics of the talc-saponite interstratification in comparison to an acid-modified bentonite based on BET (p/p0 = 0.01–0.2) and DFT calculations.
ParametersEX M 1694 BulkEX M 1694 <2 µmCa-Saturated Bentonite Acid-Modified
As BET (m2/g)278283236
AMicroP (m2/g)13914044
AMesoP (m2/g)138142189
AMacroP (m2/g)113
