Article

Petrogenesis of Tholeiitic Basalts from CZK06 Drill Core on the Tianchi Volcano, China–North Korea Border

1
Shenyang Center of China Geological Survey, Shenyang 110034, China
2
Key Laboratory of Black Soil Evolution and Ecological Effect, Ministry of Natural Resources/Liaoning Province, Shenyang 110034, China
3
Jilin Changbaishan Volcano National Observation and Research Station, Institute of Geology, China Earthquake Administration, Beijing 100029, China
4
College of Paleontology, Shenyang Normal University, Shenyang 110034, China
*
Author to whom correspondence should be addressed.
Minerals 2025, 15(9), 949; https://doi.org/10.3390/min15090949
Submission received: 28 July 2025 / Revised: 27 August 2025 / Accepted: 3 September 2025 / Published: 5 September 2025
(This article belongs to the Special Issue Selected Papers from the 7th National Youth Geological Congress)

Abstract

To constrain Tianchi Volcano basalt petrogenesis, this study focuses on tholeiitic basalts from the CZK06 drill core on the northern slope. Using elemental geochemistry and Mg isotope analyses, we investigate magma evolution, petrogenesis, and mantle source properties. The tholeiitic basalts formed during the Pliocene-Early Pleistocene shield-forming stage, recording three stages of basaltic volcanism (Phases I to III). Classified as sodium-series basalts, they exhibit geochemical affinities with EM1-type OIB. Their δ26Mg values (−0.420‰ to −0.150‰) show a substantially wider range than N-MORB. Their geochemical compositions are primarily controlled by source region characteristics and partial melting degree, with minor additional influences from fractional crystallization and crustal contamination. Fractional crystallization intensity shows a progressive increase from Phase I to III. Integrated with geochemical tracing studies of Changbaishan basalts, we propose that the tholeiitic basalts are derived predominantly from the partial melting of carbonatized pyroxenite, which originated from subducted ancient clay-rich altered oceanic crust. The carbonate melts driving the carbonatization were generated by low-pressure melting of recent oceanic sediments, transported by the deeply subducted carbonate-rich Pacific Plate within the Mantle Transition Zone. The tholeiitic magma formed in the Low-Velocity Zone at depths of 160–180 km beneath the lithospheric mantle.

1. Introduction

The Changbai Mountain Volcanic Field (CMVF) is situated along the China–North Korea border, approximately 1400 km from the Japan Trench. Tectonically located on the northeastern margin of the North China Craton, it presently lies within a NE-NNE trending uplift region between the Japan Sea Back-arc Basin and the Songliao Basin (Figure 1a) [1,2]. Geophysical data reveal low-resistivity bodies within the crust and upper mantle above upper interface of the Mantle Transition Zone (MTZ; ~410 km deep) beneath the CMVF [3]. These bodies are associated with the volcanic magma system, indicating an upwelling of damp-hot asthenosphere materials. Consequently, the CMVF is widely recognized as a prototypical back-arc intraplate volcano and has been extensively studied in relation to the deep subduction of the Pacific Plate and mantle convection within the big mantle wedge beneath Northeast Asia [3,4].
The Tianchi volcano (TCV) is one of the three major volcanoes within the vast CMVF (Figure 1b) [1,2]. It is composed of Pliocene-Early Pleistocene basalts, Pleistocene trachyte, and Holocene pyroclastic deposits (Figure 1b). For the basalts, significant advancements have been achieved in understanding their activity history [2], magma evolution [5,6], as well as petrogenesis and geodynamic mechanisms [2,4,7]. However, due to the heterogeneity of the mantle source region and inherent limitations in geochemical and geophysical methods, the complex petrogenesis of the basalts and the variable magma system remains poorly constrained [4]. First, the specific impact of crustal contamination during basaltic magma traversal through the continental crust cannot be definitively determined [4,5,6]. Second, the genetic relationship between the two types of basalts (alkaline and tholeiitic basalts) is not simply magmatic differentiation [5]. Previous studies have often focused on alkaline basalts associated with later trachytes [4,7], while neglecting the petrogenesis research on tholeiitic basalts. Furthermore, the properties of the mantle source region are still inadequately defined. It remains unclear whether the source comprises primitive mantle [2], a mixed composition of Depleted Mantle (DM), and Enriched Mantle I (EM I) [8], or a heterogeneous mantle associated with a mantle plume [4,9,10]. This study primarily focuses on tholeiitic basalts retrieved from the CZK06 drill core on the northern slope of the TCV. Through elemental geochemistry and magnesium isotope analyses, we investigate their compositional variability to further constrain magma evolution, petrogenesis, and mantle source properties.

2. Geological Setting

The CMVF is typified by the outcrops of Cenozoic volcanic rocks, interspersed with scattered exposures of Precambrian schists, Mesozoic volcanic rocks, and Precambrian and Mesozoic granites. These volcanic rocks are predominantly basalts, with a cumulative volume estimated at 1.2 × 103–4.8 × 103 km3 [4]. Based on the lithospheric thickness variation trends across NE China, the CMVF is projected to have a lithospheric thickness of 120–160 km [11]; however, influenced by mantle magma upwelling, the actual thickness is relatively reduced (80–100 km) [12]. The Moho depth within this region ranges from 30 to 35 km [13] to approximately 40 km [12].
The TCV is positioned at the intersection of the Liudaogou–Zhenfengshan fault (NE trending) and Huadian–Jince fault (NW trending) (Figure 1b). Below the volcanic edifice, several low-velocity bodies, which could be interpreted as potential magma reservoirs, have been identified [13]. Within the region, sporadic basement rocks, including early Precambrian schists and late Mesozoic volcanic rocks, are exposed in the valleys, reflecting a complex volcanic geological setting. The eruptive history of the volcano can be traced back to the Early Pliocene (~5 Ma) [2]. Its eruptive products primarily consist of basalts, which exhibit a shield-shaped distribution, and trachytes forming a conical structure overlying this shield. Additionally, Early Miocene basalts are also present in the Naitoushan, Feihushanzhuang, and Manjianghegu areas [14]. Notably, unlike other late Cenozoic volcanoes in NE China, the TCV displays a relatively complete compositional sequence, encompassing tholeiitic and alkaline basalts, trachytes, and alkaline rhyolites [2,4].

3. CZK06 Drill Core Stratigraphy and Sampling

The CZK06 drill-hole is positioned on the northern slope of the TCV at coordinates E 128°11′42″ and N 42°9′46″ (Figure 1c). It has an elevation of 1201 m, a vertical drilling angle (90°), a total depth of 403 m, and a recovered core length of 395 m. The surrounding surface residual deposits consist of gray-white brecciated pumice debris, which is essentially consistent with the deposits in the upper section (0–21.6 m) of the core. From 21.6 m depth to the total drilling depth of 403 m, basalts, as the primary geological formation, exhibit distinct features typical of continental lava cooling units. Based on the basalt K-Ar dating, phenocryst characteristics, and development features of cooling units, the core is classified into four phases, comprising a total of 42 units (Figure 1d). Petrogeochemical results indicate that the basalts of Phase I, II, and III display tholeiitic basalt characteristics and constitute the primary focus of this study.
The Phase I basalts, located in the lower section of the core (depth: 307.3–401.5 m), comprise nine lava cooling units with significant thickness variations (4.6–39.9 m). Notably, the uppermost unit (L9) lacks a top oxidation zone. Phase II basalts occur at core depths of 166.4–304.9 m, consisting of sixteen lava units intercalated with one loess-like soil layer. These units exhibit minor thickness variations (4.4–13.6 m). Phase III basalts are distributed at core depths of 84.7–166.4 m, encompassing eight lava units and two loess-like soil layers. Their unit thickness varies significantly (2.4–23.7 m). The top oxidation zone is absent from units L29 and L31, which are below the two soil layers, as well as the uppermost unit (L33). Based on the K-Ar age of the basaltic matrix (unpublished data), the formation ages of these three phases of basalts correspond to the Pliocene, the Early Pleistocene, and the Middle Early Pleistocene. They represent products of volcanic activity during the shield-forming period prior to 1 Ma.
A total of 19 basalt samples were collected from the core, including 6 from Phase I, 8 from Phase II, and 5 from Phase III. The specific sampling positions are shown in Figure 1d. All samples display either massive or sparsely vesicular textures, with fresh to weakly weathered characteristics. Subsequently, all collected samples underwent petrographic analysis, along with major and trace element analyses. Additionally, a subset of seven representative samples was selected for Mg isotope analysis.

4. Analytical Methods

Whole-rock major and trace elemental compositions were determined following petrographic analysis. Fresh samples were carefully selected, crushed, and powdered in an agate mill to a grain size of ~200 mesh for subsequent elemental analysis. Major element analysis was conducted at the National Center for Geological Experimentation and Testing, China Geological Survey in Beijing, China. Trace element analysis was performed at the Key Laboratory of Orogenic Belt and Crustal Evolution, Peking University, Beijing, China. Major element compositions were quantified using X-ray fluorescence spectrometry (XRF), with analytical uncertainties ranging to less than 2‰. Trace element compositions were determined via inductively coupled plasma mass spectrometry (ICP-MS), yielding analytical precision of better than 5% for elements > 10 ppm, better than 8% for elements < 10 ppm, and approximately 10% for transition metals. Results of the analyses for the basalt samples are listed in Table 1 and Table 2, respectively. Notably, the LOI values are negative in samples CZK06-18, CZK06-21, and CZK06-24, which may be attributed to the mass increase caused by the oxidation of Fe at 900 °C.
Mg isotopic analysis was performed at Createch Testing Technology Co., Ltd. (Tianjin, China). Sample dissolution, column chemistry, and instrumental analysis procedures strictly followed the methodology outlined by [15]. Initially, powder samples were dissolved using a HF-HCl-HNO3 mixture in Savillex screw-cap beakers (Savillex Corporation, Middleton, WI, USA). Magnesium separation was subsequently achieved via cation exchange chromatography, utilizing pre-cleaned Bio-Rad AG50W-X8 resin (Bio-Rad Laboratories, Inc., Hercules, CA, USA) (200–400 mesh) in 1 N HNO3 medium. The purified Mg solution for mass spectrometry was obtained after two sequential separation cycles. Prior to instrumental analysis, the eluted solution was evaporated to dryness and redissolved in a 3% HNO3 solution. USGS standard materials (BHVO-2 and BCR-2), along with a procedural blank, were prepared using identical protocols to evaluate analytical precision, accuracy, and blank contributions [16]. Mg isotopic compositions were measured via a Neptune Plus MC-ICP-MS, with 24Mg signal intensities averaging 4–5 V/ppm. Each sample was analyzed at least four times. Results are reported in δ notation as: δ*Mg = [(*Mg/24Mg)sample/(*Mg/24Mg)DSM3 − 1] × 1000, where * = 25 or 26, and DSM3 is a pure Mg-based standard solution [17]. Instrumental mass fractionation was corrected using the standard-sample bracketing method. Detailed analytical protocols are provided in [18]. Mg isotopic compositions of the samples and reference materials are presented in Table 3.

5. Results and Interpretation

5.1. Volcanic Petrography

Notable petrographic differences have been identified between basalts from the TCV formed prior to ~1 Ma and those erupted later [4]. Specifically, phenocrysts in the tholeiitic basalts from drill core CZK06 are predominantly plagioclase, with a relatively low abundance (typically < 10%), consistent with the petrographic characteristics of basalts older than 1 Ma. These tholeiitic basalts exhibit (dark) gray coloration, with massive, vesicular, or amygdaloidal structures, and porphyritic to few-porphyritic textures. Detailed petrographic features are presented in Table 4 and Figure 2.
The matrix of the TCV tholeiitic basalt samples is characterized by intergranular or pilotaxitic-intergranular structures. Their mineral compositions are relatively similar: Phase I consists of plagioclase (major) + clinopyroxene ± olivine + opaque mineral (ilmenite) (Figure 2a), Phase II consists of plagioclase (major) ± pyroxene ± olivine ± opaque mineral (ilmenite) (Figure 2b), and Phase III consists of plagioclase (major) + clinopyroxene + olivine ± opaque mineral (ilmenite) (Figure 2c). The plagioclase microlites display semi-idiomorphic to idiomorphic crystal forms, with prismatic and tabular-prismatic habits. They are characterized by broad polysynthetic twin lamellae, distinct zoning patterns, and pristine, unaltered surfaces. In the matrix of Phase III basalt, some plagioclase grains are embedded within pyroxene crystals. Additionally, phenocrysts in the tholeiitic basalts from different stages are characterized by plagioclase, with minor amounts of clinopyroxene and olivine. These phenocrysts exhibit similar morphological features in different stages, but their abundances show an increasing trend from Phase I to III, likely resulting from the intensification of magmatic differentiation. The phenocryst content in Phase I basalts is typically ≤ 5%; that in Phase II basalts ranges from 5% to 12%; and that in Phase III basalts increases to 10%–20%. For Phase I and II basalts, the phenocryst constituents are plagioclase ± clinopyroxene, whereas those in Phase III consist of plagioclase + olivine ± clinopyroxene. Plagioclase phenocrysts are semi-idiomorphic to idiomorphic, exhibiting embayed or rounded etched edges with some surfaces displaying pockmarks. Clinopyroxene occurs as short, wedge-shaped prismatic, or irregular quadrilateral granular crystals, characterized by one set of perfect prismatic cleavage, inclined extinction, and developed fractures. Olivine develops cracks and shows varying degrees of iddingsitization.

5.2. Whole-Rock Major Elements

The basalt samples display major element contents ranging from 98.5 wt. % to 99.8 wt. %, characterized by a low loss on ignition (LOI) of <3.0 wt. %. These observations suggest their relatively unaltered state, with minimal influence from subsequent modifications. Their SiO2 concentrations show moderate variations (48.9–58.5 wt. %). Na2O + K2O contents are relatively low (4.4–5.7 wt. %). In the total alkali-silica (TAS) diagram (Figure 3a), all basalts belong to the subalkaline series. Phase I basalts plot within the basalt and basaltic andesite fields; Phase II samples occupy fields of basalt, basaltic trachyandesite, basaltic andesite, and andesite; Phase III samples occur in the intersection of basalt, basaltic trachyandesite, and basaltic andesite fields. CIPW norm calculations reveal that the samples contain 2%–11% quartz, with no nepheline detected (Table 1). Except for Phase II sample CZK06-32, which is affected by crustal contamination and has a lower FeOT/MgO ratio, the other samples are classified in the tholeiitic field (Figure 3b). K2O/Na2O ratios are uniformly below 0.6, confirming their sodium-series affinity (Figure 3c). Additionally, their CaO (5.7–8.7 wt. %), MgO (3.8–5.8 wt. %), FeOT (7.5–11.8 wt. %), and TiO2 (1.5–3.0 wt. %) all exhibit moderate compositional variability. Mg# values (37.3–54.0) and differentiation index (DI, 36.7–52.4) present relatively low values but display notable variations, indicating a certain degree of differentiation. Al2O3 contents are elevated (14.3–16.6 wt. %) and show an increasing trend from Phase I to Phase III.

5.3. Whole-Rock Trace Elements

The rare earth element (REE) and trace element partitioning curves (Figure 4) exhibit marked similarities to those of other Changbai Mountain basalt (CMB) samples. They display comparable element partitioning behavior to ocean island basalts (OIBs) in terms of REE, large ion lithophile elements (LILEs), and high field strength elements (HFSEs). Although, their incompatible element abundances are marginally lower than those of typical OIB, characterized by weak depletion of Th, U, Nb, Ta, and Sr, alongside enrichment of Ba, K, and Pb. The geochemical signatures may be attributed to crustal contamination, source region characteristics, and/or the degree of partial melting. Notably, certain samples display anomalous characteristics in their trace element abundances. First, Phase II sample CZK06-32 displays a significant continental crustal characteristic, characterized by pronounced negative anomalies in Nb, Ta, Sr, P, and Eu, alongside weak positive anomalies in Zr and Hf [21]. Additionally, Phase I samples CZK06-56 and CZK06-60 exhibit positive P and Eu anomalies, along with negative Zr and Hf anomalies. Phase III sample CZK06-26 exhibits pronounced positive anomalies in Nb, Ta, Zr, and Hf. These features may be attributed to source heterogeneity.
The total rare earth element (ΣREE) contents of the samples range from 84 ppm to 168 ppm, with ΣLREE/ΣHREE ratios varying between 4.7 and 6.8, LaN/YbN ratios ranging from 5.3 to 8.4, LaN/SmN ratios spanning 1.6–2.3, and TbN/YbN ratios fluctuating within 1.6–2.4. In terms of δEu, apart from Phase I sample CZK06-55 and Phase II sample CZK06-32, which display weak negative anomalies, all other samples exhibit either weak positive anomalies or no anomalies. Their δCe values, calculated as δCe = 2 × CeN/(LaN + PrN), range from 0.96 to 1.00, indicating that the Ce anomalies are absent or extremely weak.

5.4. Whole-Rock Mg Isotopes

In recent years, numerous researchers have reported the Mg isotope compositions of the CMB [10,25]. Their δ26Mg values are −0.29 ± 0.27‰, primarily spanning a range of −0.56‰ to 0.23‰, which are lower than the average mantle value (N-MORB, −0.25 ± 0.04‰). Notably, some tholeiitic basalts display relatively higher values (−0.07‰ to −0.02‰). These results indicate a complex source composition [10]. In this study, TCV tholeiitic basalt samples from the CZK06 drill core plot along the terrestrial equilibrium mass fractionation line in the δ25Mg vs. δ26Mg diagram (Figure 5a), with Δ25Mg’ values of 0.0012 ± 0.0005‰ (Δ25Mg’ = δ25Mg’ − 0.521 × δ26Mg’, where δxMg’ = 1000 × [(δxMg + 1000)/1000] and x denotes mass 25 or 26 [26]). The δ26Mg values of these samples range from −0.150 ± 0.025‰ to −0.420 ± 0.012‰. Compared to N-MORB and tholeiitic series OIB (Figure 5b), these data display significantly broader ranges, suggesting that the source compositions of the tholeiitic basalts are relatively complex.

6. Discussion

6.1. Fractional Crystallization and Crustal Contamination

6.1.1. Fractional Crystallization

Compared to high-magnesium basalts (Mg# = 75–78) derived from a peridotite mantle source, TCV tholeiitic basalts display lower Mg# values (37.3–54.0). These basalts exhibit OIB-like REE and trace element partition patterns (Figure 4), though their elemental enrichment degree is slightly lower, with exceptions for Ba, K, and Pb. Notably, their Rb/Sr ratios (0.04–0.20, mean = 0.08), Ba/Rb ratios (8.77–57.27, mean = 22.41), and Th/U ratios (3.43–6.50, mean = 5.18) are marginally elevated relative to typical OIB values (Rb/Sr = 0.03–0.05; Ba/Rb = 11.3; Th/U = 3.3–3.9), suggesting that these basalts have undergone a certain degree of differentiation. Geochemical studies on magma formation and evolution reveal that the enrichment of incompatible elements (A) can reflect source region characteristics, the extent of partial melting, and magma differentiation processes. However, as noted by [29], fractional crystallization cannot alter the ratio of incompatible elements (A/B); thus, the A/B-A diagram can be used to distinguish magma crystallization differentiation. In the diagrams (Figure 6), although the concentrations and ratios of incompatible elements in these basalts show minimal variation, their distribution trends remain distinct. Specifically, the distribution of data points exhibits distinctly increasing trends for ratios such as Nb/Zr, La/Sm, and (La/Yb)N. Meanwhile, as indicated by the horizontal gray arrows, some ratios also display stable characteristics. These observations suggest that the compositions of these tholeiitic basalts are primarily controlled by source region properties and partial melting degree, with additional minor influence from fractional crystallization.
For CMB, crystallization differentiation of olivine, clinopyroxene, and plagioclase occurs prominently during the basaltic magma evolution when their MgO content is below 5 wt. % [10]. The MgO contents of the TCV tholeiitic basalts show a narrow distribution range (3.8–5.8 wt. %). Even within the restricted interval, the correlation patterns between major or trace element contents and MgO can still be clearly identified in Harker diagrams (Figure 7). With decreasing MgO content, Mg#, CaO/Al2O3, FeOT, Cr, and La exhibit linear correlation trends. Additionally, from Phase I to III, the average LaN/YbN and LaN/SmN ratios exhibit a slight increasing tendency. These characteristics indicate that these tholeiitic basalts have undergone magmatic differentiation, with this process showing an intensifying trend from Phase I to III. Further, CaO, Al2O3, TiO2, and Sr exhibit a trend of initial increase followed by decrease, with their inflection points corresponding to an MgO content of ~5 wt. %. With respect to Na2O, K2O, and P2O5, their components generally show a linear increasing trend; however, when MgO content is less than 5 wt. %, their concentrations also be relatively stable in some samples. Combined with petrographic features, these trends can be attributed to the fractional crystallization of Ti-rich clinopyroxene, P-rich apatite, and plagioclase, particularly during the evolutionary stage when MgO content < 5 wt. %.

6.1.2. Crustal Contamination

Crustal contamination is inevitable when basaltic magma in the CMVF ascends through the thick continental crust. Although no crustal xenoliths have been identified within CMB, extensive prior geochemical evidence has confirmed the occurrence of crustal contamination during the evolution of basaltic magma. These lines of evidence primarily include: comparative analysis of Sr-Nd-Pb isotopic characteristics between the CMB and regional Mesozoic igneous rocks; assimilation fractional crystallization process modeling; and observations of Nb depletion features and isotopic system deviation towards the EM II end-member in individual samples [5,6]. TCV tholeiitic basalts from the CZK06 drill core exhibit low (Nb/Th)N, (Ce/Pb)N, and (Ti/Sm)N ratios (Table 5), along with significant positive Pb anomalies. These characteristics are consistent with crustal contamination. The plots in the diagrams based on characteristic trace element ratios further confirm the crustal contamination and suggest that this process primarily occurred in the lower crust (Figure 8). Notably, sample CZK06-32 exhibits pronounced Nb and Ta depletion, accompanied by positive K and Pb anomalies (Figure 4), as well as geochemical features comparable to the East China Continental Crust [31], such as lower (Nb/Th)N, (Ta/U)N, (Ce/Pb)N, and (P/Nd)N ratios (Table 5), elevated K2O content, and reduced concentrations of FeOT, CaO, TiO2, and P2O5 (Figure 7). This signature has also been documented to varying degrees in individual shield-forming basalts from previous studies [2,32]. Combined with the high 87Sr/86Sr isotopic characteristic identified in some TVC basalts by prior research [5,32], these findings suggest that the influence of crustal contamination on some samples should not be ignored.
This set of geochemical features indicates that TCV tholeiitic basalts experienced crustal contamination during magma evolution; however, these features, together with Sr-Nd-Pb isotopic characteristics, can alternatively be interpreted as reflecting the involvement of sediments in the mantle source region [10]. Given this alternative interpretation, some scholars posit that the magmatic evolution of CMB occurs within a predominantly closed system [4,10]. Except for sample CZK06-32, these samples all exhibit (Ta/U)N, (P/Nd)N, and (Ti/Sm)N ratios comparable to those of OIB (Table 5). In addition, their Hf/Nd ratios (0.15–0.48, mean = 0.23), Zr/Sm ratios (16.9–53.0, mean = 26.6), La/Sm ratios (2.49–3.42, mean = 2.92), Nb/Ta (13.0–16.8, mean = 15.31), Nb/U (28.2–67.1, mean = 41.2), and Nb/La (0.79–2.60, mean = 1.07) show limited variation ranges, and are all slightly lower than those observed in OIB (Hf/Nd = 0.20, Zr/Sm = 28.0, La/Sm = 3.7, Nb/Ta = 17.8, Nb/U = 47.1, Nb/La = 1.3). Combined with characteristics typical of continental crust (e.g., depletion of Th, U, Nb, and Ta, and enrichment in Pb [21]), all these features indicate that the influence of crustal contamination on the geochemical composition of these tholeiitic basalts is minor, while also suggesting the involvement of crustal materials in their mantle source region.

6.2. Mantle Source Property and Origin of δ26Mg Values

6.2.1. Mantle Source Characteristics

Based on isotope tracing techniques, previous studies have conducted extensive research on the characteristics of the mantle source region of CMB. A series of models have been proposed successively, including the DM-EM1 mixed mantle source model [8] and the PSSJ (Pacific Subducting Sediments along the Japan trench) supplementary model [4]. However, the specific composition of the mantle source region remains poorly understood. Through Sr-Nd-Pb-Hf-Mg isotope cycle studies, it is suggested that the CMB mantle source includes at least two components: Paleoproterozoic continental margin silicate sediments with EM1-like Sr-Nd isotopic characteristics, and carbonated eclogite (exhibiting MORB-like isotopic compositions and low δ26Mg values) [10]. Notably, in the Pb isotope source discrimination diagram for basalts [34,35], previously reported CMB samples (data from [5,7,32]) plot in the transitional field between the end-members of recent sediments (PSSJ), ancient sediments, and depleted mantle (DM). The TCV basalts also exhibit similar projection area [5]. These indicate the geochemical compositional complexity and multi-source nature of their mantle sources.
Compared to continental arc basalts (CAB) in NE Asia [23], TCV tholeiitic basalts exhibit significant enrichment in trace elements except for HREEs, most notably lacking depletion in Nb, Ta, and P (Figure 4). This signature implies a marked divergence from common intermediate-basic volcanic rocks typically associated with subduction zones. However, aside from positive anomalies in Ba, K, and Pb, the REE and trace element distribution patterns of these samples show greater resemblance to those of typical OIBs, thus suggesting OIB-like geochemical affinities in TCV tholeiitic basalts. Notably, studies on Pb, Sr, and Nd isotopes of Cenozoic intraplate basalts in eastern China indicate that these basalts have an asthenospheric mantle origin, with those from the North China Craton generally exhibiting EM1-type mantle isotopic signatures [36]. Although TCV tholeiitic basalts exhibit more enrichment in REE and trace elements, the EM1 signature, as indicated by their Sr-Nd isotopes, is still pronounced [4,6]. This indicates that TCV tholeiitic basalts possess EM1-type OIB-like geochemical affinities. Regarding source characteristics, their elevated FC3MS values exhibit a broad distribution range (0.89–1.35), placing the samples within the pyroxenite melting field of OIBs alongside CMB (Figure 9a). Compared to spinel, garnet has a stronger affinity for heavy rare earth elements (HREE); thus, the MREE/HREE ratio serves as an effective parameter for evaluating the mineral composition of basaltic magma sources [10]. In the Gd/Yb vs. Yb diagram (Figure 9b), all sampling points fall within the eclogite region defined by varying proportions of pyroxene and garnet. Collectively, it can be inferred that TCV tholeiitic basalts, characterized by geochemical affinity with EM1-type OIB, are primarily derived from partial melting of pyroxenite or eclogite.
Pb isotope studies indicate that recent sediments (PSSJ) may be an important component of the CMB mantle source region [4]. TCV tholeiitic basalt samples exhibit extremely weak δCe anomalies (0.96–1.00), and remarkably poor correlation between δCe and LOI. This characteristic suggests the potential involvement of oceanic sediments in their mantle source region. On the other hand, oceanic sediments are known to have entered the mantle through deep subduction, and their recycled material likely contributes to basaltic volcanism. Such basalts are typically characterized by crust-like features, including depletion in Nb, Ta, Ti, and Eu, and enrichment in Pb. The current tholeiitic basalt samples exhibit weak depletion in Nb and Ta, and enrichment in Pb, suggesting that sediments carried by the deeply subducted Pacific plate have contributed to the basalt source region. Moreover, in the Ce/Pb vs. δCe diagram (Figure 9c), the Ce/Pb values of the samples vary significantly, falling between oceanic basalt and sediment from the Japan Trench (J). In conclusion, the source region of the tholeiitic basalts has been influenced by recycled recent oceanic sediment carried by the deeply subducted Pacific plate.

6.2.2. Origin of δ26Mg Values

The asthenospheric mantle has a chondrite-like Mg isotopic composition (δ26Mg = −0.25 ± 0.04‰, 2SD [28]), which remains stable during partial melting and high-temperature magmatic differentiation [38]. Silicate weathering induces significant Mg isotope fractionation, resulting in highly variable, light Mg isotopes in terrigenous clastic sediments [25]. Conversely, altered oceanic basalts show heavier Mg isotopes than N-MORB [28,39,40]. Altered oceanic crust (AOC) δ26Mg values vary widely (−1.7‰ to +0.21‰) due to compositional differences, with clay-rich AOC having higher values and carbonate-rich AOC lower values [10], making Mg isotopes a selectable tracer for mantle recycling of oceanic crust materials [25,28]. TCV tholeiitic basalts primarily cluster within the N-MORB δ26Mg range, with sample CZK06-26 (−0.150 ± 0.025‰) exceeding this range, whereas CZK06-46 (−0.420 ± 0.012‰) and CZK06-38 (−0.344 ± 0.010‰) fall below it. Their δ26Mg distribution and negative correlation with TiO2 (Figure 10a) initially suggest that this Mg isotopic signature may be linked to the accumulation of isotopically light ilmenite within the mantle source of high-Ti basalts [41]. But the lack of correlation was observed between TiO2 concentrations and Nb/Ta ratios. Thus, it can be inferred that the observed Mg isotopic signature is attributable to mantle source characteristics and its partial melting.
The typical OIB studies (e.g., Hawaii, Louisville) show δ26Mg heterogeneity is controlled by source composition and partial melting degree, with δ26Mg negatively correlating with melting-sensitive element ratios [28]. Furthermore, OIB melts sourced from pyroxenite-dominated versus peridotite-dominated mantles exhibit distinct negative correlation trends [28]. TCV tholeiitic basalt samples within the N-MORB δ26Mg range display a negative correlation with melting-sensitive element ratios (e.g., La/Sm, Nb/Sm, and Nb/Zr) (Figure 10b,c). Notably, these samples plot linearly along the trend defined by Hawaii OIB, suggesting their Mg isotope characteristics are consistent with a pyroxenite mantle source. The variations in δ26Mg values are likely attributed to its partial melting degree within the source region. It is widely recognized that (altered) oceanic crust transforms into garnet pyroxenite after subduction into the mantle, forming a major component of typical OIB source regions (e.g., Hawaii OIB) [42,43]. The above-mentioned samples exhibit prominent HREE depletion, and their (Nb/La)N values (0.56–1.00) are comparable to the normal subducted oceanic crust (<0.85). This characteristic further confirms that the pyroxenite mantle rocks feeding TCV tholeiitic basalt magma are primarily derived from subducted AOC. Notably, sample CZK06-26 displays a higher δ26Mg value and positive anomalies in Nb, Ta, Zr, and Hf, accompanied by elevated Ti/Ti* and Hf/Hf* ratios, suggesting the clay-rich nature in the subducted AOC (Figure 10). The previous Pb isotope modeling indicates that the mantle source region of CMB contains recycled subducted ancient (2.2–1.6 Ga) terrigenous silicate sediments, characterized by relatively high δ26Mg values [10]. By analogy, we speculate that the pyroxenite within the mantle source region may have originated from an ancient clay-rich AOC.
Late Cenozoic basalts in East China display low δ26Mg values, the characteristic attributed to recycled sedimentary carbonates transported by the subducted Paleo-Pacific Plate [15,25,44,45]. Similarly, the TCV samples CZK06-46 and CZK06-38 display low δ26Mg values, which may also be derived from recycled carbonate-rich subducted materials. Generally, carbonate melts are characterized by elevated Ca and REE contents, along with negative Ti and Hf anomalies. The two samples with low δ26Mg values display analogous characteristics (Figure 10d–f), also confirming that the light Mg isotope composition is associated with melts derived from deeply subducted carbonate sediments [10,28,44]. The studies on the petrogenesis of Cenozoic nephelinites in eastern North China have revealed that the low δ26Mg values, similar to those of marine carbonates, originate from the partial melting of carbonate-bearing sediments within the MTZ (410–660 km) [46]. Research on olivine phenocrysts in the nephelinites indicates that the MTZ exhibits an extremely high degree of carbon enrichment [47]. In addition, according to the slab melting model proposed by [48], a barrier forms at depths of 300–700 km, preventing carbonate sediments from entering the deep lower mantle. Given the stagnant slabs imaged in the MTZ via seismic tomography [3], it can be inferred that subducted carbonate sediments were entrained within these slabs. Partial melting of the carbonate sediments generates initial carbonate-silicate melts, which can provide heterogeneous low 26Mg components through metasomatism of mantle rocks such as pyroxenite or eclogite.

6.2.3. Implications for Carbonatization in the Mantle Source Region

Studies on carbonate melts reveal that they are characterized by high concentrations of Ca, REE, and Ca/Al ratios, alongside notably low Ti/Ti* and Hf/Hf* ratios. Consequently, scholars commonly utilize lower Ti/Ti* and Hf/Hf* ratios, coupled with higher Ca/Al (molar) and Zr/Hf ratios, to identify carbonatized metasomatism in mantle source regions [9]. For TCV tholeiitic basalt samples, their relatively low Ca/Al (molar) ratios (0.36–0.54) and Zr/Hf ratios (31–35) seemingly deviate from the typical characteristics of carbonatization. But these low ratios potentially arise from crustal contamination. Notably, their Ti/Ti* ratios range from 0.69 to 2.28, with an average (excluding outliers) of 0.97, while Hf/Hf* ratios span 0.64 to 1.31, averaging 0.84. Compared to EM (Ti/Ti* = 1.05, Hf/Hf* = 0.89) or OIB (Ti/Ti* = 1.00, Hf/Hf* = 0.90), the tholeiitic basalts exhibit a broader range of these ratios and slightly lower average values, suggesting that the mantle source region has undergone a certain degree of carbonatized metasomatism. Additionally, researchers have utilized the trends of K2O + Na2O vs. TiO2 data for basalts to constrain source characteristics and determine whether carbonatized metasomatism has occurred [25,44,49]. In the diagram (Figure 11a), the tholeiitic basalts overlap with the field of Eastern China basalts and lie adjacent to the carbonated peridotite melt trend or between that trend and carbonated pyroxenite melt trend. This observation indicates that carbonatized mantle rocks constitute an important component of the source region.
Carbonate-bearing sediments exhibit the lowest melting temperature at pressures exceeding 5 GPa [35]. At low pressures (<8 GPa), the partition coefficients of large ion lithophile elements (LILEs), such as Rb, Sr, Ba, Th, U, and La, are significantly lower than those observed at high pressures (>8 GPa) [50]. Calculations further demonstrate that low-pressure melts are characterized by higher K/U and Ba/Th ratios, whereas high-pressure melts display lower values [46]. The K/U × 10−3 vs. Ba/Th diagram (Figure 11b) illustrates the compositional fields of melts generated under varying pressure conditions with distinct residual mineral assemblages [35]. In the diagram, TCV tholeiitic basalts plot adjacent to the field of Hainandao basalts. Additionally, both the basalts exhibit low δ26Mg values and share similar REE and trace element distribution patterns, indicating their common genetic origin. These lines of evidence collectively indicate that the carbonate melts, supplying for the carbonatization in the mantle source region, formed under low-pressure conditions.

6.3. Constraint on the Mantle Magma System

The significant velocity anomalies across cross-sections in the CMVF indicate that thermally buoyant material sourced from depth ascends to approximately 180 km before flowing northward and westward [51]. This geophysical signature supports the existence of a mantle magmatic system beneath the TCV. Mantle melting is hypothesized to initiate at the depth where the solidus intersects the liquidus and terminates at the lithosphere-asthenosphere boundary. The depth of mantle melting and lithospheric thickness can be quantitatively constrained through fitting Na/Ti vs. Sm/Yb ratios in basalts [52,53]. Applying this method, the formation depth of TCV tholeiitic magma is estimated at ~180 km (Figure 12), which closely matches depths determined by geophysical investigations [51].
Niu (2010) proposed that a low-velocity zone (LVZ) at depths of 160–180 km beneath the North China Craton lithosphere hosts significant concentrations of volatile-rich melts, primarily composed of H2O and CO2 [21]. Deep-seated “fertile” and readily fusible mantle material is metasomatized by these volatile-rich melts, forming basaltic magma with OIB-like characteristics. Geochemical analysis indicates that TCV tholeiitic basalts originate from an EM1-type OIB-like source. Their characteristic elemental ratios, such as Nb/Th and Ce/Pb, predominantly fall between those of LCC and E-MORB or OIB (Figure 8). From this, it is inferred that tholeiitic basaltic magma formed beneath the lithospheric mantle at depths of 160–180 km, corresponds to the Pliocene-Early Pleistocene LVZ.

7. Conclusions

This study presents elemental geochemical and magnesium isotopic analyses of tholeiitic basalts from the CZK06 drill core on the northern slope of the TCV, providing insights into their magma evolution, petrogenesis, and mantle source properties.
(1)
The tholeiitic basalts from the CZK06 drill core formed during the Pliocene-Early Pleistocene shield-forming stage, recording three phases of basaltic volcanism (Phases I to III). Geochemically classified as sodium-series volcanic rocks, these basalts exhibit clear affinities with EM1-type OIBs. Notably, their δ26Mg values (−0.420‰ to −0.150‰) span a substantially wider range relative to the N-MORB.
(2)
The compositions of these tholeiitic basalts are primarily controlled by source region characteristics and partial melting degree, with minor additional influences from fractional crystallization and crustal contamination. During magmatic differentiation, fractional crystallization of Ti-rich clinopyroxene, P-rich apatite, and plagioclase is notably prominent, showing a progressively intensifying trend from Phase I to III.
(3)
TCV tholeiitic basalts are primarily derived from the partial melting of pyroxenite with carbonatization. Integrated with Mg isotopic data, our results suggest that the pyroxenite originated from subducted ancient clay-rich AOC. The carbonate melts fueling the carbonatization were generated by low-pressure melting of recent oceanic sediments, which were transported by the deeply subducted carbonate-rich Pacific Plate within the MTZ. The tholeiitic magma formed in the LVZ at depths of 160–180 km beneath the lithospheric mantle.

Author Contributions

Conceptualization, C.Q.; methodology, C.Q. and J.G.; investigation, C.Q., B.P., Z.T., B.J. and T.C.; resources, C.Q. and B.P.; data curation, L.L.; writing—original draft preparation, C.Q. and J.G.; writing—review and editing, C.Q. and J.G.; project administration, C.Q.; funding acquisition, C.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the projects from the Jilin Changbaishan Volcano National Observation and Research Station (Project No. NORSCBS21-01) and the China Geological Survey (Project No. DD20230089).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
DMDepleted Mantle
EMEnriched Mantle
OIBOcean Island Basalt
CABContinental Arc Basalt
N-MORBNormal Mid-Ocean Ridge Basalt
PSSJPacific Subducting Sediments along the Japan Trench
TCVTianchi Volcano
CMVFChangbai Mountain Volcanic Field
CMBChangbai Mountain Basalt
AOCAltered Oceanic Crust
MTZMantle Transition Zone
LVZLow Velocity Zone

References

  1. Liu, J.; Han, J.; Fyfeb, W. Cenozic Episodic Volcanism and Continental Rifting in Northeast China and Possible Link Tojapan Sea Development as Revealed from K-ar Geochronology. Tectonophysics 2001, 339, 385–401. [Google Scholar] [CrossRef]
  2. Liu, J.; Chen, S.; Guo, Z.; Guo, W.; He, H.; You, H.; Kim, H.M.; Sung, G.; Him, H. Geological Background and Geodynamic Mechanism of Mt. Changbai Volcanoes on the China-korea Border. Lithos 2015, 236–237, 197–224. [Google Scholar] [CrossRef]
  3. Zhao, D.; Tian, Y.; Lei, J.; Liu, L.; Zheng, S. Seismic image and origin of the Changbai intraplate volcano in East Asia: Role of big mantle wedge above the stagnant Pacific slab. Phys. Earth Planet. Inter. 2009, 173, 197–206. [Google Scholar] [CrossRef]
  4. Zhang, M.; Guo, Z.; Liu, J.; Liu, G.; Zhang, L.; Lei, M.; Zhao, W.; Ma, L.; Sepe, V.; Ventura, G. The intraplate Changbaishan volcanic field (China/North Korea): A review on eruptive history, magma genesis, geodynamic significance, recent dynamics and potential hazards. Earth-Sci. Rev. 2018, 187, 19–52. [Google Scholar] [CrossRef]
  5. Guo, W.; Liu, J.; Guo, Z. Temporal variations and petrogenetic implications in Changbai basaltic rocks since the Pliocene. Acta Petrol. Sin. 2014, 30, 3595–3611. [Google Scholar]
  6. Yan, D.; Li, M.; Xu, Z.; Sun, L.; Ma, F.; Hna, D. Genesis and lts Tectonic Significance of Heishigou Basaltic lava Dyke in Tianchi Volcanic Area, Changbai Mountain. J. Jilin Univ. (Earth Sci. Ed.) 2023, 53, 904–919. [Google Scholar] [CrossRef]
  7. Fan, Q.; Sui, J.; Li, N.; Sun, Q.; Xu, Y. The Magmatism and Interactive Eruption of the Two Magma Chambers in the Tianchi Volcano, Changbaishan. Bull. Mineral. Petrol. Geochem. 2007, 26, 315–318. [Google Scholar]
  8. Basu, A.R.; Wang, J.; Huang, W.; Xie, G.; Tatsumoto, M. Major element, REE, and lead, neodymium, and strontium isotopic geochemistry of Cenozoic volcanic rocks of eastern China: Implications for their origin from suboceanic-type mantle reservoirs. Earth Planet. Sci. Lett. 1991, 105, 149–169. [Google Scholar] [CrossRef]
  9. Tang, Y.; Obayashi, M.; Niu, F.; Grand, S.P.; Chen, Y.J.; Kawakatsu, H.; Tanaka, S.; Ning, J.; Ni, J.F. Changbaishan Volcanism in Northeast China Linked to Subduction-induced Mantle Upwelling. Nat. Geosci. 2014, 7, 470–475. [Google Scholar] [CrossRef]
  10. Choi, H.O.; Choi, S.H.; Lee, Y.S.; Ryu, J.S.; Lee, D.C.; Lee, S.G.; Sohne, Y.K.; Liu, J. Petrogenesis and Mantle Source Characteristics of the Late Cenozoic Baekdusan (changbaishan) Basalts. Gondwana Res. 2020, 78, 156–171. [Google Scholar] [CrossRef]
  11. Zhang, R.; Wu, Q.; Sun, L.; He, J.; Gao, Z. Crustal and Lithospheric Structure of Northeast China from S-wave Receiver Functions. Earth Planet. Sci. Lett. 2014, 401, 196–205. [Google Scholar] [CrossRef]
  12. Kim, S.; Tkalčić, H.; Rhie, J. Seismic Constraints on Magma Evolution Beneath Mount Baekdu (changbai) Volcano from Transdimensional Bayesian Inversion of Ambient Noise Data. J. Geophys. Res. Solid Earth 2017, 122, 5452–5473. [Google Scholar] [CrossRef]
  13. Song, J.; Hetland, E.A.; Wu, F.T.; Zhang, X.; Liu, G.; Yang, Z. P-wave Velocity Structure Under the Changbaishan Volcanic Region, NE China. Tectonophysics 2007, 433, 127–139. [Google Scholar] [CrossRef]
  14. Wei, H.; Wang, Y.; Jin, J.; Gao, L.; Yun, S.H.; Jin, B. Timescale and evolution of the intracontinental Tianchi volcanic shield and ignimbrite-forming eruption, Changbaishan, Northeast China. Lithos 2007, 96, 315–324. [Google Scholar] [CrossRef]
  15. Tian, H.C.; Yang, W.; Li, S.G.; Ke, S.; Chu, Z.Y. Origin of Low δ26mg Basalts with Em-i Component: Evidence for Interaction Between Enriched Lithosphere and Carbonated Asthenosphere. Geochim. Cosmochim. Acta 2016, 188, 93–105. [Google Scholar] [CrossRef]
  16. Teng, F.Z.; Li, W.Y.; Ke, S.; Marty, B.; Pourmand, A. Magnesium isotopic composition of the earth and chondrites. Geochim. Cosmochim. Acta 2010, 74, 4150–4166. [Google Scholar] [CrossRef]
  17. Galy, A.; Yoffe, O.; Janney, P.E.; Williams, R.W.; Cloquet, C.; Alard, O. Magnesium isotope heterogeneity of the isotopic stardard SRM980 and new reference materials for magnesium-isotope-ratio measurements. J. Anal. At. Spectrom. 2003, 18, 1352–1356. [Google Scholar] [CrossRef]
  18. An, Y.; Wu, F.; Xiang, Y.; Nan, X.; Yu, X.; Yang, J.; Yu, H.; Xie, L.; Huang, F. High-precision Mg isotope analyses of low-Mg rocks by MC-ICP-MS. Chem. Geol. 2014, 390, 9–21. [Google Scholar] [CrossRef]
  19. Miyashiro, A. Volcanic rock series in island arcs and active continental margins. Am. J. Sci. 1974, 274, 321–355. [Google Scholar] [CrossRef]
  20. Middlemost, E.A.K. Naming materials in the magma/igneous rock system. Earth Sci. Rev. 1994, 37, 215–224. [Google Scholar] [CrossRef]
  21. Niu, Y. Some basic concepts and problems on the petrogenesis of intra-plate ocean island basalts. Chin. Sci. Bull. 2009, 55, 103–114. [Google Scholar] [CrossRef]
  22. Sun, S.; McDonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes. In Magmatism in the Ocean Basins; Saunders, A.D., Norry, M.J., Eds.; Geological Society: London, UK, 1989; Special Publications; Volume 42, pp. 314–353. [Google Scholar]
  23. Dong, Y.; Xiong, S.; Wang, F.; Ji, Z.; Li, Y.B.; Yamamoto, S.; Niida, K.; Xu, W.L. Triggering of episodic back-arc extensions in the northeast Asian continental margin by deep mantle flow. Geology 2023, 51, 193–198. [Google Scholar] [CrossRef]
  24. Zhang, M.; Guo, Z.; Cheng, Z.; Zhang, L.; Liu, J. Late Cenozoic intraplate volcanism in Changbai volcanic field, on the border of China and North Korea: Insights into deep subduction of the Pacific slab and intraplate volcanism. J. Geol. Soc. 2015, 172, 384–399. [Google Scholar] [CrossRef]
  25. Li, S. Tracing deep carbon recycling by Mg isotopes. Earth Sci. Front. 2015, 22, 143–159. [Google Scholar] [CrossRef]
  26. Young, E.; Galy, A. The Isotope Geochemistry and Cosmochemistry of Magnesium. Mineral. Soc. Am. 2004, 55, 197–230. [Google Scholar] [CrossRef]
  27. Teng, F. Magnesium Isotope Geochemistry. Rev. Mineral. Geochem. 2017, 82, 219–287. [Google Scholar] [CrossRef]
  28. Zhong, Y.; Chen, L.H.; Wang, X.J.; Zhang, G.L.; Xie, L.W.; Zeng, G. Magnesium isotopic variation of oceanic island basalts generated by partial melting and crustal recycling. Earth Planet. Sci. 2017, 463, 127–135. [Google Scholar] [CrossRef]
  29. Treuil, M.; Joron, J.L. Utilisation des elements hygromagmatophiles pour la simplifications de la modelisation quantitative des precessus magmatiques. Soc. Ital. Mineral. Petrol. 1975, 31, 125–174. [Google Scholar]
  30. Allègre, C.J.; Minster, J.F. Quantitative models of trace element behavior in magmatic processes. Dev. Petrol. 1978, 5, 1–25. [Google Scholar] [CrossRef]
  31. Gao, S.; Luo, T.; Zhang, B.; Zhang, H.; Han, Y.; Zhao, Z.; Kem, H. Structure and composition of the continental crust in East China. Sci. China 1999, 42, 129–140. [Google Scholar] [CrossRef]
  32. Ma, H.; Yang, Q.; Pan, X.; Wu, C.; Chen, C. Origin of Early Pleistocene basaltic lavas in the Erdaobaihe River basin, Changbaishan region. Acta Petrol. Sin. 2015, 31, 3484–3494. [Google Scholar]
  33. Rudnick, R.L.; Gao, S. Composition of the continental crust. In Treatise on Geochemistry; Rudnick, R.L., Holland, H.D., Turekian, K.K., Eds.; Elsevier: Amsterdam, The Netherlands, 2003; Volume 3, pp. 1–64. [Google Scholar]
  34. Kuritani, T.; Ohtani, E.; Kimura, J. Intensive Hydration of the Mantle Transition Zone Beneath China Caused By Ancient Slab Stagnation. Nat. Geosci. 2011, 4, 713–716. [Google Scholar] [CrossRef]
  35. Cui, X.G.; Xu, J.D.; Yu, H.M.; Zhao, B.; Yang, W.J.; Wei, F.X. Contribution of Recycled Sediments to the Mantle Reservoir Beneath Hainan Island: Evidence from Sr, Nd, Pb, Hf, and Mg Isotopic Analyses of Late Cenozoic Basalts. Geochemistry 2022, 82, 125883. [Google Scholar] [CrossRef]
  36. Chung, S.L. Trace Element and Isotope Characteristics of Cenozoic Basalts around the Tanlu Fault with Implications for the Eastern Plate Boundary between North and South China. J. Geol. 1999, 107, 301–312. [Google Scholar] [CrossRef]
  37. Yang, Z.F.; Zhou, J.H. Can we identify source lithology of basalt? Sci. Rep. 2013, 3, 1856. [Google Scholar] [CrossRef]
  38. Liu, S.A.; Teng, F.Z.; He, Y.; Ke, S.; Li, S. Investigation of Magnesium Isotope Fractionation During Granite Differentiation: Implication for Mg Isotopic Composition of the Continental Crust. Earth Planet. Sci. Lett. 2010, 297, 646–654. [Google Scholar] [CrossRef]
  39. Liu, X.M.; Teng, F.Z.; Rudnick, R.L.; McDonough, W.F.; Cummings, M.L. Massive Magnesium Depletion and Isotope Fractionation in Weathered Basalts. Geochim. Cosmochim. Acta 2014, 135, 336–349. [Google Scholar] [CrossRef]
  40. Teng, F.Z.; Hu, Y.; Chauvel, C. Magnesium Isotope Geochemistry in Arc Volcanism. Proc. Natl. Acad. Sci. USA 2016, 113, 7082–7087. [Google Scholar] [CrossRef]
  41. Sedaghatpour, F.; Teng, F.Z.; Liu, Y.; Sears, D.W.G.; Taylor, L.A. Magnesium Isotopic Composition of the Moon. Geochim. Cosmochim. Acta 2013, 120, 1–16. [Google Scholar] [CrossRef]
  42. Sobolev, A.V.; Hofmann, A.W.; Sobolev, S.V.; Nikogosian, I.K. An olivine-free mantle source of Hawaiian shield basalts. Nature 2005, 434, 590–597. [Google Scholar] [CrossRef]
  43. Herzberg, C. Identification of source lithology in the Hawaiian and Canary Islands: Implications for origins. J. Petrol. 2011, 52, 113–146. [Google Scholar] [CrossRef]
  44. Huang, J.; Li, S.G.; Xiao, Y.; Ke, S.; Li, W.Y.; Tian, Y. Origin of low δ26Mg Cenozoic basalts from South China Block and their geodynamic implications. Geochim. Osmochimica Acta 2015, 164, 298–317. [Google Scholar] [CrossRef]
  45. Wang, X.J.; Chen, L.H.; Hofmann, A.W.; Mao, F.G.; Liu, J.Q.; Zhong, Y.; Xie, L.W.; Yang, Y.H. Mantle Transition Zone-derived EM1 Component Beneath NE China: Geochemical Evidence from Cenozoic Potassic Basalts. Earth Planet. Sci. Lett. 2017, 465, 16–28. [Google Scholar] [CrossRef]
  46. Zeng, G.; Chen, L.H.; Hofmann, A.W.; Wang, X.J.; Liu, J.Q.; Yu, X.; Xie, L.W. Nephelinites in Eastern China Originating from the Mantle Transition Zone. Chem. Geol. 2021, 576, 120276. [Google Scholar] [CrossRef]
  47. Zhang, H.L.; Zeng, G.; Chen, L.H.; Liu, J.Q.; Yu, J.H.; Xu, X.S. Evaluation of CO2 concentration in a carbonated eclogite mantle source: A new attempt based on the compositions of olivine phenocrysts. Lithos 2024, 482–483, 107669. [Google Scholar] [CrossRef]
  48. Thomson, A.R.; Walter, M.J.; Kohn, S.C.; Brooker, R.A. Slab melting as a barrier to deep carbon subduction. Nature 2016, 529, 76–79. [Google Scholar] [CrossRef]
  49. Zeng, G.; Chen, L.H.; Xu, X.S.; Jiang, S.Y.; Hofmann, A.W. Carbonated mantle sources for Cenozoic intra-plate alkaline basalts in Shandong, North China. Chem. Geol. 2010, 273, 35–45. [Google Scholar] [CrossRef]
  50. Daniele, G.; Schmidt, M.W. The melting of carbonated pelites from 70 to 700 km depth. J. Petrol. 2011, 52, 765–789. [Google Scholar] [CrossRef]
  51. Lei, J.S.; Zhao, D.P. The relationship between the origin of the intraplte changbai volcano and the subducting pacific slab. Adv. Earth Sci. 2004, 19, 364–367. [Google Scholar] [CrossRef]
  52. Kinzler, R.J. Melting of Mantle Peridotite at Pressures Approaching the Spinel to Garnet Transition: Application to Mid-ocean Ridge Basalt Petrogenesis. J. Geophys. Res. Solid Earth 1997, 102, 853–874. [Google Scholar] [CrossRef]
  53. Putirka, K. Melting Depths and Mantle Heterogeneity Beneath Hawaii and the East Pacific Rise: Constraints from Na/Ti and Rare Earth Element Ratios. J. Geophys. Res. Solid Earth 1999, 104, 2817–2829. [Google Scholar] [CrossRef]
  54. Xu, Y.G.; Ma, J.L.; Frey, F.A.; Feigenson, M.D.; Liu, J.F. Role of lithosphere–asthenosphere interaction in the genesis of Quaternary alkali and tholeiitic basalts from Datong, western North China Craton. Chem. Geol. 2005, 224, 247–271. [Google Scholar] [CrossRef]

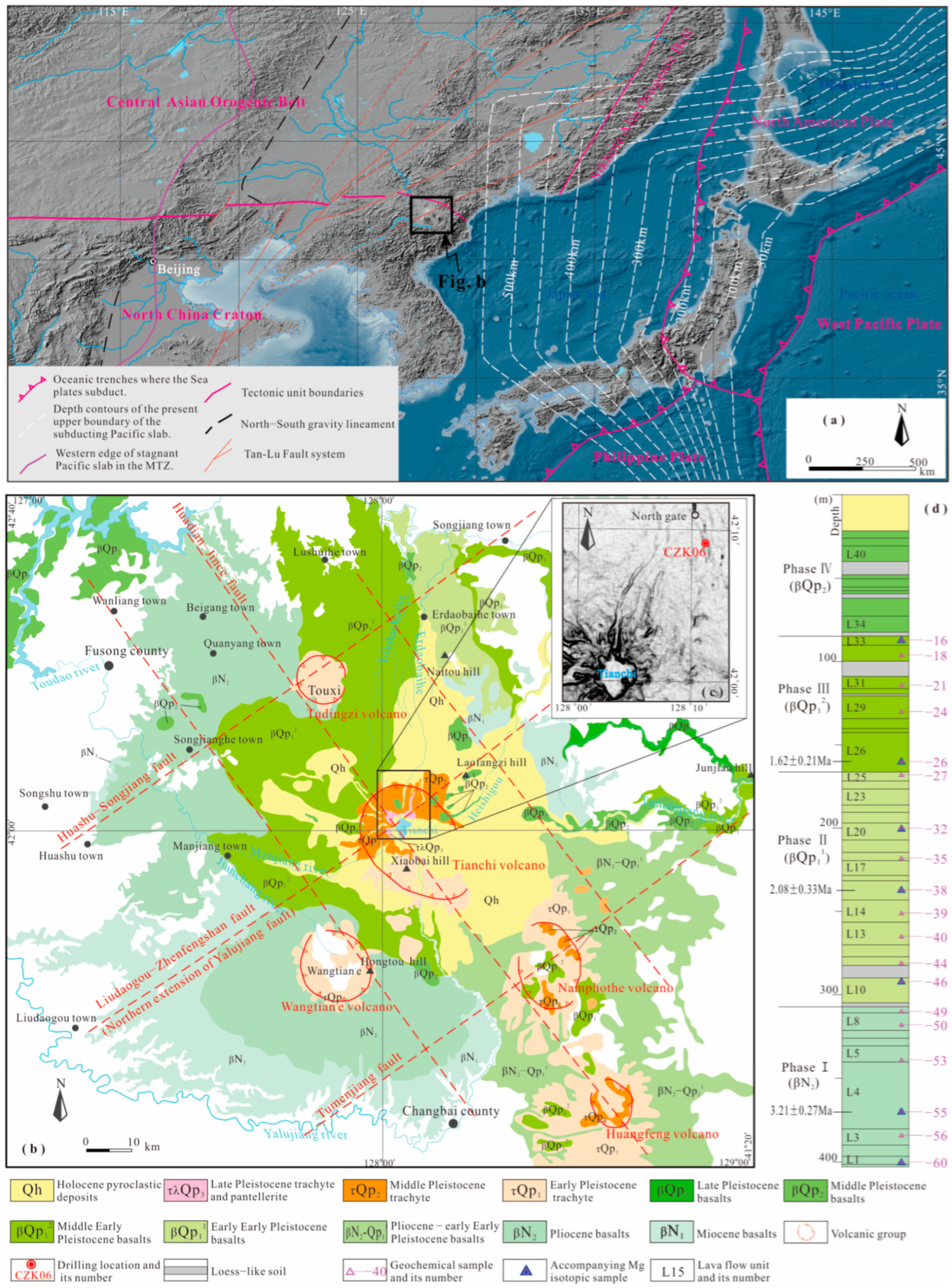

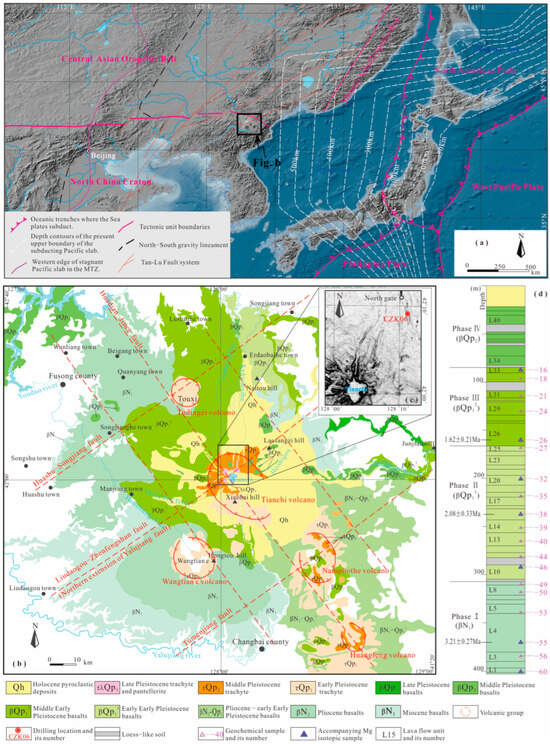

Figure 1. (a) Schematic map showing the CHVF within a back-arc intraplate setting (compiled by [4]); (b) volcanic geology simplified map of the CMVF; (c) drilling location map; (d) column diagram of the CZK06-drill core.
Figure 1. (a) Schematic map showing the CHVF within a back-arc intraplate setting (compiled by [4]); (b) volcanic geology simplified map of the CMVF; (c) drilling location map; (d) column diagram of the CZK06-drill core.
Minerals 15 00949 g001
Figure 2. Photographs show microscopic features for the tholeiitic basalts from the TCV: (a) sample CZK06-60, (b) sample CZK06-38, and (c) sample CZK06-18.
Figure 2. Photographs show microscopic features for the tholeiitic basalts from the TCV: (a) sample CZK06-60, (b) sample CZK06-38, and (c) sample CZK06-18.
Minerals 15 00949 g002

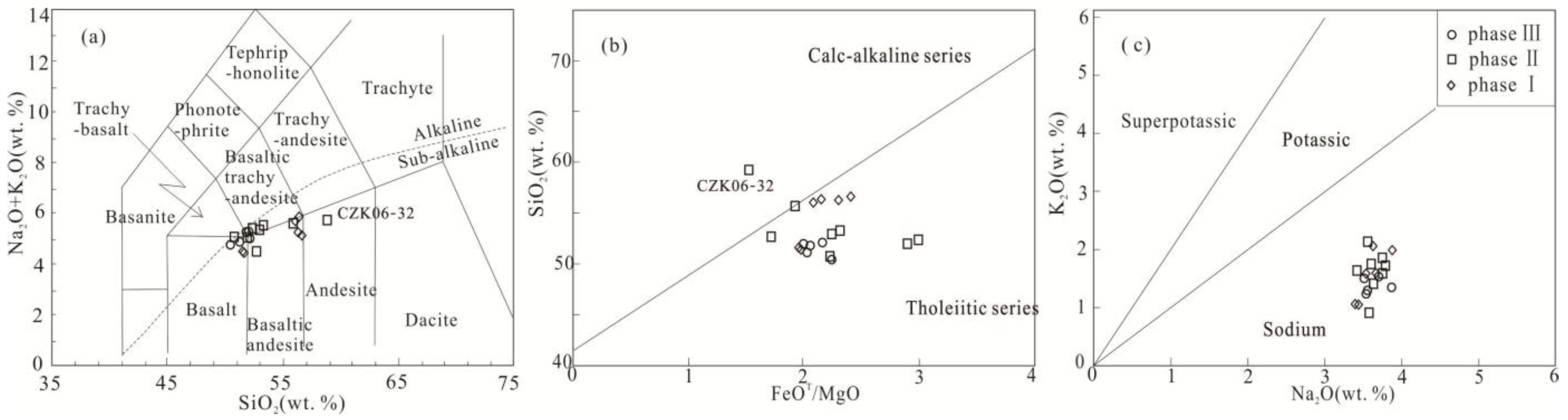

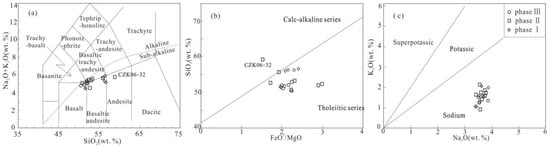

Figure 3. (a) Na2O + K2O vs. SiO2 (the divided lines from [19]), (b) SiO2 vs. FeOT/MgO (the divided lines from [20]), and (c) K2O vs. Na2O (the divided lines from [10]) illustrate the geochemical types of the tholeiitic basalts.
Figure 3. (a) Na2O + K2O vs. SiO2 (the divided lines from [19]), (b) SiO2 vs. FeOT/MgO (the divided lines from [20]), and (c) K2O vs. Na2O (the divided lines from [10]) illustrate the geochemical types of the tholeiitic basalts.
Minerals 15 00949 g003

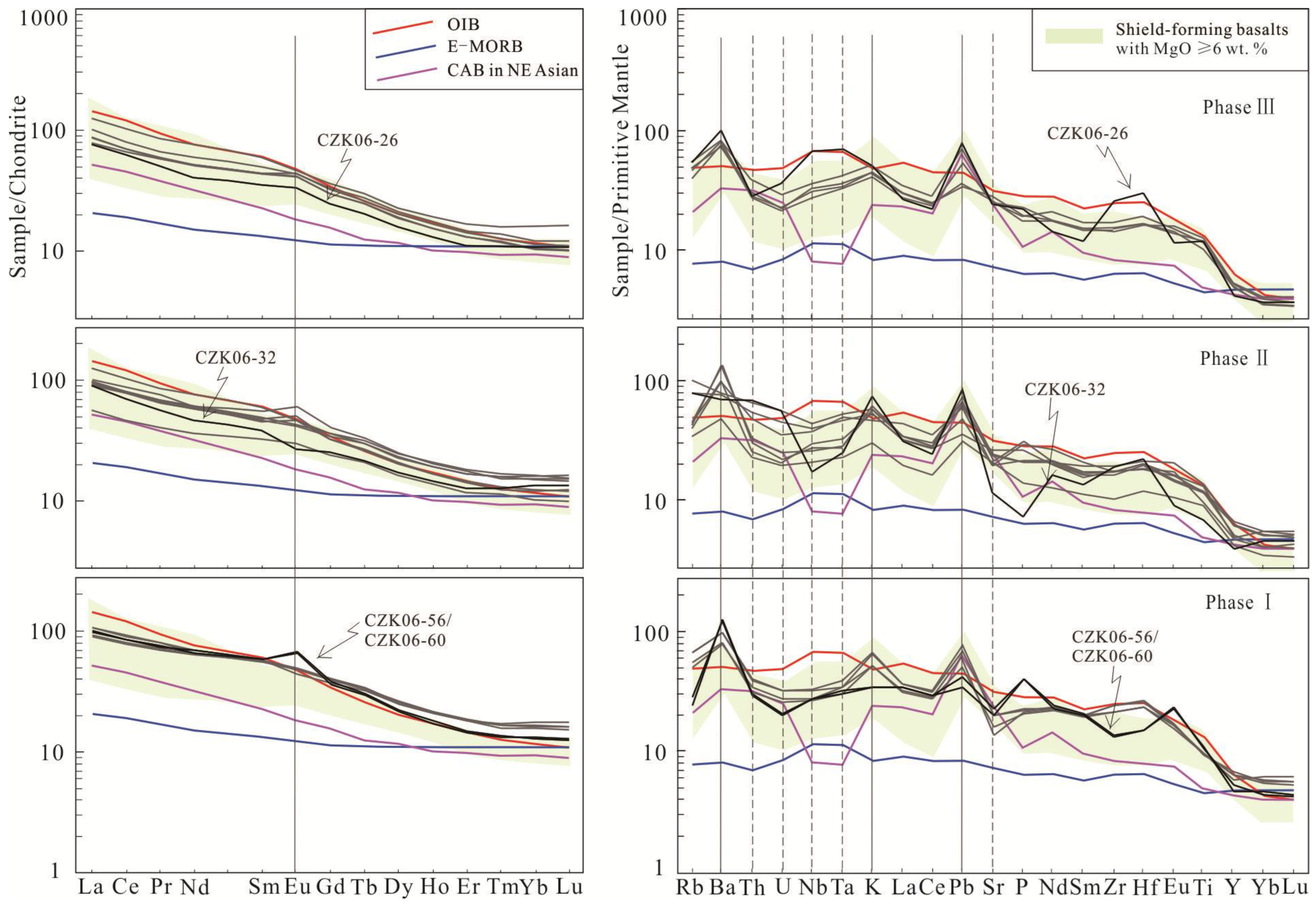

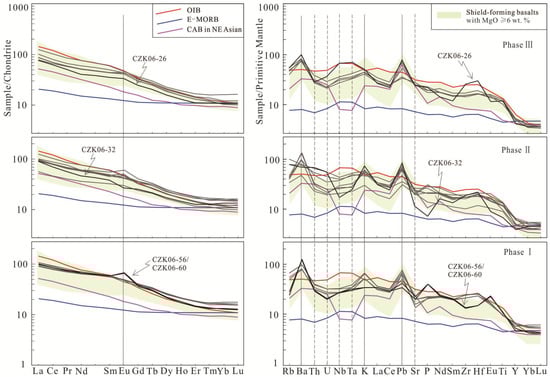

Figure 4. Chondrite-normalized REE patterns and primitive mantle-normalized trace element spidergrams for TCV tholeiitic basalts. E-MORB and OIB values, together with the normalization parameters, are derived from [22]. CAB (continental arc basalt) in NE Asia denotes the Paleogene intermediate-basic volcanic rocks with the tectonic attribute of continental margin arc in the Northeast Asian continental margin [23]. The green shaded area denotes the compositional range of shield-forming basalts with MgO ≥ 6 wt. %, as documented by [24].
Figure 4. Chondrite-normalized REE patterns and primitive mantle-normalized trace element spidergrams for TCV tholeiitic basalts. E-MORB and OIB values, together with the normalization parameters, are derived from [22]. CAB (continental arc basalt) in NE Asia denotes the Paleogene intermediate-basic volcanic rocks with the tectonic attribute of continental margin arc in the Northeast Asian continental margin [23]. The green shaded area denotes the compositional range of shield-forming basalts with MgO ≥ 6 wt. %, as documented by [24].
Minerals 15 00949 g004

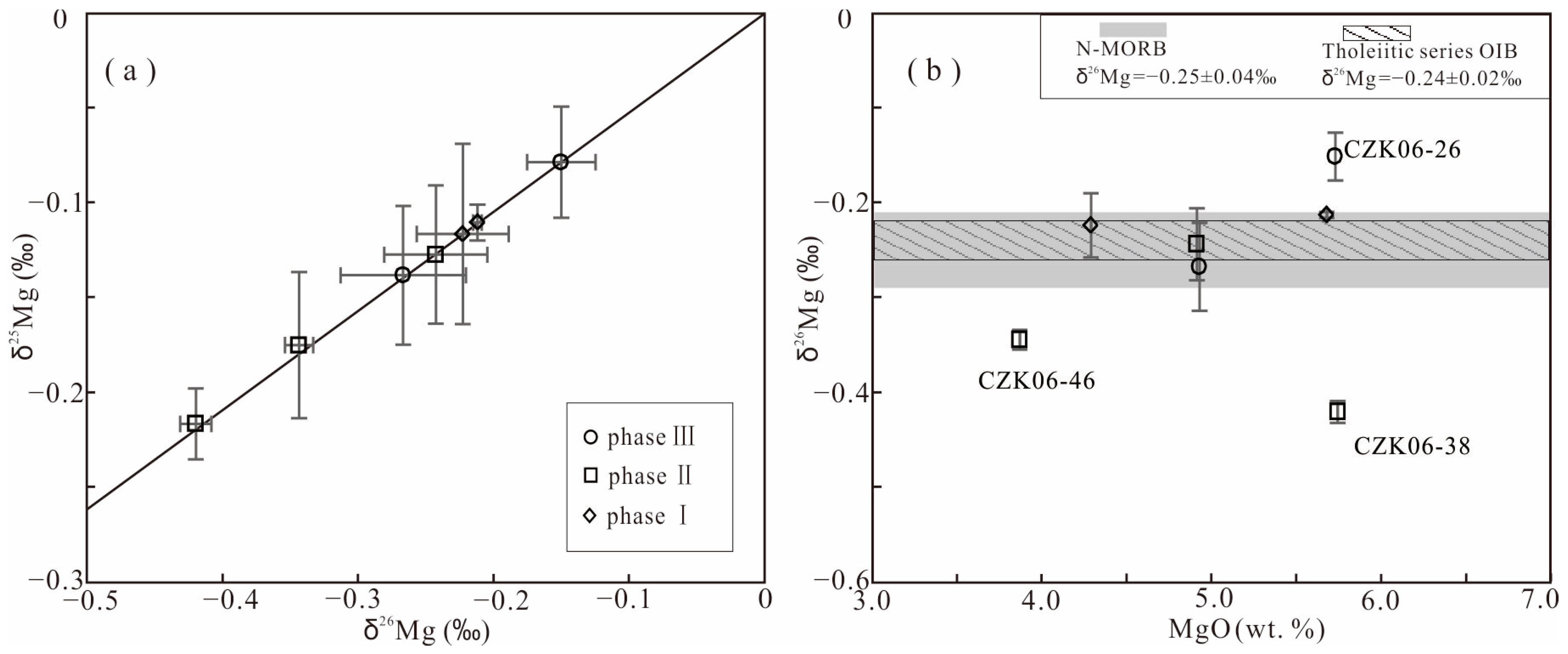

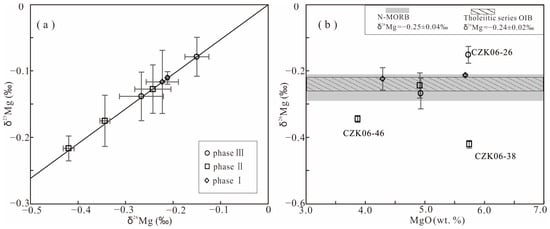

Figure 5. (a) δ25Mg vs. δ26Mg and (b) δ26Mg vs. MgO for the tholeiitic basalts from the TCV. In (a), the solid line represents the terrestrial equilibrium mass fractionation line, with a slope of 0.521, after [26]. In (b), the δ26Mg value for N-MORB (normal mid-ocean ridge basalt) is cited as −0.25 ± 0.04‰ [27], and the value range for tholeiitic series OIB is compiled from [28].
Figure 5. (a) δ25Mg vs. δ26Mg and (b) δ26Mg vs. MgO for the tholeiitic basalts from the TCV. In (a), the solid line represents the terrestrial equilibrium mass fractionation line, with a slope of 0.521, after [26]. In (b), the δ26Mg value for N-MORB (normal mid-ocean ridge basalt) is cited as −0.25 ± 0.04‰ [27], and the value range for tholeiitic series OIB is compiled from [28].
Minerals 15 00949 g005

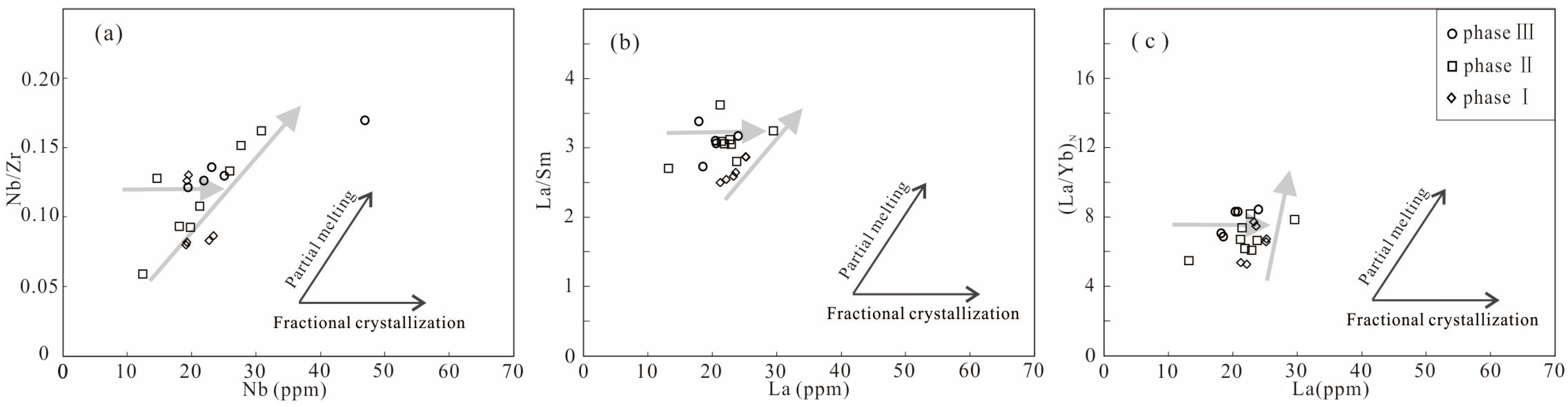

Figure 6. (a) Nb/Zr vs. Nb, (b) La/Sm vs. La, and (c) (La/Yb)N vs. La illustrate the compositions of the tholeiitic basalts mainly controlled by partial melting (the black trend lines from [30]). The gray lines indicate the general trend of the sample data.
Figure 6. (a) Nb/Zr vs. Nb, (b) La/Sm vs. La, and (c) (La/Yb)N vs. La illustrate the compositions of the tholeiitic basalts mainly controlled by partial melting (the black trend lines from [30]). The gray lines indicate the general trend of the sample data.
Minerals 15 00949 g006

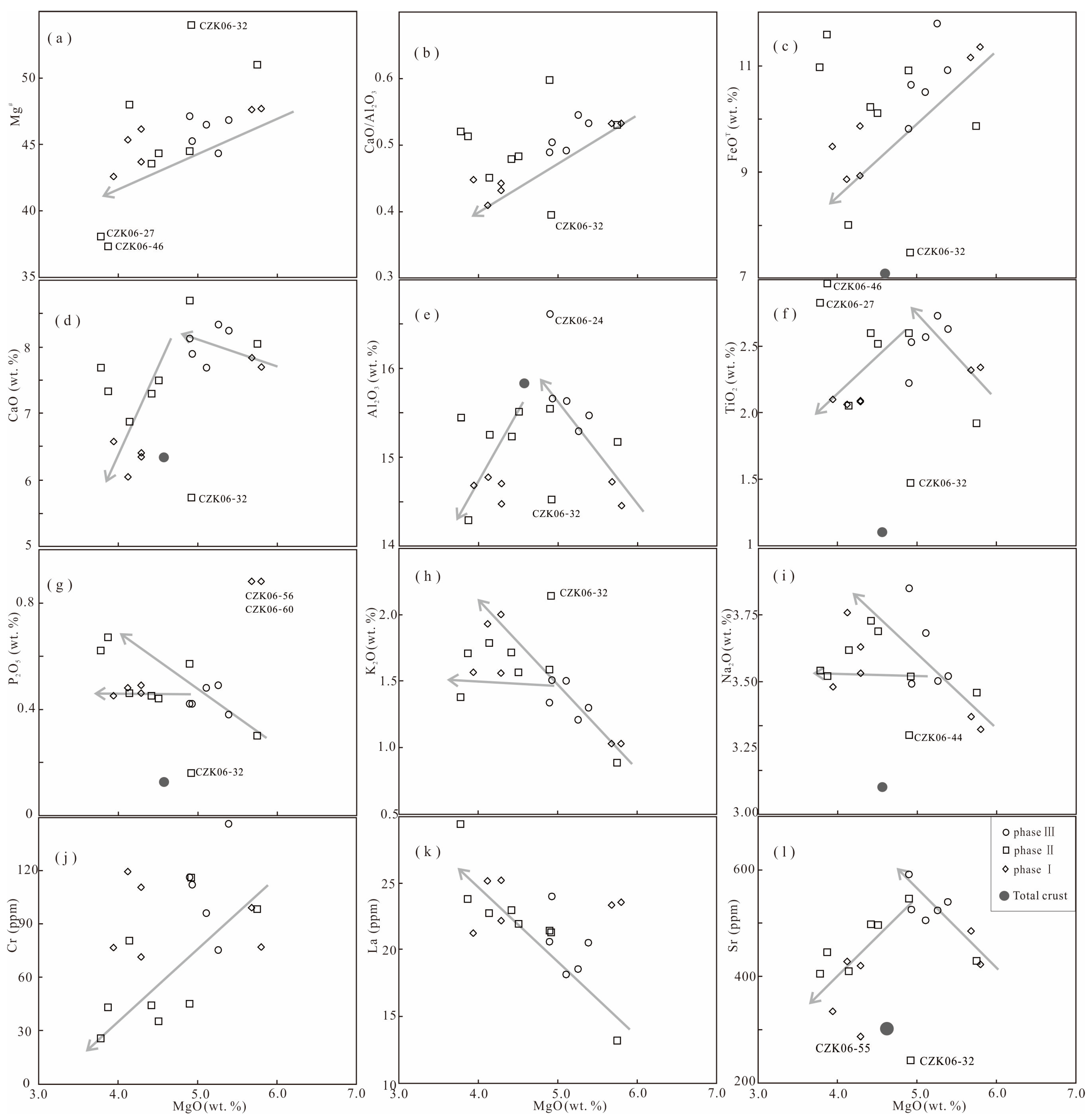

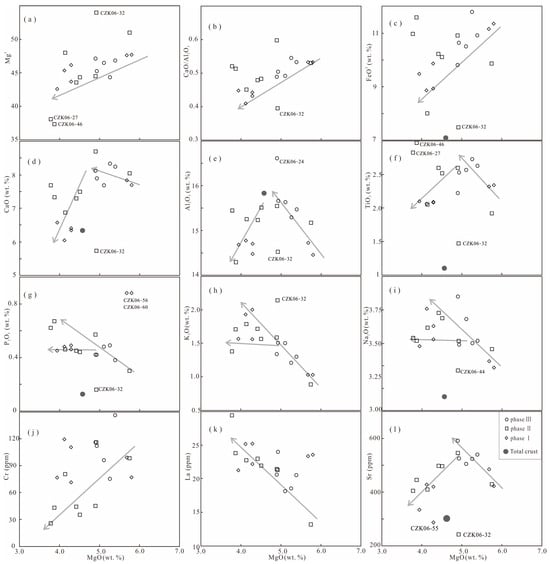

Figure 7. (a) Mg# vs. MgO, (b) CaO/Al2O3 vs. MgO, (c) FeOT vs. MgO, (d) CaO vs. MgO, (e) Al2O3 vs. MgO, (f) TiO2 vs. MgO, (g) P2O5 vs. MgO, (h) K2O vs. MgO, (i) Na2O vs. MgO, (j) Cr vs. MgO, (k) La vs. MgO, and (l) Sr vs. MgO illustrate the correlational characteristics between geochemical indicators, major and trace elements, and MgO content. The total crust values are derived from East China after [31]. The gray lines indicate the general trend of the sample data.
Figure 7. (a) Mg# vs. MgO, (b) CaO/Al2O3 vs. MgO, (c) FeOT vs. MgO, (d) CaO vs. MgO, (e) Al2O3 vs. MgO, (f) TiO2 vs. MgO, (g) P2O5 vs. MgO, (h) K2O vs. MgO, (i) Na2O vs. MgO, (j) Cr vs. MgO, (k) La vs. MgO, and (l) Sr vs. MgO illustrate the correlational characteristics between geochemical indicators, major and trace elements, and MgO content. The total crust values are derived from East China after [31]. The gray lines indicate the general trend of the sample data.
Minerals 15 00949 g007

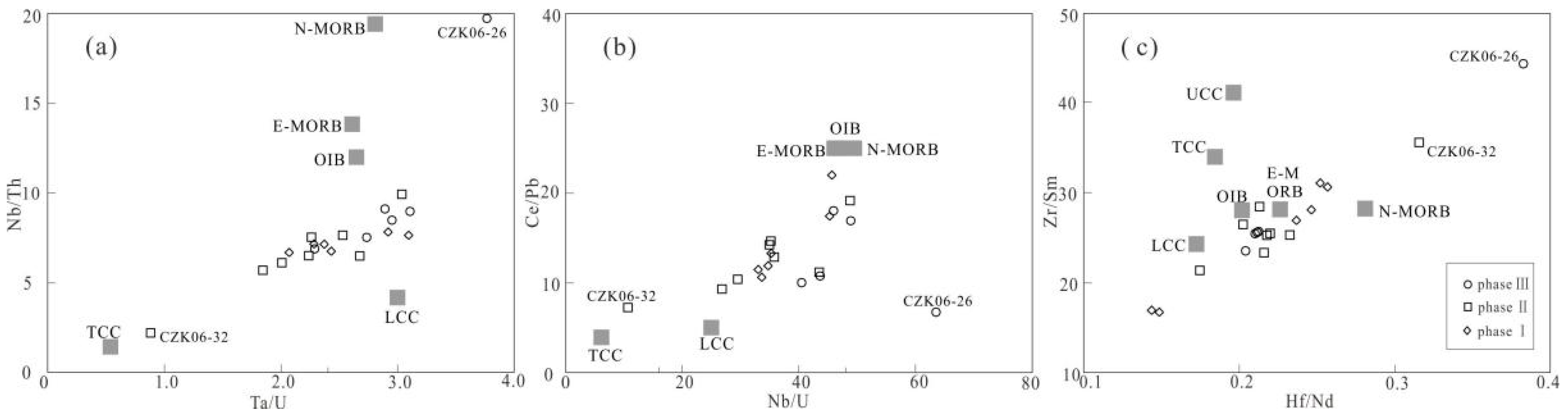

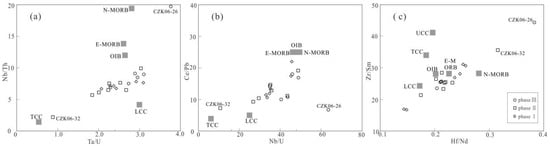

Figure 8. (a) Nb/Th vs. Ta/U, (b) Ce/Pb vs. Nb/U, and (c) Zr/Sm vs. Hf/Nd illustrate the crustal contamination for the tholeiitic basalts. For comparative reference, compositional data of E-MORB, N-MORB, and OIB are compiled from [22]. Meanwhile, the values of TCC (total crust), LCC (lower crust), and UCC (upper crust) are derived from the dataset in [33].
Figure 8. (a) Nb/Th vs. Ta/U, (b) Ce/Pb vs. Nb/U, and (c) Zr/Sm vs. Hf/Nd illustrate the crustal contamination for the tholeiitic basalts. For comparative reference, compositional data of E-MORB, N-MORB, and OIB are compiled from [22]. Meanwhile, the values of TCC (total crust), LCC (lower crust), and UCC (upper crust) are derived from the dataset in [33].
Minerals 15 00949 g008

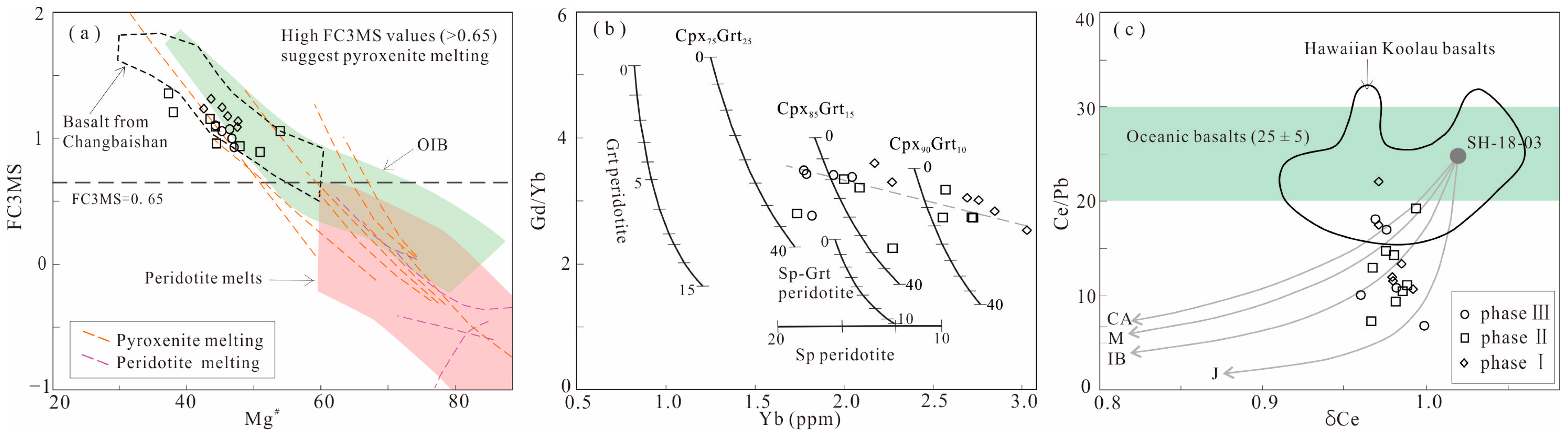

Figure 9. (a) FC3MS vs. Mg#, (b) Gd/Yb vs. Yb, and (c) Ce/Yb vs. δCe illustrate mantle sources property of the tholeiitic basalts. (a) is sourced from [4,37], showing a comparison of partial melts for peridotite and pyroxenite. The composition of the basalts from Changbaishan is compiled from [4]. (b) shows the melt curves calculated by [10] for modal batch melting of eclogite and non-modal batch melting of spinel peridotite, spinel garnet peridotite, and garnet peridotit. The phase proportions (by weight) in the source mode were Ol55Opx25Cpx18Sp2 for spinel peridotite, Ol50Opx5Cpx19Sp3Grt3 for spinel garnet peridotite, and Ol55Opx25Cpx10Grt10 for garnet peridotite. Phase proportions (by weight) for the eclogites are specified as Cpx75Grt25, Cpx85Grt15, and Cpx90Grt10. The risks on the trends represent the degree of partial melting in the melt mode. (c) shows the trend lines from [10], illustrating the mixing curves of sample SH-18-03 (having the highest Ce/Pb ratio) with marine sediments from the Central America (CA), Mariana (M), Izue Bonin (IB), and Japan (J) trenches. Abbreviations: FC3MS = FeO/CaO − 3 × MgO/SiO2; Cpx, clinopyroxene; Grt, garnet; Sp, spinel.
Figure 9. (a) FC3MS vs. Mg#, (b) Gd/Yb vs. Yb, and (c) Ce/Yb vs. δCe illustrate mantle sources property of the tholeiitic basalts. (a) is sourced from [4,37], showing a comparison of partial melts for peridotite and pyroxenite. The composition of the basalts from Changbaishan is compiled from [4]. (b) shows the melt curves calculated by [10] for modal batch melting of eclogite and non-modal batch melting of spinel peridotite, spinel garnet peridotite, and garnet peridotit. The phase proportions (by weight) in the source mode were Ol55Opx25Cpx18Sp2 for spinel peridotite, Ol50Opx5Cpx19Sp3Grt3 for spinel garnet peridotite, and Ol55Opx25Cpx10Grt10 for garnet peridotite. Phase proportions (by weight) for the eclogites are specified as Cpx75Grt25, Cpx85Grt15, and Cpx90Grt10. The risks on the trends represent the degree of partial melting in the melt mode. (c) shows the trend lines from [10], illustrating the mixing curves of sample SH-18-03 (having the highest Ce/Pb ratio) with marine sediments from the Central America (CA), Mariana (M), Izue Bonin (IB), and Japan (J) trenches. Abbreviations: FC3MS = FeO/CaO − 3 × MgO/SiO2; Cpx, clinopyroxene; Grt, garnet; Sp, spinel.
Minerals 15 00949 g009

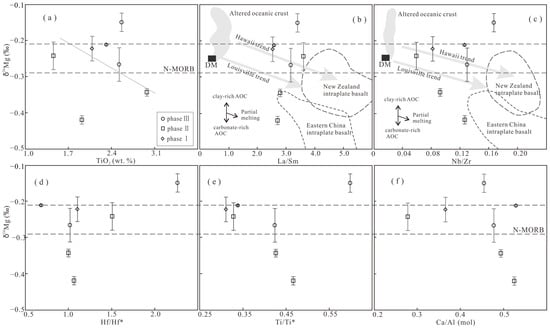

Figure 10. (a) TiO2 vs. δ26Mg, (b) La/Sm vs. δ26Mg, (c) Nb/Zr vs. δ26Mg, (d) Hf/Hf* vs. δ26Mg, (e) Ti/Ti* vs. δ26Mg, and (f) Ca/Al (mol) vs. δ26Mg illustrate the correlations between these parameters and δ26Mg for the tholeiitic basalts. The N-MORB δ26Mg value is cited as −0.25 ± 0.04‰. (b,c) show the divided lines from [28].
Figure 10. (a) TiO2 vs. δ26Mg, (b) La/Sm vs. δ26Mg, (c) Nb/Zr vs. δ26Mg, (d) Hf/Hf* vs. δ26Mg, (e) Ti/Ti* vs. δ26Mg, and (f) Ca/Al (mol) vs. δ26Mg illustrate the correlations between these parameters and δ26Mg for the tholeiitic basalts. The N-MORB δ26Mg value is cited as −0.25 ± 0.04‰. (b,c) show the divided lines from [28].
Minerals 15 00949 g010

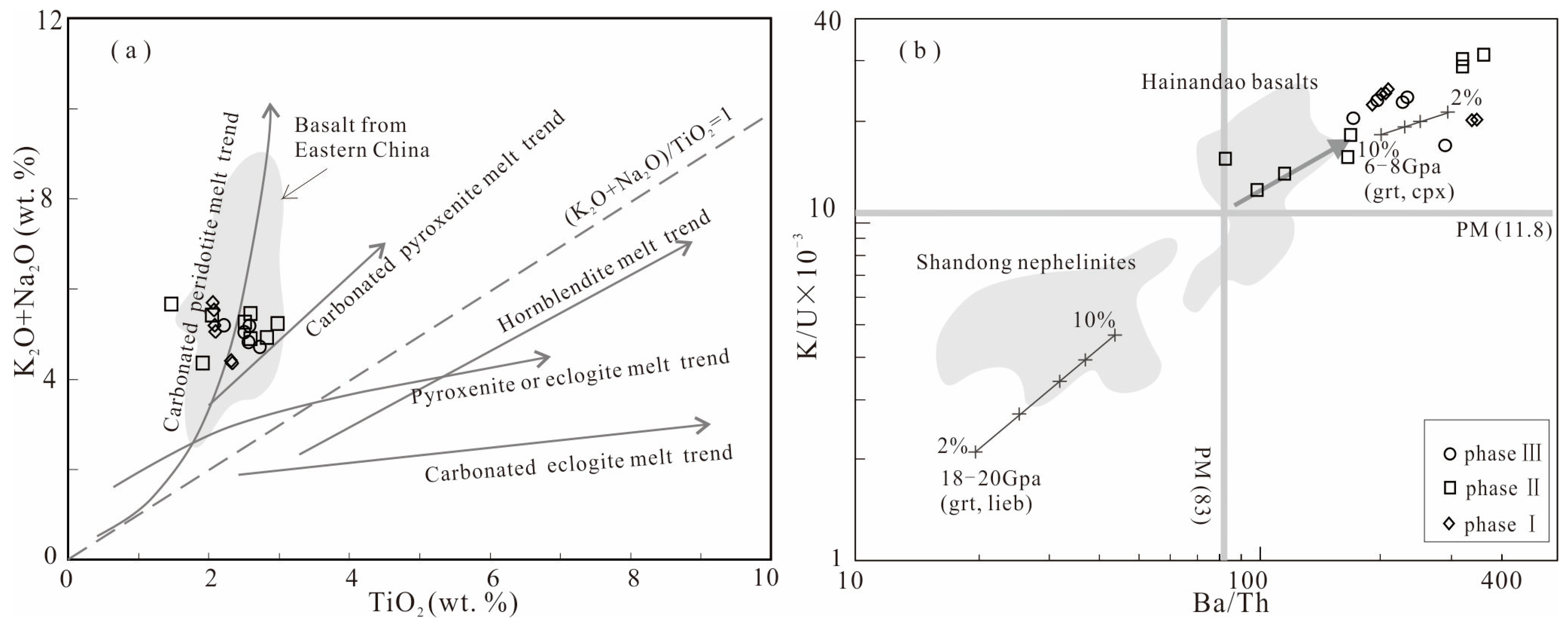

Figure 11. (a) K2O + Na2O vs. TiO2 (the trend lines from [25,44]), and (b) Ba/Th vs. K/U × 10−3 (the trend lines from [35]) illustrate carbonatization in the mantle source region for the tholeiitic basalts.
Figure 11. (a) K2O + Na2O vs. TiO2 (the trend lines from [25,44]), and (b) Ba/Th vs. K/U × 10−3 (the trend lines from [35]) illustrate carbonatization in the mantle source region for the tholeiitic basalts.
Minerals 15 00949 g011

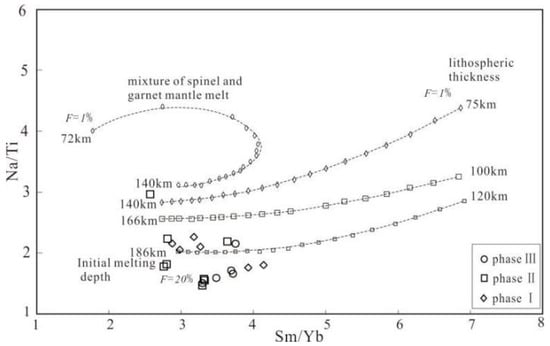

Figure 12. Plots of Na/Ti vs. Sm/Yb illustrate formation depth of TCV tholeiitic magma (the trend lines from [54]).
Figure 12. Plots of Na/Ti vs. Sm/Yb illustrate formation depth of TCV tholeiitic magma (the trend lines from [54]).
Minerals 15 00949 g012
Table 1. Whole-rock major element concentrations and CIPW norm calculations for the tholeiitic basalt samples.
Table 1. Whole-rock major element concentrations and CIPW norm calculations for the tholeiitic basalt samples.
SampleCZK06-16CZK06-18CZK06-21CZK06-24CZK06-26CZK06-27CZK06-32CZK06-35CZK06-38CZK06-39
PhaseIIIIIIIIIIIIIIIIIIIIIIIII
Major elements (wt. %)
SiO251.750.649.851.751.350.458.553.950.952.0
Al2O315.715.515.316.615.614.814.515.315.215.5
Fe2O33.53.22.93.04.68.11.63.12.02.8
FeO7.58.09.27.16.33.76.15.28.17.6
CaO7.98.28.38.17.77.75.76.98.07.5
MgO4.95.45.34.95.13.84.94.15.84.5
K2O1.51.31.21.31.51.42.11.80.91.6
Na2O3.53.53.53.93.73.53.53.63.53.7
TiO22.52.62.72.22.62.81.52.11.92.5
P2O50.40.40.50.40.50.60.20.50.30.4
MnO0.20.20.20.10.10.20.10.10.20.1
LOI0.3−0.2−0.4−0.40.52.21.12.92.00.9
SUM99.698.798.59999.699.299.899.498.699.2
FeOT10.610.911.89.810.511.07.58.09.910.1
Mg#45.246.844.347.146.538.154.048.051.044.3
K2O/Na2O0.40.40.30.30.40.40.60.50.30.4
Na2O + K2O5.04.84.75.25.24.95.75.44.45.3
FeOT/MgO2.22.02.22.02.12.91.51.91.72.2
σ2.82.93.13.03.12.82.02.52.12.9
A.R.1.54 1.51 1.50 1.53 1.57 1.56 1.78 1.65 1.46 1.59
DI41.138.137.241.142.744.652.449.936.743.6
Ca/Al (mol)0.50.50.50.40.40.50.40.40.50.4
FC3MS1.11.01.10.91.11.21.10.90.91.1
CIPW norm
Qz2.40.300.32.65.29.47.20.92.4
An22.822.822.724.221.921.117.720.82421.5
Ab29.730.13032.831.43130.231.830.331.8
Or97.87.288.98.412.8115.49.4
Af13.912.211.412.614.313.620.817.68.515.2
Pl47.648.648.552.447.946.939.945.951.347.6
Nph0000000000
Di11.31313119.611.58.29.212.411
Hy1415.414.414.112.79.116.210.319.414
Ol002.20000000
Il4.85.15.24.24.95.62.843.84.9
Mt54.74.24.46.46.72.34.634.1
Ap10.91.210.61.50.41.20.81.1
SampleCZK06-40CZK06-44CZK06-46CZK06-49CZK06-50CZK06-53CZK06-55CZK06-56CZK06-60
PhaseIIIIIIIIIIII
Major elements (wt. %)
SiO252.548.951.154.554.755.855.750.550.4
Al2O315.214.614.314.714.814.714.514.514.7
Fe2O32.52.64.22.41.93.63.64.04.0
FeO8.08.67.86.77.16.26.67.77.5
CaO7.38.77.36.36.06.66.47.77.8
MgO4.44.93.94.34.13.94.35.85.7
K2O1.71.61.72.01.91.61.61.01.0
Na2O3.73.33.53.53.83.53.63.33.4
TiO22.62.63.02.12.12.12.12.32.3
P2O50.50.60.70.50.50.50.50.90.9
MnO0.10.20.20.20.10.10.10.20.2
LOI0.63.01.61.72.00.70.31.31.3
SUM99.299.499.298.99999.299.299.299.2
FeOT10.210.911.68.98.99.59.911.311.1
Mg#43.544.537.346.145.342.643.747.747.6
K2O/Na2O0.50.50.50.60.50.50.40.30.3
Na2O + K2O5.54.95.25.55.75.15.24.44.4
FeOT/MgO2.32.23.02.12.12.42.32.02.0
σ3.03.33.12.52.61.92.12.32.4
A.R.1.64 1.53 1.64 1.71 1.75 1.62 1.66 1.49 1.48
DI44.738.745.749.650.650.149.738.738.7
Ca/Al (mol)0.40.50.50.40.40.40.40.50.5
FC3MS1.11.01.41.21.21.21.31.11.1
CIPW norm
Qz2.304.86.7610.89.33.83.4
An2020.918.618.918.320.118.821.922.5
Ab322930.530.732.829.931.128.729.1
Or10.39.710.412.211.89.49.36.26.2
Af16.915.21719.619.715.115.59.89.8
Pl45.544.442.442.143.144.343.747.148
Nph000000000
Di11.216.311.68.37.78.18.499.2
Hy14.311.110.614.415.411.312.817.817.1
Ol02.60000000
Il55.15.84.144.144.54.5
Mt3.73.96.33.62.95.45.366
Ap1.11.41.71.21.21.11.12.22.2
Note: FeOT = FeO + 0.8998 × Fe2O3 (wt. %), Mg# = 100 × (MgO)/(MgO + FeOT) (mol), Rittmann index (σ) = (Na2O + K2O)2/(SiO2 − 43) (wt. %), alkalinity ratio (A.R.) = [Al2O3 + CaO + (Na2O + K2O)]/[Al2O3 + CaO − (Na2O + K2O)] (wt. %), differentiation index (DI) = Qz + Or + Ab + Ne + Lc + Kp, in which Qz, Or, Ab, Ne, Lc and Kp are calculated with CIPW, FC3MS = FeO/CaO − 3 × MgO/SiO2. Abbreviation: Qz, quartz; An, anorthite; Ab, albite; Or, orthoclase; Af, alkali-feldspar; Pl, plagioclase; Nph, nepheline; Di, diopside; Hy, hypersthene; Ol, olivine; Il, ilmenite; Mt, magnetite; Ap, apatite.
Table 2. Whole-rock trace element concentrations (ppm) for the tholeiitic basalt samples.
Table 2. Whole-rock trace element concentrations (ppm) for the tholeiitic basalt samples.
SampleCZK06-16CZK06-18CZK06-21CZK06-24CZK06-26CZK06-27CZK06-32CZK06-35CZK06-38CZK06-39
PhaseIIIIIIIIIIIIIIIIIIIIIIIII
Y24.822.923.422.31922.21821.819.228.3
La2420.518.520.618.129.521.222.813.221.9
Ce49.543.240.843.238.762.242.949.228.547.6
Pr6.45.55.55.64.885.36.53.96.2
Nd28.123.824.123.81935.121.427.916.926.7
Sm7.66.66.86.75.39.15.97.34.97.2
Eu2.52.42.62.41.92.71.52.91.72.4
Gd6.96.26.66.157.45.16.74.97
Tb10.910.90.71.10.810.81.1
Dy5.44.85.24.745.84.35.24.15.9
Ho10.90.90.90.71.10.80.90.81.1
Er2.42.22.32.11.82.82.12.31.92.8
Tm0.40.30.30.30.30.40.30.30.30.4
Yb21.81.91.81.82.72.321.72.6
Lu0.30.30.30.30.30.40.30.30.30.4
Be1.21.111.11.21.11.31.111.9
Cr112146751169626116809835
Rb34302529332548262149
Sr525539523591504404243409429496
Zr193169159173281194209193114182
Nb25231922472612181528
Ba569505518558683663467886327524
Hf5.95.14.95.19.16.16.85.73.75.9
Ta1.71.51.31.42.8211.20.91.9
Th3.32.62.32.42.445.72.81.94.5
U0.60.50.40.50.70.71.20.50.40.9
Pb52.63.82.45.84.25.93.52.24.6
Cs0.50.40.30.21.40.810.40.30.9
Sn17.71.81.51.59.22.422.81.22.3
ΣREE13811911712010316811413584133
ΣLREE11810298102881469811769112
ΣHREE19171917152216191521
L/H6.15.95.3666.86.16.24.75.3
LaN/YbN8.48.36.88.37.17.86.78.25.56.2
LaN/SmN221.822.22.12.321.72
TbN/YbN2.32.42.32.31.91.81.62.321.9
δEu1.11.11.21.11.110.81.21.11
δCe0.960.980.980.971.000.980.970.980.970.99
Hf/Hf*11112.30.91.5111.1
Ti/Ti*0.91.110.91.30.90.70.810.9
SampleCZK06-40CZK06-44CZK06-46CZK06-49CZK06-50CZK06-53CZK06-55CZK06-56CZK06-60
PhaseIIIIIIIIIIII
Y30.423.728.129.230.729.526.921.424
La2321.423.825.325.221.222.223.623.3
Ce49.747.852.955.656.347.849.352.251.2
Pr6.56.37.17.57.56.66.77.27
Nd28.526.728.330.832.129.730.330.932.4
Sm7.56.98.58.88.88.58.78.99
Eu2.52.73.52.82.82.72.63.83.9
Gd7.46.78.28.28.38.17.77.57.8
Tb1.211.21.21.31.21.21.11.1
Dy6.35.16.36.46.56.66.45.55.6
Ho1.211.21.21.21.21.211
Er32.42.933332.42.4
Tm0.40.30.40.40.40.40.40.30.3
Yb2.72.12.62.72.82.832.32.2
Lu0.40.30.40.40.40.40.40.30.3
Be2.211.11.71.71.41.50.90.9
Cr44454311011977717799
Rb612829424235321518
Sr498546446419427334287422485
Zr190197214269272239235150153
Nb312120232319192019
Ba535683932683682550543859851
Hf6.25.76.67.98.17.37.24.64.7
Ta2.11.31.21.61.41.21.41.31.2
Th5.42.12.63.33.42.72.92.62.5
U1.10.40.50.70.70.50.60.40.4
Pb5.32.54.84.75.33.64.32.42.9
Cs1.20.30.30.50.50.50.30.30.3
Sn2.81.312.82.92.54.31.526.4
ΣREE140131147154156140143147148
ΣLREE118112124131133117120127127
ΣHREE231923232424232021
L/H5.25.95.45.65.64.95.16.26.1
LaN/YbN6.17.46.66.76.65.45.37.57.7
LaN/SmN221.81.91.91.61.61.71.7
TbN/YbN22.12.22.12.121.82.22.3
δEu11.21.31110.91.41.4
δCe0.980.990.990.980.990.990.98 0.97 0.97
Hf/Hf*1.111.11.21.21.21.10.70.7
Ti/Ti*0.910.90.60.60.70.70.80.7
Note: ΣREE is the total content of all rare earth elements (REE), including lanthanides and yttrium. ΣLREE refers to the sum of the contents of REE with lighter atomic weights, which usually includes La, Ce, Pr, Nd, Sm, and Eu. ΣHREE is the total content of REE with heavier atomic weights, typically including Gd, Tb, Dy, Ho, Er, Tm, Yb, and Lu. L/H = ΣLREE/ΣHREE. Ti/Ti* = TiN/(NdN−0.055 × SmN0.333 × GdN0.722), Hf/Hf* = HfN/(SmN × NdN)0.5.
Table 3. Mg isotopic compositions for the tholeiitic basalt samples and various standard materials.
Table 3. Mg isotopic compositions for the tholeiitic basalt samples and various standard materials.
Sample No.Phaseδ26Mg±2σδ25Mg±2σ
CZK06-16III−0.2670.046−0.1380.037
CZK06-26III−0.1500.025−0.0780.029
CZK06-32II−0.2430.038−0.1270.036
CZK06-38II−0.4200.012−0.2160.019
CZK06-46II−0.3440.010−0.1750.039
CZK06-55I−0.2230.034−0.1160.047
CZK06-60I−0.2120.003−0.1100.009
ReplicateI−0.1730.017−0.0910.050
BCR-2USGS standard materials−0.1540.019−0.0800.030
BHVO-2−0.2300.019−0.1180.010
BS MgQuality control sample during testingδ25MgDSM3‰ = −1.069 ± 0.027 (2SD, n = 10)
δ26MgDSM3‰ = −2.074 ± 0.057 (2SD, n = 10)
δ*Mg = [(*Mg/24Mg)sample/(*Mg/24Mg)DSM3 − 1] × 1000, where * = 25 or 26, DSM3 is a solution made from pure Mg. 2SD indicates twice the standard deviation from four repeated measurements of one sample solution.
Table 4. Petrographic characteristics of TCV tholeiitic basalts.
Table 4. Petrographic characteristics of TCV tholeiitic basalts.
SampleTexture and StructureMatrixPhenocrystEpisode
CZK06-16porphyritic, vesicular (8%–10%)intersertal, Pl (0.1–0.35 mm, major) + Px (microcrystal, few) + Ol (microcrystal, few) + Vit (few)Pl (0.4–0.6 mm, 10%), Ol (0.3–1.2 mm, 3%–4%), Cpx (0.4–0.8 mm, 2%)Phase III
CZK06-18porphyritic, vesicular (6%–8%)pilotaxitic-intergranular, Pl (0.3–0.7 mm, An = 43, major) + Cpx (0.03–0.45 mm, 30%–35%) + Ol (0.05–0.12 mm, 2%–3%) + MmPl (0.5–6.0 mm, 10%), Ol (0.4–1.0 mm, 3%–4%)
CZK06-21porphyritic, massiveintergranular, Pl (0.3–0.7 mm, major) + Cpx (0.3–1.0 mm, 25%–30%) + Ol (0.03–0.1 mm, 5%)Pl (1.0–5.0 mm, 20%), Ol (0.6–1.2 mm, 2%–3%)
CZK06-24porphyritic, vesicular (2%–3%)intergranular, Pl (0.3–0.8 mm, major) + Cpx (0.5–1.8 mm, 20%) + Ol (0.1–0.35 mm, 7%–8%) + Mm (few)Pl (1.0–4.6 mm, 10%–15%), Ol (<1%)
CZK06-26porphyritic, massiveintergranular, Pl (0.4–1.2 mm, major) + Cpx (0.3–0.6 mm, 10%) + Ol (0.1–0.3 mm, 5%) + Mm (0.1–0.3 mm, 3%–4%)Pl (1.0–4.0 mm, An = 62, 10%–12%), Ol (<1%)
CZK06-27porphyritic, vesicular and amygdaloidal (2%–3%)intergranular, Pl (0.08–0.15 mm, major)
+ Dm + Cry + Vit
Pl (0.6–3.6 mm, 7%–8%), Cpx (<1%)Phase II
CZK06-32few-porphyritic, vesicular and amygdaloidal (3%–4%)intersertal, Pl (0.04–0.18 mm, major) + Px (microcrystal, 15%) + VitPl (<1%), Cpx (0.4–2.0 mm, 2%–3%)
CZK06-35porphyritic, vesicular and amygdaloidal (5%–6%)intersertal, Pl (0.1–0.3 mm, major) + Px (microcrystal, 15%) + VitPl (0.6–0.8 mm, 3%–5%), Cpx (<1%)
CZK06-38porphyritic, vesicular and amygdaloidal (3%–4%)intergranular, Pl (0.08–0.35 mm, major) + Px (<0.15 mm, 15%) + Ol (0.08–0.15 mm, 2%)Pl (0.4–1.2 mm, 4%–5%), Cpx (0.5–1.2 mm, 1%–2%)
CZK06-39porphyritic, amygdaloidal (3%–4%)intergranular, Pl (0.1–0.45 mm, major) + Px (<0.1 mm, 4%) + Ol (<0.1 mm, 6%) + Mm (few)Pl (0.4–4.4 mm, 8%–10%)
CZK06-40porphyritic, massivepilotaxitic-intergranular Pl (0.1–0.2 mm, major) + Px (<0.1 mm, 8%) + Ol (few) + Mm (few)Pl (0.4–10.0 mm, 10%), Cpx (0.4–3.0 mm, 2%)
CZK06-44porphyritic, vesicular and amygdaloidal (4%–5%)pilotaxitic-intergranular, Pl (0.1–0.5 mm, major) + Ol (0.05–0.2 mm, 2%–3%) + VitPl (0.6–1.4 mm, 3%–4%), Cpx (1.0–1.2 mm, 2%)
CZK06-46few-porphyritic, vesicular (2%–3%)intersertal, Pl (0.05–0.15 mm, major) +Dm + Mm + VitPl (0.6–1.6 mm, 2%–3%)
CZK06-49few-porphyritic, amygdaloidal (4%–5%)intersertal, Pl (0.05–0.12 mm, major) + Px (microcrystal) + Mm + VitPl (0.6–1.0 mm, 2%–3%), Cpx (0.6–1.4 mm, 2%–3%)Phase I
CZK06-50few-porphyritic, massiveintersertal, Pl (0.05–0.25 mm, major) + Dm + Mm + VitPl (0.6–1.8 mm, 3%), Cpx (0.3–0.8 mm, 2%–3%)
CZK06-53porphyritic, vesicular (3%–4%)intersertal, Pl (0.1–0.3 mm, major) + Px (microcrystal) + Mm + VitPl (0.6–3.8 mm, 10%–15%), Cpx (0.4–1.2 mm, 3%)
CZK06-55porphyritic, massiveintersertal, Pl (0.08–0.35 mm, major) + Cpx (0.1–0.3 mm, 10%) + Mm + Vit (few)Pl (0.6–3.2 mm, 8%–10%)
CZK06-56few-porphyritic, vesicular (8%–10%)intersertal, Pl (0.1–0.4 mm, major) + Cpx (0.1–0.3 mm, 10%) + Ol (0.1–0.3 mm, 5%) + Mm (ilmenite, 0.05–0.45 mm, 2%–3%) + VitPl (0.6–1.8 mm, 5%)
CZK06-60few-porphyritic, massiveintersertal, Pl (0.15–0.65 mm, major) + Cpx (0.05–0.2 mm, 10%) + Ol (0.1–0.2 mm, 3%–4%) + Mm (ilmenite, 0.1–0.35 mm, 2%–3%) + VitPl (0.8–3.2 mm, 5%)
Whole-rock major and trace element analyses were performed on all above samples. The 7 gray-shaded samples were selected for Mg isotope analysis. Abbreviation: Ol, olivine; Px, Pyroxene; Cpx, clinopyroxene; Pl, plagioclase; Dm, dark minerals (mainly microcrystalline aggregates of Ol and/or Px); Mm, metallic minerals (mainly ilmenite); Vit, vitreous materials; Cry, cryptocrystalline.
Table 5. Primitive mantle normalized ratios of characteristic trace elements.
Table 5. Primitive mantle normalized ratios of characteristic trace elements.
Episode(Nb/Th)N(Ta/U)N(Ce/Pb)N(P/Nd)N(Ti/Sm)N
Phase III0.89–1.09
CZK06-26 is 2.36
1.40–1.59
CZK06-26 is 1.93
0.40–0.72
CZK06-26 is 0.27
0.93–1.26
CZK06-26 is 1.57
0.66–0.82
CZK06-26 is 0.99
Phase II0.68–1.18
CZK06-32 is 0.26
0.95–1.56
CZK06-32 is 0.45
0.37–0.77
CZK06-32 is 0.29
0.98–1.47
CZK06-32 is 0.46
0.58–0.80
CZK06-32 is 0.51
Phase I0.80–0.931.06–1.590.42–0.880.93–1.770.48–0.54
Total crust0.170.280.160.400.38
N-MORB2.311.441.001.000.99
E-MORB1.651.341.000.980.79
OIB1.431.361.001.000.59
Total crust values are sourced from [33]. N-MORB, E-MORB, and OIBs are sourced from [22].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Qian, C.; Ge, J.; Pan, B.; Tang, Z.; Jiang, B.; Cui, T.; Lu, L. Petrogenesis of Tholeiitic Basalts from CZK06 Drill Core on the Tianchi Volcano, China–North Korea Border. Minerals 2025, 15, 949. https://doi.org/10.3390/min15090949

AMA Style

Qian C, Ge J, Pan B, Tang Z, Jiang B, Cui T, Lu L. Petrogenesis of Tholeiitic Basalts from CZK06 Drill Core on the Tianchi Volcano, China–North Korea Border. Minerals. 2025; 15(9):949. https://doi.org/10.3390/min15090949

Chicago/Turabian Style

Qian, Cheng, Jintao Ge, Bo Pan, Zhen Tang, Bin Jiang, Tianri Cui, and Lu Lu. 2025. "Petrogenesis of Tholeiitic Basalts from CZK06 Drill Core on the Tianchi Volcano, China–North Korea Border" Minerals 15, no. 9: 949. https://doi.org/10.3390/min15090949

APA Style

Qian, C., Ge, J., Pan, B., Tang, Z., Jiang, B., Cui, T., & Lu, L. (2025). Petrogenesis of Tholeiitic Basalts from CZK06 Drill Core on the Tianchi Volcano, China–North Korea Border. Minerals, 15(9), 949. https://doi.org/10.3390/min15090949

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
