Article

Controls on the Transformation of Clay Minerals in the Miocene Evaporite Deposits of the Ukrainian Carpathian Foredeep

1
Institute of Geology and Geochemistry of Combustible Minerals, National Academy of Sciences of Ukraine, Naukova 3a, 79060 Lviv, Ukraine
2
Polish Geological Institute—National Research Institute, Rakowiecka 4, 00-975 Warszawa, Poland
*
Author to whom correspondence should be addressed.
Minerals 2025, 15(4), 395; https://doi.org/10.3390/min15040395
Submission received: 19 February 2025 / Revised: 27 March 2025 / Accepted: 3 April 2025 / Published: 8 April 2025

Abstract

:
Clays deposited in marine evaporite sequences are strongly altered, and the most important factor determining their transformation is brine concentration. An X-ray diffraction study of clay minerals associated with the Lower and Middle Miocene evaporite formations of the Ukrainian Carpathian Foredeep indicated that the clay mineral assemblages in the gypsum facies are composed of smectite and illite, and, in some samples, mixed-layer chlorite–smectite and illite–smectite, as well as chlorite. In the halite facies, illite, chlorite, and mixed-layer illite–smectite occur in rock salt of Eggenburgian age (Vorotyshcha Suite); in addition to those minerals, smectite, corrensite, and mixed-layer chlorite–smectite occur in the Badenian rock salt (Tyras Suite); and in the potash facies, illite and chlorite were recorded. Such clay mineral assemblages resulted from the aggradational transformation of unstable and labile minerals and phases (kaolinite, smectite, and mixed-layer phases) that finally pass into illite and chlorite, minerals that are stable in an evaporite environment. In addition to brine concentration control, another important factor in the transformations of clay minerals was the sorption of organic components on the mineral structure, which slows the transformation processes. The assemblage of clay minerals in the weathering zone of the evaporite deposits, besides inherited illite and chlorite, also contains mixed-layer illite–smectite and kaolinite. The appearance of those clay minerals in hypergene deposits is the consequence of two processes: degradational transformation (illite–smectite) and neoformation (kaolinite) in conditions of decreased ionic concentrations during desalination.

1. Introduction

The origin of clay minerals in various geological environments (weathering, sedimentary, and diagenetic-hydrothermal) are provided by three mechanisms of clay mineral formation: inheritance, neoformation, and transformation [1,2].
One of these, transformation has exceptional importance in the forming of clay mineral assemblages. The concept of transformation was introduced by [3] and includes degradation (negative transformation related to the weathering and removal of matter) and aggradation (positive transformation related to the growth of the crystalline structure and the incorporation of matter) [3]. Transformations of clay minerals by degradation are common in the soil-forming process, where leaching is intense. Aggradational transformations are characteristic of the depositional environment, where ions from concentrated solutions can participate in the building of well-structured lattices. Illite and chlorite are typical of the premetamorphic stage of aggradation; the mixed-layer minerals represent intermediate stages of the processes of degradation and aggradation [4,5].
One of main transformation factors of clay minerals in different geological contexts is the burial diagenesis of clay-rich deposits, for example, the illitisation of smectite ([6] and references therein). In evaporative conditions, the most important factor in the transformation of clay minerals is brine concentration [7,8].
Clay minerals of evaporite deposits are mostly regarded as authigenic [1,7,9,10,11,12]. The transformation or neoformation of clay minerals at the stage of sedimentation in an evaporite basin or at the stage of diagenesis within evaporite deposits are controlled by physico-chemical conditions, and, in a hypersaline environment, this depends on factors such as temperature [13], lateral salinity change and alkalinity [14], and salinity combined with higher burial-related temperatures [15,16].
Assemblages of clay minerals of the Lower and Middle Miocene evaporites of the Carpathian region are well studied (see [17], for a review). Considerable attention has been paid to the transformation processes of clay minerals under the influence of brines in salt basins or buried within deposits. Being unstable in conditions of increased salinity, allogenic minerals (kaolinite, smectite, and mixed-layer phases) are transformed, through a series of transitional phases, into illite and chlorite [5,18]. As the brine concentration increases further, the structure of those end-minerals becomes better ordered. Less attention has been paid to the degradational transformation processes of clay minerals of the Miocene evaporites that formed as brine concentrations decreased under the influence of surface waters. The mechanism of these transformations is related to the destabilisation of the interlayer spaces of clay structures and the formation of labile phases.
The present research considers factors controlling the transformational processes of clay minerals in the Miocene evaporite deposits of the Ukrainian Carpathian Foredeep.

Geological Setting

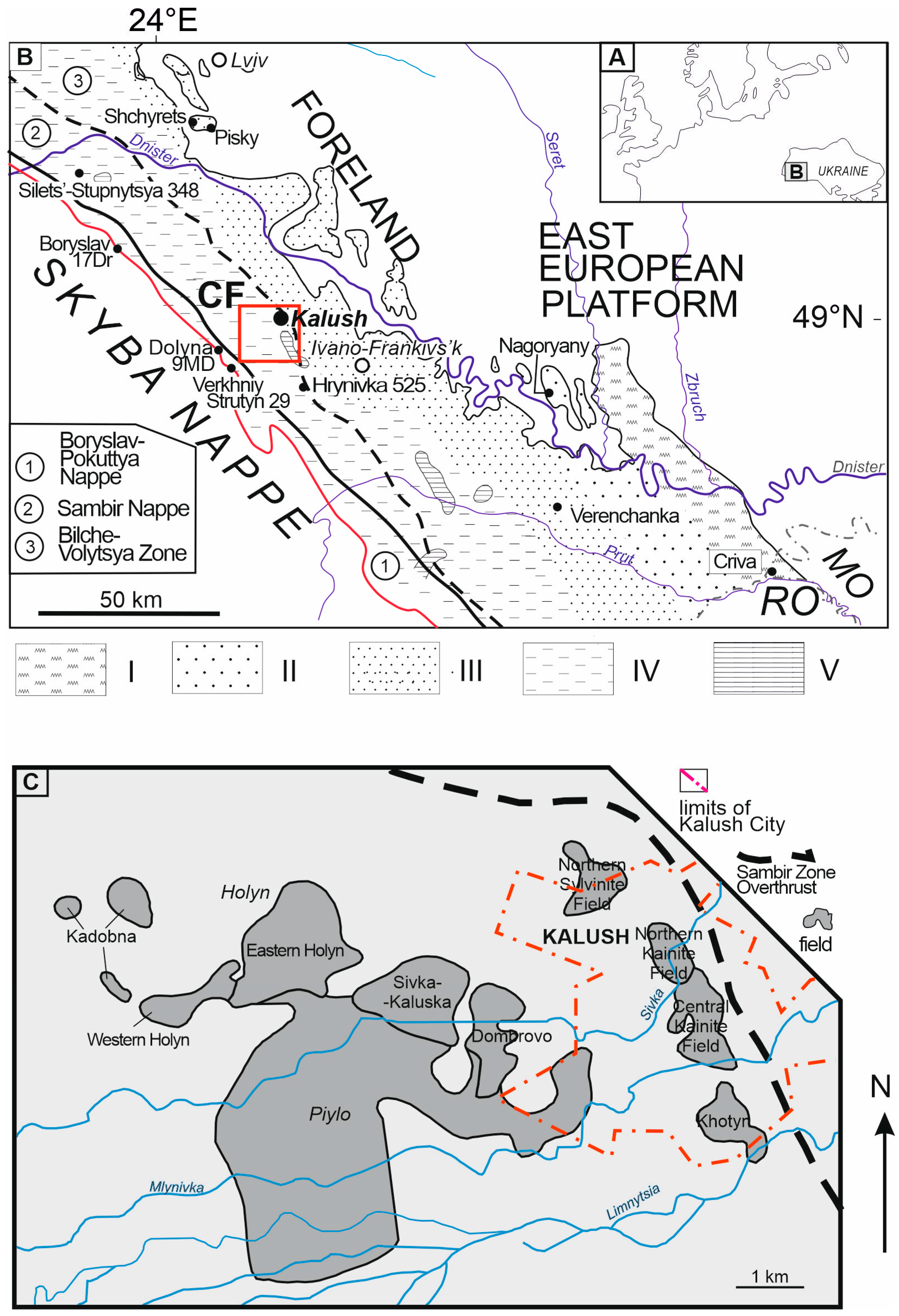

The Miocene Carpathian Foredeep is asymmetrical and developed as a peripheral foreland basin related to the moving Carpathian front [19]. The molasse, predominantly siliciclastic, deposits are up to 6 km thick in the Ukrainian Carpathian Foredeep, where three tectonic zones are distinguished: the outer (Bilche-Volytsya Zone), central (Sambir Nappe thrusted over the Bilche-Volytsya Zone), and inner (Boryslav-Pokuttya Nappe thrusted over the Sambir Nappe) [19,20] (Figure 1 and Figure 2).

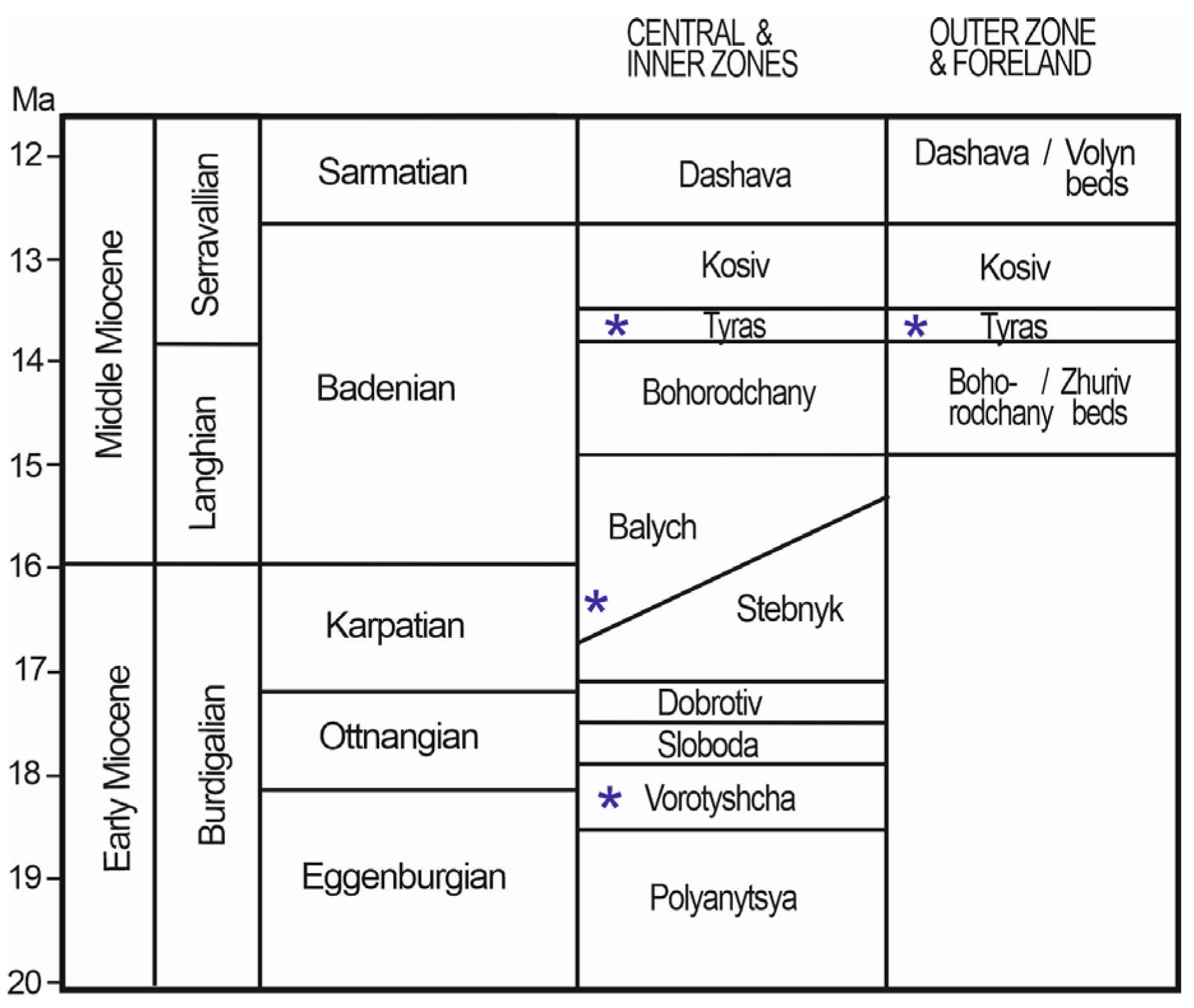

Evaporite deposits occurring in the Carpathian Foredeep fill (Figure 2) are involved in the thrusting of the Carpathian nappes, and, thus, their stratigraphic sections are likely multiplied [28,29,30,31]. For example, the Lower Miocene (Eggenburgian) Vorotyshcha Suite of the inner zone shows a total thickness more than 2000 m, but the primary section was 100–125 m thick (Figure 3; [31]). The stratigraphic position of another potash deposit that was recorded to be higher in the stratigraphic section, the Kalush-Holyn deposit, is controversial. A recent map synthesis [32] and the officially approved stratigraphical scheme [23] consider the Kalush-Holyn deposit to be related to the upper part of the Balych Suite of Karpatian age, and [33,34] correlate “the Kalush Beds” with the Upper Badenian salt of the Wieliczka and Bochnia region (Poland).

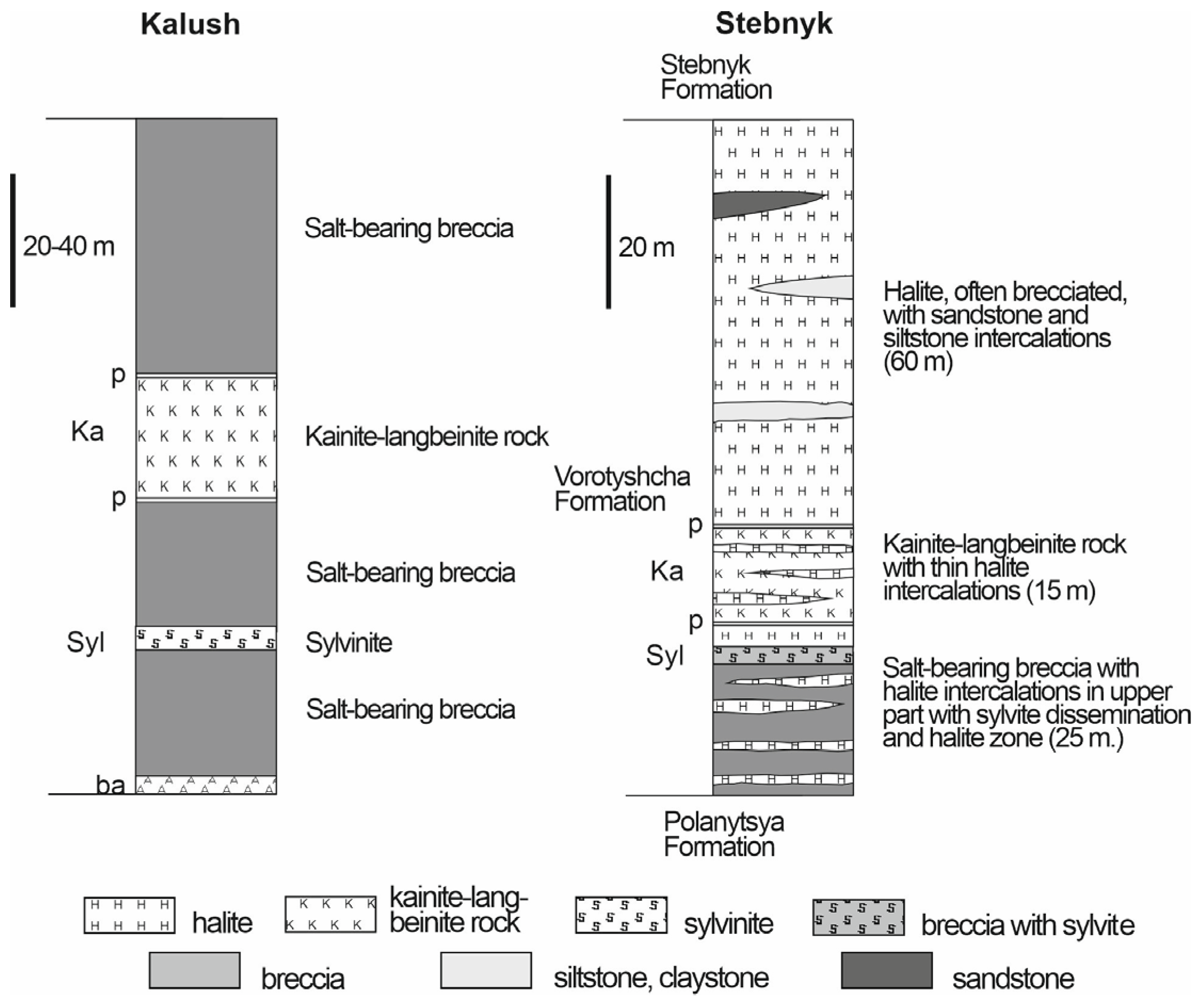

The potash-bearing sequence of the Kalush-Holyn deposit is up to 500 m thick and consists of interbedded salt claystones, salt-bearing breccias, potash, and rock salt, but it seems that only two beds of potash salts formed during sedimentation: the lower chloride and the upper sulphate [29,30,31] (Figure 3). Potash beds of the Kalush-Holyn deposit, in general, are composed of kainite, kainite–langbeinite (polymineralic), and langbeinite rocks; more rare is sylvinite. Clay material is dispersed and takes the form of halopelite layers (clays containing up to 30% of various salts), which are interbedded with beds of potash deposits or halite. Potash beds occur in salt breccia (or salt-bearing clay) composed of fragments of clays cemented by halite. Such clay–halite rocks with silt- and clay-rich siliciclastic rocks are commonly termed “zuber” [36,37,38].
Evaporites of the Kalush-Holyn deposit occur close to the surface in the Dombrowo field, where potash deposits are dissolved by an aquifer within Upper Pleistocene alluvial deposits, the main source of which is from rainfall [39]. A gypsum–clay caprock up to 21 m thick continues to form, as indicated by Late Pleistocene–Holocene radiometric ages of hypergene salt minerals [40].
The youngest evaporite deposits in the Carpathian Foredeep Basin are of late Badenian age (see [41]). These are included, in Ukraine, in the Tyras Suite, and consist of gypsum in the peripheral parts (e.g., [42,43,44]) laterally passing through anhydrite [45] into halite interbedded with siliciclastic deposits (e.g., [46,47]). In Poland, the latter are included in the Wieliczka Formation ([48], with references therein), and in Romania in the Cosmina Formation ([49], with references therein).

2. Materials and Methods

2.1. Materials

For this research, we applied our previously published mineralogical data on clay minerals [17,50,51,52,53,54,55], considered here in more detail and from a different perspective. Eleven samples of the pelitic fraction of water-insoluble residue contained in the Tyras gypsum in five gypsum quarries have been studied: four quarries are in Ukraine (Shchyrets, Pisky, Verenchanka, and Nagoryany), and one is in Moldova, at the boundary with Ukraine (Criva) (Figure 1). These samples represent various parts of the gypsum stratigraphic section and various lithological varieties of gypsum (stromatolitic, bedded, laminated, sabre, massive gypsum and gypsum breccia).
Twenty-three samples of the pelitic fraction of water-insoluble residue contained in the Tyras rock salt were from the Silets-Stupnytsya (boreholes 348 and 671, six samples) and Hrynivka (borehole 525, seventeen samples) localities. Ten samples of the pelitic fraction of water-insoluble residue of rock salt from the Vorotyshcha Suite (Eggenburgian) have been studied; they include samples from the following boreholes: Verkhniy Strutyn (borehole 29, three samples), Boryslav (borehole 17Dr, four samples), and Dolyna (borehole 9MD, three samples). The sample set from the Kalush-Holyn deposit (Holyn, Dombrovo, Northern Kainite and Khotyn fields) included twelve samples from the potash rocks (kainite, langbeinite, kainite-langbeinite, polyhalite, sylvinite), twelve from halite and halopelite layers, and four from salt-bearing breccia. From the Dombrovo quarry, ten samples of clays were taken from the gypsum-clay caprock: four of them from the northern escarpment of the quarry at the level of +265 m, and six of them from the eastern escarpment of the quarry at the level of +277 m in boreholes 714 and 747. The thicknesses of the gypsum–clay caprock were there 4.0 and 7.5 m, respectively (Figure 4). Six samples of clays from the gypsum–clay caprock were taken from the upper, middle, and lower parts of the gypsum–clay caprock above potash rocks (samples 2308, 2309, 2310) and above the salt-bearing breccia (samples 2305, 2306, 2307).

2.2. Methods

Assemblages of clay minerals have been studied in the pelitic fraction by X-ray diffraction (XRD), differential thermal analysis (DTA), derivative thermogravimetry (DTG), thermogravimetric analysis (TG), and scanning electron microscopy (SEM).
The pelitic fraction was separated by decantation. First, evaporite samples were dissolved in distilled water and washed to complete elimination of salt minerals. From the resultant insoluble residue, the sand fraction was separated, and a finer fraction was washed in several steps until a stable suspension was obtained. According to the present methodology, particles smaller than 0.005 mm occur in stable suspension 40 min after shaking in a 5 cm column [56]).
XRD patterns were obtained using two different powder diffractometers: DRON-0.5 (Bourevestnik, St. Petersburg, Russia) and ADP-2.0 (Anatek Services PVT. LTD., Mumbai, India). The operating conditions for DRON-0.5 were: 34 kV, 4 mA, Ni-filtered Cu-radiation, and a speed of counter movement of 2°/min. For ADP-2.0, the operating conditions were 30–36 kV, 9–15 mA, with different wavelengths of radiation used. These included Fe-filtered Co-radiation at 0.025 2θ/step with a counting time of 1.5 s and Mn-filtered Fe-radiation with a counting time of 0.75 s. For some samples in the 6–14° 2θ interval, counting times were 1.5 or 3.0 s.
Identification of clay minerals using XRD was based on the methodology of recognition of aluminosilicates in mineral assemblages [56,57]. To define clay minerals, oriented preparations were obtained by applying several drops of suspension of pelitic particles on a glass plate and drying at room temperature.
Oriented preparations that were air-dried, ethylene-glycolated, and heated at T = 550 °C for 1 h were studied. For determination of the kaolinite content in the presence of chlorite, samples were processed by a 15% solution of hydrochloric acid during a heating time of 2.5 h (T = 80 °C). Chlorite minerals under such circumstances decompose completely, and kaolinite remains stable even when subjected to concentrated hydrochloric acid. Randomly oriented aggregates of pelitic particles were studied to determine the structural type of the clay minerals (060 peak position, interval 74–98° 2θ).
Differential thermal and thermogravimetric analysis was performed on a Q-1500 D derivatograph on a Paulik-Paulik-Erdey system (MOM Szerviz Kft., Budapest, Hungary). The analysis was carried out in a temperature range of 20–1000 °C with a heating rate of 10 °C/min in air. Aluminium oxide served as a reference substance. Endothermic and exothermic effects recorded during this thermal analysis indicated the structural features of the clay minerals and thermal destruction by oxidation of organic matter [58].
Scanning electron microscopy (SEM) analysis was carried out with a Jeol-JSM 6490 instrument (JEOL Ltd., Tokyo, Japan).

3. Results

3.1. Gypsum Facies

The pelitic fraction of the water-insoluble residue of the Badenian gypsum samples studied contains two main clay minerals: a considerable amount of smectite, and a small amount of illite [51]. In addition, in some samples, mixed-layer chlorite–smectite and a small amount of illite–smectite as well as chlorite were found (Table 1, Figure 5).
Smectite was recorded in all samples studied and is defined by a broad basal reflection 001 of high intensity. In some samples, this diffractional maximum is split at the apex, with interlayer spacings at 1.51–1.58 and 1.63 nm, that, when ethylene-glycolated, are shifted to 1.68–1.71 and 1.73 nm, respectively. The broadening of the 001 reflection with a release of the 1.63 nm line on the diffraction picture of the air-dried preparation is an indication of two minerals of the smectite group (Figure 5). The position of the 060 reflection of preparations of randomly oriented pelitic fraction at 0.149–0.150 nm indicates a dioctahedral type of smectite structure (that occurs in a considerable amount), although, in that interval, a weakly expressed 0.153 nm reflection also occurs that can be indicative of an admixture of trioctahedral smectite. A trioctahedral structure, similarly, may indicate chlorite, but this reflection was recorded also in samples were chlorite is absent. Thus, smectite in the pelitic fraction is heterogeneous: there occurs a mixture of Al-Fe dioctahedral allogenic, and a small quantity of Mg trioctahedral authigenic, material [51]. In thermally treated preparations, reflections at 1.51–1.63 nm are shifted to 0.98 nm, and, in some preparations, in the area of low angles, there are additional reflections of small intensity and poor separability which correspond to chlorite and chlorite–smectite (Figure 5). Illite was recorded in most samples, but its content is small. It was diagnosed based on 0.98, 0.49, and 0.332 nm reflections that do not change their location in ethylene-glycolated conditions and during thermal treatment. Illite corresponds to a dioctahedral structure type, but the spacing of the 060 reflection at 0.149 nm is superimposed on the same reflection of smectite.

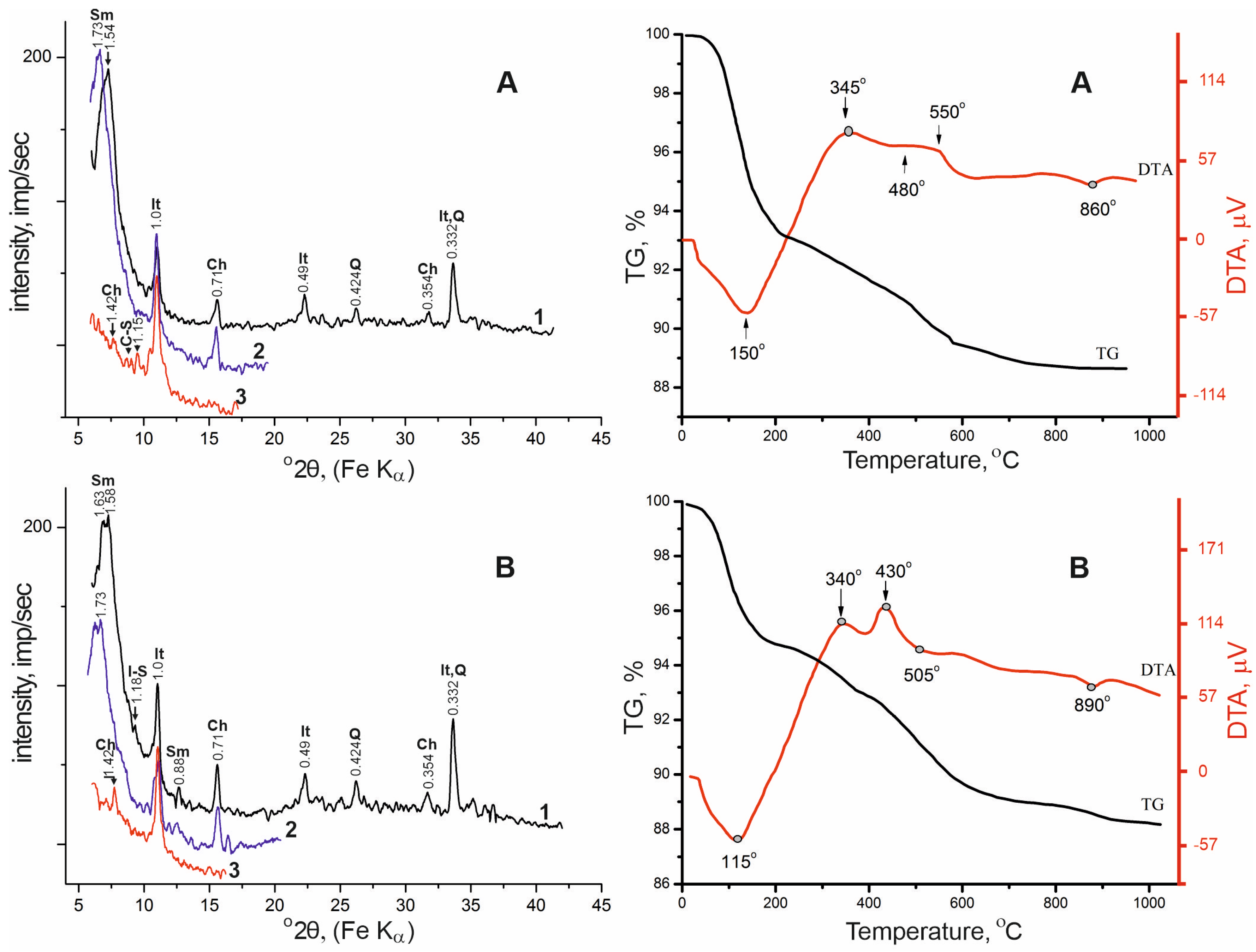

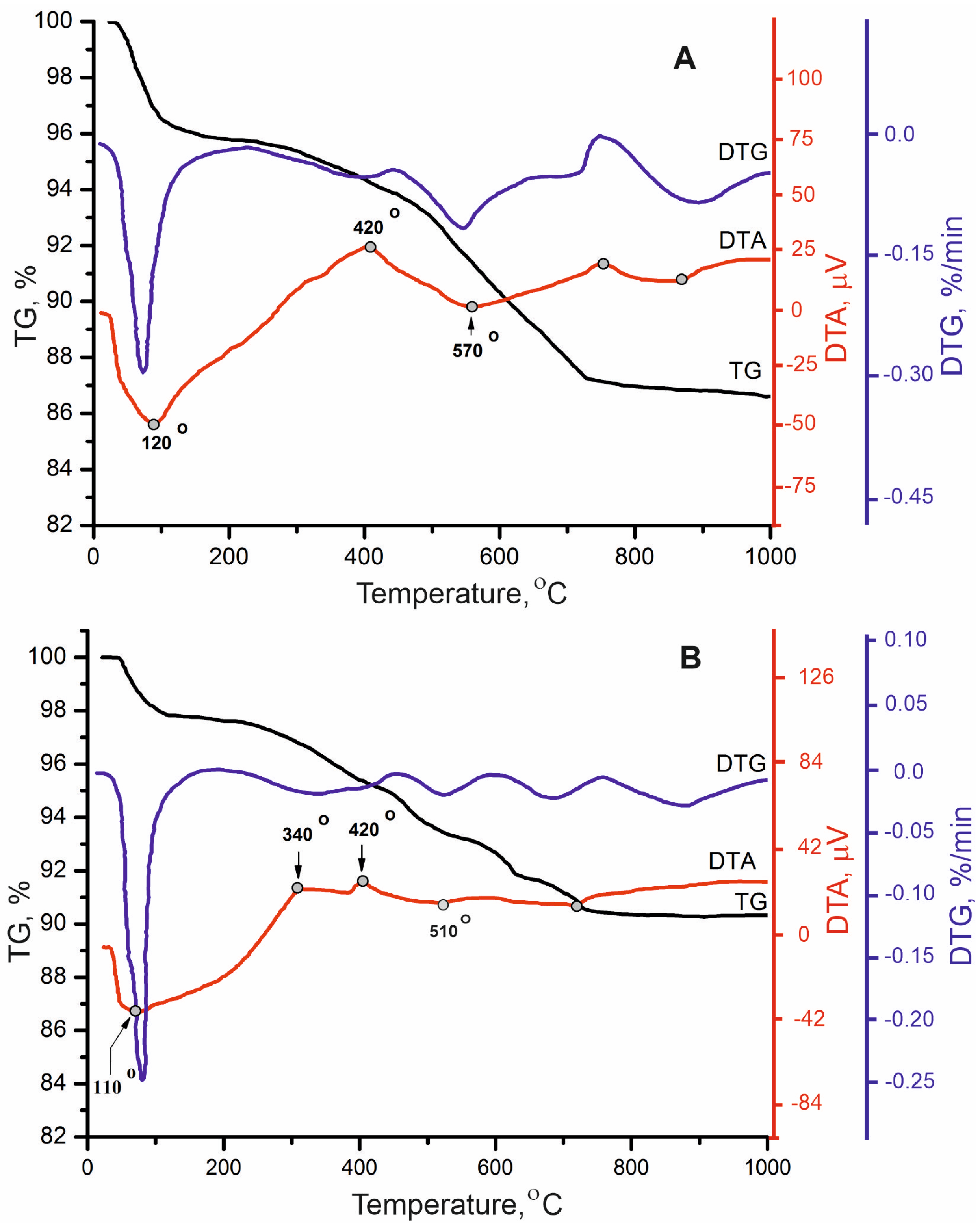

On the DTA curve, a profound low-temperature endothermic effect of the loss of interlayer water is noted in the temperature range of 115–150 °C. It corresponds to a mass loss (5.1%–6.9%, Figure 5 according to the TG curve) by smectite, which dominates in the samples, and by illite as well as mixed-layer chlorite–smectite and illite–smectite, which are present in small amounts. Illite on the DTA curves shows a low-temperature endo-effect that corresponds to the loss of interlayer water and is superimposed on the endo-effect of smectite across the whole temperature range. Since the interlayer spaces of illite are able to include a smaller amount of water molecules and release them at somewhat lower temperature (compared to smectite), on the DTA curve, a weak endo-effect in the range of 500–700 °C corresponds to the release of constitutionally bound water from the smectite structure (1.5%–2.7%) as well as from illite and mixed-layer phases. The small endo-effect, in the temperature range of 800–900 °C, corresponds to the release of the residue of constitutionally bound water and the destruction of the structure. In the case of subsequent temperature increase from the decomposition products, a new mineral crystallises, and this is expressed by the appearance of an exo-effect on the DTA curve (Figure 5) [51]. Exothermic peaks in the region of 300–480 °C (DTA curve) characterise the combustion of organic matter with corresponding mass loss of 1.3%–1.9% (TG curve).

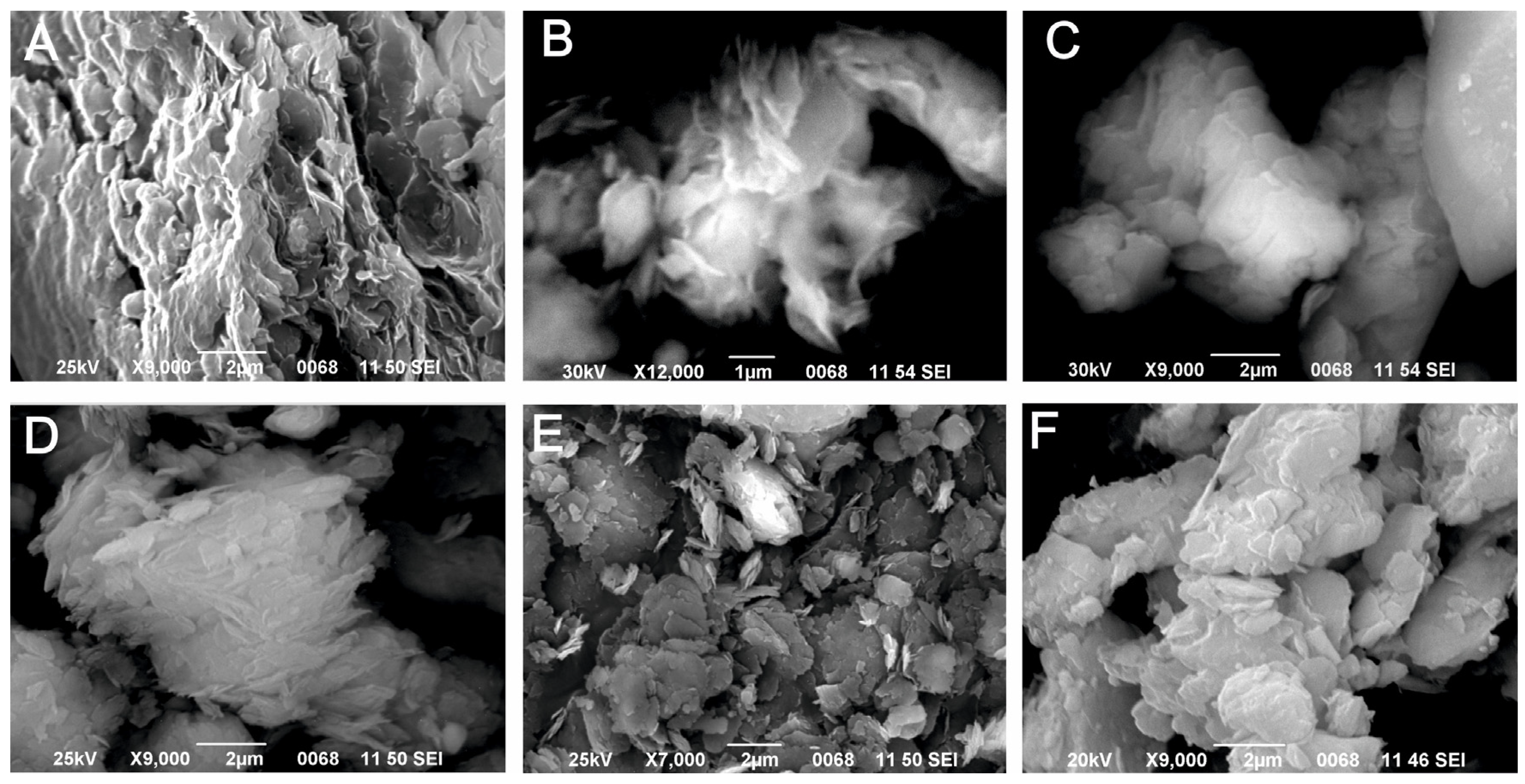

A SEM microphotograph (Figure 6A) shows the crystal shape of smectite from the pelitic fraction of water-insoluble residue of the Badenian gypsum.

3.2. Halite Facies

Illite, chlorite, and mixed-layer illite–smectite occur in rock salt of Eggenburgian age (Vorotyshcha Suite). In addition to those minerals, trioctahedral smectite and mixed-layer chlorite–smectite occur in Badenian rock salt (Tyras Suite), and, at the Hrynivka and Silets-Stupnytsya sites, corrensite was also recorded (Table 2, Figure 7).
Clay minerals of both suites studied contain dioctahedral illite and trioctahedral chlorite, which are indicated by reflections 060 at 0.149 and 0.153 nm; for both of them, Fe-Mg-chlorite is recorded. Its composition is indicated by smaller intensities of the first and third basal reflections by comparison with the second one. Illite and chlorite from the Eggenburgian rock salt has intense, distinct basal reflections (Figure 7A–C), indicating that these are well crystallised, while in the Badenian rock salt, illite is characterised by a considerable asymmetry of the first basal reflection at 1.0 nm in the range of small angles that could have resulted from poor crystallisation, a content of interlayer water, or swelling packets (Figure 7D–F). Clay minerals of the Badenian rock salt contain more swelling minerals than the Eggenburgian rock does. Mixed-layer illite–smectite was diagnosed by small reflections in the field of 1.12–1.28 nm that, in ethylene-glycolated preparations, was shifted to 1.46 nm. Chlorite–smectite was diagnosed by a series of 1.42–1.51 nm reflections shifted to 1.60–1.71 nm.
Smectite is diagnosed by the behaviour of 001 reflections with a spacing of 1.51–1.55 nm in air-dried preparations that, in ethylene-glycolated, are shifted to 1.71 nm and, in diffractograms of thermally treated samples, decreased to 0.98 nm. This diffraction maximum has various forms, and poorly resolved spacings can be attributed to chlorite–smectite mixed layers [59]. Corrensite is established by reflections 1.42–1.46, 0.70–0.77, 0.472, and 0.353 nm on diffractograms of air-dried preparations; in ethylene-glycolated ones, they acquire values of 1.60, 0.78, and 0.355 nm, and on the diffractograms of preparations heated at 550 °C, a reflection in the field 1.23–1.26 nm is observed. A reflection of 2.88 nm is reported for corrensite in the literature; on the diffractograms of the samples studied, it has the form of an inflexion or is completely absent, which may indicate some disorder in the corrensite structure [59].

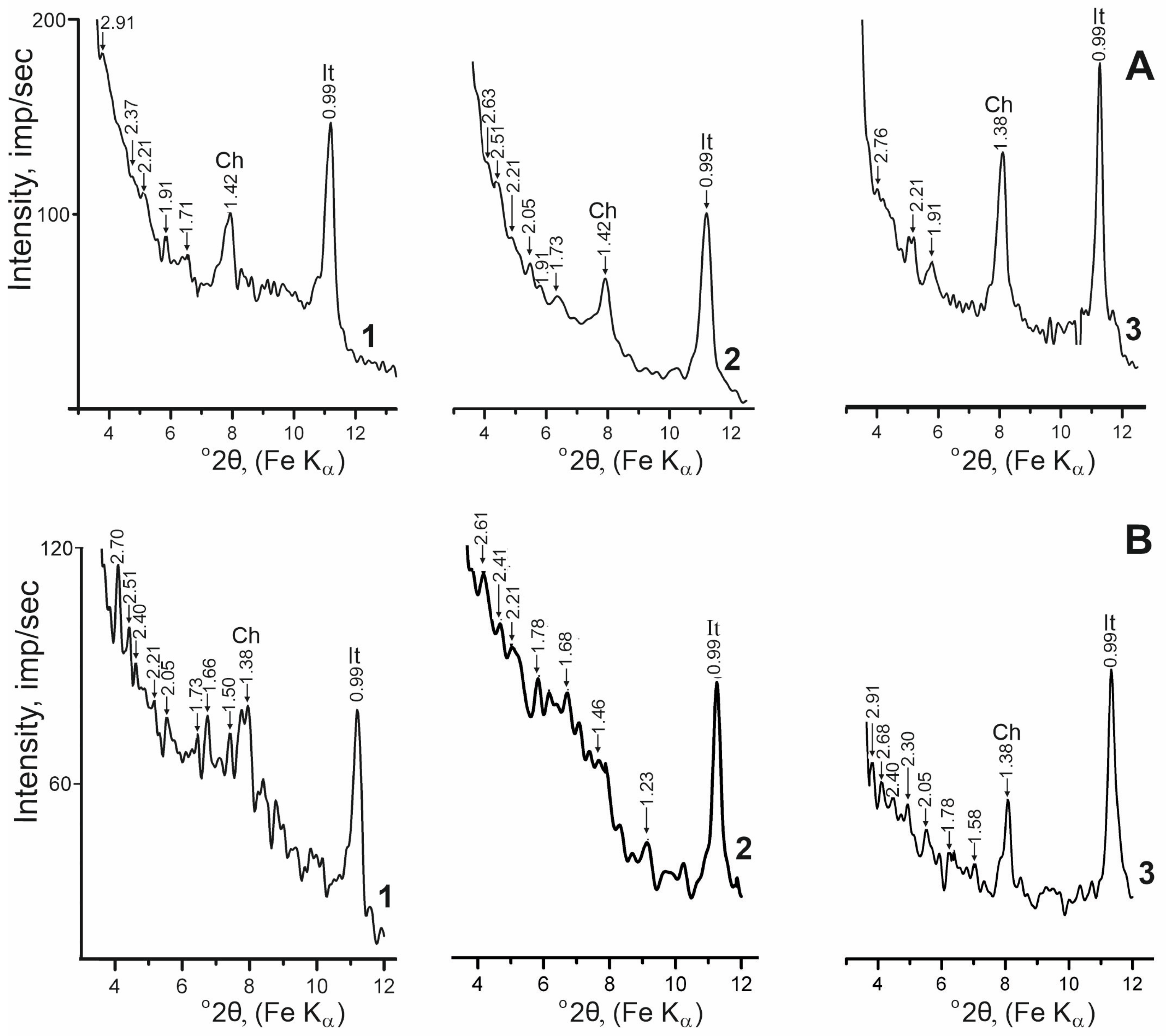

On the X-ray curves of the pelitic fraction of the Eggenburgian and Badenian rock salt, there are a series of reflections in the range of small angles. These reflections do not change their position in ethylene-glycolated conditions, and part of them remains on diffractograms after thermal processing (Figure 8) [54].

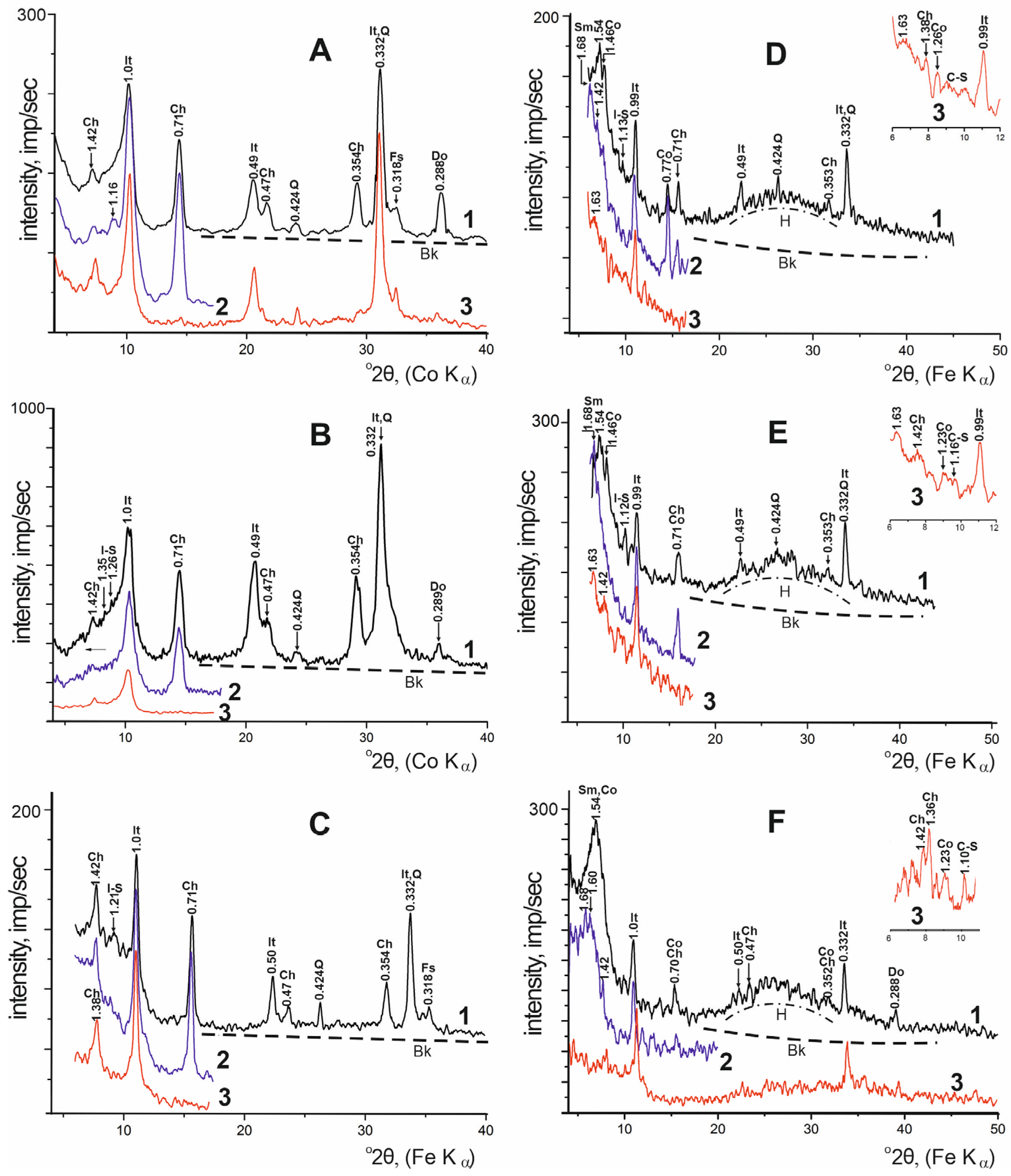

All diffraction spectra of the pelitic fraction of the Badenian rock salt show an increased position of the line of background and a halo with a large number lines of low intensity and poor separability in the area of the 22–36° 2θ, Fe Kα radiation (Figure 7D–F). In addition, the first two basal reflections 001 and 002 are extended at the base, and their intensity is too low for the main lines of minerals which prevail in a sample. In the range of low angles of diffraction, distinct peaks of low intensity with spacing 2.91–1.54 nm are recorded that, however, do not coincide with the reflection 001 of corrensite—2.84 nm. Thus, on diffractograms of air-dried and ethylene-glycolated preparations, distinct lines 2.70, 2.61, 2.51, 2.40–2.37, 2.21, 2.05, and 1.91 nm are recorded, and among these, the reflections 2.73–2.70, 2.51, 2.21, and 2.05 nm are particularly frequent; at the Hrynivka site, they occur on all diffraction curves (air-dried or ethylene-glycolated). After the thermal treatment (T = 550 °C), distinct peaks remain: 2.76–2.63; 2.40–2.30; 2.05; and 1.78–1.58 nm (Figure 8).
Diffractometric curves of oriented preparations of the pelitic fraction from the Eggenburgian rock salt showed that these sites lack a marked halo and increased background (which is characteristic of the Badenian rock salt) (Figure 7A–C). On the DTA curve of the pelitic fraction of water-insoluble residue of the Eggenburgian and Badenian rock salt, a distinct low-temperature endo-effect is noted with a maximum (110–140 °C), which corresponds to the loss of interlayer water (1.8%–3.4% as the mass loss on the TG curve). In Figure 9, for the Eggenburgian rock salt, sample 2570, which contains illite, chlorite, and a small amount of illite–smectite, the loss of interlayer water is 3.4% (Figure 9A), while for Badenian rock salt, sample 902, in which small amounts of illite, chlorite, as well as swelling minerals and phases—smectite, corrensite, chlorite–smectite, and illite–smectite—are present, the loss of interlayer water is smaller at 2.4% (Figure 9B). We assume that the small loss of interlayer water can be caused by the presence of captured organic compounds in interlayer spaces of those labile structures. The exothermic effect in the temperature interval of 230–480 °C corresponds to a process of thermooxidative destruction of organic matter related to clay particle surfaces. Endothermic effects at the DTA curves within 480–810 °C correspond to dehydroxilation, i.e., discharge of constitutional water of clay minerals and structural destruction. Also, organic compounds sorbed by interlayer spaces are lost in this temperature interval (Figure 9).
According to our SEM data, the pelitic fraction of the halite facies mostly consists of particles 2–4 µm in size, although some tabular and bulky particles as small as 0.5 µm are present. SEM microphotographs show smectite, corrensite (Figure 6B,C), and illite (Figure 6D–F).

3.3. Potash Facies

The assemblage of clay minerals of the Miocene potash facies of the Carpathian Foredeep is composed of illite and chlorite (Table 3, Figure 10).
Chlorite in the Kalush-Holyn deposit is a trioctahedral Fe-Mg (more rarely a Mg-Fe) mineral. Dioctahedral illite in these deposits is characterised by structural ordering that is expressed by the form of the first basal reflection and its location on the diffractogram. The 001 reflections of illite from the salt-bearing breccia are widened on their low-angle side, while those from the potash rocks are sharp and symmetrical; for some of them (kainite-langbeinite rocks), that reflection is relatively narrow (of small width) and enabled diagnosis of that mineral as mica [53]. It is not fully explained to what extent those were structurally ordered. In the potash rocks, illite is transformed into mica either fully [60] or partially. By mica, we mean a stable and ordered form of illite with a small K+ deficit in the interlayer spaces. For such mica-like clay minerals, the following terms are commonly applied: illite 2M1 or muscovite 2M1. We use the term “mica” because the determination of polytype structures was not applied. Our study of diffractograms of pelitic fraction of the potash-bearing rocks of both air-dried and ethylene-glycolated preparations show that the basal 001 reflections are bifurcated at the top, with (d) 0.99 and 1.0 nm (Figure 10A,B, curve 4). Our results suggest that illite, as well as mica, is present in the pelitic fraction. When scanning in slow-motion at angles of 8–13° 2θ in diffractograms, clear splits are seen (see Figure 10A,B, curve 4), which indicates the occurrence of the structurally similar minerals, mica and illite.

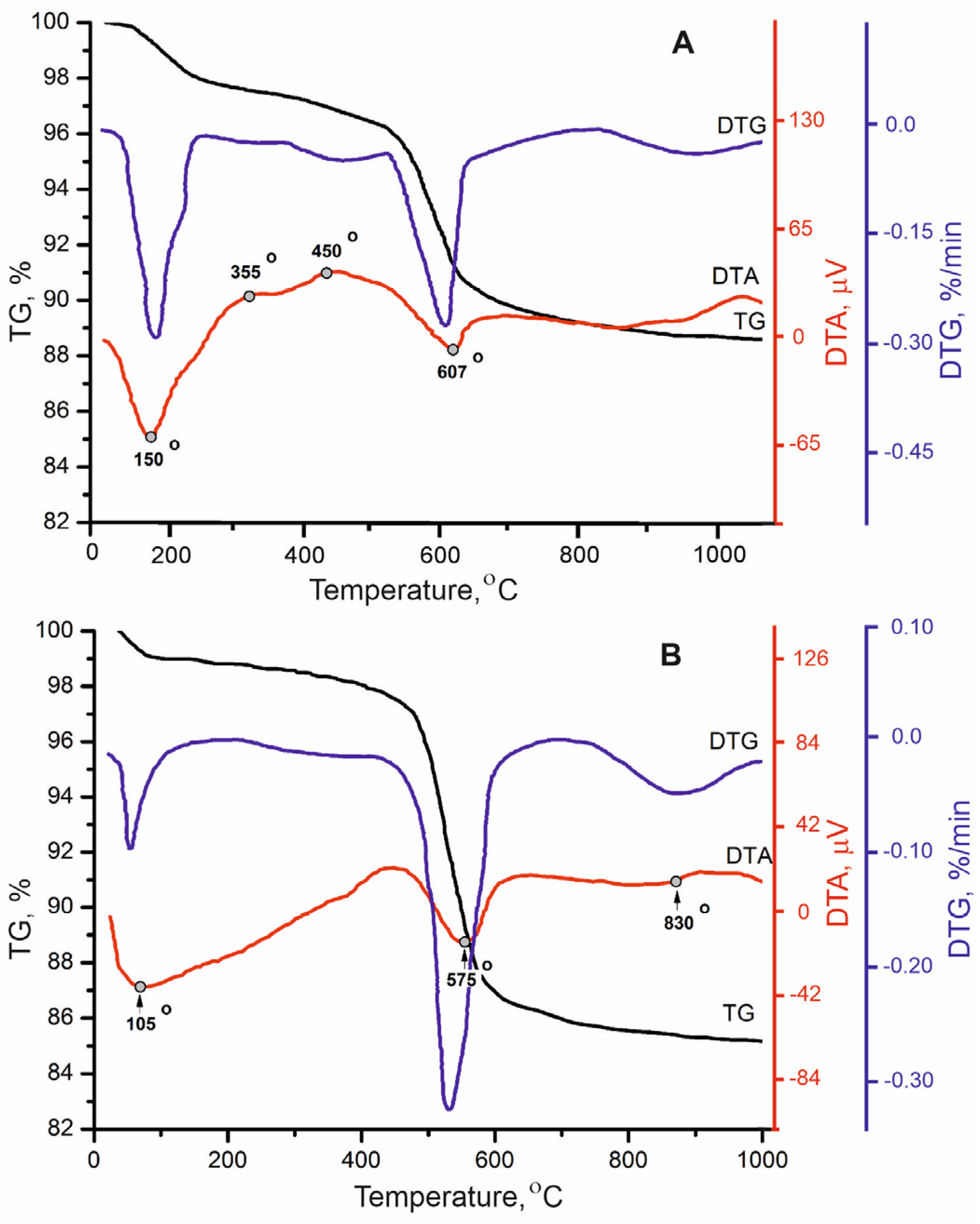

Thermogravimetric analysis of the pelitic fraction of potash rock at low temperature (up to 200 °C) showed an endothermic effect due to the loss of interlayer water by illite, indicating a mass loss of almost 1% (Figure 11B). Such a small loss of interlayer water at a significant content of illite in the sample corroborates the XRD data indicating that the mica-like mineral with a reflection at 1.0 nm is composed of illite and mica. A high-temperature endothermic effect with a maximum at 575 °C in the DTA curve, which is accompanied by a 9.4% mass loss in the TG curve, is responsible for the dehydroxilation of illite and chlorite, as well as magnesite dissociation (Figure 11B).

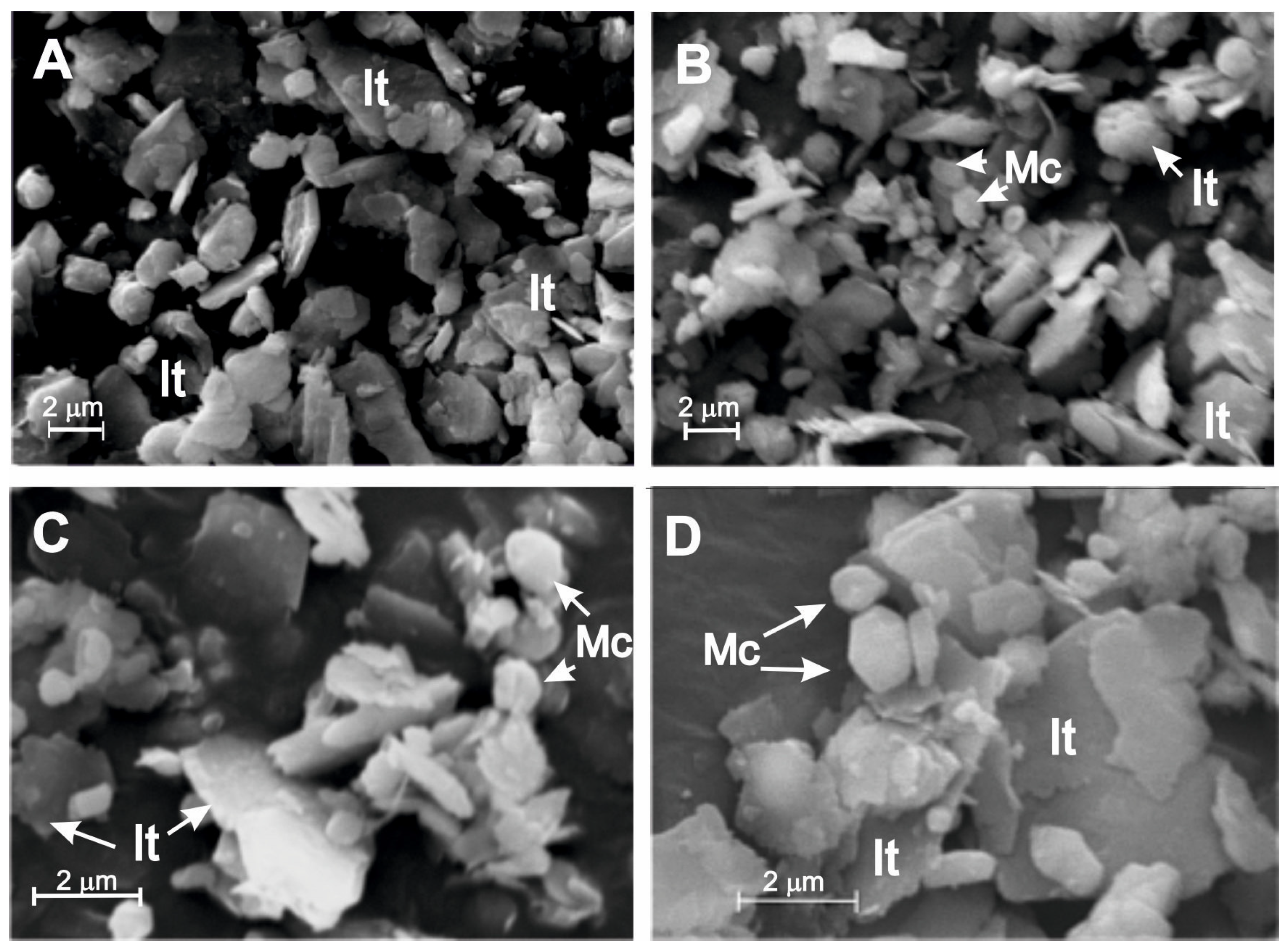

On the SEM microphotographs the pelitic fraction of the potash facies (Figure 12) are observed particles of both clay and pelitic dimension and, in places, the aggregates of particles. The pseudohexagonal particles in Figure 12D may be 2M1 mica, and isometric particles with smoothened outlines may be illite.

3.4. Weathering Zone of the Kalush-Holyn Deposit

Our data indicate that the assemblage of clay minerals in the hypergene deposits—in gypsum–clay caprock, above potash rocks, and salt-bearing breccia—contain, in addition to illite and chlorite, consistently mixed-layer illite–smectite, and, in five samples, kaolinite was additionally found that was not recorded in the evaporite deposits before dissolution (Table 4).

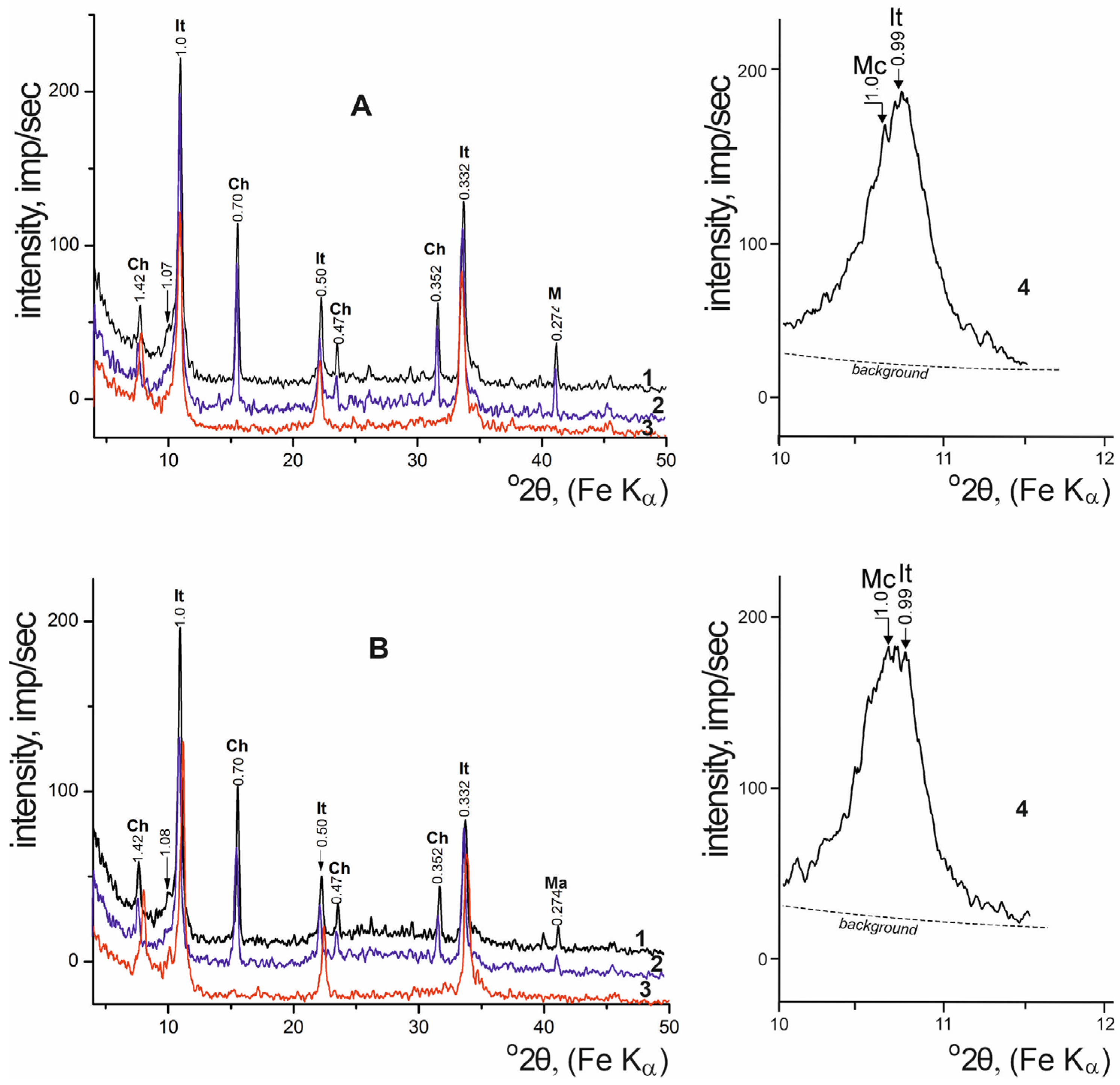

The mixed-layer phase shows a considerable asymmetry in the first basal reflection of 1.0 nm in the range of low angles and small reflections at 1.04–1.28 nm. In ethylene-glycolated mounts, the width of the basal line 001 of illite diminishes, and the additional reflections decrease on its low-angles side to 1.51 nm and can be traced between reflections at 1.0 and 1.7 nm. All this gives an opportunity to diagnose such a mixed-layer phase as illite–smectite, mainly of illite composition with a small proportion of smectite [61].
The first basal reflection of illite is shifted from its low-angles side by an admixture of the mixed-layer phase. The location of line 060 (0.149–0.150 nm) indicates that illite in the gypsum–clay caprock is dioctahedral.
Reflection 1.38–1.40 nm does not change the location on the diffractograms of ethylene-glycolated preparations; therefore, this line is the basal reflection 001 of chlorite. The location of line 060 on diffractograms of preparations of randomly oriented pelitic particles (0.153–0.155 nm) indicates that chlorite in the gypsum–clay caprock is trioctahedral.
A clearly defined line 0.70 nm, available on diffractograms of samples subject to solution by hot HCl, indicates the presence of kaolinite. It was recorded in half of the samples of gypsum–clay caprock studied.

4. Interpretation

4.1. Brine Concentration Control

We consider that the most important factor in the transformation of clay minerals is the brine concentration [7,8], and the higher the water mineralization, the more advanced are the transformation processes [1]. An increased brine concentration causes the aggradational transformation of clay minerals, including changes involving structural ordering through the capture of cations and a decrease in molecular volume. This is clearly supported by the example of transformation of unstable and labile minerals and phases (kaolinite, smectite, and mixed-layer phases) that pass into illite and chlorite, these minerals being stable in an evaporite environment. Kaolinite is stable in acid conditions at pH ~5 [62]. In an evaporite basin, pH conditions depend on brine concentration: the pH value at the sulphate–carbonate stage is ~8.6 and decreases to 7.0–7.5 at the halite stage [63]. In evaporite deposits, kaolinite is destroyed in the middle of the halite stage; in deposits of higher stages, it occurs very rarely [64]. As well as kaolinite destruction, its illitisation is possible [65], but this process has not been proven in marine conditions [5]. The clay mineral assemblage of the Badenian gypsum is represented mainly by allogenic clay minerals (dioctahedral smectite, illite, and rarely chlorite), and it indicates a relatively low brine concentration in the evaporite basin. The presence of a small content of authigenic minerals (trioctahedral smectite and illite) and mixed-layer chlorite–smectite and illite–smectite indicates the beginning of aggradational transformation processes [51]. Smectite in evaporite basins has two modes of provenance, allogenic and dioctahedral smectite from the land, while trioctahedral smectite forms through the decomposition of volcanic glass of pyroclastic material, where volcanism is coeval with salt accumulation. Thus, the transformation of smectite occurred through mixed-layer illite–smectite and chlorite–smectite to dioctahedral illite and trioctahedral chlorite [5,59]. At the sulphate-carbonate stage of halogenesis, the content of potassium ion increases from 1.5 to 3.9 g/L [66], so, at this stage, the transformation of unstable allogenic clay minerals was only initiated. However, the concentration of brines from which the Badenian gypsum precipitated was considerably lower due to an important inflow of continental water into the Badenian evaporite basin [67,68,69,70,71]. The low concentration of K+ and Mg2+ ions caused a slow transformation of unstable clay minerals.
The clay mineral assemblage in the Badenian rock salt (Hrynivka and Silets-Stupnytsya sites) contains minerals with labile (swelling) structures: smectite, corrensite, and mixed-layer chlorite–smectite with an admixture of illite, chlorite, and illite–smectite. Such an assemblage of clay minerals is consistent with the influence of contemporaneous volcanism [17,50,54]. During the decomposition of volcanic glass of pyroclastic material that entered the salt basin, trioctahedral smectite was formed that was subject to further transformation through mixed-layer phases into chlorite, this being the end-product of a number of transformations [59]. This interpretation explains the presence of a considerable number of swelling clay minerals, but it does not answer why they did not transform in the Badenian salt-forming basin under the influence of brines.
One of the reasons may be low brine concentrations. Geochemical conditions in the Miocene evaporite basins of the Ukrainian Carpathian Foredeep were influenced by substantial inflow of continental water [67,68,69,70,71,72,73]. Low concentrations of K+ and Mg2+ ions caused the slow transformation of unstable clay minerals. Authigenic trioctahedral Mg-smectite is the initial clay mineral at the sulphate-carbonate stage of halogenesis (e.g., [10,59], and, due to its transformation through intermediate mixed-layer phases, a number of clay minerals originated.
In the Eggenburgian and Badenian rock salt, the brine concentration during halite precipitation was determined through the use of an ultramicrochemical method ([69] and references therein) that indicated, at the Hrynivka site, a low brine concentration from which the halite crystallised [50]. In the Silets-Stupnytsya site, although halite crystallised from brines of high concentration, the assemblage of clay minerals is the same as in the rock salt of the Hrynivka site. So, it is insufficient to explain the considerable content of swelling clay minerals in the Badenian rock salt only by the influence of brine concentration on the transformation of clay minerals. In addition to brine concentration, another significant factor must have influenced the transformation of layered aluminosilicates, slowing their aggradational transformation. This influence likely involved organic compounds, sorbed by interlayer spaces of labile clay minerals (smectite, corrensite, and mixed-layer phases) that prevented the entrance of inorganic cations (potassium, magnesium, and others) and increased the resistance of those minerals to transformation in the conditions of a salt-forming basin. Diffractograms of clay minerals of the Hrynivka and Silets-Stupnytsya sites show the presence of sorbed organic compounds (see below).
An increased brine concentration causes aggradational transformation of clay minerals—changes targeted to the structural ordering through the capture of cations and the decrease in molecular volume. This process is clearly supported by the example of the transformation of unstable and labile minerals and phases (kaolinite, smectite, and mixed-layer phases) that were supplied to Miocene evaporite basins of the Carpathian Foredeep from the continent and through a number of transformations, transformed into illite and chlorite—minerals stable in an evaporite environment. Those two minerals compose the assemblage of clay minerals in the Kalush-Holyn potash deposit.
Potassium enters the interlayer spaces of smectite and mixed-layer phases due to electrostatic forces of attraction of cations to negatively charged siloxane sheets, where the excess of negative charge is created by Al moving into tetrahedral positions in the place of Si and Al replacing Mg, Fe2+ in octahedral positions [74]. The illitisation of smectite as a pure phase, as well as packages in mixed-layer phases, is through a heterogeneous reaction that is described by the following equation [75]:
montmorillonite + K+ → illite + (Fe2+, Mg2+) + SiO2
In evaporitic conditions, smectite is magnesium-rich; during its aggradational transformation, the entrance of potassium in the mineral structure leads to the liberation of silicon and magnesium, which cause the crystallisation of magnesium-rich chlorite and authigenic quartz. The process of the illitisation of smectite in hypersaline conditions is accompanied by the further development of the illite structure. The generally accepted crystallisation order during progressive illitisation is as follows (e.g., [76]):
smectite → I-S, random → I-S, ordered → illite, 1Md → muscovite, 2M1
Such transformation is noted during the diagenetic change in smectite at a temperature of ~360 °C [77]. In an evaporitic environment, we infer that, rather than temperature, the main factor is high salinity, which causes a further aggradation of illite. This is why micas of 2M1 polytype are the only stable minerals among the entire series of aggradational transformation of smectite at progressively higher salinities. Better ordering of the illite structure and its transformation to mica is observed in clay minerals of the Kalush-Holyn potash deposit.
Thin intercalations of tuffs and tuffites occurring in the Kalush-Holyn deposit [78,79] indicate that pyroclastic material was also supplied to the evaporite basin. During the decomposition of volcanic glass, trioctahedral smectite was formed that, through chlorite-smectite, was finally transformed into trioctahedral chlorite. No intermediate products of this transformation were recorded, however. In clay minerals related to the rock salt occurring in the Sambir zone of the Ukrainian Carpathian Foredeep, an excess of mixed-layer phases was observed [50,54], and they are clearly fixed products of decomposition of pyroclastic material. A more complex picture emerges from study of the Tyras gypsum. Ref. [51] concluded that the composition of clay minerals in that gypsum does not indicate volcanogenic input into the evaporite basin, possibly because the decomposition of pyroclastic material that leads to the formation of trioctahedral smectite had just begun due to low brine concentration in the basin, this conclusion being supported by an admixture of trioctahedral smectite in the pelitic fraction. However, ref. [80] recorded a bed 5–20 cm thick of bentonite clay that is a local marker of the Badenian gypsum in the region between the Seret and Zbruch rivers.

4.2. Organic Matter Control

Previous research indicated that the low reactivity of clay minerals may be attributed to the presence of organic matter in the samples [81], and that this anomalous lack of evolution (i.e., transformations) of clay minerals is due to specific interactions between organic matter and clay minerals [82].
Clay mineral particles actively sorb organic compounds both onto outer surfaces and, in the mineral structure, in interlayer spaces. In the first case, their surface defects and sides perpendicular to the silicate sheets, broken chemical bonds of which actively contribute to sorption of organic ions [83], and, to a lesser extent, onto cleavage surfaces. Due to the high dispersion of clay particles, the total surface is large and can adsorb a significant amount of organic matter. Organic matter (including scattered and epigenetic), as well as others amorphous materials in diffractograms, appears in the form of a halo, which looks like a broad hump of low intensity. The position of the amorphous halo (°2θ) on the diffractograms is correlated with the material of the X-ray tube anode and varies in the d/n range of 0.88–0.225 nm [84]. The halos with maxima of 0.45 and 0.34–0.37 nm characterise the sapropel and aromatic components of organic matter, respectively [85]. The presence of a halo on diffractograms of clay minerals in the field 22–36° 2θ may be caused by the adsorption of amorphous organic matter onto clay surfaces. The adsorption of organic compounds is characteristic on external surfaces of all types of clay particles, although the intercalation of organic compounds into interlayer spaces is typical only for swelling structures [56,86,87]. In the labile interlayer spaces of clay minerals, organic molecules may be preferentially intercalated from a solution relative to cations of alkaline or alkaline earth elements, and can also replace those cations in these spaces [83]. At the same time, the structure of smectite and mixed-layer phases becomes disordered, extending along the C axis [86], leading to the appearance of additional low-intensity reflections in the 3–7° 2θ area of the diffractograms. When a mount with swelling mineral (e.g., smectite) is ethylene-glycol saturated, this organic compound (ethylene-glycol) is sorbed by all interlayer spaces of the mineral, and we observe one peak often more intensive than that in the air-dried mount with a d-spacing of 1.68 nm. In our case, probably many different organic compounds occur, and this is reflected by many narrow peaks. In the case of the line with d-spacing more than 1.68 nm, we can assume the occurrence, in interlayer spaces, of molecule bigger than ethylene–glycol or the penetration of several organic compounds [87]. When labile (smectite) packages are interacting with organic matter compounds, the nature of organic matter, its quantity and ways of arrangement in interlayer spaces are of importance [87].
Organic ions or compounds that, in the clay mineral structure, occupy exchange positions, are linked by Van der Waals bonds. An additional factor in retaining aliphatic organic compounds is the similarity of the structure of hydrocarbon chains, composed of hydrogen tetrahedra, to certain directed elements in the layered aluminosilicate (clay mineral) sheets, represented by siloxane tetrahedra [56].
The diffraction spectra of clay minerals associated with rock salt of the Carpathian Foredeep Basin are interpreted both in terms of the sorption of organic compounds on the faces and edges of the clay crystals. All spectra of the basal reflections of the Badenian rock salt show an increased position of the line of background and halo with numerous lines of low intensity in the area of 22–36° 2θ. The pelitic fraction of both the Badenian and Eggenburgian rock salt in the range of low angles (4–7° 2θ) is fixed by a series of reflections that do not cover the diffraction from the basal planes of the clay structures. These reflections do not change their position in ethylene-glycolated conditions, and a part of them remains on diffractograms after thermal treatment (T = 550 °C) [54].
The possible influence of epigenetic organic matter (bitumen) on the transformation of clay minerals remains controversial, especially as regards the duration of the processes involved. At the stages of sedimentation and early diagenesis, syndepositional, biochemically decomposed organic matter in a brine-saturated deposit in an evaporite basin, adsorbed onto labile clay minerals, became intercalated into the interlayer spaces, hindering the entrance of inorganic cations and slowing their transformation. Epigenetic organic matter got into evaporite deposits considerably later at the late diagenetic stage. In the Carpathian Foredeep, the formation of regional overthrusts created pathways of bitumen migration that are geochemically recorded in the Miocene evaporite deposits of that region (e.g., [88]). Bitumen compounds are undoubtedly adsorbed onto clay minerals; there remains an unresolved question as to how this influenced the transformation of the clay minerals. We commonly assume that, in a lithified evaporite succession, the transformation of clay minerals continued, although at a slower rate, and intercrystal brines in the deposit provided a supply of cations or organic compounds. That is, epigenetic organic matter also participated in the transformation of clay minerals in the Badenian evaporite deposits.
Adsorbed organic matter on surfaces and edges prevent the entrance of inorganic cations in interlayer spaces. This stopped or slowed the transformation of clay minerals and increased their resistance to changes in physico-chemical conditions of the environment. In evaporite deposits, as salt concentration increases, the clay minerals transform, ordering their structure and decreasing the number of swelling layers [53]. The final products of such transformation during the progressive evaporite process are illite and chlorite. Smectite and mixed-layer chlorite–smectite are characteristic only of the initial sulphate-carbonate stage of evaporation. At the halite stage, only a small content of mixed-layer phases is present, and the main minerals are illite and chlorite. The same is the case for the assemblage of clay minerals in the Eggenburgian rock salt of the Vorotyshcha Suite; this is represented by illite and chlorite with a small content of mixed-layer illite–smectite, rarely (only in two samples out of ten) with an insignificant admixture of mixed-layer chlorite–smectite.

4.3. Fresh Water Control During Hypergenesis

Clay minerals of the hypergenesis zone deposits of the Carpathian Foredeep have been studied only rarely: ref. [89] found illite and mixed-layer illite-smectite in the gypsum-clay caprock of Dombrovo Quarry, the Kalush-Holyn deposit, and ref. [90] recorded kaolinite and illite in the gypsum–clay caprock of the Stebnyk deposit.

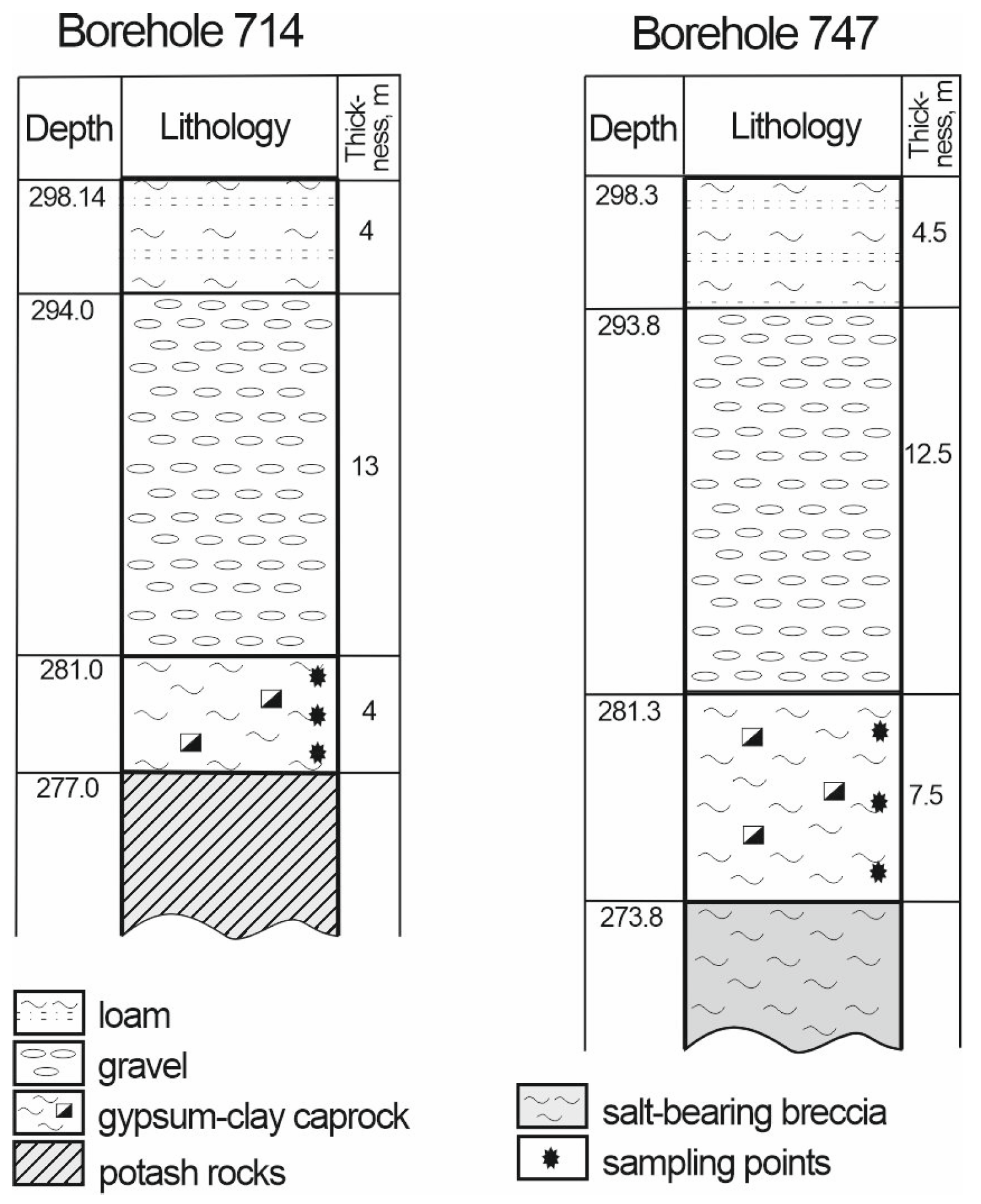

The hypergene deposits of the Kalush-Holyn potash salt accumulation are exposed in Dombrovo Quarry, where, in the gypsum–clay caprock, the assemblage of clay minerals also contains, in addition to illite and chlorite, mixed-layer illite–smectite, and, in half of the samples, additionally, kaolinite was found that was not recorded in the evaporite rocks before they suffered dissolution by fresh water. Assemblage of clay minerals above the potash rocks, as well as above salt-bearing breccia, do not differ (see Table 4).
In the weathering zone of the Kalush-Holyn deposit, fresh surface waters come into contact with evaporites and dissolve them. A considerable decrease in brine concentration caused degradational transformation of the clay minerals. Our data indicate that the assemblages of clay minerals of the weathering zone, in addition to illite and chlorite, inherited from evaporite deposits, also contain mixed-layer illite–smectite and kaolinite—minerals appearing in deposits of the hypergene zone. The appearance of these clay minerals in hypergene deposits is a consequence of the transformation (degradation) of clay structures and neoformation when ionic concentrations decrease under the influence of fresh surface waters. The degradational transformation of mica and illite is the reverse process to aggradation and acts to leach potassium from the structure with water molecules penetrating into interlayer spaces. To restore electrostatic equilibrium, Fe and Mg ions migrate into the structure from octahedral sheets to interlayer spaces, and Al moves from tetrahedral to octahedral positions. Degradation starts from the peripheries of clay particles. As size decreases, the specific surface area increases, which promotes migration and element liberation. Structural defects accelerate the degradation process [4].
During degradational transformation, mica is completely converted into illite that, in interlayer spaces, contain partly hydrated potassium ions [77,91]. With the continued formation of labile interlayer spaces, mixed-layer illite–smectite appears. Ionic bonds are moderately strong and are difficult to break, which explains the small content of mixed-layer illite–smectite. The capture of potassium by mixed-layer illite–smectite and its transition into illite (aggradational transformation) happens more easily than the reverse process—the leaching of potassium and transformation of illite into mixed-layer illite–smectite (degradational transformation). We infer that kaolinite in hypergene deposits of the Kalush-Holyn accumulation is authigenic newly formed mineral. This is indicated by an absence of clay minerals in the evaporite deposits that could be transformed in kaolinite. Kaolinite forms during the reaction of Al-(hydr)oxides that are released during intense leaching, with silica in weakly acidic conditions (pH ~5), when silica activity is low and the concentration of basic cations is low [62].
Let us consider if such conditions occurred in the gypsum–clay caprock. During dissolution of potash deposits from the lower part of the gypsum–clay caprock, conditions in the brine were weakly acidic, as they also were during the sedimentation of the potash deposits. Thus, in the precipitation field of K-Mg salts, pH values decreased to 5.7 [63,66]. Similar results were obtained in a fluid inclusion study of Miocene evaporites of the Carpathian Foredeep [92]: pH ranged from 4.5 to 6.6, averaging 5.6. Kaolinite formed only in a part of the gypsum–clay caprock adjacent to the salt, and, due to continual caprock growth, it now occurs in the whole caprock. Its presence indicates that conditions existed here that favoured its preservation. Oxides and hydroxides of aluminium and silicon, necessary for the crystallisation of kaolinite, were released during the degradation of illite to mixed-layer illite–smectite. All of this indicates that, during the formation of the gypsum–clay caprock, there existed the physico-chemical conditions necessary for kaolinite crystallisation.

4.4. Burial Depth and Geothermal Regime Control

The Eggenburgian and Badenian evaporites studied occur at depths of 600–700, rarely 1500 m [23]. The thermobarimetric analysis of fluid inclusions in the Miocene evaporite deposits of the Ukrainian Carpathian Foredeep indicates that the temperature at the diagenesis stage in the halite of the salt-bearing breccia was 35–40 °C, 60–80, and even 110 °C in the potash facies [93,94]. However, those higher values are explained by [94] due to various exothermic reactions related to evaporite minerals, such as the conversion of metastable mineral phases and minerals into stable ones, or the radioactive decay of potassium.
Surface heat flow within the Ukrainian Carpathian fold–thrust belt and adjacent East European platform varies from 35 to 130 mW/m2, with lower values dominating the East European platform [95]. Heat flow has not been elevated in the nappes adjacent to the East European platform since the Oligocene [96].
A geothermal gradient of ~37 °C/km is assumed to be the maximum value for the Ukrainian Carpathians (including the Carpathian Foredeep) [97]. Based on an analysis of fluid inclusions, ref. [98] (and references therein) proposed slightly higher (up to 3–5 °C/km) gradient estimates than those proposed by [96].
Ref. [97] concluded that the outermost and innermost Carpathian thrust sheets were heated to less than 60 °C and less than ~120 °C, respectively; the heating depended entirely on the burial, and the cooling occurred in two main phases (15–30 °C/m.y. between ca. 12 and ca. 5 Ma, 3–6 °C/m.y. from ca. 5 Ma to the present) and was induced by exhumation. The pressure and temperature in the Miocene evaporite deposits of the Ukrainian Carpathian Foredeep did not reach values characteristic of the late diagenesis and anchizone, and thus the transformation processes of clay minerals in those deposits are controlled by other causes than pressure and temperature.

5. Conclusions

Brine concentration control is the most important factor determining the clay mineral transformation of marine evaporite sequences. Clay minerals associated with the gypsum, halite, and potash facies of the Miocene evaporite formations of the Ukrainian Carpathian Foredeep reflect the increased concentration of brines that promoted the aggradational transformation of labile clay minerals into illite and chlorite that are stable in hypersaline conditions. Further ordering of the structure led to the transformation of illite into mica.
Brine concentration decrease (inflow of fresh water) led to a slowing of the transformation of clay minerals, and, as a result, in the Badenian gypsum and rock salt, an assemblage untypical for the gypsum and halite facies originated: only a small content of mixed-layer phases in the gypsum facies and, in the halite facies, a considerable amount of labile swelling minerals that did not transform into illite and chlorite.
Organic matter control is another important (but local) factor of the transformation of clay minerals of the Miocene evaporites. Organic compounds, sorbed by labile clay minerals and mixed-layer phases, prevented the entrance of inorganic cations into their interlayer spaces, suspending or delaying their aggradational transformation. A large number of labile clay minerals in the Badenian rock salt (smectite, corrensite, and mixed-layer phases) are still present, owing to organic compounds captured on the faces and edges of the labile clay minerals.
Clay minerals of the Badenian rock salt interacted with epigenetic organic matter entering the Miocene evaporite deposits during the origin of regional overthrusts in the Carpathian Foredeep that created pathways of bitumen migration.
Freshwater control in hypergene conditions during the dissolution of evaporite deposits by fresh surface waters is the common factor determining the clay minerals’ degradational transformation that involves partial leaching of potassium from the interlayer spaces of illite and the formation of illite–smectite (degradational transformation) and kaolinite (neoformation) in the gypsum–clay caprock of Dombrovo Quarry (the Kalush-Holyn potash deposit).
