‘Rhythmite’, Ca29(SiO4)8Cl26, an Anthropogenic Phase from the Chelyabinsk Coal Basin (Ural, Russia) with a Complex Modular Structure Related to α-Ca3SiO4Cl2 (‘Albovite’): Crystal Structure, Raman Spectra, and Thermal Expansion

by
Margarita S. Avdontceva
1,*,
Andrey A. Zolotarev
1,
Anastasia S. Brazhnikova
1,
Vladimir N. Bocharov
2,
Natalia S. Vlasenko
2,
Mikhail A. Rassomakhin
3 and
Sergey V. Krivovichev
1,4
1
Institute of Earth Sciences, St. Petersburg State University, 199034 St. Petersburg, Russia
2
Centre for Geo-Environmental Research and Modelling, St. Petersburg State University, 199034 St. Petersburg, Russia
3
South Urals Federal Research Center of Mineralogy and Geoecology of UB RAS, 456317 Miass, Russia
4
Nanomaterials Research Centre, Kola Science Centre, Russian Academy of Sciences, 184209 Apatity, Russia
*
Author to whom correspondence should be addressed.
Minerals 2024, 14(10), 1048; https://doi.org/10.3390/min14101048
Submission received: 24 September 2024 / Revised: 8 October 2024 / Accepted: 12 October 2024 / Published: 18 October 2024

Abstract

:
‘Rhythmite’, Ca29(SiO4)8Cl26, an anthropogenic calcium chloride silicate from the Chelyabinsk coal basin (South Ural, Russia), was investigated using chemical microprobe analysis, in situ single-crystal X-ray diffraction analysis (27–727 °C), and Raman spectroscopy. ‘Rhythmite’ is orthorhombic, Pnma: a = 17.0749(6), b = 15.1029(5), c = 13.2907(4) Å, and V = 3427.42(18) Å3 (R1 = 0.045). The crystal structure of ‘rhythmite’ consists of a porous framework formed by Ca-O bonds and SiO4 tetrahedra with additional Ca2+ cations and Cl anions in the structure interstices. The framework is built up from multinuclear [Ca15(SiO4)4]14+ fundamental building blocks (FBBs) cut from the crystal structure of α-Ca3SiO4Cl2 (‘albovite’). The FBBs are linked by sharing common Ca atoms to form a network with an overall pcu topology. The empirical chemical formula was calculated as Ca29.02(Si7.89Al0.05P0.05)Ʃ7.99O32Cl26 (on the basis of Cl + O = 58). ‘Rhythmite’ is stable up to 627 °C and expands slightly anisotropically (αmaxmin = 1.40) in the ab and bc planes and almost isotropically in the ac plane (α3311 = 1.02) with the following thermal expansion coefficients (×106 °C−1): α11 = 14.6(1), α22 = 20.5(4), α33 = 15.0(3), and αV = 50.1(6) (room temperature). During expansion, the silicate tetrahedra remain relatively rigid with average bond length changes of less than 0.5%. A structural complexity analysis indicates that ‘rhythmite’ is complex, with IG,total = 920.313 (bits/u.c.), which significantly exceeds the average value of structural complexity for silicates and is caused by the modular framework construction and the presence of a large number of independent positions in the crystal structure.

Graphical Abstract

1. Introduction

The technological activity of humankind in the 20th and 21st centuries has led to the creation of various technogenic geochemical environments producing remarkable amounts of anthropogenic mineral phases, including new crystalline compounds unknown in either nature or technology. A drastic example of such environments is burnt coal dumps, and in particular the burnt coal dumps of the Chelyabinsk coal basin (ChCB, South Ural, Russia). A spontaneous fire that was ignited at the ChCB dumps resulted in the high-temperature crystallization of a large suite of unique and diverse mineral-like phases, including mainly silicates, sulphates, oxides, and halides [1]. More than fifty of these phases were described there for the first time, and eight of them have been approved as new mineral species by the International Mineralogical Association (IMA) [2,3,4,5,6,7,8]. In the 1990s, the IMA policy with respect to the ChCB phases was changed, and they were no longer considered mineral species. However, recent IMA documents allow the recognition of the mineral status of the mineral phases formed at the burnt coal dumps if it can be confirmed that the coal ignition was not of anthropogenic origin [9].
The current work is a continuation of a series of studies on the crystal chemistry and spectroscopy of the mineral-like phases of ChCB and is devoted to ‘rhythmite’, an anthropogenic calcium silicate chloride [10,11,12,13,14,15,16,17,18,19,20]. This phase was first described by B.V. Chesnokov and co-authors in the dump of mine no. 45, and its composition was primarily determined as Ca4(SiO4)2·3CaCl2 [1]. ‘Rhythmite’ forms coarse-grained, marble-like aggregates (with grains up to 1 cm) and is closely associated with ‘aquasidite’, CaCl2, ‘igumnovite’, Ca3Al2(SiO4)2Cl4, graphite, cohenite, and iron monosulphides. According to B.V. Chesnokov, ‘rhythmite’ is a typical phase of so-called ‘black blocks’, which include products of the oxidative burning of clay and carbonate components of coal dumps. Thus, its formation occurs at extremely high temperatures (up to 1000 °C) under strongly reducing conditions with the participation of gaseous chlorine. ‘Rhythmite’ was not approved as a mineral species by the IMA and received its name from B.V. Chesnokov due to a system of thin subparallel strips on its crystals, which are composed of finely dispersed carbon with the admixture of small grains of ‘igumnovite’. The striation is irregular, and its nature is not clear. Throughout the text of this paper, the name ‘rhythmite’ is enclosed in quotation marks to emphasize its anthropogenic origin.
Herein, we present for the first time the results of the crystal structure solution of ‘rhythmite’ and its refinement in a wide temperature range (27–727 °C with 100 °C steps), obtained using in situ single-crystal X-ray diffraction studies. This allowed us to analyse the thermal expansion of the compound and to determine its major thermal expansion coefficients. In addition, we report on the chemical composition, Raman spectra, and structural complexity of ‘rhythmite’.

2. Materials and Methods

2.1. Sample

The sample of ‘rhythmite’ studied in this work was provided by the Natural Science Museum of the Ilmen State Reserve (Miass, Russia) from the personal collection of B.V. Chesnokov (Chelyabinsk coal basin, dump of mine no. 45) [21]. The mineral phase forms colourless transparent crystals up to 0.05 mm in diameter. It is hygroscopic and becomes damp after prolonged exposure to open air (Figure 1). This fact strongly affects the quality of single crystals and complicated our investigations.

2.2. Raman Spectroscopy

The Raman spectrum of ‘rhythmite’ was recorded using a Horiba Jobin-Yvon LabRam HR800 spectrometer (solid state laser, 532 nm, 50× objective). The equipment was calibrated according to a silicon standard (520.7 cm−1). The studied sample was placed on a slide without a given orientation. The Raman spectrum was recorded at room temperature in the range of 70–4000 cm−1, and the power on the sample reached 8 mW. The data accumulation time took from 2 to 10 s, and number of cycles was 10 (the spectral resolution was 2–3 cm−1 and the lateral resolution was 1 mkm). The visualization of the spectra was performed using OriginPro 2018 SR1 b9.5.1.195 software.

2.3. X-Ray Diffraction Data

A suitable crystal of ‘rhythmite’ was fixed in a quartz capillary with 10-micron wall thickness and placed in a Rigaku Xtalab Synergy-S diffractometer (MoKα radiation, 50 kV/1.0 mA) equipped with a high-speed direct-action detector (HyPix-6000HE). The measurements were carried out at a temperature range of 27–727 °C with 100 °C steps. The hemisphere of the diffraction data was collected for each temperature. The frame width and counting time were 1° and 13 s, respectively. The orientation of the crystal was unchanged during the measurement process. The heating of the crystal was controlled by a ‘Hot Air gas blower system’. CrysAlisPro [22] software was used for further processing. An absorption correction was introduced using the SCALE ABSPACK algorithm. The crystal structures were solved and refined using the SHELX program package included in the Olex2 shell [23,24]. The previously reported instability of ‘rhythmite’ in the open air impacted the quality of the data obtained in the process of measurement and further refinement. Herein, in Table 1, Table 2 and Table 3 the best data obtained for room temperature and for 327 °C are given. The crystal data and structure refinement parameters are given in Table 1, the atomic coordinates and displacement parameters are given in Table 2 and Table S1, respectively, and selected bonds lengths at room temperature and at 327 °C for ‘rhythmite’ are provided in Table 3 and Table S2.
The values of the main thermal expansion coefficients were calculated and visualized using the TTT program package [25].
The rigid-body motion was controlled using the following formula [26] for all bond lengths in the crystal structure of ‘rhythmite’:
L2 = l20 + 3/8π2(Beq(A2) − Beq(A1))
where L and l0 are the corrected and observed A1–A2 bond lengths, respectively. Beq(A1) and Beq(A2) are the equivalent temperature factors of cation (A1) and anion (A2).

2.4. Chemical Analysis

The chemical composition of ‘rhythmite’ was studied using a Hitachi S-3400N scanning electron microscope equipped with an Oxford Instruments Energy Dispersive Spectrometer X-Max 20 (20 kV/1.7 nA, the working distance is 10 mm). Suitable grains were placed in epoxy blocks and polished without using water. The automatic recording of spectra was conducted using the AzTec Energy software package using the TrueQ technique. The following standards were used in the study of chemical composition: CaSO4 for Ca, albite for Si and Al, InP for P, and NaCl for Cl.

2.5. Structural Complexity

The structural complexity of ‘rhythmite’ was calculated on the basis of Shannon information per atom (IG) and per unit cell (strIG,total) using the following equations [27,28]:
I G = i = 1 K p i log 2 p i   b i t a t o m
I G , t o t a l = ν i = 1 K p i log 2 p i   ( b i t / u . c . )
Herein, k is a multiplicity of a crystallographic orbit, and pi is a random choice probability for an atom from the ith crystallographic orbit, that is
p i = m i / ν
where mi is a multiplicity of a crystallographic orbit of the reduced unit cell and ν is the number of atoms in the reduced unit cell. TOPOS Pro software was used for the calculation of structural complexity parameters [29].
Table 2. Atomic coordinates, equivalent isotropic displacement parameters (Å2), and bond valence sums (BVS, in v.u. = valence sums) of ‘rhythmite’ at 27 °C.
Table 2. Atomic coordinates, equivalent isotropic displacement parameters (Å2), and bond valence sums (BVS, in v.u. = valence sums) of ‘rhythmite’ at 27 °C.
AtomxyzBVS 1BVS 2 EcoN21U(eq)
Ca10.4396(1) 1/40.1858(2)1.951.960.0341(5)
Ca20.55835(6) 0.40634(7)0.45282(8)2.102.040.0127(2)
Ca30.3723(1) 1/40.4963(1)2.542.450.0177(4)
Ca40.21231(7) 0.40009(8)0.27646(8)1.951.940.0168(2)
Ca50.0945(2) 1/40.5009(2)0.961.030.0169(7)
Ca60.23618(7) 0.44771(8)0.59401(8)1.881.890.0168(2)
Ca70.3535(1) 1/40.7576(1)1.721.850.0157(3)
Ca80.40536(7) 0.42937(8)0.92237(8)1.942.020.0164(2)
Ca90.22429(10) 1/40.96939(13)1.891.930.0184(4)
Ca100.07294(7) 0.0911(1)0.78615(9)1.841.850.0243(3)
Si10.40373(8) 0.4265(1)0.6563(1)3.903.940.0107(3)
Si20.23326(9) 0.4294(1)0.8711(1)3.983.970.0107(3)
Cl10.63220(1) 1/40.3546(2)0.920.930.0216(4)
Cl20.41432(9) 0.1321(1)0.3501(1)0.921.000.0223(3)
Cl30.5218(1) 1/40.5767(2)1.141.120.0209(4)
Cl40.23090(1) 1/40.4031(2)1.121.210.0274(5)
Cl50.0535(1) 0.1223(1)0.3420(1)0.810.840.0378(4)
Cl6−0.0520(1) 1/40.5339(2)1.121.190.0232(4)
Cl70.07256(9) 0.4414(1)0.5794(1)1.181.220.0294(4)
Cl80.1572(2) 1/40.6994(2)0.910.660.0374(6)
Cl90.18480(8) 0.6365(1)0.6142(1)1.011.030.0197(3)
O10.3439(2) 0.3509(3)0.6119(3)2.102.000.0153(8)
O20.4804(2) 0.4490(2)0.5884(3)2.062.020.0143(8)
O30.3518(2) 0.5176(2)0.6587(3)2.001.970.0133(8)
O40.4382(2) 0.3890(2)0.7623(3)1.891.890.0118(8)
O50.2040(2) 0.4646(2)0.7615(3)1.941.890.0144(8)
O60.2948(2) 0.3475(2)0.8683(3)2.112.060.0132(8)
O70.2822(2) 0.5115(2)0.9230(3)1.941.860.0143(8)
O80.1573(2) 0.3928(2)0.9316(3)1.891.930.0146(8)
1 Bond valence parameters according to Brese and O’Keeffe (1991) [30]. 2 Bond valence values calculated on the basis of a crystallographic information file (CIF) using the ECoN21 program [31].
Table 3. Selected bond lengths (Å) of ‘rhythmite’ at 27 °C.
Table 3. Selected bond lengths (Å) of ‘rhythmite’ at 27 °C.
Si1―O11.625(4)Si2―O51.623(4)
―O21.628(4)―O61.624(4)
―O31.638(4)―O71.629(4)
―O41.642(4)―O81.647(4)
<Si1―O>1.633<Si2―O>1.631
Ca1―Cl22.850(2)2XCa2―O22.332(4)
―Cl52.763(3)2X―O22.347(4)
―Cl62.924(3)―O32.422(4)
―Cl92.891(2)2X―O82.292(4)
<Ca1―Cl>2.847―Cl12.978(2)
Ca3―O12.218(4)2X―Cl22.872(2)
―Cl22.731(2)2X―Cl32.946(2)
―Cl32.767(3)<Ca2―O,Cl>2.598
―Cl42.713(3)Ca4―O32.279(4)
<Ca3―O,Cl>2.563―O52.501(4)
Ca5―Cl42.667(4)―O72.364(4)
―Cl52.944(3)2X―Cl13.169(2)
―Cl62.539(4)―Cl42.841(2)
―Cl73.096(2)2X―Cl52.868(2)
―Cl82.848(4)―Cl92.836(2)
<Ca5―Cl>2.876<Ca4―O,Cl>2.694
Ca7―O12.470(4)2XCa6―O12.361(4)
―O42.550(4)2X―O32.398(4)
―O62.309(4)2X―O52.308(4)
―Cl63.206(1)―O72.375(4)
<Ca7―O,Cl>2.552―Cl72.802(2)
Ca9―O62.329(4)2X―Cl92.996(2)
―O82.492(4)2X<Ca6―O,Cl>2.540
―Cl12.818(3)Ca8―O42.283(4)
―Cl93.009(2)2X―O62.369(4)
<Ca9―O,Cl>2.639―O72.441(4)
Ca10―O22.376(4)―Cl53.181(1)
―O42.408(4)―Cl62.865(1)
―O52.413(4)―Cl72.861(2)
―O82.423(4)―Cl72.882(2)
―Cl33.138(2)―Cl93.140(2)
―Cl72.792(2)<Ca8―O,Cl>2.753
―Cl83.026(2)
<Ca10―O,Cl>2.653

3. Results and Discussion

3.1. Raman Spectroscopy

The Raman spectrum of ‘rhythmite’ is shown in Figure 2 in comparison with that of another anthropogenic calcium chloride-silicate ‘albovite’, α-Ca3SiO4Cl2 [20]. The main bands of both spectra correspond to symmetric and asymmetric vibrations of silicate tetrahedra [32]. The most intensive bands at 848 cm−1 are identical for ‘rhythmite’ and ’albovite’ and are due to symmetric stretching vibrations of SiO41), whereas the asymmetric stretching vibrations (ν3) of the ‘rhythmite’ spectrum are presented by middle-intensity bands at 886 and 936 cm−1. In-plane bending vibration modes (ν4) are located near 600 cm−1 (600 cm−1 for ‘albovite’). Several low- and middle-intensity bands at 379, 436, and 474 cm−1 (372 and 466 cm−1 for ‘albovite’) are attributed to out-of-plane vibration modes (ν2). Lattice modes are up to 200 cm−1, and the low-intensity bands in the range of 200–300 cm−1 are probably connected with vibrations of Ca-O(Cl) bonds. The similarity of the spectra of ‘rhythmite’ and ‘albovite’ can be explained by their close structural relations, as outlined below.

3.2. Crystal Structure

3.2.1. Cation Coordination

The crystal structure of ‘rhythmite’ contains ten symmetrically independent Ca sites (Figure 3), where all positions are fully occupied except for the Ca5 site, which has the occupancy of 0.5. The Ca1 and Ca5 sites are coordinated by seven Cl atoms, each with the CaCl7 polyhedra that can be described as capped trigonal prisms. The same type of coordination with various distortion degrees is also observed for the Ca2, Ca4, Ca7, Ca9, and Ca10 sites. However, the composition of the Caφ7 polyhedra (φ = O, Cl) is different and can be described as Ca2O4Cl3, Ca4O3Cl4, Ca7O6Cl, Ca9O4Cl3, and Ca10O4Cl3. Such a variable coordination of Ca2+ cations in the same crystal structure is quite remarkable and is in obvious violation with the parsimony principle by Pauling, stating that “the number of essentially different kinds of constituents in a crystal tends to be small” [33].
The SiO4 tetrahedra in ‘rhythmite’ are isolated from each other and have typical geometrical characteristics with the average bond lengths of <Si1-O> = 1.633 Å and <Si2-O> = 1.631 Å.

3.2.2. Structure Description

The crystal structure of ‘rhythmite’ can be described as a dense framework consisting of Ca polyhedra connected to each other primarily through common vertices or edges and to a lesser extent through faces (Figure 4a). In order to make the structure description more straightforward, we consider the crystal structure as being based upon Ca silicate framework formed by Ca2+ cations and SiO4 tetrahedra (Figure 4b).
According to this model, the Cl ions and Ca1 and Ca5 sites bonded solely to Cl are removed from the consideration. The Ca silicate framework is porous and can be subdivided into fundamental building blocks (FBBs) with contours outlined by red dashed lines in Figure 4b. The atomic structure of this FBB is shown in Figure 5a.
The formula of a single FBB is [Ca15(SiO4)4]14+, and this unit can be considered as extracted from the crystal structure of α-Ca3SiO4Cl2 (‘albovite’) [20]. The latter structure can be considered as based upon Ca silicate [Ca3(SiO4)]2+ layers with the Cl ions in the interlayer (Figure 6a). The projection of the layer is shown in Figure 6b, where the red dashed line shows the contours of the FBB topologically identical to that observed in ‘rhythmite’ (Figure 6c). Thus, the crystal structures of ‘rhythmite’ and ‘albovite’ are closely related, based upon the same type of multinuclear Ca silicate FBBs. However, whereas in ‘albovite’ the FBBs are polymerized to form 2-dimensional layers, in ‘rhythmite’ they are linked by sharing common Ca atoms to form a 3-dimensional framework.
The linkage modes of the FBBs in ‘rhythmite’ are illustrated in Figure 5b,c. First, the FBBs share common Ca10 atoms to form chains running parallel to the a axis (Figure 5b), with a separation between the FBBs of ca. 8.54 Å (measured as the distance between the Ca7 atoms at the centres of the FBBs). Along the b and c axes, the FBBs are linked in a chessboard fashion by forming Ca-O bonds involving Ca2 and Ca6 atoms (Figure 5c). The distance between the FBB centres is ~10.66 Å. Each FBB is thus coordinated by two FBBs at 8.54 Å and four FBBs at 10.66 Å. The topology of the linkage of the FBBs corresponds to the distorted pcu net, which is the simplest net with 6-coordination of vertices [34]. The net drawn as the linkage of the Ca7 atoms (FBB centres) is shown in Figure 7.

3.3. Chemical Composition

The chemical composition of ‘rhythmite’ in wt (%) is provided in Table 4. It can be seen that our data are in general agreement with the data reported previously. The small admixtures of iron and fluorine noted earlier are absent in our analyses, while phosphorus was not detected in measurements by Chesnokov et al. [1,21]. As it was mentioned above, the chemical formula of ‘rhythmite’ was determined as Ca4(SiO4)2·3CaCl2 [21]. Taking into account the results of the crystal structure study, the empirical formula of ‘rhythmite’ can be given as Ca29.02[(Si7.89Al0.05P0.05)Ʃ7.99O32]Cl26 (on the basis of Cl + O = 58). The ideal formula calculated on the basis of the results of the single-crystal X-Ray diffraction analysis is Ca29(SiO4)8Cl26, in perfect agreement with the chemical data. The formula reported by Chesnokov et al. agrees well with these results, taking into account that Ca4(SiO4)2·3CaCl2 × 4 = Ca28(SiO4)8Cl24. Thus, the formula given by Chesnokov et al. [21] and the formula reported herein differ in the minor relative amounts of Ca and Cl only.

3.4. Thermal Behaviour

‘Rhythmite’ is stable up to 627 °C and starts to lose its crystallinity in the temperature range of 627–727 °C. Further heating results in the formation of ‘albovite’, α-Ca3SiO4Cl2, which is confirmed by the fact that about 30% of reflections in the diffraction pattern recorded at 727 °C can be assigned to this phase with the unit cell parameters corresponding to ‘albovite’: a = 9.969(5), b = 6.795(4), c = 10.966(6) Å, β = 105.96(5)°, and V = 714.2(7) Å3. However, the quality of the diffraction data did not allow for perfect refinement (Rint = 0.167 and Rsigma = 0.3814).
The temperature dependencies of the unit cell parameters of ‘rhythmite’ and the section of the figure of thermal expansion coefficients are presented in Figure 8. The unit cell parameters increase uniformly in all temperature ranges, where the compound is stable. The following equations were used for the linear approximation of the temperature dependencies of the unit cell parameters (×106 °C−1):
a = 17.0030 + 0.2 × 10−3 T, R2 = 0.9998;
b = 15.00958 + 0.3 × 10−3 T, R2 = 0.9983;
c = 13.23346 + 0.1 × 10−3 T, R2 = 0.9979;
V = 3375.84 + 0.17 × T, R2 = 0.9933.
The calculation of the thermal expansion coefficients shows that the crystal structure of ‘rhythmite’ expands slightly anisotropically (αmaxmin = 1.40) in the ab and bc planes and almost isotropically in the ac plane (α3311 = 1.02) with the following values (×106 °C−1): α11 = 14.6(1), α22 = 20.5(4), α33 = 15.0(3), and αV = 50.1(6) (room temperature) (Figure 8). Such character of thermal expansion can be explained by the framework construction of the crystal structure of ‘rhythmite’. The bond length analysis in the temperature range of 27–627 °C shows that SiO4 tetrahedra remain relatively rigid with the relative changes in the average bond lengths equal to 0.12% and 0.24% for the Si1O4 and Si2O4 groups, respectively. The lowest thermal expansion is observed along the a axis, which can be explained by the presence of the chains of FBBs running parallel to this direction (Figure 5b). The thermal expansion of the structure along the b axis is the strongest, probably due to zigzag linkage of the Ca silicate FBBs (Figure 5c), which allows for the hinge mechanism of the temperature-induced structure distortions. It was also observed that the bond length changes are more significant for the Ca-Cl bonds compared to the Ca-O and Si-O bonds, in agreement with their lower bond valences.

3.5. Structural Complexity

The calculation of the structural complexity parameters for ‘rhythmite’ as the amounts of information per atom and per unit cell indicates that the crystal structure is complex and close to very complex compounds (>1000 bits), with IG = 4.793 (bit/atom) and IG,total = 920.313 (bit/u.c.). The high structural complexity can be explained by the modular construction of the Ca silicate framework built from multinuclear FBBs with the dimensions of ~12 × 10 × 9 Å3. The modular construction was indicated as one of the factors leading to the increasing structural complexity in minerals and inorganic compounds [28], which also explains the high diversity of Ca coordination environments in ‘rhythmite’. It is of interest that the average total structural complexity for silicate minerals is about 400 bit per unit cell, which means that ‘rhythmite’ belongs to the group of rather complex inorganic silicate structures.

4. Conclusions

The results of the chemical, spectroscopic, and structural studies reported herein allowed us to refine the crystal chemical formula of ‘rhythmite’ as Ca29(SiO4)8Cl26, which differs from that proposed earlier by Chesnokov et al. [1]. ‘Rhythmite’ is chemically, structurally, and genetically related to α-Ca3SiO4Cl2 (‘albovite’), with which it also has similar Raman spectra and thermal stability. The structure analysis reveals that ‘rhythmite’ is based upon a three-dimensional framework composed of the FBBs extracted from the crystal structure of ‘albovite’, which means that the latter can be considered as a parent structure for the former. This explains why the two structures are so different in their complexities: the derivative structures are usually more complex than their archetypes. It is also of interest that ‘rhythmite’ and ‘albovite’ form in technogenic environments under similar thermodynamic conditions, and the decomposition of the former results in the formation of the latter. Finally, it is noteworthy that, as far as we know, ‘rhythmite’ has no analogues among the known natural and synthetic compounds, which further proves that technogenic processes may lead to the formation of novel structural architectures of high information complexity [17,35].

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/min14101048/s1, Table S1: Atomic coordinates and equivalent isotropic displacement parameters (Å2) of ‘rhythmite’ at 327 °C; Table S2: Selected bond lengths (Å) of ‘rhythmite’ at 327 °C. CIF: Crystallographic Information files for the crystal structure of ‘rhythmite’ at 27 and 327 °C.

Author Contributions

Conceptualization, S.V.K., A.A.Z. and M.S.A.; methodology, A.A.Z.; formal analysis, N.S.V., V.N.B. and A.S.B.; investigation, M.S.A., A.A.Z., V.N.B., N.S.V. and A.S.B.; resources, M.A.R.; writing—original draft preparation, M.S.A. and S.V.K.; writing—review and editing, A.A.Z., A.S.B., N.S.V., V.N.B. and M.A.R.; visualization, S.V.K. and M.S.A.; supervision, A.A.Z.; project administration, A.A.Z.; funding acquisition, A.A.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 23-27-00147, https://rscf.ru/en/project/23-27-00147/ (accessed on 24 September 2024).

Data Availability Statement

The original contributions presented in the study are included in the article and Supplementary Materials, and further inquiries can be directed to the corresponding author.

Acknowledgments

The X-ray diffraction studies were conducted at the Center for X-Ray Diffraction Studies of the Research Park of St. Petersburg State University. The chemical analytical and spectroscopic studies were conducted at the Centre for Geo-Environmental Research and Modelling of the Research Park of St. Petersburg State University.

Conflicts of Interest

The authors declare no conflicts of interests.

References

  1. Chesnokov, B.V.; Shcherbakova, E.P.; Nishanbaev, T.P. Minerals of Burnt Dumps of the Chelyabinsk Coal Basin; Ural Branch of RAS: Miass, Russia, 2008; pp. 1–139. (In Russian) [Google Scholar]
  2. Chesnokov, B.V.; Bazhenova, L.B. Srebrodolskite Ca2Fe2O5—A new mineral. Zap. Vseross. Miner. Obs. 1985, 114, 195–199. (In Russian) [Google Scholar]
  3. Chesnokov, B.V.; Polyakov, V.O.; Bushmakin, A.F. Bazhenovite CaS5·CaS2O3·6Ca(OH)2·20H2O—A new mineral. Zap. Vseross. Miner. Obs. 1987, 116, 737–743. (In Russian) [Google Scholar]
  4. Chesnokov, B.V.; Bazhenova, L.F.; Bushmakin, A.F. Fluorellestadite Ca10[(SO4),(SiO4)]6F2—A new mineral. Zap. Vseross. Miner. Obs. 1987, 116, 743–746. (In Russian) [Google Scholar]
  5. Chesnokov, B.V.; Lotova, E.V.; Nigmatullina, E.N.; Pavlutchenko, V.S.; Bushmakin, A.F. Dmisteinbergite CaAl2Si2O8 (hexagonal)—A new mineral. Zap. Vseross. Miner. Obs. 1990, 119, 43–46. (In Russian) [Google Scholar]
  6. Chesnokov, B.V.; Nishanbaev, T.P.; Bazhenova, L.P. Rorisite CaFCl—A new mineral. Zap. Vseross. Miner. Obs. 1990, 119, 73–76. (In Russian) [Google Scholar]
  7. Shcherbakova, Y.P.; Bazhenova, L.F.; Chesnokov, B.V. Godovikovite-NH4(Al,Fe)(SO4)2 a new ammonium-bearing sulfate. Zap. Vseross. Miner. Obs. 1988, 117, 208–211. (In Russian) [Google Scholar]
  8. Shcherbakova, Y.P.; Bazhenova, L.F. Efremovite (NH4)2Mg2(SO4)3—Ammonium analogue of langbeinite—A new mineral. Zap. Vseross. Miner. Obs. 1989, 118, 84–87. (In Russian) [Google Scholar]
  9. Parafiniuk, J.; Hatert, F. New IMA CNMNC guidelines on combustion products from burning coal dumps. Eur. J. Mineral. 2020, 32, 215–217. [Google Scholar] [CrossRef]
  10. Krivovichev, S.V.; Shcherbakova, E.P.; Nishanbaev, T.P. The crystal structure of β-CaMg2(SO4)3, a mineral phase from coal dumps of the Chelyabinsk coal basin. Can. Mineral. 2010, 48, 1469–1475. [Google Scholar] [CrossRef]
  11. Krivovichev, S.V.; Shcherbakova, E.P.; Nishanbaev, T.P. The crystal structure of svyatoslavite and evolution of complexity during crystallization of a CaAl2Si2O8 melt: A structural automata description. Can. Mineral. 2012, 50, 585–592. [Google Scholar] [CrossRef]
  12. Zolotarev, A.A.; Krivovichev, S.V.; Panikorovskii, T.L.; Gurzhiy, V.V.; Bocharov, V.N.; Rassomakhin, M.A. Dmisteinbergite, CaAl2Si2O8, a Metastable Polymorph of Anorthite: Crystal-Structure and Raman Spectroscopic Study of the Holotype Specimen. Minerals 2019, 9, 570. [Google Scholar] [CrossRef]
  13. Zolotarev, A.A.; Zhitova, E.S.; Krzhizhanovskaya, M.G.; Rassomakhin, M.A.; Shilovskikh, V.V.; Krivovichev, S.V. Crystal chemistry and high-temperature behaviour of ammonium phases NH4MgCl3·6H2O and (NH4)2Fe3+Cl5·H2O from the burned dumps of the Chelyabinsk Coal Basin. Minerals 2019, 9, 486. [Google Scholar] [CrossRef]
  14. Zolotarev, A.A.; Krivovichev, S.V.; Avdontceva, M.S.; Shilovskikh, V.V.; Rassomakhin, M.A.; Yapaskurt, V.O.; Pekov, I.V. Crystal chemistry of alkali–aluminum–iron sulfates from the burnt mine dumps of the Chelyabinsk Coal Basin, South Urals, Russia. Crystals 2020, 10, 1062. [Google Scholar] [CrossRef]
  15. Zolotarev, A.A.; Krivovichev, S.V.; Avdontceva, M.S.; Zhitova, E.S.; Shchipalkina, N.V.; Pekov, I.V. Crystal chemistry of “Malakhovite”, an anthropogenic analog of khesinite from burnt dumps of the Chelyabinsk Coal Basin (South Urals). Cryst. Rep. 2021, 66, 66–75. [Google Scholar] [CrossRef]
  16. Zolotarev, A.A., Jr.; Avdontceva, M.S.; Sheveleva, R.M.; Pekov, I.V.; Vlasenko, N.S.; Bocharov, V.N.; Krzhizhanovskaya, M.G.; Zolotarev, A.A.; Rassomakhin, M.A.; Krivovichev, S.V. Zn(NH3)2Cl2, a Mineral-like Anthropogenic Phase with Ammine Complexes from the Burned Dumps of the Chelyabinsk Coal Basin, South Urals, Russia: Crystal structure, Spectroscopy and Thermal Evolution. Minerals 2023, 13, 1109. [Google Scholar] [CrossRef]
  17. Zolotarev, A.A., Jr.; Avdontceva, M.S.; Krivovichev, S.V.; Sokol, E.V.; Zhitova, E.S.; Chen, J.; Li, Y.; Zolotarev, A.A.; Vlasenko, N.S.; Rassomakhin, M.A. Burned coal dumps as a source of new compounds: The novel mixed-valent iron oxysulfide Ca4Fe2+3Fe3+2O6S4 from the Chelyabinsk Coal Basin, South Ural. ACS Earth Space Chem. 2024, 8, 1429–1439. [Google Scholar] [CrossRef]
  18. Avdontceva, M.S.; Zolotarev, A.A., Jr.; Krivovichev, S.V.; Krzhizhanovskaya, M.G.; Sokol, E.V.; Kokh, S.N.; Bocharov, V.N.; Rassomakhin, M.A.; Zolotarev, A.A. Fluorellestadite from burned coal dumps: Crystal structure refinement, vibrational spectroscopy data and thermal behavior. Mineral. Petrol. 2021, 115, 271–281. [Google Scholar] [CrossRef]
  19. Avdontceva, M.S.; Zolotarev, A.A.; Krivovichev, S.V.; Krzhizhanovskaya, M.G.; Bocharov, V.N.; Shilovskikh, V.V.; Zolotarev, A.A.; Rassomakhin, M.A. Rapidcreekite of anthropogenic origin—‘Korkinoite’ from burnt mine dump in the Chelyabinsk coal basin, South Urals, Russia: Crystal structure refinement, thermal behaviour and spectroscopic characterization. J. Geosci. 2021, 66, 147–156. [Google Scholar] [CrossRef]
  20. Brazhnikova, A.S.; Avdontceva, M.S.; Zolotarev, A.A.; Krzhizhanovskaya, M.G.; Bocharov, V.N.; Shilovskikh, V.V.; Rassomakhin, M.A.; Gurzhiy, V.V.; Krivovichev, S.V. Ca3SiO4Cl2—An Anthropogenic phase from burnt Mine Dumps of the Chelyabinsk Coal Basin: Crystal Structure refinement, Spectroscopic Study and Thermal Evolution. Minerals 2023, 13, 668. [Google Scholar] [CrossRef]
  21. Chesnokov, B.V.; Velisov, V.A.; Bushmakin, A.F.; Kotlyarov, V.A.; Belogub, E.V. New minerals from Burned Dumps of Chelyabinsk Coal basin. In Uralskii Mineralogicheskii. Sbornik; Institute of Mineralogy UrO RAS: Miass, Russian, 1994; pp. 3–34. (In Russian) [Google Scholar]
  22. CrysAlisPro Software System, Version 1.171.39.44; Rigaku Oxford Diffraction: Oxford, UK, 2015.
  23. Sheldrick, G.M. Crystal Structure Refinement with It SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
  24. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. It OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  25. Bubnova, R.S.; Firsova, V.A.; Filatov, S.K. Software for determining the thermal expansion tensor and the graphic representation of its characteristic surface (Theta to Tensor-TTT). Glass Phys. Chem. 2013, 39, 347–351. [Google Scholar] [CrossRef]
  26. Downs, R.T. Analysis of harmonic displacement factors. Rev. Mineral. Geochem. 2000, 41, 61–187. [Google Scholar] [CrossRef]
  27. Krivovichev, S.V. Topological complexity of crystal structures: Quantitative approach. Acta Crystallogr. Sect. A 2012, 68, 393–398. [Google Scholar] [CrossRef]
  28. Krivovichev, S.V.; Krivovichev, V.G.; Hazen, R.M.; Aksenov, S.M.; Avdontceva, M.S.; Banaru, A.M.; Gorelova, L.A.; Ismagilova, R.M.; Kornyakov, I.V.; Kuporev, I.V.; et al. Structural and chemical complexity of minerals: An update. Miner. Mag. 2022, 86, 183–204. [Google Scholar] [CrossRef]
  29. Blatov, V.A.; Shevchenko, A.P.; Proserpio, D.M. Applied topological analysis of crystal structures with the program package ToposPro. Cryst. Growth Des. 2014, 14, 3576–3586. [Google Scholar] [CrossRef]
  30. Brese, N.E.; O’Keeffe, M. Bond-valence parameters for solids. Acta Cryst. 1991, B47, 192–197. [Google Scholar] [CrossRef]
  31. Ilinca, G. Charge Distribution and Bond Valence Sum Analysis of Sulfosalts—The ECoN21 Computer Program. Minerals 2022, 12, 924. [Google Scholar] [CrossRef]
  32. Frezotti, M.L.; Tecce, F.; Casagli, A. Raman spectroscopy for fluid inclusion analysis. J. Geochem. Explor. 2012, 112, 1–20. [Google Scholar] [CrossRef]
  33. Pauling, L. The principles determining the structure of complex ionic crystals. J. Am. Chem. Soc. 1929, 51, 1010–1026. [Google Scholar] [CrossRef]
  34. Krivovichev, S.V. Which nets are the most common? CrystEngComm 2024, 26, 1245–1251. [Google Scholar] [CrossRef]
  35. Hazen, R.M.; Grew, E.S.; Origlieri, M.J.; Downs, R.T. On the Mineralogy of the “Anthropocene Epoch”. Am. Miner. 2017, 102, 595–611. [Google Scholar] [CrossRef]

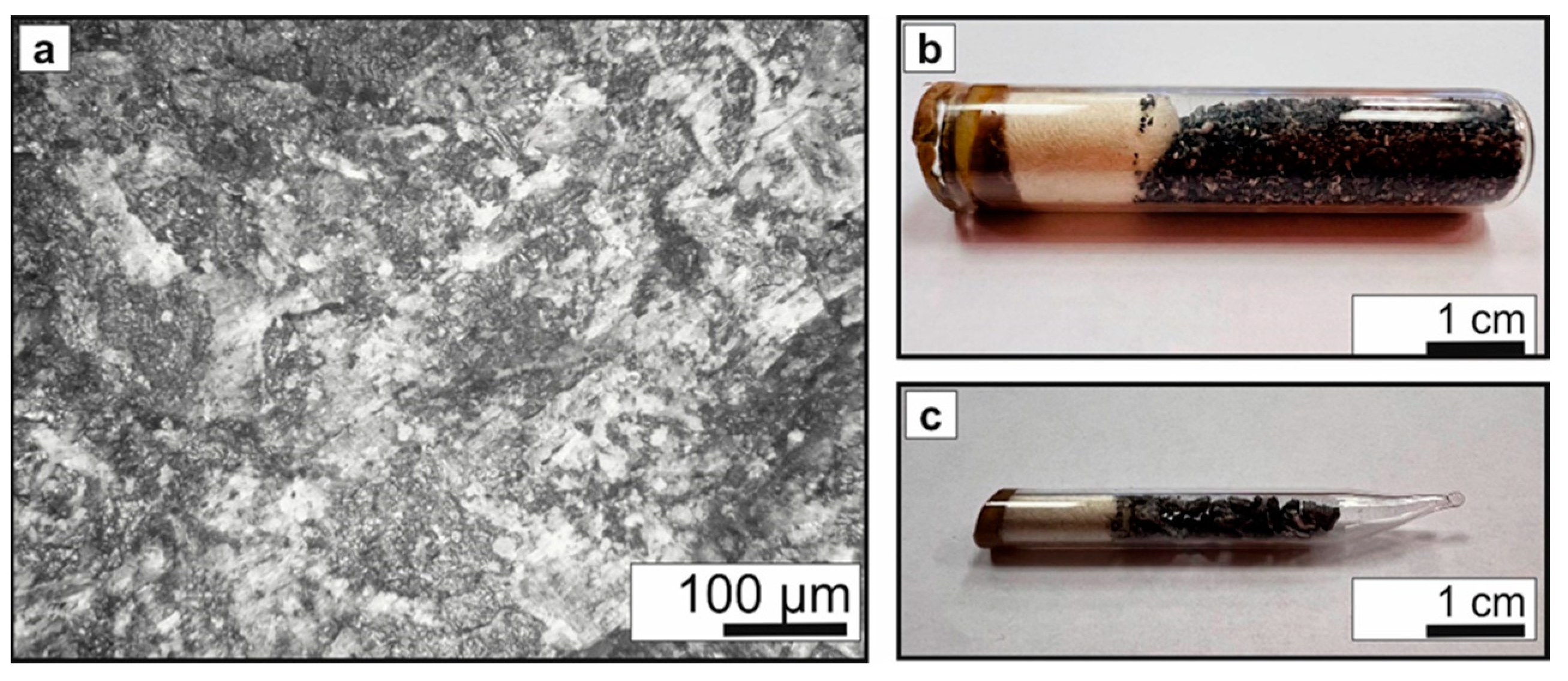

Figure 1. The sample with columnar ‘rhythmite’ crystals from the burnt dumps of the Chelyabinsk coal basin: the image obtained using an optical microscope (a) and images of two flasks containing ‘rhythmite’ with associated phases (b,c).
Figure 1. The sample with columnar ‘rhythmite’ crystals from the burnt dumps of the Chelyabinsk coal basin: the image obtained using an optical microscope (a) and images of two flasks containing ‘rhythmite’ with associated phases (b,c).
Minerals 14 01048 g001

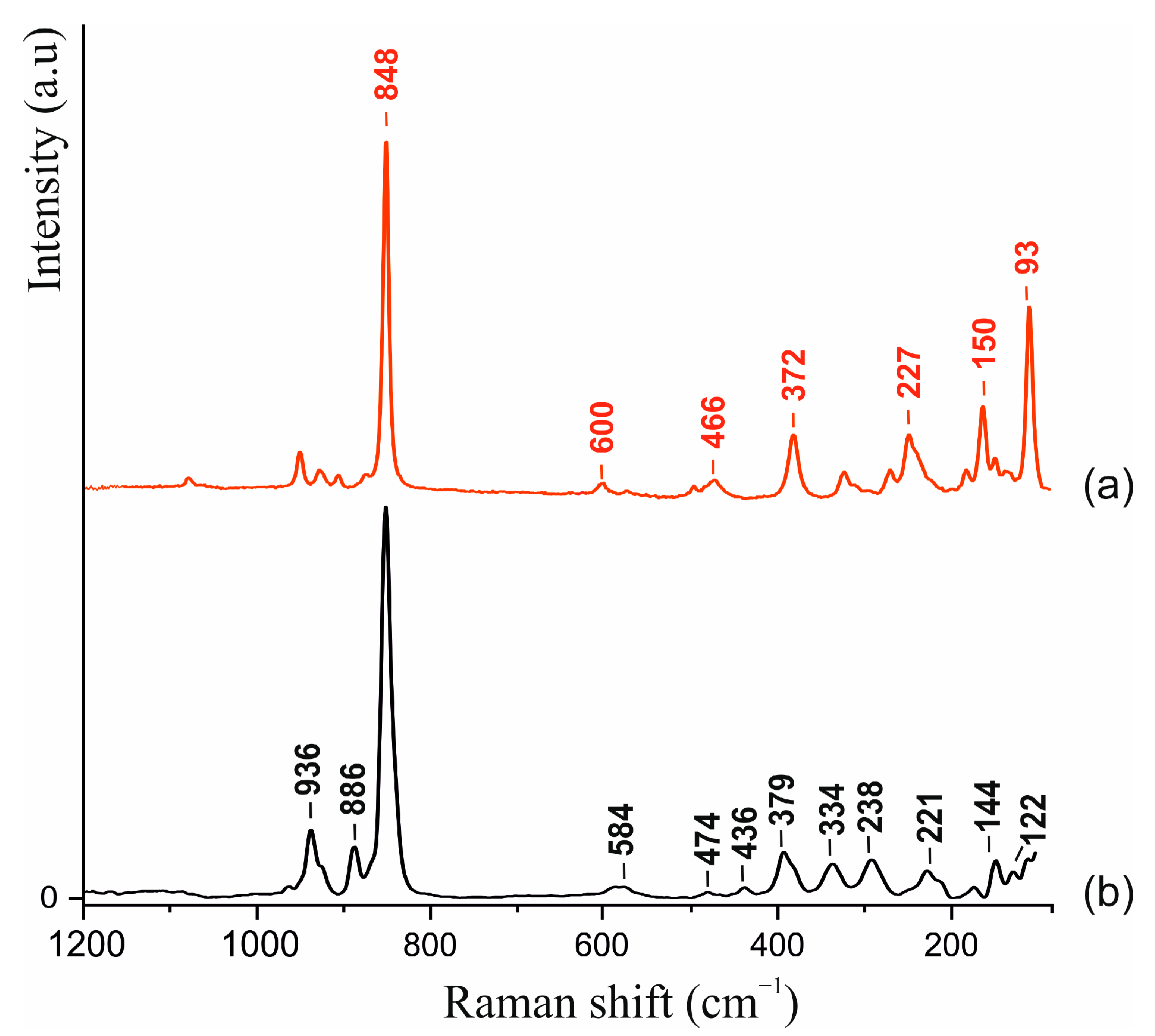

Figure 2. Raman spectra of ‘albovite’ (a) and ‘rhythmite’ (b).
Figure 2. Raman spectra of ‘albovite’ (a) and ‘rhythmite’ (b).
Minerals 14 01048 g002
Figure 3. Coordination of Ca2+ cations in the crystal structure of ‘rhythmite’. Legend: Ca = blue; O = red; Cl = green.
Figure 3. Coordination of Ca2+ cations in the crystal structure of ‘rhythmite’. Legend: Ca = blue; O = red; Cl = green.
Minerals 14 01048 g003

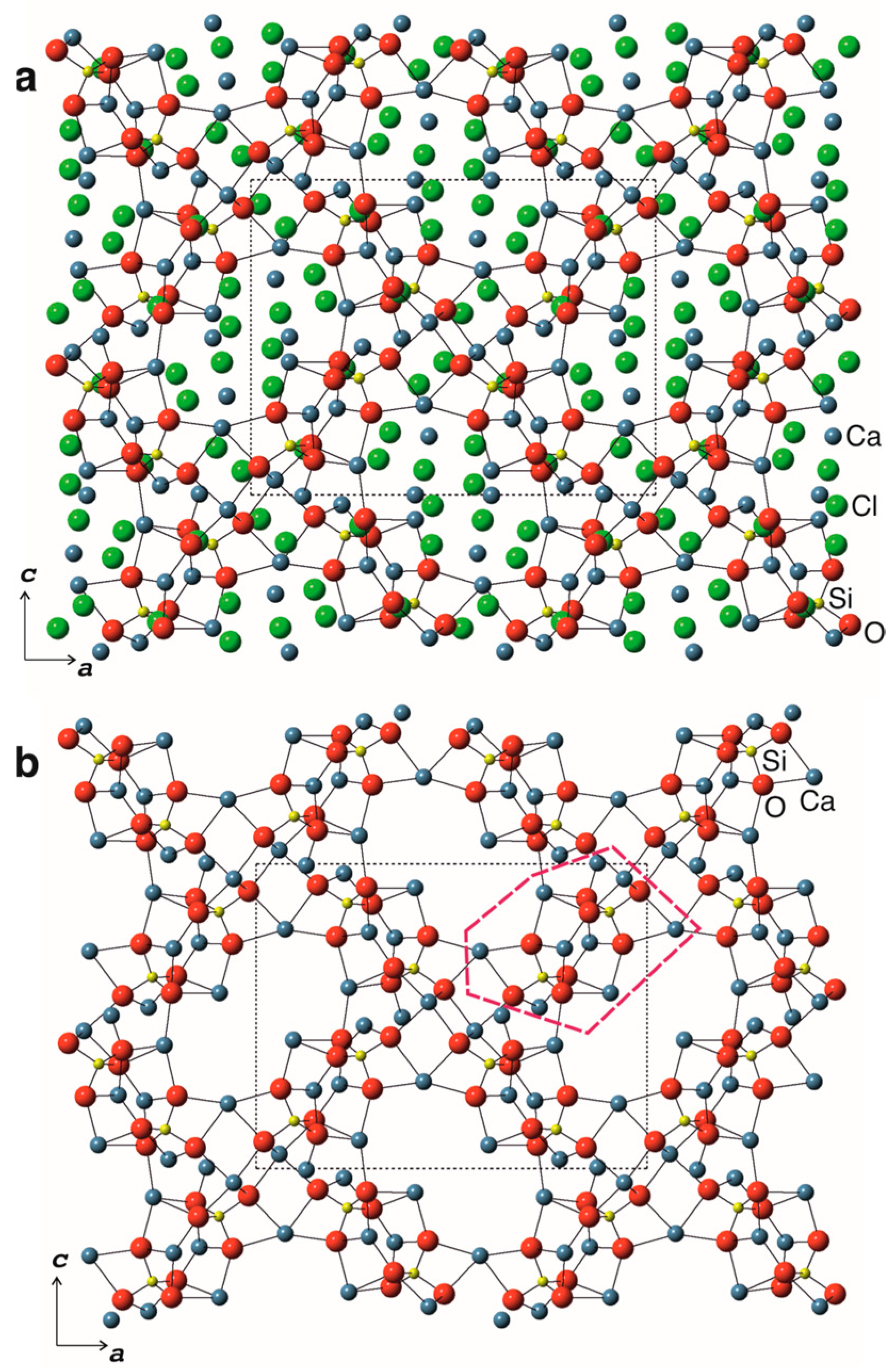

Figure 4. The crystal structure of ‘rhythmite’ (a) and its Ca silicate framework formed as a result of the removal of all Cl atoms and Ca1 and Ca5 atoms coordinated by Cl atoms only (b); the red dashed line shows contours of the FBB. Legend: Ca = blue; Si = yellow; O = red; Cl = green.
Figure 4. The crystal structure of ‘rhythmite’ (a) and its Ca silicate framework formed as a result of the removal of all Cl atoms and Ca1 and Ca5 atoms coordinated by Cl atoms only (b); the red dashed line shows contours of the FBB. Legend: Ca = blue; Si = yellow; O = red; Cl = green.
Minerals 14 01048 g004

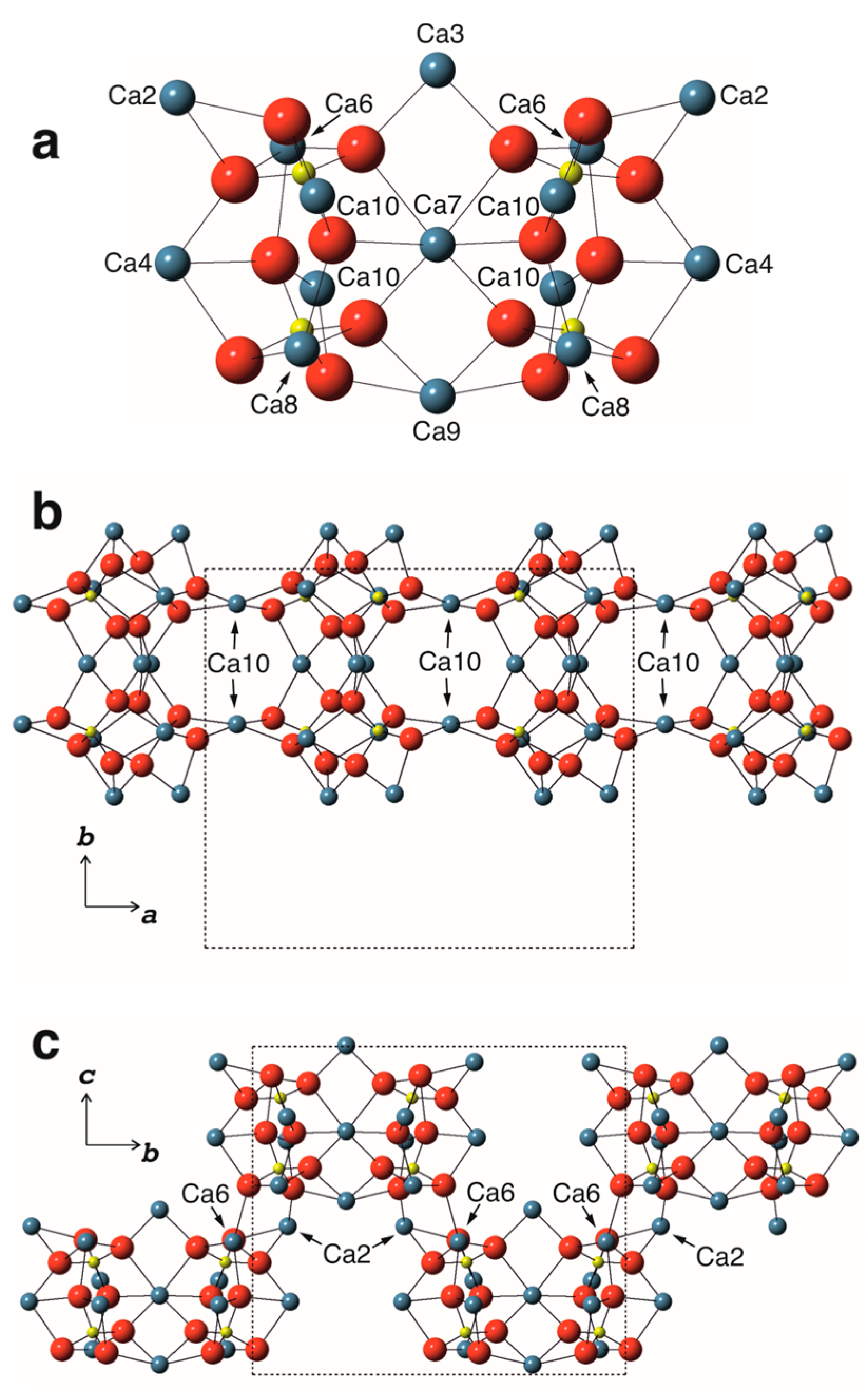

Figure 5. The atomic structure of the FBB in ‘rhythmite’ (a) and the linkage of the FBBs within the ab (b) and bc (c) planes. Legend as in Figure 3.
Figure 5. The atomic structure of the FBB in ‘rhythmite’ (a) and the linkage of the FBBs within the ab (b) and bc (c) planes. Legend as in Figure 3.
Minerals 14 01048 g005

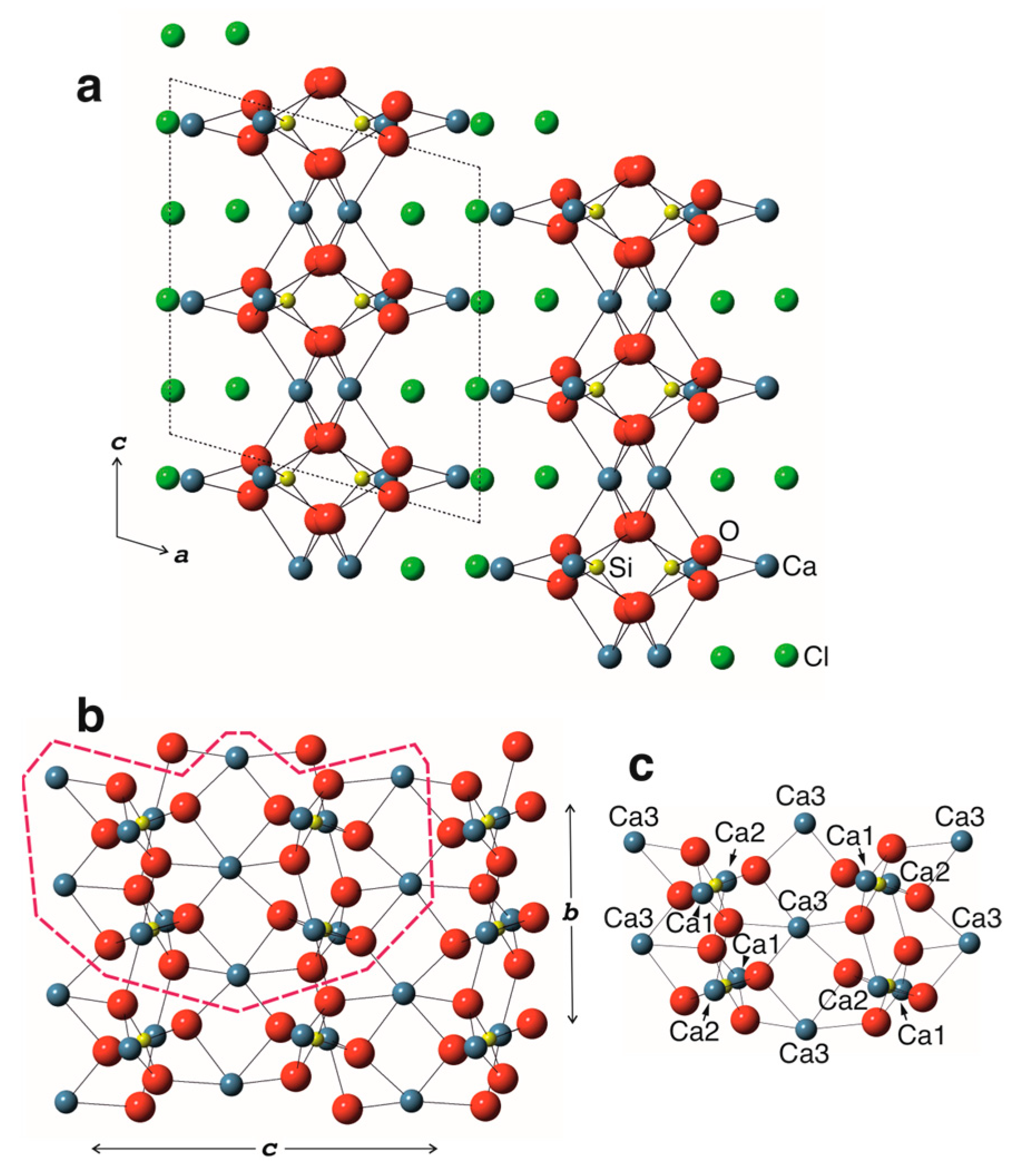

Figure 6. The crystal structure of α-Ca3SiO4Cl2 (‘albovite’) based upon Ca silicate layers separated by Cl atoms (a); the projection of the layers (b). The dashed red line shows the contours of the FBB similar to that observed in ‘rhythmite’. The atomic structure of the ‘rhythmite’-type FBB (c).
Figure 6. The crystal structure of α-Ca3SiO4Cl2 (‘albovite’) based upon Ca silicate layers separated by Cl atoms (a); the projection of the layers (b). The dashed red line shows the contours of the FBB similar to that observed in ‘rhythmite’. The atomic structure of the ‘rhythmite’-type FBB (c).
Minerals 14 01048 g006

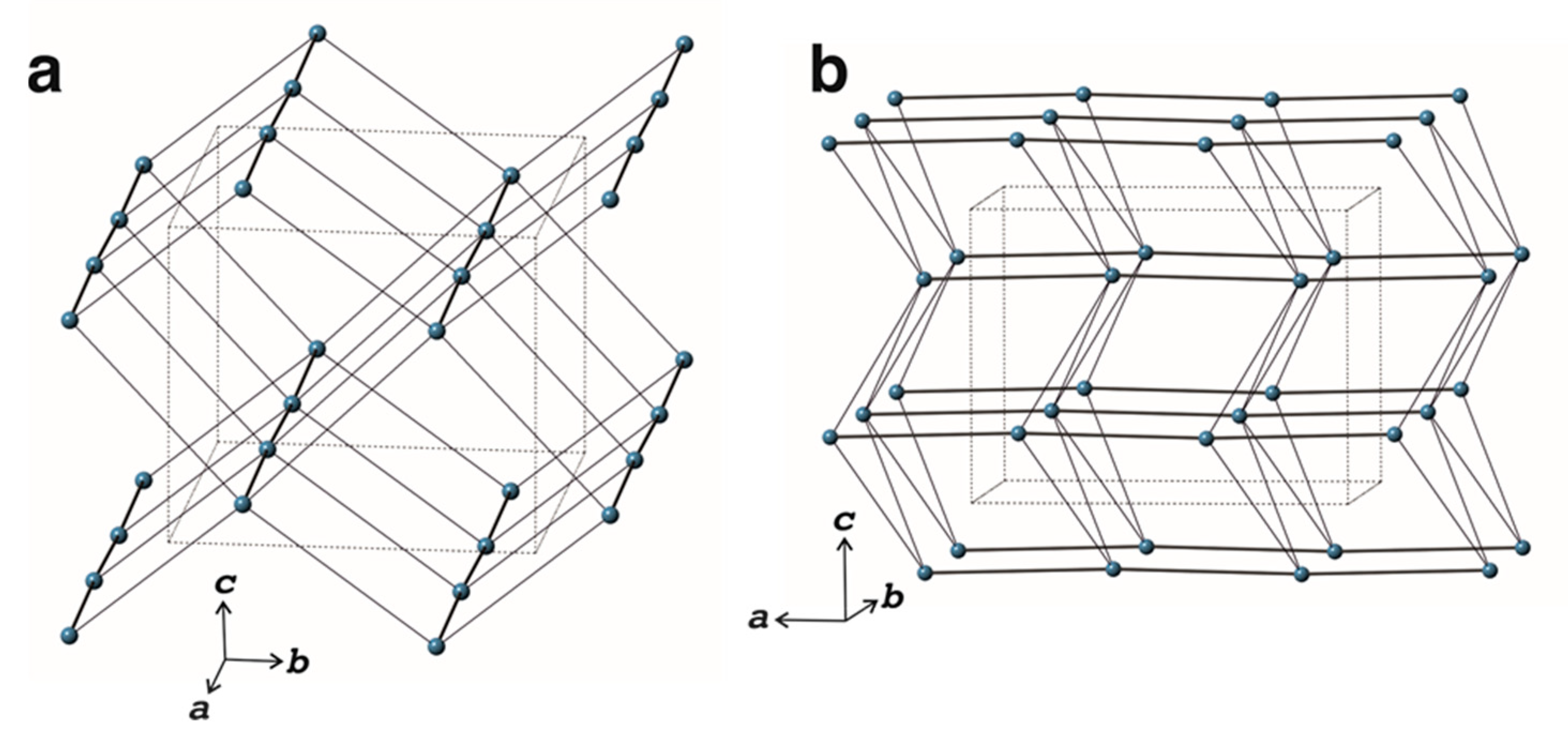

Figure 7. The topology of FBB linkage in ‘rhythmite’ featuring it belonging to the pcu type (a) and its distortion (b). The single and heavy lines correspond to the 8.54 and 10.66 Å links between the adjacent FBBs, respectively.
Figure 7. The topology of FBB linkage in ‘rhythmite’ featuring it belonging to the pcu type (a) and its distortion (b). The single and heavy lines correspond to the 8.54 and 10.66 Å links between the adjacent FBBs, respectively.
Minerals 14 01048 g007

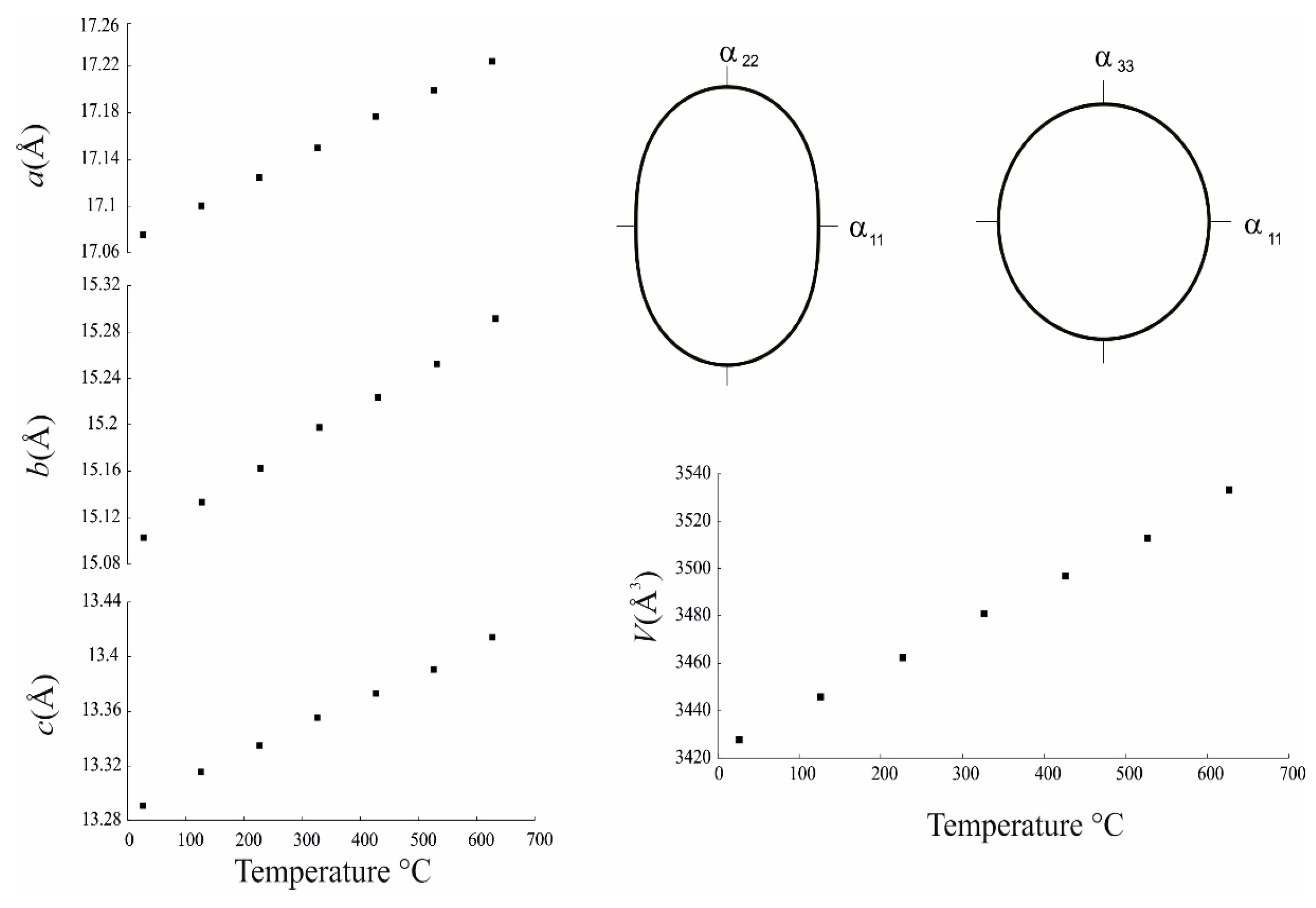

Figure 8. The temperature dependencies of the unit cell parameters of ‘rhythmite’ and the section of the figure of thermal expansion coefficients.
Figure 8. The temperature dependencies of the unit cell parameters of ‘rhythmite’ and the section of the figure of thermal expansion coefficients.
Minerals 14 01048 g008
Table 1. Crystal data and structure refinement parameters of ‘rhythmite’ at 27 °C (1) and at 327 °C (2).
Table 1. Crystal data and structure refinement parameters of ‘rhythmite’ at 27 °C (1) and at 327 °C (2).
Sample12
Crystal systemorthorhombicorthorhombic
Temperature (°C)27327
Space groupPnma
a, Å17.0749(6)17.1494(7)
b, Å15.1029(5)15.1980(7)
c, Å13.2907(4)13.3550(5)
Volume, Å33427.42(18)3480.8(3)
Z2
Dcalc (g/cm3)2.7362.691
μ/mm−13.4233.365
F(000)2783.02780.0
RadiationMoKα (λ = 0.71073)
2Θ range for data collection/°6.58 to 59.4186.548 to 59.408
Index ranges−16 ≤ h ≤ 21, −19 ≤ k ≤ 20, −16 ≤ l ≤ 12
Reflections collected18,31018,679
Independent reflections4179 [Rint = 0.0623, Rsigma = 0.0610]4245 [Rint = 0.0843, Rsigma = 0.0894]
Data/restraints/parameters4179/0/2324245/0/232
Goodness-of-fit on F21.0661.072
Final R indexes [I >= 2σ (I)]R1 = 0.0449, wR2 = 0.0875R1 = 0.0569, wR2 = 0.1007
Final R indexes [all data]R1 = 0.0869, wR2 = 0.1112R1 = 0.1348, wR2 = 0.1359
Largest diff. peak/hole/e Å−32.30/−1.191.55/−1.10
Table 4. Chemical composition (wt (%)) of ‘rhythmite’ (1—Chesnokov et al. [1]; 2—our data) and formula coefficients calculated on the basis of our data (apfu).
Table 4. Chemical composition (wt (%)) of ‘rhythmite’ (1—Chesnokov et al. [1]; 2—our data) and formula coefficients calculated on the basis of our data (apfu).
Component12Component2Apfu
(Cl + O = 58)
Ca41.2240.11CaO57.1329.02
Fe0.38-
Si8.057.79SiO216.657.89
P-0.09P2O50.1250.05
Al0.220.05Al2O30.090.05
Cl31.0630.16Cl32.3226.00
F0.22-–O=Cl27.283
Total99.032
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Avdontceva, M.S.; Zolotarev, A.A.; Brazhnikova, A.S.; Bocharov, V.N.; Vlasenko, N.S.; Rassomakhin, M.A.; Krivovichev, S.V. ‘Rhythmite’, Ca29(SiO4)8Cl26, an Anthropogenic Phase from the Chelyabinsk Coal Basin (Ural, Russia) with a Complex Modular Structure Related to α-Ca3SiO4Cl2 (‘Albovite’): Crystal Structure, Raman Spectra, and Thermal Expansion. Minerals 2024, 14, 1048. https://doi.org/10.3390/min14101048

AMA Style

Avdontceva MS, Zolotarev AA, Brazhnikova AS, Bocharov VN, Vlasenko NS, Rassomakhin MA, Krivovichev SV. ‘Rhythmite’, Ca29(SiO4)8Cl26, an Anthropogenic Phase from the Chelyabinsk Coal Basin (Ural, Russia) with a Complex Modular Structure Related to α-Ca3SiO4Cl2 (‘Albovite’): Crystal Structure, Raman Spectra, and Thermal Expansion. Minerals. 2024; 14(10):1048. https://doi.org/10.3390/min14101048

Chicago/Turabian Style

Avdontceva, Margarita S., Andrey A. Zolotarev, Anastasia S. Brazhnikova, Vladimir N. Bocharov, Natalia S. Vlasenko, Mikhail A. Rassomakhin, and Sergey V. Krivovichev. 2024. "‘Rhythmite’, Ca29(SiO4)8Cl26, an Anthropogenic Phase from the Chelyabinsk Coal Basin (Ural, Russia) with a Complex Modular Structure Related to α-Ca3SiO4Cl2 (‘Albovite’): Crystal Structure, Raman Spectra, and Thermal Expansion" Minerals 14, no. 10: 1048. https://doi.org/10.3390/min14101048

APA Style

Avdontceva, M. S., Zolotarev, A. A., Brazhnikova, A. S., Bocharov, V. N., Vlasenko, N. S., Rassomakhin, M. A., & Krivovichev, S. V. (2024). ‘Rhythmite’, Ca29(SiO4)8Cl26, an Anthropogenic Phase from the Chelyabinsk Coal Basin (Ural, Russia) with a Complex Modular Structure Related to α-Ca3SiO4Cl2 (‘Albovite’): Crystal Structure, Raman Spectra, and Thermal Expansion. Minerals, 14(10), 1048. https://doi.org/10.3390/min14101048

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
