# Application of Logistic Regression and Weights of Evidence Methods for Mapping Volcanic-Type Uranium Prospectivity

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

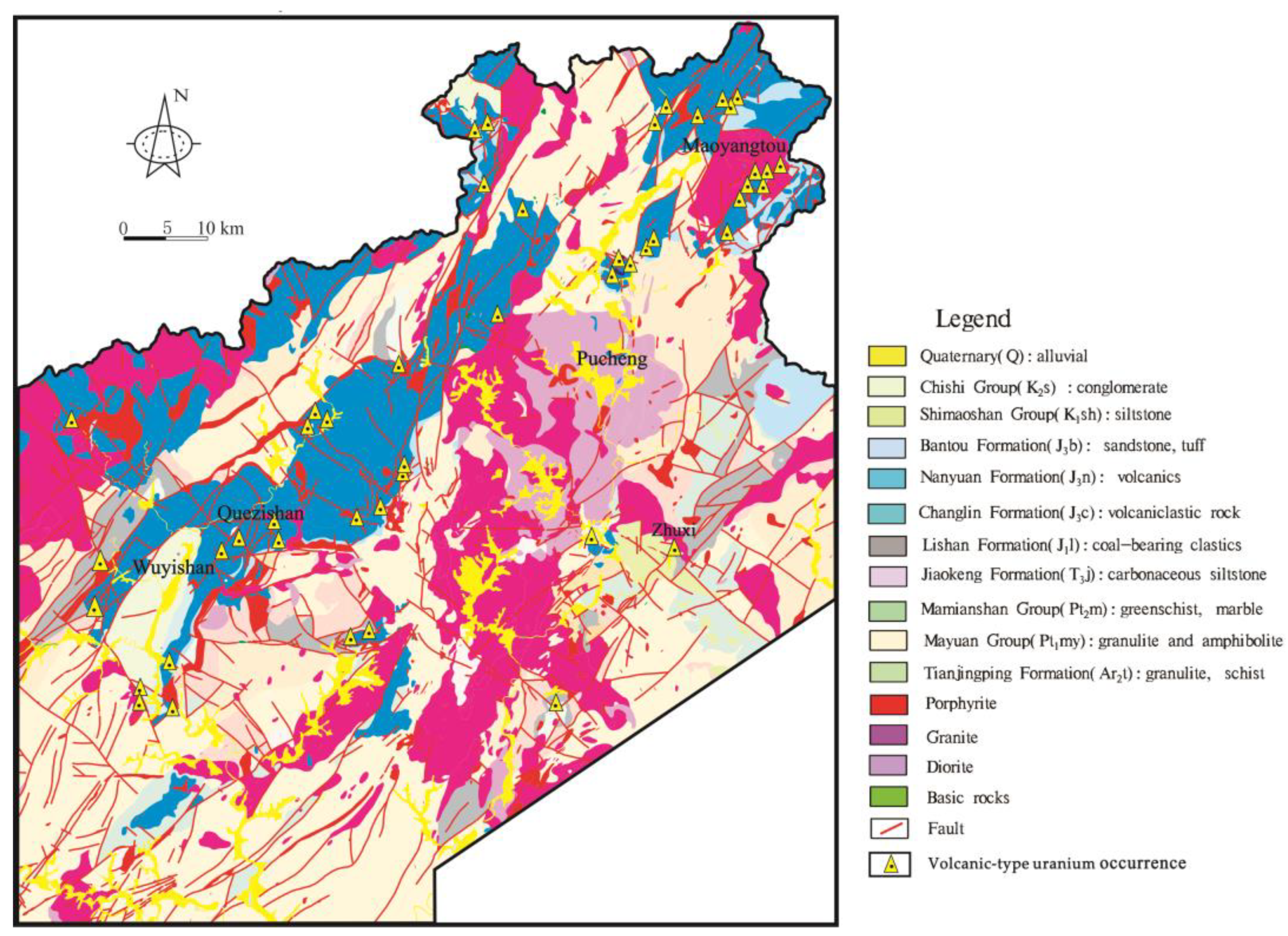

## 2. Geology Setting and Uranium Mineralization

_{2}

^{2+}) can form fluoride, carbonate, hydroxyl, sulfate, chloride, silicate and other complexes. The NE- and NW-striking faults have caused a zone of weakness to control the transportation of uranium [22].

_{2}

^{2+}was mainly reduced into UO

_{2}so as to precipitate. Brittle structures developed in an extensional tectonic setting which provided pathways for fluid flow and spaces for uranium precipitation, commonly in linear fault zones, breccia pipes, fracture zones and fault intersections. At the deposit scale, the local secondary faults actually control the precipitation of individual ore zones. For example, the Maoyangtou deposit is jointly controlled by secondary NW- and NNW-striking fault zones adjacent to the south of the volcanic conduit. In addition, geologic contact surfaces and volcanic structures are also believed to be favorable structures controlling the precipitation of uranium mineralization [21,22,23,24].

## 3. Mineral Prospectivity Mapping Methods

#### 3.1. Weights of Evidence (WofE)

_{prior}): let an area be divided into a number of N(T) cells, of which there are N(D) pixels containing prospect D. The P

_{prior}that a cell selected randomly contains a prospect can be estimated as P

_{prior}defined by N(D)/N(T).

^{+}& W

^{−}): Suppose that in the area, there are N(B) and N($\overline{B}$) cells where spatial evidence B is present and absent, respectively. The weighting coefficients W

^{+}and W

^{−}spatial association of the predictor pattern B with a target mineral deposit D. W

^{+}and W

^{−}can be expressed as:

^{+}reflects that more training points occur, and a positive W

^{−}reflects that fewer training points occur. A weight of zero for either the W

^{+}or W

^{−}coefficient indicates spatially uncorrelated training points. The contrast, C = W

^{+}− W

^{−}represents a measure of spatial association between a set of spatial evidence and a set of prospects. If the spatial association is positive, C > 0, if the spatial association is negative, C < 0, and if the spatial association is lacking, C = 0.

_{post}): weights of evidence in predictor maps are combined with loge prior odds O(D) defined by P(D)/P($\overline{D}$), which are related to the prior probability. The posterior probability is then found by combining weighting coefficients using the odds formulation of Bayes’ rule. For Kth (k = 1, 2, ……, n) layers, estimates of posterior odds are converted to posterior probabilities reflecting degrees of mineral potential, which can be expressed as:

#### 3.2. Logistic Regression (LR)

_{0}+ b

_{1}x

_{1}+ b

_{2}x

_{2}+ b

_{3}x

_{3}+ … + b

_{n}x

_{n}

_{0}is the intercept of the model, b

_{1}~b

_{n}are the partial regression coefficients, and x

_{1}~x

_{n}are the independent variables. Logistic regression makes no assumption about the probability distribution of the independent predictor variables and, being a nonlinear model does not require conditional independence of input predictor maps [26]. The possibility can be calculated as an equation:

^{−Y})

## 4. Evidential Maps

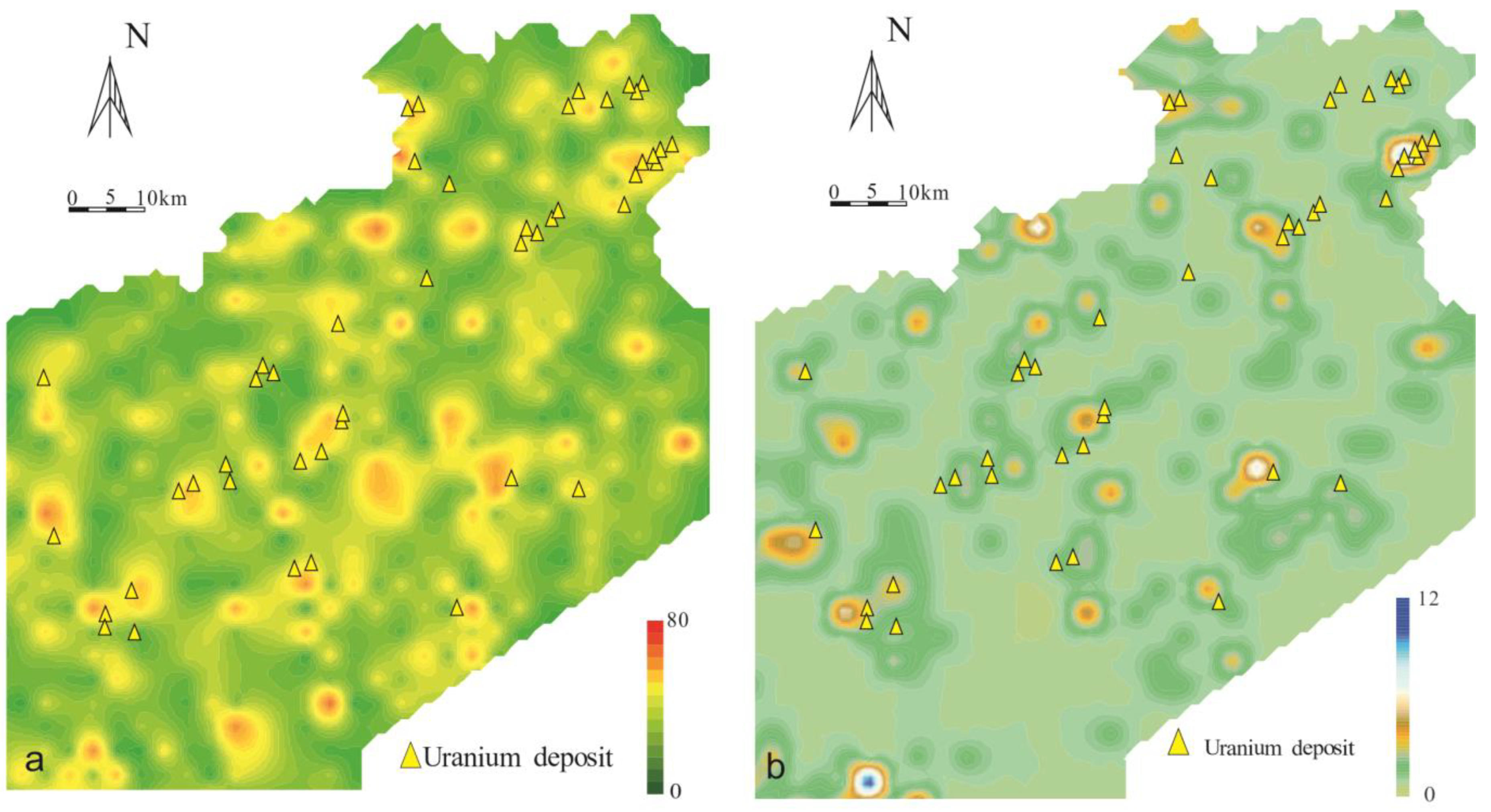

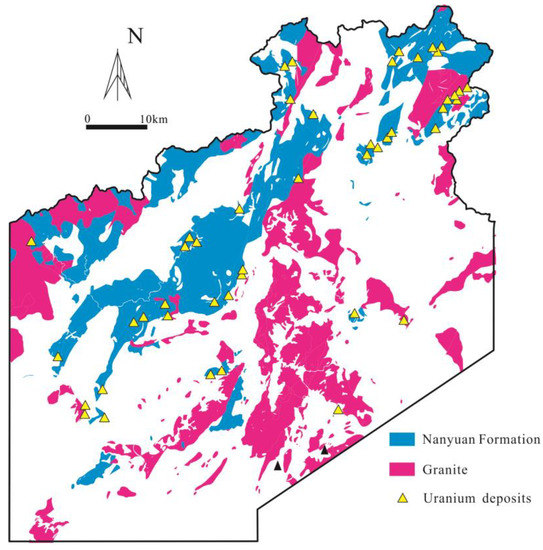

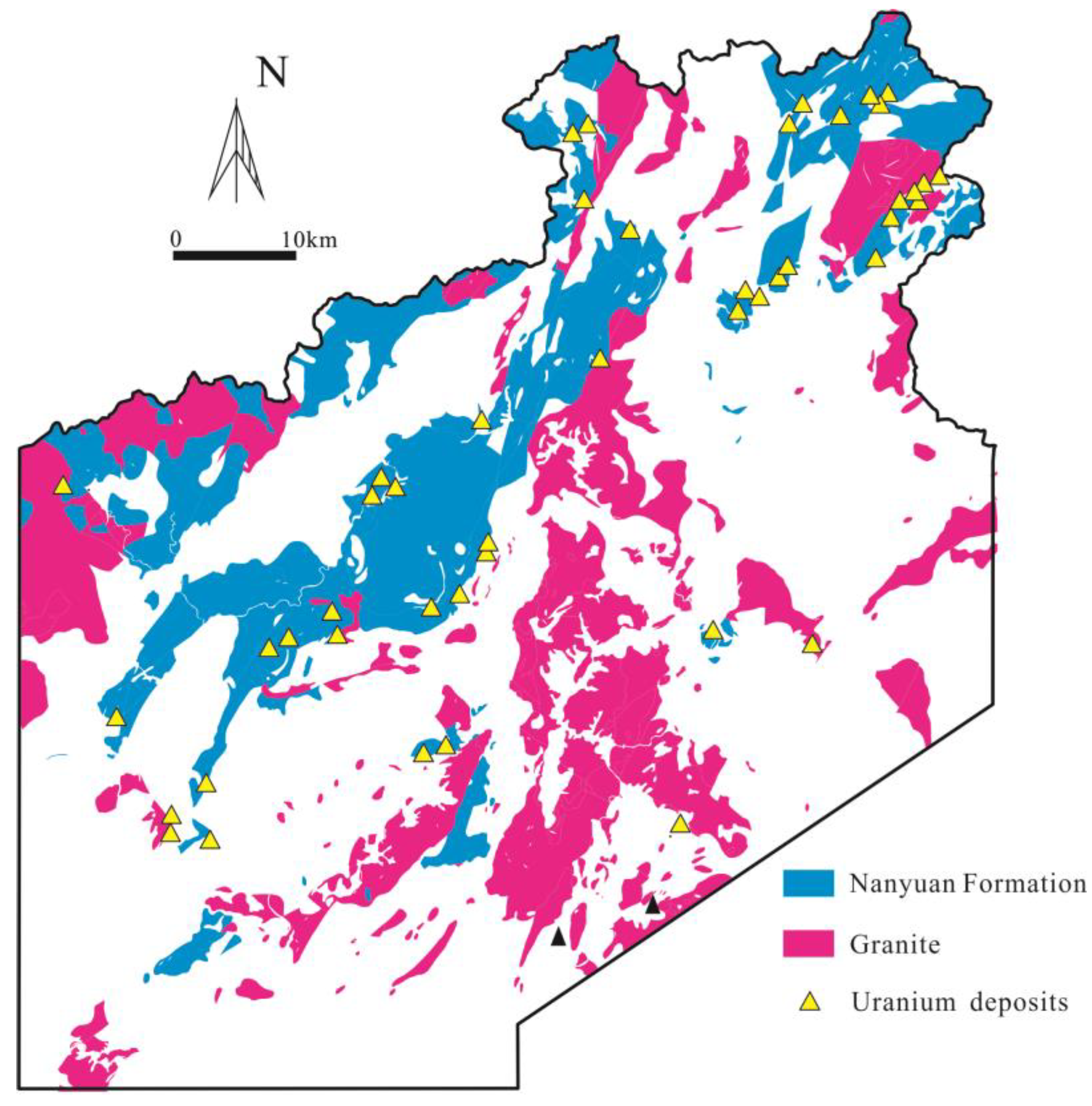

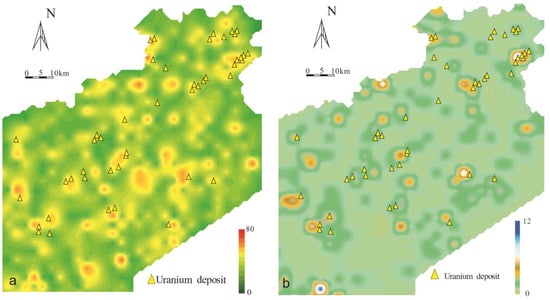

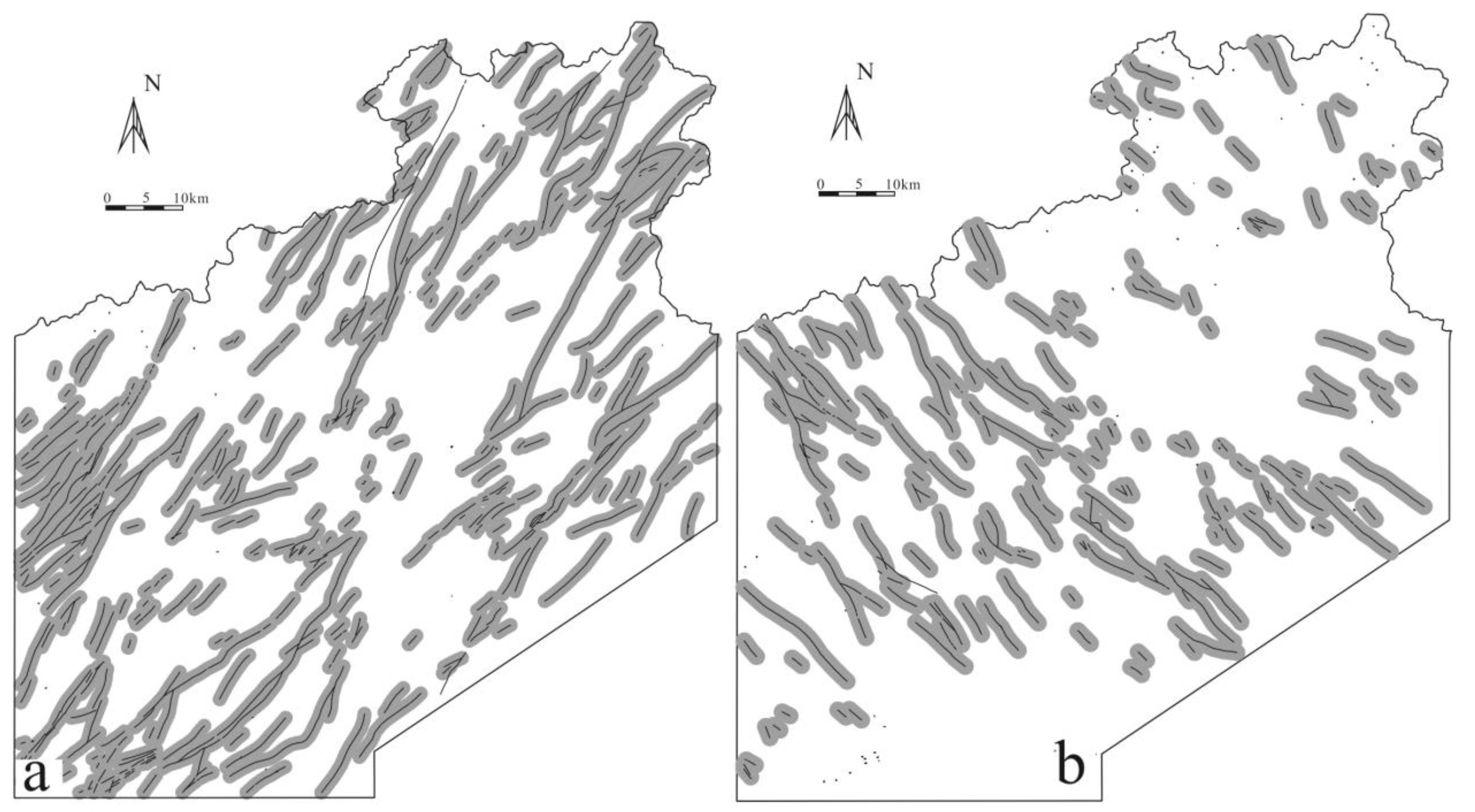

#### 4.1. Geological Controls

#### 4.2. Hydrothermal Alteration

^{2+}and Fe

^{3+}-bearing minerals reflect more strongly and peak in bands 2 and 4. Therefore, it is believed that the selected band set of bands 1, 3, 4 and 6 can extract most hydroxyl-bearing mineral information, while the band set of bands 1, 2, 3 and 4 can extract most iron-oxide-bearing mineral information. Principal component analysis (PCA) is used for mapping of alteration. Table 2 shows the results of PCA for recording iron-oxide-bearing minerals with the mentioned bands. According to the results, PC2′s image shows the presence of iron-oxide-bearing minerals in the area (Figure 6a). In addition, for recording hydroxyl-bearing minerals, PCA comprising bands 1, 3, 4 and 6 have been used. Table 3 shows the results of recording hydroxyl-bearing minerals. According to the results, an image related to PC4 shows the presence of hydroxyl-bearing minerals in the study area (Figure 6b). The results show that the spatial distribution of the altered area is consistent with that of the volcanic rocks and known uranium deposits.

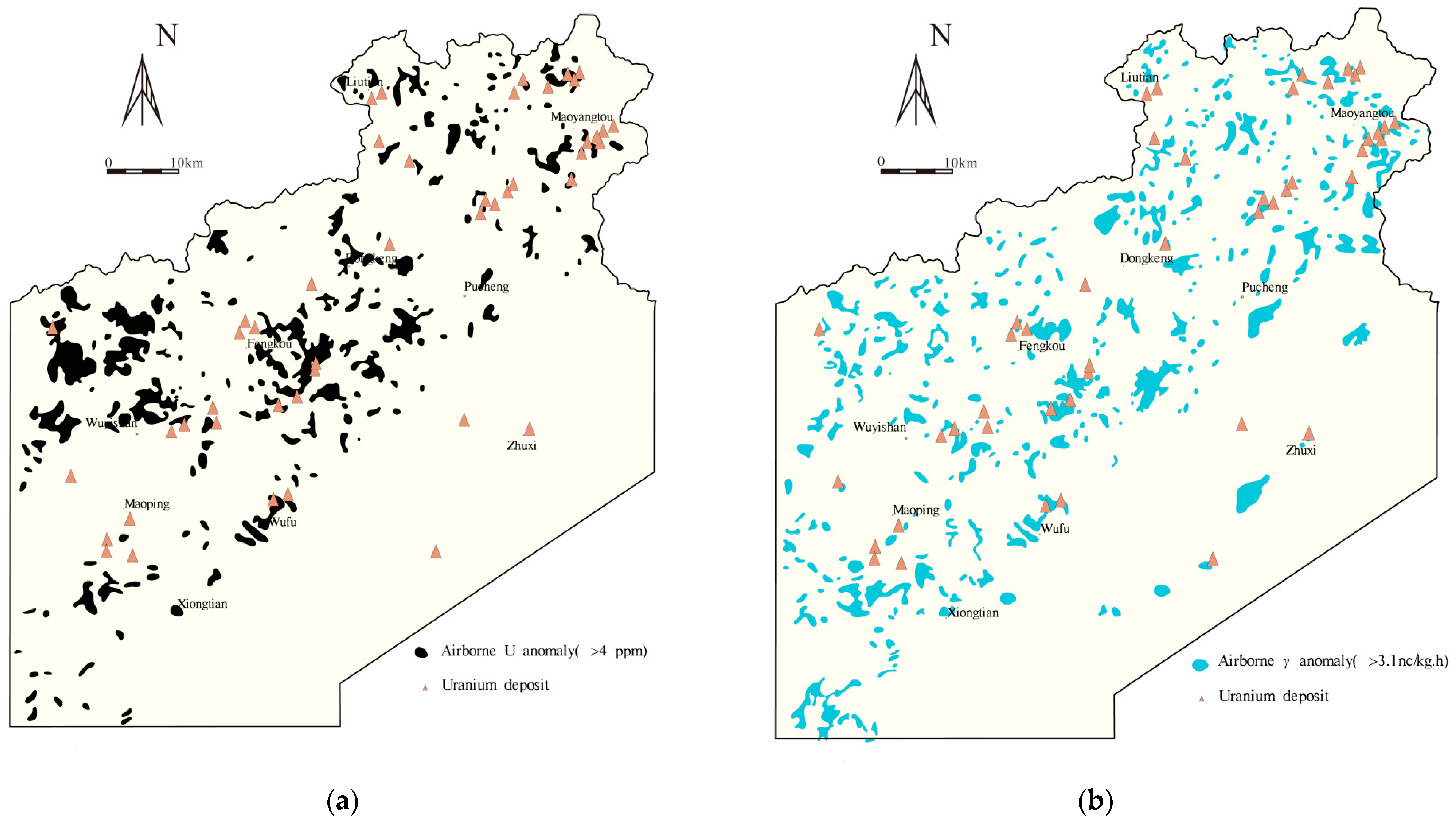

#### 4.3. Airborne Radioactive Anomaly

## 5. GIS-Based Prospectivity Modeling

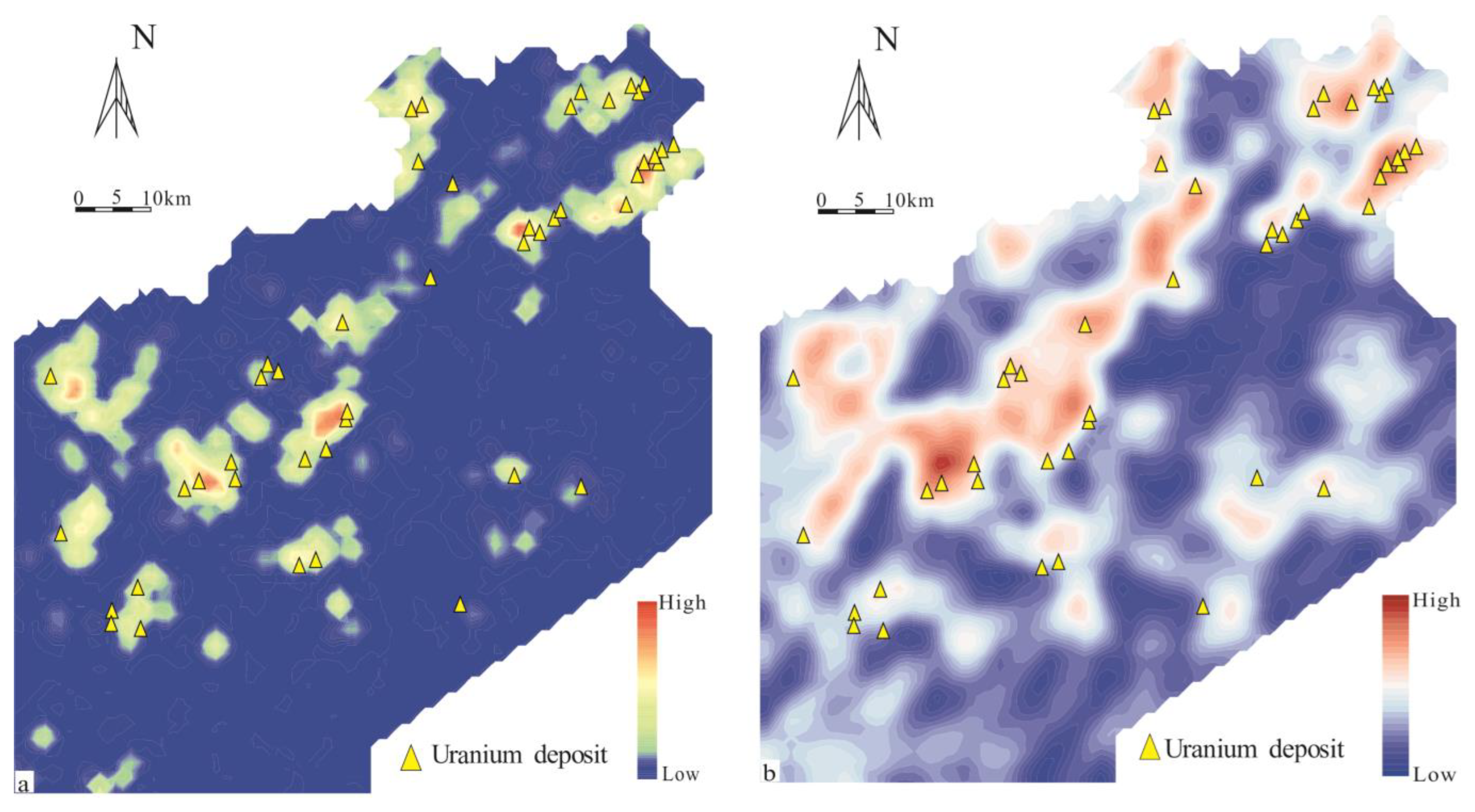

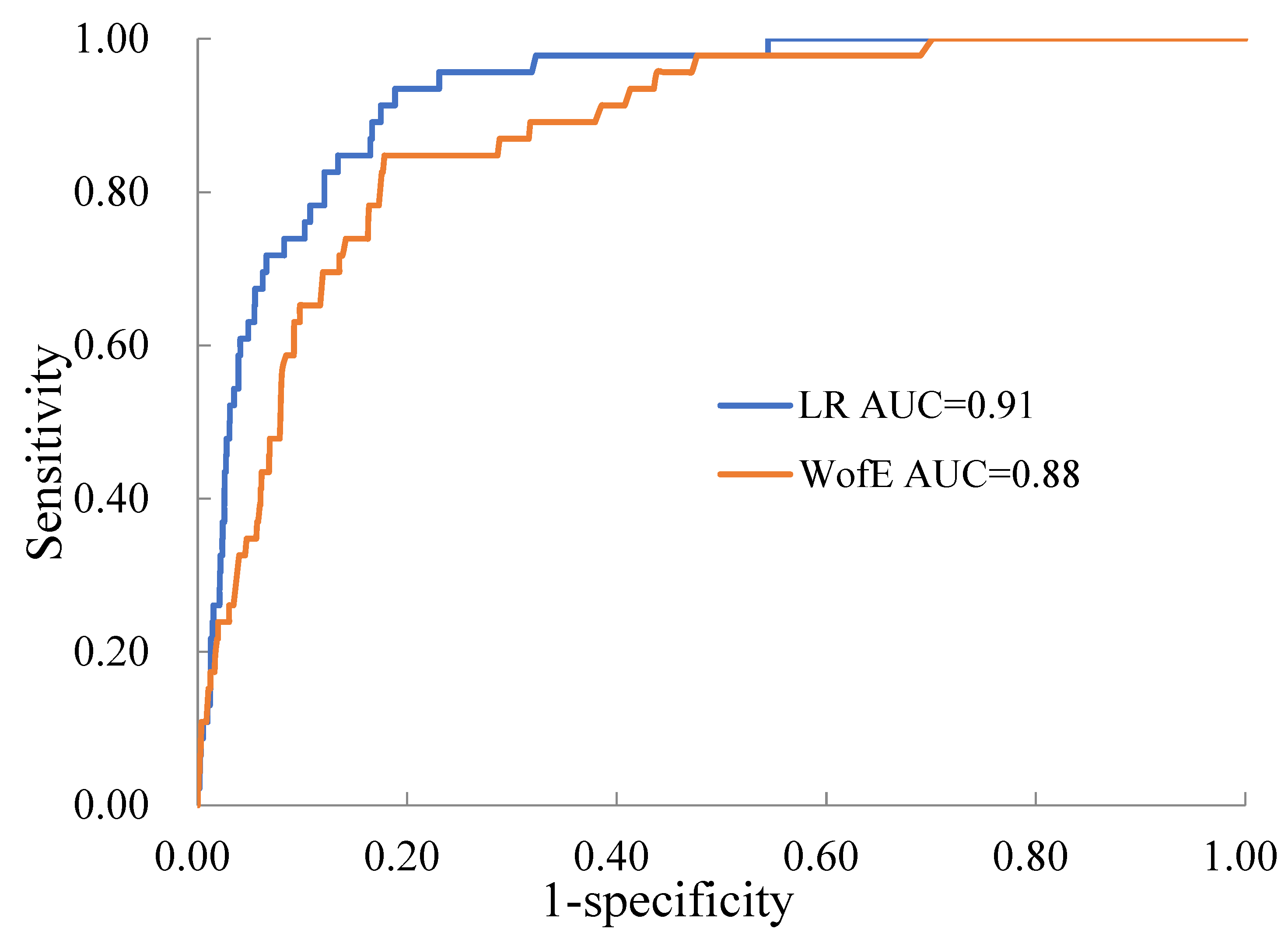

^{2}test and the “omnibus” test have been suggested [32], it is unrealistic to assume independence of evidence layers because of the internal spatial and genetic relationships among different geological features. The posterior probabilities can be interpreted as relative estimations for mineralization [25,33]. Table 4 shows the weighting coefficients and contrast of the WofE model, while Table 5 shows the regression coefficients and the significance level of the independent variables. The outputs of the WofE and LR models were mapped to generate continuous-scale prospectivity maps (Figure 8).

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Wang, D. Research significance of key minerals, determination of mineral types, resource attributes, ore prospecting progress, existing problems and main research directions. J. Geol.
**2019**, 93, 1189–1209. (In Chinese) [Google Scholar] - Castor, S.B.; Henry, C.D. Geology, geochemistry, and origin of volcanic rock-hosted uranium deposits in northwestern Nevada and southeastern Oregon, USA. Ore Geol. Rev.
**2000**, 16, 1–40. [Google Scholar] [CrossRef] - Cuney, M.; Kyser, K. Recent and not-so-recent developments in uranium deposits and implications for exploration. Mineral. Assoc. Can. Short Course Ser.
**2008**, 39, 1–257. [Google Scholar] - Cai, Y.; Zhang, J.; Li, Z.; Guo, Q.; Song, J.; Fan, H.; Liu, W.; Qi, F.; Zhang, M. Summary of characteristics of uranium resources and metallogenic regularities in China. Acta Geol. Sin.
**2015**, 89, 1051–1069, (In Chinese with English Abstract). [Google Scholar] - Guo, F.; Li, Z.; Deng, T.; Qu, M.; Zhou, W. Key factors controlling volcanic-related uranium mineralization in the Xiangshan Basin, Jiangxi Province, South China: A review. Ore Geol. Rev.
**2020**, 122, 103517. [Google Scholar] [CrossRef] - Nash, J. Volcanogenic Uranium Deposits—Geology, Geochemical Processes, and Criteria for Resource Assessment: U.S. Geological Survey Open-File Report 2010–1001; US Geological Survey: Denver, CO, USA, 2010; 99p. [Google Scholar]
- Zhang, L.; Li, X.; Wang, G. Basic characteristics, research progress, and prospects of volcanic rock type uranium deposits. Acta Petrol. Sin.
**2020**, 36, 575–588. (In Chinese) [Google Scholar] - Bonham-Carter, G.F. Geographic Information Systems for Geoscientists: Modeling with GIS, Computer Methods in the Geosciences 13; Pergamon Press: Oxford, UK, 1994; p. 398. [Google Scholar]
- Roshanravan, B. Translating a mineral systems model into continuous and datadriven targeting models: An example from the Dolatabad Chromite District, Southeastern Iran. J. Geochem. Explor.
**2020**, 215, 106556. [Google Scholar] [CrossRef] - Carranza, E.J.M.; Laborte, A.G. Data-driven predictive mapping of gold prospectivity, Baguio district, Philippines: Application of Random Forests algorithm. Ore Geol. Rev.
**2015**, 71, 777–787. [Google Scholar] [CrossRef] - Zuo, R.; Carranza, E.M.J. Support vector machine: A tool for mapping mineral prospectivity. Comput. Geosci.
**2011**, 37, 1967–1975. [Google Scholar] [CrossRef] - Roshanravan, B.; Aghajani, H.; Youseff, M.; Kreuzer, O. An improved prediction area plot for prospectivity analysis of mineral deposits. Nat. Resour. Res.
**2019**, 28, 1089–1105. [Google Scholar] [CrossRef] - Roshanravan, B.; Kreuzer, O.P.; Bruce, M.; Davis, J.; Briggs, M. Modelling gold potential in the Granites-Tanami Orogen, NT, Australia: A comparative study using continuous and data-driven techniques. Ore Geol. Rev.
**2020**, 125, 103661. [Google Scholar] [CrossRef] - Roshanravan, B.; Kreuzer, O.P.; Buckingham, A.; Keykhay-Hosseinpoor, M.; Keys, E. Mineral potential modelling of orogenic gold systems in the granites-tanami Orogen, Northern Territory, Australia: A multi-technique approach. Ore Geol. Rev.
**2023**, 152, 105224. [Google Scholar] [CrossRef] - Harris, J.R.; Grunsky, E.; Behnia, P.; Corrigan, D. Data-and knowledge-driven mineral prospectivity maps for Canada’s North. Ore Geol. Rev.
**2015**, 71, 788–803. [Google Scholar] [CrossRef] - Ford, A.; Miller, J.M.; Mol, A.G. A comparative analysis of weights of evidence, evidential belief functions, and fuzzy logic for mineral potential mapping using incomplete data at the scale of investigation. Nat. Resour. Res.
**2016**, 25, 19–33. [Google Scholar] [CrossRef] - Lisitsin, V.A.; Porwal, A.; Mccuaig, T.C. Probabilistic Fuzzy Logic Modeling: Quantifying Uncertainty of Mineral Prospectivity Models Using Monte Carlo Simulations. Math. Geosci.
**2014**, 46, 747–769. [Google Scholar] [CrossRef] - Carranza, E.J.M. Weights of Evidence Modeling of Mineral Potential: A Case Study Using Small Number of Prospects, Abra, Philippines. Nat. Resour. Res.
**2004**, 13, 173–187. [Google Scholar] [CrossRef] - Wan, Y.; Liu, D.; Wilde, S. Evolution of the Yunkai Terrane, South China: Evidence from SHRIMP zircon U–Pb dating, geochemistry and Nd isotope. J. Asian Earth Sci.
**2010**, 37, 140–153. [Google Scholar] [CrossRef] - Zhou, M. Geological characteristics and prospecting prospects of the Maoyangtou uranium deposit in Pucheng, Fujian. Fujian Geol.
**2010**, 29, 8–16. (In Chinese) [Google Scholar] - Nie, G.; Yin, L.; Wang, X.; Liu, L. Formation Conditions and Tectonic Environment of Mesozoic Uranium and Polymetallic Deposits in Pucheng, Fujian Province. J. East China Univ. Technol.
**1994**, 2, 106–116. (In Chinese) [Google Scholar] - Lu, W.; Wang, Y. Isotope geochemistry of 570 uranium deposit, Fujian. J. Chengdu Univ. Technol.
**1990**, 17, 85–93. (In Chinese) [Google Scholar] - Chen, D. Ore-controlling factors and genesis of Maoyangtou volcanic U. (Ag, Mo) deposit. Miner. Depos.
**1997**, 16, 44–55. (In Chinese) [Google Scholar] - Zhao, J.; Chen, S.; Zuo, R.; Zhou, M. Controls on and prospectivity mapping of volcanic-type uranium mineralization in the Pucheng district, NW Fujian, China. Ore Geol. Rev.
**2019**, 112, 103028. [Google Scholar] [CrossRef] - Porwal, A.; IGonzález-Álvarez Markwitz, V.; Mccuaig, T.C.; Mamuse, A. Weights-of-evidence and logistic regression modeling of magmatic nickel sulfide prospectivity in the Yilgarn craton, western Australia. Ore Geol. Rev.
**2010**, 38, 184–196. [Google Scholar] [CrossRef] - Yilmaz, I. Landslide susceptibility mapping using frequency ratio, logistic regression, artificial neural networks and their comparison: A case study from Kat landslides (Tokat—Turkey). Comput. Geosci.
**2009**, 35, 1125–1138. [Google Scholar] [CrossRef] - Rowan, S.; Hook, M.; Abrams Mars, J. Mapping hydrothermally altered rocks at Cuprite, Nevada using the Advanced Spaceborne Thermal Emissivity and Reflection Radiometer ASTER. A New Satell. Imaging Syst. Econ. Geol.
**2003**, 98, 1019–1027. [Google Scholar] - Porwal, A.; Das, R.D.; Chaudhary, B.; Gonzalez-Alvarez, I.; Kreuzer, O. Fuzzy inference systems for prospectivity modeling of mineral systems and a case-study for prospectivity mapping of surficial Uranium in Yeelirrie Area, Western Australia. Ore Geol. Rev.
**2015**, 71, 839–852. [Google Scholar] [CrossRef] - IAEA. Descriptive Uranium Deposit and Mineral System Models; Non-Serial Publications: Vienna, Austria, 2020; p. 313. [Google Scholar]
- McCuaig, T.C.; Beresford, S.; Hronsky, J. Translating the mineral systems approach into an effective exploration targeting system. Ore Geol. Rev.
**2010**, 38, 128–138. [Google Scholar] [CrossRef] - Hengl, T. Finding the right pixel size. Comput. Geosci.
**2006**, 32, 1283–1298. [Google Scholar] [CrossRef] - Agterberg, F.P. Combining indicator patterns in weights of evidence modeling for resource evaluation. Nonrenew. Resour.
**1992**, 1, 39–50. [Google Scholar] [CrossRef] - Wang, C.; Rao, J.; Chen, J.; Ouyang, Y.; Qi, S.; Li, Q. Prospectivity mapping for “Zhuxi-type” copper-tungsten polymetallic deposits in the Jingdezhen region of Jiangxi province, South China. Ore Geol. Rev.
**2017**, 89, 1–14. [Google Scholar] [CrossRef]

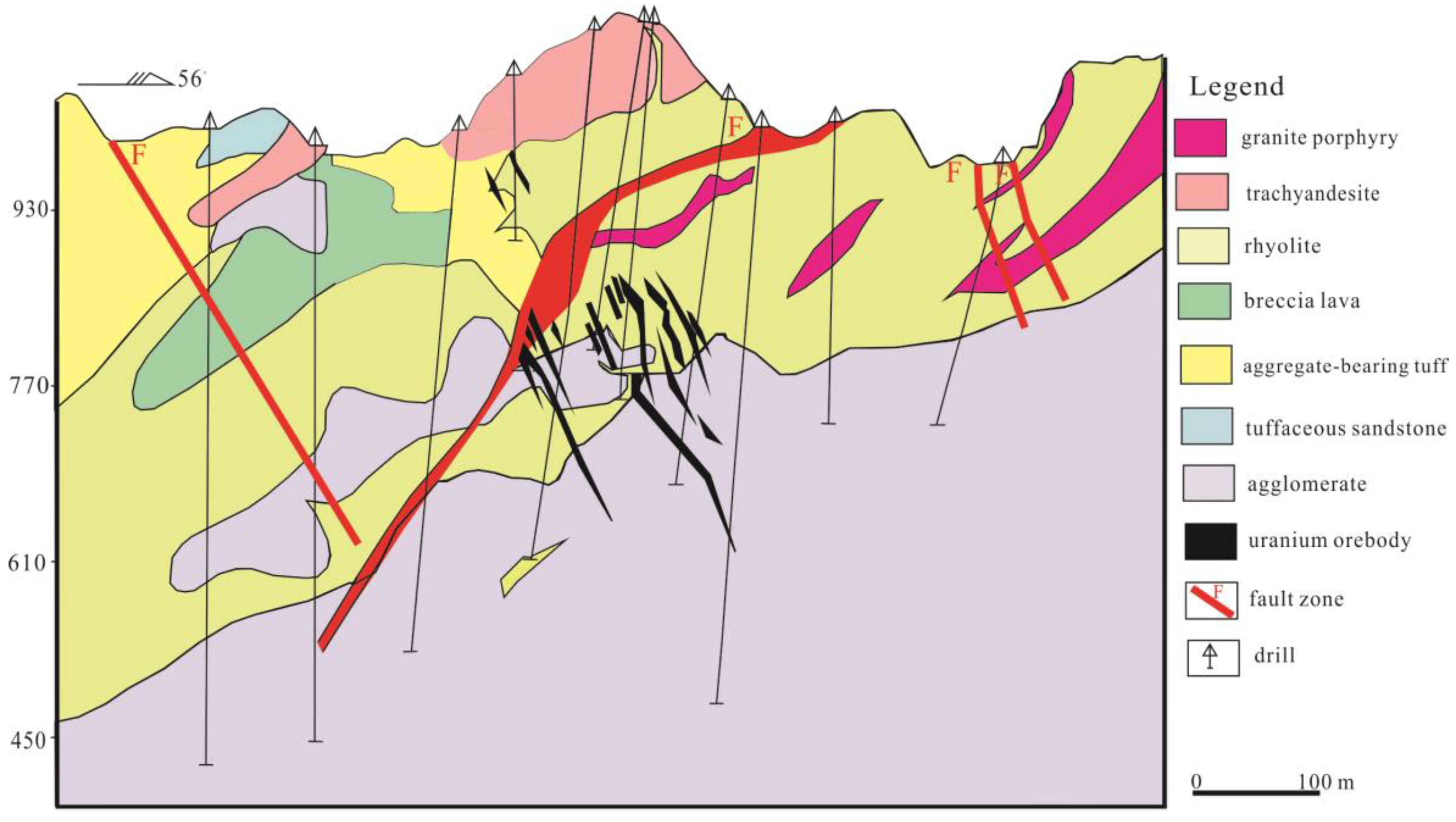

**Figure 2.**Sectional view of the Maoyangtou deposit [20].

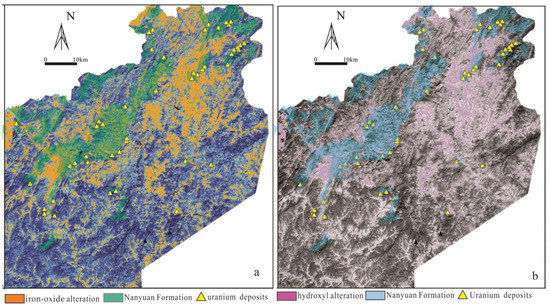

**Figure 6.**Alteration anomaly map of (

**a**) iron-oxide-bearing minerals and (

**b**) hydroxyl-bearing minerals.

Lithostratigraphic Unit (Code) | Lithological Description | Thickness (m) | |
---|---|---|---|

Quaternary (Q) | Eluvium, Deluvium, Alluvium. | 0~20 | |

Akaishi Group (K_{2}ch) | Gray-purple thick-layer conglomerate. | 313~2015 | |

Shaxian Formation (K_{2}s) | Purple-red thick-layer siltstone interbedded with tuffaceous sandstone. | 144~1160 | |

Shimaoshan Group (K_{1}sh) | The second member: tuff, tuffaceous sandstone interbedded with basalt. The first member: red thick-layer conglomerate. | 182~1265 | |

Bantou Formation (J_{3}b) | The second member: tuff, tuff lava, rhyolite interbedded with tuffaceous and siltstone; the first member: gray feldspar quartz sandstone, shale, conglomerate, tuffaceous sandstone. | 336~1774 | |

Nanyuan Formation (J_{3}n) | The third member: porphyroclastic lava, rhyolite; the second member: tuff, tuff lava, rhyolite interbedded with tuff and tuffaceous sandstone; The first member: siltstone, tuffaceous sandstone. | >5576 | |

Changlin Formation (J_{3}c) | Tuff and tuffaceous sandstone. | 644~1774 | |

Lishan Formation (J_{1}l) | Grey medium coarse grain siltstones, interbedded with sandstone. | 33~1524 | |

Jiaokeng Formation (T_{3}j) | Carbonaceous siltstone, coal seam; feldspar quartz sandstone. | 58~508 | |

Mamianshan Group | Longbeixi Formation (Pt_{2}l) | Marble, schist and granulite. | >2117 |

Dongyan Formation (Pt_{2}dn) | Green schist, plagioclasite amphibolite interbedded with marble lens. | >2760 | |

Mayuan Group | Nanshan Formation (Pt1n) | Granulite interbedded with schist, plagioclase amphibolite. | 1681~3498 |

Dajinshan Formation (Pt_{1}d) | Crystalline graphite-bearing granulite and schist interbedded with amphibolite, occasionally marble lens. | >3300 | |

Tianjingping Formation (Ar_{2}t) | Biotite plagioclase granulite interbedded with amphibolite schist. | >732 |

Band 1 | Band 2 | Band 3 | Band 4 | |
---|---|---|---|---|

PC1 | 0.34 | 0.38 | 0.68 | 0.52 |

PC2 | 0.41 | 0.62 | −0.65 | 0.14 |

PC3 | −0.33 | −0.30 | −0.31 | 0.84 |

PC4 | 0.78 | −0.62 | −0.08 | 0.06 |

Band 1 | Band 3 | Band 4 | Band 6 | |
---|---|---|---|---|

PC1 | −0.32 | −0.71 | −0.53 | −0.34 |

PC2 | −0.46 | 0.68 | −0.34 | −0.46 |

PC3 | 0.81 | 0.13 | −0.51 | −0.24 |

PC4 | 0.16 | 0.13 | 0.58 | −0.79 |

Targeting Criteria | Evidence Layer | W^{+} | W^{−} | C |
---|---|---|---|---|

Sources | F1: uranium-rich Nanyuan Formation | 1.24 | −1.92 | 3.16 |

F2: uranium-rich granite | 0.11 | −0.13 | 0.24 | |

Pathways | F3: NE-striking faults | 0.42 | −1.53 | 1.95 |

F4: NW-striking faults | 0.72 | −0.91 | 1.63 | |

Traps | F5: Linear structures intersection | 2.13 | −0.08 | 2.23 |

F6: Linear structures density | 0.66 | −0.56 | 1.22 | |

Deposition and preservation | F7: Airborne radioactive gamma | 0.92 | −0.66 | 1.58 |

F8: Airborne radioactive U | 0.62 | −0.22 | 0.84 | |

F9: Iron-stained alteration | 1.35 | −0.21 | 1.56 | |

F10: Hydroxyl alteration | 0.93 | −0.12 | 1.05 |

Variable | b | Standard Deviation | Wald’s Statistics | Significance Level |
---|---|---|---|---|

Nanyuan Formation | 2.401 | 0.428 | 31.414 | 0.000 |

Granite | 0.502 | 0.734 | 0.467 | 0.495 |

Radioactive U | 1.287 | 0.666 | 3.731 | 0.053 |

Radioactive gamma | 1.914 | 0.552 | 12.049 | 0.001 |

Iron alteration | 0.861 | 0.59 | 2.131 | 0.144 |

Hydroxyl alteration | −1.251 | 0.671 | 3.477 | 0.062 |

Structures density | 0.865 | 0.332 | 6.807 | 0.009 |

Structures intersection | 0.564 | 0.377 | 2.238 | 0.135 |

NE-striking fault | 2.004 | 0.45 | 19.795 | 0.002 |

NW-striking fault | 1.746 | 0.363 | 23.169 | 0.010 |

Constant | −8.49 | 0.548 | 239.803 | 0.350 |
