The Prospect of Recovering Vanadium, Nickel, and Molybdenum from Stone Coal by Using Combined Beneficiation and Metallurgy Technology Based on Mineralogy Features

Abstract

Black shale ore contains rich strategic metal resources such as vanadium, nickel, and molybdenum, but due to its complex composition, it is currently only used in the vanadium extraction industry. Metals such as nickel and molybdenum have not been effectively recovered, resulting in environmental pollution and resource waste. Using mineralogical features and a combination of beneficiation and metallurgy-based tests, the present work carried out feasibility studies of the combined beneficiation and metallurgy processes. The mineralogical features of the stone coal sample were studied using chemical analysis, an automatic mineral analyzer (BPMA), etc., and we identified the main phase composition, embedded characteristics, and particle size distribution of the associated strategic metals, vanadium, nickel, and molybdenum. The results showed that the grade of V₂O₅ in the stone coal was 1.29%, which was mainly present in carbonaceous clay and mica minerals. The nickel grade was 0.53%, mainly in the form of nickel–magnesium spinel and a small amount of nickel-containing magnesite. The stone coal contained 0.11% molybdenum; the mineral particles were fine, mostly in the form of molybdenite, and some were associated with carbonaceous matter and carbonaceous clay minerals. Based on the mineralogical feature, we proposed using the scrubbing–desliming and flotation process to enrich vanadium, nickel, and molybdenum. Our preliminary experiments obtained two products: vanadium–molybdenum-rich sludge and nickel-containing tailings. The V₂O₅ and molybdenum grades in the sludge were 4.10% and 0.44%, respectively, and the recovery was 41.31% and 51.40%, respectively. The nickel grade in the tailings was 1.49%. These products were roasted and leached. The vanadium, nickel, and molybdenum in the stone coal were effectively recovered through the beneficiation–metallurgy combination process, and the comprehensive utilization rate of the stone coal was improved.

1. Introduction

Vanadium (V), nickel (Ni), and molybdenum (Mo) are all important strategic metal resources and are widely used in steel, electronics, aerospace, the military, industry, and so on [1,2,3]. Key metals in black shale have received growing attention as global ore grades have continued to decline [4,5]. Stone coal is a vanadium-bearing shale (total organic carbon content > 10%) and a polymetallic symbiotic ore. More than 60 associated elements have been found in stone coal and, usually, the V content is the highest, followed by Mo, Ni, U, P, etc. [6]. China has a total of 61.88 billion tons of stone coal reserves, out of which there are 118 million tons of V₂O₅ reserves, which is the main raw materials used for vanadium production, apart from vanadium titanomagnetite [7]. China started researching methods of extracting vanadium from stone coal in the 1970s, and over time, a series of achievements were made regarding the research and development of metallurgical vanadium extraction processes and mechanisms [8,9]. However, the contents of the associated nickel and molybdenum found in stone coal are generally low and difficult to recover. At present, there are few studies on the recovery of nickel and molybdenum from stone coal.

The occurrence states of vanadium, nickel, and molybdenum in stone coal in different regions are complex and diverse, and the combined beneficiation and smelting processes used to extract them also vary. According to the literature, vanadium in stone coal mainly exists in the form of V³⁺ in minerals such as muscovite (KAl₂[AlSi₃AlO₁₀](OH,F)₂) and kaolinite (Al₂Si₂O₅(OH)₄), and it replaces Al³⁺, Fe³⁺, etc., which exist in the four 4-coordinate silicon–oxygen tetrahedron “multiple network layer” and the six-coordinate aluminum–oxygen octahedron “single network layer” [10,11]. A small amount of V, including V(IV) and V(V), adsorbs on the surface of organic matter, iron oxide, or clay minerals, or exists in the form of independent minerals such as calcium vanadium garnet (Ca₃V₂[SiO₄]₃) and vanadium uranite [10,12]. Nickel and molybdenum in stone coal mostly exist as sulfides. Mineralogical feature studies have shown that nickel-bearing minerals include vaesite (Ni₂S), polydymite (Ni₃S₄), gersdorffite (NiAsS), millerite (NiS), and pyrite containing nickel ((FeNi)₉S₈) (colloidal pyrite). Molybdenum-bearing minerals include molybdenite and carbonaceous-sulfide–sulfur–molybdenum aggregates [13,14]. Due to the different occurrence states of vanadium and the mineral composition characteristics of stone coal in various regions, there have been many studies on the combined beneficiation–metallurgy process. For high-carbon stone coal, Wang et al. [15] adopted a combined flotation–decarburization–flotation vanadium-leaching process. The V₂O₅ grade was increased from 0.92% to 1.32% with a recovery of 88.38%, and the leaching efficiency of the vanadium concentrate was 85%. Carbon concentrate obtained with flotation can be used as fuel, and the leaching amount and production costs can be reduced by using this process. For calcareous stone coal, Liu [16] adopted a combined roasting–decarburization–desliming–flotation–leaching process to obtain V₂O₅ concentrate with a grade of 1.07% and a recovery of 83.30%. In total, 62.52% of the CaO was removed, and the leaching efficiency of the vanadium concentrate increased by 13.53% compared with the direct leaching of raw ore. The combined beneficiation and metallurgy process can effectively reduce the ore-processing volume and acid consumption of vanadium extraction from stone coal. For siliceous stone coal, Gu et al. [17] enriched vanadium-bearing mica and clay-mineral-absorbing vanadium using a preferential decarburization–desliming–flotation process. After a locked-circuit process of separation and smelting, the V₂O₅ grade of the mixed vanadium concentrate was 2.04% and the recovery was 83.41%. The process eliminated 64.87% of gangue minerals. In addition to vanadium recovery, some researchers have studied the comprehensive recovery of nickel, molybdenum, and other associated elements from stone coal. Liu et al. [18] proposed a new technology using flotation–roasting–alkali-leaching. Using flotation to extract molybdenum, the molybdenum concentrate grade was increased from 0.036% in the head ore to 0.112%, and the recovery was 81.3%. The molybdenum extraction tailings were treated by the calcium-roasting–alkali leaching process, and the vanadium leaching efficiency reached over 80% with the overall recovery of 78.2%. This process has proceeded to the stage of a small-scale application. At present, stone coal is still mainly used to extract vanadium, and the recovery of nickel and molybdenum is less frequently studied. Research on the occurrence states of nickel and molybdenum in stone coal is not comprehensive, and it is still difficult to effectively guide the separation and extraction of nickel and molybdenum from stone coal. A mineralogical feature study of nickel and molybdenum in stone coal may provide a foundation for the efficient utilization of nickel and molybdenum resources.

Determining the beneficiation–metallurgy process is mainly performed by finding the mineral composition of ore samples and the occurrence states of the target minerals. The key to the comprehensive utilization of vanadium, nickel, and molybdenum resources in stone coal is to systematically study the occurrence states of these three metals in the stone coal. By analyzing the chemical and mineral composition, physical properties, dissemination characteristics, and grain size distribution of the ore, one can obtain basic information to support the feasibility study of beneficiation and metallurgy processes [19]. Comprehensively recovering vanadium and the strategic metals nickel and molybdenum from stone coal not only reduces metal resources waste, but also brings certain economic benefits, and it reduces the risk of nickel and molybdenum polluting the environment.

In the present work, a systematic mineralogical feature study on stone coal from Shaanxi Province was carried out. The mineral types, occurrence states, and distribution characteristics of vanadium, nickel, and molybdenum were identified. Based on the study, we propose to use the scrubbing–desliming and flotation process to pre-enrich vanadium, nickel, and molybdenum.

2. Materials and Methods

2.1. Raw Ore and Reagents

The stone coal used in this study came from Shaanxi Province. The raw ore was crushed to ~2 mm with a jaw crusher and a double-roller crusher and then mixed. Analysis showed that the organic carbon content in the sample was 6.13%, V₂O₅ was 1.29%, Mo was 0.11%, and Ni was 0.53%. In the flotation process, water glass was used as a dispersant; terpineol was used as a foaming agent; kerosene, butyl xanthate, butylammonium dithiophosphate, and 3030C (cationic surfactant) were used as collectors; sulfuric acid was used as a pH regulator; sulfuric acid was used as an acid-leaching agent; calcium fluoride was used as a leaching aid.

2.2. Mineralogy Study

A chemical analysis of V, Ni, Mo, and other elements in the raw ore was carried out using acid digestion—ICP-OES (Agliet 725, Agilent Technologies Inc., Santa Clara, CA, USA) [20], and we obtained the distribution of vanadium, nickel, and molybdenum in the raw ore and its fractions. The main components of the raw ore were identified by X-ray fluorescence (XRF, PANalytical Axios, Almelo, Holland) semi-quantitative analysis. X-ray diffraction (XRD) analysis was conducted using a D/Max-IIIA X-ray diffractometer (Malvern Panalytical, Shanghai, China) with Cu Kα radiation at 40 kV and 30 mA with a scanning rate of 15 (°)/min from 5° to 70°.

We used the BGRIMM Process Mineralogy Analyzer (BPMA, BGRIMM Technology Group, Beijing, China) which consists of a TESCAN VEGA scanning electron microscope, a Bruker QUANTAX 200 dual-probe spectrometer, and automatic analysis software for processing mineralogy (BMPA V2.0) [21]. The stone coal inlay sample was prepared by mixing the ore, epoxy resin, and heated carnauba wax in a mold and then consolidating the particle specimen into blocks through slow hardening of the epoxy resin, followed by grinding and polishing. The sample analysis method was: scanning electron microscope high-vacuum mode, backscattered electron (BSE) probe, acceleration voltage (HV) 20 kV, and working distance (WD) 15.4 mm. The basic principle of the BPMA is to use the system to control the scanning electron microscope to obtain a backscattered electron image that can reflect the different characteristics of the mineral chemical components and combine with the X-ray energy spectrometer data to identify the minerals. This is a rapid and quantitative test of mineral composition and content, particle size, dissociation degree, and other mineralogical parameters in stone coal [22]. Analyses of C were conducted with a high-frequency infrared absorption spectrometer (CS-3000G, NCS Testing Technology Co., Ltd., Beijing, China).

2.3. Recovery Method of Vanadium, Nickel, and Molybdenum

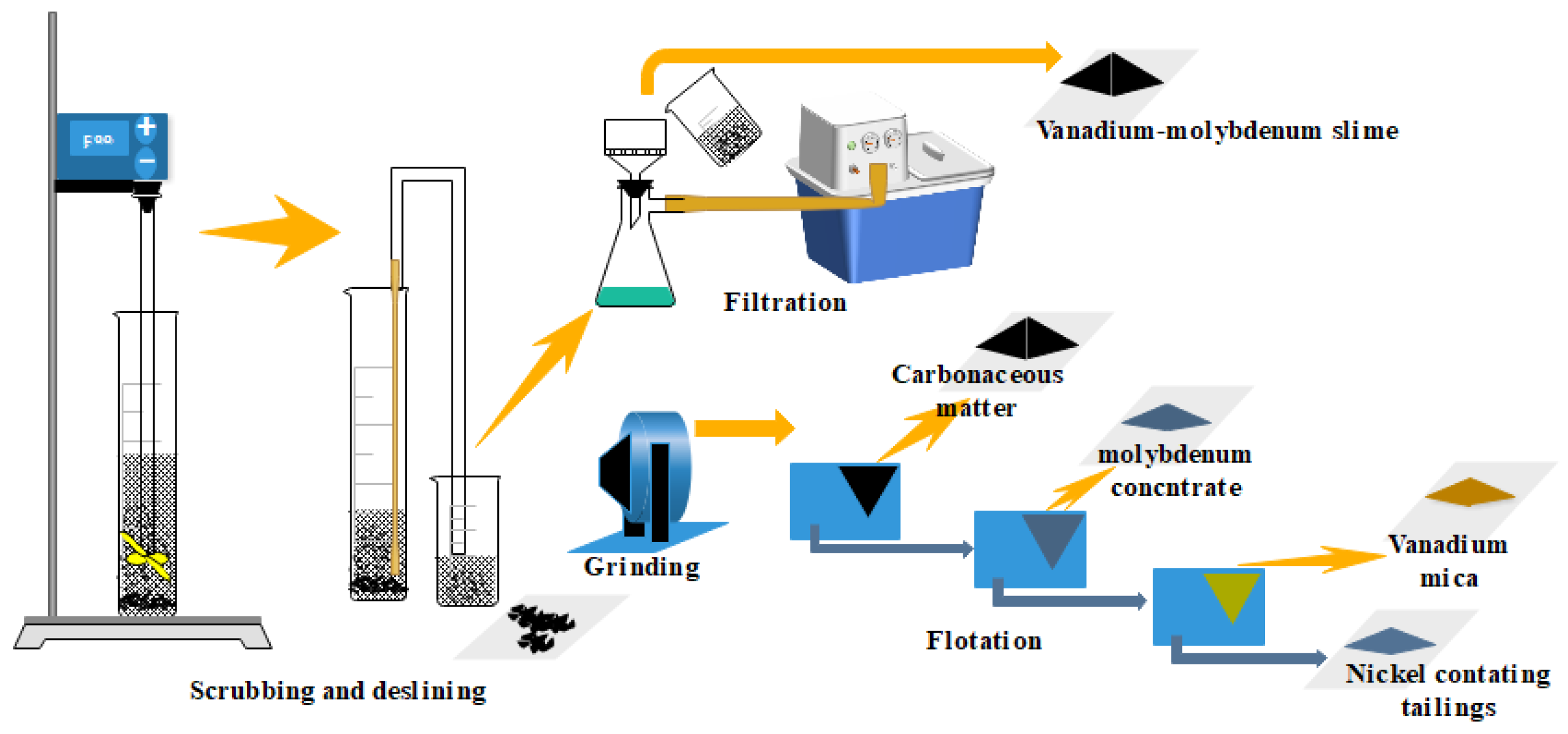

(1) Beneficiation experiments

During the scrubbing and desliming test, the slurry concentration was 33%, sodium silicate was 2 kg/t, and the stirring speed was 500 rpm. After stirring for 20 min, water was added to adjust the slurry concentration to 20%. After another 5 min, stirring was stopped, and the slurry was allowed to settle for 5 min. The sludge was filtered and dried to obtain vanadium and molybdenum concentrates. The scrubbed tailings were ground to a fineness of 85%—74 µm, then added with kerosene (300 g/t) and terpenic oil (300 g/t) for decarburization. Next, butyl xanthate (60 g/t), butylammonium dithiophosphate (60 g/t), and terpenic oil (150 g/t) were added for molybdenite flotation. Based on the pH conditions of quartz and mica flotation separation, we added sulfuric acid to adjust the pH of the pulp to 3–4. 3030C (350 g/t) was used to float mica to obtain vanadium mica concentrate. In this study, beneficiation experiments were carried out three times. Average values of the results are reported here. The experimental flow chart is shown in Figure 1.

(2) Metallurgy experiments

The vanadium–molybdenum slime, carbonaceous matter, and molybdenum concentrate were roasted and decarburized at 650 °C for 2 h, and then leached with 1.84 mol/L of sulfuric acid for 10 h at a liquid–solid ratio of 4:1. The vanadium-containing mica concentrate and nickel-containing tailings were directly leached under the same condition as the roasted slag above. In this study, leaching experiments were carried out three times, and the average value of the leaching efficiency is presented here.

3. Results and Discussion

3.1. Mineralogy Study

3.1.1. X-ray Fluorescence Semi-Quantitative Analysis and Chemical Analysis

The results are shown in

Table 1. X-ray fluorescence semi-quantitative analysis results.

Element	Content/%	Element	Content/%	Element	Content/%
SiO2	56.72	CaO	2.62	ZnO	0.14
SO3	18.02	Fe2O3	2.36	MnO	0.03
V2O5	1.16	K2O	2.07	CuO	0.03
MoO3	0.09	P2O5	0.7	Cl	0.02
NiO	0.52	BaO	0.43	As2O3	0.02
Na2O	5.09	Cr2O3	0.41	Co3O4	0.01
MgO	5.08	ZrO2	0.25	PbO	0.01
Al2O3	4.05	TiO2	0.15	SeO2	0.01

and

Table 2. Chemical multielement analysis.

Element	Content/%	Element	Content/%	Element	Content/%
V	0.72	K	1.53	Ti	0.05
Mo	0.11	Fe	1.16	Cu	0.018
Ni	0.53	Ca	0.7	Mn	0.014
S	4.89	Si	24.04	Sn	0.013
Mg	4.68	Ba	0.36	As	0.0097
Na	3.41	P	0.28	C	7.02
Al	1.71	Cr	0.20

.

According to the results in Table 1 and Table 2, the main chemical elements in the sample were Si, S, C, Na, Mg, Al, etc., and the content of SiO₂ in the raw ore was relatively high, followed by Mg and Na. The contents of the valuable elements V, Ni, and Mo were 0.72%, 0.53%, and 0.11%, respectively, all of which reached or exceeded the mining grade, and the comprehensive recovery value was high. The grade of V₂O₅ was 1.29% in the stone coal.

3.1.2. XRD Results

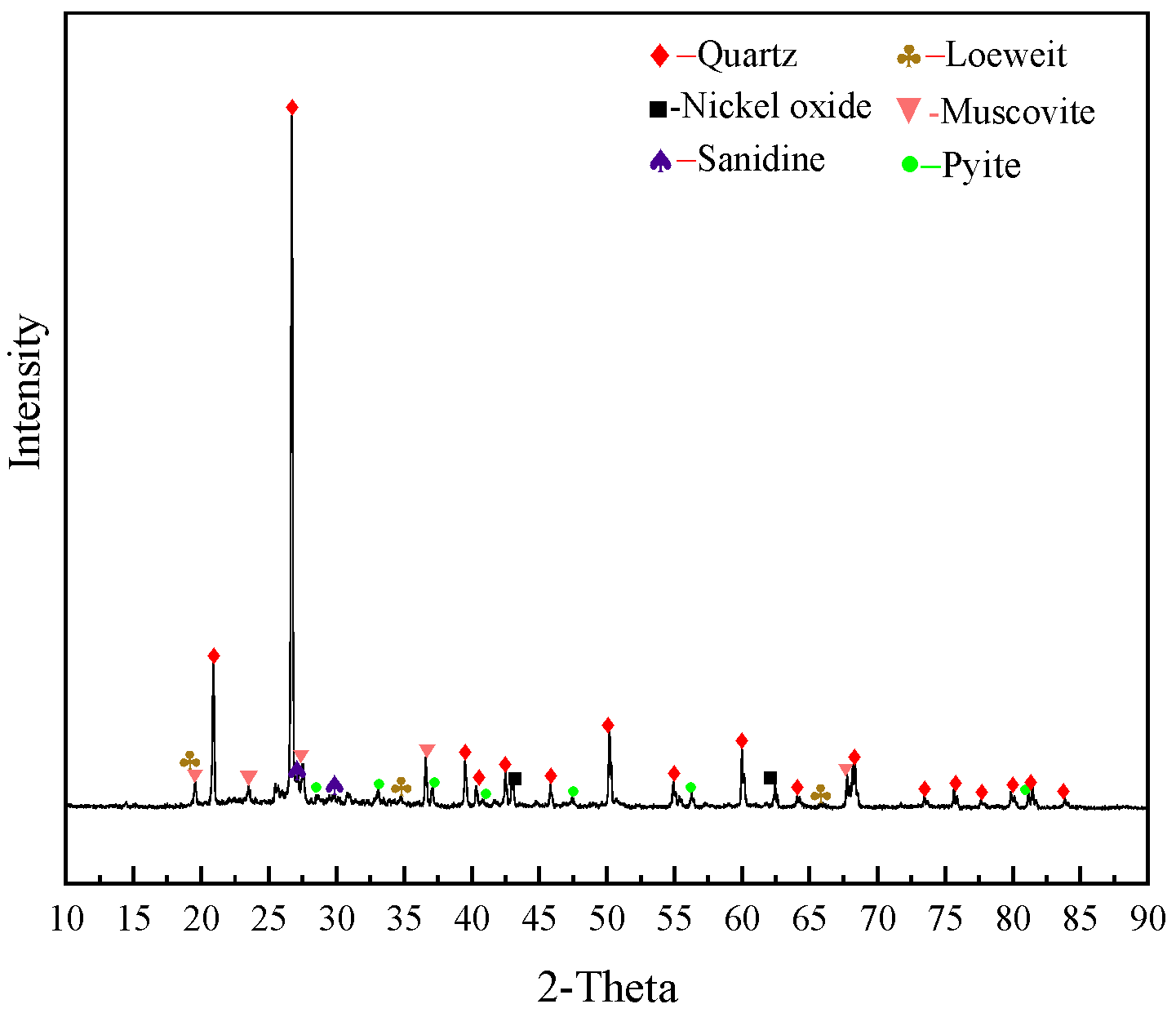

The XRD analysis result is shown in Figure 2. The main minerals of the stone coal were quartz and mica with a small amount of sanidine, nickel oxide, loewite, and pyrite. Because the carbon material was amorphous and the degree of crystallization was poor, the peak value did not appear in the spectrum. Molybdenum mineral did not either due to its low content. V(III) in the stone coal was mostly in the form of lattice substitution in muscovite [10], and no independent V mineral was found in the diffraction analysis.

3.1.3. Mineral Composition and Embedded Characteristics

(1) Mineral composition

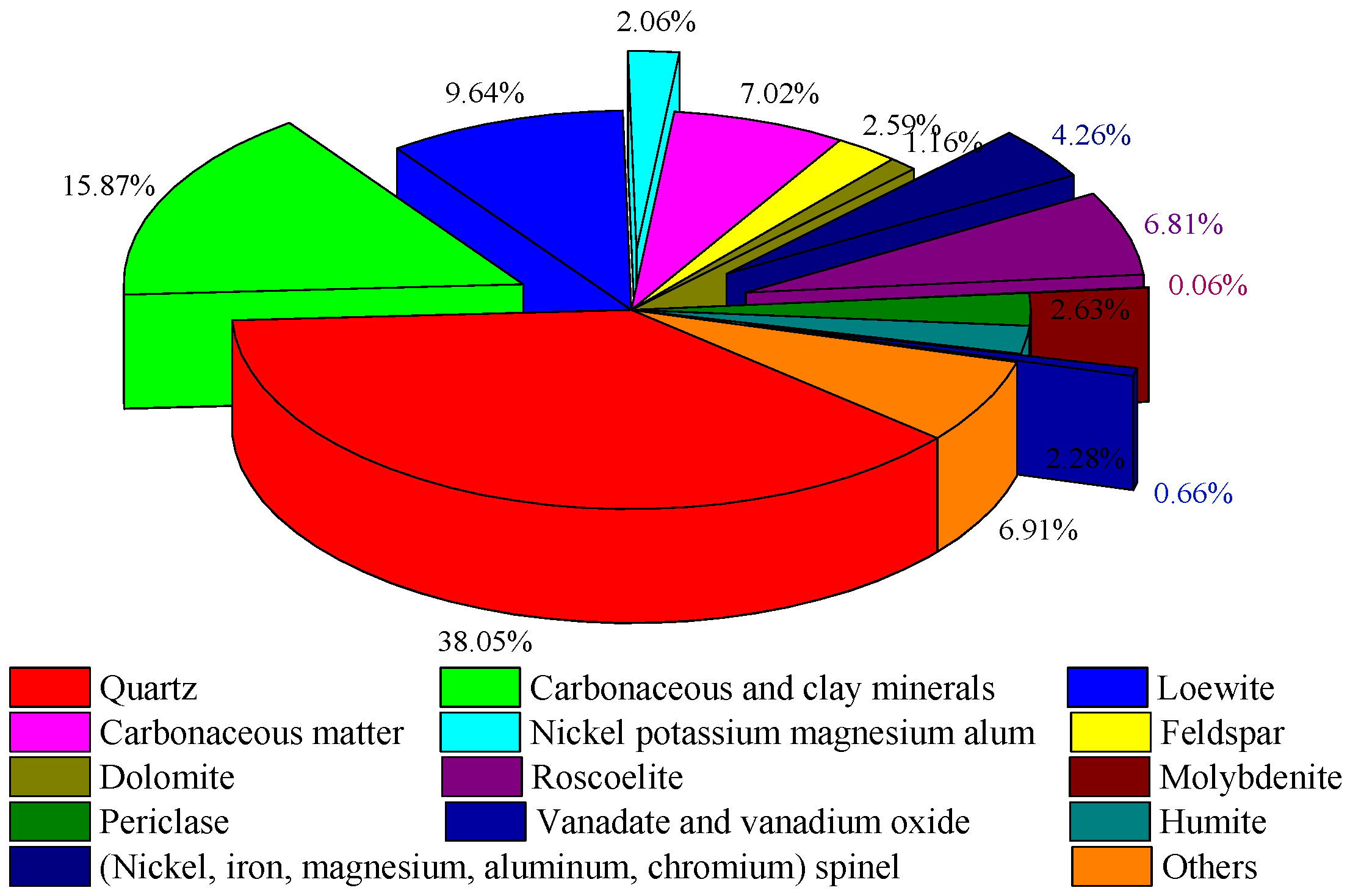

The main gangue minerals in the sample were quartzes, which made up 38.05% of the content. Sulphate minerals such as loewite and nickel–potassium–magnesium–alum accounted for about 12%. Carbonaceous matter content in the stone coal was 15.87%, some of which existed in the form of organic carbon, and some closely bound to clay minerals. Vanadium-containing minerals included vanadium mica and carbonaceous clay minerals. Nickel-containing minerals were nickel (magnesium, iron, aluminum, and chromium) spinel, and the molybdenum-containing mineral was molybdenite. The mineral composition of the stone coal is shown in Figure 3. The embedding characteristics of the vanadium, nickel, and molybdenum minerals are shown in Figure 4

Results of the ore screening are shown in

Table 3. Screening results for the raw ore.

Fraction/µm	Yield/%	Grade/%			Distribution %
		V2O5	Ni	Mo	V2O5	Ni	Mo
+425	39.37	0.97	0.27	0.01	27.23	18.03	3.52
−425~+150	16.39	1.56	0.97	0.01	18.21	27.37	1.22
−150~+106	2.70	1.87	1.63	0.03	3.58	7.56	0.68
−106~+74	3.0	1.14	1.76	0.18	2.41	9.06	4.77
−74~+45	3.44	2.23	1.91	0.59	5.43	11.32	17.69
−45	12.51	4.85	1.24	0.66	43.11	26.66	72.12
Dissolution	22.59	-	-	-	-	-	-
Total	100	1.29	0.53	0.11	100	100	100

. The coarse particles yield was high, with +425 µm and +150 µm accounting for 39.37% and 16.39%, respectively. The intermediate particles yield was lower than that of the coarse particles with −150 + 106, −106 + 74, and −74 + 4 µm accounting for less than 10%. The fine particles yield (−45 µm) was 12.51%. From the perspective of metal distribution, vanadium and nickel were mainly distributed in coarse and fine-grained fractions, and the distribution in the intermediate particles was very small. Most of the molybdenum was distributed in micro-fine ores, and the distribution in coarse and intermediate particles was smaller. Based on the metal grades, the nickel grade was low and only in the +425 µm part, and the other grades were similar. The vanadium content in the fine particles was highest, and the grades of the coarse particles and intermediate particles were close. The molybdenum grade increased gradually with decreasing particle size. In general, the distribution rates and grades of the vanadium and molybdenum in the fine-grained ores were high. Vanadium and molybdenum were mainly distributed in fine-grained ores, while nickel was evenly distributed in each grain size. We also found that the raw ore dissolved in the wet screening process. The dissolution process was further analyzed.

(2) Analysis of the vanadium phase and occurrence states

The BPMA’s results show that the vanadium minerals in the stone coal included vanadium mica, carbonaceous clay minerals, calcium vanadium garnet, a small amount of vanadium oxide, and sulfur–chromium–vanadium–copper ore. The analysis results of the vanadium phase are shown in

Table 4. Phase analysis of vanadium in the stone coal.

Phase	V2O5 Content/%	V2O5 Distribution %
Micaceous minerals	0.32	24.43
Iron oxides and clay minerals	0.86	65.64
Tourmaline and garnet	0.13	9.92
Total vanadium	1.31	100.00

. We can see that the main minerals containing vanadium were vanadium mica and clay minerals, and a small amount was distributed in tourmaline and garnet. Vanadium in clay minerals and mica minerals accounted for 65.64% and 24.43% of the total vanadium, respectively.

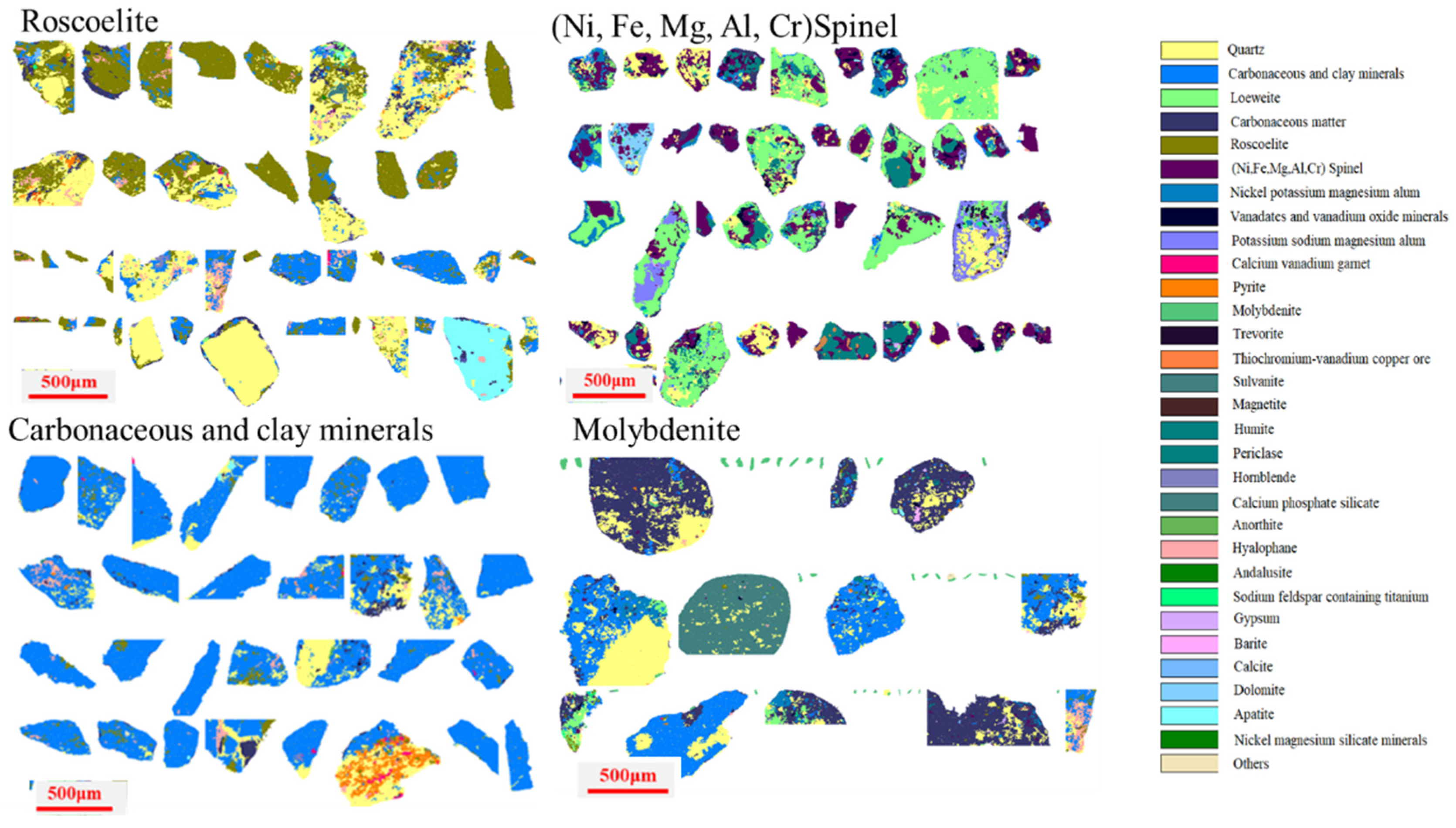

Subsequently, the dissemination characteristics of the vanadium-containing minerals were studied. Because the optical properties of vanadium-containing minerals in stone coal are similar to those of quartz, feldspar, and other major gangue minerals, it is difficult to distinguish them [23]. The content of vanadium minerals in the samples was small, and it took a long time to search for vanadium minerals using a microscope. Therefore, the automatic analysis system (BPMA) for minerals was used to quickly and intuitively analyze the mineral composition in the stone coal. The distribution of vanadium in the detection area was obtained by using a backscattered electron image combined with an X-ray energy spectrum analysis, and the area with high vanadium content was analyzed. The main vanadium minerals in the stone coal are shown in Figure 5

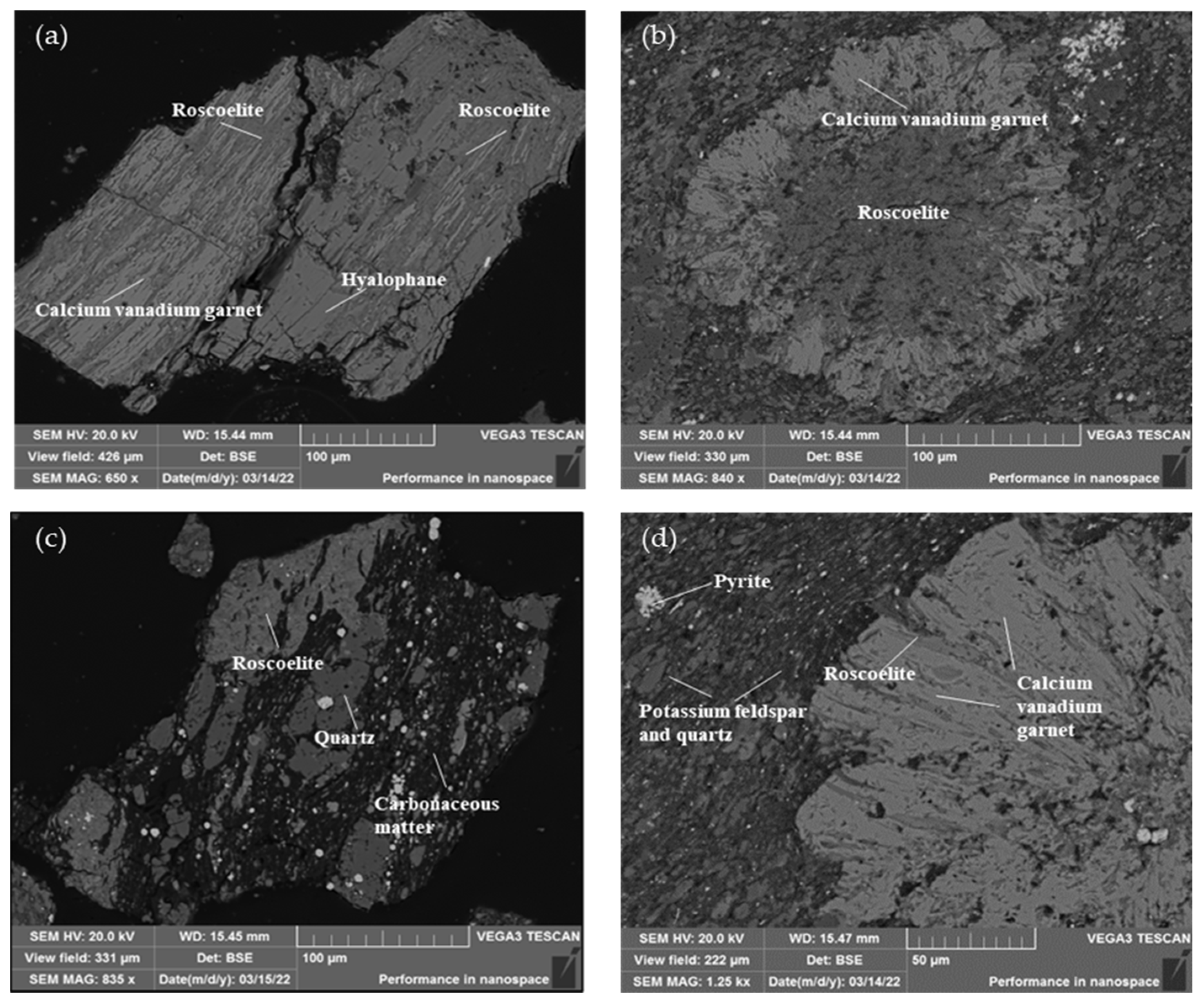

According to the morphology and dissemination relationship in the vanadium-containing mica in the stone coal listed in Figure 4, it can be seen that the particle size of the vanadium-containing mica was not uniform: there was no regular shape, and most of them were closely associated with quartz, calcium–vanadium garnet, feldspar, carbonaceous materials, and other minerals. Some of the calcium–vanadium garnets were surrounded by vanadium mica. Carbonaceous matter filled the spaces between vanadium mica and quartz in strips. Pyrite was dispersed on the surface of the feldspar and quartz aggregates in the form of micro-fine particles. Most of the vanadium mica and calcium vanadium garnets coexisted, so they could be recovered together using flotation.

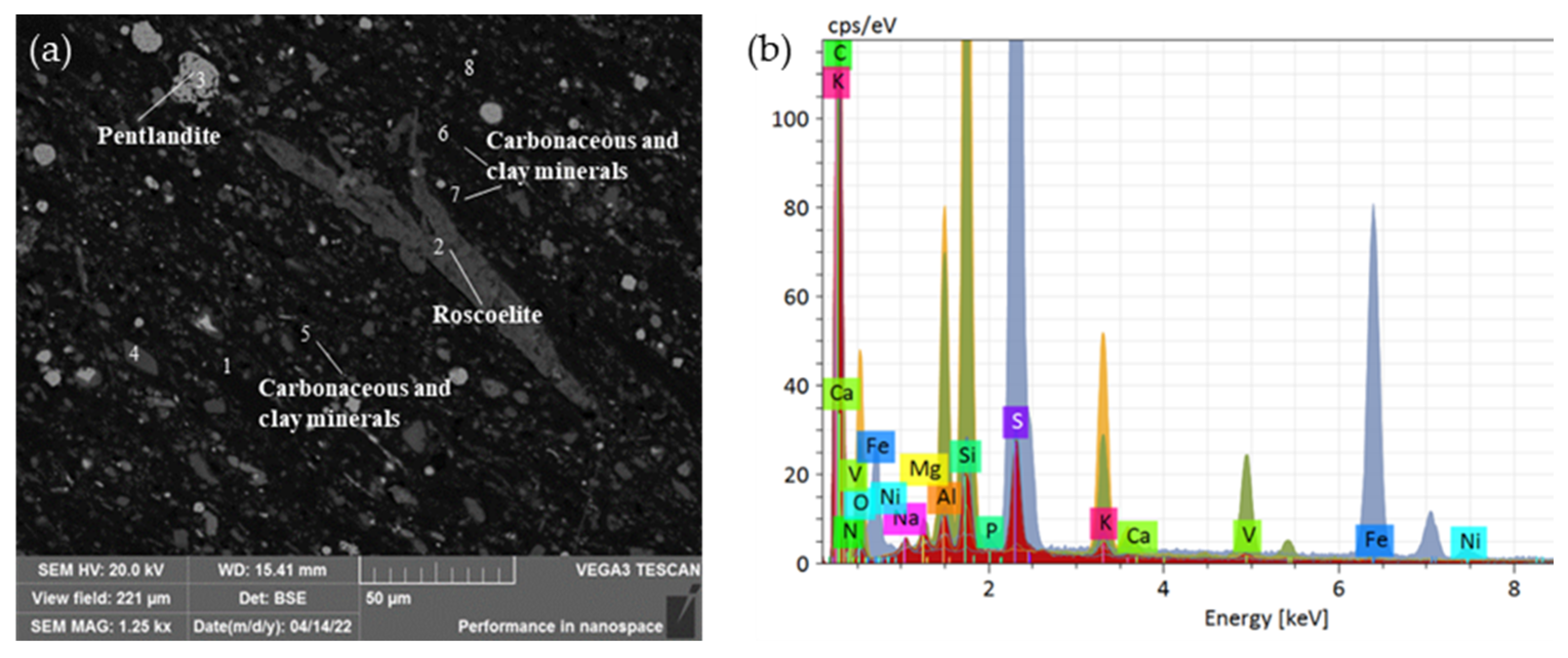

In addition to roscoelite, the carbonaceous clay minerals also contained some vanadium. Figure 6 shows the vanadium distribution in the mica and clay minerals. The carbonaceous clay minerals were mostly veined and disseminated among the vanadium-bearing mica, feldspar, and quartz. The X-ray spectrum in

Table 5. Spectral microdomain composition analysis of vanadium mica and carbonaceous clay minerals at positions 1–8 in Figure 6a.

Number	C	N	O	Na	Mg	Al	Si	P	S	K	Ca	V	Fe	Ni
1	79.05	10.88	5.35	0.71		0.08	0.08		3.36	0.12		0.11	0.25
2			32.82	0.58	1.56	14.12	27.69		0.41	8.68	0.81	13.33
3									52.63				45.58	1.79
4			40.51			13.04	33.00			13.45
5	83.16		4.97	0.41	0.38	1.27	2.78	0.37	3.66	1.10	0.84	0.51	0.54
6	85.90		4.20	0.41	0.35	1.21	2.61		3.35	1.18		0.51	0.27
7	89.21		3.64	0.62	0.32	0.53	1.09		3.66	0.43		0.33	0.17
8	86.88		5.64	0.62	0.50	0.84	1.52		2.94	0.50		0.42	0.14
Average	84.84	10.88	13.88	0.56	0.62	4.44	9.82	0.37	10.00	3.64	0.83	2.53	7.82	1.79

shows that the mass fraction of V in the carbonaceous clay minerals was about 0.5%, and that in the vanadium mica was 13.33%.

In summary, the vanadium-containing minerals in stone coal were mainly vanadium mica and vanadium-containing carbonaceous clay minerals. The above vanadium-containing minerals can be pre-concentrated using a beneficiation process, and then the vanadium can be extracted using different leaching methods to reduce the amount of leaching ore and the leaching cost.

(3) Nickel-containing minerals

The nickel-bearing minerals in the stone coal are shown in

Table 6. Main nickel minerals in raw ore.

Phase	Proportion of Raw Ore/%
Nickel–magnesium spinel ((Ni,Mg,Fe)Al2O4)	2.28
Nickel–potassium–magnesium alum (Ni,K2Mg2[SO4]3)	2.06
Ferric nickel–magnesium spinel ((Ni,Fe)Mg2O4)	0.71
Nickel–ferric–magnesium–aluminum spinel ((Ni,Mg,Fe)Al2O4)	0.16
Iron–nickel and vanadium ore NixFey(VO4)znH2O	0.27
Ferric nickel–aluminum spinel ((Fe,Ni)Al2O4)	0.25
Nickel–chromite spinel ((Fe,Mg)(Al,Cr,Fe)2O4)	0.08
Trevorite (NiFe2O4)	0.1
Kolovratite (Nix(VO4)z)	0.03
Nickel and vanadium magnesite (Ni,K2Mg2(H2O)16[V10O28])	0.04
Nickel–magnesium silicate (Ni2[SiO4])	0.01
Total	5.99

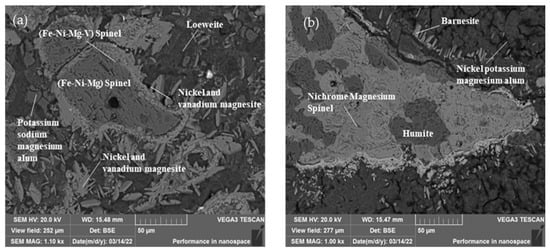

. Nickel in the stone coal samples mainly existed in the form of nickel spinel. The nickel-bearing minerals were mainly nickel magnesium spinel and nickel-bearing potassium magnesium alum, accounting for 2.28% and 2.06% of the total mineral content, respectively. The mass fractions of the nickel were 13.43% and 7.05%, respectively. Figure 7 shows the main morphology and dissemination relationship in the nickel-bearing minerals. The Ni-bearing spinel was mostly short-vein aggregate, symbiotic with soluble sodium alum and nickel–vanadium–magnesium ore. The Ni-vanadium-magnesium ore was mainly slender, with a particle size of 10–50 µm, and was embedded around the nickel-bearing spinel.

(4) Molybdenum-containing minerals

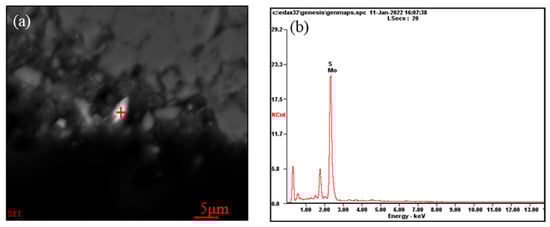

The Mo grade in the stone coal samples was 0.11%. The molybdenum minerals were mainly made up of molybdenite, and the total mineral content accounted for only 0.06%. Figure 8 shows the occurrence states of molybdenite in the stone coal. Combined with the screening results in Table 3, it can be seen that most of the molybdenum was distributed in fine particles. The particle size was generally <5 µm. From the intercalation relationship in the molybdenite listed in Figure 4, it can be seen that the molybdenite was mostly liberated in the form of monomer particles, and some were embedded in carbonaceous materials, carbonaceous clay minerals, quartz, silicon, and humite in the form of fine needles.

(5) Soluble minerals

During the screening process, we found that part of the stone coal sample had dissolved in water, resulting in quality loss. Combined with the results of the BPMA, we speculated that the dissolved part was made up of soluble (sodium, magnesium, and potassium) sulfate minerals, which accounted for about 12.45% of the total mineral amount. To further verify the chemical composition of the soluble substances, a 10 g sample was stirred in 50 mL of deionized water for 1 h. In total, 8.3 g of residue was left after stirring. The main components in the solution are shown in

Table 7. Content of the main elements before and after dissolution.

Elements	K	Ca	Na	Mg	V	Ni	Mo
Filter residue (%)	1.34	2.19	0.7	5.7	0.75	0.48	0.11
Filtrate (g/L)	0.23	0.38	4.01	1.39	0.05	0.09	0.04
Raw ore (%)	1.27	2.16	3.72	5.8	0.68	0.51	0.12

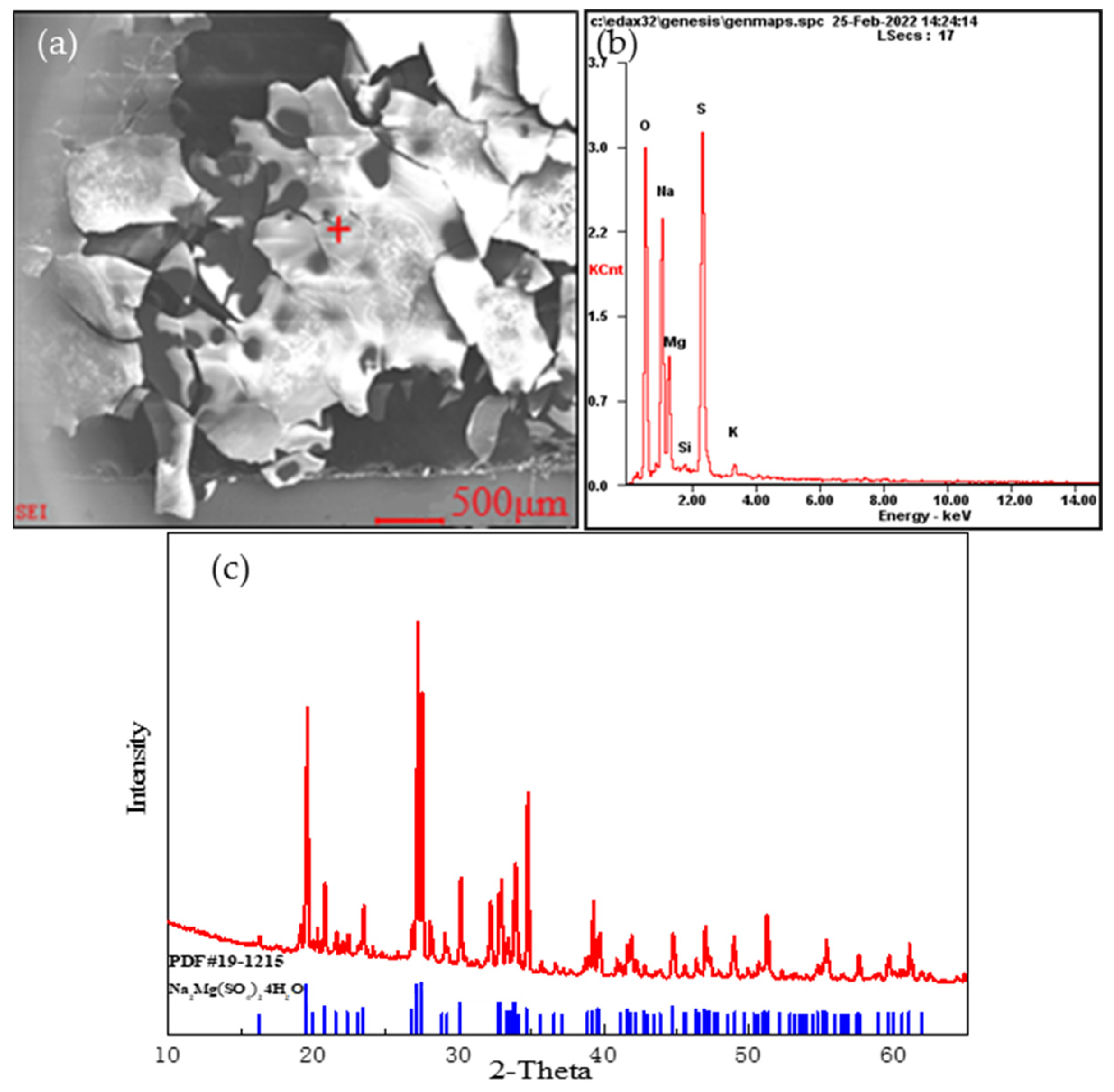

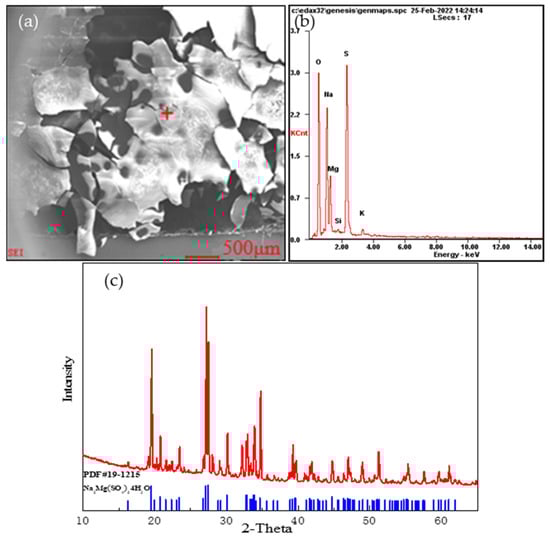

. Part of the filtrate was evaporated and crystallized, and the crystalline sample was analyzed using SEM-EDS and XRD. The results are shown in Figure 9.

According to the changes in the main elements before and after dissolution and an analysis of the crystal spectrum, the soluble parts of the stone coal sample were found to be sodium–magnesium alum, potassium–sodium–magnesium alum, and nickel–sodium–magnesium alum. In addition, a small amount of V, Mo, and Ni was also detected in the filtrate.

3.2. Principle Process Determination

The V₂O₅, Ni, and Mo contents in the stone coal samples were 1.29%, 0.53%, and 0.11%, respectively, and the organic carbon content was 6.13%. Vanadium mainly occurred in the vanadium mica and carbonaceous clay minerals; nickel mostly existed in the form of spinel; molybdenum existed in the form of molybdenite with a high degree of dissociation. Vanadium in the form of carbonaceous clay minerals can be recovered using scrubbing and desliming techniques [24,25,26]. Vanadium mica can be recovered using flotation [27,28,29]. Liberated molybdenite has good floatability and can be enriched using flotation [30]. In addition, some molybdenite and carbonaceous clay minerals are associated closely, so scrubbing–desliming can simultaneously enrich molybdenum and vanadium. Because the mineral properties of nickel-bearing spinel and vanadium-bearing minerals are quite different, the beneficiation process cannot be used for simultaneous enrichment, but vanadium and nickel can be extracted with leaching.

The mud content in the stone coal samples is high, and the mud will adhere to the surface of useful minerals and gangue minerals, which will affect the flotation reagents on the surface of the value minerals. Thus, desliming is also required before flotation [31]. Crushed stone coal samples have fine ore particle sizes and can be deslimed without grinding.

The difficulty of using the flotation process for vanadium mica is separating the vanadium mica from gangue minerals such as quartz and feldspar. Under alkaline conditions, collectors such as sodium oleate [32,33], sodium petroleum sulfonate [34], and dodecyl ammonium chloride [35] can be used to separate non-metallic minerals from gangue minerals such as quartz. Studies have shown that the zero point of mica is very low, and fine mica can be recovered by using cationic collectors in an acidic medium [36,37]. However, due to the complex solution ions in the pulp and the fact that quartz, feldspar, and mica are silicate minerals, it is necessary to enrich vanadium mica with highly efficient and selective collectors [38,39].

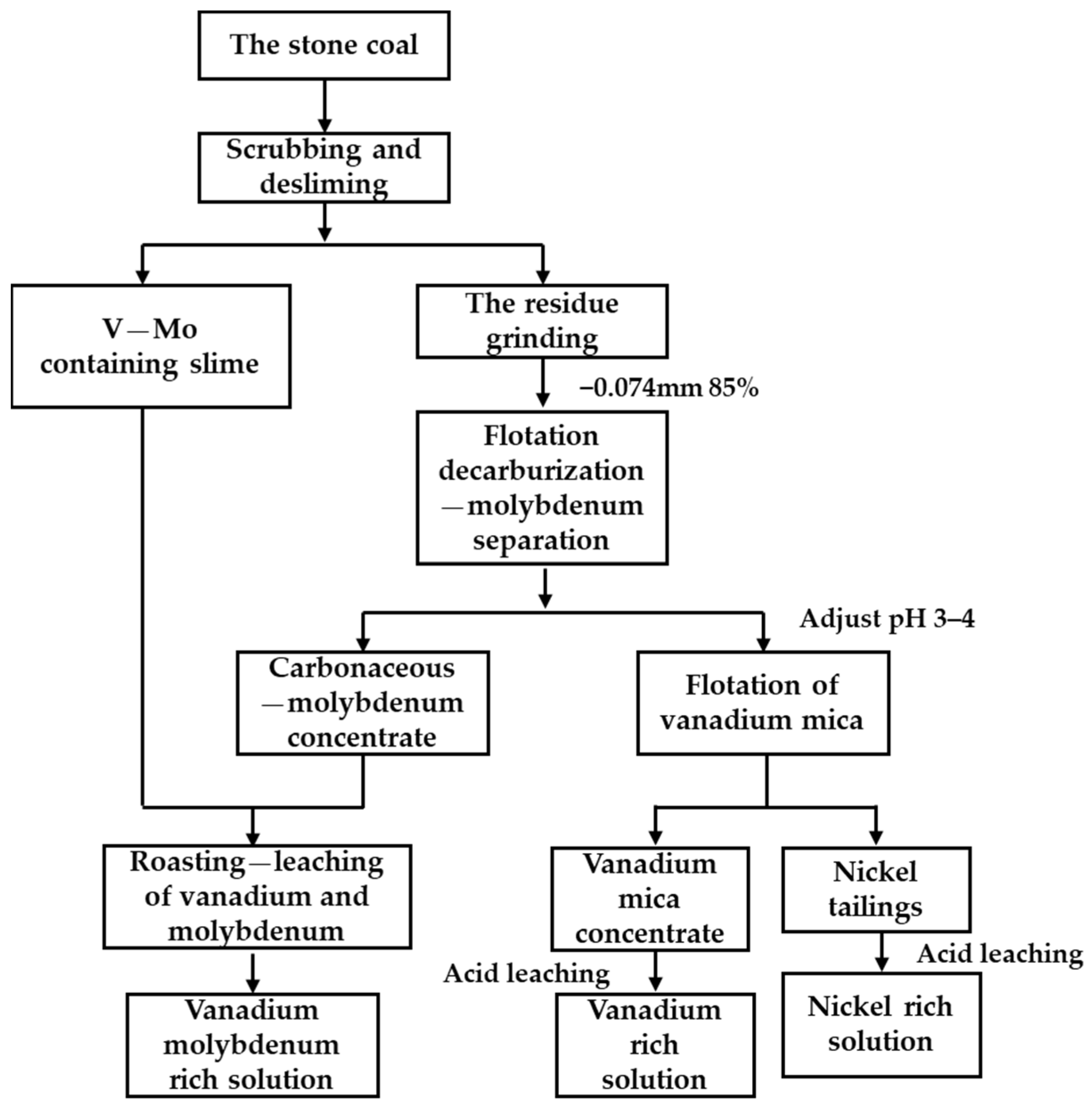

Based on the above analysis, combined with the mineralogical characteristics of stone coal samples, we propose a combined process for vanadium, nickel, and molybdenum recovery, as shown in Figure 10.

The crushed stone coal sample (−2 mm) contained many fine particles, which could be directly scrubbed and deslimed using sodium silicate as a dispersant. After desliming, the tailings were reground to 85%—0.074 mm, and the minerals containing molybdenum, vanadium, and nickel were fully liberated before flotation [40,41,42]. Carbonaceous matter in stone coal interferes with other minerals during flotation, so decarburization was required before molybdenum and vanadium flotation could proceed. The collector used for flotation–decarbonization was kerosene, and the collectors used for molybdenum flotation were butylammonium dithiophosphate and butyl xanthate. Then, the pH of the pulp was adjusted to 3~4, and the vanadium mica was collected by 3030C. Vanadium and molybdenum needed to be extracted with a roasting–leaching process due to the high carbon content in the vanadium–molybdenum slime obtained by scrubbing and the molybdenum concentrate obtained using flotation, while the vanadium mica and nickel-bearing minerals enriched by flotation could be directly acid-leached under mild conditions.

3.3. Exploratory Experiments Based on Mineralogy

3.3.1. Beneficiation Enrichment Experiments

Combined with the mineralogical features study, the scrubbing–desliming–flotation method was selected to enrich vanadium, molybdenum, and nickel.

First, the raw ore was scrubbed and deslimed. At a certain pulp concentration, sodium silicate was added to disperse the mineral particles. Then, the pulp was stirred at high strength. Finally, the fine mud vanadium concentrate was obtained via sedimentation and classification. The coarse tailings were separated via grinding and flotation, and the vanadium and nickel were separated from the coarse scrubbing tailings via flotation. The test results are shown in

Table 8. Experimental results for scrubbing–desliming–flotation.

Sample	Yield(x ± σ)/%	Grade/%			Recovery (x ± σ)/%
		V2O5	Mo	Ni	V2O5	Mo	Ni
V-Mo Slime	15.29 ± 0.00	4.10	0.44	0.76	41.31 ± 0.47	51.40 ± 0.14	17.64 ± 0.22
Carbonaceous matter	9.78 ± 0.61	1.19	0.19	0.31	7.68 ± 0.81	14.21 ± 0.63	4.61 ± 0.16
Molybdenum concentrate	5.01 ± 0.6	1.27	0.47	0.23	4.20 ± 0.45	18.01 ± 0.54	1.78 ± 0.18
Vanadium Mica	27.26 ± 1.70	1.52	0.07	0.55	27.31 ± 1.77	14.58 ± 0.36	22.85 ± 2.56
Tailings	23.48 ± 1.29	1.26	0.01	1.49	19.50 ± 1.67	1.79 ± 0.31	53.13 ± 2.03
Soluble fraction	19.18	-	-	-	-	-	-
Raw ore	100.00	1.49	0.13	0.59	100.00	100.00	100.00

Note: x—mean value, σ—confidence interval. Number of samples is 3.

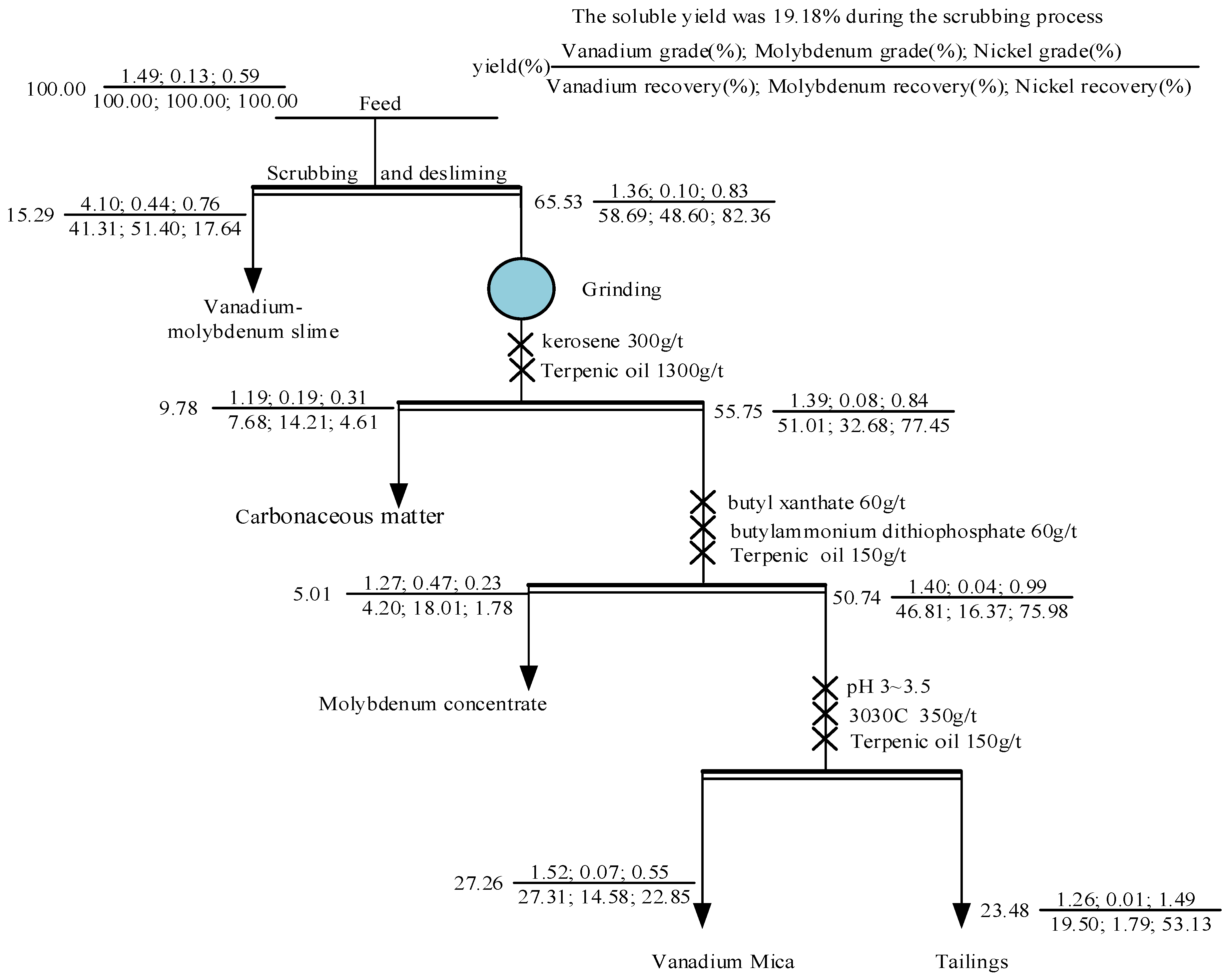

, and the process flow with the assay of each product is shown in Figure 11.

From the results in Table 8, it can be seen that scrubbing–desliming and flotation enriched the vanadium, nickel, and molybdenum in different products. The grade of V₂O₅ in the vanadium-molybdenum slime was 4.10%, and the recovery was 41.31%. The Mo grade was 0.44% and the recovery was 51.40%. Based on the mineralogical characteristics of molybdenum, a small amount of molybdenum was enriched in the carbonaceous matter and molybdenum concentrate, but the recovery was not high. Based on a phase analysis of the vanadium, we found that, in addition to clay minerals, it was also partially present in mica. However, the enrichment effect of vanadium mica in the flotation test results was poor, and the V₂O₅ grade in the concentrate was only 1.52%. This is because the stone coal contained many gangue minerals with a similar floatability to vanadium-containing mica, such as silicate and quartz, which made the flotation separation process difficult. Furthermore, the vanadium was partially substituted in the mica, so the mica contained less vanadium, and the flotation process produced vanadium-containing mica with similar mineral properties to vanadium-free aluminosilicate, resulting in more concentrate and yielding small improvements in its grade [10,43]. Based on the occurrence states of nickel in the stone coal, it can be seen that the floatability of nickel was poor, the nickel grade in the tailings was 1.49%, and the recovery was 53.13%. Because stone coal also contained nickel–vanadium symbiotic ore, a small part of the nickel was produced in the vanadium-containing mica concentrate. The above results demonstrate that this process can effectively recover vanadium, nickel, and molybdenum from stone coal by multiple steps.

3.3.2. Vanadium, Nickel, and Molybdenum Leaching Experiments

Corresponding leaching experiments were carried out for different products obtained in the beneficiation experiments. Tang [44] and Zhao [45]’s experiments showed that carbon can be completely removed by roasting stone coal at 700 °C for 1 h. In our laboratory work, the vanadium–molybdenum slime, carbonaceous matter, and molybdenum concentrate were mixed and roasted at 650 °C for 2 h. The roasted slag was leached for 10 h at room temperature, a sulfuric acid concentration of 1.84 mol/L, and a liquid–solid ratio of 4:1. The vanadium-containing mica concentrate and nickel-containing tailings were leached under the same condition as above for the roasted slag. The results are shown in

Table 9. Leaching efficiency of different beneficiation products.

Sample	Leaching Efficiency (x ± σ)/%
	V	Ni	Mo
Slime-Carbon-Molybdenum Concentrate	72.55 ± 2.63	58.28 ± 2.15	94.10 ± 0.16
Vanadium mica	50.74 ± 0.27	71.67 ± 0.71	3.25 ± 0.80
Nickel-bearing tailings	72.45 ± 1.60	67.86 ± 1.02	13.58 ± 1.58

Note: x—mean value, σ—confidence interval. Number of samples is 3.

. At the same time, a fluoride leaching experiment was carried out on the raw ore. The results are shown in

Table 10. Experimental conditions and results of fluorination leaching in the stone coal raw ore.

Elements	V	Ni	Mo
Leaching efficiency/%	54.89	67.35	24.66

Leaching conditions. Sulfuric acid concentration 2.5 mol/L; Calcium fluoride 10%; Liquid–solid ratio 1.5:1; Leaching time 8 h.

.

It can be seen from Table 10 that the leaching efficiency of the molybdenum in the slime–carbon–molybdenum concentrate was as high as 94.10% after roasting. This was due to the oxidation of MoS₂ to MoO₃ at 650 °C, which is more easily leached using sulfuric acid. The leaching efficiency of the vanadium was 72.55%. As vanadium in clay minerals mostly exists in the form of V(IV) and V(V) adsorption states, it can be dissolved in acid [10]. The leaching efficiency of the vanadium in the vanadium-containing mica was low, which may be related to the crystal structure of the vanadium mica. Therefore, in the process of leaching, it is necessary to add leaching aids to strengthen the fracturing of Si-O and Al/(V)-O in mica [46,47,48]. According to the results of the direct fluorination leaching of the raw ore in Table 10, it can be seen that the vanadium, nickel, and molybdenum were first pre-concentrated by the beneficiation process, after which the roasting–sulfuric-acid-leaching or direct acid leaching processes were used for different products to reduce acid consumption without producing fluorine-containing wastewater and reducing pollution in water resources.

4. Conclusions

(1) V₂O₅, Ni, and Mo grades in the stone coal were 1.29%, 0.53%, and 0.11%, respectively. The vanadium-bearing minerals were mainly carbonaceous clay minerals and vanadium-bearing mica. The nickel-bearing minerals were mainly nickel magnesium spinel with a small amount of nickel-bearing potassium–magnesium alum. The molybdenum-bearing minerals were mainly molybdenite mostly in the form of molybdenite monomer and partially embedded in carbonaceous materials, carbonaceous clay, and other minerals. The stone coal sample also contained soluble minerals such as sodium magnesium alum, potassium sodium magnesium alum, and nickel–sodium–magnesium alum. The loss of vanadium, nickel, and molybdenum in soluble fractions was comparatively small.

(2) Based on the research results of the mineralogical features study, we propose enriching vanadium, nickel, and molybdenum using a scrubbing–desliming–flotation process to obtain vanadium-rich molybdenum slime and nickel-containing tailings. In our experiment, the V₂O₅ grade increased from 1.49% to 4.10%, and the recovery was 41.31%. The Mo grade increased from 0.13% to 0.44%, and the recovery was 52.70%. The Ni grade in the flotation tailings was 1.49%.

(3) The obtained vanadium-molybdenum slime, carbonaceous matter, and molybdenum concentrate were roasted and acid-leached; the leaching efficiency of V was 72.55% and the leaching efficiency of Mo was 94.10%. The vanadium-bearing mica concentrate and tailings were directly leached using acid. When the dosage of sulfuric acid was 1.84 mol/L, the leaching efficiency of V and Ni were 50.74% and 67.86%, respectively. Compared with the direct fluorination leaching of the raw ore, the leaching effects of vanadium and nickel were similar, but the leaching efficiency of molybdenum was higher with a lower dosage of sulfuric acid. The current test was only an exploration and needs to be optimized in the follow-up work.

(4) After a mineralogical features study of stone coal from Shaanxi Province, the phase composition and inlay characteristics of vanadium, nickel, and molybdenum were identified, and a scrubbing and sludge–flotation–leaching process was selected to realize the green and clean enrichment of vanadium, nickel, and molybdenum metals. This may provide guidance and reference for industrial applications.
