The Synthesis of Organoclays Based on Clay Minerals with Different Structural Expansion Capacities

Abstract

An important goal in environmental research for industrial activity and sites is the investigation and development of effective adsorbents for chemical pollutants that are widespread, inexpensive, unharmful to the environment, and have the required adsorption selectivity. Organoclays are adsorption materials that can be obtained by modifying clays and clay minerals with various organic compounds through intercalation and surface grafting. Organoclays have important practical applications as adsorbents of a wide range of organic pollutants and some inorganic contaminants. The traditional raw materials for the synthesis of organoclays are phyllosilicates with the expanding structural cell of the smectite group, such as montmorillonite. Moreover, other phyllosilicates and inosilicates are used to synthesize organoclay to a limited extent. The purpose of this review was to analyze the possibility of using minerals of other groups with different abilities to expand the structure and structural charge for the adsorption of chemical environmental pollutants. The structural characteristics of various groups of phyllosilicates and chain minerals that affect their ability to modify organic surfactants and the adsorption properties of prepared organoclays were reviewed.

1. Introduction

The properties of phyllosilicate (layered) clay minerals, such as great specific surface area, chemical stability, variable expansibility, reactive functional groups, and surface charge make them perfect adsorbents for a wide range of environmental pollutants [1,2,3]. The advantages of clays as adsorbents are also related to the following: they are naturally widespread, commonly nontoxic, easily mined, and relatively cheap materials. For example, more than 16 Mt of bentonite clays and 44 Mt of kaolin clays are mined annually at present [4]. The price of clay is 0.05–0.46 USD/kg, and the cost of montmorillonite is about 0.04–0.12 USD/kg, which is 20 times cheaper than activated coal [5,6].

Most clay minerals’ outer and inner surface is hydrophilic and polar, resulting in high affinities towards low and high-molecular, mainly cationic, substances. However, their anionic substance-adsorbing capacity is low: less than 5 cmol/kg for smectites [7] and not more than 2 cmol/kg for kaolinites [8]. Although clay minerals have a hydrophile surface, their significant area and volume of small pores allow the clays to adsorb some amount of the nonionogenic substances [9]. The modification of natural clays by organic surface-active substances (surfactants) makes it possible to refine their pore structure and impart the hydrophobic property to their surface if necessary.

The synthesis of special organo-mineral materials (organoclays) by intercalation or by grafting organic surfactants into expanding clay minerals has attracted a great deal of attention over the past two decades [10]. Organoclays have important practical applications as adsorbents of organic pollutants [11,12] and as components in the formation of clay polymer nanocomposites [13]. The theoretical basics for intercalating surfactants into the interlayer space of clay minerals are well understood ([10,12,13] etc.). The ability for modification and the resulting organoclays’ sorption characteristics are influenced by the properties of the original clay mineral and the properties of the intercalated organic matter. Recently, there has been growing interest in the synthesis of organoclays using zwitterionic substances that form complex adsorption positions and nonionic surfactants with low toxicity and biodegradability [10,14].

Most studies on the synthesis and analysis of the properties of organoclays are focused on the swelling 2:1 structure clay minerals of the smectite group. In this context, the features of surfactant interactions with other groups of clay minerals and organoclays’ properties remain insufficiently studied. Moreover, some of these organoclays may have unique properties, such as significant adsorption capacity and selectivity to certain types of pollutants. This issue is especially relevant for territories with deposits of phyllosilicates other than montmorillonite and chain silicates. Our review describes the sorption properties of organoclays based on clay minerals with different capacities of expansion and surface charge relative to a wide range of chemical pollutants.

2. Organoclays and Their Properties

The idea of using the intercalation technique for the transformation of clays into porous analogs emerged in the 1950s. Barrer and MacLeod studied the adsorption of montmorillonite and the mineral intercalation of various gases and vapors [15]. In 1955, they wrote that the substitution of exchange inorganic cations in montmorillonite by cations N(CH₃)⁴⁺ and N(C₂H₅)⁴⁺ increases the interlayer distance and provokes great changes in the sorption of organic molecules. They also demonstrated sorption selectivity based on the molecular diameter of the cross-section of adsorbates [16].

Organoclays are formed during the intercalation of layered silicates by organic substances not leading to their exfoliation. Organoclays can be defined as clay minerals (phyllosilicates, less commonly, inosilicates) modified by the adsorption of molecules of organic surfactants and/or other substances that retain their layered or chain mineral structure [17,18]. Organic-modified smectites synthesized by substituting inorganic counterions for the short-chain compact cationic compounds, such as tetramethylammonium, tetraethylammonium, and trimethylphenylammonium, are defined by some researchers as organoclay adsorbers [17,19]. Organic modified minerals obtained by the intercalation of long-chain quaternary ammonium ions of the general form [(CH₃)₃NR]⁺ or [(CH₃)₂NR]⁺, where R is the alkyl hydrocarbon, are called organophilic organoclays [19]. The substitution of primary interlayer cations by organic cations produces a surface composed of covalent-bonded organic fragments. At the same time, the hydrophile property of the surface can be retained and the hydrophobic or amphiphilic surface can also be formed. In this condition, a significant expansion of the range of potential sorbates can be obtained. In recent years, researchers have devoted much attention to the application of organoclays for the immobilization of various pollutants in soils and clays, as well as the purification of wastewaters [3,17,18]. In addition, organoclays can be widely used as fillers in polymer–clay nanocomposites, thereby improving the properties of these materials [13]

The adsorption efficiency of organoclays is governed mainly by the following properties: the presence or absence of defects in the crystal lattice, a cation composition of the interlayer surfaces and a cation exchange capacity of the mineral used for the synthesis of organoclays, as well as properties of the intercalated organic substance (molecular mass, length, and the presence of functional groups in the molecule) and its amount.

If the initial mineral has crystal lattice defects, such as bends and fractures in the octahedral and tetrahedral sheets, microfissures, or convex or concave surfaces, the close packing is distorted. As a result, a negative effect on the quality of organoclays would be found due to changes in the homogeneous distribution of the organic substances’ molecules. [20]. However, flat defects in crystal structures and point and linear defects (dislocations) in crystals govern the ion adsorption capacity of the initial clay minerals significantly [20]. According to Lagaly (1994) [21], charge heterogeneity is a characteristic property of 2:1 clay minerals (smectite, in particular). In these minerals, charge density can vary in different layers or even within individual sheets; charges are likely to be distributed more uniformly at the centers of clay particles than at the edges [22]. Structure defects in minerals and, correspondingly, the heterogeneity of charge distribution promote a local aggregation of organic substances in such sectors and provoke the expansion and exfoliation of minerals under heavy loads of the intercalated substance. Thus, the charge value and its distribution are important characteristics of the natural mineral. For example, vermiculite has a higher surface charge among the 2:1 phyllosilicates than smectite, and it shows a more uniform and regular structure expansion during treatment with organic cations [22]. Various cation substitutions in the 2:1 structure phyllosilicate layers generate a constant structural charge near the basal plane. Even an ideal pyrophyllite structure (without any regular structural charge) retains the electric field near the basal plane [23].

The most prominent ions on the clay interlayer space are Ca²⁺, Mg²⁺, H⁺, Na⁺, K⁺, NH⁴⁺, Li⁺, SO₄²⁻, Cl⁻, PO₄³⁻, and NO₃⁻. These ions can be exchanged relatively easily with other ions, without any influence on the clay mineral structure [2]. The cation composition of smectites depends on the mineral deposit type. The formation of Na- and Ca-montmorillonites is governed by the paleogeographic sedimentation settings. Thalassogenic basins with saline and brine (Na–Cl) waters are marked by the fixation of Na and K on clay particles; continental fresh-water basins are marked by the precipitation of alkaline earth elements (Ca and Mg) [24]. Bivalent cations guarantee a stronger bond between layers relative to the monovalent species. Therefore, bentonite dominated by exchange cations of Ca (Ca-bentonite) is characterized by a lower dispersion and expansion degree (8-fold structure expansion) than Na-bentonite (15-fold expansion) (Figure 1 [25]). At the same time, the interlayer distance varies from 1–5 nm (for Ca-montmorillonite) to 15–20 nm (for Na-montmorillonite) [24]. The ion charge also affects the ion exchange kinetics. Commonly, the exchange rate shows a negative correlation with the charge of the exchange species [26].

Depending on the properties of the mineral and intercalated substance, the organoclays can be formed with the involvement of electrostatic and ion-dipole interactions, hydrogen bonds, and Van der Waals forces [17]. The charge in the basal layer surface is responsible for the expansion and ion sorption by the cation exchange mechanism. In contrast, the pH-dependent adsorption of cations is controlled by the protonation/deprotonation reactions at the layer edges. The chemical structures of the most commonly used surfactants for the modification of layered silicates are shown in

Table 1. Chemical structures of the most commonly used surfactants for the modification of layered silicates [27].

Surfactants	Chemical Formula	Surfactants	Chemical Formula
Methyl tallow bis-2-hydroxyethyl quaternary ammonium		Polyoxy propylene methyl diethyl ammonium
Dimethyl dehydrogenated tallow quaternary ammonium		Octadecyl amine
Dimethyl dehydrogenated tallow 2–ethylhexyl quaternary ammonium		Dimethyl octadecyl amine
Dimethyl benzyl hydrogenated tallow quaternary ammonium		Hexadecyl trimetyl ammonium
Dimethyl dialkyl (tallow, presented by T) ammonium		Dodecyl triphnyl phosphonium
Trioctyl methyl ammonium		Hexadecyl tributyl phosphonium
Dipilyoxy ethylene alkyl (COCO) methyl ammonium		Dodecyl trimethyl phosphonium

[27].

The orientation of intercalated organic molecules with short alkyl chains is governed mainly by the electrostatic interactions of their polar groups with silicate layers. In contrast, compounds with a longer chain interact with the mineral surface via Van der Waals forces. The retention of the adsorbed molecules depends on the polarizing capacity of the interlayer cations. Multivalent cations with a strong electrostatic force can retain a large number of organic compounds relative to alkali metal ions and NH₄⁺ [28]. The softness or hardness of exchange cations in the interlayer space governs the coordination bond type in the aliphatic and aromatic amines. Soft cations, such as Zn²⁺, Cd²⁺, Cu²⁺, Ag⁺, and others, bind the amines directly, whereas water bridges are formed between amines and rigid cations (alkali and alkali earth metal ions) [29]. For example, pyridine is coordinated directly with Cu ions, but via water bridges with the interlayer Mg and Ca cations [30].

The efficiency of adsorption by organoclays is also affected by the presence of associated ions. For example, if electrolytes (NaCl) are present, both nonionic (in general, neutral) and cationic organoclays demonstrate a decrease of efficiency for the adsorption of several pharmaceutical substances (except the cationic ones). In contrast, the adsorption proceeds successfully in water [31].

The chemical affinity between the organic compound and mineral surface depends on the structure (molecular mass, chain length, and others) of organic molecules, as well as the functional groups and fragments in the organic molecule, such as hydrophobic groups (long-chain aliphatic), positively charged groups (-NH₃⁺), negatively charged groups (-COO⁻, phenolates, -SO₃⁻), electronegative groups, (-C=O, -C-O-C-, -OH), π-bonds (-C-C-, aromatic rings), the configuration of the available organic molecule, and the presence and properties of the water phase [32].

Organic substances with one aliphatic chain or flat arrangement of molecules make up one or two layers parallel to the mineral surface [18,33] (Figure 2 [18]). This is exemplified by flat intercalations of aliphatic acids [34]. A stable monolayer structure is obtained if the alkylammonium cation concentration is similar to the cation exchange capacity of the mineral, that is, the cation area is smaller than one exchange site [35]. If the concentration of organic substance increases [18] or the area occupied by the organic cation exceeds the exchange site area [35], two- and three-layer arrangements of the aliphatic chains can appear. The length of the aliphatic chain needed for the monolayer-to-bilayer transition is also affected by the value and distribution uniformity of charge on the silicate surface. If the phyllosilicate has a homogenous charge, the transition can take place abruptly and is characterized by an identical chain length. The interlayer charge, however, usually changes. Therefore, the transitions take place at different numbers of carbon atoms (from 6 to 13) in the chain [18,22,35].

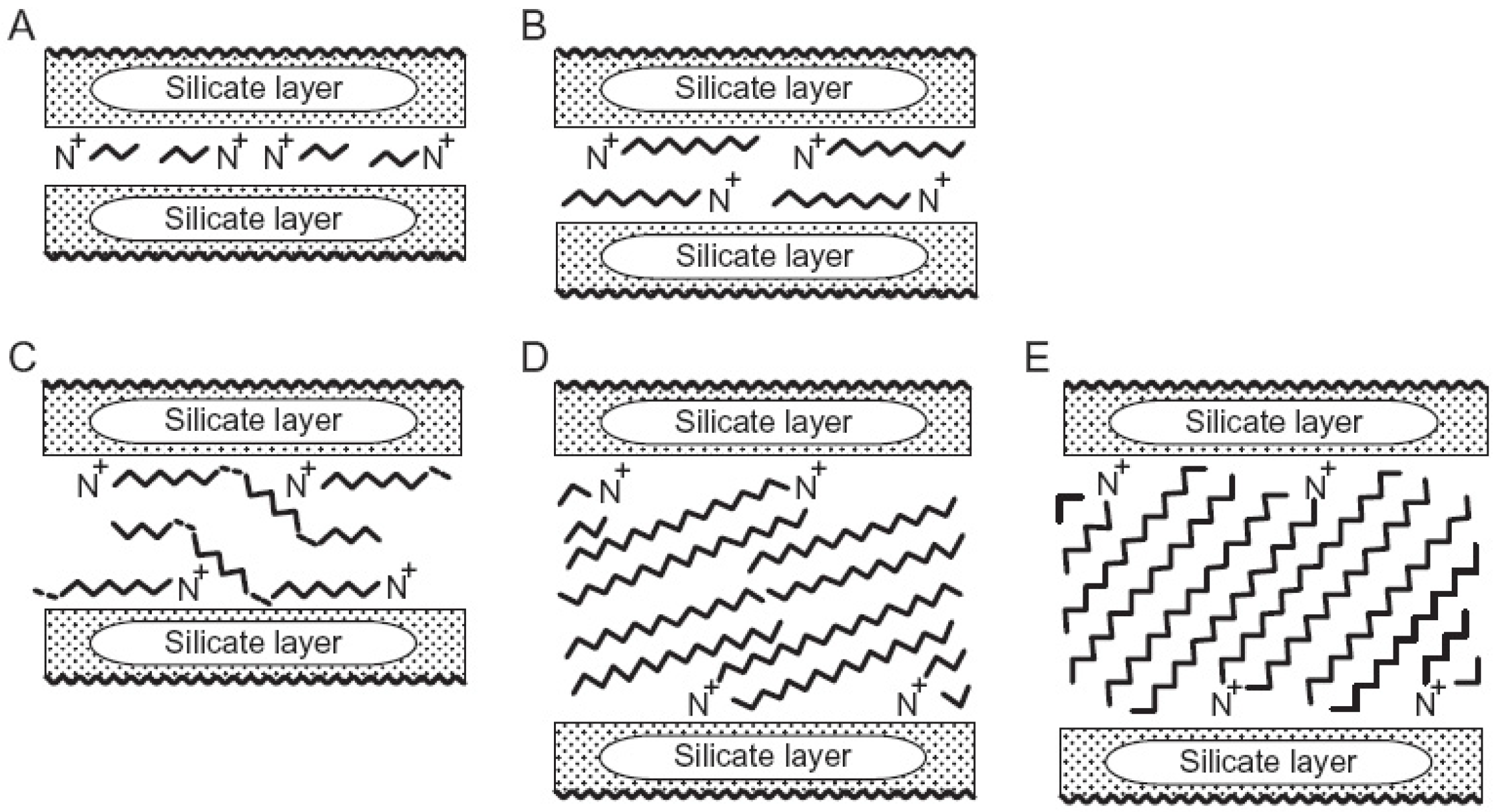

Long-chain ions of alkylammonium and quaternary ammonium can display a pseudo-three-layer arrangement (Figure 2), that is, the positive surface-active groups are tied to the silicate layers, while the alkyl chains accept the trimolecular arrangement with bends. In the case of high-charge smectites and vermiculites, the interlayer organic cations can accept the paraffin-type arrangement at a certain angle to the mineral surface [18,36] (Figure 2). This is also fostered by the presence of several long aliphatic chains in the molecule [35]. The intercalation of the long-chain alkylammonium cations provides the penetration of other monomers (and polymers) into the interlayer space [35].

Several linear nonionic polymers can penetrate the interlayer space only when the clay mineral is dispersed in polymers’ waters or organic solvents of polymers. Some macromolecules of technical significance intercalate from the water solutions. Many polymers are intercalated along more extended and flat conformations and situated in tight contact with one or two silicate layers. The unfolding of polylisine and polyglutamine acid during the intercalation in montmorillonite is described by Gougeon et al. [37]. The preference of chains over loops is related to the Van der Waals interaction between the polymer segments and surface oxygen atoms. In contrast to the polymer adsorption on the outer surface, the interlayer adsorption is marked by the active involvement of the molecules with a lower molecular mass [35].

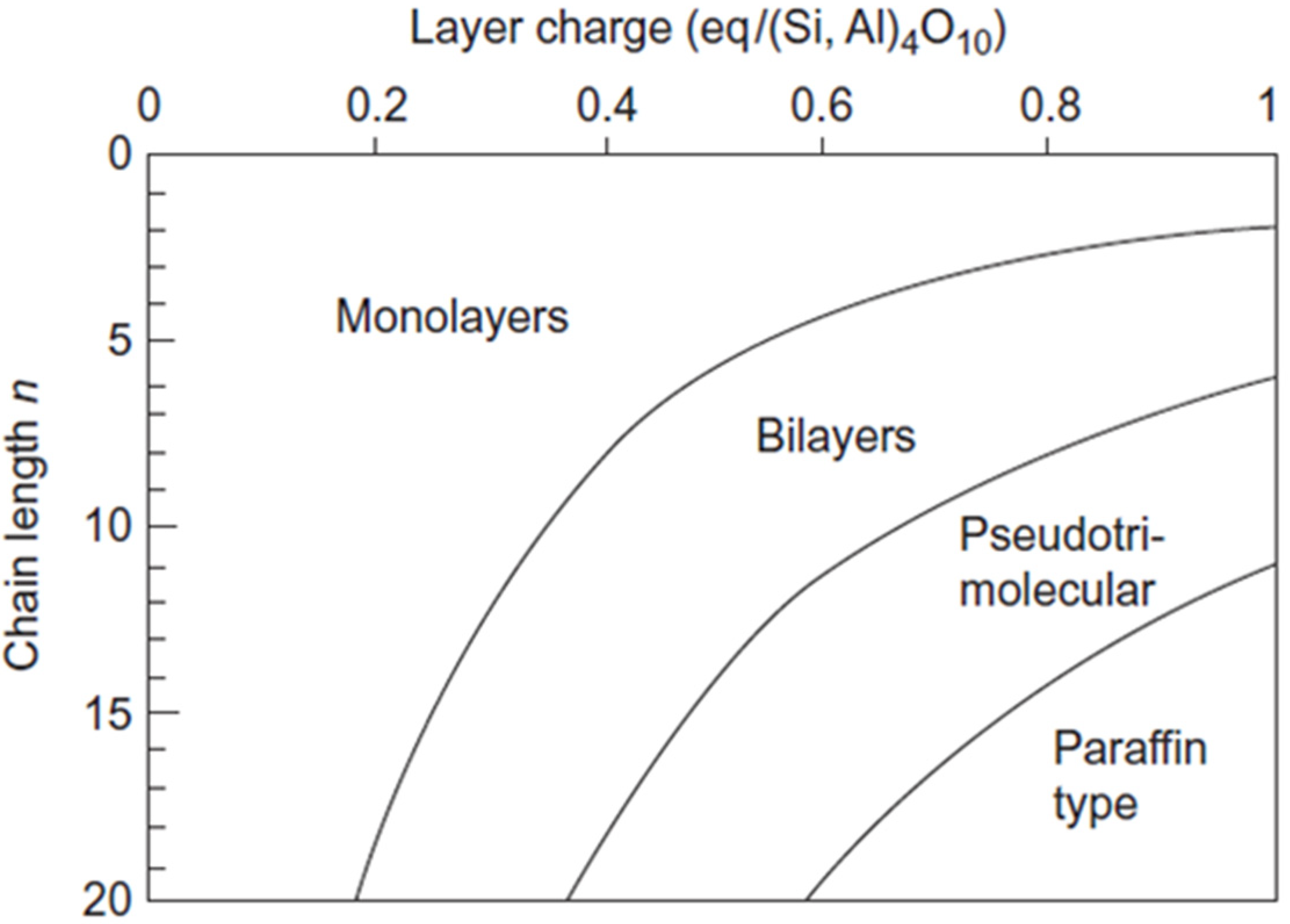

The relationship between the spatial arrangement of organic molecules during the intercalation versus the mineral charge and carbon chain length is demonstrated in Figure 3 [38].

3. Organoclays Based on Clay Minerals with Different Structure Expansion and Surface Charge Capacities

The Si–O tetrahedra/Al–OH octahedra ratio in the clay mineral structure and the bond strength between silicate layers, which depends mainly on the layer charge, govern, to a significant extent, the specific surface areas of minerals and their cation exchange capacity and, consequently, the adsorption properties of organoclays synthesized on their basis. Based on these parameters, layered silicates are divided into several groups (

Table 2. Classification of clay minerals based on the Si–O tetrahedra/Al–OH octahedra ratio and the surface charge layer [39].

Mineral Structure (Layer Types)	Charge per Formula Unit	Groups	Subgroups	Species Examples
1:1	0	Kaolin–Serpentine	Kaolinite	Kaolinite, dickite, nacrite
			Serpentine	Chrysotile, lizardite, amesite
2:1	0	Talc–Pyrophyllite	Talc	Talc
			Pyrophyllite	Pyrophyllite
	0.2–0.6	Smectite	Montmorillonite	Montmorillonite, beidellite, nontronite
			Saponite	Saponite, laponite, hectorite
	0.6–0.9	Vermiculite	Dioctahedral	Dioctahedral vermiculite
			Trioctahedral	Trioctahedral vermiculite
	1	Mica	Dioctahedral	Muscovite, illite, glauconite, paragonite
			Trioctahedral	Phlogopite, biotite, lepidolite
	2	Brittle mica	Dioctahedral	Margarite
			Trioctahedral	Clintonite, anandite
2:1:1	Variable	Chlorite	Dioctahedral	Donbassite
			Trioctahedral	Chlinochlore, chamosite, nimite
			Di, trioctahedral	Cookeite, sudoite
Other silicates (close to inosilicates)	0.1	Palygorskite–Sepiolite	Dioctahedral	Nepouite
			Palygorskite	Palygorskite
			Sepiolite	Sepiolite

) [39]. However, 70% of all clays in deposits have an intricate composition because of the simultaneous presence of several phyllosilicates with a prevalence of one or several minerals [40].

3.1. Organoclays Based on 1:1 Structure Phyllosilicates

Since the kaolinite group minerals cannot expand, their utilization as a matrix for synthesizing organoclays is limited. The cation exchange capacity of kaolinite varies from 1 to 10 mg equiv/100 g for a small area of the specific surface (7–30 m²/g) [41]. Among the clay minerals of the 1:1 groups, only minerals of the kaolinite subgroup interact with various organic molecules, and serpentines are inactive [13]. The grafted substances can be divided into three groups: (1) substances making up hydrogen bonds (hydrazine, carbamide, and formamide); (2) substances with a high dipole moment (dimethyl sulfoxide and pyridine-N-oxide); (3) potassium, rubidium, cesium, and ammonium salts of short-chain aliphatic acids (acetates, propionates, butirates, and isovalerates). The mechanism of their interaction with kaolinite is not clear [18]. Nevertheless, kaolinite clays are used for the synthesis of organoclays because they are widespread and cheap. The synthesis of organoclays is accomplished by the soft chemical treatment method, particularly by aggregation during the melting of alkylammonium ionic liquids. Alkylammonium salts with a short alkyl chain are grafted directly by melting at 180 °C in a nitrogen atmosphere when they replaced dimethyl sulfoxide (DMSO), preliminarily attached to kaolinite. Inoculation for longer alkyl chains is accomplished in two stages. In the first stage, the corresponding amino alcohol is attached to kaolinite by the displacement of DMSO. In the second stage, the inoculated material is quaternized by the reaction with iodomethane or iodoethane [42]. Methoxy-modified kaolinite is used as a carrier for the adsorption of the 3-amino-1,2,4-triazol herbicide known as amitrol. The methoxy modification of kaolinite is accomplished by adding methanol to the preliminarily DMSO-treated kaolinite. The adsorption of amitrol by organoclays is two times higher than its adsorption by kaolinite [43].

In another mineral of the kaolinite subgroup (halloysite), hydrogen bonds between the adjacent layers are weaker. Hence, the interlaminar adsorption of substances is possible. This mineral is also characterized by the formation of tubular aggregates provoked by the disparity of octahedral and tetrahedral sheets.

The organoclay sample obtained by the covalent bonding of halloysite with a hyperreticulated cyclodextrin grid was examined as a potential carrier for polyphenol compounds [44]. The halloysite-based organoclay was used for the adsorption of anionic pollutants from wastewaters [45]. The adsorption of phenol, 2-,3-,4-chlorphenols, 2,4-dichlorphenol, and 2,4,6-trichlorphenol on the halloysite nanotubes modified with hexadecyltrimethylammonium bromide was studied [46]. According to Theng et al. (2012) [35], the application of natural halloysite, the particles of which have micro-tubular (latticed) structure, or synthetic halloysite, the particles of which can be flat or spheroidal (close to imogolite), is promising for the synthesis of clay–polymer complexes.

3.2. Organoclays Based on 2:1 Structure Fillosilicates

Talc and pyrophyllite are minerals with a layered crystal lattice that is responsible for their exfoliation properties in extra thin lamellas. The elasticity of these lamellas varies in different minerals because of their chemical compositions reflected in the details of the crystal lattice structure. Since charges inside lattices in the talc and pyrophyllite structure are compensated almost completely, their layers are bonded by very weak remnant Van der Waals forces. This property is responsible for the very low hardness of talc and pyrophyllite, their extremely easy splittability into elastic sheets, and the lack of tenacity in the sheets. Because of such properties, these minerals are almost never used for the synthesis of organoclays.

Nevertheless, data on the interactions of phyllosilicates of this group with various organic substances are available. For example, some researchers have studied the adsorptions of two model aromatic hydrocarbons (benzene and toluol) by talc from water. Both benzol and toluene yielded linear isotherms. The isotherm slope was steeper for toluene than for benzene, suggesting that toluene has a greater affinity to talc [47]. The rheological properties of the pyrophyllite–water suspension are different in the presence of three surface-active substances (anionic, cationic, and nonionic). The viscosity depends strongly on the type of surfactant adsorbed on the clay surface and the surface potential after adsorption. The basal reflection d₀₀₁ of the pyrophyllite clay did not change after the adsorption of the surfactant, suggesting that they did not intercalate in the interlayer space [48]. The application of the pyrophyllite clay was exemplified by modifying the mineral surface based on the 3-(2-aminoethylamine) propyl-methyldimethoxysilane treatment for the subsequent adsorption Pb²⁺ ions from water solutions [49]. According to these authors, the modified pyrophyllite adsorbed about 93% of Pb²⁺ ions at the initial Pb concentration of 20 mg/L, whereas the natural pyrophyllite only adsorbed 35% of this metal under the same conditions [49].

Clay minerals of the smectite group (montmorillonite, bentonite, beidellite, nontronite, saukonite, and saponite) are distinguished by an insignificant force of interlayer ionic bonds, strong dispersion, and intracrystal expansion. All minerals of the montmorillonite group have a low charge (0.2–0.6 units per elementary cell) due to a low degree of isomorphous ion replacement in the tetrahedral or octahedral sites, resulting in a weak electrostatic interaction between layers. The outer specific surface of smectite clays is as much as 40–70 m²/g, the total specific surface is 450–850 m²/g [50,51], and the porosity is about 0.006–0.010 cm³/g [52]. The cation exchange capacity determined by the traditional methods for smectites from different deposits is 65–135 cmol equiv/kg [53].

The 2:1 structure phyllosilicates, with an expanding structural cell, are the main minerals used for the synthesis of organoclays [54,55]. Moreover, montmorillonite, saponite, and hectorite are the phyllosilicates most used for this purpose [27,35].

Organoclays based on bentonite are used as oil and petroleum product adsorbents [56,57], phenol and its derivatives [58,59], benzoic acid and hydroquinone [60], naphthalene and phenanthrene [61,62], and pesticides: simazine [63], methyl parathion, and tetrachlorvinphos [64], atrazine, butachlor, carbendazim, carbofuran, imidacloprid, isoproturon, pendimethalin, thiophanate- and thiamethoxam-methyl [65]. They are also used for adsorption of pharmaceutical products: amoxicillin, norfloxacine, sulfametoxazol, metoprolol, carbamazepine and trimethoprim [31], diclofenac [66,67], and industrial dyes [68].

Vermiculites, which have a higher charge than the montmorillonite group minerals (Table 2), are also expanding minerals. They, however, lack an unlimited expansion capacity, and four molecules per unit cell limit the water amount in the interlayer space. The cation exchange capacity of vermiculites is 1.5–2 times higher than that of montmorillonites, while the specific surface area (measured by the BET method) can be as much as 800 m²/g [69]. Vermiculites have a higher adsorption selectivity and an irreversible adsorption capacity in the interlayer spaces of large, weakly hydrated cations [70].

A comparison of the sorption properties of organoclays based on vermiculite and montmorillonite, modified by gemini surfactant (dichloride 2,2′-bis (dodecyldimethylammonium)-ethyl ether) for the removal of Congo red dye, revealed that adsorption reached 298 and 154 mg/kg, respectively, at the equilibrium state. The adsorption capacity of these organoclays depended on their hydrophobicity. The thermodynamic parameters demonstrated that the dye adsorption by the studied organoclays was an endothermic and spontaneous process [71]. Organic vermiculites, modified by hexadecyltrimethylammonium and benzyl-dimethyl–hexadecylamine at surfactant concentrations of 0.5, 1.0, and 2.0 of the cation exchange capacity, were used for the adsorption of anionic species in the form of As (III) and As (V). Increases in the surfactant concentration were accompanied by the morphological change of mineral grains, partial hydrophobization of the surface, deterioration of the interlayer space’s structural parameters, and expansion of the interlayer space. It was noted that the studied organoclays adsorbed more As (V) than As (III). The maximum adsorption of arsenic salts took place at the maximum amount of modifiers [72].

The adsorption of Cr (VI) by montmorillonite and vermiculite, modified by hexadecylpyridinium, hexadecyltrimethylammonium, and benzethonium were studied at pH levels of 3–9 [73]. The interlayer space in organic vermiculites had a paraffin structure, while the organic montmorillonites had a pseudotrimolecular structure. The surface charges of clays changed from negative or positive values; they were affected strongly by the specific surface, layer charge, and pH. Organo-vermiculites and organo-bentonites demonstrated a compatible adsorption capacity for the removal of Cr (VI) depending on the organic cation species. For all organoclays, the adsorbed amount of Cr (VI) decreased with the increase of the pH. The influence of competing anions Cl⁻, NO₃⁻, and SO₄²⁻ for Cr (VI) adsorption turned out to be small. For the organo-vermiculites, the majority of anion adsorption centers were confined to the interlayer space.

The possibility of the intercalation of micas and, to a lesser extent, hydromicas, is limited by the high charges (1 in micas, 0.8 in hydromicas) located in the tetrahedral sheets, that is, immediately near the interlayer cation, which stipulates a strong electrostatic interaction of the layers and hampers a significant expansion of the interlaminar space. The experimental capacity of the cation exchange of these minerals is about 20–50 mmol equiv/100 g of mineral [26,74]. The charge of large micas (clintonites) is still higher and marked by a prominent main pattern. In the case of the bivalent interlayer cation change, the capacity of the cationic exchange of clintonites is two times higher than that of real micas. Still, such replacement is virtually impossible because of an extremely stable electrostatic bond [75]. Cation exchange in micas is a slow process because these minerals are enriched by the partly disintegrated sectors of the interlayer space (particularly in the weathered species), through which cations hardly diffuse [26]. The presence of such sectors (wedge-shaped zones) and their arrangement govern the selectivity of cation exchange. Large hydrated inorganic cations, such as Ca²⁺ and Mg²⁺, and organic cations, cannot enter these zones, particularly if they are located not only at the edges of interlayer space but also inside it [26].

When muscovite intercalates with ammonium salts, changes in the volume unit cell of the mineral are negligible during the interlayer K⁺ exchange into NH₄⁺ ions. Still, a 4% expansion was observed when K⁺ was exchanged for methylammonium CH₃NH₃⁺ [76].

More complicated modification methods were proposed because of the difficulty of direct intercalation to micas. Previously, different research groups [77,78] used Li and cations of alkali earth metals (Ba²⁺, Ca²⁺, and Mg²⁺) to change the structure for the first stage of the ion exchange processing of muscovite. However, an efficient method––the treatment of muscovite with melted lithium nitrate at 350 °C for 12 h––for alleviating the subsequent intercalation by organic substances was only proposed in 2005 [79]. Thus, the specific surface of muscovite increased from 3.5 to 170 m²/g. The reaction with the nitrates of some other alkali metals did not lead to an appreciable increase of the specific surface.

Weng-Lip et al. [80] accomplished the intercalation of muscovite cations of cetyltrimethylammonium bromide with the two-stage method, including, at first, the melting of the mineral with lithium nitrate at 300 °C and then, at the second stage, interaction with the organic substance solution in an autoclave at 180 °C. Fourier transform infrared spectroscopy showed that cetyltrimethylammonium cations diffuse into the aluminosilicate laminas and make up a stable electrostatic bond with the clay surface. In addition, the intercalated chains of organic cation are distributed uniformly to make up the paraffin-type structures in the muscovite clay.

Hydromicas are distinguished from micas by the abundance of easily removable bonded water and fewer cations making up the interlayer bonds. Therefore, organoclays based on them are more widespread. The adsorption of nonionic organic compounds (benzene, toluol, ethylbenzene, propylbenzene, butylbenzene, t-butylbenzene, naphthalene, and diphenyl) by organoclays was studied based on several phyllosilicates, including illite intercalated with hexadecyltrimethylammonium [81]. The sorption of the pesticide paraquat by illite, bentonite, and sepiolite, as well as organoclays based on them, was studied [82]. Illite demonstrated the highest values of the maximum paraquat adsorption among the minerals under consideration. When it was modified with nonylammonium chloride, the maximum paraquat adsorption increased by not more than 10%, and it decreased with modification with dodecylammonium chloride [82]. The researchers examined the sorption of illite modified with hexadecyltrimethylammonium, 1,2-dichlorbenzene, 1,3-dichlorbenzene, and 1,4-dichlorbenzene [83]. Glauconite modified by stearic acid was used as an adsorbent for the adsorption of oil and oil products [84].

3.3. The Possibility of Using 2:1:1 Structure Phyllosilicates for the Synthesis of Organoclays

Chlorites are typical 2:1:1-structured phyllosilicates. Owing to the presence of an additional octahedral sheet between the three-layer structures, unweathered chlorite group minerals lack a chemically active internal surface and an interlayer sorption capacity. Chlorites have low values of CEC and specific surface area (26-45 m²/g) [85].

Information about the synthesis of organoclays from chlorites is virtually absent. Indirect data, however, suggest the possibility of this process. Researchers studied the adsorption of soluble intracellular components of four phytoplankton species (Phaeocystis globosa, Gymnodinium sanguineum, Scrippsiella trochoidea, and Ditylum brightwellii) on three minerals (montmorillonite, kaolinite, and chlorite), and chlorite demonstrated high sorption efficiency [86]. Chlorite and illite adsorbed the macrolide antibiotic azithromycin and the chinoline antibiotic levofloxacin efficiently [87]. The cationic surfactant (cetyltrimethylammonium bromide) was used successfully for the synthesis of organophilic material based on a clay sample composed of smectite (26%), chlorite (20%), illite (17%), and kaolinite (14%) [88].

3.4. Organoclays Based on Other Silicates (Close to Inosilicates)

The construction of the crystal lattice of minerals of the palygorskite and sepiolite groups is based on 2:1 and extended in one basal dimension. A chain of octahedra is sandwiched between tetrahedral apices facing each other. Sepiolite is distinguished from palygorskite by a slightly wider chain. Individual chains are also joined with each other via common apices of some tetrahedra occupying edge positions in the chains. Thus, the structure includes channels that are extended parallel to the chains, resulting in internal surface formation [85]. The capacity of sepiolite cation exchange is 20–30 mmol equiv/100 g [89], and the fibrous structure of clay does not expand with the addition of water or organic solvents. Palygorskite and sepiolite comprise long fibers (several micrometers long and 10–30 nm wide) with channels extended parallel to the fiber length [34]. A review of the sepiolite-based organic nanocomposites was published recently [89].

Organoclays based on Australian palygorskite, modified by cationic surfactants (different doses of octadecyltrimethylammonium bromide, and dioctadecyldimethylammonium bromide), was used for the adsorption of herbicide from synthetic auxin groups (2,4-dichlorophenoxyacetic acid). Molecules of the surfactant were fixed to the surface of the rod-shaped mineral crystals to weaken the interactions between monocrystals [90]. The application of organoclays based on smectite and attapulgite to bind endotoxins demonstrated high efficiency in a water solution [91]. Palygorskite modified with quaternary ammonium salt was used to remove oil from emulsions [92].

4. Conclusions

Organoclays are effective adsorbents, prepared by intercalation or surface grafting of clays and clay minerals with various organic compounds. Organoclays have important practical applications as adsorbents of a wide range of organic pollutants and some inorganic contaminants.

The traditional raw materials for the synthesis of organoclays are 2:1-structured phyllosilicates with the expanding structural cell of the smectite (montmorillonite) group. Montmorillonite, saponite, and hectorite are the phyllosilicates most used for this purpose. Organoclays based on the minerals of the smectite group are used as adsorbents of oil and oil products, phenol and its derivatives, benzoic acid and hydroquinone, naphthalene and phenanthrene, pesticides, pharmaceutical products, industrial dyes, and so forth.

In addition, raw materials for organoclay production can be represented by layered silicates of other groups, for example, 1:1, 2:1, and 2:1:1-structured phyllosilicates and other silicates such as palygorskite and sepiolite (close to chain inosilicates). The structural characteristics, including expandability and structural charge, of various groups of phyllosilicates and inosilicates affect their ability to be modified by organic surfactants as well as the adsorption properties of organoclays for various pollutants. Based on clay minerals with different abilities to expand their structure, adsorption materials with specified properties, such as adsorption capacity to the required capacity, stability, and being safe for the environment, can be obtained.
