Article

Experimental Modeling of Ankerite–Pyrite Interaction under Lithospheric Mantle P–T Parameters: Implications for Graphite Formation as a Result of Ankerite Sulfidation

by
Yuliya V. Bataleva
1,*,
Ivan D. Novoselov
1,2,
Yuri M. Borzdov
1,
Olga V. Furman
1,2 and
Yuri N. Palyanov
1,2,*
1
Sobolev Institute of Geology and Mineralogy, Siberian Branch of Russian Academy of Sciences, 630090 Novosibirsk, Russia
2
Department of Geology and Geophysics, Novosibirsk State University, 630090 Novosibirsk, Russia
*
Authors to whom correspondence should be addressed.
Minerals 2021, 11(11), 1267; https://doi.org/10.3390/min11111267
Submission received: 18 September 2021 / Revised: 20 October 2021 / Accepted: 12 November 2021 / Published: 14 November 2021
(This article belongs to the Section Crystallography and Physical Chemistry of Minerals & Nanominerals)
Browse Figures
Versions Notes

Abstract

:
Experimental modeling of ankerite–pyrite interaction was carried out on a multi-anvil high-pressure apparatus of a “split sphere” type (6.3 GPa, 1050–1550 °C, 20–60 h). At T ≤ 1250 °C, the formation of pyrrhotite, dolomite, magnesite, and metastable graphite was established. At higher temperatures, the generation of two immiscible melts (carbonate and sulfide ones), as well as graphite crystallization and diamond growth on seeds, occurred. It was established that the decrease in iron concentration in ankerite occurs by extraction of iron by sulfide and leads to the formation of pyrrhotite or sulfide melt, with corresponding ankerite breakdown into dolomite and magnesite. Further redox interaction of Ca,Mg,Fe carbonates with pyrrhotite (or between carbonate and sulfide melts) results in the carbonate reduction to C0 and metastable graphite formation (±diamond growth on seeds). It was established that the ankerite–pyrite interaction, which can occur in a downgoing slab, involves ankerite sulfidation that triggers further graphite-forming redox reactions and can be one of the scenarios of the elemental carbon formation under subduction settings.

1. Introduction

The existing ideas about the polygenic origin of diamond [1,2,3] imply various processes, mechanisms, and driving forces of diamond crystallization in nature, including redox reactions, changes in P–T conditions, the evolution of melt or fluid composition, etc. [1,2,3,4,5,6,7,8]. According to existing models, diamond formation in the lithospheric mantle occurs at depths of 120–210 km and at temperatures of 900–1500 °C, as a result of metasomatic processes. Redox reactions leading to the oxidation of hydrocarbons or the reduction of carbonates or CO2 to elemental carbon are considered as driving forces of diamond formation in these models [3,9,10]. Other models include the formation of diamonds as a result of decompression or cooling of fluids, partial melting in the presence of fluid [11], electrochemical processes (the effect of an electric field on carbonate or carbonate–silicate melts, [12]), or mixing of various fluids or melts [13].
The main evidence for the genetic relationship of some natural diamonds with carbonates is, first, carbonate inclusions [14,15,16,17,18] and fluid inclusions, for which an essential carbonatite composition is reported [19,20,21,22,23,24,25,26], in diamonds of the upper and lower mantle genesis. Secondly, the so-called subduction isotope signature of some natural diamonds, which consists of variations in the δ13C values of diamond, has been found to exist close to δ13C of subducted carbonates [27]. Currently, it is known that some carbonates are thermodynamically stable up to P–T parameters of the lower mantle [28], and under subduction conditions, up to 80% of carbonates do not undergo decarbonation and partial melting (Figure 1) [29,30], and they can be transported to depths over 600 km [2,3,31] and, accordingly, participate in the processes of diamond genesis at mantle depths.
Existing experimental studies of the formation of diamond and graphite from the carbon of carbonates (or CO2–fluid) as a result of redox reactions (Figure 2) were carried out with the participation of Si, SiC, silicon-bearing alloys [35,36], methane-aqueous, or hydrogen fluids [37,38], metallic iron and cohenite [6,39], as well as sulfides [40,41,42]. The obtained data confirmed the fundamental possibility of diamond formation by reduction of carbonate in nature, while it is assumed that in the lithospheric mantle at depths insufficient for the stabilization of metallic iron or carbides, the most probable reducing agents are Fe,Ni sulfides.
Despite the fact that the fundamental possibility of the formation of diamond and graphite by reduction of carbonate/CO2–fluid with sulfides or sulfide melts has already been experimentally demonstrated, there are still a number of unresolved issues in this direction. In particular, our recent experimental studies in multicomponent Fe,Ni-olivine‒ankerite‒sulfur and Fe,Ni-olivine‒ankerite‒pyrite systems [43], aimed at modeling the reactions of silicates and carbonates sulfidation, showed the possibility of crystallization of elemental carbon (graphite) in these processes. However, due to the complexity of the studied systems, a detailed reconstruction of the formation processes of elemental carbon phases during sulfidation of FeO-bearing carbonates was not possible. In this regard, in this study, it seems relevant to investigate the processes of formation of graphite (±diamond), coupled with sulfidation of carbonate, in a relatively simple ankerite–pyrite system at P–T parameters of the lithospheric mantle.

2. Materials and Methods

Experimental modeling of the graphite-producing carbonate–sulfide interaction was carried out in the ankerite–pyrite system (Ca(Fe,Mg)(CO3)2-FeS2) on a multi-anvil high-pressure apparatus of a “split sphere” type (BARS) [44], at a pressure of 6.3 GPa, in the temperature range of 1050–1550 °C (with a step of 100 °C) and durations from 20 to 60 h. Methodological features of the assembly, high-pressure cell schemes, as well as data on the calibration were published earlier [44,45,46]. The starting reagents were natural ankerite (CaFe0.49Mg0.49Mn0.02(CO3)2, Kyshtym deposit, Urals, Russia), and pyrite (FeS2, Astafyevskoe deposit, Urals, Russia). The weight proportions of the original ankerite and pyrite were 56.7 and 10.5 mg, respectively. The proportions of ankerite and pyrite were chosen on the basis that with the complete extraction of iron by the sulfide phase from carbonate, the obtained sulfide would have the stoichiometry of pyrrhotite (according to reaction Ank + Py = Dol + Mg,Ca carbonate + Po). Considering the impossibility of studying sulfides and sulfur-bearing phases in Pt ampoules at mantle pressures and temperatures [36,38,47], graphite was selected as the optimal material for the capsules; in addition, the graphite material of the capsules ensured the maintenance of oxygen fugacity in the reaction volume below the CCO (C + O2 = CO2) buffer equilibrium (FMQ + 1 log units) during experiments [38], which are considered to be average for the lithospheric mantle.
Given the studied processes result in the formation of elemental carbon, control experiments were performed, using alternative capsule materials (talc ceramics and MgO), with no diamond seeds, to evaluate the effect of the graphite capsule material on phase formation processes. The experiments showed that products of the ankerite–pyrite interaction reacted both with MgO and talc ceramics (Table 1, Figure 3), with a significant loss of iron in the system. However, despite the fact that MgO and talc ceramics capsules were unsuitable for the accurate study of ankerite–pyrite interaction processes, their use demonstrated the effectiveness of ankerite–pyrite interaction in graphite crystallization in the presence of carbonate (ankerite) as the only carbon source.
Initial reagents were thinly powdered and thoroughly homogenized. Three seed diamond crystals of cuboctahedral habit (~500 μm in size) were placed in the reaction volume of the capsules to obtain information on the possibility of diamond growth at P,T, ƒO2, x-parameters of the experiments.
Optical examination of the experimental samples was carried out on stereomicroscopes “Stemi 508” and “Axio Imager 2” (Carl Zeiss Microscopy, Jena, Germany). The phase and chemical compositions of the samples, as well as phase relationships, were studied by scanning electron microscopy and energy dispersive spectroscopy (TESCAN MIRA 3 LMU, Tescan, Brno, Czech Republic), as well as microprobe analysis (Jeol JXA-8100, JEOL Ltd., Tokyo, Japan). The analysis of carbonate and sulfide phases was carried out at an accelerating voltage of 20 kV, a probe current of 20 nA, a counting time of 10 s on each analytical line, and an electron beam diameter of 3 μm. To analyze the compositions of quenched melts–sulfide and carbonate, which are represented by aggregates of microdendrites, the electron beam diameter was increased to 20–40 µm. To study the morphology of diamond seed crystals, the method of differential interference contrast microscopy (microscope “Axio Imager 2”, Carl Zeiss Microscopy, Jena, Germany) and scanning electron microscopy were used. Raman spectroscopy was used to study the structural features of carbonates, sulfides, and graphite (Jobin Yvon LabRAM HR800 spectrometer, Horiba, Tokyo, Japan, equipped with an Olympus BX41 stereo microscope, Horiba Jobin Yvon S.A.S., Lonjumeau, France). A He-Cd laser with a wavelength of 325 nm is used as an excitation source. Analytical studies were carried out at the V.S. Sobolev Institute of Geology and Mineralogy SB RAS and the Center for Collective Use of Multi-Element and Isotopic Analysis of the Siberian Branch of Russian Academy of Sciences.

3. Results

The parameters and results of the experiments are shown in Table 1. It should be noted that the experiments are conditionally divided into relatively low-temperature (1050–1250 °C, 60 h), in which pyrite is stable in the form of a solid phase, and high-temperature (1350–1550 °C, 20 h), in which pyrite undergoes incongruent melting according to the reaction FeS2 → FeS + Sliq (Figure 1). In the ankerite–pyrite system at relatively low temperatures (1050–1250 °C), the crystallization of newly formed pyrrhotite Fe0.88S, dolomite Ca0.91–0.97Mg0.67–0.96Fe0.02–0.31(CO3)2, magnesite Mg0.85–0.89Ca0.06–0.09Fe0.01CO3 and metastable graphite was established, as well as a part of the initial pyrite retained in the samples (Figure 4a, Table 2 and Table 3). There is no ankerite presented in the samples. The structure of the samples obtained is shown in Figure 5a,b. Raman spectra of starting and final carbonates and sulfides, as well as graphite, are shown in Figure 6 and Figure 7. Pyrrhotite crystals are, in most cases, spatially confined to pyrite; at 1050–1150 °C, they either form reaction rims around pyrite or are in intergrowth with it, and at 1250 °C, pyrrhotite also occurs in the form of monomineralic aggregates. It should be noted that crystals of metastable graphite are also spatially confined to sulfides and are located at the contact of sulfides with carbonates. In some large (~100 μm) crystals of FeO-bearing dolomite, zoning is noted, with a high-iron center and a low- or iron-free periphery rims. With an increase in temperature within the range of 1050–1250 °C, an increase in the amount of pyrrhotite and graphite occurs (Figure 5a,b), and the composition of the resulting phases also changes. In particular, for dolomite, a tendency for FeO concentration to decrease from 11.5 wt. % (1050 °C) to 0.7 wt. % (1350 °C) occurs.
Raman spectroscopic study of the obtained dolomite and magnesite showed that the main Raman modes for them are 173, 296, 724, and 1097 cm−1 and 210, 327, 737, and 1094 cm−1, respectively (Figure 6a). Sulfides have peaks at 216, 277, 390 and 589 cm−1 (pyrrhotite) and at 346, 381 and 434 cm−1 (pyrite) (Figure 6b). In the Raman spectra of graphite, intense bands of the first order D (1359 cm−1), G (1581 cm−1), and D’ (1624 cm−1), as well as the second-order—G’ (2718 cm−1) (Figure 7). It should be noted that the most characteristic feature of the obtained graphite is the defectiveness of its structure, as evinced by the increased intensity of the “defect” D and D’ bands. We believe that the main reason for the defectiveness of graphite is the fact that graphite aggregates were found exclusively at the contact of sulfide melt drops with carbonate melt, and their crystallization area was restricted with this surface. Most probably, graphite aggregate consisted of variously oriented clusters or microcrystals, and it reflected in Raman spectra.
It was found that the interaction of ankerite with pyrite at relatively high temperatures (1350–1550 °C) leads to the formation of dolomite, magnesite (± magnesian aragonite), the generation of sulfide and carbonate melts, as well as the crystallization of metastable graphite and the growth of diamond on seed crystals (Figure 4b–f). The schematic structure of the obtained samples is shown in Figure 5c–e. At 1350 °C, the sample is represented by a coarse-crystalline aggregate of dolomite and magnesite, in which there are rounded drops of quenched sulfide melt and graphite crystals confined to them (Figure 4b–d and Figure 5c). The interstitions of the carbonate matrix contain a small amount of high-calcium (Ca # 0.71) carbonate melt. The initial stage of diamond growth was established on seed crystals at a given temperature. At 1450 °C, the upper and central parts of the sample contain a quenched carbonate melt, and the lower part of the sample contains magnesite aggregate with carbonate melt in the interstices, droplets of quenched sulfide melt, and graphite crystals (Figure 4e and Figure 5d). At 1550 °C, solid-phase carbonates are absent; the sample is completely represented by a quenched carbonate melt, which contains drops of sulfide melt (up to 1 mm in diameter) and large plate crystals of graphite (up to 100 μm). At ≥ 1450 °C, the formation of an overgrown diamond layer with a thickness of up to 70 µm on the {111} and {100} faces was established on the seed crystals (Figure 4f).
The chemical compositions of the obtained phases are shown in Table 2 and Table 3. Dolomite is found in the samples only at 1350 °C; it is characterized by FeO concentrations at the level of 2.7–3.0 wt. %. At the contact of dolomite with sulfide melt, the formation of low or iron-free rims (edge parts) of carbonate crystals is observed. Magnesite is formed in the range of 1350–1450 °C and corresponds in composition to Mg0.86Ca0.05Fe0.02CO3. The quenched aggregates of the sulfide melt are represented by microdendrites of pyrite and pyrrhotite, and the bulk composition of the melt is characterized by the atomic ratio Fe:S = 0.99–1.1, as well as the content of dissolved oxygen from 0.6 to 2.0 wt. %. The composition of the carbonate melt depends on the temperature; an increase in Mg # (from 0.03 to 0.14) and iron content (from 0.25 to 0.48), as well as a decrease in Ca # (from 0.72 to 0.39), occur when the temperature rises from 1350 to 1550 °C (Table 2).

4. Discussion

4.1. Reconstruction of Ankerite–Pyrite Interaction Processes at Mantle P–T Parameters

An analysis of the experimental results has shown that even at relatively low temperatures (1050–1250 °C), at which pyrite is stable in the solid-phase state, ankerite in the presence of pyrite is unstable and enters into reactions. It was found that at the P–T parameters of the experiments during the interaction of ankerite and pyrite, iron is extracted from carbonate, which is accompanied by the enrichment of pyrite with iron and leads to the formation of pyrrhotite:
3CaFe0.5Mg0.5(CO3)2 + FeS2 → 2FeS + 2(Mg,Fe)Ca(CO3)2 + 2(Mg,Ca)CO3
This process (extraction of iron from carbonate) initiates the decomposition of ankerite into dolomite and magnesite with FeO and CaO impurities. Considering that with an increase in temperature in the range of 1050–1250 °C, the bulk concentration of FeO in dolomite decreases by more than 3 times, it can be assumed that, in relatively high-temperature experiments, the extraction of iron into sulfide occurs from the initial ankerite, but also from the newly formed FeO-bearing dolomite. Additional confirmation of the implementation of this process is the formation of large crystals of dolomite with a zonal structure, which manifests itself mainly at the contact of dolomite with sulfides and consists of the formation of low- or iron-free rims in its crystals. It has been experimentally established that newly formed pyrrhotite, dolomite, and magnesite, obtained as a result of ankerite–pyrite interaction at T ≤ 1250 °C, at subsequent stages of experiments, enter into carbon-producing redox reactions. According to these reactions, a small amount of metastable graphite is formed at the contact of carbonates and sulfides, while pyrrhotite is a reducing agent for the carbon of carbonates.
At temperatures above the solidus (1350–1550 °C), the ankerite–pyrite interaction is accompanied by complete melting of the sulfide phase, as well as partial (1350–1450 °C) or complete (1550 °C) melting of carbonates. Under these conditions, all the processes described for relatively low temperatures are realized; however, elemental carbon-producing redox reactions occur much more intensively and are characterized by a number of features. At T ≥ 1350 °C, the formation of graphite and the growth of diamond at seeds occur as a result of the redox interaction of immiscible carbonate and sulfide melts, which can be described by the schematic reaction:
(Ca,Mg,Fe)CO3 liq + FeSliq → (Ca,Mg,Fe1+x)CO3 liq + Fe1−xS-Oliq + C0 graphite, diamond growth
With this redox interaction, the carbon of the carbonate melt is reduced to C0 (predominantly metastable graphite, ±diamond growth), and the corresponding oxidation of the sulfide melt, accompanied by the dissolution of oxygen in it (Table 3). It should be emphasized that graphite crystals, in all cases, spatially confined to the contacts of sulfide and carbonate melts, as well as drops of sulfide melt on the surfaces of seed crystals with traces of diamond growth, are direct pieces of evidence of the implementation of this process in experiments. It was found that the medium for the crystallization of metastable graphite and the growth of diamond is a high-calcium carbonate melt, and the source of carbon is the initial ankerite. With an increase in temperature from 1350 to 1550 °C and a corresponding increase in the melting degree of carbonate phases, the intensity of C0-producing redox reactions increases, which is confirmed by an increase in the number of nucleation centers and the size of graphite crystals, the thickness of the overgrown diamond layer on the seeds, as well as an increase in the concentration of oxygen dissolved in a sulfide melt.
Thus, it was experimentally established that the main processes of interaction of ankerite and pyrite under mantle P–T parameters should be considered (1) the extraction of iron from carbonate, accompanied by the enrichment of pyrite with iron and ultimately leading to the formation of pyrrhotite and the decomposition of ankerite into dolomite and magnesite and (2) redox reactions between newly formed pyrrhotite and Mg,Ca,Fe carbonates, leading to the formation of metastable graphite. Redox interaction of immiscible carbonate and sulfide melts is also a C0-producing process leading to graphite crystallization (± diamond growth).

4.2. Implications of the Results of Ankerite–Pyrite Interaction to Graphite Formation via Ankerite Sulfidation in the Lithospheric Mantle and under Subduction Settings

The studied ankerite–pyrite interaction can be considered one of the potential processes that occur under conditions of crustal material subduction to mantle depths and are associated with a number of metasomatic transformations, as well as the formation of elemental carbon. It should be noted that ankerite itself is stable in a wide range of pressures and temperatures of the upper mantle [31] and can also be a product of the interaction of siderite and aragonite in the slab (Figure 1). According to studies devoted to the bulk estimates of the composition of the subducted rocks, as well as the redox budget of the subduction zones, pyrite is one of the most common minerals that concentrate sulfur in the subducting plate. Thermodynamic calculations [48] show that, under subduction conditions, pyrite is stable up to the parameters of the eclogite facies (pressure~5–6 GPa, depth~150–180 km), at greater depths, pyrite undergoes incongruent melting, with the formation of a sulfur melt and pyrrhotite. In this study, as well as in [43], we experimentally confirmed and supplemented the existing assumption of Tomkins and Evans [48] that under high-pressure conditions, a significant part of the subducted pyrite gradually transforms into pyrrhotite as a result of reactions Fe,Mg silicates or Fe-bearing oxides according to the schematic reaction FeS2 + (Fe,Mg)Oin silicates = 2FeS + MgOin silicates. Our data indicate that the enrichment of pyrite with iron and its transition to pyrrhotite can occur when interacting with iron-bearing carbonates, for example, with ankerite, according to a similar reaction. As a result of the extraction of iron from ankerite and violation of stoichiometry, this carbonate decomposes into magnesite and FeO-bearing dolomite, which, in turn, can also interact with pyrite. It is also interesting to note that at temperatures above 1350 °C (6.3 GPa), as a result of the ankerite–pyrite interaction, two immiscible melts are generated—carbonate and sulfide. These melts are considered as potential agents of mantle metasomatism-oxidating [49,50,51,52,53,54] and -reducing [55,56,57,58,59,60,61], respectively. The redox interaction of carbonate and sulfide melts under subduction conditions is a possible C0-producing process and also leads to the evolution of their compositions. In particular, in this process, as a result of the reduction of the carbonate component of the melt to C0, the balance of the number of divalent cations (Mg, Ca, Fe) and carbonate ion is disturbed, which can lead to the crystallization of magnesian carbonates. Corresponding oxidation of the sulfide melt and the dissolution of a small amount of oxygen in it can also affect a number of its properties and change the buffer capacity. It was experimentally established that under the conditions of generation and interaction of two metasomatic agents—sulfide and carbonate melts—which can occur in a fairly wide range of temperatures and pressures in the subducting slab, graphite-producing redox reactions are predominantly realized. Thus, our studies have shown that ankerite–pyrite interaction, which can occur in a downgoing slab, involves ankerite sulfidation, triggers further graphite-forming redox reactions, and can be one of the scenarios of the elemental carbon formation under subduction settings.

Author Contributions

Conceptualization, Y.V.B. and Y.N.P.; data curation, Y.V.B. and Y.N.P.; formal analysis, Y.V.B., I.D.N. and O.V.F.; funding acquisition, Y.N.P.; investigation, Y.V.B. and I.D.N.; methodology, Y.M.B.; project administration, Y.N.P.; visualization, Y.V.B. and O.V.F.; writing—original draft preparation, Y.V.B.; writing—review and editing, Y.N.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation under Grant No. 19-17-00075.

Data Availability Statement

Not Applicable.

Acknowledgments

The authors thank Evgeniy Zdrokov for his assistance in preparation of polished samples.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Stachel, T.; Harris, J.W. The origin of cratonic diamonds—Constraints from mineral inclusions. Ore Geol. Rev. 2008, 34, 5–32. [Google Scholar] [CrossRef]
  2. Shirey, S.; Smit, K.; Pearson, D.; Walter, M.; Aulbach, S.; Brenker, F.; Bureau, H.; Burnham, A.; Cartigny, P.; Chacko, T.; et al. Diamonds and the mantle geodynamics of carbon: Deep mantle carbon evolution from the diamond record. In Deep Carbon: Past to Present; Orcutt, B., Daniel, I., Dasgupta, R., Eds.; Cambridge University Press: Cambridge, UK, 2019; pp. 89–128. [Google Scholar]
  3. Shirey, S.B.; Cartigny, P.; Frost, D.J.; Keshav, S.; Nestola, F.; Nimis, P.; Pearson, D.G.; Sobolev, N.V.; Walter, M.J. Diamonds and the Geology of Mantle Carbon. Rev. Mineral. Geochem. 2013, 75, 355–421. [Google Scholar] [CrossRef] [Green Version]
  4. Smith, E.M.; Shirey, S.B.; Nestola, F.; Bullock, E.S.; Wang, J.; Richardson, S.H.; Wang, W. Large gem diamonds from metallic liquid in Earth’s deep mantle. Science 2016, 354, 1403–1405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Pal’yanov, Y.N.; Sokol, A.G.; Khokhryakov, A.F.; Pal’yanova, G.A.; Borzdov, Y.M.; Sobolev, N.V. Diamond and graphite crystallization in COH fluid at PT parameters of the natural diamond formation. Dokl. Earth Sci. 2000, 375, 1395–1398. [Google Scholar]
  6. Palyanov, Y.N.; Bataleva, Y.V.; Sokol, A.G.; Borzdov, Y.M.; Kupriyanov, I.N.; Reutsky, V.N.; Sobolev, N.V. Mantle-slab interaction and redox mechanism of diamond formation. Proc. Natl. Acad. Sci. USA 2013, 110, 20408–20413. [Google Scholar] [CrossRef] [Green Version]
  7. Palyanov, Y.N.; Borzdov, Y.M.; Khokhryakov, A.F.; Bataleva, Y.V.; Kupriyanov, I.N. Effect of sulfur on diamond growth and morphology in metal-carbon systems. CrystEngComm. 2020, 22, 5497–5508. [Google Scholar] [CrossRef]
  8. Palyanov, Y.N.; Borzdov, Y.M.; Kupriyanov, I.N.; Bataleva, Y.V.; Nechaev, D.V. Effect of oxygen on diamond crystallization in metal-carbon systems. ACS Omega 2020, 5, 18376–18383. [Google Scholar] [CrossRef] [PubMed]
  9. Stachel, T.; Brey, G.P.; Harris, J.W. Inclusions in sublithospheric diamonds: Glimpses of deep Earth. Elements 2005, 1, 73–78. [Google Scholar] [CrossRef]
  10. Ryabchikov, I.D. Mechanisms of diamond formation: Reduction of carbonates or partial oxidation of hydrocarbons. Dokl. Earth Sci. 2009, 429, 1346–1349. [Google Scholar] [CrossRef]
  11. Luth, R. Diamond formation during partial melting in the Earth’s mantle. Abstr. Progr. Geol. Soc. Am. 2017, 49, 20–26. [Google Scholar]
  12. Palyanov, Y.N.; Borzdov, Y.M.; Sokol, A.G.; Bataleva, Y.V.; Kupriyanov, I.N.; Reutsky, V.N.; Wiedenbeck, M.; Sobolev, N.V. Diamond formation in an electric field under deep Earth conditions. Sci. Adv. 2021, 7, eabb4644. [Google Scholar] [CrossRef]
  13. Sverjensky, D.A.; Huang, F. Diamond formation due to a pH drop during fluid-rock interactions. Nat. Commun. 2015, 6, 8702. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Wang, A.; Pasteris, J.D.; Meyer, H.O.A.; DeleDuboi, M.L. Magnesite-bearing inclusion assemblage in natural diamond. Earth Planet. Sci. Lett. 1996, 141, 293–306. [Google Scholar] [CrossRef]
  15. Stachel, T.; Harris, J.W.; Brey, G.P. Rare and unusual mineral inclusions in diamonds from Mwadui, Tanzania. Contrib. Mineral. Petrol. 1998, 132, 34–47. [Google Scholar] [CrossRef]
  16. Brenker, F.E.; Vollmer, C.; Vincze, L.; Vekemans, B.; Szymanski, A.; Janssens, K.; Szaloki, I.; Nasdala, L.; Joswig, W.; Kaminsky, F. Carbonates from the lower part of transition zone or even the lower mantle. Earth Planet. Sci. Lett. 2007, 260, 1–9. [Google Scholar] [CrossRef] [Green Version]
  17. Wirth, R.; Kaminsky, F.; Matsyuk, S.; Schreiber, A. Unusual micro- and nanoinclusions in diamonds from the Juina Area, Brazil. Earth Planet. Sci. Lett. 2009, 286, 292–303. [Google Scholar] [CrossRef]
  18. Logvinova, A.M.; Taylor, L.A.; Fedorova, E.N.; Yelisseyev, A.P.; Wirth, R.; Howarth, G.; Reutsky, V.N.; Sobolev, N.V. A unique diamondiferous peridotite xenolith from the Udachnaya kimberlite pipe, Yakutia: Role of subduction in diamond formation. Russ. Geol. Geophys. 2015, 56, 306–320. [Google Scholar] [CrossRef]
  19. Izraeli, E.S.; Harris, J.W.; Navon, O. Fluid and mineral inclusions in cloudy diamonds from Koffiefontein, South Africa. Geochim. Cosmochim. Acta 2004, 68, 2561–2575. [Google Scholar] [CrossRef]
  20. Kopylova, M.; Navon, O.; Dubrovinsky, L.; Khachatryan, G. Carbonatitic mineralogy of natural diamond-forming fluids. Earth Planet. Sci. Lett. 2010, 291, 126–137. [Google Scholar] [CrossRef]
  21. Navon, O.; Hutcheon, I.D.; Rossman, G.R.; Wasserburg, G.J. Mantle-derived fluids in diamond microinclusions. Nature 1988, 335, 784–789. [Google Scholar] [CrossRef]
  22. Zedgenizov, D.A.; Ragozin, A.L.; Shatsky, V.S.; Araujo, D.; Griffin, W.L.; Kagi, H. Mg and Fe-rich carbonate-silicate high-density fluids in cuboid diamonds from the Internationalnaya kimberlite pipe (Yakutia). Lithos 2009, 112S, 638–647. [Google Scholar] [CrossRef]
  23. Klein-BenDavid, O.; Logvinova, A.; Schrauder, M.; Spetius, Z.V.; Weiss, Y.; Hauri, E.H.; Kaminsky, F.V.; Sobolev, N.V.; Navon, O. High-Mg carbonatitic microinclusions in some Yakutian diamonds—A new type of diamond-forming fluid. Lithos 2009, 112, 648–659. [Google Scholar] [CrossRef]
  24. Zedgenizov, D.A.; Ragozin, A.L.; Shatsky, V.S.; Araujo, D.; Griffin, W.L. Fibrous diamonds from the placers of the northeastern Siberian Platform: Carbonate and silicate crystallization media. Russ. Geol. Geophys. 2011, 52, 1298–1309. [Google Scholar] [CrossRef]
  25. Weiss, Y.; Kiflawi, I.; Davies, N.; Navon, O. High-density fluids and the growth of monocrystalline diamonds. Geochim. Cosmochim. Acta 2014, 141, 145–159. [Google Scholar] [CrossRef]
  26. Weiss, Y.; Griffin, W.L.; Bell, D.R.; Navon, O. High-Mg carbonatitic melts in diamonds, kimberlites and the sub-continental lithosphere. Earth Planet. Sci. Lett. 2011, 309, 337–347. [Google Scholar] [CrossRef]
  27. Cartigny, P. Stable isotopes and the origin of diamond. Elements 2005, 1, 79–84. [Google Scholar] [CrossRef]
  28. Yaxley, G.M.; Green, D.H. Experimental demonstration of refractory carbonate-bearing eclogite and siliceous melts in the subduction regime. Earth Planet. Sci. Lett. 1994, 128, 313–325. [Google Scholar] [CrossRef]
  29. Dasgupta, R.; Hirschmann, M.M. The deep carbon cycle and melting in Earth’s interior. Earth Planet. Sci. Lett. 2010, 298, 1–13. [Google Scholar] [CrossRef]
  30. Walter, M.J.; Kohn, S.C.; Araujo, D.; Bulanova, G.P.; Smith, C.B.; Gaillou, E.; Wang, J.; Steele, A.; Shirey, S.B. Deep mantle cycling of oceanic crust: Evidence from diamonds and their mineral inclusions. Science 2011, 334, 54–57. [Google Scholar] [CrossRef] [Green Version]
  31. Morlidge, M.; Pawley, A.; Droop, G. Double carbonate breakdown reactions at high pressures: An experimental study in the system CaO-MgO-FeO-MnO-CO2. Contrib. Mineral. Petrol. 2006, 152, 365–373. [Google Scholar] [CrossRef]
  32. Logvinov, V.M.; Doroshev, A.M. Phase change in Mg, Ca, Sr and Ba carbonates at pressures to 160 kbar. In High-Pressure Silicate Systems; IGiG SO AN SSSR: Novosibirsk, Russia, 1983; pp. 47–56. (In Russian) [Google Scholar]
  33. Shatskiy, A.F.; Litasov, K.D.; Palyanov, Y.N. Phase relations in carbonate systems at pressures and temperatures of lithospheric mantle: Review of experimental data. Russ. Geol. Geophys. 2015, 56, 113–142. [Google Scholar] [CrossRef]
  34. Sharp, W.E. Melting curves of sphalerite, galena, and pyrrhotite and the decomposition curve of pyrite between 30 and 65 kilobars. J. Geophys. Res. 1969, 74, 1645–1652. [Google Scholar] [CrossRef]
  35. Arima, M.; Kozai, Y.; Akaishi, M. Diamond nucleation and growth by reduction of carbonate melts under high-pressure and high-temperature conditions. Geology 2002, 30, 691–694. [Google Scholar] [CrossRef]
  36. Siebert, J.; Guyot, F.; Malavergne, V. Diamond formation in metal-carbonate interactions. Earth Planet. Sci. Lett. 2005, 229, 940–950. [Google Scholar] [CrossRef]
  37. Yamaoka, S.; Shaji Kumar, M.D.; Kanda, H.; Akaishi, M. Formation of diamond from CaCO3 in a reduced C-O-H fluid at HP-HT. Diam. Relat. Mater. 2002, 11, 1496–1504. [Google Scholar] [CrossRef]
  38. Pal’yanov, Y.N.; Sokol, A.G.; Borzdov, Y.M.; Khokhryakov, A.F.; Sobolev, N.V. Diamond formation through carbonate-silicate interaction. Am. Miner. 2002, 87, 1009–1013. [Google Scholar] [CrossRef]
  39. Bataleva, Y.V.; Palyanov, Y.N.; Borzdov, Y.M.; Novoselov, I.D.; Bayukov, O.A. An effect of reduced S-rich fluids on diamond formation under mantle-slab interaction. Lithos 2019, 336–337, 27–39. [Google Scholar] [CrossRef]
  40. Gunn, S.C.; Luth, R.W. Carbonate reduction by Fe-S-O melts at high pressure and high temperature. Am. Miner. 2006, 91, 1110–1116. [Google Scholar] [CrossRef]
  41. Palyanov, Y.N.; Borzdov, Y.M.; Bataleva, Y.V.; Sokol, A.G.; Palyanova, G.A.; Kupriyanov, I.N. Reducing role of sulfides and diamond formation in the Earth’s mantle. Earth Planet. Sci. Lett. 2007, 260, 242–256. [Google Scholar] [CrossRef]
  42. Bataleva, Y.V.; Palyanov, Y.N.; Borzdov, Y.M.; Kupriyanov, I.N.; Sokol, A.G. Synthesis of diamonds with mineral, fluid and melt inclusions. Lithos 2016, 265, 292–303. [Google Scholar] [CrossRef]
  43. Zdrokov, E.; Novoselov, I.; Bataleva, Y.; Borzdov, Y.; Palyanov, Y. Experimental modeling of silicate and carbonate sulfidation under lithospheric mantle P, T-parameters. Minerals 2019, 9, 425. [Google Scholar] [CrossRef] [Green Version]
  44. Palyanov, Y.N.; Borzdov, Y.M.; Khokhryakov, A.F.; Kupriyanov, I.N.; Sokol, A.G. Effect of Nitrogen Impurity on Diamond Crystal Growth Processes. Cryst. Growth Des. 2010, 10, 3169–3175. [Google Scholar] [CrossRef]
  45. Sokol, A.G.; Borzdov, Y.M.; Palyanov, Y.N.; Khokhryakov, A.F. High-temperature calibration of a multi-anvil high pressure apparatus. High Press. Res. 2015, 35, 139–147. [Google Scholar] [CrossRef]
  46. Palyanov, Y.N.; Sokol, A.G. The effect of composition of mantle fluids/melts on diamond formation processes. Lithos 2009, 112, 690–700. [Google Scholar] [CrossRef]
  47. Dasgupta, R.; Buono, A.; Whelan, G.; Walker, D. High-pressure melting relations in Fe-C-S systems: Implications for formation, evolution, and structure of metallic cores in planetary bodies. Geochim. Cosmochim. Acta 2009, 73, 6678–6691. [Google Scholar] [CrossRef]
  48. Tomkins, A.; Evans, K.A. Separate zones of sulfate and sulfide release from subducted mafic oceanic crust. Earth Planet. Sci. Lett. 2015, 428, 73–83. [Google Scholar] [CrossRef] [Green Version]
  49. Wallace, M.; Green, D.H. An experimental determination of primary carbonatite composition. Nature 1988, 335, 343–345. [Google Scholar] [CrossRef]
  50. Wyllie, P.J.; Ryabchikov, I.D. Volatile components, magmas and critical fluids in upwelling mantle. J. Petrol. 2000, 41, 1195–1206. [Google Scholar] [CrossRef] [Green Version]
  51. Kamenetsky, M.B.; Sobolev, A.V.; Kamenetsky, V.S.; Maas, R.; Danyushevsky, L.V.; Thomas, R.; Pokhilenko, N.P.; Sobolev, N.V. Kimberlite melts rich in alkali chlorides and carbonates: A potential metasomatic agent in the mantle. Geology 2004, 32, 845–848. [Google Scholar] [CrossRef]
  52. Kelley, K.A.; Cottrell, E. Water and the oxidation state of subduction zone magmas. Science 2009, 325, 605–607. [Google Scholar] [CrossRef] [Green Version]
  53. Foley, S.F. A reappraisal of redox melting in the Earth’s mantle as a function of tectonic setting and time. J. Petrol. 2011, 2, 1363–1391. [Google Scholar] [CrossRef]
  54. O’Reilly, S.Y.; Griffin, W.L. Mantle metasomatism. In Metasomatism and the Chemical Transformation of Rock. The Role of Fluids in Terrestrial and Extraterrestrial Processes; Harlov, D.E., Austrheim, H., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 471–533. [Google Scholar]
  55. Alt, J.C.; Shanks, W.C.; Jackson, M.C. Cycling of sulfur in subduction zones: The geochemistry of sulfur in the Mariana-Island Arc. Earth Planet. Sci. Lett. 1993, 119, 477–494. [Google Scholar] [CrossRef] [Green Version]
  56. Jégo, S.; Dasgupta, R. The fate of sulfur during fluid-present melting of subducting basaltic crust at variable oxygen fugacity. J. Petrol. 2014, 55, 1019–1050. [Google Scholar] [CrossRef]
  57. Labidi, J.; Cartigny, P.; Jackson, M.G. Multiple sulfur isotope composition of oxidized Samoan melts and the implications of a sulfur isotope ‘mantle array’ in chemical geodynamics. Earth Planet. Sci. Lett. 2015, 417, 28–39. [Google Scholar] [CrossRef]
  58. Lorand, J.-P.; Grégoire, M. Petrogenesis of base metal sulphide assemblages of some peridotites from the Kaapvaal craton (South Africa). Contrib. Mineral. Petrol. 2006, 151, 521–538. [Google Scholar] [CrossRef]
  59. Andersen, T.; Neumann, E. Fluid inclusions in mantle xenoliths. Lithos 2001, 55, 301–320. [Google Scholar] [CrossRef]
  60. Newton, R.C.; Manning, C.E. Solubility of anhydrite, CaSO4, in NaCl-H2O solutions at high pressures and temperatures: Applications to fluid-rock interaction. J. Petrol. 2005, 46, 701–716. [Google Scholar] [CrossRef] [Green Version]
  61. Giuliani, A.; Phillips, D.; Fiorentini, M.L.; Kendrick, M.A.; Maas, R.; Wing, B.A.; Woodhead, J.D.; Bui, T.H.; Kamenetsky, V.S. Mantle oddities: A sulphate fluid preserved in a MARID xenolith from Bultfontein kimberlite (South Africa). Earth Planet. Sci. Lett. 2013, 376, 74–86. [Google Scholar] [CrossRef]
Minerals 11 01267 g001 550

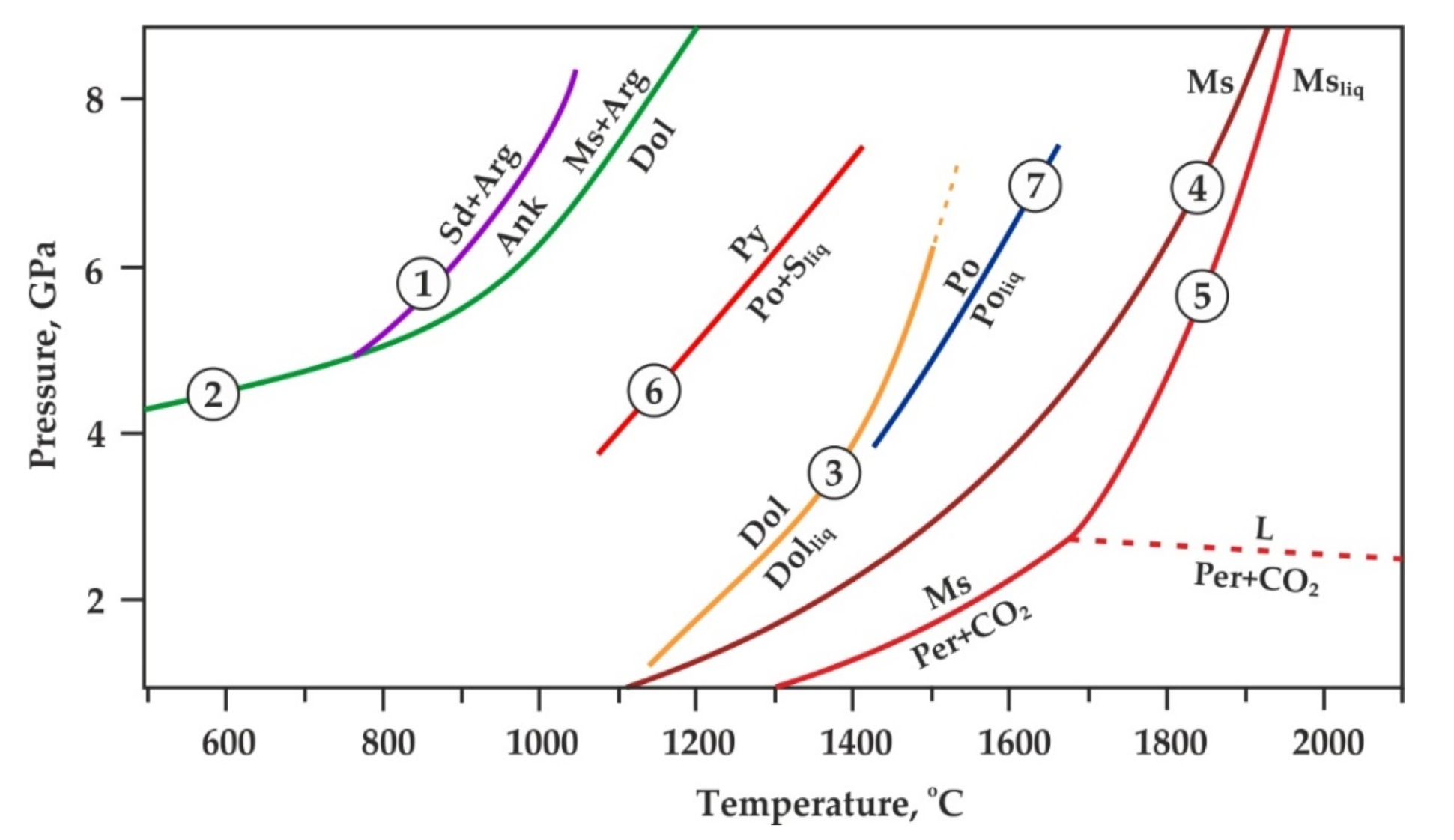

Figure 1. Experimentally determined parameters of melting and decomposition of Mg,Ca,Fe carbonates and iron sulfides: 1—siderite + aragonite = ankerite [31]; 2—magnesite + aragonite = dolomite [31]; 3—dolomite melting [32]; 4,5—magnesite melting and decomposition [33]; 6,7—pyrite and pyrrhotite melting curves [34]. Dotted line denotes P–T position of reaction of periclase + CO2 = MgCO3 melt [33].
Figure 1. Experimentally determined parameters of melting and decomposition of Mg,Ca,Fe carbonates and iron sulfides: 1—siderite + aragonite = ankerite [31]; 2—magnesite + aragonite = dolomite [31]; 3—dolomite melting [32]; 4,5—magnesite melting and decomposition [33]; 6,7—pyrite and pyrrhotite melting curves [34]. Dotted line denotes P–T position of reaction of periclase + CO2 = MgCO3 melt [33].
Minerals 11 01267 g001
Minerals 11 01267 g002 550

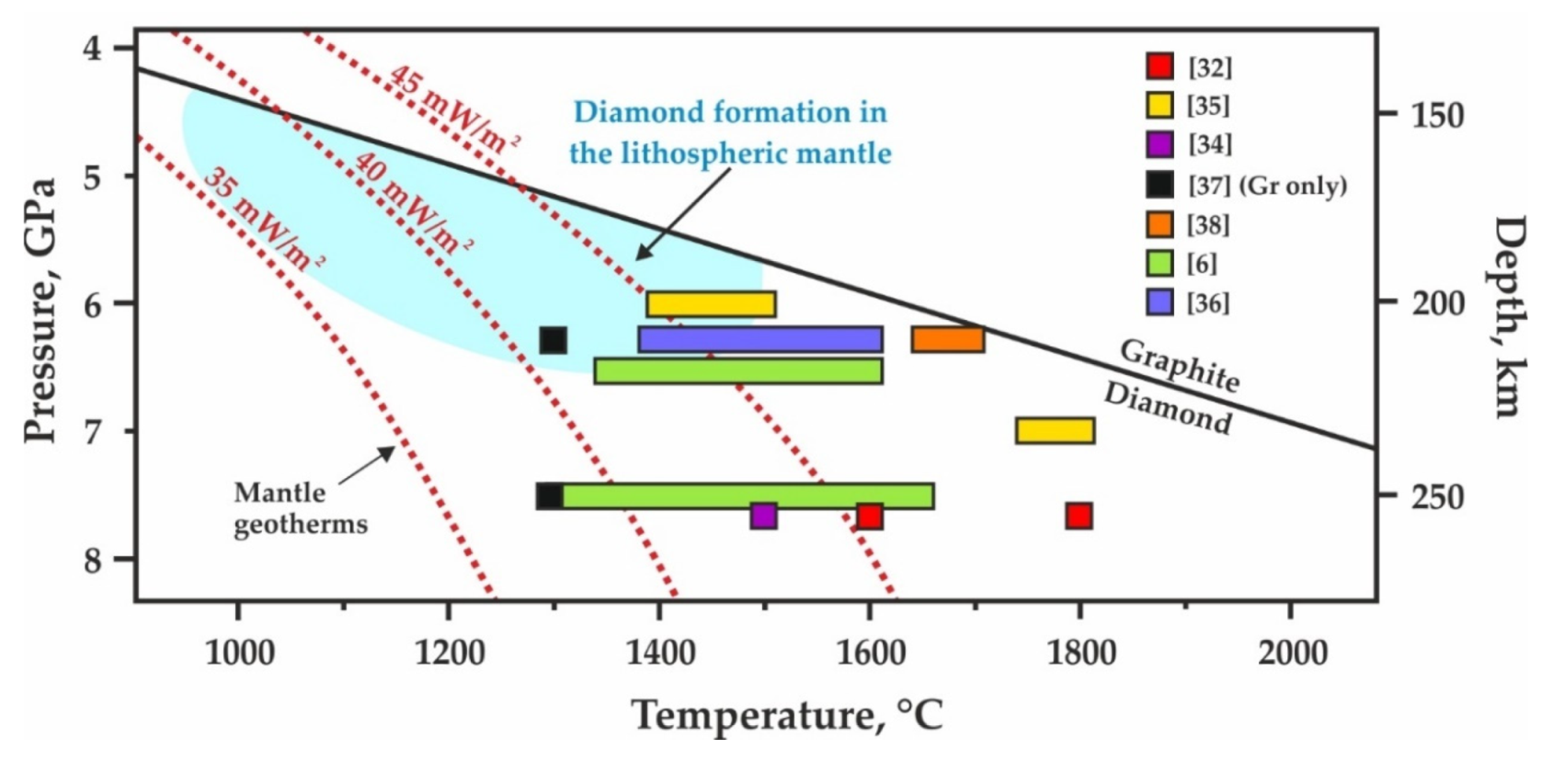

Figure 2. Experimentally determined P–T parameters of spontaneous diamond nucleation as a result of carbonate reduction. Additionally, the parameters of the formation of graphite as a result of carbonate reduction by the Fe-S-O melt are given.
Figure 2. Experimentally determined P–T parameters of spontaneous diamond nucleation as a result of carbonate reduction. Additionally, the parameters of the formation of graphite as a result of carbonate reduction by the Fe-S-O melt are given.
Minerals 11 01267 g002
Minerals 11 01267 g003 550

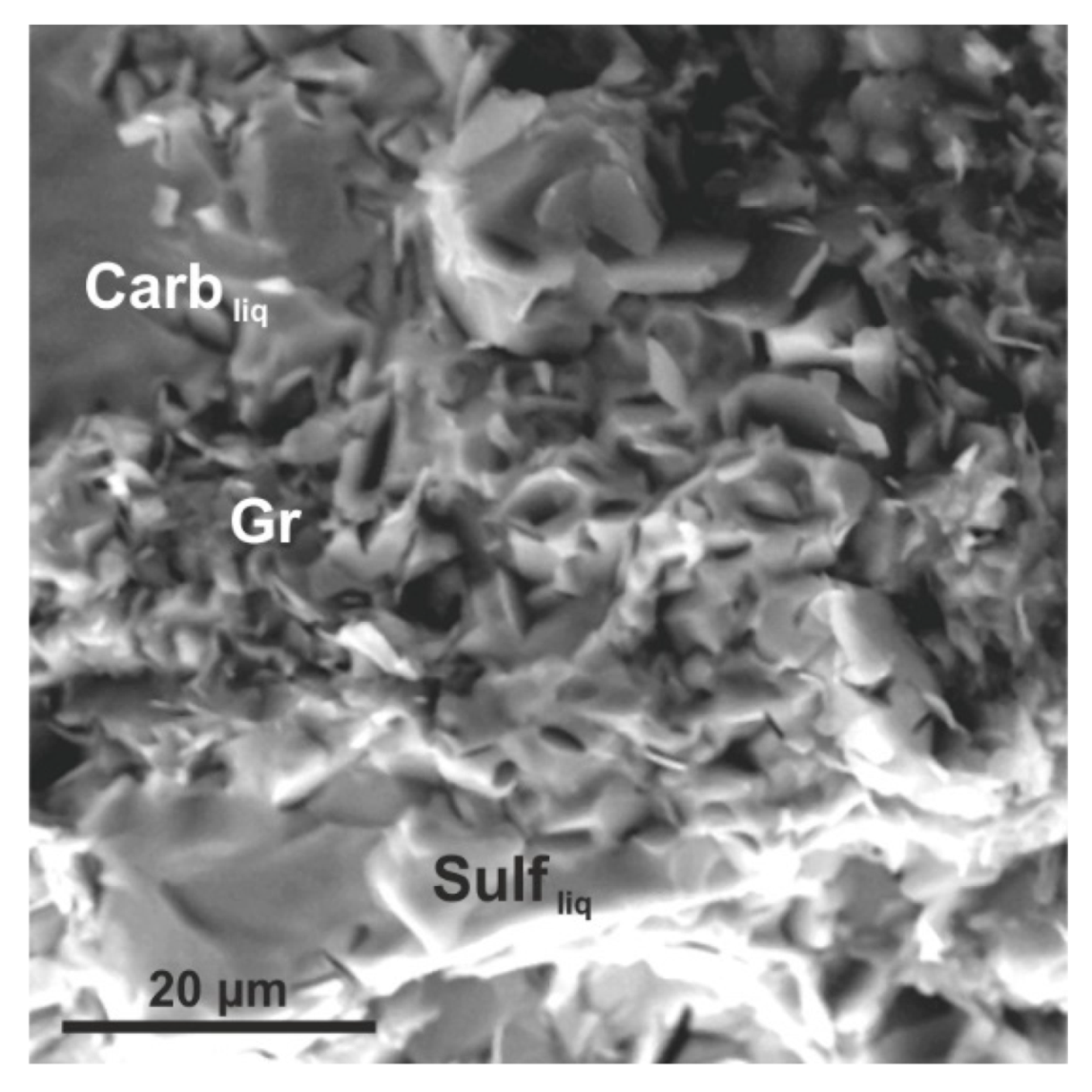

Figure 3. SEM micrograph (BSE regime) of cleavage surface of the sample from the experiment with MgO capsules, illustrating graphite formation in the presence of a single one-carbon source (run # 2003-M, 1450 °C).
Figure 3. SEM micrograph (BSE regime) of cleavage surface of the sample from the experiment with MgO capsules, illustrating graphite formation in the presence of a single one-carbon source (run # 2003-M, 1450 °C).
Minerals 11 01267 g003
Minerals 11 01267 g004 550

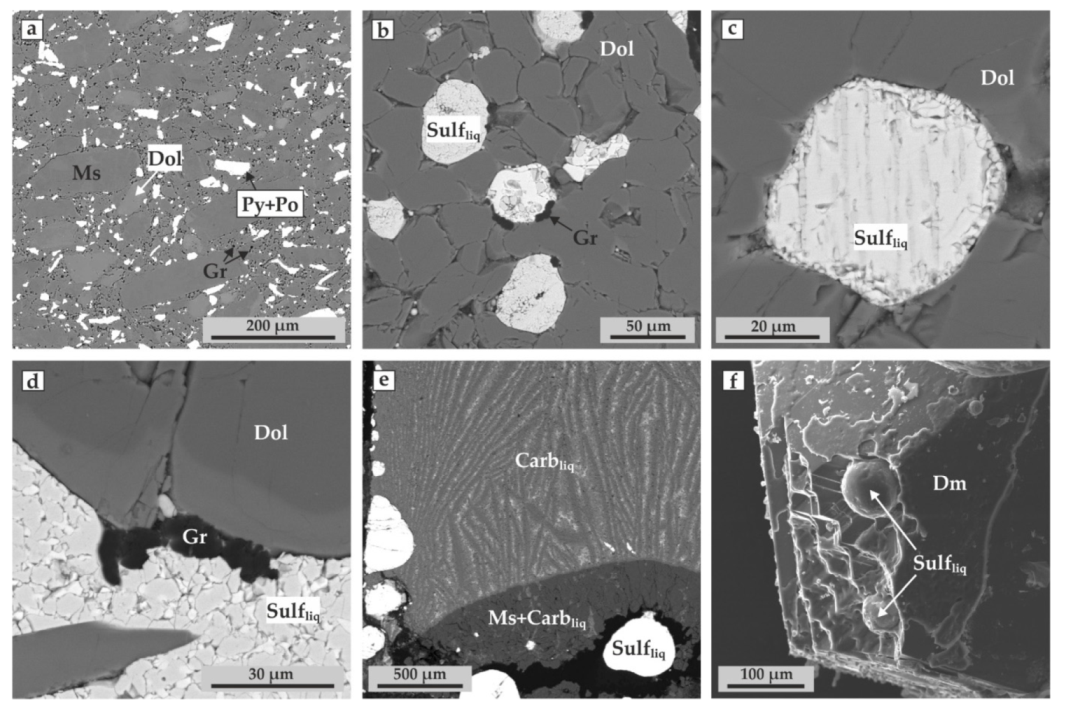

Figure 4. SEM-micrographs (BSE regime) of polished sample fragments and diamond seed crystal, after experiments in ankerite–pyrite system: (a) polycrystalline aggregate of dolomite, magnesite, pyrite, pyrrhotite, and graphite (run No. 932-4); (b) polycrystalline aggregate of dolomite with drops of quenched sulfide melt and graphite crystals (run No. 2000-4); (c) drop of quenched sulfide melt in dolomite aggregate (run No. 2000-4); (d) zonal dolomite crystals at the contact with quenched sulfide melt and graphite crystals (run No. 2000-4); (e) quenched carbonate and sulfide melt, as well as magnesite polycrystalline aggregate (run No. 2001-4); (f) diamond seed crystal with growth layers and sulfide melt droplets (run No. 1181-4). Ms—magnesite; Dol—dolomite; Gr—graphite; Py—pyrite; Po—pyrrhotite; Carb liq—carbonate melt; Sulf liq—sulfide melt; Dm—diamond seed crystals.
Figure 4. SEM-micrographs (BSE regime) of polished sample fragments and diamond seed crystal, after experiments in ankerite–pyrite system: (a) polycrystalline aggregate of dolomite, magnesite, pyrite, pyrrhotite, and graphite (run No. 932-4); (b) polycrystalline aggregate of dolomite with drops of quenched sulfide melt and graphite crystals (run No. 2000-4); (c) drop of quenched sulfide melt in dolomite aggregate (run No. 2000-4); (d) zonal dolomite crystals at the contact with quenched sulfide melt and graphite crystals (run No. 2000-4); (e) quenched carbonate and sulfide melt, as well as magnesite polycrystalline aggregate (run No. 2001-4); (f) diamond seed crystal with growth layers and sulfide melt droplets (run No. 1181-4). Ms—magnesite; Dol—dolomite; Gr—graphite; Py—pyrite; Po—pyrrhotite; Carb liq—carbonate melt; Sulf liq—sulfide melt; Dm—diamond seed crystals.
Minerals 11 01267 g004
Minerals 11 01267 g005 550

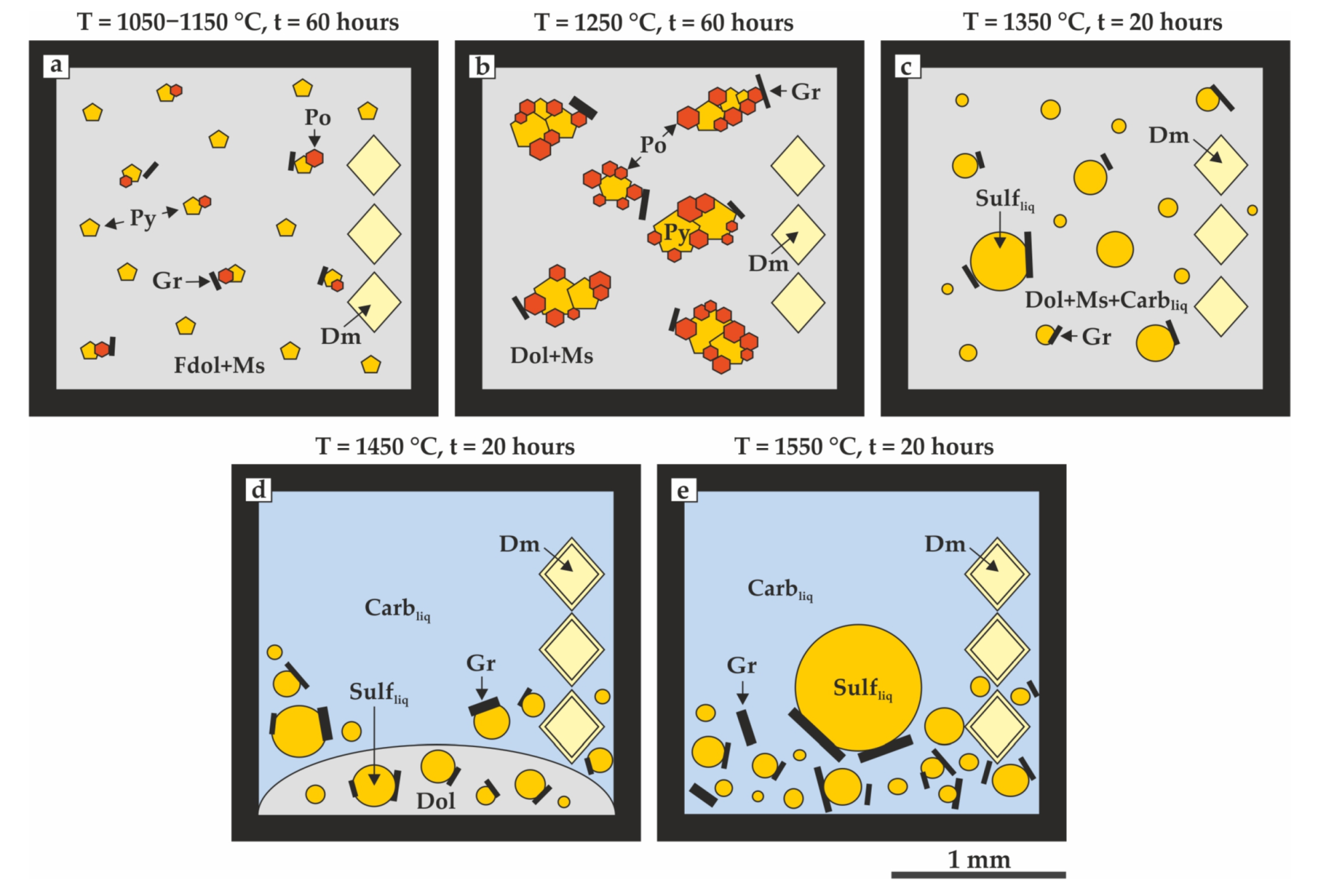

Figure 5. Schemes of samples produced in the ankerite-pyrite system at 6.3 GPa in temperature range of 1050–1550 °C; Po—pyrrhotite; Py—pyrite; Dol—dolomite; Ms—magnesite; Carbliq—carbonate melt; Sulfliq—sulfide melt; Gr—graphite; Dm—diamond seed crystals. (a) scheme for 1050–1150 °C, (b) scheme for 1250 °C, (c) scheme for 1350 °C, (d) scheme for 1450 °C (e) scheme for 1550 °C.
Figure 5. Schemes of samples produced in the ankerite-pyrite system at 6.3 GPa in temperature range of 1050–1550 °C; Po—pyrrhotite; Py—pyrite; Dol—dolomite; Ms—magnesite; Carbliq—carbonate melt; Sulfliq—sulfide melt; Gr—graphite; Dm—diamond seed crystals. (a) scheme for 1050–1150 °C, (b) scheme for 1250 °C, (c) scheme for 1350 °C, (d) scheme for 1450 °C (e) scheme for 1550 °C.
Minerals 11 01267 g005
Minerals 11 01267 g006 550

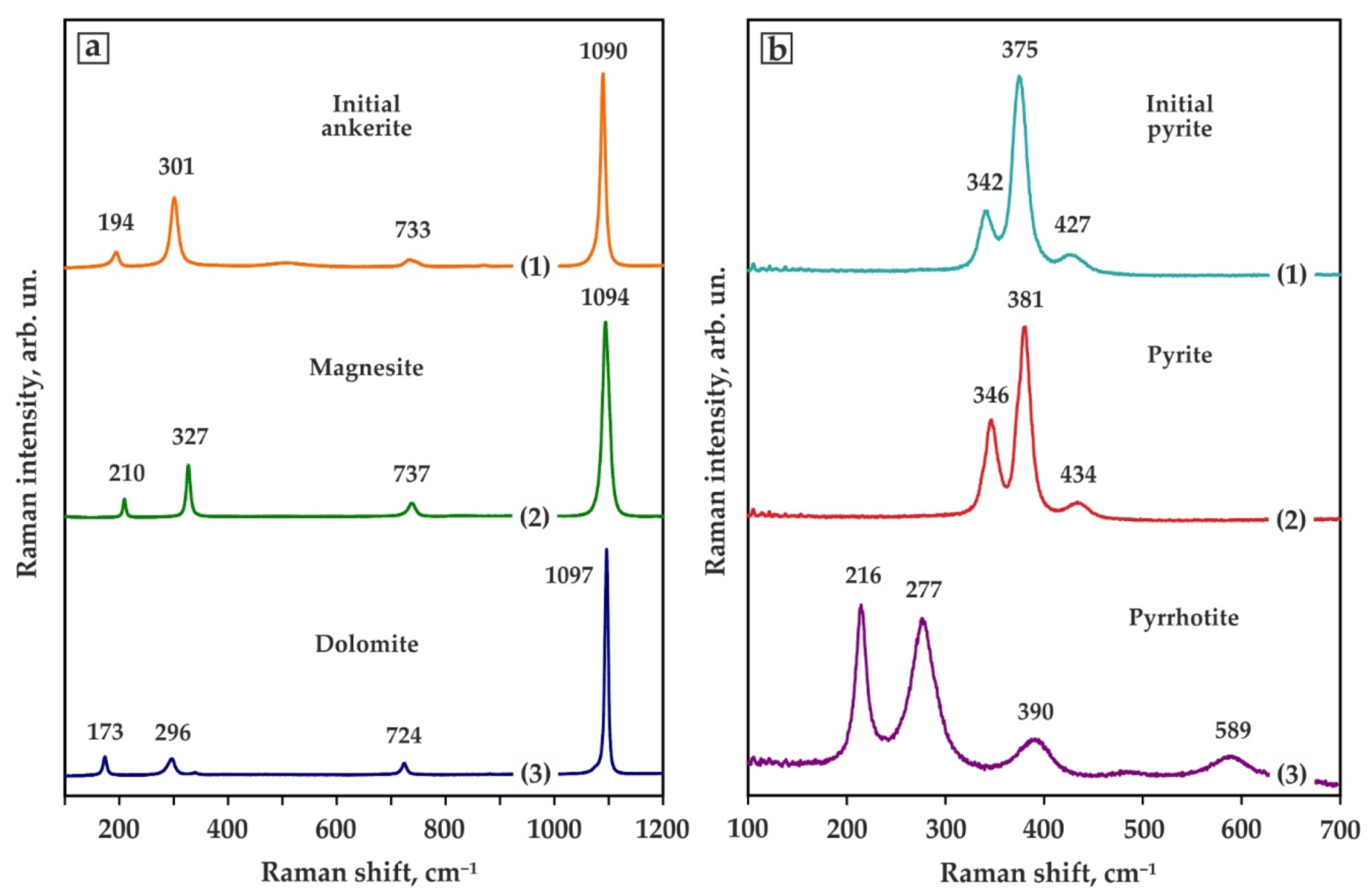

Figure 6. Representative Raman spectra: (a) initial natural ankerite (1), newly formed magnesite (1150 °C) (2), and newly formed dolomite (1350 °C) (3); (b) initial natural pyrite (1), recrystallized pyrite (1050 °C) (2), and newly formed pyrrhotite (1250 °C) (3). arb. Un—arbitrary unit.
Figure 6. Representative Raman spectra: (a) initial natural ankerite (1), newly formed magnesite (1150 °C) (2), and newly formed dolomite (1350 °C) (3); (b) initial natural pyrite (1), recrystallized pyrite (1050 °C) (2), and newly formed pyrrhotite (1250 °C) (3). arb. Un—arbitrary unit.
Minerals 11 01267 g006
Minerals 11 01267 g007 550

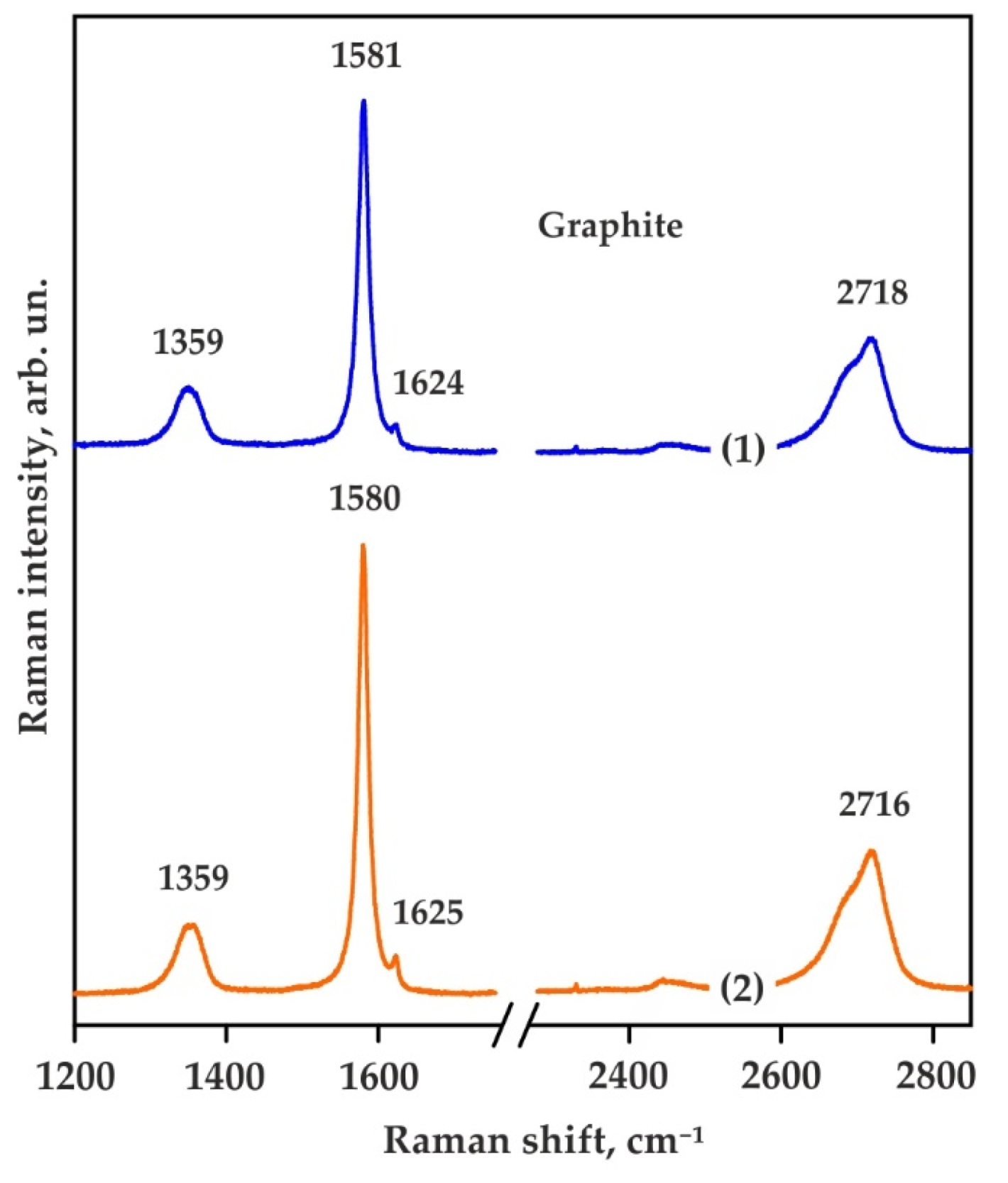

Figure 7. Representative Raman spectra of graphite: (1) 1150 °C; (2) 1250 °C. //: an interruption and continuation of the x-axis values; arb.un.: arbitrary unit.
Figure 7. Representative Raman spectra of graphite: (1) 1150 °C; (2) 1250 °C. //: an interruption and continuation of the x-axis values; arb.un.: arbitrary unit.
Minerals 11 01267 g007
Table
Table 1. Experimental parameters and results obtained in the ankerite–pyrite system (pressure 6.3 GPa).
Table 1. Experimental parameters and results obtained in the ankerite–pyrite system (pressure 6.3 GPa).
Run No.T, °Ct, hCapsule MaterialPhase AssemblageDiamond Growth on Seeds
932-4105060GrMs, Dol, Py, Po, Grno
1476-4115060GrMs, Dol, Py, Po, Grno
1997-4125060GrMs, Dol, Po, Py, Grno
2000-4135020GrMs, Dol, Gr, Carb liq, Sulf liqyes
2001-4145020GrMs, Gr, Carb liq, Sulf liqyes
1811-4155020GrGr, Carb liq, Sulf liqyes
2002-M135020MgOCarb liq, Sulf liq, GrNo seeds
2003-M145020MgOCarb liq, Sulf liq, GrNo seeds
2004-T155020Ta ceramicsOl, Carb liq, Sulf liq, GrNo seeds
Ms—magnesite; Dol—dolomite; Gr—graphite; Py—pyrite; Po—pyrrhotite; Carb liq—carbonate melt; Sulf liq—sulfide melt; Ta—talc; Ol—olivine.
Table
Table 2. Averaged compositions of carbonates and carbonate melts.
Table 2. Averaged compositions of carbonates and carbonate melts.
Run No.T, °CPhaseNAComposition, wt %n(O)Cations per Formula Unit (p.f.u.)
FeOMgOCaOCO2 *TotalFeMgCaC **∑cat
n/an/aInitial ankerite1218.69.827.043.999.360.490.49123.98
9321050Ms100.841.63.853.8100.030.010.890.0611.98
Dol102.620.327.949.2100.060.070.920.912.053.95
Dol1011.514.027.646.4100.060.310.670.952.033.96
14761150Ms70.6(3)40.1(5)6(1)52.9(5)100.030.010(5)0.85(1)0.09(2)1.02(1)1.97
Dol100.7(4)20.9(9)29(1)48(1)100.060.02(1)0.96(4)0.97(5)2.05(1)3.98
19971250Dol253.0(5)19.8(5)28.4(4)48.2(7)100.060.08(1)0.91(2)0.94(2)2.03(2)3.96
20001350Dol162.7(4)22.0(4)26.1(6)49.0(6)100.060.07(1)1.00(2)0.85(2)2.04(2)3.96
Carb liq181.8(6)13(1)37.5(9)47.6(4)100.0------
20011450Ms121.7(2)40.9(1)3.6(3)53.8(8)100.030.02(0)0.86(0)0.05(0)1.03(1)1.97
Carb liq203.0(3)15.6(7)24.0(8)57.4(9)100.0------
18111550Carb liq246(2)21(6)17(3)52(7)100.0------
*, **—Both calculated after the sum deficit; Ms—magnesite, Dol—dolomite; Carb liq—carbonate melt; n(O)—number of the oxygen atoms; the values in parentheses are one sigma errors of the means based on replicate electron microprobe analyses reported as least units cited; 4.3(1) should be read as 4.3 ± 0.1 wt %; NA—number of microprobe analyses; n/a—non-applicable; (-) p.f.u. calculations are not applicable to melts.
Table
Table 3. Averaged compositions of sulfides.
Table 3. Averaged compositions of sulfides.
Run NoT, °CPhaseNAComposition, wt %Formula Units
FeSOTotalFen (S)
n/an/aInitial pyrite1046.853.0bdl99.81.002
932-41050Po1560.2(5)39.6(5)bdl100.30.87(1)1
Py1846.3(3)53.4(3)bdl100.11.00(1)2
1476-41150Po759(2)39(2)bdl100.00.87(3)1
Py546.7(2)53.3(2)bdl100.01.01(1)2
1997-41250Po1360.3(5)39.1(7)bdl100.10.88(2)1
Py1545.6(3)53.5(3)bdl100.00.98(1)2
2000-41350Sulf liq3760.9(5)39.7(6)0.6(4)100.9--
2001-41450Sulf liq1860.8(6)39.3(5)1.3(6)100.1--
1811-41550Sulf liq2263.1(5)35(1)2.0(5)100.0--
Po—pyrrhotite; Py—pyrite; Sulf liq—sulfide melt with dissolved oxygen; n (S)—number of the sulfur atoms in the formula; the values in parentheses are one sigma errors of the means based on replicate electron microprobe analyses reported as least units cited; 4.3(1) should be read as 4.3 ± 0.1 wt %; NA—number of microprobe analyses; n/a—non-applicable; bdl: below detection limit; (-) formula unit calculations are not applicable to melts.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bataleva, Y.V.; Novoselov, I.D.; Borzdov, Y.M.; Furman, O.V.; Palyanov, Y.N. Experimental Modeling of Ankerite–Pyrite Interaction under Lithospheric Mantle P–T Parameters: Implications for Graphite Formation as a Result of Ankerite Sulfidation. Minerals 2021, 11, 1267. https://doi.org/10.3390/min11111267

AMA Style

Bataleva YV, Novoselov ID, Borzdov YM, Furman OV, Palyanov YN. Experimental Modeling of Ankerite–Pyrite Interaction under Lithospheric Mantle P–T Parameters: Implications for Graphite Formation as a Result of Ankerite Sulfidation. Minerals. 2021; 11(11):1267. https://doi.org/10.3390/min11111267

Chicago/Turabian Style

Bataleva, Yuliya V., Ivan D. Novoselov, Yuri M. Borzdov, Olga V. Furman, and Yuri N. Palyanov. 2021. "Experimental Modeling of Ankerite–Pyrite Interaction under Lithospheric Mantle P–T Parameters: Implications for Graphite Formation as a Result of Ankerite Sulfidation" Minerals 11, no. 11: 1267. https://doi.org/10.3390/min11111267

APA Style

Bataleva, Y. V., Novoselov, I. D., Borzdov, Y. M., Furman, O. V., & Palyanov, Y. N. (2021). Experimental Modeling of Ankerite–Pyrite Interaction under Lithospheric Mantle P–T Parameters: Implications for Graphite Formation as a Result of Ankerite Sulfidation. Minerals, 11(11), 1267. https://doi.org/10.3390/min11111267

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
