The Occurrence of Authigenic Clay Minerals in Alkaline-Saline Lakes, Pantanal Wetland (Nhecolândia Region, Brazil)

1
Instituto LAMIR, Universidade Federal do Paraná, Centro Politécnico, Jardim das Américas, Curitiba 81531-980, PR, Brazil
2
Laboratório de Pesquisas Hidrogeológicas, Universidade Federal do Paraná, Centro Politécnico, Jardim das Américas, Curitiba 81531-980, PR, Brazil
*
Author to whom correspondence should be addressed.
Minerals 2020, 10(8), 718; https://doi.org/10.3390/min10080718
Received: 19 May 2020 / Revised: 11 July 2020 / Accepted: 13 July 2020 / Published: 17 August 2020
(This article belongs to the Special Issue From Diagenesis to Low-Grade Metamorphism)

Abstract

Mg clay minerals are usually associated with carbonates in alkaline-saline environments, precipitated from solution and/or transformation from other minerals. The aim of this research is to identify the mineralogy and geochemistry of clay minerals in different alkaline lakes in the Nhecolândia region, the southernmost region of the Pantanal wetland (Brazil). Sediment samples were analyzed by X-ray diffraction, X-ray fluorescence, scanning electron microscopy and transmission electron microscopy. Water samples were analyzed, determining their main cations and anions, in order to understand their relationship with the clays. The analyses allowed classifying the water bodies as saline, oligosaline and freshwater lakes. The sediments are composed mainly of quartz and a fine-clay fraction, dominated by illite, kaolinite and smectite. The XRD results showed illite and smectite mixed-layered in the saline lakes at Barranco Alto farm, whereas at Nhumirim farm, trioctahedral smectite was only observed in one lake. The smectite minerals were normally identified coupled with calcite at the top of the sequences, associated with exopolymeric substances (EPS) in the lakes, suggesting that these minerals are precipitating due to the physical-chemical and biological conditions of the water bodies.
Keywords: alkaline lakes; clay minerals; EPS; chemical precipitation alkaline lakes; clay minerals; EPS; chemical precipitation

1. Introduction

Clay minerals occur in different geological environments under varying climate, geological and chemical conditions. The weathering environment, rock type, topography and the presence of organisms and organic matter also play a prominent role in the formation of clay minerals [1]. The clays correspond to nearly 70% of the sedimentary rocks found worldwide and can be designated as detrital, transformed and neoformed clays [2].The detrital clays are derived from erosion of soils and weathered rocks, being transported and accumulated; transformed clays are secondary clay minerals originated by reactions undergone at the deposition, burial and diagenesis processes and neoformed clays precipitate directly from solutions [1,2,3,4,5]. The last two types of clay minerals formation are associated with diagenesis and authigenic clays that normally take place in soil profiles in alkaline-saline environments under certain concentrations in arid to semi-arid conditions [6,7].
The authigenic clay minerals have frequently been reported as magnesium silicate minerals, e.g., kerolite, trioctahedral smectites, palygorskite and sepiolite [5,6,7,8]. The authigenic clay minerals can also comprise corrensite, dioctahedral smectite minerals, a variety of mixed-layer minerals, as well as illite formed by illitization processes [6]. Regarding the smectite minerals, depending on the concentration of the solution and the amount of detrital material available, dioctahedral or trioctahedral minerals are favored [7,8]. Dioctahedral smectites are mainly formed through transformation of detrital material and they are associated with environments rich in Al3+ and Fe3+, while trioctahedral smectites are formed by precipitation from aqueous solutions, associated with Mg2+ [7,9,10].
The Nhecolândia sub-region of the Pantanal wetland is known as a modern alkaline-saline environment, influenced by seasonal weather conditions, located in western Brazil [11,12]. The Nhecolândia region comprises thousands of fresh-water and alkaline-saline lakes, which are distributed next to each other, but display a wide chemical variability [7]. The salinity of the lakes used to be attributed to an inherited past, but more recently it has been related to a continuous evaporitic concentration of the freshwater [13]. The chemical variability is possibly related to precipitation of calcite or Mg-calcite and formation of Mg-silicates as the solutions become more saline [13,14].
Several works have already discussed the distribution, classification and geochemistry of the lakes, as well as the main mineral compositions of the sediments. Researches in alkaline-saline lakes in the Nhecolândia studied the mineralogy of smectite minerals, indicating magnesium clay minerals precipitate under exogenous conditions by organic control [8,14]. In this context, the aim of this research is to study the mineralogical and geochemical features of the clay minerals and lakes from two distinct regions at the Nhecolândia region, as well as to identify a possible relation to carbonate precipitation through biologically influenced mineralization.

2. Geological Setting

The Pantanal is the largest tropical wetland of the world and its origin is dated to the Proterozoic times [15]. The Pantanal is currently an active sedimentary basin, one of the four geographic areas of the Central Andean foreland basin system, corresponding to the most eastern region, also referred to as back-bulge depozones [16]. The third depozone described by the aforementioned authors is known as forebulge and it is found in eastern Bolivia and northern Paraguay, located west, parallel to the Pantanal wetland. The subsidence of the Pantanal is related to an elastic response caused by the extension of the upper crust when the forebulge initiated its development [17].
The floodplains of Pantanal are surrounded by highlands and plateaus, where the Proterozoic and Cambrian basement rocks are exposed [15,17]. Besides the magmatic and low-grade metamorphic rocks of the Cuiabá Group basement rocks, the highlands also comprise rocks of the Corumbá Group at the west edge, and Paleozoic and Mesozoic rocks of the Paraná Basin, at the east edge of the Pantanal wetland [12].
The depocenter of the Pantanal basin reaches approximately 500 m [17]. The basin is filled by siliciclastic sediments (primarily quartzose sands) from different source areas, mainly from the adjacent highlands, such as Paleozoic and Mesozoic sediments from the Paraná Basin on the eastern limit and quaternary sediments from the alluvial fans of Taquari River to the northeast, which consists in the Quaternary Pantanal Formation [12,18,19]. The Pantanal Formation includes conglomerates and coarse-grained sandstones in the bottom part, with fining upward sequences, where fine and medium quartz sands prevail. Locally, the presence of iron oxide cements and reddish sands are observed [19].
The Pantanal wetland is inserted in the Upper Paraguay River drainage basin, where the Paraguay River flows to N–S and cross-cutting the marginal alluvial fans, which flows to E–W [19]. Most of the Pantanal area is dominated by hydrodynamic alluvial fans and the most important of them is the Taquari River alluvial fan, extending over an area of 54,125 km2, with a 250 km diameter and circular shape; [12,19].
The southern half of the Taquari alluvial fan is called Nhecolândia, showing a very low topographic gradient and corresponds to the oldest depositional lobe of the Taquari alluvial fan [12,20]. The Nhecolândia region is characterized by thousands of lakes which vary widely on the basis of spatial, physical, chemical and biological features [20], surrounded by elevations of 3–4 m, locally called “cordilheiras”.
The physiography of the region, the formation of the lakes, as well as their variabilities and the sediment features may be related to different origins [21]. Several works have related the lakes and the quartzose sands to an eolian origin, once the sands are white fine to medium-grained, and the cordilheiras would be morphological expressions of ancient dunes [12,21]. On the other hand, there is a hypothesis that indicates a fluvial genesis for the lakes, and the textural features of the sediments might be related to their source area, therefore being an inherited feature [22]. The authors have proposed that the current landscape was formed after the Late Pleistocene glaciation, when the elevation of the regional phreatic level would have formed the lakes, and the waters would have become progressively briny. The morphology of the lakes and the sand banks (cordilheiras) could be explained by the shifting of the river channels, being the result of the cut-off meanders. In all these studies, the evolution of the Nhecolândia is related to wet and arid phases during the Pleistocene [13].
Currently, the Pantanal experiences annual flooding from September to April and a dry season from May to August [19]. The annual rainfall provides a heterogeneous filling of rivers, lakes and groundwater, promoting a high chemical variability to the waters. The lakes generally show high alkalinity values and, some of them, high salinity. The origin of different types of water in the lakes is still under debate: there is the hypothesis that lakes have become progressively brinier [22] and another hypothesis indicates that the lakes derived from the same water source and underwent different degrees of evaporation and, thus, different concentrations of ions [7,13]. Additionally, the last hypothesis was complemented with studies showing that the evaporation rates are the same on the region and the distinct degrees of concentration are related to dissimilar insulation degrees, caused by a sub-superficial continuous horizon of low-porosity materials, as amorphous silica and smectites [23].
Several works have been conducted to investigate and classify these lakes according to pH, electric conductivity (EC) and total dissolved solids (TDS) values [13,18,21,24]. These lakes can be distinguished between hyperalkaline and alkaline lakes, despite showing a huge variance [18]. They can also be classified between freshwater and saline lakes, based on EC values [21] and finally, discriminated into five types according to EC and TDS values: freshwater; water with low to medium salinity; water with high salinity; water with very high salinity; and hypersaline water [24].
The most recent classification has distinguished the lakes according to biological and geochemical features [25]. The lakes are classified as macrophyte or freshwater lakes, where autotrophic metabolism predominates above the lake waterline (EC < 2000 μS/cm and pH < 7.5); bacterial or oligosaline lakes, where heterotrophic metabolism predominates (500 < EC < 5000 μS/cm and 7.9 < pH < 10.5); or saline lakes, where metabolism is also autotrophic, but predominates below the lake waterline (700 < EC < 65,000 μS/cm and 7.9 < pH < 10.5).

3. Materials and Methods

3.1. Study Area and Sampling

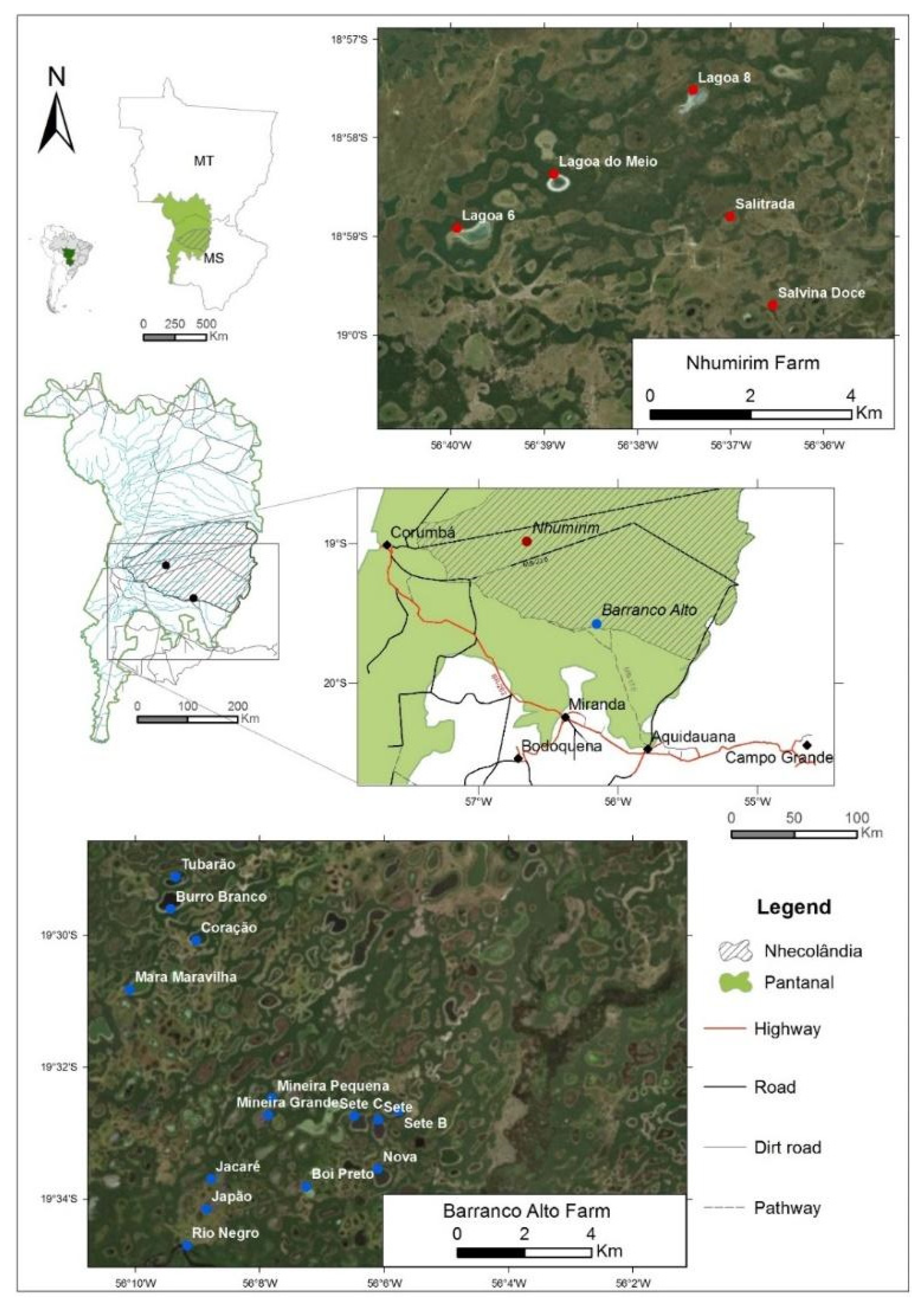

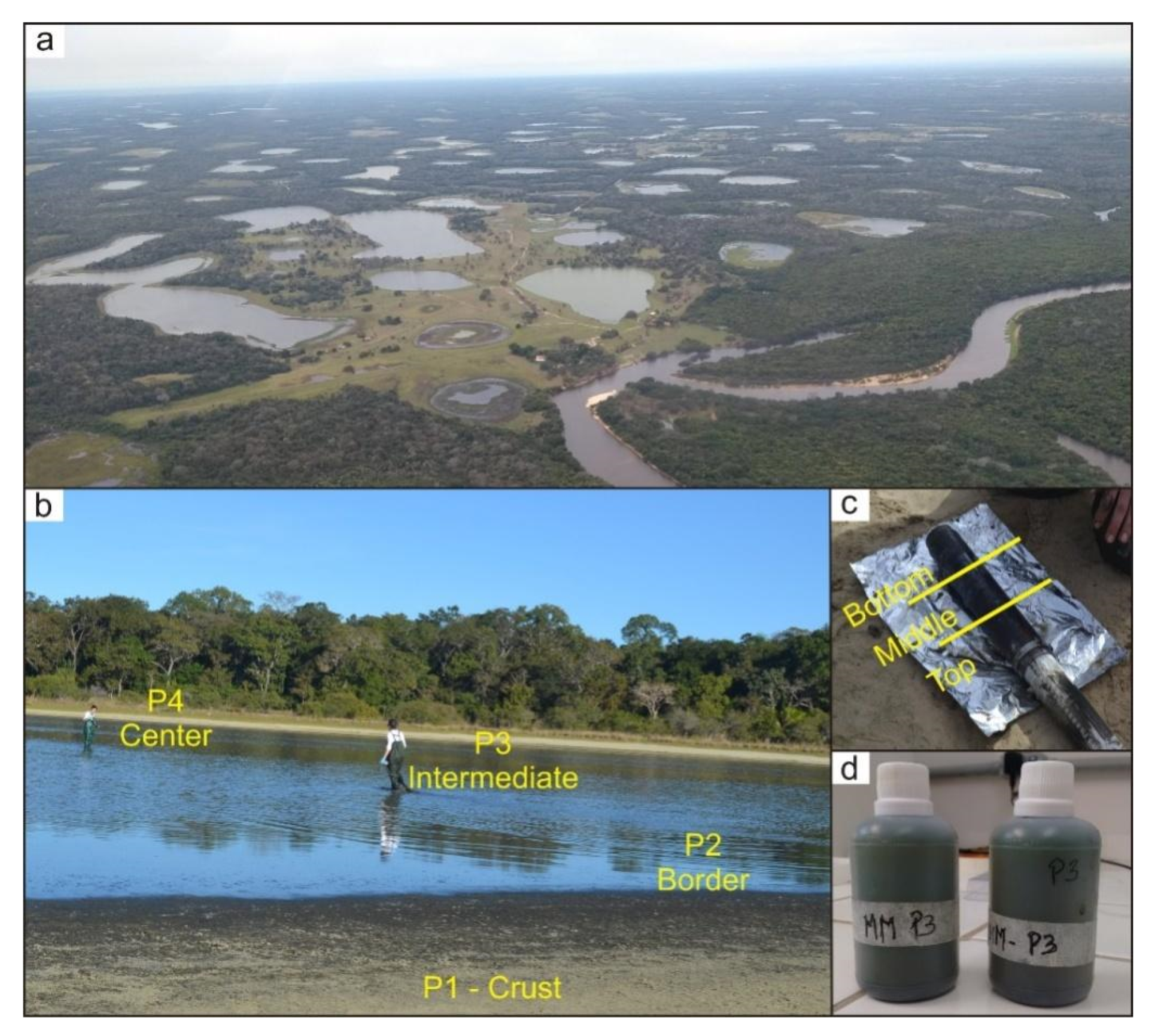

The study areas are located on the south and southwestern parts of the Taquari alluvial fan, at Barranco Alto farm, near to Aquidauana/MS, and Nhumirim (Embrapa) farm, near to Corumbá/MS, respectively (Figure 1). Three field campaigns were conducted in different seasons. The first was at Barranco Alto farm, from 26 to 30 June 2017 at the beginning of the dry season. The second was at Nhumirim farm, from 20 to 24 August 2018, and the third again at Barranco Alto farm, from 17 to 21 September 2018. The last two campaigns were scheduled to happen at the end of the dry season, however, despite the low rate of rainfall in the region during the wet season and similar rainfall rate during the wet season in 2017–2018, the lakes had not dried and the water level was significantly higher than in 2017.
In Barranco Alto farm, we studied twelve lakes and the Negro River. In Nhumirim farm, we studied five lakes and the Paraguay River. In each lake and river, we collected samples of water and sediments following a sequence extending from the border of the lakes to their central part (P1, P2, P3 and P4), resulting in two to four collection points. When it was necessary, the sampling points were divided into bottom, middle and top samples (Figure 2). We collected 160 samples of sediment, but only 95 were analyzed: 31 from the first campaign, 38 from the second and 26 from the third campaign. The samples were chosen according to the amount of sand and clay.
The water temperature (WT °C), the pH, the EC (mS cm−1) and the TDS (mg L−1) were measured in situ with a multiparameter equipment. The lakes were classified adapting recent criteria, which take functional biogeochemistry, pH and EC values to classify them as saline, oligosaline and freshwater lakes [25]. In this work, we differentiate the lakes based on the names proposed by the authors; however, we used the TDS values as the main parameter to differentiate them. According to the TDS data, fresh water has less than 500 mg L−1 and we considered in this work, based on the data obtained on the field campaigns, the oligosaline lakes with TDS values between 501 and 1500 mg L−1 and the saline lakes with values higher than 1500 mg L−1 [26].

3.2. Water Analyses

The water samples were analyzed for cations and anions in the Laboratório de Pesquisa Hidrogeológica (LPH-UFPR), whose methods are described on Table 1. The samples were prior filtered in the field through 0.45 µm surfactant-free cellulose acetate (SFCA) syringe filters [27]. In the laboratory, a fiberglass membrane and then a cellulose ester membrane were used to filter the samples from the campaign of 2017, whose water had more suspension material than those from 2018.

3.3. Mineralogical Analyses

The mineralogical analyses were carried out at Instituto LAMIR (Laboratório de Análises de minerais e rochas) of the Geology Department at Federal University of Parana. The composition of the sediments was determined by means of X-ray diffraction (XRD) through a PANalytical diffractometer model Empyrean with an X-celerator detector. Scans from bulk sediments and clay minerals were run from 2θ angles of 3° to 70° and 3° to 30°, respectively, using a step-size of 0.016° and count time of 10.16 s per step [27]. A total of 74 bulk sediment samples and 69 clay mineral samples were analyzed, since some of the bulk sediments were composed solely by sand.
To analyze the mineralogy of the clay minerals, approximately 30 g of the bulk sediment was sifted in a 350-mesh sieve with distilled water. The solution was firstly centrifuged for 7 min at 800 rpm to decant the coarser fraction. The supernatant fluid was transferred to another plastic tube and centrifuged again for 30 min at 3000 rpm. The resulting mixture was poured on a glass slide covering at least 1 cm2 of the glass slide. The samples were air-dried under room temperature and pressure (STP) to obtain oriented analyses with three different treatments: air-dried sample, ethylene-glycol vapor saturation for 8–12 h (EG) and heating at 550 °C for 2 h [27].
The clay minerals were identified mostly by their 001 peak after the three treatments cited above. The dioctahedral and trioctahedral character of smectites were identified by their 060 diffraction /peaks. Table 2 shows some clay minerals and their respective 001 and 060 peaks. Sepiolite and palygorskite present 110 reflections at 12.0–12.3 and 10.4–10.5, respectively.
There is a wide variation in 060 diffraction peaks among dioctahedral and trioctahedral smectites. In dioctahedral smectites, for instance, montmorillonite and beidellite show d060 at 1.49–1.50 Å, while nontronite shows d060 at 1.52 Å [28]. In trioctahedral smectites, stevensite and saponite present 060 at 1.52 Å and hectorite presents d060 at 1.53 Å.
Mixed-layered clay minerals are very common in natural environments [2]. The identification of mixed-layered minerals is based on the entire diffraction pattern, like breadth, symmetry, intensity and peak position [28]. Illite/smectite (I/S) are the most common mixed-layered clay minerals in sedimentary rocks and soils. They can be recognized by their altered diffraction pattern under EG solvation treatment and after heating the sample to 375° for 1 h, resulting in a pattern similar to that of illite [28].
Non-clay minerals are very common in sedimentary rocks, such as quartz, feldspar, zeolites, carbonates, apatite, pyrite, gypsum and others [28]. Beyond the carbonates, calcite and dolomite are normally associated with clay minerals. The d-spacings of the most intense peak of calcite and dolomite are 3.04° and 2.89° 2θ, respectively [28]. The empirical curve of a calcite-disordered dolomite solid-solution series was used to identify the amount of mol% MgCO3 [29]. The semi-quantitative XRD percentages of each sample were obtained through the Rietveld multi-phase standard analysis, performed in the HighScore Plus PANanytical Software (Version 3.0, Malvern, Amsterdam, The Netherlands).
A thin section of a crust sample was examined under transmitted light using the Zeiss Imager A2m Microscope (Carl Zeiss Microscopy, New York, NY, USA) aiming to observe the contact relations between grains and cements.
Images and chemical composition of specific points in 10 samples were collected using a JEOL scanning electron microscope (SEM, JEOL Ltd., Peabody, MA, USA) model 6010LA, equipped with an energy dispersive X-ray spectrometer (EDX, JEOL Ltd., Peabody, MA, USA) EX-94410T1L11 for elemental analyses. The morphology of illite crystals consists of ribbon-like flakes projections, as well as filamentous pore-lining and pore-bridging for authigenic illites [30]. The kaolinite occurs as stacks of pseudohexagonal plates or blocks and vermiform crystals. Smectite consists of a webby or highly-crenulated pore lining and thin ribbon of pore-bridging morphologies [30].

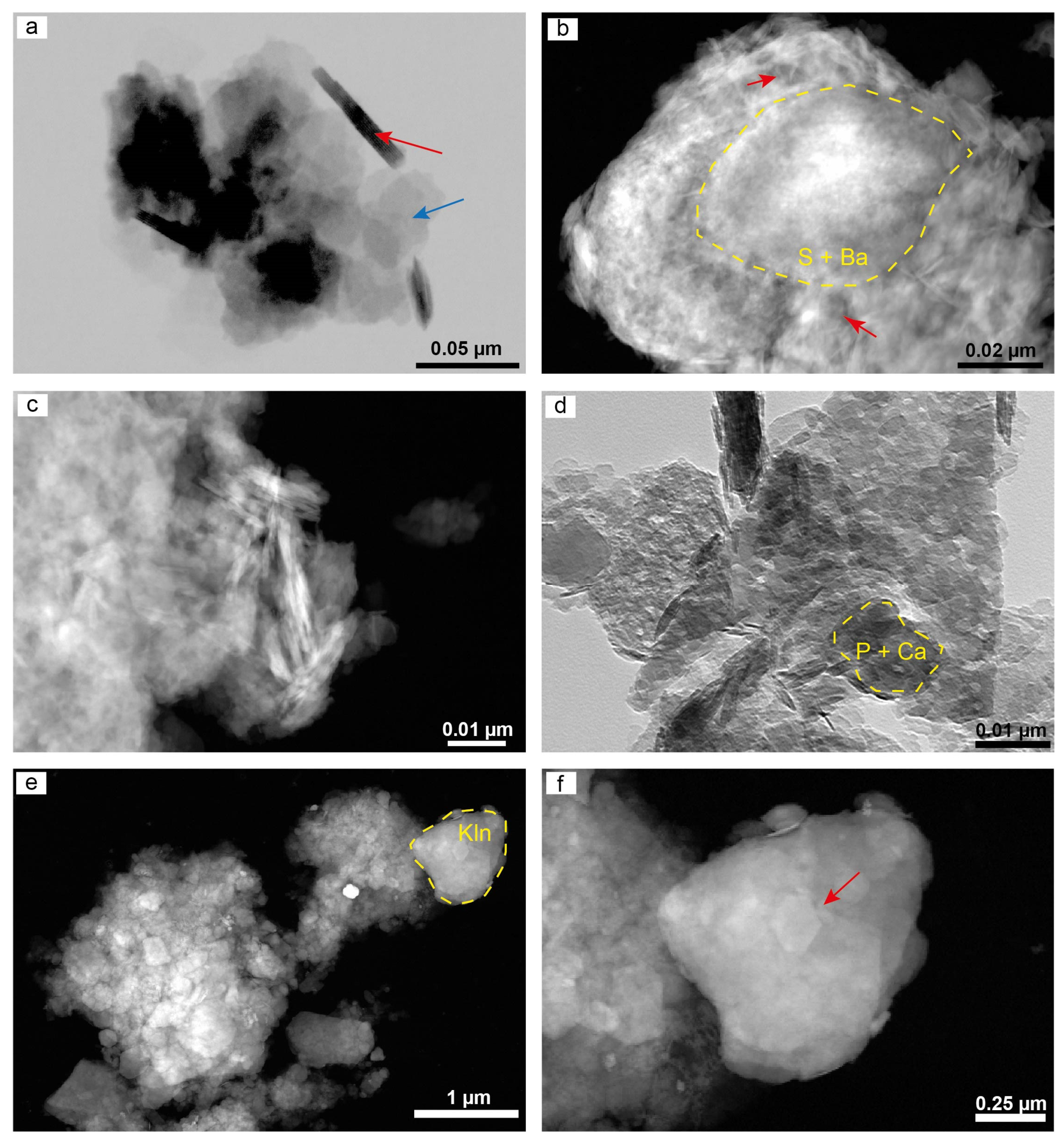

Images of one selected fine-clay fraction sample were obtained by transmission electron microscopy (TEM) using a JEOL JEM 1200EX-II instrument (JEOL Ltd., Peabody, MA, USA) operated at 120 kV (medium resolution) at Centro de Microscopia Eletrônica (CME) in the Federal University of Parana. Images, qualitative analyses and quantitative chemical analyses of 6 samples collected in 2017 were performed by scanning tunneling electron microscopy (STEM) with a FEI TITAN G2 instrument operated at 300 kV (high resolution—HRTEM) at Centro de Instrumentación Científica (CIC) in Granada University (Spain). The chemical composition was determined by analytical electron microscopy (AEM) in the HRTEM and the data were used to calculate the chemical formulae.
The HRTM analyses usually show illite particles as straight and relatively defect-free lattice fringes, with continuous and constant 10 Å interlayer spacings, with a mottled contrast, whereas smectite particles show anastomosing and imperfect 14 Å lattice fringe images [31]. AEM is a technique for quantitative chemical analysis of crystals of clay minerals, where data can be interpreted by phase diagrams [2,31,32,33]. Muscovite, albite, biotite, spessartite, olivine and titanite were used to obtain k-factors to the correct energy dispersion X-ray data by the thin-film method [34]. Errors for analyzed elements (two standard deviations) expressed in percentage of the atomic proportions are 6 (Na), 3 (Mg), 2 (Al), 4 (K), 4 (Ca), 5 (Ti), 3 (Mn) and 3 (Fe). Instrumental conditions for spectra acquisition were 200 s of live time for all elements except for K and Na, for which a time of 30 s was used due to volatilization problems.
Contents of the major oxides of 92 bulk-sample sediments were measured by means of X-ray fluorescence (XRF) using a PANalytical spectrometer model AXIOS MAXDY 5297 (Malvern, Amsterdam, The Netherlands), through quantitative analyses at Instituto LAMIR (Laboratório de Análises de minerais e rochas) of the Geology Department at the Federal University of Parana.

4. Results

4.1. Water Chemistry

Despite the proximity between the studied lakes, they show a high spatial, physical and chemical variability. In the first field campaign at Barranco Alto farm (2017), the lakes showed differences related to their physical-chemical parameters. Table 3 shows the mean results of temperature, pH, EC and TDS measured on field and the concentrations of cations and anions in meq L−1 (except SiO2, whose value is in mmol L−1), measured at the LPH. The two field campaigns of 2018 were scheduled to happen in a drier season than 2017. However, as mentioned before, the region was still flooded, and the physical-chemical aspects of the lakes showed lower values than 2017 (in the case of Barranco Alto farm).
In 2017, the northernmost lakes in Barranco Alto farm (Tubarão, Burro Branco, Coração and Mara Maravilha) were considered saline lakes. These lakes also exhibited the highest pH (10–11) and EC (>3 mScm−1) values. The Mineira Grande and Sete lakes were considered as oligosaline lakes and the others (nearest to the Negro River) were classified as freshwater lakes. In 2018, the lakes from Barranco Alto farm showed a great difference in comparison with the results of 2017. Mara Maravilha was the only saline lake, while Sete, Coração, Nova, Burro Branco, Sete C, Japão and Jacaré were classified as oligosaline lakes and the others were considered as freshwater lakes.
In Nhumirim farm, the Meio and Oito lakes were considered as oligosaline. Nevertheless, Meio lake has shown a pH > 10.18 and TDS value of 926.00 mg L−1, while at Oito lake, the pH is 8.60 and TDS value is 651 mg L−1. The other lakes were classified as freshwater.
Considering the average values of pH, the freshwater lakes exhibited values lower than 9, the oligosaline lakes values near 9.5 and the saline lakes values higher than 10.
It was also possible to distinguish the lakes according to their spatial and morphological features in 2017. The saline lakes have an average depth of 50 cm with a distinctive white beach devoid of vegetation around them, which is ringed by carandas palm trees, Gramineae, Bromeliaceae and the forest towards the “cordilheiras” [20]. The freshwater lakes, on the other hand, show depths higher than 1 m, do not have beaches surrounding them, and aquatic vegetation is very common, as well as the presence of animals, like alligators. In 2018, however, those features were not evident, and all the lakes showed similar morphological features.

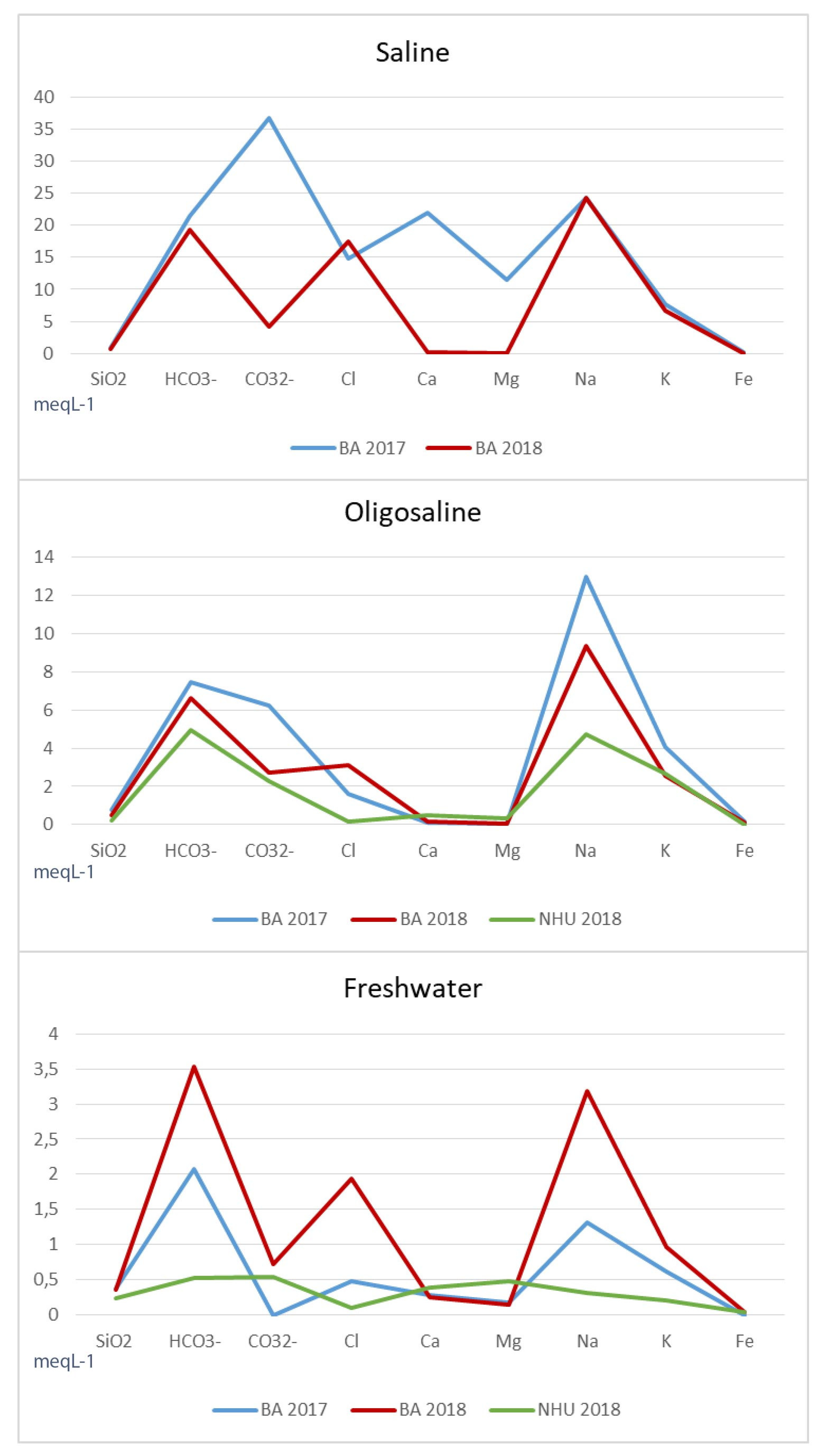

Similarly, the measured elements in the water and listed in Table 3 show the same proportion related to the pH, EC and TDS values, when the data are split in milliequivalent per liter (Figure 3). Comparing the average values of saline, oligosaline and freshwater lakes in the three field campaigns (in meq L−1), it is possible to recognize the highest values among saline and oligosaline lakes.
Regarding the anion content, bicarbonate shows the highest value in almost all of the campaigns, except for the saline lakes from Barranco Alto 2017 and freshwater lakes from Nhumirim 2018, where the carbonate ions were higher. The results from Barranco Alto in 2018, on the other hand, have exhibited larger amounts of Cl than CO32 in all types of lakes. This feature is only observed in 2017 in the freshwater lakes.
In all of the lakes, the main cations are Na+ and K+, except for the saline lakes at Barranco Alto 2017 and freshwater lakes at Nhumirim 2018, where the carbonate ions were higher. Both saline and oligosaline lakes of 2018′s campaigns have exhibited similar compositions of silica, Ca2+, Mg2+ and Fe2+.
For all the studied parameters, Barranco Alto has shown the highest concentrations, highlighting Na+, K+, Cl, C.E and TDS. Only Ca2+ and Mg2+ mean concentrations are higher in the Nhumirim farm than in the Barranco Alto, where there are lower amounts of Na+ and K+.

4.2. Occurrence of Microbial Mats

Exopolymeric substances (EPS) have been observed in both studied sites. In Barranco Alto, there were EPS in the Sete, Sete B, Mineira Pequena and Tubarão lakes, mainly in 2017, with a green color and a viscous aspect (Figure 4b). In those lakes, the EPS were normally associated with algae, forming a green viscous algalic net with some bubbles. In Nhumirim, EPS were observed in the Oito and Seis lakes and showed an orange color, formed just by bubbles (Figure 4a). At some points of some lakes, the algae were observed with no association with the EPS, and were identified as charophyte (Figure 4c). A microbial mat was identified above the sediments on the crust of Seis lake, showing green and red interbedded sheets of 2–3 mm each (Figure 4d).

4.3. Petrographic Characterization

White unconsolidated sands predominate in “cordilheiras” and lakes’ margins at Pantanal, they are composed mainly of quartz, feldspar and iron minerals, and the grains are fine, homogeneous and rounded, probably associated with the top sequences of the Pantanal Formation. The “beach” around the saline and oligosaline lakes is also formed by carbonate. The carbonate was observed as a thin white crust over the sand. Two thin sections were made of a consolidated rock of Coração lake and Negro River (Barranco Alto farm) from the 2017 and 2018 campaigns, respectively. Both samples are composed mostly of quartz. The grains show a mottled aspect, varying from fine to medium granulometry and sub-rounded morphology with high sphericity.

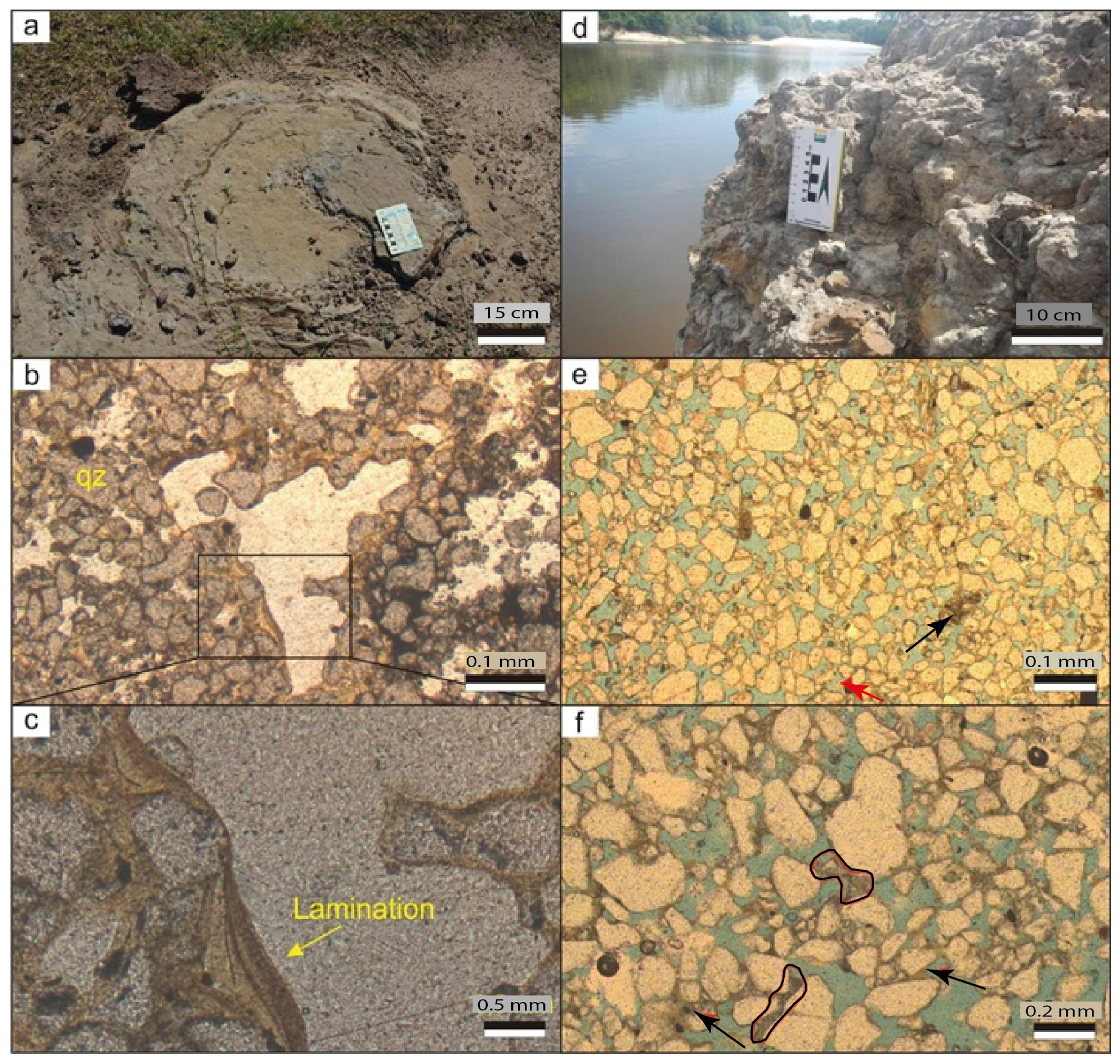

In 2017, Coração lake exhibited a wide area composed of a concentric crust of interbedded sandstones, carbonates and iron nodules (Figure 5a). Microscopically, besides the quartz grains, it was also noticed a very thin light brown material around the grains (Figure 5b), which could be constituted of clay minerals.
At higher magnification, the fine-grained material shows wispy laminations and it seems to be coating the quartz grain boundaries and pores (Figure 5c).
The sample collected on the banks of the Negro River could be described as a massive agglomerate of sandy clay (Figure 5d). In thin sections, there are clays with brown color (black arrow) and clays with greenish-brown color (red arrow), the latter being the most common in the sample (Figure 5e). Observing these greenish-brown clays in a higher magnification (red arrows), it is noticed that they form a “bridge” (red circle) between the quartz grains (Figure 5f), which widely occurs in the section.

4.4. Mineral Characterization

XRD analyses of the bulk samples confirmed the dominance of quartz, mainly in the samples from the crust and border. The second mineral is potassium feldspar, followed in some samples by calcite, that is usually present in the saline and oligosaline lakes. Table 4 shows the abundance of three representative samples from each campaign. This abundance represents a relative proportion of the phases, measured by using the automatic semi-quantification program.
In 2017, calcite widely occurred in the sediments of the Mara Maravilha and Burro Branco lakes, as well as in the crusts of the Coração, Tubarão and Sete B lakes. In 2018, calcite occurred in the sediments of the Coração, Burro Branco, Tubarão, Mara Maravilha and Sete B lakes in Barranco Alto farm and in the Seis, Oito and Meio lakes in Nhumirim farm. In the clay fraction, calcite only occurred in the middle of those lakes, often at the top of the sequences.

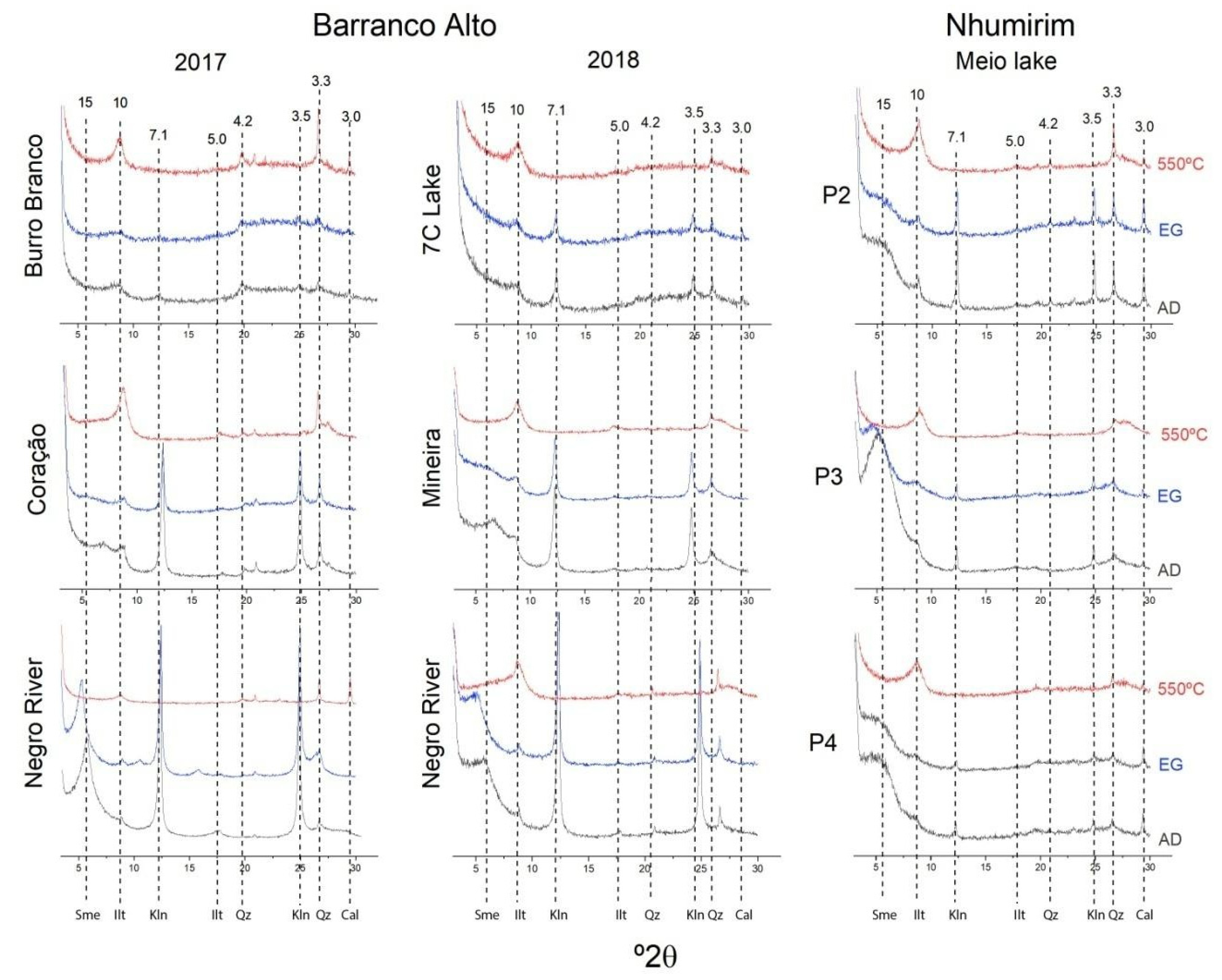

The clay fraction is dominated by illite and kaolinite and secondly by smectite [28]. The clays were identified mostly by their 001 peaks. Illite and kaolinite were distinguished by their distinctive peaks at 10.0–10.1 and 7.0–7.1 Å, respectively [28]. Smectite was identified by its 001 peak ~15 Å in the air-dried sample and the shift to 16–18.5 Å after EG treatment, and by the shift to ~10 Å after heating at 550 °C. The dioctahedral and trioctahedral characters were identified by its 060 diffraction peak, between 1.49–1.52 and 1.52–1.54 Å, respectively [28,35,36].
Some samples from Barranco Alto farm did not show the illite 001 peaks ranging from 10 to 12 Å in air-dried condition, exhibiting a broad reflection, with an inclination toward the small angles (Figure 6). Most of the samples have not shown a shifting after the EG treatment, however, after heating the samples at 550 °C, the peaks became sharper and more intense, as it is shown in the first row (Burro Branco and Sete C lakes). The Coração and Mineira lakes show broader peaks in air-dried condition (second row) and although these peaks are connected, they exhibit two points of maximum intensity at 13 and 14 Å. After heating, these peaks shift to the peak of 10 Å.
Smectites have been observed in the sediments of the Negro River and in (third row) Meio lake. They were identified by a shift of the 001 peak from ~15 Å under air-dried condition to 17–18 Å under EG treatment and to ~10 Å after heating the samples at 550 °C (Figure 6). In Meio lake, the smectite was identified at the top of the three collection points inside the lake, normally associated with calcite. The XRD pattern was accompanied by a high background, which hampered the identification of the 060 peaks. The 060 diffraction peak of smectite from the Negro River was not distinguished in 2017, but in 2018 showed values of 1.542 Å. The smectite of Meio lake showed 060 peaks at 1.521 (P3) and 1.524 Å (P4), but the peak from sample P2 was not distinguished. The other lakes of Nhumirim farm are composed mainly of illite and kaolinite. On the lakes Seis and Oito, there is also calcite present, normally at the center of the lakes and in the top of the sequences.

4.5. Microstructure of the Clay Minerals

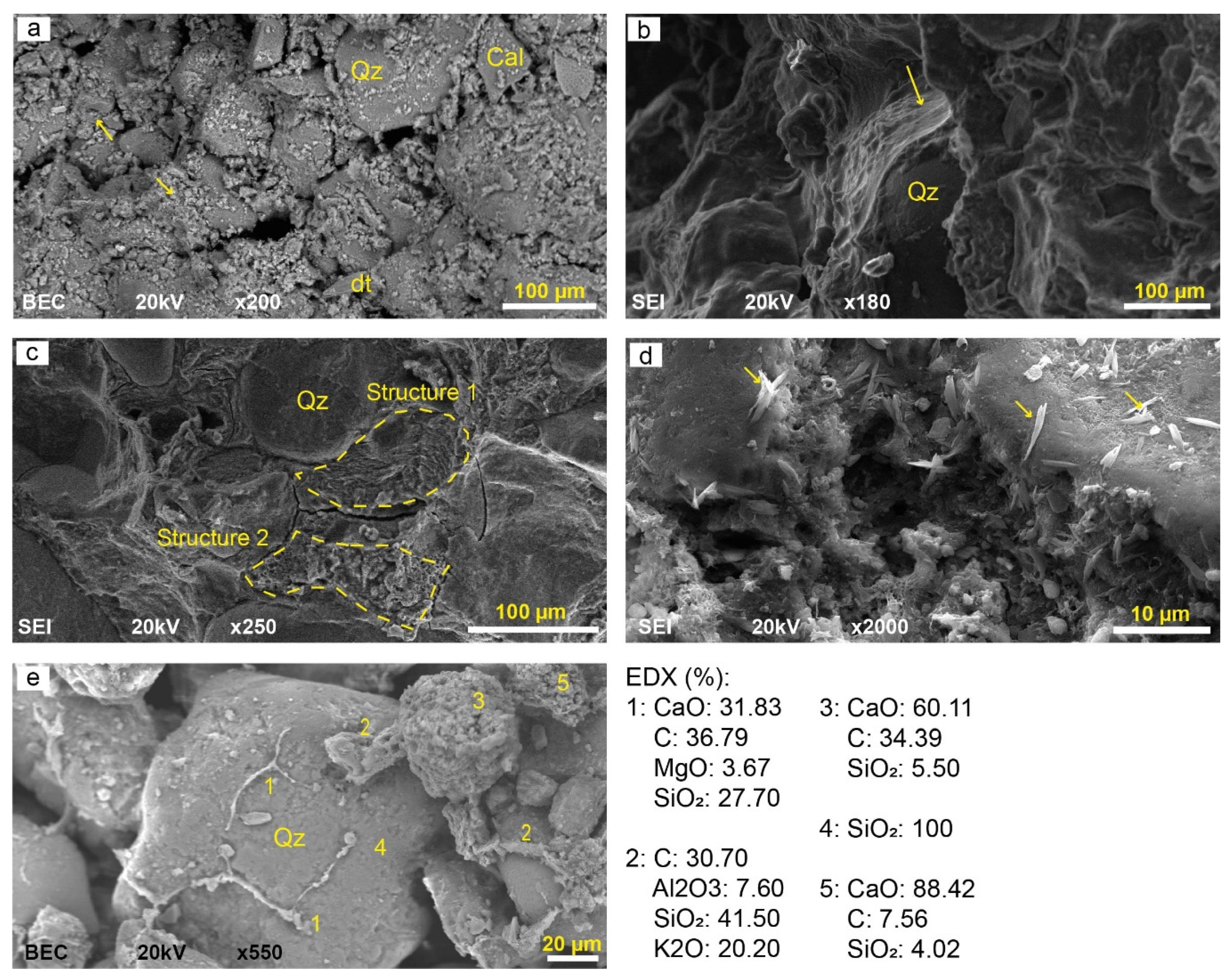

The SEM observations of samples of the Mara Maravilha, Coração and Meio lakes allowed the investigation of the morphologies and contact relationships between the crystals. The observations indicated dominance of quartz. The grains display spherical and angular morphologies, with smooth surfaces. There are few visible calcite crystals displaying angular and irregular morphologies. The significant amount of fine-grained minerals is observed over and between quartz and calcite grains. They can be distinguished as small aggregations (Figure 7a) or as a thin sheet coating the other grains (Figure 7b). Furthermore, whole structures and pieces of diatoms are noticed along the samples.
EDX analyses are consistent with XRD and the morphological observations. The fine-grained minerals are composed of Si, Ca, Fe, Al, K, Mg and Na. The composition of these minerals is indicative of clay minerals, which do not show a specific morphology, but in some samples, it is possible to distinguish a filamentous pore-bridging structure (structure 1, Figure 7c) and a crenulate/webby shape (structure 2, Figure 7c) between the quartz grains.
Observing the morphologies and their chemical composition, it is possible to establish that there are illite and smectite minerals among the clay minerals.
In Figure 7e, it is possible to observe a thin and elongated structure (indicated as 1) above the quartz grain at the center of the image. This mineral phase is composed of Si, Al and Mg. The mineral type - 2 is composed of Si, Al and K, and the rounded structure indicated in “3” is composed of a high content of Ca, corresponding to calcite. TEM images of the sample from Coração lake show a large thin euhedral sheet mineral, which overlaps, probably in the basal plane, and a lenticular shape, representing a longitudinal plane or other kind of clay mineral. Different shades among the crystals were noticed, which might represent a different electric absorption pattern (Figure 8a).
The thin euhedral and subhedral sheets are arranged close to lenticular crystals in the same aggregate and they exhibit different shades. Besides these characteristics, the samples have also shown irregular morphologies, as “cotton-like”, with a filamentous pore lining growing up from the core of the boundaries of some material (Figure 8b). It is possible to notice crystals with thin euhedral morphologies and elongated sheets associated with a cotton-like material disposed together (Figure 8c,d), as well as rounded shapes among a cotton-like mineral, as Figure 8e shows.
Despite the different morphologies observed, in the EDX analyses of several points along the minerals, they showed similar chemical composition. Observing different points from similar morphologies, it was not possible to establish a specific chemical composition for each one of them. Si and O are dominant, followed by Al (3.0–15.0 wt.%), Fe (2.6–17.4 wt.%), K (0.5–8.0 wt.%) and Mg (1.1–4.2 wt.%) and some other elements as Ca, Mn and Na. The “cotton-like” morphology mentioned above seems to be growing up from a barite grain in Figure 8b. The cotton-like shaped clay mineral is bound with the organic material through pore-lining or pore-bridging projections, which may indicate an authigenic clay [30]. In Figure 8d, the structure highlighted by the dashed line show a composition rich in P and Ca, which was not observed in any other sample and might indicate an apatite grain. In Figure 8e, the crystal surrounded by a dashed line is composed only of Si and Al, which corresponds to kaolinite.

4.6. Chemical Composition and Structural Formulae of the Clay Minerals

The XRF analysis of major elements (expressed as oxides) in the bulk sediments confirm the dominance of SiO2 and Al2O3, followed by Fe2O3, CaO and K2O (Table 5).
The Table 5 presents the average of each lake and it is possible to notice the higher concentrations of the oxides (except SiO2) in the Barranco Alto lakes in 2017, possibly related to the lower water level, caused by higher evaporation rates. In 2018, the SiO2 concentration increased from a mean value of 83.79% (2017) to 93.80%, while the other oxides decreased from a mean value of 1.63% in 2017 to 0.63% in 2018. Furthermore, comparing the averages of the two farms in 2018, just Al2O3 has shown significant differences.
Regarding CaO, MgO and Na2O, in the farthest lakes from the Negro River (Tubarão and Burro Branco) in 2017, Na2O prevailed over CaO and MgO. In the other saline and oligosaline lakes (Mara Maravilha and Coração), CaO predominates over MgO and Na2O. In the Negro River, the sequence of predominance is MgO-CaO-Na2O.
In 2018, the dominant sequence CaO-MgO-Na2O continued in most of the lakes. However, some of them showed a preponderance of Na2O. Nevertheless, the concentrations of these three oxides continued the same for Negro River in the two years. The Nhumirim lakes showed the same sequence of concentrations than Barranco Alto lakes (CaO-MgO-Na2O), except for Salitrada lake, where Na2O prevails over MgO. Analyzing each collection point (Table S1 in Supplementary Materials), there is an increasing trend of the oxides towards the top of the collected sequences, except for SiO2. This trend is also observed towards the center of the lakes. Therefore, the concentrations of the oxides are higher in the center of the lakes and in the top of the sequences (in contact with the water), except for SiO2, which demonstrates a reverse trend.

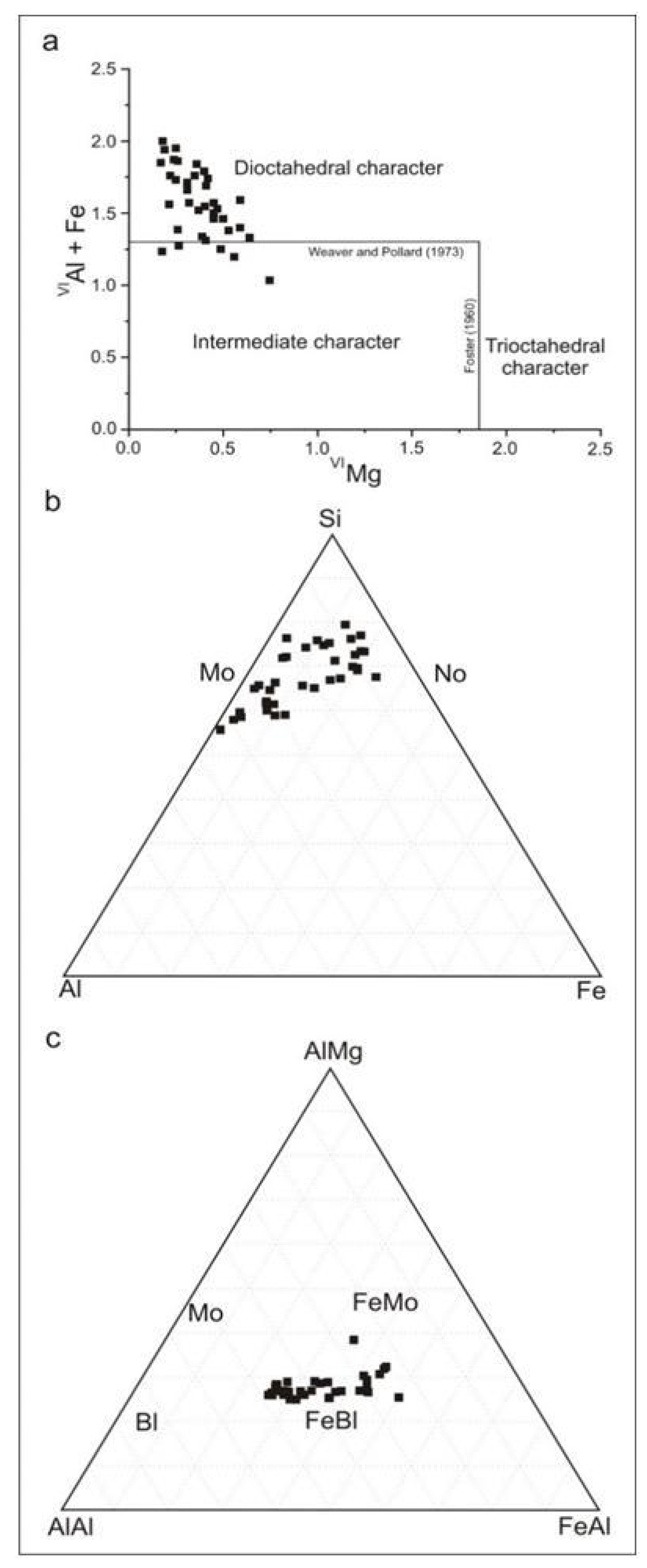

The clay formulae obtained from chemical analyses by AEM. All samples were collected at Barranco Alto farm in 2017. Contrasting the large dimensions of the areas of analysis (100 × 20 nm2) with the small particle sizes of clays (5–20 nm) and considering the presence of intimate intergrowth of smectites, non-crystalline phases and mixed-layers, the results may not represent a single crystal of clay. The results have been discriminated as illite, I/S and smectite (Table 6).
The I/S species with >90% of illite show K > 0.65 atoms per formula unit (apfu) and Si = 3.34–3.49 apfu [39]. Some of the interlayer charge, which results from the summation of interlayer cations multiplied by their respective charges (K + Na + 2Ca), showed particularly high values (0.21–0.83 apfu). The larger interlayer charge values are normally associated with illite, indicating a mixed-layered I/S or an inclusion of amorphous materials in the analyses [32]. The clay formulae are listed in Table 7.
Despite the wide range among the elements, illite species will be considered in this work as having K > 0.62 pfu. Analyses corresponding to smectites follow the criteria described above. Only five points show K values equal or higher than 0.62 pfu. Besides, almost all Si and ∑(VI) values correspond to the range described for smectites [37]. Fourteen analyses (highlighted in red), including all points from Burro Branco lake, however, do not correspond to this criterion. The sum of octahedral atoms is lower than 1.92 apfu and they are hereby classified as illite.

5. Discussion

5.1. The Distinct Clay Minerals from Pantanal

The clays identified in Barranco Alto farm are mainly of illite and kaolinite composition, with d-spacings at 10–10.1 and 7–7.1 Å, respectively [28,35]. Some illite 001 peaks, however, varied toward 12 Å in air-dried condition, remained constant under EG treatment and shifted to 10 Å after calcination, indicating the ocurrence of illite-smectite interstratification (I/S) [28,40]. The I/S was mainly observed at the Mara Maravilha, Burro Branco, Tubarão, Coração and Sete B lakes in 2017 (mostly saline and oligosaline lakes), whereas in 2018, it was observed at the Sete C and Mineira lakes (Table 8). Clays from the Coração and Mineira lakes exhibited a specific feature in their 001 peaks in air-dried condition: between 10 and 15 Å, two higher intensity peaks occur, confirming the I/S interstratification interpretation.
In the Negro River, on the other hand, the smectite diffraction pattern was clearly observed in both campaigns, as shown in Figure 6. Their 060 patterns showed values of 1.541 Å, typical of trioctahedral smectites [28,35]. Differently, the 060 diffraction peaks of the Mineira and Sete C lakes are at 1.504 and 1.529 Å, respectively, which could be consistent with a mixture of di- and trioctahedral character clays [35,36].
Petrographic analyses, SEM and TEM images have shown different types of clay minerals, based on their morphologies and chemical composition. Figure 5f and Figure 7c exhibit clay crystals forming a “bridge” between quartz grains and Figure 5g shows a pore-lining morphology growing up from a core sample to form a cotton-like structure, indicating a characteristic typical of smectites [30]. The aggregates of clay minerals at Figure 7a and the subhedral and elongated shapes recognized at HRTEM images (Figure 8a–f are common in detrital clays. The different morphologies, however, do not show a specific chemical composition, demonstrating that clay crystals are comprised by distinct components.
Although the calculated chemical formula of some samples showed a very small amount of tetrahedral Al, such a low amount could indicate the presence of trioctahedral smectite [7]. The sum of the octahedral sites, however, does not correspond to the average value of 2.80 apfu for trioctahedral smectite, possibly due to the low amount of Mg [7,37].
The di or trioctahedral character in a solid solution is not continuous between its end members in low temperatures [7,37]. The trivalent cation cannot represent less than 65% of the octahedral sites in dioctahedral smectite, which represents 1.3 R3+ cations on a Si4O10 calculation basis, and the natural trioctahedral smectite exhibits a minimum number of 1.83 R2+ [41,42]. According to the diagram of octahedral occupancy, AEM analyses mainly display a dioctahedral composition (Figure 9a) [2,7,41,42]. In the Si-Al-Fe triangular composition diagram, the points analyzed formed a gradual trend from montmorillonite to nontronite (Figure 9b). Despite this trend, the analyses of each lake are widely scattered, and a geographic distribution is not feasible. Smectite composition shows a high variation regarding Si, Al, Fe and Mg contents (specially Si and Al). Analyses plotted in the AlAl-AlFe-AlMg ternary diagram (Figure 9c) show they can be designated as Fe-rich beidellite [37].
Clays from Nhumirim farm are generally composed of illite and kaolinite, with the exception of the Salvina Doce and Salitrada lakes, which exhibited just kaolinite and quartz in the clay fraction. In the Seis, Oito and Meio lakes, calcite appears in the top of sequences, essentially in the regions closest to the center of the lakes. In Meio lake, the 060 diffractogram pattern of the sample P3 occurs at 1.521 Å, which could indicate a possible intermediate di- and trioctahedral composition [7,43]. Previous research in Meio Lake had indicated 060 XRD patterns typical of trioctahedral minerals in their samples [7]. However, most of their chemical structural formulae displayed an intermediate di- and trioctahedral composition, allowing the authors to indicate that the Mg-rich smectites had a dominant trioctahedral character, but presented a dioctahedral component [7].

5.2. A Primary Precursor as a Responsible for the Precipitation of Clay Minerals Associated with Calcite

The subhedral morphologies observed in the SEM and HRTEM images pointed out the occurrence of detrital clays, whose mineralogy could include illite, kaolinite and smectite minerals [2,30,33]. The cotton-like morphologies, however, are associated with transformation and authigenic processes, both related to physical-chemical conditions in the environment, generally in the presence of smectite clays [30] or non-crystalline substances [32].
Clays identified in Meio lake are genetically related with transformation processes on the upper zone, where ferribeidellite, vermiculite and illite minerals dominate [7]. In the lower zone, however, saponitic and stevensitic-like smectite minerals prevail, and they are normally related to the authigenic process [7]. This argument was established on the basis of rare-earth elements (REE) concentrations, which are smaller in minerals formed by chemical precipitation, because most natural waters have small REE concentrations in contrast to rocks, generally [7,44]. Magnesium-rich phyllosilicate minerals are commonly precipitated directly from surface water, normally in alkaline lake systems, and parameters like salinity, pH and Mg/Si ratios may play an important role in the nucleation of such minerals [5,8,45]. At high pH (8.7–9.4), high salinity and high Mg/Si ratio (0.67–6.0), kerolite, sepiolite and stevensite-like products are favored [5].
As well as other works already discussed [13,18,21,23,24,25], we also observed that the lakes from Pantanal show high levels of pH and salinity, especially those classified as oligosaline and saline lakes. The Mg/Si rate, however, reached the maximum value of 0.04 in our studies (based on XRF concentrations), and, therefore, do not reach the necessary chemical conditions [5]. Moreover, the lacustrine Mg-silicate minerals studied in previous works did not contain Al3+, and our results display high levels of aluminum [45]. Nevertheless, research carried out in Pantanal [7,13,14] and our work show local occurrences of trioctahedral smectites on XRD patterns, indicating that other physico-chemical agents may be playing a larger role in the studied lakes.
The nucleation of Mg-silicates can take place on pre-existing surfaces, like amorphous silica, detrital clays and biological materials, such as EPS [45,46]. Mg-clay minerals’ primary nucleation processes are generally related to a gel-like material, which promotes the binding of Fe, Al, Si, Ca, Mg, Na, K and other elements, increasing the concentration of cations and degrading organic matter and/or particulate sediments [32,44,45,47]. In this work, EPS have been recognized in the surface water, generally with algae and often associated with alkaline-saline lakes. The samples from the top of the sequences in these lakes showed features on SEM and TEM images that could refer to authigenic characteristics, such as the thin laminae covering quartz grains (Figure 7b), filamentous structures bridging quartz grains together (Figure 7c) and a cotton-like material involving organic nuclei (Figure 8b) and other clays (Figure 8a,e) [30,32].
In Figure 7e (Meio lake), there are thin and elongated structures (1) composed of Si, Al and Mg on the surface of quartz grains. This structure seems to develop to a more complex material (2), composed of Si, Al, Mg, K and Na. These structures give rise to the rounded material (3), formed only by Ca, C and O. This chemical composition and the morphology resemble spherulitic calcite minerals, which have already been observed in Santos Basin carbonates [45]. Imagery and EDX analysis (Figure 7e) allow to determine that spherulitic-shaped calcite was precipitated after Al-Mg silicates using them as a template, which, in turn, precipitated probably as a response of the biological and chemical conditions of the water, using a detrital grain as a substrate [48].
Spherulitic calcite crystals might have formed as cement in a stevensitic-like gel, which acted as an ideal substrate, but with no clear evidence of microbial influence in their formation [48]. An association of stevensite and microbialites from Lake Clifton (Western Australia) suggested that Mg-silicates are mediated by high silica activity from dissolving diatoms through biological processes [49]. At Pantanal, for instance, previous work has proposed that the microorganisms in the lakes play an important role in increasing the pH, favoring quartz dissolution and promoting the precipitation of amorphous silica and carbonate during the dry seasons [24]. Other several works in ancient and recent sedimentary basins have identified the association of Mg-silicates with carbonates and evaporitic sequences forming by means of a concentration of elements by EPS in microbial mats [43,50,51,52,53,54].

5.3. Genesis of di and Trioctahedral Clay Minerals

In this work, XRD patterns have demonstrated the predominance of illite, kaolinite and even quartz in the clay fraction. Selected samples, which suggested the presence of smectite, from the first campaign, analyzed by AEM/HRTEM analysis, have shown that most of the smectite minerals have a dioctahedral character, classified as Fe-rich beidellite. The pure crystals of beidelite identified on the Negro River may have been transported by the river, as mentioned in previous researches [2], where the colloidal particles on the Amazon River were composed essentially of smectite.
Smectite minerals identified in Barranco Alto are mainly beidelite, a mineral comprised of aluminum in the octahedral sheets and mainly by Na and Ca in the interlayers. In Nhumirim, only at Meio lake, a trioctahedral character was firstly identified. The 060 reflection from one sample of the lake, however, revealed a possible mixture of di- and trioctahedral components, which is in accordance with the structural formulae obtained in the AEM analysis [7].
The two distinctive characteristics of the smectite minerals in the farms are correlated to the types of water found in them. In both farms, sodium bicarbonate water predominates, but in Nhumirim, Ca and Mg have higher concentrations than in Barranco Alto. This characteristic is compatible with the presence of the trioctahedral components in Nhumirim, while in Barranco Alto, the smectite is exclusively dioctahedral, rich in Al and Na. Therefore, smectite minerals that have been formed in the lakes should be related to the biological and chemical conditions of the water [8]. Furthermore, the differences in cation concentration and detrital input may control the species of smectite formed: from the least to the most ionic concentrated solution and from the most to the least detrital input, the sequence of smectite formation would be: beidellitic, saponitic and stevensitic components [10].
Although most of the works mention only Mg-silicates with authigenic processes [1,5,7,13,45], the morphologies observed in the SEM and HRTEM images, associated with the EDX analysis, have demonstrated that there are authigenic structures, even though the chemical composition does not correspond to the expected Mg-silicates [8]. According to this author, in an environmental setting with high levels of alkalinity, pH and silica activity, detrital clays favor the authigenic Mg-rich smectite precipitation. Meio lake in Nhumirim shows an unusual concentration of Mg on the pore water, which enhances the precipitation of trioctahedral clay components. The composition and the biological-physical-chemical characteristics of the saline-alkaline lakes in the studied area also provide the minimum conditions for intermediate di- and trioctahedral smectites to precipitate directly from the water, using the elements available in the water, such as Al, Na and Ca [14,43].
As other research already suggested [48,49,53], calcite has been found to precipitate within Mg-rich silicates. Such silicates probably formed as a primary bacterial gel rich in Si and Mg, giving rise to labile minerals, identified only in the water/sediment interface, where biological and chemical conditions determine the mineral precipitation.

6. Conclusions

The clay minerals from the Pantanal lakes are controlled by distinctive processes of transportation, transformation and neoformation. The biological, physical and chemical conditions of the lakes induce the supersaturation of the water and EPS act as a binding agent, promoting the precipitation of various elements, first as a labile precursor gel and then developing to minerals. Although most of the authigenic minerals have been related to Mg-silicates, an intermediate composition of di- and trioctahedral smectites can also be formed directly from the water, considering the presence of microorganisms and chemical conditions available. As well as other works already observed in ancient deposits, calcite precipitates as smectite and I/S minerals at the points with contact with the water, showing that both minerals are genetically related.
Barranco Alto and Nhumirim are located in the same geological environment, but display different mineral and geochemical characteristics. The water of Barranco Alto has shown higher values of Na, whereas Nhumirim has shown significant concentrations of Mg. These features, respectively, are consistent with the dioctahedral and intermediate di- and trioctahedral character of smectites of each farm. The cause of this difference might be related to sediment input, rocks in the basement, fractures and/or faults in the basin, degrees of isolation of each lake, geomorphological features of the environment and the great annual climatic variation which promotes mineral dissolution and precipitation. To evaluate what is promoting the mineralogical and geochemical differences in these two near regions, more studies should be carried out to properly understand them.
