Micro-Raman Spectroscopy Assessment of Chemical Compounds of Mantle Clinopyroxenes

Abstract

The composition of clinopyroxenes is indicative for chemical and physical properties of mantle substrates. In this study, we present the results of Raman spectroscopy examination of clinopyroxene inclusions in natural diamonds (n = 51) and clinopyroxenes from mantle xenoliths of peridotites and eclogites from kimberlites (n = 28). The chemical composition of studied clinopyroxenes shows wide variations indicating their origin in different mantle lithologies. All clinopyroxenes have intense Raman modes corresponding to metal-oxygen translation (~300–500 cm⁻¹), stretching vibrations of bridging O-Si-O_br (ν₁₁~670 cm⁻¹), and nonbridging atoms O-Si-O_nbr (ν₁₆~1000 cm⁻¹). The peak position of the stretching vibration mode (ν₁₁) for the studied clinopyroxenes varies in a wide range (23 cm⁻¹) and generally correlates with their chemical composition and reflects the diopside-jadeite heterovalent isomorphism. These correlations may be used for rough estimation of these compounds using the non-destructive Raman spectroscopy technique.

1. Introduction

Mineral inclusions in natural diamonds carry important information about the chemical physical conditions of the Earth’s mantle. The sources of mineral inclusions in diamonds can be divided into three common parageneses: peridotite, eclogite, and rare websterite types. The major inclusions of the peridotite associations are olivine (forsterite), orthopyroxene (enstatite), garnet (Cr-rich pyrope), Cr-spinel (chromite), clinopyroxene (Cr-diopside), and Fe-Ni-sulfides; eclogite associations are usually represented by garnet (pyrope-almandine-grossular), clinopyroxene (omphacite), quartz (coesite), and Fe-sulfides [1]. Websteritic inclusions are generally presented by clinopyroxene and orthopyroxene, which associate with garnet and olivine in some rare cases.

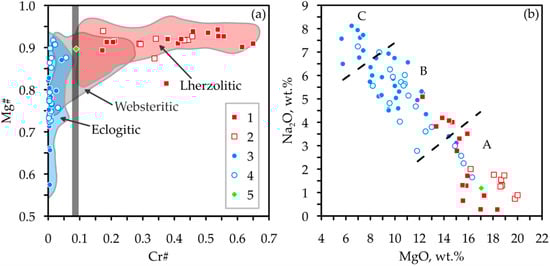

Clinopyroxenes of different parageneses are considerably diverse in their chemical composition. Peridotite clinopyroxenes are represented by Cr-diopside with Na₂O < 6 wt.%, Cr₂O₃ 0.6–2.4 wt.%, and Mg#~0.92–0.94. Eclogite clinopyroxene (omphacite) has a jadeite component (NaAl[Si₂O₆]) varying from 10% to 60% and Cr₂O₃ < 0.4% and Mg# < 80% [2]. Peridotite and eclogite clinopyroxene inclusions can be distinguished by the borderline of the Cr# (Cr/(Cr + Al)) molar ratio ranging from 0.07 to 0.10 (Figure 1a). Taylor and Neal (1989) subdivided eclogites by clinopyroxenes jadeite components into three groups: (1) group A eclogites (high-pressure igneous cumulates formed as dikes within the upper mantle) with low-jadeite clinopyroxenes; (2) group B eclogites with moderate-jadeite clinopyroxenes (metamorphic products of a subducted oceanic crustal protolith); and (3) group C eclogites (a relic of the Earth’s primary differentiation shortly after accretion) with high-jadeite clinopyroxenes (Figure 1b) [3]. Websterite clinopyroxenes cannot be determined with certainty, and they are considered to be transitional in composition between clinopyroxenes of peridotite and eclogite.

The analysis of the chemical composition of inclusions traditionally involves the partial destruction of the samples, e.g., study of the chemical composition of inclusions in diamonds by EPMA (electron probe microanalysis) requires specific sample preparation, such as polishing or crushing of the host. Therefore, the methods of study of mineral inclusions using non-destructive methods are becoming more demanded [4,5,6,7,8,9]. Raman spectroscopy is an alternative high-resolution non-invasive non-destructive technique, which provides information about specific vibrations in solid materials reflecting the chemical and structural features of minerals, including those presented as inclusions in natural diamonds. In this study, we present new data on the Raman spectroscopic characteristics of clinopyroxenes inclusions in natural diamonds and clinopyroxenes from the series of peridotite and eclogite xenoliths from kimberlite. These data are used to define the correlations between Raman features of mantle clinopyroxenes and their chemical composition.

2. Materials and Methods

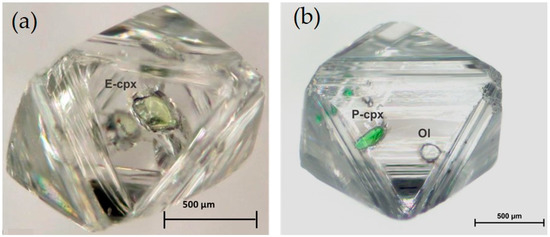

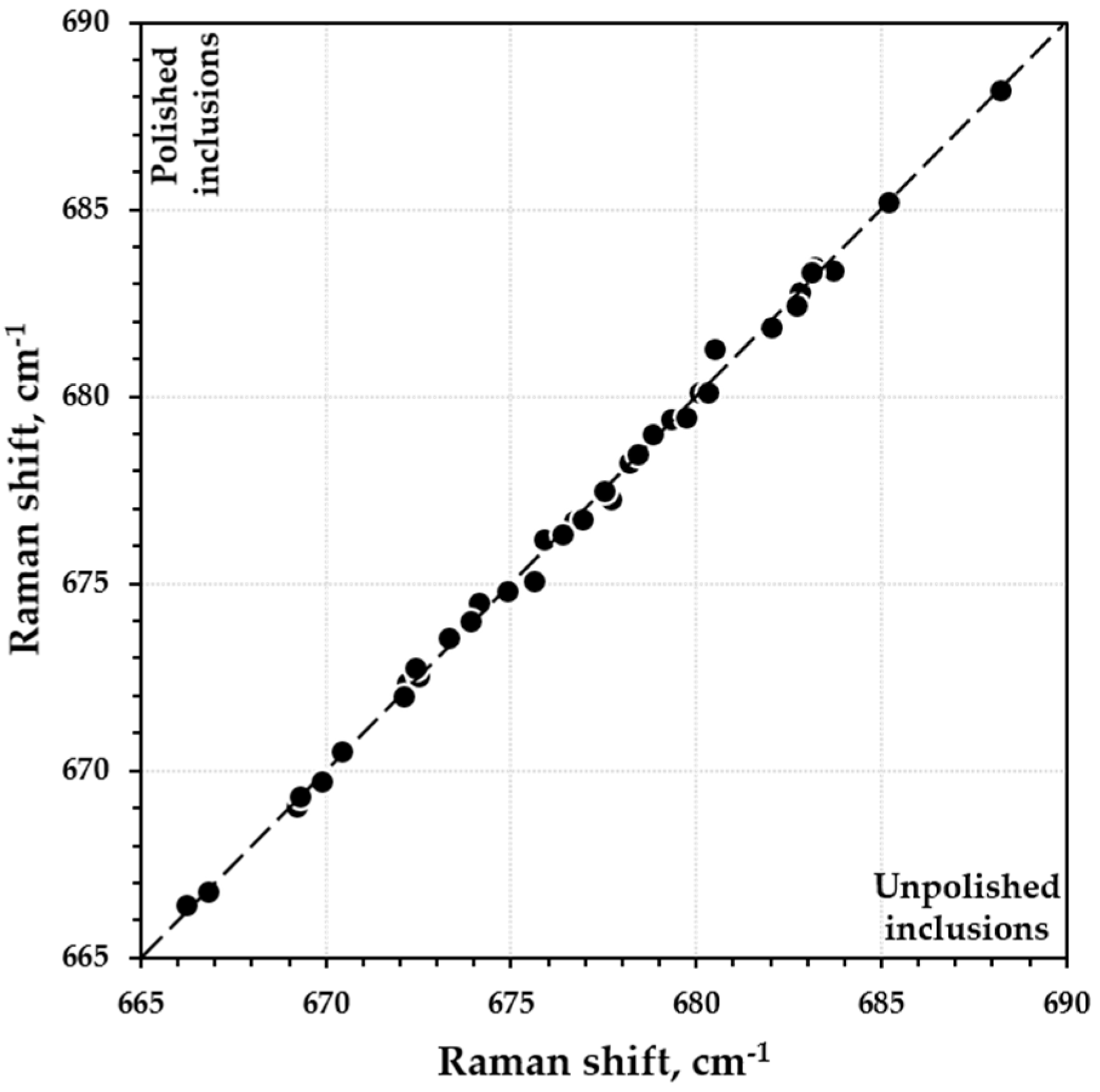

In total, 51 natural diamonds were selected from different occurrences of Yakutian diamondiferous province (Internatsional’naya (n = 9), Yubileynaya (n = 4), Udachnaya (n = 4), Mir (n = 1), Komsomolskaya (n = 1), Nyurbinskaya (n = 2) kimberlite pipes, Ebelyakh river deposits (n = 30)). The studied diamonds were represented by both octahedral and rounded dodecahedral crystals with the inclusions of peridotite or eclogite parageneses (Figure 2). The sample preparation includes polishing of a diamond parallel to the (110) plane in order to recover the inclusions to the surface for further analysis of chemical composition by EMPA. Some inclusions were examined by Raman spectroscopy before and after the polishing and several fully extracted inclusions from diamond were studied to avoid the ambiguity as clinopyroxene inclusions may be affected by the residual strain of a diamond host [10,11]. In total, 28 clinopyroxene grains were also selected from peridotite (n = 8) and eclogite (n = 20) xenoliths from Udachnaya kimberlite pipe. The characterization of the clinopyroxenes from these samples is provided in [12,13].

The chemical composition of the clinopyroxenes was determined on a JEOL JXA-8100 electron probe microanalyzer (EPMA), equipped with five wavelength-dispersive spectrometers and an energy-dispersive (EDX) spectrometer at an accelerating voltage of 20 kV and probe current of 100 nA. The beam diameter was 1–3 μm. The ZAF correction routine were applied. Natural standards were used: BD (diopside), O-145 (pyrope), Ud-92 (Cr-pyrope)—Lavrent’ev et al. (2015) [14]. The chemical composition of some clinopyroxene inclusion was taken from the published data (MT, HI—[15]; NBI—[16]; Ud10—[17]).

Raman spectra were collected using a Horiba Jobin Yvon LabRAM HR800 Raman microspectrometer with a multichannel air-cooled (−70 °C) CCD detection system and a 532-nm Nd:YAG laser, equipped with an Olympus BX41 microscope (×50). Spectra were recorded in back-scattering geometry in the range 100–1200 cm⁻¹, through 7–10-s exposure and 10–15 acquisitions. The width of slit was 100 μm and the power of the laser was 10 mW. The spectra were calibrated using known emission lines of the Ne-lamp, also the Si-band at 520.6 cm⁻¹ was used for monitoring of the frequencies of the Raman spectra. Additionally, the spectra were obtained at different crystallographic orientations via rotation (for each 15°) because some modes can change their intensity and disappear or are overlapped [18]. The spectroscopic software OPUS 8.2. (Bruker Optik GmbH, Ettlingen, Germany) was used for manipulation with spectra: the peak position was obtained by a regression least-squares curve fitting calculation using a Gaussian–Lorentzian mixed peak shape and baseline correction. This procedure yields a precision for peak of ±0.5 cm^–1.

3. Results

Most of the studied inclusions are presented by clinopyroxenes, which correspond to either peridotite (n = 16) or eclogite (n = 34) parageneses and single inclusion (Cr# 0.08 and Mg# 0.89) falls into the field of compositions transitional between these two principal parageneses (Figure 1a,b). The inclusions of peridotite clinopyroxene are Cr-rich diopside (Cr₂O₃ 0.31–5.74 wt.%, CaO 12.81–22.9 wt.%, MgO 12.25–18.3 wt.%) with relatively low FeO 1.81–3.45 wt.%, Al₂O₃ 0.31–5.41 wt.%, and Na₂O 0.28–5.09 wt.%. They have relatively high Mg# 0.87–0.94 and Cr# 0.17–0.64. The inclusions of eclogite clinopyroxenes are omphacites (Na₂O 3.12–8.12 wt.%, Al₂O₃ 4.46–17.9 wt.%, CaO 9.81–17.2 wt.%, MgO 5.65–15.1 wt.%, FeO 2.22–11.4 wt.%). These clinopyroxenes have low Cr₂O₃ < 0.3 wt.% and wide variation of Mg# from 0.57 to 0.87. Most studied clinopyroxene inclusions fall into the range of clinopyroxenes of groups B and C eclogites and rare inclusions correspond to clinopyroxenes of group A eclogites (Figure 1b) [3].

The clinopyroxenes from peridotites have a limited variation of composition (MgO 16.2–20 wt.%, FeO 1.92–4.62 wt.%, CaO 17–20.7 wt.%, Na₂O 2.01–7.01 wt.%, Al₂O₃ 0.82–2.71 wt.%, Cr₂O₃ 0.80–1.21 wt.%) with high Mg# 0.87–0.94 and Cr# 0.17–0.45. The clinopyroxenes from eclogites show wider compositional variations (MgO 6.98–15.6 wt.%, FeO 1.41–7.16 wt.%, CaO 10.6–20.3 wt.%, Na₂O 2.25–7.24 wt.%, Al₂O₃ 3.37–15.3 wt.%) with lower Cr₂O₃ content (<0.3 wt.%) and Mg# 0.72–0.91. Most of these clinopyroxenes from eclogites belong to group B (n = 14), four samples belong to group A and two belong to group C. All clinopyroxenes display positive sufficient correlations between CaO and MgO (r = 0.80) and between Na₂O and Al₂O₃ (r = 0.94), and negative correlations between CaO and Na₂O (r = −0.92) and between MgO and Al₂O₃ (r = −0.95). These correlations correspond to diopside-jadeite isomorphism in clinopyroxene (

Table 1. The correlation coefficients for linear dependences between major elements and stretching vibration mode (ν₁₁) in clinopyroxenes (the bold are significant at α = 10⁻⁴).

	SiO2	TiO2	Al2O3	Cr2O3	FeO	MgO	CaO	Na2O	ν11
SiO2	1
TiO2	−0.06	1
Al2O3	0.27	0.48	1
Cr2O3	−0.11	−0.32	−0.51	1
FeO	−0.40	0.36	0.33	−0.49	1
MgO	−0.09	−0.51	−0.95	0.42	−0.45	1
CaO	−0.23	−0.47	−0.86	0.35	−0.52	0.80	1
Na2O	0.19	0.50	0.94	−0.37	0.42	−0.94	−0.92	1
ν11	0.27	0.42	0.97	−0.48	0.36	−0.92	−0.88	0.95	1

).

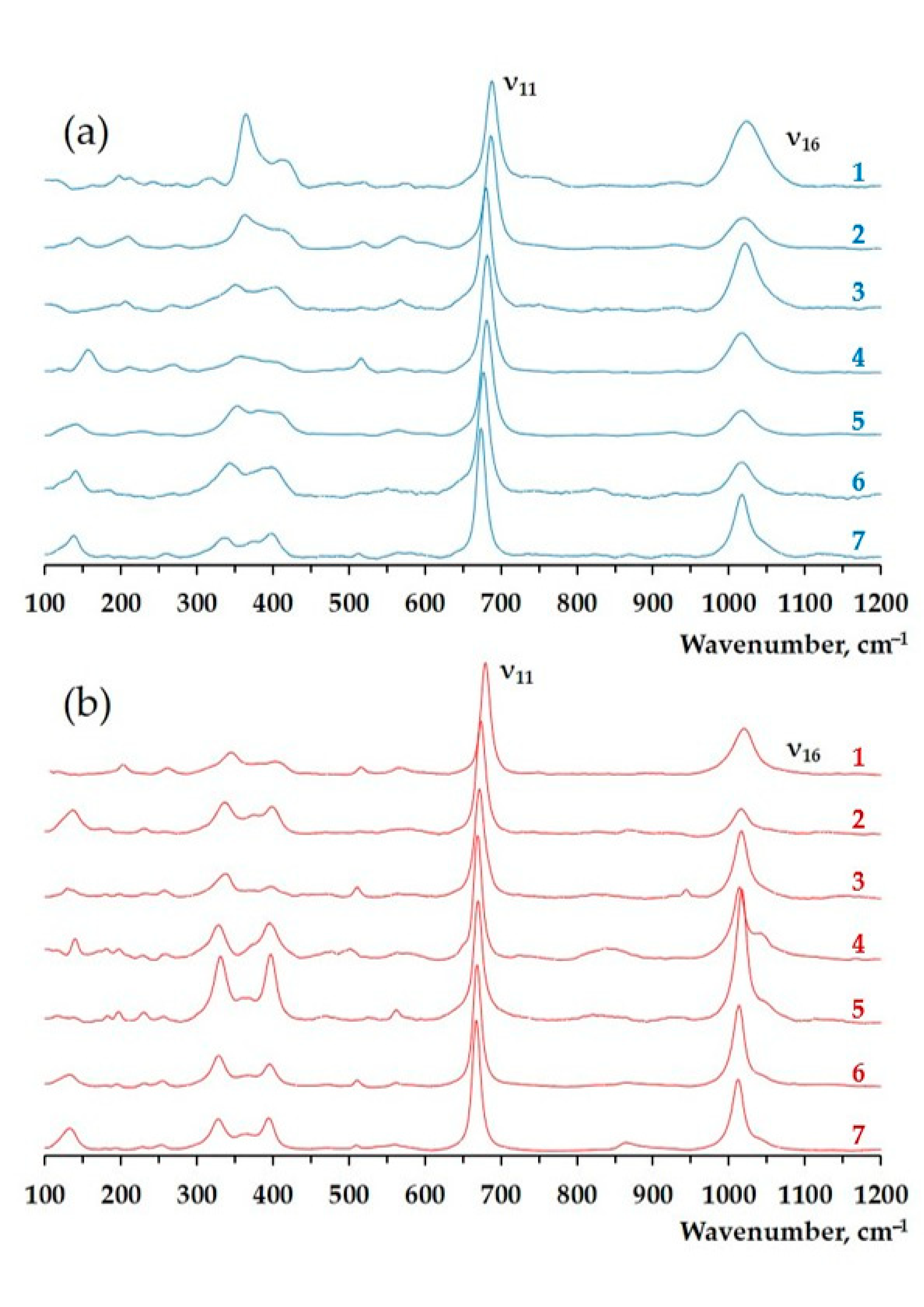

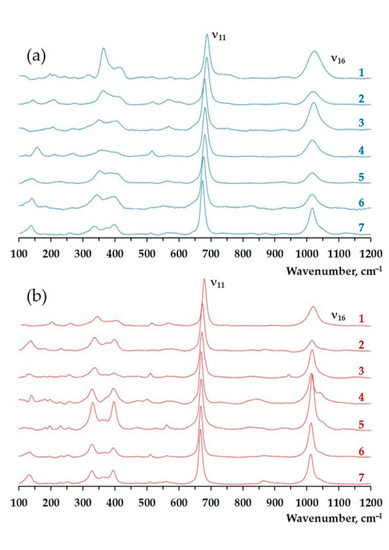

The structure of clinopyroxene is known to consist of SiO₄-tetrahedra chains parallel to [001] linked by cation layers of M1O₆-octahedron and M2O₈-coordinated polyhedral. The factor group analysis of the clinopyroxene structure (C2/c) defines 30 Raman active modes (14A_g + 16B_g) [19,20,21,22,23]. The Raman spectra of the studied clinopyroxenes generally exhibit several intense modes near ~300–500, 670, and 1000 cm⁻¹ assigned to metal-oxygen translation, stretching vibrations of bridging O-Si-O_br (ν₁₁), and non-bridging atoms O-Si-O_nbr (ν₁₆), respectively (Figure 3). Raman modes in the metal-oxygen translation range overlap and it is difficult to separate each peak by fitting. The O-Si-O_nbr mode (ν₁₆) of clinopyroxenes shows the peak position shifting from 1010 to 1025 cm⁻¹, which depends on the composition. The intensities of this mode depend on the crystal orientation, and the Raman shift (up to 7 cm⁻¹) in different crystallographic orientations of single inclusion is possible. The peak positions of the stretching O-Si-O_br mode vary in the range up to 23 cm⁻¹ for the clinopyroxenes of different compositions (665.6–675.5 cm⁻¹ for peridotite clinopyroxene inclusions and 673.8–688.2 cm⁻¹ for eclogite clinopyroxene inclusions; 666.8–670.9 cm⁻¹ for clinopyroxenes from peridotites and 671.5–687.2 cm⁻¹ for clinopyroxenes from eclogites). This mode has only slight variations (always <0.7 cm⁻¹) in the different crystallographic orientations of the studied clinopyroxenes. The peak position frequencies of the stretching O-Si-O_br mode for the studied clinopyroxene from the same inclusions in diamonds before and after polishing have discrepancies less than 0.79 cm⁻¹ (Appendix A, Figure A1). Thus, the stretching O-Si-O_br mode may be precisely fitted and seems to be most suitable for estimation of the possible dependencies with composition.

4. Discussion

The elements can continuously substitute each other in the structure of clinopyroxene (e.g., diopside CaMg[Si₂O₆]—omphacite Na_0.5Ca_0.5Mg_0.5Al_0.5[Si₂O₆]—jadeite NaAl[Si₂O₆] join in eclogite clinopyroxenes and diopside CaMg[Si₂O₆]—cosmochlor NaCr[Si₂O₆] joins in peridotite clinopyroxenes) [24]. Isostructural substitutions of the cations influence the lengths and angles of bonds, which changes the energy of Si-O vibrations and, consequently, the wavenumbers of Raman peak positions. In clinopyroxenes, heterovalent isomorphism Na⁺Al³⁺—Ca²⁺Mg²⁺ affects Raman shifts close to linear [18]. These Raman shifts may be calibrated with the chemical composition of clinopyroxenes obtained by other techniques. It makes it possible to use the Raman technique for quantitative estimation of the contents of the major chemical compounds of this mineral.

We compared the peak position frequencies of the stretching O-Si-O_br mode (ν₁₁) with the chemical composition of the studied clinopyroxenes. Large variations in the composition, accompanied by wide Raman shifts of the ν₁₁ mode, allowed determination of adequate linear dependences and the regression parameters of these correlations. The correlation coefficients for all observed linear dependences for α (the level of significance or the probability of a type I error) = 10⁻⁴ are summarized in Table 1. Several linear dependences between the Raman shift of the ν₁₁ mode and content of some major elements were found. The most prominent are positive correlations with Na₂O (r = 0.95) and Al₂O₃ (r = 0.97) contents and negative correlations with CaO (r = −0.88) and MgO (r = −0.92) contents. We did not observe any significant dependences with content of Cr₂O₃ and FeO. It may be caused by the fact that Fe and Cr atoms of different valence can occupy different structural positions (M2O₈ or M1O₆) [25,26].

The observed dependences can be described as Deming regression equations as functions on Raman shift (significant at α = 0.05):

CaO = −0.61 (± 0.1) × ν₁₁ + 427.4 (± 61.9)

(1)

MgO = −0.71 (± 0.08) × ν₁₁ + 493.9 (± 59.1)

(2)

Na₂O = 0.37 (± 0.04) × ν₁₁ − 251.3 (± 32.5)

(3)

Al₂O₃ = 0.81 (± 0.05) × ν₁₁ − 545.2 (± 37.2)

(4)

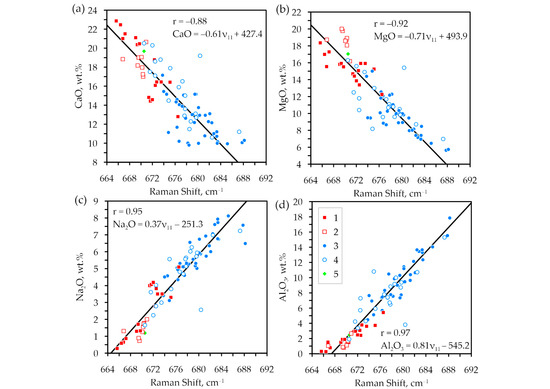

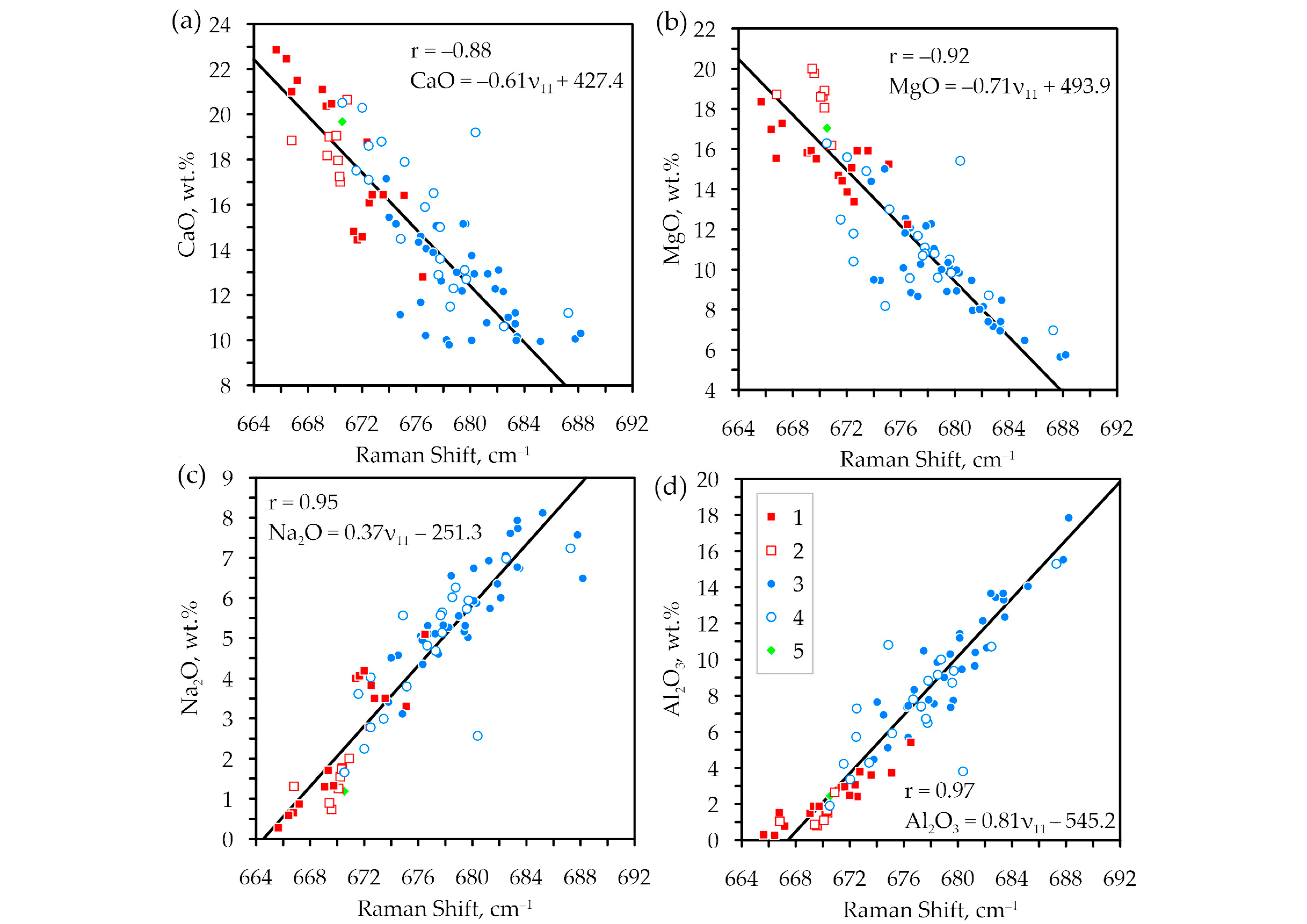

where Na₂O, Al₂O₃, CaO, MgO in wt.%; ν₁₁—frequency of the peak position of the O-Si-O_br Raman mode. The observed correlations and calculated regression lines are shown in Figure 4.

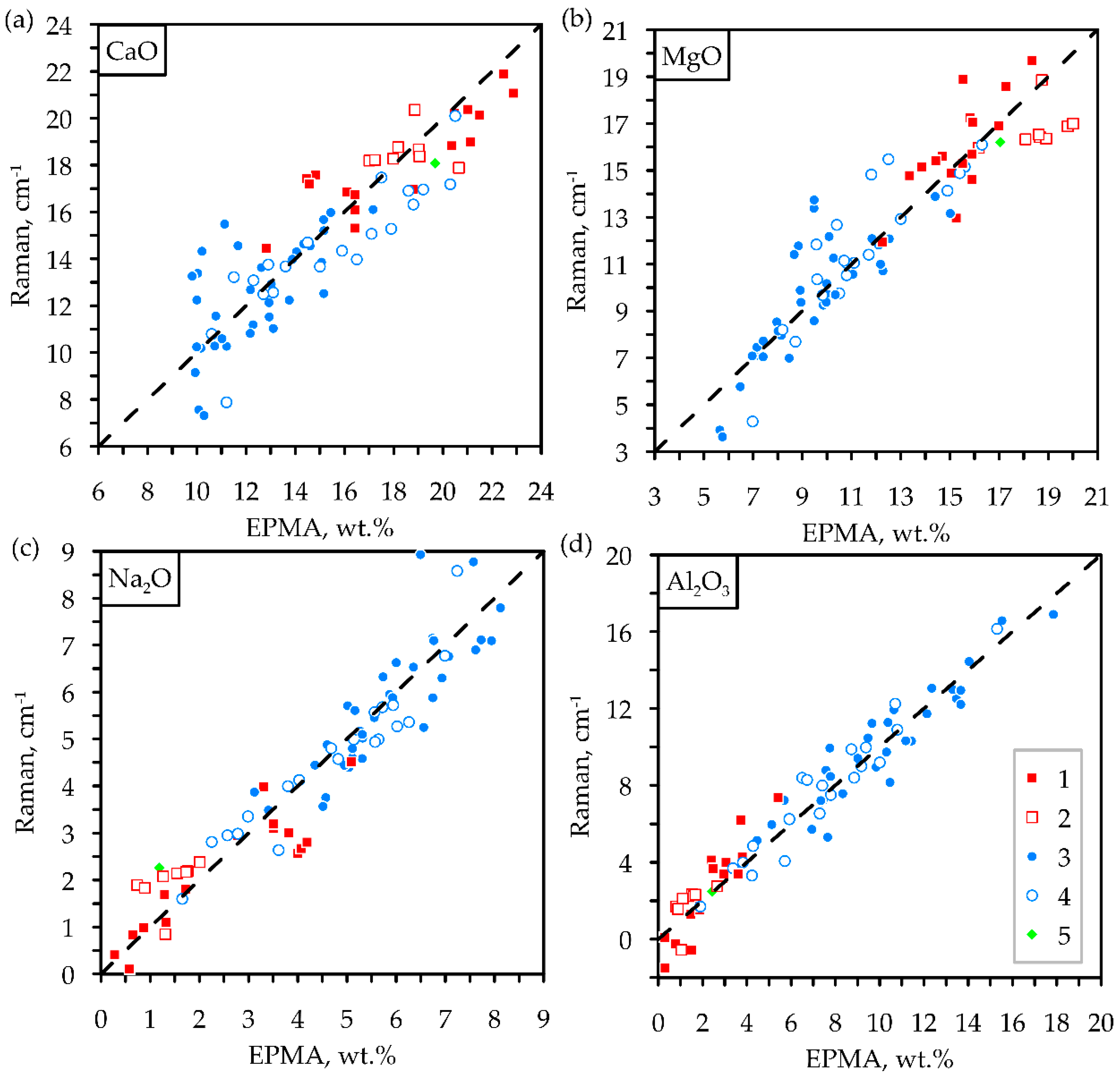

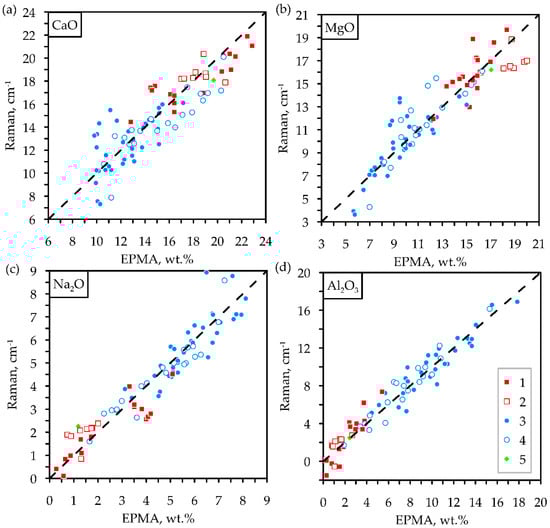

The data calculated from the regression equations and EPMA data yield sufficiently good convergence (Figure 5). Hereby, the equations of regression lines (1–4) can be used for a quantitative assessment of the chemical composition of mantle clinopyroxenes using only Raman spectroscopy technique. The discrepancies between Raman calculated data and EPMA data are <5.0 wt.% for CaO (mean 1.1 wt.%), <4.2 wt.% for MgO (mean 0.6 wt.%), <2.5 wt.% for Na₂O (mean 0.4 wt.%), and <2.5 wt.% for Al₂O₃ (mean 0.5 wt.%). Some high discrepancies may occur because Cr₂O₃ and FeO were not considered in the calculations of the regression lines. It is known that strain pressure can also affect the Raman shifts of peak positions for anisotropic crystals [27]. However, the completely extracted and in situ inclusions of clinopyroxenes and clinopyroxenes from eclogites and peridotites give similar regression lines. It may suggest that the Raman shift of v₁₁ stretching mode for clinopyroxene inclusions in diamonds depends on the composition rather than residual internal pressure.

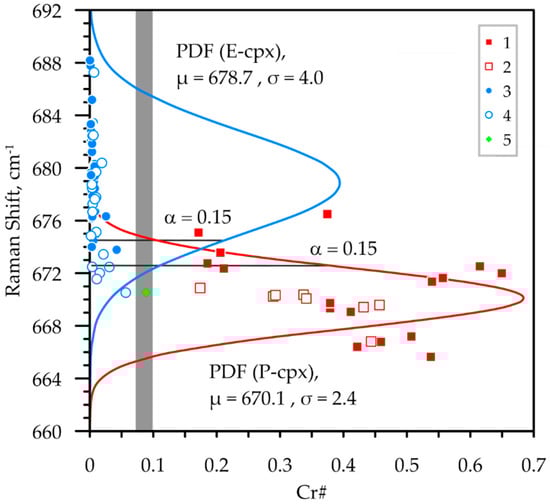

The previously published data reveal that peridotite and eclogite clinopyroxenes can be discriminated by the Cr# [1,2]. The lack of sufficient correlations of the stretching mode ν₁₁ with the Cr and Fe contents do not allow assessment of these components using solely Raman data. It makes it difficult to discriminate the clinopyroxenes of different parageneses. Despite this, the clinopyroxenes of peridotite paragenesis and eclogite parageneses can roughly be separated by the peak position of the stretching ν₁₁ mode. We calculated two separate distributions by the peak position of ν₁₁ mode for peridotite and eclogite clinopyroxenes (Figure 6). These distributions are characterized by different parameters of the mean value and standard deviation (µ = 670.2, σ = 2.3 for peridotite clinopyroxenes and µ = 678.9, σ = 4.0 for eclogite clinopyroxenes), assuming that these distributions are normal. The Raman spectra of peridotite clinopyroxene has the stretching ν₁₁ mode with a peak position frequency lower than 672 cm⁻¹ with a probability of 85% (α = 0.15). Similarly, the clinopyroxene is likely to belong to eclogite (with probability of 85%, α = 0.15) if the peak position of the stretching ν₁₁ mode is higher than 675 cm⁻¹. The uncertainty range takes place between 672 and 675 cm⁻¹. This extended uncertainty range is due to the existence of Na₂O rich with peridotite clinopyroxenes (4.19–5.09 wt.%), which significantly overlap the range of eclogite clinopyroxenes and have the upshifted peak position of ν₁₁ Raman mode. Some eclogite clinopyroxenes with relatively low Na₂O ~2.25 wt.% and elevated Cr₂O₃ ~0.27 wt.% also fall into the uncertainty range.

5. Conclusions

Raman spectroscopy is a non-destructive technique for the identification of structural and chemical properties of minerals, and in particular is appropriate to study inclusions in natural diamonds. The new dataset of the Raman spectroscopic features of clinopyroxene inclusions in natural diamonds of different paragenesis (peridotite and eclogite) and clinopyroxenes from xenoliths peridotites and eclogites in kimberlite were obtained in this study. The wide variations of the peak position in a wide range for the ν₁₁ mode of stretching vibrations of Si-O-Si_br were found. These variations correlate well with the chemical composition of the studied clinopyroxenes. The correlations, described as linear regression lines, generally reflect heterovalent jadeite-diopside isomorphism and can potentially be applied to evaluate the chemical composition of mantle clinopyroxenes using only the Raman spectroscopy technique. The peak position of the stretching Si-O-Si_br Raman mode (v₁₁) can be satisfactorily used to separate clinopyroxenes of different parageneses. The clinopyroxenes with the peak position of v₁₁ mode lower than 672 cm⁻¹ are likely to belong to peridotites; and the clinopyroxenes with the peak position of v₁₁ mode higher than 675 cm⁻¹ are likely to belong to eclogites.
