A Study for Parametric Morphogeometric Operators to Assist the Detection of Keratoconus

1
Department of Graphical Expression, Technical University of Cartagena, 30202 Cartagena, Spain
2
Department of Research and Development, Vissum Corporation Alicante, 03016 Alicante, Spain
3
Keratoconus Unit of Vissum Corporation Alicante, 03016 Alicante, Spain
4
Department of Refractive Surgery, Vissum Corporation Alicante, 03016 Alicante, Spain
5
Division of Ophthalmology, Miguel Hernández University of Elche, 03202 Alicante, Spain
*
Author to whom correspondence should be addressed.
Symmetry 2017, 9(12), 302; https://doi.org/10.3390/sym9120302
Received: 14 November 2017 / Revised: 1 December 2017 / Accepted: 3 December 2017 / Published: 5 December 2017
  |
PDF [5986 KB, uploaded 6 December 2017]
  |

Abstract

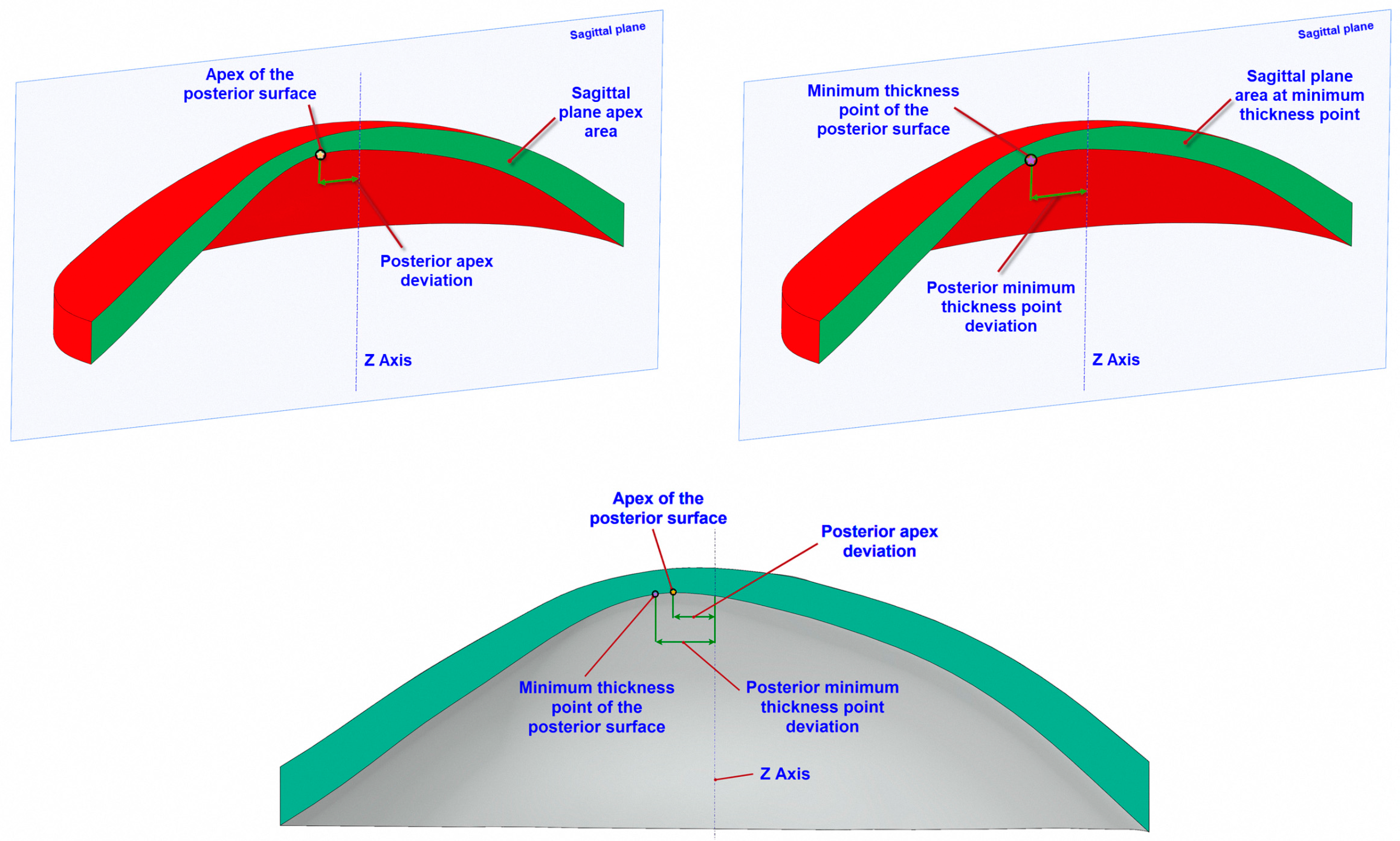

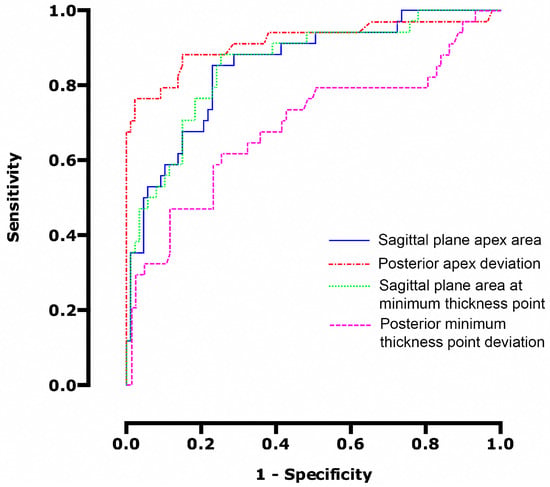

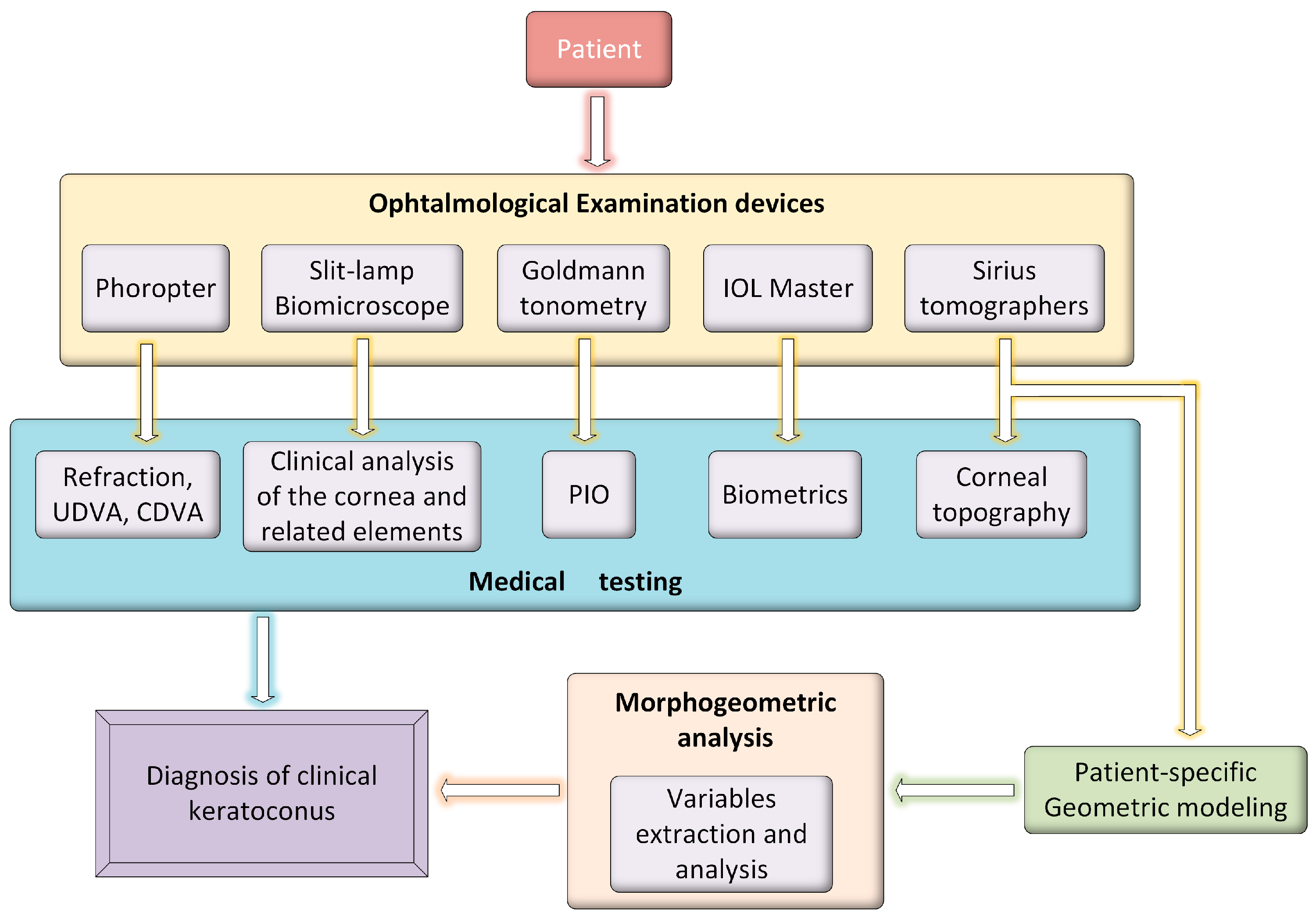

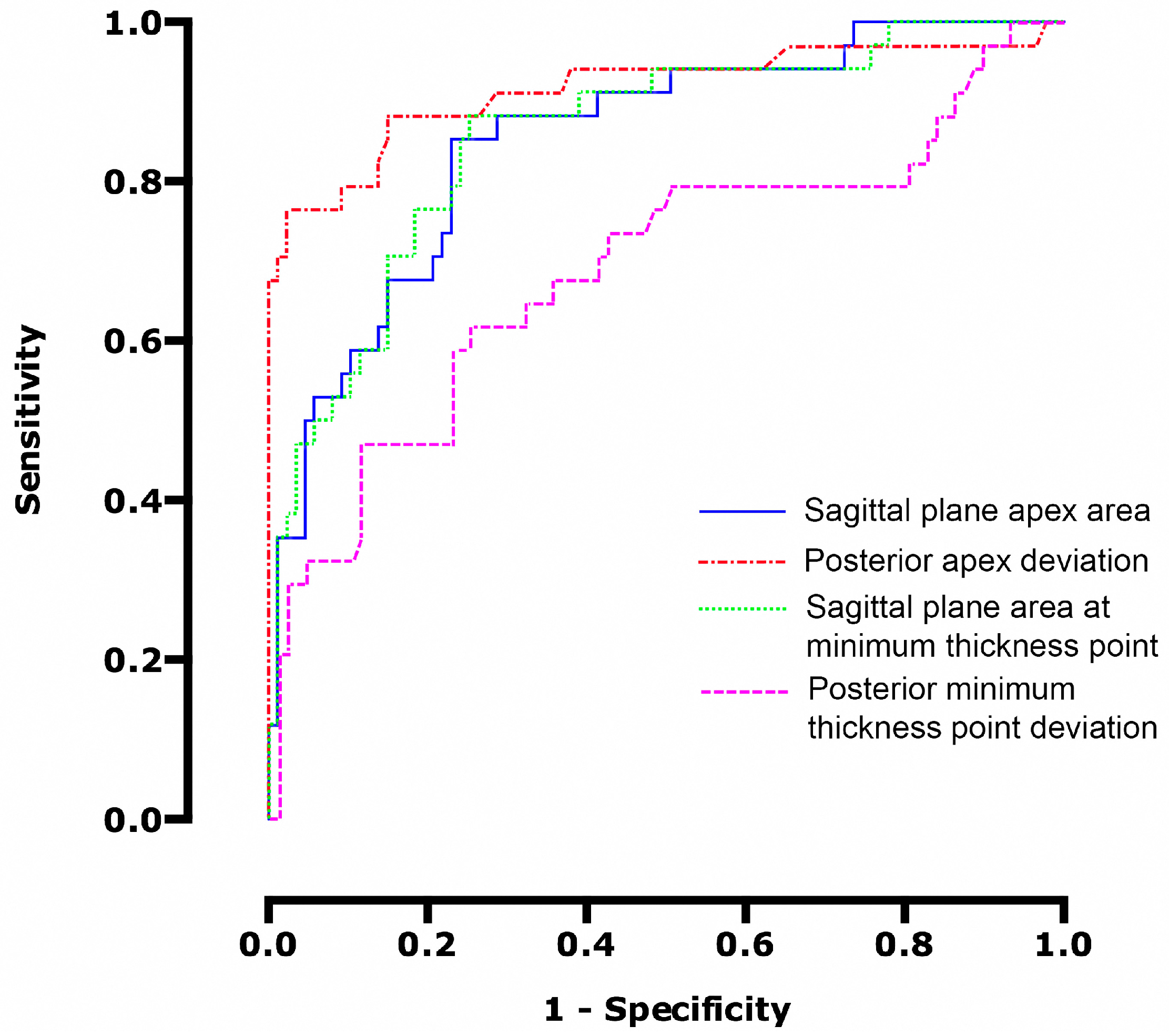

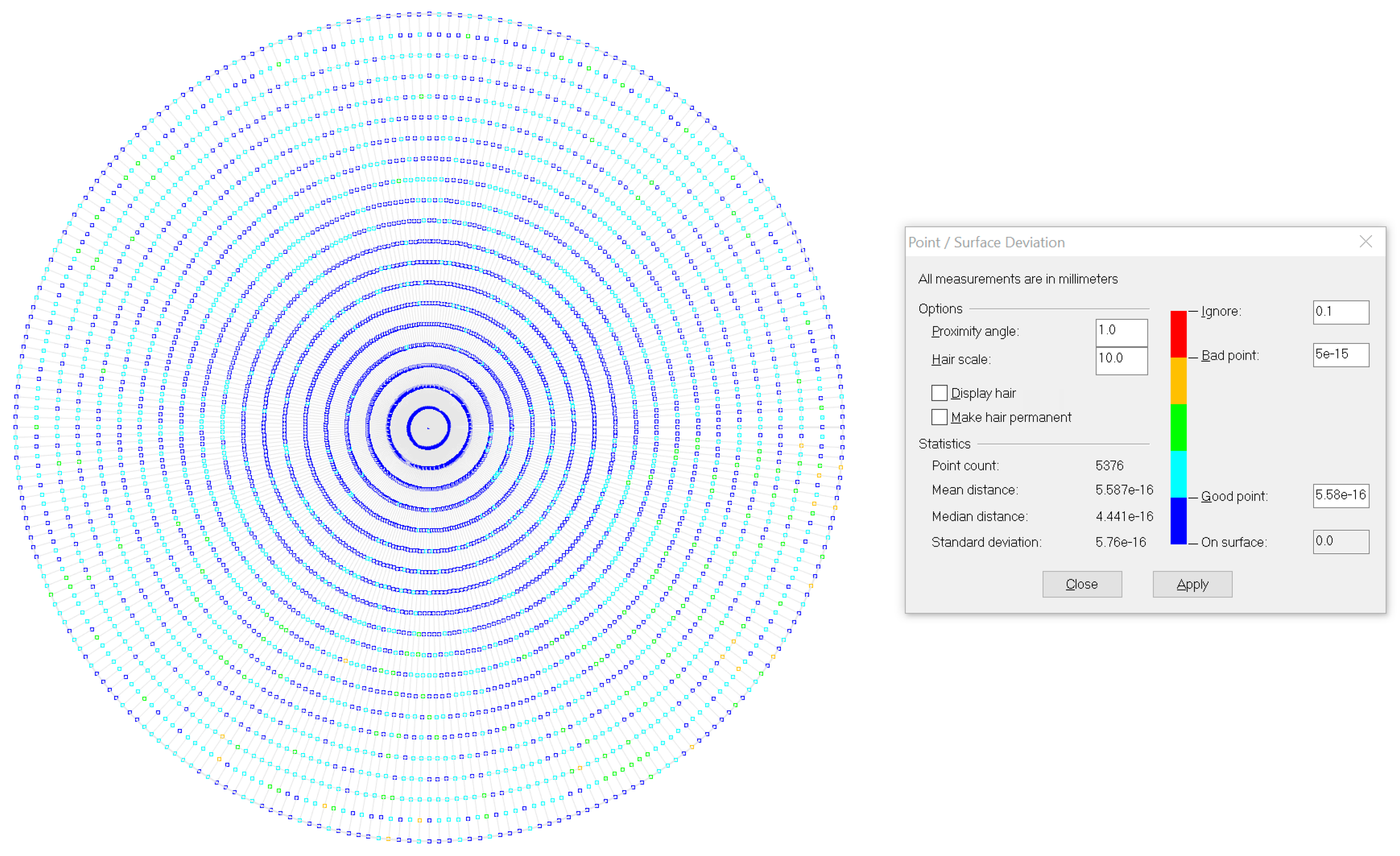

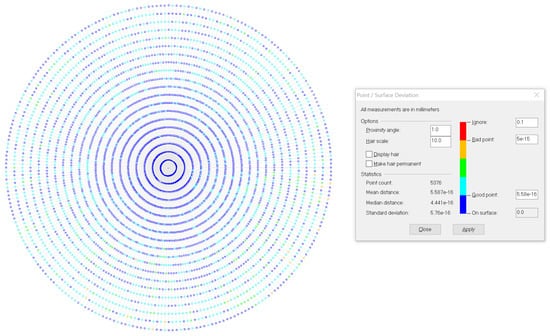

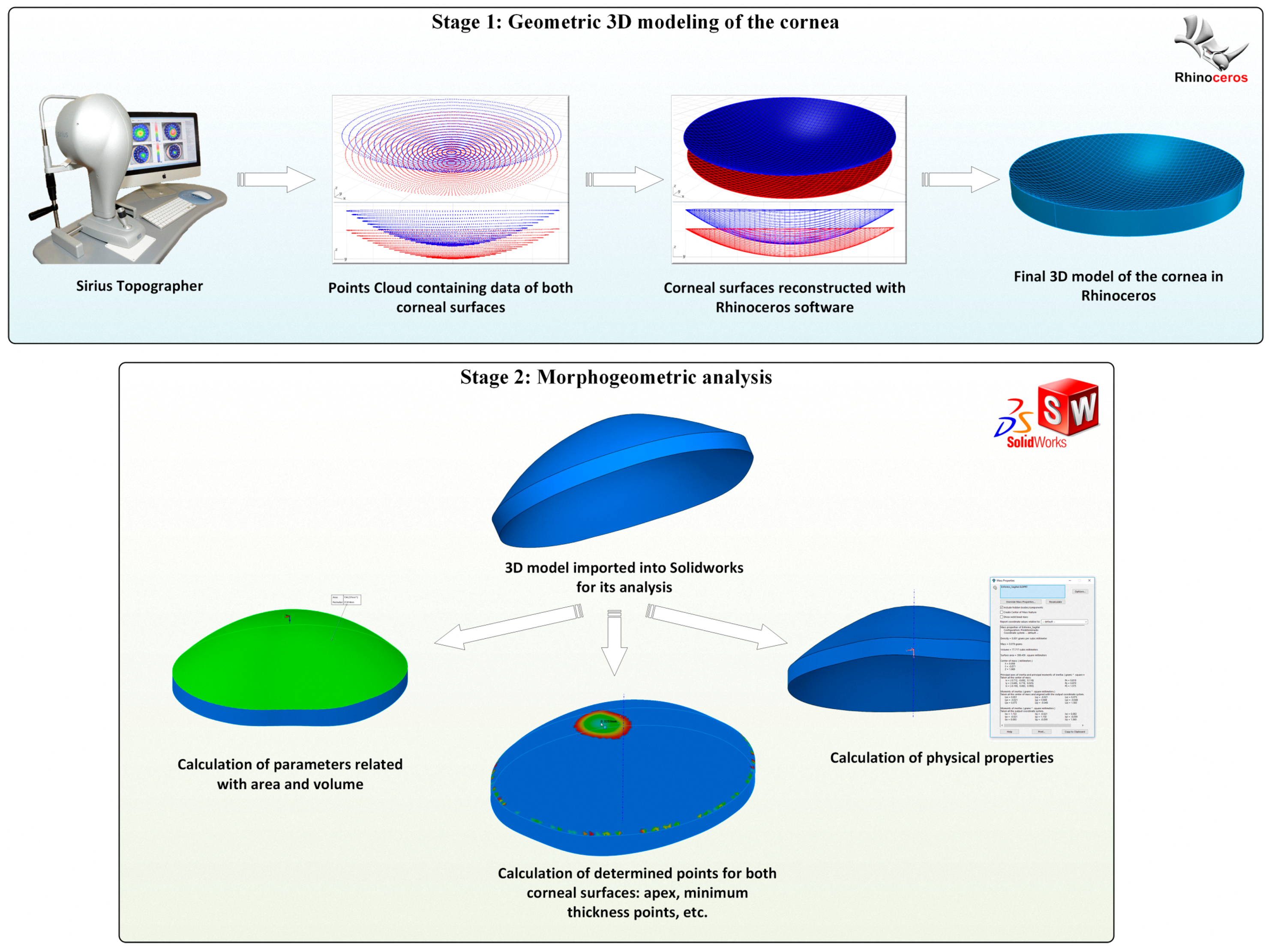

The aim of this study is to describe a new keratoconus detection method based on the analysis of certain parametric morphogeometric operators extracted from a custom patient-specific three-dimensional (3D) model of the human cornea. A corneal geometric reconstruction is firstly performed using zonal functions and retrospective Scheimpflug tomography data from 107 eyes of 107 patients. The posterior corneal surface is later analysed using an optimised computational geometry technique and the morphology of healthy and keratoconic corneas is characterized by means of geometric variables. The performance of these variables as predictors of a new geometric marker is assessed through a receiver operating characteristic (ROC) curve analysis and their correlations are analysed through Pearson or Spearman coefficients. The posterior apex deviation variable shows the best keratoconus diagnosis capability. However, the strongest correlations in both healthy and pathological corneas are provided by the metrics directly related to the thickness as the sagittal plane area at the apex and the sagittal plane area at the minimum thickness point. A comparison of the screening of keratoconus provided by the Sirius topographer and the detection of corneal ectasia using the posterior apex deviation parameter is also performed, demonstrating the accuracy of this characterization as an effective marker of the diagnosis and ectatic disease progression. View Full-Text
Keywords: geometric modelling; cornea reconstruction; diagnosis; Scheimpflug; computer-aided design geometric modelling; cornea reconstruction; diagnosis; Scheimpflug; computer-aided design
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
