# A Model for Shovel Capital Cost Estimation, Using a Hybrid Model of Multivariate Regression and Neural Networks

by
Abdolreza Yazdani-Chamzini
1,
2,3,
Jurgita Antucheviciene
2,* and
Romualdas Bausys
4
1
Young Researchers and Elite Club, South Tehran Branch, Islamic Azad University, 14115/344 Tehran, Iran
2
Department of Construction Management and Real Estate, Vilnius Gediminas Technical University, Sauletekio al. 11, 10223 Vilnius, Lithuania
3
Institute of Sustainable Construction, Vilnius Gediminas Technical University, Sauletekio al. 11, 10223 Vilnius, Lithuania
4
Department of Graphical Systems, Vilnius Gediminas Technical University, Sauletekio al. 11, 10223 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Symmetry 2017, 9(12), 298; https://doi.org/10.3390/sym9120298
Submission received: 27 October 2017 / Revised: 23 November 2017 / Accepted: 29 November 2017 / Published: 1 December 2017

## Abstract

:
Cost estimation is an essential issue in feasibility studies in civil engineering. Many different methods can be applied to modelling costs. These methods can be divided into several main groups: (1) artificial intelligence, (2) statistical methods, and (3) analytical methods. In this paper, the multivariate regression (MVR) method, which is one of the most popular linear models, and the artificial neural network (ANN) method, which is widely applied to solving different prediction problems with a high degree of accuracy, have been combined to provide a cost estimate model for a shovel machine. This hybrid methodology is proposed, taking the advantages of MVR and ANN models in linear and nonlinear modelling, respectively. In the proposed model, the unique advantages of the MVR model in linear modelling are used first to recognize the existing linear structure in data, and, then, the ANN for determining nonlinear patterns in preprocessed data is applied. The results with three indices indicate that the proposed model is efficient and capable of increasing the prediction accuracy.

## 1. Introduction

• small shovels (0.5–2 m3 bucket size);
• medium shovels (2–5 m3 bucket size);
• large-size shovels (5–25 m3 bucket size);
• very large-size shovels (with a bucket larger than 25 m3).
The selection of the best shovel among a pool of the existing alternatives based on the considered criteria can be performed applying the feasibility studies, which should be conducted to analyse the involved different technical, economic, and operational aspects. The most frequent technological parameters of shovels operations are analysed in the literature. As an example that is related to mathematical simulation a study presenting automated designing of swing circuit for a hydraulic shovel [4] can be mentioned. The effectiveness of mining equipment, namely trucks and shovel, regarding its useful employment without time losses were analysed [5]. For the considered equipment selection problem, the mentioned numerous aspects of different nature can be effectively investigated by using a multiple criteria decision making (MCDM) tool. MCDM methodology allows for combining several important issues (criteria), also estimate the relative importance of the analysed criteria, as well as to compare potential alternative equipment and to select the best suited in the analysed situation [6].
Besides equipment selection that is based on technical requirements, the production rate and cost-benefit analysis make the main parts of the feasibility studies. Cost estimation with various purposes takes a significant place at different stages and processes in mining and related industries. During the planning stage, machine specifications, like technical and operating features, and, accordingly, the costs are not available in in the mineral fields, unlike other areas [7,8]. Therefore, developing an up-to-date model with sufficient accuracy is essential. There is a number of models for estimating mineral industry costs, such as the cost estimation to small underground mines [9], the evaluation of mining equipment, as well as mineral processing equipment costs and other capital expenditures that are related to mining and processing operations [10,11], as well as cost estimation that is adapted for the peculiarities of the Australian mining industry [12], the system of cost estimation in mining of metallic, as well as nonmetallic minerals in two countries, comprising Canada and the United States [13], a cost model for preliminary feasibility study and a different cost model for a detailed feasibility study, including exponential regression and multivariable linear regression, implemented in Iranian deposit of copper [14], a case study of South Africa for calculation of capital costs for setting up a coal mine [15], and Hard-rock LHD cost estimation [7]. A methodology of evaluation of ore bodies and a guide for practical application was suggested [16,17,18,19].
An individual question of feasibility evaluations applying simplified cost models was analysed [20]. A guide for the mining sector, including mining and energy valuation, and being focused on Australian investors and managers [21], was prepared. Also, energy costs of equipment as a significant part of costs in mining activity were evaluated, including not only processing costs but also transportation and exploitation costs of machinery [22].
The models mentioned above often take into account only one parameter as an independent variable, while the constructed models are merely based on the regression analysis. Therefore, it is essential to develop a more accurate and efficient model for cost estimation of equipment.
The different techniques can be applied for the optimization problems. During the last decade, significant research has been performed on fuzzy logic control of the nonlinear systems [23,24]. Another direction of the optimization techniques is artificial neural networks.
The Artificial Neural Network (ANN), which is one of the artificial intelligence methods, as well as multivariate regression (as one of the statistical models), are powerful tools for pattern recognition and modelling. These two methods are used by various researchers.
An ANN-based model for estimating distillation process, using the Levenberg–Marquardt approach is developed by Singh et al. [25]. Yamamura [26] predicted pharmacokinetic parameters by an ANN modelling. An ANN prediction model for determining the failure depth of coal seam floors was developed by Lian-guo et al. [27]. They compared calculation results with the real case study and stated that the predicted results by applying the suggested model agreed well with practical measurements.
An ANN model for an industrial gas turbine was developed by Fast et al. [28]. They used the operational data with a multilayer feed-forward network to construct an ANN model. Analysing the results, they made a conclusion that some of the functional and performance parameters of the gas turbine, including a critical parameter of identification of the anti-icing mode, can be accurately predicted in a changing modelling environment. Lee et al. [29] suggested a way to improve the reliability of the Bridge Management System, using the ANN-based Backwards Prediction Model.
Jalali-Heravi et al. [30] developed the shuffling multivariate adaptive regression splines and the adaptive neuro-fuzzy inference system as tools for studying a quantitative structure-activity relationship (QSAR) of severe acute respiratory syndrome (SARS) inhibitors.
Verlinden et al. [31] presented a case study and estimated the cost of sheet metal parts, using a combination of multiple regression and artificial neural networks. Mesroghli et al. [32] used the regression and artificial neural networks for estimating gross calorific value based on coal analysis. Sahoo et al. [33] developed the models for predicting stream water temperature, using three techniques, namely the regression analysis, an artificial neural network, and also combining them with chaotic non-linear dynamic models. Therefore, it is clear that the ANN and regression have demonstrated their capabilities of modelling engineering practice problems.
An application of neural networks for improving the weighting precision, having the aim to optimise loading of trucks, as well as production efficiency of electric shovels, was presented by Gu et al. [34]. The combination with fuzzy logic was suggested to decrease uncertainties in the process.
During the recent years, the different aspects of civil engineering problems have been considered when applying artificial neural networks (ANNs). Suspended-dome model updating was performed by back propagation network approach to evaluate the discrepancy between actual structure and the corresponding numerical approximation [35]. The ANN approach was applied for the estimation of the axial bearing capacity of the rectangular concrete-filled tubular columns [36]. A stochastic conceptual cost evaluation of the highway projects is performed by generating an empirical distribution of the estimated cost range, without additional initial assumptions [37]. This empirical distribution is constructed applying ANN techniques and bootstrap sampling. The application of ANN techniques was implemented to study construction labour productivity [38]. Additionally, the different ANN activation and transfer functions are applied to estimate the most influencing factors to model construction labour productivity. The parameter sensitivity analysis for civil engineering problems was performed implementing ANN algorithms [39]. This paper dealt with parameter sensitivity analysis paradigm, in which the essential element is neural network ensemble.
Usually, structural health monitoring of the engineering systems is governed by fixed or hand-crafted features, and this fact significantly reduces the reliability of such monitoring systems. The proposed structural damage detection system, which was constructed by implementing one-dimensional (1D) convolutional neural networks, allows for extracting damage-sensitive features from raw acceleration information [40].
The prediction problem of the capacity characteristics of the pile structures has been modelled implementing ANN and principal component analysis [41]. The issue of the claim management in the construction projects was solved applying neural network approach [42]. The proposed approach allows for not only classifying and ranking emerging claims, but also to predict the claim frequency in the construction projects.
The integration of two different information flows: spatial planning of buildings and territorial planning system, was performed while applying ANN technique [43]. The evaluation of the uncertainty influence to the estimated cost of the construction projects was carried out implementing different models for the training and evaluating phases [44]. For training phase, fuzzy adaptive learning control network and the fast, messy genetic algorithm were applied. For evaluating phase, component ratios, regression, and multi-factor evaluation sub-models are accomplished.
In this paper, multivariate regression and ANN models are employed to construct a hybrid model to yield a more accurate and precise model than traditional multivariate regression and ANN models. In the proposed approach, a model is considered as a function of linear and nonlinear components, so that the multivariate regression model is first employed to recognise the existing linear pattern in data. Then, the ANN is applied as a nonlinear function to model the preprocessed data. Finally, the main performance criteria of the model are calculated, including the coefficient of determination (R2), Normalized Mean Square Error (NMSE), and Mean Absolute Percentage Error (MAPE), and the best model is identified according to calculation results.

## 2. A Multivariate Regression Model

The method of multivariate regression (MVR) is used to determine the relationships between independent and dependent variables. It might also be used for analysing the data or generating a model [45]. In statistical analysis, the mathematical form of an MVR model is determined by the following equation:
$Y = X β + ε$
where $ε$ addresses the $N × 1$ vector of observations for the disturbance term, $X$ represents the $N × k$ matrix of observations of the k-independent variables, $β$ expresses the $k × 1$ vector of parameters, and $Y$ denotes the $N × 1$ vector of observations of the dependent variable.
The best prediction of Y (the variable Y regressed on X), based on basic assumptions of the linear model, is denoted as $Y ⌢$, and can be obtained by the following equation:
$Y ⌢ = X ( X T X ) − 1 X T ,$
where $Y$ is the shovel capital cost (CC), and X = (1, BC, BL, W, HP) is a set of independent variables defined, respectively, as a constant term, bucket capacity (BC), boom length (BL), weight (W), and horsepower (HP). Thus, the model is expressed by
CC = b1 + b2BC + b3BL + b4W + b5HP + e,
where b1 is a constant term; b2, b3, b4, and b5 are the regression coefficients; and, e is an error term.

## 3. An Artificial Neural Network

The ANN technique, a branch of artificial intelligence methods, is a reliable and useful tool for the formulation of linear and non-linear patterns. Bourquin et al. [46] revealed that an ANN methodology shows a clear superiority as a modelling technique, in comparison to classical methods, for data sets showing non-linear relationships, and this is for both data fitting and prediction abilities. This technique is widely used for many scientific and engineering problems, such as data processing, classification, and pattern recognition. The ANN technique has some unique features, distinguishing it from other data processing systems. This technique, even when partly damaged, can work successfully. This method can also be used for parallel processing, generalisation, and demonstrates low vulnerability to errors in the dataset [47]. An ANN model employs the mechanism that is applied in the human brain to extract the patterns and behaviours of data [48].
The ANN technique has been developed based on the structure of biological neural networks, where neurons are the backbone of the structure. The inspiration for an artificial neuron arises from a biological neuron; so that, an artificial neuron can send signals to other neurons. Then, it collects these signals, and when fired, it transmits a signal to all of the connected neurons [49]. Figure 1 graphically shows a typical artificial neuron.
From Figure 1, the transfer function is shown by f; the activation threshold of the neuron j is determined by $θ j$; the connection weight between the ith and jth neurons is assigned by $w i j$; the input signal of n other neurons to a neuron j is determined by xi (I = 1, 2, …, n); and, the output of the neuron j is assigned by yj, which can be mathematically computed by Equation (4):
$y i = f ( ∑ i = 1 n w i j x i − θ j ) ,$
where f usually presents hyperbolic tangent sigmoid and linear transfer functions.
A typical neural network comprises three primary layers, including input, intermediate, and output layers. Based on the basic concepts of machine learning, the number of hidden (intermediate) layers does not have a theoretical limit [50]. A typical ANN structure is depicted in Figure 2.
A multilayer feedforward perceptron (MLP), based on a backpropagation learning function, is applied for the estimation of the shovel capital cost. In the process of formulation, the model output with the actual output is compared to adjust the coefficients. An ANN model follows a five-step procedure to obtain a relationship between input(s) and output(s). Firstly, the training dataset, a vector of input–output, is randomly selected. Secondly, the network structure is constructed. Next, the model output vector is calculated for the input vector. Then, by using the model performance measure, connection weights are adjusted. Finally, the process of improving the weights is continued in order to satisfy the model performance.

## 4. The Hybrid Methodology

Both ANN and MVR models have earned success in modelling nonlinear and linear patterns, respectively. However, none of them is a universal model, which is appropriate to all situations. The MVR model ignores the complex nonlinear patterns that are involved in data. On the other hand, using an ANN model for the formulation of a linear problem can lead to mixed results [51]. Since it is impossible to recognise the behaviour of the data correctly, a combined approach, based on both nonlinear and linear formulating proficiency, is a robust plan in modelling a complicated issue [52].
In this study, a new hybrid model is proposed, in which the MVR model and ANNs are integrated to acquire a robust and efficient method for cost estimation of shovel machines. Since the MVR is a linear approach that is unable to recognise nonlinear patterns in data, the ANN is applied to model the residuals and to acquire the nonlinear behaviour, while the result of the ANN is added to the final output. Therefore, the MVR model will be responsible for the linear model, while the ANN will be responsible for the nonlinear part. A diagram of the model can be schematically seen in Figure 3.
Having this in mind, we assume that the shovel costs are classed as the nonlinear and linear parts:
$Y t = L t + N L t$
where NLt and Lt indicate the nonlinear and linear components, respectively. Therefore, the main idea is to employ, in the first place, the MVR model, and, next, to apply the ANN to formulate the residuals of the linear structure. A schematic diagram of the proposed model is shown in Figure 3.
Since the MVR model cannot approximate the nonlinear patterns that are involved in the dataset, then the residuals of the linear pattern may comprise nonlinear behaviour, which cannot be captured by a linear pattern. The combination model includes the exceptional advantages of both MVR and ANN models, allowing it to recognise various patterns. Therefore, it is profitable to separately formulate nonlinear and linear patterns by employing multiple patterns and, then, to integrate the results for improving the outcomes and model efficiency.

## 5. Model Performance

The model output can be analysed with comparing the assessed values and the real ones for generalising the developed formula to the unidentified output. This paper uses three performance measures, including Normalized Mean Square Error (NMSE), the coefficient of determination (R2), and Mean Absolute Percentage Error (MAPE), to analyse the performance of each equation. These indicators can be calculated by as follows:
$R 2 = 1 − ∑ i = 1 N ( A i − P i ) 2 ∑ i = 1 N ( A i − A ¯ i ) 2 ,$
$NMSE = ∑ i = 1 N ( A i − P i ) 2 ∑ i = 1 N ( A i − A ¯ i ) 2 ,$
$MAPE = 1 n ∑ i = 1 n | P i − A i A i | × 100 ,$
where Pi denotes the predicted values, Ai denotes the observed values, N is the number of the datasets, and $A ¯ i$ is the average of the observed set.
R2 shows to what extent the independent variable(s) can explain the variability in the dependent variable. R2 belongs to the closed interval zero and one and can only take a positive value [53]. The value of close to zero for R2 shows a poor fit of the predictive model, while the value of close one to presents a good fit. The R2 value of 0.9 and higher is considered to be very satisfactory, while the values of 0.8–0.9 represent a relatively acceptable formula, and those below 0.8 are taken into account to be unacceptable [54].
Mean absolute percentage error is an unbiased statistic that is used for calculating the differentiation between the predicted and observed values. The mean absolute percentage error contains positive numbers without having an upper bound [55,56]. The normalized mean square error presents non-negative numbers, which can be any numbers between zero and one, while the value of 0 means that the model is ideal and the value of one denotes that the constructed model is non-ideal.

## 6. The Data

Thirty different sizes of various shovel types (14 cable and 16 hydraulic machines) have been considered, and a data set of technical and economic information that is obtained from the USA equipment manufacturers, mining companies and projects has been formed [57]. The costs were based on the US dollar in 2007. The data in the set are classified by the machine types (cable or hydraulic). The capital cost items include bucket capacity (cubic yard), boom length (ft), weight (Ibs), and horsepower (HP). Table 1 shows some statistical information on the data applied to each variable.

## 7. The Implementation of the Proposed Model

The 22 data items were randomly used to formulate the model, and, then, other items of the data set were selected to evaluate the performance of the model. First, by using the MVR model, the linear pattern in the data was extracted as
CC = 1,287,582.06 × D + 129,953.24 × BC + 44,841.31 × BL + 0.12 × W + 438.241 × HP − 1324,659.59
Then, the residuals of the MVR model were entered into the neural network as an input. Training minimises the error between the network output and the target output by repeatedly changing the values of the ANN’s connection weights according to a predetermined algorithm [58].
Different algorithms are developed to model a complex structure that is involved in the dataset. Feed forward back propagation method is the most efficient technique for obtaining good results [59]. In this paper, the selected network was based on feedforward backpropagation (as seen in Figure 2). A backpropagation network is a multilinear perceptron that is constructed by three main layers (i) one layer for connecting independent variables to the formulating system by using nodes, namely input layer; (ii) one or more layers for capturing the patterns involved in data by using nodes, namely intermediate layer(s); and (iii) one layer for connecting dependent variables to the formulating system with nodes, namely output layer [60].
Moreover, the training process of the network is fulfilled by utilizing the triangular function, employing the backpropagation algorithm by adjusting the value of weights and bias concerning gradient descent with the momentum, under Matlab software environment.
The optimum network architecture was constructed while comparing various network architectures concerning the ANNs performance. The best-fitted network, which presents the best prediction accuracy with the test data, is composed of one input, four hidden, and one output neurons (N1−4−1). The correlation between the actual values and the output of the proposed model for testing data is presented in Figure 4.

## 8. The Comparison of the Developed Model with Other Models

In this section, the predictive capabilities of the proposed model are compared with those of the MVR and ANN models. The ANN model was built with the selected variables that were found through the MVR model and trained with the Levenberg-Marquardt algorithm. The neural network model used is composed of five input, eight hidden, and one output neurons (N5−8−1). The results of different models used for testing data are presented in Table 2.
The performance measures of the proposed and other models for testing a data set are presented in Table 3. It can be seen that the NMSE value for the proposed model is 0.0035, which is smaller than those obtained by using MVR and ANN, making 0.0059 and 0.0076, respectively.
The MAPE value for the proposed model is 9.59%, which is also dramatically smaller than those obtained by ANN and MVR, and making 17.44% and 20%, respectively. The R2 value for the proposed model is 0.9965, which is bigger than those that are yielded by MVR and ANN and making 0.9941 and 0.9924, respectively. The experimental results presented in Table 2 show that the hybrid models are more accurate. This conclusion can be derived because the hybrid models integrate linear and nonlinear information for predicting, while the individual model uses only linear or nonlinear information for modeling.
The comparison of the actual values and the values that are predicted by using ANN, MVR, and the hybrid models is presented in Figure 5. It can be seen from the graphs that the estimates that are yielded by the ANN, MVR, and the hybrid models closely follow the actual values. It can also be seen that the predicting ability of ANFIS outperforms that of other models.
The obtained result is also in good agreement with the previous studies [8], which state that, in most cases, the accuracy of the estimation by hybrid procedures would be better than that for pure statistical methods due to the essential property of costs, which are cumulative. To facilitate the cost estimation, it is also possible to apply convex optimization algorithms [61,62] and to compare the results in future works.

## 9. Sensitivity Analysis

Sensitivity analysis is a useful tool for determining the relationship between the considered parameters [63]. The most sensitive factors affecting the shovel capital cost is analysed by the cosine amplitude method (CAM). This method is a useful tool for performing sensitivity analysis.
Based on the concepts of the CAM method, the sensitivity for each independent component can be determined through establishing the degree of the relationship (rij) between the shovel capital cost and the considered independent component [56]. The larger the value of CAM, the higher its impact on the capital cost. If the shovel capital cost is not related to the independent variable, then, the CAM value is zero. The independent variable plays a positive role the shovel capital cost where the CAM value is non-negative and plays a negative role in the shovel capital cost where the CAM value is non-positive.
Let n be the number of independent variables represented as an array X = {x1, x2, …, xn}, while each of its elements, xi, in the data array X, is itself a vector of length m, and can be expressed as:
$X i = { x i 1 , x i 2 , x i 3 , … , x i m } ,$
Thus, each of the data pairs can be viewed as a point in m dimensional space, where each point requires m coordinates for a complete description [64]. Each element of the relation, rij, results from a pairwise comparison of two data samples. The strength of the relationship between the data samples, xi and xj, is given by the membership value, expressing this strength:
The strength of the relations (rij values) between the shovel capital cost and input parameters is shown in Figure 6. As shown in Figure 6, the most effective parameters of the capital cost of hydraulic and cable shovels are horsepower, bucket capacity, and weight, respectively.

## 10. Conclusions

Despite the fact that there are many different prediction models, the improvement of prediction accuracy is still an acute problem that is facing decision makers in many areas. Multivariable regression (MVR) models are among the most popular linear models in predicting. Although various techniques have been widely used with the aim of constructing more accurate models, they cannot recognise nonlinear patterns in the existing data. On the other hand, artificial neural networks (ANNs) are well-known as the useful tools for pattern recognition, clustering, and, mainly, prediction with a high degree of accuracy, but it is hardly reasonable to use the ANNs blindly to model linear problems. The hybrid methods, which decompose a problem into its linear and nonlinear constituent parts, refer to the most efficient models.
In this paper, the hybridisation of the MVR and ANN models is proposed to overcome their limitations mentioned above and to yield a more accurate predictive model that is generated by individual methods. In the proposed model, the unique capability of the MVR model has been utilised in linear modelling to recognise the existing linear structure in data, and, then, an ANN is applied to model the nonlinear forms, using the preprocessed data. The results obtained demonstrate that the proposed model is superior to the individual models regarding three indices, and can yield more accurate data. Moreover, MVR provides the excellent initial approximation of the error due to nonlinear part as the initial data of the ANN. Therefore, this fact enables the reduction computation time of the ANN.
It should be noted that the proposed methodology could be only employed for complex systems. Therefore, it is appropriate for a dataset with at least one nonlinear pattern that is involved in information.

## Author Contributions

The individual contribution and responsibilities of the authors were as follows: Abdolreza Yazdani-Chamzini and Edmundas Kazimieras Zavadskas designed the research, Abdolreza Yazdani-Chamzini collected and analyzed the data and the obtained results, performed the development of the paper. Edmundas Kazimieras Zavadskas, Jurgita Antucheviciene and Romualdas Bausys provided extensive advice throughout the study, regarding the research design, methodology, findings and revised the manuscript. All the authors have read and approved the final manuscript.

## Conflicts of Interest

The authors declare no conflict of interest.

## References

1. Devi, L.P.; Palaniappan, S. A study on energy use for excavation and transport of soil during building construction. J. Clean. Prod. 2017, 164, 543–556. [Google Scholar] [CrossRef]
2. Atkinson, T. Selection and sizing of excavating equipment. In SME Mining Engineering Handbook; Society for Mining, Metallurgy, and Exploration: Littleton, CO, USA, 1992; pp. 1311–1333. [Google Scholar]
3. Tatiya, R.R. Surface and Underground Excavations—Methods, Techniques and Equipment; Taylor & Francis Group plc: London, UK, 2005. [Google Scholar]
4. Huang, J.; Dong, Z.; Quan, L.; Jin, Z.; Lan, Y.; Wang, Y. Development of a dual displacement controlled circuit for hydraulic shovel swing motion. Autom. Constr. 2015, 57, 166–174. [Google Scholar] [CrossRef]
5. Elevli, S.; Elevli, B. Performance measurement of mining equipments by utilizing OEE. Acta Montan. Slovaca 2010, 15, 95–101. [Google Scholar]
6. Lashgari, A.; Yazdani-Chamzini, A.; Fouladgar, M.M.; Zavadskas, E.K.; Shafiee, S.; Abbate, N. Equipment selection using fuzzy multi criteria decision making model: Key study of Gole Gohar iron mine. Inz. Econ. 2012, 23, 125–136. [Google Scholar] [CrossRef]
7. Sayadi, A.R.; Lashgari, A.; Fouladgar, M.M.; Skibniewski, M. Estimating capital and operational costs of backhoe shovels. J. Civ. Eng. Manag. 2012, 18, 378–385. [Google Scholar] [CrossRef]
8. Mutmansky, J.M.; Suboleski, S.C.; O’Hara, T.A.; Prasad, K.V.K. Cost comparisons. In SME Mining Engineering Handbook, 2nd ed.; Hartman, H.L., Ed.; Society for Mining, Metallurgy, and Exploration: Littleton, CO, USA, 1992; pp. 2070–2089. [Google Scholar]
9. Anon. Estimating Preproduction and Operating Costs of Small Underground Deposits (CANMET); Canadian Government Publishing Centre: Ottawa, ON, Canada, 1986.
10. Mular, A.L.; Poulin, R. CAPCOSTS: A Handbook for Estimating Mining and Mineral Processing Equipment Costs and Capital Expenditures and Aiding Mineral Project Evaluations; CIM Bulletin Special, 47; Canadian Institute of Mining and Metallurgy: Montréal, QC, Canada, 1998. [Google Scholar]
11. Mular, A.L. Mining and Mineral Processing Equipment Costs and Preliminary Capital Cost Estimation; CIM Bulletin Special, 25; Canadian Institute of Mining and Metallurgy: Montreal, QC, Canada, 1982. [Google Scholar]
12. Lanz, T.; Noakes, M. Cost Estimation Handbook for the Australian Mining Industry; Australasian Institute of Mining and Metallurgy (Aus IMM): Carlton South, Australia, 1993. [Google Scholar]
13. USBM. US Bureau of Mines Cost Estimating System Handbook, Mining and Beneficiation of Metallic and Nonmetallic Minerals Expected Fossil Fuels in the United States and Canada; United States Bureau of Mines: Denver, CO, USA, 1987; pp. 10–87.
14. Mohutsiwa, M.; Musingwini, C. Parametric estimation of capital costs for establishing a coal mine: South Africa case study. J. South. Afr. Inst. Min. Metall. 2015, 115, 789–797. [Google Scholar] [CrossRef]
15. Sayadi, A.R.; Lashgari, A.; Paraszczak, J. Hard-rock LHD cost estimation using single and multiple regressions based on principal component analysis. Tunn. Undergr. Space Technol. 2012, 27, 133–141. [Google Scholar] [CrossRef]
16. O’Hara, T.A. Quick guide to the evaluation of ore bodies. CIM Bull. 1998, 88, 34–43. [Google Scholar]
17. O’Hara, T.A. Mine Evaluation, Mineral Industry Costs; Hoskins, J.R., Ed.; Northwest Mining Association: Spokane, WA, USA, 1982; pp. 89–99. [Google Scholar]
18. O’Hara, T.A. Quick Guide to Mine Operating Costs and Revenue; Paper No. 186; CIM Annual General Meeting: Toronto, ON, Canada, 1987. [Google Scholar]
19. O’Hara, T.A.; Suboleski, C.S. Costs and Cost Estimation. In SME Mining Engineering Handbook; Society for Mining, Metallurgy, and Exploration: Littleton, CO, USA, 1992; Volume 1, pp. 405–424. [Google Scholar]
20. Camm, T.W. Simplified cost models for pre-feasibility mineral evaluations. Min. Eng. 1994, 46, 559–562. [Google Scholar]
21. Rudenno, V. The Mining Valuation Handbook: Australian Mining and Energy Valuation for Investors and Management; Australian Print Group: Victoria, Australia, 1998. [Google Scholar]
22. Sayadi, A.R.; Khademi, J.; Rahimi, M.A. Estimating the energy costs of mine equipment using an information system. In Proceedings of the 24th International Mining Congress and Exhibition of Turkey, Antalya, Turkey, 14–17 April 2015; pp. 9–18. [Google Scholar]
23. Wei, Y.; Qiu, J.; Shi, P.; Chadli, M. Fixed-order piecewise-affine output feedback controller for fuzzy-affine-model-based nonlinear systems with time-varying delay. IEEE Trans. Circuits Syst. I Regul. Pap. 2017, 64, 945–958. [Google Scholar] [CrossRef]
24. Wei, Y.; Qiu, J.; Karimi, H.R. Fuzzy-affine-model-based memory filter design of nonlinear systems with time-varying delay. IEEE Trans. Fuzzy Syst. 2017, PP, 1. [Google Scholar] [CrossRef]
25. Singh, V.; Gupta, I.; Gupta, H.O. ANN-based estimator for distillation using Levenberg-Marquardt approach. Eng. Appl. Artif. Intell. 2007, 20, 249–259. [Google Scholar] [CrossRef]
26. Yamamura, S. Clinical application of artificial neural network (ANN) modeling to predict pharmacokinetic parameters of severely ill patients. Adv. Drug Deliv. Rev. 2003, 55, 1233–1251. [Google Scholar] [CrossRef]
27. Lian-Guo, W.; Zhi-Kang, Z.; Yin-Long, L.; Hong-Bo, Y.; Sheng-Qiang, Y.; Jian, S.; Jin-Yao, Z. Combined ANN prediction model for failure depth of coal seam floors. Min. Sci. Technol. 2009, 19, 684–688. [Google Scholar]
28. Fast, M.; Assadi, M.; De, S. Development and multi-utility of an ANN model for an industrial gas turbine. Appl. Energy 2009, 86, 9–17. [Google Scholar] [CrossRef]
29. Lee, J.; Sanmugarasa, K.; Blumenstein, M.; Loo, Y.C. Improving the reliability of a Bridge Management System (BMS) using an ANN-based Backward Prediction Model (BPM). Autom. Constr. 2008, 17, 758–772. [Google Scholar] [CrossRef]
30. Jalali-Heravi, M.; Asadollahi-Baboli, M.; Mani-Varnosfaderani, A. Shuffling multivariate adaptive regression splines and adaptive neuro-fuzzy inference system as tools for QSAR study of SARS inhibitors. J. Pharm. Biomed. Anal. 2009, 50, 853–860. [Google Scholar] [CrossRef] [PubMed]
31. Verlinden, B.; Duflou, J.R.; Collin, P.; Cattrysse, D. Cost estimation for sheet metal parts using multiple regression and artificial neural networks: A case study. Int. J. Prod. Econ. 2008, 111, 484–492. [Google Scholar] [CrossRef]
32. Mesroghli, S.; Jorjani, E.; Chelgani, S.C. Estimation of gross calorific value based on coal analysis using regression and artificial neural networks. Int. J. Coal Geol. 2009, 79, 49–54. [Google Scholar] [CrossRef]
33. Sahoo, G.B.; Schladow, S.G.; Reuter, J.E. Forecasting stream water temperature using regression analysis, artificial neural network, and chaotic non-linear dynamic models. J. Hydrol. 2009, 378, 325–342. [Google Scholar] [CrossRef]
34. Gu, Y.; Wu, L.; Tang, S. A fuzzy neutral-network-driven weighting system for electric shovel. In Advances in Neural Networks—ISNN 2008; Sun, F., Zhang, J., Tan, Y., Cao, J., Yu, W., Eds.; Lecture Notes in Computer Science; Springer: Berlin/Heidelberg, Germany, 2008; Volume 5264, pp. 526–532. [Google Scholar]
35. Guo, J.; Zhao, X.; Guo, J.; Yuan, X.; Dong, S.; Xiong, Z. Model updating of suspended-dome using artificial neural networks. Adv. Struct. Eng. 2017, 20, 1727–1743. [Google Scholar] [CrossRef]
36. Du, Y.; Chen, Z.; Zhang, C.; Cao, X. Research on axial bearing capacity of rectangular concrete-filled steel tubular columns based on artificial neural networks. Front. Comput. Sci. 2017, 11, 863–873. [Google Scholar] [CrossRef]
37. Gardner, B.J.; Gransberg, D.D.; Rueda, J.A. Stochastic conceptual cost estimating of highway projects to communicate uncertainty using bootstrap sampling. ASCE-ASME J. Risk Uncertain. Eng. Part A Civ. Eng. 2017, 3. [Google Scholar] [CrossRef]
38. El-Gohary, K.M.; Aziz, R.F.; Abdel-Khalek, H.A. Engineering approach using ANN to improve and predict construction labor productivity under different influences. J. Constr. Eng. Manag. 2017, 143. [Google Scholar] [CrossRef]
39. Cao, M.S.; Pan, L.X.; Gao, Y.F.; Novak, D.; Ding, Z.C.; Lehky, D.; Li, X.L. Neural network ensemble-based parameter sensitivity analysis in civil engineering systems. Neural Comput. Appl. 2017, 28, 1583–1590. [Google Scholar] [CrossRef]
40. Abdeljaber, O.; Avci, O.; Kiranyaz, S.; Gabbouj, M.; Inman, D.J. Real-time vibration-based structural damage detection using one-dimensional convolutional neural networks. J. Sound Vib. 2017, 388, 154–170. [Google Scholar] [CrossRef]
41. Benali, A.; Boukhatem, B.; Hussien, M.N.; Nechnech, A.; Karray, M. Prediction of axial capacity of piles driven in non-cohesive soils based on neural networks approach. J. Civ. Eng. Manag. 2017, 23, 393–408. [Google Scholar] [CrossRef]
42. Yousefi, V.; Yakhchali, S.H.; Khanzadi, M.; Mehrabanfar, E.; Šaparauskas, J. Proposing a neural network model to predict time and cost claims in construction projects. J. Civ. Eng. Manag. 2016, 22, 967–978. [Google Scholar] [CrossRef]
43. Ustinovichius, L.; Peckienė, A.; Popov, V. A model for spatial planning of site and building using BIM methodology. J. Civ. Eng. Manag. 2017, 23, 173–182. [Google Scholar] [CrossRef]
44. Wang, W.C.; Bilozerov, T.; Dzeng, R.J.; Hsiao, F.Y.; Wang, K.C. Conceptual cost estimations using neuro-fuzzy and multi-factor evaluation methods for building projects. J. Civ. Eng. Manag. 2017, 23, 1–14. [Google Scholar] [CrossRef]
45. Monjezi, M.; Rezaei, M.; Varjani, A.Y. Prediction of rock fragmentation due to blasting in Gol-E-Gohar iron mine using fuzzy logic. Int. J. Rock Mech. Min. Sci. 2009, 46, 1273–1280. [Google Scholar] [CrossRef]
46. Bourquin, J.; Schmidli, H.; Hoogevest, P.; Leuenberger, H. Advantages of Artificial Neural Networks (ANNs) as alternative modelling technique for data sets showing non-linear relationships using data from a galenical study on a solid dosage form. Eur. J. Pharm. Sci. 1998, 7, 5–16. [Google Scholar] [CrossRef]
47. Malinowski, P.; Ziembicki, P. Analysis of district heating network monitoring by neural networks classification. J. Civ. Eng. Manag. 2006, 12, 21–28. [Google Scholar]
48. He, X.; Xu, S. Process Neural Networks Theory and Applications; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
49. Engelbrecht, A.P. Computational Intelligence: An Introduction; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2002. [Google Scholar]
50. Sumathi, S.; Paneerselvam, S. Computational Intelligence Paradigms: Theory & Applications Using MATLAB; Taylor and Francis Group, LLC: Oxford, UK, 2010. [Google Scholar]
51. Khashei, M.; Bijari, M. A novel hybridization of artificial neural networks and ARIMA models for time series forecasting. Appl. Soft Comput. 2011, 11, 2664–2675. [Google Scholar] [CrossRef]
52. Zhang, G.P. Time series forecasting using a hybrid ARIMA and neural network model. Neurocomputing 2003, 50, 159–175. [Google Scholar] [CrossRef]
53. Farid, M.; Hossein Abadi, M.M.; Yazdani-Chamzini, A.; Yakhchali, S.H.; Basiri, M.H. Developing a new model based on neuro-fuzzy system for predicting roof fall in coal mines. Neural Comput. Appl. 2013, 23, 129–137. [Google Scholar] [CrossRef]
54. Nash, J.E.; Sutcliffe, J.V. River flow forecasting through conceptual models, I. A discussion of principles. J. Hydrol. 1970, 10, 282–290. [Google Scholar] [CrossRef]
55. Razani, M.; Yazdani-Chamzini, A.; Yakhchali, S.H. A novel fuzzy inference system for predicting roof fall rate in underground coal mines. Saf. Sci. 2013, 55, 26–33. [Google Scholar] [CrossRef]
56. Yazdani-Chamzini, A.; Yakhchali, S.H.; Volungevičienė, D.; Zavadskas, E.K. Forecasting gold price changes by using adaptive network fuzzy inference system. J. Bus. Econ. Manag. 2012, 13, 994–1010. [Google Scholar] [CrossRef]
57. Info Mine: Mining Cost Service Indexes. Available online: http://www.infomine.com (accessed on 26 June 2015).
58. Wang, W.; Van Gelder, P.H.A.J.M.; Vrijling, J.K.; Ma, J. Forecasting daily streamflow using hybrid ANN models. J. Hydrol. 2006, 324, 383–399. [Google Scholar] [CrossRef]
59. Srinivas, Y.; Raj, A.S.; Oliver, D.H.; Muthuraj, D.; Chandrasekar, N. A robust behavior of Feed forward back propagation algorithm of Artificial Neural Networks in the application of vertical electrical sounding data inversion. Geosci. Front. 2012, 3, 729–736. [Google Scholar] [CrossRef]
60. Basheer, I.A.; Hajmeer, M. Artificial neural networks: Fundamentals, computing, design, and application. J. Microbiol. Methods 2000, 43, 3–31. [Google Scholar] [CrossRef]
61. Wei, Y.; Qiu, J.; Karimi, H.R.; Ji, W. A novel memory filtering design for semi-Markovian jump time-delay systems. IEEE Trans. Syst. Man Cybern. 2017, PP, 1–13. [Google Scholar] [CrossRef]
62. Qiu, J.; Wei, Y.; Karimi, H.R.; Gao, H. Reliable Control of Discrete-Time Piecewise-Affine Time-Delay Systems via Output Feedback. IEEE Trans. Reliab. 2017, 57, 1491–1550. [Google Scholar] [CrossRef]
63. Ross, T.J. Fuzzy Logic with Engineering Applications, 3rd ed.; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2010. [Google Scholar]
64. Yazdani-Chamzini, A.; Razani, M.; Yakhchali, S.H.; Zavadskas, E.K.; Turskis, Z. Developing a fuzzy model based on subtractive clustering for road header performance prediction. Autom. Constr. 2013, 35, 111–120. [Google Scholar] [CrossRef]

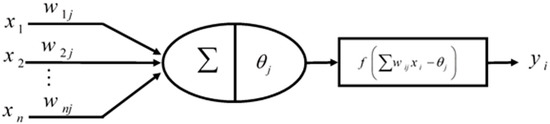

Figure 1. A model for an artificial neuron.
Figure 1. A model for an artificial neuron.

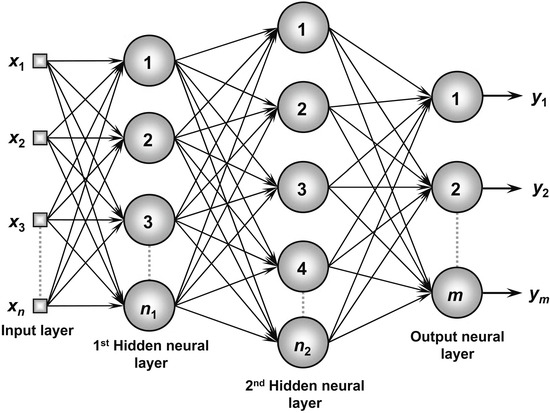

Figure 2. Architecture of a typical artificial neural networks (ANN).
Figure 2. Architecture of a typical artificial neural networks (ANN).

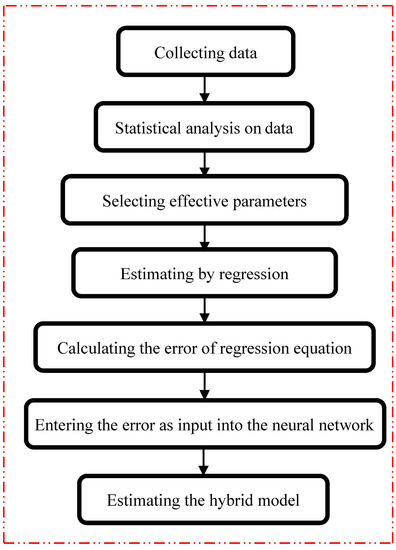

Figure 3. The approach used in the research.
Figure 3. The approach used in the research.

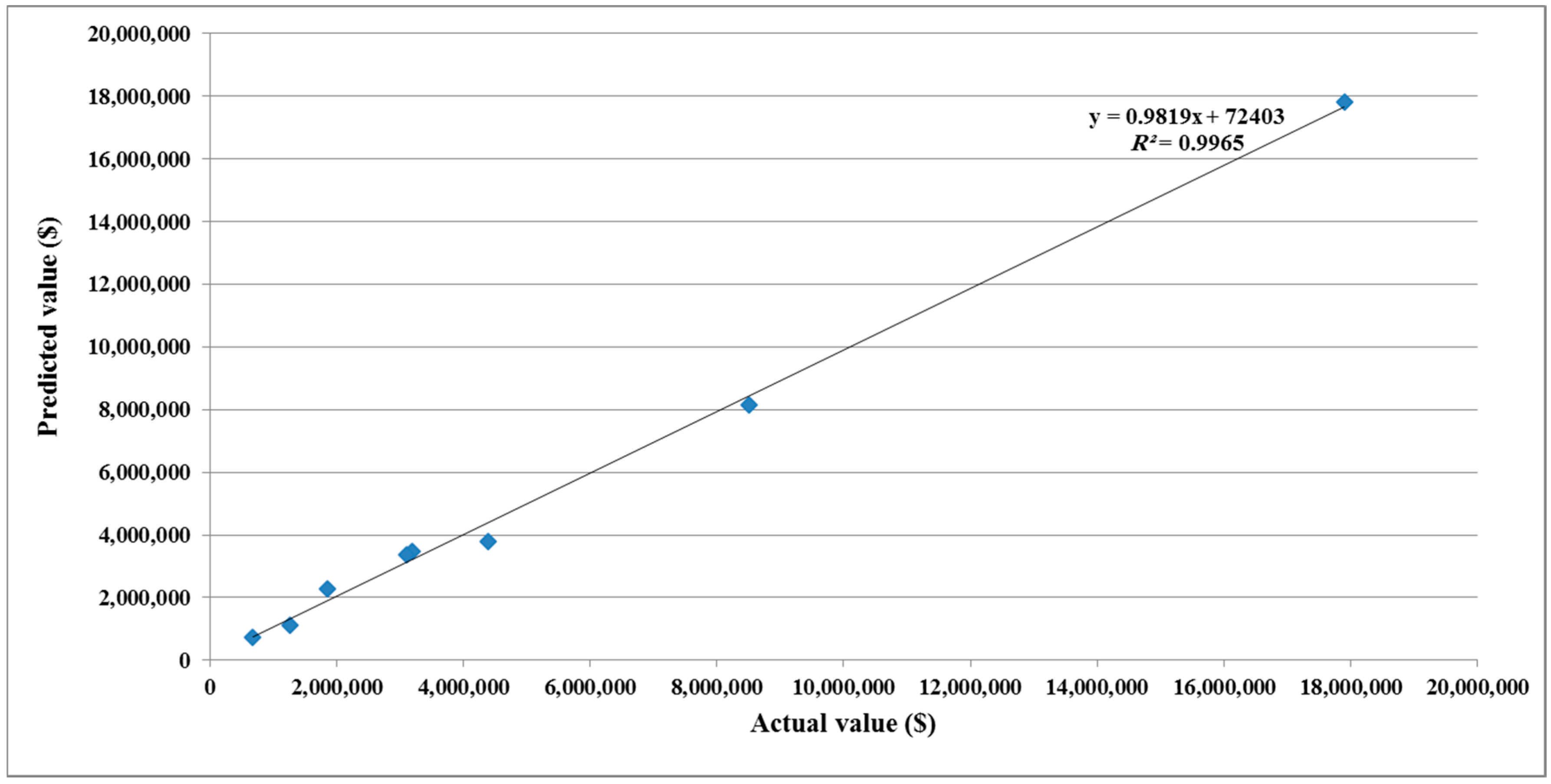

Figure 4. The correlation for shovel cost based on the proposed model.
Figure 4. The correlation for shovel cost based on the proposed model.

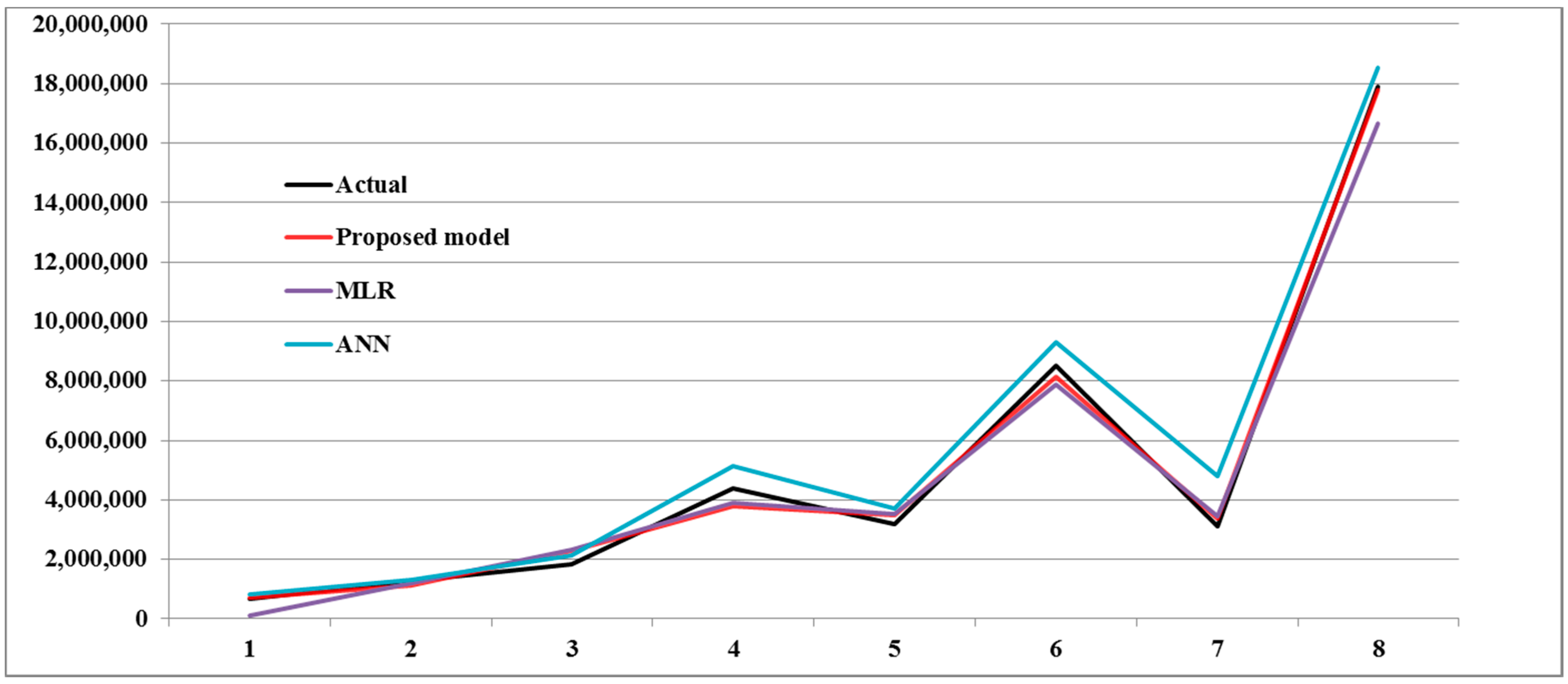

Figure 5. The comparison of cost estimation models.
Figure 5. The comparison of cost estimation models.

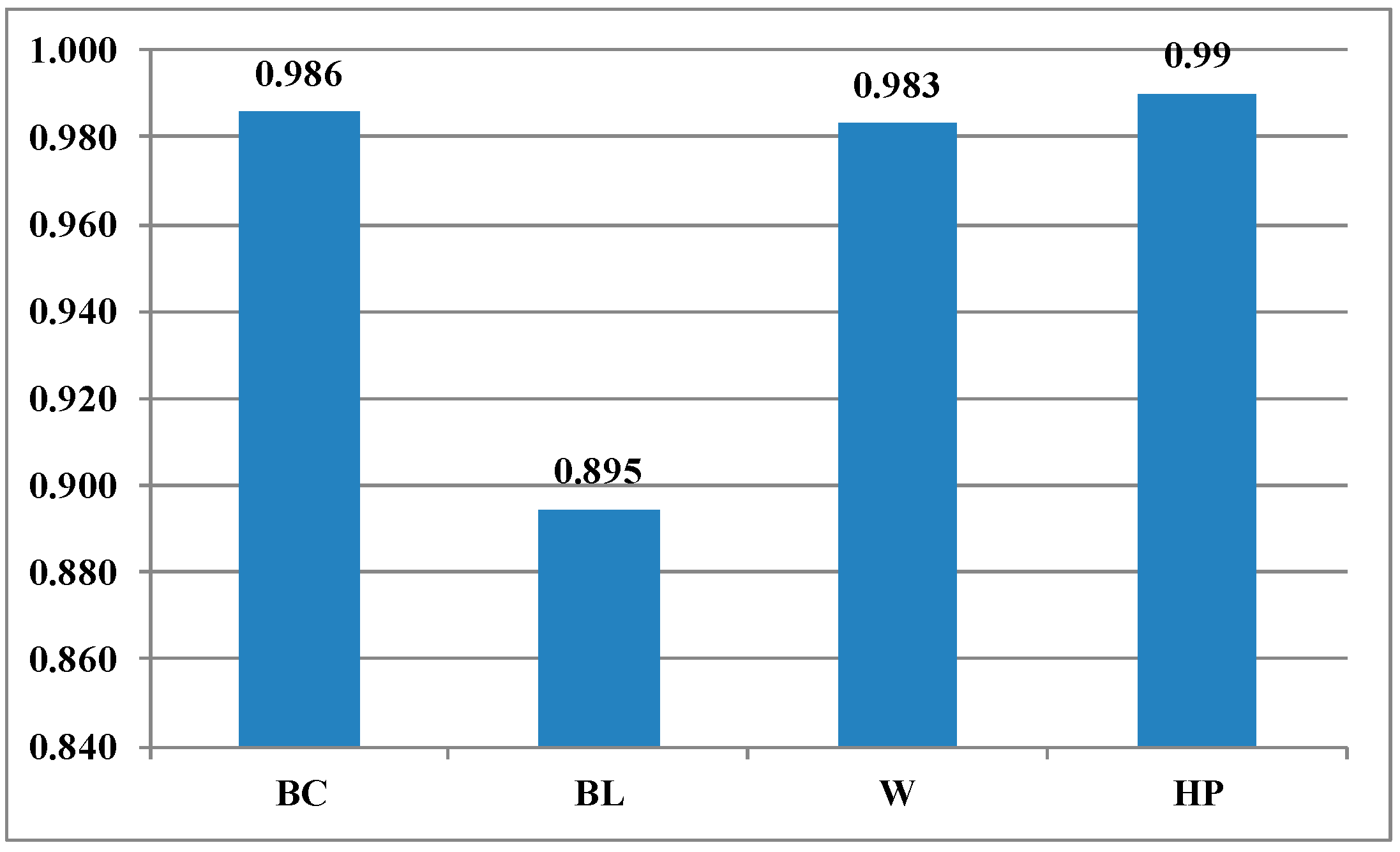

Figure 6. Sensitivity analysis of input parameters.
Figure 6. Sensitivity analysis of input parameters.
Table 1. Data distribution.
Table 1. Data distribution.
Machine TypeOperatorBucket Capacity (BC)Boom Length (BL)Weight (W)Horsepower (HP)Capital Cost (CC)
CableMin735556,0006852,800,000
Max80644,500,000700017,900,000
Mean31.2950.571,517,0712923.857,871,429
Standard deviation21.279.041,084,127.971989.714,443,392.42
HydraulicMin315.495,900250605,000
Max4439.31,399,00030006,900,000
Mean12.7428.74385,318.8873.562,068,313
Standard deviation9.976.96334,189.25700.141,781,125.17
Table 2. The comparison of different models.
Table 2. The comparison of different models.
CaseActualMVRANNProposed Model
1680,000120,755.6815,732.3716,660.3
21,263,000120,26211,299,8211,115,828
31,850,0002,338,0512,145,4052,293,947
44,400,0003,903,4195,124,0513,802,985
53,200,0003,528,5233,719,6883,470,780
68,500,0007,865,0149,298,3058,150,003
73,100,0003,431,2784,803,6713,378,503
817,900,00016,661,42418,551,80217,801,455
Table 3. Performance measures of the proposed model and other models for testing data.
Table 3. Performance measures of the proposed model and other models for testing data.
ModelR2NMSEMAPE
Proposed model0.99650.00359.59%
ANN0.99240.007617.44%
MVR0.99410.005920%

## Share and Cite

MDPI and ACS Style

Yazdani-Chamzini, A.; Zavadskas, E.K.; Antucheviciene, J.; Bausys, R. A Model for Shovel Capital Cost Estimation, Using a Hybrid Model of Multivariate Regression and Neural Networks. Symmetry 2017, 9, 298. https://doi.org/10.3390/sym9120298

AMA Style

Yazdani-Chamzini A, Zavadskas EK, Antucheviciene J, Bausys R. A Model for Shovel Capital Cost Estimation, Using a Hybrid Model of Multivariate Regression and Neural Networks. Symmetry. 2017; 9(12):298. https://doi.org/10.3390/sym9120298

Chicago/Turabian Style

Yazdani-Chamzini, Abdolreza, Edmundas Kazimieras Zavadskas, Jurgita Antucheviciene, and Romualdas Bausys. 2017. "A Model for Shovel Capital Cost Estimation, Using a Hybrid Model of Multivariate Regression and Neural Networks" Symmetry 9, no. 12: 298. https://doi.org/10.3390/sym9120298

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
