Using Comparisons of Clock Frequencies and Sidereal Variation to Probe Lorentz Violation

Abstract

This paper discusses clock-comparison experiments, which may be used to test Lorentz symmetry to an extremely high level of precision. We include a brief overview of theoretical predictions for signals of Lorentz violation in clock-comparison experiments and summarize results of experiments that have been performed to date.

1. Introduction

Einsteinian relativity [1] is founded on the idea that spacetime is symmetric under the Lorentz group of transformations [2]. For several years in the early 20th century, it was reasonable to wonder whether the laws of nature actually obey this symmetry. In other words, it was reasonable to ask, “Was Einstein right?” We now know that the answer is unequivocally “yes” [3]. Relativity has been tested thousands of times, and Einstein was far more right than wrong.

The appropriate question to ask now is, “Was Einstein perfect?”

Most physical laws only apply in a limited range of circumstances. They are not even approximately correct outside their domain and have slight imperfections even in their effective range. However, to date, there is no experimental evidence whatsoever that Lorentz symmetry is violated in our universe [4]. Lorentz symmetry is thus rare among physical laws in that it currently appears to be perfect. Still, this is no reason to ignore the idea of Lorentz violation. Rather, due to the foundational nature of Lorentz symmetry among all modern physical theories and its apparent perfection, it is imperative to probe Lorentz symmetry as carefully as possible.

The Lorentz-violating Standard-Model Extension (SME) [5,6,7] is a framework designed to accommodate all plausible types of Lorentz violation. It allows systematic comparison of different experiments and predicts classes of signals that could arise if Lorentz symmetry is broken in some way.

Over the past 20 years, hundreds of experiments have been performed and analyzed in the context of the SME [4]. In this paper, we discuss clock-comparison experiments [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26], a particular class of experiments, which have yielded some of the highest sensitivity to Lorentz-violating effects in ordinary matter [27].

We begin in Section 2 with a brief qualitative overview of clock-comparison experiments. We then in Section 3 explain the derivation of the nonrelativistic Hamiltonian that describes Lorentz violation in matter at low energies, such as in atomic systems. In Section 4, we describe a few useful assumptions and approximations for evaluating energy-level shifts that result from the nonrelativistic Hamiltonian. In Section 5, we express the energy-level shifts in terms of SME Lorentz-violation coefficients and conventional atomic properties. Section 6 is concerned with the key combination of frequencies that may most easily be used to achieve exquisitely high precision in clock-comparison tests. The time variation of energy-level shifts that occurs in Earth- and space-based tests is discussed in Section 7. Finally, we summarize the results of completed clock-comparison experiments in Section 8.

2. Qualitative Outline of Clock-Comparison Experiments

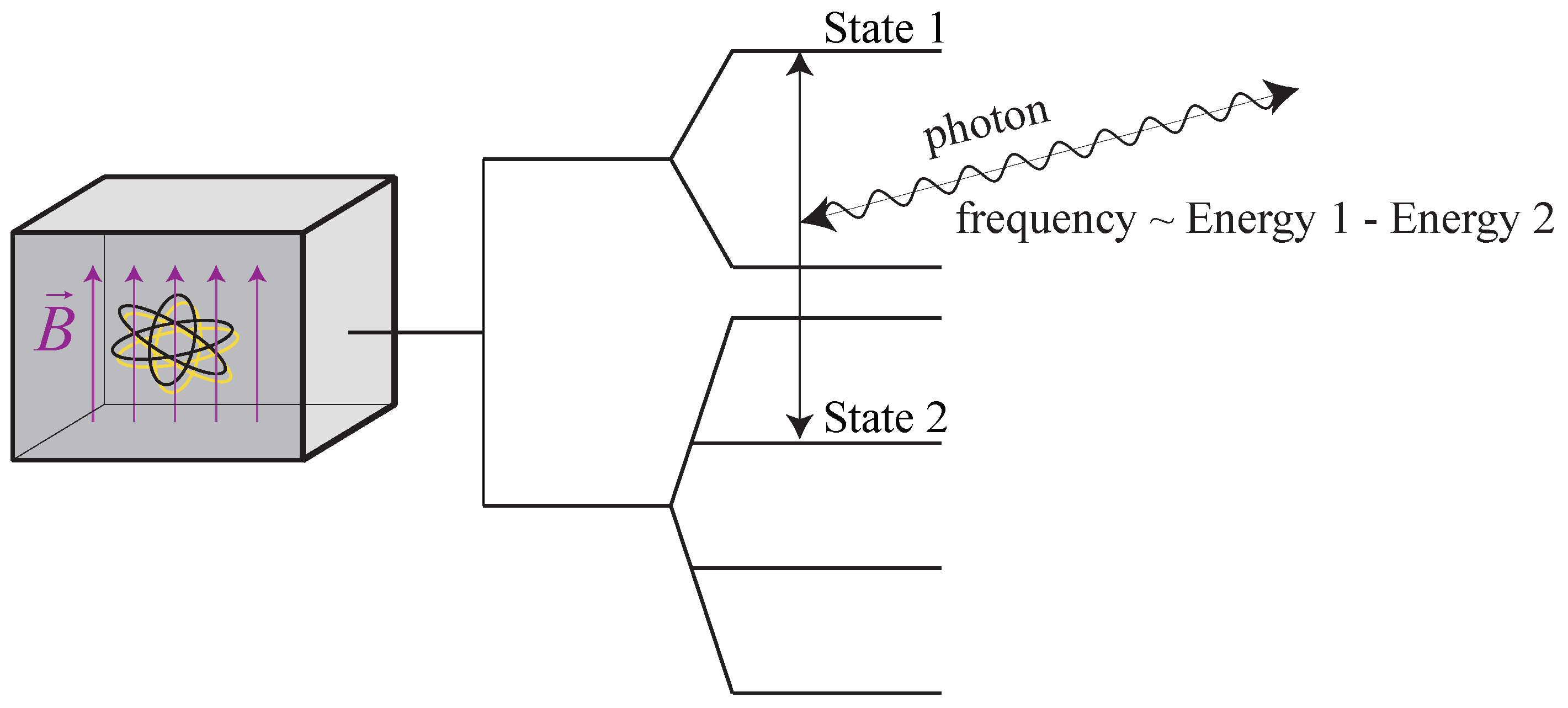

In the context of this article, a “clock” is built from an atom in a uniform magnetic field $\overrightarrow{B}$, as shown in Figure 1. Due to the the Zeeman effect and the structure of the atom itself (possibly including electron-nucleus interactions), each clock atom has a ladder of possible energy levels. The clock frequency is given by the frequency associated with a transition between a pair of energy levels in the atom, typically measured through emission or absorption of light.

When considering Lorentz-violation tests, these clocks have three important facets:

• Frequency measurements can probe atomic energy levels.
• The applied magnetic field defines an orientation of the clock: the “clock axis”.
• In conventional (i.e., Lorentz-symmetric) physics, the clock frequency is independent of the clock axis and the clock velocity.

These points, especially the third, allow us to use atomic clocks to probe Lorentz violation. Suppose that the frequency of a given clock is found to depend on its orientation. This implies a violation of rotational symmetry. Since rotations form a subgroup of the Lorentz group, this then implies a violation of Lorentz symmetry. Similarly, a clock frequency that depends on the clock’s velocity would imply a violation of boost symmetry in the Lorentz group.

This, then, is the key connection between the Lorentz-violating standard-model extension and clock-comparison experiments. If certain Lorentz-violation coefficients are nonzero, then some atomic clocks will have frame-dependent energy-level shifts. The experiments seek such frame-dependent shifts.

To date, no such frame-dependent shifts have been observed. All experiments thus place bounds on (combinations of) SME coefficients. The remainder of this paper describes the predicted energy-level shifts in detail and derives the resultant bounds on SME coefficients from existing experiments.

3. Derivation of Nonrelativistic Hamiltonian

For working with atomic states, we would like to find an appropriate nonrelativistic Hamiltonian that describes SME effects at low energies. Our pathway to doing so is to start with a relativistic Lagrangian, to use it to extract a relativistic Hamiltonian and, finally, to perform a Foldy–Wouthuysen transformation. We initially calculate a nonrelativistic Hamiltonian for free fermions; in Section 4, we discuss the sense in which the free-particle Hamiltonian may be used to describe low-energy effects on bound particles.

Throughout this paper, we restrict attention to the minimal standard-model extension in flat spacetime [6,7]. One of the primary postulates of this framework is that each free Dirac fermion of mass m is described by a Lagrangian density of the form:

$$\mathcal{L}=\frac{1}{2}i\overline{\psi }{\Gamma }_{\nu }\overleftrightarrow{{\partial }^{\nu }}\psi -\overline{\psi }M\psi ,$$

(1)

where Dirac matrices M and ${\Gamma }_{\nu }$ are defined by:

$$\begin{array}{ccc}\hfill M& :=\hfill & m+a_{\mu }{\gamma }^{\mu }+b_{\mu }{\gamma }_5{\gamma }^{\mu }+\frac{1}{2}{H}_{\mu \nu }{\sigma }^{\mu \nu }\mathrm{and}\hfill \\ \hfill {\Gamma }_{\nu }& :=\hfill & {\gamma }_{\nu }+c_{\mu \nu }{\gamma }^{\mu }+d_{\mu \nu }{\gamma }_5{\gamma }^{\mu }+e_{\nu }+i{f}_{\nu }{\gamma }_5+\frac{1}{2}{g}_{\lambda \mu \nu }{\sigma }^{\lambda \mu }.\hfill \end{array}$$

(2)

In the flat-spacetime limit of the minimal SME, the coefficients $a_{\mu }$, $b_{\mu }$, $c_{\mu \nu }$, $d_{\mu \nu }$, $e_{\nu }$, $f_{\nu }$, $g_{\lambda \mu \nu }$ and $H_{\mu \nu }$ are fixed background tensors. They may arise, for example, as vacuum expectation values of dynamic fields in some more fundamental theory [28]. We assume in this work that each component of each coefficient tensor is much smaller than any other quantities of the same dimensions; specifically, we assume that we may neglect any terms that are higher than first order in them.

Equation (1) and many others assume the following conventions: Spacetime coordinates 0, 1, 2, 3 are denoted by Greek indices, while spatial coordinates 1, 2, 3 are denoted by Latin indices $\{j,k,\dots ,q\}$ near the middle of the alphabet. The (flat) spacetime metric is ${\eta }_{\mu \nu }=\mathrm{diag}(+1,-1,-1,-1)$, and $p^j=-i{\partial }^j$ is the free-particle momentum operator. We use the Dirac representation of the gamma matrices:

$${\gamma }^0=\left(\begin{array}{cc}𝟙& 0\\ 0& 𝟙\end{array}\right)\mathrm{and}{\gamma }^j=\left(\begin{array}{cc}0& {\sigma }^j\\ -{\sigma }^j& 0\end{array}\right),$$

where the usual Pauli matrices are denoted by ${\sigma }^j$ and $𝟙$ is the $2\times 2$ identity matrix. We define the Levi–Civita symbol so that $[{\sigma }^j,{\sigma }^k]=+2i{{\epsilon }^{jk}}_l{\sigma }^l$, which corresponds to the choice ${{\epsilon }^{12}}_3=+1$.

3.1. Field Redefinition

We may apply the Euler–Lagrange equations to the Lagrangian Equation (1) and then arrange the result into the form $i{\partial }_t\psi =H_{\mathrm{naive}}\psi$ to calculate a relativistic Hamiltonian $H_{\mathrm{naive}}$. However, the Hamiltonian that results is non-Hermitian. Interpretation of a field governed by a non-Hermitian Hamiltonian is possible [29], but problematic, so we take a different approach. The non-hermiticity arises essentially from the appearance of the nonstandard terms involving $\overleftrightarrow{{\partial }^0}$ in Lagrangian Equation (1); it would not occur if $c_{\mu 0}=d_{\mu 0}=e_0=f_0=g_{\lambda \mu 0}=0$. We therefore perform a field redefinition $\psi =A\chi$ into a field basis where these coefficients are each zero before applying the Euler-Lagrange equations. With the choice [30,31]:

$$\psi =A\chi =\left[1-\frac{1}{2}{\gamma }^0({\Gamma }^0-{\gamma }^0)\right]\chi ,$$

(3)

the field $\chi$ obeys conventional time evolution. Thus, the Hamiltonian extracted from $i{\partial }_0\chi =H\chi$ will be Hermitian.

At the end of this process, the relativistic Hamiltonian takes the form:

$$H=m({\gamma }^0+\mathcal{P}+\mathcal{E}+\mathcal{O}),$$

(4)

where:

$$\begin{array}{ccc}\hfill m\mathcal{P}& :=\hfill & {\gamma }^0{\gamma }^j{p}_j,\hfill \\ \hfill m\mathcal{E}& :=\hfill & \left[a_0-m{e}_0+(-c_{0j}-c_{j0})p^j\right]+{\gamma }^0\left[-m{c}_{00}-e_j{p}^j\right]\hfill \\ & & +{\gamma }^j{\gamma }_5\left[m{d}_{j0}+\frac{1}{2}{{\epsilon }^{kl}}_j{H}_{kl}-{{\epsilon }^{lm}}_j(\frac{1}{2}{g}_{lmk}-{\eta }_{km}{g}_{l00})p^k\right]\hfill \\ & & +{\gamma }^0{\gamma }^j{\gamma }_5\left[-b_j-\frac{1}{2}m{{\epsilon }^{kl}}_j{g}_{kl0}+(d_{jk}-d_{00}{\eta }_{jk})p^k\right],\mathrm{and}\hfill \\ \hfill m\mathcal{O}& :=\hfill & {\gamma }_5\left[-b_0+(d_{0j}+d_{j0})p^j\right]+{\gamma }^0{\gamma }_5\left[-i{f}_j{p}^j\right]\hfill \\ & & +{\gamma }^j\left[i{H}_{0j}+(g_{j0k}+gjk0)p^k\right]+{\gamma }^0{\gamma }^j\left[a_j-(c_{jk}-c_{00}{\eta }_{jk})p^k\right].\hfill \end{array}$$

(5)

3.2. Foldy–Wouthuysen Transformation

At this point, it is best to do two fairly natural things: First, we think of our 4 × 4 matrices as 2 × 2 block matrices with each block being an ordinary 2 × 2 matrix. In this context, we incorporate the specific set of gamma matrices stated earlier: ${\gamma }^0=\left(\begin{array}{cc}𝟙& 0\\ 0& 𝟙\end{array}\right)$ and ${\gamma }^j=\left(\begin{array}{cc}0& {\sigma }^j\\ -{\sigma }^j& 0\end{array}\right)$. Once we do this, several results follow.

• The relativistic Hamiltonian is divided into block-diagonal and off-block-diagonal parts: $m{\gamma }^0$ and $m\mathcal{E}$ are block diagonal, while $m\mathcal{P}$ and $m\mathcal{O}$ are off block diagonal.
• In the nonrelativistic limit, the upper two components of $\chi$ satisfy a version of the Schrödinger equation with spin.
• In the nonrelativistic limit, the lower two components of $\chi$ are smaller than the upper components by a factor of $\left|\overrightarrow{p}\right|/m$.
• The off-block-diagonal terms in the Hamiltonian couple the upper and lower components of $\chi$ together. Such terms are unsuppressed by factors of $\left|\overrightarrow{p}\right|/m$, and so, we cannot immediately neglect them.

If the lower components were not coupled to the upper components, then we could simply disregard them in the nonrelativistic limit. This suggests the strategy of the Foldy–Wouthuysen transformation [32]: transform to a basis in which:

• The lower components of $\chi$ are still suppressed with respect to the upper components by multiple factors of $\left|\overrightarrow{p}\right|/m$.
• The Hamiltonian is approximately block diagonal. That is, the off-block-diagonal parts are suppressed with respect to the upper-left block by multiple factors of $\left|\overrightarrow{p}\right|/m$.

Symbolically, we want to find a matrix S such that:

$$\begin{array}{ccc}\hfill \tilde{\chi }& =\hfill & e^{iS}\chi ,\hfill \\ \hfill {\tilde{\chi }}_{1,2}& \gg \hfill & {\tilde{\chi }}_{3,4},\mathrm{and}\hfill \\ \hfill H_{NR}& =\hfill & e^{iS}H{e}^{-iS}=\left(\begin{array}{cc}\mathrm{BIG}& \mathrm{small}\\ \mathrm{small}& \mathrm{irrelevant}\end{array}\right).\hfill \end{array}$$

(6)

A transformation that does the job is:

$$e^{iS}=e^{{\gamma }^0{\gamma }_5\varphi },\mathrm{where}tan2\varphi =\frac{\left|{\gamma }_5{\gamma }^0\overrightarrow{\gamma }·\overrightarrow{p}\right|}{m}.$$

(7)

This transformation may not be calculated exactly, but may be approximated to any desired order in $\left|\overrightarrow{p}\right|/m$. Once we do so, the resulting Hamiltonian is given by an infinite power series in $p^j/m$. In this work, we apply Equation (7) with sufficient precision that the off-diagonal blocks and lower-right block are smaller than the upper-left block by factors of ${(\left|\overrightarrow{p}\right|/m)}^3$. We then keep only terms up to order $p^j{p}^k/m^2$, and therefore, we only need keep the upper-left 2 × 2 block $h_{\mathrm{NR}}$ for describing nonrelativistic particles. The result is:

$$h_{\mathrm{NR}}=h_0+\delta h,$$

(8)

where $h_0=m+\frac{p^2}{2m}$ is the conventional free-particle nonrelativistic Hamiltonian, and the Lorentz-violating perturbation $\delta h$ is given by:

$$\begin{array}{ccc}\hfill \delta h& =\hfill & \left[a_0-m{e}_0-m{c}_{00}\right]+\left[-a_j+m{e}_j+m(c_{0j}+c_{j0})\right]\frac{p_j}{m}+\left[m(-c_{jk}-\frac{1}{2}{c}_{00}{\delta }_{jk})\right]\frac{p_j{p}_k}{m^2}\hfill \\ & & +{\sigma }^q\{\left[-b_q+m{d}_{q0}-\frac{1}{2}{\epsilon }_{qkl}{g}_{kl0}+\frac{1}{2}{\epsilon }_{qkl}{H}_{kl}\right]\hfill \\ & & +\left[b_0{\delta }_{jq}-m(d_{qj}+d_{00}{\delta }_{qj})-m{\epsilon }_{qlm}(\frac{1}{2}{g}_{mlj}+g_{m00}{\delta }_{jl})-{\epsilon }_{qkl}{H}_{l0}\right]\frac{p_j}{m}\hfill \\ & & +[m{\delta }_{kq}(d_{0j}+d_{j0})-\frac{1}{2}{\delta }_{kq}(b_j+m{d}_{j0}+\frac{1}{2}m{\epsilon }_{jmn}{g}_{mn0}+\frac{1}{2}{\epsilon }_{jmn}{H}_{mn}\hfill \\ & & +\frac{1}{2}{\delta }_{jk}(b_q+\frac{1}{2}m{\epsilon }_{qmn}{g}_{mn0})-m{\epsilon }_{jqm}(g_{m0k}+g_{mk0})\left]\frac{p_j{p}_k}{m^2}\right\}.\hfill \end{array}$$

(9)

This is the Hamiltonian that we may use to calculate perturbations to energy levels of electrons, protons and neutrons in atoms.

4. Useful Assumptions and Approximations

4.1. Use of Free-Particle Perturbation

It is reasonable to be skeptical about the use of a free-particle Hamiltonian to study particles bound in atoms. Stated more precisely, an ideal Hamiltonian would take the form:

$$h_{\mathrm{ideal}}=h_{\mathrm{conv}}+\delta h+\delta h_{\mathrm{neglected}},$$

(10)

where $h_{\mathrm{conv}}$ is the full conventional Hamiltonian including atomic forces, nuclear forces and interactions with external fields; $\delta h$ is the SME free-particle perturbation given above; and $\delta h_{\mathrm{neglected}}$ contains the SME perturbations to all interaction terms. We are omitting $\delta h_{\mathrm{neglected}}$.

The omitted piece $\delta h_{\mathrm{neglected}}$ contains, for example, a term proportional to $q\overrightarrow{B}·\overrightarrow{b}$. By dimensional analysis, this term must also have a factor of $m^{-2}$. The resulting terms for nuclear, atomic and external magnetic fields are then suppressed by factors:

$${\left(\frac{qB}{m^2}\right)}_{\mathrm{nuclear}}\sim {10}^{-2},{\left(\frac{qB}{m^2}\right)}_{\mathrm{atomic}}\sim {10}^{-5},\mathrm{and}{\left(\frac{qB}{m^2}\right)}_{\mathrm{external}}\sim {10}^{-10}$$

(11)

relative to the free-particle terms involving $\overrightarrow{b}$. This indicates that such terms are much smaller than the free-particle terms we are including.

We can make a somewhat more systematic argument as follows. The omitted piece $\delta h_{\mathrm{neglected}}$ is an analytic function of all quantities (except mass and angular momenta) around zero values, so it is well approximated by a multivariable Taylor series in these quantities. Applying dimensional analysis to possible terms suggests that each $\delta h_{\mathrm{neglected}}$ term is suppressed with respect to the free-particle $\delta h$ terms, and therefore, we are keeping the largest effects.

4.2. Atomic and Nuclear Models

For unperturbed states of atoms, we use fairly rough approximations. First, we assume that electrons, neutrons and protons fall into shells. Filled shells are spherically symmetric and therefore insensitive to rotation-violating perturbations to leading order. We can therefore ignore all particles that occupy filled shells.

In most of our analysis, we make an even rougher approximation with the Schmidt model. This assumes that the dominant energy shift for each particle species comes from a single valence electron, neutron and/or proton. It then requires that the single valence particle carry all of the nuclear or electronic angular momentum.

For example, ${}^{133}$Cs contains 78 neutrons, 55 protons and 55 electrons. It has a nuclear spin $I=7/2$ and an electronic spin of $1/2$. According to our model, ${}^{133}$Cs is insensitive to neutron-associated Lorentz violation. The proton-associated Lorentz-violating energy-level shift may be calculated by perturbing a single proton in a $g_{7/2}$ state, and the electron-associated Lorentz-violating energy-level shift may be calculated by perturbing a single electron in an $s_{1/2}$ state.

This model is not sophisticated, and the results should be interpreted as correct only within an order of magnitude (at best). Were Lorentz-violation to be observed in nature, then more detailed analysis would be necessary. However, in the absence of observed Lorentz-violation, analysis that identifies likely leading-order signals is sufficient.

Some work has been done in using a more realistic nuclear model to determine some energy shifts with more precision [23]. More sophisticated modeling may reveal that an energy shift that appears to be independent of a particular particle species in our simple model is in fact dependent on that species in reality [27,33].

5. Energy-Level Shifts to Atoms

To calculate atomic energy-level shifts, we treat an atom as a collection of individual particles:

$$\delta h_{\mathrm{atom}}=\sum _{w=e,p,n}\sum _{N=1}^{N_w}\delta h_{w,N},$$

(12)

where w designates each particle species, $N_w$ gives the number of each particle species present in a given atom and $\delta h_{w,N}$ describes the Hamiltonian perturbation (9) acting on particle N of species w. As usual with perturbation theory, the first-order energy-level shift to an atomic state $|F,m_F\rangle$ is given by the expectation value of $\delta h_{\mathrm{atom}}$ in that state (F and $m_F$ here represent total atomic spin and spin projection, respectively). In most cases, $\langle \delta h_{\mathrm{atom}}\rangle$ has only one or two nonzero terms due to our use of nuclear and atomic Schmidt models.

Evaluation of the nonzero terms is aided greatly by the Wigner–Eckart theorem, which is stated in terms of tensor operators $T_q^{\left(r\right)}$ (for example, the operator ${\sigma }^3$ is the $(r,q)=(1,0)$ component of rank-1tensor operator $\overrightarrow{\sigma }$, ${\sigma }^1+i{\sigma }^2$ is the $(1,+1)$ component and ${\sigma }^1-i{\sigma }^2$ is the $(1,-1)$ component). The theorem says that the matrix element of such an operator between states $\left.〈F,m\right|$ and $\left|F^{\prime },m^{\prime }\right.〉$ is given by:

$$〈F,m\left|T_q^{\left(r\right)}\right|F^{\prime },m^{\prime }〉=\left(\frac{C_{rq{F}^{\prime }{m}^{\prime }}^{Fm}}{C_{r0FF}^{FF}}\right)〈F,F\left|T_0^{\left(r\right)}\right|F,F〉$$

(13)

where $C_{rq{F}^{\prime }{m}^{\prime }}^{Fm}$ are the usual Clebsch–Gordon coefficients. This expression allows us to reduce the calculation of expectation values for multiple related states to simple geometry (the Clebsch–Gordon coefficients) and a single detailed expectation-value calculation.

Application of the Wigner–Eckart theorem to perturbation Hamiltonian Equation (9) then requires $\delta h$ to be expanded in the basis of rotational tensors. For example, the term $b_j{\sigma }^j$ may be written:

$$b_j{\sigma }^j=b_3{\sigma }^3+\frac{1}{2}(b_1-i{b}_2)({\sigma }^1+i{\sigma }^2)+\frac{1}{2}(b_1+i{b}_2)({\sigma }^1-i{\sigma }^2),$$

(14)

where, as stated above, the operator ${\sigma }^3$ is the $(r,q)=(1,0)$ component of rank-1 tensor operator $\overrightarrow{\sigma }$, ${\sigma }^1+i{\sigma }^2$ is the $(1,+1)$ component and ${\sigma }^1-i{\sigma }^2$ is the $(1,-1)$ component.

Once we make this expansion in terms of tensor operators, many simplifications occur. First, we need only do a single detailed calculation—the expectation value of the $b_3{\sigma }^3$ part in the extreme state $|F,m_F=F\rangle$—for the entire operator sum $b_j{\sigma }^j$ and multiple states. The expectation values of the other parts in other states follow immediately from Equation (13). Next, only $q=0$ components contribute nonzero values as $F=F^{\prime }$ and $m_F={m_F}^{\prime }$ for expectation values. Finally, the relevant Clebsch–Gordon ratios for tensor operators that appear in our Hamiltonian perturbation are fairly simple:

$$\left(\frac{C_{00Fm}^{Fm}}{C_{00FF}^{FF}}\right)=1,\left(\frac{C_{10Fm}^{Fm}}{C_{10FF}^{FF}}\right)=\frac{m_F}{F},\mathrm{and}\left(\frac{C_{20Fm}^{Fm}}{C_{20FF}^{FF}}\right)=\frac{3m_F^2-F(F+1)}{3F^2-F(F+1)}.$$

(15)

Putting these ideas together, we find that the expectation value of the entire perturbation Hamiltonian $\delta h_{\mathrm{atom}}$ in state $|F,m_F\rangle$ can be written:

$$〈F,m\left|\delta h_{\mathrm{atom}}\right|F,m〉=\left(\frac{m_F}{F}\right)E_d+\left(\frac{3m_F^2-F(F+1)}{3F^2-F(F+1)}\right)E_q,$$

(16)

where the dipole-type and quadrupole-type energy shifts:

$$\begin{array}{ccc}\hfill E_d& =\hfill & \sum _{w=e,p,n}\left({\tilde{b}}_3^w〈{\left[{\sigma }^3\right]}_w〉+{\tilde{d}}_3^w〈\frac{{\left[p_3{p}_j{\sigma }^j\right]}_w}{m_w^2}〉+{\tilde{g}}_{d3}^w〈\frac{{[p_3{p}_j{\sigma }^j-p_j{p}_j{\sigma }^3]}_w}{2m_w^2}〉\right),\hfill \\ \hfill E_q& =\hfill & \sum _{w=e,p,n}\left({\tilde{c}}_q^w〈-\frac{{[p_1^2+p_2^2-2p_3^2]}_w}{6m_w^2}〉+{\tilde{g}}_q^w〈\frac{{\left[(p_1{\sigma }^2-p_2{\sigma }^1)p_3\right]}_w}{2m_w^2}〉\right).\hfill \end{array}$$

(17)

Each of these expectation values is taken in the state $|F,m_F=F\rangle$. The tilde quantities are the combinations of Lorentz-violation coefficients that may be probed with clock-comparison experiments in ordinary matter:

$$\begin{array}{ccc}\hfill {\tilde{b}}_3& :=\hfill & b_3-m{d}_{30}+m{g}_{120}-H_{12},\hfill \\ \hfill {\tilde{d}}_3& :=\hfill & m{d}_{03}+\frac{1}{2}m{d}_{30}-\frac{1}{2}{H}_{12},\hfill \\ \hfill {\tilde{g}}_{d3}& :=\hfill & m(g_{102}-g_{201}+g_{120})-b_3,\hfill \\ \hfill {\tilde{c}}_q& :=\hfill & m(c_{11}+c_{22}-2c_{33}),\mathrm{and}\hfill \\ \hfill {\tilde{g}}_q& :=\hfill & m(g_{101}+g_{202}-2g_{303}).\hfill \end{array}$$

(18)

Note that there is a separate set of these for each particle species even though the explicit index is not shown.

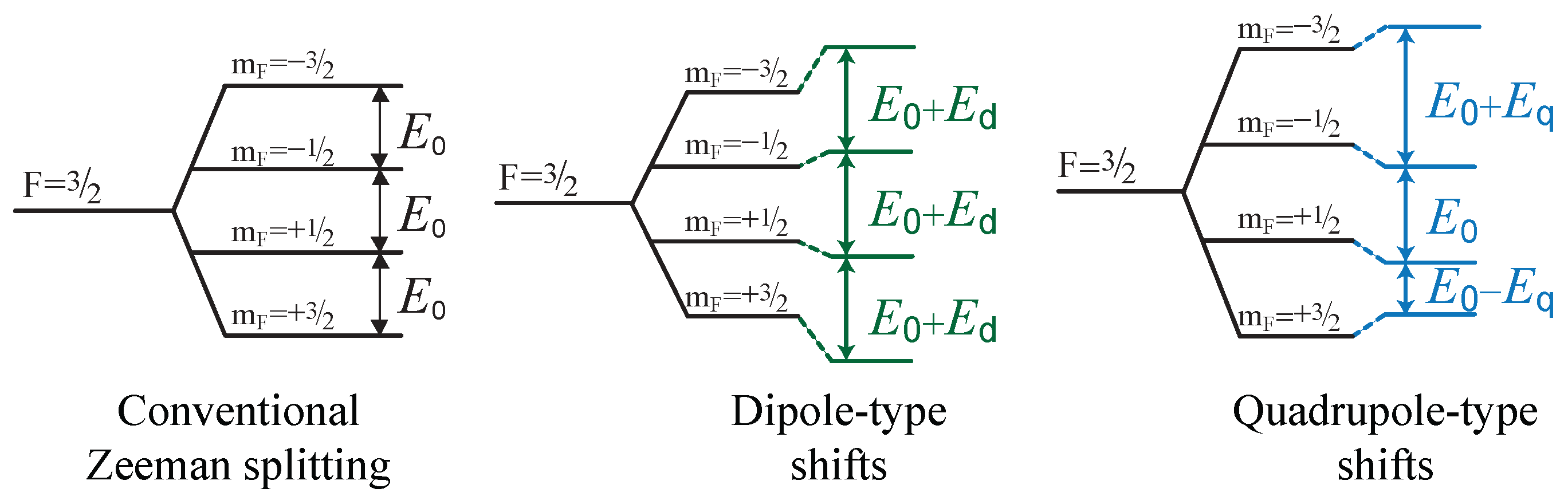

The effects of these energy shifts are qualitatively summarized in Figure 2 with the example of a $F=3/2$ multiplet. As illustrated in the figure, the most relevant quantities for comparison to experiment are transition frequencies, which are each proportional to a difference of energies. Note that dipole-type shifts are qualitatively similar to Zeeman splitting in that transitions between adjacent energy levels have equal frequencies. Quadrupole-type shifts are qualitatively different: if they are nonzero, then what appears to be a single peak in the spectrum is actually a triple peak with peak separation of size $E_q$. Investigations of this effect [8,9] were early inspiration for some of the modern clock-comparison experiments.

6. Relating Theory to Experiments

A key technique for achieving high sensitivity to Lorentz-violation is watching for frequency changes as a clock’s orientation and/or velocity changes. There are two large difficulties with this. First, it is impossible to tell whether a single clock’s frequency varies or not. Second, Earth’s magnetic field can mimic Lorentz-violation: as a clock moves through Earth’s field, its frequency can vary with orientation and velocity even in conventional physics through the Zeeman effect.

Both of these problems can be solved through the introduction of the quantity ${\omega }^{♯}$ [34]. Consider two co-located clocks P and Q with frequencies ${\omega }_P$ and ${\omega }_Q$. We wish to find a combination of these frequencies that is identically zero in conventional physics and that varies with orientation/velocity in the SME.

First, write each frequency in the form:

$$\omega =f\left(B\right)+\delta \omega ,$$

(19)

where $f\left(B\right)$ is the conventional frequency as a function of the applied magnetic field and $\delta \omega$ is the Lorentz-violating perturbation to this frequency. For example, $f\left(B\right)$ might be expressed as $g{\mu }_{B}B\Delta m$ for a purely electronic transition, and $\delta \omega$ is a linear combination of Lorentz-violation tilde coefficients ${\tilde{b}}_3$, …, ${\tilde{g}}_q$. We may think of $B_{\mathrm{eff}}:=f^{-1}\left(\omega \right)$ as an effective magnetic field measured by each clock, and hence, $f^{-1}$ may be called a magnetometer function.

The combination ${\omega }^{♯}$ is then defined to be:

$${\omega }^{♯}:={\omega }_P-f_P\left[f_Q^{-1}\left({\omega }_Q\right)\right].$$

(20)

The theoretical value of this quantity may be seen by expanding the magnetometer functions in Taylor series about $B=0$, with the result:

$${\omega }^{♯}=\delta {\omega }_P-v\delta {\omega }_Q,$$

(21)

where:

$$v={\left.\frac{(d{f}_P/dB)}{(d{f}_Q/dB)}\right|}_{B=0}$$

(22)

is proportional to the ratio of the gyromagnetic ratios for the individual frequencies. This ${\omega }^{♯}$ is clearly zero in conventional physics since each $\delta \omega$ is a linear combination of Lorentz-violation coefficients.

For example, suppose both clocks involve purely electronic transitions as described above. Then, $f_Q^{-1}\left({\omega }_Q\right)=B+\frac{\delta {\omega }_Q}{g_Q{\mu }_B\Delta m_Q}$. When this is plugged into Equation (20), the Lorentz-respecting terms cancel, and we find ${\omega }^{♯}=\delta {\omega }_P-\frac{g_P\Delta m_P}{g_Q\Delta m_Q}\delta {\omega }_Q$.

The experimental value of ${\omega }^{♯}$ may be seen by considering two possible experimental strategies. For the first strategy, measure both ${\omega }_P$ and ${\omega }_Q$. Plug the results into ${\omega }^{♯}={\omega }_P-f_P\left[f_Q^{-1}\left({\omega }_Q\right)\right]$ and compare the result to the theoretical prediction ${\omega }^{♯}=\delta {\omega }_P-v\delta {\omega }_Q$. This strategy could work in principle, but it requires exquisitely precise knowledge of the functions $f_P$ and $f_Q$ to achieve high sensitivity.

It is better to achieve high sensitivity without needing to know the magnetometer functions explicitly. For the second strategy [13], force frequency ${\omega }_Q$ to be constant, e.g., through the application of a feedback magnetic field, and measure changes in ${\omega }_P$. Then, the term $f_P\left[f_Q^{-1}\left({\omega }_Q\right)\right]$ is automatically constant, and so, ${\omega }_P$ alone contains all of the orientation/velocity dependence of ${\omega }^{♯}$. Thus,

$${\omega }_P=\delta {\omega }_P-v\delta {\omega }_Q+\left(\mathrm{irrelevant}\mathrm{constant}\right).$$

(23)

We cannot know the value of the last piece without exquisite knowledge of $f_P$ and $f_Q$, but it is constant and so irrelevant for clock-comparison tests. In conclusion, using the second strategy with ${\omega }^{♯}$ implies that orientation/velocity dependence in ${\omega }_P$ is sensitive purely to honest Lorentz-violating effects and $f_P$, $f_Q$ do not need to be known with much precision.

7. Time Variation

Most clock-comparison experiments to date have been conducted by probing the frequencies of interest as Earth rotates. We discuss the resulting time dependence of ${\omega }^{♯}$ in this section. We also discuss the possibility of conducting a clock-comparison experiment on an orbiting platform, which could hold several significant advantages over Earth-based tests.

7.1. Earth-Based Experiments

The background tensor fields $a_{\mu },\dots ,H_{\mu \nu }$ themselves are commonly assumed to not vary with time or position. However, the laboratory frame changes orientation and velocity as Earth rotates, and therefore, the components of the background fields in the Earth-based reference frame vary. To extract the nature of the variation, it is useful to consider two different reference frames [27,34], as illustrated in Figure 3.

In the nonrotating frame, the origin lies at the center of the Sun. The $\widehat{Z}$ axis is defined to be parallel to Earth’s rotation axis; the $\widehat{X}$ axis points toward the vernal equinox on the celestial sphere; and we choose $\widehat{Y}:=\widehat{Z}\times \widehat{X}$ so that the system is right-handed. When necessary, time T in the nonrotating frame is conventionally chosen so that $T=0$ at the vernal equinox in the year 2000. This frame is approximately inertial on time scales of thousands of years. Note that the $XY$ plane coincides with Earth’s equatorial plane.

In the Earth-based frame, the origin lies at the location of the atoms involved. The $\widehat{z}$ axis lies along the quantization axis of the experiment. If $\widehat{z}$ is parallel to $\widehat{Z}$, then the clock orientations do not actually vary as Earth rotates, and so, there is no experimental signal. We therefore assume that $\widehat{z}$ makes a nonzero angle $\chi$ with $\widehat{Z}$. Then, z rotates around Z at Earth’s sidereal frequency $\Omega \approx \frac{2\pi }{\left(23\mathrm{h}56\min \right)}$.

We choose time $t=0$ to be any convenient time such that $\widehat{z}$ lies between $+\widehat{X}$ and $+\widehat{Z}$. We then pick $\widehat{x}$ at $t=0$ to lie in the $\widehat{X}-\widehat{Z}$ plane, to be perpendicular to $\widehat{z}$ and to make an acute angle with $+\widehat{X}$. Finally, we choose $\widehat{y}:=\widehat{z}\times \widehat{x}$ so that the Earth-based frame is also right-handed. Note that $\widehat{x}$ maintains a constant angle $\chi$ with the $XY$ plane and $\widehat{y}$ lies in the $XY$ plane at all times.

Even though the frames’ origins are distinct, they are shown coincident in Figure 3 for the ease of comparison.

Given these frames, the time dependence of each Lorentz-violation coefficient may be made explicit. The combinations that appear in dipole-type energy shifts are:

$$\begin{array}{ccc}\hfill {\tilde{b}}_3& =\hfill & {\tilde{b}}_{Z}cos\chi +{\tilde{b}}_{X}sin\chi cos\Omega t+{\tilde{b}}_{Y}sin\chi sin\Omega t,\hfill \\ \hfill {\tilde{d}}_3& =\hfill & {\tilde{d}}_{Z}cos\chi +{\tilde{d}}_{X}sin\chi cos\Omega t+{\tilde{d}}_{Y}sin\chi sin\Omega t,\mathrm{and}\hfill \\ \hfill {\tilde{g}}_{d3}& =\hfill & {\tilde{g}}_{DZ}cos\chi +{\tilde{g}}_{DX}sin\chi cos\Omega t+{\tilde{g}}_{DY}sin\chi sin\Omega t\hfill \end{array}$$

(24)

while the combinations that appear in quadrupole-type energy shifts are:

$$\begin{array}{ccc}\hfill {\tilde{c}}_q& =\hfill & {\tilde{c}}_Q(\frac{3}{2}{cos}^2\chi -\frac{1}{2})-\frac{3}{2}{\tilde{c}}_{Y}sin2\chi cos\Omega t-\frac{3}{2}{\tilde{c}}_{X}sin2\chi sin\Omega t\hfill \\ & & -\frac{3}{2}{\tilde{c}}_{-}{sin}^2\chi cos2\Omega t-\frac{3}{2}{\tilde{c}}_Z{sin}^2\chi sin2\Omega t\mathrm{and}\hfill \\ \hfill {\tilde{g}}_q& =\hfill & {\tilde{g}}_Q(\frac{3}{2}{cos}^2\chi -\frac{1}{2})-\frac{3}{2}{\tilde{g}}_{Y}sin2\chi cos\Omega t-\frac{3}{2}{\tilde{g}}_{X}sin2\chi sin\Omega t\hfill \\ & & -\frac{3}{2}{\tilde{g}}_{-}{sin}^2\chi cos2\Omega t-\frac{3}{2}{\tilde{g}}_{TZ}{sin}^2\chi sin2\Omega t.\hfill \end{array}$$

(25)

The nonrotating-frame tilde quantities ${\tilde{b}}_Z,\dots ,{\tilde{g}}_{TZ}$ that appear in these expressions are linear combinations of Cartesian components of SME coefficients $b_X,\dots ,g_{YTX}$ in the nonrotating frame. They are defined explicitly in the data tables [4]. Note that a few of the tilde-combinations received names different from their originals [27] when boost effects were no longer neglected [34]. The particular name changes were ${\tilde{c}}_{Q,X}\mapsto {\tilde{c}}_Y$, ${\tilde{c}}_{Q,Y}\mapsto {\tilde{c}}_X$, ${\tilde{c}}_{XY}\mapsto {\tilde{c}}_Z$, ${\tilde{g}}_{Q,X}\mapsto {\tilde{g}}_Y$, ${\tilde{g}}_{Q,Y}\mapsto {\tilde{g}}_X$ and ${\tilde{g}}_{XY}\mapsto {\tilde{g}}_{TZ}$.

Note that the dipole-type shifts have unsuppressed variation at Earth’s sidereal frequency $\Omega$, while the quadrupole-type shifts have unsuppressed variation at both $\Omega$ and $2\Omega$. These are the only time dependencies that appear if we approximate the lab’s speed $v_{\mathrm{lab}}$ with respect to Earth’s center and Earth’s speed $v_{\mathrm{Earth}}$ with respect to the Sun to be zero. If we were to keep terms of first order in each $v/c$, then we would find additional contributions. Time-like nonrotating-frame components would contribute to sidereal variation suppressed by $v_{\mathrm{lab}}/c\sim {10}^{-6}$ and/or $v_{\mathrm{Earth}}/c\sim {10}^{-4}$. Both time-like nonrotating-frame components and dipole-type shifts would also contribute to twice-sidereal variation, also suppressed by $v_{\mathrm{lab}}/c$ and/or $v_{\mathrm{Earth}}/c$. We do not explicitly show these contributions in the current work, but they may be found elsewhere [34].

The dominant time dependencies are qualitatively summarized in Figure 4.

7.2. Space-Based Experiments

No space-based clock-comparison experiments have been performed to date. However, if performed, then experiments placed on Earth-orbiting satellites could have several advantages over experiments bound to Earth’s surface [34,35].

The first advantage is due to the freedom of satellite orbit orientation. Most surface-based experiments are forced to rotate around the same axis, Earth’s rotational axis. Energy shifts depend on relative orientations; for example, the dominant shift $\delta {\omega }_b$ associated with $\overrightarrow{b}$ is proportional to the dot product between $\overrightarrow{b}$ and the clock axis. If $\overrightarrow{b}$ happens to lie along Earth’s rotation axis, then $\delta {\omega }_b$ is constant as Earth rotates and therefore undetectable in Earth-based clock-comparison experiments. Equivalently, we may say that Earth-based experiments are only sensitive to effects that are orthogonal to Earth’s rotation axis. On the other hand, space-based experiments may rotate around arbitrary axes and, therefore, may be sensitive to effects with any orientation.

The second main advantage of a satellite-based experiment would rely on the short orbital periods of many satellites. For an Earth-based experiment, a single rotation requires an entire (sidereal) day, and so, 16 rotations require 16 days to pass. Clock stability is often difficult to maintain for extended times, so 16 continual rotations may be difficult to measure. Many satellites have much shorter orbital periods. For example, a satellite in low Earth orbit has a period of about 90 min, and so, a space-based experiment may collect 16 rotations worth of data in just a single day.

The third advantage is connected with relative speeds. Several contributions to time-varying energy shifts are suppressed by a factor of about $2\times {10}^{-6}$ due to the low speed of Earth’s surface with respect to its center. Similar effects in satellites are suppressed less. For example, an experiment in low Earth orbit would have these boost effects suppressed by only about $3\times {10}^{-5}$, a 15-fold improvement in sensitivity.

Satellite-based experiments could also have several other technical advantages. For example, satellites spend most of their time in free fall, so effective gravitational effects are only about ${10}^{-6}$-times as strong as on Earth’s surface. This is advantageous for fountain clocks and possibly other types. There is also likely to be less vibrational noise due to the isolation of satellites from outside influences.

The time variation of energy shifts in space-based experiments would be similar to the variation in Earth-based experiments with Earth’s sidereal frequency replaced by the satellite’s orbital frequency. However, explicit expressions for time variation of the energy shifts are much more complicated due to the many possible configurations of satellite orbits and the increased relevance of boost effects. We do not include any such explicit formulas here, but they may be found elsewhere [34].

8. Results of Completed Experiments

Table 1. List of completed clock-comparison experiments to date with very rough bounds accomplished. The first two columns identify the experiment. The third column lists the atomic species involved. The fourth column states which SME tilde-coefficients appear in bounds. In most cases, each bound is placed on a linear combination of these coefficients with weights of order one. The final column gives the order-of-magnitude of the bound placed on the tilde coefficients listed, each of which has units of GeV. For example, the first row states that the experiment of Prestage et al. published in 1985 compared transitions in beryllium and hydrogen atoms. It bounded ${\tilde{c}}_X$ and ${\tilde{c}}_Y$ associated with the neutron to each be smaller than about ${10}^{-25}$ GeV.

Experiment	Ref.	Atom(s)	Coefficients Bounded	${\mathbf{log}}_{10}$$\left(\frac{\mathbf{Bound}}{\mathbf{GeV}}\right)$
Prestage et al. 1985	[10]	${}^9{\mathrm{Be}}^{+}{,}^1\mathrm{H}$	$n:{\tilde{c}}_X,{\tilde{c}}_Y$	$-25$
Lamoreaux et al. 1986	[11]	${}^{201}{\mathrm{Hg},}^{199}\mathrm{Hg}$	$n:{\tilde{c}}_{-},{\tilde{c}}_Z$	$-27$
Chupp et al. 1989	[12]	${}^{21}{\mathrm{Ne},}^3\mathrm{He}$	$n:{\tilde{c}}_{-},{\tilde{c}}_Z$	$-27$
Berglund et al. 1995	[13]	${}^{199}{\mathrm{Hg},}^{133}\mathrm{Cs}$	$e:{\tilde{b}}_X,{\tilde{b}}_Y;p:{\tilde{b}}_X,{\tilde{b}}_Y$	$-27$
			$e:{\tilde{d}}_X,{\tilde{d}}_Y,{\tilde{g}}_{D,X},{\tilde{g}}_{D,Y}$	$-22$
			$p:{\tilde{d}}_X,{\tilde{d}}_Y,{\tilde{g}}_{D,X},{\tilde{g}}_{D,Y}$	$-25$
			$n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-30$
			$n:{\tilde{d}}_X,{\tilde{d}}_Y,{\tilde{g}}_{D,X},{\tilde{g}}_{D,Y}$	$-28$
Bear et al. 2000	[14]	${}^{129}{\mathrm{Xe},}^3\mathrm{He}$	$n:{\tilde{b}}_X,{\tilde{b}}_X$	$-31$
Phillips et al. 2001	[15]	${}^1\mathrm{H}$	$p:{\tilde{b}}_X,{\tilde{b}}_Y$	$-27$
Humphrey et al. 2003	[16]	${}^1\mathrm{H}$	$e:{\tilde{b}}_X,{\tilde{b}}_Y;p:{\tilde{b}}_X,{\tilde{b}}_Y$	$-27$
Canè et al. 2004	[17]	${}^{129}{\mathrm{Xe},}^3\mathrm{He}$	$n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-31$
			$n:{\tilde{d}}_X,{\tilde{d}}_Y,{\tilde{g}}_{D,X},{\tilde{g}}_{D,Y}$	$-29$
			$n:{\tilde{b}}_T,{\tilde{d}}_{-},{\tilde{d}}_{+},{\tilde{d}}_Q,{\tilde{d}}_{YZ},{\tilde{g}}_c,{\tilde{g}}_T$	$-27$
			$n:{\tilde{d}}_{XY},{\tilde{H}}_{XT},{\tilde{H}}_{YT},{\tilde{H}}_{ZT}$	$-27$
Wolf et al. 2006	[18]	${}^{133}\mathrm{Cs}$	$p:{\tilde{c}}_Q$	$-23$
			$p:{\tilde{c}}_{-},{\tilde{c}}_X,{\tilde{c}}_Y,{\tilde{c}}_Z$	$-25$
			$p:{\tilde{c}}_{TX},{\tilde{c}}_{TY},{\tilde{c}}_{TZ};n:{\tilde{c}}_{-}$	$-21$
			$p:{\tilde{c}}_{TT}$	$-16$
			$n:{\tilde{c}}_Q$	$-20$
			$n:{\tilde{c}}_X,{\tilde{c}}_Y,{\tilde{c}}_Z$	$-22$
			$n:{\tilde{c}}_{TX},{\tilde{c}}_{TY}$	$-18$
			$n:{\tilde{c}}_{TZ}$	$-19$
			$n:{\tilde{c}}_{TT}$	$-13$
Kornack et al. 2008	[19]	${\mathrm{K},}^3\mathrm{He}$	$e:{\tilde{b}}_X,{\tilde{b}}_Y$	$-28$
			$p:{\tilde{b}}_X,{\tilde{b}}_Y;n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-31$
Brown et al. 2010	[20]	${\mathrm{K},}^3\mathrm{He}$	$p:{\tilde{b}}_X,{\tilde{b}}_Y$	$-32$
			$n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-33$
Gemmel et al. 2010	[21]	${}^3{\mathrm{He},}^{129}\mathrm{Xe}$	$n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-32$
Smiciklas et al. 2011	[22,23]	${}^{21}\mathrm{Ne},\mathrm{Rb}$	$p:{\tilde{c}}_X,{\tilde{c}}_Y,{\tilde{c}}_Z,{\tilde{c}}_{-}$	$-29$
	[22]	${}^{21}\mathrm{Ne},\mathrm{Rb}$	$n:{\tilde{c}}_X,{\tilde{c}}_Y,{\tilde{c}}_Z,{\tilde{c}}_{-}$	$-29$
Peck et al. 2012	[24]	${}^{199}{\mathrm{Hg},}^{133}\mathrm{Cs}$	$p:{\tilde{b}}_X,{\tilde{b}}_Y$	$-30$
Hohensee et al. 2013	[25]	Dy	$e:{\tilde{c}}_{-},{\tilde{c}}_X,{\tilde{c}}_Y,{\tilde{c}}_Z$	$-17$
			$e:{\tilde{c}}_{TX},{\tilde{c}}_{TY},{\tilde{c}}_{TZ}$	$-14$
			$e:{\tilde{c}}_{TT}$	$-8$
			$p:{\tilde{b}}_Z,{\tilde{d}}_X,{\tilde{d}}_Y,{\tilde{g}}_{DX},{\tilde{g}}_{DY}$	$-28$
			$n:{\tilde{b}}_Z,{\tilde{d}}_X,{\tilde{d}}_Y,{\tilde{g}}_{DX},{\tilde{g}}_{DY}$	$-29$
			$n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-31$
Allmendinger et al. 2014	[26]	${}^3{\mathrm{He},}^{129}\mathrm{Xe}$	$n:{\tilde{b}}_X,{\tilde{b}}_Y$	$-34$

lists the results of 16 completed clock-comparison experiments. Due to the difficulty in precisely calculating many nuclear and atomic expectation values, most bounds listed should be viewed as having an uncertainty of about one order of magnitude.

Many bounds include linear combinations of multiple SME tilde-coefficients. In Table 1, we simply assume that a bound on a combination implies a bound on each of the tilde-coefficients that appears. If one desires more rigorous isolation of coefficients, it is sometimes possible to combine results from multiple bounds to extract stronger bounds on the individual tilde-coefficients [36] or even separate different parts within the tilde-coefficients [37]. Due to the ongoing nature of Lorentz-violation tests, there are likely to be more opportunities of this nature in the next few years.

The given bounds are all stated in terms of the minimal standard-model extension. However, they may sometimes be applied to other theoretical frameworks for which the minimal SME may be an effective approximation [38,39].
