# An Interactive Personalized Recommendation System Using the Hybrid Algorithm Model

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

#### 2.1. The Recommendation System and Hybrid Algorithm

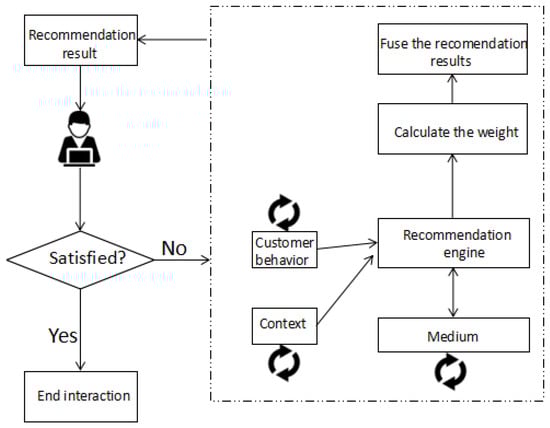

#### 2.2. Iterative Design

## 3. Model Formulation

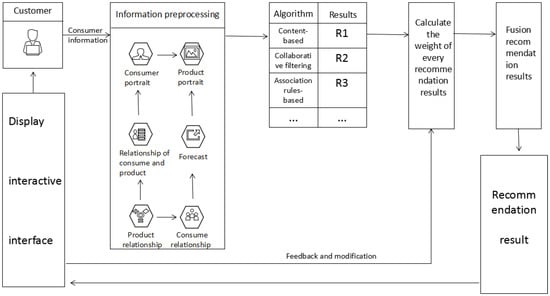

#### 3.1. The Solution Framework

#### 3.2. Obtain the Recommendation List

#### 3.2.1. CBF Algorithm

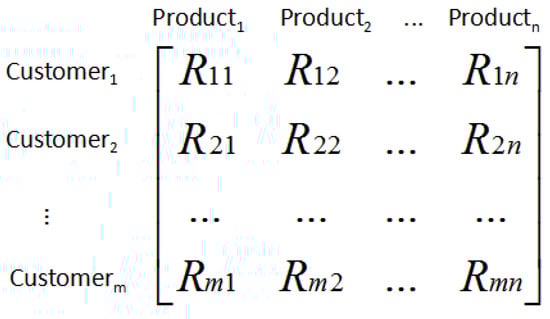

#### 3.2.2. CF Algorithm

#### 3.2.3. Association Rules-Based Algorithm

#### 3.3. Measure the Weights of Each Recommendation Result

- Step 1.
- Let $A=\{{a}_{1},\dots ,{a}_{i},\dots {a}_{\left|A\right|}\}$ be the set of all input attributes in recommended data sources $I$, and let $RC$ be the real recommended products. $\left|CES\right|$ is the number of recommendation algorithms.
- Step 2.
- Train the neural network $N$ to maximize the network accuracy with $A$ as input and $RC$ as output.
- Step 3.
- For $j=1,2,\dots ,\left|CES\right|$, let ${N}_{j}$ be a network whose connection weights are as follows:
- (a)
- For all the inputs except $\{{a}_{j,1},{a}_{j,2},\dots {a}_{j,}{}_{\left|SAj\right|}\}$, assign the connection weights of ${N}_{j}$ equal to the weights of $N$.
- (b)
- Set the connection weights of $\{{a}_{j,1},{a}_{j,2},\dots {a}_{j,}{}_{\left|SAj\right|}\}$ to zero.

- Step 4.
- Compute the influence of $S{A}_{j}$ to the network accuracy.
- Step 5.
- If $j\ge \left|CES\right|$, go to Step 6, otherwise, set $j=j+1$ and go to Step 3.
- Step 6.
- The derived $\{{w}_{1},\dots ,{w}_{j},\dots {w}_{\left|CES\right|}\}$ are the weights of the recommendation algorithms.

#### 3.4. Fuse the Results

## 4. Experimental Results

#### 4.1. Data Preparation

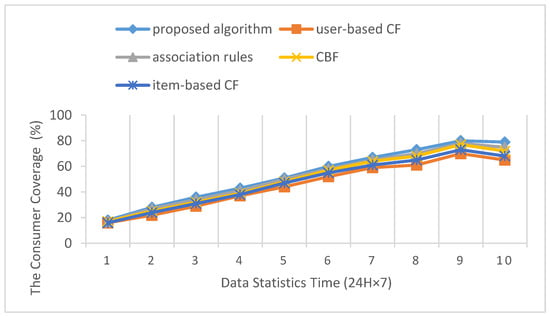

#### 4.2. The Consumer Coverage

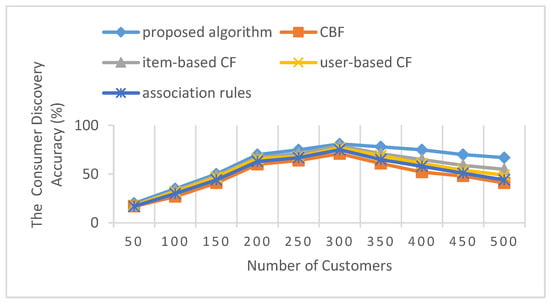

#### 4.3. The Consumer Discovery Accuracy

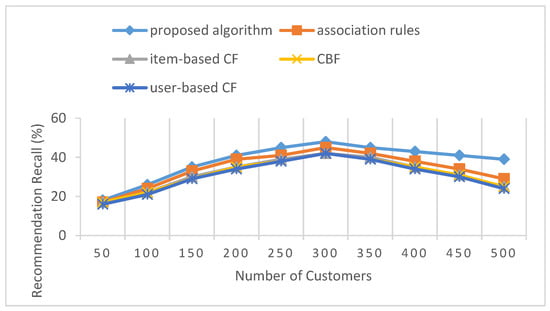

#### 4.4. The Recommendation Recall

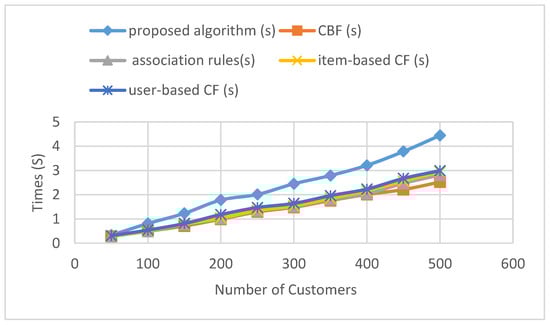

#### 4.5. The Recommendation Speed

## 5. Conclusions and Discussion

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Voelker, T.A.; Steel, D.; Shervin, E. Internet presence as a small business capability: The case of mobile optimization. J. Small Bus. Strategy
**2017**, 27, 90–103. [Google Scholar] - Orlandi, L.B. Organizational capabilities in the digital era: Reframing strategic orientation. J. Innov. Knowl.
**2016**, 1, 156–161. [Google Scholar] [CrossRef] - Marung, U.; Theera-Umpon, N.; Auephanwiriyakul, S. Top-N recommender systems using genetic algorithm-based visual-clustering Methods. Symmetry
**2016**, 8, 54. [Google Scholar] [CrossRef] - Ricci, F.; Rokach, L.; Shapira, B. Introduction to Recommender Systems Handbook; Springer: Berlin, Germany, 2011; pp. 1–35. [Google Scholar]
- Ullah, F.; Sarwar, G.; Lee, S. N-screen aware multicriteria hybrid recommender system using weight based subspace clustering. Sci. World J.
**2014**, 2014, 679–849. [Google Scholar] [CrossRef] [PubMed] - Garfinkel, R.; Gopal, R.; Pathak, B.; Yin, F. Design of a shopbot and recommender system for bundle purchases. Decis. Support Syst.
**2006**, 42, 1974–1986. [Google Scholar] [CrossRef] - Lee, J.; Lee, D.; Lee, Y.C.; Hwang, W.S.; Kim, S.W. Improving the accuracy of top-N recommendation using a preference model. Inf. Sci.
**2016**, 348, 290–304. [Google Scholar] [CrossRef] - Zenebe, A.; Norcio, A.F. Representation, similarity measures and aggregation methods using fuzzy sets for content-based recommender systems. Fuzzy Sets Syst.
**2009**, 160, 76–94. [Google Scholar] [CrossRef] - Lops, P.; Gemmis, M.; de Semeraro, G. Content-based recommender systems: State of the art and trends. In Recommender Systems Handbook; Ricci, F., Rokach, L., Shapira, B., Kantor, P.B., Eds.; Springer: New York, NY, USA, 2011. [Google Scholar]
- Herlocker, J.L.; Konstan, J.A.; Loren, J.; Terveen, G.; Riedl, T. Collaborative filtering recommender systems. ACM Trans. Inf. Syst.
**2004**, 22, 5–53. [Google Scholar] [CrossRef] - Melville, P.; Mooney, R.J.; Nagarajan, R. Content-boosted collaborative filtering for improved recommendations. In Proceedings of the Eighteenth National Conference on Artificial Intelligence, Edmonton, AB, Canada, 28 July–1 August 2002. [Google Scholar]
- Liang, T.P.; Yang, Y.F.; Chen, D.N.; Ku, Y.C. A semantic-expansion approach to personalized knowledge recommendation. Decis. Support Syst.
**2008**, 45, 401–412. [Google Scholar] [CrossRef] - Adomavicius, G.; Tuzhilin, A. Toward the next generation of recommender systems: A survey of the state-of-the-art and possible extensions. IEEE Trans. Knowl. Data Eng.
**2005**, 17, 734–749. [Google Scholar] [CrossRef] - Lampropoulos, A.S.; Sotiropoulos, D.N.; Tsihrintzis, G.A. Evaluation of a cascade hybrid recommendation as a combination of one-class classification and collaborative filtering. In Proceedings of the International Conference on Tools with Artificial Intelligence, Athens, Greece, 7–9 November 2012; Volume 1, pp. 674–681. [Google Scholar]
- Kardan, A.A.; Ebrahimi, M. A novel approach to hybrid recommendation systems based on association rules mining for content recommendation in asynchronous discussion groups. Inform. Sci.
**2013**, 219, 93–110. [Google Scholar] [CrossRef] - Liu, H.F.; Hu, Z.; Mian, A.; Tian, H.; Zhu, X.Z. A new user similarity model to improve the accuracy of collaborative filtering. Knowl. Based Syst.
**2014**, 56, 156–166. [Google Scholar] [CrossRef] - Mishra, R.; Kumar, P.; Bhasker, B. A web recommendation system considering sequential information. Decis. Support Syst.
**2015**, 75, 1–10. [Google Scholar] [CrossRef] - Lee, Y.H.; Hu, P.J.H.; Cheng, T.H.; Hsieh, Y.F. A cost-sensitive technique for positive-example learning supporting content-based product recommendations in B-to-C e-commerce. Decis. Support Syst.
**2012**, 53, 245–256. [Google Scholar] [CrossRef] - Goldberg, D.; Nichols, D.; Oki, B.M.; Terry, D. Using collaborative filtering to weave an information tapestry. Commun. ACM
**1992**, 35, 61–70. [Google Scholar] [CrossRef] - Nilashi, M.; Ibrahim, O.B.; Ithnin, N.; Sarmin, N.H. A multi-criteria collaborative filtering recommender system for the tourism domain using Expectation Maximization (EM) and PCA–ANFIS. Electron. Commer. Res. Appl.
**2015**, 14, 542–562. [Google Scholar] [CrossRef] - Thabtah, F. A review of associative classification mining. Knowl. Eng. Rev.
**2007**, 22, 37–65. [Google Scholar] [CrossRef] - Benlian, A.; Titah, R.; Hess, T. Differential effects of provider recommendations and consumer reviews in e-commerce transactions: An experimental study. J. Manag. Inf. Syst.
**2012**, 29, 237–272. [Google Scholar] [CrossRef] - Hung, L.P. A personalized recommendation system based on product taxonomy for one-to-one marketing online. Expert Syst. Appl.
**2005**, 29, 383–392. [Google Scholar] [CrossRef] - Deshpande, M.; Karypis, G. Item-based top-N recommendation algorithms. ACM Trans. Inf. Syst.
**2004**, 22, 143–177. [Google Scholar] [CrossRef] - Ullah, F.; Lee, S.C. Social content recommendation based on spatial-temporal aware diffusion modeling in social networks. Symmetry
**2016**, 8, 89. [Google Scholar] [CrossRef] - Fu, X.; Han, G.H. Trust-embedded information sharing among one agent and two retailers in an order recommendation system. Sustainability
**2017**, 9, 710. [Google Scholar] [CrossRef] - Scholz, M.; Dorner, V.; Franz, M.; Hinz, O. Measuring consumers’ willingness to pay with utility-based recommendation systems. Decis. Support Syst.
**2015**, 72, 60–71. [Google Scholar] [CrossRef] - Chen, M.H.; Teng, C.H.; Chang, P.C. Applying artificial immune systems to collaborative filtering for movie recommendation. Adv. Eng. Inform.
**2015**, 29, 830–839. [Google Scholar] [CrossRef] - Cheung, K.W.; Kwok, J.T.; Law, M.H.; Tsui, K.C. Mining customer product ratings for personalized marketing. Decis. Support Syst.
**2003**, 35, 231–243. [Google Scholar] [CrossRef] - Puglisi, S.; Parra-Arnau, j.; Forné, j.; Rebollo-Monedero, D. On content-based recommendation and user privacy in social-tagging systems. Comput. Stand. Inter.
**2015**, 41, 17–27. [Google Scholar] [CrossRef] [Green Version] - Guo, Y.; Wang, M.X.; Li, X. Application of an improved Apriori algorithm in a mobile e-commerce recommendation system. Ind. Manag. Data Syst.
**2017**, 117, 287–303. [Google Scholar] [CrossRef] - Peng, Y.; Cheng, X.P. Item-based collaborative filtering algorithm using attribute similarity. Comput. Eng. Appl.
**2007**, 43, 144–147. [Google Scholar] - Wu, Y.P.; Zheng, J.G. Collaborative filtering recommendation algorithm on improved similarity measure method. Comput. Appl. Softw.
**2011**, 28, 7–8. [Google Scholar] - Hussein, T.; Linder, T.; Gaulke, W.; Ziegler, J. Hybreed: A software framework for developing context-aware hybrid recommender systems. User Model. User Adapt. Interact.
**2014**, 24, 121–174. [Google Scholar] [CrossRef] - Zheng, L.; Zhu, F.X.; Huang, S.; Xie, J. Utility-Based link recommendation for online social networks. Manag. Sci.
**2017**, 414, 1–18. [Google Scholar] - Swearing, K.; Sinha, R. Beyond algorithms: An HCI perspective on recommender systems. In Proceedings of the ACM SIGIR Workshop on Recommender Systems, New York, NY, USA, September 2001; pp. 1–11. [Google Scholar]
- Felfernig, A.; Teppan, E.; Gula, B. Knowledge-based recommender technologies for marketing and sales. Int. J. Pattern Recogn.
**2007**, 21, 333–354. [Google Scholar] [CrossRef] - Verbert, K.; Parra, D.; Brusilovsky, P.; Duval, E. Visualizing recommenda-tions to support exploration, transparency and controllability. In Proceedings of the International Conference on Intelligent User Interfaces (IUI ’13), Santa Monica, CA, USA, 19–22 March 2013; p. 351. [Google Scholar]
- He, C.; Parra, D.; Verbert, K. Interactive recommender systems: A survey of the state of the art and future research challenges and opportunities. Expert Syst. Appl.
**2016**, 56, 9–27. [Google Scholar] [CrossRef] - Alves, H.; Ferreira, J.J.; Fernandes, C.I. Customer’s operant resources effects on co-creation activities. J. Innov. Knowl.
**2016**, 1, 69–80. [Google Scholar] [CrossRef] - Adomavicius, G.; Tuzhilin, A. Context-aware recommender systems. In Recommender Systems Handbook; Ricci, F., Rokach, L., Shapira, B., Kantor, P.B., Eds.; Springer: Berlin, Germany, 2012; pp. 217–253. [Google Scholar]
- Salter, J.; Antonopoulos, A. Cinema screen recommender agent: Combining collaborative and content-based filtering. IEEE Intell. Syst.
**2006**, 21, 35–41. [Google Scholar] [CrossRef] - Wang, H.M.; Li, J. An Improved Apriori Algorithm Based On the Boolean Matrix and Hadoop. Procedia Eng.
**2011**, 15, 1827–1831. [Google Scholar] - Chen, Y.; Xie, J. Online consumer review: Word-of-mouth as a new element of marketing communication mix. Manag. Sci.
**2008**, 54, 477–491. [Google Scholar] [CrossRef]

Algorithms | Accuracy | Automaticity | Real-Time | Diversity | Scalability | Cold-Start Problem | Sparsity Problem | |
---|---|---|---|---|---|---|---|---|

CBF | Inferior | Good | Good | Bad | Bad | New users | Not | |

CF | User-based CF | Better | Bad | Bad | Better | Bad | Serious | Serious |

Item-based CF | Better | Inferior | Inferior | Better | Bad | Serious | Serious | |

Association rules | General | Good | Good | Good | General | New projects | General |

Product | Algorithm | Recommend | Don’t Recommend | Uncertain |
---|---|---|---|---|

A | CBF | 65% | 30% | 5% |

CF | 67% | 30% | 3% | |

Association rules | 63% | 34% | 3% | |

B | CBF | 66% | 32% | 2% |

CF | 65% | 30% | 5% | |

Association rules | 67% | 29% | 4% | |

C | CBF | 56% | 40% | 4% |

CF | 58% | 30% | 12% | |

Association rules | 62% | 33% | 5% |

Product | Recommend | Don’t Recommend | Uncertain | Algorithm | Weights |
---|---|---|---|---|---|

A | 0.65 | 0.30 | 0.05 | CBF | 0.37 |

B | 0.66 | 0.32 | 0.02 | ||

C | 0.56 | 0.40 | 0.04 | ||

A | 0.67 | 0.30 | 0.03 | CF | 0.51 |

B | 0.65 | 0.30 | 0.05 | ||

C | 0.58 | 0.30 | 0.12 | ||

A | 0.63 | 0.34 | 0.03 | Association rules | 0.12 |

B | 0.67 | 0.29 | 0.04 | ||

C | 0.62 | 0.33 | 0.05 |

Product | Recommend | Don’t Recommend | Uncertain |
---|---|---|---|

A | 0.658 | 0.305 | 0.037 |

B | 0.656 | 0.306 | 0.038 |

C | 0.577 | 0.341 | 0.082 |

Algorithm | Data Statistics Time (24 H × 7) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |

proposed algorithm | 18% | 28% | 36% | 43% | 51% | 60% | 67% | 73% | 80% | 79% |

user-based CF | 16% | 22% | 29% | 37% | 44% | 52% | 59% | 61% | 70% | 65% |

association rules | 17% | 27% | 34% | 41% | 50% | 58% | 65% | 70% | 78% | 75% |

CBF | 17% | 25% | 32% | 39% | 48% | 57% | 64% | 68% | 77% | 72% |

item-based CF | 16% | 24% | 31% | 38% | 47% | 55% | 61% | 65% | 73% | 68% |

Algorithm | Number of Customers | |||||||||
---|---|---|---|---|---|---|---|---|---|---|

50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |

proposed algorithm | 20% | 35% | 50% | 70% | 75% | 81% | 78% | 75% | 70% | 67% |

CBF | 17% | 27% | 41% | 60% | 64% | 71% | 61% | 52% | 48% | 41% |

item-based CF | 18% | 33% | 48% | 67% | 71% | 79% | 71% | 65% | 59% | 55% |

user-based CF | 18% | 32% | 47% | 66% | 68% | 77% | 69% | 61% | 54% | 49% |

association rules | 17% | 30% | 44% | 63% | 67% | 75% | 65% | 58% | 51% | 44% |

Algorithm | Number of Customers | |||||||||
---|---|---|---|---|---|---|---|---|---|---|

50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |

proposed algorithm | 18% | 26% | 35% | 41% | 45% | 48% | 45% | 43% | 41% | 39% |

association rules | 17% | 24% | 33% | 39% | 41% | 45% | 42% | 38% | 34% | 29% |

item-based CF | 17% | 22% | 30% | 35% | 39% | 42% | 40% | 35% | 31% | 25% |

CBF | 17% | 22% | 29% | 35% | 38% | 42% | 39% | 35% | 31% | 25% |

user-based CF | 16% | 21% | 29% | 34% | 38% | 42% | 39% | 34% | 30% | 24% |

Customers | Proposed Algorithm (s) | CBF (s) | Association Rules (s) | Item-Based CF (s) | User-Based CF (s) |
---|---|---|---|---|---|

50 | 0.33 | 0.28 | 0.29 | 0.29 | 0.31 |

100 | 0.81 | 0.49 | 0.49 | 0.51 | 0.54 |

150 | 1.23 | 0.71 | 0.78 | 0.79 | 0.81 |

200 | 1.78 | 0.99 | 1.02 | 1.04 | 1.18 |

300 | 2.45 | 1.48 | 1.51 | 1.54 | 1.64 |

350 | 2.79 | 1.76 | 1.81 | 1.85 | 1.96 |

400 | 3.21 | 2.01 | 2.04 | 2.16 | 2.23 |

450 | 3.78 | 2.21 | 2.47 | 2.56 | 2.67 |

500 | 4.44 | 2.52 | 2.81 | 2.94 | 2.99 |
