# Q-Conditional Symmetries and Exact Solutions of Nonlinear Reaction–Diffusion Systems

## Abstract

**:**

## 1. Introduction

## 2. Main Result

**Theorem 1.**In the cases ${\lambda}_{2}={\lambda}_{1}$ or ${\eta}_{v}^{1}={\eta}_{u}^{2}=0$ with conditions (8), the system of determining equations for finding of the Q-conditional operators of the form (5) for system (6) coincide with the system of determining equations for finding Lie operators.

**Proof.**Substituting (13), with ${\lambda}_{2}={\lambda}_{1}$, into system (7) we find that Equations $1)-11)$ are transformed into identities, and Equations $12)$ and $13)$ take the form

**Theorem 2.**The nonlinear reaction–diffusion system (6) is Q-conditionally invariant under operator (5) with coefficients (17) if and only if the nonlinearities ${C}^{1},\phantom{\rule{4pt}{0ex}}{C}^{2}$ are the solutions of linear system (18).

**Theorem 3.**Reaction–diffusion system (6) is Q-conditionally invariant under operator (5) with conditions (8), and ${\eta}_{u}^{2}=0$, if and only if the system and corresponding operator have one of the seven following forms (moreover ${\lambda}_{2}\ne {\lambda}_{1}$):

**Proof.**To prove this theorem, it is necessary and sufficient to construct the general solution of system (22) for all possible ratios between parameters ${\beta}_{1},\phantom{\rule{4pt}{0ex}}{\beta}_{2},\phantom{\rule{4pt}{0ex}}{\gamma}_{2}.$ To do this we need to investigate the following seven cases:

## 3. Ansätze and Exact Solutions of the Reaction–Diffusion System

No. | Ansätze | Systems of ODEs |
---|---|---|

(23) | $u=\left(t+\psi \right){e}^{{\beta}_{1}t+\phi}$ | ${\phi}^{\prime \prime}+{\left({\phi}^{\prime}\right)}^{2}-{\beta}_{1}\left(g\left({e}^{{\beta}_{1}\psi -\phi}\right)+\frac{{\lambda}_{1}+{\lambda}_{2}}{2}\right)=0$ |

$v={e}^{{\beta}_{1}t+\phi}$ | ${\psi}^{\prime \prime}+2{\phi}^{\prime}{\psi}^{\prime}+g\left({e}^{{\beta}_{1}\psi -\phi}\right)\left({\beta}_{1}\psi -\phi \right)-h\left({e}^{{\beta}_{1}\psi -\phi}\right)-\frac{{\lambda}_{1}+{\lambda}_{2}}{2}=0$ | |

(24) | $u=\psi \left({e}^{{\beta}_{2}t+\phi}\right){}^{\frac{{\beta}_{1}}{{\beta}_{2}}}-\frac{{e}^{{\beta}_{2}t+\phi}}{{\beta}_{1}-{\beta}_{2}}$ | ${\phi}^{\prime \prime}+{\left({\phi}^{\prime}\right)}^{2}+g\left(\left({\beta}_{1}-{\beta}_{2}\right)\psi \right)\left({\beta}_{1}-{\beta}_{2}\right)-{\beta}_{2}\frac{{\lambda}_{1}+{\lambda}_{2}}{2}=0$ |

$v={e}^{{\beta}_{2}t+\phi}$ | ${\psi}^{\prime \prime}+\frac{2{\beta}_{1}}{{\beta}_{2}}{\phi}^{\prime}{\psi}^{\prime}+\frac{{\beta}_{1}}{{\beta}_{2}}\left(\frac{{\beta}_{1}}{{\beta}_{2}}-1\right)\psi \left({\left({\phi}^{\prime}\right)}^{2}-{\beta}_{2}g\left(\left({\beta}_{1}-{\beta}_{2}\right)\psi \right)\right)-h\left(\left({\beta}_{1}-{\beta}_{2}\right)\psi \right)=0$ | |

(25) | $u=\phi t+\psi $ | ${\phi}^{\prime \prime}-\phi g\left(\phi \right)=0$ |

$v=\phi $ | ${\psi}^{\prime \prime}-g\left(\phi \right)\psi -h\left(\phi \right)-{\lambda}_{1}\phi =0$ | |

(26) | $u=\frac{1}{2}{t}^{2}+\phi t+\psi $ | ${\phi}^{\prime \prime}-g\left(2\psi -{\phi}^{2}\right)-\frac{{\lambda}_{1}+{\lambda}_{2}}{2}=0$ |

$v=t+\phi $ | ${\psi}^{\prime \prime}-g\left(2\psi -{\phi}^{2}\right)\phi -h\left(2\psi -{\phi}^{2}\right)-\frac{{\lambda}_{1}+{\lambda}_{2}}{2}\phi =0$ | |

(27) | $u=\frac{1}{{\beta}_{2}}{e}^{{\beta}_{2}t+\phi}-{\tau}_{2}t+\psi $ | ${\phi}^{\prime \prime}+{\left({\phi}^{\prime}\right)}^{2}-{\beta}_{2}\phantom{\rule{4.pt}{0ex}}g\left({\tau}_{2}(\phi +1)+{\beta}_{2}\psi \right)-\frac{{\lambda}_{1}+{\lambda}_{2}}{2}{\beta}_{2}=0$ |

$v={e}^{{\beta}_{2}t+\phi}-{\tau}_{2}$ | ${\psi}^{\prime \prime}-h\left({\tau}_{2}(\phi +1)+{\beta}_{2}\psi \right)+{\tau}_{2}g\left({\tau}_{2}(\phi +1)+{\beta}_{2}\psi \right)+\frac{{\lambda}_{1}+{\lambda}_{2}}{2}{\tau}_{2}=0$ | |

(28) | $u=\psi {e}^{{\beta}_{1}t}-\phi $ | ${\phi}^{\prime \prime}-g\left(\phi \right)=0$ |

$v=\phi $ | ${\psi}^{\prime \prime}-\left(h\left(\phi \right)+{\beta}_{1}{\lambda}_{1}\right)\psi =0$ | |

(29) | $u=\psi {e}^{{\beta}_{1}t}-\frac{{\gamma}_{2}t}{{\beta}_{1}}-\frac{\phi}{{\beta}_{1}}-\frac{{\gamma}_{2}}{{\beta}_{1}^{2}}$ | ${\phi}^{\prime \prime}-g\left({\beta}_{1}^{2}\psi {e}^{-\frac{{\beta}_{1}\phi}{{\gamma}_{2}}}\right){\beta}_{1}-\frac{\left({\lambda}_{1}+{\lambda}_{2}\right)}{2}{\gamma}_{2}=0$ |

$v={\gamma}_{2}t+\phi $ | ${\psi}^{\prime \prime}-{e}^{\frac{{\beta}_{1}\phi}{{\gamma}_{2}}}h\left({\beta}_{1}^{2}\psi {e}^{-\frac{{\beta}_{1}\phi}{{\gamma}_{2}}}\right)-{\beta}_{1}\frac{{\lambda}_{1}+{\lambda}_{2}}{2}\psi =0$ |

## 4. Solutions and Their Properties of Some Generalization of the Lotka–Volterra System

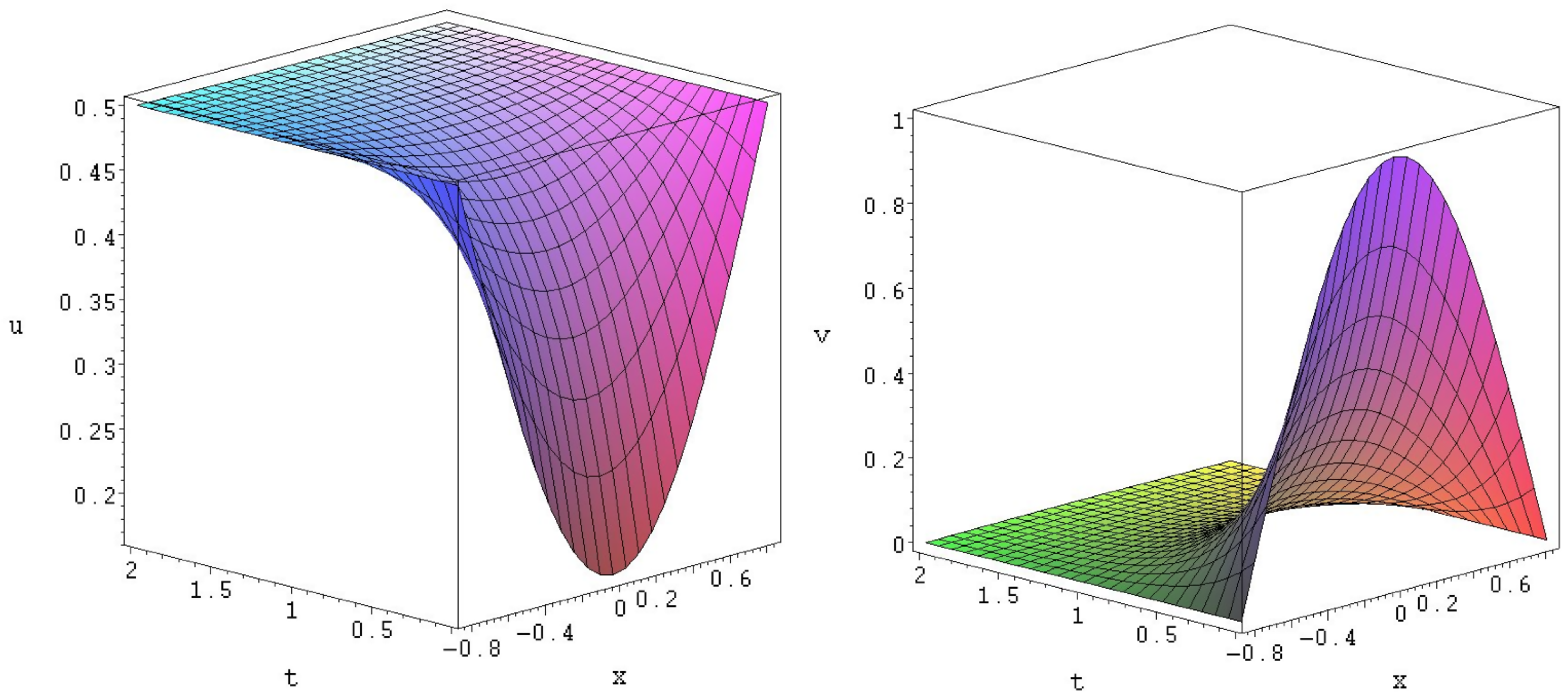

**Figure 1.**Exact solution to (51).

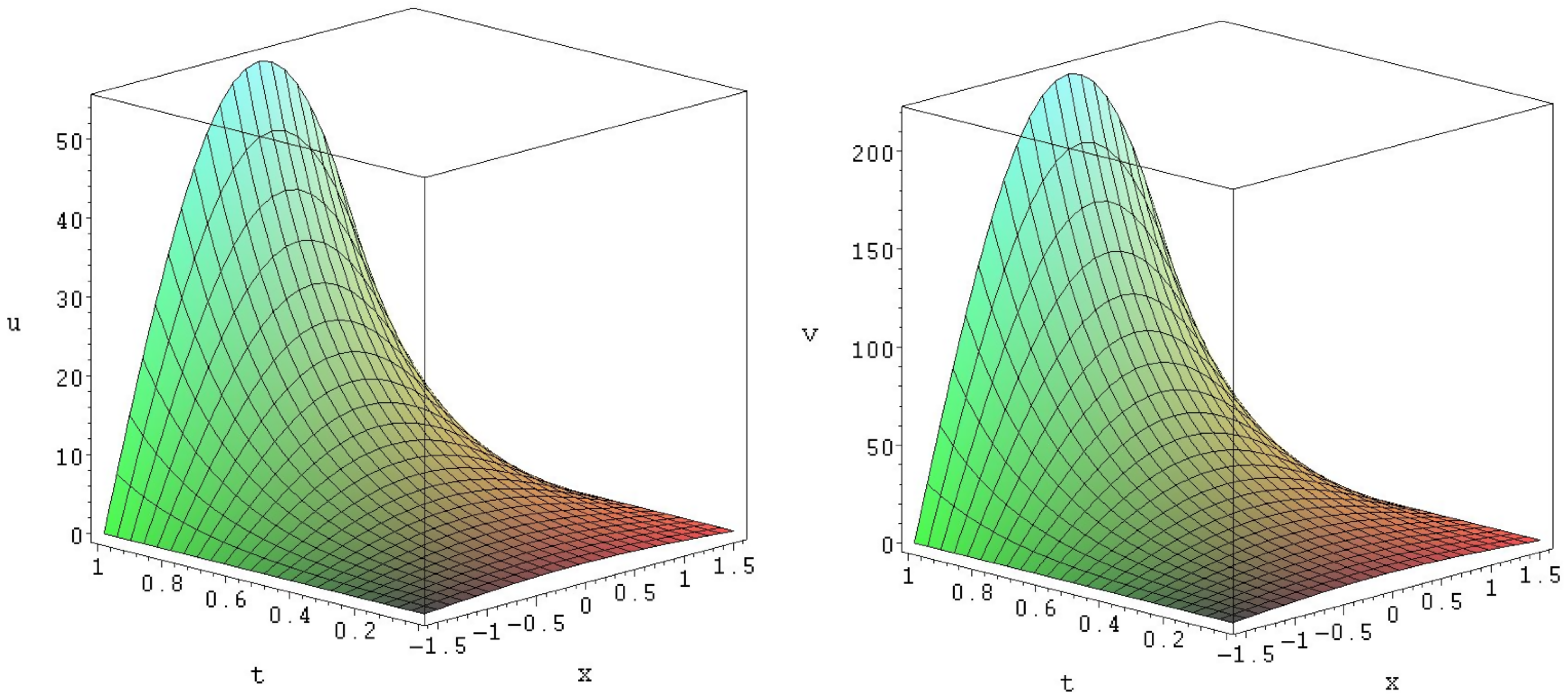

**Figure 2.**Exact solution of (55).

## 5. Conclusions

## Acknowledgments

## Conflicts of Interest

## References

- Turing, A.M. The chemical basis of morphogenesis. Philos. Trans. Royal Soc. Lond. B Biol. Sci.
**1952**, 237, 37–72. [Google Scholar] [CrossRef] - Ames, W.F. Nonlinear Partial Differential Equations in Engineering; Academic Press: New York, NY, USA; London, UK, 1965; p. xii+511. [Google Scholar]
- Murray, J.D. Mathematical Biology I: An Introduction, 3rd ed.; Interdisciplinary Applied Mathematics; Springer-Verlag: New York, NY, USA, 2002; Volume 17, p. xxiv+551. [Google Scholar]
- Murray, J.D. Mathematical biology II: Spatial Models and Biomedical Applications, 3rd ed.; Interdisciplinary Applied Mathematics; Springer-Verlag: New York, NY, USA, 2003; Volume 18, p. xxvi+811. [Google Scholar]
- Britton, N.F. Essential Mathematical Biology; Springer Undergraduate Mathematics Series; Springer-Verlag London, Ltd.: London, UK, 2003; p. xvi+335. [Google Scholar]
- Okubo, A.; Levin, S.A. Diffusion and Ecological Problems: Modern Perspectives, 2nd ed.; Interdisciplinary Applied Mathematics; Springer-Verlag: New York, NY, USA, 2001; Volume 14, p. xx+467. [Google Scholar]
- Henry, D. Geometric Theory of Semilinear Parabolic Equations; Lecture Notes in Mathematics; Springer-Verlag: Berlin, Germany; New York, NY, USA, 1981; Volume 840, p. iv+348. [Google Scholar]
- Cherniha, R. Lie symmetries of nonlinear two-dimensional reaction–diffusion systems. Rep. Math. Phys.
**2000**, 46, 63–76. [Google Scholar] [CrossRef] - Cherniha, R.; King, J.R. Lie symmetries of nonlinear multidimensional reaction–diffusion systems. I. J. Phys. A
**2000**, 33, 267–282. [Google Scholar] [CrossRef] - Cherniha, R.; King, J.R. Addendum: “Lie symmetries of nonlinear multidimensional reaction–diffusion systems. I”. J. Phys. A
**2000**, 33, 7839–7841. [Google Scholar] [CrossRef] - Cherniha, R.; King, J.R. Lie symmetries of nonlinear multidimensional reaction–diffusion systems. II. J. Phys. A
**2003**, 36, 405–425. [Google Scholar] [CrossRef] - Barannik, T.A. Conditional symmetry and exact solutions of a multidimensional diffusion equation. Ukr. Math. J.
**2002**, 54, 1416–1420. [Google Scholar] - Barannyk, T. Symmetry and exact solutions for systems of nonlinear reaction–diffusion equations. Available online: http://eqworld.ipmnet.ru/en/solutions/interesting/barannyk.pdf (accessed on 13 October 2015).
- Serov, N.I. Conditional invariance and exact solutions of a nonlinear heat equation. Ukr. Math. J.
**1990**, 42, 1370–1376. [Google Scholar] - Fushchych, W.; Shtelen, W.; Serov, M. Symmetry Analysis and Exact Solutions of Equations of Nonlinear Mathematical Physics; Kluwer: Dordrecht, The Netherland, 1993. [Google Scholar]
- Nucci, M.C. Symmetries of linear, C-integrable, S-integrable, and nonintegrable equations. In Nonlinear Evolution Equations and Dynamical Systems (Baia Verde, 1991); World Sci. Publ.: River Edge, NJ, USA, 1992; pp. 374–381. [Google Scholar]
- Clarkson, P.A.; Mansfield, E.L. Symmetry reductions and exact solutions of a class of nonlinear heat equations. Physica D
**1994**, 70, 250–288. [Google Scholar] [CrossRef] - Arrigo, D.J.; Hill, J.M.; Broadbridge, P. Nonclassical symmetry reductions of the linear diffusion equation with a nonlinear source. IMA J. Appl. Math.
**1994**, 52, 1–24. [Google Scholar] [CrossRef] - Arrigo, D.J.; Hill, J.M. Nonclassical symmetries for nonlinear diffusion and absorption. Stud. Appl. Math.
**1995**, 94, 21–39. [Google Scholar] [CrossRef] - Pucci, E.; Saccomandi, G. Evolution equations, invariant surface conditions and functional separation of variables. Physica D
**2000**, 139, 28–47. [Google Scholar] [CrossRef] - Bluman, G.W.; Cheviakov, A.F.; Anco, S.C. Applications of Symmetry Methods to Partial Differential Equations; Applied Mathematical Sciences; Springer: New York, NY, USA, 2010; Volume 168. [Google Scholar]
- Bluman, G.W.; Cole, J.D. The general similarity solution of the heat equation. J. Math. Mech.
**1968/69**, 18, 1025–1042. [Google Scholar] - Cherniha, R.; Pliukhin, O. New conditional symmetries and exact solutions of reaction–diffusion systems with power diffusivities. J. Phys. A
**2008**, 41, 185208:1–185208:14. [Google Scholar] [CrossRef] - Cherniha, R.; Davydovych, V. Conditional symmetries and exact solutions of the diffusive Lotka–Volterra system. Math. Comput. Model.
**2011**, 54, 1238–1251. [Google Scholar] [CrossRef] - Cherniha, R. Conditional symmetries for systems of PDEs: New definitions and their application for reaction–diffusion systems. J. Phys. A
**2010**, 43, 405207:1–405207:13. [Google Scholar] [CrossRef] - Sidorov, A.F.; Shapeev, V.P.; Yanenko, N.N. Metod Differentsialnykh Svyazei i Ego Prilozheniya v Gazovoi Dinamike; “Nauka” Sibirsk. Otdel.: Novosibirsk, Russia, 1984; p. 272. (In Russian) [Google Scholar]
- Carini, M.; Fusco, D.; Manganaro, N. Wave-like solutions for a class of parabolic models. Nonlinear Dynam.
**2003**, 32, 211–222. [Google Scholar] [CrossRef]
