126 GeV Higgs Boson Associated with D-term Triggered Dynamical Supersymmetry Breaking
Abstract
: Continuing with our previous work on D-term triggered dynamical supersymmetry breaking, we consider a system in which our generic action is minimally extended to include the pair of Higgs doublet superfields charged under the overall U(1) together with μ and Bμ terms. The gauge group is taken to be SU(3)C × SU(2)L × U(1)Y × U(1). We point out, among other things, that the Higgs mass less than the Z-boson mass at tree level can be pushed up to be around 126 GeV by D-term contributions of the overall U(1). This is readily realized by taking a U(1) gauge coupling to be .The ATLAS [1] and CMS [2] collaborations have recently announced that a Higgs boson was discovered at the Large Hadron Collider (LHC), and its mass is found to be around 126 GeV. Although the observed data for a variety of Higgs boson decay modes are found to be consistent with the Standard Model (SM) expectations, the new physics beyond the SM is indispensable for explanations of various unsolved issues in the SM, such as the origin of dark matter and dark energy.
Supersymmetry (SUSY) is one of the promising candidates of new physics beyond the SM. In the minimal SUSY standard model (MSSM), it is well known that the lightest Higgs boson mass at the tree level is smaller than the Z-boson mass and can be enhanced up to 130 GeV through the quantum corrections by top and stop [3]. The observed Higgs boson mass around 126 GeV requires a heavy stop mass or a large A-term for stop, which leads to some amount of fine-tuning of the parameters, i.e., the “little hierarchy problem”. There are two typical extensions of the MSSM to overcome this issue. One is the next-to-MSSM (NMSSM) [4], and the other is the U(1) extension of the SM gauge group [5]. In the former case, a gauge singlet chiral multiplet is introduced and coupled to the Higgs doublets in the superpotential. F-term contributions can enhance the Higgs mass after developing the vacuum expectation value (VEV) of the singlet. In the latter case, D-term contributions can enhance the Higgs mass if the Higgs doublets are charged under the extended U(1) gauge group. We adopt here the latter approach, since it can be naturally incorporated in our recently proposed mechanism of D-term-triggered dynamical SUSY breaking (DDSB) [6–8], where a nonvanishing D-term VEV of the overall U(1) gauge group is obtained in Hartree–Fock analysis, as is in the Bardeen–Cooper–Shrieffer (BCS) model and the Nambu–Jona–Lasino (NJL) theory [9,10]. Furthermore, our mechanism is a generalization of the Dirac gaugino scenario [11–14], which has recently been given attention as a solution to the natural SUSY breaking spectrum with a 126-GeV Higgs mass, and many pieces of work from various viewpoints have been done till now [15–41].
In this letter, we investigate the implications of the mechanism of DDSB uncovered in [6–8], coupling the system to the MSSM Higgs sector, which includes the μ and Bμ terms. The pair of Higgs doublet superfields Hu, Hd is taken to be charged under the overall U(1):
We have adopted notation X · Y ≡ ∈ABXAYB = XAYA = −Y · X, ∈12 = −∈21 = ∈21 = −∈12 = 1. V1,2,0 are the vector superfields of the SM gauge group and that of the overall U(1), respectively, and the corresponding gauge couplings are denoted by gY,2 and g, respectively. Unlike the MSSM case, the soft scalar Higgs masses , are not introduced, since they are induced by D-term contributions in our framework.
1. Mechanism of D-Term-Triggered Dynamical Supersymmetry Breaking
Before going into the analysis on the objective of this letter, we summarize here the basic qualitative features of the mechanism of D-term-triggered dynamical supersymmetry breaking proposed in [6–8].
Our underlying theory before the Higgs sector is coupled is given below by Equation (2). By matching the tree parts against the one-loop part in the effective potential (which is the Hartree–Fock approximation) upon extremization with respect to the order parameter 〈D0〉, we obtain the gap equation (Equation (21) of [6]; Equations (4.26) and (4.28) of [8]). The gap equation is a self-consistency condition of the Hartree–Fock approximation, and finding the explicit numerical solutions to the gap equation in [6,8] demonstrates the self-consistency of the framework. Once D-term vev is generated, the equation of motion for the D-term tells us that the non-vanishing D-term vev implies the formation of the Dirac condensate, the reasoning of which is parallel to NJL theory in the auxiliary field formalism. See Equation (2.10) of [8] and the equation below to Equation (4) of [6].
There are two fundamental scales in our original theory. One is set by the mass parameter Mprep contained in the prepotential function . The other is the mass parameter Msup contained in the superpotential W. The SUSY breaking scale, namely the order parameter 〈D0〉, is found to be given by their geometric mean; 〈D0〉 ~ MprepMsup (see Equation (3.13) of [8] for the derivation). Therefore, the SUSY breaking scale can be arbitrarily large, depending on how large these two parameters are. All of the adjoint multiplets of the standard model group appearing in our theory receive mass of order Msup (in this paper, we will not really consider including the MSSM matter sector belonging to the fundamental and anti-fundamental representations of the SM group: we only include the MSSM Higgs sector.)
While the Hartree–Fock approximation exploits the one-loop effective potential in the auxiliary field formalism, the one-loop effective potential is matched to be in the same order as the tree-level potential, and this leads to the gap equation. The solution is transcendental in the Planck constant and, in this sense, is non-perturbative. (It is well-known in the NJL-type models that once the auxiliary fields are eliminated, this approximation is equivalent to the bubble summation of the fermion loops. See, for instance, [42].) Since we ignore the two-loop and higher in the auxiliary field formalism, quantum fluctuations are still assumed to be small on this new vacuum. The solution to the gap equation itself (which was obtained from the D variation of tree and one-loop effective action) demonstrates the generation of the SUSY breaking term. All of these discussions are, of course, consistent with perturbative SUSY non-renormalization theorem, which applies to the F-term alone.
As we have already mentioned, there are two scales in our theory. By making m ≪ Mprep = cutoff scale, we obtain 〈D0〉 ≪ (cutoff scale)2. Our gap parameter Δ is a dimensionless parameter obtained from 〈D0〉 and is determined to be by the gap equation. We work, therefore, consistently in the weak field regime, where our effective description is valid. The SUSY breaking scale is much larger than the electroweak scale, but still much smaller than the cutoff.
2. Lagrangian and Effective Potential Extended
2.1. Lagrangian
Continuing [8], we work with the general supersymmetric action consisting of chiral superfield Φa in the adjoint representation and the vector superfield Va that has been shown to break supersymmetry dynamically by the nonvanishing D0-term:
There are three input functions: the Kähler potential with its gauging, the gauge kinetic superfields τab(Φa) that are the second derivatives of a holomorphic function (Φa) and a superpotential W(Φa).
As in [8], we make the following assumptions:
Third derivatives of (Φa) at the scalar VEV’s are non-vanishing.
The superpotential at the tree-level preserves supersymmetry.
The vacuum is taken to be in the unbroken phase of the gauge group SU(3)C × SU(2)L × U(1)Y × U(1).
The last assumption has been made for a technical reason and is not essential to the mechanism of dynamical supersymmetry breaking.
Some comments are in order for phenomenological applications of the theory based on this action. First of all, the term we have proposed in our starting action Equation (2) is very similar to the super-soft operator , which appears in the more phenomenological operator analysis. (see, for instance, [14]). The presence of the operator of this type alone has been known to be phenomenologically dangerous, as it leads to a massless particle in the imaginary part of the complex adjoint scalars. The point we make here is, however, that our starting action Equation (2) consists not only of such a part, which contains this operator, but also of the superpotential part, which cannot be obtained just by an operator analysis. The superpotential contains the scale Msup, different both from the cutoff scale Mprep and from the electroweak scale contained in the Higgs sector, and the resulting potential has a positive curvature everywhere near the extremum. The ordinary U(1) invariance of the complex scalar field is kept intact, and unbroken supersymmetry of this term ensures that the tree spectrum obtained here is a massive supermultiplet consisting of two real spinless particles and two polarization states of spin 1/2 particles. See, for instance, [43] for illustrative explicit computation of the mass spectrum in the model of [44]. Therefore, all of the adjoint scalars in the standard model group receive masses of order Msup, and the D-term supersymmetry breaking mechanism gives a boson-fermion splitting. There is no such light scalar in our theory to begin with, in contrast with the operator analysis of [14].
It is also known that the operator of the type causes negative mass squared to the imaginary part of the adjoint scalars. It is clear that our action does not contain such a dangerous operator, and our theory is free from such difficulty.
To simplify the analysis in what follows, while keeping the essence, we adopt the simplest prepotential and superpotential exploited in [8] of a 5 × 5 complex matrix scalar superfield φ:
We embed the generators of the gauge group into the bases, which expand φ:
We have represented the overall U(1) and U(1)Y generators to be proportional to the unit matrix and the traceless diagonal generator, respectively. We analyze the case in which only S receives its VEV, namely the unbroken U(5) vacuum of the superpotential. We will make a comment for those cases in which these do not hold, which lead to the kinetic mixing. We drop octet T8, as it is irrelevant to the analysis below.
After a simple calculation, we obtain the non-vanishing prepotential derivatives:
We choose c = 10i, but hSi is complex, not necessarily real.
In this letter, we add Equation (1) to Equation (2) and consider a part of DDSB + Higgs relevant to 126 GeV Higgs:
The third prepotential derivatives, which are now real numbers, can be read off from Equation (6).
In our analysis, we take that the value of D0 VEV is determined essentially by our Hartree–Fock approximation in [8]. This source of supersymmetry breaking is then fed to the Higgs sector, and its effects are given by a tree-level analysis. We will argue the validity of this procedure below.
Let us make the comment that the Bμ term in Equation (1) is generated once we include an operator in the superpotential as an interaction term of our starting action. Here, Mprep is the scale that we have introduced in the prepotential function and is regarded as a cutoff scale. It is easy to see that the (D/Mprep)2HuHd term is generated after d2θ Grassmann integrations. Picking up the vev of D, we conclude that m2HuHd with m ~ 〈D0〉/Mprep is generated in the potential.
2.2. Higgs Potential and Variations
Let us extract the part relevant to the Higgs potential in Equation (8).
Let us vary pot with respect to the auxiliary fields, replacing φC by their VEV 〈φC〉 = (0, 0, 〈S〉).
Note that aa0 = YY0 = 000 ≡‴ and that Equation (12) with qu = qd = 0 is in fact the gap equation of [6,8]. Eliminating the auxiliary fields (approximately), we obtain the Higgs potential:
Here, we have denoted by D0* the solution to Equation (12), the improved gap equation. The deviation δD0* of the value from D0* in [8] is, in fact, small by the ratio of the electroweak scale and SUSY breaking scale. Therefore, we approximate the solution to the improved gap equation by the value of D0* in [8], denoted as 〈D0〉. Taking into account the fact that Im ‴〈S〉 ~ 〈S〉/M ≪ 1, we neglect the term Im ‴〈S〉 at the leading order. The resulting Higgs potential at the leading order is given by:
G0 is the would-be Nambu–Goldstone boson eaten as the longitudinal component of the Z-boson. The VEV of Higgs field is v ≃ 246 GeV and in this convention.
3. Estimate of the Higgs Mass
We are now ready to calculate the Higgs mass. As in the MSSM, the minimization of the scalar potential ∂VHiggs/∂v2 = ∂VHiggs/∂β = 0 allows us to express μ and Bμ in terms of other parameters.
It is straightforward to obtain the mass matrix for CP-even Higgs from the second derivative of the potential,
The eigenvalues of this mass matrix are found as:
In order for the μ-term to be allowed in the superpotential, we must have a condition eu + ed = 0, which is also required from an anomaly cancellation condition for the overall U(1). Then, the Higgs mass can be expressed as:
As in the case of MSSM, the upper bound of Higgs mass can be obtained by taking a decoupling limit ,
can be large enough by taking O(1) charge and coupling qug:
Let us go back to the minimization conditions of Higgs potential with qu + qd = 0,
In order to satisfy this condition, the dominant part in the right-hand side of Equation (32)qug〈D0〉/c2β is required to be negative.
Using these conditions, we can eliminate in Higgs mass Equation (26).

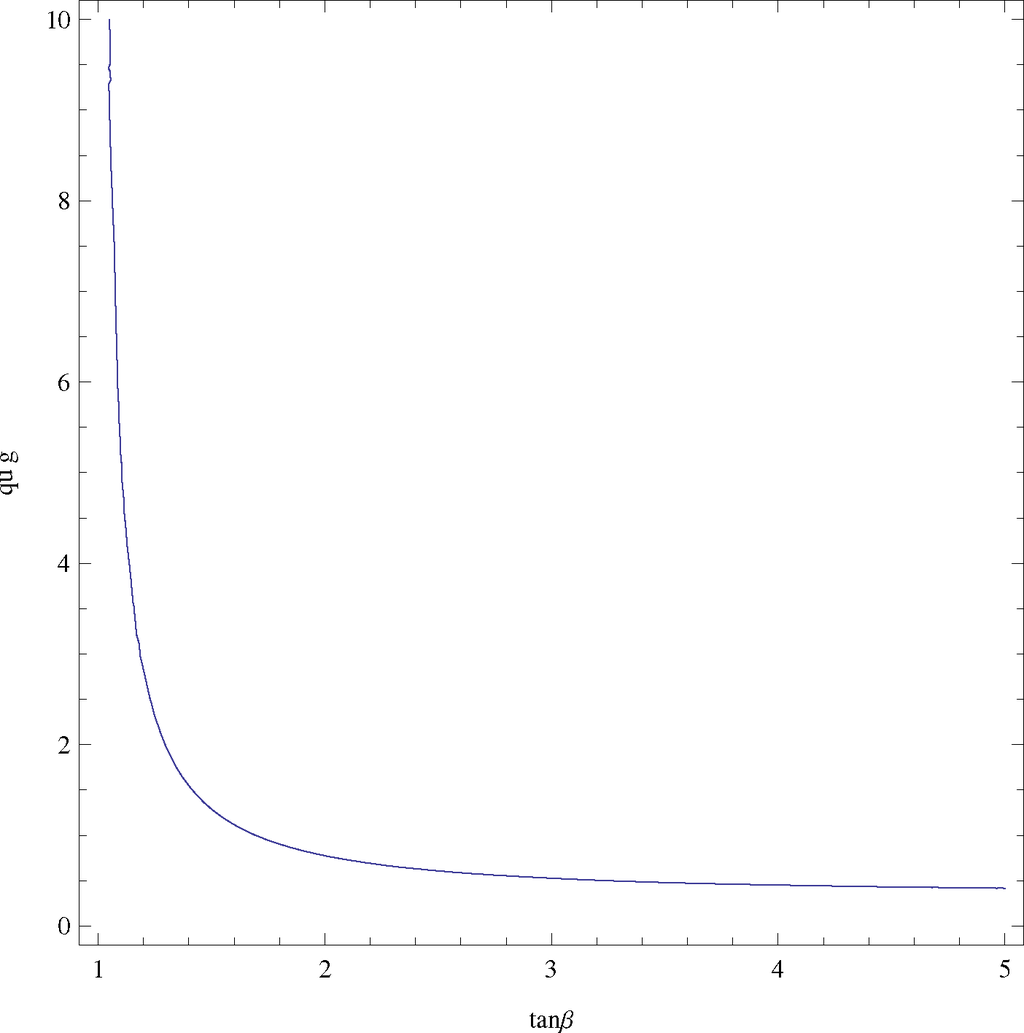

A plot for the 126-GeV Higgs mass as a function of tan β and qug is shown below (Figure 1). Here, we have taken qug > 0 and cos 2β < 0 to satisfy the condition qug〈D0〉/c2β < 0. We can immediately see that the 126-GeV Higgs mass is realized by charge and coupling qug, namely without fine-tuning of parameters. Furthermore, we found that the result is insensitive to the values of D-term VEV with the assumption . This fact is naturally expected from the non-decoupling nature of Higgs mass.
4. Summary
In this letter, we have examined Higgs mass in the theory of D-term-triggered dynamical SUSY breaking minimally extended to couple the Higgs sector of the MSSM. Since the Higgs doublets are charged under the overall U(1) in our framework, the soft scalar Higgs masses are induced by the overall U(1) D-term contributions after SUSY breaking, unlike the MSSM case. These D-term contributions can enhance the Higgs mass, which is less than Z-boson mass at the tree-level in the MSSM. We have shown that the 126-GeV Higgs mass is naturally realized by taking an overall U(1) gauge coupling to be .
We give a comment on anomaly cancellation of the overall U(1) gauge symmetry, which arises when the MSSM matter sector is added to our current construction. If we consider that the SM matter and Higgs are charged under the overall U(1) and the superpotential allows the SM Yukawa coupling and μ-term, then the overall U(1) will be found to be anomalous. To resolve this problem, we need to introduce some additional fields charged under the overall U(1). Actually, we can easily confirm that all of the anomalies for U(1)(SU(3)C)2, U(1)(SU(2)L)2, U(1)(U(1)Y)2, U(1), (U(1))3 are completely canceled by introducing two SM singlets with appropriate U(1) charges, for instance. Yukawa coupling and the μ-term are allowed in the superpotential under the conditions:
Some comments on an overall U(1) gauge group are given. In order to realize the 126-GeV Higgs boson mass, the value of the U(1) gauge coupling is required to be order one. Such a large coupling causes a Landau pole of order 1000 TeV, if U(1) charged fields are the MSSM Higgs doublet superfields Hu,d, and two singlet superfields to cancel anomalies U(1), U(1)3. Identifying the landau pole with the Mprep, we find 〈D0〉 ~ (100 TeV)2. The U(1) gauge symmetry is broken at the weak scale by the VEV of Higgs fields, and the U(1) gauge boson acquires a mass as gυ. This implies an mass mixing with the Z boson and is not phenomenologically viable as it stands. Therefore, we need an extension of our model to avoid this issue.
Acknowledgments
The work of Hiroshi Itoyama is supported in part by the Grant-in-Aid for Scientific Research from the Ministry of Education, Science and Culture, Japan, No. 23540316. The work of Nobuhito Maru is supported in part by the Grant-in-Aid for Scientific Research from the Ministry of Education, Science and Culture, Japan, No. 24540283.
Author Contributions
Hiroshi Itoyama and Nobuhito Maru conceived and discussed ideas of this work, did calculations, and wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Aad, G.; Abajyan, T.; Abbott, B.; Abdallah, J.; Abdel Khalek, S.; Abdelalim, A.A.; Abdinov, O.; Aben, R.; Abi, B.; Abolins, M.; et al. Observation of a new particle in the search for the Standard Model Higgs boson with the ATLAS detector at the LHC. Phys. Lett. B 2012, 716, 1–29. [Google Scholar]
- Chatrchyan, S.; Khachatryan, V.; Sirunyan, A.M.; Tumasyan, A.; Adam, W.; Aguilo, E.; Bergauer, T.; Dragicevic, M.; Erö, J.; Fabjan, C.; et al. Observation of a new boson at a mass of 125 GeV with the CMS experiment at the LHC. Phys. Lett. B 2012, 716, 30–61. [Google Scholar]
- Okada, Y.; Yamaguchi, M.; Yanagida, T. Upper bound of the lightest Higgs boson mass in the minimal supersymmetric standard model. Prog. Theor. Phys. 1991, 85, 1–5. [Google Scholar]
- Ellwanger, U.; Hugonie, C.; Teixeira, A.M. The next-to-minimal supersymmetric standard model. Phys. Rept. 2010, 496, 1–77. [Google Scholar]
- Langacker, P. The physics of heavy Z0 gauge bosons. Rev. Mod. Phys. 2009, 81, 1199–1228. [Google Scholar]
- Itoyama, H.; Maru, N. D-term dynamical supersymmetry breaking generating split N = 2 gaugino masses of mixed majorana-dirac type, Available online: http://arxiv.org/abs/1109.2276 accessed on 15 February 2015.
- Itoyama, H.; Maru, N. D-term dynamical SUSY breaking, Available online: http://arxiv.org/abs/1207.7152 accessed on 15 February 2015.
- Itoyama, H.; Maru, N. D-term triggered dynamical supersymmetry breaking. Phys. Rev. D 2013, 88. [Google Scholar] [CrossRef]
- Bardeen, J.; Cooper, L.N.; Schrieffer, J.R. Theory of superconductivity. Phys. Rev. 1957, 108. [Google Scholar] [CrossRef]
- Nambu, Y.; Jona-Lasinio, G. Dynamical model of elementary particles based on an analogy with. superconductivity. I. Phys. Rev. 1961, 122. [Google Scholar] [CrossRef]
- Fayet, P. Massive gluinos. Phys. Lett. B 1978, 78, 417–420. [Google Scholar]
- Polchinski, J.; Susskind, L. Breaking of supersymmetry at intermediate-energy. Phys. Rev. D 1982, 26. [Google Scholar] [CrossRef]
- Hall, L.J.; Randall, L. U(1)-R symmetric supersymmetry. Nucl. Phys. B 1991, 352, 289–308. [Google Scholar]
- Fox, P.J.; Nelson, A.E.; Weiner, N. Dirac gaugino masses and super-soft supersymmetry breaking. J. High Energy Phys. 2002, 0208. [Google Scholar] [CrossRef]
- Nelson, A.E.; Rius, N.; Sanz, V.; Unsal, M. The Minimal supersymmetric model without a μ term. J. High Energy Phys. 2002, 0208. [Google Scholar] [CrossRef]
- Chacko, Z.; Fox, P.J.; Murayama, H. Localized super-soft supersymmetry breaking. Nucl. Phys. B 2005, 706, 53–70. [Google Scholar]
- Carpenter, L.M.; Fox, P.J.; Kaplan, D.E. The NMSSM, Anomaly Mediationa Dirac Bino, 2005. Available online: http://arxiv.org/abs/hep-ph/0503093 accessed on 15 February 2015.
- Antoniadis, I.; Delgado, A.; Benakli, K.; Quiros, M.; Tuckmantel, M. Splitting extended supersymmetry. Phys. Lett. B 2006, 634, 302–306. [Google Scholar]
- Nomura, Y.; Poland, D.; Tweedie, B. Minimally fine-tuned supersymmetric standard models with intermediate-scale supersymmetry breaking. Nucl. Phys. B 2006, 745, 29–48. [Google Scholar]
- Antoniadis, I.; Benakli, K.; Delgado, A.; Quiros, M. A new gauge mediation theory, Available online: http://arxiv.org/abs/hep-ph/0610265 accessed on 15 February 2015.
- Hisano, J.; Nagai, M.; Naganawa, T.; Senami, M. Electric dipole moments in pseudodirac gauginos. Phys. Lett. B 2007, 644, 256–264. [Google Scholar]
- Hsieh, K. Pseudo-Dirac bino dark matter. Phys. Rev. D 2008, 77. [Google Scholar] [CrossRef]
- Kribs, G.D.; Poppitz, E.; Weiner, N. Flavor in supersymmetry with an extended R-symmetry. Phys. Rev. D 2008, 78. [Google Scholar] [CrossRef]
- Blechman, A.E.; Ng, S.-P. QCD corrections to K-anti-K mixing in R-symmetric supersymmetric models. J. High Energy Phys. 2008, 0806, 043:1–043:11. [Google Scholar]
- Kribs, G.D.; Martin, A.; Roy, T.S. Supersymmetry with a chargino NLSP and gravitino LSP. J. High Energy Phys. 2009, 0901. [Google Scholar] [CrossRef]
- Amigo, S.D.L.; Blechman, A.E.; Fox, P.J.; Poppitz, E. R-symmetric gauge mediation. J. High Energy Phys. 2009, 0901. [Google Scholar] [CrossRef]
- Benakli, K.; Goodsell, M.D. Dirac gauginos in general gauge mediation. Nucl. Phys. B 2009, 816, 185–203. [Google Scholar]
- Blechman, A.E. R-symmetric gauge mediation and the minimal R-Symmetric supersymmetric standard model. Mod. Phys. Lett. A 2009, 24, 633–646. [Google Scholar]
- Carpenter, L.M. Dirac gauginos, negative supertraces and gauge mediation. J. High Energy Phys. 2012, 1209. [Google Scholar] [CrossRef]
- Kribs, G.D.; Okui, T.; Roy, T.S. Viable gravity-mediated supersymmetry breaking. Phys. Rev. D 2010, 82. [Google Scholar] [CrossRef]
- Abel, S.; Goodsell, M. Easy dirac gauginos. J. High Energy Phys. 2011, 1106. [Google Scholar] [CrossRef]
- Davies, R.; March-Russell, J.; McCullough, M. A supersymmetric one higgs doublet model. JHEP 2011, 1104. [Google Scholar] [CrossRef]
- Benakli, K.; Goodsell, M.D.; Maier, A.-K. Generating μ and Bμ in models with Dirac Gauginos, Available online: http://arxiv.org/abs/1104.2695 accessed on 15 February 2015.
- Frugiuele, C.; Gregoire, T. Making the sneutrino a higgs with a U(1)R lepton number. Phys. Rev. D 2012, 85. [Google Scholar] [CrossRef]
- Kribs, G.D.; Martin, A. Supersoft supersymmetry is super-safe. Phys. Rev. D 2012, 85. [Google Scholar] [CrossRef]
- Goodsell, M.D. Two-loop RGEs with Dirac gaugino masses. J. High Energy Phys. 1301, 066. [CrossRef]
- Unwin, J. R-symmetric high scale supersymmetry. Phys. Rev. D 2012, 86. [Google Scholar] [CrossRef]
- Benakli, K.; Goodsell, M.D.; Staub, F. Dirac Gauginos and the 125 GeV Higgs. J. High Energy Phys. 1306, 073. [CrossRef]
- Morita, Y.; Nakano, H.; Shimomura, T. Neutrino mass and proton decay in a U(1)R symmetric model, Available online: http://arxiv.org/abs/1212.4304 accessed on 15 February 2015.
- Abel, S.; Busbridge, D. Mapping Dirac gaugino masses. J. High Energy Phys. 2013, 1311. [Google Scholar] [CrossRef]
- Dudas, E.; Goodsell, M.D.; Heurtier, L.; Tziveloglou, P. Flavour models with Dirac and fake Gluinos. Nucl. Phys. B 2014, 884, 632–671. [Google Scholar]
- Gross, D.J.; Neveu, A. Dynamical symmetry breaking in asymptotically free field theories. Phys. Rev. D 1974, 10. [Google Scholar] [CrossRef]
- Fujiwara, K.; Itoyama, H.; Sakaguchi, M. Partial breaking of N = 2 supersymmetry and of gauge symmetry in the U(N) gauge model. Nucl. Phys. B 2005, 723, 33–52. [Google Scholar]
- Fujiwara, K.; Itoyama, H.; Sakaguchi, M. Supersymmetric U(N) gauge model and partial breaking of N = 2 supersymmetry. Prog. Theor. Phys. 2005, 113, 429–455. [Google Scholar]
