Robustness of the Proxy-SU(3) Symmetry in Atomic Nuclei and the Role of the Next-Highest-Weight Irreducible Representation

Abstract

The proxy-SU(3) symmetry predicts, in a parameter-free way, the collective deformation variables $\beta$ and $\gamma$ in even–even atomic nuclei away from closed shells based on the highest weight irreducible representations (irreps) of SU(3) in the relevant proton and neutron shells, which are the most symmetric irreps allowed by the Pauli principle and the short-range nature of the nucleon–nucleon interactions. The special cases in which the use of the next-highest-weight irrep of SU(3) becomes necessary are pointed out, and numerical results are given for several regions of the nuclear chart, which can be used as input for irrep-mixing calculations.

1. Introduction

SU(3) symmetry has been playing an important role in nuclear structure since it was first characterized [1]. In 1949, it was present in the introduction [2,3,4,5] of the shell model [6,7], which is based on the three-dimensional isotropic harmonic oscillator (3D-HO) [8,9,10], the shells of which are characterized by unitary symmetries possessing SU(3) sub-algebras [11]. In 1958, Elliott [12,13,14,15,16] bridged the gap between the shell model and the collective model of Bohr and Mottelson [17,18,19,20], introduced in 1952, by proving that nuclear quadrupole deformation occurs in the shell model framework, with its size depending on the second-order Casimir operator [8,10] of SU(3). Since the SU(3) symmetry is broken beyond the $sd$ nuclear shell because of the presence of spin–orbit interactions [2,3,4,5], several approximation schemes have been introduced, aiming at reestablishing the SU(3) symmetry in higher nuclear shells. The pseudo-SU(3) symmetry [21,22,23,24,25,26,27,28] was introduced in 1973, the quasi-SU(3) symmetry [29,30] appeared in 1995, while the proxy-SU(3) symmetry [31,32,33] was described in 2017. In parallel, the symplectic model [34,35,36] was introduced in 1977, which is a generalization of Elliott’s SU(3) model, taking advantage of an overall non-compact algebra Sp(6,R) possessing an SU(3) subalgebra. The SU(3) subalgrebra of the symplectic symmetry has played a crucial role in the recent development of the symmetry-adapted no-core shell model (SANCSM) [37,38,39,40,41], applicable to light nuclei because of the large-scale computational effort demanded. In all the models mentioned so far, fermions (protons and neutrons) are used. Along an alternative path, initiated in 1975 through the introduction of the Interacting Boson Model (IBM) [42,43,44,45,46], bosons have been used as approximations to correlate fermion pairs. The SU(3) symmetry is also related to nuclear deformation in the IBM framework [47,48,49], as well as in the framework of the Vector Boson Model (VBM) [50].

In the present work, attention is focused on the proxy-SU(3) approximation to the shell model [31,32,33]. Its introduction is based on a unitary transformation [51], allowing for the replacement of the intruder orbitals—invading a nuclear shell from above due to the action of the spin–orbit interactions breaking the SU(3) symmetry of the 3D-HO—by the orbitals which have deserted this nuclear shell, sinking into the shell below. This replacement of the intruder orbitals by the deserting orbitals, acting as their proxies, re-establishes the SU(3) symmetry of the 3D-HO [8,9,10] and allows for its use for the description of medium-mass and heavy nuclei, with the approximation becoming more accurate at heavier shells [31]. The next major ingredient of the proxy-SU(3) symmetry is the dominance of the highest weight (hw) irreducible representations (irreps) of SU(3) [52], which have the lowest energy because of the Pauli principle characterizing the nucleons within the shell and the short-range nature of the nucleon–nucleon interactions [49,53]. It has been proved [52] that the hw irrep, which has the lowest energy, is the most symmetric irrep allowed by the Pauli principle and the short-range nature of the nucleon–nucleon interaction.

The use of the hw irreps has led to several interesting results within the proxy-SU(3) scheme, like the explanation of the dominance [32,54] of the prolate over oblate shapes in the ground states of even–even nuclei and the appearance of shape coexistence only within certain regions of the nuclear chart, called islands of shape coexistence [55,56,57]. It has also allowed for parameter-free predictions of the collective deformation variables $\beta$ (describing deviation from sphericity) and $\gamma$ (describing deviation from triaxiality), which are in satisfactory agreement with available data, as well as with predictions of various theoretical models using free parameters [32,58]. However, some discrepancies occur, which are more evident in nuclei in which the hw irrep of the valence protons and/or of the valence neutrons happen to acquire the completely symmetric form, which is analogous to the completely symmetric form occurring for bosons [43,47].

It is the aim of the present work to pave the way for addressing these discrepancies. As will be shown, this can be achieved by involving the next-highest-weight (nhw) irrep, which is the irrep with the second highest weight among all irreps allowed by the Pauli principle and the short-range nature of the nucleon–nucleon interactions.

2. Highest Weight Irreducible Representations

The highest weight (hw) irreducible representations (irreps) are the most symmetric irreps allowed for a given number of identical nucleons (protons or neutrons) within a given shell allowed by the Pauli principle and the short-range nature of the nucleon–nucleon interactions, which pushes them to have the lowest energy [52].

The shells of the 3D-HO are known to possess the unitary symmetry U$\left(\right(n+1\left)\right(n+2)/2)$, where n is the shell number [8,9,10]. In more detail, the p, $sd$, $pf$, $sdg$, $pfh$, and $sdgi$ shells possess U(3), U(6), U(10), U(15), U(21), and U(28) symmetr, y respectively. All these symmetries possess SU(3) sub-algebras [11].

The hw irrep for each particle number within each shell has been calculated using the code UNTOU3 [59], while a newer code [60]. An analytic formula for the hw irrep also exists [61]. The results are shown in

Table 1. Highest weight (hw) irreducible representations of SU(3) and next-highest-weight (nhw) irreps of SU(3) for M nucleons within the proxy-SU(3) scheme in the $sd$, $pf$, $sdg$, $pfh$, and $sdgi$ shells having overall symmetries of U(6), U(10), U(15), U(21), and U(28), respectively, calculated using the code UNTOU3 [59]. The Elliott [12] notation $(\lambda ,\mu )$ is used for the SU(3) irreps. The corresponding shells of the shell model within the proxy-SU(3) scheme [51] are also shown. Adapted from ref. [62]. See Section 2 for further discussion.

M	U(6)	U(6)	U(10)	U(10)	U(15)	U(15)	U(21)	U(21)	U(28)	U(28)
	$\mathit{sd}$	$\mathit{sd}$	$\mathit{pf}$	$\mathit{pf}$	$\mathit{sdg}$	$\mathit{sdg}$	$\mathit{pfh}$	$\mathit{pfh}$	$\mathit{sdgi}$	$\mathit{sdgi}$
	8–20	8–20	28–50	28–50	50–82	50–82	82–126	82–126	126–128	126–184
	hw	nhw	hw	nhw	hw	nhw	hw	nhw	hw	nhw
2	4,0	0,2	6,0	2,2	8,0	4,2	10,0	6,2	12,0	8,2
4	4,2	0,4	8,2	4,4	12,2	8,4	16,2	12,4	20,2	16,4
6	6,0	0,6	12.0	6,6	18,0	12,6	24,0	18,6	30,0	24,6
8	2,4	4,0	10,4	12,0	18,4	20,0	26,4	28,0	34,4	36,0
10	0,4	2,0	10,4	12,0	20,4	22,0	30,4	32,0	40,4	42,0
12	0,0		12,0	4,10	24,0	16,10	36,0	28,10	48,0	40,10
14			6,6	8,2	20,6	22,2	34,6	36,2	48,6	50,2
16			2,8	4,4	18,8	20,4	34,8	36,4	50,8	52,4
18			0,6	2,2	18,6	20,2	36,6	38,2	54,6	56,2
20			0,0		20,0	10,14	40,0	30,14	60,0	50,14
22					12,8	14,4	34,8	36,4	56,8	58,4
24					6,12	8,8	30,12	32,8	54,12	56,8
26					2,12	4,8	28,12	30,8	54,12	56,8
28					0,8	2,4	28,8	30,4	56,8	58,4
30					0,0		30,0	18,18	60,0	48,18
32							20,10	22,6	52,10	54,6
34							12,16	14,12	46,16	48,12
36							6,18	8,14	42,18	44,14
38							2,16	4,12	40,16	42,12
40							0,10	2,6	40,10	42,6
42							0,0		42,0	28,22
44									30,12	32,8
46									20,20	22,16
48									12,24	14,20
50									6,24	8,20
52									2,20	4,16
54									0,12	2,8
56									0,0

, in which the next-highest-weight (nhw) irrep, which is the one lying in energy immediately above the hw irrep, is also shown, calculated using the code UNTOU3 [59]. The Elliott notation $(\lambda ,\mu )$ [12] is used for the SU(3) irreps, with $\lambda =f_1-f_2$ and $\mu =f_2$, where $f_1$ and $f_2$ are the number of boxes in the first and second row of the relevant Young diagram [8], respectively. We remark that the value $\mu =0$, which corresponds to a fully symmetric (boson-like) irrep [43,47], occurs very rarely in the hw irreps.

In order to find the hw irrep corresponding to the ground state of an even–even nucleus, the hw irreps $({\lambda }_p,{\mu }_p)$ corresponding to the number of valence protons and the hw irreps $({\lambda }_n,{\mu }_n)$ corresponding to the number of valence neutrons are coupled into the most stretched irrep.

$$(\lambda ,\mu )=({\lambda }_p+{\lambda }_n,{\mu }_p+{\mu }_n).$$

(1)

The resulting hw irreps for the nuclei in five different regions of the nuclear chart depicted in Figure 1 are listed in

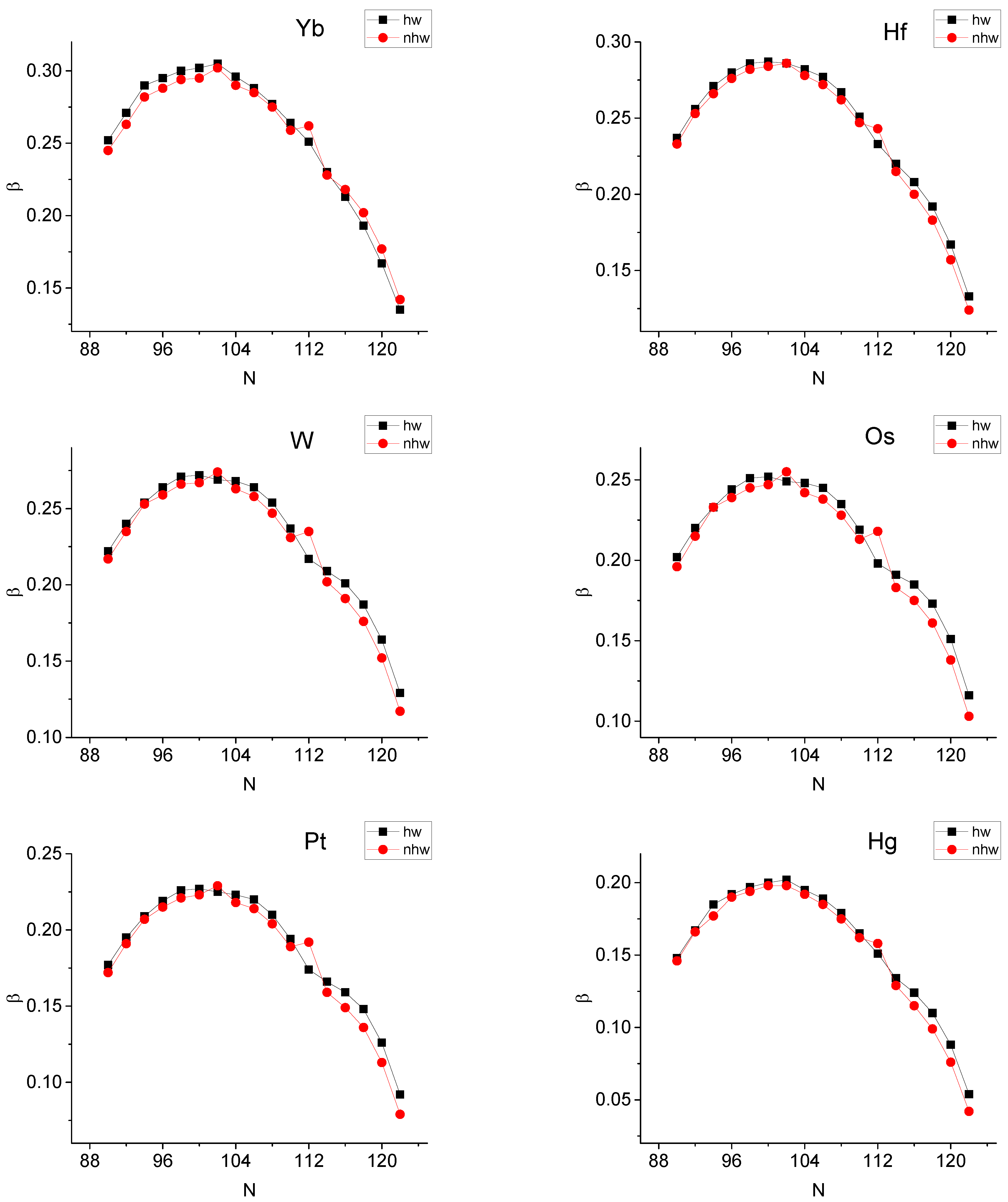

Table 2. Highest weight (hw) irreducible representations of SU(3) and next-highest-weight (nhw) irreps of SU(3) within the proxy-SU(3) scheme for nuclei in the $Z=$ 70–80, $N=$ 90–122 region. The Elliott [12] notation $(\lambda ,\mu )$ is used for the SU(3) irreps. Parameter-independent predictions for the collective variables $\beta$ and $\gamma$ within each irrep, calculated from Equations (7) and (6) are also given, labeled by hw and nhw respectively. See Section 5 for further discussion.

Nucleus	hw	nhw	${\mathit{\beta }}_{\mathit{hw}}$	${\mathit{\beta }}_{\mathit{nhw}}$	${\mathit{\gamma }}_{\mathit{hw}}$	${\mathit{\gamma }}_{\mathit{nhw}}$
${}_{70}{}^{160}\mathrm{Yb}_{90}$	46, 4	38, 14	0.252	0.245	5.00	15.61
${}_{70}{}^{162}\mathrm{Yb}_{92}$	50, 4	42, 14	0.271	0.263	4.63	14.43
${}_{70}{}^{164}\mathrm{Yb}_{94}$	56, 0	38, 24	0.290	0.282	0.86	22.80
${}_{70}{}^{166}\mathrm{Yb}_{96}$	54, 6	46, 16	0.295	0.288	5.92	14.86
${}_{70}{}^{168}\mathrm{Yb}_{98}$	54, 8	46, 18	0.300	0.294	7.46	16.24
${}_{70}{}^{170}\mathrm{Yb}_{100}$	56, 6	48, 16	0.302	0.295	5.72	14.36
${}_{70}{}^{172}\mathrm{Yb}_{102}$	60, 0	40, 28	0.305	0.302	0.81	24.35
${}_{70}{}^{174}\mathrm{Yb}_{104}$	54, 8	46, 18	0.296	0.290	7.46	16.24
${}_{70}{}^{176}\mathrm{Yb}_{106}$	50, 12	42, 22	0.288	0.285	11.08	20.08
${}_{70}{}^{178}\mathrm{Yb}_{108}$	48, 12	40, 22	0.277	0.275	11.47	20.78
${}_{70}{}^{180}\mathrm{Yb}_{110}$	48, 8	40, 18	0.264	0.259	8.29	18.05
${}_{70}{}^{182}\mathrm{Yb}_{112}$	50, 0	28, 32	0.251	0.262	0.96	32.13
${}_{70}{}^{184}\mathrm{Yb}_{114}$	40, 10	32, 20	0.230	0.228	11.58	22.69
${}_{70}{}^{186}\mathrm{Yb}_{116}$	32, 16	24, 26	0.213	0.218	19.53	31.27
${}_{70}{}^{188}\mathrm{Yb}_{118}$	26, 18	18, 28	0.193	0.202	24.27	36.86
${}_{70}{}^{190}\mathrm{Yb}_{120}$	22, 16	14, 26	0.167	0.177	25.05	39.37
${}_{70}{}^{192}\mathrm{Yb}_{122}$	20, 10	12, 20	0.135	0.142	19.77	37.74
${}_{72}{}^{162}\mathrm{Hf}_{90}$	38, 12	40, 8	0.237	0.233	13.90	9.72
${}_{72}{}^{164}\mathrm{Hf}_{92}$	42, 12	44, 8	0.256	0.253	12.81	8.95
${}_{72}{}^{166}\mathrm{Hf}_{94}$	48, 8	40, 18	0.271	0.266	8.29	18.05
${}_{72}{}^{168}\mathrm{Hf}_{96}$	46, 14	48, 10	0.280	0.276	13.41	9.91
${}_{72}{}^{170}\mathrm{Hf}_{98}$	46, 16	48, 12	0.286	0.282	14.86	11.47
${}_{72}{}^{172}\mathrm{Hf}_{100}$	48, 14	50, 10	0.287	0.284	12.95	9.57
${}_{72}{}^{174}\mathrm{Hf}_{102}$	52, 8	42, 22	0.286	0.286	7.72	20.08
${}_{72}{}^{176}\mathrm{Hf}_{104}$	46, 16	48, 12	0.282	0.278	14.86	11.47
${}_{72}{}^{178}\mathrm{Hf}_{106}$	42, 20	44, 16	0.277	0.272	18.77	15.39
${}_{72}{}^{180}\mathrm{Hf}_{108}$	40, 20	42, 16	0.267	0.262	19.45	15.95
${}_{72}{}^{182}\mathrm{Hf}_{110}$	40, 16	42, 12	0.251	0.247	16.56	12.81
${}_{72}{}^{184}\mathrm{Hf}_{112}$	42, 8	30, 26	0.233	0.243	9.32	27.72
${}_{72}{}^{186}\mathrm{Hf}_{114}$	32, 18	34, 14	0.220	0.215	21.16	17.00
${}_{72}{}^{188}\mathrm{Hf}_{116}$	24, 24	26, 20	0.208	0.200	30.00	25.87
${}_{72}{}^{190}\mathrm{Hf}_{118}$	18, 26	20, 22	0.192	0.183	35.73	31.50
${}_{72}{}^{192}\mathrm{Hf}_{120}$	14, 24	16, 20	0.167	0.157	38.21	33.48
${}_{72}{}^{194}\mathrm{Hf}_{122}$	12, 18	14, 14	0.133	0.124	36.18	30.00
${}_{74}{}^{164}\mathrm{W}_{90}$	32, 16	34, 12	0.222	0.217	19.53	15.18
${}_{74}{}^{166}\mathrm{W}_{92}$	36, 16	38, 12	0.240	0.235	17.93	13.90
${}_{74}{}^{168}\mathrm{W}_{94}$	42, 12	34, 22	0.254	0.253	12.81	23.19
${}_{74}{}^{170}\mathrm{W}_{96}$	40, 18	42, 14	0.264	0.259	18.05	14.43
${}_{74}{}^{172}\mathrm{W}_{98}$	40, 20	42, 16	0.271	0.266	19.45	15.95
${}_{74}{}^{174}\mathrm{W}_{100}$	42, 18	44, 14	0.272	0.267	17.40	13.90
${}_{74}{}^{176}\mathrm{W}_{102}$	46, 12	36, 26	0.269	0.274	11.88	24.85
${}_{74}{}^{178}\mathrm{W}_{104}$	40, 20	42, 16	0.268	0.263	19.45	15.95
${}_{74}{}^{180}\mathrm{W}_{106}$	36, 24	38, 20	0.264	0.258	23.62	20.17
${}_{74}{}^{182}\mathrm{W}_{108}$	34, 24	36, 20	0.254	0.247	24.50	20.95
${}_{74}{}^{184}\mathrm{W}_{110}$	34, 20	36, 16	0.237	0.231	21.79	17.93
${}_{74}{}^{186}\mathrm{W}_{112}$	36, 12	24, 30	0.217	0.235	14.51	33.54
${}_{74}{}^{188}\mathrm{W}_{114}$	26, 22	28, 18	0.209	0.202	27.36	23.14
${}_{74}{}^{190}\mathrm{W}_{116}$	18, 28	20, 24	0.201	0.191	36.86	32.87
${}_{74}{}^{192}\mathrm{W}_{118}$	12, 30	14, 26	0.187	0.176	43.29	39.37
${}_{74}{}^{194}\mathrm{W}_{120}$	8, 28	10, 24	0.164	0.152	46.90	42.65
${}_{74}{}^{196}\mathrm{W}_{122}$	6, 22	8, 18	0.129	0.117	47.11	41.65
${}_{76}{}^{166}\mathrm{Os}_{90}$	28, 16	30, 12	0.202	0.196	21.43	16.71
${}_{76}{}^{168}\mathrm{Os}_{92}$	32, 16	34, 12	0.220	0.215	19.53	15.18
${}_{76}{}^{170}\mathrm{Os}_{94}$	38, 12	30, 22	0.233	0.233	13.90	25.11
${}_{76}{}^{172}\mathrm{Os}_{96}$	36, 18	38, 14	0.244	0.239	19.49	15.61
${}_{76}{}^{174}\mathrm{Os}_{98}$	36, 20	38, 16	0.251	0.245	20.95	17.22
${}_{76}{}^{176}\mathrm{Os}_{100}$	38, 18	40, 14	0.252	0.247	18.74	14.99
${}_{76}{}^{178}\mathrm{Os}_{102}$	42, 12	32, 26	0.249	0.255	12.81	26.70
${}_{76}{}^{180}\mathrm{Os}_{104}$	36, 20	38, 16	0.248	0.242	20.95	17.22
${}_{76}{}^{182}\mathrm{Os}_{106}$	32, 24	34, 20	0.245	0.238	25.45	21.79
${}_{76}{}^{184}\mathrm{Os}_{108}$	30, 24	32, 20	0.235	0.228	26.46	22.69
${}_{76}{}^{186}\mathrm{Os}_{110}$	30, 20	32, 16	0.219	0.213	23.66	19.53
${}_{76}{}^{188}\mathrm{Os}_{112}$	32, 12	20, 30	0.198	0.218	15.91	36.34
${}_{76}{}^{190}\mathrm{Os}_{114}$	22, 22	24, 18	0.191	0.183	30.00	25.50
${}_{76}{}^{192}\mathrm{Os}_{116}$	14, 28	16, 24	0.185	0.175	40.41	36.28
${}_{76}{}^{194}\mathrm{Os}_{118}$	8, 30	10, 26	0.173	0.161	47.62	43.66
${}_{76}{}^{196}\mathrm{Os}_{120}$	4, 28	6, 24	0.151	0.138	51.17	47.99
${}_{76}{}^{198}\mathrm{Os}_{122}$	2, 22	4, 18	0.116	0.103	53.95	48.61
${}_{78}{}^{168}\mathrm{Pt}_{90}$	26, 12	28, 8	0.177	0.172	18.58	13.10
${}_{78}{}^{170}\mathrm{Pt}_{92}$	30, 12	32, 8	0.195	0.191	16.71	11.74
${}_{78}{}^{172}\mathrm{Pt}_{94}$	36, 8	28, 18	0.209	0.207	10.64	23.14
${}_{78}{}^{174}\mathrm{Pt}_{96}$	34, 14	36, 10	0.219	0.215	17.00	12.63
${}_{78}{}^{176}\mathrm{Pt}_{98}$	34, 16	36, 12	0.226	0.221	18.70	14.51
${}_{78}{}^{178}\mathrm{Pt}_{100}$	36, 14	38, 10	0.227	0.223	16.27	12.08
${}_{78}{}^{180}\mathrm{Pt}_{102}$	40, 8	30, 22	0.225	0.229	9.72	25.11
${}_{78}{}^{182}\mathrm{Pt}_{104}$	34, 16	36, 12	0.223	0.218	18.70	14.51
${}_{78}{}^{184}\mathrm{Pt}_{106}$	30, 20	32, 16	0.220	0.214	23.66	19.53
${}_{78}{}^{186}\mathrm{Pt}_{108}$	28, 20	30, 16	0.210	0.204	24.72	20.44
${}_{78}{}^{188}\mathrm{Pt}_{110}$	28, 16	30, 12	0.194	0.189	21.43	16.71
${}_{78}{}^{190}\mathrm{Pt}_{112}$	30, 8	18, 26	0.174	0.192	12.38	35.73
${}_{78}{}^{192}\mathrm{Pt}_{114}$	20, 18	22, 14	0.166	0.159	28.35	23.07
${}_{78}{}^{194}\mathrm{Pt}_{116}$	12, 24	14, 20	0.159	0.149	40.33	35.50
${}_{78}{}^{196}\mathrm{Pt}_{118}$	6, 26	8, 22	0.148	0.136	48.76	44.18
${}_{78}{}^{198}\mathrm{Pt}_{120}$	2, 24	4, 20	0.126	0.113	54.40	49.56
${}_{78}{}^{200}\mathrm{Pt}_{122}$	0, 18	2, 14	0.092	0.079	57.46	51.05
${}_{80}{}^{170}\mathrm{Hg}_{90}$	26, 4	28, 0	0.148	0.146	8.35	1.68
${}_{80}{}^{172}\mathrm{Hg}_{92}$	30, 4	32, 0	0.167	0.166	7.37	1.48
${}_{80}{}^{174}\mathrm{Hg}_{94}$	36, 0	28, 10	0.185	0.177	1.32	15.44
${}_{80}{}^{176}\mathrm{Hg}_{96}$	34, 6	36, 2	0.192	0.190	8.95	3.86
${}_{80}{}^{178}\mathrm{Hg}_{98}$	34, 8	36, 4	0.197	0.194	11.16	6.26
${}_{80}{}^{180}\mathrm{Hg}_{100}$	36, 6	38, 2	0.200	0.198	8.51	3.67
${}_{80}{}^{182}\mathrm{Hg}_{102}$	40, 0	30, 14	0.202	0.198	1.20	18.65
${}_{80}{}^{184}\mathrm{Hg}_{104}$	34, 8	36, 4	0.195	0.192	11.16	6.26
${}_{80}{}^{186}\mathrm{Hg}_{106}$	30, 12	32, 8	0.189	0.185	16.71	11.74
${}_{80}{}^{188}\mathrm{Hg}_{108}$	28, 12	30, 8	0.179	0.175	17.60	12.38
${}_{80}{}^{190}\mathrm{Hg}_{110}$	28, 8	30, 4	0.165	0.162	13.10	7.37
${}_{80}{}^{192}\mathrm{Hg}_{112}$	30, 0	18, 18	0.151	0.158	1.57	30.00
${}_{80}{}^{194}\mathrm{Hg}_{114}$	20, 10	22, 6	0.134	0.129	19.77	12.89
${}_{80}{}^{196}\mathrm{Hg}_{116}$	12, 16	14, 12	0.124	0.115	34.40	27.64
${}_{80}{}^{198}\mathrm{Hg}_{118}$	6, 18	8, 14	0.110	0.099	44.92	38.21
${}_{80}{}^{200}\mathrm{Hg}_{120}$	2, 16	4, 12	0.088	0.076	52.01	44.39
${}_{80}{}^{202}\mathrm{Hg}_{122}$	0, 10	2, 6	0.054	0.042	55.69	43.00

,

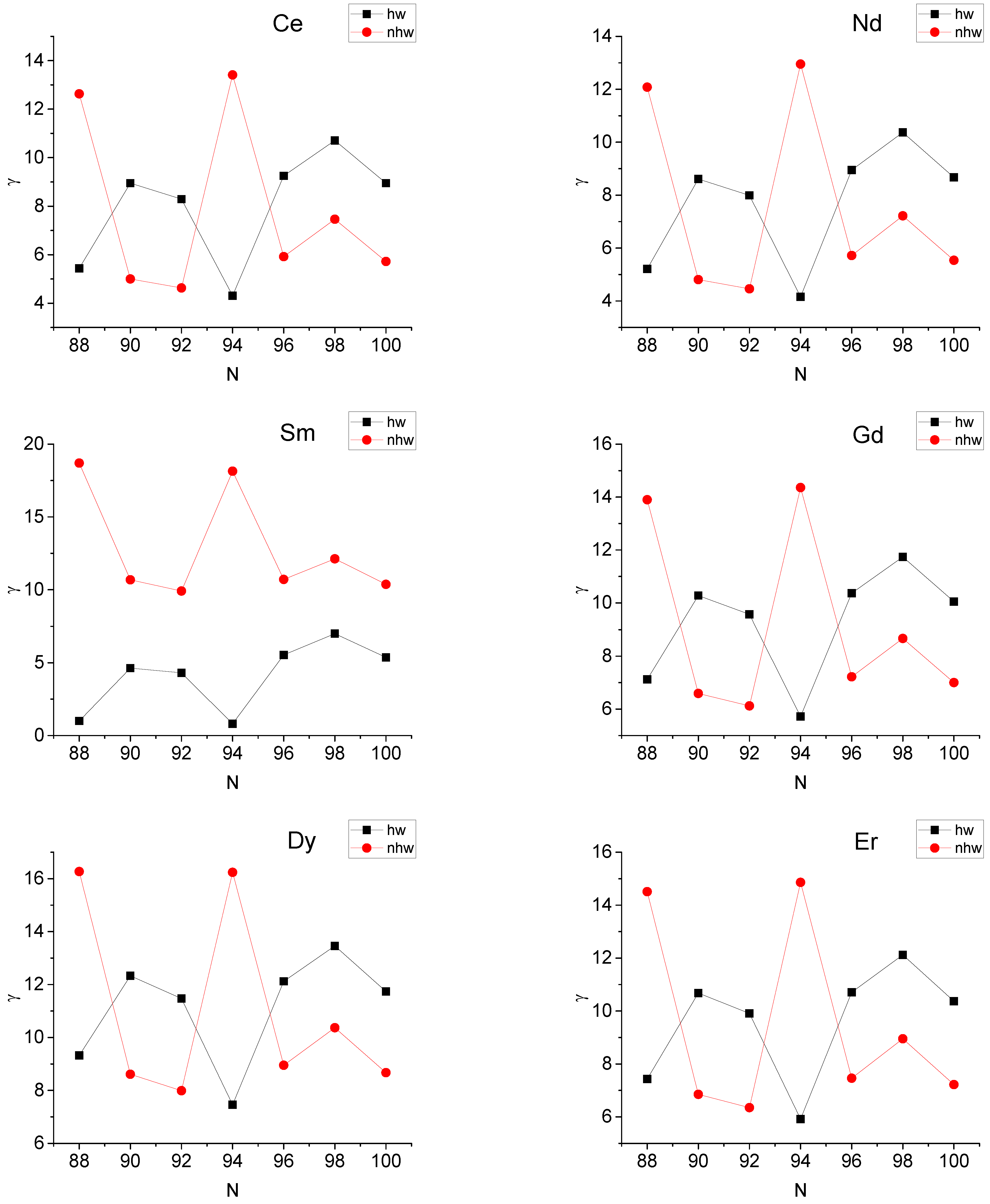

Table 3. Highest weight (hw) irreducible representations of SU(3) and next-highest-weight (nhw) irreps of SU(3) within the proxy-SU(3) scheme for nuclei in the $Z=58$–68, $N=88$–100 region. The Elliott [12] notation $(\lambda ,\mu )$ is used for the SU(3) irreps. Parameter-independent predictions for the collective variables $\beta$ and $\gamma$ within each irrep, calculated using Equations (7) and (6), are also given, labeled by hw and nhw, respectively. See Section 5 for further discussion.

Nucleus	hw	nhw	${\mathit{\beta }}_{\mathit{hw}}$	${\mathit{\beta }}_{\mathit{nhw}}$	${\mathit{\gamma }}_{\mathit{hw}}$	${\mathit{\gamma }}_{\mathit{nhw}}$
${}_{58}{}^{146}\mathrm{Ce}_{88}$	42, 4	36, 10	0.239	0.228	5.44	12.63
${}_{58}{}^{148}\mathrm{Ce}_{90}$	44, 8	46, 4	0.261	0.259	8.95	5.00
${}_{58}{}^{150}\mathrm{Ce}_{92}$	48, 8	50, 4	0.280	0.278	8.29	4.63
${}_{58}{}^{152}\mathrm{Ce}_{94}$	54, 4	46, 14	0.298	0.290	4.31	13.41
${}_{58}{}^{154}\mathrm{Ce}_{96}$	52, 10	54, 6	0.305	0.303	9.25	5.92
${}_{58}{}^{156}\mathrm{Ce}_{98}$	52, 12	54, 8	0.310	0.307	10.71	7.46
${}_{58}{}^{158}\mathrm{Ce}_{100}$	54, 10	56, 6	0.312	0.310	8.95	5.72
${}_{60}{}^{148}\mathrm{Nd}_{88}$	44, 4	38, 10	0.249	0.238	5.21	12.08
${}_{60}{}^{150}\mathrm{Nd}_{90}$	46, 8	48, 4	0.270	0.268	8.61	4.81
${}_{60}{}^{152}\mathrm{Nd}_{92}$	50, 8	52, 4	0.289	0.287	7.99	4.46
${}_{60}{}^{154}\mathrm{Nd}_{94}$	56, 4	48, 14	0.307	0.298	4.16	12.95
${}_{60}{}^{156}\mathrm{Nd}_{96}$	54, 10	56, 6	0.314	0.312	8.95	5.72
${}_{60}{}^{158}\mathrm{Nd}_{98}$	54, 12	56, 8	0.319	0.316	10.37	7.22
${}_{60}{}^{160}\mathrm{Nd}_{100}$	56, 10	58, 6	0.321	0.319	8.67	5.54
${}_{62}{}^{150}\mathrm{Sm}_{88}$	48, 0	34, 16	0.257	0.238	1.00	18.70
${}_{62}{}^{152}\mathrm{Sm}_{90}$	50, 4	44, 10	0.277	0.265	4.63	10.68
${}_{62}{}^{154}\mathrm{Sm}_{92}$	54, 4	48, 10	0.296	0.284	4.31	9.91
${}_{62}{}^{156}\mathrm{Sm}_{94}$	60, 0	44, 20	0.315	0.299	0.81	18.14
${}_{62}{}^{158}\mathrm{Sm}_{96}$	58, 6	52, 12	0.320	0.309	5.54	10.71
${}_{62}{}^{160}\mathrm{Sm}_{98}$	58, 8	52, 14	0.325	0.314	7.00	12.12
${}_{62}{}^{162}\mathrm{Sm}_{100}$	60, 6	54, 12	0.328	0.317	5.37	10.37
${}_{64}{}^{152}\mathrm{Gd}_{88}$	44, 6	38, 12	0.252	0.242	7.12	13.90
${}_{64}{}^{154}\mathrm{Gd}_{90}$	46, 10	48, 6	0.274	0.271	10.28	6.59
${}_{64}{}^{156}\mathrm{Gd}_{92}$	50, 10	52, 6	0.293	0.291	9.57	6.12
${}_{64}{}^{158}\mathrm{Gd}_{94}$	56, 6	48, 16	0.310	0.303	5.72	14.36
${}_{64}{}^{160}\mathrm{Gd}_{96}$	54, 12	56, 8	0.317	0.314	10.37	7.22
${}_{64}{}^{162}\mathrm{Gd}_{98}$	54, 14	56, 10	0.323	0.320	11.74	8.67
${}_{64}{}^{164}\mathrm{Gd}_{100}$	56, 12	58, 8	0.325	0.322	10.05	7.00
${}_{66}{}^{154}\mathrm{Dy}_{88}$	42, 8	36, 14	0.247	0.238	9.32	16.27
${}_{66}{}^{156}\mathrm{Dy}_{90}$	44, 12	46, 8	0.270	0.267	12.33	8.61
${}_{66}{}^{158}\mathrm{Dy}_{92}$	48, 12	50, 8	0.289	0.286	11.47	7.99
${}_{66}{}^{160}\mathrm{Dy}_{94}$	54, 8	46, 18	0.305	0.299	7.46	16.24
${}_{66}{}^{162}\mathrm{Dy}_{96}$	52, 14	54, 10	0.313	0.310	12.12	8.95
${}_{66}{}^{164}\mathrm{Dy}_{98}$	52, 16	54, 12	0.318	0.314	13.46	10.37
${}_{66}{}^{166}\mathrm{Dy}_{100}$	54, 14	56, 10	0.320	0.317	11.74	8.67
${}_{66}{}^{156}\mathrm{Er}_{88}$	42, 6	36, 12	0.240	0.230	7.43	14.51
${}_{66}{}^{158}\mathrm{Er}_{90}$	44, 10	46, 6	0.262	0.259	10.68	6.85
${}_{66}{}^{160}\mathrm{Er}_{92}$	48, 10	50, 6	0.281	0.279	9.91	6.35
${}_{66}{}^{162}\mathrm{Er}_{94}$	54, 6	46, 16	0.297	0.290	5.92	14.86
${}_{66}{}^{164}\mathrm{Er}_{96}$	52, 12	54, 8	0.305	0.302	10.71	7.46
${}_{66}{}^{166}\mathrm{Er}_{98}$	52, 14	54, 10	0.310	0.307	12.12	8.95
${}_{66}{}^{168}\mathrm{Er}_{100}$	54, 12	56, 8	0.312	0.309	10.37	7.22

,

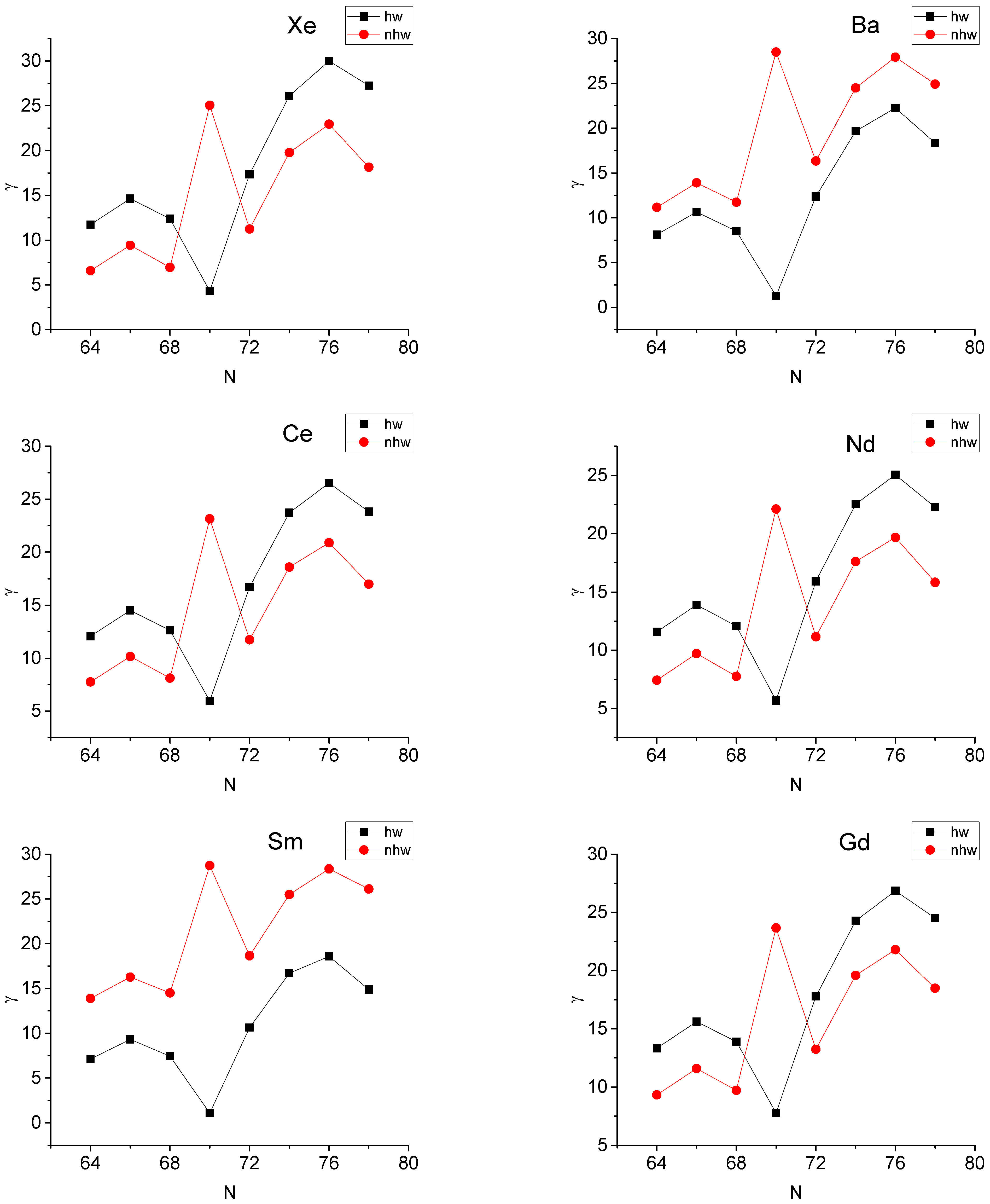

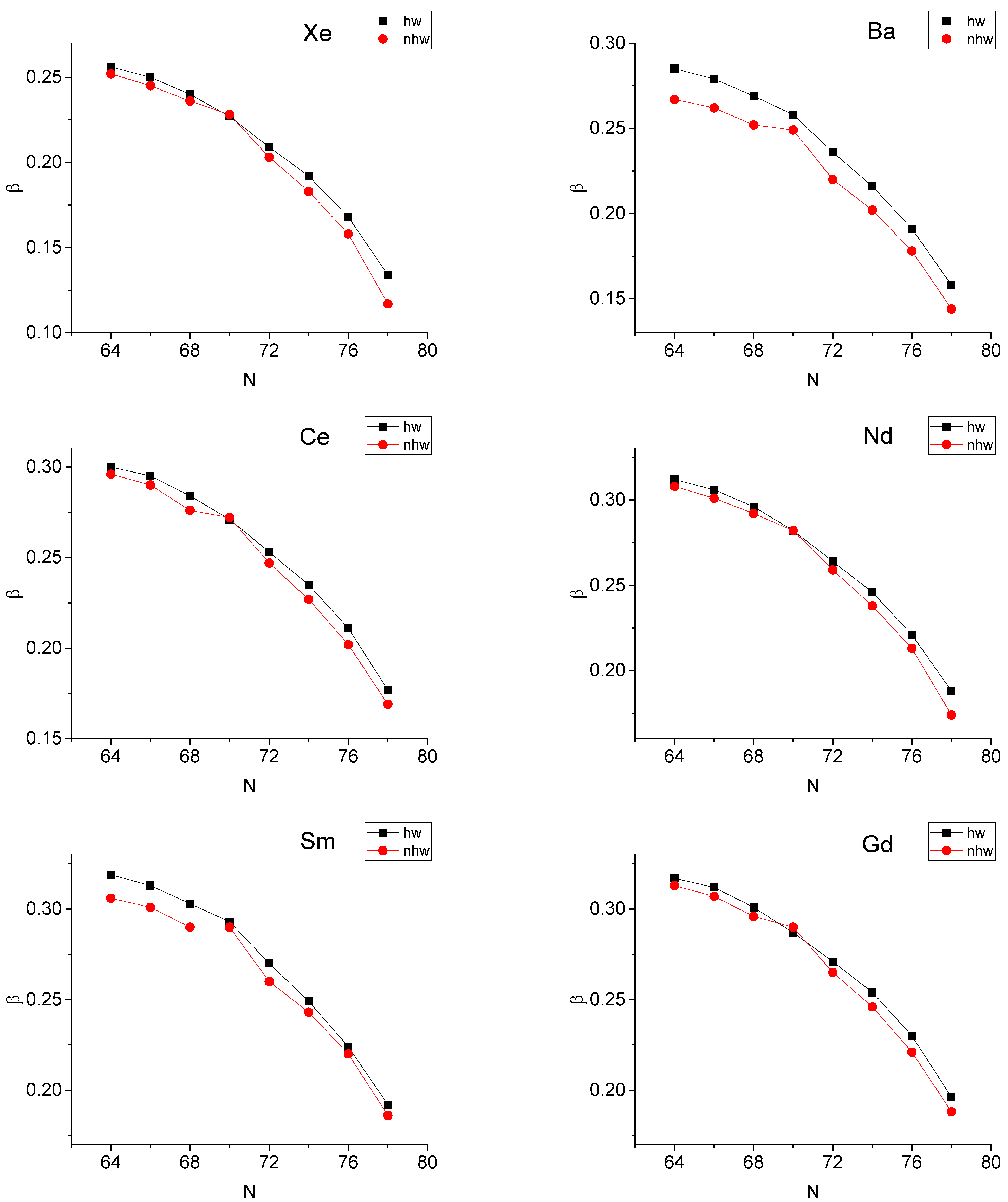

Table 4. Highest weight (hw) irreducible representations of SU(3) and next-highest-weight (nhw) irreps of SU(3) within the proxy-SU(3) scheme for nuclei in the $Z=54$–64, $N=64$–78 region. The Elliott [12] notation $(\lambda ,\mu )$ is used for the SU(3) irreps. Parameter-independent predictions for the collective variables $\beta$ and $\gamma$ within each irrep, calculated using Equations (7) and (6), are also given, labeled by hw and nhw, respectively. See Section 5 for further discussion.

Nucleus	hw	nhw	${\mathit{\beta }}_{\mathit{hw}}$	${\mathit{\beta }}_{\mathit{nhw}}$	${\mathit{\gamma }}_{\mathit{hw}}$	${\mathit{\gamma }}_{\mathit{nhw}}$
${}_{54}{}^{118}\mathrm{Xe}_{64}$	32, 8	34, 4	0.256	0.252	11.74	6.59
${}_{54}{}^{120}\mathrm{Xe}_{66}$	30, 10	32, 6	0.250	0.245	14.63	9.43
${}_{54}{}^{122}\mathrm{Xe}_{68}$	30, 8	32, 4	0.240	0.236	12.38	6.95
${}_{54}{}^{124}\mathrm{Xe}_{70}$	32, 2	22, 16	0.227	0.228	4.31	25.05
${}_{54}{}^{126}\mathrm{Xe}_{72}$	24, 10	26, 6	0.209	0.203	17.35	11.24
${}_{54}{}^{128}\mathrm{Xe}_{74}$	18, 14	20, 10	0.192	0.183	26.11	19.77
${}_{54}{}^{130}\mathrm{Xe}_{76}$	14, 14	16, 10	0.168	0.158	30.00	22.95
${}_{54}{}^{132}\mathrm{Xe}_{78}$	12, 10	14, 6	0.134	0.117	27.25	18.14
${}_{56}{}^{120}\mathrm{Ba}_{64}$	38, 6	34, 8	0.285	0.267	8.12	11.16
${}_{56}{}^{122}\mathrm{Ba}_{66}$	36, 8	32, 10	0.279	0.262	10.64	13.90
${}_{56}{}^{124}\mathrm{Ba}_{68}$	36, 6	32, 8	0.269	0.252	8.51	11.74
${}_{56}{}^{126}\mathrm{Ba}_{70}$	38, 0	22, 20	0.258	0.249	1.26	28.50
${}_{56}{}^{128}\mathrm{Ba}_{72}$	30, 8	26, 10	0.236	0.220	12.38	16.34
${}_{56}{}^{130}\mathrm{Ba}_{74}$	24, 12	20, 14	0.216	0.202	19.67	24.50
${}_{56}{}^{132}\mathrm{Ba}_{76}$	20, 12	16, 14	0.191	0.178	22.26	27.93
${}_{56}{}^{134}\mathrm{Ba}_{78}$	18, 8	14, 10	0.158	0.144	18.35	24.92
${}_{58}{}^{122}\mathrm{Ce}_{64}$	38, 10	40, 6	0.300	0.296	12.08	7.76
${}_{58}{}^{124}\mathrm{Ce}_{66}$	36, 12	38, 8	0.295	0.290	14.51	10.16
${}_{58}{}^{126}\mathrm{Ce}_{68}$	36, 10	38, 6	0.284	0.276	12.63	8.12
${}_{58}{}^{128}\mathrm{Ce}_{70}$	38, 4	28, 18	0.271	0.272	5.96	23.14
${}_{58}{}^{130}\mathrm{Ce}_{72}$	30, 12	32, 8	0.253	0.247	16.71	11.74
${}_{58}{}^{132}\mathrm{Ce}_{74}$	24, 16	26, 12	0.235	0.227	23.72	18.58
${}_{58}{}^{134}\mathrm{Ce}_{76}$	20, 16	22, 12	0.211	0.202	26.52	20.89
${}_{58}{}^{136}\mathrm{Ce}_{78}$	18, 12	20, 8	0.177	0.169	23.82	17.00
${}_{60}{}^{124}\mathrm{Nd}_{64}$	40, 10	42, 6	0.312	0.308	11.58	7.43
${}_{60}{}^{126}\mathrm{Nd}_{66}$	38, 12	40, 8	0.306	0.301	13.90	9.72
${}_{60}{}^{128}\mathrm{Nd}_{68}$	38, 10	40, 6	0.296	0.292	12.08	7.76
${}_{60}{}^{130}\mathrm{Nd}_{70}$	40, 4	30, 18	0.282	0.282	5.68	22.11
${}_{60}{}^{132}\mathrm{Nd}_{72}$	32, 12	34, 8	0.264	0.259	15.91	11.16
${}_{60}{}^{134}\mathrm{Nd}_{74}$	26, 16	28, 12	0.246	0.238	22.52	17.60
${}_{60}{}^{136}\mathrm{Nd}_{76}$	22, 16	24, 12	0.221	0.213	25.05	19.67
${}_{60}{}^{138}\mathrm{Nd}_{78}$	20, 12	22, 8	0.188	0.174	22.26	15.82
${}_{62}{}^{126}\mathrm{Sm}_{64}$	44, 6	38, 12	0.319	0.306	7.12	13.90
${}_{62}{}^{128}\mathrm{Sm}_{66}$	42, 8	36, 14	0.313	0.301	9.32	16.27
${}_{62}{}^{130}\mathrm{Sm}_{68}$	42, 6	36, 12	0.303	0.290	7.43	14.51
${}_{62}{}^{132}\mathrm{Sm}_{70}$	44, 0	26, 24	0.293	0.290	1.09	28.73
${}_{62}{}^{134}\mathrm{Sm}_{72}$	36, 8	30, 14	0.270	0.260	10.64	18.65
${}_{62}{}^{136}\mathrm{Sm}_{74}$	30, 12	24, 18	0.249	0.243	16.71	25.50
${}_{62}{}^{138}\mathrm{Sm}_{76}$	26, 12	20, 18	0.224	0.220	18.58	28.35
${}_{62}{}^{140}\mathrm{Sm}_{78}$	24, 8	18, 14	0.192	0.186	14.80	26.11
${}_{64}{}^{128}\mathrm{Gd}_{64}$	40, 12	42, 8	0.317	0.313	13.33	9.32
${}_{64}{}^{130}\mathrm{Gd}_{66}$	38, 14	40, 10	0.312	0.307	15.61	11.58
${}_{64}{}^{132}\mathrm{Gd}_{68}$	38, 12	40, 8	0.301	0.296	13.90	9.72
${}_{64}{}^{134}\mathrm{Gd}_{70}$	40, 6	30, 20	0.287	0.290	7.76	23.66
${}_{64}{}^{136}\mathrm{Gd}_{72}$	32, 14	34, 10	0.271	0.265	17.78	13.24
${}_{64}{}^{138}\mathrm{Gd}_{74}$	26, 18	28, 14	0.254	0.246	24.27	19.59
${}_{64}{}^{140}\mathrm{Gd}_{76}$	22, 18	24, 14	0.230	0.221	26.85	21.79
${}_{64}{}^{142}\mathrm{Gd}_{78}$	20, 14	22, 10	0.196	0.188	24.50	18.48

,

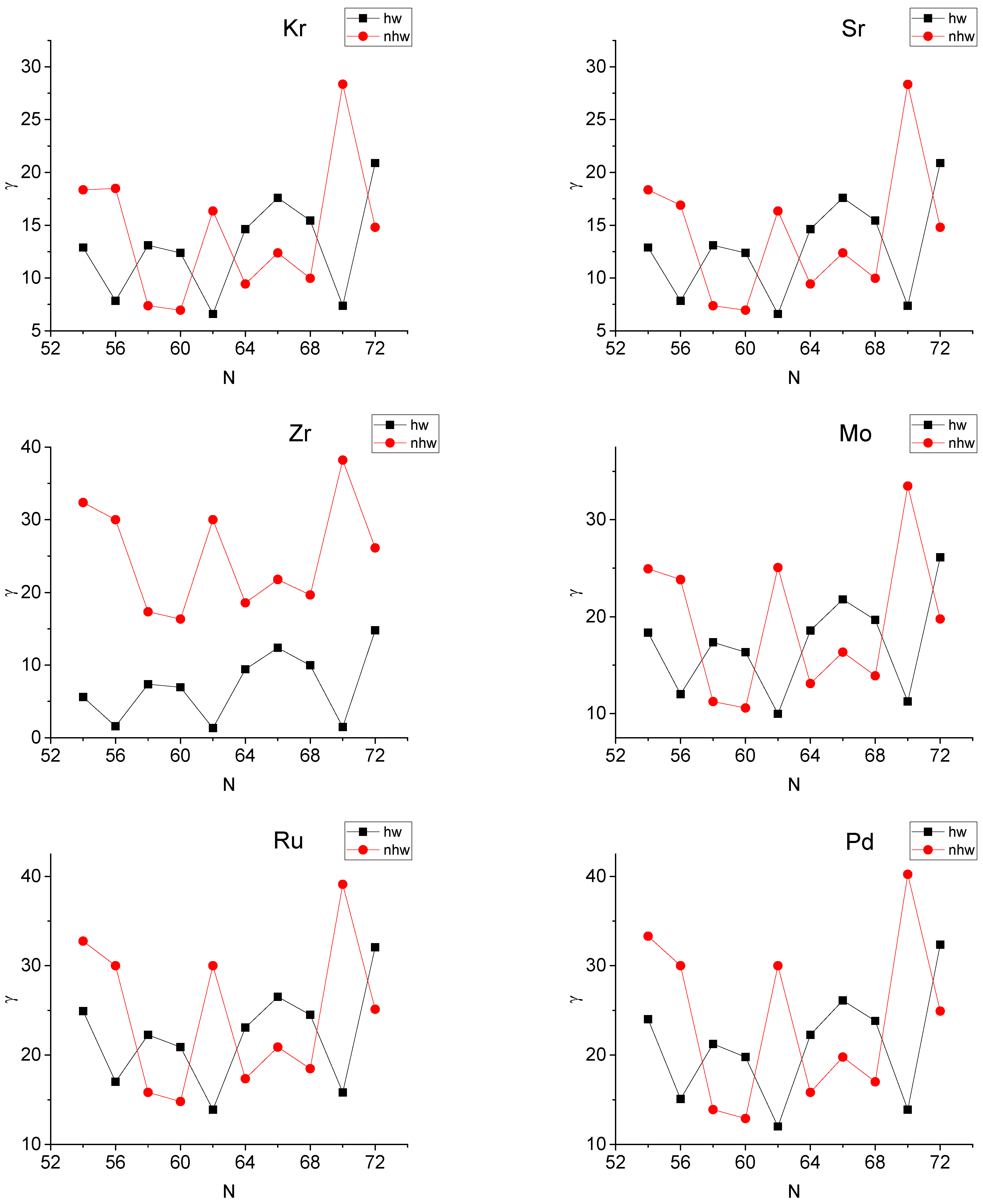

Table 5. Highest weight (hw) irreducible representations of SU(3) and next-highest-weight (nhw) irreps of SU(3) within the proxy-SU(3) scheme for nuclei in the $Z=36$–46, $N=62$–72 region. The Elliott [12] notation $(\lambda ,\mu )$ is used for the SU(3) irreps. Parameter-independent predictions for the collective variables $\beta$ and $\gamma$ within each irrep, calculated using Equations (7) and (6), are also given, labeled by hw and nhw, respectively. See Section 5 for further discussion.

Nucleus	hw	nhw	${\mathit{\beta }}_{\mathit{hw}}$	${\mathit{\beta }}_{\mathit{nhw}}$	${\mathit{\gamma }}_{\mathit{hw}}$	${\mathit{\gamma }}_{\mathit{nhw}}$
${}_{36}{}^{90}\mathrm{Kr}_{54}$	22, 6	18, 8	0.235	0.214	12.89	18.35
${}_{36}{}^{92}\mathrm{Kr}_{56}$	28, 4	22, 10	0.273	0.258	7.83	18.48
${}_{36}{}^{94}\mathrm{Kr}_{58}$	28, 8	30, 4	0.293	0.288	13.10	7.37
${}_{36}{}^{96}\mathrm{Kr}_{60}$	30, 8	32, 4	0.308	0.303	12.38	6.95
${}_{36}{}^{98}\mathrm{Kr}_{62}$	34, 4	26, 10	0.318	0.285	6.59	16.34
${}_{36}{}^{100}\mathrm{Kr}_{64}$	30, 10	32, 6	0.315	0.309	14.63	9.43
${}_{36}{}^{102}\mathrm{Kr}_{66}$	28, 12	30, 8	0.309	0.302	17.60	12.38
${}_{36}{}^{104}\mathrm{Kr}_{68}$	28, 10	30, 6	0.295	0.289	15.44	9.97
${}_{36}{}^{106}\mathrm{Kr}_{70}$	30, 4	20, 18	0.277	0.284	7.37	28.35
${}_{36}{}^{108}\mathrm{Kr}_{72}$	22, 12	24, 8	0.257	0.248	20.89	14.80
${}_{38}{}^{92}\mathrm{Sr}_{54}$	22, 6	18, 8	0.234	0.213	12.89	18.35
${}_{38}{}^{94}\mathrm{Sr}_{56}$	28, 4	22, 10	0.271	0.256	7.83	18.48
${}_{38}{}^{96}\mathrm{Sr}_{58}$	28, 8	30, 4	0.291	0.286	13.10	7.37
${}_{38}{}^{98}\mathrm{Sr}_{60}$	30, 8	32, 4	0.306	0.301	12.38	6.95
${}_{38}{}^{100}\mathrm{Sr}_{62}$	34, 4	26, 10	0.315	0.283	6.59	16.34
${}_{38}{}^{102}\mathrm{Sr}_{64}$	30, 10	32, 6	0.313	0.307	14.63	9.43
${}_{38}{}^{104}\mathrm{Sr}_{66}$	28, 12	30, 8	0.307	0.300	17.60	12.38
${}_{38}{}^{106}\mathrm{Sr}_{68}$	28, 10	30, 6	0.293	0.287	15.44	9.97
${}_{38}{}^{108}\mathrm{Sr}_{70}$	30, 4	20, 18	0.275	0.282	7.37	28.35
${}_{38}{}^{110}\mathrm{Sr}_{72}$	22, 12	24, 8	0.256	0.247	20.89	14.80
${}_{40}{}^{94}\mathrm{Zr}_{54}$	24, 2	12, 14	0.227	0.207	5.60	32.36
${}_{40}{}^{96}\mathrm{Zr}_{56}$	30, 0	16, 16	0.267	0.249	1.57	30.00
${}_{40}{}^{98}\mathrm{Zr}_{58}$	30, 4	24, 10	0.284	0.269	7.37	17.35
${}_{40}{}^{100}\mathrm{Zr}_{60}$	32, 4	26, 10	0.299	0.283	6.95	16.34
${}_{40}{}^{102}\mathrm{Zr}_{62}$	36, 0	20, 20	0.311	0.302	1.32	30.00
${}_{40}{}^{104}\mathrm{Zr}_{64}$	32, 6	26, 12	0.305	0.291	9.43	18.58
${}_{40}{}^{106}\mathrm{Zr}_{66}$	30, 8	24, 14	0.298	0.287	12.38	21.79
${}_{40}{}^{108}\mathrm{Zr}_{68}$	30, 6	24, 12	0.285	0.272	9.97	19.67
${}_{40}{}^{110}\mathrm{Zr}_{70}$	32, 0	14, 24	0.271	0.283	1.48	38.21
${}_{40}{}^{112}\mathrm{Zr}_{72}$	24, 8	18, 14	0.246	0.238	14.80	26.11
${}_{42}{}^{96}\mathrm{Mo}_{54}$	18, 8	14, 10	0.210	0.192	18.35	24.92
${}_{42}{}^{98}\mathrm{Mo}_{56}$	24, 6	18, 12	0.245	0.234	12.01	23.82
${}_{42}{}^{100}\mathrm{Mo}_{58}$	24, 10	26, 6	0.267	0.260	17.35	11.24
${}_{42}{}^{102}\mathrm{Mo}_{60}$	26, 10	28, 6	0.281	0.274	16.34	10.57
${}_{42}{}^{104}\mathrm{Mo}_{62}$	30, 6	22, 16	0.289	0.287	9.97	25.05
${}_{42}{}^{106}\mathrm{Mo}_{64}$	26, 12	28, 8	0.290	0.282	18.58	13.10
${}_{42}{}^{108}\mathrm{Mo}_{66}$	24, 14	26, 10	0.285	0.276	21.79	16.34
${}_{42}{}^{110}\mathrm{Mo}_{68}$	24, 12	26, 8	0.271	0.263	19.67	13.90
${}_{42}{}^{112}\mathrm{Mo}_{70}$	26, 6	16, 20	0.250	0.265	11.24	33.48
${}_{42}{}^{114}\mathrm{Mo}_{72}$	18, 14	20, 10	0.236	0.225	26.11	19.77
${}_{44}{}^{98}\mathrm{Ru}_{54}$	14, 10	10, 12	0.190	0.175	24.92	32.75
${}_{44}{}^{100}\mathrm{Ru}_{56}$	20, 8	14, 14	0.223	0.212	17.00	30.00
${}_{44}{}^{102}\mathrm{Ru}_{58}$	20, 12	22, 8	0.247	0.229	22.26	15.82
${}_{44}{}^{104}\mathrm{Ru}_{60}$	22, 12	24, 8	0.260	0.243	20.89	14.80
${}_{44}{}^{106}\mathrm{Ru}_{62}$	26, 8	18, 18	0.266	0.270	13.90	30.00
${}_{44}{}^{108}\mathrm{Ru}_{64}$	22, 14	24, 10	0.270	0.260	23.07	17.35
${}_{44}{}^{110}\mathrm{Ru}_{66}$	20, 16	22, 12	0.267	0.256	26.52	20.89
${}_{44}{}^{112}\mathrm{Ru}_{68}$	20, 14	22, 10	0.252	0.242	24.50	18.48
${}_{44}{}^{114}\mathrm{Ru}_{70}$	22, 8	12, 22	0.229	0.253	15.82	39.11
${}_{44}{}^{116}\mathrm{Ru}_{72}$	14, 16	16, 12	0.221	0.208	32.07	25.13
${}_{46}{}^{100}\mathrm{Pd}_{54}$	12, 8	8, 10	0.160	0.145	24.01	33.30
${}_{46}{}^{102}\mathrm{Pd}_{56}$	18, 6	12, 12	0.193	0.186	15.08	30.00
${}_{46}{}^{104}\mathrm{Pd}_{58}$	18, 10	20, 6	0.217	0.208	21.25	13.90
${}_{46}{}^{106}\mathrm{Pd}_{60}$	20, 10	22, 6	0.231	0.230	19.77	12.89
${}_{46}{}^{108}\mathrm{Pd}_{62}$	24, 6	16, 16	0.237	0.239	12.01	30.00
${}_{46}{}^{110}\mathrm{Pd}_{64}$	20, 12	22, 8	0.241	0.232	22.26	15.82
${}_{46}{}^{112}\mathrm{Pd}_{66}$	18, 14	20, 10	0.237	0.226	26.11	19.77
${}_{46}{}^{114}\mathrm{Pd}_{68}$	18, 12	20, 8	0.223	0.213	23.82	17.00
${}_{46}{}^{116}\mathrm{Pd}_{70}$	20, 6	10, 20	0.201	0.224	13.90	40.23
${}_{46}{}^{118}\mathrm{Pd}_{72}$	12, 14	14, 10	0.192	0.179	32.36	24.92

,

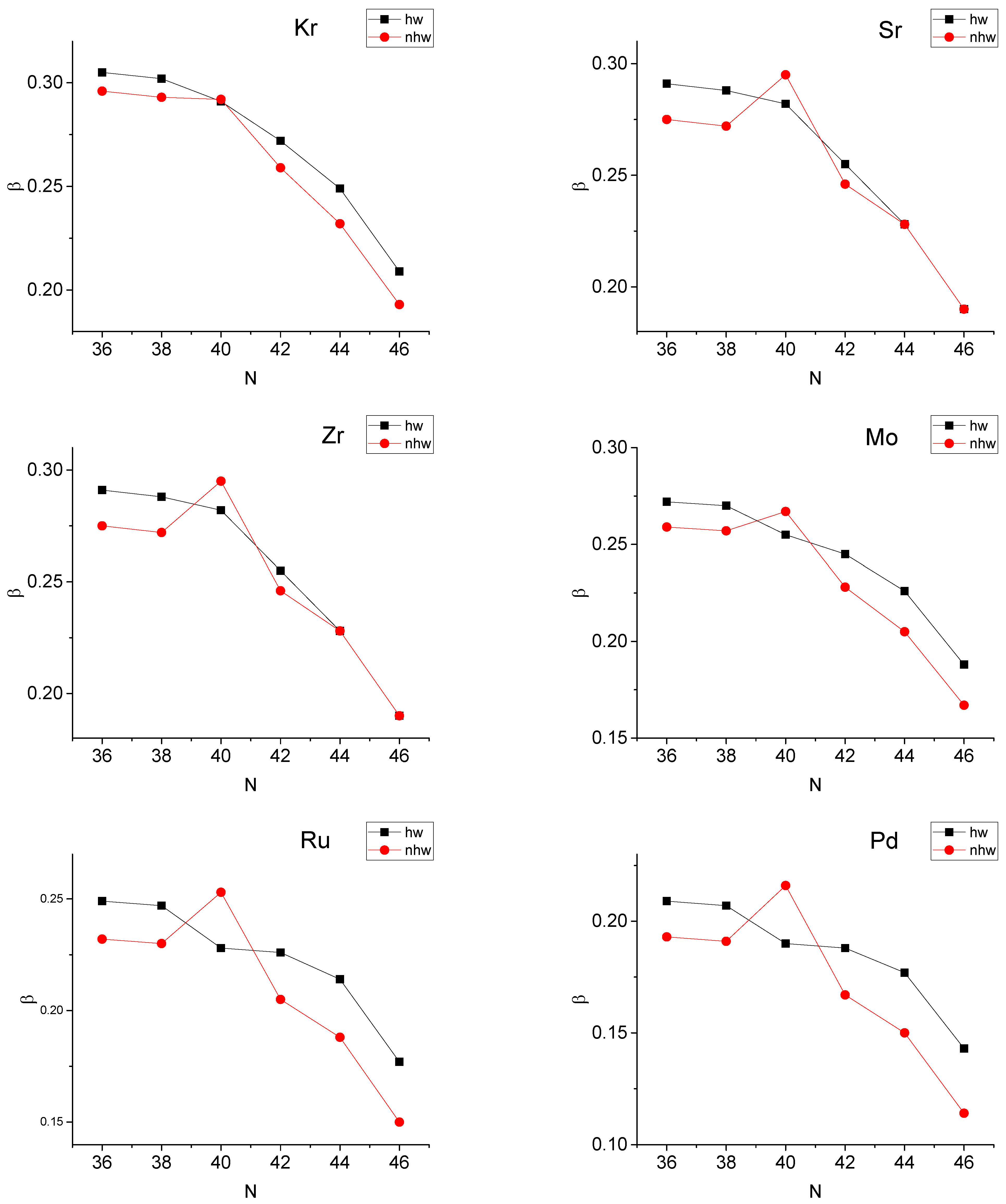

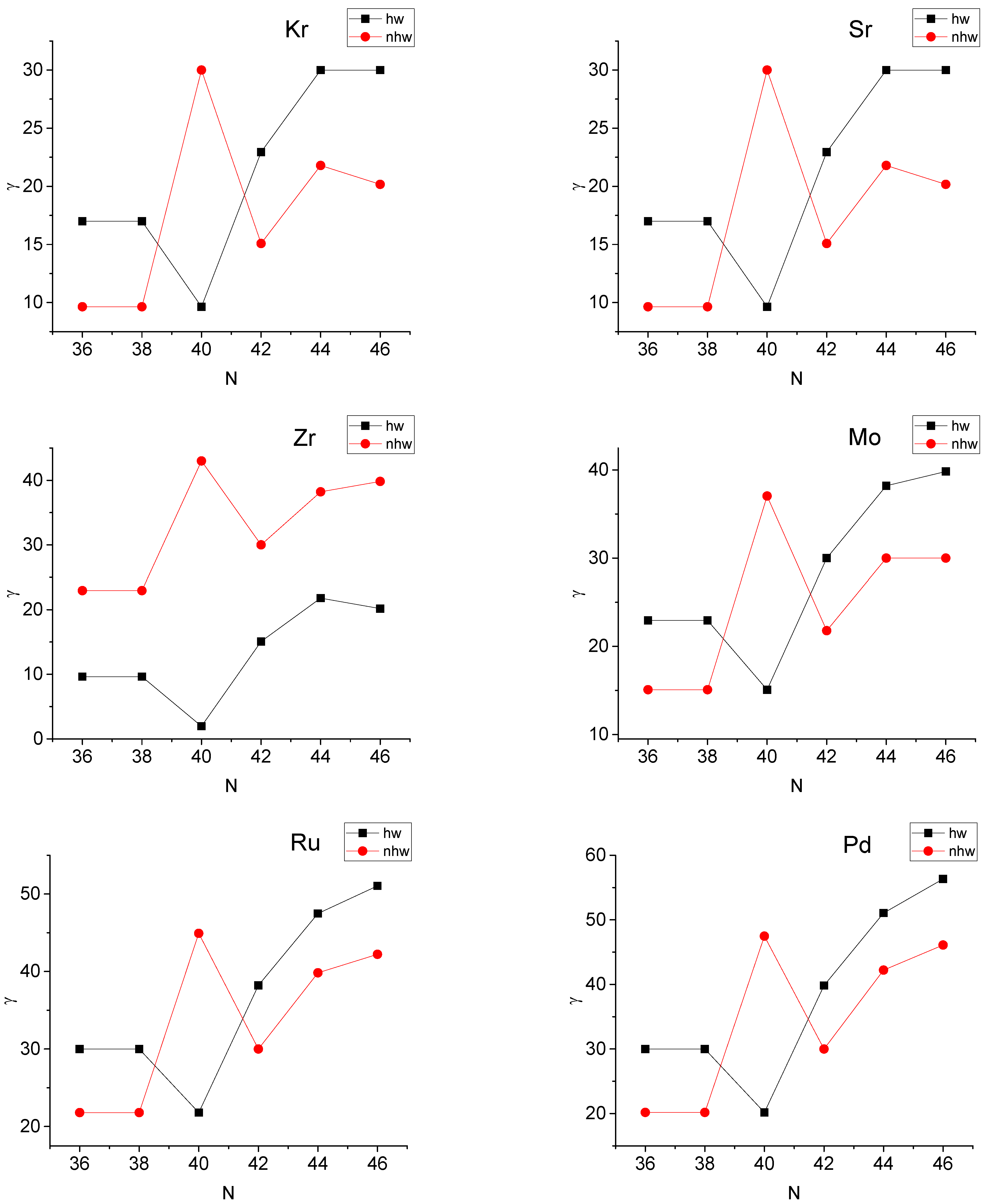

Table 6. Highest weight (hw) irreducible representations of SU(3) and next-highest-weight (nhw) irreps of SU(3) within the proxy-SU(3) scheme for nuclei in the $Z=36$–46, $N=36$–46 region. The Elliott [12] notation $(\lambda ,\mu )$ is used for the SU(3) irreps. Parameter-independent predictions for the collective variables $\beta$ and $\gamma$ within each irrep, calculated using Equations (7) and (6), are also given, labeled by hw and nhw, respectively. See Section 5 for further discussion.

Nucleus	hw	nhw	${\mathit{\beta }}_{\mathit{hw}}$	${\mathit{\beta }}_{\mathit{nhw}}$	${\mathit{\gamma }}_{\mathit{hw}}$	${\mathit{\gamma }}_{\mathit{nhw}}$
${}_{36}{}^{72}\mathrm{Kr}_{36}$	20, 8	22, 4	0.305	0.296	17.00	9.64
${}_{36}{}^{74}\mathrm{Kr}_{38}$	20, 8	22, 4	0.302	0.293	17.00	9.64
${}_{36}{}^{76}\mathrm{Kr}_{40}$	22, 4	14, 14	0.291	0.292	9.64	30.00
${}_{36}{}^{78}\mathrm{Kr}_{42}$	16, 10	18, 6	0.272	0.259	22.95	15.08
${}_{36}{}^{80}\mathrm{Kr}_{44}$	12, 12	14, 8	0.249	0.232	30.00	21.79
${}_{36}{}^{82}\mathrm{Kr}_{46}$	10, 10	12, 6	0.209	0.193	30.00	20.17
${}_{38}{}^{74}\mathrm{Sr}_{36}$	20, 8	22, 4	0.302	0.293	17.00	9.64
${}_{38}{}^{76}\mathrm{Sr}_{38}$	20, 8	22, 4	0.300	0.291	17.00	9.64
${}_{38}{}^{78}\mathrm{Sr}_{40}$	22, 4	14, 14	0.288	0.289	9.64	30.00
${}_{38}{}^{80}\mathrm{Sr}_{42}$	16, 10	18, 6	0.270	0.257	22.95	15.08
${}_{38}{}^{82}\mathrm{Sr}_{44}$	12, 12	14, 8	0.247	0.230	30.00	21.79
${}_{36}{}^{84}\mathrm{Sr}_{46}$	10, 10	12, 6	0.207	0.191	30.00	20.17
${}_{40}{}^{76}\mathrm{Zr}_{36}$	22, 4	16, 10	0.291	0.275	9.64	22.95
${}_{40}{}^{78}\mathrm{Zr}_{38}$	22, 4	16, 10	0.288	0.272	9.64	22.95
${}_{40}{}^{80}\mathrm{Zr}_{40}$	24, 0	8, 20	0.282	0.295	1.95	43.00
${}_{40}{}^{82}\mathrm{Zr}_{42}$	18, 6	18, 12	0.255	0.246	15.08	30.00
${}_{40}{}^{84}\mathrm{Zr}_{44}$	14, 8	14, 14	0.228	0.228	21.79	38.21
${}_{40}{}^{86}\mathrm{Zr}_{46}$	12, 6	12, 12	0.190	0.190	20.17	39.83
${}_{42}{}^{78}\mathrm{Mo}_{36}$	16, 10	18, 6	0.272	0.259	22.95	15.08
${}_{42}{}^{80}\mathrm{Mo}_{38}$	16, 10	18, 6	0.270	0.257	22.95	15.08
${}_{42}{}^{82}\mathrm{Mo}_{40}$	18, 6	10, 16	0.255	0.267	15.08	37.05
${}_{42}{}^{84}\mathrm{Mo}_{42}$	12, 12	14, 8	0.245	0.228	30.00	21.79
${}_{42}{}^{86}\mathrm{Mo}_{44}$	8, 14	10, 10	0.226	0.205	38.21	30.00
${}_{42}{}^{88}\mathrm{Mo}_{46}$	6, 12	8, 8	0.188	0.167	39.83	30.00
${}_{44}{}^{80}\mathrm{Ru}_{36}$	12, 12	14, 8	0.249	0.232	30.00	21.79
${}_{44}{}^{82}\mathrm{Ru}_{38}$	12, 12	14, 8	0.247	0.230	30.00	21.79
${}_{44}{}^{84}\mathrm{Ru}_{40}$	14, 8	6, 18	0.228	0.253	21.79	44.92
${}_{44}{}^{86}\mathrm{Ru}_{42}$	8, 14	10, 10	0.226	0.205	38.21	30.00
${}_{44}{}^{88}\mathrm{Ru}_{44}$	4, 16	6, 12	0.214	0.188	47.48	39.83
${}_{44}{}^{90}\mathrm{Ru}_{46}$	2, 14	4, 10	0.177	0.150	51.05	42.22
${}_{46}{}^{82}\mathrm{Pd}_{36}$	10, 10	12, 6	0.209	0.193	30.00	20.17
${}_{46}{}^{84}\mathrm{Pd}_{38}$	10, 10	12, 8	0.207	0.191	30.00	20.17
${}_{46}{}^{86}\mathrm{Pd}_{40}$	12, 6	4, 16	0.190	0.216	20.17	47.48
${}_{46}{}^{88}\mathrm{Pd}_{42}$	6, 12	8, 8	0.188	0.167	39.83	30.00
${}_{46}{}^{90}\mathrm{Pd}_{44}$	2, 14	4, 10	0.177	0.150	51.05	42.22
${}_{46}{}^{92}\mathrm{Pd}_{46}$	0, 12	2, 8	0.143	0.114	56.33	46.10

. We remark that the value $\mu =0$ occurs very rarely, while the value $\mu =2$ occurs only once, in ${}_{54}{}^{124}\mathrm{Xe}_{70}$.

It is known [12,43] that the $(\lambda ,\mu )$ SU(3) irrep contains bands characterized by $K=\mu ,\mu -2,\mu -4,\dots 0$ or 1, where K is the Elliott quantum number, which is the missing quantum number in the decomposition SU(3)⊃SO(3). Bands with a given $K\ne 0$ contain levels with angular momenta:

$$L=K,K+1,K+2,\dots ,K+max\{\lambda ,\mu \},$$

(2)

while in the case of $K=0$, one has:

$$L=max\{\lambda ,\mu \},max\{\lambda ,\mu \}-2,\dots ,1\mathrm{or}0.$$

(3)

The missing quantum number K serves for distinguishing levels with the same L occurring within the same irrep.

From a physics point of view, the quantum number K, corresponding to the projection of the angular momentum L on the symmetry axis (taken as the z-axis) in the intrinsic nuclear frame, is used. The ground state band (gsb) of even–even nuclei always has $K=0$, therefore possessing the levels $L=0$, 2, 4, 6, …, while higher $K=0$ bands can also exist, usually referred to as the ${\beta }_1$-band, ${\beta }_2$ band, and so on [63]. The lowest $K=2$ band, usually referred to as the ${\gamma }_1$-band, contains the levels $L=2$, 3, 4, 5,…, while higher $K=2$ bands can also exist [63]. The lowest $K=4$ band (sometimes referred to as a two-phonon $\gamma \gamma$ band [64,65] or a hexadecapole band [66,67]) contains the levels $L=4$, 5, 6, 7, 8, …. The lowest $K=6$ band contains the levels $L=6$, 7, 8, 9, 10, …, and so on.

From a mathematical point of view, it is known that electromagnetic transitions can occur only between states belonging to the same irrep [43]. Significant experimental information exists on electric transitions connecting the ${\gamma }_1$ band and the gsb, having substantial $B\left(E2\right)$ transition rates [63]. In addition, the gsb and the ${\gamma }_1$ band exhibit certain structural similarities, as, for example, similar moments of inertia [68,69,70]. It is therefore imperative for the gsb and the ${\gamma }_1$ band to belong to the same irrep [26]. This is impossible if the hw irrep has $\mu =0$, since such an irrep would accommodate only the gsb, while the ${\gamma }_1$ band would be pushed to the nhw irrep. Therefore, we expect serious discrepancies from the data to occur in nuclei in which the hw irrep has $\mu =0$. For these nuclei, it seems necessary to involve the nhw irrep in their description; an issue to be considered later on in Section 5.

3. Parameter-Free Predictions for the $\mathit{\beta }$ and $\mathit{\gamma }$ Collective Variables from the hw Irreps

A mapping between the deformation variables $\beta$ and $\gamma$ of the collective model and the Elliot SU(3) quantum numbers $\lambda$ and $\mu$ can be achieved [71,72] via mapping between the invariant quantities of the two theories, which are ${\beta }^2$ and ${\beta }^{3}cos3\gamma$ for the former [20], while for the latter are the second-order Casimir operator, $C_2$, having eigenvalues [1]

$$C_2(\lambda ,\mu )={\displaystyle \frac{2}{3}}({\lambda }^2+\lambda \mu +{\mu }^2+3\lambda +3\mu ),$$

(4)

and the third-order Casimir operator, $C_3$, possessing the following eigenvalues [1]:

$$C_3(\lambda ,\mu )={\displaystyle \frac{1}{9}}(2{\lambda }^3-2{\mu }^3+3\lambda \mu (\lambda -\mu )+18{\lambda }^2+9\lambda \mu +36\lambda +18\mu ).$$

(5)

This mapping results in the relations [71,72]

$$\gamma =arctan\left({\displaystyle \frac{\sqrt{3}(\mu +1)}{2\lambda +\mu +3}}\right),$$

(6)

and [71,72]

$${\beta }^2={\displaystyle \frac{4\pi }{5}}{\displaystyle \frac{1}{{\left(A\overline{r^2}\right)}^2}}({\lambda }^2+\lambda \mu +{\mu }^2+3\lambda +3\mu +3),$$

(7)

where A is the mass number of the nucleus, while $\overline{r^2}$ is related to the dimensionless mean square radius [53], $\sqrt{\overline{r^2}}=r_0{A}^{1/6}$. The dimensionless mean square radius is obtained by dividing the mean square radius, which grows as $A^{1/3}$, by the oscillator length, which is proportional to $A^{1/6}$ [53]. The constant $r_0$ is found from a fit over a wide range of nuclei [73,74] to have the value of $r_0=0.87$. We remark that ${\beta }^2$ is proportional to $C_2+3$. Considering that only the valence shells have been taken into account, the values of $\beta$ should be multiplied by a scaling factor $A/(S_p+S_n)$, where $S_p$ ($S_n$) is the size of the proton (neutron) valence shell [32]. For example, in the case of the rare earth region, in which the valence protons lie in the 50–82 shell and the valence neutrons lie in the 82–126 shell, one has $S_p=32$ and $S_n=44$; thus, the scaling factor is $A/76$.

Empirical values for $\beta$ can be obtained from the experimental $B\left(E2\right)$ transition rates connecting the $0^{+}$ ground state to the first excited $2^{+}$ state and are listed in ref. [75]. Empirical values for $\gamma$ can be obtained from the energy ratio

$$R={\displaystyle \frac{E\left(2_2^{+}\right)}{E\left(2_1^{+}\right)}},$$

(8)

of the second excited $2^{+}$ state (which is the bandhead of the lowest-lying $K=2$ band, usually referred to as the ${\gamma }_1$ band) and the first excited $2^{+}$ state (which is a member of the gsb, where $K=0$) through the following relation: [49]

$$sin3\gamma ={\displaystyle \frac{3}{2\sqrt{2}}}\sqrt{1-{\left({\displaystyle \frac{R-1}{R+1}}\right)}^2},$$

(9)

which is obtained within the Davydov model [76,77] for triaxial nuclei.

The proxy-SU(3) predictions for $\beta$ and $\gamma$, obtained using the hw irreps given in Table 2, Table 3, Table 4, Table 5, Table 6 and listed in these tables, have been compared in the past [32,58,78] to the above-mentioned empirical values, as well as to parameter-dependent predictions of various theoretical approaches. The following remarks apply:

(a) The proxy-SU(3) values of $\beta$ have in general been found to be in good agreement with the empirical values, as well as with the predictions of several theoretical models [32,58,78].

(b) The proxy-SU(3) values of $\gamma$ are in general in good agreement with the empirical values, except in cases in which hw irreps for protons or neutrons with $\mu =0$ are involved, in which case the proxy-SU(3) values are too low [32,58,78].

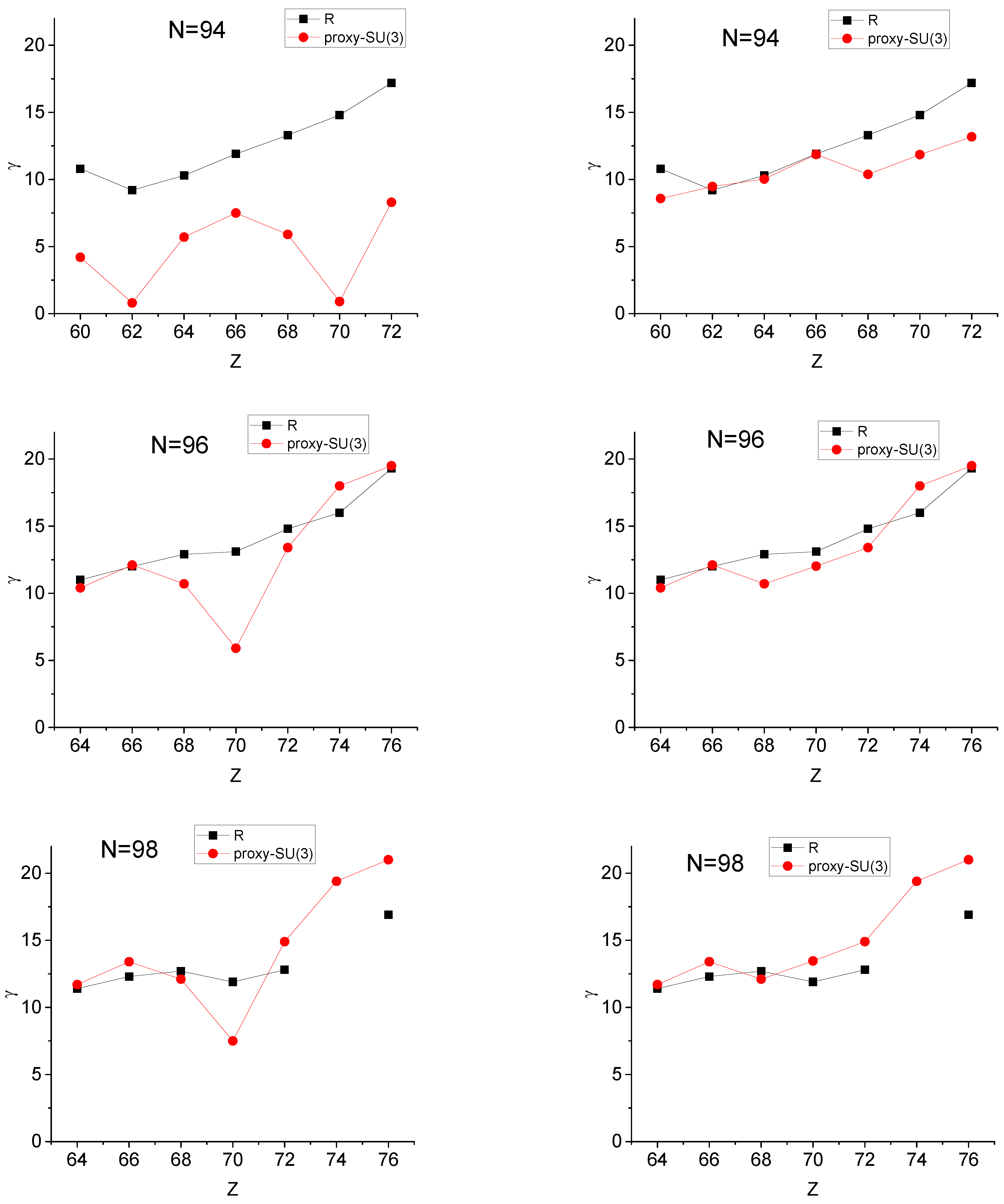

An example can be seen in Figure 2, in which the empirical values of $\gamma$ coming from Equation (9) and the proxy-SU(3) values obtained with the hw irrep, are shown for several $N=94$, 96, 98 isotones in the rare earth region. We remark that the proxy-SU(3) values are too low for $Z=62$ and $Z=70$, corresponding to 12 and 20 valence protons within the 50-82 shell, respectively, i.e., within the proxy-SU(3) $sdg$ shell having the U(15) symmetry, as seen in Table 1. In addition, we remark that the proxy-SU(3) values are systematically too low for $N=94$, which corresponds to 12 valence neutrons within the 82–126 shell, i.e., within the proxy-SU(3) $pfh$ shell having the U(21) symmetry.

In Table 1, we observe that hw irreps with $\mu =0$ occur at $M=2$, 6, 12, 20, 30, 42, and 56 particles. Therefore, these are the protons and/or neutron numbers in which too low values of $\gamma$ are expected to be obtained from the hw proxy-SU(3) irreps.

4. Next-Highest-Weight Irreducible Representations

As already remarked in Section 2, in cases in which the hw irrep has $\mu =0$, the next-highest-weight irrep (nhw) would have to be involved. The nhw irreps for a given number of valence nucleons in a given shell, calculated using the code UNTOU3 [59], are listed in Table 1. The following observations can be made.

(i) The nhw irreps with $\mu =0$ occur only for $M=8$ and 10 nucleons; thus, they never coincide with hw irreps having $\mu =0$.

(ii) The hw irreps with $\mu =0$ occurring at $M=2$, 6, 12, 20, 30, and 42 particles are followed by nhw irreps having $\mu =2$, 6, 10, 14, 18, and 22, respectively, which can accommodate bands with $K>0$.

(iii) The hw irreps $(\lambda ,\mu )$ with $\mu \ne 0$ (occurring at $M\ne 2$, 6, 12, 20, 30, and 42 particles) are followed by nhw irreps of the form $(\lambda +2,\mu -4)$.

In view of the above, the nhw for a given nucleus can be obtained using Equation (1) in the following way.

(1) If the proton (neutron) hw irrep has $\mu =0$, the nhw proton (neutron) irrep will enter the nhw of the whole nucleus.

(2) In the very rare case in which both the proton hw irrep and the neutron hw irrep have $\mu =0$, the nhw of both protons and neutrons will enter the nhw of the whole nucleus.

(3) In most nuclei, both the hw proton irrep and the hw neutron irrep have $\mu \ne 0$. In this case, if the hw irrep of the whole nucleus is $(\lambda ,\mu )$, the nhw irrep of the whole nucleus will be $(\lambda +2,\mu -4)$, since the combination of the hw proton irrep with the nhw neutron irrep, and the inverse combination of the nhw proton irrep with the hw neutron irrep, give the same result when inserted in Equation (1).

Based on Table 1 and the above comments, we list in Table 1 the nhw irreps obtained for nuclei in five different regions of the nuclear chart, depicted in Figure 1. The following observations can be made.

(a) The nhw irreps in general have $\mu \ne 0$, with the only two exceptions occurring in ${}_{80}{}^{170}\mathrm{Hg}_{90}$ and ${}_{80}{}^{172}\mathrm{Hg}_{92}$.

(b) In series of isotopes in which the hw irrep for protons has $\mu \ne 0$, the hw and nhw irreps are connected in the following way: to the hw irrep $(\lambda ,\mu )$, corresponding to the nhw irrep $(\lambda +2,\mu -4)$, if $\mu \ge 4$. If $\mu <4$, this rule does not apply.

(c) In series of isotopes in which the hw irrep for protons has $\mu =0$, the hw and nhw irreps are radically different from each other for any neutron number N.

(d) From Equation (7), it is seen that ${\beta }^2$ is proportional to the quantity ${\lambda }^2+\lambda \mu +{\mu }^2+3\lambda +3\mu +3$. A simple calculation shows that when this quantity is calculated for the nhw $(\lambda +2,\mu -4)$ instead of for the hw irrep $(\lambda ,\mu )$, a reduction of $6(\mu -1)$ occurs. Since $\lambda$ is usually much higher than $\mu$, we conclude that the value of $\beta$ will be only slightly reduced when using the nhw irrep instead of the hw irrep in the same nucleus. This observation proves the robustness of hw proxy-SU(3) predictions for the $\beta$ deformation variable. It should be remembered that this observation holds only for the nuclei satisfying the condition (3) given above, which represent the vast majority of nuclei.

(e) In contrast, in Equation (6), one sees that while the denominator $2\lambda +\mu +3$ remains unchanged when passing from the hw irrep to the nhw irrep, the numerator is reduced by four units. Therefore, the value of $\gamma$ will be substantially changed when passing from the hw irrep to the nhw irrep. In other words, the hw proxy-SU(3) predictions for the collective variable $\gamma$ are not expected to be as robust as those for the collective variable $\beta$. Discrepancies may become larger in cases in which the above-mentioned condition (3) is violated, as seen, for example, in the Yb isotopes included in Figure 2 and further discussed in the beginning of Section 6.

(f) The picture appearing in (b), with the hw irrep being $(\lambda ,\mu )$ with $\mu \ge 4$ and the nhw irrep being $(\lambda +2,\mu -4)$, should be compared to the picture appearing in the SU(3) limit of IBM-1 [43,47], in which the lowest-lying irrep for a nucleus corresponding to $\mathcal{N}$ bosons is $(2\mathcal{N},0)$, while the next-lowest-lying irrep is $(2\mathcal{N}-4,2)$. In the IBM-1 framework, it is clear that the gsb will belong to the $(2\mathcal{N},0)$ irrep, while the next $K=0$ band, usually called the ${\beta }_1$ band [63], and the first $K=2$ band, usually called the ${\gamma }_1$ band [63], will belong to the $(2\mathcal{N}-4,2)$ irrep. Consequently, no $B\left(E2\right)$ transitions can connect the ${\gamma }_1$ band and the gsb, since they belong to different irreps, which goes against experimental evidence [63] suggesting that these transitions are strong, thus leading to the need to break the SU(3) symmetry in IBM-1. In contrast, in the proxy-SU(3) framework, the lowest-lying $(\lambda ,\mu )$ irrep can accommodate at least the ground state band (having $K=0$), the first $K=2$ band (the ${\gamma }_1$ band), and the first $K=4$ band, since $\mu \ge 4$, while only the second $K=0$ band (the ${\beta }_1$ band) is forced to go into the next-lowest-lying irrep, $(\lambda +2,\mu -4)$. As a consequence, non-vanishing $B\left(E2\right)$s connecting the ${\gamma }_1$ band to the gsb are allowed, and there is no need to break the SU(3) symmetry, thus resolving the problem mentioned at the end of Section 2.

(g) In a similar way, in the framework of the Vector Boson Model (VBM) [50], the ground state band and the first excited $K=2$ band, as well as the first excited $K=4$ band, always belong to the same irrep [79,80].

The regions shown in Figure 1 cover all nuclei above $Z=28$ and $N=28$ away from magic numbers, up to the end of the rare earth region. Lighter nuclei can be successfully considered in a variety of methods; thus, they are not of particular interest in the proxy-SU(3) framework. In addition, since in these nuclei, valence protons and valence neutrons occupy the same shell, the recently developed proxy-SU(4) symmetry [81] should be employed for them. Earlier work [78,82] in the actinides and in superheavy nuclei suggests that the method is applicable in these heavier regions, which are reserved for possible further work, due also to their large size. In this respect, it should be noted that the proxy-SU(3) approximation becomes more accurate in heavier shells [31].

5. Parameter-Free Predictions for the $\mathit{\beta }$ and $\mathit{\gamma }$ Collective Variables from the nhw Irreps

The predictions for the collective variables $\beta$ and $\gamma$ corresponding to the nhw irreps, obtained from Equations (7) and (6), respectively, are listed in Table 1 and compared to the predictions of the hw irreps in Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14.

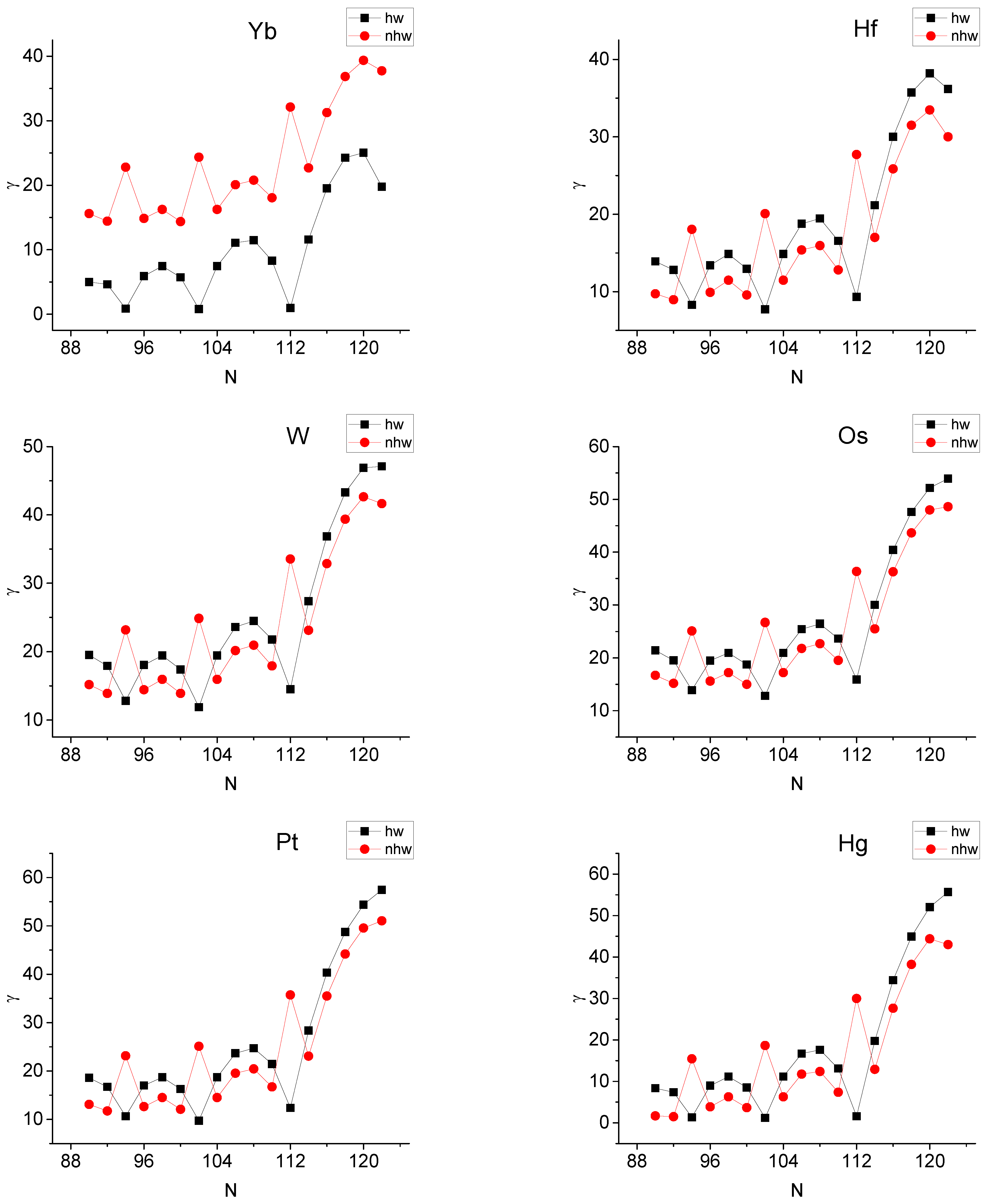

In Figure 4, in the region $Z=70$–80, $N=90$–122, we observe large discrepancies between the hw and nhw values of $\gamma$ at $N=94$, 102, and 112. In Figure 3, deviations also appear at these N values between the hw and nhw predictions for $\beta$, but they are much smaller in size. In addition, in Figure 4, we observe that the hw $\gamma$ predictions for Yb ($Z=70$) are systematically much lower than the nhw predictions for the other series of isotopes.

A similar picture is obtained in the region $Z=58$–68, $N=88$–100. In Figure 6, large discrepancies between the hw and nhw values of $\gamma$ are seen at $N=88$ and 94. Deviations also appear at these N values in Figure 5 between the hw and nhw predictions for $\beta$, but they are much smaller in size. In addition, in Figure 6, we observe that the hw $\gamma$ predictions for Sm ($Z=62$) are systematically much lower than the nhw predictions for the other series of isotopes. This difference is also visible for the $\beta$ values, shown in Figure 5.

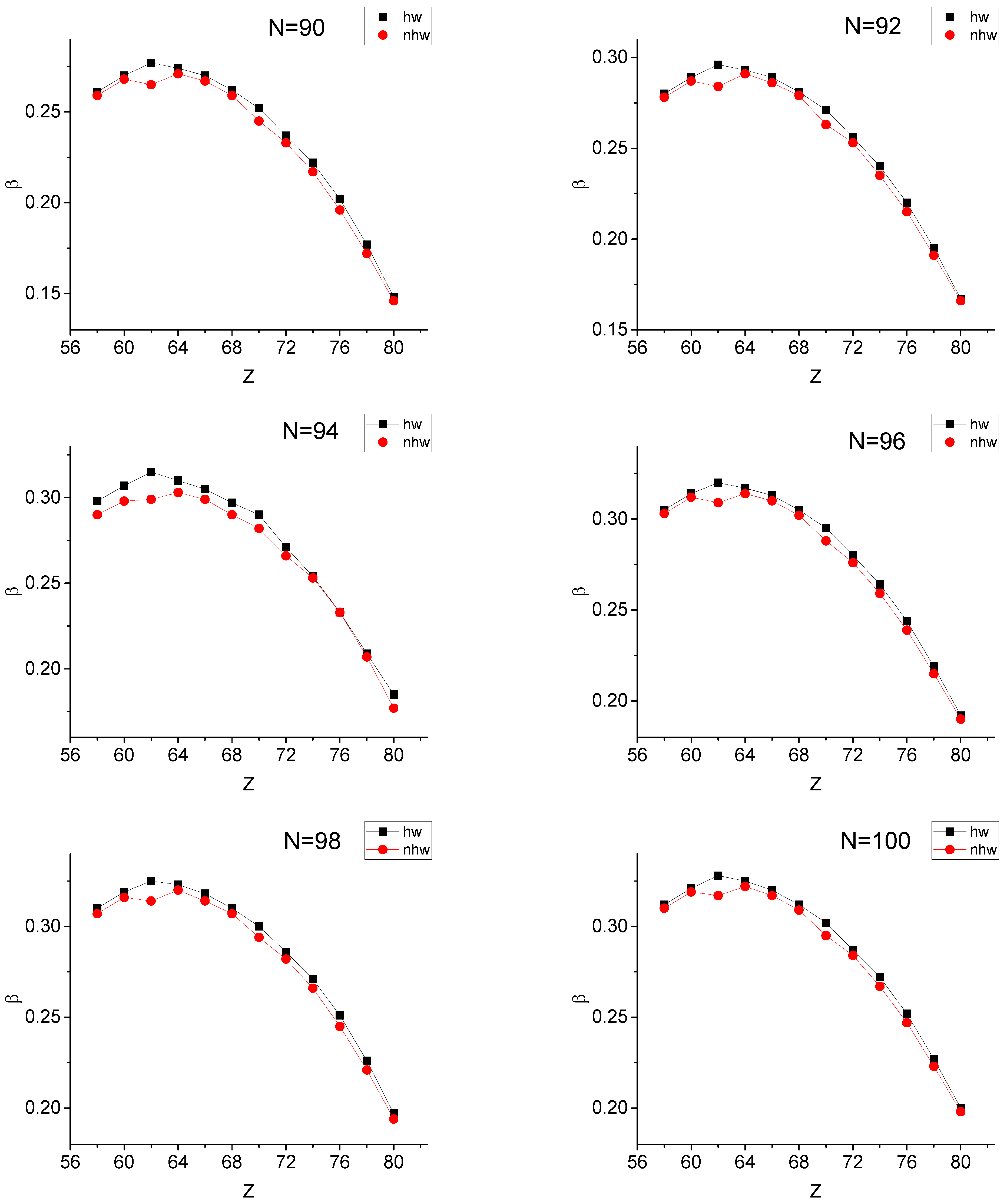

For corroboration of the above observations, which have been made by plotting the collective parameters $\beta$ and $\gamma$ for different series of isotopes vs. the neutron number N, in Figure 7 and Figure 8, we plot the collective parameters vs. the proton number Z for different series of isotones, focusing on the region $Z=58$–80, $N=90$–100. The observations made are fully compatible with the remarks made above. Large discrepancies between the hw and nhw values of $\gamma$ are observed in Figure 8 at $Z=62$, 70, 80, while for $N=94$, the hw predictions for $\gamma$ are systematically lower than the nhw predictions. These discrepancies are also seen in Figure 7 for the $\beta$ values, although their size is much smaller.

As a consequence of the compatibility of observations made in the plots vs. N and vs. Z, in the rest of the regions, the study is confined to the plots vs. N.

In Figure 10, in the region $Z=54$–64, $N=64$–78, we observe large discrepancies between the hw and nhw values of $\gamma$ at $N=70$. Deviations also appear at this N value in Figure 9 between the hw and nhw predictions for $\beta$, but they are much smaller in size. In addition, in Figure 10, we observe that the hw $\gamma$ predictions for Ba ($Z=56$) and Sm ($Z=62$) are systematically much lower than the nhw predictions for the other series of isotopes.

In the region $Z=36$–46, $N=54$–72, in Figure 12, we observe large discrepancies between the hw and nhw values of $\gamma$ at $N=56$, 62, 70. Deviations also appear at these N values in Figure 11 between the hw and nhw predictions for $\beta$, but they are much smaller in size. In addition, in Figure 12 we observe that the hw $\gamma$ predictions for Zr ($Z=40$) are systematically much lower than the nhw predictions for the other series of isotopes. This difference is also visible for the $\beta$ values shown in Figure 11.

In the region $Z=36$–46, $N=36$–46, in Figure 14, we observe large discrepancies between the hw and nhw values of $\gamma$ at $N=40$. Deviations also appear at this N value in Figure 13 between the hw and nhw predictions for $\beta$, but they are much smaller in size. In addition, in Figure 14, we observe that the hw $\gamma$ predictions for Zr ($Z=40$) are systematically much lower than the nhw predictions for the other series of isotopes.

Summarizing the above results, we see that large discrepancies between the hw and nhw predictions occur for nucleon numbers 40, 56, 62, 70, 88, 94, 102, and 112, which can be written as 28 + 12, 50 + 6, 50 + 12, 50 + 20, 82 + 6, 82 + 12, 82 + 20, and 82 + 30, respectively, showing that discrepancies occur at 6, 12, 20, and 30 nucleons above the magic numbers, corresponding to 6, 12, 20, and 30 valence nucleons in Table 1, for which hw irreps with $\mu =0$ occur. In other words, all discrepancies are rooted in the hw irreps with $\mu =0$. Therefore, these are the cases in which the hw irrep for a nucleus does not suffice for its description, and as a consequence, the nhw irrep has to be taken into account.

6. Combining the hw and nhw Predictions

The question now surfaces regarding how to take the hw and nhw irreps into account simultaneously. As the simplest approximation, we consider that the two irreps will contribute to the final result on equal footing. Returning to Figure 2, we replace the hw predictions for $\gamma$ by the average of the hw and nhw predictions given in Table 2. In the $N=96$, 98 series of isotones, the replacement is made for $Z=70$, which corresponds to 20 valence protons in the 50–82 shell. In the $N=94$ series of isotones, all of the values are replaced, since $N=94$ corresponds to 12 valence neutrons in the 82-126 shell. We see that these replacements dramatically improve the agreement of the proxy-SU(3) predictions to the empirical values.

Some comments regarding further work are now in place.

(a) The idea of an average SU(3) representation has been considered by Bhatt et al. [83] in a different context while trying to estimate the contribution of the intruder orbitals to deformation [84,85]. This is based on the observation [86] that the distribution of angular momenta within the intrinsic state of the intruder nucleons, which does not have any SU(3) symmetry, is very similar to the distribution of angular momenta contained in an SU(3) intrinsic state with the same average value of the angular momentum. In earlier work [87], schematic $pf$, $sdg$, $pfh$, and $sdgi$ shells with SU(3) symmetry have been proposed as approximations to the 28-50, 50-82, 82-126, and 126-184 nucleon shells, in agreement with the proxy-SU(3) proposal, while for the $pf$ shell, it has been remarked that it can be appropriate also for the 20-40 shell of the 3D-HO.

(b) From a mathematics point of view, it is known that when coupling two SU(3) irreps, a large number of irreps is obtained. Confining ourselves within the ground state, in order to have angular momentum quantum numbers equal to zero, the following equation is proposed [88]:

$$({\lambda }_2,{\mu }_2)\otimes ({\lambda }_1,{\mu }_1)=\sum _{\lambda ,\mu ,\rho }\left(({\lambda }_1,{\mu }_1,({\lambda }_2,{\mu }_2))\right|\rho \lambda \mu \rangle ,$$

(10)

where $c_{\lambda ,\mu ,\rho }=(({\lambda }_1,{\mu }_1,({\lambda }_2,{\mu }_2))$ stands for an SU(3) to SO(3) Clebsch–Gordan coefficient with all angular momentum quantum numbers equal to zero, and $\rho$ is a multiplicity index. The resulting irreps can be readily calculated using the code [89] accompanying ref. [88], which lists the resulting irreps in order of increasing weight. Thus, the hw irrep, which is the most stretched irrep in Equation (1) and always has multiplicity equal to unity, appears at the bottom of the list. The coefficients $c_{\lambda ,\mu ,\rho }$ can be readily calculated using a recent code given by Dytrych et al. [90], which can be used up to $\lambda +\mu +L\le 268$, while the older code given by Bahri et al. [91] was limited to lower values. It has been verified that the quantities $c_{\lambda ,\mu ,\rho }^2$ represent the probability of the irrep $|\rho \lambda \mu \rangle$ appearing if all possible irreps are taken into account. Although mathematically correct, the above set of irreps and relative probabilities ignores the nature of the nucleon–nucleon interaction, which dictates that the hw irrep alone dominates the collective properties of the nucleus. Under the special circumstances mentioned above, in the cases in which fully symmetric hw irreps with $\mu =0$ occur, it is reasonable to assume that the nhw will also be involved, with the rest of the irreps remaining practically inactive.

(c) Since the early days of nuclear physics, it has been realized that nuclear structure is shaped through competition [53] between pairings [92] and quadrupole–quadrupole interactions. Pairing is known to be associated with O(5) symmetry, allowing seniority to serve as a good quantum number [7,93]. O(5) underlies both the vibrational [U(5)] and $\gamma$-unstable [O(6)] symmetries [43], but not the rotational [SU(3)] symmetry. Therefore, pairing is known to break SU(3). In other words, the presence of pairing will bring in additional SU(3) irreps for the description of a nucleus deviating from pure SU(3) behavior. The question arises of how to obtain the additional irreps called in by pairing, as well as how to estimate their relevant importance. In the framework of pseudo-SU(3), the coupling of different irreps of SU(3) via the pairing interaction has been studied in detail in [94,95,96,97,98]. The SU(3) tensor decomposition of the pairing interaction in the $pf$ shell is given in Table 7.1 of [96], as well as in Table 1 of [97], with the usual Elliott basis used, paving the way for analogous calculations in the proxy-SU(3) framework, in which pairing is expected to moderate the values of the deformation parameter $\beta$ near the beginning of the shells, where they appear to exceed the data [32,58].

7. Conclusions

The proxy-SU(3) symmetry predicts, in a parameter-free way, the collective deformation variables $\beta$ and $\gamma$ in even–even atomic nuclei away from closed shells based on the highest weight (hw) irreducible representations (irreps) of SU(3) in the relevant proton and neutron shells. These are the most symmetric irreps allowed by the Pauli principle and the short-range nature of the nucleon–nucleon interactions. Within the proxy-SU(3) scheme, the hw irrep can accommodate the ground state band, the lowest $K=2$ band (usually referred to as the ${\gamma }_1$ band), and the lowest $K=4$ band.

However, substantial deviations from the empirical values occur when the hw irrep happens to be fully symmetric, i.e., boson-like, since in this case, the hw irrep can accommodate only the ground state band, while the lowest $K=2$ and $K=4$ bands are pushed into the next-lowest-lying energy irrep, which is the next-highest-weight (nhw) irrep.

The hw and nhw irreps, along with their predictions for the collective variables $\beta$ and $\gamma$, calculated in five different regions of the nuclear chart, have been tabulated. A comparison between the two sets reveals that in most cases, the hw and nhw predictions are very similar, providing evidence for the robustness of the proxy-SU(3) approach.

As expected, substantial deviations occur in the above-mentioned case in which the hw irrep happens to be fully symmetric. The deviations are more dramatic in the case of the collective variable $\gamma$. It is seen that taking the average of the hw and nhw values in these special cases results in predictions very close to the empirical values, thus eliminating the problematic deviations. The proxy-SU(3) predictions taking into account the nhw irreps can also be compared to the results of other models. A first step in this direction was taken in ref. [62].

The calculated $\beta$ and $\gamma$ values could be used as inputs for more elaborate irrep mixing calculations. In addition, it would be interesting to examine to which extent the nhw irreps are useful in the framework of the pseudo-SU(3) symmetry, in which the use of the hw irreps has led [99] to predictions similar to these of the proxy-SU(3) scheme, despite the different assumptions made and different unitary transformations [51,100,101,102] used in the two models.

Finally, the extension of the present calculations to the actinides and to superheavy nuclei [78,82] is a straightforward task that is expected to provide good results, since the proxy-SU(3) approximation becomes more accurate in heavier shells [31], while the extension to lighter nuclei in which the valence protons and the valence neutrons occupy the same shells would require the use of the recently introduced proxy-SU(4) symmetry [81].
