A Two-Step Model-Based Reconstruction and Imaging Method for Baseline-Free Lamb Wave Inspection
Abstract
:1. Introduction

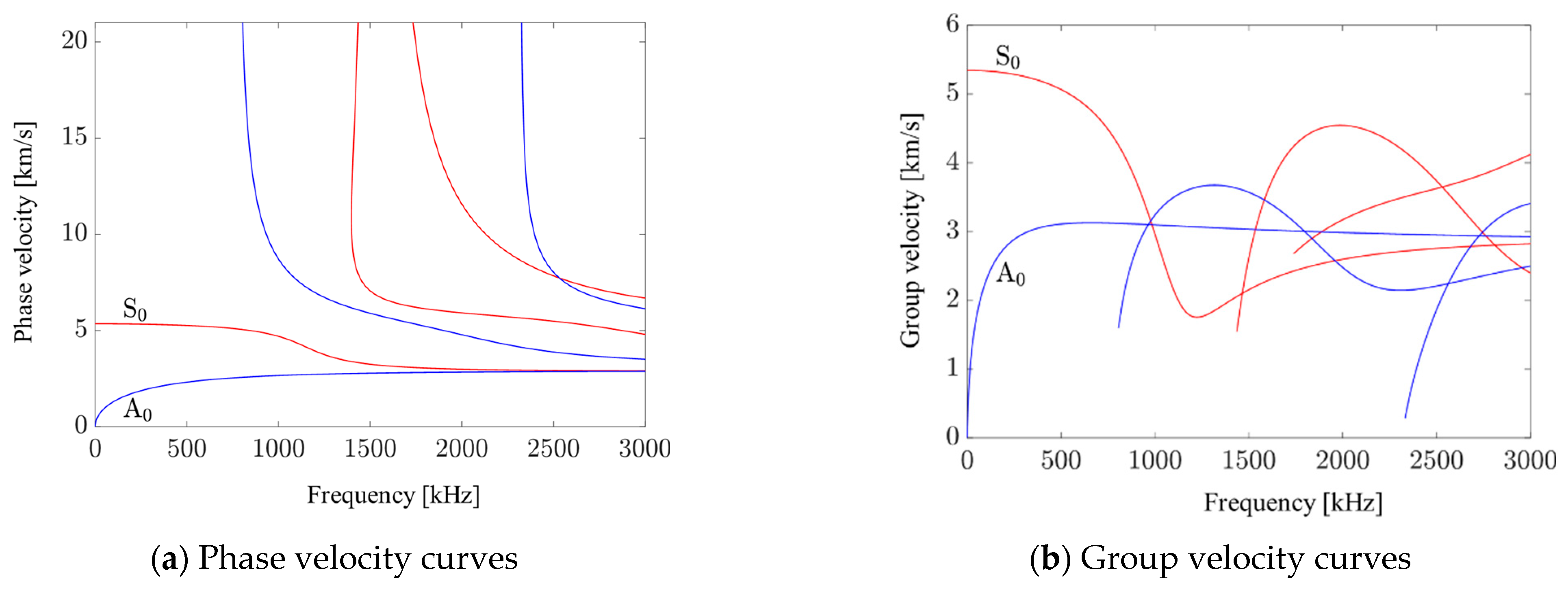

2. Fundamentals of Lamb Wave Propagation in Thin Plates

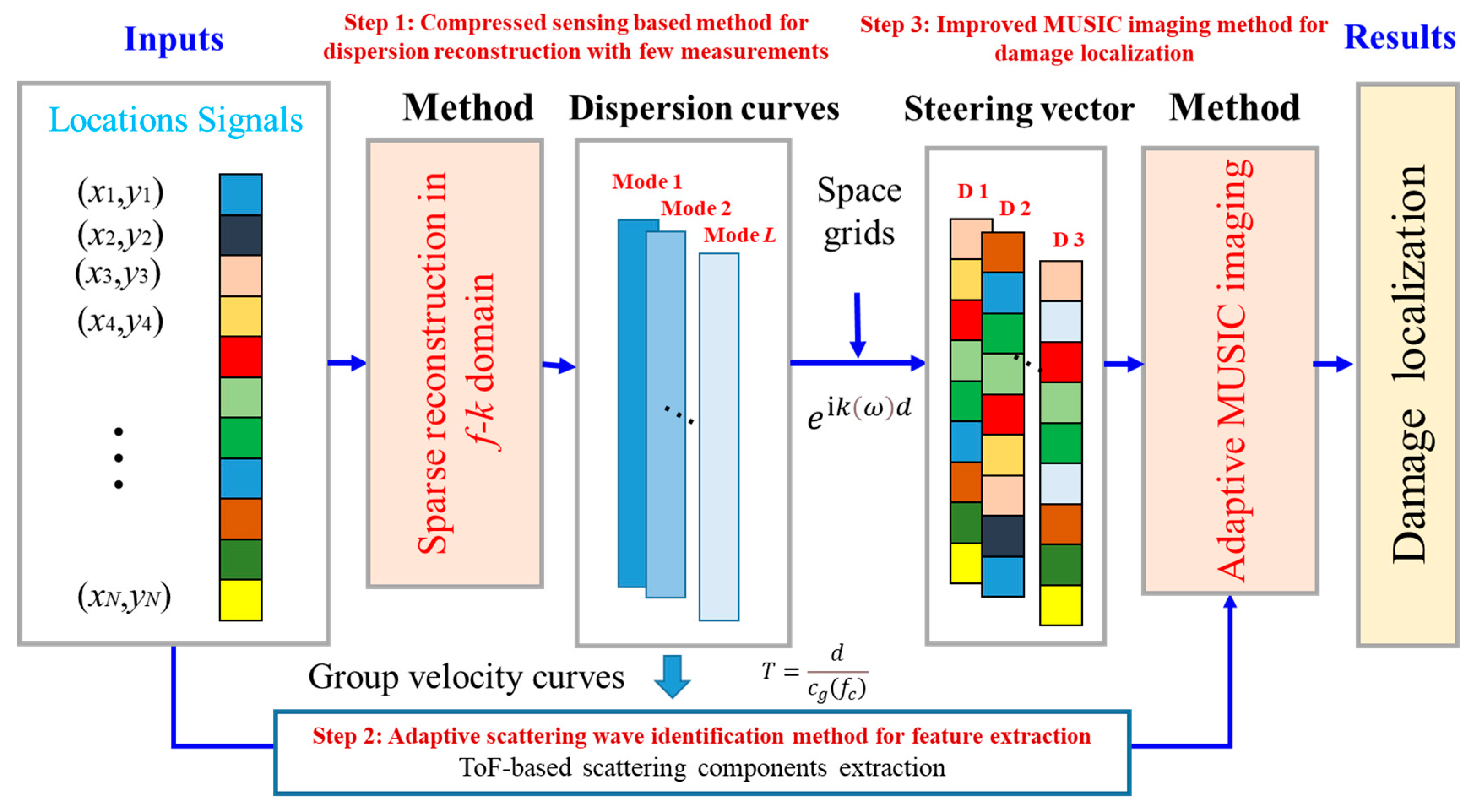

3. Two-Step Lamb Wave Model-Based Reconstruction and Imaging Method
3.1. Sparse Reconstruction in f-k Domain for Directly Arrived Lamb Wave Signals
3.2. Adaptive MUSIC Method for Damage Imaging and Localization

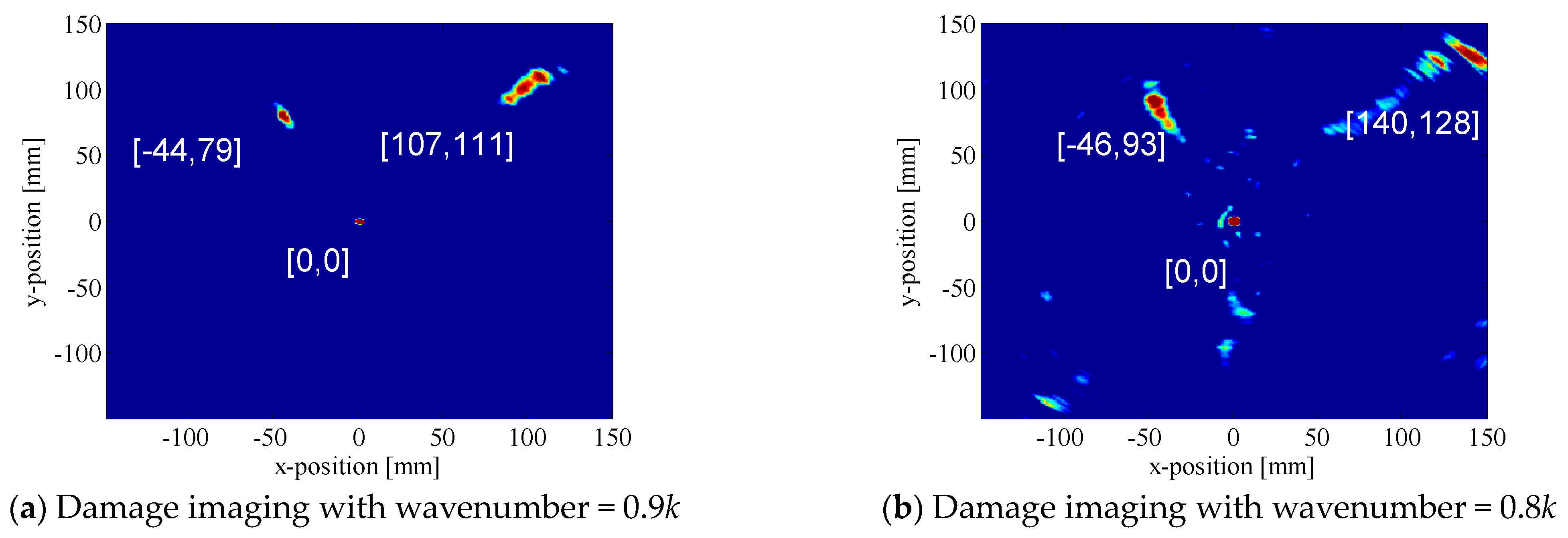

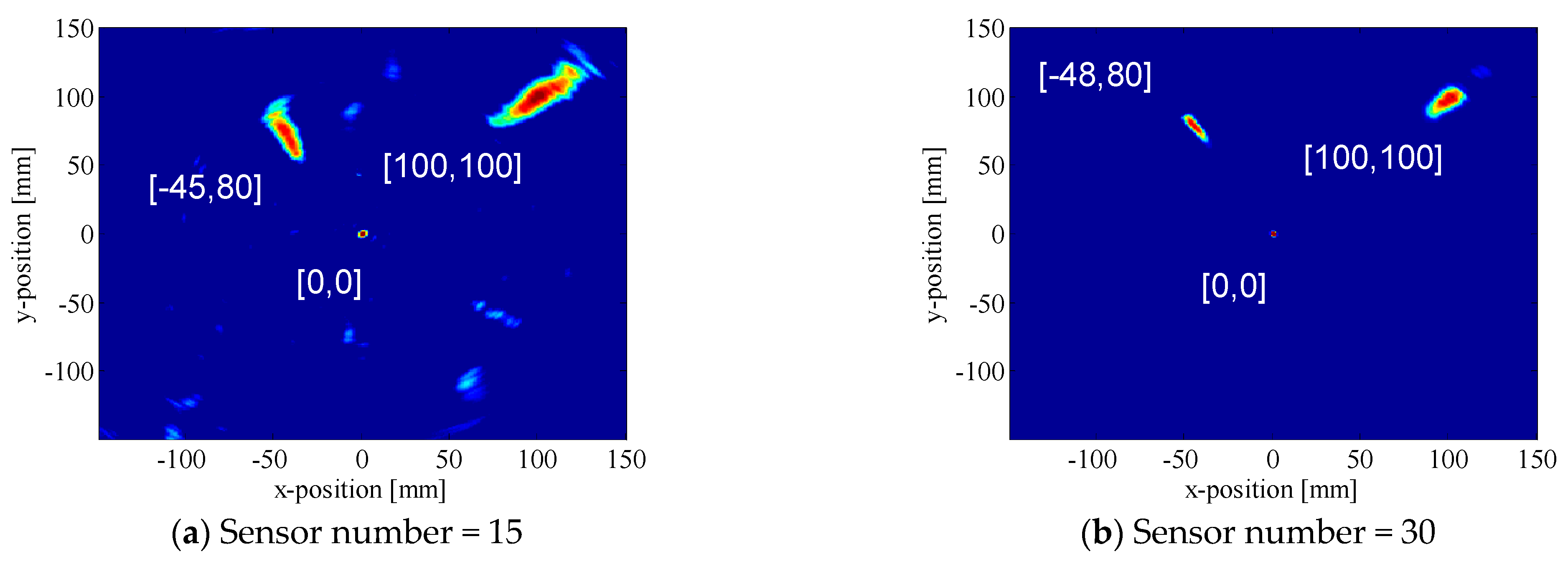

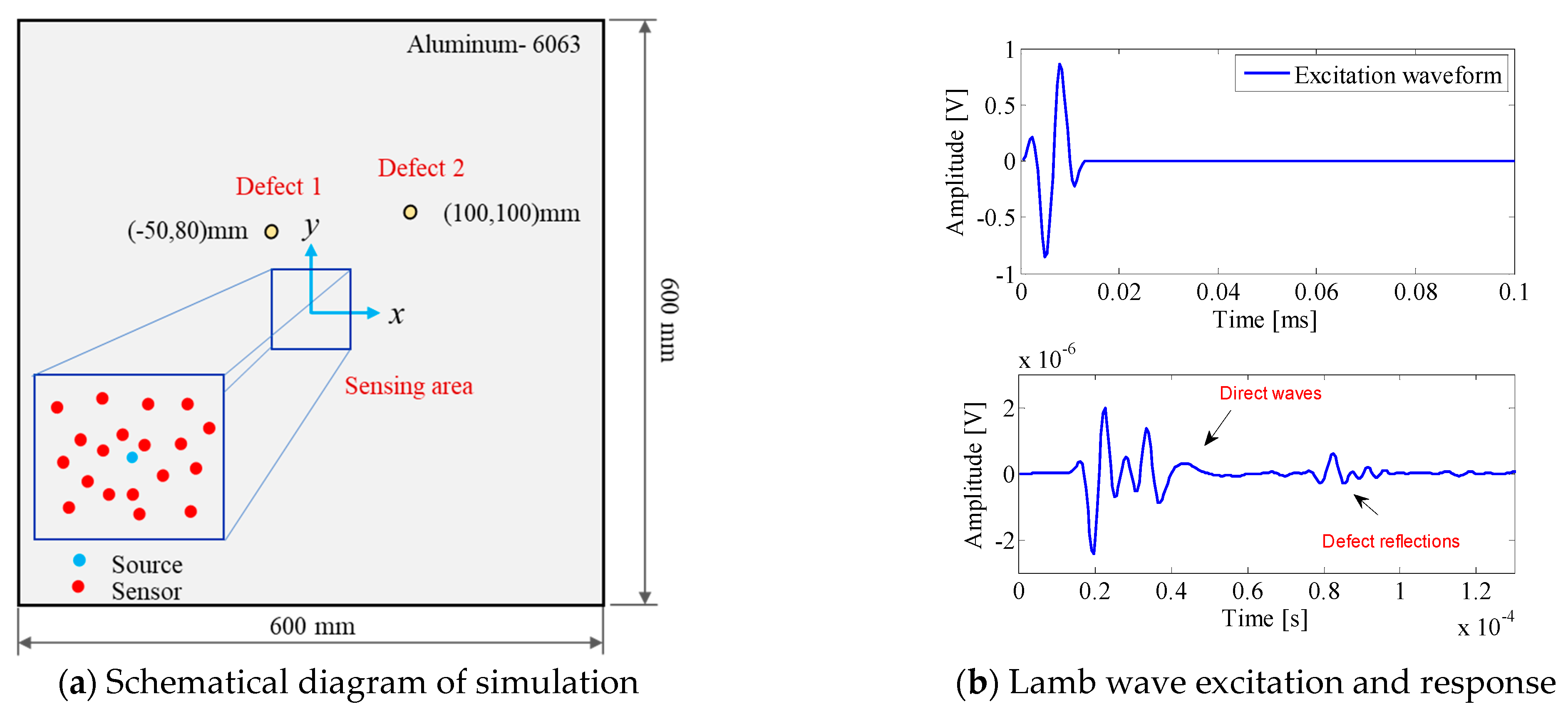

4. Simulation Study of Multiple Damage Imaging in Aluminum Plate
5. Experimental Validation with a Composite Plate

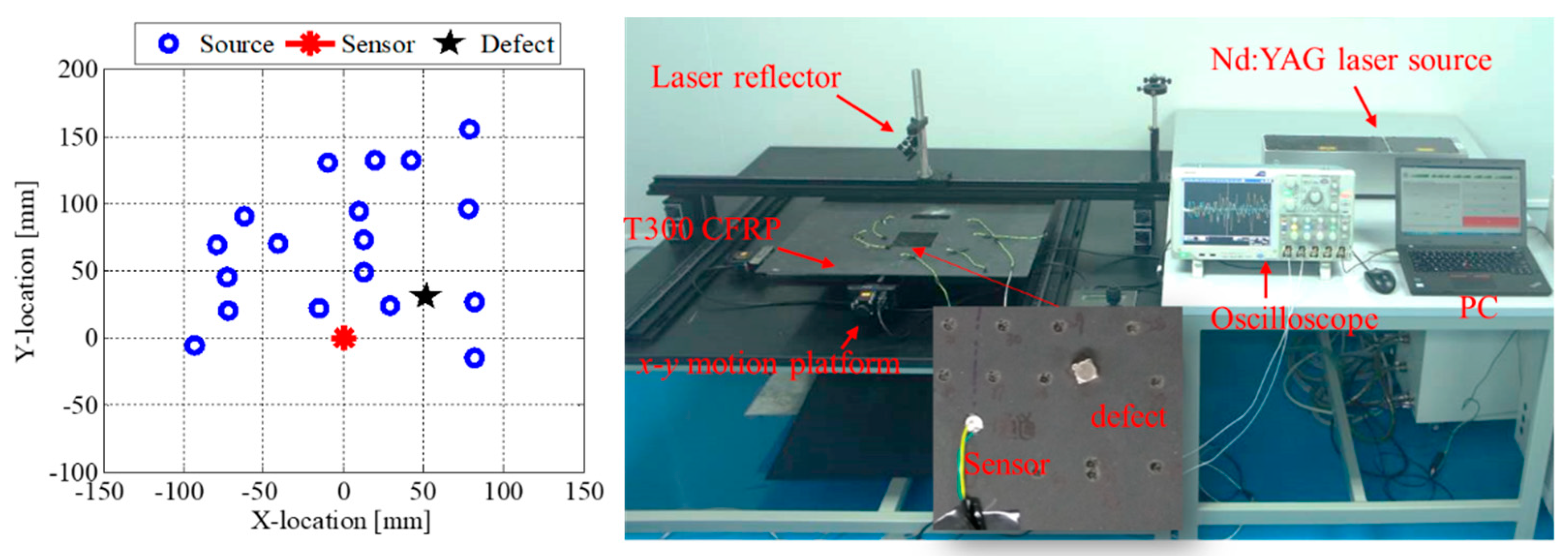

5.1. Experimental Setups

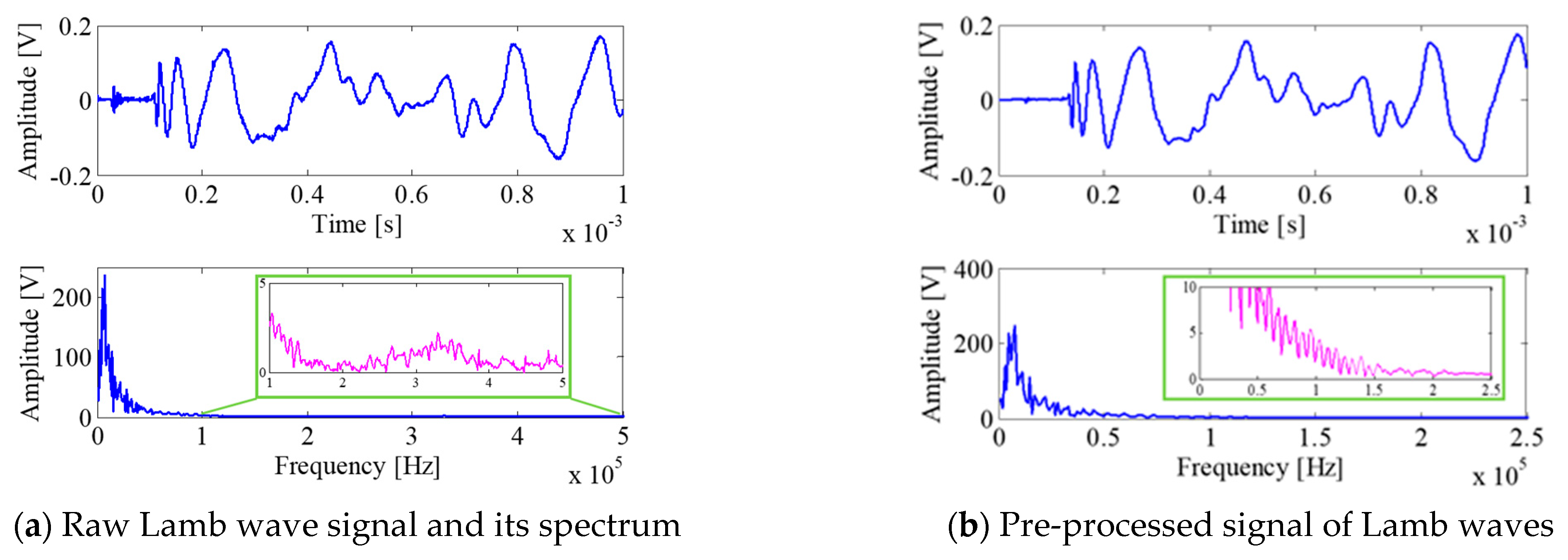

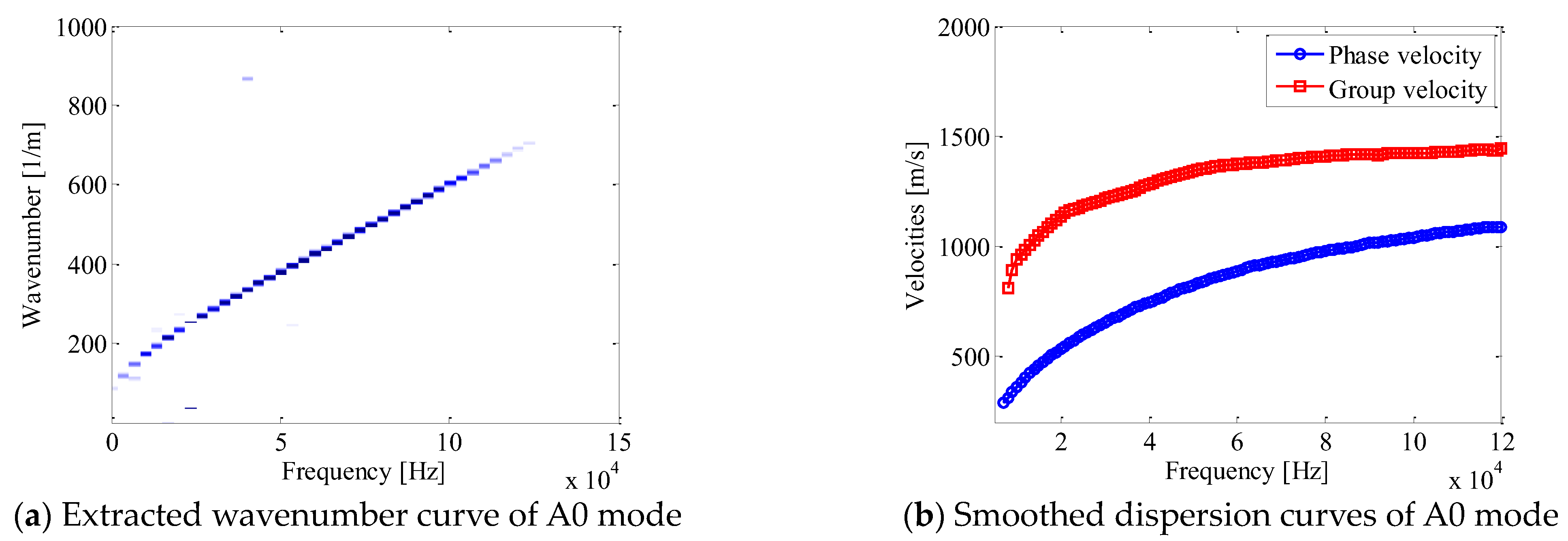

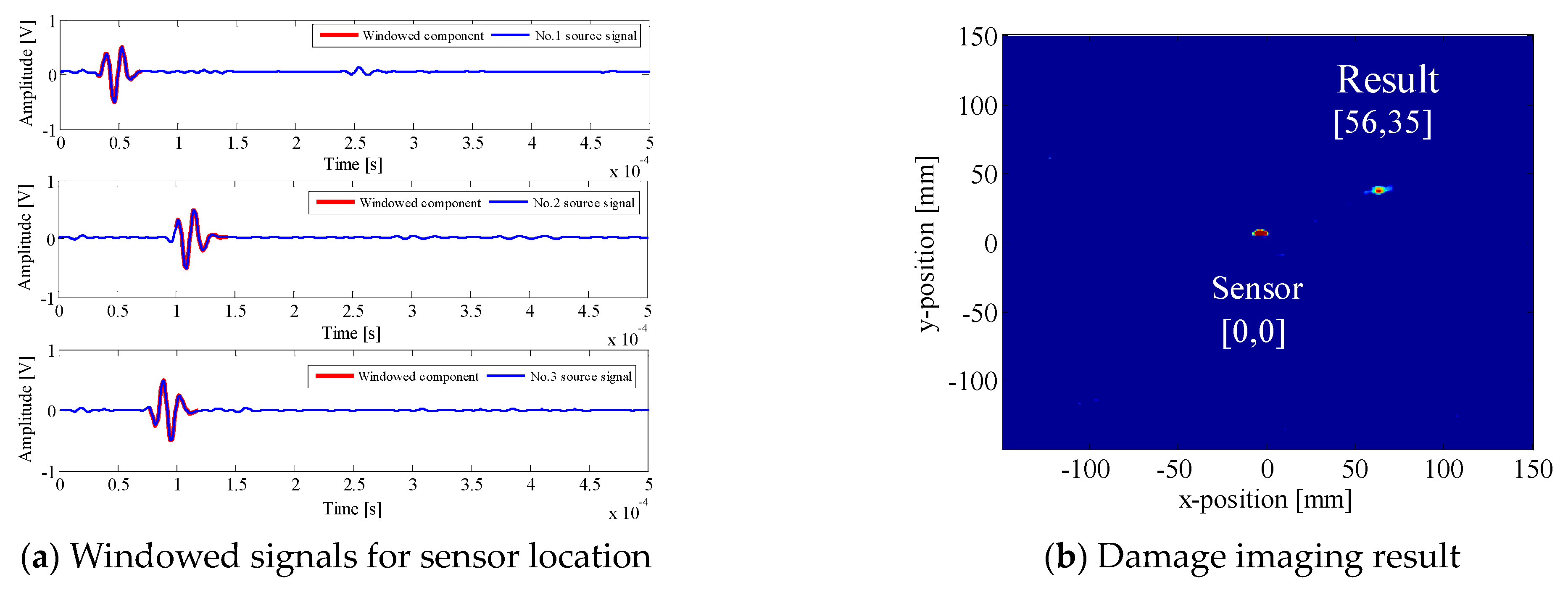

5.2. Signal Processing for Laser-Generated Lamb Waves
6. Conclusions
- (1)

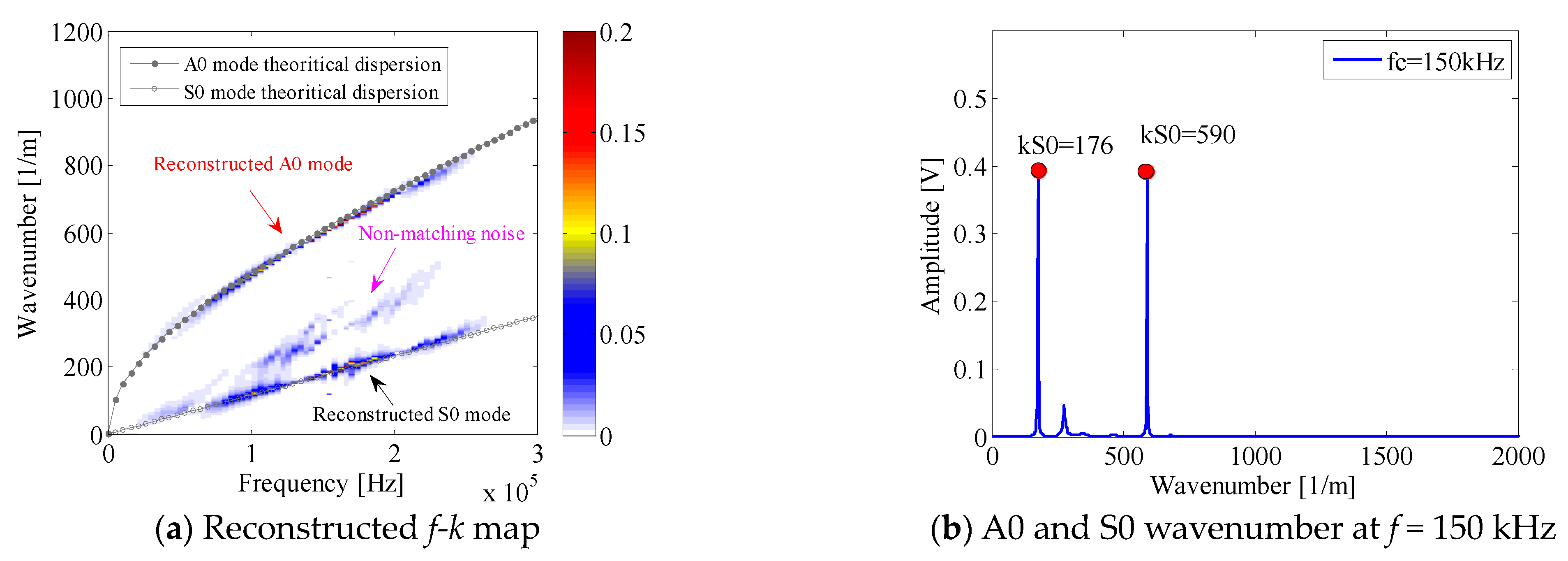

- A sparse reconstruction method with less experimental data is effective for dispersion curve reconstruction. With a simulation investigation, the estimated wavenumber errors for the S0 and A0 mode are 3.3% and 4%, respectively. The dispersion curves reconstructed from the measured data could be more useful and flexible in a variety of test scenarios when material properties are unknown or working conditions change over time.
- (2)
- Adaptive filtered scattering signals can improve eigenvalue decomposition and reflection identification by enhancing the weak damage features in a covariance analysis. Hence, the damage index gets amplified compared with traditional decomposing methods adopting full length signals.
- (3)
- With the adaptive MUSIC method, the damage can be located with considerable accuracy by a few measurements without baseline recordings. The localization error is less than 5 mm with 30 measurements in the simulation case and roughly 4.5 mm in the experiment investigation. The proposed method provides a potential way for damage detection and localization in various NDE and SHM applications.
