1. Introduction
Although the metallic state is usually well described by Landau’s Fermi Liquid (FL) theory, there are many systems in which the metallic properties are anomalous, with extended regions of their phase diagram displaying a strange metal behavior [
1,
2,
3,
4]. The most well-known examples occur in heavy fermion systems in the proximity of quantum critical points (QCPs), i.e., near zero-temperature second-order phase transitions, where the uniform metallic state is unstable towards some ordered state for some critical value
of a tuning parameter
x, or in high-temperature superconducting cuprates above the optimal superconducting critical temperature (see, e.g., Refs. [
5,
6], and references therein). More recent examples are found in iron-based superconductors [
7] and twisted bilayer graphene [
8]. The most prominent feature of the strange metal behavior is a linear-in-
T resistivity without any saturation, as a function of the temperature
T, up to the highest temperatures. This behavior often starts in the vicinity of a QCP and when the order parameter fluctuations (OPFs) have a two-dimensional (2D) character and the dynamical index is
also a logarithmic
ratio (
being the specific heat) [
9,
10] is observed, while other power-laws occur when fluctuations are three-dimensional (3D) [
2]. In this work, we will focus on quasi-2D systems like cuprates or pnictides and discuss the role of dimensionality in the concluding remarks,
Section 5.
Although some theories for the violation of the FL behavior do not rely on an underlying criticality [
11,
12,
13,
14,
15], the most common interpretations of the strange metal behavior rest on the idea that abundant OPFs in the quantum critical region
may be sufficient to mediate strong effective interactions that spoil the Landau quasiparticle stability and create the non-FL state [
16]. This scenario can be realized in different ways, depending on the nature of the ordered phase, which can be antiferromagnetic [
17,
18,
19], charge density wave [
20], nematic [
19,
21], loop-current [
22], or can have a local character [
23,
24,
25].
We rely on the frustrated phase separation theory for charge density waves in cuprates [
20,
26,
27,
28], where charge density waves are the result of the competition between short- and long-range electron-electron interactions in a strongly correlated electron system, making the FL unstable when the doping-tuned carrier density is reduced below a (temperature-dependent) critical value. The critical line in the temperature
T vs. doping
p phase diagram ends, at
, into a QCP. Due to the strongly anisotropic character of cuprates, the related OPFs in the disordered (FL metallic) phase mostly have a 2D character, and the crossover to a 3D behavior is only achieved at sufficiently low temperatures [
26], allowing for the occurrence of a 3D charge-density-wave ordered state that establishes underneath a dome-shaped curve (see, e.g., Ref. [
27] and references therein) below a critical doping
, which was observed to be
in YBa
Cu
O
[
29]. This value is lower than the doping
where the
T-linear resistivity extends down to the lowest temperatures when superconductivity is suppressed by strong magnetic fields [
5]. Recent resonant inelastic X-ray scattering experiment [
30], besides the expected fluctuating nearly-critical charge density waves, associated with the 3D ordered phase, also showed the presence of much shorter-ranged charge density fluctuations (CDFs). These may be the remnant of OPFs of a missed 2D criticality [
31], coexisting with nearly-critical fluctuations related to the nearby ordered state.
In a previous work [
32], we showed that the observed CDFs in cuprates have a low enough characteristic energy
E to be semiclassical in character (i.e., the Bose function ruling their statistics can be approximated by
) and are local enough (i.e., they involve a sufficiently broad range of momenta) to account for nearly isotropic scattering as phenomenologically required by the Marginal Fermi Liquid theory [
33]. These two ingredients are enough to account for the linear-in-
T resistivity observed slightly above optimal doping. We point out that the low energy (smaller than
T) and abundance of OPFs in the proximity of a QCP are brought about by the electron-electron interactions driving the FL unstable and by the low dimensionality of the system. We shift our focus from a diverging correlation length to an increasing dissipation that renders the OPFs slower and slower, thereby extending strange metallicity down to lower and lower temperatures. The paradigmatic shift we propose faces a theoretical difficulty of non-FL theories based on the proximity to a QCP characterized by OPFs with a finite characteristic wave vector
. In such theories, the scattering is extremely anisotropic on the Fermi surface, and the FL character of the quasiparticles is spoiled only at isolated points, the so-called hot spots, while scattering at all other points of the Fermi surface is FL-like at sufficiently low-energy, short-circuiting the non-FL behavior at the hot spots [
34]. Our proposal was shown to lead to isotropic marginal-FL behavior [
32] and the effect that the scattering stays isotropic at the Fermi surface while the scatterer acquires sufficiently low energy to give rise to an extended linear-in-
T resistivity.
In subsequent work [
35,
36], we found that a large dissipation of the OPFs may extend the regime of their semiclassical behavior, thereby accounting for a linear-in-
T resistivity down to the lowest temperatures and for the logarithmic divergence of the
ratio, as it is observed in cuprates at
, when superconductivity is suppressed by high magnetic fields [
5]. Nevertheless, the relevant question remained open about the microscopic mechanisms inducing the required dissipation increase.
The motivation of the present work is precisely to provide a possible solution to this last question. Our idea is that the results of this work can somehow fill the gap that was left open in our previous works [
35,
36], namely the origin of the strong increase in the characteristic relaxation time of OPFs. The explanation we are going to propose gives a central role to the coupling between the OPFs and the diffusion modes of electrons in two dimensions. The present result strongly supports our previous phenomenological assumption of a logarithmic increase in dissipation.
The structure of the paper is the following. In
Section 2, we introduce a model for the coupling of OPFs and electron density diffusive modes that are simple enough to be exactly solvable and yet include all the main physical ingredients leading to an enhancement of damping of the OPFs due to the coupling to other degrees of freedom. In
Section 3 and
Section 4, respectively, we discuss the specific heat and resistivity of cuprates from the point of view of our scenario. Our concluding remarks are found in
Section 5.
2. The Order Parameter Fluctuations-Diffusive Modes Model
Taking the CDFs observed in cuprates [
30] as a paradigmatic example in which the forthcoming assumptions follow from a description of the experimental data, we consider a regime in which the OPFs have a rather short correlation length,
(
is their characteristic wavelength), by requiring that the system is at a finite distance from the QCP on the disordered side, i.e., at a doping
p sufficiently larger than the critical value
. In this regime, the fluctuations are largely independent of each other and have a nearly-local character so that they can be represented by a local field at the origin,
. Accordingly, the propagator of these fluctuations has the typical form of an overdamped oscillator
where
is the boson Matsubara frequency,
is a dimensionless parameter measuring the damping strength due to the decay of the OPFs into particle-hole (p–h) pairs (Landau damping), the energy scale
stays finite, and
is an electron energy scale (we adopt units such that the Planck constant
ℏ and the Boltzmann constant
are set equal to 1, so that angular frequencies, energies, and temperatures have the same units). By analytically continuing to real frequencies,
, one can obtain the spectral density of the OPFs, which is broad and peaked at
, as depicted in
Figure 1a.
Depending on the typical energy
of the decaying fluctuation, the particle, and the hole can propagate as ballistic particles when their energy (of order
) is larger than
, the elastic scattering rate of the charge carriers on quenched impurities [
Figure 1b]. On the other hand, when the fluctuation has lower energy,
, a new decay channel opens, with electrons having a diffusive character, as long as
(for
the electrons and the holes are in a quasi-ballistic regime, but the OPFs may remain in a classical regime). For
, the nearly-local OPF may decay into a p–h diffusive mode [
Figure 1c]. We show that this diffusive decay channel of the OPFs triggers the growth of
and the strange metal behavior is extended down to the lowest temperatures alongside a low-temperature logarithmic growth of the specific heat ratio
is achieved.
In the standard theory of disordered electron systems [
37], a diffusive collective mode is obtained by a ladder resummation of impurity scattering events [the dotted lines in
Figure 1d], so that the density–density response function takes the form of a diffusive pole
where
is the wave vector,
,
D is the diffusion constant, and
the quasiparticle density of states at the Fermi level. These density fluctuations keep their singular diffusive form as long as
is smaller than the elastic scattering rate on quenched impurities
.
It is worth noticing that the diffusive character of the low-energy electronic modes is not a property of strongly disordered systems: any standard Drude metal with (even small) amount of impurities has a finite conductance due to impurity scattering, and the electrons (or quasiparticles) at energy smaller than diffuse rather than propagate ballistically. Moreover, many strongly correlated systems, with their (strange) metallic character, always display a non-negligible elastic impurity scattering. Cuprates, for instance, have impurity scattering rates of the order of a few tens of meV, such that essentially over the whole phase diagram.
To describe an equilibrium situation, where an OPF decays into diffusing p–h pairs, which in turn form back an OPF, we introduce a phenomenological coupling
g between an OPF (centered at
) and the diffusive density fluctuation
This simplified model has the advantage of being exactly solvable while keeping all the main ingredients to access the physical scenario of an increasing dissipation of the OPFs, due to the coupling to other degrees of freedom. The coupling between OPFs and diffusive modes dresses the OPF propagator, Equation (
1), with the self-energy graphically represented in
Figure 1e,
As usual, the upper momentum cutoff in the diffusion processes is given by the inverse mean free path
, which can then be translated into an energy cutoff for the diffusive modes
. For the lower cutoff,
, we will consider two possibilities: (
i) either it is provided by the temperature
T, as long as
, i.e.,
, (
ii) or we set
, given that the logarithmic divergence in Equation (
4) is anyway cutoff by the term
in the denominator. The first term in Equation (
4) is a finite correction to the energy scale
M, which is immaterial in the forthcoming discussion. Hereafter, we will examine the two possibilities, (
i) and (
ii), for the lower cutoff, showing that the resulting scenario is essentially the same.
In case (
i), expanding to first order in
the last term in Equation (
4), one obtains a correction to the dissipation coefficient
,
where
is the damping coefficient in the absence of coupling to diffusive modes and
is a dimensionless effective coupling constant. Therefore, the diffusive channel induces a logarithmic increase in the dissipation parameter
when
T decreases. As it was previously shown [
35,
36], a logarithmically divergent
leads to a logarithmic divergence of
with a finite correlation length
.
In case (
ii), one gets a similar result, but now
depends on the frequency and diverges logarithmically as
. As we shall show in
Appendix A, this also leads to a logarithmic divergence of
.
The above results raise the issue of the role of the nearby QCP. In particular, one can notice that Equations (
5) and (
6) do not explicitly involve the parameter
x tuning the proximity to the QCP (in cuprates, this is the doping level
p), nor the correlation length characterizing the OPFs. We, therefore, need to equip our microscopic model with the range in
x where the above diffusive decay channel becomes effective. First of all, we consider the condition that, when the OPF has a characteristic energy
, it can only decay in ballistic p–h pairs and, therefore,
. Since the short-range fluctuations are the 2D precursors of the nearby QCP, the correlation length will increase for
x approaching
and the decay in diffusive p–h pairs sets in when the tuning parameter of criticality
x is such that
, i.e.,
(DMD stands for diffusive mode decoupling). This sets the maximum distance from the QCP above, which
. On the other hand, our arguments (nearly-independent OPFs, short correlation length
) fail when one approaches the QCP, where the physics is ruled by a diverging correlation length
and the standard Hertz–Millis picture [
38,
39] is recovered. Therefore, we are led to assume that the diffusive modes decouple from the OPFs for
(QCR stands for the quantum critical regime), giving rise to a negligible
. Then, Equation (
3) only holds in range
.
We point out that the crossover from this regime to the standard Hertz–Millis criticality is not captured by our simplified description. It definitely requires the inclusion of the self-interaction of OPFs. Furthermore, one can conceive a scenario where the short-ranged OPFs described within our approach coexist with nearly-critical (
à la Hertz–Millis) fluctuations, and the short-ranged OPFs never become long-ranged. This seems exactly to be what is observed in cuprates, where resonant inelastic X-ray scattering experiment [
30] highlighted the coexistence of fluctuating charge density waves and much shorter ranged CDFs that can be interpreted as the remnant of a (missed) 2D criticality [
31].
3. The Cuprates: Specific Heat
In the case of cuprates, where a charge density wave QCP occurs near optimal doping, at a critical doping
hidden under the superconducting dome [
20,
26,
29], we implement the constraint that
only for
, phenomenologically imposing in Equation (
5) a doping dependence
for
, and
, otherwise, where
is a suitable dimensionless prefactor. In the above interval of
p, for
the additional diffusive channel is open and
increases, thus lowering
and extending to lower temperatures the strange metal behavior.

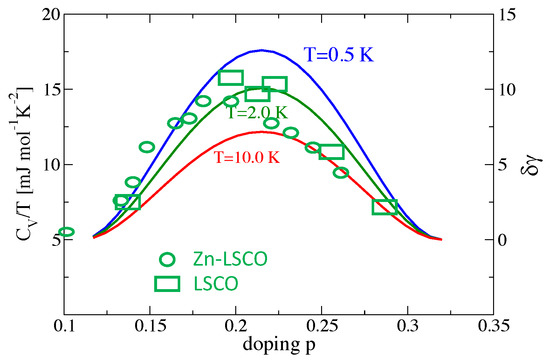

Figure 2 describes the behavior of
for various temperatures
K, 2 K, and
K. While the shape arises from the choice of the doping dependence of
in Equation (
7), the temperature dependence follows Equation (
5), reproducing the logarithmic behavior observed for
in Refs. [
10,
40,
41] and phenomenologically discussed in Refs. [
35,
36]. Notice that this logarithmic temperature dependence is, therefore, due to
rather than the logarithmic dependence of the specific heat from the correlation length. Reasonable values of the limiting control parameters, of the coefficient
A, of the disorder
and the temperatures are simply chosen for an easier comparison between
and
to which it is proportional [
35]. It is worth emphasizing that the
variation is not unique among the cuprates: while it seems to diverge at a specific doping (or in a quite narrow doping range) in Eu-LSCO and Nd-LSCO [
10], it displays a broad maximum in LSCO and Bi-2201 instead [
40,
41]. This variety of behavior is not limited to specific heat data but corresponds to the possible occurrence of strange metal behavior either in narrow or broad intervals of the tuning parameter [
2,
42,
43,
44].
Within the present scenario the doping interval is non universal and it can be comparatively broader or narrower in different cuprates, while the relevant non-trivial result is the logarithmic temperature dependence of .
4. The Cuprates: Resistivity
Regarding the transport properties, we showed in Ref. [
32] that CDFs account for the linear-in-
T resistivity in optimally and slightly overdoped YBCO and NBCO samples down to the superconducting critical temperature or slightly above it. The question remained about the linear-in-
T resistivity observed for
in strong magnetic fields suppressing superconductivity, which extends down to a few K. Our scenario is summarized in
Figure 3. In
Figure 3a, we schematically report with red dashed lines the behavior of the CDF characteristic energy at different temperatures
, both in the ballistic and in the diffusive regimes of their decay. This latter regime occurs when
, which defines the doping
. At
, within our model, the characteristic energy drops to zero below
due to the logarithmic divergent
. For
, the value of
is also influenced by the pseudogap, possibly leading to
due to reduced phase space for damping processes. In any case, how
connects to the standard Hertz–Millis QCP is an open issue and, therefore, corresponds to
terra incognita in
Figure 3a. Since typical values for the scattering rates in cuprates are
30–50 meV, one can notice that the customarily reported phase diagrams of cuprates are usually in the regime where
. Under this condition, we report in
Figure 3b a sketch of a cuprate phase diagram, where the red dashed line indicates the crossover temperature from the semiclassical to the quantum regime of CDFs, determined from
. It shows a significant drop below the doping
[again due to the logarithmic
behavior; in
Appendix B, we show that a similar behavior for the resistivity is also obtained when
diverges logarithmically with the frequency, case (
ii) in
Section 2] and for the parameters given in
Figure 3, approaches a small but finite value
K in the doping range between pseudogap and FL region. In the resistivity and doping
this reflects in the crossover from linear to quadratic behavior as shown in
Figure 3c, see also Refs. [
32,
35,
36]. In the pseudogap region, additional scattering mechanisms influence on
, inducing a decrease from linearity below
and an eventual increase at lower temperatures [
45,
46,
47]. All these further sources of electron scattering, as well as paraconductive fluctuations above the superconducting critical temperature
[
48,
49] are not included within our descriptions, that focus on the CDF contribution only, under experimental conditions that suppress the other scattering channels. One may argue that the energy scales related to other scattering mechanisms (e.g.,
or
) would eventually appear as low-energy cutoffs in Equation (
4), instead of
T, preventing
from diverging. For instance, since superconductivity removes low-energy fermion quasiparticles, the damping
is expected to
decrease when entering the superconducting phase (see
Section 5).
5. Discussion
In this work, we investigated the dynamics of OPF in the disordered region not far from a QCP. Although the quantum OPFs are intrinsically dynamical even at finite temperatures, our results show that a divergent dissipation destroys this quantum character leading to fluctuations that are semiclassical down to
. This effect is similar to that found in Ref. [

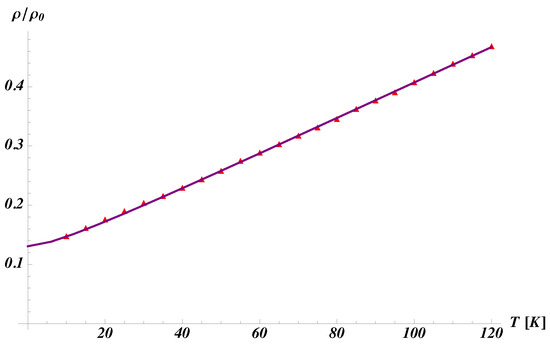

50], where dissipation quenches the instantons describing the quantum tunneling between local free energy minima of a disordered system. The classical statistics induced here by the increase in dissipation is then directly reflected in the linear-in-
T resistivity, owing to the almost homogeneous scattering mediated among the Fermi quasiparticles all over the Fermi surface [
32,
35,
36].

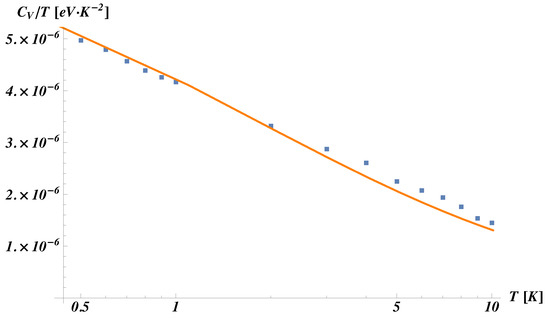

A few remarks are now in order. First of all, the ingredients of quenched impurities and 2D short-ranged OPFs are so generic that a similar mechanism can easily be at work in other (maybe all) systems where the strange metal behavior is observed in the form of a linear-in-
T resistivity and a logarithmic
. The heavy fermion systems CeCu
X
(X=Au, Ag) are just possible examples out of many others [
2,
9,
24]. As evident from Equation (
4), the logarithmic divergence of term
is a consequence of the fact that we are dealing with a 2D system. Strictly speaking, the possible divergence of
, as well as the low-temperature trend, depends crucially on this assumption. The extension to 3D (anisotropic) systems would, in principle, introduce a temperature scale
below which the 3D behavior is recovered and the logarithmic divergence of
stops. The question that remains open is whether the scale
can be effectively suppressed along with the increase of the relaxation time of the OPFs, which seems to be a necessary condition to observe the strange metal behavior down to low temperatures in 3D systems.
The proximity to a QCP (charge density waves for cuprates, antiferromagnetic for heavy fermions) easily accounts for the observation of scaling properties. Our guess, within our scenario, is that scaling, being based on a large, diverging
, is truly observed at the QCP [
24], while the true strange metal behavior (with linear-in-
T resistivity) should occur away from it, where
is small or vanishing but
is finite and still rather short. This mismatch between the precise tuning of
to observe scaling properties and bona-fide criticality at the QCP and the (possibly extended) range of strange metal behavior at
(with
) is a definite testable prediction of our scenario, which calls for more precise experimental scrutiny (actually, this is the case in the YBa
Cu
O
cuprates, where
, while strange metal properties are observed around
[
29]). Concerning cuprates, another intriguing, so far unsolved, issue concerns the effect of pseudogap and superconductivity on the dissipation parameter
. Since this latter is naturally related to the density of states of particles near the Fermi surface (both in the ballistic and the diffusive regimes), we argue that pseudogap and superconductivity should induce a decrease of
, thereby opposing the strange metal behavior, as indeed observed below
.
Another prediction of our scenario is related to the condition setting the doping regime where diffusion leads to an increasing . Thus far, in the paper, the condition is governed by varying M (i.e., ) when approaching at a fixed . We suggest that an increase in disorder (e.g., by ion irradiation) might increase the elastic scattering rate extending the range in T and p where strange metal properties are observed. On the other hand, for quasi-2D systems characterized by a relatively small scattering rate , the interval of doping where the strange metal behavior is observed down to very low temperature, according to our scenario, should become very narrow. Therefore, another possible test for our theory could be to examine particularly clean 2D systems.
A final remark is that the divergence of at marks a complete slowing down of the OPFs, which acquires a vanishing characteristic energy. Considering an ensemble of OPFs that freeze when , one might speculate that some kind of glassy state of frozen short-ranged OPFs might occur at over an extended range of x slightly above a 2D QCP. This is another intriguing testable consequence of our scenario.
