Theoretical Analysis of a COVID-19 CF-Fractional Model to Optimally Control the Spread of Pandemic

Abstract

In this manuscript, we formulate a mathematical model of the deadly COVID-19 pandemic to understand the dynamic behavior of COVID-19. For the dynamic study, a new SEIAPHR fractional model was purposed in which infectious individuals were divided into three sub-compartments. The purpose is to construct a more reliable and realistic model for a complete mathematical and computational analysis and design of different control strategies for the proposed Caputo–Fabrizio fractional model. We prove the existence and uniqueness of solutions by employing well-known theorems of fractional calculus and functional analyses. The positivity and boundedness of the solutions are proved using the fractional-order properties of the Laplace transformation. The basic reproduction number for the model is computed using a next-generation technique to handle the future dynamics of the pandemic. The local–global stability of the model was also investigated at each equilibrium point. We propose basic fixed controls through manipulation of quarantine rates and formulate an optimal control problem to find the best controls (quarantine rates) employed on infected, asymptomatic, and “superspreader” humans, respectively, to restrict the spread of the disease. For the numerical solution of the fractional model, a computationally efficient Adams–Bashforth method is presented. A fractional-order optimal control problem and the associated optimality conditions of Pontryagin maximum principle are discussed in order to optimally reduce the number of infected, asymptomatic, and superspreader humans. The obtained numerical results are discussed and shown through graphs.

1. Introduction

COVID-19 is considered a swift-killing infectious disease and has shaken the world to its core. The analysis of global data gathered has proven it to be an acute respiratory syndrome. The first visible appearance was observed in December 2019 in Wuhan, China; afterward, it spread globally, resulting in a pandemic outbreak in 2020 [1]. The COVID-19 pandemic is known as the biggest global pitfall of 2020. It spread fast across different divisions in China. Throughout 2020, the transfer rate of this infection reached its highest point and quickly spread to about 223 nations across the world [2,3]. The deadly virus created a disturbance in the field of medicine and education, ruined people’s social lives, and severely damaged economies across the world. Fortunately, Pakistan was affected at a modest rate; it could have been more controlled if more precautionary measures were taken by the country and its people. Different variants of the COVID-19 outbreak were observed in different countries, namely, $\alpha$, $\beta$, $\gamma$, and $\delta$. The $\delta$ variant is highly contagious, and is 40–60% faster transmissible than the $\alpha$ variant, with a higher risk of health problems [4].

Research has shown that the most common symptoms observed among patients are respiratory problems, breathing issues, coughing, fever, muscular discomfort, fatigue, and severe headaches. Some COVID-19 patients reported experiencing different symptoms, i.e., sore throats, runny noses, sleeping disorders, vomiting, diarrhea, gastroenteritis, and neurological problems of varying severity [5,6]. This disease spreads via contact with infected individuals when they sneeze or cough, or even when via contact with surfaces or objects that already have the virus. The disease’s pace of spread accelerated. When we touch our eyes, nose, or mouth with contaminated hands, these delicate parts are contaminated with germs and the germs enter inside the body. Patients with this condition require special care.

Many researchers have formulated different mathematical models to examine the dynamic behaviors of this disease [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25]. The epidemic compartmental model has symmetry in the sense that the differential equations of the model are developed on the principle that the rate of change of individuals in a particular compartment is equal to the inflow of individuals minus the outflow of individuals. The relevance of the description of epidemic models (to symmetry and asymmetry concepts with interpretations) can be found in [10,26]. Mathematical modeling is a key technique used for studying infectious diseases. Mathematical models and their analyses help in understanding disease transmission mechanisms and in efficiently controlling the spread of diseases. These models assist decision-makers and public health planners in many ways to analyze and control infectious diseases in a population. Recently, many mathematical models have been developed to study the transmission dynamics of COVID-19; see, for example, [27,28,29]. Initially, these models were based on integer-order derivatives. Experimental and field measurement data cannot be accurately described by integer-order models. Additionally, the integer derivative has a local aspect. As an alternate method, fractional-order models are extensively used. In recent times, researchers have developed an interest in using fractional calculus to analyze real problems in a diverse range of fields, including epidemiological modeling, image processing, chaos theory, and more. Fractional order models (compared to classical order models) integrate memory effects and offer more freedom [30]. Many researchers propose fractional models due to the limitations of ordinary differential equations. A fractional model that involves fractional derivatives makes it simple and accurate to describe physical phenomena that cannot be understood with integer-order derivatives.

Mathematical models with fractional derivatives play an important role in understanding the dynamics of epidemiological diseases. Fractional calculus is considered a generalization of classical order derivatives where the integer-order derivative is replaced by the fractional-order derivative [31]. The study of fractional derivatives revealed that the integer-order model is a special case of the fractional-order model and the solution for a fractional-order differential equation must converge to the solution of an integer-order differential equation as the derivative order approaches one. The fractional-order models, due to their descriptions of memory and hereditary characteristics, are more resourceful than integer-order models and, hence, overcome all restraints on the order of differential equations while finding their solutions. However, the phenomena, which are connected with memory properties and are affected by the hereditary properties, cannot be expressed by the integer-order system. There are many fields where fractional-order systems are more suitable than integer-order systems [32]. The fractional-order COVID-19 infection model has attracted the attention of researchers [33]. Using fractional-order derivatives in the COVID-19 infection model can explain their dynamics more precisely. Thus, researchers noticed the importance of fractional operators with non-singular kernels to better understand the dynamics of physical models. So far, many researchers have explored fractional operators with non-singular kernels, for example, the Caputo–Fabrizio fractional operator and Caputo proportional fractional derivative delay integro-differential equations [34,35]. Keeping the importance of fractional models in mind, we present a CF-fractional COVID-19 model, which is a generalization of the integer-order model given in [36]. The new fractional model will allow us to study the disease dynamics and control more precisely.

There are numerous defined fractional derivatives in the literature; however, this manuscript develops the Caputo–Fabrizio derivative operator with a non-singular exponentially decreasing kernel. In this paper, we present the SEIAPHR fractional model to mathematically examine the coronavirus infection. This research emphasizes the understanding of dynamic behaviors of the disease, preventing its long-term spread. To do this, we demonstrated analytically key characteristics of the suggested fractional model, such as the existence and uniqueness of the solution, the positivity of the solution, invariant region, threshold number, and most significantly, the performed stability analysis. These characteristics provide evidence that we created a feasible model for the COVID-19 epidemic. We will present a modified SEIAPQHR pandemic model in the second half of the paper to examine the effects of quarantine strategies on disease control. The CF-fractional SEIAPQHR model was solved using the Adams–Bashforth technique. An optimal control problem for the suggested fractional model was examined to determine the best quarantine technique. To further illustrate the characteristics of the control problem, various numerical simulations were performed using a projected numerical approach. Based on the numerical results, it can be concluded that the Caputo–Fabrizio operator provides an excellent description and retains system memory effects.

Although people all over the world have been vaccinated, preventative measures are still needed, such as maintaining safe distances from others and wearing face masks, until the proportion of people infected with COVID-19 declines to a safe level. In the wake of the sudden removal of strict pandemic measures, such as travel restrictions and testing of symptomatic and asymptomatic individuals, the virus is again spreading in China at a reasonable speed. Thus, there is a dire need to analyze disease-preventive measures and devise a reasonable control strategy to restrict the spread of the disease. This study also deals with the mathematical and computational analyses of the newly proposed fractional COVID-19 model to study preventive measures in order to suggest an optimal control strategy to minimize the spread of infection.

Our research is divided into seven different sections. In Section 2, preliminaries concerning Caputo–Fabrizio fractional operators and their characteristics are covered in order to develop a nonlinear Caputo–Fabrizio fractional model for the COVID-19 outbreak. Section 3 outlines the theoretical analysis of the proposed fractional model. For instance, by employing the Picard successive iterative approximation method, we demonstrated the existence and uniqueness of a solution. We established two key properties of obtained solutions: boundedness and positivity. The fractional model’s equilibrium points are also computed here. The equilibrium points have symmetry, in that the rate of change of the population is zero at these points. Using the next-generation method, we computed the threshold parameter of the model in Section 3. The local and global behaviors of the proposed model at equilibrium points are successfully examined in Section 4. Section 5 presents the modified model. We used the Adams–Bashforth method along with RK-4 to numerically solve the modified system. A comprehensive analysis was done on the effects of the fractional order and quarantine on the model’s behavior. Section 6 presents an optimal control analysis. All of the numerical findings are presented with the appropriate explanations and graphic representations. The concluding remarks are given in Section 7.

2. Mathematical Model

In the field of epidemiology, nonlinear models depicting deadly coronavirus transmission patterns are crucial [13,14,15,16,17,18]. Such models help public health planners and policymakers in a variety of ways. In the existing literature [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25], there are a variety of mathematical models with varying assumptions based on coronavirus disease transmission. Since integer models are unable to adequately capture the impact of the system’s full memory, as well as the scope and spread of the corona infection, we present a novel real-world SEIAPHR fractional pandemic model that takes into account the dynamics of the coronavirus disease transmission.

We identify the total population $N\left(t\right)$ into seven compartments: susceptible $S\left(t\right)$, exposed $E\left(t\right)$, infected $I\left(t\right)$, asymptomatic $A\left(t\right)$, superspreader $P\left(t\right)$, hospitalized $H\left(t\right)$, and recovered $R\left(t\right)$. In the susceptible compartment, we consider the individuals who are at risk of being infected. An individual in the susceptible class becomes infected after interacting with an infectious individual and moving to the exposed class $E\left(t\right)$. Inhabitants of the exposed class are infected but not infectious yet. Those who become infectious and have symptoms of the disease move to the infected class $I\left(t\right)$. The compartment $A\left(t\right)$ recruits a group of those infected individuals who are infectious with no disease symptoms. Individuals in the superspreader class are rapid carriers of the disease, e.g., paramedic staff, salespersons, delivery staff, shopkeepers, etc. Infectious people with severe health issues due to the disease move to the hospitalized class $H\left(t\right)$. People who recover due to hospital treatment or their robust immune systems are in the recovered class $R\left(t\right)$. Thus at any time t,

$$N\left(t\right)=S\left(t\right)+E\left(t\right)+I\left(t\right)+A\left(t\right)+P\left(t\right)+H\left(t\right)+R\left(t\right).$$

(1)

The rate of transmission to the susceptible class is $\mathrm{\Psi }$. Due to interactions between susceptible and infectious individuals, the susceptible are transmitted to the exposed class at the rates ${\gamma }_1$, ${\gamma }_2$, ${\gamma }_3$, and ${\gamma }_4$. The natural mortality rate of all classes is denoted by $\sigma$. Exposed individuals transmit at the rates ${\gamma }_5$, ${\gamma }_6$, and ${\gamma }_7$ to the infected $I\left(t\right)$, symptomatic $A\left(t\right)$, and superspreader $P\left(t\right)$ classes, respectively. Infected individuals are hospitalized at the rate of ${\gamma }_8$, recover at the rate of ${\gamma }_9$, and succumb to the disease at a death rate of ${\eta }_I$. Asymptomatic $A\left(t\right)$ individuals recover at the rate of ${\tau }_1$. Superspreaders are hospitalized at the rate of ${\tau }_2$, recover at the rate of ${\tau }_3$, and die due to disease at the rate of ${\eta }_P$ . The transition rates to the hospitalized class $H\left(t\right)$ from the infected $I\left(t\right)$ and superspreader $P\left(t\right)$ classes are ${\gamma }_8$ and ${\tau }_2$. The rate of transition from the hospitalized class $H\left(t\right)$ to the recovered class $R\left(t\right)$ is ${\tau }_4$. The death rate for the hospitalized class due to the disease is ${\eta }_H$. The transmission rate to the recovered class from the classes $I\left(t\right),A\left(t\right),P\left(t\right),\mathrm{and}H\left(t\right)$ are ${\gamma }_9$, ${\tau }_1$, ${\tau }_3$, and ${\tau }_4$, respectively. The model variables are assumed to be real-valued functions belonging to $C^1[0,+\infty )$.

We start by going over the basic and auxiliary definitions of the Caputo–Fabrizio fractional operators and their associated characteristics before presenting the fractional model in the sense of the Caputo–Fabrizio derivative.

Definition 1

([37,38]). Let $\nu \in H^1(0,T)$, $T>0$, and $\gamma \in (0,1)$. Then the Caputo–Fabrizio derivative operator of order γ is given by

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\gamma }\nu \left(t\right)& ={\displaystyle \frac{M\left(\gamma \right)}{1-\gamma }}\underset{0}{\overset{t}{\int }}\acute{\nu }\left(s\right)exp\left[-{\displaystyle \frac{\gamma }{1-\gamma }}(t-s)\right]ds,t>0,\hfill \end{array}$$

where $M\left(\gamma \right)$ is the normalization function satisfying the condition $M\left(0\right)=M\left(1\right)=1$.

Definition 2

([37,38]).   Let $\gamma \in (0,1]$, then the associated Caputo–Fabrizio fractional integral operator of order γ is expressed as

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{I}}_t^{\gamma }\nu \left(t\right)={\displaystyle \frac{2(1-\gamma )}{(2-\gamma )M\left(\gamma \right)}}\nu \left(t\right)+{\displaystyle \frac{2\left(\gamma \right)}{(2-\gamma )M\left(\gamma \right)}}\underset{0}{\overset{t}{\int }}\nu \left(s\right)ds,t\ge 0.\end{array}$$

(2)

To fully see the internal memory effects of the COVID-19 biological model, we designed a fractional order model that captures the flow pattern described in Figure 1. With the Caputo–Fabrizio derivative operator ${}^{CF}{\mathcal{D}}_t^{\rho }$ of order $0<\rho <1$, the model governing the given flow pattern is presented as:

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }S\left(t\right)& =\mathrm{\Psi }-{\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}-\sigma S,\hfill \end{array}$$

(3a)

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }E\left(t\right)& ={\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}-({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E,\hfill \end{array}$$

(3b)

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }I\left(t\right)& ={\gamma }_{5}E-({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I)I,\hfill \end{array}$$

(3c)

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }A\left(t\right)& ={\gamma }_{6}E-({\tau }_1+\sigma )A,\hfill \end{array}$$

(3d)

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }P\left(t\right)& ={\gamma }_{7}E-({\tau }_2+{\tau }_3+\sigma +{\eta }_P)P,\hfill \end{array}$$

(3e)

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }H\left(t\right)& ={\gamma }_{8}I+{\tau }_{2}P-({\tau }_4+{\eta }_H+\sigma )H,\hfill \end{array}$$

(3f)

$$\begin{array}{cc}\hfill {}_0^{CF}{D}_t^{\rho }R\left(t\right)& ={\gamma }_{9}I+{\tau }_{1}A+{\tau }_{3}P+{\tau }_{4}H-\sigma R,\hfill \end{array}$$

(3g)

along with the initial conditions

$$\begin{array}{c}\hfill S_0\ge 0,E_0\ge 0,I_0\ge 0,A_0\ge 0,P_0\ge 0,H_0\ge 0,R_0\ge 0,\end{array}$$

(3h)

where $0\le t\le t_f<\infty$. Suppose that

$$\begin{array}{cc}\hfill g_1\left(y\left(t\right)\right)& =\mathrm{\Psi }-{\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}-\sigma S,\hfill \end{array}$$

(4a)

$$\begin{array}{cc}\hfill g_2\left(y\left(t\right)\right)& ={\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}-({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E,\hfill \end{array}$$

(4b)

$$\begin{array}{cc}\hfill g_3\left(y\left(t\right)\right)& ={\gamma }_{5}E-({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I)I,\hfill \end{array}$$

(4c)

$$\begin{array}{cc}\hfill g_4\left(y\left(t\right)\right)& ={\gamma }_{6}E-({\tau }_1+\sigma )A,\hfill \end{array}$$

(4d)

$$\begin{array}{cc}\hfill g_5\left(y\left(t\right)\right)& ={\gamma }_{7}E-({\tau }_2+{\tau }_3+\sigma +{\eta }_P)P,\hfill \end{array}$$

(4e)

$$\begin{array}{cc}\hfill g_6\left(y\left(t\right)\right)& ={\gamma }_{8}I+{\tau }_{2}P-({\tau }_4+{\eta }_H+\sigma )H,\hfill \end{array}$$

(4f)

$$\begin{array}{cc}\hfill g_7\left(y\left(t\right)\right)& ={\gamma }_{9}I+{\tau }_{1}A+{\tau }_{3}P+{\tau }_{4}H-\sigma R.\hfill \end{array}$$

(4g)

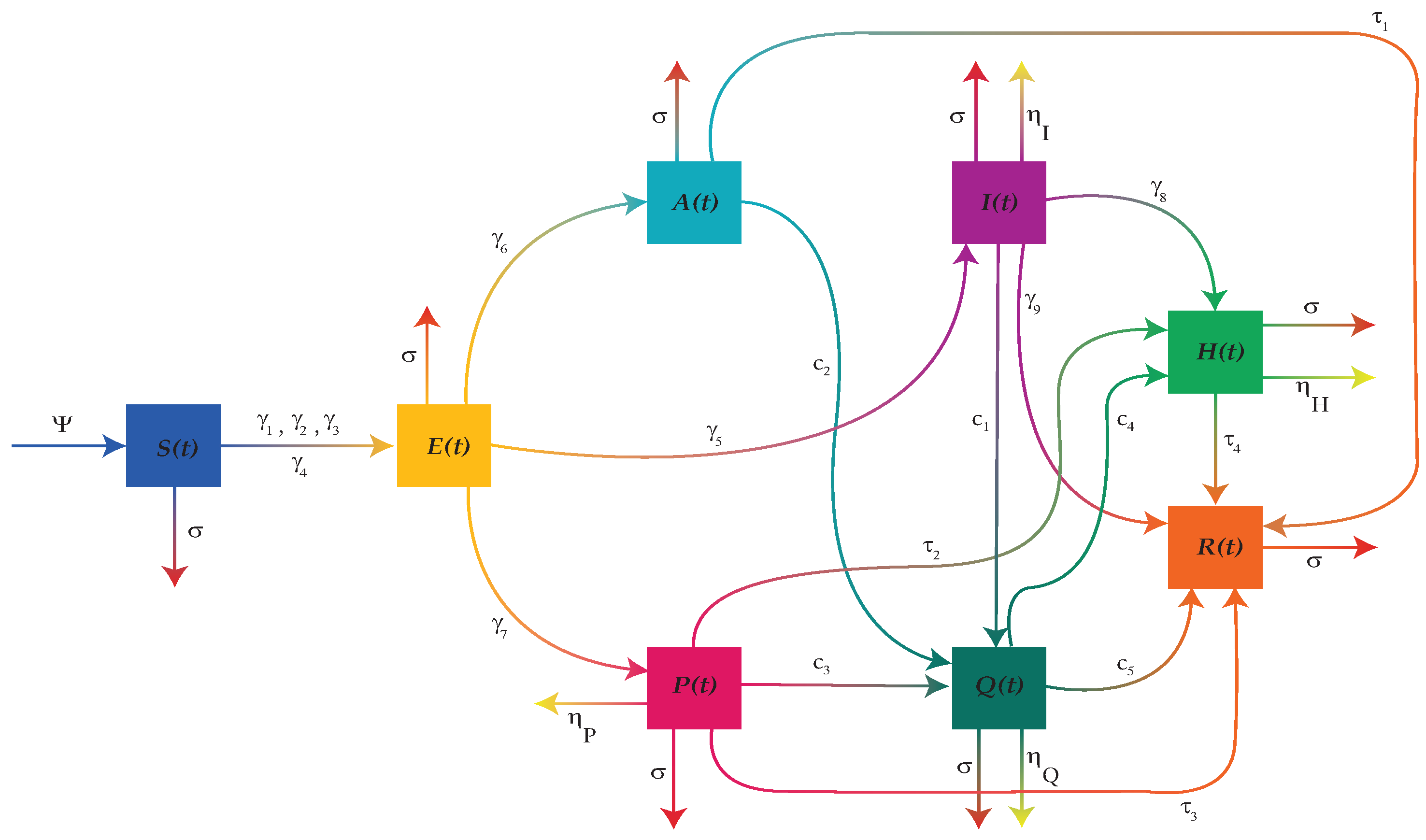

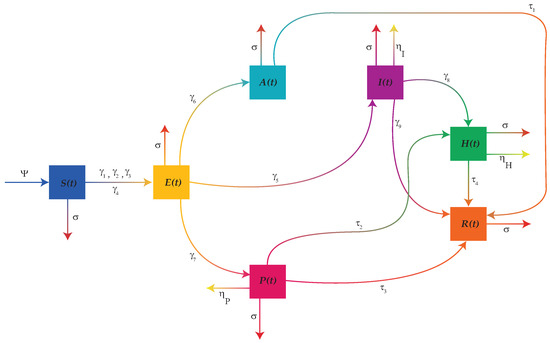

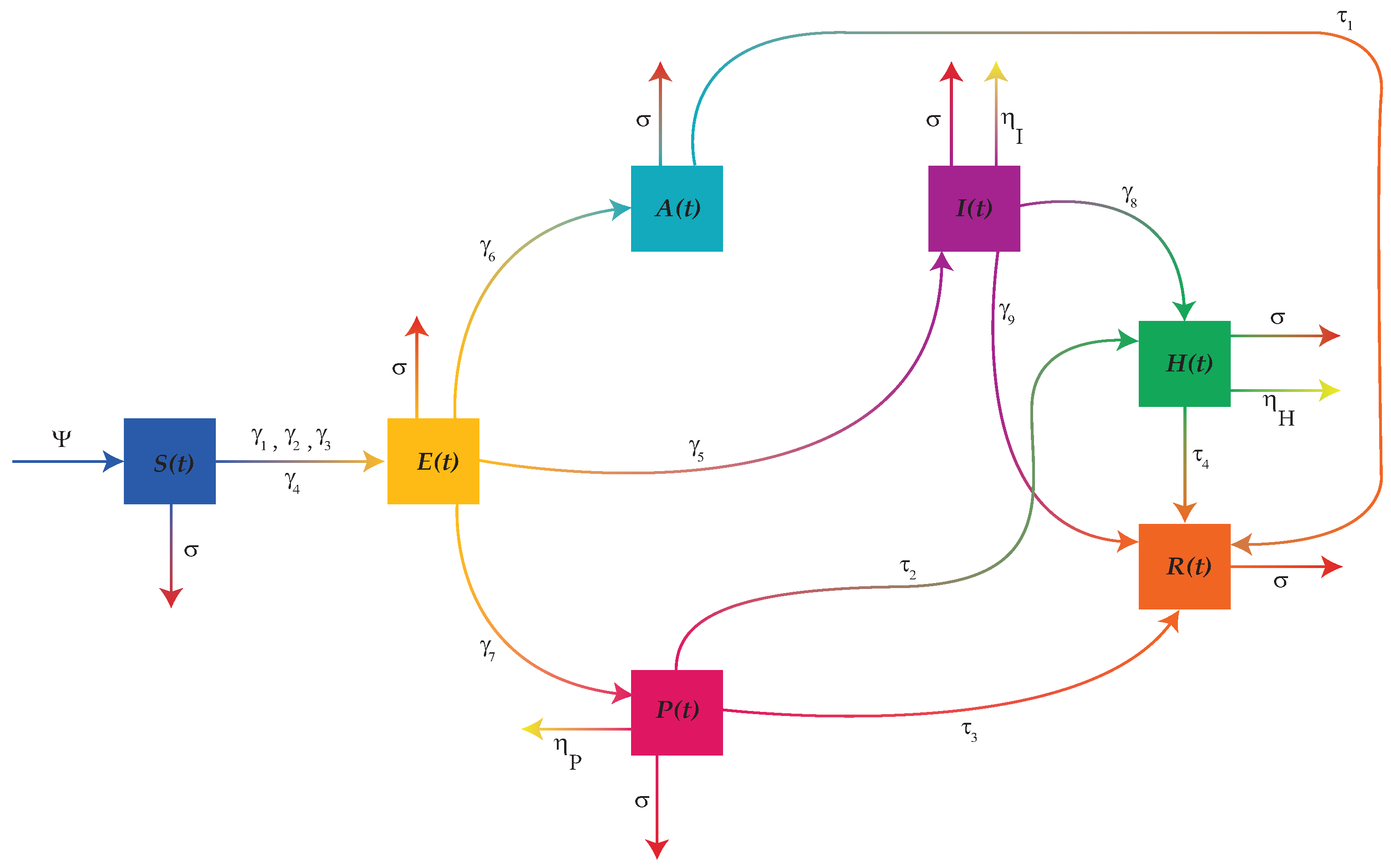

Figure 1. Compartmental view of the disease transmission .

Then, model (3) can be rewritten as

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }y\left(t\right)=g\left(y\left(t\right)\right),y\left(0\right)=y_0\ge 0,\end{array}$$

(5)

where $g\left(y\left(t\right)\right)=g_i\left(y\left(t\right)\right),i=1,\cdots ,7$ is defined in (4), $y\left(t\right)={\left(S,E,I,A,P,H,R\right)}^T\in {\mathbb{R}}^7$, $y_0={\left(S_0,E_0,I_0,A_0,P_0,H_0,R_0\right)}^T$ and $g\left(y\left(t\right)\right)\in C^1[0,t_f]$. The values of the parameters involved in model (3) are shown in Table 1.

Table 1. Parametric values.

Parameter	Description	Values	Reference
${\gamma }_1$	Transmission rate of S to E after contacting I	0.866	[36]
${\gamma }_2$	Transmission rate of S to E after contacting A	0.16	[36,39]
${\gamma }_3$	Transmission rate of S to E after contacting P	0.8	[36]
${\gamma }_4$	Transmission rate of S to E after contacting H	0.0131	[36,39]
${\gamma }_5$	Translation of E to I	0.235	[36,39]
${\gamma }_6$	Translation of E to A	0.26	[36,39]
${\gamma }_7$	Translation of E to P	0.56	[36]
${\gamma }_8$	Translation of I to H	0.45	[36,39]
${\gamma }_9$	Translation of I to R	0.6381	[36,39]
${\Psi }_1$	Translation of A to R	0.8	[36,39]
${\Psi }_2$	Translation of P to H	0.1	[36]
${\Psi }_3$	Translation of P to R	0.3	[36]
${\Psi }_4$	Translation of H to R	0.54	[36,39]
${\eta }_I$	Death induced by disease in I	0.08	[36]
${\eta }_P$	Death induced by disease in P	0.092	[36,39]
${\eta }_H$	Death induced by disease in H	0.485	[36]
$\mathrm{\Psi }$	Susceptible recruit rate	2.5	[36]
$\sigma$	Natural death rate	0.241	[36]

3. Fundamental and Biological Properties

This section deals with the existence and unique results of the Caputo–Fabrizio fractional model (3). The characteristics of the Laplace transformation for the CF-fractional operator are used to prove the boundedness and positivity of the solutions. In this part, the suggested model’s reproduction number and two primary equilibrium points are also given.

3.1. Existence and Uniqueness

We employ theorems from functional analyses in this part to demonstrate the existence and uniqueness of the solution.

Theorem 1.

Let $g\in C^1[0,t_f]$, then function $g\left(y\right)$ in (5) is Lipschitz continuous.

Proof.

Let V be a convex compact subset of

$$D=\left\{y\left(t\right)\right|0\le t\le t_f,y\in R^7\}.$$

Let $y_1,y_2\in V$, then by the mean value theorem $\left(MVT\right)$∃$\zeta \in (y_1,y_2)$, such that

$$\begin{array}{cc}\hfill {\displaystyle \frac{g\left(y_1\left(t\right)\right)-g\left(y_2\left(t\right)\right)}{y_1\left(t\right)-y_2\left(t\right)}}=& g^{{}^{\prime }}\left(\zeta \left(t\right)\right),\hfill \end{array}$$

$$\begin{array}{cc}\hfill g\left(y_1\left(t\right)\right)-g\left(y_2\left(t\right)\right)=& g^{{}^{\prime }}\left(\zeta \left(t\right)\right).\left(y_1\left(t\right)-y_2\left(t\right)\right),\hfill \end{array}$$

$$\begin{array}{cc}\hfill \mid g\left(y_1\left(t\right)\right)-g\left(y_2\left(t\right)\right)\mid & =\mid g^{{}^{\prime }}\left(\zeta \left(t\right)\right).\left(y_1\left(t\right)-y_2\left(t\right)\right)\mid ,\hfill \\ \hfill & \le \parallel g^{{}^{\prime }}{\left(\zeta \right)\parallel }_{\infty }{\parallel y_1-y_2\parallel }_{\infty }.\hfill \end{array}$$

Since $g\in C^1[0,t_f]$, so ∃ a constant ${\alpha }_1>0$, such that

$$\begin{array}{c}\hfill \parallel g^{{}^{\prime }}{\left(\zeta \right)\parallel }_{\infty }\le {\alpha }_1.\end{array}$$

Hence,

$$\begin{array}{cc}\hfill \mid g\left(y_1\left(t\right)\right)-g\left(y_2\left(t\right)\right)\mid & \le {\alpha }_1{\parallel y_1-y_2\parallel }_{\infty },\hfill \\ \hfill \underset{t\in [0,t_f]}{sup}\mid g\left(y_1\right)-g\left(y_2\right)\mid & \le {\alpha }_1{\parallel y_1-y_2\parallel }_{\infty },\hfill \\ \hfill \parallel g\left(y_1\right)-g\left(y_2\right){\parallel }_{\infty }& \le {\alpha }_1{\parallel y_1-y_2\parallel }_{\infty }.\hfill \end{array}$$

Thus, $g\left(y\right)$ is Lipschitz.    □

Theorem 2.

Suppose that the function $g\left(y\right)$ satisfies the Lipschitz condition

$$\begin{array}{c}\hfill \parallel g\left(y_2\right)-g\left(y_1\right){\parallel }_{\infty }\le {\alpha }_1{\parallel y_2-y_1\parallel }_{\infty },\end{array}$$

then the problem (5) has a unique solution for

$$\begin{array}{c}\hfill {\displaystyle \frac{2{\alpha }_1}{(2-\rho )M\left(\rho \right)}}\left[(1-\rho )+\rho t_f\right]<1.\end{array}$$

Proof.

We prove that $y\left(t\right)$ is a solution of (5) if and only if it satisfies the equation

$$\begin{array}{c}\hfill y\left(t\right)=y_0+{\displaystyle \frac{2}{(2-\rho )M\left(\rho \right)}}\left[(1-\rho )g\left(y\left(t\right)\right)+\rho {\int }_0^{t}g\left(y\left(t\right)\right)dx\right].\end{array}$$

(6)

Let $y\left(t\right)$ be the solution of Equation (5). We apply the Caputo–Fabrizio fractional integral (2) to the system (5); that is

$$\begin{array}{c}\hfill {}_0^{CF}{I}_t^{\rho }\left[{}_0^{CF}{D}_t^{\rho }y\left(t\right)\right]{=}_0^{CF}{I}_t^{\rho }g\left(y\left(t\right)\right).\end{array}$$

(7)

We obtain the fractional integral Equation (6).

For converse implication, we let $y_n$ be a sequence of solutions, which converges to solution (6) with the Picard successive iteration, defined as follows:

$$\begin{array}{cc}\hfill y_n\left(t\right)=& y_0+{\displaystyle \frac{2}{(2-\rho )M\left(\rho \right)}}\left[(1-\rho )g\left(y_{n-1}\left(t\right)\right)+\rho {\int }_0^{t}g\left(y_{n-1}\left(x\right)\right)dx\right],n=1,2,\cdots \hfill \end{array}$$

(8)

with $y\left(t_0\right)=y_0$.

First, we show that sequence (8) is contractive if

$$k={\displaystyle \frac{2{\alpha }_1}{(2-\rho )M\left(\rho \right)}}\left[(1-\rho )+\rho t_f\right]<1.$$

$$\begin{array}{cc}\hfill \mid y_n\left(t\right)-y_{n-1}\left(t\right)\mid =& \mid {\displaystyle \frac{2(1-\rho )}{(2-\rho )M\left(\rho \right)}}[g\left(y_{n-1}\left(t\right)\right)-g\left(y_{n-2}\left(t\right)\right)]\hfill \\ & +{\displaystyle \frac{2\rho }{(2-\rho )M\left(\rho \right)}}{\int }_0^t[g\left(y_{n-1}\left(x\right)\right)-g\left(y_{n-2}\left(x\right)\right)]dx\mid ,\hfill \\ \hfill & \le {\displaystyle \frac{2(1-\rho )}{(2-\rho )M\left(\rho \right)}}\mid g\left(y_{n-1}\left(t\right)\right)-g\left(y_{n-2}\left(t\right)\right)\mid \hfill \\ & +{\displaystyle \frac{2\rho }{(2-\rho )M\left(\rho \right)}}{\int }_0^t\mid g\left(y_{n-1}\left(x\right)\right)-g\left(y_{n-2}\right)\mid dx,\hfill \end{array}$$

using the Lipschitz property of function $g\left(y\right)$, we obtain the following expression,

$$\begin{array}{cc}\hfill \mid y_n\left(t\right)-y_{n-1}\left(t\right)\mid & \le {\displaystyle \frac{2(1-\rho )}{(2-\rho )M\left(\rho \right)}}{\alpha }_1\mid y_{n-1}\left(t\right)-y_{n-2}\left(t\right)\mid \hfill \\ & +{\displaystyle \frac{2\rho }{(2-\rho )M\left(\rho \right)}}{\int }_0^t{\alpha }_1\mid y_{n-1}\left(t\right)-y_{n-2}\left(t\right)\mid dx,\hfill \\ \hfill & \le {\displaystyle \frac{2(1-\rho )}{(2-\rho )M\left(\rho \right)}}{\alpha }_1\underset{t\in [0,t_f]}{sup}\mid y_{n-1}\left(t\right)-y_{n-2}\left(t\right)\mid \hfill \\ & +{\displaystyle \frac{2\rho }{(2-\rho )M\left(\rho \right)}}{\int }_0^t{\alpha }_1\underset{t\in [0,t_f]}{sup}\mid y_{n-1}\left(t\right)-y_{n-2}\left(t\right)\mid dx,\hfill \\ \hfill \mid y_n\left(t\right)-y_{n-1}\left(t\right)\mid & \le \left[{\displaystyle \frac{2(1-\rho ){\alpha }_1}{(2-\rho )M\left(\rho \right)}}+{\displaystyle \frac{2\rho \alpha t_f}{(2-\rho )M\left(\rho \right)}}\right]{\parallel y_{n-1}-y_{n-2}\parallel }_{\infty },\hfill \\ \hfill \underset{t\in [0,t_f]}{sup}\mid y_n\left(t\right)-y_{n-1}\left(t\right)\mid & \le \left[{\displaystyle \frac{2(1-\rho ){\alpha }_1}{(2-\rho )M\left(\rho \right)}}+{\displaystyle \frac{2\rho {\alpha }_1{t}_f}{(2-\rho )M\left(\rho \right)}}\right]{\parallel y_{n-1}-y_{n-2}\parallel }_{\infty },\hfill \\ \hfill \parallel y_n-y_{n-1}{\parallel }_{\infty }& \le k\parallel y_{n-1}-y_{n-2}{\parallel }_{\infty }.\hfill \end{array}$$

This implies

$$d(y_n,y_{n-1})\le kd(y_{n-1},y_{n-2}).$$

(9)

Thus, from Equation (9), sequence (8) is contractive.

Now for $m,n\in N$ and $m>n$

$$\begin{array}{cc}\hfill \mid y_m-y_n\mid =& \mid y_m-y_{m-1}+y_{m-1}-y_{m-2}+y_{m-2}...-y_{n+1}+y_{n+1}-y_n\mid \hfill \\ \hfill & \le \mid y_m-y_{m-1}\mid +\mid y_m-1-y_{m-2}\mid +...+\mid y_{n+1}-y_n\mid \hfill \\ & \le k^{m-1}\mid y_1-y_0\mid +k^{m-2}\mid y_1-y_0\mid +...+k^{m-n}\mid y_1-y_0\mid \hfill \\ \hfill & \le [k^{m-1}+k^{m-2}+...+k^n]\mid y_1-y_0\mid ,\hfill \end{array}$$

where

$$k={\displaystyle \frac{2{\alpha }_1}{(2-\rho )M\left(\rho \right)}}\left[(1-\rho )+\rho t_f\right]<1.$$

Hence, the right-hand side is a geometric series, which is always convergent for $0<k<1$.

$$\begin{array}{cc}\hfill \mid y_m-y_n\mid \le & k^n{\displaystyle \frac{1-k^{m-n}}{1-k}}\mid y_1-y_0\mid \le k^n{\displaystyle \frac{1}{1-k}}\mid y_1-y_0\mid .\hfill \end{array}$$

Thus, $0<k<1$, $lim\left(k^n\right)=0$. Therefore, we infer that sequence $\left(y_n\right)$ is Cauchy; hence, it is convergent. Let $lim\left(y_n\right)=y$, then Equation (8) gives

$$\begin{array}{c}\hfill li{m}_{n\to \infty }{y}_n\left(t\right)=y\left(t\right)=y_0+{\displaystyle \frac{2}{(2-\rho )M\left(\rho \right)}}\left[(1-\rho )g\left(y\left(t\right)\right)+\rho {\int }_0^{t}g\left(y\left(x\right)\right)dx\right].\end{array}$$

(10)

Equation (10) is the required solution.

Uniqueness: For uniqueness, we suppose that the sequence $\left(y_n\right)$ converges to two different limits $y_1$ and $y_2$. Then, $n_1,n_2\in N$, such that,

$$\begin{array}{c}\hfill \mid y_n-y_1\mid <{ϵ}_{1}for{n}_1\ge n,\\ \hfill \mid y_n-y_2\mid <{ϵ}_{2}for{n}_2\ge n.\end{array}$$

Let $n=max\{n_1,n_2\},$ then

$$\begin{array}{c}\hfill \mid y_1-y_2\mid =\mid y_1-y_n+y_n-y_2\mid \le \mid y_1-y_n\mid +\mid y_n-y_2\mid <{ϵ}_1+{ϵ}_2=ϵ,\end{array}$$

which implies

$$\begin{array}{c}\hfill \mid y_1-y_2\mid =0\Rightarrow y_1=y_2.\end{array}$$

Hence, the uniqueness of solution (10) of (5) is proved.    □

3.2. Boundedness and Positivity of the Solutions

This section is devoted to proving the boundedness and positivity of solutions of the CF-fractional-order model (3) in a feasible region $\mathrm{\Omega }=\left\{(S,E,I,A,P,H,R)\in {\mathbb{R}}_{+}^7:0<N\left(t\right)\le \frac{\mathrm{\Psi }}{\sigma }\right\}$.

Theorem 3.

All solutions of the system (3) are bounded with the given set of non-negative initial conditions (3h).

Proof.

Adding all seven equations of model (3), we have

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }N\left(t\right)=& {}_0^{CF}{\mathcal{D}}_t^{\rho }S\left(t\right){+}_0^{CF}{\mathcal{D}}_t^{\rho }E\left(t\right){+}_0^{CF}{\mathcal{D}}_t^{\rho }I\left(t\right)\hfill \\ & {+}_0^{CF}{\mathcal{D}}_t^{\rho }A\left(t\right){+}_0^{CF}{\mathcal{D}}_t^{\rho }P\left(t\right){+}_0^{CF}{\mathcal{D}}_t^{\rho }H\left(t\right){+}_0^{CF}{\mathcal{D}}_t^{\rho }R\left(t\right),\hfill \\ \hfill =& \mathrm{\Psi }-({\eta }_{I}I\left(t\right)+{\eta }_{P}P\left(t\right)+{\eta }_{H}H\left(t\right))-\sigma N\left(t\right),\hfill \end{array}$$

(11)

where $N\left(t\right)=S\left(t\right)+E\left(t\right)+I\left(t\right)+A\left(t\right)+P\left(t\right)+H\left(t\right)+R\left(t\right)$ is the total population. Clearly,

$$\begin{array}{c}\hfill \mathrm{\Psi }-({\eta }_{I}I\left(t\right)+{\eta }_{P}P\left(t\right)+{\eta }_{H}H\left(t\right))-\sigma N\left(t\right)\le \mathrm{\Psi }-\sigma N\left(t\right).\end{array}$$

Therefore, from Equation (11), it follows that

$${}_0^{CF}{\mathcal{D}}_t^{\rho }N\left(t\right)\le \mathrm{\Psi }-\sigma N\left(t\right).$$

We apply the Laplace transform on both sides to obtain

$$\begin{array}{cc}\hfill \mathcal{L}\left[{}_0^{CF}{\mathcal{D}}_t^{\rho }N\left(t\right)\right]\left(s\right)& \le \frac{\mathrm{\Psi }}{s}-\sigma \mathcal{L}\left[N\left(t\right)\right]\left(s\right),\hfill \end{array}$$

and further simplification yields us

$$\begin{array}{cc}\hfill \frac{sN\left(s\right)}{s+\rho (1-s)}+\sigma N\left(s\right)& \le \mathrm{\Psi }{s}^{-1}+\frac{N\left(0\right)}{s+\rho (1-s)},\hfill \end{array}$$

where $N\left(s\right)=\mathcal{L}\left[N\right(t\left)\right]\left(s\right)$, and $N\left(0\right)$ is the total population at $t=0$.

$$\begin{array}{cc}\hfill N\left(s\right)& \le \frac{\mathrm{\Psi }{s}^{-1}[s+\rho (1-s)]+N\left(0\right)}{(1+\sigma -\sigma \rho )s+\sigma \rho },\hfill \\ \hfill N\left(s\right)& \le \frac{\mathrm{\Psi }(1-\rho )}{(1+\sigma -\sigma \rho )s+\sigma \rho }+\frac{\mathrm{\Psi }\rho s^{-1}}{(1+\sigma -\sigma \rho )s+\sigma \rho }+\frac{N\left(0\right)}{(1+\sigma -\sigma \rho )s+\sigma \rho },\hfill \\ \hfill N\left(s\right)& \le \frac{\mathrm{\Psi }(1-\rho )s^0}{(1+\sigma -\sigma \rho )\left[s^1+\frac{\sigma \rho }{(1+\sigma -\sigma \rho )}\right]}+\frac{\mathrm{\Psi }\rho s^{1-2}}{(1+\sigma -\sigma \rho )\left[s^1+\frac{\sigma \rho }{(1+\sigma -\sigma \rho )}\right]}\hfill \\ & +\frac{N\left(0\right)}{(1+\sigma -\sigma \rho )\left[s^1+\frac{\sigma \rho }{(1+\sigma -\sigma \rho )}\right]}.\hfill \end{array}$$

Applying the inverse Laplace transformation, we have

$$\begin{array}{cc}\hfill N\left(t\right)& \le \frac{\mathrm{\Psi }(1-\rho )}{(1+\sigma -\sigma \rho )}{\mathbb{E}}_{1,1}(-{\rm Y}t)+\frac{\mathrm{\Psi }\rho }{(1+\sigma -\sigma \rho )}t{\mathbb{E}}_{1,2}(-{\rm Y}t)+\frac{N\left(0\right)}{(1+\sigma -\sigma \rho )}{\mathbb{E}}_{1,1}(-{\rm Y}t),\hfill \end{array}$$

(12)

where $\mathrm{Y}={\displaystyle \frac{-\sigma \rho }{1+\sigma -\sigma \rho }}$, and ${\mathbb{E}}_{{\rho }_1,{\varrho }_1}$ is the Mittag-Leffler function with two parameters ${\rho }_1>0$ and ${\varrho }_1>0$, defined as

$$\begin{array}{c}\hfill {\mathbb{E}}_{{\rho }_1,{\varrho }_1}\left(z\right)=\sum _{n=0}^{\infty }\frac{z^n}{\mathrm{\Gamma }({\rho }_{1}n+{\varrho }_1)},\end{array}$$

whose Laplace transform is given by

$$\begin{array}{c}\hfill \mathcal{L}\left[t^{{\varrho }_1-1}{\mathbb{E}}_{{\rho }_1,{\varrho }_1}(\pm \mathrm{\Lambda }{t}^{{\rho }_1})\right]=\frac{s^{{\rho }_1-{\varrho }_1}}{s^{{\rho }_1}\mp \mathrm{\Lambda }}.\end{array}$$

The Mittag-Leffler function possesses asymptotic behavior, which we use in inequality (12). Since $N\left(t\right)\le {\displaystyle \frac{\mathrm{\Psi }}{\sigma }}$ as $t\to \infty$. Hence, all of the state variables of the model (3) are bounded in $\mathrm{\Omega }$.    □

It makes no sense to have negative solutions as we are working with a biological model. Thus, the next theorem will demonstrate that for $t>0$, all state variables of model (3) are positive.

Theorem 4.

For the given set of non-negative initial conditions (3h), the solutions of the system of model (3) are positive.

Proof.

Consider the first equation of the model (3) that can be written as

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }S\left(t\right)=\mathrm{\Psi }-\left({\displaystyle \frac{{\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H}{N}}+\sigma \right)S.\end{array}$$

Since all solutions are bounded, we let $I\left(t\right)$, $A\left(t\right)$, $P\left(t\right)$, $H\left(t\right)$ and $N\left(t\right)$ are bounded by ${\delta }_1$, ${\delta }_2$, ${\delta }_3$, ${\delta }_4$, and ${\delta }_5$, respectively. Then,

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }S\left(t\right)\ge -mS\left(t\right),\end{array}$$

(13)

where $m=sup\left({\displaystyle \frac{{\gamma }_1{\delta }_1+{\gamma }_2{\delta }_2+{\gamma }_3{\delta }_3+{\gamma }_4{\delta }_4}{{\delta }_5}}+\sigma \right)$ is a non-negative constant. Taking the Laplace transform on both sides of Equation (13), we have

$$\begin{array}{cc}\hfill \frac{s\mathcal{L}\left[S\right(t\left)\right]-S\left(0\right)}{s+\rho (1-s)}& \ge -m\mathcal{L}\left[S\right(t\left)\right],\hfill \\ \hfill \mathcal{L}\left[S\right(t\left)\right]& \ge \frac{S\left(0\right)}{(1+m-mp)[s+\frac{m\rho }{1+m-m\rho }]},\hfill \\ \hfill \mathcal{L}\left[S\right(t\left)\right]& \ge {\displaystyle \frac{S\left(0\right)}{(1+m-mp)}}\mathcal{L}\left[{\mathbb{E}}_{1,1}\left\{-\frac{m\rho }{1+m-m\rho }t\right\}\right].\hfill \end{array}$$

The application of the inverse Laplace transform on both sides yields

$$\begin{array}{c}\hfill S\left(t\right)\ge {\displaystyle \frac{S\left(0\right)}{(1+m-mp)}}\left[{\mathbb{E}}_{1,1}\left\{-\frac{m\rho }{1+m-m\rho }t\right\}\right].\end{array}$$

(14)

Since $S\left(0\right)\ge 0$, and $0\le {\mathbb{E}}_{1,1}\le 1$, from  (14) it is concluded that $S\left(t\right)\ge 0$ for all $t\ge 0$. In the same way, the positivity of $E\left(t\right),I\left(t\right),A\left(t\right),P\left(t\right),H\left(t\right),R\left(t\right)$ can be proved for $t\ge 0$ with non-negative initial data. Therefore, the solutions in ${\mathbb{R}}_{+}^7$ will be positive for all $t\in [0,\infty )$.    □

3.3. Equilibrium Points

If we put

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }S{=}_0^{CF}{\mathcal{D}}_t^{\rho }E{=}_0^{CF}{\mathcal{D}}_t^{\rho }I{=}_0^{CF}{\mathcal{D}}_t^{\rho }A{=}_0^{CF}{\mathcal{D}}_t^{\rho }P{=}_0^{CF}{\mathcal{D}}_t^{\rho }H{=}_0^{CF}{\mathcal{D}}_t^{\rho }R=0,\end{array}$$

model (3) gives two main equilibrium points. The coronavirus-free (or the disease-free equilibrium (DFE)) point is computed as

$$\begin{array}{c}\hfill {\mathcal{P}}_0=\left(S_0,0,0,0,0,0,0,0\right),\mathrm{where}{S}_0={\displaystyle \frac{\mathrm{\Psi }}{\sigma }},\end{array}$$

(15)

and the endemic equilibrium (EE) point is given as

$$\begin{array}{c}\hfill {\mathcal{P}}_1=(S^1,E^1,I^1,A^1,P^1,H^1,R^1),\end{array}$$

(16)

where

$$\begin{array}{cc}\hfill & S^1=\left[{\displaystyle \frac{N({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )}{\beta }}\right],E^1=\left[{\displaystyle \frac{\mathrm{\Psi }}{{\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma }}-{\displaystyle \frac{\sigma N}{\beta }}\right],\hfill \\ \hfill & I^1={\displaystyle \frac{{\gamma }_5}{k_2}}\left[{\displaystyle \frac{\mathrm{\Psi }}{{\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma }}-{\displaystyle \frac{\sigma N}{\beta }}\right],A^1={\displaystyle \frac{{\gamma }_6}{k_3}}\left[{\displaystyle \frac{\mathrm{\Psi }}{{\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma }}-{\displaystyle \frac{\sigma N}{\beta }}\right],\hfill \\ \hfill & P^1={\displaystyle \frac{{\gamma }_7}{k_4}}\left[{\displaystyle \frac{\mathrm{\Psi }}{{\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma }}-{\displaystyle \frac{\sigma N}{\beta }}\right],H^1={\displaystyle \frac{1}{k_5}}\left[{\displaystyle \frac{{\gamma }_8{\gamma }_5}{k_2}}+{\displaystyle \frac{{\tau }_2{\gamma }_7}{k_4}}\left]\right[{\displaystyle \frac{\mathrm{\Psi }}{{\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma }}-{\displaystyle \frac{\sigma N}{\beta }}\right],\hfill \\ \hfill & R^1={\displaystyle \frac{1}{\sigma }}\left[{\gamma }_9{I}^1+{\tau }_1{A}^1+{\tau }_3{P}^1+{\tau }_4{H}^1\right],\hfill \end{array}$$

with

$$\begin{array}{c}\hfill \beta ={\displaystyle \frac{{\gamma }_1{\gamma }_5}{k_2}}+{\displaystyle \frac{{\gamma }_2{\gamma }_6}{k_3}}+{\displaystyle \frac{{\gamma }_3{\gamma }_7}{k_4}}+{\displaystyle \frac{{\gamma }_4}{k_5}}\left({\displaystyle \frac{{\gamma }_8{\gamma }_5}{k_2}}+{\displaystyle \frac{{\tau }_3{\gamma }_7}{k_4}}\right),k_1={\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma ,\\ \hfill k_2={\gamma }_8+{\gamma }_9+\sigma +{\eta }_I,k_3={\tau }_1+\sigma ,k_4={\tau }_2+{\tau }_3+\sigma +{\eta }_P,k_5={\tau }_4+\sigma +{\eta }_H.\end{array}$$

3.4. Basic Reproduction Number

The basic reproduction number, commonly written as ${\mathcal{R}}_0$, is an epidemiological baseline statistic that reflects the total number of secondary cases created by a single infected individual in a completely susceptible population over an infectious period. The differential equations relating to the classes of exposed (E), symptomatic-infected (I), asymptomatic-infected (A), and hospitalized individuals (H) will be the key focus of this section. We use the next-generation method to compute the value of ${\mathcal{R}}_0$ as described in [40,41,42,43]. The matrix of new infection arrival rates in F and translation rates in V at DFE, are defined as

$$F={\left(\begin{array}{c}{\displaystyle \frac{\partial \mathcal{M}}{\partial x_i}}\end{array}\right)}_{{\mathcal{P}}_0},i=1,2,3,4,5,$$

$$V={\left(\begin{array}{c}{\displaystyle \frac{\partial \mathcal{S}}{\partial x_i}}\end{array}\right)}_{{\mathcal{P}}_0},i=1,2,3,4,5.$$

where $(x_1,x_2,x_3,x_4,x_5)=(E,I,A,P,H)$ and

$$\mathcal{M}=\left(\begin{array}{c}{\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}\\ 0\\ 0\\ 0\\ 0\end{array}\right),\mathcal{S}=\left(\begin{array}{c}({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E\\ -{\gamma }_{5}E+({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I)I\\ -{\gamma }_{6}E+({\tau }_1+\sigma )A\\ -{\gamma }_{7}E+({\tau }_2+{\tau }_3+\sigma +{\eta }_P)P\\ -{\gamma }_{8}I-{\tau }_{2}P+({\tau }_4+{\eta }_H+\sigma )H\end{array}\right).$$

We determine the spectral radius of the matrix $F{V}^{-1}$ to obtain the reproduction number ${\mathcal{R}}_0$.

$${\mathcal{R}}_0={\displaystyle \frac{{\gamma }_1{\gamma }_5{k}_3{k}_4{k}_5+{\gamma }_2{\gamma }_6{k}_2{k}_4{k}_5+{\gamma }_3{\gamma }_7{k}_2{k}_3{k}_5+{\gamma }_4{\gamma }_5{\gamma }_8{k}_3{k}_4+{\gamma }_4{\gamma }_7{k}_2{k}_3{\tau }_2}{k_1{k}_2{k}_3{k}_4{k}_5}}.$$

(17)

4. Stability Analysis

In this part, we theoretically use ${\mathcal{R}}_0$ to examine the local stability and global stability of model (3) at both steady states. To investigate global stability, we use the Lyapunov theory with the LaSalle invariance principle [40,41,42,43] and the Castillo-Chavez theory [39,44].

4.1. Local Behavior of the Model

To evaluate the local stability of model (3) at DFE, the Jacobian matrix approach is used. The following theorem gives the local stability of model (3) at ${\mathcal{P}}_0$.

Theorem 5.

Model (3) is locally asymptotically stable (LAS) at ${\mathcal{P}}_0$ if ${\mathcal{R}}_0$ < 1 and unstable for ${\mathcal{R}}_0$ > 1.

Proof.

We compute Jacobian at ${\mathcal{P}}_0$ for the system (3) to give:

$$J_{{\mathcal{P}}_0}=\left(\begin{array}{ccccccc}-\sigma & 0& -{\gamma }_1& -{\gamma }_2& -{\gamma }_3& -{\gamma }_4& 0\\ 0& -k_1& {\gamma }_1& {\gamma }_2& {\gamma }_3& {\gamma }_4& 0\\ 0& {\gamma }_5& -k_2& 0& 0& 0& 0\\ 0& {\gamma }_6& 0& -k_3& 0& 0& 0\\ 0& {\gamma }_7& 0& 0& -k_4& 0& 0\\ 0& 0& {\gamma }_8& 0& {\tau }_2& -k_5& 0\\ 0& 0& {\gamma }_9& {\tau }_1& {\tau }_3& {\tau }_4& -\sigma \end{array}\right).$$

(18)

We determine the following eigenvalues of the matrix (18).

$$\begin{array}{cc}\hfill {\lambda }_1=& -\sigma ,\hfill \end{array}$$

(19a)

$$\begin{array}{cc}\hfill {\lambda }_2=& -\sigma ,\hfill \end{array}$$

(19b)

$$\begin{array}{cc}\hfill {\lambda }_3=& -k_1,\hfill \end{array}$$

(19c)

$$\begin{array}{cc}\hfill {\lambda }_4=& -{\displaystyle \frac{k_1{k}_2-{\gamma }_1{\gamma }_5}{k_1}},\hfill \end{array}$$

(19d)

$$\begin{array}{cc}\hfill {\lambda }_5=& -{\displaystyle \frac{\left(k_1{k}_2{k}_3{k}_4{k}_5\right)(1-{\mathcal{R}}_0)+N_1}{k_4{k}_5\left({\lambda }_3{\lambda }_4\right)}},\hfill \end{array}$$

(19e)

$$\begin{array}{cc}\hfill {\lambda }_6=& -{\displaystyle \frac{(1-{\mathcal{R}}_0)k_1{k}_2{k}_3{k}_4{k}_5+N_2}{k_1{k}_5\left({\lambda }_3{\lambda }_4\right)}},\hfill \end{array}$$

(19f)

$$\begin{array}{cc}\hfill {\lambda }_7=& -{\displaystyle \frac{(1-{\mathcal{R}}_0)}{{\lambda }_3{\lambda }_4{\lambda }_5{\lambda }_6}},\hfill \end{array}$$

(19g)

where,

$$\begin{array}{cc}\hfill N_1& =k_2{k}_3{k}_5{\gamma }_3{\gamma }_7+k_3{k}_4{\gamma }_4{\gamma }_5{\gamma }_8+k_2{k}_3{\gamma }_4{\gamma }_7{\tau }_2,\hfill \\ \hfill N_2& =k_3{k}_4{\gamma }_4{\gamma }_5{\gamma }_8+k_2{k}_3{\gamma }_4{\gamma }_7{\tau }_2.\hfill \end{array}$$

From (19), we observe negativity of all eigenvalues in the case when ${\mathcal{R}}_0<1$. Thus, model (3) is LAS only when ${\mathcal{R}}_0<1$.   □

4.2. Global Behavior of the Model

For global stability at ${\mathcal{P}}_0$, we employ the approach of Castillo-Chavez [44] and used in [39]. We put model (3) in the form

$$\begin{array}{c}\hfill \begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }\mathcal{X}\left(t\right)& =\mathcal{K}(\mathcal{X},\mathcal{Y}),\hfill \\ \hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }\mathcal{Y}\left(t\right)& =\mathcal{N}(\mathcal{X},\mathcal{Y}),\mathcal{N}(\mathcal{X},0)=0,\hfill \end{array}\end{array}$$

(20)

where $\mathcal{X}=\left(S\right)$ represents the non-infected individuals and $\mathcal{Y}=(E,I,A,P,H)$ represents the infected individuals, with $\mathcal{X}\in {\mathbb{R}}_{+}$ and $\mathcal{Y}\in {\mathbb{R}}_{+}^5$. Here, we ignored equation (3g) as the state variable R is not involved in any of the equations (3a)–(3f) of a given model. ${\mathcal{P}}_0=({\mathcal{X}}_0,0)=\left(\frac{\mathrm{\Psi }}{\sigma },0,0,0,0,0\right)$ is the DFE point. To show global asymptotic stability (GAS) of the disease-free equilibrium point, the conditions given below must be satisfied.

$$\begin{array}{cc}\hfill & \left(H1\right){}_0^{CF}{\mathcal{D}}_t^{\rho }\mathcal{X}=\mathcal{K}(\mathcal{X},0)=0,{\mathcal{X}}_0\mathrm{is}GAS,\hfill \end{array}$$

(21)

$$\begin{array}{cc}\hfill & \left(H2\right){}_0^{CF}{\mathcal{D}}_t^{\rho }\mathcal{Y}=\mathcal{N}(\mathcal{X},\mathcal{Y})=\mathcal{B}\mathcal{Y}-\overline{\mathcal{N}}(\mathcal{X},\mathcal{Y})where\overline{\mathcal{N}}(\mathcal{X},\mathcal{Y})\ge 0\mathrm{f}\mathrm{o}\mathrm{r} \mathrm{a}\mathrm{l}\mathrm{l}(\mathcal{X},\mathcal{Y})\in \mathrm{\Omega }.\hfill \end{array}$$

(22)

Here, $\mathcal{B}=D_{\mathcal{Y}}\mathcal{N}({\mathcal{X}}_0,0)$ is an M-matrix and $\mathrm{\Omega }$ is defined as the feasible region for the model. Thus, for the global stability at DFE, due to Castillo-Chavez et. al. [44], we prove the following theorem.

Theorem 6.

If ${\mathcal{R}}_0<1$ and the conditions $\left(H1\right)$ and $\left(H2\right)$ are satisfied, the disease-free equilibrium (DFE) point ${\mathcal{P}}_0$ of model (3) is globally asymptotically stable (GAS).

Proof.

Let $\mathcal{X}=\left(S\right)$ be the uninfected persons, $\mathcal{Y}=(E,I,A,P,H)$ be individuals with infections, and ${\mathcal{P}}_0=({\mathcal{X}}_0,0)$ be the disease-free equilibrium point. Thus,

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }\mathcal{X}& =\mathcal{K}(\mathcal{X},\mathcal{Y})=\mathrm{\Psi }-({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)\frac{S}{N}-\sigma S.\hfill \end{array}$$

(23)

If $S=S_0$, then $\mathcal{K}(\mathcal{X},0)=0$, i.e.,

$${}_0^{CF}{\mathcal{D}}_t^{\rho }\mathcal{X}=\mathrm{\Psi }-\sigma S_0=0.$$

(24)

From Equation (24) as $t\to \infty$, $\mathcal{X}\to {\mathcal{X}}_0$. Therefore ${\mathcal{X}}_0=(S_0,0)$ is GAS. Now,

$$\begin{array}{c}\hfill \mathcal{B}\mathcal{Y}-\overline{\mathcal{N}}(\mathcal{X},\mathcal{Y})=\left[\begin{array}{ccccc}-k_1& {\displaystyle \frac{{\gamma }_1{S}_0}{N}}& {\displaystyle \frac{{\gamma }_2{S}_0}{N}}& {\displaystyle \frac{{\gamma }_3{S}_0}{N}}& {\displaystyle \frac{{\gamma }_4{S}_0}{N}}\\ {\gamma }_5& -k_2& 0& 0& 0\\ {\gamma }_6& 0& -k_3& 0& 0\\ {\gamma }_7& 0& 0& -k_4& 0\\ 0& {\gamma }_8& 0& {\tau }_2& -k_5\end{array}\right]\left[\begin{array}{c}E\\ I\\ A\\ P\\ H\end{array}\right]-\left[\begin{array}{c}\kappa \\ 0\\ 0\\ 0\\ 0\end{array}\right].\end{array}$$

(25)

where

$$\mathcal{B}=\left[\begin{array}{ccccc}-k_1& {\displaystyle \frac{{\gamma }_1{S}_0}{N}}& {\displaystyle \frac{{\gamma }_2{S}_0}{N}}& {\displaystyle \frac{{\gamma }_3{S}_0}{N}}& {\displaystyle \frac{{\gamma }_4{S}_0}{N}}\\ {\gamma }_5& -k_2& 0& 0& 0\\ {\gamma }_6& 0& -k_3& 0& 0\\ {\gamma }_7& 0& 0& -k_4& 0\\ 0& {\gamma }_8& 0& {\tau }_2& -k_5\end{array}\right],\mathcal{Y}=\left[\begin{array}{c}E\\ I\\ A\\ P\\ H\end{array}\right],\overline{\mathcal{N}}(\mathcal{X},\mathcal{Y})=\left[\begin{array}{c}\kappa \\ 0\\ 0\\ 0\\ 0\end{array}\right],$$

and $\kappa ={\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)}{N}}(S_0-S)$.

Here, $\mathcal{B}$ is an M-matrix. Since at ${\mathcal{P}}_0$, each $S,E,I,A,P,H,R\le S_0$; thus, matrix $\overline{\mathcal{N}}(\mathcal{X},\mathcal{Y})$ is non-negative. So, point ${\mathcal{P}}_0$ is GAS.   □

Next, we describe the theorem that gives the global stability of the model (3) at ${\mathcal{P}}_1$.

Theorem 7

([36,37,38,39,40,41,42,43,44,45,46]). The endemic equilibrium (EE) point ${\mathcal{P}}_1$ of model (3) is globally asymptotically stable (GAS) provided $R_0>1$ and unstable when $R_0<1$.

Proof.

Let us define a Volterra-type Lyapunov function of the form:

$$\begin{array}{cc}\hfill Ł(S,E,I,A,P,H,R)=& \left[S-S^1-S^{1}log{\displaystyle \frac{S}{S^1}}\right]+\left[E-E^1-E^{1}log{\displaystyle \frac{E}{E^1}}\right]\hfill \\ \hfill & +\left[I-I^1-I^{1}log{\displaystyle \frac{I}{I^1}}\right]+\left[A-A^1-A^{1}log{\displaystyle \frac{A}{A^1}}\right]\hfill \\ \hfill & +\left[P-P^1-P^{1}log{\displaystyle \frac{P}{P^1}}\right]+\left[H-H^1-H^{1}log{\displaystyle \frac{H}{H^1}}\right]\hfill \\ \hfill & +\left[R-R^1-R^{1}log{\displaystyle \frac{R}{R^1}}\right].\hfill \end{array}$$

with the application of the CF-derivative, the above expression takes the form:

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }Ł=& \left[{\displaystyle \frac{S-S^1}{S}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }S+\left[{\displaystyle \frac{E-E^1}{E}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }E+\left[{\displaystyle \frac{I-I^1}{I}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }I\hfill \\ & +\left[{\displaystyle \frac{A-A^1}{A}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }A+\left[{\displaystyle \frac{P-P^1}{P}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }P\hfill \\ & +\left[{\displaystyle \frac{H-H^1}{H}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }H+\left[{\displaystyle \frac{R-R^1}{R}}\right]{}_0^{CF}{\mathcal{D}}_t^{\rho }R.\hfill \end{array}$$

(26)

Replacing the derivatives with the right-hand sides of the equations of model (3), we obtain

$$\begin{array}{cc}\hfill {\displaystyle \frac{dŁ}{dt}}=& \left[{\displaystyle \frac{S-S^1}{S}}\right]\left[\mathrm{\Psi }-{\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}-\left(\sigma \right)S\right]+\left[{\displaystyle \frac{E-E^1}{E}}\right]\hfill \\ & \left[{\displaystyle \frac{{\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}\right]-\left[({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E\right]+\hfill \\ & \left[{\displaystyle \frac{I-I^1}{I}}\right]\left[{\gamma }_5-({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I)\right]I+\left[{\displaystyle \frac{A-A^1}{A}}\right]\left[{\gamma }_{6}E-({\tau }_1+\sigma )A\right]+\hfill \\ & \left[{\displaystyle \frac{P-P^1}{P}}\right]\left[{\gamma }_7-({\tau }_2+{\tau }_3+\sigma +{\eta }_P)P\right]+\left[{\displaystyle \frac{H-H^1}{H}}\right]\left[{\gamma }_{8}I+{\tau }_{2}P-({\tau }_4+{\eta }_H+\sigma )H\right]+\hfill \\ & \left[{\displaystyle \frac{R-R^1}{R}}\right]\left[{\gamma }_{9}I+{\tau }_{1}A+{\tau }_{3}P+{\tau }_{4}H-\sigma R\right].\hfill \end{array}$$

We rearrange the terms on the right-hand side to obtain:

$$\begin{array}{cc}\hfill {\displaystyle \frac{dŁ}{dt}}=& [\mathrm{\Psi }+\left({\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}+\sigma \right){\displaystyle \frac{{\left(S^1\right)}^2}{S}}+\left({\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}\right)S\hfill \\ \hfill & +({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma ){\displaystyle \frac{{\left(E^1\right)}^2}{E}}+{\gamma }_{5}E+({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I){\displaystyle \frac{{\left(I^1\right)}^2}{I}}+{\gamma }_{6}E+{\gamma }_{7}E\hfill \\ \hfill & +({\tau }_1+\sigma ){\displaystyle \frac{{\left(A^1\right)}^2}{A}}+({\tau }_4+{\eta }_H+\sigma ){\displaystyle \frac{{\left(H^1\right)}^2}{H}}+({\tau }_2+{\tau }_3+{\eta }_P+\sigma ){\displaystyle \frac{{\left(P^1\right)}^2}{P}}\hfill \\ \hfill & +{\gamma }_{8}I+{\gamma }_{9}I+{\tau }_{1}A+{\tau }_{2}P+{\tau }_{3}P+{\tau }_{4}H+\sigma {\displaystyle \frac{{\left(R^1\right)}^2}{R}}]\hfill \\ \hfill -& [\left({\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}+\sigma \right){\displaystyle \frac{{(S-S^1)}^2}{S}}+\mathrm{\Psi }{\displaystyle \frac{S^1}{S}}\hfill \\ & +\left({\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}+\sigma \right)S^1+{\displaystyle \frac{{(E-E^1)}^2}{E}}({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )\hfill \\ \hfill & +{\displaystyle \frac{E^1}{E}}\left({\displaystyle \frac{({\gamma }_{1}I+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}\right)S+({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E^1\hfill \\ & +{\displaystyle \frac{{(I-I^1)}^2}{I}}({\gamma }_8+{\gamma }_9+{\eta }_I+\sigma )\hfill \\ \hfill & +{\displaystyle \frac{I^1}{I}}{\gamma }_{5}E+({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I)I^1+({\tau }_1+\sigma ){\displaystyle \frac{{(A-A^1)}^2}{A}}+{\displaystyle \frac{A^1}{A}}{\gamma }_{6}E\hfill \\ \hfill & +({\tau }_1+\sigma )A^1+({\tau }_1+\sigma )A^1+{\displaystyle \frac{{(P-P^1)}^2}{P}}({\tau }_2+{\tau }_3+{\eta }_P+\sigma )+{\displaystyle \frac{P^1}{P}}{\gamma }_{7}E\hfill \\ \hfill & +({\tau }_2+{\tau }_3+{\eta }_P+\sigma )P^1+{\displaystyle \frac{{(H-H^1)}^2}{H}}({\tau }_4+{\eta }_H+\sigma )+{\displaystyle \frac{H^1}{H}}({\gamma }_{8}I+{\tau }_{2}P)\hfill \\ \hfill & +({\tau }_4+{\eta }_H+\sigma )H^1+\sigma {\displaystyle \frac{{(R-R^1)}^2}{R}}+\sigma R^1+{\displaystyle \frac{R^1}{R}}({\gamma }_{9}I+{\tau }_{1}A+{\tau }_{3}P+{\tau }_{4}H)].\hfill \end{array}$$

Hence, we can write it as:

$${}_0^{CF}{\mathcal{D}}_t^{\rho }Ł={\xi }_1-{\xi }_2,$$

where

$$\begin{array}{cc}\hfill {\xi }_1=& [\mathrm{\Psi }+(C_1+\sigma ){\displaystyle \frac{{\left(S^1\right)}^2}{S}}+C_{1}S+({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma ){\displaystyle \frac{{\left(E^1\right)}^2}{E}}+{\gamma }_{5}E\hfill \\ & +({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I){\displaystyle \frac{{\left(I^1\right)}^2}{I}}+{\gamma }_{6}E+({\tau }_1+\sigma ){\displaystyle \frac{{\left(A^1\right)}^2}{A}}+{\gamma }_{7}E\hfill \\ & +({\tau }_4+{\eta }_H+\sigma ){\displaystyle \frac{{\left(H^1\right)}^2}{H}}+({\tau }_2+{\tau }_3+{\eta }_P+\sigma ){\displaystyle \frac{{\left(P^1\right)}^2}{P}}\hfill \\ & +{\gamma }_{8}I+{\gamma }_{9}I+{\tau }_{1}A+{\tau }_{2}P+{\tau }_{3}P+{\tau }_{4}H+\sigma {\displaystyle \frac{{\left(R^1\right)}^2}{R}}],\hfill \end{array}$$

and

$$\begin{array}{cc}\hfill {\xi }_2=& [(C_1+\sigma ){\displaystyle \frac{{(S-S^1)}^2}{S}}+\mathrm{\Psi }{\displaystyle \frac{S^1}{S}}+(C_1+\sigma )S^1+{\displaystyle \frac{{(E-E^1)}^2}{E}}({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )\hfill \\ & +{\displaystyle \frac{E^1}{E}}{C}_{1}S+({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E^1+{\displaystyle \frac{{(I-I^1)}^2}{I}}({\gamma }_8+{\gamma }_9+{\eta }_I+\sigma )\hfill \\ & +{\displaystyle \frac{I^1}{I}}{\gamma }_{5}E+({\gamma }_8+{\gamma }_9+\sigma +{\eta }_I)I^1+({\tau }_1+\sigma ){\displaystyle \frac{{(A-A^1)}^2}{A}}+{\displaystyle \frac{A^1}{A}}{\gamma }_{6}E\hfill \\ & +({\tau }_1+\sigma )A^1+({\tau }_1+\sigma )A^1+{\displaystyle \frac{{(P-P^1)}^2}{P}}({\tau }_2+{\tau }_3+{\eta }_P+\sigma )+{\displaystyle \frac{P^1}{P}}{\gamma }_{7}E\hfill \\ & +({\tau }_2+{\tau }_3+{\eta }_P+\sigma )P^1+{\displaystyle \frac{{(H-H^1)}^2}{H}}({\tau }_4+{\eta }_H+\sigma )+{\displaystyle \frac{H^1}{H}}({\gamma }_{8}I+{\tau }_{2}P)\hfill \\ & +({\tau }_4+{\eta }_H+\sigma )H^1+\sigma {\displaystyle \frac{{(R-R^1)}^2}{R}}+\sigma R^1+{\displaystyle \frac{R^1}{R}}({\gamma }_{9}I+{\tau }_{1}A+{\tau }_{3}P+{\tau }_{4}H)].\hfill \end{array}$$

As the parameters of model (3) are non-negative, we conclude that ${}_0^{CF}{\mathcal{D}}_{tŁ}^{\rho }<0$ when ${\xi }_1<{\xi }_2$ and ${}_0^{CF}{\mathcal{D}}_t^{\rho }L=0$ when ${\xi }_1={\xi }_2$. The case ${\xi }_1={\xi }_2$ gives $S=S^1$, $E=E^1$, $A=A^1$, $P=P^1$, $I=I^1$, $H=H^1$, and $R=R^1$. So, as per LaSalle’s invariance principle, the endemic equilibrium point ${\mathcal{P}}_1$ is GAS.    □

5. Updated Model with the Quarantine Compartment

Quarantining infected individuals is one way to control the spread of the coronavirus. To implement this control strategy, the original model was updated, such that infected, asymptomatic, and superspreaders were quarantined at a rate of $c_1$, $c_2$, and $c_3$, respectively. Quarantined individuals can die from the disease at a rate of ${\eta }_Q$ and die naturally at a rate of $\sigma$. Those suffering from severe disease symptoms are hospitalized at a rate of $c_4$. Moreover, they may receive complete COVID-19 immunity at the rate of $c_5$. As a result, the modified coronavirus model is represented both graphically (see Figure 2) and mathematically as follows:

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }S\left(t\right)& =\mathrm{\Psi }-{\displaystyle \frac{({\gamma }_{1}I\left(t\right)+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S\left(t\right)}{N}}-\sigma S\left(t\right),\hfill \end{array}$$

(27a)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }E\left(t\right)& ={\displaystyle \frac{({\gamma }_{1}I\left(t\right)+{\gamma }_{2}A+{\gamma }_{3}P+{\gamma }_{4}H)S}{N}}-({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E,\hfill \end{array}$$

(27b)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }I\left(t\right)& ={\gamma }_{5}E-({\gamma }_8+{\gamma }_9+c_1+\sigma +{\eta }_I\left(t\right))I\left(t\right),\hfill \end{array}$$

(27c)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }A\left(t\right)& ={\gamma }_{6}E-({\tau }_1+c_2+\sigma )A,\hfill \end{array}$$

(27d)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }P\left(t\right)& ={\gamma }_{7}E-({\tau }_2+{\tau }_3+c_3+\sigma +{\eta }_P)P,\hfill \end{array}$$

(27e)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }Q\left(t\right)& =c_{1}I\left(t\right)+c_{2}A+c_{3}P-(c_4+c_5+{\eta }_Q+\sigma )Q,\hfill \end{array}$$

(27f)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }H\left(t\right)& ={\gamma }_{8}I\left(t\right)+{\tau }_{2}P+c_{4}Q-({\tau }_4+{\eta }_H+\sigma )H,\hfill \end{array}$$

(27g)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }R\left(t\right)& ={\gamma }_{9}I\left(t\right)+{\tau }_{1}A+{\tau }_{3}P+{\tau }_{4}H+c_{5}Q-\sigma R,\hfill \end{array}$$

(27h)

along with

$$\begin{array}{c}\hfill S_0\ge 0,E_0\ge 0,I{\left(t\right)}_0\ge 0,A_0\ge 0,P_0\ge 0,Q_0\ge 0,H_0\ge 0,R_0\ge 0.\end{array}$$

(27i)

Figure 2. Updated compartmental presentation of disease transmission with the quarantine class.

5.1. Solution Approximating Technique

In this section, we present the numerical technique to solve the model (27). We first discretize the continuous domain $[0,t_f]$ into $\mathcal{N}$ sub-intervals, each of width $\mathrm{\Delta }t={\displaystyle \frac{t_f}{\mathcal{N}}}$, in order to discretize the state equations of model (27). The discrete points are denoted as $t_i=i\mathrm{\Delta }t$, $i=0,1,2,...,\mathcal{N}$. By using the approximation method described below, we estimate the state equations at these discrete points.

Let us write the Caputo–Fabrizio model (27) in the compact form

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }Z\left(t\right)=g\left(Z\right),Z\left(0\right)=Z_0,0<\rho \le 1,\end{array}$$

(28)

where

$$Z\left(t\right)={\left(S\left(t\right),E\left(t\right),I\left(t\right),A\left(t\right),P\left(t\right),Q\left(t\right),H\left(t\right),R\left(t\right)\right)}^T,$$

and

$$g\left(Z\right)={\left(g_1\left(t\right),g_2\left(t\right),g_3\left(t\right),g_4\left(t\right),g_5\left(t\right),g_6\left(t\right),g_7\left(t\right),g_8\left(t\right)\right)}^T.$$

We utilized the technique presented in [47] to design an approximation scheme for Equation (28).

Applying the CF-fractional integral operator to both sides of (28), we have

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{I}}_t^{\rho }\left({}_0^{CF}{\mathcal{D}}_t^{\rho }Z\left(t\right)\right){=}_0^{CF}{\mathcal{I}}_t^{\rho }\left(g\left(Z\right)\right).\end{array}$$

This gives

$$\begin{array}{c}\hfill Z\left(t\right)-Z\left(0\right)=\frac{2}{(2-\rho )M\left(\rho \right)}\left[(1-\rho )g\left(Z\right)+\rho \underset{0}{\overset{t}{\int }}g\left(Z\left(s\right)\right)ds\right],\end{array}$$

and in discrete form

$$\begin{array}{c}\hfill Z\left(t_{i+1}\right)-Z\left(0\right)=\frac{2}{(2-\rho )M\left(\rho \right)}\left[(1-\rho )g\left(Z\left(t_i\right)\right)+\rho \underset{0}{\overset{t_{i+1}}{\int }}g\left(Z\left(s\right)\right)ds\right].\end{array}$$

(29)

Similarly,

$$\begin{array}{c}\hfill Z\left(t_i\right)-Z\left(0\right)=\frac{2}{(2-\rho )M\left(\rho \right)}\left[(1-\rho )g\left(Z_{i-1}\right)+\rho \underset{0}{\overset{t_i}{\int }}g\left(Z\left(s\right)\right)ds\right].\end{array}$$

(30)

From Equations (29) and (30), we obtain

$$\begin{array}{cc}\hfill Z\left(t_{i+1}\right)=& Z\left(t_i\right)+\frac{2(1-\rho )}{(2-\rho )M\left(\rho \right)}\left[g\left(Z_i\right)-g\left(Z_{i-1}\right)\right]+\frac{2\rho }{(2-\rho )M\left(\rho \right)}[\underset{0}{\overset{t_{i+1}}{\int }}g\left(Z\left(s\right)\right)ds\hfill \\ & -\underset{0}{\overset{t_i}{\int }}g\left(Z\left(s\right)\right)ds].\hfill \end{array}$$

This implies that

$$\begin{array}{c}\hfill Z_{i+1}=Z_i+\frac{2(1-\rho )}{(2-\rho )M\left(\rho \right)}\left[g\left(Z_i\right)-g\left(Z_{i-1}\right)\right]+\frac{2\rho }{(2-\rho )M\left(\rho \right)}\underset{t_i}{\overset{t_{i+1}}{\int }}g\left(Z\left(s\right)\right)ds.\end{array}$$

(31)

A Lagrange interpolating polynomial of degree 2 was used to estimate the integral on the right-hand side of (31). That is

$$\begin{array}{cc}\hfill \underset{t_i}{\overset{t_{i+1}}{\int }}g\left(Z\left(s\right)\right)ds& =\underset{t_i}{\overset{t_{i+1}}{\int }}[\sum _{m=0}^{2}g\left(Z\left(t_{i-m}\right))L_m\left(t\right)ds\right]dt,\hfill \\ \hfill & =\mathrm{\Delta }t\left[\frac{23}{12}g\left(Z\left(t_i\right)\right)-\frac{4}{3}g\left(Z_{i-1}\right)+\frac{5}{12}g\left(Z_{i-2}\right)\right].\hfill \end{array}$$

(32)

Thus, the iterative scheme (31) in view of (32) takes the form

$$\begin{array}{cc}\hfill Z_{i+1}& =Z_i+\frac{2}{(2-\rho )M\left(\rho \right)}\left(1-\rho +\frac{23}{12}h\rho \right)g\left(Z_i\right)-\frac{2}{(2-\rho )M\left(\rho \right)}\left(1-\rho +\frac{4}{3}h\rho \right)g\left(Z_{i-1}\right)\hfill \\ \hfill & +\frac{10h\rho }{12(2-\rho )M\left(\rho \right)}g\left(Z_{i-2}\right),i=2,3,4,...,\mathcal{N}.\hfill \end{array}$$

(33)

By substituting $\rho =1$ in Equation (33), the three-step conventional Adam–Bashforth method for an integer-order SEIAPQHR model can be obtained.

5.2. Effect of the Fractional Order on Disease Dynamics

This section explains how the fractional order $\rho$ of model (27) affects COVID-19 transmission dynamics. To study this $\rho$ effect, we implement the finite difference method (33) to obtain graphical results of the proposed fractional model (27) for different fractional orders $\rho$. Figure 3 illustrates the impact of the arbitrary fractional-order $\rho$ on the number of individuals in one class. For $\rho =0.7,0.8,0.9,1$, the dynamic behavior of model (27) is simulated. It can be seen that $\rho$, even at a larger value that is less than 1, has little to no impact on the dynamics of the coronavirus disease. The solution curves appear to function differently in the early stages of the disease for a small duration of time, but beyond some crucial values of time t, they combine to display consistent behavior. The epidemic model’s memory effects are unchanged. This implies that changing the value of order $\rho$ as illustrated in Figure 3 will not stop the spread of COVID-19. We can observe that all curves representing susceptibility for different fractional orders stabilize at the same position, i.e., at $S\left(t\right)=8.35$, which is the fraction of the total population in thousands.

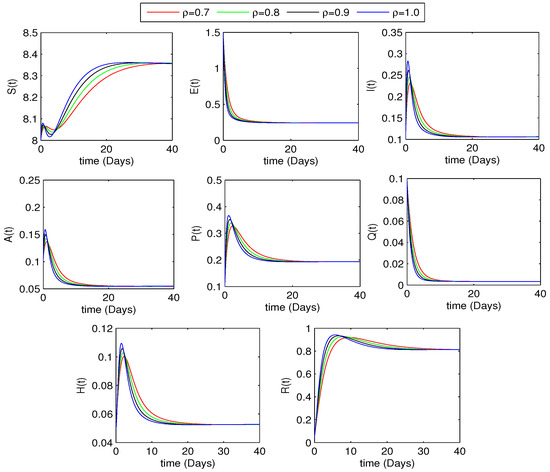

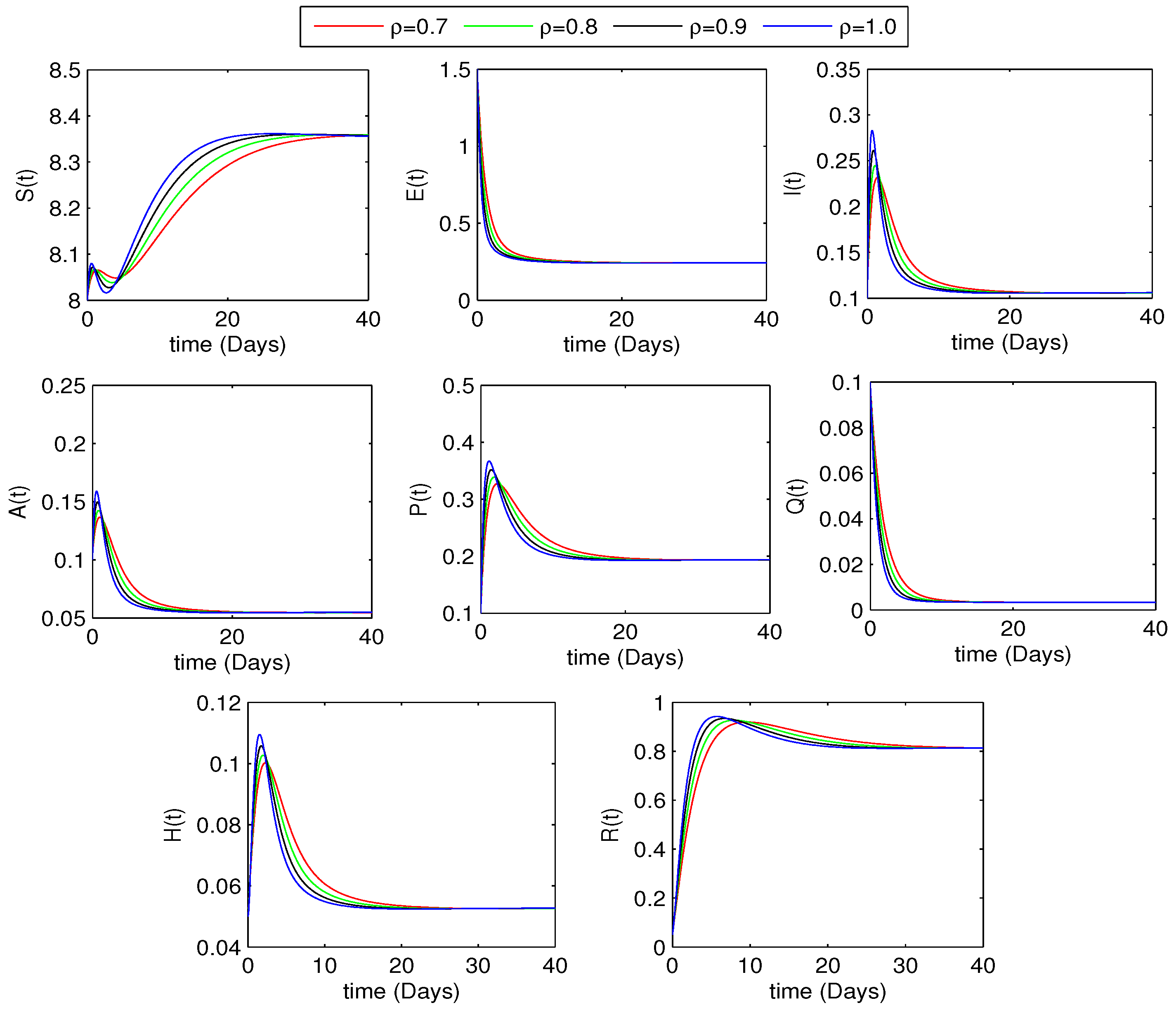

Figure 3. Effects of different fractional orders on the disease dynamics.

5.3. Effect of Quarantine Rates on Disease Dynamics

Using the suggested fractional model (27), we quantitatively investigate the influence of quarantine rates on the dynamics of the coronavirus pandemic in this section. An extended quarantine strategy was intended to control the spread of COVID-19 in the human population. For this, a number of numerical simulations showing the impacts of various quarantine levels are shown, see Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12. We use the value of the fractional-order $\rho$ as equivalent to $0.7,0.8,$ and $0.9$ for each considered case. In order to understand the flow pattern and to control the COVID-19 disease, the numerical investigations and observations yielded more conclusive and biologically reasonable results.

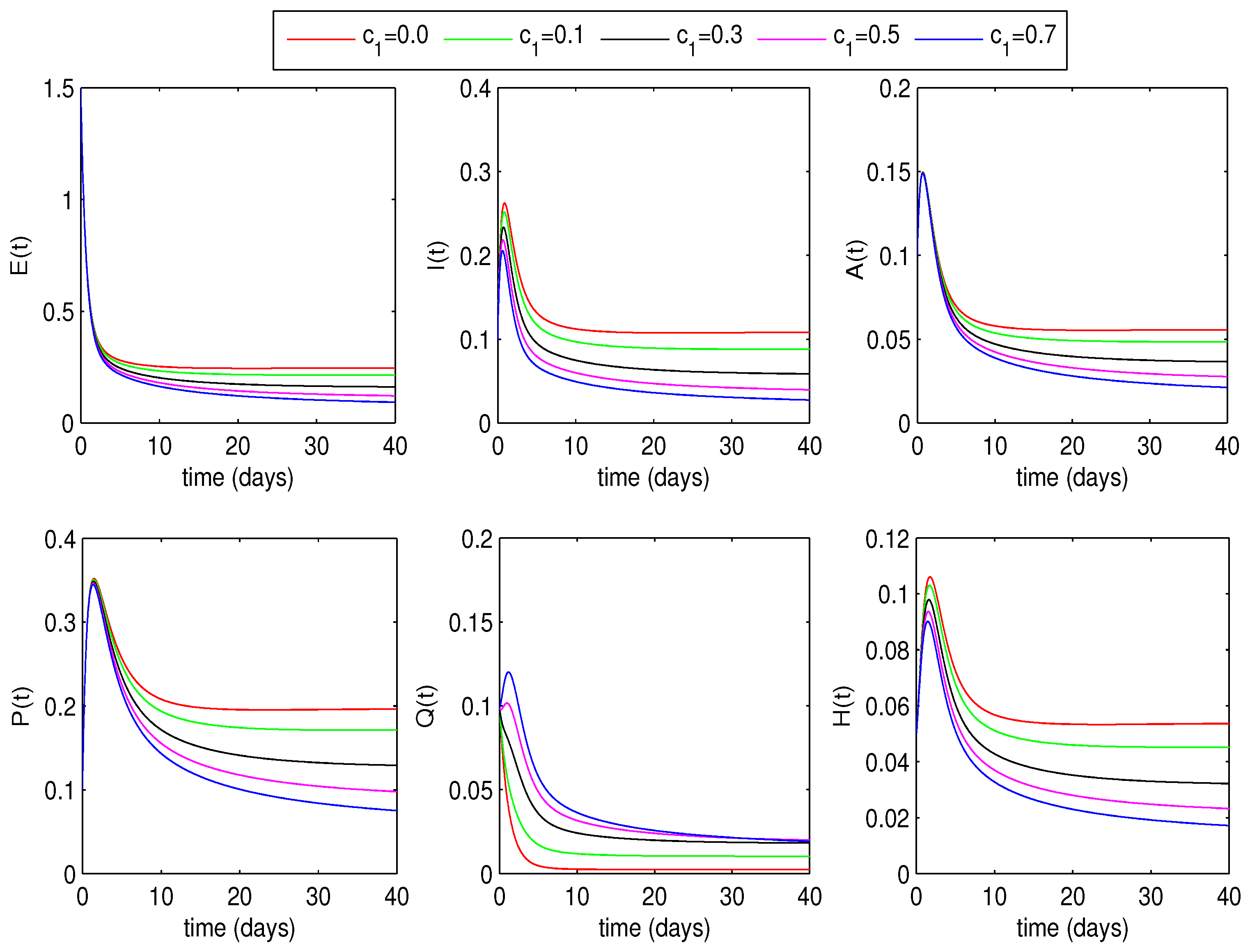

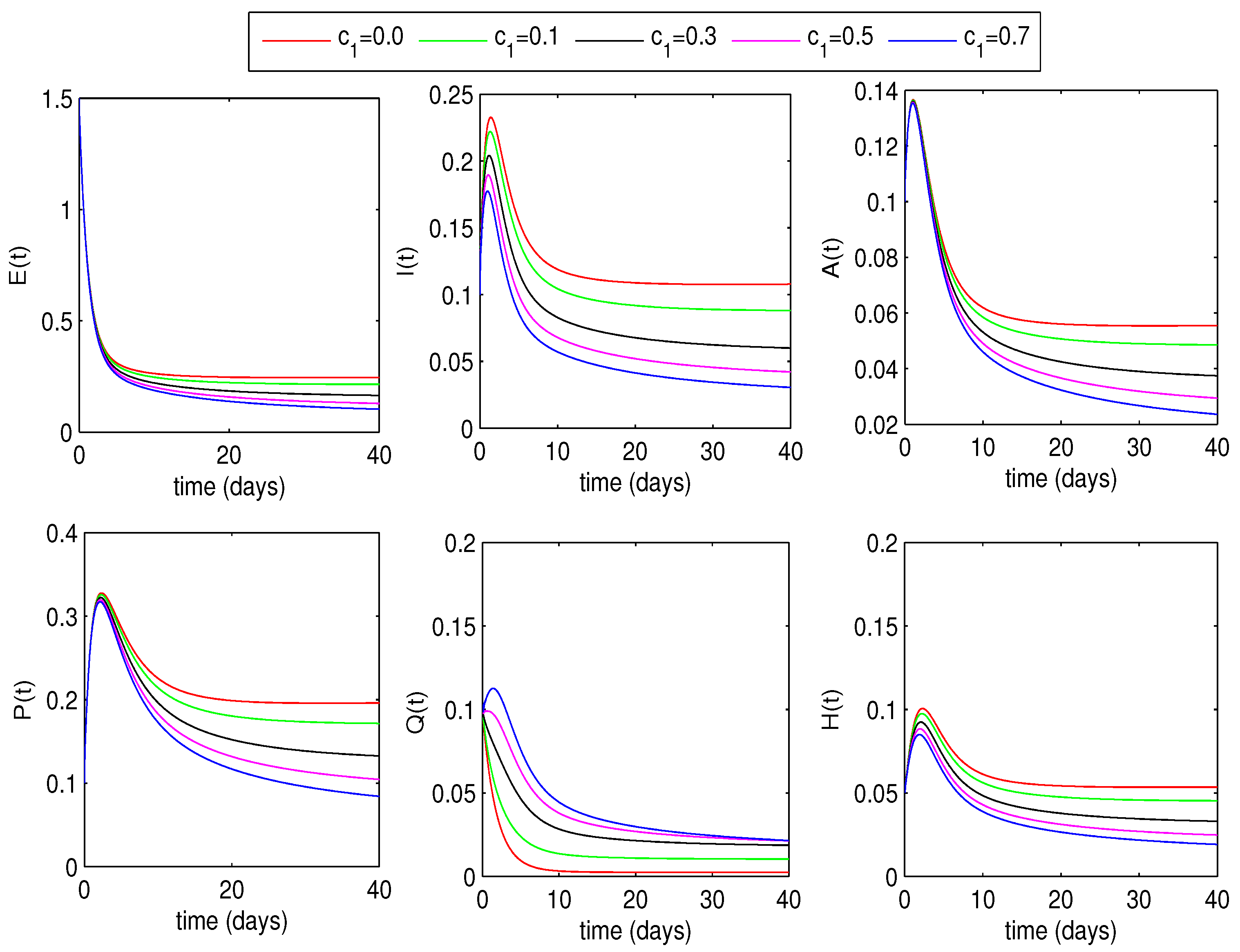

Figure 4. Changing the quarantine rate $c_1$ from $0\%$ to $70\%$ with $\rho =0.7$.

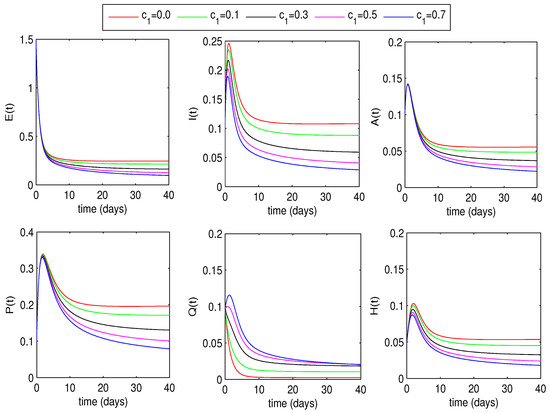

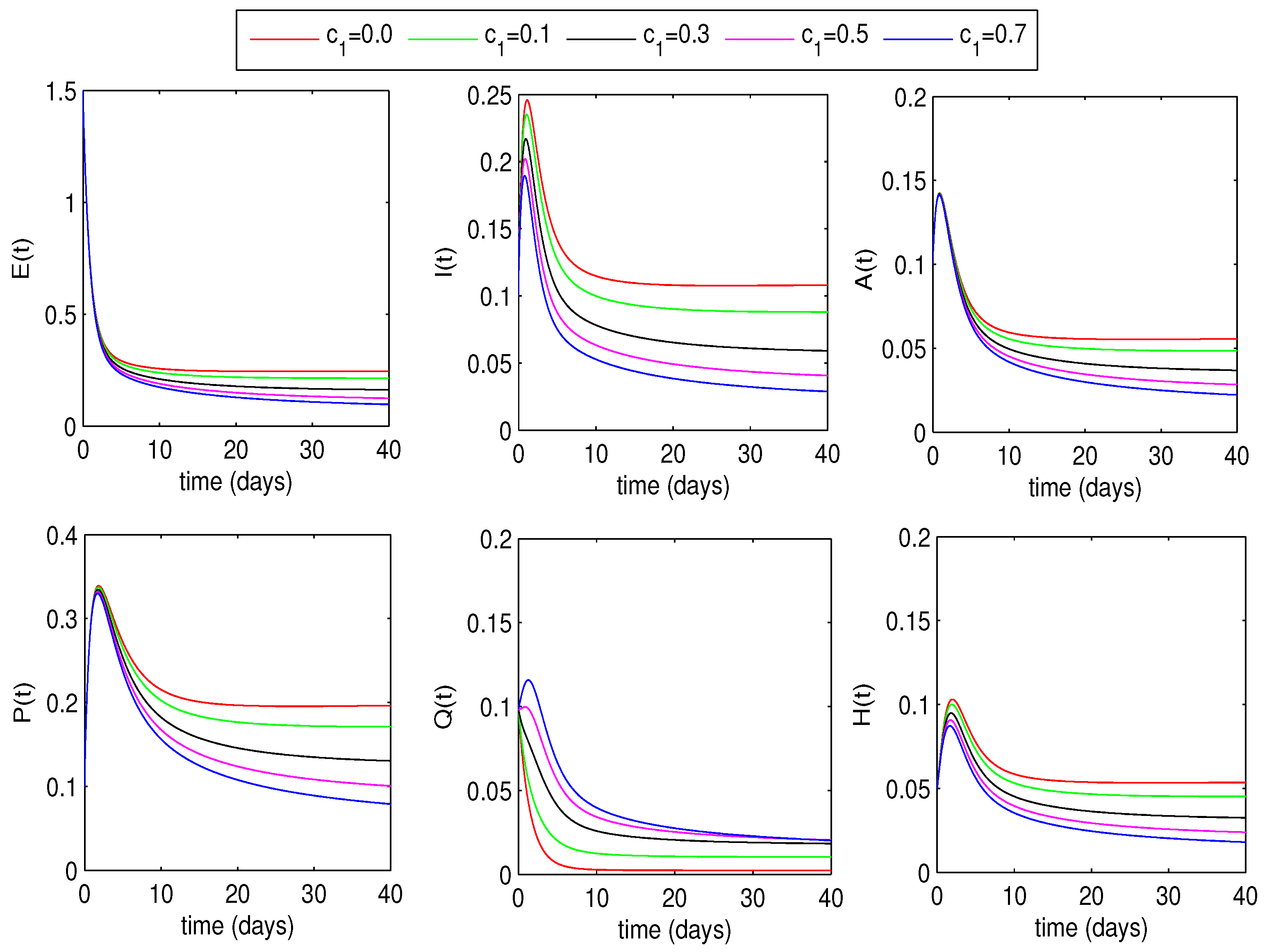

Figure 5. Changing the quarantine rate $c_1$ from $0\%$ to $70\%$ with $\rho =0.8$.

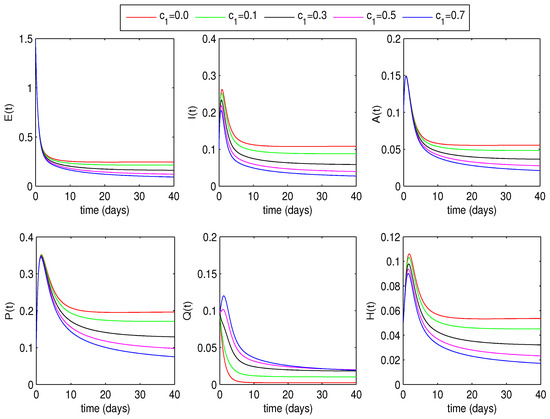

Figure 6. Changing the quarantine rate $c_1$ from $0\%$ to $70\%$ with $\rho =0.9$.

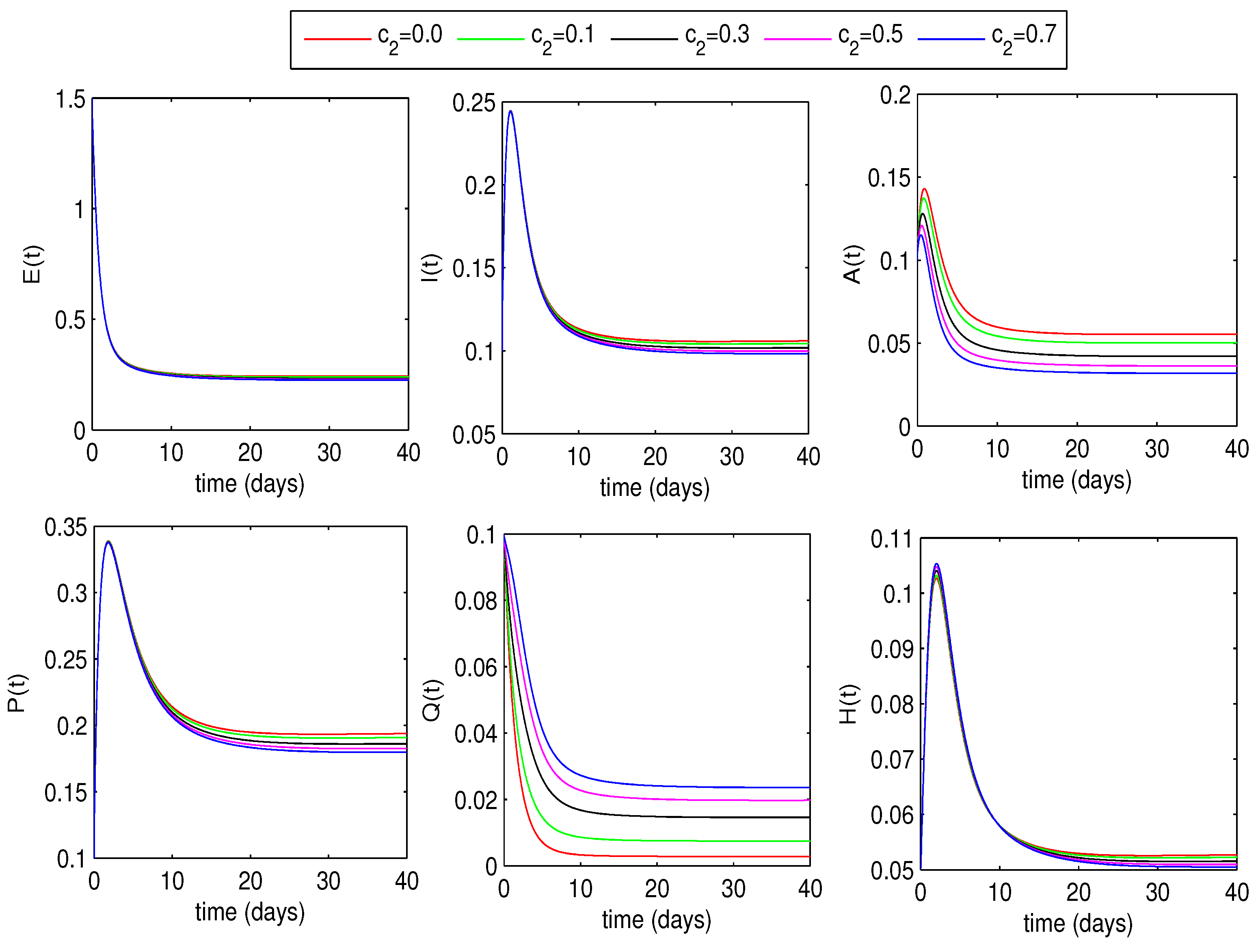

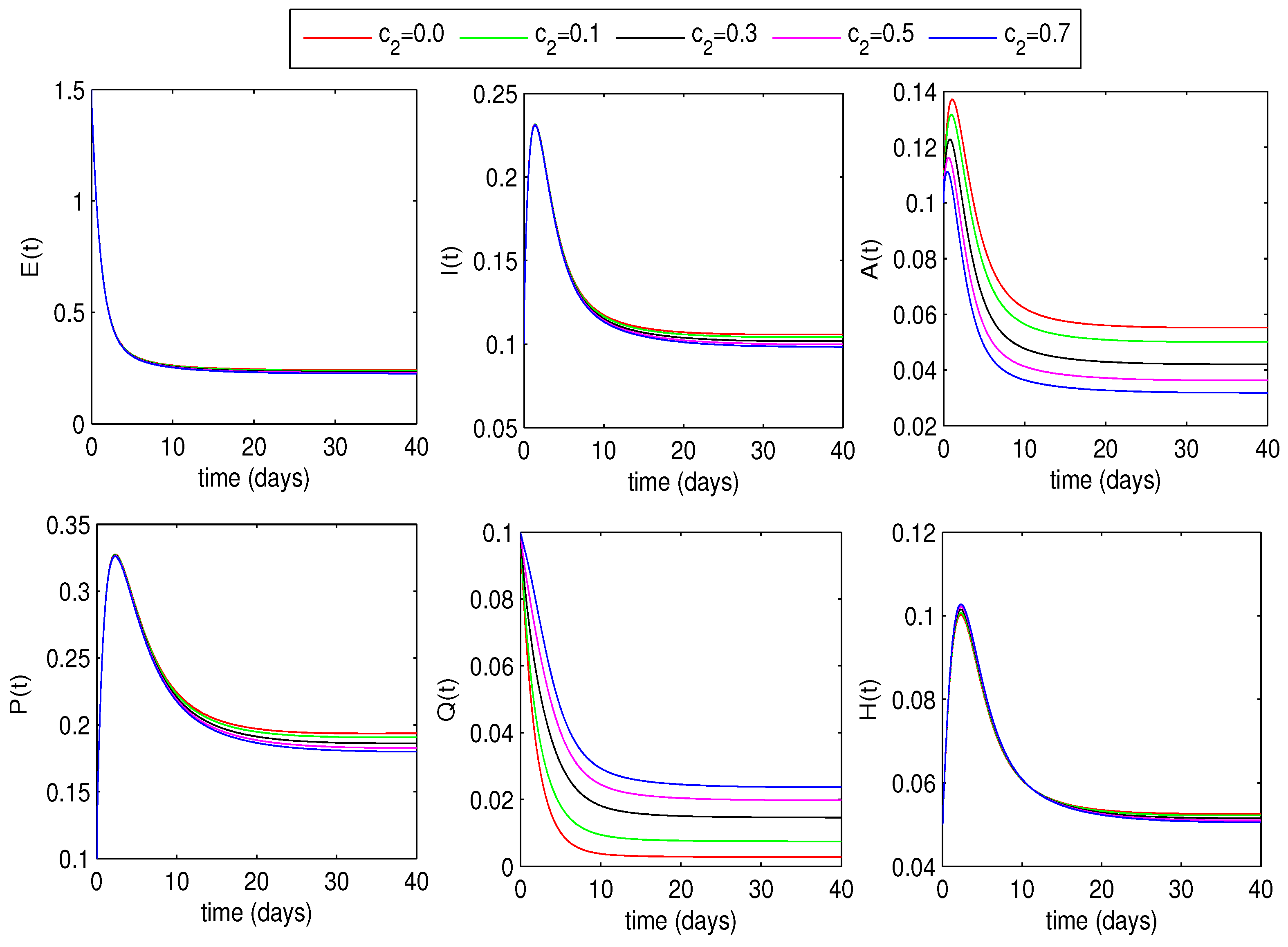

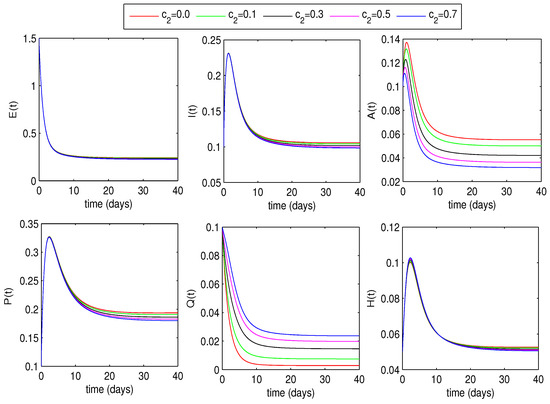

Figure 7. Changing the quarantine rate $c_2$ from $0\%$ to $70\%$ with $\rho =0.7$.

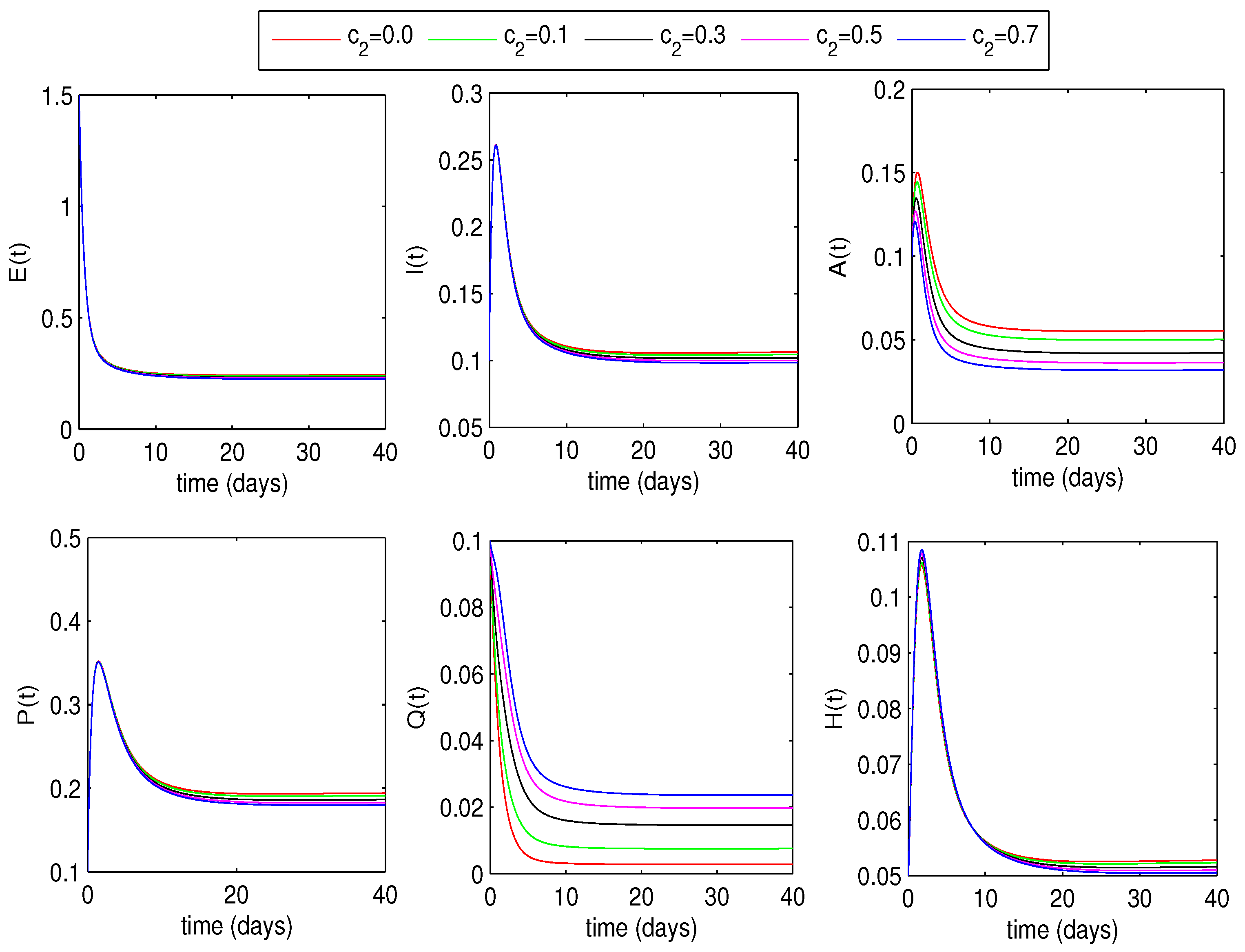

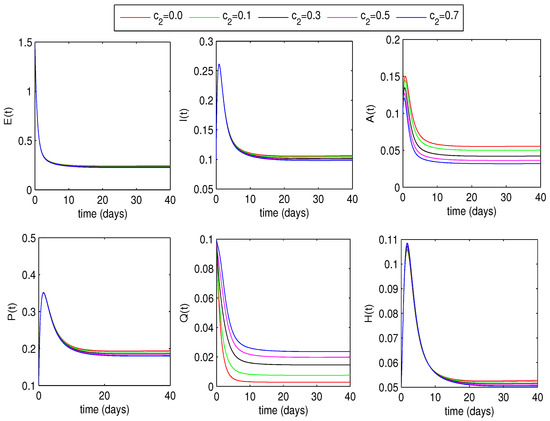

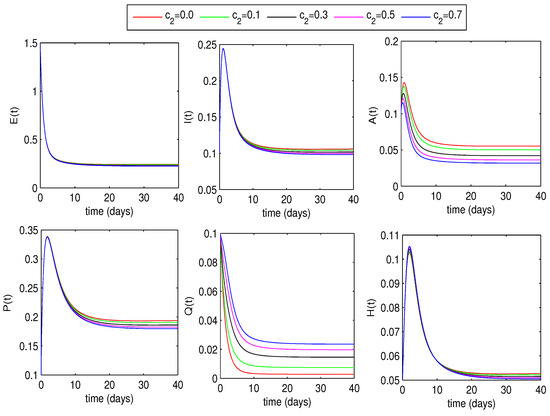

Figure 8. Changing the quarantine rate $c_2$ from $0\%$ to $70\%$ with $\rho =0.8$.

Figure 9. Changing the quarantine rate $c_2$ from $0\%$ to $70\%$ with $\rho =0.9$.

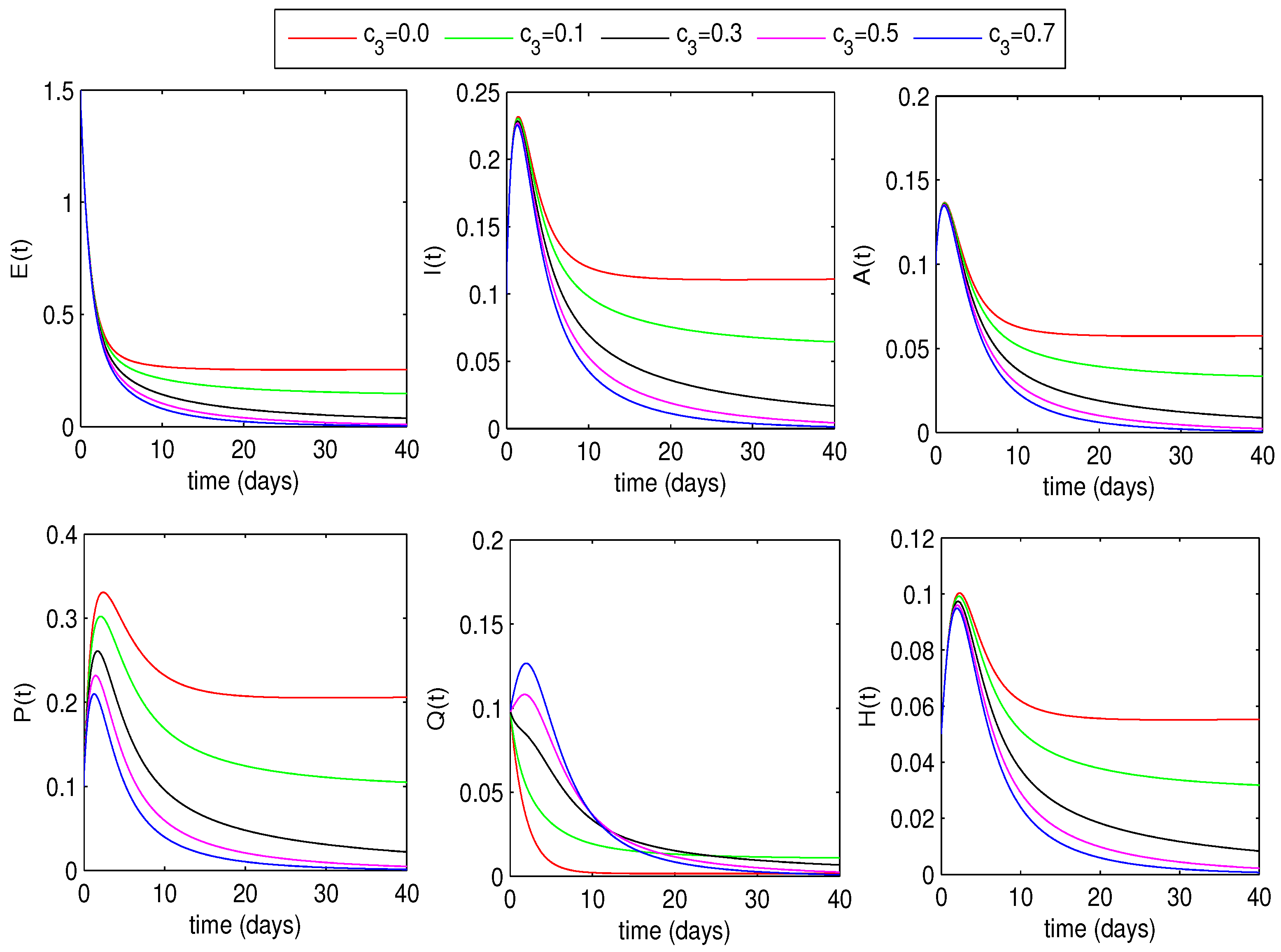

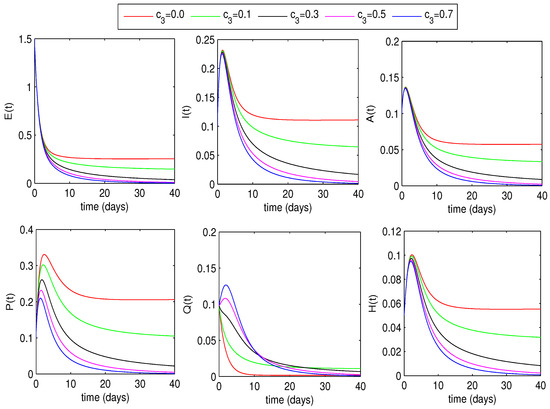

Figure 10. Changing the quarantine rate $c_3$ from $0\%$ to $70\%$ with $\rho =0.7$.

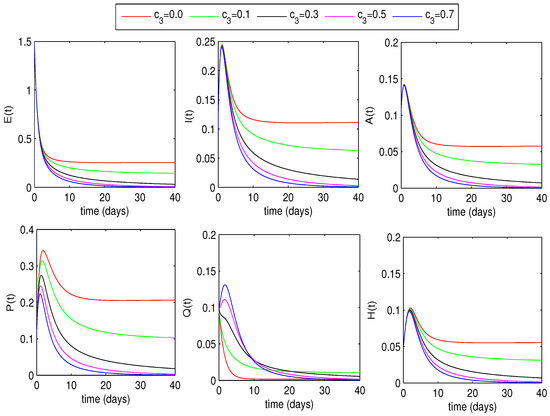

Figure 11. Changing the quarantine rate $c_3$ from $0\%$ to $70\%$ with $\rho =0.8$.

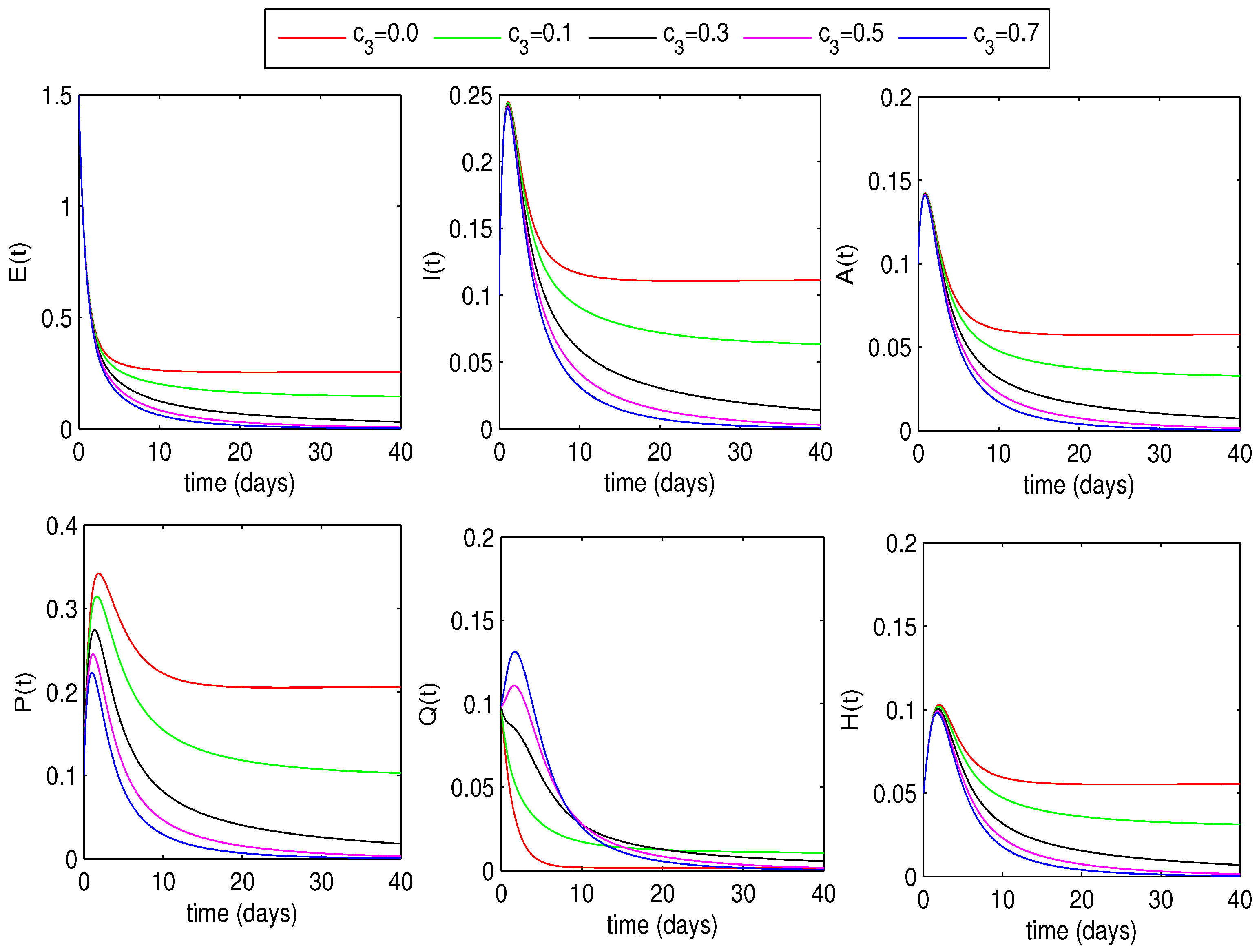

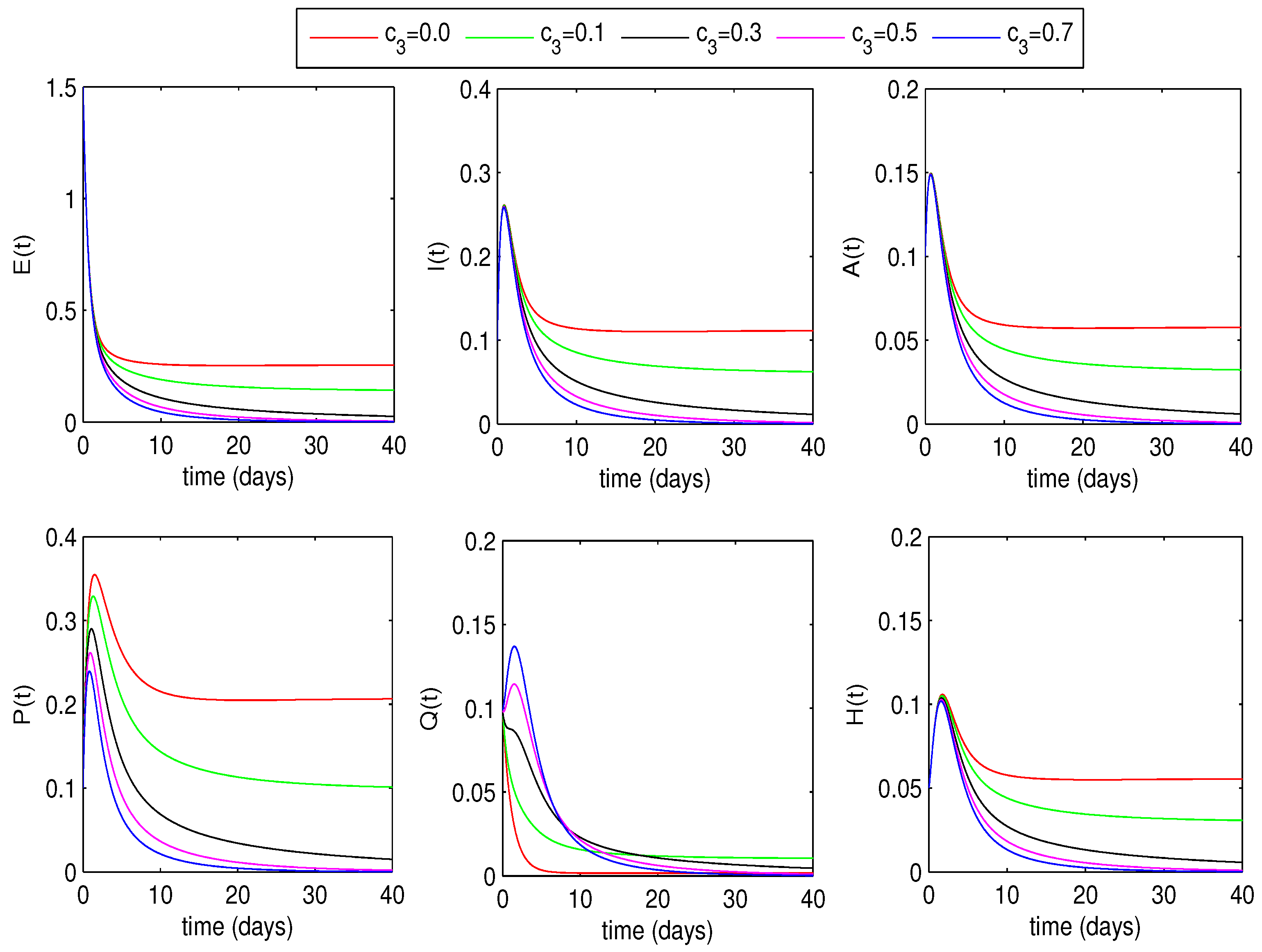

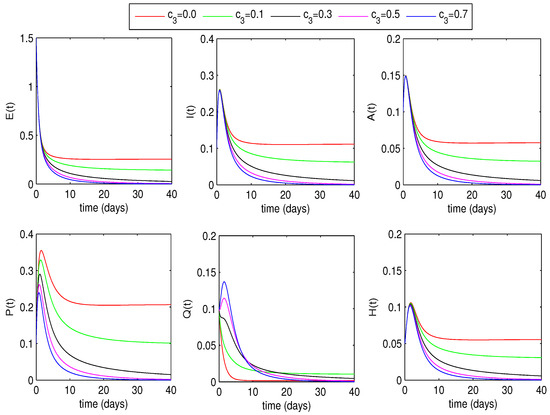

Figure 12. Changing the quarantine rate $c_3$ from $0\%$ to $70\%$ with $\rho =0.9$.

It is evident from Figure 4, Figure 5 and Figure 6 that when the infectious quarantine rate $c_1$ increases, human populations in all compartments with infections, i.e., in $E,I,A,P,H$, except Q decline. Thus, increasing the quarantine rate from compartment $I\left(t\right)$ to $Q\left(t\right)$, the curve for $I\left(t\right)$ will move toward a coronavirus-free state. The quarantine rate $c_2$ of asymptomatic individuals has relatively less influence on the infected classes $E\left(t\right),I\left(t\right)$, and $P\left(t\right)$, compared to classes $A\left(t\right)$ and $Q\left(t\right)$, where reciprocal behavior is noticed, see Figure 7, Figure 8 and Figure 9. Almost all other infected compartments remain unchanged with the increase in the quarantine rate $c_2$. However, we noticed a significant decrease in the solution curves of infected compartments ($E,I,A,P,Q,andH$) with an increase in the quarantine rate $c_3$ from the superspreader class $P\left(t\right)$. A slightly different behavior of the solution curve of $Q\left(t\right)$ can be examined in the beginning. Figure 10, Figure 11 and Figure 12 show that our developed model moves to DFE in a relatively short period of time when a small number of individuals are isolated from $P\left(t\right)$ as opposed to the first two cases. This result is very much valid as the superspreaders are categorized as fast infection-spreading individuals. All scenarios take a 40-day time period into consideration. Since our focus was to study the effects of different quarantine rates on the dynamic behaviors of infections in the population, we omitted the graphs for susceptible $S\left(t\right)$ and recovered $R\left(t\right)$ individuals under quarantine effects.

6. Formulation of an Optimal Control Problem

Our major purpose was to examine the influences of the quarantine rates of infected, asymptomatic, and superspreader individuals on the spread of the coronavirus disease by applying the best optimal control approach. The goal was to decrease the population of the infected, asymptomatic, and superspreader classes at the lowest possible control costs. In order to identify the potential optimal control in the fractional problem (27), Pontryagin’s maximum principle was employed to obtain the necessary conditions. Pontryagin’s maximum principle makes it advantageous to adjust the control in the mathematical models in order to attain the required outcomes. In order to control the spread of COVID-19, we applied three control variables described by $u_1\left(t\right)$, $u_2\left(t\right)$, and $u_3\left(t\right)$ to model (27). Quarantine rates $c_1\left(t\right)$, $c_2\left(t\right)$, and $c_3\left(t\right)$ were taken into consideration as the control variables $u_1$, $u_2$, and $u_3$, respectively.

The proposed epidemic model of COVID-19 (with controls) was presented by

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }S\left(t\right)& =\mathrm{\Psi }-{\displaystyle \frac{({\gamma }_{1}I\left(t\right)+{\gamma }_{2}A\left(t\right)+{\gamma }_{3}P\left(t\right)+{\gamma }_{4}H\left(t\right))S\left(t\right)}{N}}-\sigma S\left(t\right),\hfill \end{array}$$

(34a)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }E\left(t\right)& ={\displaystyle \frac{({\gamma }_{1}I\left(t\right)+{\gamma }_{2}A\left(t\right)+{\gamma }_{3}P\left(t\right)+{\gamma }_{4}H\left(t\right))S\left(t\right)}{N}}-({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E,\hfill \end{array}$$

(34b)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }I\left(t\right)& ={\gamma }_{5}E\left(t\right)-({\gamma }_8+{\gamma }_9+u_1\left(t\right)+\sigma +{\eta }_I)I\left(t\right),\hfill \end{array}$$

(34c)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }A\left(t\right)& ={\gamma }_{6}E\left(t\right)-({\tau }_1+u_2\left(t\right)+\sigma )A\left(t\right),\hfill \end{array}$$

(34d)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }P\left(t\right)& ={\gamma }_{7}E\left(t\right)-({\tau }_2+{\tau }_3+u_3\left(t\right)+\sigma +{\eta }_P)P\left(t\right),\hfill \end{array}$$

(34e)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }Q\left(t\right)& =u_1\left(t\right)I\left(t\right)+u_2\left(t\right)A\left(t\right)+u_3\left(t\right)P\left(t\right)-(c_4+c_5+{\eta }_Q+\sigma )Q\left(t\right),\hfill \end{array}$$

(34f)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }H\left(t\right)& ={\gamma }_{8}I\left(t\right)+{\tau }_{2}P\left(t\right)+c_{4}Q\left(t\right)-({\tau }_4+{\eta }_H+\sigma )H\left(t\right),\hfill \end{array}$$

(34g)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }R\left(t\right)& ={\gamma }_{9}I\left(t\right)+{\tau }_{1}A\left(t\right)+{\tau }_{3}P\left(t\right)+{\tau }_{4}H\left(t\right)+c_{5}Q\left(t\right)-\sigma R\left(t\right),\hfill \end{array}$$

(34h)

along with

$$\begin{array}{c}\hfill S{\left(t\right)}_0\ge 0,E{\left(t\right)}_0\ge 0,I{\left(t\right)}_0\ge 0,A{\left(t\right)}_0\ge 0,P{\left(t\right)}_0\ge 0,Q{\left(t\right)}_0\ge 0,H{\left(t\right)}_0\ge 0,R{\left(t\right)}_0\ge 0.\end{array}$$

(34i)

To formulate an optimal control problem, the objective cost functional may be defined as

$$\begin{array}{cc}\hfill {\displaystyle J\left(Z,u\right)={\int }_0^{t_f}[}& B_{1}I\left(t\right)+B_{2}A\left(t\right)+B_{3}P\left(t\right)\hfill \\ & +{\displaystyle \frac{1}{2}}{\omega }_1{u}_1^2\left(t\right)+{\displaystyle \frac{1}{2}}{\omega }_2{u}_2^2\left(t\right)+{\displaystyle \frac{1}{2}}{\omega }_3{u}_3^2\left(t\right)]dt,\hfill \end{array}$$

(35)

where $I\left(t\right)$, $A\left(t\right)$, and $P\left(t\right)$ are state variables representing the highly infected classes, $t_f$ is the fixed terminal time, and $0\le u_1\left(t\right)\le 1$, $0\le u_2\left(t\right)\le 1$, and $0\le u_3\left(t\right)\le 1$ are the control variables in $[0,1]$. The positive constants $B_1$, $B_2$, and $B_3$ are the associated coefficients for the number of infected, asymptomatic, and superspreader humans, respectively. Moreover, $\frac{1}{2}{w}_1$, $\frac{1}{2}{w}_2$, and $\frac{1}{2}{w}_3$ are the costs of the implemented controls.

To find optimal quarantine strategies to control the coronavirus disease, the assumed control set is given as

$$\begin{array}{c}\hfill \mathcal{U}=\left\{u_1,u_2,u_3:u_i\left(t\right)\mathrm{is}\mathrm{the}\mathrm{Lebesgue}\mathrm{measurable}\mathrm{on}[0,1]\mathrm{and}0\le u_i\left(t\right)\le 1,i=1,2,3\right\}.\end{array}$$

We seek to have admissible optimal controls $u_1^{*}$, $u_2^{*}$, and $u_3^{*}$ for the quarantine rates $c_1\left(t\right)$, $c_2\left(t\right)$, and $c_3\left(t\right)$, respectively, in the admissible control function space $\mathcal{U}$, such that the cost function (35) is minimized. That is

$$\begin{array}{c}\hfill J^{*}(I,A,P,u_1^{*},u_2^{*},u_3^{*})=\underset{(u_1,u_2,u_3)\in \mathcal{U}}{min}J(I,A,P,u_1,u_2,u_3)\mathrm{subject}\mathrm{to}\mathrm{model}\left(34\right).\end{array}$$

(36)

To find the optimal controllers of the fractional optimal control problem (36), we first develop the necessary optimality conditions.

To apply Pontryagin’s maximum principle for optimality conditions, we built the Hamiltonian for the control problem (36) as follows:

$$\begin{array}{cc}\hfill \mathcal{H}(t,Z,\mathcal{U},\zeta )=& B_{1}I\left(t\right)+B_{2}A\left(t\right)+B_{3}P\left(t\right)+{\displaystyle \frac{1}{2}}{\omega }_1{u}_1^2\left(t\right)+{\displaystyle \frac{1}{2}}{\omega }_2{u}_2^2\left(t\right)+{\displaystyle \frac{1}{2}}{\omega }_3{u}_3^2\left(t\right)\hfill \\ \hfill & +{\zeta }_S\left(\mathrm{\Psi }-{\displaystyle \frac{({\gamma }_{1}I\left(t\right)+{\gamma }_{2}A\left(t\right)+{\gamma }_{3}P\left(t\right)+{\gamma }_{4}H\left(t\right))S\left(t\right)}{N\left(t\right)}}-\sigma S\left(t\right)\right)\hfill \\ & +{\zeta }_E\left({\displaystyle \frac{({\gamma }_{1}I\left(t\right)+{\gamma }_{2}A\left(t\right)+{\gamma }_{3}P\left(t\right)+{\gamma }_{4}H\left(t\right))S\left(t\right)}{N\left(t\right)}}-({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma )E\left(t\right)\right)\hfill \\ \hfill & +{\zeta }_I\left({\gamma }_{5}E\left(t\right)-({\gamma }_8+{\gamma }_9+u_1\left(t\right)+\sigma +{\eta }_I)I\left(t\right)\right)\hfill \\ \hfill & +{\zeta }_A\left({\gamma }_{6}E\left(t\right)-({\tau }_1+u_2\left(t\right)+\sigma )A\left(t\right)\right)\hfill \\ \hfill & +{\zeta }_P\left({\gamma }_{7}E\left(t\right)-({\tau }_2+{\tau }_3+u_3\left(t\right)+\sigma +{\eta }_P)P\left(t\right)\right)\hfill \\ \hfill & +{\zeta }_Q\left(u_1\left(t\right)I\left(t\right)+u_2\left(t\right)A\left(t\right)+u_3\left(t\right)P\left(t\right)-(c_4+c_5+{\eta }_Q+\sigma )Q\left(t\right)\right)\hfill \\ \hfill & +{\zeta }_H\left({\gamma }_{8}I\left(t\right)+{\tau }_{2}P\left(t\right)+c_{4}Q\left(t\right)-({\tau }_4+{\eta }_H+\sigma )H\left(t\right)\right)\hfill \\ & +{\zeta }_R\left({\gamma }_{9}I\left(t\right)+{\tau }_{1}A\left(t\right)+{\tau }_{3}P\left(t\right)+c_{5}Q\left(t\right)+{\tau }_{4}H\left(t\right)-\sigma R\left(t\right)\right),\hfill \end{array}$$

(37)

where $Z=\left(S\right(t),E(t),I(t),A(t),P(t),Q(t),H(t),R(t\left)\right)$ symbolize the state variables, ${\zeta }_S,{\zeta }_E$, ${\zeta }_I,{\zeta }_A,{\zeta }_P,{\zeta }_Q,{\zeta }_H,{\zeta }_R,$ are the associated adjoint variables.

Using the first condition of the Pontryagin principle [48,49], we obtain the equations for controls.

$$\begin{array}{cc}\hfill {\displaystyle \frac{\partial \mathbb{H}}{\partial u_1}}& =0\Rightarrow u_1\left(t\right)={\displaystyle \frac{I\left(t\right)({\zeta }_I-{\zeta }_Q)}{{\omega }_1}},\hfill \\ \hfill {\displaystyle \frac{\partial \mathbb{H}}{\partial u_2}}& =0\Rightarrow u_2\left(t\right)={\displaystyle \frac{A\left(t\right)({\zeta }_A-{\zeta }_Q)}{{\omega }_2}},\hfill \\ \hfill {\displaystyle \frac{\partial \mathbb{H}}{\partial u_3}}& =0\Rightarrow u_3\left(t\right)={\displaystyle \frac{P\left(t\right)({\zeta }_P-{\zeta }_Q)}{{\omega }_3}}.\hfill \end{array}$$

Thus, the optimal control characterization for $u_1^{*}$, $u_2^{*}$, and $u_3^{*}$ with bounds is given as:

$$\begin{array}{cc}\hfill u_1^{*}& =min\left\{1,max\left\{0,{\displaystyle \frac{I\left(t\right)({\zeta }_I-{\zeta }_Q)}{{\omega }_1}}\right\}\right\},\hfill \\ \hfill u_2^{*}& =min\left\{1,max\left\{0,{\displaystyle \frac{A\left(t\right)({\zeta }_A-{\zeta }_Q)}{{\omega }_2}}\right\}\right\},\hfill \\ \hfill u_3^{*}& =min\left\{1,max\left\{0,{\displaystyle \frac{P\left(t\right)({\zeta }_P-{\zeta }_Q)}{{\omega }_3}}\right\}\right\}.\hfill \end{array}$$

(38)

Using the second optimality condition of PMP, i.e., by differentiating the Hamiltonian (37) with respect to state variables, the adjoint system of the fractional-order differential equation is obtained as:

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_S\left(t\right)& =-\left({\displaystyle \frac{{\gamma }_{1}I\left(t\right)+{\gamma }_{2}A\left(t\right)+{\gamma }_{3}P\left(t\right)+{\gamma }_{4}H\left(t\right)}{N\left(t\right)}}+\sigma \right){\zeta }_S\hfill \end{array}$$

$$\begin{array}{cc}& +\left({\displaystyle \frac{{\gamma }_{1}I\left(t\right){\gamma }_{2}A\left(t\right)+{\gamma }_{3}P\left(t\right)+{\gamma }_{4}H\left(t\right)}{N\left(t\right)}}\right){\zeta }_E,\hfill \end{array}$$

(39a)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_E\left(t\right)& =-\left({\gamma }_5+{\gamma }_6+{\gamma }_7+\sigma \right){\zeta }_E+{\gamma }_5{\zeta }_I+{\gamma }_6{\zeta }_A+{\gamma }_7{\zeta }_P,\hfill \\ \hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_I\left(t\right)& =-\left({\displaystyle \frac{{\gamma }_{1}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_S+\left({\displaystyle \frac{{\gamma }_{1}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_E-\left({\gamma }_8+{\gamma }_9+u_1\left(t\right)+\sigma +{\eta }_I\right){\zeta }_I\hfill \end{array}$$

(39b)

$$\begin{array}{cc}& +u_1\left(t\right){\zeta }_Q+{\gamma }_8{\zeta }_H+{\gamma }_9{\zeta }_R+B_1,\hfill \end{array}$$

(39c)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_A\left(t\right)& =-\left({\displaystyle \frac{{\gamma }_{2}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_S+\left({\displaystyle \frac{{\gamma }_{2}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_E-\left({\tau }_1+u_2\left(t\right)+\sigma \right){\zeta }_A+u_2\left(t\right){\zeta }_Q+{\tau }_1{\zeta }_R+B_2,\hfill \\ \hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_P\left(t\right)& =-\left({\displaystyle \frac{{\gamma }_{3}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_S+\left({\displaystyle \frac{{\gamma }_{3}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_E-\left({\tau }_2+{\tau }_3+u_3\left(t\right)+\sigma +{\eta }_P\right){\zeta }_P\hfill \end{array}$$

(39d)

$$\begin{array}{cc}& +u_3\left(t\right){\zeta }_Q+{\tau }_2{\zeta }_H+{\tau }_3{\zeta }_R+B_3,\hfill \end{array}$$

(39e)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_Q\left(t\right)& =-\left(c_4+c_5+{\eta }_Q+\sigma \right){\zeta }_Q+c_4{\zeta }_H+c_5{\zeta }_R,\hfill \end{array}$$

(39f)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_H\left(t\right)& =-\left({\displaystyle \frac{{\gamma }_{4}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_S+\left({\displaystyle \frac{{\gamma }_{4}S\left(t\right)}{N\left(t\right)}}\right){\zeta }_E-({\tau }_4+{\eta }_H+\sigma ){\zeta }_H+{\tau }_4{\zeta }_R,\hfill \end{array}$$

(39g)

$$\begin{array}{cc}\hfill {}_0^{CF}{\mathcal{D}}^{\rho }{\zeta }_R\left(t\right)& =-\sigma {\zeta }_R,\hfill \end{array}$$

(39h)

with transversality conditions

$$\begin{array}{c}\hfill {\zeta }_S\left(t_f\right)={\zeta }_E\left(t_f\right)={\zeta }_I\left(t_f\right)={\zeta }_A\left(t_f\right)={\zeta }_P\left(t_f\right)={\zeta }_Q\left(t_f\right)={\zeta }_H\left(t_f\right)={\zeta }_R\left(t_f\right)=0.\end{array}$$

6.1. Numerical Study of an Optimal Control Problem

The numerical solutions to an optimal control problem are presented in this subsection. Our goal is to determine the most cost-effective quarantine rates by minimizing the objective functional (35). Consequently, this section explains the optimal control problem’s solution together with the associated cost functional. The numerical approaches used to obtain the approximate solutions of Equation (34) and the adjoint Equations (39) are given below.

The iterative scheme (33) used to solve the system of state Equation (34) takes the form

$$\begin{array}{cc}\hfill Z_{i+1}& =Z_i+\frac{2}{(2-\rho )M\left(\rho \right)}\left(1-\rho +\frac{23}{12}h\rho \right)g(Z_i,u_i)-\frac{2}{(2-\rho )M\left(\rho \right)}\left(1-\rho +\frac{4}{3}h\rho \right)g(Z_{i-1},u_{i-1})\hfill \\ \hfill & +\frac{10h\rho }{12M\left(\rho \right)}g(Z_{i-2},u_{i-2}),i=2,3,4,...,\mathcal{N},\hfill \end{array}$$

(40)

The system of adjoint Equation (39) in compact form can be written as

$$\begin{array}{c}\hfill {}_0^{CF}{\mathcal{D}}_t^{\rho }\widehat{\zeta }(t_f-t)=F(Z(t_f-t),\widehat{\zeta }(t_f-t),u(t_f-t)),\end{array}$$

where

$$\begin{array}{c}\hfill F(Z,u)=\left(\begin{array}{c}{F}_1(Z,u)\\ F_2(Z,u)\\ F_3(Z,u)\\ F_4(Z,u)\\ F_5(Z,u)\\ F_6(Z,u)\\ F_7(Z,u)\\ F_8(Z,u)\end{array}\right).\end{array}$$

Similar to the state equations, the adjoint Equations (39) are discretized as follows:

$$\begin{array}{cc}\hfill \widehat{\zeta }(t_f-t_{i+1})& =\widehat{\zeta }(t_f-t_i)+\frac{2}{(2-\rho )M\left(\rho \right)}\left[1-\rho +\frac{23}{12}h\rho \right]F\left(\varphi (t_f-t_i),\widehat{\zeta }(t_f-t_i),u(t_f-t_i)\right)\hfill \\ \hfill & -\frac{2}{(2-\rho )M\left(\rho \right)}\left[1-\rho +\frac{4}{3}h\rho \right]F\left(\varphi (t_f-t_{i-1}),\widehat{\zeta }(t_f-t_{i-1}),u(t_f-t_{i-1})\right)\hfill \\ \hfill & +\frac{10h\rho }{12M\left(\rho \right)}F\left(\varphi (t_f-t_{i-2}),\widehat{\zeta }(t_f-t_{i-2}),u(t_f-t_{i-2})\right),\hfill \end{array}$$

(41)

with $\widehat{\zeta }\left(t_f\right)=0$ where $i=0,1,.....\mathcal{N}$. Discrete state and adjoint variables, respectively, given in (40) and (41) are solved first to update the control $u\left(t\right)$, at the discrete points $t_i=i\mathrm{\Delta }t$.

6.1.1. Solution Algorithm

For the numerical solution of the discrete necessary conditions, we follow the steps of the following Algorithm 1:

Algorithm 1:

1. Consider an initial control $u_k\in \mathcal{U}$ for $k=0$. 2. Approximate state and adjoint variables, respectively, by solving discrete Equations (40) and (41) with control $u_k$. 3. Find control $u^{*}$ using Equation (38). 4. Update the control using $u_k={\displaystyle \frac{u^{*}+u_k}{2}}$. 5. If $\delta \parallel {\mathrm{\Theta }}_k\parallel -\parallel {\mathrm{\Theta }}_k-{\mathrm{\Theta }}_{k-1}\parallel \ge 0$, then stop, otherwise move to step 2.

Here, $\mathrm{\Theta }$ represents each of the state, adjoint, and control variables, and $\delta$ is the required tolerance.

6.1.2. Optimal Quarantine Rates

In this part, we show the simulation results that were attained by resolving the necessary optimality conditions obtained from the fractional-order control problem (36). Steps of Algorithm 1 were carried out using the MATLAB simulation tool, which employs a three-step fractional Adams–Bashforth numerical technique along with RK-4. Table 1 provides the parameter values utilized in simulations. The simulation results are shown for three distinct values of the fractional order $\rho$, i.e., for $\rho =0.7,0.8,0.95$.

The main goal of this study was to identify the optimal controls for decreasing COVID-19 in the human population. Figure 13a–c show these optimal behaviors of the curves, respectively, for the time-dependent control variables $c_1,c_2$, and $c_3$ for different fractional-orders. Under each set of optimal controls (quarantine rates), the cost function (35) reduced to its minimum value, as shown in Figure 13d. This result is evident in the solution of the optimal control problem (36). The optimal quarantine rates $c_1,c_2$, and $c_3$ have also caused the state variables $S,E,I,A,P,Q,H,R$ to shift from the endemic equilibrium (EE) to the disease-free equilibrium (DFE), as shown in Figure 14.

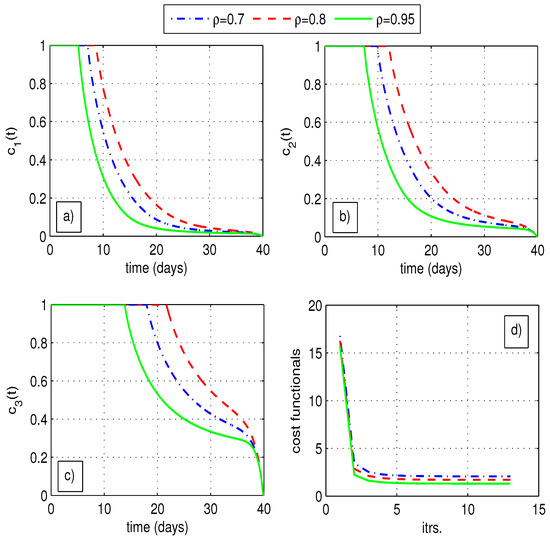

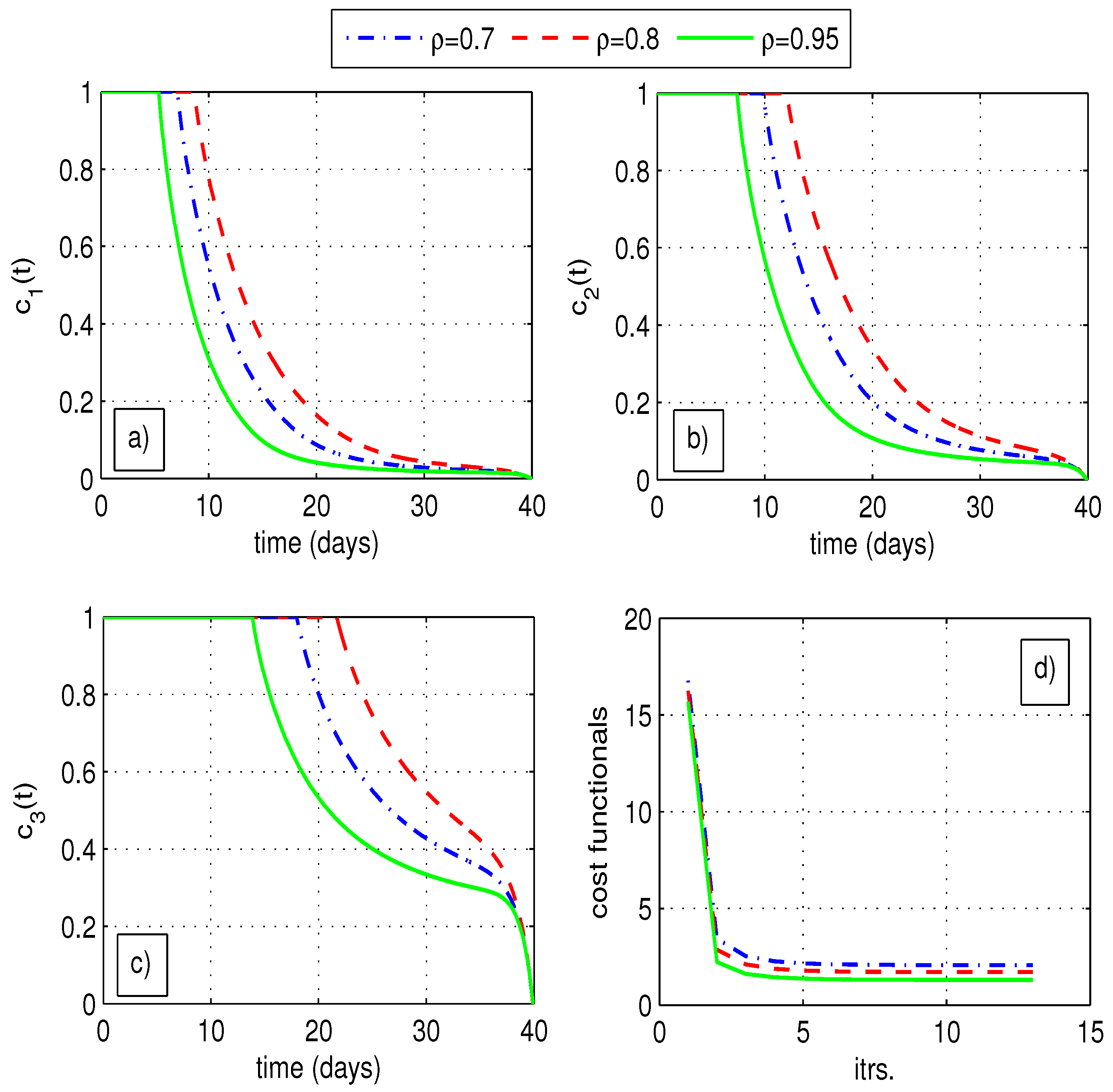

Figure 13. Optimal control variables (quarantine rates) along with the corresponding cost functional for each fractional-order $\rho =0.7,0.8,0.95$.

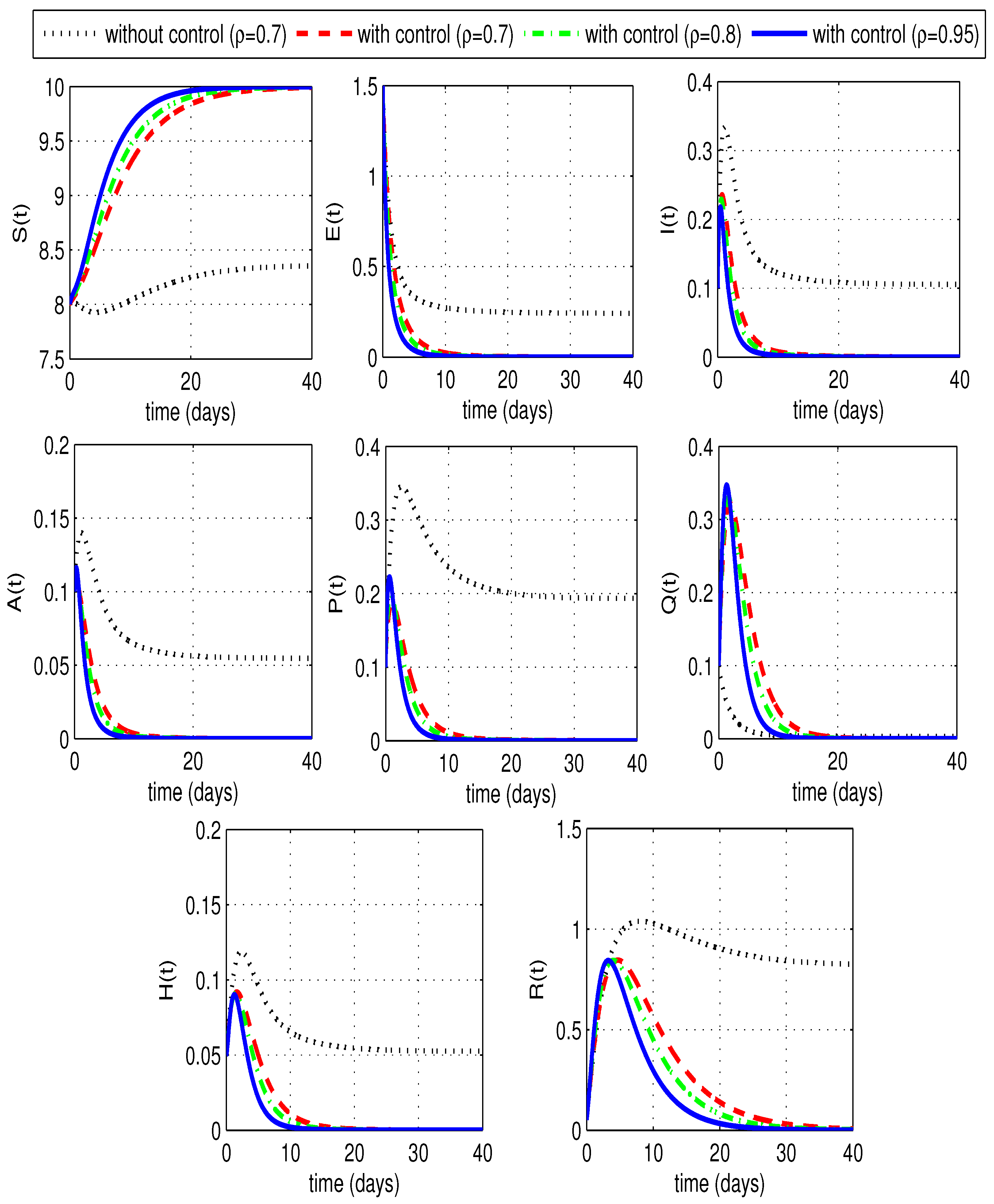

Figure 14. State variables with and without optimal controls.

Thus, our proposed fractional model and the corresponding optimal control strategy of introducing a quarantine compartment suggest that the COVID-19 pandemic can be removed from the society or human population if the infected, asymptomatic, and super-spreaders are quarantined with the rates shown in Figure 13a–c.

7. Conclusions

In this study, we designed a nonlinear mathematical model of the COVID-19 pandemic to understand the dynamics of the disease as well as perform the optimal control analysis. For a detailed analysis, we constructed a fractional-order SEIAPHR model in which the infectious compartment was divided into three compartments named symptomatic infectious $I\left(t\right)$, asymptomatic infectious $A\left(t\right)$, and superspreader $P\left(t\right)$. To formulate the proposed model, we used the Caputo–Fabrizio derivative operator that preserves the system’s historical memory. The Caputo–Fabrizio derivative operator was used because of its non-singular kernel. Before studying the dynamics of the purposed model, we first proved that the purposed Caputo–Fabrizio fractional model has a unique solution. To prove the existence and uniqueness of the solution, we used well-known results from functional analysis and calculus. After that, we proved the essential biological properties, such as the boundedness and positivity of the solution. For the aspects regarding the future spread of the COVID-19 disease, the reproduction number ${\mathcal{R}}_0$ is also determined. It is interesting to note that the reproduction number is the same for the integer-order and fractional-order models. To complete the well-posed property of the suggested model, the stability analyses (local, global) of both equilibrium points are also done with the help of Lyapunov–Castillo’s theory. To give the best control strategy, we added a quarantine (isolation) compartment and then proposed a control strategy in two different styles. In the first strategy, we examined the effects of the quarantine rates of $I\left(t\right)$, $A\left(t\right)$, and $P\left(t\right)$ one by one. From the computational results and graphs, we conclude that the quarantine rates $c_1$ and $c_3$, respectively, for classes $I\left(t\right)$ and $P\left(t\right)$ have significant influence in reducing the spread of the disease. If we want to control the disease, we have to focus on these physically meaningful compartments. In the second strategy, we constructed an optimal control problem with a target to determine the best cost-effective quarantine rates that minimize the objective functions in such a way that infections in humans move to disease-free states. The graphical results show that we were successful in determining such time-dependent optimal quarantine rates that can be used to move toward disease-free states.
