Review

C2-Symmetric N-Heterocyclic Carbenes in Asymmetric Transition-Metal Catalysis

by
Chiara Costabile
,
Stefania Pragliola
and
Fabia Grisi
*
Dipartimento di Chimica e Biologia “Adolfo Zambelli”, Università degli Studi di Salerno, Via Giovanni Paolo II 132, Fisciano, I-84084 Salerno, Italy
*
Author to whom correspondence should be addressed.
Symmetry 2022, 14(8), 1615; https://doi.org/10.3390/sym14081615
Submission received: 16 July 2022 / Revised: 2 August 2022 / Accepted: 3 August 2022 / Published: 5 August 2022
(This article belongs to the Special Issue Asymmetry and Symmetry in Organic Chemistry 2021)
Browse Figures
Versions Notes

Abstract

:
The last decades have witnessed a rapid growth of applications of N-heterocyclic carbenes (NHCs) in different chemistry fields. Due to their unique steric and electronic properties, NHCs have become a powerful tool in coordination chemistry, allowing the preparation of stable metal-ligand frameworks with both main group metals and transition metals. An overview on the use of five membered monodentate C2-symmetric N-heterocyclic carbenes (NHCs) as ligands for transition-metal complexes and their most relevant applications in asymmetric catalysis is offered.

1. Introduction

N-heterocyclic carbenes (NHCs) are nowadays considered privileged ligands for transition metal complexes [1,2,3]. The strong σ-donating properties of NHCs are crucial in determining their interaction with metal centers and, consequently, along with their steric features, in influencing the selectivity and reactivity in transition-metal catalysis [4,5]. The easy synthetic access to different NHC architectures in which stereo electronic properties of the ligand scaffold can be modulated by varying the nature of the backbone (saturated or unsaturated), the substitution at the nitrogen and/or carbon atoms, and the ring size has led to the development of a huge number of NHC transition-metal complexes for various catalytic applications [6,7,8,9,10,11,12]. The further possibility of introducing chirality into the NHC framework has paved the way to the design of chiral NHC ligands for applications in asymmetric transition-metal catalysis. Among them, several chiral monodentate NHCs have been developed and used as stereo directing ancillary ligands in a wide range of catalytic transformations [13,14,15,16]. There are three strategies commonly employed to create a chiral environment around the carbenic carbon of the NHC scaffold that can lead to effective chiral induction in catalysis. The resulting basic structures are illustrated in Scheme 1. The first strategy implies the introduction of chirality on one or two of the substituents on the nitrogen atoms of the NHC. This can be achieved by introducing stereogenic centers on the N-substituents or even by exploiting the presence of planar chiral groups bound to nitrogen atoms as well as the axial chirality due to unsymmetrically substituted aromatic groups as the N-substituents (I). The second strategy is based on the direct installation of chirality on the backbone of a saturated NHC framework, which can be transferred to the metal through suitable N-substituents (II).
The third strategy in the design of chiral NHC ligands involves the development of structures where a central NHC ring is fused with one or two cyclic units to form rigid NHC architectures containing the necessary chiral information (III).
This review provides an overview on chiral monodentate C2-symmetric NHC ligands, which have allowed to reach high levels of enantioselectivity (≥90% ee) in various applications of asymmetric catalysis mediated by transition-metal complexes. Relevant literature data since 1996 (the year of the first report on a chiral NHC ligand) through March 2022 are discussed according to the different types of chiral NHCs, highlighting the crucial role of suitable NHC design in the development of transition-metal catalysts with improved enantioselectivities.

2. Discussion

The C2-symmetric NHC structures described in this review are depicted in Figure 1, Figure 2 and Figure 3, along with the corresponding Noyori’s quadrant model. Noyori’s quadrant model represents the expected occupancy of the ligand and is an easy way to visualize how the symmetry of the ligand affects the symmetry of the catalytic pocket. The color of the quadrants indicates the level of occupancy (darker colors indicates higher occupancy).

2.1. NHCs with Chiral N-Substituents

C2-symmetric NHC ligands with chiral N-substituents are commonly obtained starting from chiral primary amines, which become the N-substituents of the resulting NHC scaffolds. This approach allows for creating a chiral environment in close proximity to the metal center, which is essential to ensure an efficient enantioinduction. However, the possible rotation of chiral N-substituents around the C-N bond can lead to an ill-defined active chiral space at the metal center, compromising enantioselectivity.
The first examples of C2-symmetric monodentate NHC ligand containing chiral N-substituents (1-phenylethyl (1) or 1-naphthylethyl (2), Figure 1) were reported by Hermann [17] and Enders [18] in 1996. However, low enantiomeric excesses in asymmetric catalytic applications such as a palladium-catalyzed Heck reaction and a rhodium-catalyzed hydrogenation were observed. Later, Alexakis observed higher enantioselectivities (up to 93%) in the copper-catalyzed conjugate addition of diethyl zinc to cycloheptenone [19]. Starting from 2011, the saturated version of chiral NHC ligand with 1-naphthylethyl N-substituents (2) was successfully applied by Glorius in several ruthenium-catalyzed asymmetric hydrogenations of various heterocyclic compounds, providing in all cases the desired products with high enantioselectivities [20,21,22,23,24,25,26]. Very recently, Glorius utilized the ligand cooperation concept as an alternative strategy to optimize enantioselective processes, reporting on a new combination of chiral NHC ligand 2 and chiral diamine ligands for the ruthenium-catalyzed enantioselective hydrogenation of isocoumarins, benzothiophene 1,1-dioxides, and ketones [27,28]. With respect to Hermann/Enders-type NHC ligands, a more sterically encumbered chiral NHC having 1-(2,4,6-trimethylphenyl)propyl groups on the nitrogen (3) was introduced in 2007 by Sato in the nickel-catalyzed asymmetric three-component coupling of 1,3-dienes, aldehydes, and silanes. Various coupling products were produced in good yields with high optical purities (up to 97% ee) [29].
In the same year Kündig introduced bulkier chiral N-substituents in which the methyl group of the stereogenic center in the Hermann-type scaffolds was replaced by a tert-butyl group (4–6). High enantioselectivities were obtained in the palladium-catalyzed asymmetric intramolecular α-arylation of amides to furnish oxindoles (94–97% ee) [30,31] and in the synthesis of highly enantioenriched indolines by palladium-catalyzed asymmetric C(sp3)-H/C(Ar) coupling reactions (up to 99% ee) [32,33,34].
NHC ligand (6) was used later by Procter in the enantioselective copper-catalyzed three-component coupling of imines, allenes, and diboranes affording the desired products with adjacent stereocenters in high enantioselectivities [35]. A new NHC ligand, in which steric encumbered substituents are located on the aryl groups, rather distant from the stereogenic center (7), was reported, in combination with a copper catalyst, by Ohmiya and Sawamura in the first catalyzed enantioselective conjugate addition of alkylboron derivatives [36].
A new concept to develop chiral, C2-symmetric unsaturated and saturated NHC ligands was proposed by Gawley in 2011 [37,38]. He modified the structural motif of classical achiral N,N′-diaryl-substituted NHCs, introducing ortho-substituted N-aryl groups having stereogenic center(s) γ to the annular nitrogen(s). This new class of NHCs coordinated to copper chloride was tested in the enantioselective hydrosilylation of prochiral ketones, which provides access to enantioenriched alcohols, and the system 8/CuCl led to the isolation of nearly enantiopurecorresponding silylethers (95–99% ee) [38]. In more recent years, steric and electronic modifications of Gawley’s NHC scaffold were introduced by Cramer and Shi to expand the scope of this kind of ligands in metal-catalyzed asymmetric applications (e.g., 9–13). Cramer first developed sterically demanding chiral NHCs by introducing substituents on the backbone of the imidazolylidene ring (Cl, Me) or exploiting the acenaphthoimidazolylidene framework, hypothesizing that such steric constraints could slightly push the flanking groups toward the metal-center, improving selectivity. The new NHCs were tested in the enantioselective nickel-catalyzed C-H functionalizations of (2), (4)-pyridones, and ligand (10) was found to give excellent enantioselectivities [39]. One year later, Cramer reported a saturated version of Gawley’s NHC ligand with very bulky (3,5-ditertbutyl)phenyl flanking groups (13) that enables enantioselective nickel-catalyzed C-H functionalizations of indoles and pyrroles [40].
As of 2018, Shi and coworkers also focused on the development and application in different asymmetric metal-catalyzed reactions of Gawley-type NHC ligands. The first report described a highly enantioselective copper-catalyzed Markovnikov protoboration of unactivated terminal alkenes in which the sterically hindered N-heterocyclic carbene 9 based on the acenaphthoimidazolylidene framework was employed [41].
Then, they investigated the chiral NHCs 9, 10, 11, and 12 in a series of nickel-catalyzed transformations. The chiral N-heterocyclic carbene ligand 11 led to success in the enantioselective redox-neutral coupling of alcohols and alkynes to form allylic alcohols promoted by nickel catalyst Ni(COD)2 [42] (COD = cyclooctadiene) as well as in the enantioselective endo-selective C-H cyclization of pyridines, pyridines, and pyrimidones with alkenes to give chiral annulated products [43,44]. In 2019, Shi reported the first enantioselective C-H alkylation of polyfluoroarenes with alkenes to furnish valuable chiral fluorotetralins. Excellent levels of enantiocontrol were observed using 10/Ni(COD)2 [45]. Meanwhile, the potential of this class of sterically bulky NHC ligands was investigated by Ye in the Ni-catalyzed reductive coupling of alkynes and imines for the synthesis of allylic amines using readily available isopropanol as a reductant. Enantiomeric excess of 95% was reached using 10 as the nickel ligand [46].
Most recently, Shi described an asymmetric NHC/Ni-catalyzed addition of readily available and stable arylboronic esters to ketones providing various optically enriched tertiary alcohols. An excellent enantiocontrol (up to 98% ee) was observed with the employment of the bulky C2-symmetric chiral NHC ligand 10 [47]. The system based on the complex 9/Ni(COD)2 was instead identified as the most efficient in the arylation of racemic secondary alcohols to give enantioenriched tertiary alcohols with various functional groups and heterocycles [48].
The key to success of this class of C2-symmetric chiral NHCs in asymmetric catalysis is mainly related to their steric properties. Their bulkiness, associated to the conformational flexibility deriving from the multiple rotations of the single C-C and C-N bonds, enabled an unprecedented low-temperature, highly enantioselective nickel-catalyzed amination of aryl halides with sterically encumbered secondary amines affording chiral amine products through a kinetic resolution process (up to 99.5% ee with 9) [49].
In 2022, the Shi group developed a protocol that allowed for the highly enantioselective arylation and alkenylation of simple aldehydes using readily available and stable organoboronic esters. Through this approach, a wide range of chiral secondary alcohols was obtained in high enantiomeric excesses (up to 97%) employing the NHC ligand 10 in combination with Ni(COD)2 [50].
Apart from asymmetric nickel-catalyzed transformations, Shi and coworkers also investigated the behavior of sterically demanding C2-symmetric chiral NHCs in the palladium-catalyzed Suzuki−Miyaura cross-coupling reactions for constructing biaryl atropisomers, reaching high enantioselectivities (>90% ee) using the extremely bulky NHC 13 coordinated to Pd(η3cinnamyl)chloride [51].
More exotic chiral C2-symmetric NHC ligands, adorned with two planar-chiral cyclophane units bound to the nitrogen atoms, were developed by Andrus and coworkers in 2003 [52]. These NHCs were able to promote highly enantioselective Rh-catalyzed conjugate additions (14–17) [52], asymmetric Ru-catalyzed hydrosilylation of ketones (14, 15 and 17) [53], and asymmetric copper-catalyzed β-boration of α, β-unsaturated esters (18) [54]. Recently, Clavier and Mauduit described optically pure transition metal complexes bearing C2-symmetric NHC ligands prepared from prochiral NHC precursors. The formation of the metal-carbene bond induces an axis of chirality. Enantiomeric excesses ≥ 90% were achieved with 19 and 20 in the Cu-catalyzed asymmetric allylic alkylation of diethylzinc to allyl phosphates and Pd-catalyzed asymmetric intramolecular α-arylation of amides, respectively [55].
Table 1 summarizes the most relevant transition-metal catalyzed enantioselective transformations (≥90% ee) performed with NHCs containing chiral N-substituents (A).

2.2. NHCs with Chiral Backbones

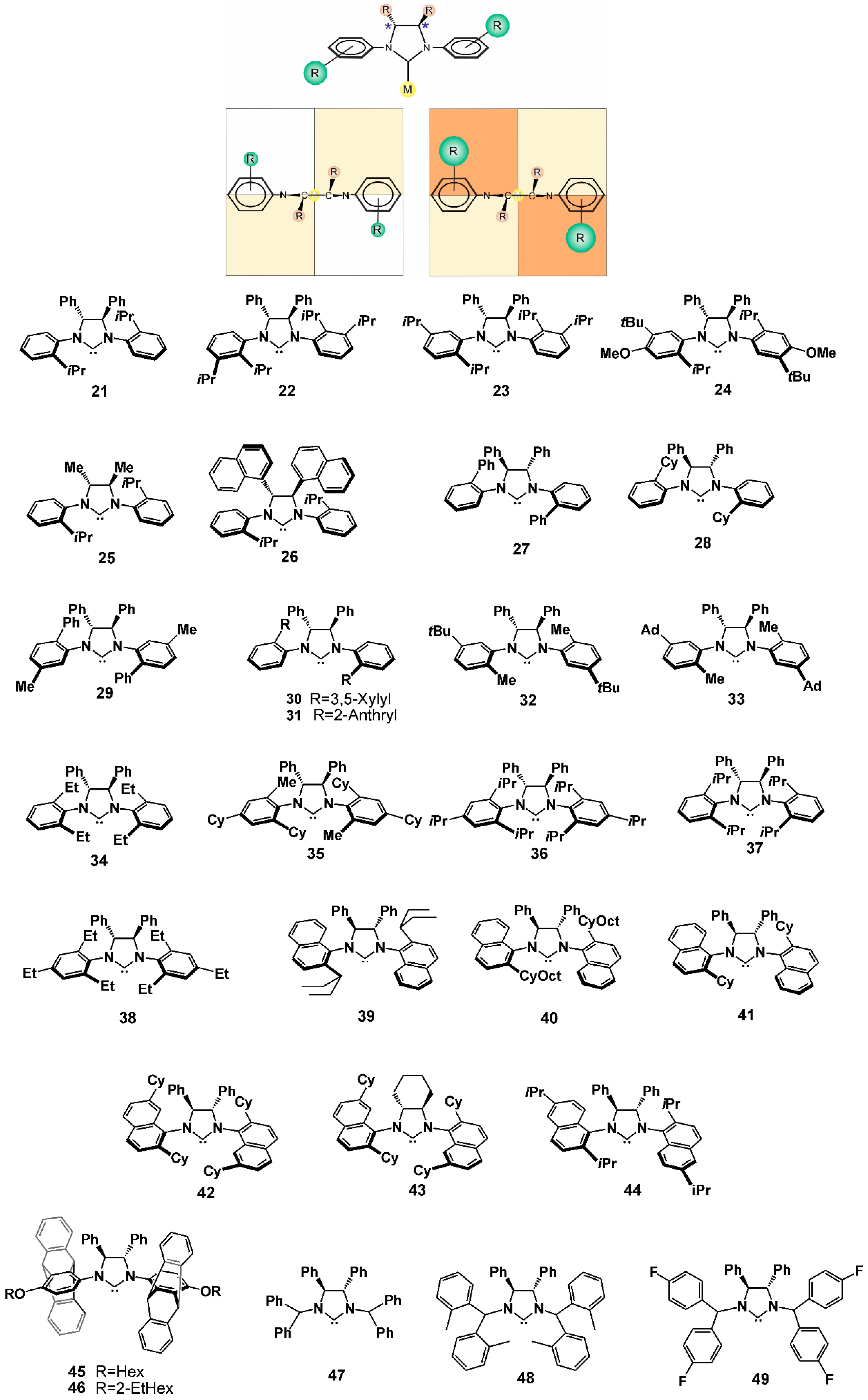

The second common strategy to prepare chiral NHC ligands involves the incorporation of chiral 1,2-diamines into the NHC framework. The substituents so introduced on the backbone of the saturated NHC ring exert a conformational control on the N-substituents restricting their rotation and influencing their orientation. In this way, the chiral information on the NHC backbone is transferred to the metal center. In 2001, Grubbs reported the first study on the employment of a NHC motif based on the commercially available enantiopure chiral 1,2-diphenylethylendiamine in the asymmetric ruthenium-catalyzed ring-closing metathesis of prochiral trienes, in which high enantiomeric excesses (up to 90% ee) were reached using ligand 21 [56]. Crucial to create a C2-symmetric environment through a chiral relay mechanism was the presence of mono-ortho substituted N-phenyl groups [57]. To expand the substrate scope and enhance the enantioselectivity, in 2006, Grubbs and coworkers reported NHCs 22–24 differing for the number of substituents and/or for their relative arrangement on the N-aryl rings. Improved enantioselectivities were registered with 22 [58]. The nature of the substituents on the NHC skeleton in the same asymmetric ruthenium catalyzed ring-closing metathesis reaction was investigated by our group in 2011 [59]. Installing methyl instead of phenyl substituents on the NHC backbone (25), no major impact on the stereochemical outcome was observed, as the same ee values were obtained. On the contrary, the effect of backbone substitution was found to influence the reaction selectivity in another metal-catalyzed transformation.
Cramer, indeed, in 2016 observed that the replacement of the 1,2-diphenylethylene diamine backbone with the 1,2-di(napthalen-1-yl)ethylene diamine backbone to give the new bulky NHC ligand 26 led to increased enantioselectivity in the nickel-catalyzed reductive three-component coupling between aromatic aldehydes, norbornenes, and silanes affording silyl-protected indanol derivatives [60]. The NHC design principle based on the 1,2-diphenylethylene diamine backbone has been largely exploited to successfully accomplish numerous asymmetric metal-catalyzed reactions. In the ambit of copper-catalyzed transformations, at the beginning of the last decade, Hoveyda’s group reported ligands 27 and 28 in the enantioselective conjugate silyl additions to unsaturated carbonyls [61] and to dienones and dienoates [62], respectively, while in 2019 Shen and Xu identified ligands 29–31 as highly efficient in the enantioselective conjugate silyl addition to indol-1-ylacrylate derivatives (up to 98% ee) [63]. As for nickel-catalyzed reactions, a highly enantioselective synthesis of benzoxasiloles (up to 99.9% ee), reported by Ogoshi and coworkers, was achieved via the sequential activation of an aldehyde and a silane by Ni(COD)2 in the presence of ligand 21 [64]. The same group employed the catalytic system 27/Ni(COD)2 to successfully accomplish an intermolecular, enantioselective [2 + 2 + 2] cycloaddition of two enones and an alkyne leading to the formation of cyclohexenes with four adjacent stereogenic centers [65].
In 2017, NHCs 32 and 33 with sterically encumbered N-aryl groups were exploited by Ackermann’s group to develop the first enantioselective iron-catalyzed indole C-H alkylation by inner sphere C-H activation [66]. In the following years, a series of C2-symmetric NHCs with di-ortho-substituted N-aryl rings were reported. Ogoshi et al. described a nickel-catalyzed highly enantioselective synthesis of chiral fused tricyclic scaffolds with five contiguous chiral centers in the presence of NHCs 34 and 35 [67], whereas Montgomery and coworkers reported on the nickel-catalyzed asymmetric reductive coupling reactions of aldehydes and alkynes using novel enantiopure NHC ligands with exceptional steric demand, such as 36 [68]. Ding and Hou reported a similar bulky NHC (37) in the palladium-catalyzed asymmetric [3 + 2] cycloaddition of vinyl epoxides with allenic amides [69], while Dang and Ho investigated the bulky rigid NHC 38 in the nickel-catalyzed enantioselective synthesis of 1,4-dienes by the cross-hydroalkenylation of cyclic 1,3-dienes and heterosubstituted terminal olefins. However, in this reaction, 38 was found to be less efficient than the less bulky and more flexible C2 chiral NHC 28 [70]. It should be noted that, with respect to chiral NHCs containing mono-ortho-substituted N-aryl groups, for symmetrically di-ortho-aryl substituted NHC ligands (34, 36, 37 and 38), the origin of chiral induction is associable only to the C2-symmetry of the NHC backbone.
Table 2 summarizes the most relevant transition-metal catalyzed enantioselective transformations (≥90% ee) performed with NHCs containing a chiral backbone (B).
A family of NHC ligands bearing mono- and di-ortho-substituted 1-naphthyl groups as the N-substituents was developed by Dorta and coworkers (e.g., 39–43). These NHCs are characterized, in addition to backbone chirality, by axial chirality due to the dissymmetric aromatic ortho-substitution. Ligands 39 and 40 were successfully employed in the palladium-catalyzed asymmetric α-arylation of amides to provide allylated oxindoles with quaternary carbon centers [71] and 3-fluoro-3-aryl oxindoles [72] with excellent enantioselectivities (up to 99% ee). In more recent years, Dorta et al. used NHCs 41–43 in the iridium-catalyzed asymmetric intramolecular hydroamination reaction of unactivated aminoalkenes [73,74,75], in which high levels of enantioselectivity were obtained. Moreover, in 2020, they evaluated the behavior of various NHCs with 1-naphthyl side chains in the iridium-catalyzed enantioselective ring-opening amination of oxabicycles, identifying ligand 42, with overall less sterically demanding and more flexible wingtips on the NHC core, as the most efficient (up to 96% ee) [76]. In the same year, Zhang, Luo, and Hou developed a highly enantioselective copper-catalyzed cyanoborylation of allenes by using a new chiral NHC ligands, having isopropyl substituents at the C2 and C6 positions of the naphthyl groups (44) [77]. More complex NHC architectures containing sterically demanding trypticene substituents as the flanking aryl substituents on the nitrogen atoms, in combination with a chiral backbone, were developed by Plenio, who evaluated ligand 45 and 46 in the copper-catalyzed enantioselective borylation of α, β-unsaturated esters, reaching ee values close to 90% [78].
Another design approach to C2-symmetric NHC ligands was introduced in 2001 by Alexakis, which reported some encouraging results in the asymmetric copper-catalyzed 1,4-conjugate addition of diethylzinc to enones using NHCs possessing a chiral backbone (1,2-diphenylethylenediamine) and chiral nitrogen substituents (1-phenylethyl groups) [79]. A similar NHC ligand structure differing only in the nature of substituents on the backbone (methyl instead of phenyl) was reported by our group in asymmetric ring-closing metathesis performed by ruthenium catalysts, where only modest enantioselectivities were registered [80]. Some years later, chiral copper-complexes bearing NHCs 47–49 were reported by Tomioka and coworkers as efficient catalysts in the asymmetric allylic arylation of cinnamyl-type substrates [81] and aliphatic allylic bromides [82] with aryl Grignard reagents (up to 98% ee). In 2016, NHCs 47 and 48 were employed by Hornillos and Feringa in the first enantioselective copper-catalyzed allylic arylation with organolithium compounds to afford optically active diarylvinylmethanes with excellent enantioselectivities (up to 97%) [83].
Table
Table 2. Highly enantioselective NHC(B)/metal-catalyzed transformations.
Table 2. Highly enantioselective NHC(B)/metal-catalyzed transformations.
MetalNHCReactionsReferences
Cu28–31,34
44
45,46
47–49		Conjugate sylil addition
Cyanoborylation of allenes
Borylation of α, β-unsaturated esters
Allylic arylation		[61,62,63]
[77]
[78]
[81,82,83]
Fe32,33C-H alkylation[66]
Ir41–43
42		Intramolecular hydroamination
Ring-opening amination		[73,74,75]
[76]
Ni21
26
27
28,38
34,35
36		Synthesis of benzoxasiloles
Three-component coupling
Intermolecular [2 + 2 + 2] cycloaddition of enones with alkynes
Cross-hydroalkenylation
Desymmetrization and following [4 + 2] cycloaddition
Reductive coupling of aldehydes and alkynes		[64]
[60]
[65]
[70]
[67]
[68]
Pd37
39,40		[3 + 2] cycloaddition of vinyl epoxides with allenic amides
α-arylation of amides		[69]
[71,72]
Ru21–25Ring-closing metathesis[56,58,59]

2.3. NHCs with Fused Cycles

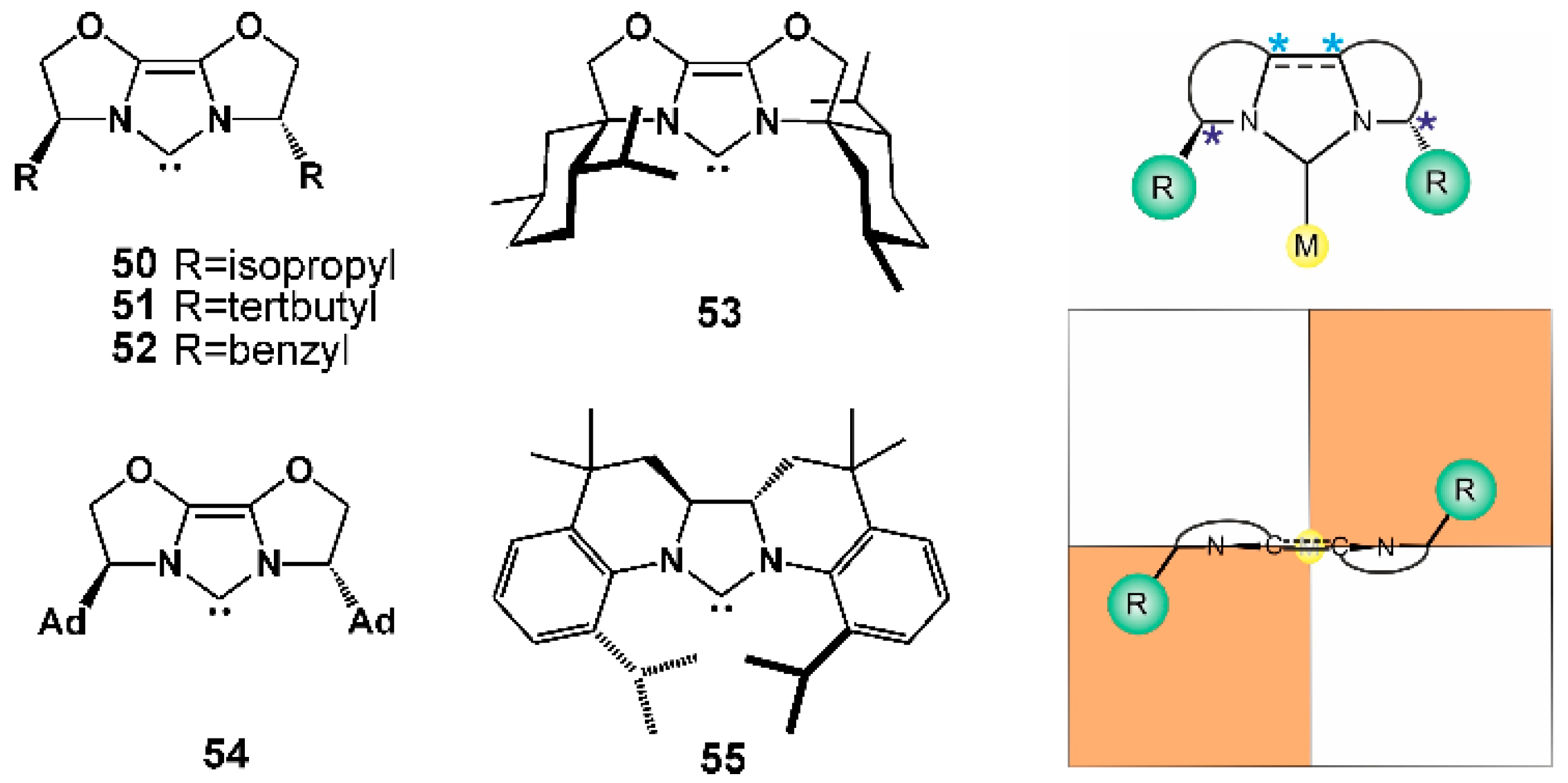

The third approach to build up chiral C2-symmetric NHC ligands implies the use of NHC architectures featuring a fused tricyclic skeleton. The first example exploiting oxazolines as chiral building blocks for NHCs was introduced in 2002 by Glorius and coworkers, who employed the new ligands 50–52 in the palladium-catalyzed intramolecular α-arylation of amides reaching a 43%ee in the presence of 51 [84]. Some years later, Glorius modified the original design by developing an extraordinarily sterically demanding, rigid, C2-symmetric NHC ligand, IBiox[(−)-menthyl] NHC 53, which was successfully applied in palladium-catalyzed α-intramolecular arylations giving high levels of enantioselectivity (up to 99%) [85]. The same ligand coordinated to a rhodium(I) complex was used by Bexrud and Lautens for the asymmetric hydroarylation of azabicyles, affording high enantiomeric excesses (93–99%) [86]. In 2021, Baudoin et al. employed chiral C2-symmetric IBiox ligands 51 and 54 in the palladium-catalyzed intramolecular arylation of nonactivated secondary C-H bonds, affording high enantioselectivities for a broad range of valuable indane products [87]. Chiral NHCs having a 2,2′-bisquinoline-based C2 symmetric skeleton such as 55 were developed by Murakami and coworkers and applied to the palladium-catalyzed intramolecular arylation reaction of amides to give 3,3-disubsituted oxindoles in high enantioselectivities (up to 97% ee) [88].
Table 3 summarizes the most relevant transition-metal catalyzed enantioselective transformations (≥90% ee) performed with NHCs possessing tricyclic structures (C).

3. Conclusions

Asymmetric catalysis is an indispensable tool for the preparation of optically active compounds and has become one of the most prominent areas of organo-transition metal chemistry. The fast development of suitable catalytic systems has now reached a stage where some of them are stereoselective enough to find industrial application. The introduction of chiral NHCs as ligands for transition metal catalysis has offered new opportunities in asymmetric organic synthesis. Chiral monodentate C2-symmetric NHC ligands can be essentially synthesized through three different approaches, based on the use of chiral N-substituents, the use of chiral NHC backbones, and the synthesis of rigid tricyclic NHCs. This review focuses on those NHC architectures, which have allowed tremendous advances in reaching high levels of enantioselectivity in transition-metal catalysis, highlighting the key role played by the appropriate NHC substitution pattern.
The possibility of further modifying C2-symmetric NHC ligand designs to improve enantioselectivities and to expand the range of applications of transition metal complexes is the next challenge in the field of asymmetric catalysis research.

Author Contributions

Conceptualization, methodology, writing—original draft preparation, review and editing, F.G.; original draft preparation and visualization, C.C. and S.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

Financial support from the Ministero dell’Università e della Ricerca Scientifica e Tecnologica is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nolan, S.P. N-Heterocyclic Carbenes in Synthesis; John Wiley & Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
  2. Hopkinson, M.N.; Richter, C.; Schedler, M.; Glorius, F. An Overview of N-Heterocyclic Carbenes. Nature 2014, 510, 485–496. [Google Scholar] [CrossRef] [PubMed]
  3. Lin, J.C.Y.; Huang, R.T.W.; Lee, C.S.; Bhattacharyya, A.; Hwang, W.S.; Lin, I.J.B. Coinage Metal-N-Heterocyclic Carbene Complexes. Chem. Rev. 2009, 109, 3561–3598. [Google Scholar] [CrossRef] [PubMed]
  4. Nelson, D.J.; Nolan, S.P. Quantifying and understanding the electronic properties of N-heterocyclic carbenes. Chem. Soc. Rev. 2013, 42, 6723–6753. [Google Scholar] [CrossRef]
  5. Gómez-Suárez, A.; Nelson, D.J.; Nolan, S.P. Quantifying and Understanding the Steric Properties of N-Heterocyclic Carbenes. Chem. Commun. 2017, 53, 2650–2660. [Google Scholar] [CrossRef]
  6. Nolan, S.P. N-Heterocyclic Carbenes: Effective Tools for Organometallic Synthesis, 1st ed.; Wiley-VCH: Mannheim, Germany, 2014. [Google Scholar]
  7. Glorius, F. N-Heterocyclic Carbenes in Transition Metal Catalysis, 1st ed.; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
  8. Huynh, H.V. The Organometallic Chemistry of N-Heterocyclic Carbenes, 1st ed.; John Wiley & Sons: Hoboken, NJ, USA, 2017. [Google Scholar]
  9. Peris, E. Smart N-Heterocyclic Carbene Ligands in Catalysis. Chem. Rev. 2018, 118, 9988–10031. [Google Scholar] [CrossRef]
  10. Visbal, R.; Gimeno, M.C. N-Heterocyclic Carbene Metal Complexes: Photoluminescence and Applications. Chem. Soc. Rev. 2014, 43, 3551–3574. [Google Scholar] [CrossRef]
  11. Velazquez, H.D.; Verpoort, F. N-Heterocyclic Carbene Transition Metal Complexes for Catalysis in Aqueous Media. Chem. Soc. Rev. 2012, 41, 7032–7060. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, Q.; Meng, G.; Nolan, S.P.; Szostak, M. N-Heterocyclic Carbene Complexes in C-H Activation Reactions. Chem. Rev. 2020, 120, 1981–2048. [Google Scholar] [CrossRef] [PubMed]
  13. César, V.; Bellemin-Laponnaz, S.; Gade, L.H. Chiral N-heterocyclic carbenes as stereodirecting ligands in asymmetric catalysis. Chem. Soc. Rev. 2004, 33, 619–636. [Google Scholar] [CrossRef]
  14. Janssen-Müller, D.; Schlepphorst, C.; Glorius, F. Privileged chiral N-heterocyclic carbene ligands for asymmetric transition-metal catalysis. Chem. Soc. Rev. 2017, 46, 4845–4854. [Google Scholar] [CrossRef]
  15. Budagumpi, S.; Keri, R.S.; Achar, G.; Brinda, K.N. Coinage Metal Complexes of Chiral N-Heterocyclic Carbene Ligands: Syntheses and Applications in Asymmetric Catalysis. Adv. Synth. Catal. 2020, 362, 970–997. [Google Scholar] [CrossRef]
  16. Foster, D.; Borhanuddin, S.M.; Dorta, R. Designing successful monodentate N-heterocyclic carbene ligands for asymmetric metal catalysis. Dalton Trans. 2021, 50, 17467–17477. [Google Scholar] [CrossRef] [PubMed]
  17. Herrmann, W.A.; Goossen, L.J.; Kocher, C.; Artus, G.R.J. Chiral Heterocylic Carbenes in Asymmetric Homogeneous Catalysis. Angew. Chem., Int. Ed. Engl. 1996, 35, 2805–2807. [Google Scholar] [CrossRef]
  18. Enders, D.; Gielen, H.; Raabe, G.; Runsink, J.; Teles, J.H. Synthesis and Stereochemistry of the First Chiral (Imidazolinylidene)- and (Triazolinylidene)palladium(ii) Complexes. Chem. Ber. 1996, 129, 1483–1488. [Google Scholar] [CrossRef]
  19. Alexakis, A.; Winn, C.L.; Guillen, F.; Pytkowicz, J.; Roland, S.; Mangeney, P. Asymmetric Synthesis with N-Heterocyclic Carbenes. Application to the Copper-Catalyzed Conjugate Addition. Adv. Synth. Catal. 2003, 345, 345–348. [Google Scholar] [CrossRef]
  20. Urban, S.; Ortega, N.; Glorius, F. Ligand-Controlled Highly Regioselective and Asymmetric Hydrogenation of Quinoxalines Catalyzed by Ruthenium N-Heterocyclic Carbene Complexes. Angew. Chem. Int. Ed. 2011, 50, 3803–3806. [Google Scholar] [CrossRef]
  21. Ortega, N.; Urban, S.; Beiring, B.; Glorius, F. Ruthenium NHC Catalyzed Highly Asymmetric Hydrogenation of Benzofurans. Angew. Chem. Int. Ed. 2012, 51, 1710–1713. [Google Scholar] [CrossRef] [PubMed]
  22. Ortega, N.; Beiring, B.; Urban, S.; Glorius, F. Highly Asymmetric Synthesis of (+)-corsifuran A. Elucidation of the Electronic Requirements in the Ruthenium NHC Catalyzed Hydrogenation of Benzofurans. Tetrahedron 2012, 68, 5185–5192. [Google Scholar] [CrossRef]
  23. Urban, S.; Beiring, B.; Ortega, N.; Paul, D.; Glorius, F. Asymmetric Hydrogenation of Thiophenes and Benzothiophenes. J. Am. Chem. Soc. 2012, 134, 15241–15244. [Google Scholar] [CrossRef]
  24. Zhao, D.; Beiring, B.; Glorius, F. Ruthenium–NHC-Catalyzed Asymmetric Hydrogenation of Flavones and Chromones: General Access to Enantiomerically Enriched Flavanones, Flavanols, Chromanones, and Chromanols. Angew. Chem. Int. Ed. 2013, 52, 8454–8458. [Google Scholar] [CrossRef]
  25. Wysocki, J.; Ortega, N.; Glorius, F. Asymmetric Hydrogenation of Disubstituted Furans. Angew. Chem. Int. Ed. 2014, 53, 8751–8755. [Google Scholar] [CrossRef] [PubMed]
  26. Schlepphorst, C.; Wiesenfeldt, M.P.; Glorius, F. Enantioselective Hydrogenation of Imidazo[1,2-a]pyridines. Chem.-Eur. J. 2018, 24, 356–359. [Google Scholar] [CrossRef] [PubMed]
  27. Li, W.; Wiesenfeldt, M.P.; Glorius, F. Ruthenium–NHC–Diamine Catalyzed Enantioselective Hydrogenation of Isocoumarins. J. Am. Chem. Soc. 2017, 139, 2585–2588. [Google Scholar] [CrossRef] [PubMed]
  28. Li, W.; Wagener, T.; Hellmann, L.; Daniliuc, C.G.; Mück-Lichtenfeld, C.; Neugebauer, J.; Glorius, F. Design of Ru(II)-NHC-Diamine Precatalysts Directed by Ligand Cooperation: Applications and Mechanistic Investigations for Asymmetric Hydrogenation. J. Am. Chem. Soc. 2020, 142, 7100–7107. [Google Scholar] [CrossRef]
  29. Sato, Y.; Hinata, Y.; Seki, R.; Oonishi, Y.; Saito, N. Nickel-Catalyzed Enantio- and Diastereoselective Three-Component Coupling of 1,3-Dienes, Aldehydes, and Silanes Using Chiral N-Heterocyclic Carbenes as Ligands. Org. Lett. 2007, 9, 5597–5599. [Google Scholar] [CrossRef]
  30. Kündig, P.; Seidel, T.; Jia, Y.; Bernardinelli, G. Bulky Chiral Carbene Ligands and Their Application in the Palladium-Catalyzed Asymmetric Intramolecular a-Arylation of Amides. Angew. Chem. Int. Ed. 2007, 46, 8484–8487. [Google Scholar] [CrossRef]
  31. Jia, Y.-X.; Hillgren, J.M.; Watson, E.L.; Mardsen, S.P.; Kündig, E.P. Chiral N-heterocyclic carbene ligands for asymmetric catalytic oxindole synthesis. Chem. Commun. 2008, 34, 4040–4042. [Google Scholar] [CrossRef]
  32. Nakanishi, M.; Katayev, D.; Besnard, C.; Kündig, E.P. Fused Indolines by Palladium-Catalyzed Asymmetric C-C Coupling Involving an Unactivated Methylene Group. Angew. Chem. Int. Ed. 2011, 50, 7438–7441. [Google Scholar] [CrossRef]
  33. Katayev, D.; Nakanishi, M.; Bürgi, T.; Kündig, E.P. Asymmetric C(sp3)-H/C(Ar) coupling reactions. Highly enantio-enriched indolines via regiodivergent reaction of a racemic mixtur. Chem. Sci. 2012, 3, 1422–1425. [Google Scholar] [CrossRef]
  34. Katayev, D.; Larionov, E.; Nakanishi, M.; Besnard, C.; Kündig, E.P. Palladium-N-Heterocyclic Carbene (NHC)-Catalyzed Asymmetric Synthesis of Indolines through Regiodivergent C(sp3)—H Activation: Scope and DFT Study. Chem.-Eur. J. 2014, 20, 15021–15030. [Google Scholar] [CrossRef]
  35. Yeung, K.; Ruscoe, R.E.; Rae, J.; Pulis, A.P.; Procter, D.J. Enantioselective Generation of Adjacent Stereocenters in a Copper-Catalyzed Three-Component Coupling of Imines, Allenes, and Diboranes. Angew. Chem., Int. Ed. 2016, 55, 11912–11916. [Google Scholar] [CrossRef] [PubMed]
  36. Yoshida, M.; Ohmiya, H.; Sawamura, M. Enantioselective Conjugate Addition of Alkylboranes Catalyzed by a Copper–N-Heterocyclic Carbene Complex. J. Am. Chem. Soc. 2012, 134, 11896–11899. [Google Scholar] [CrossRef] [PubMed]
  37. Albright, A.; Eddings, D.; Black, R.; Welch, C.J.; Gerasimchuk, N.N.; Gawley, R.E. Design and Synthesis of C2-Symmetric N-Heterocyclic Carbene Precursors and Metal Carbenoids. J. Org. Chem. 2011, 76, 7341–7351. [Google Scholar] [CrossRef]
  38. Albright, A.; Gawley, R.E. Application of a C2-Symmetric Copper Carbenoid in the Enantioselective Hydrosilylation of Dialkyl and Aryl–Alkyl Ketones. J. Am. Chem. Soc. 2011, 133, 19680–19683. [Google Scholar] [CrossRef] [PubMed]
  39. Diesel, J.; Finogenova, A.M.; Cramer, N. Nickel-Catalyzed Enantioselective Pyridone C-H Functionalizations Enabled by a Bulky N-Heterocyclic Carbene Ligand. J. Am. Chem. Soc. 2018, 140, 4489–4493. [Google Scholar] [CrossRef]
  40. Diesel, J.; Grosheva, D.; Kodama, S.; Cramer, N. A Bulky Chiral N-Heterocyclic Carbene Nickel Catalyst Enables Enantioselective C-H Functionalizations of Indoles and Pyrroles. Angew. Chem. Int. Ed. 2019, 58, 11044–11048. [Google Scholar] [CrossRef]
  41. Cai, Y.; Yang, X.-T.; Zhang, S.-Q.; Li, F.; Li, Y.-Q.; Ruan, L.-X.; Hong, X.; Shi, S.-L. Copper-Catalyzed Enantioselective Markovnikov Protoboration of α-Olefins Enabled by a Buttressed N-Heterocyclic Carbene Ligand. Angew. Chem. Int. Ed. 2018, 57, 1376–1380. [Google Scholar] [CrossRef]
  42. Cai, Y.; Zhang, J.-W.; Li, F.; Liu, J.-M.; Shi, S.-L. Nickel/N-Heterocyclic Carbene Complex-Catalyzed Enantioselective Redox-Neutral Coupling of Benzyl Alcohols and Alkynes to Allylic Alcohols. ACS Catal. 2019, 9, 1–6. [Google Scholar] [CrossRef]
  43. Zhang, W.-B.; Yang, X.-T.; Ma, J.-B.; Su, Z.-M.; Shi, S.-L. Regio- and Enantioselective C–H Cyclization of Pyridines with Alkenes Enabled by a Nickel/N-Heterocyclic Carbene Catalysis. J. Am. Chem. Soc. 2019, 141, 5628–5634. [Google Scholar] [CrossRef]
  44. Shen, D.; Zhang, W.-B.; Li, Z.; Shi, S.-L.; Xu, Y. Nickel/NHC-Catalyzed Enantioselective Cyclization of Pyridones and Pyrimidones with Tethered Alkenes. Adv. Synth. Catal. 2020, 362, 1125–1130. [Google Scholar] [CrossRef]
  45. Cai, Y.; Ye, X.; Liu, S.; Shi, S.-L. Nickel/NHC-Catalyzed Asymmetric C-H Alkylation of Fluoroarenes with Alkenes: Synthesis of Enantioenriched Fluorotetralins. Angew. Chem. Int. Ed. 2019, 58, 13433–13437. [Google Scholar] [CrossRef] [PubMed]
  46. Yao, W.-W.; Li, R.; Li, J.-F.; Sun, J.; Ye, M. NHC ligand-enabled Ni-catalyzed reductive coupling of alkynes and imines using isopropanol as a reductant. Green Chem. 2019, 21, 2240–2244. [Google Scholar] [CrossRef]
  47. Cai, Y.; Ruan, L.-X.; Rahman, A.; Shi, S.-L. Fast Enantio- and Chemoselective Arylation of Ketones with Organoboronic Esters Enabled by Nickel/N-Heterocyclic Carbene Catalysis. Angew. Chem. Int. Ed. 2021, 60, 5262–5267. [Google Scholar] [CrossRef] [PubMed]
  48. Cai, Y.; Shi, S.-L. Enantioconvergent Arylation of Racemic Secondary Alcohols to Chiral Tertiary Alcohols Enabled by Nickel/N-Heterocyclic Carbene Catalysis. J. Am. Chem. Soc. 2021, 143, 11963–11968. [Google Scholar] [CrossRef]
  49. Wang, Z.C.; Xie, P.P.; Xu, Y.; Hong, X.; Shi, S.-L. Low-Temperature Nickel-Catalyzed C−N Cross-Coupling via Kinetic Resolution Enabled by a Bulky and Flexible Chiral N -Heterocyclic Carbene Ligand. Angew. Chem. Int. Ed. 2021, 60, 16077–16084. [Google Scholar] [CrossRef]
  50. Wang, Z.C.; Gao, J.; Cai, Y.; Ye, X.; Shi, S.-L. Chemo- and Enantioselective Arylation and Alkenylation of Aldehydes Enabled by Nickel/N-Heterocyclic Carbene Catalysis. CCS Chem. 2022, 4, 1169–1179. [Google Scholar] [CrossRef]
  51. Shen, D.; Xu, Y.; Shi, S.-L. A Bulky Chiral N-Heterocyclic Carbene Palladium Catalyst Enables Highly Enantioselective Suzuki−Miyaura Cross-Coupling Reactions for the Synthesis of Biaryl Atropisomers. J. Am. Chem. Soc. 2019, 141, 14938–14945. [Google Scholar] [CrossRef]
  52. Ma, Y.; Song, C.; Ma, C.; Sun, Z.; Chai, Q.; Andrus, M. Asymmetric Addition of Aryl Boron Reagents to Enones with Rhodium Dicyclophane Imidazolium Carbene Catalysis. Angew. Chem. Int. Ed. 2003, 42, 5871–5874. [Google Scholar] [CrossRef]
  53. Song, C.; Ma, C.; Ma, Y.; Feng, W.; Ma, S.; Chai, Q.; Andrus, M. Bis-paracyclophane N-heterocyclic carbene-ruthenium catalyzed asymmetric ketone hydrosilylation. Tetrahedron Lett. 2005, 46, 3241–3244. [Google Scholar] [CrossRef]
  54. Chen, J.; Duan, W.; Chen, Z.; Ma, M.; Song, C.; Ma, Y. [2.2]Paracyclophane-based carbene–copper catalyst tuned by transannular electronic effects for asymmetric boration. RSC Adv. 2016, 6, 75144–75151. [Google Scholar] [CrossRef]
  55. Kong, L.; Morvan, J.; Pichon, D.; Joan, M.; Albalat, M.; Vives, T.; Colombel-Rouen, S.; Giorgi, M.; Dorcet, V.; Roisnel, T.; et al. From Prochiral N-Heterocyclic Carbenes to Optically Pure Metal Complexes: New Opportunities in Asymmetric Catalysis. J. Am. Chem. Soc. 2020, 142, 93–98. [Google Scholar] [CrossRef] [PubMed]
  56. Seiders, T.J.; Ward, D.W.; Grubbs, R.H. Enantioselective Ruthenium-Catalyzed Ring-Closing Metathesis. Org. Lett. 2001, 3, 3225–3228. [Google Scholar] [CrossRef] [PubMed]
  57. Costabile, C.; Cavallo, L. Origin of Enantioselectivity in the Asymmetric Ru-Catalyzed Metathesis of Olefins. J. Am. Chem. Soc. 2004, 126, 9592–9600. [Google Scholar] [CrossRef]
  58. Funk, T.W.; Berlin, J.M.; Grubbs, R.H. Highly Active Chiral Ruthenium Catalysts for Asymmetric Ring-Closing Olefin Metathesis. J. Am. Chem. Soc. 2006, 128, 1840–1846. [Google Scholar] [CrossRef] [PubMed]
  59. Costabile, C.; Mariconda, A.; Cavallo, L.; Longo, P.; Bertolasi, V.; Ragone, F.; Grisi, F. The Pivotal Role of Symmetry in the Ruthenium-Catalyzed Ring-Closing Metathesis of Olefins. Chem. Eur. J. 2011, 17, 8618–8629. [Google Scholar] [CrossRef] [PubMed]
  60. Ahlin, J.S.E.; Cramer, N. Chiral N Heterocyclic Carbene Ligand Enabled Nickel(0)- Catalyzed Enantioselective Three-Component Couplings as Direct Access to Silylated Indanols. Org. Lett. 2016, 18, 3242–3245. [Google Scholar] [CrossRef]
  61. Lee, K.S.; Hoveyda, A.H. Enantioselective Conjugate Silyl Additions to Cyclic and Acyclic Unsaturated Carbonyls Catalyzed by Cu Complexes of Chiral N-Heterocyclic Carbenes. J. Am. Chem. Soc. 2010, 132, 2898–2900. [Google Scholar] [CrossRef]
  62. Lee, K.S.; Wu, H.; Haeffner, F.; Hoveyda, A.H. NHC–Cu-Catalyzed Silyl Conjugate Additions to Acyclic and Cyclic Dienones and Dienoates. Efficient Site-, Diastereo- and Enantioselective Synthesis of Carbonyl-Containing Allylsilanes. Organometallics 2012, 31, 7823–7826. [Google Scholar] [CrossRef]
  63. Shen, J.J.; Gao, Q.; Wang, G.; Tong, M.; Chen, L.; Xu, S. Cu-NHC-Catalyzed Enantioselective Conjugate Silyl addition to Indol-1-ylacrylate Derivatives. Chem. Sel. 2019, 4, 11358–11361. [Google Scholar] [CrossRef]
  64. Kumar, R.; Hoshimoto, Y.; Yabuki, H.; Ohashi, M.; Ogoshi, S. Nickel(0)-Catalyzed Enantio- and Diastereoselective Synthesis of Benzoxasiloles: Ligand-Controlled Switching from Inter- to Intramolecular Aryl-Transfer Process. J. Am. Chem. Soc. 2015, 137, 11838–11845. [Google Scholar] [CrossRef]
  65. Kumar, R.; Tokura, H.; Nishimura, A.; Mori, T.; Hoshimoto, Y.; Ohashi, M.; Ogoshi, S. Nickel(0)/N-Heterocyclic Carbene-Catalyzed Asymmetric [2 + 2 + 2] Cycloaddition of Two Enones and an Alkyne: Access to Cyclohexenes with Four Contiguous StereogenicCenters. Org. Lett. 2015, 17, 6018–6021. [Google Scholar] [CrossRef] [PubMed]
  66. Loup, J.; Zell, D.; Oliveira, J.C.A.; Keil, H.; Stalke, D.; Ackermann, L. Asymmetric Iron-Catalyzed C-H Alkylation Enabled by Remote Ligand meta-Substitution. Angew. Chem. Int. Ed. 2017, 56, 14197–14201. [Google Scholar] [CrossRef] [PubMed]
  67. Kumar, R.; Hoshimoto, Y.; Tamai, E.; Ohashi, M.; Ogoshi, S. Two-step synthesis of chiral fused tricyclic scaffolds from phenols via desymmetrization on nickel. Nat. Commun. 2017, 8, 32. [Google Scholar] [CrossRef]
  68. Weng, H.; Lu, G.; Sormunen, G.J.; Malik, H.A.; Liu, P.; Montgomery, J. NHC Ligands Tailored for Simultaneous Regio- and Enantiocontrol in Nickel-Catalyzed Reductive Couplings. J. Am. Chem. Soc. 2017, 139, 9317–9324. [Google Scholar] [CrossRef] [PubMed]
  69. Wang, W.Y.; Wu, J.Y.; Liu, Q.R.; Liu, X.Y.; Ding, C.H.; Hou, X.L. Palladium/N-Heterocyclic Carbene (NHC)-Catalyzed Asymmetric [3 + 2] Cycloaddition Reaction of Vinyl Epoxides with Allenic Amides. Org. Lett. 2018, 20, 4773–4776. [Google Scholar] [CrossRef]
  70. Chen, Y.; Dang, L.; Ho, C.Y. NHC-Ni catalyzed enantioselective synthesis of 1,4-dienes by cross-hydroalkenylation of cyclic 1,3-dienes and heterosubstituted terminal olefins. Nat. Commun. 2020, 11, 1–6. [Google Scholar] [CrossRef]
  71. Luan, X.; Wu, L.; Drinkel, E.; Mariz, R.; Gatti, M.; Dorta, R. Highly Chemo- and Enantioselective Synthesis of 3-Allyl-3-aryl Oxindoles via the Direct Palladium-Catalyzedα-Arylation of Amides. Org. Lett. 2010, 12, 1912–1915. [Google Scholar] [CrossRef]
  72. Wu, L.; Falivene, L.; Drinkel, E.; Grant, S.; Linden, A.; Cavallo, L.; Dorta, R. Synthesis of 3-Fluoro-3-aryl Oxindoles: Direct Enantioselective α Arylation of Amides. Angew. Chem. Int. Ed. 2012, 51, 2870–2873. [Google Scholar] [CrossRef]
  73. Sipos, G.; Ou, A.; Skelton, B.; Falivene, L.; Cavallo, L.; Dorta, R. Unusual NHC–Iridium(I) Complexes and Their Use in the Intramolecular Hydroamination of Unactivated Aminoalkenes. Chem.-Eur. J. 2016, 22, 6939–6946. [Google Scholar] [CrossRef]
  74. Gao, P.; Sipos, G.; Foster, D.; Dorta, R. Developing NHC-Iridium Catalysts for the Highly Efficient Enantioselective Intramolecular Hydroamination Reaction. ACS Catal. 2017, 7, 6060–6064. [Google Scholar] [CrossRef]
  75. Foster, D.; Gao, P.; Zhang, Z.; Sipos, G.; Sobolev, A.N.; Nealon, G.; Falivene, L.; Cavallo, L.; Dorta, R. Design, scope and mechanism of highly active and selective chiral NHC–iridium catalysts for the intramolecular hydroamination of a variety of unactivatedaminoalkenes. Chem. Sci. 2021, 12, 3751–3767. [Google Scholar] [CrossRef] [PubMed]
  76. Gao, P.; Foster, D.; Sipos, G.; Skelton, B.W.; Sobolev, A.N.; Dorta, R. Chiral NHC-Iridium Complexes and Their Performance in Enantioselective Intramolecular Hydroamination and Ring-Opening Amination Reactions. Organometallics 2020, 39, 556–573. [Google Scholar] [CrossRef]
  77. Li, Z.; Zhang, L.; Nishiura, M.; Luo, G.; Luo, Y.; Hou, Z. Enantioselective Cyanoborylation of Allenes by N-Heterocyclic Carbene-Copper Catalysts. ACS Catal. 2020, 10, 11685–11692. [Google Scholar] [CrossRef]
  78. Savka, R.; Bergmann, M.; Kanai, Y.; Foro, S.; Plenio, H. Triptycene-Based Chiral and meso-N-Heterocyclic Carbene Ligands and Metal Complexes. Chem. Eur. J. 2016, 22, 9667–9675. [Google Scholar] [CrossRef]
  79. Guillen, F.; Winn, C.L.; Alexakis, A. Enantioselective copper-catalyzed conjugate addition using chiral diaminocarbene ligands. Tetrahedron Asymmetry 2001, 12, 2083–2086. [Google Scholar] [CrossRef]
  80. Grisi, F.; Costabile, C.; Gallo, E.; Mariconda, A.; Tedesco, C.; Longo, P. Ruthenium-Based Complexes Bearing Saturated Chiral N-Heterocyclic Carbene Ligands: Dynamic Behavior and Catalysis. Organometallics 2008, 27, 4649–4656. [Google Scholar] [CrossRef]
  81. Selim, K.B.; Matsumoto, Y.; Yamada, K.; Tomioka, K. Efficient Chiral N-Heterocyclic Carbene/Copper(I)-Catalyzed Asymmetric Allylic Arylation with Aryl Grignard Reagents. Angew. Chem. Int. Ed. 2009, 48, 8733–8735. [Google Scholar] [CrossRef]
  82. Selim, K.B.; Nakanishi, H.; Matsumoto, Y.; Yamamoto, Y.; Yamada, K.; Tomioka, K. Chiral N-Heterocyclic Carbene−Copper(I)-Catalyzed Asymmetric Allylic Arylation of Aliphatic Allylic Bromides: Steric and Electronic Effects on γ-Selectivity. J. Org. Chem. 2011, 76, 1398–1408. [Google Scholar] [CrossRef]
  83. Guduguntla, S.; Hornillos, V.; Tessier, R.; Fananas-Mastraland, M.; Feringa, B.L. Chiral Diarylmethanes via Copper-Catalyzed Asymmetric Allylic Arylation with Organolithium Compounds. Org. Lett. 2016, 18, 252–255. [Google Scholar] [CrossRef]
  84. Glorius, F.; Altenhoff, G.; Goddard, R.; Lehmann, C. Oxazolines as chiral building blocks for imidazolium salts and N-heterocyclic carbene ligands. Chem. Commun. 2002, 22, 2704–2705. [Google Scholar] [CrossRef]
  85. Würtz, S.; Lohre, C.; Frohlich, R.; Bergander, K.; Glorius, F. IBiox[(-)-menthyl]: A sterically demanding chiral NHC ligand. J. Am. Chem. Soc. 2009, 131, 8344–8345. [Google Scholar] [CrossRef] [PubMed]
  86. Bexrud, J.; Lautens, M. A Rhodium IBiox[(−)-menthyl] Complex as a Highly Selective Catalyst for the Asymmetric Hydroarylation of Azabicyles: An Alternative Route to Epibatidine. Org. Lett. 2010, 12, 3160–3163. [Google Scholar] [CrossRef] [PubMed]
  87. Melot, R.; Zuccarello, M.; Cavalli, D.; Niggli, N.; Devereux, M.; Bürgi, T.; Baudoin, O. Palladium(0)-Catalyzed Enantioselective Intramolecular Arylation of Enantiotopic Secondary C-H Bonds. Angew. Chem. Int. Ed. 2021, 60, 7245–7250. [Google Scholar] [CrossRef] [PubMed]
  88. Liu, L.; Ishida, N.; Ashida, S.; Murakami, M. Synthesis of Chiral N-Heterocyclic Carbene Ligands with Rigid Backbones and Application to the Palladium-Catalyzed Enantioselective Intramolecular α-Arylation of Amides. Org. Lett. 2011, 13, 1666–1669. [Google Scholar] [CrossRef]
Symmetry 14 01615 sch001 550

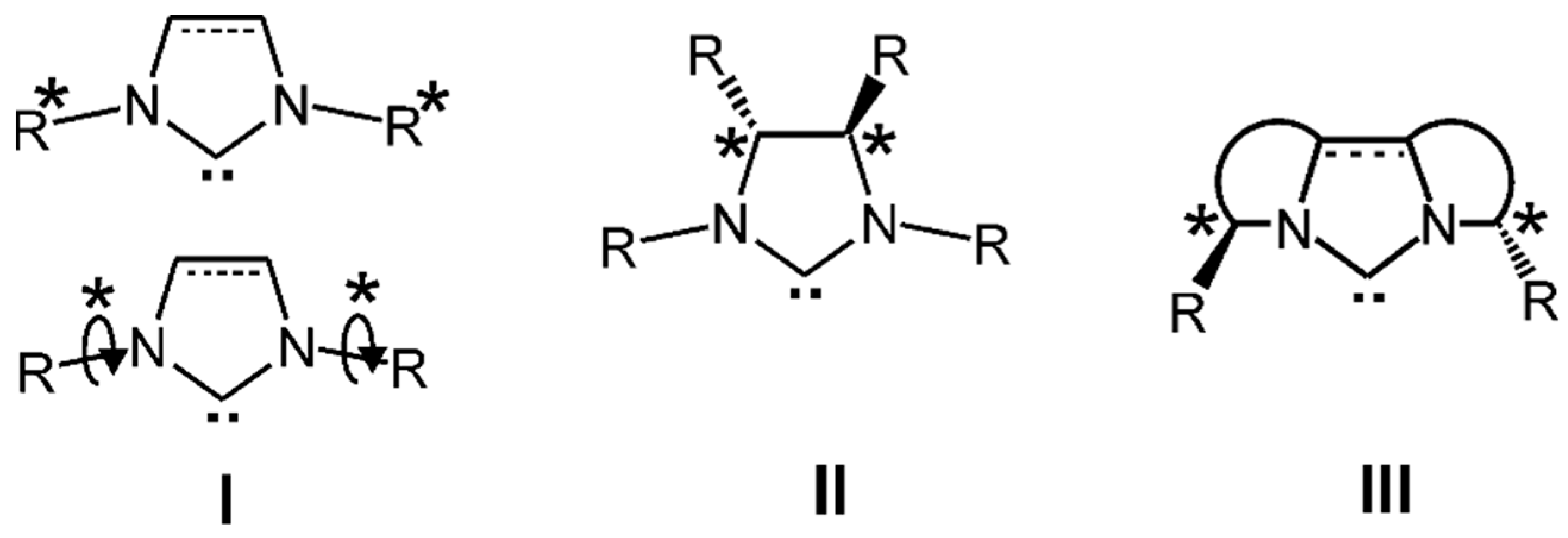

Scheme 1. Common frameworks (I, II, III) of chiral monodentate C2-symmetric N-heterocyclic carbene (NHC) ligands.
Scheme 1. Common frameworks (I, II, III) of chiral monodentate C2-symmetric N-heterocyclic carbene (NHC) ligands.
Symmetry 14 01615 sch001
Symmetry 14 01615 g001 550
Figure 1. C2-symmetric NHC ligands containing chiral N-substituents (A). On the right quadrant, maps of the depicted ligands from a top view are reported. The asterisk denotes the stereogenic elements (center, axis or plane).
Figure 1. C2-symmetric NHC ligands containing chiral N-substituents (A). On the right quadrant, maps of the depicted ligands from a top view are reported. The asterisk denotes the stereogenic elements (center, axis or plane).
Symmetry 14 01615 g001
Symmetry 14 01615 g002 550
Figure 2. C2-symmetric NHC ligands containing chiral backbone (B). On the top quadrant, maps of the depicted ligands from a top view are reported. The asterisks denote the stereogenic centers.
Figure 2. C2-symmetric NHC ligands containing chiral backbone (B). On the top quadrant, maps of the depicted ligands from a top view are reported. The asterisks denote the stereogenic centers.
Symmetry 14 01615 g002
Symmetry 14 01615 g003 550
Figure 3. C2-symmetric NHC ligands with tricyclic structures (C). On the right quadrant, maps of the depicted ligands from a top view are reported. The asterisks denote the stereogenic centers.
Figure 3. C2-symmetric NHC ligands with tricyclic structures (C). On the right quadrant, maps of the depicted ligands from a top view are reported. The asterisks denote the stereogenic centers.
Symmetry 14 01615 g003
Table
Table 1. Highly enantioselective NHC (A)/metal-catalyzed transformations.
Table 1. Highly enantioselective NHC (A)/metal-catalyzed transformations.
MetalNHCReactionsReferences
Cu2,7
6
8
9
18
19		Conjugate addition
Three-component coupling
Hydrosylilation
Protoboration
Boration of α, β-unsaturated esters
Allylic alkylation		[19,37]
[35]
[37,38]
[41]
[44]
[55]
Ni3
9
9
10
10
10
10
11
11
13		Three-component coupling
Arylation of secondary alcohols
C-N cross-coupling
C-H alkylation of polyfluoroarenes
Reductive coupling of alkynes and imines
Arylboration of ketones
Arylboration and alkenylboration of aldehydes
Reductive coupling of alcohols and alkynes
C-H cyclization of pyridines, pyridones and pyrimidines
C-H functionalization of indoles and pyrroles		[29]
[48]
[49]
[45]
[46]
[47]
[50]
[42]
[43,44]
[40]
Pd4,5,20
4,6
13		Intramolecular α-arylation of amides
C(sp3)-H/C(Ar) coupling
Suzuki-Miyaura cross-coupling		[30,31,55]
[32,33,34]
[51]
Rh15–18Conjugate addition[52]
Ru2
14, 15, 17		Hydrogenation
Hydrosilylation of ketones		[19,20,21,22,23,24,25,26]
[53]
Table
Table 3. Highly enantioselective NHC(C)/metal-catalyzed transformations.
Table 3. Highly enantioselective NHC(C)/metal-catalyzed transformations.
MetalNHCReactionsReferences
Pd53,55
51,54		α-arylation of amides
C-H arylation		[85,88]
[87]
Rh53Hydroarylation[86]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Costabile, C.; Pragliola, S.; Grisi, F. C2-Symmetric N-Heterocyclic Carbenes in Asymmetric Transition-Metal Catalysis. Symmetry 2022, 14, 1615. https://doi.org/10.3390/sym14081615

AMA Style

Costabile C, Pragliola S, Grisi F. C2-Symmetric N-Heterocyclic Carbenes in Asymmetric Transition-Metal Catalysis. Symmetry. 2022; 14(8):1615. https://doi.org/10.3390/sym14081615

Chicago/Turabian Style

Costabile, Chiara, Stefania Pragliola, and Fabia Grisi. 2022. "C2-Symmetric N-Heterocyclic Carbenes in Asymmetric Transition-Metal Catalysis" Symmetry 14, no. 8: 1615. https://doi.org/10.3390/sym14081615

APA Style

Costabile, C., Pragliola, S., & Grisi, F. (2022). C2-Symmetric N-Heterocyclic Carbenes in Asymmetric Transition-Metal Catalysis. Symmetry, 14(8), 1615. https://doi.org/10.3390/sym14081615

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
