Review

A Survey of Automatic Source Code Summarization

by
Chunyan Zhang
1,
Junchao Wang
1,
Qinglei Zhou
2,
Ting Xu
2,
Ke Tang
1,
Hairen Gui
1 and
Fudong Liu
1,*
1
State Key Laboratory of Mathematical Engineering and Advanced Computing, Zhengzhou 450001, China
2
School of Information Engineering, ZhengZhou University, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Symmetry 2022, 14(3), 471; https://doi.org/10.3390/sym14030471
Submission received: 27 January 2022 / Revised: 19 February 2022 / Accepted: 20 February 2022 / Published: 25 February 2022
Browse Figures
Versions Notes

Abstract

:
Source code summarization refers to the natural language description of the source code’s function. It can help developers easily understand the semantics of the source code. We can think of the source code and the corresponding summarization as being symmetric. However, the existing source code summarization is mismatched with the source code, missing, or out of date. Manual source code summarization is inefficient and requires a lot of human efforts. To overcome such situations, many studies have been conducted on Automatic Source Code Summarization (ASCS). Given a set of source code, the ASCS techniques can automatically generate a summary described with natural language. In this paper, we give a review of the development of ASCS technology. Almost all ASCS technology involves the following stages: source code modeling, code summarization generation, and quality evaluation. We further categorize the existing ASCS techniques based on the above stages and analyze their advantages and shortcomings. We also draw a clear map on the development of the existing algorithms.

1. Introduction

Code summarization, also called code comment, is a text description for the function and purpose of special identifiers in computer programs. In other words, code summarization explains the logic and functions of source code in natural language, in order to make people understand the program more easily [1]. As we all know, program maintenance is the most expensive and time-consuming stage in the software life cycle [2]. A high-quality code summarization is essential to program comprehension and maintenance [3,4,5]. For example, it can reduce the time needed for developers to understand the source code and improve code search efficiency. Unfortunately, with the rapid update of software, most code comments are mismatched, outdated, and missing, so the code comments need to be improved and updated continuously.
Given the importance and urgency, significant achievements have been made in ASCS [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. To the best of our knowledge, there are only a few works on the survey of code summarization generation. Nazar et al. [28] mainly summarized four software artifacts, which include bug reports, mailing list, source code, and developer discussions. Yang et al. [29] focused on four aspects: the code comment generation, the consistency of code and comments, the classification of code comments, and the quality evaluation of code comments, but they did not explain the relevant algorithms of code comments in detail. In addition, there exist a few studies on the technical achievements in the last five years. Chen et al. [30] summarized the types of source code embedding, including tokens, methods, sequences, binary codes, and other granularities. Moreover, they also provided an available code embedding list to other researchers. Song et al. [31] ran a survey on the algorithms and techniques of the code comments generation. They provided the classification, design principles, and quality evaluation of automatic code comments algorithms. However, with the rapid development of deep learning technology, there are still high-quality works in recent years that have not been summarized.
As an emerging research, ASCS is inspired by machine translation modeling. Although there has only been just over 10 years of research [31], it has brought software development to a new level, especially in program comprehension and maintenance. However, ASCS faces the following challenges.
  • The source code modeling used to extract features from source code, such as lexical information, syntax information, and semantics information. Here are the main difficulties:
    • Different from plain text, the source code contains rich syntax and structure information;
    • Faced with different programming languages, both the analysis methods and standards are different;
    • Each developer has his own code logic and naming conventions, which makes the source code irregular;
    • Various programming languages and identifier names lead to huge vocabularies of source code.
  • In terms of ASCS methods, the Information Retrieval (IR)-based algorithms extract keywords from the source code, or look for summarization of similar codes. Distinctly, the effect of these algorithms depends on the quality of datasets. With the development of artificial intelligence technology, researchers have applied the methods of Natural Language Processing (NLP) for ASCS, and have achieved significant results. However, there are still some problems, such as long-term dependence, the limitations of ASCS algorithms, and the lack of high-quality datasets.
  • The quality evaluation is another challenge. The existing ASCS algorithms are mostly evaluated on different datasets, which makes it difficult to compare the effect of the algorithms. Besides, the quality evaluation methods of NLP are used for code summarization, but the source code is different from natural language text. Thus, an efficient and low-cost ASCS evaluation method is an important issue that needs to be solved urgently. Here are the main challenges of quality evaluation:
    • Lacking unified datasets;
    • Lacking recognized and reasonable benchmarks used as the baseline;
    • Lacking professional evaluation indicators.
We select representative papers in the past decade that have published in IEEE ICSE, IEEE/ACM ASE, IEEE TSE, IEEE FSE, ACM TOSEM, ICPC, IJCAI, EMSE, AAAI, or other software engineering and artificial intelligence venues. According to the technique development, we summarize the work from three aspects: source code modeling, automatic code summarization algorithms, and the summarizaiton quality evaluation.
This survey makes the following contributions to the field:
  • It discusses the origin of ASCS technology, its evolution over the past decade;
  • It concludes the advantages and disadvantages of the above representative methods, and the work with improved relationships between these approaches;
  • It provides a synthesized summary of the challenges and future research that requires the attention of the researchers;
  • It collates a comprehensive list of available datasets and codes, which are conducive to further research by scholars.
This paper is organized as follows. Section 2 provides the general overall flowchart of ASCS algorithms, and analyzes the key steps in flowchart. Section 3 systematizes various representations of source code, including their pros and cons. Section 4 summarizes the methods of ASCS, even the limitations and interconnections of these methods. Section 5 evaluates the different quality metrics. Section 6 draws the conclusion and the future trends of ASCS.

2. Overview of ASCS

Since all the functions of software are included in the code, code summarization is the most intuitive and effective way to understand the software, especially for software maintenance. Generally, comments can be divided into three types: document comment, block comment, and line comment [32]. Among them, document comments are used to describe a class, a method, or an attribute; block comments are used to describe one or more lines of code snippets, which are located on the previous line of the commented code block; line comments refer to following the code line to provide a description for the current code line. At present, almost all researchers are devoted to document comments and block comments.
The overall flowchart of ASCS generally contain three parts: source code modeling, code summarization generation, and quality evaluation, as shown in Figure 1.
The source code modeling converts the source code into semantic vectors by extracting its features, and the semantic vectors are the input of ASCS generation. In software engineering, building a high-quality source code model is the first step of many tasks, such as code classification [33,34,35], code search [25,36,37], code clone detection [38,39,40] and code comment [41,42,43,44]. In recent years, almost all source code modeling uses machine learning, and paper [45] can be used as a reference. It carried out an extensive literature search and identified 364 primary studies published between 2002 and 2021, aiming to summarize the current knowledge in the area of applied machine learning for source code analysis. As a key step in ASCS, source code modeling adopts different granularities and methods to represent the source code adequately, which are detailed in Section 3.
The ASCS generation algorithms take the outputs of the source code model as an input, then generate the functional description of the source code. Initially, the code summarization has been generated by extracting keywords from the source code, building bag-of-words model, and using similarity matching. With the development of technology, models based on deep learning (DL) have been widely used, such as seq2seq model, transformer model, and other language models. Among them, the seq2seq model usually applies recurrent neural network (RNN) and its variants (e.g., Long Short Term Memory (LSTM), Gate Recurrent Unit (GRU)), convolution neural network (CNN), and its variants (e.g., Graph Convolutional Networks (GCN), Graph Neural Network (GNN)). Furthermore, attention mechanism is often used as an powerful aid to the model. Section 4 presents the analysis of different excellent algorithms of the ASCS generation.
The quality evaluation measures the pros and cons of ASCS algorithms through the generated code summarization. We discuss the quality evaluation from evaluation objects and standards. The evaluation objects of ASCS are often datasets and ASCS methods. The evaluation standards are often automatic metrics (such as BLEU, METEOR, CIDER, ROUGE, Recall and Predicate) and human evaluation, which are detailed in Section 5.

3. Source Code Modeling

High quality source code modeling can better extract syntactic and semantic information from the source code. We also think that the source code before and after source code modeling is also symmetric. There exists a lot of excellent literature on source code analysis [46,47,48,49,50,51,52,53,54,55,56,57,58], and we have shown the representative source code models from the past five years in Table 1. From Table 1, we know that scholars have considered structural information (e.g., AST, API) in recent years, instead of just treating the source code as pure text. Besides, ML-based methods are widely used in source code analysis. According to the different representations of source code, we divide the source code modeling into four types: Token-based, Tree-based, Graph-based, and other source code modeling.

3.1. Token-Based Source Code Model

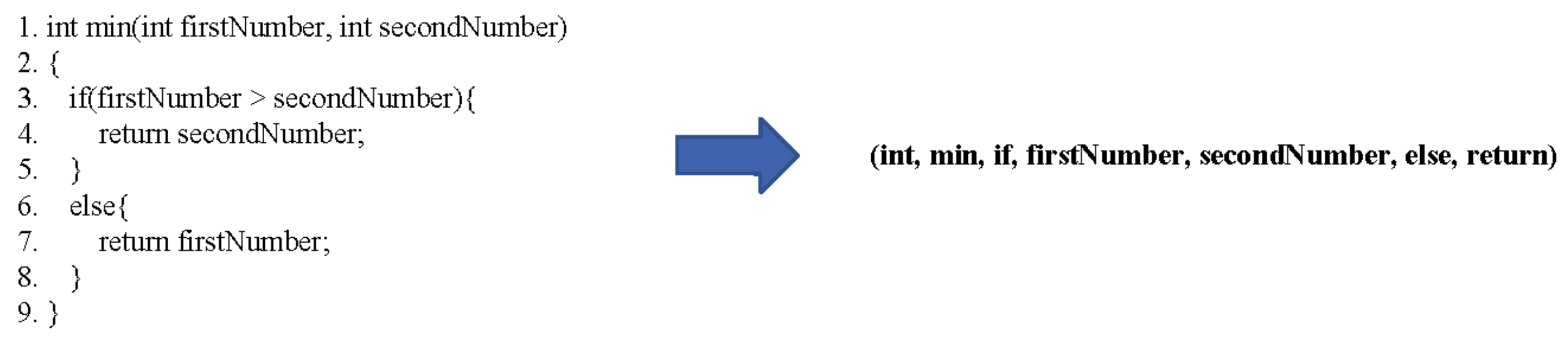

The ASCS generation is inspired by the machine translation model in the natural language processing (NLP) field. Therefore, the early source code analysis methods fully borrowed the methods of NLP. The source code is regarded as pure text sequences [7,9,10,11,12,13,15,21,37,52,58,59,60,62,66]. This token-based model processes the source code as shown in Figure 2.
To the best of our knowledge, the first code comment generation work came from Haiduc et al. [8]. They analyzed source code as text to generate natural language description of classes or methods of source code described with objective-oriented programming languages. Then, Moreno et al. [11] and Wang et al. [58] used part-of-speech tagging to identify the keywords that best represented the source code features. Efstathiou et al. [52] expressed the source code by mining the identifier information of multiple programming languages, and utilized fastText model to learn word representation.
However, the above methods of source code representation all extract keywords or topics from the source code. Besides, there are a variety of auxiliaries used to extract the source code information, such as API knowledge, document description, identifier naming rules, and so on. For example, Hu et al. [17] discovered that the function of code was related to the API call sequences, then used API information to assist the modeling of generating source code summarization. Different from using API calls, Chen et al. [62] constructed a source code model by using two variational autoencoders (VAE) to complete source code analysis. Among them, C-VAE was used to extract the token sequences of source code, and L-VAE was used to extract the token sequences of the auxiliary documents. Especially, Zheng et al. [21] proposed an attention mechanism, CodeAttention, extracting keywords, symbols, and identifiers information from the source code. They also provided an available and large dataset, C2CGit, which includes java methods and the corresponding comments.
The above methods mostly regard the source code as natural language text, then select tokens to form the bag-of-words model. Although the traditional analysis is simple and effective, obvious drawbacks exist. On the one hand, it requires the identifier naming to reflect the purpose of the function; on the other hand, it ignores the potential information of source code, such as data dependence, control flow, and semantic information.

3.2. Tree-Based Source Code Model

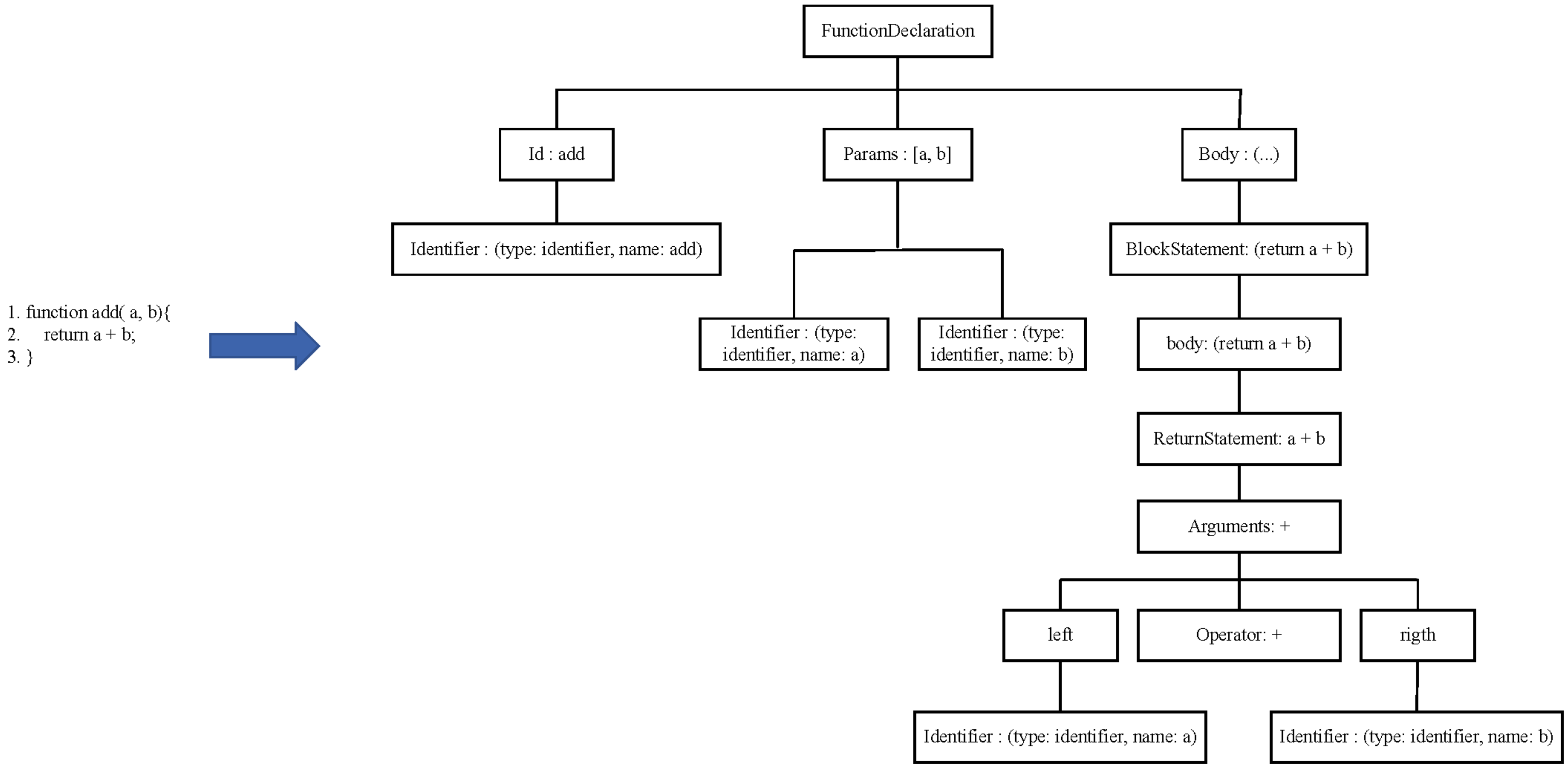

Abstract Syntax Tree (AST) is an important way to express the structure information of the source code. An example is shown in Figure 3. The left side of the arrow is a function, and the right side is the AST parsed by the tools. Scholars usually characterize source code semantic information through different processing of AST, such as converting AST into sequences, randomly extracting AST paths, and dividing AST into multiple sub-ASTs. In short, as an efficient structure representation, AST with DL technology has achieved remarkable results [6,22,23,34,40,43,56,61,63,64].
The earlier typical work using AST to represent the structure of source code is code2vec [64]. Code2vec represented the source code with AST path sets, and each path consisted of two leaf nodes and their intermediate path, (token1, path, token2). Subsequently, Alon et al. [43] proposed the code2seq method on the basis of code2vec. They improved the work of [64] in the following aspects: (1) the latter did sub-token processing on the token; (2) the latter randomly chose several paths from all the paths of AST tree; (3) the latter was suitable for the code summarization in multiple programming languages. They utilize random AST path sets to represent the source code, instead of using the AST or the sub-ASTs directly. In addition, this method can be directly applied on code summarization tasks. Thus, it is often used as a baseline in other works, and it may be applicable to other code intelligence tasks as well.
In 2018, the structure-based traversal (SBT) method [6] made a major breakthrough in structure information extraction. Using SBT, a subtree under a given node is included into a pair of brackets. Furthermore, the brackets represent the structure of AST and can be restored as a tree unambiguously from a sequence generated using SBT. Compared with the previous methods, this new AST traversal method has higher accuracy. Subsequently, Hu et al. [44] extended the above work. When building an ASCS model, they combined the source code vocabulary information and the SBT sequences. Especially, they used camel case naming to solve out-of-vocabulary identifiers problem. Inspired by SBT, some innovative work has emerged. For example, LeClair et al. [22] represented the source code in sequences and AST in two forms, and used a modified SBT method [6] to traverse the AST.
In 2019, ASTNN [46] was proposed, which was of great significance to source code analysis, mainly reflected in the analysis granularity and the skillful construction of statement trees. ASTNN has overcome the following limitations: the paper [34] combined AST with CNN to capture the structural information of source code. However, the AST utilized a window sliding algorithm, which lost a certain part of the source code information. The paper [39] utilized the combination of RNN [71] and AST to represent the source code. The paper [40] combined AST with LSTM to mine the vocabulary and syntax information of the source code. However, the paper [39,40] both performed bottom-up traversal on AST, which made it prone to gradient disappearance when computing large AST structures. The ASTNN worked as follows: (1) it split the whole AST into small statement trees; (2) it designed a recursive encoder on multi-way statement trees to capture the lexical and syntactical information; (3) it used bidirectional Gated Recurrent Unit (Bi-GRU) to obtain the vector representation of source code. This method solves the huge problem of AST structure, and the batch processing algorithm has greatly improved the computing performance. In addition, the dataset and model code are publicly available, which facilitates the researchers to complete other code intelligence tasks, such as code summarization, code search, and code copyright infringement.
Recently, Hussain et al. [56] proposed a CodeGRU method, which was an effective source code embedding representation method proved by experiments. The CodeGRU selected noise-free source code data and parsed them into AST, then encoded the context, syntax, and structure information of source code. Therefore, scholars can do further research based on this effective model. In addition, blending the AST into a pre-training model is a valuable research direction. For example, Guo et al. [37] combined AST with Data Flow to represent the source code and achieved great results.

3.3. Graph-Based Source Code Model

Graph structure is one of the most flexible data structures and is widely used in many fields. The source code modeling with graph has yielded many significant achievements [50,55,67,72,73,74,75]. The common graph structures include Control Flow Graph (CFG), Data Flow Graph (DFG), Program Dependency Graph (PDG), and Code Property Graph (CPG). Different graph structures describe code from different feature perspectives. For example, CFG describes the execution path and control dependency of codes, PDG describes the control dependency and data dependency within codes. We give an example of source code representation by CPG in Figure 4.
In recent years, the representative achievements of source code analysis based on PDG are as follows. Tufano et al. [50] expressed the source code from four different levels of identifier, AST, CFG, and Bytecode. Notably, HOPE graph embedding technology [73] was used to train the CFG, and, in the end, different source code representations expressed excellent results in the code cloning task. Allamanis et al. [55] parsed source code into AST. On this basis, the control flow dependence and data flow dependence of the program are captured by additional edges. The paper [72] used GGNN to train the source code graph. Finally, these two tasks of predicting variable name and judging whether the variable is used correctly have achieved high accuracy.
Zhou et al. [75] built a graph neural network model, Devign, which learned rich semantic representations of source code. It represented various subgraphs into one joint graph, CPG, including AST, CFG, DFG, and Natural Code Sequence (NCS). The experiments proved the effectiveness of Devign on vulnerability detection task. The method has achieved a new state of the art on machine-learning-based vulnerability detection, and the CPG can learn rich semantic information of source code. However, the model can only process C/C++ code, if researchers make some improvement to it, which will be a good research direction to achieve other tasks or to process other programming languages.

3.4. Other Source Code Models

Apart from the above methods, there exist other methods of source code modeling, such as Software Word Usage Model (SWUM) [76], data-driven methods, and dynamic methods.
SWUM captures program word relationships and links them with the program structure. Sridhara et al. [9,10] and Moreno et al. [11] extracted the keywords of source code to describe the function of Java methods. However, this type of code summarization cannot explain why this method exists or what role it plays in software. Later, McBurney et al. [13] made important extensions to their work, which was analyzing the call ways of Java methods and including context through SWUM. Subsequently, McBurney et al. [60] also utilized SWUM to propose a method of automatic source code summarization, in which the source code representation is call functions and keywords. However, the SWUM model relies heavily on the naming of function and identifier; if the naming is not precise, the summarization will be inaccurate.
As we all know, the dynamic methods are more accurate than the static methods. For example, Wang et al. [51] learned source code representation through the execution path of the program, and experiments proved that this dynamic code semantic embedding is more effective in error type classification than code syntax embedding. However, the dynamic method is neither comprehensive analysis nor suitable for the large dataset analysis.

4. Code Summarization Generation

The ASCS generation is a hot field that has emerged in the past decade. We divide its methods into three categories: manually-crafted templates, IR-based, and Deep Learning (DL)-based. In recent years, the representative methods and the relation between them have been shown in Figure 5. We can see that human evaluation is mostly used before 2016. The evaluation metrics gradually changed, which further illustrates the evolution of ASCS technology.

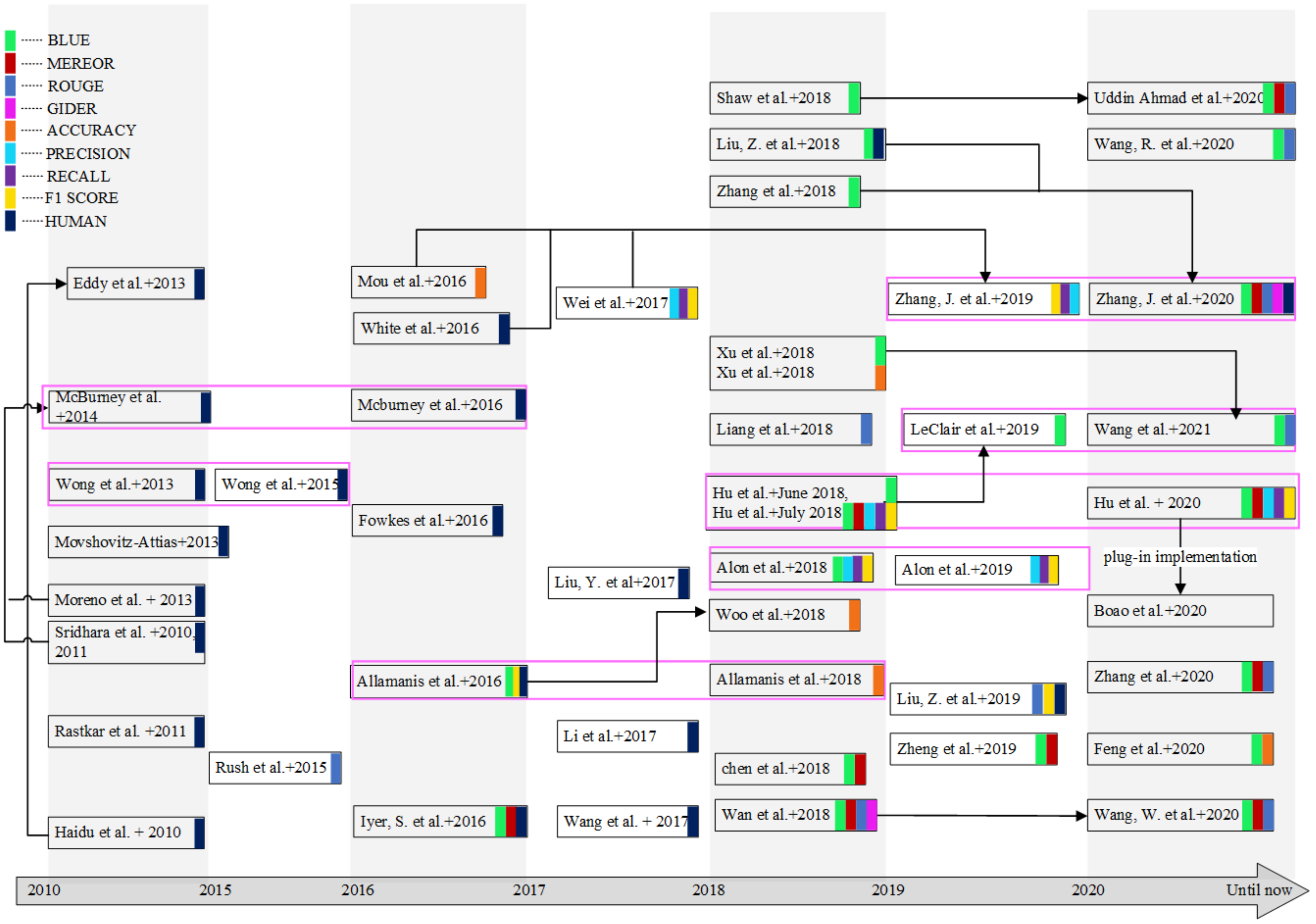

From Figure 5, we can also clearly see which work has been improved and innovated based on the previous work. For example, the work in paper [23] is an improvement over the papers [85,86]. Furthermore, papers [23,43] were done by the same authors.

4.1. Manually-Crafted Templates-Based ASCS Generation

The manually-crafted template is an early method used in ASCS generation. It is mainly based on some custom rules to generate code summarization [9,10,11,13]. For example, Moreno et al. [11] automatically generated summarization for Java classes through existing text generation tools, in which they utilized the information of the building class with the proposed heuristic rules. Wang et al. [16] utilized high-quality source code projects to train templates for learning the behavior of related objects, and automatically generated a summarization for the related objects with the source code method.
However, the manual template methods usually extract keywords from source code to generate summarization, which ignores a lot of potential information of the source code. In addition, the summarization quality depends on whether the identifier-naming of the source code is standardized. If the naming cannot reflect the function purpose, the summarization is inaccurate. In the current source code information extraction, this method is mostly used as an auxiliary or is simply discarded.

4.2. IR-Based ASCS Generation

After manual template technology, IR-base modeling is widely used in ASCS generation. The IR can be abstracted as a statistical language model. It needs to calculate the correlation between target code and code in the dataset, then returns the corresponding summarization of the code that best matches the target code. The common approaches of IR-based modeling are Latent Semantic Indexing (LSI), Vector Space Model (VSM), theme-based, and so on [7,8,11,58,77,78,79].
Initially, Haiduc et al. [7,8] analyzed source text using VSM and LSI methods, producing natural language description of source classes or methods. Subsequently, Eddy et al. [78] improved the above work by topic model. Li et al. [80] used Latent Dirichlet Allocation (LDA) technology to conduct topic mining on resources such as code, documentation, question and answer information, and automatically generated code topic summarization. Liu et al. [81] utilized latent semantic analysis and clustering algorithms to extract the semantic information of source code. Finally, the package summarization of the Java project was generated. Movshovitz-Attias et al. [77] adopted the combination of topic models and n-grams to predict Java method summarization.
Wang et al. [58] used part-of-speech tagging to identify keywords that best represented the features of the source code. Through noise reduction, a number of keywords with the highest weights were selected to form the code summarization. However, the method has some disadvantages. The quality of code summarization heavily depends on the source code and cannot be guaranteed, especially for the obfuscated source code.
The code cloning-based method is a common IR method to generate source code summarization. The principle is to search for the most similar code segment with the given source code, then extract its comments as the summarization of the given source code [11,41,79]. Obviously, the quality and quantity of summarization depend on the quality and quantity of the code snippets and the corresponding comments contained in the dataset.
Wong et al. [41] collected a large-scale Q&A dataset from the source code in Stack Overflow. They calculated the similarity between the input code and the codes in Stack Overflow. The description of code in Stack Overflow is used as the summarization of the input code. Later, Wong et al. [79] proposed another method of automatic code summarization by mining the existing software code bases. It used code clone detection technology to find code snippets with similar syntax from the code bases, and applied the summarization of these code snippets to other codes with similar syntax.
The above methods generate code summarization usually by searching for keywords of source code or comments of similar code. The drawbacks of IR-based methods include: First, it overly relies on the standardization of naming. If the naming of identifiers and function are irrelevant to the code function, the extracted keywords will not represent the source code accurately; second, it depends on similar codes in the dataset. If the dataset has no code similar to the given code, no summarization is generated correctly. In summary, relying only on lexical information to represent the source code ignores the rich structure and data dependence of the source code.

4.3. DL-Based ASCS Generation

In recent years, the research of ASCS generation with DL technology has made breakthroughs [6,17,19,21,22,43,44,59,62,63,64,67,85]. The common DL techniques include RNN and its variant models, CNN and its variant models, transformer model, and large-scale language training model (e.g., BERT and GPT), etc. The Attention mechanism is usually used as a key auxiliary to the above methods.
In 2016, CODE-NN was declared the most advanced model of ASCS generation [59], which used LSTM and Attention mechanism to generate a description of C# codes and SQL sequences. Later, a lot of code summarization papers have taken CODE-NN as the benchmark, such as these papers [6,17,44,63,64]. In 2018, Woo et al. [82] improved the method of paper [15], and proposedCBAM, a new method to improve the representation ability of CNN networks. CBAM was applied to code generation by adding convolution operations on input symbols, extracting the local translation invariant features of the input sequences. The paper also provides opensource code (https://github.com/Jongchan/attention-module, accessed on 18 August 2019), which is a good resource for the research of code intelligence tasks. Deep-Com [6] is a seq2seq model proposed to generate Java method summarization based on Attention mechanism. The semantic information learning of the source code was detailed in Section 3.2. Deep-Com has higher accuracy than previous methods, which has been proven by many experiments. In 2020, the Hybrid-DeepCom [44] is a new ASCS method extending the work of [6]. The improvements have been described in Section 3.2. At the same year, Boao Li et al. [89] implemented a tool plug-in for this method, which helped researchers to understand and apply the method intuitively. Furthermore, it also proved the feasibility and practicability of Hybrid-DeepCom. In 2020, LeClair et al. [67] improved the method of processing source code AST information [83,84] on the basis of ast-attendgru [22], and the accuracy of source code summarization was increased. In 2021, LeClair et al. [90] explored the orthogonal nature of different neural code summarization approaches and proposed ensemble models to exploit this orthogonality for better overall performance. The combination of search and generative methods in ASCS is a promising idea. To the best of our knowledge, there is only one work similar to this, which is the paper by Rencos [23]. It found that the IR-based method could better obtain source code low-frequency words [86], and the NMT-based method was more flexible and semantically correct [85].
The Transformer model can be computed in parallel, and can better capture the long-term dependencies of the sequence, even with strong comprehensive feature extraction capabilities. It can compensate for the shortcomings of RNN parallelization and the difficulty of CNN. Therefore, Transformer has been widely used in NMT field and other various tasks, including code summarization generation [24,26,91]. For example, Uddin Ahmad et al. [26] and Wang et al. [24] utilized Transformer to complete the code summarization task. Compared with existing methods, they improved the effectiveness and accuracy of code summarization. Among them, Uddin Ahmad et al. optimized the model of Shaw et al. [87], in which an attention layer was added to the decoder for copying rare tokens in the source code. The experiments proved that the relative paths performs better than absolute paths. Wang et al. combined the Transformer with BERT and proposed Fret, a new method for generating code summarization. However, Transformer processes a long text by cutting it into multiple fixed-length fields, which may cause information to go missing. In 2019, Dai et al. [91] proposed the Transformer-XL method after optimizing the Transformer model. Transformer-XL could model dependencies exceeding a fixed length, and Dai et al. opened the source model code (https://github.com/kimiyoung/transformer-xl, accessed on 11 April 2020).
In 2020, based on paper [43,64], Alon et al. [54] proposed a structure-based language model, SLM, which could solve the code generation problem of various programming languages, and it performed better than seq2seq and other methods of generating Java codes and C# codes. Alon et al. highlighted the importance of structural language modeling and its wide application of code intelligence tasks. They also made the datasets and codes public (https://github.com/tech-srl/slm-code-generation, accessed on 28 September 2021).
To solve the long-term dependency problem, reinforcement learning is a popular method. Wan et al. [19] incorporated an AST structure as well as sequential code snippets into a deep reinforcement learning framework (i.e. actor-critic network), which improved the performance of ASCS generation. Based on the above work, Wang and Wan et al. [88] combined hierarchical Attention-based learning with actor-critic reinforcement learning, and adopted type-enhanced AST sequences and CFG instead of the pure AST to capture the correlation between comments and programs. In addition, the use of hierarchical attention network (HAN) fully took into account the hierarchical structure of the source code, and the experimental effect was better than the papers [6,43,59,92].
CodeCMR [93] is a cross-modal retrieval method for binary source code matching on NeurlPS2020. They adopted DPCNN [49] to extract source code features and Graph Neural Network (GNN) for binary code feature extraction. It captured code literals, including strings and integers. The results showed that compared with paper [46], using the source code directly as a input not only retained the integrity but also saved time when dividing AST into statement trees. To the best of our knowledge, this is the first binary source code matching method on function-level, and its dataset is an available resource (https://github.com/binarya, accessed on 15 July 2020).

5. Quality Evaluation

The quality evaluation of source code summarization is divided into evaluation objects and evaluation methods. The evaluation objects are mainly datasets and summarization generation algorithms introduced in Section 4. In this section, we introduce the datasets and two types of evaluation methods: automatic evaluation and human evaluation.

5.1. Datasets

Most of the datasets come from Stack Overflow [41,57,59], GitHub [6,15,17,21,44,52,55,60], and code contests [34,40,46,63]. There are also some datasets constructed by researchers [94,95,96,97,98]. The common available datasets have been shown in Table 2.
Stack Overflow (SO) is a Q&A website in the field of programming, which consists of code snippets and the corresponding purpose description. The scholars often take these Q&A pairs as their dataset. The advantage is that the datasets are easy to extract, and the disadvantage is that the quality of Q&A pairs are uneven, because the platform does not guarantee the quality of questions and answers.
GitHub (GH) is a software source code hosting service platform, which is also the largest code site and opensource community [99]. As a popular source of datasets, the code quality in GitHub can be reflected by the number of five-pointed stars left in the reviews. More stars means better quality. However, GH only provides the source code. If you choose the ASCS dataset, you need to manually find the corresponding code summarization.
Google Code contests Jam and Online Judge (OJ), as the dataset format is similar to the SO. The quality of OJ is relatively higher, however, the scale of the dataset in OJ is limited, which may result in poor general adaptation of the training model.
CodeXGLUE [100], a benchmark dataset and open challenge for code intelligence, contains 14 datasets for 10 diversified code intelligence tasks covering the following scenarios: Code-Code, Text-Code, Code-Text, and Text-Text. The ASCS belongs to Code-Text, and the public dataset is CodeSearchNet [101], which includes six programming language sub-datasets of Python, Java, PHP, JavaScript, Ruby, and Go. Furthermore, each sub-dataset provides source code token tags and corresponding comments. The CodeSearchNet is a milestone for the technology. Besides, paper [102] researched how the different characteristics of the dataset affect the summarization performance. It evaluated the performance of five typical methods on three widely used datasets, which were different in three attributes: corpus size, data splitting methods, and duplication ratio. The paper [102] helps researchers choose and process datasets correctly.

5.2. Automatic Evaluation Mechanism

Evaluation criteria are used to measure the quality of the ASCS. As an emerging research hotspot, the quality evaluation of summarization usually uses automatic evaluation indicators and tools of NMT. The use of evaluation methods from the recent years are shown in Figure 5, and we will provide a brief introduction to them.
BLEU [103], Bilingual Evaluation Understudy, was proposed by Papineni et al. in 2002. It is used to count the proportion of n-grams in candidate texts that appear in reference translations, where n can be 1, 2, 3, or 4. Obviously, the higher the BLEU value, the higher the quality of code summarization. BLEU is the earliest automatic evaluation method of machine translation and has been used in many code summarization works [6,15,17,19,21,22,23,24,43,59,67]. Moreover, the granularity considered by BLEU method is n-grams instead of word, which can match longer information at a time. However, the drawbacks of BLEU are that it only focuses on accuracy and ignores recall (that is, how many phrases in the reference translations appear in the candidate texts).
ROUGE [104], Recall-Oriented Understudy for Gisting Evaluation, was proposed by Lin. It is similar to the calculation of the BLEU method, but n-gram includes several different metrics, among which ROUGE-N, ROUGE-L, ROUGE-W, and ROUGE-S are commonly used. This metric has been used in many ASCS tasks [19,24,63,67]. However, ROUGE only considers the recall but ignores fluency.
METEOR [105] is a Metric for Evaluation of Translation with Explicit Ordering. It was proposed by Lavie et al. after discovering the significance of recall in evaluation. The method of adding recall to METEOR calculation and expanding the synset by WordNet has solved the defects in BLEU. It achieves similar results with human evaluation. It is more reasonable than BLEU and ROUGE, so the METEOR method is often used in ASCS algorithms [17,21,22,26,59,62,66]. However, there are also some weaknesses: for example, it can be only used in Java language and the parameters need to be debugged according to different datasets.
CIDER [106], Consensus-based Image Description Evaluation, is proposed by Vedantam et al. CIDER is used to measure the similarity between a test sentence and the majority of reference sentences. Among them, TF-IDF [107] calculates the weights of each n-gram. The TF-IDF avoids matching all words equally and makes the important words more prominent. Some researchers use this method to measure the quality of code summarization [19,23,44].
Besides, there are other evaluation methods of ASCS, such as Accuracy [25,34,50,53], Precision [17], Recall [43,46,64], and F1 score [15]. Among them, Accuracy is widely used, but it is not the best evaluation method. Recall expresses the ability to find relevant instances in a dataset, and Precision expresses the ability to find the actual relative proportion of the data points. F1 score takes the harmonic average of Recall and Precision to achieve the best precision-recall balance model, which can better evaluate the classification model and solve the imbalance problem. Although many quality assessment tools can provide automatic evaluation for ASCS, the assessment results of these tools are often unstable, which is an important problem that needs to be solved in ASCS.
Some researchers have also summarized the related evaluation methods of ASCS [1,108,109,110,111,112]. Khamis et al. [108] used heuristic algorithms to propose an automatic evaluation method for ASCS. The principle is based on the consistency between the source code and its corresponding comments. The more similar the comments are, the higher is its quality. Obviously, this method relies on the quality of the dataset. Steidl et al. [1] analyzed the quality of source code summarization from four aspects of consistency, validity, completeness, and relevance. Sun et al. [110] proposed a method for automatically evaluating the quality of code summarization. It not only gives advice to improve the quality of code summarization, but also enhances the accuracy of summarization. However, this method can analyze fewer types of comments, and it is dependent on the vocabularies and comments of source code, ignoring the semantics.
Rencenly, CodeBLUE [113], a code summarization evaluation mechanism, provided three benchmark models including CodeBERT, CodeGPT, and encoder-decoder. Among them, the CodeBERT model was used for code understanding [25], and was the first known large scale Natural Language-Programming Language (NL-PL) pre-training model. In the task of Code-Text, CodeBERT had pre-trained the six programming languages of CodeSearchNet [101], and plenty of experiments proved that the CodeBERT model is highly effective in both code search and ASCS tasks.

5.3. Human Evaluation

Human evaluation generally selects experienced developers or people to join the project. It mainly measures the accuracy, fluency, and effectiveness of the code summarization. Among them, the accuracy measures the expression degree of code summarization for source code feature information. The fluency measures whether the code summarization is grammatical and understandable. The effectiveness measures the usefulness and necessity of code summarization. Usually, the researchers rate comments on a scale between 1 and 5, and the higher the score, the higher the accuracy of the comments.
Obviously, human evaluation has high accuracy, and it avoids the complicated design of the evaluation algorithm. However, drawbacks exist. On one hand, it is not suitable for enormous quantities of code summarization evaluation work, because human evaluation is completed by many experienced developers, which is costly and ineffective. On the other hand, it is easy to have deviations occur, caused by personal factorssuch as high pressure, fatigue, and inexperience.

6. Discussion and Conclusions

ASCS is a hot research topic at present. In this paper, we conducted an in-depth analysis of ASCS: (1) We outlined the core of the paper, which consists of the current challenges, and systematized the ASCS based on three dimensions: source code analysis, code summarization generation algorithms, and the evaluation methodologies used to evaluate them. (2) We discussed the advantages and limitations of different algorithms, their implementation, and their evaluation. (3) We summarized the effective evaluation mechanism of ASCS (automatic evaluation mechanism and human evaluation), and analyzed the recent evaluation methods. Thus, it can help scholars to choose reasonable assessment criteria for source code summarization, creating universal validation datasets that are open for future research on summarization performance.
Furthermore, although scholars have achieved a series of high-quality research results on ASCS, there are still many possible future research directions that deserve further attention:
  • The current research is almost generative or search-based, but combining the two to generate code summaries is a promising research direction;
  • Large-scale language training model will be an inevitable requirement with the increasing daily data. In view of the complex structure and semantic information of source code, it will be a meaningful research direction to combine the graph neural network to represent source code in large-scale language training model;
  • The CPG [114] is a good multi-feature integrated extraction tool. However, the existing works can only be applied in C/C++. In the future works, we can use it for many other programming languages;
  • The challenges concluded in the paper are urgent issues to be solved in ASCS. If they were to be solved, it would greatly enhance the recognition and research significance.

Author Contributions

Conceptualization, C.Z. and J.W.; investigation and methodology analysis, C.Z.; original draft preparation, C.Z.; review and editing, C.Z., Q.Z., T.X. and K.T.; supervision, H.G. and F.L.; project administration and funding acquisition, F.L. All authors have read and agreed to the published version of the manuscript.

Funding

The work was partially supported by the Foundation of National Natural Science Foundation of China (No. 61802435, No. 61472447).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Junchao Wang for his suggestions and guidance on the paper. We thank the associate editor and the reviewers for their useful feedback that improved this paper. This paper is supported the Foundation of National Natural Science Foundation of China (NSFC) under grant No. 61802435 and No. 61472447.

Conflicts of Interest

The authors declare no conflict of interest.
