#
Integro-Differential Equation for the Non-Equilibrium Thermal Response of Glass-Forming Materials: Analytical Solutions^{ †}

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Applicability of the Heat Equation with Dynamic Heat Capacity

## 3. Heat Equation with Dynamic Heat Capacity

## 4. Heat Equation with Dynamic Heat Capacity: Plane Geometry

**Example**

**1.**

^{3}, $\rho {c}_{0}=$ 2 × 10

^{6}J/m

^{3}K, $\lambda =$ 0.3 W/mK, ${D}_{0}=$ 1.5 × 10

^{−7}m

^{2}/s, and ${\Phi}_{0}=\rho {h}_{0}$, where ${h}_{0}=$ 200 J/g is the heat release during crystallization. We focused on the nanometer and nanosecond scales since they are close to real processes during subcritical crystal nucleation [59,60,61]. First, we verified that Equation (21) gave the correct solution $T\left(t,x\right)$ for a rectangular pulsed heat source. Indeed, the solutions ${\stackrel{\u02d8}{T}}_{p}\left(t,x\right)$ and ${T}_{p}\left(t,x\right)$ represented by Equations (23) and (25) coincided with the results $\stackrel{\u02d8}{T}\left(t,x\right)$ and $T\left(t,x\right)$ calculated using the Fourier series (see Equation (21)) for $m$ up to 45 (see Figure 1b). In addition, Figure 1b shows that the effect of the temporal dispersion of the dynamic heat capacity on the temperature was significant.

## 5. Heat Equation with Dynamic Heat Capacity: Spherical Geometry

**Example**

**2.**

^{−7}m

^{2}/s (see Figure 4). Note, in the case of glass-forming substances, the relaxation times ${\tau}_{0}$ have a broad distribution. Next, we considered the influence of this distribution on the solution $T\left(t,r\right)$ for the spherically symmetric problem.

## 6. Dependence of the Solution $T\left(t,r\right)$ on the Distribution of Relaxation Times ${\tau}_{0}$

**Example**

**3.**

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

Latin Symbols | |

${c}_{dyn}\left(t\right)$ | dynamic heat capacity (J·kg^{−1}·K^{−1}) |

${c}_{in}$ | initial part of ${c}_{dyn}\left(t\right)$ (J·kg^{−1}·K^{−1}) |

${c}_{0}$ | equilibrium heat capacity (J·kg^{−1}·K^{−1}) |

${D}_{0}$ | thermal diffusivity ${D}_{0}=\lambda /\rho {c}_{0}$ (m^{2}·s^{−1}) |

$d$ | sample thickness (m) |

$F\left(t\right)$ | heat flux time dependence (dimensionless) |

$H\left({\tau}_{0}\right)$ | distribution function (s^{−1}) |

${h}_{0}$ | heat release (J·kg^{−1}) |

${l}_{ph}$ | phonon mean-free-path (m) |

$r,x$ | space variables (m) |

$R$ | radius of spherical sample (m) |

${r}_{0}$ | radius of spherical heat source (m) |

$t$ | time (s) |

$T\left(t,x\right)$ | solution to non-equilibrium heat equation (K) |

$\stackrel{\u02d8}{T}\left(t,x\right)$ | solution to conventional heat equation (K) |

$\delta T\left(t,x\right)$ | non-equilibrium component of the solution $T\left(t,x\right)$ (K) |

${x}_{0}$ | thickness of the flat heat source (m) |

Greek Symbols | |

$\beta $ | Kohlrausch coefficient (dimensionless) |

${\gamma}_{n}$ | nth relaxation parameter (s^{−1}) |

${\epsilon}_{0}$ | $\left({c}_{0}-{c}_{in}\right)/{c}_{0}$ (dimensionless) |

$\theta \left(t\right)$ | Heaviside unit step function (dimensionless) |

$\lambda $ | thermal conductivity (W·K^{−1}·m^{−1}) |

${\mu}_{n}$ | nth relaxation parameter (s^{−1}) |

$\rho $ | density (kg·m^{−3}) |

${\tau}_{K}$ | Kohlrausch relaxation time (s) |

${\tau}_{n}$ | time constant of nth component (s) |

${\tau}_{0}$ | Debye relaxation time (s) |

${\tau}_{p}$ | duration of the heating pulse (s) |

$\Phi \left(\overrightarrow{r}\right)F\left(t\right)$ | volumetric heat flux (W·m^{−3}) |

$\Phi \left(\overrightarrow{r}\right)$ | heat flux space dependence (W·m^{−3}) |

$\frac{{\Phi}_{n}}{\rho {c}_{0}}$ | nth Fourier components (K/s) |

${\chi}_{n},{\phi}_{n}$ | nth Fourier components (K) |

${\psi}_{n,m}\left(t\right)$ | n,mth Fourier component (K) |

## Appendix A

## References

- Birge, N.O.; Nagel, S.R. Specific-heat spectroscopy of the glass transition. Phys. Rev. Lett.
**1985**, 54, 2674–2677. [Google Scholar] [CrossRef] [PubMed] - Herzfeld, K.F.; Litovitz, T.A. Absorption and Dispersion of Ultrasonic Waves; Academic Press Inc.: New York, NY, USA; London, UK, 1959. [Google Scholar]
- Korus, J.; Beiner, M.; Busse, K.; Kahle, S.; Unger, R.; Donth, E. Heat capacity spectroscopy at the glass transition in polymers. Thermochim. Acta
**1997**, 305, 99–110. [Google Scholar] [CrossRef] - Beiner, M.; Korus, J.; Lockwenz, H.; Schröter, K.; Donth, E. Heat Capacity Spectroscopy Compared to Other Linear Response Methods at the Dynamic Glass Transition in Poly(vinyl acetate). Macromolecules
**1996**, 29, 5183–5189. [Google Scholar] [CrossRef] - Huth, H.; Beiner, M.; Donth, E. Temperature dependence of glass-transition cooperativity from heat-capacity spectroscopy: Two post-Adam-Gibbs variants. Phys. Rev. B
**2000**, 61, 15092–15101. [Google Scholar] [CrossRef] - Donth, E.-J. The Glass Transition; Springer Science and Business Media LLC: New York, NY, USA, 2001. [Google Scholar]
- Schneider, K.; Donth, E. Unterschiedliche Meßsignale am Glasübergang amorpher Polymere. 1. Die Lage der charakteristischen Frequenzen quer zur Glasübergangszone. Acta Polym.
**1986**, 37, 333–335. [Google Scholar] [CrossRef] - Ediger, M.D.; Angell, C.A.; Nagel, S.R. Supercooled Liquids and Glasses. J. Phys. Chem.
**1996**, 100, 13200–13212. [Google Scholar] [CrossRef] - Gotze, W.; Sjogren, L.B. Relaxation processes in supercooled liquids. Rep. Prog. Phys.
**1992**, 55, 241–376. [Google Scholar] [CrossRef] - Hansen, C.; Stickel, F.; Berger, T.J.; Richert, R.; Fischer, E.W. Dynamics of glass-forming liquids. III. Comparing the dielectric α- and β-relaxation of 1-propanol and o-terphenyl. J. Chem. Phys.
**1997**, 107, 1086–1093. [Google Scholar] [CrossRef] - Berthier, L.; Biroli, G. Theoretical perspective on the glass transition and amorphous materials. Rev. Mod. Phys.
**2011**, 83, 587–645. [Google Scholar] [CrossRef] - Cangialosi, D. Dynamics and thermodynamics of polymer glasses. J. Phys. Condens. Matter
**2014**, 26, 153101. [Google Scholar] [CrossRef] - Angell, C.A.; Ngai, K.L.; McKenna, G.B.; McMillan, P.F.; Martin, S.W. Relaxation in glassforming liquids and amorphous solids. J. Appl. Phys.
**2000**, 88, 3113–3157. [Google Scholar] [CrossRef] [Green Version] - Smith, G.D.; Bedrov, D. Relationship between the α- and β-relaxation processes in amorphous polymers: Insight from atomistic molecular dynamics simulations of 1,4-polybutadiene melts and blends. J. Polym. Sci. Part B Polym. Phys.
**2007**, 45, 627–643. [Google Scholar] [CrossRef] - Bock, D.; Petzold, N.; Kahlau, R.; Gradmann, S.; Schmidtke, B.; Benoit, N.; Rössler, E. Dynamic heterogeneities in glass-forming systems. J. Non-Cryst. Solids
**2015**, 407, 88–97. [Google Scholar] [CrossRef] - Richert, R. Physical Aging and Heterogeneous Dynamics. Phys. Rev. Lett.
**2010**, 104. [Google Scholar] [CrossRef] [PubMed] - Saiter-Fourcin, A.; Delbreilh, L.; Couderc, H.; Arabeche, K.; Schönhals, A.; Saiter, J.-M. Temperature dependence of the characteristic length scale for glassy dynamics: Combination of dielectric and specific heat spectroscopy. Phys. Rev. E
**2010**, 81, 041805. [Google Scholar] [CrossRef] [PubMed] - Chua, Y.Z.; Young-Gonzales, A.R.; Richert, R.; Ediger, M.D.; Schick, C. Dynamics of supercooled liquid and plastic crystalline ethanol: Dielectric relaxation and AC nanocalorimetry distinguish structural α- and Debye relaxation processes. J. Chem. Phys.
**2017**, 147, 014502. [Google Scholar] [CrossRef] - Chua, Y.Z.; Schulz, G.; Shoifet, E.; Huth, H.; Zorn, R.; Scmelzer, J.W.P.; Schick, C. Glass transition cooperativity from broad band heat capacity spectroscopy. Colloid Polym. Sci.
**2014**, 292, 1893–1904. [Google Scholar] [CrossRef] - Chua, Y.Z.; Zorn, R.; Holderer, O.; Schmelzer, J.W.P.; Schick, C.; Donth, E. Temperature fluctuations and the thermodynamic determination of the cooperativity length in glass forming liquids. J. Chem. Phys.
**2017**, 146, 104501. [Google Scholar] [CrossRef] - Richert, R. Heterogeneous dynamics in liquids: Fluctuations in space and time. J. Phys. Condens. Matter
**2002**, 14, R703–R738. [Google Scholar] [CrossRef] - Larini, L.; Ottochian, A.; De Michele, C.; Leporini, D. Universal scaling between structural relaxation and vibrational dynamics in glass-forming liquids and polymers. Nat. Phys.
**2007**, 4, 42–45. [Google Scholar] [CrossRef] - Voudouris, P.; Gomopoulos, N.; Le Grand, A.; Hadjichristidis, N.; Floudas, G.; Ediger, M.D.; Fytas, G. Does Brillouin light scattering probe the primary glass transition process at temperatures well above glass transition? J. Chem. Phys.
**2010**, 132, 074906. [Google Scholar] [CrossRef] [PubMed] - Lubchenko, V.; Wolynes, P.G. Theory of Structural Glasses and Supercooled Liquids. Annu. Rev. Phys. Chem.
**2007**, 58, 235–266. [Google Scholar] [CrossRef] [Green Version] - Pipkin, A.C. Lectures on Viscoelasticity Theory; Springer: Berlin/Heidelberg, Germany, 1986; ISBN 978-1-4612-1078-8. Available online: https://www.springer.com/gp/book/9780387963457 (accessed on 2 February 2021).
- Ikeda, M.; Aniya, M. Bond Strength—Coordination Number Fluctuation Model of Viscosity: An Alternative Model for the Vogel-Fulcher-Tammann Equation and an Application to Bulk Metallic Glass Forming Liquids. Matererials
**2010**, 3, 5246–5262. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Minakov, A.; Schick, C. Non-equilibrium fast thermal response of polymers. Thermochim. Acta
**2018**, 660, 82–93. [Google Scholar] [CrossRef] - Minakov, A.; Schick, C. Nanometer scale thermal response of polymers to fast thermal perturbations. J. Chem. Phys.
**2018**, 149, 074503. [Google Scholar] [CrossRef] - Minakov, A.; Schick, C. Nanoscale Heat Conduction in CNT-POLYMER Nanocomposites at Fast Thermal Perturbations. Molecules
**2019**, 24, 2794. [Google Scholar] [CrossRef] [Green Version] - Noeiaghdam, S.; Sidorov, D.; Muftahov, I.R.; Zhukov, A.V. Control of Accuracy on Taylor-Collocation Method for Load Leveling Problem. Bull. Irkutsk. State Univ. Ser. Math.
**2019**, 30, 59–72. [Google Scholar] [CrossRef] - Sidorov, D.; Muftahov, I.; Tomin, N.; Karamov, D.N.; Panasetsky, D.A.; Dreglea, A.; Liu, F.; Foley, A. A Dynamic Analysis of Energy Storage With Renewable and Diesel Generation Using Volterra Equations. IEEE Trans. Ind. Inform.
**2020**, 16, 3451–3459. [Google Scholar] [CrossRef] [Green Version] - Noeiaghdam, S.; Dreglea, A.; He, J.-H.; Avazzadeh, Z.; Suleman, M.; Araghi, M.A.F.; Sidorov, D.; Sidorov, N.A. Error Estimation of the Homotopy Perturbation Method to Solve Second Kind Volterra Integral Equations with Piecewise Smooth Kernels: Application of the CADNA Library. Symmetry
**2020**, 12, 1730. [Google Scholar] [CrossRef] - Wang, Y.; Ezz-Eldien, S.; Aldraiweesh, A.A. A new algorithm for the solution of nonlinear two-dimensional Volterra integro-differential equations of high-order. J. Comput. Appl. Math.
**2020**, 364, 112301. [Google Scholar] [CrossRef] - Noeiaghdam, S. Numerical solution of N-th order fredholm integro-differential equations by integral mean value theorem method. Int. J. Pure Appl. Math.
**2015**, 99. [Google Scholar] [CrossRef] [Green Version] - Miller, R.K. An integrodifferential equation for rigid heat conductors with memory. J. Math. Anal. Appl.
**1978**, 66, 313–332. [Google Scholar] [CrossRef] [Green Version] - Tolstov, G.P. Fourier Series; Dover Publications, Inc.: New York, NY, USA, 1962. [Google Scholar]
- Koh, Y.K.; Cahill, D.G.; Sun, B. Nonlocal theory for heat transport at high frequencies. Phys. Rev. B
**2014**, 90, 205412. [Google Scholar] [CrossRef] - Wingert, M.C.; Zheng, J.; Kwon, S.; Chen, R. Thermal transport in amorphous materials: A review. Semicond. Sci. Technol.
**2016**, 31, 113003. [Google Scholar] [CrossRef] - Feng, T.; Ruan, X. Prediction of Spectral Phonon Mean Free Path and Thermal Conductivity with Applications to Thermoelectrics and Thermal Management: A Review. J. Nanomater.
**2014**, 2014, 1–25. [Google Scholar] [CrossRef] - Stoner, R.J.; Maris, H.J. Kinetic formula for estimating resistive phonon lifetimes. Phys. Rev. B
**1993**, 47, 11826–11829. [Google Scholar] [CrossRef] - He, Y.; Donadio, D.; Galli, G. Heat transport in amorphous silicon: Interplay between morphology and disorder. Appl. Phys. Lett.
**2011**, 98, 144101. [Google Scholar] [CrossRef] - Zeller, R.C.; Pohl, R.O. Thermal Conductivity and Specific Heat of Noncrystalline Solids. Phys. Rev. B
**1971**, 4, 2029–2041. [Google Scholar] [CrossRef] - Choy, C.L.; Tong, K.W.; Wong, H.K.; Leung, W.P. Thermal conductivity of amorphous alloys above room temperature. J. Appl. Phys.
**1991**, 70, 4919–4925. [Google Scholar] [CrossRef] - Sørensen, S.S.; Johra, H.; Mauro, J.C.; Bauchy, M.; Smedskjaer, M.M. Boron anomaly in the thermal conductivity of lithium borate glasses. Phys. Rev. Mater.
**2019**, 3, 075601. [Google Scholar] [CrossRef] - Sørensen, S.S.; Pedersen, E.J.; Paulsen, F.K.; Adamsen, I.H.; Laursen, J.L.; Christensen, S.; Johra, H.; Jensen, L.R.; Smedskjaer, M.M. Heat conduction in oxide glasses: Balancing diffusons and propagons by network rigidity. Appl. Phys. Lett.
**2020**, 117, 031901. [Google Scholar] [CrossRef] - Choy, C. Thermal conductivity of polymers. Polymer
**1977**, 18, 984–1004. [Google Scholar] [CrossRef] - Hartwig, G. Polymer Properties at Room and Cryogenic Temperatures; Springer Nature: Berlin/Heidelberg, Germany, 1994. [Google Scholar]
- Landau, L.D.; Lifshitz, E.M. Course of Theoretical Physics 5: Statistical Physics Part 1, 3rd ed.; Pergamon Press: Oxford, UK, 1980. [Google Scholar]
- Landau, L.D.; Lifshitz, E.M. Course of Theoretical Physics 8: Electrodynamics of Continuous Media, 2nd ed.; Butterworth-Heinemann: Oxford, UK, 2000. [Google Scholar]
- Johnston, D.C. Stretched exponential relaxation arising from a continuous sum of exponential decays. Phys. Rev. B
**2006**, 74, 184430. [Google Scholar] [CrossRef] [Green Version] - Berberan-Santos, M.; Bodunov, E.; Valeur, B. Mathematical functions for the analysis of luminescence decays with underlying distributions 1. Kohlrausch decay function (stretched exponential). Chem. Phys.
**2005**, 315, 171–182. [Google Scholar] [CrossRef] - Anderssen, R.S.; Loy, R.J. Completely monotone fading memory relaxation modulii. Bull. Aust. Math. Soc.
**2002**, 65, 449–460. [Google Scholar] [CrossRef] [Green Version] - Schilling, R.L.; Song, R.; Vondraček, Z. Bernstein Functions: Theory and Applications; Hubert: Berlin, Germany, 2010; ISBN 978-3-11-021530-4. [Google Scholar]
- Gupta, P.K.; Moynihan, C.T. Prigogine–Defay ratio for systems with more than one order parameter. J. Chem. Phys.
**1976**, 65, 4136–4140. [Google Scholar] [CrossRef] - Tournier, R.F. Formation temperature of ultra-stable glasses and application to ethylbenzene. Chem. Phys. Lett.
**2015**, 641, 9–13. [Google Scholar] [CrossRef] - You, K.; Yan, G.; Luo, X.; Gilchrist, M.D.; Fang, F. Advances in laser assisted machining of hard and brittle materials. J. Manuf. Process.
**2020**, 58, 677–692. [Google Scholar] [CrossRef] - Sahin, A.Z.; Yilbas, B.; Akhtar, S.S. Laser Surface Treatment and Efficiency Analysis. Compr. Mater. Process.
**2014**, 9, 307–316. [Google Scholar] [CrossRef] - Dreglea, A.I.; Sidorov, N.A. Integral equations in identification of external force and heat source density dynamics, Buletinul Academiei de Stiinte a Republicii Moldova. Matematica
**2018**, 88, 68–77. Available online: http://www.math.md/files/basm/y2018-n3/y2018-n3-(pp68-77).pdf (accessed on 2 February 2021). - Luo, C.; Sommer, J.-U. Frozen topology: Entanglements control nucleation and crystallization in polymers. Phys. Rev. Lett.
**2014**, 112, 195702. [Google Scholar] [CrossRef] [PubMed] - Wyslouzil, B.E.; Seinfeld, J.H. Nonisothermal homogeneous nucleation. J. Chem. Phys.
**1992**, 97, 2661–2670. [Google Scholar] [CrossRef] [Green Version] - Mahata, A.; Zaeem, M.A.; Baskes, M.I. Understanding homogeneous nucleation in solidification of aluminum by molecular dynamics simulations. Model. Simul. Mater. Sci. Eng.
**2018**, 26, 025007. [Google Scholar] [CrossRef] - Vladimirov, V.S. A Collection of Problems on the Equations of Mathematical Physics; Springer: Berlin/Heidelberg, Germany, 1986; Available online: https://www.springer.com/gp/book/9783662055601 (accessed on 2 February 2021).
- Polyanin, A.D.; Manzhirov, A.V. Handbook of mathematics for engineers and scientists; Chapman & Hall/CRC: Boca Raton, FL, USA; London, UK, 2007. [Google Scholar]
- Korn, G.A.; Korn, T.M. Mathematical Handbook for Scientists and Engineers, 2nd ed; Dover Publications, Inc.: Mineola, NY, USA, 2000. [Google Scholar]

**Figure 1.**(

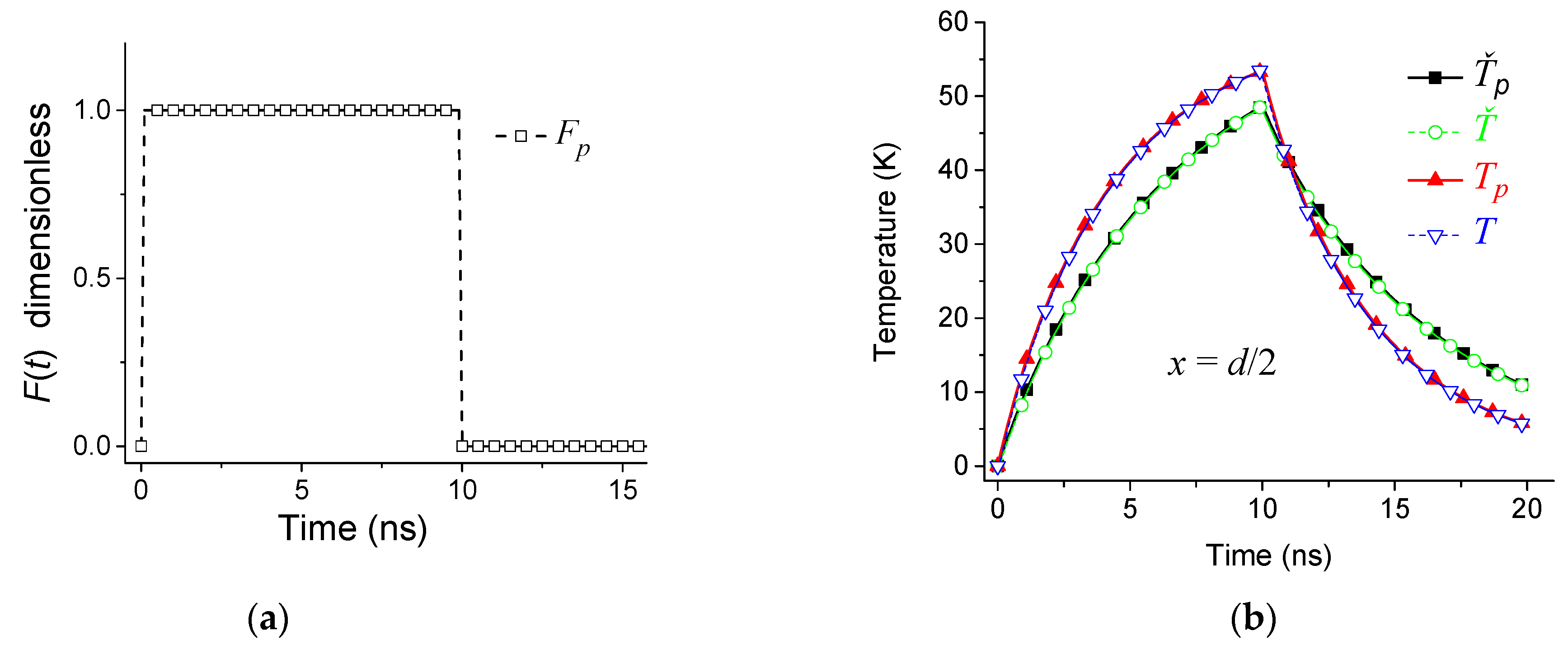

**a**) Rectangular heating pulse ${F}_{p}\left(t\right)$ with duration ${\tau}_{p}=$ 10 ns. (

**b**) Time dependences ${\stackrel{\u02d8}{T}}_{p}\left(t,\frac{d}{2}\right)$ and $\stackrel{\u02d8}{T}\left(t,\frac{d}{2}\right)$ (shown using squares and circles), as well as ${T}_{p}\left(t,\frac{d}{2}\right)$ and $T\left(t,\frac{d}{2}\right)$ for ${\epsilon}_{0}=1/3$ and ${\tau}_{0}=$ 30 ns (shown using up and down triangles).

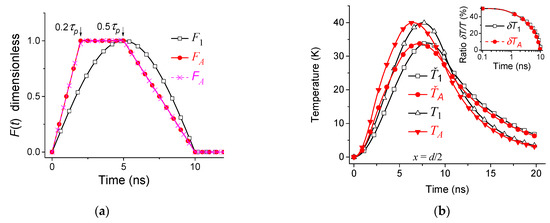

**Figure 2.**(

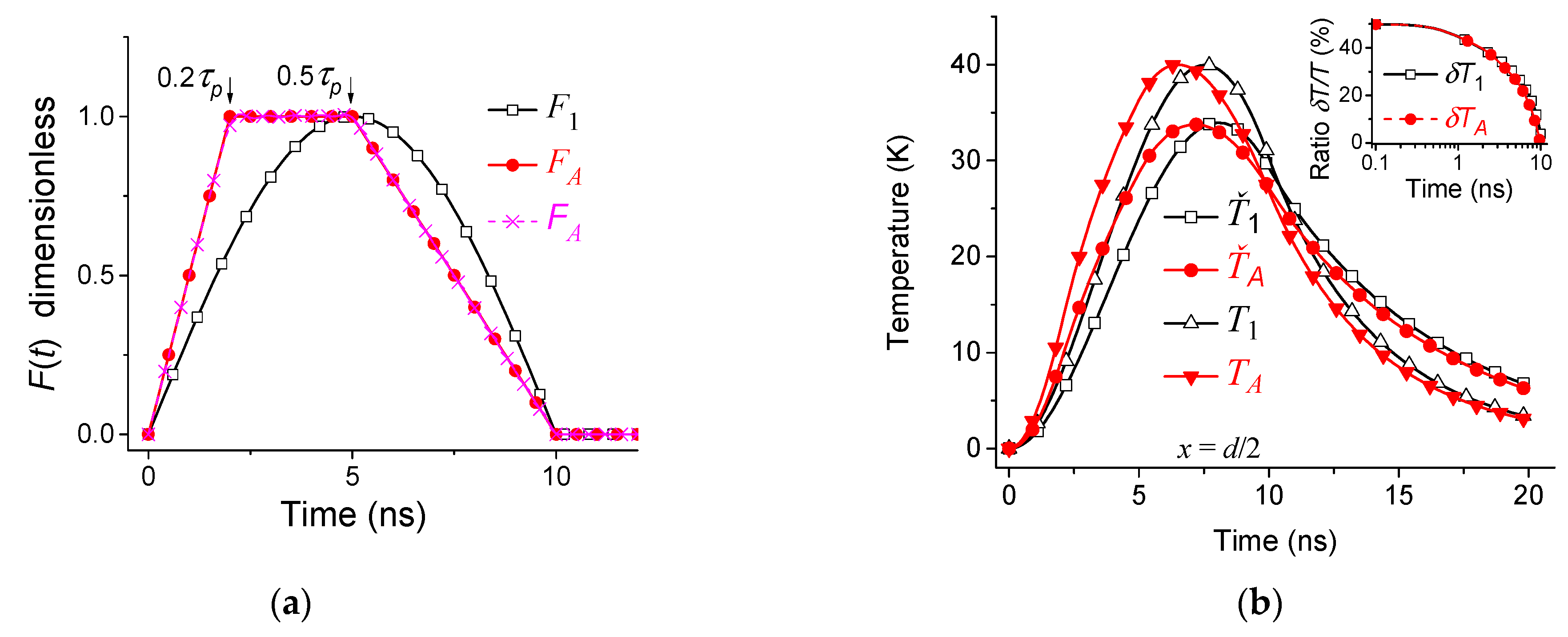

**a**) Heating pulses ${F}_{1}\left(t\right)$, ${F}_{A}\left(t\right)$, and ${\mathit{\mathcal{F}}}_{A}\left(t\right)$ (shown using squares, circles, and crosses, respectively). (

**b**) Time dependences of ${\stackrel{\u02d8}{T}}_{1}\left(t,\frac{d}{2}\right)$ and ${\stackrel{\u02d8}{T}}_{A}\left(t,\frac{d}{2}\right)$ (shown using squares and circles), as well as ${T}_{1}\left(t,\frac{d}{2}\right)$ and ${T}_{A}\left(t,\frac{d}{2}\right)$ for ${\epsilon}_{0}=1/3$ and ${\tau}_{0}=$ 30 ns (shown using up triangles and down triangles). The inset shows the ratios $\delta {T}_{1}$ and $\delta {T}_{A}$ (shown using squares and circles).

**Figure 3.**(

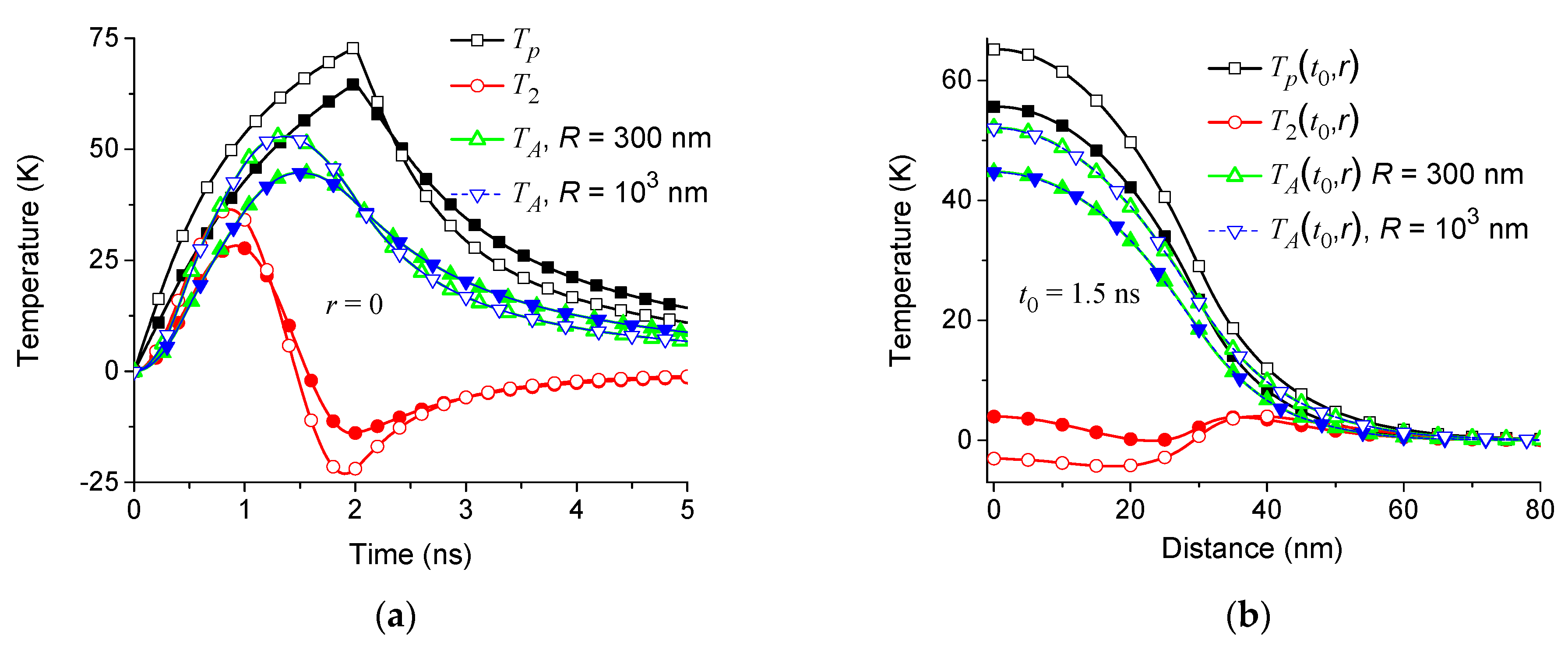

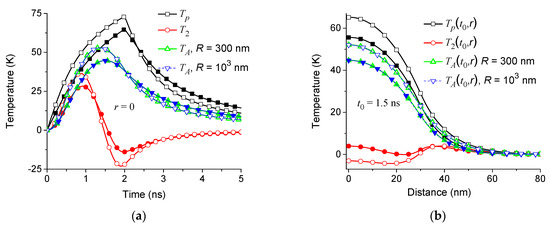

**a**) Time dependences of ${\stackrel{\u02d8}{T}}_{p}\left(t,0\right)$, ${\stackrel{\u02d8}{T}}_{2}\left(t,0\right)$, and ${\tilde{T}}_{A}\left(t,0\right)$ (shown using filled squares, circles, and up triangles, respectively), as well as ${T}_{p}\left(t,0\right)$, ${T}_{2}\left(t,0\right)$, and ${T}_{A}\left(t,0\right)$ for ${\epsilon}_{0}=1/3$ and ${\tau}_{0}=$ 5 ns (shown using open squares, circles, and up triangles, respectively) and (

**b**) the corresponding spatial temperature distributions at ${t}_{0}$ = 1.5 ns and $R$ = 300 nm. Similar dependences for ${\stackrel{\u02d8}{T}}_{A}$ and ${T}_{A}$ were calculated at $R$ = 1000 nm (shown using down triangles).

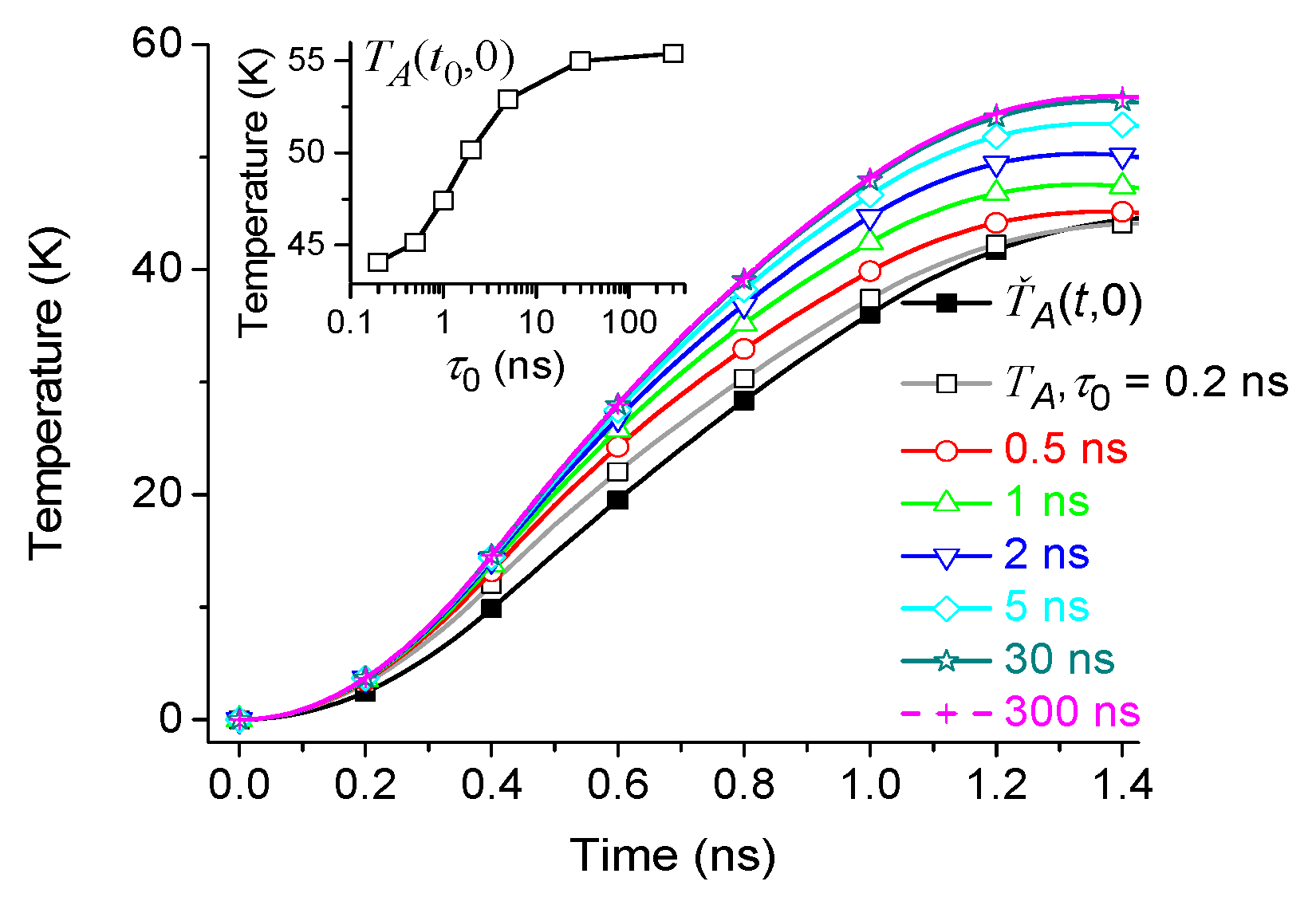

**Figure 4.**Time dependences of ${T}_{A}\left(t,0\right)$ at ${\tau}_{0}=$ 0.2 ns, 0.5 ns, 1 ns, 2 ns, 5 ns, 30 ns, and 300 ns (shown using squares, circles, up triangles, down triangles, diamonds, stars, and crosses, respectively), as well as ${\stackrel{\u02d8}{T}}_{A}\left(t,0\right)$ (shown using filled squares). The inset shows ${T}_{A}\left({t}_{0},0\right)$ as a function of ${\tau}_{0}$ at ${t}_{0}$ = 1.4 ns.

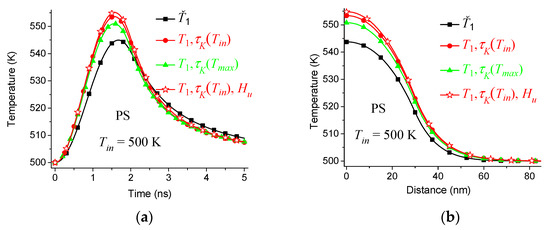

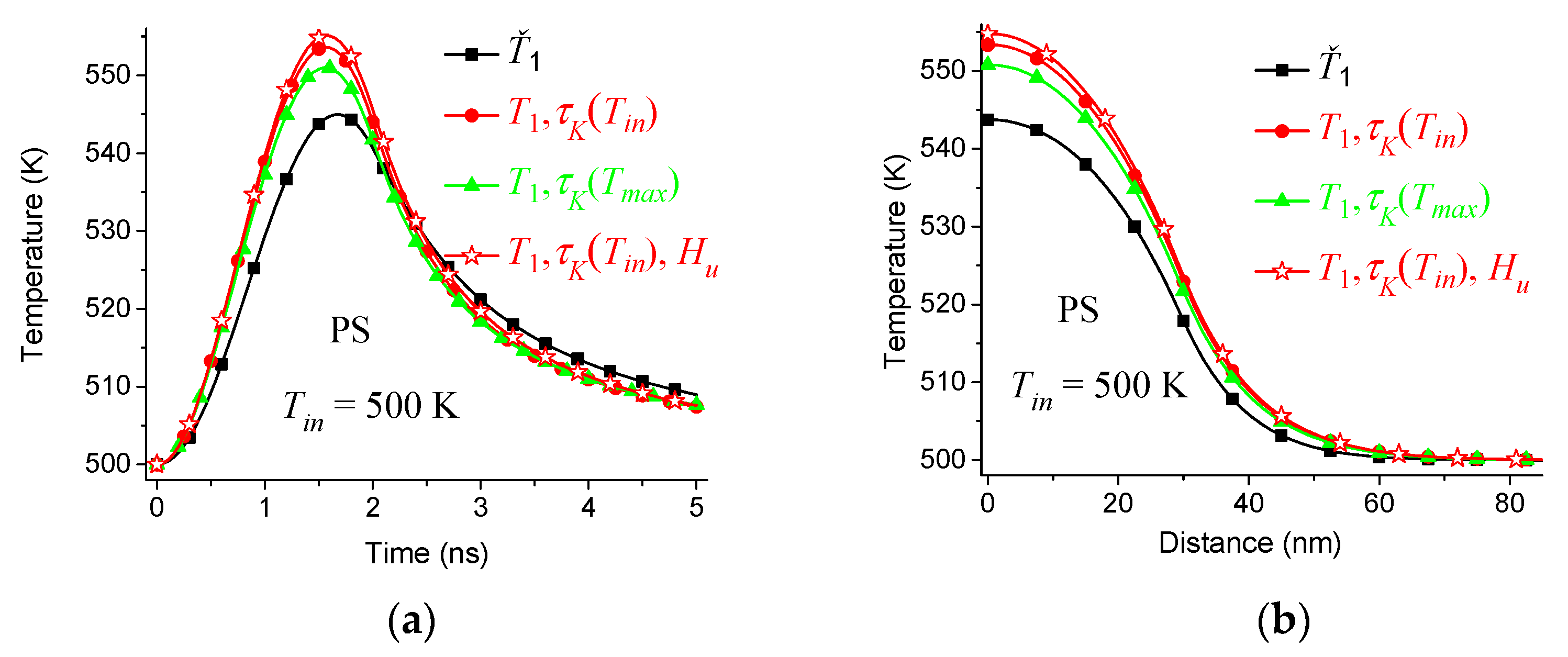

**Figure 5.**(

**a**) Time dependences of ${\stackrel{\u02d8}{T}}_{1}\left(t,0\right)$, ${T}_{1}\left(t,0,{\tau}_{K}\left({T}_{in}\right)\right)$, and ${T}_{1}\left(t,0,{\tau}_{K}\left({T}_{max}\right)\right)$ (shown using squares, circles, and triangles, respectively) (

**b**) and corresponding spatial temperature distributions at ${t}_{0}$ = 1.5 ns for PS at ${T}_{in}=$ 500 K and a sinusoidal heat source ${F}_{1}\left(t\right)$. Similar dependences were found for ${T}_{1}\left(t,r,{\tau}_{K}\left({T}_{in}\right)\right)$ (shown using stars), which were calculated using the uniform distribution ${H}_{u}\left({\tau}_{0}\right)$. PS: polystyrene.

**Figure 6.**(

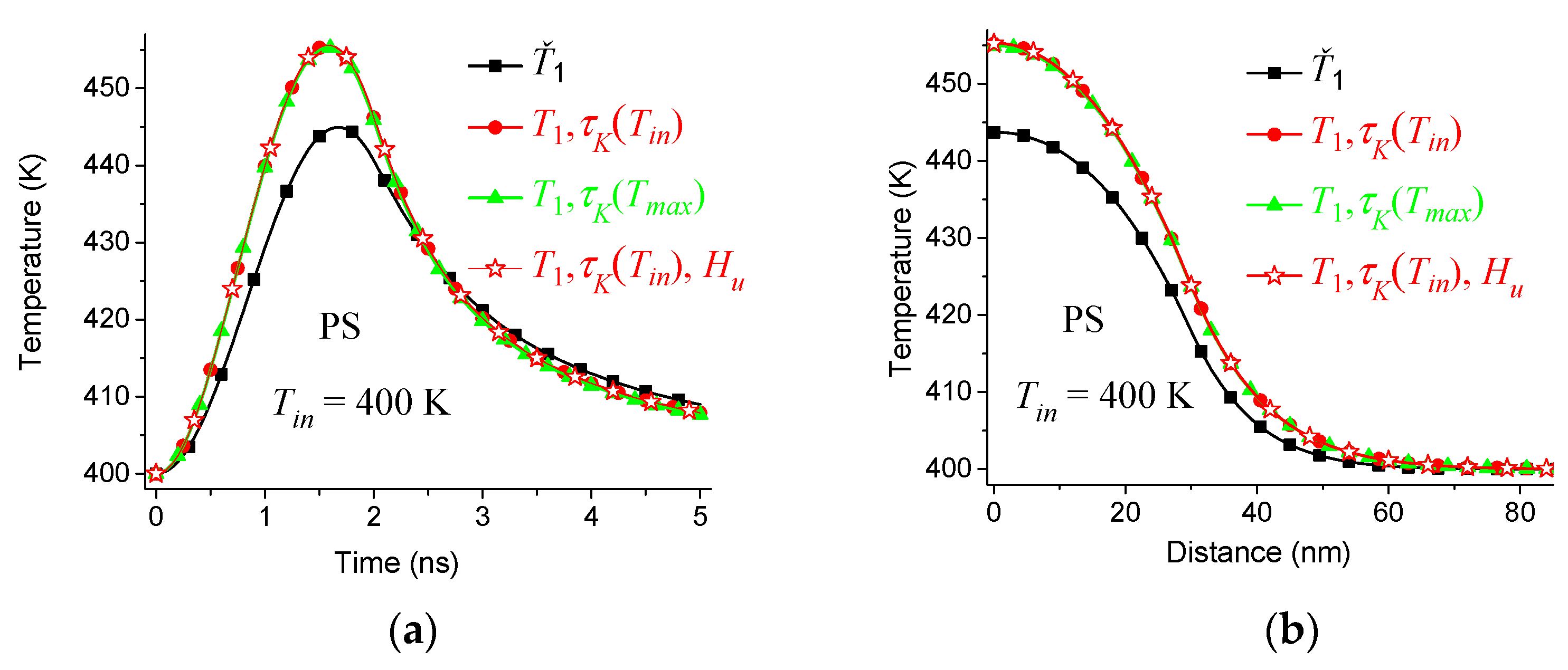

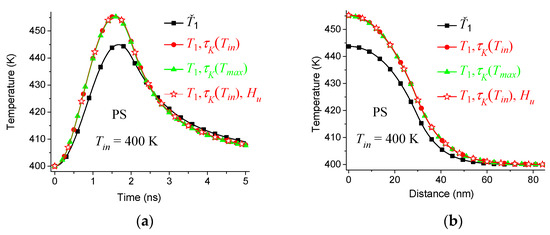

**a**) Time dependences of ${\stackrel{\u02d8}{T}}_{1}\left(t,0\right)$, ${T}_{1}\left(t,0,{\tau}_{K}\left({T}_{in}\right)\right)$, and ${T}_{1}\left(t,0,{\tau}_{K}\left({T}_{max}\right)\right)$ (shown using squares, circles, and triangles, respectively) and (

**b**) the corresponding spatial temperature distributions at ${t}_{0}$ = 1.5 ns for PS at ${T}_{in}=$ 400 K and a sinusoidal heat source ${F}_{1}\left(t\right)$. Similar dependences were found for ${T}_{1}\left(t,r,{\tau}_{K}\left({T}_{in}\right)\right)$ (shown using stars), which were calculated using the uniform distribution ${H}_{u}\left({\tau}_{0}\right)$.

**Figure 7.**(

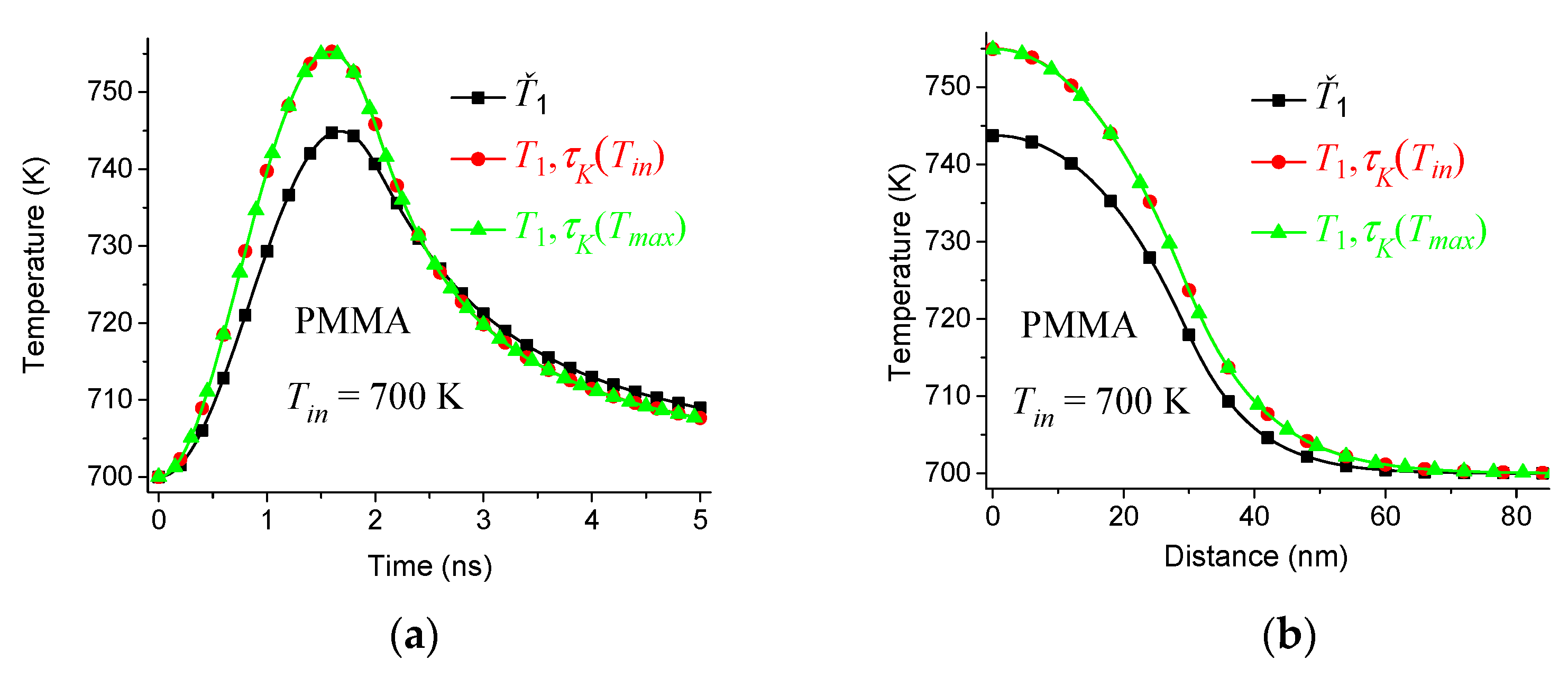

**a**) Time dependences of ${\stackrel{\u02d8}{T}}_{1}\left(t,0\right)$, ${T}_{1}\left(t,0,{\tau}_{K}\left({T}_{in}\right)\right)$, and ${T}_{1}\left(t,0,{\tau}_{K}\left({T}_{max}\right)\right)$ (shown using squares, circles, and triangles, respectively) and (

**b**) the corresponding spatial temperature distributions at ${t}_{0}$ = 1.5 ns for PMMA at ${T}_{in}=$ 700 K and a sinusoidal heat source ${F}_{1}\left(t\right)$. PMMA: poly(methyl methacrylate).

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Minakov, A.A.; Schick, C.
Integro-Differential Equation for the Non-Equilibrium Thermal Response of Glass-Forming Materials: Analytical Solutions. *Symmetry* **2021**, *13*, 256.
https://doi.org/10.3390/sym13020256

**AMA Style**

Minakov AA, Schick C.
Integro-Differential Equation for the Non-Equilibrium Thermal Response of Glass-Forming Materials: Analytical Solutions. *Symmetry*. 2021; 13(2):256.
https://doi.org/10.3390/sym13020256

**Chicago/Turabian Style**

Minakov, Alexander A., and Christoph Schick.
2021. "Integro-Differential Equation for the Non-Equilibrium Thermal Response of Glass-Forming Materials: Analytical Solutions" *Symmetry* 13, no. 2: 256.
https://doi.org/10.3390/sym13020256
