# Comparison of the Optical Planar Waveguide Sensors’ Characteristics Based on Guided-Mode Resonance

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

^{−8}is so far the highest value reported for any SPR-based sensor [14]. The variety of fiber sensors is much higher than that based on planar waveguides, but their fabrication is much more complicated, as evidenced by the overwhelming number of theoretical works using numerical methods.

## 2. Spectral and Angular Sensors’ Sensitivities and Their Relationship with Planar Waveguide Parameters

^{−1}for our waveguide parameters, which consist of the grating, the substrate and the tested medium. The difference between the right and left sides of Equations (1) and (3) is less than 0.001 µm

^{−1}. The less the modulation of the grating refractive index, the smaller the difference between the right and left sides of Equation (4) [4]. Discrete propagation constants in the planar dielectric waveguides can be determined by the method described in [34], as well as by the numerical method in the frequency domain, which provides precision calculation accuracy [41,42]. All calculations for three structures shown in Figure 1 were carried out for the resonance wavelength of 1.064 µm.

#### 2.1. Relationship Between the Parameters of the Sensor Based on the Prism Structure and the Properties of the Planar Waveguide Dielectric/Thin Metal Film/Dielectric

#### 2.2. Sensitivity of the Sensor Based on the Metal Grating under Resonant Excitation of the Surface Plasmon–Polariton Wave

#### 2.3. Sensitivity of the Sensor Based on the Dielectric Grating under Resonant Excitation of the Localized Waveguide Mode

#### 2.4. Comparison of the Properties of Sensors based on Planar Waveguides

## 3. Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Xu, Y.; Bai, P.; Zhou, X.; Akimov, Y.; Png, C.E.; Ang, L.K.; Knoll, W.; Wu, L. Optical Refractive Index Sensors with Plasmonic and Photonic Structures: Promising and Inconvenient Truth. Adv. Opt. Mater.
**2019**, 7, 1801433. [Google Scholar] [CrossRef] - Quaranta, G.; Basset, G.O.; Martin, J.F.; Gallinet, B. Recent Advances in Resonant Waveguide Gratings. Laser Photonics Rev.
**2018**, 12, 1800017. [Google Scholar] [CrossRef] - Homola, J. Surface plasmon resonance sensors for detection of chemical and biological species. Chem. Rev.
**2008**, 108, 462–493. [Google Scholar] [CrossRef] [PubMed] - Wang, S.S.; Magnusson, R. Theory and applications of guided-mode resonance filters. Appl. Opt.
**1993**, 32, 2606–2613. [Google Scholar] [CrossRef] [PubMed] - Kretschmann, E.; Raether, H. Radiative decay of non radiative surface plasmons excited by light. Z. Naturforsch. A
**1968**, 23, 2135–2136. [Google Scholar] [CrossRef] - Otto, A. Excitation of nonradiative surface plasma waves in silver by the method of frustrated total reflection. Z. Phys. A
**1968**, 216, 398–410. [Google Scholar] [CrossRef] - Puiu, M.; Bala, C. SPR and SPR imaging: Recent trends in developing nanodevices for detection and real-time monitoring of biomolecular events. Sensors
**2016**, 16, 870. [Google Scholar] [CrossRef] [PubMed] - Yoon, K.H.; Shuler, M.L.; Kim, S.J. Design optimization of nano-grating surface plasmon resonance sensors. Opt. Express
**2006**, 14, 4842–4849. [Google Scholar] [CrossRef] [PubMed] - Fitio, V.M.; Bobitski, Y.V. Resonance effects in a dielectric grating; total absorption of electromagnetic waves by dielectric grating on T. metal system. J. Opt. A Pure Appl. Opt.
**2004**, 6, 943–951. [Google Scholar] [CrossRef] - Klantsataya, E.; Jia, P.; Ebendorff-Heidepriem, H.; Monro, T.M.; François, A. Plasmonic Fiber Optic Refractometric Sensors: From Conventional Architectures to Recent Design Trends. Sensors
**2017**, 17, 12. [Google Scholar] [CrossRef] [Green Version] - Slavík, R.; Homola, J.; Čtyroký, J.; Brynda, E. Novel spectral fiber optic sensor based on surface plasmon resonance. Sens. Actuators B Chem.
**2001**, 74, 106–111. [Google Scholar] [CrossRef] - Schuster, T.; Herschel, R.; Neumann, N.; Schaffer, C.G. Miniaturized Long-Period Fiber Grating Assisted Surface Plasmon Resonance Sensor. J. Lightwave Technol.
**2012**, 30, 1003–1008. [Google Scholar] [CrossRef] - Santos, D.F.; Guerreiro, A.; Baptista, J.M. Surface plasmon resonance sensor based on D-type fiber with a gold wire. Optik
**2017**, 139, 244–249. [Google Scholar] [CrossRef] - Slavìk, R.; Homola, J. Ultrahigh resolution long range surface plasmon-based sensor. Sens. Actuators B Chem.
**2007**, 123, 10–12. [Google Scholar] [CrossRef] - Destouches, N.; Pommier, J.C.; Parriaux, O.; Clausnitzer, T.; Lyndin, N.; Tonchev, S. Narrov band resonant grating of 100% reflection under normal incedente. Opt. Express
**2006**, 14, 12613–12622. [Google Scholar] [CrossRef] [Green Version] - Anderson, B.B.; Brodsky, A.M.; Burgess, L.W. Threshold effects in light scattering from a binary diffraction grating. Phys. Rev. E
**1996**, 54, 912–923. [Google Scholar] [CrossRef] - Rosenblatt, D.; Sharon, A.; Friesem, A.A. Resonant Grating Waveguide Structures. IEEE J. Quantum Electron.
**1997**, 33, 2038–2059. [Google Scholar] [CrossRef] - Awazu, K.; Rockstuhl, C.; Fujimaki, M.; Fukuda, N.; Tominaga, J.; Komatsubara, T.; Ikeda, T.; Ohki, Y. High sensitivity sensor made of perforated waveguides. Opt. Express
**2007**, 15, 2592–2597. [Google Scholar] [CrossRef] [Green Version] - Fitio, V.; Yaremchuk, I.; Bobitski, Y. Optical excitation of surface plasmon polariton and waveguide modes resonances on prismatic structures. Opt. Appl.
**2011**, 4, 929–939. [Google Scholar] - Ran, B.; Lipson, S.G. Comparison between sensitive of phase and intensity detection in surface plasmon resonance. Opt. Express
**2006**, 14, 5641–5650. [Google Scholar] [CrossRef] - Ayushi, P.; Tomar, M.; Gupta, V. Refractive index sensor using long-range surface plasmon resonance with prism coupler. Plasmonics
**2019**, 14, 375–381. [Google Scholar] - Arora, P.; Talker, E.; Mazurski, N.; Levy, U. Dispersion engineering with plasmonic nano structures for enhanced surface plasmon resonance sensing. Sci. Rep.
**2018**, 8, 1–9. [Google Scholar] - Zeng, Y.; Hu, R.; Wang, L.; Gu, D.; He, J.; Wu, S.Y.; Ho, H.P.; Li, X.; Qu, J.; Gao, B.Z.; et al. Recent advances in surface plasmon resonance imaging: Detection speed, sensitivity, and portability. Nanophotonics
**2017**, 6, 1017–1030. [Google Scholar] [CrossRef] - Adam, P.; Dostálek, J.; Homola, J. Multiple surface plasmon spectroscopy for study of biomolecular systems. Sens. Actuators B Chem.
**2006**, 113, 774–781. [Google Scholar] [CrossRef] - Monteiro, J.P.; Ferreira, J.; Sabat, R.G.; Rochon, P.; Santos, M.J.L.; Girotto, E.M. SPR based biosensor using surface relief grating in transmission mode. Sens. Actuators B Chem.
**2012**, 174, 270–273. [Google Scholar] [CrossRef] - Vukusic, P.S.; Bryan-Brown, G.P.; Sambles, J.R. Surface plasmon resonance on gratings as a novel means for gas sensing. Sens. Actuators B Chem.
**1992**, 8, 155–160. [Google Scholar] [CrossRef] - Jory, M.J.; Vukusic, P.S.; Sambles, J.R. Development of a prototype gas sensor using surface plasmon resonance on gratings. Sens. Actuators B Chem.
**1994**, 17, 203–209. [Google Scholar] [CrossRef] - Choi, B.; Dou, X.; Fang, Y.; Phillips, B.M.; Jiang, P. Outstanding surface plasmon resonance performance enabled by templated oxide gratings. Phys. Chem.Chem. Phys.
**2016**, 18, 26078–26087. [Google Scholar] [CrossRef] - Dou, X.; Chung, P.Y.; Jiang, P.; Dai, J. Surface plasmon resonance and surface-enhanced Raman scattering sensing enabled by digital versatile discs. Appl. Phys. Lett.
**2012**, 100, 041116. [Google Scholar] [CrossRef] - Homola, J.; Koudela, I.; Yee, S.S. Surface plasmon resonance sensors based on diffraction gratings and prism couplers: Sensitivity comparison. Sens. Actuators B Chem.
**1999**, 54, 16–24. [Google Scholar] [CrossRef] - Piliarik, M.; Vala, M.; Tichý, I.; Homola, J. Compact and low-cost biosensor based on novel approach to spectroscopy of surface plasmons. Biosens. Bioelectron.
**2008**, 24, 3430–3435. [Google Scholar] [CrossRef] [PubMed] - Tamulevicˇius, T.; Seperys, R.; Andrulevicius, M.; Tamulevicius, S. Total internal reflection based sub-wavelength grating sensor for the determination of refractive index of liquids. Photonics Nanostruc.-Fundam. Appl.
**2011**, 9, 140–148. [Google Scholar] [CrossRef] - Yaremchuk, I.; Tamulevičius, T.; Fitio, V.; Gražulevičiūte, I.; Bobitski, Y.; Tamulevičius, S. Guide-mode resonance characteristics of periodic structure on base of diamond-like carbon film. Opt. Commun.
**2013**, 6, 1–6. [Google Scholar] [CrossRef] - Snyder, A.W.; Love, J.D. Optical Waveguide Theory; Chapman and Hall: London, UK; New York, NY, USA, 1983. [Google Scholar]
- Fitio, V.M.; Sakhno, O.V.; Smirnova, T.N. Analysis of the diffraction by the gratings generated in the materials with a nonlinear response. Optik
**2008**, 119, 236–246. [Google Scholar] [CrossRef] - Fitio, V.M.; Laba, H.P.; Bobitski, Y.W. Absorption of Electromagnetic Waves into Periodic Structure and Thin Film of Metal when a Resonance of Plasmons Appears as a Result of Prism Excitation. Telecommun. Radio Eng.
**2007**, 66, 607–618. [Google Scholar] [CrossRef] - Johnson, P.B.; Christy, R.W. Optical Constants of the Noble Metals. Phys. Rev. B
**1972**, 6, 4370–4379. [Google Scholar] [CrossRef] - Treacy, M.M.J. Dynamical diffraction explanation of the anomalous transmission of light through metallic gratings. Phys. Rev. B
**2002**, 66, 195105. [Google Scholar] [CrossRef] - Kedenburg, S.; Vieweg, M.; Gissibl, T.; Giessen, H. Linear refractive index and absorption measurements of nonlinear optical liquids in the visible and near-infrared spectral region. Opt. Mat. Express
**2012**, 2, 1588–1611. [Google Scholar] [CrossRef] - Daimon, M.; Masumura, A. Measurement of the refractive index of distilled water from the near-infrared region to the ultraviolet region. Appl. Opt.
**2007**, 46, 3811–3820. [Google Scholar] [CrossRef] - Fitio, V.M.; Romakh, V.V.; Bobitski, Y.V. Numerical method for analysis of waveguide modes in planar gradient waveguides. Mater. Sci. (Medžiagotyra)
**2014**, 20, 256–261. [Google Scholar] [CrossRef] - Fitio, V.M.; Bendzyak, A.V.; Yaremchuk, I.Y.; Bobitski, Y.V. Wave equation solution for multilayer planar waveguides in a spatial frequency domain. Semicond. Phys. Quantum Electron. Optoelectron.
**2017**, 20, 424–429. [Google Scholar] [CrossRef] [Green Version] - Dobrowolski, J.A. Optical properties of films and coatings. In Handbook of Optics; McGREAW-HILL: New York, NY, USA, 1995; Volume 1, pp. 42–43. [Google Scholar]
- Maier, S.A. Plasmonics: Fundamentals and Applications; Springer Science & Business Media: Berlin, Germany, 2007. [Google Scholar]
- Avrutsky, I.A.; Sychugov, V.A. Reflection of a Beam of Finite Size from a Corrugated Waveguide. J. Mod. Opt.
**2007**, 36, 1527–1539. [Google Scholar] [CrossRef] - Bellucci, S.; Vernyhor, O.; Bendziak, A.; Yaremchuk, I.; Fitio, V.M.; Bobitski, Y. Characteristics of the Surface Plasmon–Polariton Resonance in a Metal Grating, as a Sensitive Element of Refractive Index Change. Materials
**2020**, 13, 1882. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Moharam, M.G.; Gaylord, T.K. Rigorous coupled-wave analysis of metallic surface-relief grating. J. Opt. Soc. Am. A
**1986**, 3, 1780–1787. [Google Scholar] [CrossRef] - Dorozinska, H.V.; Turu, T.A.; Markina, O.M.; Dorozinsky, G.V.; Maslov, V.P. Influence of Temperature on the Measuring Accuracy of Devices Based on Surface Plasmon Resonance Phenomenon. Mod. Instrum.
**2018**, 7, 1–10. [Google Scholar] [CrossRef] [Green Version] - Yaremchuk, I.; Fitio, V.; Petrovska, H.; Bobitski, Y. The temperature impact on the characteristics of the surface plasmon resonance sensors element. Optik
**2019**, 192, 162969. [Google Scholar] [CrossRef]

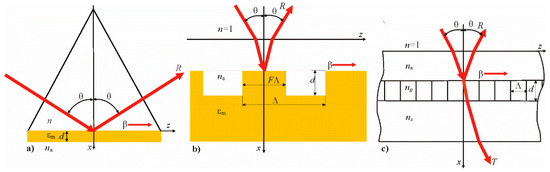

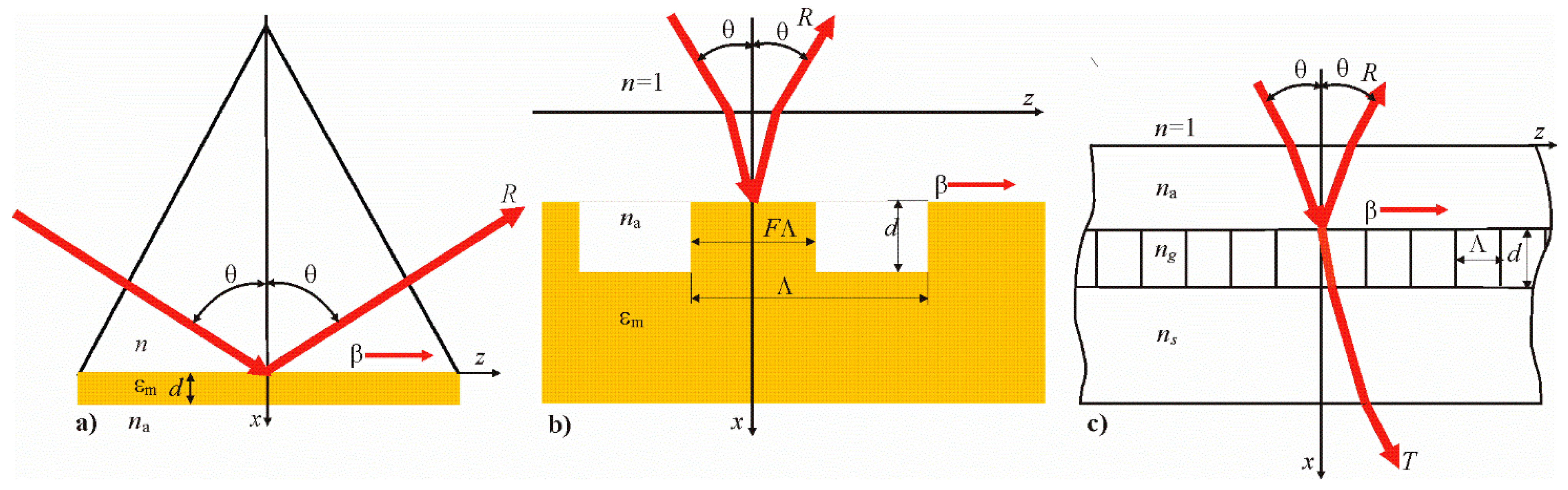

**Figure 1.**Sensitive elements of the sensors, where ${\mathsf{\epsilon}}_{m}$ is the dielectric constant of the metal, ${n}_{a}$ is the test medium refractive index, $d$ is the metal film thickness or the grating thickness, $\mathsf{\Lambda}$ is the grating period, $\mathsf{\beta}$ is the propagation constant of the waveguide modes under resonance. (

**a**) is the prism structure, where $n$ is the prism refractive index, $\mathsf{\theta}$ is the angle of incidence of the light beam. (

**b**) is the metal grating on the metal substrate, where $F$ is the fill factor, which, in our studies, is equal to 0.5. (

**c**) is the dielectric grating-based structure, where ${n}_{g}$ is the average refractive index of the dielectric grating, ${n}_{s}$ is the refractive index of the substrate. $\mathsf{\theta}$ is the angle of incidence of the light beam in the air with the refractive index $n=1$ for Figure 1a,b.

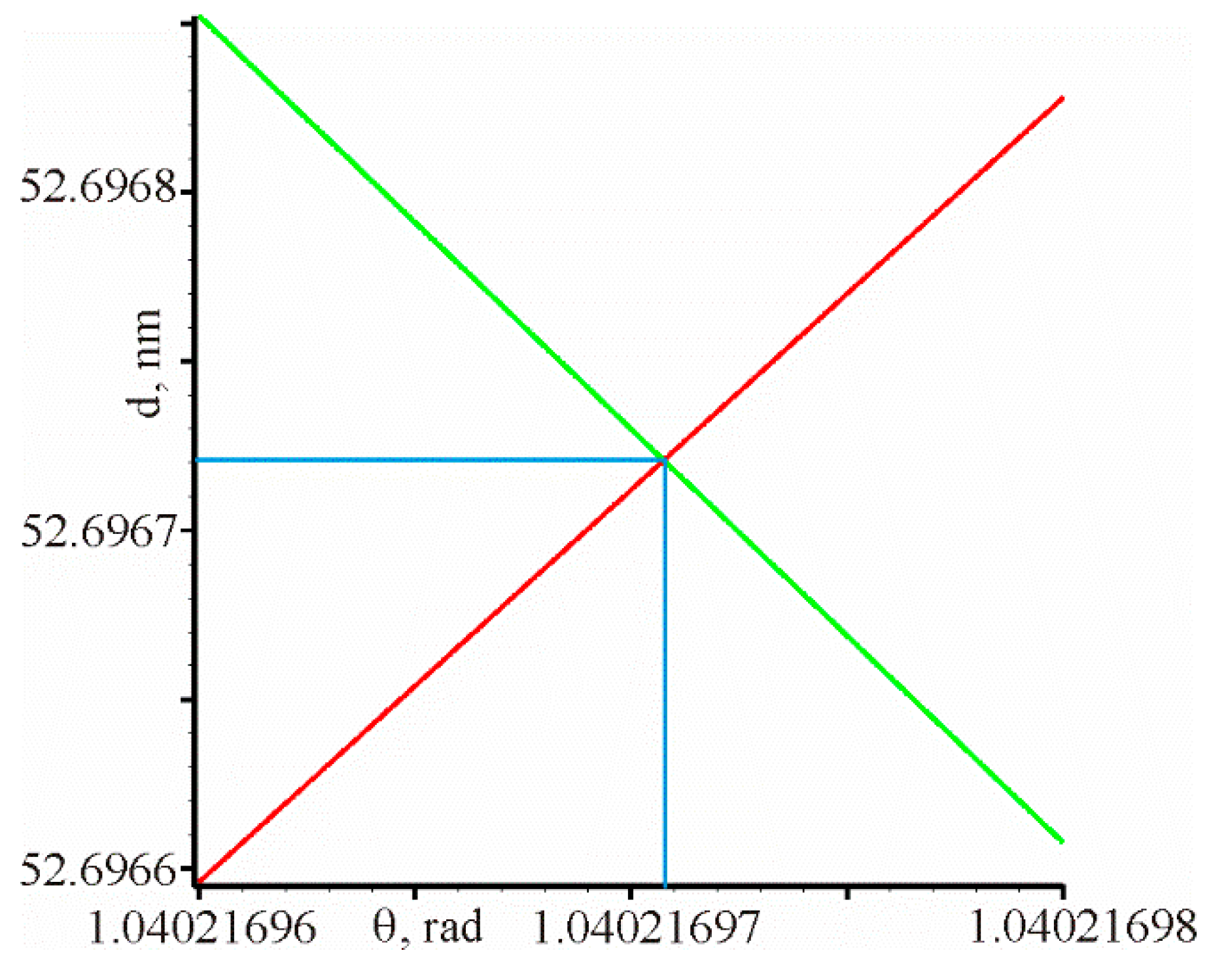

**Figure 2.**Determination of the resonant thickness of the metal film and the angle of incidence on the film with the following parameters = 1.56, n

_{a}= 1.3242, λ = 1.064 μm.

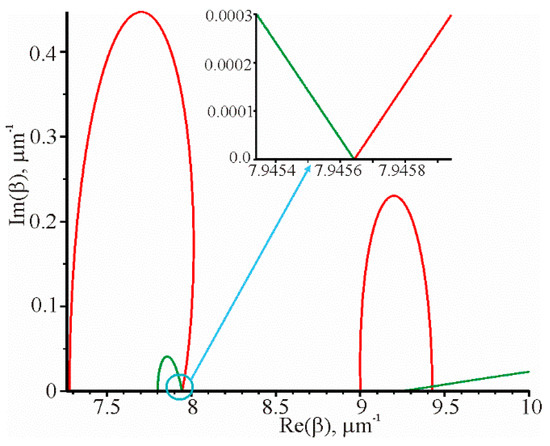

**Figure 3.**Graphical dependences Re$\left(B\left(x,y\right)\right)=0$ (red curve) and Im$\left(B\left(x,y\right)\right)=0$ (green curve) for the following parameters, $\mathsf{\lambda}=1.064\text{}\mu m$, $\mathsf{\theta}=1.040217$ rad, $d=52.697$ nm, $n=1.56,$ ${n}_{a}=1.3242$. The inset shows the progress of the green and red curves on an enlarged scale.

**Table 1.**Analytical expressions connecting the characteristics of the sensitive elements of the three types of sensors with the parameters of the grating and the corresponding waveguide.

Parameter | ${\mathit{S}}_{\mathit{\lambda}}$ | ${\mathit{S}}_{\mathit{\theta}}$ | $\mathit{\delta}{\mathit{\lambda}}_{0.5}$ | $\frac{{\mathit{S}}_{\mathit{\lambda}}}{\mathit{\delta}{\mathit{\lambda}}_{0.5}}=\frac{{\mathit{S}}_{\mathit{\theta}}}{\mathit{\delta}{\mathit{\theta}}_{0.5}}$ |
---|---|---|---|---|

No | 1 | 2 | 3 | 4 |

Figure 1a | $-\frac{\lambda {S}_{n}^{\left(\beta \right)}}{\lambda {S}_{\lambda}^{\left(\beta \right)}+\beta}$ | $\frac{\lambda {S}_{n}^{\left(\beta \right)}}{2\pi n\mathrm{cos}\theta}$ | $\frac{2\pi n\mathrm{cos}\theta}{\lambda {S}_{\lambda}^{\left(\beta \right)}+\beta}\delta {\theta}_{0.5}$ | $\frac{\lambda {S}_{n}^{\left(\beta \right)}}{2\pi n\mathrm{cos}\theta \delta {\theta}_{0.5}}$ |

Figure 1b | $\Lambda $ | $\frac{1}{\mathrm{cos}\theta}$ | $\Lambda \mathrm{cos}\theta \delta {\theta}_{0.5}$ | $\frac{1}{\mathrm{cos}\theta \delta {\theta}_{0.5}}$ |

Figure 1c | $\frac{\lambda \Lambda}{2\pi}{S}_{n}^{\left(\beta \right)}$ | $\frac{\lambda {S}_{n}^{\left(\beta \right)}}{2\pi \mathrm{cos}\theta}$ | $\Lambda \mathrm{cos}\theta \delta {\theta}_{0.5}$ | $\frac{\lambda {S}_{n}^{\left(\beta \right)}}{2\pi \mathrm{cos}\theta \delta {\theta}_{0.5}}$ |

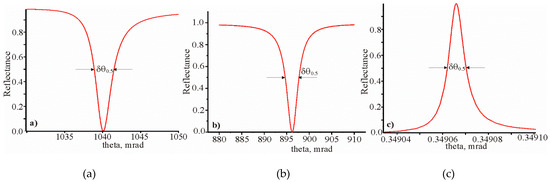

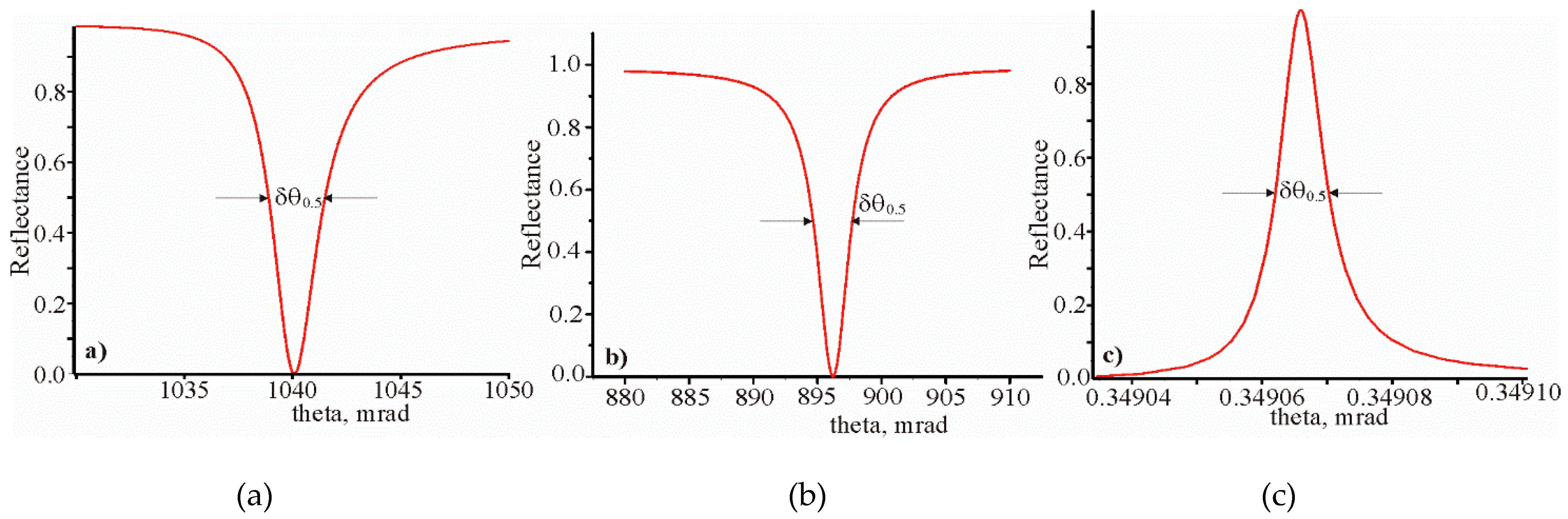

**Table 2.**The parameters of the sensors’ sensitive elements (columns 1–2) and their characteristics calculated numerically (columns 3–10).

Parameter | ${\mathit{n}}_{\mathit{a}}$ | $\mathbf{\Lambda},\text{}\mathbf{nm}$ | $\mathit{d}$ | $\mathsf{\theta},\text{}\mathbf{mrad}$ | $\mathsf{\delta}{\mathsf{\lambda}}_{\mathbf{0.5}},\text{}\mathbf{nm}$ | $\mathsf{\delta}{\mathsf{\theta}}_{\mathbf{0.5}},\text{}\mathbf{mrad}$ | ${\mathit{S}}_{\mathsf{\lambda}},\text{}\mathbf{nm}$ | ${\mathit{S}}_{\mathsf{\theta}},\text{}\mathbf{mrad}$ | $\frac{{\mathit{S}}_{\mathsf{\lambda}}}{\mathsf{\delta}{\mathsf{\lambda}}_{\mathbf{0.5}}}$ | $\frac{{\mathit{S}}_{\mathsf{\theta}}}{\mathsf{\delta}{\mathsf{\theta}}_{\mathbf{0.5}}}$ |
---|---|---|---|---|---|---|---|---|---|---|

No | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

Figure 1a | 1.3242 | – | 52.7 | 1040.2 | 47.14 | 2.611 | 24,043 | 1327.8 | 510 | 509 |

Figure 1b | 1.3242 | 500 | 10.0 | 896.2 | 0.95 | 3.07 | 500 | 1605 | 526 | 523 |

Figure 1c | 1.5 | 570.35 | 1870 | 349.1 | 0.0044 | 0.008243 | 75.8 | 141.9 | 17,227 | 17,215 |

**Table 3.**The parameters of the sensors’ sensitive elements (columns 1–3) and their characteristics calculated from the obtained equations (columns 6–9).

Parameter | ${\mathit{n}}_{\mathit{a}}$ | $\mathsf{\theta},\text{}\mathbf{mrad}$ | $\mathsf{\delta}{\mathsf{\theta}}_{\mathbf{0.5}},\text{}\mathbf{mrad}$ | ${\mathit{S}}_{\mathsf{\lambda}}^{\left(\mathsf{\beta}\right)},\text{}\mathit{\mu}{\mathbf{m}}^{-\mathbf{2}}$ | ${\mathit{S}}_{\mathit{n}}^{\left(\mathsf{\beta}\right)},\text{}\mathit{\mu}{\mathbf{m}}^{-\mathbf{1}}$ | $\mathsf{\delta}{\mathsf{\lambda}}_{\mathbf{0.5}},\text{}\mathbf{nm}$ | ${\mathit{S}}_{\mathsf{\lambda}},\text{}\mathbf{nm}$ | ${\mathit{S}}_{\mathsf{\theta}},\text{}\mathbf{mrad}$ | $\frac{{\mathit{S}}_{\mathsf{\lambda}}}{\mathsf{\delta}{\mathsf{\lambda}}_{\mathbf{0.5}}}$ | $\frac{{\mathit{S}}_{\mathsf{\theta}}}{\mathsf{\delta}{\mathsf{\theta}}_{\mathbf{0.5}}}$ |
---|---|---|---|---|---|---|---|---|---|---|

No | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 11 |

Figure 1a | 1.3242 | 1040.2 | 2.611 | – 7.725 | 6.190 | 47.33 | 24,056 | 1326.4 | 508 | 508 |

Figure 1b | 1.3242 | 896.2 | 3.07 | – 7.35 | 5.910 | 0.959 | 500 | 1601 | 521 | 522 |

Figure 1c | 1.5 | 349.1 | 0.008243 | – 8.48 | 0.7859 | 0.00442 | 75.9 | 141.6 | 17,172 | 17,178 |
