Resilient Supplier Selection in Electronic Components Procurement: An Integration of Evidence Theory and RuleBased Transformation into TOPSIS to Tackle Uncertain and Incomplete Information
Abstract
:1. Introduction
2. Literature Review
2.1. Trends in Supplier Selection
2.2. Resilient Supplier Selection
2.3. Supplier Selection in the Electronics Industry
2.4. Suggested List of Criteria for Resilient Supplier Selection in the Electronics Industry
3. Extension of TOPSIS
3.1. Evidence Theory and Generalised Decision Matrix
3.2. RuleBased Information Transformation Technique
3.2.1. RuleBased Transformation Technique for Qualitative Assessment

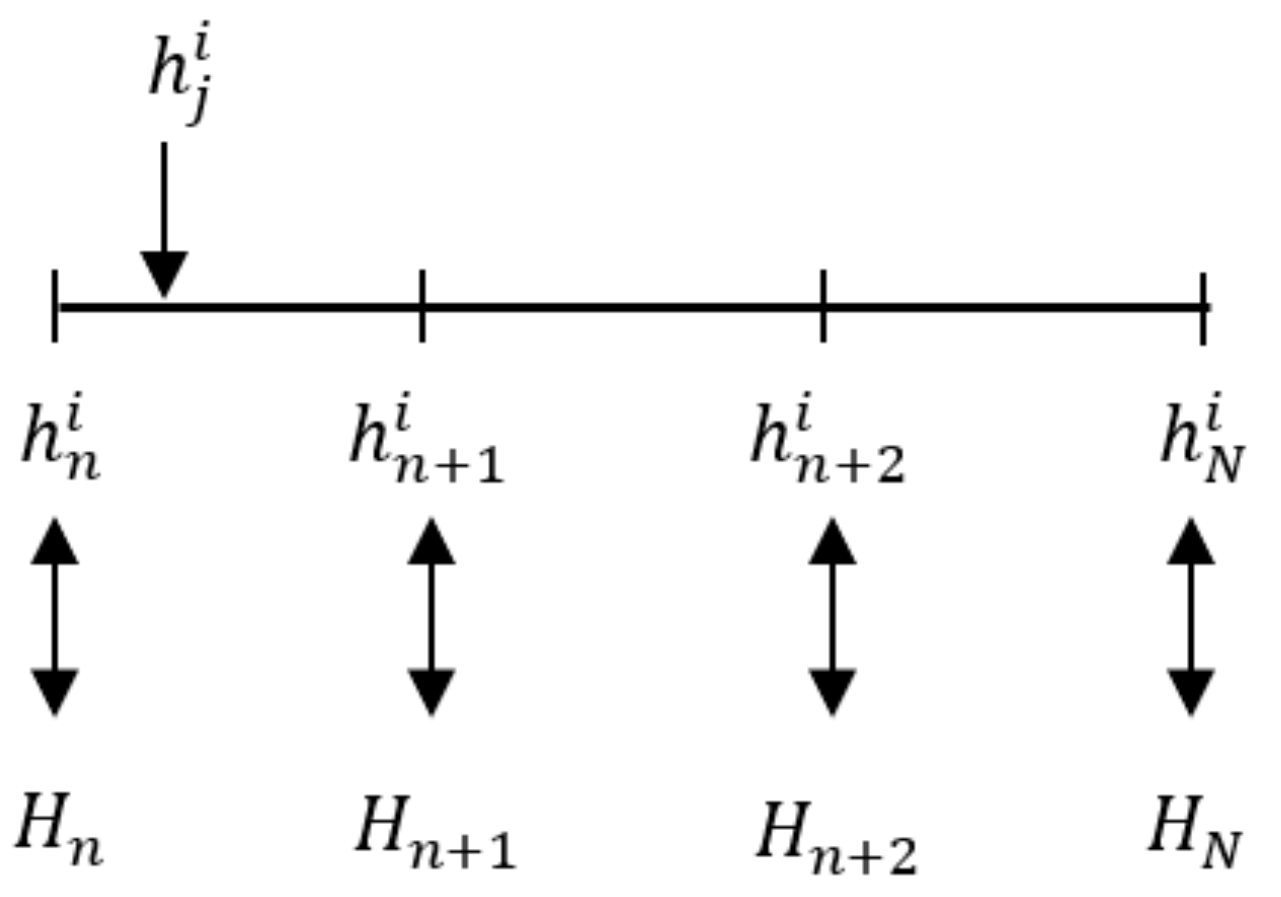

3.2.2. RuleBased Transformation Technique for Quantitative Assessment
3.3. Integration of a Generalised Decision Matrix Into TOPSIS
 Conduct an assessment of quantitative criteria through numerical measurement and qualitative criteria with a specified set of evaluation grades. Degrees of belief are assigned to numerical values for quantitative criteria and grades that best describe the actual situation for qualitative criteria. Note that more than one value or a grade could be assigned if the situation is uncertain, and the total degree of belief could be less than one if the supporting information is insufficient or incomplete. The results can eventually be in various forms, as defined in Table 3.
 Identify a general set of grades and construct the equivalence rules between the assessment scales of each criterion and the general grades.
 Transform the original assessment results, using the rulebased transformation technique, into the generalised belief structure $S\left({e}_{i}\left({a}_{l}\right)\right)$ for each alternative ${a}_{l}$ for each criterion ${e}_{i}$, and then draw the generalised decision matrix, as exemplified by Table 2.
 Convert the belief structures into utility intervals, and then construct the interval decision matrix, as shown in Table 5.
 Calculate the min $C{C}_{l}$ and max $C{C}_{l}$ for each alternative ${a}_{l}$ based on extended TOPSIS.
 Select the best alternative based solely on avg $CC$ or in combination with the decisionmaker’s risk attitude.
4. Application of the Proposed Methodology in a Resilient Supplier Selection Problem
 ${\beta}_{Excellent,1}=\left(0.4\times 0.5\right)=0.2$
 ${\beta}_{Good,1}=\left(0.6\times 0.5\right)+\left(0.4\times 0.5\right)=0.5$
 ${\beta}_{Fair,1}=\left(0.4\times 0.5\right)=0.2$
 ${\beta}_{Poor,1}=\left(0.2\times 0.5\right)=0.1$
 ${\beta}_{Very\text{}poor,1}=0$
 ${\beta}_{Fair,7}=\frac{76}{74}=0.333$
 ${\beta}_{Poor,7}=10.333=0.667$
 ${\beta}_{Excellent,7}={\beta}_{Good,7}={\beta}_{Very\text{}poor,7}=0$
 Although both methodologies provide a compensatory process of aggregation, they employ different approaches to derive the composite scores for each alternative. The proposed hybrid methodology is based on the principle of the TOPSIS method, which derives the score from the distances between the performance of the alternative and the best and worst values within the peer group, while the ER method conforms to conjunctive reasoning by seeking joint support from all criteria. This means that the composite score of an alternative derived by the ER method is independent of the performance of other alternatives; however, this is not the case for the TOPSISbased methodology.
 According to the different approaches described in (1), the ER method did not assign an interval to supplier 1′s composite score since the interval only reflected the incompleteness of the information which emerged solely from suppliers 2 and 3. This implies that supplier 1′s overall performance did not change whether or not the other suppliers’ performance fluctuated. On the other hand, the TOPSIS method gave an interval to supplier 1′s composite score due to the fact that the other suppliers’ performance was uncertain because of incomplete or unknown information, and the overall performance of an alternative was dependent on the changes in performance of the others. Therefore, the proposed TOPSIS methodology is more rational, and provides a more comprehensive picture for ranking and choosing alternatives. The ER method seems to be more appropriate for constructing a selfassessment model for analysing and monitoring overall performance. The performance analysis of a single element without another alternative for comparison is an obvious limitation of the TOPSISbased methodology.
 When considering minimum composite scores derived by the two methodologies, supplier 2 received a lower score than supplier 3 in the TOPSIS method, while the opposite result was obtained by the ER method. Such a difference was mainly caused by the high level of incompleteness in supplier 3′s performance (in criteria ${e}_{6}$ and ${e}_{7}$). The incompleteness means that the performance can be assigned to any value or any grade in the frame of discernment, such that its utility can range from 0 to 1. In the extended TOPSIS method, when calculating the minimum score for each alternative, its performance is assumed at the lowest level while the performance of the others is set at the highest level. This means that when calculating min $C{C}_{2}$, supplier 3′s utility was assumed at 0.7 and 1 in criteria ${e}_{6}$ and ${e}_{7}$, respectively. This considerably downgraded supplier 2′s $CC$ score due to the large distance between its minimum performance and the assumed excellent performance of supplier 3. Although the same method was applied when calculating min $C{C}_{3}$, the effects were not significant since only a short distance between supplier 3′s minimum utility and the highest utility of other suppliers was reported.
 Based on the explanation in (3), each alternative’s range derived by the proposed TOPSIS methodology is not sensitive to the incompleteness and uncertainty of its own assessment data, but to those of the other alternatives. In contrast, in the ER approach, each alternative’s range is a true reflection of the incompleteness of its own data.
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
 Haldar, A.; Ray, A.; Banerjee, D.; Ghosh, S. Resilient supplier selection under a fuzzy environment. Int. J. Manag. Sci. Eng. Manag. 2014, 9, 147–156. [Google Scholar] [CrossRef]
 Torabi, S.A.; Baghersad, M.; Mansouri, S.A. Resilient supplier selection and order allocation under operational and disruption risks. Transp. Res. Part E Logist. Transp. Rev. 2015, 79, 22–48. [Google Scholar] [CrossRef]
 Gan, J.; Zhong, S.; Liu, S.; Yang, D. Resilient supplier selection based on fuzzy BWM and GMoRTOPSIS under supply chain environment. Discret. Dyn. Nat. Soc. 2019, 2019, 1–14. [Google Scholar] [CrossRef] [Green Version]
 Nourbakhsh, V.; Ahmadi, A.; Mahootchi, M. Considering supply risk for supplier selection using an integrated framework of data envelopment analysis and neural networks. Int. J. Ind. Eng. Comput. 2013, 4, 273–284. [Google Scholar] [CrossRef]
 Haren, P.; SimchiLevi, D. How Coronavirus could impact the global supply chain by midMarch. In Harvard Business Review; Harvard Business Publishing: Brighton, MA, USA, 2020; Available online: https://hbr.org/2020/02/howcoronaviruscouldimpacttheglobalsupplychainbymidmarch (accessed on 4 April 2020).
 Hosseini, S.; Khaled, A.A. A hybrid ensemble and AHP approach for resilient supplier selection. J. Intell. Manuf. 2019, 30, 207–228. [Google Scholar] [CrossRef]
 Pramanik, D.; Haldar, A.; Mondal, S.C.; Naskar, S.K.; Ray, A. Resilient supplier selection using AHPTOPSISQFD under a fuzzy environment. Int. J. Manag. Sci. Eng. Manag. 2017, 12, 45–54. [Google Scholar] [CrossRef]
 Chen, A.; Hsieh, C.Y.; Wee, H.M. A resilient global supplier selection strategya case study of an automotive company. Int. J. Adv. Manuf. Technol. 2016, 87, 1475–1490. [Google Scholar] [CrossRef]
 Bhutta, K.S.; Huq, F. Supplier selection problem: A comparison of the total cost of ownership and analytic hierarchy process approaches. Supply Chain Manag. Int. J. 2002, 7, 126–135. [Google Scholar] [CrossRef]
 Chang, B.; Chang, C.W.; Wu, C.H. Fuzzy DEMATEL method for developing supplier selection criteria. Expert Syst. Appl. 2011, 38, 1850–1858. [Google Scholar] [CrossRef]
 Sahu, A.K.; Datta, S.; Mahapatra, S.S. Evaluation and selection of resilient suppliers in fuzzy environment: Exploration of fuzzyVIKOR. Benchmarking Int. J. 2016, 23, 651–673. [Google Scholar] [CrossRef]
 Sawik, T. Selection of resilient supply portfolio under disruption risks. Omega 2013, 41, 259–269. [Google Scholar] [CrossRef]
 Hasan, M.M.; Jiang, D.; Ullah, A.M.M.S.; NoorEAlam, M. Resilient supplier selection in logistics 4.0 with heterogeneous information. Expert Syst. Appl. 2020, 139, 1–24. [Google Scholar] [CrossRef]
 Levary, R.R. Using the analytic hierarchy process to rank foreign suppliers based on supply risks. Comput. Ind. Eng. 2008, 55, 535–542. [Google Scholar] [CrossRef]
 Rajesh, R.; Ravi, V. Supplier selection in resilient supply chains: A grey relational analysis approach. J. Clean. Prod. 2015, 86, 343–359. [Google Scholar] [CrossRef]
 Behzadian, M.; Otaghsara, S.K.; Yazdani, M.; Ignatius, J. A stateof theart survey of TOPSIS applications. Expert Syst. Appl. 2012, 39, 13051–13069. [Google Scholar] [CrossRef]
 Sureeyatanapas, P.; Sriwattananusart, K.; Niyamosoth, T.; Sessomboon, W.; Arunyanart, S. Supplier selection towards uncertain and unavailable information: An extension of TOPSIS method. Oper. Res. Perspect. 2018, 5, 69–79. [Google Scholar] [CrossRef]
 Wang, C.N.; Tsai, H.T.; Nguyen, V.T.; Nguyen, V.T.; Huang, Y.F. A hybrid fuzzy analytic hierarchy process and the technique for order of preference by similarity to ideal solution supplier evaluation and selection in the food processing industry. Symmetry 2020, 12, 211. [Google Scholar] [CrossRef] [Green Version]
 Hwang, C.L.; Yoon, K. Multiple Attribute Decision Making—Methods and Application: A StateoftheArt Survey; SpringerVerlag: New York, NY, USA, 1981. [Google Scholar]
 Davoudabadi, R.; Mousavi, S.M.; Mohagheghi, V.; Vahdani, B. Resilient supplier selection through introducing a new intervalvalued intuitionistic fuzzy evaluation and decisionmaking framework. Arab. J. Sci. Eng. 2019, 44, 7351–7360. [Google Scholar] [CrossRef]
 Govindan, K.; Rajendran, S.; Sarkis, J.; Murugesan, P. Multi criteria decision making approaches for green supplier evaluation and selection: A literature review. J. Clean. Prod. 2015, 98, 66–83. [Google Scholar] [CrossRef]
 Bharadwaj, N. Investigating the decision criteria used in electronic components procurement. Ind. Mark. Manag. 2004, 33, 317–323. [Google Scholar] [CrossRef]
 Lee, A.H.I.; Chang, H.J.; Lin, C.Y. An evaluation model of buyersupplier relationships in hightech industrythe case of an electronic components manufacturer in Taiwan. Comput. Ind. Eng. 2009, 57, 1417–1430. [Google Scholar] [CrossRef]
 JacynaGołda, I. Decisionmaking model for supporting supply chain efficiency evaluation. Arch. Transp. 2015, 33, 17–31. [Google Scholar] [CrossRef]
 Izdebski, M.; JacynaGołda, I.; Markowska, K.; Murawski, J. Heuristic algorithms applied to the problems of servicing actors in supply chains. Arch. Transp. 2017, 44, 25–34. [Google Scholar] [CrossRef]
 Bieniek, M. Service level in model of inventory location with stochastic demand. Arch. Transp. 2014, 31, 7–21. [Google Scholar] [CrossRef]
 JacynaGołda, I.; Izdebski, M.; Szczepański, E.; Gołda, P. The assessment of supply chain effectiveness. Arch. Transp. 2018, 45, 43–52. [Google Scholar] [CrossRef] [Green Version]
 Aouadni, S.; Aouadni, I.; Rebaï, A. A systematic review on supplier selection and order allocation problems. J. Ind. Eng. Int. 2019, 15, S267–S289. [Google Scholar] [CrossRef] [Green Version]
 Belton, V.; Gear, T. On a shortcoming of Saaty’s method of analytic hierarchies. Omega 1983, 11, 228–230. [Google Scholar] [CrossRef]
 Barzilai, J.; Golany, B. AHP rank reversal, normalization and aggregation rules. Inf. Syst. Oper. Res. 1994, 32, 14–20. [Google Scholar] [CrossRef]
 Ramanathan, R.; Ganesh, L.S. Group preference aggregation methods employed in AHP: An evaluation and an intrinsic process for deriving members’ weightages. Eur. J. Oper. Res. 1994, 79, 249–265. [Google Scholar] [CrossRef]
 Van Den Honert, R.C.; Lootsma, F.A. Group preference aggregation in the multiplicative AHP: The model of the group decision process and Pareto optimality. Eur. J. Oper. Res. 1996, 96, 363–370. [Google Scholar] [CrossRef]
 Zhou, P.; Ang, B.W.; Poh, K.L. A survey of data envelopment analysis in energy and environmental studies. Eur. J. Oper. Res. 2008, 189, 1–18. [Google Scholar] [CrossRef]
 Ramanathan, R. Data envelopment analysis for weight derivation and aggregation in the analytic hierarchy process. Comput. Oper. Res. 2006, 33, 1289–1307. [Google Scholar] [CrossRef]
 Sari, K. On the benefits of CPFR and VMI: A comparative simulation study. Int. J. Prod. Econ. 2008, 113, 575–586. [Google Scholar] [CrossRef]
 Niranjan, T.T.; Wagner, S.M.; Nguyen, S.M. Prerequisites to vendormanaged inventory. Int. J. Prod. Res. 2012, 50, 939–951. [Google Scholar] [CrossRef]
 Aloini, D.; Benevento, E.; Stefanini, A. Conceptual design of a tool supporting the “last mile” logistics in hospitals. In Proceedings of the 12th IADIS International Conference Information Systems, Utrecht, The Netherlands, 11–13 April 2019. [Google Scholar]
 Ravindran, A.R.; Bilsel, R.U.; Wadhwa, V.; Yang, T. Risk adjusted multicriteria supplier selection models with applications. Int. J. Prod. Res. 2010, 48, 405–424. [Google Scholar] [CrossRef]
 Mohammed, A.; Harris, I.; Soroka, A.; Mohamed, N.; Ramjaun, T. Evaluating green and resilient supplier performance: AHPfuzzy Topsis decisionmaking approach. In Proceedings of the 7th International Conference on Operations Research and Enterprise Systems, Madeira, Portugal, 24–26 January 2018. [Google Scholar]
 Hirakubo, N.; Kublin, M. The relative importance of supplier selection criteria: The case of electronic components procurement in Japan. J. Supply Chain Manag. 1998, 34, 19–24. [Google Scholar] [CrossRef]
 Gencer, C.; Gürpinar, D. Analytic network process in supplier selection: A case study in an electronic firm. Appl. Math. Model. 2007, 31, 2475–2486. [Google Scholar] [CrossRef]
 Chiou, C.Y.; Hsu, C.W.; Hwang, W.Y. Comparative investigation on green supplier selection of the American, Japanese and Taiwanese electronics industry in China. In Proceedings of the 2008 IEEE International Conference on Industrial Engineering and Engineering Management, Singapore, 8–11 December 2008. [Google Scholar]
 Yang, J.B. Rule and utility based evidential reasoning approach for multiple attribute decision analysis under uncertainty. Eur. J. Oper. Res. 2001, 131, 31–61. [Google Scholar] [CrossRef]
 Wang, Y.M.; Yang, J.B.; Xu, D.L. Environmental impact assessment using the evidential reasoning approach. Eur. J. Oper. Res. 2006, 174, 1885–1913. [Google Scholar] [CrossRef]
 Dempster, A.P. Upper and lower probabilities induced by a multivalued mapping. Ann. Math. Stat. 1967, 38, 325–339. [Google Scholar] [CrossRef]
 Shafer, G. A Mathematical Theory of Evidence; Princeton University Press: Princeton, NJ, USA, 1976. [Google Scholar]
 Sentz, K.; Ferson, S. Combination of evidences in DempsterShafer theory. In Sandia Report; SAND20020835; Sandia National Laboratories: Albuquerque, NM, USA, 2002. [Google Scholar]
 Lowrance, J.D.; Garvey, T.D.; Strat, T.M. A framework for evidentialreasoning systems. In Classic Works of the DempsterShafer Theory of Belief Functions; Yager, R.R., Liu, L., Eds.; Springer: New York, NY, USA, 2008; pp. 419–434. [Google Scholar]
 Yang, J.B.; Singh, M.G. An evidential reasoning approach for multiple attribute decision making with uncertainty. IEEE Trans. Syst. ManCybern. 1994, 24, 1–18. [Google Scholar] [CrossRef] [Green Version]
 Yang, J.B.; Xu, D.L. Introduction to the ER rule for evidence combination. In Integrated Uncertainty in Knowledge Modelling and decision Making; Tang, Y., Huynh, V.N., Lawry, J., Eds.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 7–15. [Google Scholar]
 Florea, M.C.; Jousselme, A.L.; Bossé, É.; Grenier, D. Robust combination rules for evidence theory. Inf. Fusion 2009, 10, 183–197. [Google Scholar] [CrossRef]
 Dezert, J. Foundations for a new theory of plausible and paradoxical reasoning. Inf. Secur. Int. J. 2002, 9, 13–57. [Google Scholar] [CrossRef] [Green Version]
 Sureeyatanapas, P.; Yang, J.B.; Bamford, D. The sweet spot in sustainability: A framework for corporate assessment in sugar manufacturing. Prod. Plan. Control 2015, 26, 1128–1144. [Google Scholar] [CrossRef]
 Winston, W.L. Operations Research: Applications and Algorithms, 4th ed.; Thomson Learning: Toronto, ON, Canada, 2004. [Google Scholar]
Criterion  Definition  References

Resilience capabilities
1. Responsiveness  The supplier’s ability and availability to quickly react or respond to customer requirements.  [1,6,7,11,13,15,38,39]
2. Safety stock inventory  The supplier’s capacity to hold adequate amounts of essential materials and goods to support customers during disruptive events.  [1,2,4,6,7,11,13]
3. Invulnerable location  The supplier’s location which should be in a safe area with low risk of natural disasters to minimise impacts on supply chain processes.  [4,6,14]
4. Backup supplier contracts  The supplier’s outsourcing contracts which enable customers to overcome shortages of supply capacity in the case of disruption.  [2,6,7,13,14]
5. Robustness  Physical protection infrastructure and safety system of the supplier’s building and facilities to minimise negative impacts of disruption, especially in the case of natural disasters.  [4,6,13,15,39]
6. Delivery rerouting  Rerouting options (based on the supplier’s location) or the supplier’s ability to adjust transportation routes during disruptive events.  [4,6,13,14,39]
7. Restoration  The supplier’s ability to restore damaged facilities and equipment or to resume production to a normal state of operation.  [2,6,7,13,15]
8. Risk of production shutdown  The possibility of production shutdown, which may be caused by failure of facilities, machine breakdown, labour strikes, natural disasters, and technological problems.  [4,8,14,15,38]
9. Risk of transportation failure  The possibility of transportation failure, which may be caused by vehicle failure, route insecurity, terrorist attacks, and natural disasters.  [4,8,14,15]
10. Risk of communication breakdown and loss of information  The possibility of communication and transaction breakdown which may be caused by system errors and instability and insecurity of the information system.  [4,8,13,14,15,38,39,41]
General criteria
11. Production capacity  The volume of products that can be produced and delivered by the supplier using their current resources.  [4,7,13,23,38,39,40,41]
12. Delivery performance  The supplier’s order cycle time, ontime delivery performance, and shipping accuracy.  [4,7,8,13,15,22,23,38,39,40,41,42]
13. Service and support  The supplier’s ability and willingness to assist with the design process and ability to provide technical assistance and support for postsales services.  [1,8,11,15,22,23,38,40,41,42]
14. Innovation and technology  The supplier’s innovation and technological advances.  [7,15,23,38,40,41]
15. Firm’s image and reputation  The supplier’s profile, image, market share, and brand recognition.  [7,8,15,23,38,39,40,41,42]
16. Product quality  Defect rate at the customer’s plant, or the supplier’s process capability.  [1,4,7,8,11,15,22,23,38,39,40,41,42]
17. Product price  The unit price of the product.  [1,4,7,8,11,13,15,22,23,38,39,40,41,42]
Decision Matrix M × L  w_{1}  w_{2}  …  w_{L}

e_{1}  e_{2}  …  e_{L}
${a}_{1}$  $S\left({e}_{1}\left({a}_{1}\right)\right)$  $S\left({e}_{2}\left({a}_{1}\right)\right)$  …  $S\left({e}_{L}\left({a}_{1}\right)\right)$
${a}_{2}$  $S\left({e}_{1}\left({a}_{2}\right)\right)$  $S\left({e}_{2}\left({a}_{2}\right)\right)$  …  $S\left({e}_{L}\left({a}_{2}\right)\right)$
…  …  …  …  …
…  …  …  …  …
${a}_{M}$  $S\left({e}_{1}\left({a}_{M}\right)\right)$  $S\left({e}_{2}\left({a}_{M}\right)\right)$  …  $S\left({e}_{L}\left({a}_{M}\right)\right)$
Assessment Results  $\mathbf{Mathematical}\text{}\mathbf{Formulations}\text{}\mathbf{(}\mathit{i}\mathbf{=}\mathbf{1}\mathbf{,}\text{}\mathbf{\dots}\mathbf{,}\text{}\mathit{L}\mathbf{,}\text{}\mathit{l}\mathbf{=}\mathbf{1}\mathbf{,}\text{}\mathbf{\dots}\mathbf{,}\text{}\mathit{M}\mathbf{)}$

Qualitative assessment
(1) Precise and complete  ${S}^{i}\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n}^{i},1.0\right)\right\}$
(2) Uncertain but complete  ${S}^{i}\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n}^{i},{\gamma}_{n}^{i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,{N}^{i}\right\}$, $\sum}_{n=1}^{{N}^{i}}{\gamma}_{n}^{i}\left({a}_{l}\right)=1$
(3) Uncertain and incomplete (with a degree of ignorance)  ${S}^{i}\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n}^{i},{\gamma}_{n}^{i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,\text{}{N}^{i}\right\}$, $\sum}_{n=1}^{{N}^{i}}{\gamma}_{n}^{i}\left({a}_{l}\right)<1$
(4) Complete ignorance  n/a (the assessor has no information to conduct the assessment)
Quantitative assessment
(5) Precise and complete  ${S}^{i}\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({h}_{j}^{i},\text{}1.0\right)\right\}$
(6) Uncertain but complete  ${S}^{i}\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({h}_{j}^{i},\text{}{\gamma}_{j}^{i}\left({a}_{l}\right)\right),\text{}j=1,\text{}\dots ,\text{}J\right\}$, $\sum}_{j=1}^{J}{\gamma}_{j}^{i}=1$
(7) Uncertain and incomplete (with a degree of ignorance)  ${S}^{i}\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({h}_{j}^{i},\text{}{\gamma}_{j}^{i}\left({a}_{l}\right)\right),\text{}j=1,\text{}\dots ,\text{}J\right\}$, $\sum}_{j=1}^{J}{\gamma}_{j}^{i}<1$
(8) Complete ignorance  n/a
Assessment Results  $\mathbf{Mathematical}\text{}\mathbf{Formulations}\text{}(\mathit{i}\mathbf{=}\mathbf{1}\mathbf{,}\text{}\dots \mathbf{,}\text{}\mathit{L},\text{}\mathit{l}\mathbf{=}\mathbf{1},\text{}\mathbf{\dots}\mathbf{,}\text{}\mathit{M}\mathbf{)}$

Qualitative assessment
(1) Precise and complete  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n},{\beta}_{n,i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,N\right\}$, $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)=1$
(2) Uncertain but complete  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n},{\beta}_{n,i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,N\right\}$, $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)=1$
(3) Uncertain and incomplete (with a degree of ignorance)  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n},{\beta}_{n,i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,\text{}N;\text{}\left(H,{\beta}_{H,i}\left({a}_{l}\right)\right)\right\}$, $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)<1$ and ${\beta}_{H,i}\left({a}_{l}\right)>0$ and $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)+{\beta}_{H,i}\left({a}_{l}\right)=1$
(4) Complete ignorance  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left(H,1.0\right)\right\}$
Quantitative assessment
(5) Precise and complete  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n},{\beta}_{n,i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,N\right\}$, $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)=1$
(6) Uncertain but complete  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n},{\beta}_{n,i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,N\right\}$, $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)=1$
(7) Uncertain and incomplete (with a degree of ignorance)  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left({H}_{n},{\beta}_{n,i}\left({a}_{l}\right)\right),\text{}n=1,\text{}\dots ,\text{}N;\text{}\left(H,{\beta}_{H,i}\left({a}_{l}\right)\right)\right\}$, $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)<1$ and ${\beta}_{H,i}\left({a}_{l}\right)>0$ and $\sum}_{n=1}^{N}{\beta}_{n,i}\left({a}_{l}\right)+{\beta}_{H,i}\left({a}_{l}\right)=1$
(8) Complete ignorance  $S\left({e}_{i}\left({a}_{l}\right)\right)=\left\{\left(H,1.0\right)\right\}$
Decision Matrix $2\mathit{M}\mathbf{\times}\mathit{L}$  ${\mathit{w}}_{\mathbf{1}}$  ${\mathit{w}}_{\mathbf{2}}$  …  ${\mathit{w}}_{\mathit{L}}$

${\mathit{e}}_{1}$  ${\mathit{e}}_{2}$  …  ${\mathit{e}}_{\mathit{L}}$
${a}_{1}$  ${U}_{min}\left({e}_{1}\left({a}_{1}\right)\right)$  ${U}_{min}\left({e}_{2}\left({a}_{1}\right)\right)$  …  ${U}_{min}\left({e}_{L}\left({a}_{1}\right)\right)$
${U}_{max}\left({e}_{1}\left({a}_{1}\right)\right)$  ${U}_{max}\left({e}_{2}\left({a}_{1}\right)\right)$  …  ${U}_{max}\left({e}_{L}\left({a}_{1}\right)\right)$
${a}_{2}$  ${U}_{min}\left({e}_{1}\left({a}_{2}\right)\right)$  ${U}_{min}\left({e}_{2}\left({a}_{2}\right)\right)$  …  ${U}_{min}\left({e}_{L}\left({a}_{2}\right)\right)$
${U}_{max}\left({e}_{1}\left({a}_{2}\right)\right)$  ${U}_{max}\left({e}_{2}\left({a}_{2}\right)\right)$  …  ${U}_{max}\left({e}_{L}\left({a}_{2}\right)\right)$
…  …  …  …  …
…  …  …  …
${a}_{M}$  ${U}_{min}\left({e}_{1}\left({a}_{M}\right)\right)$  ${U}_{min}\left({e}_{2}\left({a}_{M}\right)\right)$  …  ${U}_{min}\left({e}_{L}\left({a}_{M}\right)\right)$
${U}_{max}\left({e}_{1}\left({a}_{M}\right)\right)$  ${U}_{max}\left({e}_{2}\left({a}_{M}\right)\right)$  …  ${U}_{max}\left({e}_{L}\left({a}_{M}\right)\right)$
Criterion  Assessment Scale

Responsiveness $({e}_{1})$  Assessment grades A–D

Backup supplier contracts $({e}_{2})$  The number of backup suppliers or partners that can supply raw materials when disruptive events occur (count data)
Restoration $({e}_{3})$  Assessment grades A–D

Risk of losing information and communication $({e}_{4})$  The number of failures or issues regarding the supplier’s information and communication infrastructure/network during the past 12 months (count data)
Service and support $({e}_{5})$  Assessment grades A–E

Innovation and technology $({e}_{6})$  Assessment grades A–D

Product quality $({e}_{7})$  The defect rate in the last quarter (defective parts per million: DPPM)
Criteria  Equivalence Rules
Responsiveness $({e}_{1})$  A $\leftrightarrow $ {(Excellent, 1)}
B $\leftrightarrow $ {(Excellent, 0.4), (Good, 0.6)}
C $\leftrightarrow $ {(Good, 0.4), (Fair, 0.4), (Poor, 0.2)}
D $\leftrightarrow $ {(Very poor, 1)}
Backup supplier contracts $({e}_{2})$  ≥4 $\leftrightarrow $ Excellent
3 $\leftrightarrow $ Good
2 $\leftrightarrow $ Fair
1 $\leftrightarrow $ Poor
0 $\leftrightarrow $ Very poor
Restoration $({e}_{3})$  A $\leftrightarrow $ {(Excellent, 1)}
B $\leftrightarrow $ {(Excellent, 0.4), (Good, 0.6)}
C $\leftrightarrow $ {(Fair, 0.7), (Poor, 0.3)}
D $\leftrightarrow $ {(Very poor, 1)}
Risk of losing information and communication $({e}_{4})$  0 $\leftrightarrow $ Excellent
1 $\leftrightarrow $ Good
2 $\leftrightarrow $ Fair
3 $\leftrightarrow $ Poor
≥4 $\leftrightarrow $ Very poor
Service and support $({e}_{5})$  A $\leftrightarrow $ {(Excellent, 1)}
B $\leftrightarrow $ {(Good, 1)}
C $\leftrightarrow $ {(Fair, 1)}
D $\leftrightarrow $ {(Poor, 1)}
E $\leftrightarrow $ {(Very poor, 1)}
Innovation and technology $({e}_{6})$  A $\leftrightarrow $ {(Excellent, 1)}
B $\leftrightarrow $ {(Good, 1)}
C $\leftrightarrow $ {(Fair, 0.5), (Poor, 0.5)}
D $\leftrightarrow $ {(Very poor, 1)}
Product quality $({e}_{7})$  ≤1 $\leftrightarrow $ Excellent
2.5 $\leftrightarrow $ Good
4 $\leftrightarrow $ Fair
7 $\leftrightarrow $ Poor
≥10 $\leftrightarrow $ Very poor
Original Decision Matrix $\mathbf{3}\mathbf{\times}\mathbf{7}$  ${\mathit{w}}_{\mathbf{1}}\mathbf{=}\mathbf{0.17}$  ${\mathit{w}}_{\mathbf{2}}\mathbf{=}\mathbf{0.14}$  ${\mathit{w}}_{\mathbf{3}}\mathbf{=}\mathbf{0.09}$  ${\mathit{w}}_{\mathbf{4}}\mathbf{=}\mathbf{0.12}$  ${\mathit{w}}_{\mathbf{5}}\mathbf{=}\mathbf{0.17}$  ${\mathit{w}}_{\mathbf{6}}\mathbf{=}\mathbf{0.14}$  ${\mathit{w}}_{\mathbf{7}}\mathbf{=}\mathbf{0.17}$

$\mathbf{Responsiveness}\text{}({\mathit{e}}_{\mathbf{1}})$  $\mathbf{Backup}\text{}\mathbf{Supplier}\text{}\mathbf{Contracts}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{2}}\mathbf{)}$  $\mathbf{Restoration}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{3}}\mathbf{)}$  $\mathbf{Risk}\text{}\mathbf{of}\text{}\mathbf{Losing}\text{}\mathbf{Information}\text{}\mathbf{and}\text{}\mathbf{Communication}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{4}}\mathbf{)}$  $\mathbf{Service}\text{}\mathbf{and}\text{}\mathbf{Support}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{5}}\mathbf{)}$  $\mathbf{Innovation}\text{}\mathbf{and}\text{}\mathbf{Technology}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{6}}\mathbf{)}$  $\mathbf{Product}\text{}\mathbf{Quality}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{7}}\mathbf{)}$
Supplier 1  {(B, 0.5), (C, 0.5)}  1  {(B, 1)}  1  {(C, 0.8), (D, 0.2)}  {(B, 0.4), (C, 0.6)}  6
Supplier 2  {(B, 1)}  0  {(A, 1)}  0  {(B, 1)}  {(B, 0.2), (C, 0.5)}  7
Supplier 3  {(B, 1)}  0  {(B, 1)}  0  {(B, 1)}  {(B, 0.2), (C, 0.4)}  n/a
Generalised Decision Matrix $\mathbf{3}\mathbf{\times}\mathbf{7}$  ${\mathit{w}}_{\mathbf{1}}\mathbf{=}\mathbf{0.17}$  ${\mathit{w}}_{\mathbf{2}}\mathbf{=}\mathbf{0.14}$  ${\mathit{w}}_{\mathbf{3}}\mathbf{=}\mathbf{0.09}$  ${\mathit{w}}_{\mathbf{4}}\mathbf{=}\mathbf{0.12}$  ${\mathit{w}}_{\mathbf{5}}\mathbf{=}\mathbf{0.17}$  ${\mathit{w}}_{\mathbf{6}}\mathbf{=}\mathbf{0.14}$  ${\mathit{w}}_{\mathbf{7}}\mathbf{=}\mathbf{0.17}$

$\mathbf{Responsiveness}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{1}}\mathbf{)}$  $\mathbf{Backup}\text{}\mathbf{Supplier}\text{}\mathbf{Contracts}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{2}}\mathbf{)}$  $\mathbf{Restoration}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{3}}\mathbf{)}$  $\mathbf{Risk}\text{}\mathbf{of}\text{}\mathbf{Losing}\text{}\mathbf{Information}\text{}\mathbf{and}\text{}\mathbf{Communication}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{4}}\mathbf{)}$  $\mathbf{Service}\text{}\mathbf{and}\text{}\mathbf{Support}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{5}}\mathbf{)}$  $\mathbf{Innovation}\text{}\mathbf{and}\text{}\mathbf{Technology}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{6}}\mathbf{)}$  $\mathbf{Product}\text{}\mathbf{Quality}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{7}}\mathbf{)}$
Supplier 1  {(Excellent, 0.2), (Good, 0.5), (Fair, 0.2), (Poor, 0.1)}  {(Poor, 1)}  {(Excellent, 0.4), (Good, 0.6)}  {(Good, 1)}  {(Fair, 0.8), (Poor, 0.2)}  {(Good, 0.4), (Fair, 0.3), (Poor, 0.3)}  {(Fair, 0.333), (Poor, 0.667)}
Supplier 2  {(Excellent, 0.4), (Good, 0.6)}  {(Very poor, 1)}  {(Excellent, 1)}  {(Excellent, 1)}  {(Good, 1)}  {(Good, 0.2), (Fair, 0.25), (Poor, 0.25), (H, 0.3)}  {(Poor, 1)}
Supplier 3  {(Excellent, 0.4), (Good, 0.6)}  {(Very poor, 1)}  {(Excellent, 0.4), (Good, 0.6)}  {(Excellent, 1)}  {(Good, 1)}  {(Good, 0.2), (Fair, 0.2), (Poor, 0.2), (H, 0.4)}  {(H, 1)}
Interval Decision Matrix $\mathbf{6}\mathbf{\times}\mathbf{7}$  ${\mathit{w}}_{\mathbf{1}}\mathbf{=}\mathbf{0.17}$  ${\mathit{w}}_{\mathbf{2}}\mathbf{=}\mathbf{0.14}$  ${\mathit{w}}_{\mathbf{3}}\mathbf{=}\mathbf{0.09}$  ${\mathit{w}}_{\mathbf{4}}\mathbf{=}\mathbf{0.12}$  ${\mathit{w}}_{\mathbf{5}}\mathbf{=}\mathbf{0.17}$  ${\mathit{w}}_{\mathbf{6}}\mathbf{=}\mathbf{0.14}$  ${\mathit{w}}_{\mathbf{7}}\mathbf{=}\mathbf{0.17}$

$\mathbf{Responsiveness}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{1}}\mathbf{)}$  $\mathbf{Backup}\text{}\mathbf{Supplier}\text{}\mathbf{Contracts}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{2}}\mathbf{)}$  $\mathbf{Restoration}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{3}}\mathbf{)}$  $\mathbf{Risk}\text{}\mathbf{of}\text{}\mathbf{Losing}\text{}\mathbf{Information}\text{}\mathbf{and}\text{}\mathbf{Communication}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{4}}\mathbf{)}$  $\mathbf{Service}\text{}\mathbf{and}\text{}\mathbf{Support}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{5}}\mathbf{)}$  $\mathbf{Innovation}\text{}\mathbf{and}\text{}\mathbf{Technology}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{6}}\mathbf{)}$  $\mathbf{Product}\text{}\mathbf{Quality}\text{}\mathbf{(}{\mathit{e}}_{\mathbf{7}}\mathbf{)}$
Supplier 1  ${U}_{min}$  0.7  0.25  0.85  0.75  0.45  0.525  0.33325
${U}_{max}$  0.7  0.25  0.85  0.75  0.45  0.525  0.33325
Supplier 2  ${U}_{min}$  0.85  0  1  1  0.75  0.3375  0.25
${U}_{max}$  0.85  0  1  1  0.75  0.6375  0.25
Supplier 3  ${U}_{min}$  0.85  0  0.85  1  0.75  0.3  0
${U}_{max}$  0.85  0  0.85  1  0.75  0.7  1
Suppliers  $\mathbf{Min}\text{}\mathit{C}{\mathit{C}}_{\mathit{l}}$  $\mathbf{Avg}\text{}\mathit{C}{\mathit{C}}_{\mathit{l}}$  $\mathbf{Max}\text{}\mathit{C}{\mathit{C}}_{\mathit{l}}$  Range (max–min)

Supplier 1  0.217  0.371  0.526  0.309
Supplier 2  0.318  0.514  0.711  0.393
Supplier 3  0.441  0.624  0.806  0.365
Suppliers  ${\mathit{U}}_{\mathit{m}\mathit{i}\mathit{n}}\left({\mathit{a}}_{\mathit{l}}\right)$  ${\mathit{U}}_{\mathit{a}\mathit{v}\mathit{g}}\left({\mathit{a}}_{\mathit{l}}\right)$  ${\mathit{U}}_{\mathit{m}\mathit{a}\mathit{x}}\left({\mathit{a}}_{\mathit{l}}\right)$  Range (max–min)

Supplier 1  0.519  0.519  0.519  0.000
Supplier 2  0.586  0.604  0.623  0.037
Supplier 3  0.549  0.641  0.733  0.184
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Sureeyatanapas, P.; Waleekhajornlert, N.; Arunyanart, S.; Niyamosoth, T. Resilient Supplier Selection in Electronic Components Procurement: An Integration of Evidence Theory and RuleBased Transformation into TOPSIS to Tackle Uncertain and Incomplete Information. Symmetry 2020, 12, 1109. https://doi.org/10.3390/sym12071109
Sureeyatanapas P, Waleekhajornlert N, Arunyanart S, Niyamosoth T. Resilient Supplier Selection in Electronic Components Procurement: An Integration of Evidence Theory and RuleBased Transformation into TOPSIS to Tackle Uncertain and Incomplete Information. Symmetry. 2020; 12(7):1109. https://doi.org/10.3390/sym12071109
Chicago/Turabian StyleSureeyatanapas, Panitas, Nantana Waleekhajornlert, Sirawadee Arunyanart, and Thanawath Niyamosoth. 2020. "Resilient Supplier Selection in Electronic Components Procurement: An Integration of Evidence Theory and RuleBased Transformation into TOPSIS to Tackle Uncertain and Incomplete Information" Symmetry 12, no. 7: 1109. https://doi.org/10.3390/sym12071109
