# Calculations of QED Effects with the Dirac Green Function

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Dirac Green Function

#### 2.1. Representation in Terms of Regular and Irregular Solutions

#### 2.2. Finite Basis Set Representations

#### 2.3. Discussion

## 3. General Formulas

## 4. Angular Integration

## 5. Choice of the Integration Contour

## 6. Infrared Divergencies

## 7. Radial Integration

## 8. Magnetically-Perturbed Green Function

## 9. Numerical Calculations

## 10. Summary

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Relativistic Slater Radial Integral

## Appendix B. Infrared Divergent Integrals

## References

- Mohr, P.J.; Plunien, G.; Soff, G. QED corrections in heavy atoms. Phys. Rep.
**1998**, 293, 227–369. [Google Scholar] [CrossRef] - Beyer, H.F.; Shevelko, V.P. Introduction to the Physics of Highly Charged Ions; Institute of Physics Publishing: Bristol, PA, USA, 2003. [Google Scholar]
- Indelicato, P. QED tests with highly charged ions. J. Phys. B
**2019**, 52, 232001. [Google Scholar] [CrossRef] [Green Version] - Gell-Mann, M.; Low, F. Bound States in Quantum Field Theory. Phys. Rev.
**1951**, 84, 350–354. [Google Scholar] [CrossRef] - Sucher, J. S-Matrix Formalism for Level-Shift Calculations. Phys. Rev.
**1957**, 107, 1448. [Google Scholar] [CrossRef] - Shabaev, V.M. Two-time Green’s function method in quantum electrodynamics of high-Z few-electron atoms. Phys. Rep.
**2002**, 356, 119–228. [Google Scholar] [CrossRef] [Green Version] - Desiderio, A.M.; Johnson, W.R. Lamb Shift and Binding Energies of K Electrons in Heavy Atoms. Phys. Rev. A
**1971**, 3, 1267. [Google Scholar] [CrossRef] - Mohr, P.J. Self-Energy Radiative Corrections in Hydrogen-Like Systems. Ann. Phys. (NY)
**1974**, 88, 26–51. [Google Scholar] [CrossRef] [Green Version] - Mohr, P.J. Numerical Evaluation of the 1S
_{1/2}-State Radiative Level Shift. Ann. Phys. (NY)**1974**, 88, 52. [Google Scholar] [CrossRef] [Green Version] - Soff, G.; Mohr, P. Vacuum polarization in a strong external field. Phys. Rev. A
**1988**, 38, 5066–5075. [Google Scholar] [CrossRef] - Manakov, N.L.; Nekipelov, A.A.; Fainshtein, A.G. Vacuum polarization by a strong coulomb field and its contribution to the spectra of multiply-charged ions. Zh. Eksp. Teor. Fiz.
**1989**, 95, 1167–1177, reprinted in Sov. Phys. JETP**1989**, 68, 673–679. [Google Scholar] - Yerokhin, V.A.; Shabaev, V.M. First order self-energy correction in hydrogen-like systems. Phys. Rev. A
**1999**, 60, 800. [Google Scholar] [CrossRef] - Yerokhin, V.A.; Shabaev, V.M. One-loop self-energy correction to the 1s and 2s hyperfine splitting in H-like systems. Phys. Rev. A
**2001**, 64, 012506. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Indelicato, P.; Shabaev, V.M. Evaluation of the self-energy correction to the g factor of S states in H-like ions. Phys. Rev. A
**2004**, 69, 052503. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Jentschura, U.D. Self-energy correction to the hyperfine splitting and the electron g factor in hydrogenlike ions. Phys. Rev. A
**2010**, 81, 012502. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A. Two-loop self-energy in the Lamb shift of the ground and excited states of hydrogenlike ions. Phys. Rev. A
**2018**, 97, 052509. [Google Scholar] [CrossRef] [Green Version] - Berestetskii, V.B.; Lifshitz, E.M.; Pitaevskii, L.P. Quantum Electrodynamics; Butterworth-Heinemann: Oxford, UK, 1982. [Google Scholar]
- Rose, M.E. Relativistic Electron Theory; John Wiley & Sons: New York, NY, USA, 1961. [Google Scholar]
- Wichmann, E.H.; Kroll, N.M. Vacuum Polarization in a Strong Coulomb Field. Phys. Rev. A
**1956**, 101, 843. [Google Scholar] [CrossRef] - Brown, G.E.; Schaefer, G.W. Expansion in angular momenta in bound-state perturbation theory. Proc. R. Soc. Lond. Ser. A
**1956**, 233, 527. [Google Scholar] - Gradshteyn, I.; Ryzhik, I. Table of Integrals, Series and Products; Academic Press: New York, NY, USA, 1994. [Google Scholar]
- Shabaev, V.M.; Yerokhin, V.A.; Beier, T.; Eichler, J. QED corrections to the radiative recombination of an electron with a bare nucleus. Phys. Rev. A
**2000**, 61, 052112. [Google Scholar] [CrossRef] - Yerokhin, V.A. Nuclear-size correction to the Lamb shift of one-electron atoms. Phys. Rev. A
**2011**, 83, 012507. [Google Scholar] [CrossRef] [Green Version] - Shabaev, V.M.; Tupitsyn, I.I.; Yerokhin, V.A.; Plunien, G.; Soff, G. Dual Kinetic Balance Approach to Basis-Set Expansions for the Dirac Equation. Phys. Rev. Lett.
**2004**, 93, 130405. [Google Scholar] [CrossRef] [Green Version] - De Boor, C. A Practical Guide to Splines; Springer: New York, NY, USA, 1978. [Google Scholar]
- Johnson, W.R.; Blundell, S.A.; Sapirstein, J. Finite basis sets for the Dirac equation constructed from B splines. Phys. Rev. A
**1988**, 37, 307–315. [Google Scholar] [CrossRef] [PubMed] - Salomonson, S.; Öster, P. Relativistic all-order pair functions from a discretized single-particle Dirac Hamiltonian. Phys. Rev. A
**1989**, 40, 5548. [Google Scholar] [CrossRef] [PubMed] - Salomonson, S.; Öster, P. Solution of the pair equation using a finite discrete spectrum. Phys. Rev. A
**1989**, 40, 5559–5567. [Google Scholar] [CrossRef] [PubMed] - Lindgren, I.; Persson, H.; Salomonson, S.; Labzowsky, L. Full QED calculations of two-photon exchange for heliumlike-systems: Analysis in the Coulomb and Feynman gauges. Phys. Rev. A
**1995**, 51, 1167. [Google Scholar] [CrossRef] [PubMed] - Persson, H.; Salomonson, S.; Sunnergren, P.; Lindgren, I. Radiative corrections to the electron g-factor in H-like ions. Phys. Rev. A
**1997**, 56, R2499. [Google Scholar] [CrossRef] [Green Version] - Åsen, B.; Salomonson, S.; Lindgren, I. Two-photon-exchange QED effects in the 1s2s
^{1}S and^{3}S states of heliumlike ions. Phys. Rev. A**2002**, 65, 032516. [Google Scholar] [CrossRef] - Persson, H.; Lindgren, I.; Salomonson, S.; Sunnergren, P. Accurate vacuum polarization contributions. Phys. Rev. A
**1993**, 48, 2772. [Google Scholar] [CrossRef] - Zon, B.A.; Manakov, N.L.; Rapoport, L.P. Coulomb Green’s functions in the x-representation and relativistic polarizability of a hydrogen-like atom. Sov. J. Nucl. Phys.
**1972**, 15, 282. [Google Scholar] - Manakov, N.L.; Rapoport, L.P.; Zaprjagaev, S.A. Sturmian expansions of the relativistic Coulomb Green function. Phys. Lett. A
**1973**, 43, 139. [Google Scholar] [CrossRef] - Szymanowski, C.; Véniard, V.; Taïeb, R.; Maquet, A. Relativistic calculation of two-photon bound-bound transition amplitudes in hydrogenic atoms. Phys. Rev. A
**1997**, 56, 700. [Google Scholar] [CrossRef] - Szmytkowski, R. The Dirac - Coulomb Sturmians and the series expansion of the Dirac - Coulomb Green function: Application to the relativistic polarizability of the hydrogen-like atom. J. Phys. B
**1997**, 30, 825. [Google Scholar] [CrossRef] - Indelicato, P.; Mohr, P.J. Coordinate-space approach to the bound-electron self-energy. Phys. Rev. A
**1992**, 46, 172. [Google Scholar] [CrossRef] [PubMed] - Jentschura, U.D.; Mohr, P.J.; Soff, G. Calculation of the Electron Self-Energy for Low Nuclear Charge. Phys. Rev. Lett.
**1999**, 82, 53. [Google Scholar] [CrossRef] [Green Version] - Jentschura, U.D.; Mohr, P.J.; Soff, G. Electron self-energy for the K and L shells at low nuclear charge. Phys. Rev. A
**2001**, 63, 042512. [Google Scholar] [CrossRef] [Green Version] - Le Bigot, E.O.; Indelicato, P.; Mohr, P.J. QED self-energy contribution to highly excited atomic states. Phys. Rev. A
**2001**, 64, 052508. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Indelicato, P.; Shabaev, V.M. Self energy correction to the bound-electron g factor in H-like ions. Phys. Rev. Lett.
**2002**, 89, 143001. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Jentschura, U.D. Electron Self-Energy in the Presence of a Magnetic Field: Hyperfine Splitting and g Factor. Phys. Rev. Lett.
**2008**, 100, 163001. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Shabaev, V.M. Accurate calculation of self-energy screening diagrams from high-Z helium-like atoms. Phys. Lett. A
**1995**, 207, 274, Erratum in**1996**, 210, 437. [Google Scholar] [CrossRef] - Artemyev, A.N.; Shabaev, V.M.; Yerokhin, V.A. Vacuum polarization screening corrections to the ground-state energy of two-electron ions. Phys. Rev. A
**1997**, 56, 3529. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Pachucki, K.; Harman, Z.; Keitel, C.H. QED Theory of the Nuclear Magnetic Shielding in Hydrogenlike Ions. Phys. Rev. Lett.
**2011**, 107, 043004. [Google Scholar] [CrossRef] - Blundell, S.A.; Mohr, P.J.; Johnson, W.R.; Sapirstein, J. Evaluation of two-photon exchange graphs for highly charged heliumlike ions. Phys. Rev. A
**1993**, 48, 2615. [Google Scholar] [CrossRef] [PubMed] - Yerokhin, V.A.; Artemyev, A.N.; Shabaev, V.M.; Sysak, M.M.; Zherebtsov, O.M.; Soff, G. Two-Photon Exchange Corrections to the 2p
_{1/2}− 2s Transition Energy in Li-Like High-Z Ions. Phys. Rev. Lett.**2000**, 85, 4699. [Google Scholar] [CrossRef] [PubMed] - Mohr, P.J.; Sapirstein, J. Evaluation of two-photon exchange graphs for excited states of highly charged heliumlike ions. Phys. Rev. A
**2000**, 62, 052501. [Google Scholar] [CrossRef] - Volotka, A.V.; Glazov, D.A.; Shabaev, V.M.; Tupitsyn, I.I.; Plunien, G. Many-Electron QED Corrections to the g Factor of Lithiumlike Ions. Phys. Rev. Lett.
**2014**, 112, 253004. [Google Scholar] [CrossRef] [Green Version] - Blundell, S.A.; Snyderman, N.J. Basis-set approach to calculating the radiative self-energy in highly ionized atoms. Phys. Rev. A
**1991**, 44, R1427. [Google Scholar] [CrossRef] - Artemyev, A.N.; Shabaev, V.M.; Yerokhin, V.A. Relativistic nuclear recoil corrections to the energy levels of hydrogenlike and high-Z lithiumlike atoms in all orders in αZ. Phys. Rev. A
**1995**, 52, 1884. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Shabaev, V.M. Nuclear Recoil Effect in the Lamb Shift of Light Hydrogenlike Atoms. Phys. Rev. Lett.
**2015**, 115, 233002. [Google Scholar] [CrossRef] - Shabaev, V.M.; Glazov, D.A.; Malyshev, A.V.; Tupitsyn, I.I. Recoil Effect on the g Factor of Li-Like Ions. Phys. Rev. Lett.
**2017**, 119, 263001. [Google Scholar] [CrossRef] [Green Version] - Volotka, A.V.; Glazov, D.A.; Shabaev, V.M.; Tupitsyn, I.I.; Plunien, G. Screened QED Corrections in Lithiumlike Heavy Ions in the Presence of Magnetic Fields. Phys. Rev. Lett.
**2009**, 103, 033005. [Google Scholar] [CrossRef] - Glazov, D.A.; Volotka, A.V.; Shabaev, V.M.; Tupitsyn, I.I.; Plunien, G. Evaluation of the screened QED corrections to the g factor and the hyperfine splitting of lithiumlike ions. Phys. Rev. A
**2010**, 81, 062112. [Google Scholar] [CrossRef] [Green Version] - Sunnergren, P.; Persson, H.; Salomonson, S.; Schneider, S.M.; Lindgren, I.; Soff, G. Radiative corrections to the hyperfine-structure splitting of hydrogenlike systems. Phys. Rev. A
**1998**, 58, 1055. [Google Scholar] [CrossRef] - Persson, H.; Salomonson, S.; Sunnergren, P.; Lindgren, I. Two-Electron Lamb-Shift Calculations on Heliumlike Ions. Phys. Rev. Lett.
**1996**, 76, 204. [Google Scholar] [CrossRef] [PubMed] - Indelicato, P.; Mohr, P.J. Quantum electrodynamic effects in atomic structure. Theor. Chim. Acta
**1991**, 80, 207. [Google Scholar] [CrossRef] - Persson, H.; Schneider, S.M.; Greiner, W.; Soff, G.; Lindgren, I. Self-Energy Correction to the Hyperfine Structure Splitting of Hydrogenlike Atoms. Phys. Rev. Lett.
**1996**, 76, 1433. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Blundell, S.A.; Cheng, K.T.; Sapirstein, J. All-Order Binding Corrections to Muonium Hyperfine Splitting. Phys. Rev. Lett.
**1997**, 78, 4914. [Google Scholar] [CrossRef] - Yerokhin, V.A.; Shabaev, V.M. Self-energy correction to the ground state hyperfine splitting of Bi
^{82+}. JETP Lett.**1996**, 63, 18. [Google Scholar] - Shabaev, V.M.; Pachucki, K.; Tupitsyn, I.I.; Yerokhin, V.A. QED Corrections to the Parity-Nonconserving 6s-7s Amplitude in
^{133}Cs. Phys. Rev. Lett.**2005**, 94, 213002. [Google Scholar] [CrossRef] [Green Version] - Yerokhin, V.A.; Pachucki, K.; Harman, Z.; Keitel, C.H. QED calculation of the nuclear magnetic shielding for hydrogenlike ions. Phys. Rev. A
**2012**, 85, 022512. [Google Scholar] [CrossRef] [Green Version] - Snyderman, N.J. Electron Radiative Self-Energy of Highly Stripped Heavy Atoms. Ann. Phys. (NY)
**1991**, 211, 43–86. [Google Scholar] [CrossRef] - Varshalovich, D.A.; Moskalev, A.N.; Khersonskiĭ, V.K. Quantum Theory of Angular Momentum; World Scientific: Singapore, 1988. [Google Scholar]
- Yerokhin, V.A.; Indelicato, P.; Shabaev, V.M. Evaluation of the two-loop self-energy correction to the ground state energy of H-like ions to all orders in Zα. Eur. Phys. J. D
**2003**, 25, 203. [Google Scholar] [CrossRef] - Sapirstein, J.; Cheng, K.T. Determination of the two-loop Lamb shift in lithiumlike bismuth. Phys. Rev. A
**2001**, 64, 022502. [Google Scholar] [CrossRef] - Sapirstein, J.; Cheng, K.T. Calculation of radiative corrections to hyperfine splittings in the neutral alkali metals. Phys. Rev. A
**2003**, 67, 022512. [Google Scholar] [CrossRef] - Blundell, S.A.; Cheng, K.T.; Sapirstein, J. Radiative corrections in atomic physics in the presence of perturbing potentials. Phys. Rev. A
**1997**, 55, 1857–1865. [Google Scholar] [CrossRef] - Sapirstein, J.; Cheng, K.T. Hyperfine splitting in lithiumlike bismuth. Phys. Rev. A
**2001**, 63, 032506. [Google Scholar] [CrossRef] - Yerokhin, V.A.; Harman, Z. One-loop electron self-energy for the bound-electron g factor. Phys. Rev. A
**2017**, 95, 060501. [Google Scholar] [CrossRef] [Green Version] - Gyulassy, M. Higher Order Vacuum Polarizatin for Finite Radius Nuclei. Nucl. Phys. A
**1975**, 244, 497. [Google Scholar] [CrossRef] [Green Version] - Artemyev, A.N.; Shabaev, V.M.; Tupitsyn, I.I.; Plunien, G.; Yerokhin, V.A. QED Calculation of the 2p
_{3/2}-2p_{1/2}Transition Energy in Boronlike Argon. Phys. Rev. Lett.**2007**, 98, 173004. [Google Scholar] [CrossRef] [Green Version] - Artemyev, A.N.; Shabaev, V.M.; Tupitsyn, I.I.; Plunien, G.; Surzhykov, A. and Fritzsche, S. Ab initio calculations of the 2p
_{3/2}− 2p_{1/2}fine-structure splitting in boronlike ions. Phys. Rev. A**2013**, 88, 032518. [Google Scholar] [CrossRef] - Mohr, P.J. Self-energy correction to one-electron energy levels in a strong Coulomb field. Phys. Rev. A
**1992**, 46, 4421–4424. [Google Scholar] [CrossRef] - Yerokhin, V.A.; Pachucki, K.; Shabaev, V.M. One-loop self-energy correction in a strong binding field. Phys. Rev. A
**2005**, 72, 042502. [Google Scholar] [CrossRef] [Green Version] - Shabaev, V.M.; Tupitsyn, I.I.; Yerokhin, V.A. Model operator approach to the Lamb shift calculations in relativistic many-electron atoms. Phys. Rev. A
**2013**, 88, 012513. [Google Scholar] [CrossRef] [Green Version] - Johnson, W.R.; Blundell, S.A.; Sapirstein, J. Many-body perturbation-theory calculations of eneryg levels along the lithium isoelectronic sequence. Phys. Rev. A
**1988**, 37, 2764–2777. [Google Scholar] [CrossRef] [PubMed]

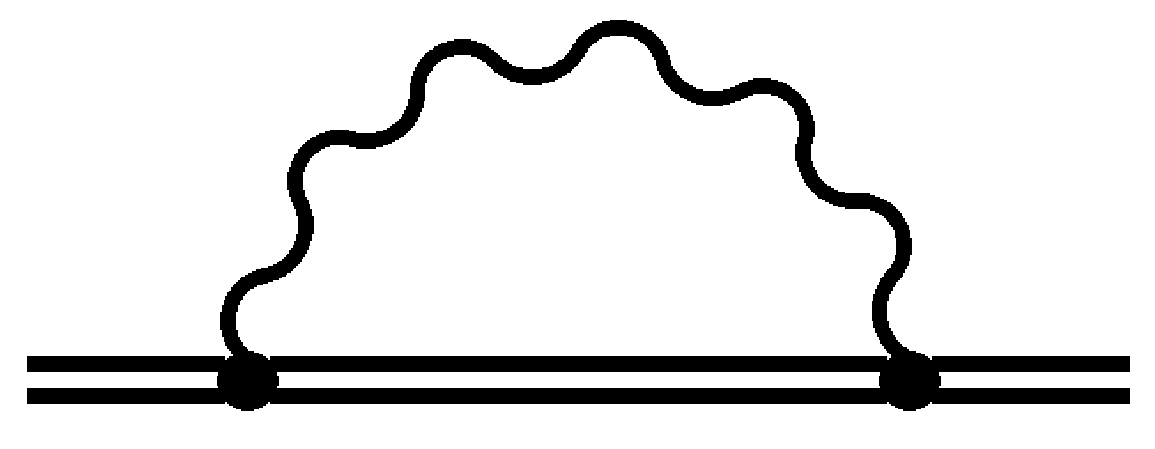

**Figure 1.**The one-loop self-energy correction. The double line represents the electron propagating in the binding field of the nucleus. The wavy line denotes the virtual photon.

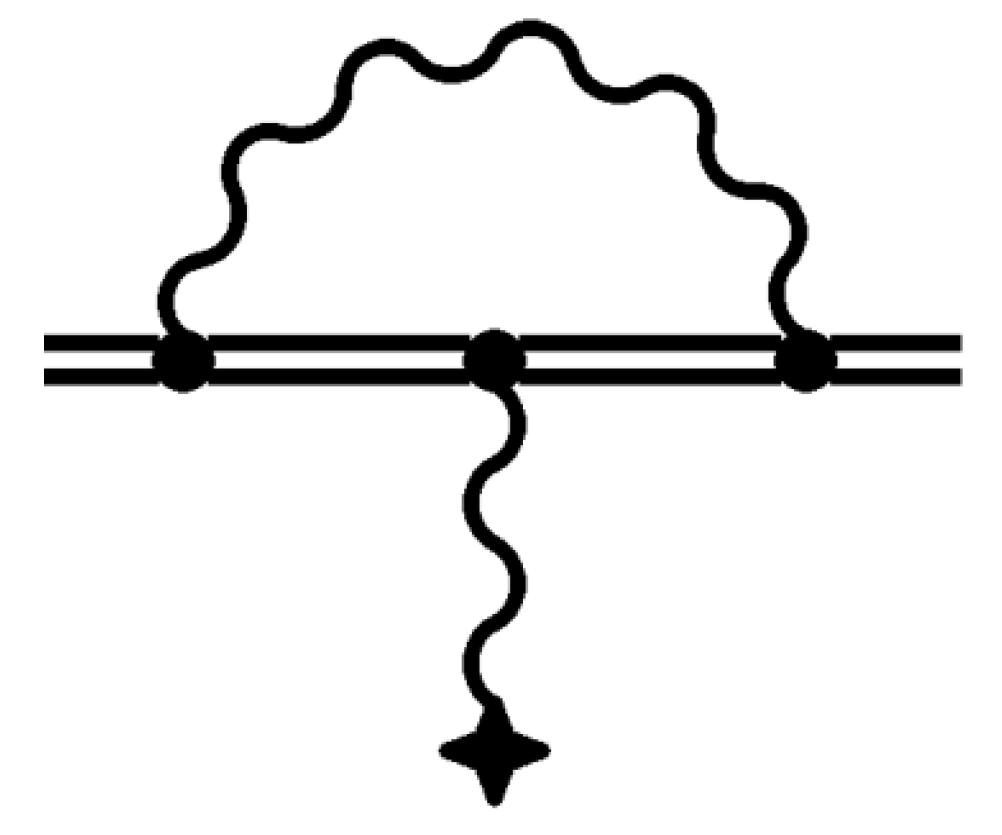

**Figure 2.**The magnetic-vertex self-energy correction. The wavy line terminated by a cross denotes the interaction with an external magnetic field.

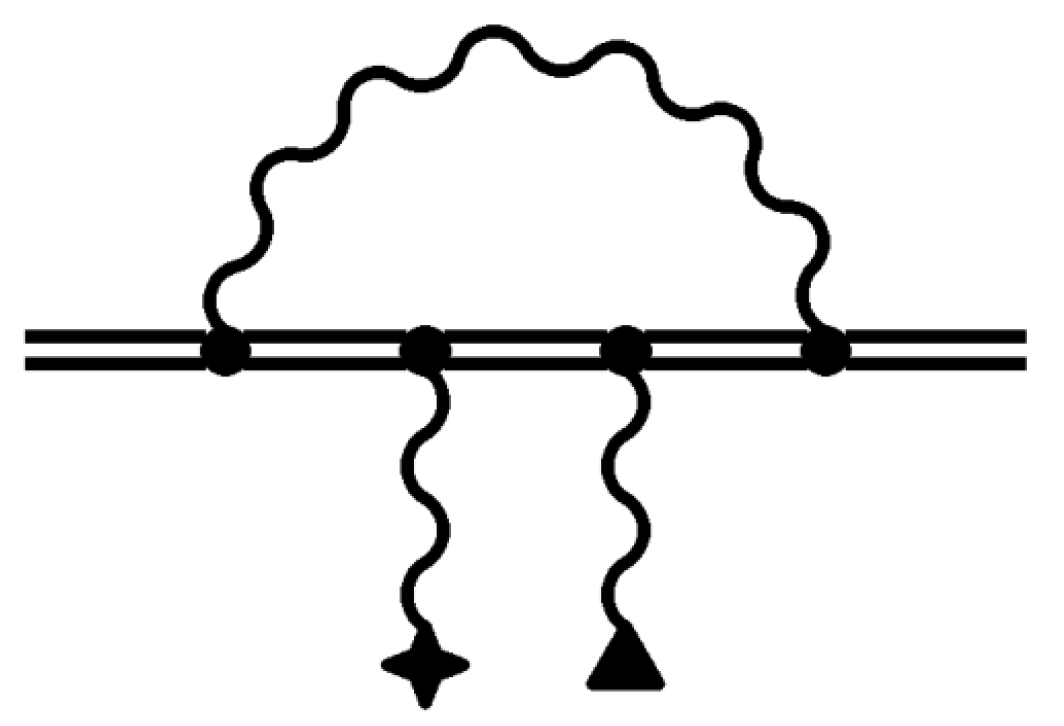

**Figure 3.**The double-vertex self-energy correction. The wavy line terminated by a triangle denotes the hyperfine interaction.

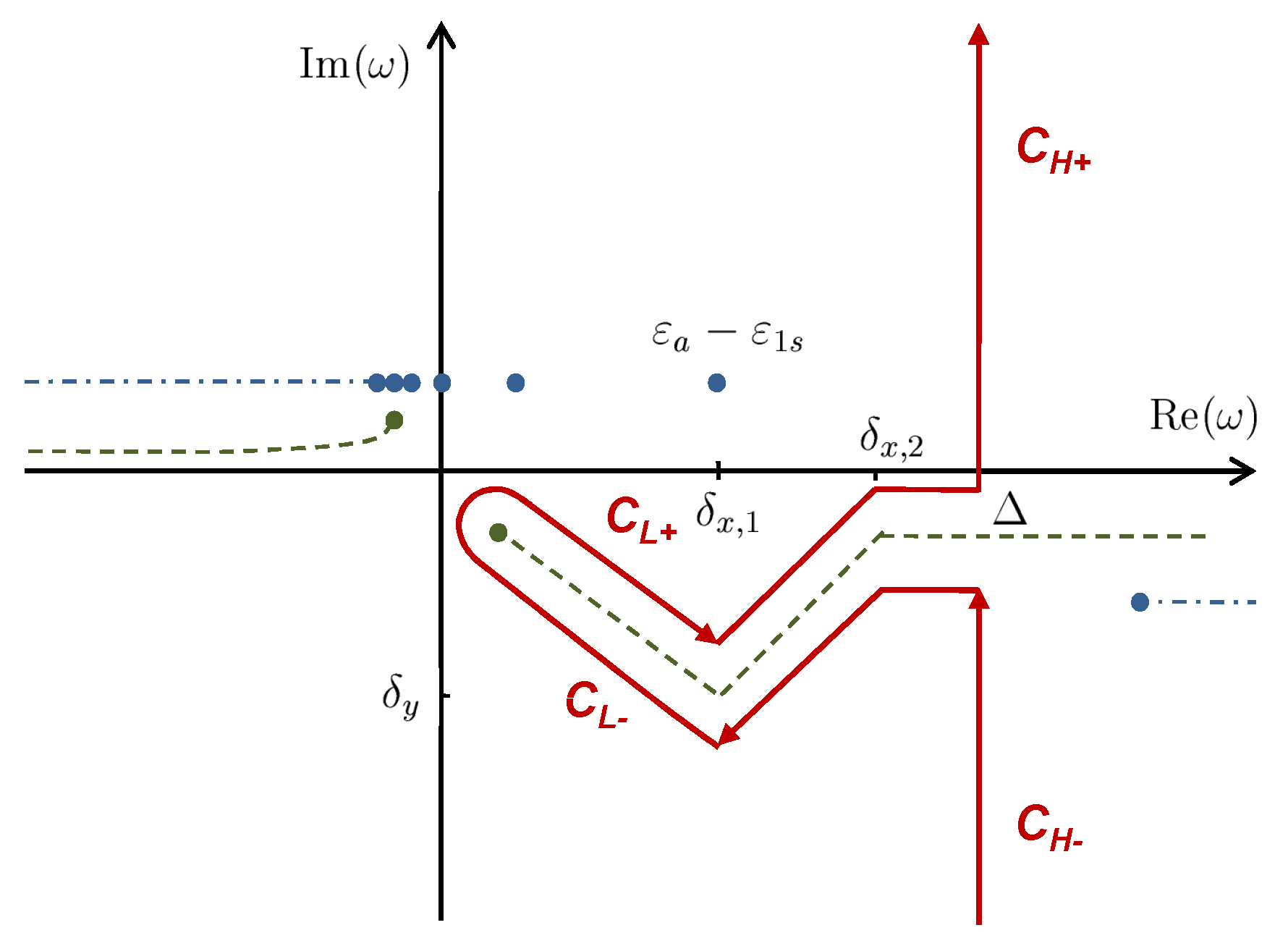

**Figure 4.**The poles and the branch cuts of the integrand of the matrix element of the self-energy operator and the integration contour ${C}_{LH}$ in the complex $\omega $ plane. The dashed lines (green) show the branch cuts of the photon propagator. The poles and the branch cuts of the electron propagator are shown by dots and the dashed-dot line (blue). The solid line (red) shows the integration contour ${C}_{LH}$.

**Table 1.**Numerical results for the one-loop self-energy correction for the $2s$ state of hydrogen-like calcium ($Z=20$), for the point nucleus, in terms of the standard scaled function $F(Z\alpha )=\delta E/[(\alpha /\pi )\phantom{\rule{0.166667em}{0ex}}{(Z\alpha )}^{4}/{n}^{3}]$, where $\delta E$ is a contribution to the energy in relativistic units. ${S}_{l}$ denotes the sum of partial-wave expansion ${\sum}_{\left|\kappa \right|=1}^{l}$; $\delta {S}_{l}$ is the increment with respect to the previous line.

l | ${\mathit{S}}_{\mathit{l}}$ | $\mathit{\delta}{\mathit{S}}_{\mathit{l}}$ | |
---|---|---|---|

$\langle {\Sigma}^{(2+)}\rangle $ | 1 | 82.268 19 | |

2 | 85.541 56 | 3.273 37 | |

3 | 86.515 41 | 0.973 85 | |

4 | 86.967 68 | 0.452 26 | |

5 | 87.223 70 | 0.256 02 | |

10 | 87.675 13 | 0.451 44 | |

15 | 87.790 89 | 0.115 75 | |

20 | 87.836 31 | 0.045 42 | |

30 | 87.869 99 | 0.033 68 | |

40 | 87.881 51 | 0.011 52 | |

50 | 87.886 57 | 0.005 06 | |

60 | 87.889 17 | 0.002 61 | |

∞ | 87.894 34 (26) | 0.005 17 (26) | |

$\langle {\Sigma}^{(0+1)}\rangle $ | −84.387 704 | ||

Total | 3.506 64 (26) | ||

P. J. Mohr [75] | 3.506 648 (2) | ||

Refs. [76,77] | 3.506 647 (5) |

**Table 2.**Numerical results for the self-energy correction to the g factor of the $2s$ state of hydrogen-like calcium ($Z=20$), for the point nucleus (in units of ${10}^{-6}$).

l | ${\mathit{S}}_{\mathit{l}}$ | $\mathit{\delta}{\mathit{S}}_{\mathit{l}}$ | |
---|---|---|---|

$\langle {\mathsf{\Lambda}}_{\mathrm{vr}}^{(2+)}\rangle $ | 1 | 36.130 52 | |

2 | 17.563 35 | −18.567 17 | |

3 | 14.605 25 | −2.958 10 | |

4 | 13.586 86 | −1.018 39 | |

5 | 13.115 22 | −0.471 64 | |

10 | 12.489 16 | −0.626 06 | |

15 | 12.379 38 | −0.109 78 | |

20 | 12.343 92 | −0.035 46 | |

25 | 12.328 78 | −0.015 15 | |

30 | 12.321 11 | −0.007 67 | |

35 | 12.316 76 | −0.004 35 | |

∞ | 12.306 43 (50) | −0.010 33 (50) | |

$\langle {\mathsf{\Lambda}}_{\mathrm{vr}}^{(0+1)}\rangle $ | 2237.914 11 | ||

$\langle {\mathsf{\Lambda}}_{\mathrm{ir}}\rangle $ | 75.453 02 | ||

Total | 2325.673 56 (50) | ||

Ref. [14] | 2325.674 (5) |

**Table 3.**Numerical results for the self-energy correction to the nuclear magnetic shielding constant $\sigma $ of the $1s$ state of hydrogen-like calcium ($Z=20$), for the point nucleus, in units of the scaled function $D(Z\alpha )=\delta \sigma /\left[{\alpha}^{2}{(Z\alpha )}^{3}\right]$, where $\delta \sigma $ is a contribution to the shielding constant.

l | ${\mathit{S}}_{\mathit{l}}$ | $\mathit{\delta}{\mathit{S}}_{\mathit{l}}$ | |
---|---|---|---|

$\langle {\mathsf{\Lambda}}_{\mathrm{dvr}}\rangle $ | 1 | −3.409 2 | |

2 | −5.550 9 | −2.141 7 | |

3 | −6.559 8 | −1.008 9 | |

4 | −7.111 6 | −0.551 7 | |

5 | −7.438 5 | −0.327 0 | |

10 | −7.941 8 | −0.503 2 | |

15 | −7.986 1 | −0.044 3 | |

20 | −7.968 3 | 0.017 7 | |

25 | −7.945 0 | 0.023 3 | |

30 | −7.925 5 | 0.019 5 | |

35 | −7.910 4 | 0.015 1 | |

∞ | −7.846 7 (32) | 0.063 7 (32) | |

$\langle {\mathsf{\Lambda}}_{\mathrm{der}}\rangle $ | 7.782 4 | ||

$\langle {\mathsf{\Lambda}}_{\mathrm{vr},\mathrm{Zee}}\rangle $ | 1.760 7 | ||

$\langle {\mathsf{\Lambda}}_{\mathrm{vr},\mathrm{hfs}}\rangle $ | −0.404 9 | ||

$\langle {\mathsf{\Lambda}}_{\mathrm{po}}\rangle $ | −2.217 0 | ||

Total | −0.925 5 (32) |
