# MF2C3: Multi-Feature Fuzzy Clustering to Enhance Cell Colony Detection in Automated Clonogenic Assay Evaluation

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Background

## 3. Materials and Methods

#### 3.1. Cell Lines

#### 3.2. Cell Colony Feature Extraction

- $p(\cdot )$ is the normalized gray level histogram counts for the current sliding window ${\mathcal{W}}_{ij}$ (obtained from the native RGB color space using the rgb2gray MatLab built-in function);
- $M$ and $N$ are the dimensions of the pixel matrix ${\mathcal{I}}_{\mathrm{well}}$ ($M=N$, considering that the well, automatically detected, is circular);
- $\mathcal{L}$ is the number of gray levels considered after the quantization (in our case, $\mathcal{L}=256$);
- ${\mu}_{{\mathcal{W}}_{ij}}={\displaystyle \sum}_{l=0}^{\mathcal{L}-1}p\left(l\right)\cdot l$ is the local mean considering a sliding window of size $\omega \times \omega \text{}$.

#### 3.3. Circle Hough Transform

^{®}Inc., Corning, NY, USA). In this specific study, the experiments were performed only on 6-well plates, where each well has a diameter of 34.80 mm. Regardless of the number of wells, the image acquisitions on the scanner are always performed in the same way, in terms of both focal distance and resolution, so that the zoom factor does not change. The circle candidates are produced by voting in the parameter space center points $c$, and then the local maxima are selected in the accumulator matrix. Formally, each point $\left({x}_{c},{y}_{c}\right)\text{}$ in the parameter space, representing a circle center, must meet conditions in Equation (4), where $\theta $ is the angular coordinate with respect to the positive x-axis, by using a polar coordinate system [45]:

#### 3.4. Spatial FCM Clustering

- $m$ is the fuzzification constant (weighting exponent: $1\le m<\infty $) that determines the fuzziness degree of the classification process. If $m=1$, the FCM algorithm approximates hard K-means. In general, the higher the $m$ value, the greater the fuzziness degree will be (the most common choice is $m=2$);
- $U$ is the fuzzy $C$-partition of the data matrix $X$;
- ${d}_{ik}=\parallel {x}_{k}-{v}_{i}\parallel {}^{2}$ is the squared distance between ${x}_{k}$ and ${v}_{i}$, computed through an induced norm $\parallel \text{}\xb7\text{}\parallel $ on ${\mathbb{R}}^{n}$ (usually the Euclidean ${\ell}_{2}$ norm).

#### 3.5. Surviving Fraction Quantification

- The Plating Efficiency (η) represents the fraction of colonies formed from cells that were not exposed to the treatment, considering the number of grown colonies and the number of plated cells, and must be determined for each experiment;
- The Survival Fraction (SF) represents the surviving fraction of cells after any treatment (i.e., irradiation or cytotoxic agent), calculated taking into account the PE of untreated cells, the number of colonies grown after treatment and the number of plated cells.

#### 3.6. MF2C3 Parameter Settings

## 4. The Proposed Multi-Feature Automatic Clustering Approach

^{®}development environment (The MathWorks, Natick, MA, USA) version 2016b. The Graphical User Interface (GUI) exploited the built-in MatLab GUI Development Environment (GUIDE).

## 5. Experimental Results

_{%Area}) versus the manual colony counts (SF

_{Manual}). Each diagram shows the correlation coefficients obtained on MCF7, MCF10, T98G, and U251MG cell cultures (by exploiting 79, 40, 40, and 40 samples, respectively) treated with different doses of radiation or cytotoxic agent. The experimental findings, in terms of $r$ coefficient values, showed a high level of correlation between multi-feature automatic approach and manual cell colony quantification for all the analyzed cell lines. More specifically: Figure 8a shows excellent results; in Figure 8b, the equality straight-line reveals a positive offset in the SF

_{%Area}measurements, by slightly over-estimating the manual colony counts SF

_{Manual}(in approximately 52% of the cases for SF

_{%Area}> 0.40); on the contrary, Figure 8c is characterized by a moderate negative offset in the SF

_{%Area}measurements for 60% of the samples; considering SF

_{%Area}< 0.45, the results automatically obtained by MF2C3 on the U251MG cell line (Figure 8d) slightly over-estimate the manual measurements in about 62% of the samples. We can conclude that, considering the four different experimental data, no systematic error is found in terms of under-/over-estimation.

## 6. Discussion and Comparisons

- Fully automatic approach that does not require any human intervention, allowing for eliminating the subjectivity of the quantification;
- No need for specific hardware during the images acquisition phase. Since just a general-purpose flat-bed scanner is required, every laboratory can use our approach, without having to acquire any additional hardware;
- Using a multi-feature local descriptor as input of the sFCM clustering algorithm for cell colony detection. This novel approach, exploiting entropy and SD, was tested on four human cell lines and obtained excellent results.

## 7. Conclusions

_{%Area}) showed high correlation values against the manual colony counting measurements (SF

_{Manual}) on the MCF7, MCF10A, T98G, and U251MG human cells lines. Overall, MF2C3, which relies upon the concept of symmetry in the pixel local distributions, significantly outperformed our previous thresholding-based approach presented in [6].

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Puck, T.T.; Marcus, P.I. Action of x-rays on mammalian cells. J. Exp. Med.
**1956**, 103, 653–666. [Google Scholar] [CrossRef] [PubMed] - Chapman, J.D. Can the two mechanisms of tumor cell killing by radiation be exploited for therapeutic gain? J. Radiat. Res.
**2014**, 55, 2–9. [Google Scholar] [CrossRef] [PubMed] - Franken, N.A.; Rodermond, H.M.; Stap, J.; Haveman, J.; van Bree, C. Clonogenic assay of cells in vitro. Nat. Protoc.
**2006**, 1, 2315–2319. [Google Scholar] [CrossRef] [PubMed] - Lumley, M.A.; Burgess, R.; Billingham, L.J.; McDonald, D.F.; Milligan, D.W. Colony counting is a major source of variation in CFU-GM results between centres. Br. J. Haematol.
**1997**, 97, 481–484. [Google Scholar] [CrossRef] [PubMed] - Matsui, T.; Nuryadi, E.; Komatsu, S.; Hirota, Y.; Shibata, A.; Oike, T.; Nakano, T. Robustness of clonogenic assays as a biomarker for cancer cell radiosensitivity. Int. J. Mol. Sci.
**2019**, 20, 4148. [Google Scholar] [CrossRef] [Green Version] - Militello, C.; Rundo, L.; Conti, V.; Minafra, L.; Cammarata, F.P.; Mauri, G.; Gilardi, M.C.; Porcino, N. Area-based cell colony surviving fraction evaluation: A novel fully automatic approach using general-purpose acquisition hardware. Comput. Biol. Med.
**2017**, 89, 454–465. [Google Scholar] [CrossRef] - Chuang, K.S.; Tzeng, H.L.; Chen, S.; Wu, J.; Chen, T.J. Fuzzy c-means clustering with spatial information for image segmentation. Comput. Med. Imaging Graph.
**2006**, 30, 9–15. [Google Scholar] [CrossRef] [Green Version] - Li, Y.l.; Shen, Y. An automatic fuzzy c-means algorithm for image segmentation. Soft Comput.
**2010**, 14, 123–128. [Google Scholar] [CrossRef] - Li, B.N.; Chui, C.K.; Chang, S.; Ong, S.H. Integrating spatial fuzzy clustering with level set methods for automated medical image segmentation. Comput. Biol. Med.
**2011**, 41, 1–10. [Google Scholar] [CrossRef] - Hough, P.V.C. Method and Means for Recognizing Complex Pattern. U.S. Patent 3,069,654, 18 December 1962. [Google Scholar]
- Duda, R.O.; Hart, P.E. Use of the Hough transformation to detect lines and curves in pictures. Commun. ACM
**1972**, 15, 11–15. [Google Scholar] [CrossRef] - Thielmann, H.W.; Hagedorn, R.; Freber, W. Evaluation of colony-forming ability experiments using normal and DNA repair-deficient human fibroblast strains and an automatic colony counter. Cytometry
**1985**, 6, 130–136. [Google Scholar] [CrossRef] [PubMed] - Parry, R.L.; Chin, T.W.; Donahoe, P.K. Computer-aided cell colony counting. Biotechniques
**1991**, 10, 772–774. [Google Scholar] [PubMed] - Wilson, I.G. Use of the IUL Countermat automatic colony counter for spiral plated total viable counts. Appl. Environ. Microbiol.
**1995**, 61, 3158–3160. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mukherjee, D.P.; Pal, A.; Sarma, S.E.; Majumder, D.D. Bacterial colony counting using distance transform. Int. J. Biomed. Comput.
**1995**, 38, 131–140. [Google Scholar] [CrossRef] - Hoekstra, S.J.; Tarka, D.K.; Kringle, R.O.; Hincks, J.R. Development of an automated bone marrow colony counting system. In Vitro Toxicol.
**1998**, 11, 207–213. [Google Scholar] - Dobson, K.; Reading, L.; Scutt, A. A cost-effective method for the automatic quantitative analysis of fibroblastic colony-forming units. Calcif. Tissue Int.
**1999**, 65, 166–172. [Google Scholar] [CrossRef] - Barber, P.R.; Vojnovic, B.; Kelly, J.; Mayes, C.R.; Boulton, P.; Woodcock, M.; Joiner, M.C. Automated counting of mammalian cell colonies. Phys. Med. Biol.
**2001**, 46, 63–76. [Google Scholar] [CrossRef] - Bernard, R.; Kanduser, M.; Pernus, F. Model-based automated detection of mammalian cell colonies. Phys. Med. Biol.
**2001**, 46, 3061–3072. [Google Scholar] [CrossRef] - Dahle, J.; Kakar, M.; Steen, H.B.; Kaalhus, O. Automated counting of mammalian cell colonies by means of a flat bed scanner and image processing. Cytom. Part A
**2004**, 60, 182–188. [Google Scholar] [CrossRef] - Siragusa, M.; Dall’Olio, S.; Fredericia, P.M.; Jensen, M.; Groesser, T. Cell colony counter called CoCoNut. PLoS ONE
**2018**, 13, e0205823. [Google Scholar] [CrossRef] - Clarke, M.L.; Burton, R.L.; Hill, A.N.; Litorja, M.; Nahm, M.H.; Hwang, J. Low-cost, high-throughput, automated counting of bacterial colonies. Cytom. Part A
**2010**, 77, 790–797. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Geissmann, Q. OpenCFU, a new free and open-source software to count cell colonies and other circular objects. PLoS ONE
**2013**, 8, e54072. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chiang, P.J.; Tseng, M.J.; He, Z.S.; Li, C.H. Automated counting of bacterial colonies by image analysis. J. Microbiol. Methods
**2015**, 108, 74–82. [Google Scholar] [CrossRef] [PubMed] - Khan, A.U.M.; Torelli, A.; Wolf, I.; Gretz, N. AutoCellSeg: Robust automatic colony forming unit (CFU)/cell analysis using adaptive image segmentation and easy-to-use post-editing techniques. Sci. Rep.
**2018**, 8, 7302. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Boukouvalas, D.T.; Prates, R.A.; Leal, C.R.L.; de Araújo, S.A. Automatic segmentation method for CFU counting in single plate-serial dilution. Chemometr. Intell. Lab. Syst.
**2019**, 195, 103889. [Google Scholar] [CrossRef] - Najman, L.; Couprie, M.; Bertrand, G. Watersheds, mosaics, and the emergence paradigm. Discret. Appl. Math.
**2005**, 147, 301–324. [Google Scholar] [CrossRef] [Green Version] - Otsu, N. A threshold selection method from gray-level histograms. IEEE Trans. Syst. Man Cybern.
**1979**, 9, 62–66. [Google Scholar] [CrossRef] [Green Version] - Boukouvalas, D.T.; Belan, P.; Leal, C.R.L.; Prates, R.A.; de Araújo, S.A. Automated colony counter for single plate serial dilution spotting. In Proceedings of the Iberoamerican Congress on Pattern Recognition (CIARP), Madrid, Spain, 19–22 November 2018; Springer International Publishing: Cham, Switzerland, 2018; Volume 11401, pp. 410–418. [Google Scholar]
- Bewes, J.M.; Suchowerska, N.; McKenzie, D.R. Automated cell colony counting and analysis using the circular Hough image transform algorithm (CHiTA). Phys. Med. Biol.
**2008**, 53, 5991–6008. [Google Scholar] [CrossRef] - Marotz, J.; Lubbert, C.; Eisenbeiss, W. Effective object recognition for automated counting of colonies in Petri dishes (automated colony counting). Comput. Methods Programs Biomed.
**2001**, 66, 183–198. [Google Scholar] [CrossRef] - Niyazi, M.; Niyazi, I.; Belka, C. Counting colonies of clonogenic assays by using densitometric software. Radiat. Oncol.
**2007**, 2, 4. [Google Scholar] [CrossRef] [Green Version] - Wouters, A.; Pauwels, B.; Lambrechts, H.A.J.; Pattyn, G.G.O.; Ides, J.; Baay, M.; Meijnders, P.; Lardon, F.; Vermorken, J.B. Counting clonogenic assays from normoxic and anoxic irradiation experiments manually or by using densitometric software. Phys. Med. Biol.
**2010**, 55, N167–N178. [Google Scholar] [CrossRef] [PubMed] - Choudhry, P. High-throughput method for automated colony and cell counting by digital image analysis based on edge detection. PLoS ONE
**2016**, 11, e0148469. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cai, Z.; Chattopadhyay, N.; Liu, W.J.; Chan, C.; Pignol, J.P.; Reilly, R.M. Optimized digital counting colonies of clonogenic assays using ImageJ software and customized macros: Comparison with manual counting. Int. J. Radiat. Biol.
**2011**, 87, 1135–1146. [Google Scholar] [CrossRef] [PubMed] - Guzman, C.; Bagga, M.; Kaur, A.; Westermarck, J.; Abankwa, D. ColonyArea: An ImageJ plugin to automatically quantify colony formation in clonogenic assays. PLoS ONE
**2014**, 9, e92444. [Google Scholar] [CrossRef] - Szénási, S.; Vámossy, Z.; Kozlovszky, M. Evaluation and comparison of cell nuclei detection algorithms. In Proceedings of the 16th IEEE International Conference on Intelligent Engineering Systems (INES), Lisbon, Portugal, 13–15 June 2012; pp. 469–475. [Google Scholar] [CrossRef]
- Neve, R.M.; Chin, F.; Fridlyand, J.; Yeh, J.; Baehner, F.L.; Fevr, T.; Clark, L.; Bayani, N.; Coppe, J.P.; Tong, F.; et al. A collection of breast cancer cell lines for the study of functionally distinct cancer subtypes. Cancer Cell
**2006**, 10, 515–527. [Google Scholar] [CrossRef] [Green Version] - Bravatà, V.; Minafra, L.; Russo, G.; Forte, G.I.; Cammarata, F.P.; Ripamonti, M.; Casarino, C.; Augello, G.; Costantini, F.; Barbieri, G.; et al. High dose ionizing radiation regulates gene expression changes in MCF7 breast cancer cell line. Anticancer Res.
**2015**, 35, 2577–2591. [Google Scholar] - Minafra, L.; Bravatà, V.; Russo, G.; Forte, G.I.; Cammarata, F.P.; Ripamonti, M.; Candiano, G.; Cervello, M.; Giallongo, A.; Perconti, G.; et al. Gene expression profiling of MCF10A breast epithelial cells exposed to IOERT. Anticancer Res.
**2015**, 35, 3223–3234. [Google Scholar] - Rennerfeldt, D.A.; Van Vliet, K.J. Concise review: When colonies are not clones: Evidence and implications of intracolony heterogeneity in mesenchymal stem cells. Stem Cells
**2016**, 34, 1135–1141. [Google Scholar] [CrossRef] [Green Version] - Amsterdam, A.; Shezen, E.; Raanan, C.; Schreiber, L.; Slilat, Y.; Fabrikant, Y.; Melzer, E. Differential staining of γ synuclein in poorly differentiated compared to highly differentiated colon cancer cells. Oncol. Rep.
**2012**, 27, 1451–1454. [Google Scholar] [CrossRef] [Green Version] - Rundo, L.; Tangherloni, A.; Galimberti, S.; Cazzaniga, P.; Woitek, R.; Sala, E.; Nobile, M.S.; Mauri, G. HaraliCU: GPU-powered Haralick feature extraction on medical images exploiting the full dynamics of gray-scale levels. In Proceedings of the 14th International Conference on Parallel Computing Technologies (PaCT), Almaty, Kazakhstan, 19–23 August 2019; Springer International Publishing: Cham, Switzerland, 2019; Volume 11657, pp. 304–318. [Google Scholar] [CrossRef]
- Illingworth, J.; Kittler, J. The adaptive Hough transform. IEEE Trans. Pattern Anal. Mach. Intell.
**1987**, PAMI-9, 690–698. [Google Scholar] [CrossRef] - Atherton, T.J.; Kerbyson, D.J. Size invariant circle detection. Image Vis. Comput.
**1999**, 17, 795–803. [Google Scholar] [CrossRef] - Bezdek, J.C. Objective function clustering. In Pattern Recognition with Fuzzy Objective Function Algorithms, 1st ed.; Springer-Verlag New York, Inc.: Secaucus, NJ, USA, 1981; pp. 43–93. ISBN 978-1-4757-0452-5. [Google Scholar] [CrossRef]
- Rundo, L.; Militello, C.; Russo, G.; Garufi, A.; Vitabile, S.; Gilardi, M.C.; Mauri, G. Automated prostate gland segmentation based on an unsupervised fuzzy C-means clustering technique using multispectral T1w and T2w MR imaging. Information
**2017**, 8, 49. [Google Scholar] [CrossRef] [Green Version] - Bezdek, J.C.; Ehrlich, R.; Full, W. FCM: The fuzzy c-means clustering algorithm. Comput. Geosci.
**1984**, 10, 191–203. [Google Scholar] [CrossRef] - Lloyd, S. Least squares quantization in PCM. IEEE Trans. Inform. Theory
**1982**, 28, 129–137. [Google Scholar] [CrossRef] - Udupa, J.K.; Samarasekera, S. Fuzzy connectedness and object definition: Theory, algorithms, and applications in image segmentation. Graph. Models Image Process.
**1996**, 58, 246–261. [Google Scholar] [CrossRef] [Green Version] - Zhang, D.Q.; Chen, S.C. A novel kernelized fuzzy c-means algorithm with application in medical image segmentation. Artif. Intell. Med.
**2004**, 32, 37–50. [Google Scholar] [CrossRef] [Green Version] - Caponetti, L.; Castellano, G.; Corsini, V. MR brain image segmentation: A framework to compare different clustering techniques. Information
**2017**, 8, 138. [Google Scholar] [CrossRef] - Pham, D.L. Spatial models for fuzzy clustering. Comput. Vis. Image Underst.
**2001**, 84, 285–297. [Google Scholar] [CrossRef] [Green Version] - Gong, M.; Liang, Y.; Shi, J.; Ma, W.; Ma, J. Fuzzy c-means clustering with local information and kernel metric for image segmentation. IEEE Trans. Image Process.
**2012**, 22, 573–584. [Google Scholar] [CrossRef] - Rundo, L.; Militello, C.; Russo, G.; Vitabile, S.; Gilardi, M.C.; Mauri, G. GTVcut for neuro-radiosurgery treatment planning: An MRI brain cancer seeded image segmentation method based on a cellular automata model. Nat. Comput.
**2017**, 17, 521–536. [Google Scholar] [CrossRef] - Bouteldja, S.; Kourgli, A. An efficient CBIR system for high resolution remote sensing images. In Proceedings of the Iberoamerican Congress on Pattern Recognition (CIARP), Madrid, Spain, 19–22 November 2018; Springer International Publishing: Cham, Switzerland, 2018; Volume 11401, pp. 392–400. [Google Scholar] [CrossRef]
- Rundo, L.; Tangherloni, A.; Nobile, M.S.; Militello, C.; Besozzi, D.; Mauri, G.; Cazzaniga, P. MedGA: A novel evolutionary method for image enhancement in medical imaging systems. Expert Syst. Appl.
**2019**, 119, 387–399. [Google Scholar] [CrossRef] - Nanni, L.; Brahnam, S.; Salvatore, C.; Castiglioni, I. Texture descriptors and voxels for the early diagnosis of Alzheimer’s disease. Artif. Intell. Med.
**2019**, 97, 19–26. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Meng, X.L.; Rosenthal, R.; Rubin, D.B. Comparing correlated correlation coefficients. Psychol. Bull.
**1992**, 111, 172. [Google Scholar] [CrossRef] - Bland, J.M.; Altman, D.G. Measuring agreement in method comparison studies. Stat. Methods Med. Res.
**1999**, 8, 135–160. [Google Scholar] [CrossRef] - Minafra, L.; Porcino, N.; Bravatà, V.; Gaglio, D.; Bonanomi, M.; Amore, E.; Cammarata, F.P.; Russo, G.; Militello, C.; Savoca, G.; et al. Radiosensitizing effect of curcumin-loaded lipid nanoparticles in breast cancer cells. Sci. Rep.
**2019**, 9, 11134. [Google Scholar] [CrossRef] [Green Version] - Gamarra, M.; Zurek, E.; Escalante, H.J.; Hurtado, L.; San-Juan-Vergara, H. Split and merge watershed: A two-step method for cell segmentation in fluorescence microscopy images. Biomed. Signal Process. Control
**2019**, 53, 101575. [Google Scholar] [CrossRef] - Harris, L.A.; Frick, P.L.; Garbett, S.P.; Hardeman, K.N.; Paudel, B.B.; Lopez, C.F.; Quaranta, V.; Tyson, D.R. An unbiased metric of antiproliferative drug effect in vitro. Nat. Methods
**2016**, 13, 497–500. [Google Scholar] [CrossRef] - Ortega, O.O.; Lopez, C.F. Interactive multiresolution visualization of cellular network processes. iScience
**2020**, 23, 100748. [Google Scholar] [CrossRef] [Green Version]

**Figure 1.**Examples of the analyzed cell types: (

**a**) MCF7; (

**b**) MCF10A; (

**c**) T98G; (

**d**) U251MG. It is possible to notice how the characteristics (e.g., size, shape, contrast, coloration) vary across the various cell lines. As described by [3], the images were taken after 2 weeks of cell incubation post-treatments.

**Figure 2.**The entropy feature extracted from the four-well image examples shown in Figure 1: (

**a**) MCF7; (

**b**) MCF10A; (

**c**) T98G; (

**d**) U251MG.

**Figure 3.**The SD feature extracted from the four-well image examples shown in Figure 1: (

**a**) MCF7; (

**b**) MCF10A; (

**c**) T98G; (

**d**) U251MG.

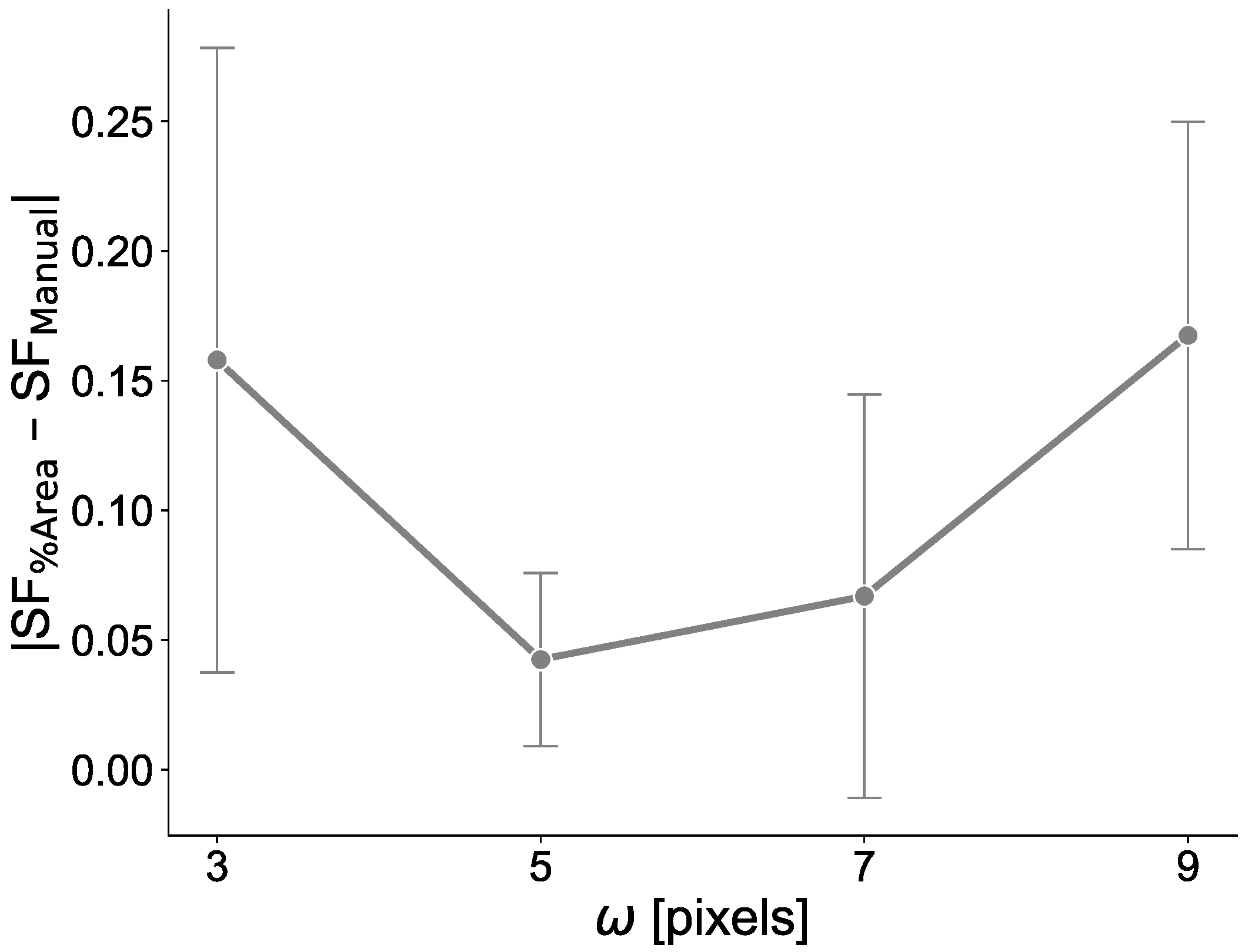

**Figure 4.**Parameter setting of the sliding window used for the local feature extraction (with size ω × ω pixels), in terms of the absolute error $|{\mathrm{SF}}_{\%\mathrm{Area}}-{\mathrm{SF}}_{\mathrm{Manual}}|$ by considering ω ∈ {3, 5, 7, 9}. The calibration set was composed of 20 randomly selected images (5 for each cell line). The dots and the error bars denote the mean and standard deviation for each setting, respectively.

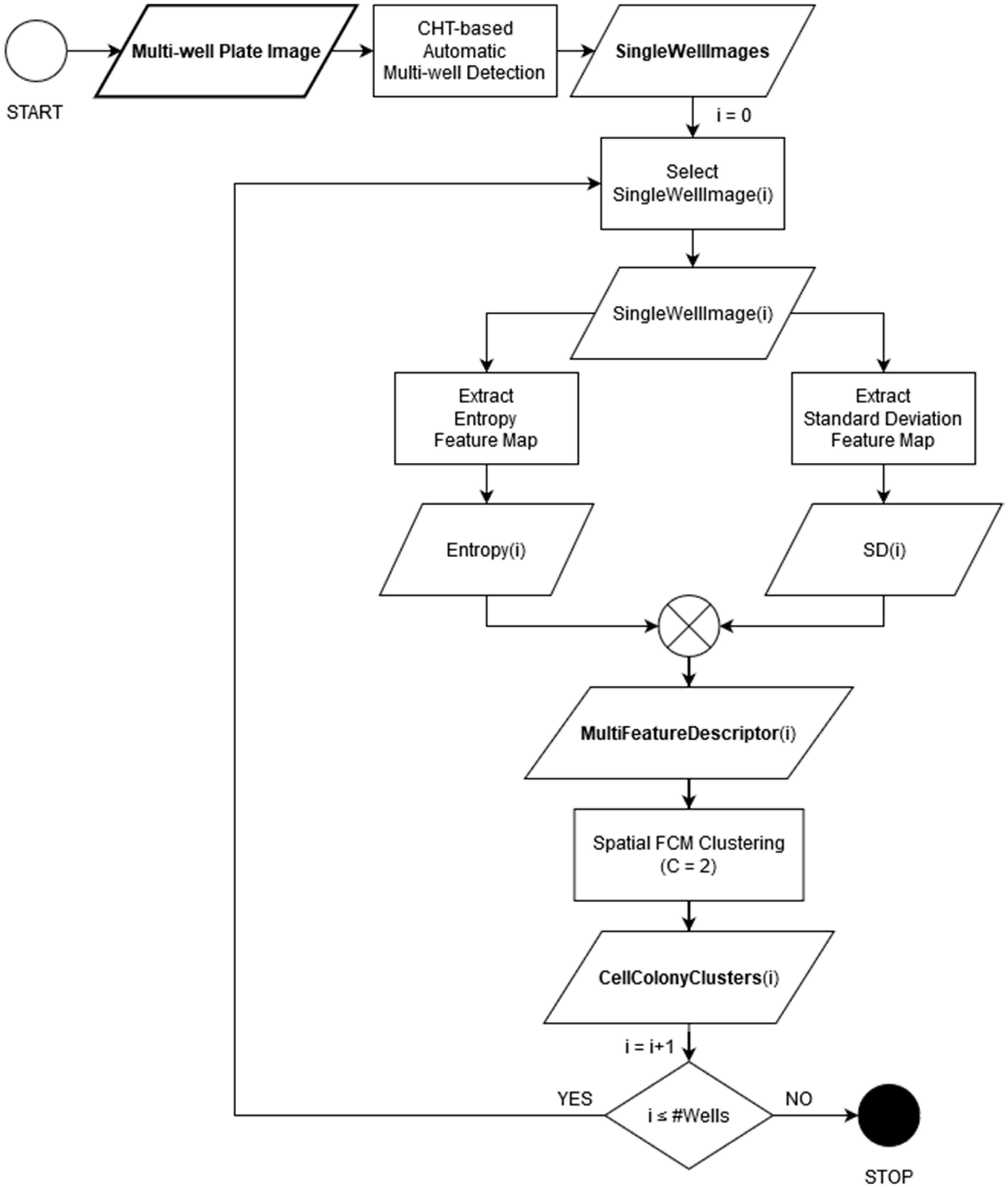

**Figure 5.**Overall flow diagram of MF2C3, the proposed multi-feature spatial Fuzzy C-Means (sFCM) clustering approach for automatic clonogenic assay evaluation. The data block with thick-line borders represents the input multi-well plate image. The bold variable names denote vectors composed of single-well images, feature maps or cell colony clusters.

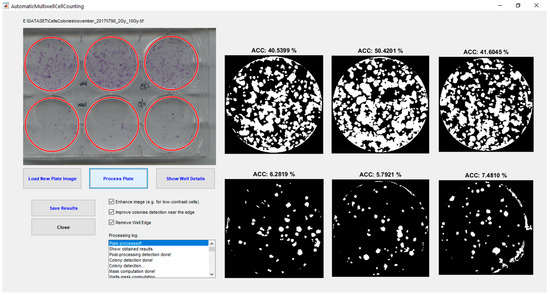

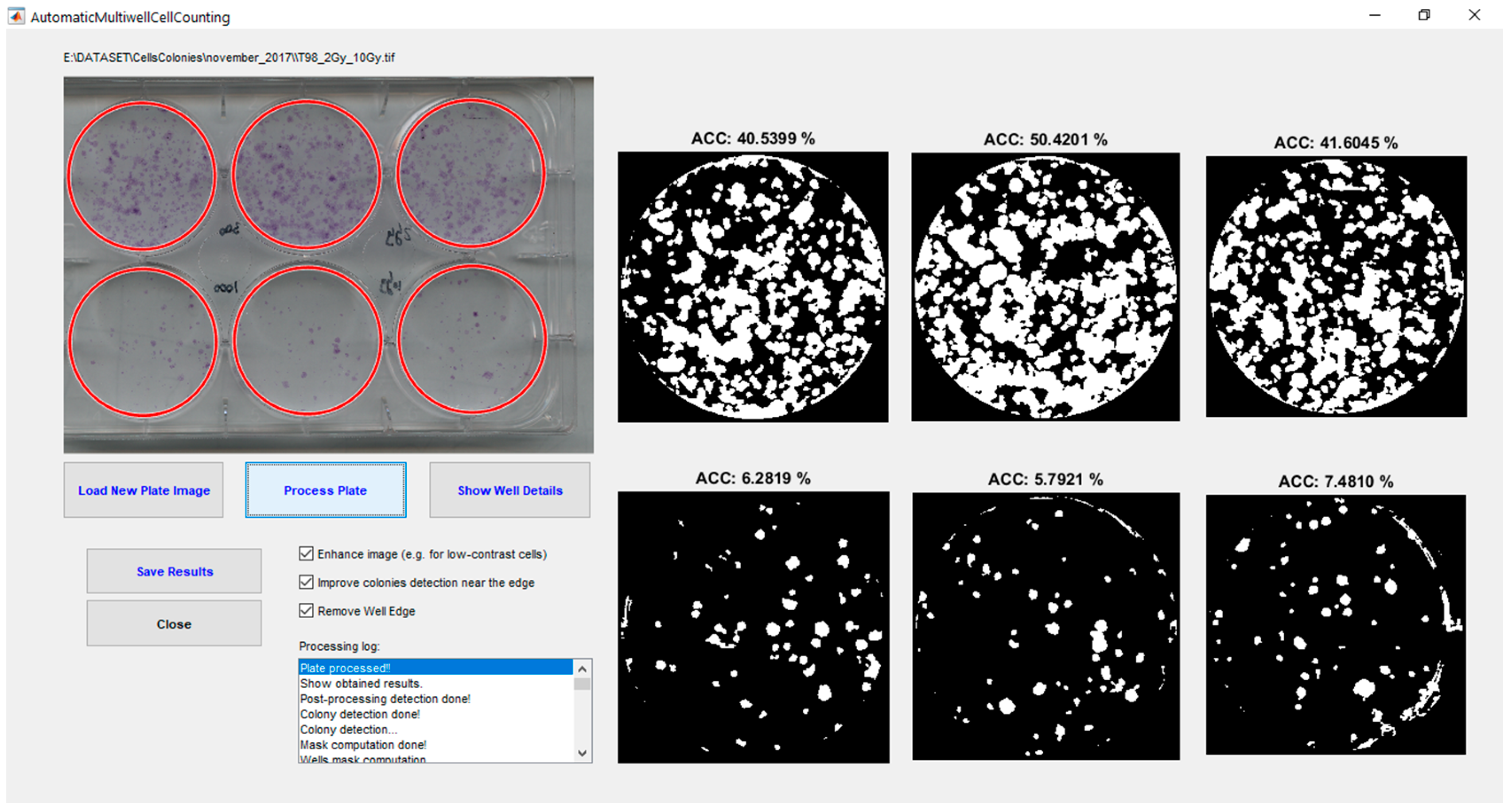

**Figure 6.**Graphical User Interface (GUI) of the proposed automatic approach for clonogenic evaluation.

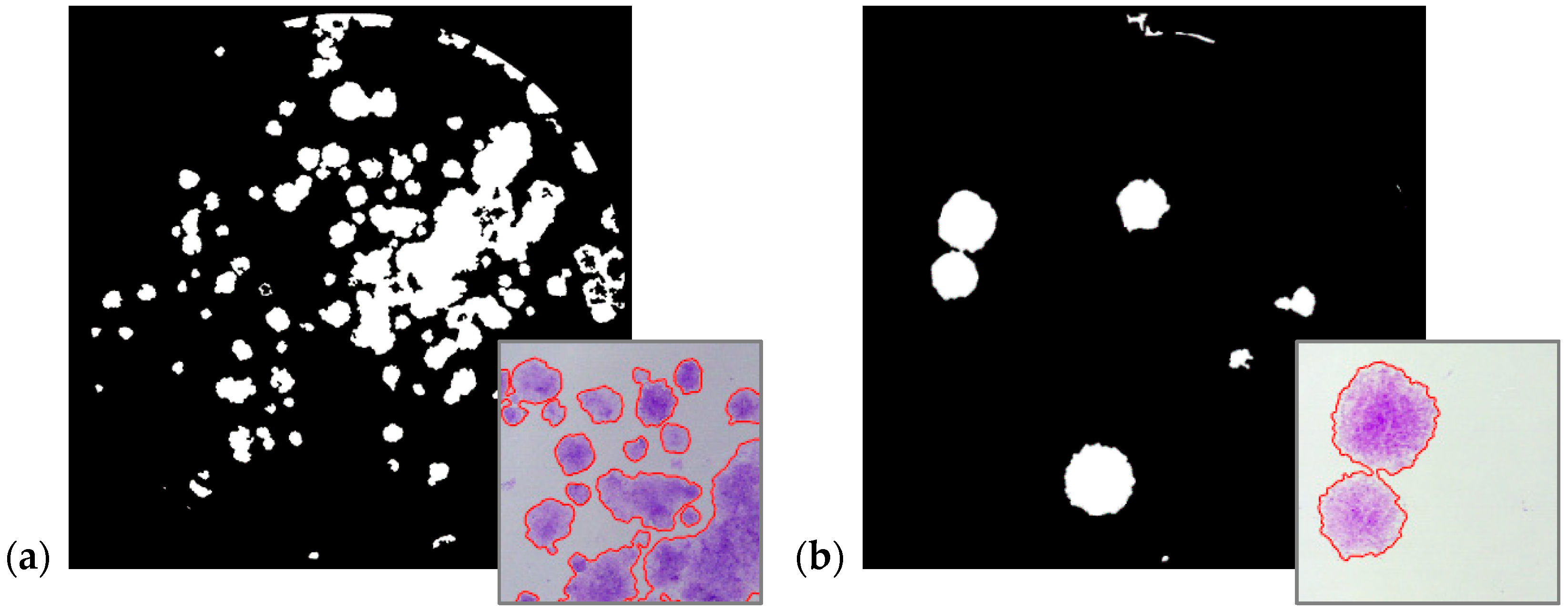

**Figure 7.**Colony segmentation results obtained by using MF2C3, via sFCM clustering with C = 2 using the entropy and SD descriptors extracted from the input images in Figure 1: (

**a**) MCF7; (

**b**) MCF10A; (

**c**) T98G; (

**d**) U251MG. For each sub-image, a portion of the well is enlarged by over-imposing the corresponding segmentation result via a red contour.

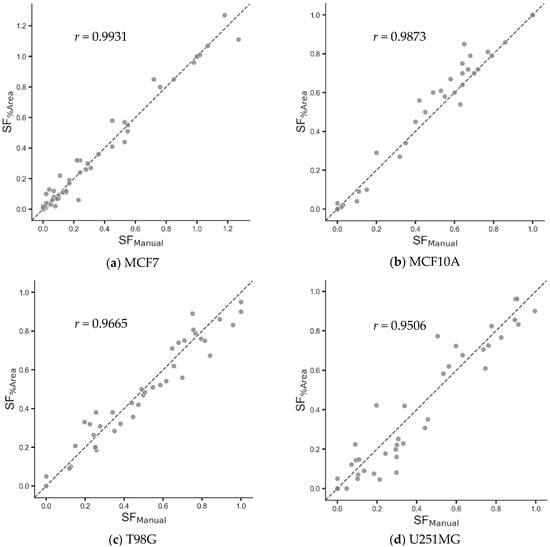

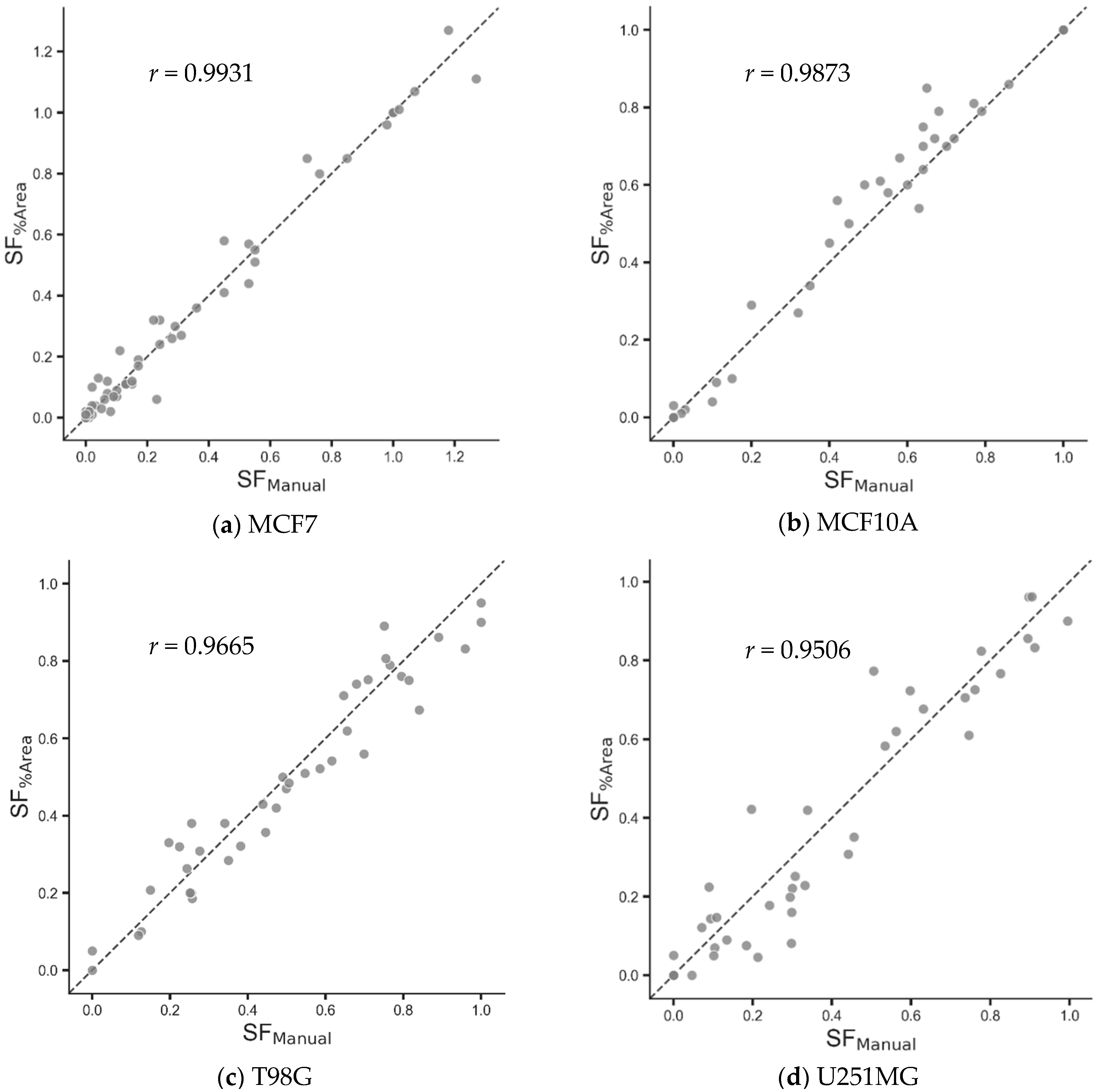

**Figure 8.**Scatter plots of the automated MF2C3 Area Covered by Colony (ACC)-based Surviving Fraction (SF) evaluation (SF

_{%Area}) versus the mean manual colony counting measurements (SF

_{Manual}) from three distinct biologists, for: (

**a**) MCF7, (

**b**) MCF10A, (

**c**) T98G, and (

**d**) U251MG cell lines. Each diagram reports data related to the proposed detection approach exploiting multi-feature spatial FCM, using entropy and standard deviation as descriptive features of the colonies. The equality line through the origin is drawn as a dashed line and each diagram also displays the corresponding Pearson’s correlation coefficient.

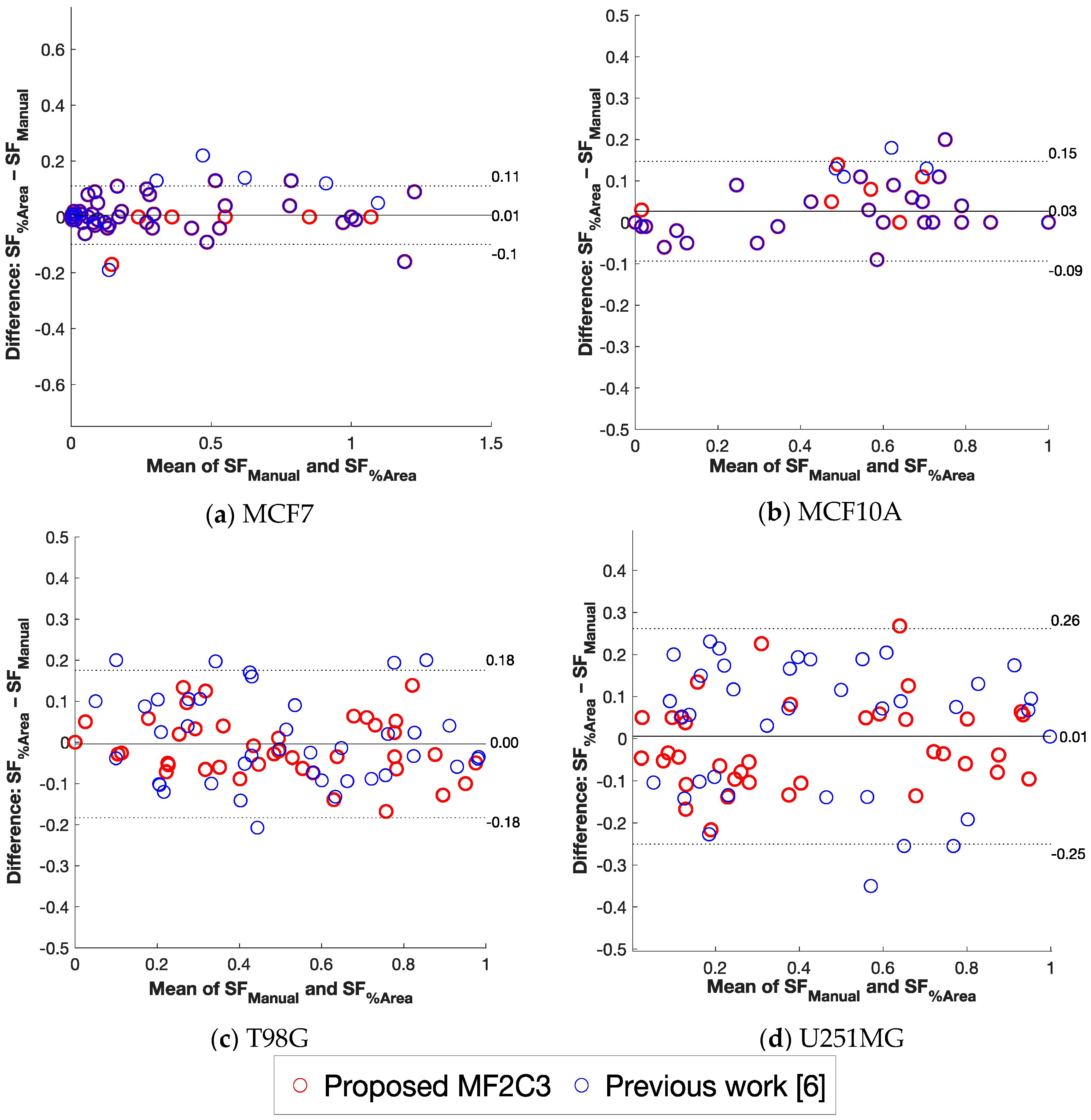

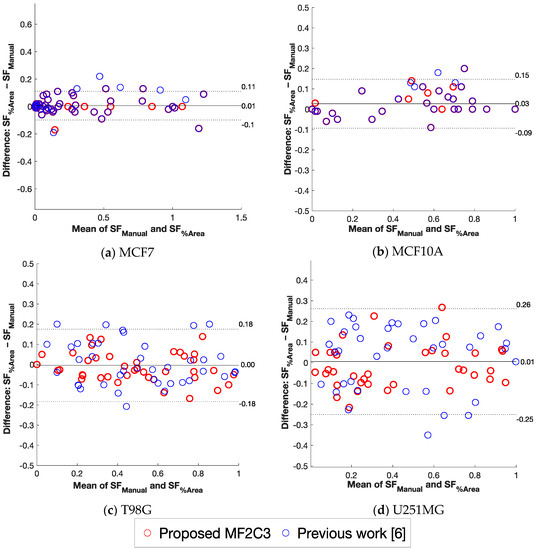

**Figure 9.**Bland–Altman plots of the automated ACC-based SF evaluation (SF

_{%Area}) versus the manual colony counting measurements (SF

_{Manual}), for: (

**a**) MCF7, (

**b**) MCF10A, (

**c**) T98G, and (

**d**) U251MG cell lines. The results yielded by the proposed MF2C3 approach and the previous work [6] are displayed as red and blue circles, respectively. Solid horizontal and dashed lines denote the mean and ±1.96 standard deviation values, respectively.

Cell Line | Description | Number of Analyzed Wells |
---|---|---|

MCF7 ^{1} | human breast epithelial carcinoma estrogen receptor-positive | 79 |

MCF10A ^{1} | human non-tumorigenic breast epithelial | 40 |

T98G | human glioblastoma | 40 |

U251MG | human glioblastoma-astrocytoma | 40 |

^{1}Same datasets used in [6] in order to conduct a direct and fair comparison with the proposed method.

**Table 2.**Pearson’s correlation coefficient between the automatic ACC-based SF values (SF

_{%Area}) and the conventional colony counting measurements (SF

_{Manual}) on the analyzed MCF7, MCF10A, T98G, and U251MG cell lines. The results achieved by MF2C3 are compared against the approach proposed in [6]. The corresponding significance level (p value) and the statistical significance between the correlation coefficients was assessed by the Fisher’s z-transformation. Boldface values indicate statistical significance.

Cell Line | Number of Samples | Pearson’s Correlation Coefficient (p Value) [6] | Pearson’s Correlation Coefficient (p Value) [MF2C3] | Fisher’s z-Transformation (p Value) |
---|---|---|---|---|

MCF7 | 79 | 0.9791 (<0.0001) | 0.9931(<0.0001) | 5.87 × 10^{−4} |

MCF10A | 40 | 0.9682 (<0.0001) | 0.9873 (<0.0001) | 4.61 × 10^{−3} |

T98G | 40 | 0.9237 (<0.0001) | 0.9665 (<0.0001) | 6.94 × 10^{−3} |

U251MG | 40 | 0.8777 (<0.0001) | 0.9506 (<0.0001) | 4.23 × 10^{−3} |

Method | Approach Type | Human Intervention | Specific Hardware Needed | Plate Position Detection | Cells Type |
---|---|---|---|---|---|

Barber et al., 2001 [18] | Semi-automatic | processing method selection | Yes | fixed plate position | HT29, A172, U118, IN1265 |

Bernard et al., 2001 [19] | Supervised model | parameters tuning | Yes | fixed positioning mask | DC3F |

Dahle et al., 2004 [20] | Semi-automatic | thresholding interaction | No | fixed positioning mask | V79, HaCaT |

Siragusa et al., 2018 [21] | Semi-automatic | one parameter setting | Yes | fixed positioning mask | V79, HeLa |

Clarke et al., 2010 [22] | Semi-automatic | parameters selection | No | fixed position | Escherichia coli, Streptococcus pneumoniae |

Geissmann, 2013 [23] | Semi-automatic | interactive parameters initialization | No | automatic Petri dish detection | Staphylococcus aureus |

Chiang et al., 2015 [24] | Automatic | N.A. | Yes | fixed position | Escherichia coli K12 |

Khan et al., 2018 [25] | Automatic | N.A. | No | fixed positioning mask | Escherichia coli, Klebsiella pneumoniae, Pseudomonas aeruginosa, Staphylococcus aureus |

Boukouvalas et al., 2019 [26] | Automatic | N.A. | No | automatic ROIs detection | Streptococcus mutans, Candida albicans, Staphylococcus aureus |

Bewes et al., 2008 [30] | Automatic | N.A. | No | fixed flask position | MM576, NCI-H460, IMR-32 |

Guzmán et al., 2014 [36] | Semi-automatic | alignment and cropping of the image | No | fixed positioning mask | T98G |

Militello et al., 2017 [6] | Automatic | N.A. | No | automatic multi-well detection | MFC7, MCF10A |

MF2C3 | Automatic | N.A. | No | automatic multi-well detection | MCF7, MCF10A, T98G, U251MG |
