# Spin-Boson Model as A Simulator of Non-Markovian Multiphoton Jaynes-Cummings Models

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Spin-Boson Model

## 3. Analogue Simulation of Multiphoton Spin-Boson Interactions

#### 3.1. Reaction Coordinate Mapping

#### 3.2. Structured Environments

## 4. Examples and Numerical Simulations

#### 4.1. Dissipationless Multiphoton Jaynes-Cummings Models

#### 4.2. Dissipative Multiphoton Jaynes-Cummings Models

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Reaction Coordinate Mapping

## Appendix B. Derivation of ${H}_{b}$ and ${H}_{\mathrm{n}}$

## References

- Dowling, J.P.; Milburn, G.J. Quantum technology: the second quantum revolution. Phil. Trans. R. Soc. A
**2003**, 361, 1655–1674. [Google Scholar] [CrossRef] - Nielsen, M.A.; Chuang, I.L. Quantum Computation and Quantum Information; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
- Feynman, R.P. Simulating physics with computers. Int. J. Theor. Phys.
**1982**, 21, 467–488. [Google Scholar] [CrossRef] - Johnson, T.H.; Clark, S.R.; Jaksch, D. What is a quantum simulator? EPJ Quantum Technol.
**2014**, 1, 10. [Google Scholar] [CrossRef] - Georgescu, I.M.; Ashhab, S.; Nori, F. Quantum simulation. Rev. Mod. Phys.
**2014**, 86, 153–185. [Google Scholar] [CrossRef] - Bloch, I.; Dalibard, J.; Nascimbene, S. Quantum simulations with ultracold quantum gases. Nat. Phys.
**2012**, 8, 267–276. [Google Scholar] [CrossRef] - Blatt, R.; Roos, C.F. Quantum simulations with trapped ions. Nat. Phys.
**2012**, 8, 277. [Google Scholar] [CrossRef] - Leggett, A.J.; Chakravarty, S.; Dorsey, A.T.; Fisher, M.P.A.; Garg, A.; Zwerger, W. Dynamics of the dissipative two-state system. Rev. Mod. Phys.
**1987**, 59, 1–85. [Google Scholar] [CrossRef] - Weiss, U. Quantum Dissipative Systems, 3rd ed.; World Scientific: Singapore, 2008. [Google Scholar]
- Rabi, I.I. On the process of space quantization. Phys. Rev.
**1936**, 49, 324–328. [Google Scholar] [CrossRef] - Rabi, I.I. Space quantization in a gyrating magnetic field. Phys. Rev.
**1937**, 51, 652–654. [Google Scholar] [CrossRef] - Jaynes, E.T.; Cummings, F.W. Comparison of quantum and semiclassical radiation theories with application to the beam maser. Proc. IEEE
**1963**, 51, 89–109. [Google Scholar] [CrossRef] - Scully, M.O.; Zubairy, M.S. Quantum Optics; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar]
- Huelga, S.F.; Plenio, M.B. Vibrations, quanta and biology. Contemp. Phys.
**2013**, 54, 181–207. [Google Scholar] [CrossRef] - Tanimura, Y.; Kubo, R. Time evolution of a quantum system in contact with a nearly gaussian-Markoffian noise Bath. J. Phys. Soc. Jpn.
**1989**, 58, 101–114. [Google Scholar] [CrossRef] - Tanimura, Y. Nonperturbative expansion method for a quantum system coupled to a harmonic-oscillator bath. Phys. Rev. A
**1990**, 41, 6676–6687. [Google Scholar] [CrossRef] [PubMed] - Prior, J.; Chin, A.W.; Huelga, S.F.; Plenio, M.B. Efficient simulation of strong system-environment interactions. Phys. Rev. Lett.
**2010**, 105, 050404. [Google Scholar] [CrossRef] [PubMed] - Dattani, N.S.; Pollock, F.A.; Wilkins, D.M. Analytic Influence Functionals for Numerical Feynman Integrals in Most Open Quantum Systems. Available online: http://www.naturalspublishing.com/files/published/464k51t1luip94.pdf (accessed on 16 April 2019).
- Dattani, N.S. FeynDyn: A MATLAB program for fast numerical Feynman integral calculations for open quantum system dynamics on GPUs. Comput. Phys. Commun.
**2013**, 184, 2828–2833. [Google Scholar] [CrossRef] - Wilkins, D.M.; Dattani, N.S. Why quantum coherence is not important in the Fenna-Matthews-Olsen complex. J. Chem. Theor. Comput.
**2015**, 11, 3411–3419. [Google Scholar] [CrossRef] - Strathearn, A.; Kirton, P.; Kilda, D.; Keeling, J.; Lovett, B.W. Efficient non-Markovian quantum dynamics using time-evolving matrix product operators. Nat. Commun.
**2018**, 9, 3322. [Google Scholar] [CrossRef] - Thoss, M.; Wang, H.; Miller, W.H. Self-consistent hybrid approach for complex systems: Application to the spin-boson model with Debye spectral density. J. Chem. Phys.
**2001**, 115, 2991–3005. [Google Scholar] [CrossRef] - Martinazzo, R.; Vacchini, B.; Hughes, K.H.; Burghardt, I. Communication: Universal Markovian reduction of Brownian particle dynamics. J. Chem. Phys.
**2011**, 134, 011101. [Google Scholar] [CrossRef] - Iles-Smith, J.; Lambert, N.; Nazir, A. Environmental dynamics, correlations, and the emergence of noncanonical equilibrium states in open quantum systems. Phys. Rev. A
**2014**, 90, 032114. [Google Scholar] [CrossRef] - Iles-Smith, J.; Dijkstra, A.G.; Lambert, N.; Nazir, A. Energy transfer in structured and unstructured environments: Master equations beyond the Born-Markov approximations. J. Chem. Phys.
**2016**, 144, 044110. [Google Scholar] [CrossRef] - Strasberg, P.; Schaller, G.; Lambert, N.; Brandes, T. Nonequilibrium thermodynamics in the strong coupling and non-Markovian regime based on a reaction coordinate mapping. New J. Phys.
**2016**, 18, 073007. [Google Scholar] [CrossRef] - Strasberg, P.; Schaller, G.; Schmidt, T.L.; Esposito, M. Fermionic reaction coordinates and their application to an autonomous Maxwell demon in the strong-coupling regime. Phys. Rev. B
**2018**, 97, 205405. [Google Scholar] [CrossRef] - Nazir, A.; Schaller, G. The reaction coordinate mapping in quantum thermodynamics. In Thermodynamics in the Quantum Regime; Binder, F., Correa, L.A., Gogolin, C., Anders, J., Adesso, G., Eds.; Springer International Publishing: New York, NY, USA, 2018; Available online: https://link.springer.com/book/10.1007/978-3-319-99046-0 (accessed on 16 April 2019).
- Chin, A.W.; Rivas, Á.; Huelga, S.F.; Plenio, M.B. Exact mapping between system-reservoir quantum models and semi-infinite discrete chains using orthogonal polynomials. J. Math. Phys.
**2010**, 51, 092109. [Google Scholar] [CrossRef] - Woods, M.P.; Groux, R.; Chin, A.W.; Huelga, S.F.; Plenio, M.B. Mappings of open quantum systems onto chain representations and Markovian embeddings. J. Math. Phys.
**2014**, 55, 032101. [Google Scholar] [CrossRef] - Mascherpa, F.; Smirne, A.; Tamascelli, D.; Fernández-Acebal, P.; Donadi, S.; Huelga, S.F.; Plenio, M.B. Optimized auxiliary oscillators for the simulation of general open quantum systems. arXiv
**2019**, arXiv:1904.04822. [Google Scholar] - Tamascelli, D.; Smirne, A.; Huelga, S.F.; Plenio, M.B. Nonperturbative treatment of non-Markovian dynamics of open quantum systems. Phys. Rev. Lett.
**2018**, 120, 030402. [Google Scholar] [CrossRef] [PubMed] - Braak, D.; Chen, Q.H.; Batchelor, M.T.; Solano, E. Semi-classical and quantum Rabi models: in celebration of 80 years. J. Phys. A Math. Theor.
**2016**, 49, 300301. [Google Scholar] [CrossRef] - Lloyd, S.; Braunstein, S.L. Quantum computation over continuous variables. Phys. Rev. Lett.
**1999**, 82, 1784–1787. [Google Scholar] [CrossRef] - Felicetti, S.; Pedernales, J.S.; Egusquiza, I.L.; Romero, G.; Lamata, L.; Braak, D.; Solano, E. Spectral collapse via two-phonon interactions in trapped ions. Phys. Rev. A
**2015**, 92, 033817. [Google Scholar] [CrossRef] - Pedernales, J.S.; Beau, M.; Pittman, S.M.; Egusquiza, I.L.; Lamata, L.; Solano, E.; del Campo, A. Dirac equation in (1+1)-dimensional curved spacetime and the multiphoton quantum Rabi model. Phys. Rev. Lett.
**2018**, 120, 160403. [Google Scholar] [CrossRef] - Garbe, L.; Egusquiza, I.L.; Solano, E.; Ciuti, C.; Coudreau, T.; Milman, P.; Felicetti, S. Superradiant phase transition in the ultrastrong-coupling regime of the two-photon Dicke model. Phys. Rev. A
**2017**, 95, 053854. [Google Scholar] [CrossRef] - Puebla, R.; Hwang, M.J.; Casanova, J.; Plenio, M.B. Protected ultrastrong coupling regime of the two-photon quantum Rabi model with trapped ions. Phys. Rev. A
**2017**, 95, 063844. [Google Scholar] [CrossRef] - Cui, S.; Cao, J.P.; Fan, H.; Amico, L. Exact analysis of the spectral properties of the anisotropic two-bosons Rabi model. J. Phys. A: Math. Theor.
**2017**, 50, 204001. [Google Scholar] [CrossRef] - Felicetti, S.; Rossatto, D.Z.; Rico, E.; Solano, E.; Forn-Díaz, P. Two-photon quantum Rabi model with superconducting circuits. Phys. Rev. A
**2018**, 97, 013851. [Google Scholar] [CrossRef] - Xie, Y.F.; Duan, L.; Chen, Q.H. Generalized quantum Rabi model with both one- and two-photon terms: A concise analytical study. Phys. Rev. A
**2019**, 99, 013809. [Google Scholar] [CrossRef] - Lo, C.F.; Liu, K.L.; Ng, K.M. The multiquantum Jaynes-Cummings model with the counter-rotating terms. Europhys. Lett.
**1998**, 42, 1. [Google Scholar] [CrossRef] - Casanova, J.; Puebla, R.; Moya-Cessa, H.; Plenio, M.B. Connecting nth order generalised quantum Rabi models: Emergence of nonlinear spin-boson coupling via spin rotations. npj Quantum Inf.
**2018**, 4, 47. [Google Scholar] [CrossRef] - Puebla, R.; Casanova, J.; Houhou, O.; Solano, E.; Paternostro, M. Quantum simulation of multiphoton and nonlinear dissipative spin-boson models. Phys. Rev. A
**2019**, 99, 032303. [Google Scholar] [CrossRef] - Breuer, H.P.; Petruccione, F. The Theory of Open Quantum Systems; Oxford University Press: Oxford, UK, 2002. [Google Scholar]
- Vojta, M. Impurity quantum phase transitions. Phil. Mag.
**2006**, 86, 1807–1846. [Google Scholar] [CrossRef] - Hur, K.L. Quantum phase transitions in spin-boson systems: Dissipation and light phenomena. In Understanding Quantum Phase Transitions; CRC Press: Boca Raton, FL, USA, 2010; pp. 217–237. Available online: https://www.crcpress.com/Understanding-Quantum-Phase-Transitions/Carr/p/book/9781439802519 (accessed on 16 April 2019).
- Leibfried, D.; Blatt, R.; Monroe, C.; Wineland, D. Quantum dynamics of single trapped ions. Rev. Mod. Phys.
**2003**, 75, 281–324. [Google Scholar] [CrossRef] - Pedernales, J.S.; Lizuain, I.; Felicetti, S.; Romero, G.; Lamata, L.; Solano, E. Quantum Rabi model with trapped ions. Sci. Rep.
**2015**, 5, 15472. [Google Scholar] [CrossRef] - Lv, D.; An, S.; Liu, Z.; Zhang, J.N.; Pedernales, J.S.; Lamata, L.; Solano, E.; Kim, K. Quantum simulation of the quantum Rabi model in a trapped Ion. Phys. Rev. X
**2018**, 8, 021027. [Google Scholar] [CrossRef] - de Matos Filho, R.L.; Vogel, W. Second-sideband laser cooling and nonclassical motion of trapped ions. Phys. Rev. A
**1994**, 50, R1988–R1991. [Google Scholar] [CrossRef] - de Matos Filho, R.L.; Vogel, W. Nonlinear coherent states. Phys. Rev. A
**1996**, 54, 4560–4563. [Google Scholar] [CrossRef] - Vogel, W.; de Matos Filho, R.L. Nonlinear Jaynes-Cummings dynamics of a trapped ion. Phys. Rev. A
**1995**, 52, 4214–4217. [Google Scholar] [CrossRef] - Cheng, X.H.; Arrazola, I.; Pedernales, J.S.; Lamata, L.; Chen, X.; Solano, E. Nonlinear quantum Rabi model in trapped ions. Phys. Rev. A
**2018**, 97, 023624. [Google Scholar] [CrossRef] - de Vega, I.; Alonso, D. Dynamics of non-Markovian open quantum systems. Rev. Mod. Phys.
**2017**, 89, 015001. [Google Scholar] [CrossRef] - Breuer, H.P.; Laine, E.M.; Piilo, J. Measure for the degree of non-Markovian behavior of quantum processes in open systems. Phys. Rev. Lett.
**2009**, 103, 210401. [Google Scholar] [CrossRef]

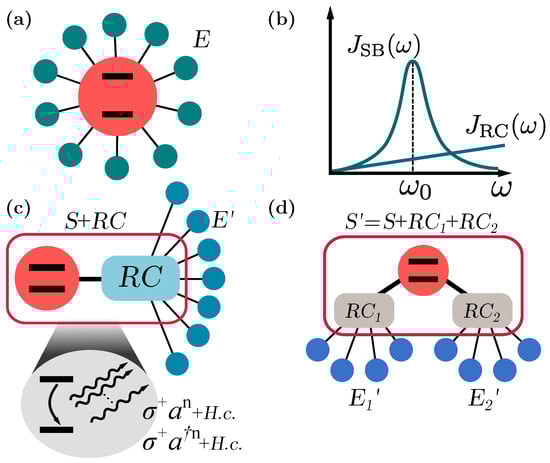

**Figure 1.**(

**a**) Spin-boson model in the customary star configuration, where each of the circles corresponds to a harmonic oscillator of the environment with frequency ${\omega}_{k}$ interacting with the spin through ${\sigma}_{x}{f}_{k}({c}_{k}+{c}_{k}^{\u2020})$, before the reaction coordinate mapping. In (

**b**), we show an underdamped spin-boson spectral density ${J}_{\mathrm{SB}}(\omega )$, peaked at ${\omega}_{0}$ (cf. Equation (8)). Upon the reaction coordinate mapping, a collective degree of freedom is included into the system, which in turn interacts with the residual environment, as sketched in (

**c**) (see the main text for further details). For an underdamped ${J}_{\mathrm{SB}}(\omega )$, ${J}_{\mathrm{RC}}(\omega )$ adopts a Markovian form, as depicted in (

**b**). Such interaction with a collective coordinate can be exploited to realize Hamiltonians containing multiphoton interaction terms, as indicated in (

**c**) and explained in detail in Section 3. For structured environments, one can still rearrange the original environment using more collective coordinates into the augmented system ${S}^{\prime}$, where each of them interacts now with its own residual environment, as sketched in (

**d**) (see Section 3.2 for further details).

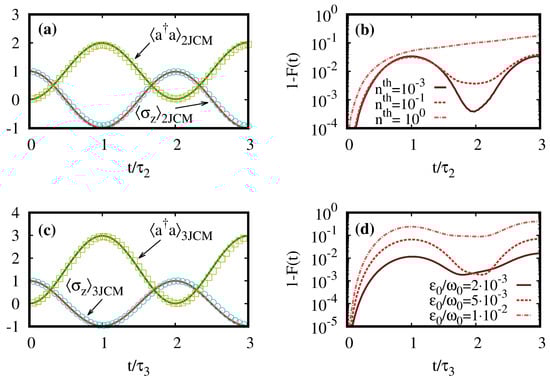

**Figure 2.**Dynamics of the simulated multiphoton Jaynes-Cummings models, $n=2$ (top) and $n=3$ (bottom). In Panels (

**a**) and (

**c**), we show the targeted dynamics (solid lines) and the one obtained using the spin-boson Hamiltonian (points) for $\left(\right)$ and $\left(\right)$, as indicated in the plots and as a function of the time rescaled by ${\tau}_{n}$ (Equation (31)). In Panels (

**b**) and (

**d**), we plot the infidelity $1-F(t)$ between the ideal ${\rho}_{\mathrm{nJCM}}(t)$ state and its approximated one $\mathsf{\Phi}{\rho}_{\mathrm{S}+\mathrm{RC}}(t){\mathsf{\Phi}}^{\u2020}$ for different conditions, namely in (

**b**) for different temperatures (or mean occupation number ${n}^{\mathrm{th}}$) and in (

**d**) for different values of ${\u03f5}_{0}/\mathsf{\Omega}$. See Section 4.1 for further details regarding the parameters and states considered in the simulation. JCM, Jaynes-Cummings model.

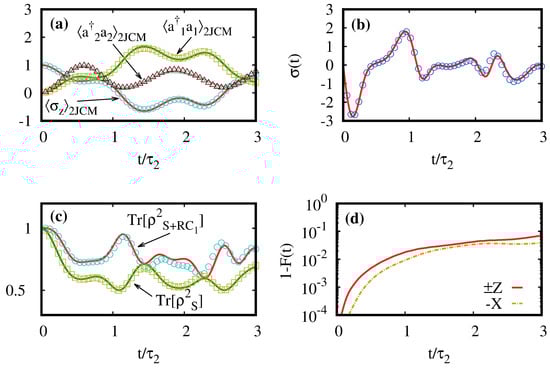

**Figure 3.**Non-Markovian dynamics for a 2JCM and its simulation using a spin-boson model ${H}_{{\mathrm{S}}^{\prime}}$. In Panel (

**a**), we show the dynamics for the expectation values $\langle {a}_{i}^{\u2020}{a}_{i}\rangle $ with $i=1,2$ and $\langle {\sigma}_{z}\rangle $ for the target 2JCM model (solid lines) and its reconstructed values using ${H}_{{\mathrm{S}}^{\prime}}$ (points). The considered initial state reads as ${\rho}_{{\mathrm{S}}^{\prime}}(0)=\left|-\right.\u232a\left.\u2329-\right|\otimes {\rho}_{{\mathrm{RC}}_{1}}^{\mathrm{th}}\otimes {\rho}_{{\mathrm{RC}}_{2}}^{\mathrm{th}}$, with $\beta $ very large such that ${\rho}^{\mathrm{th}}\approx \left|0\right.\u232a\left.\u23290\right|$. In (

**b**), we plot the time-derivative of the trace distance, $\sigma (t)$, after tracing out the second bosonic mode and considering the initial states $\left|e\right.\u232a$ and $\left|g\right.\u232a$ for the spin in ${H}_{{\mathrm{S}}^{\prime}}$, while both reaction coordinates find themselves in their vacuum. Clearly, $\sigma (t)>0$ during certain intervals, revealing the non-Markovianity introduced due to the interaction with the second mode. Panel (

**c**) shows the evolution of purity for the state upon tracing the second mode, $\mathrm{Tr}[{\rho}_{\mathrm{S}+{\mathrm{RC}}_{1}}^{2}(t)]$ and for the reduced state of the spin, $\mathrm{Tr}[{\rho}_{\mathrm{S}}^{2}(t)]$, for the same case shown in (

**a**). In Panel (

**d**), we compare the infidelity $1-F(t)$ between the ideal state and the simulated one using ${H}_{{\mathrm{S}}^{\prime}}$ for the three different initial states employed here. We refer to Section 4.1 for further details regarding the parameters and states considered in the simulation.

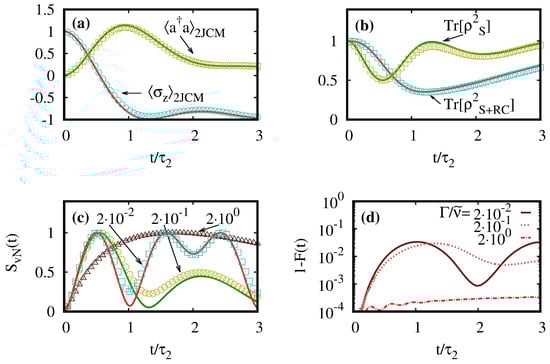

**Figure 4.**Dynamics of a dissipative 2JCM using a spin-boson model. In Panel (
