A Prediction Model for the Potential Plastic Zone Induced by Tunnel Excavation Adjacent to a Pile Foundation in a Gravity Field

1
College of Civil and Transportation Engineering, Shenzhen University, Shenzhen 518060, China
2
Underground Polis Academy of Shenzhen University, Shenzhen 518060, China
3
China Academy of Railway Sciences (Shenzhen) Research and Design Institute Co.,Ltd., Shenzhen 518054, China
4
China Railway Siyuan (Hubei) Engineering Supervision Consulting Co., Ltd., Wuhan 430063, China
*
Author to whom correspondence should be addressed.
Symmetry 2019, 11(10), 1306; https://doi.org/10.3390/sym11101306
Received: 26 September 2019 / Revised: 10 October 2019 / Accepted: 12 October 2019 / Published: 16 October 2019

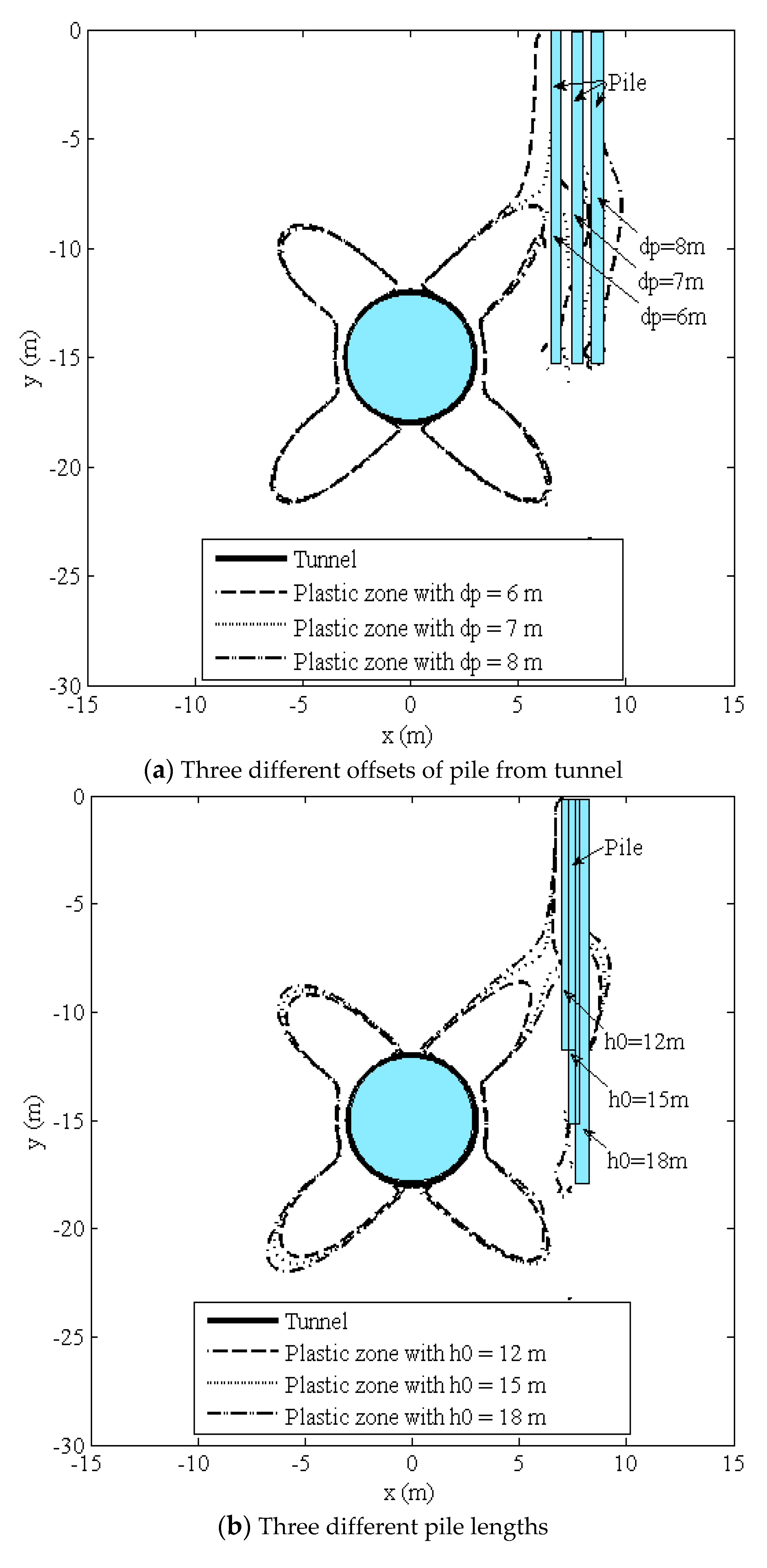

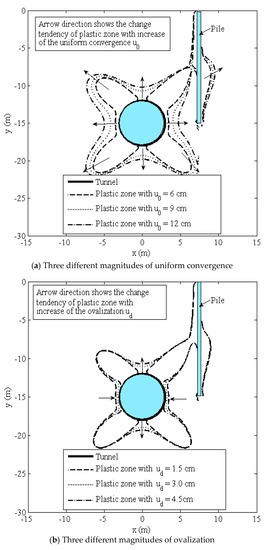

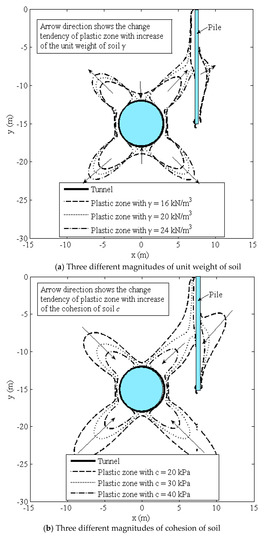

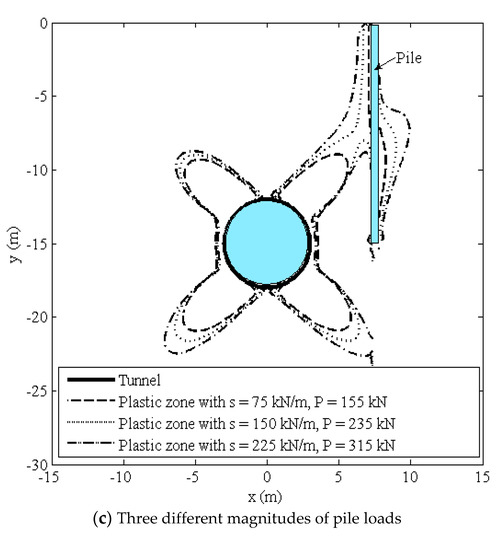

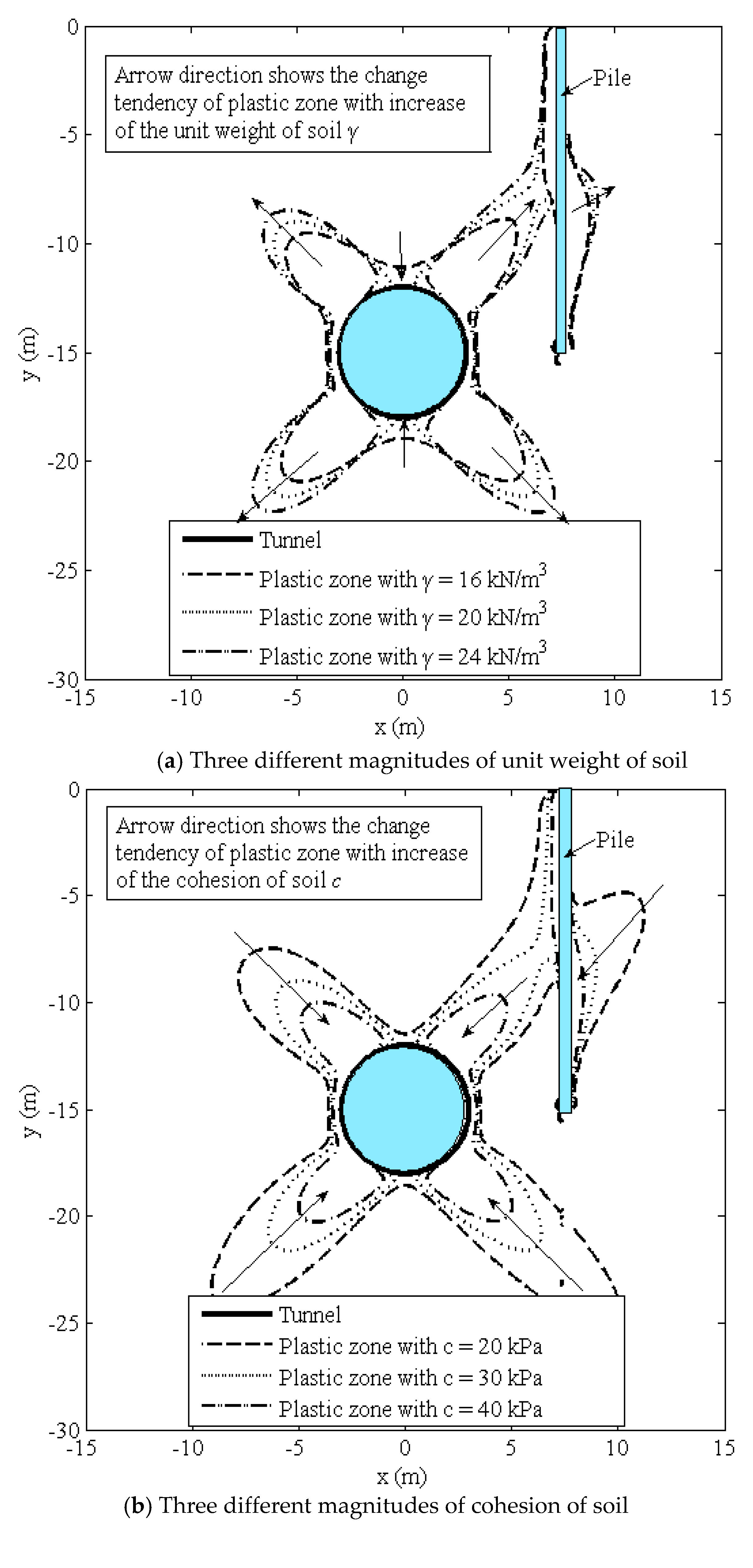

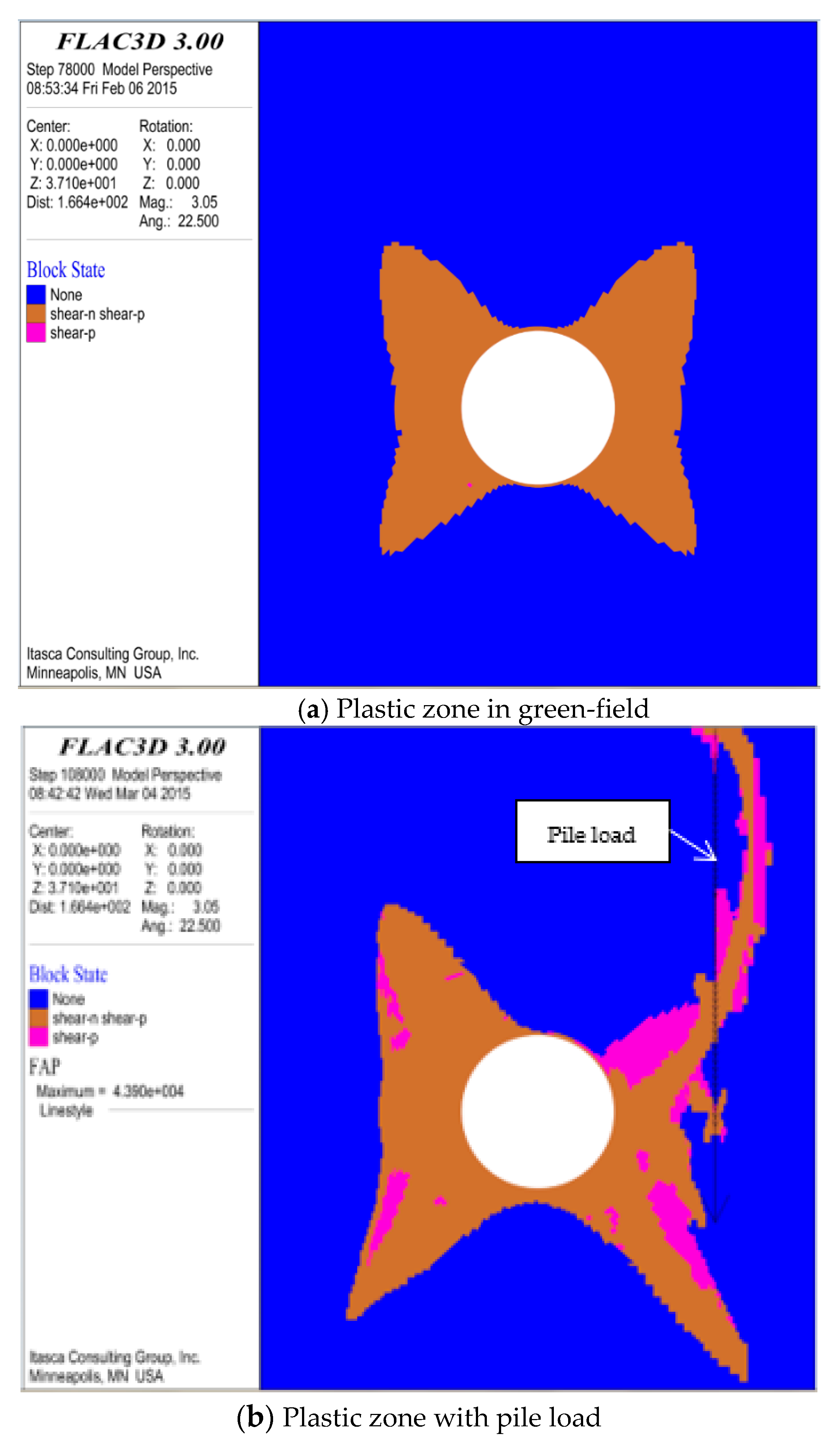

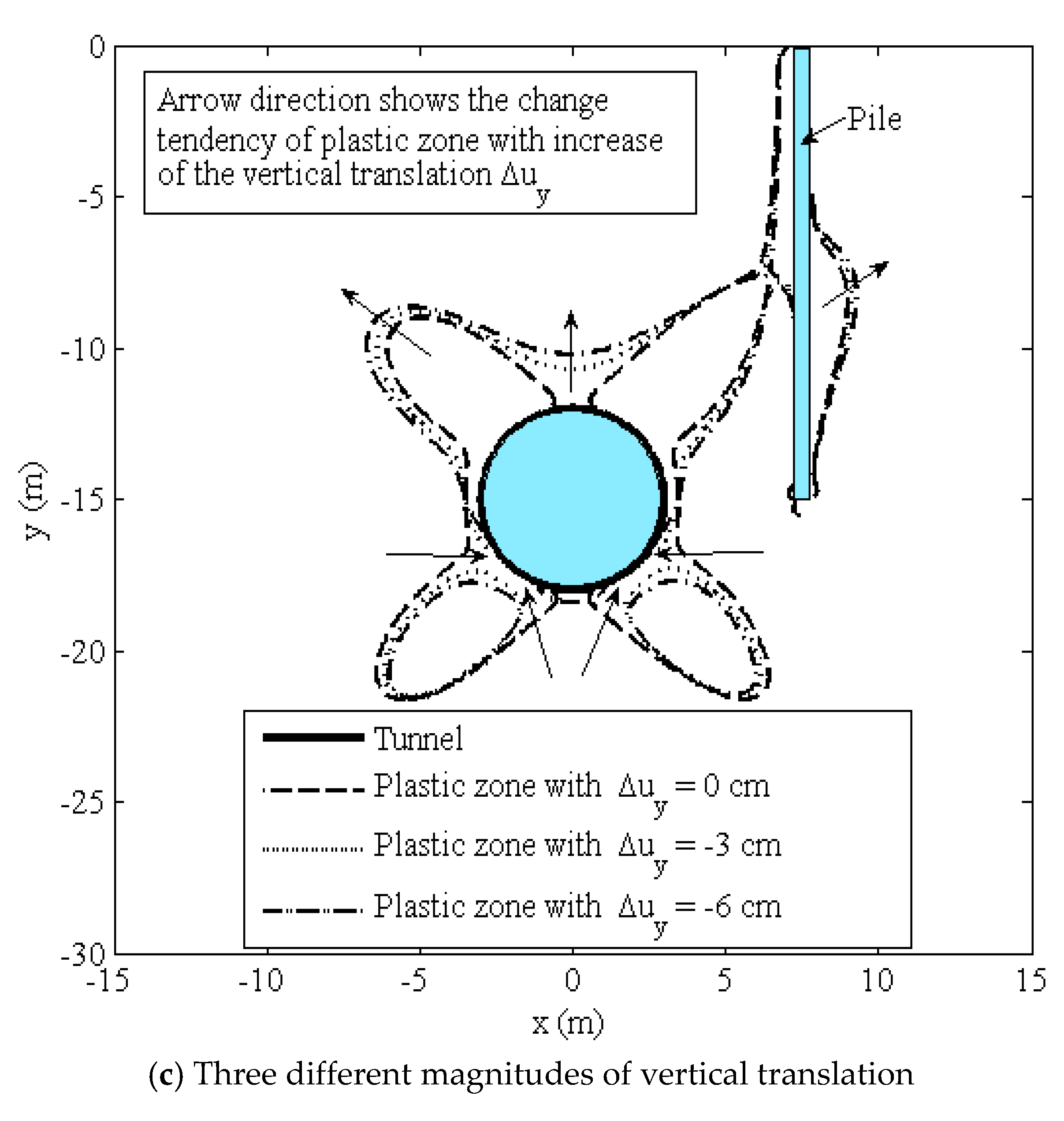

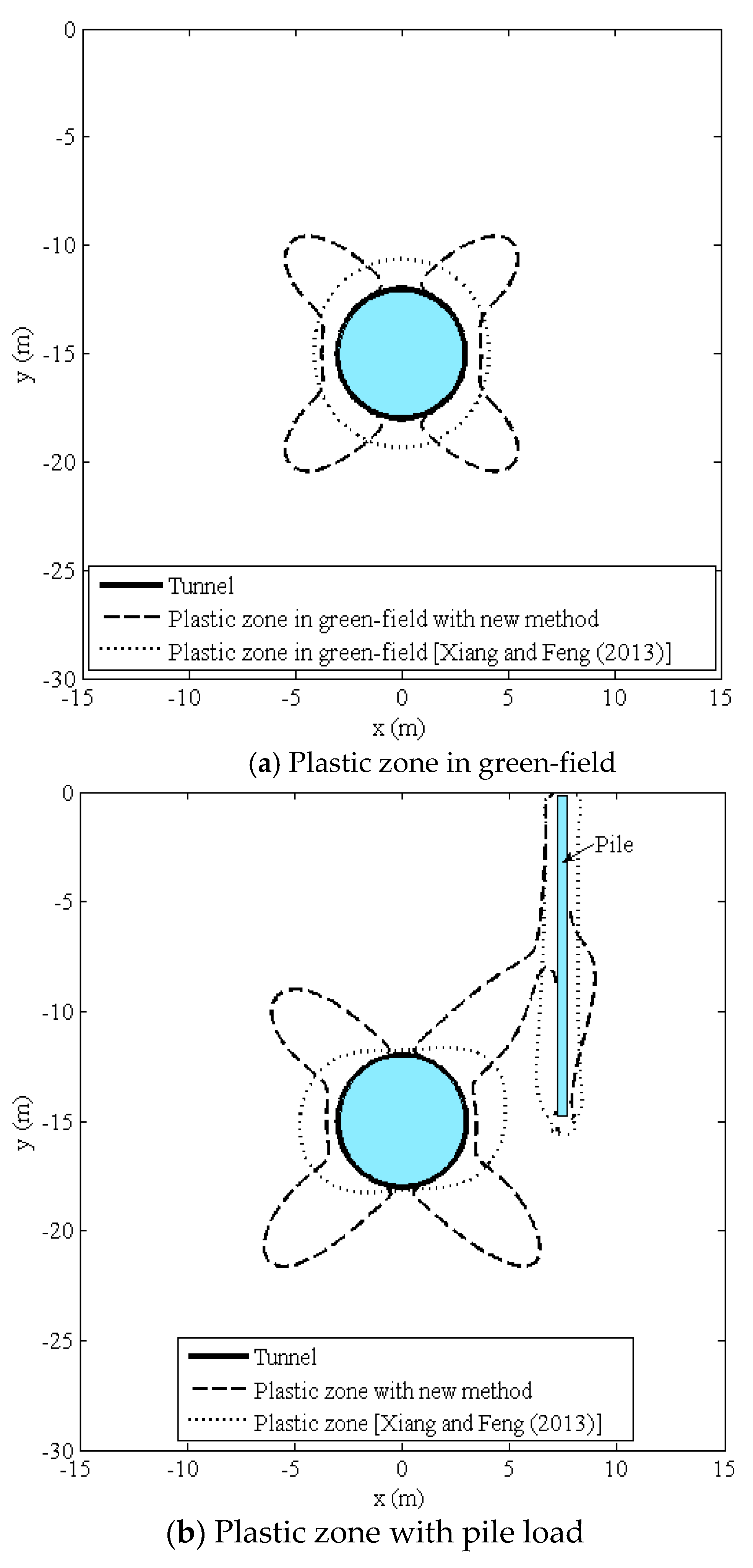

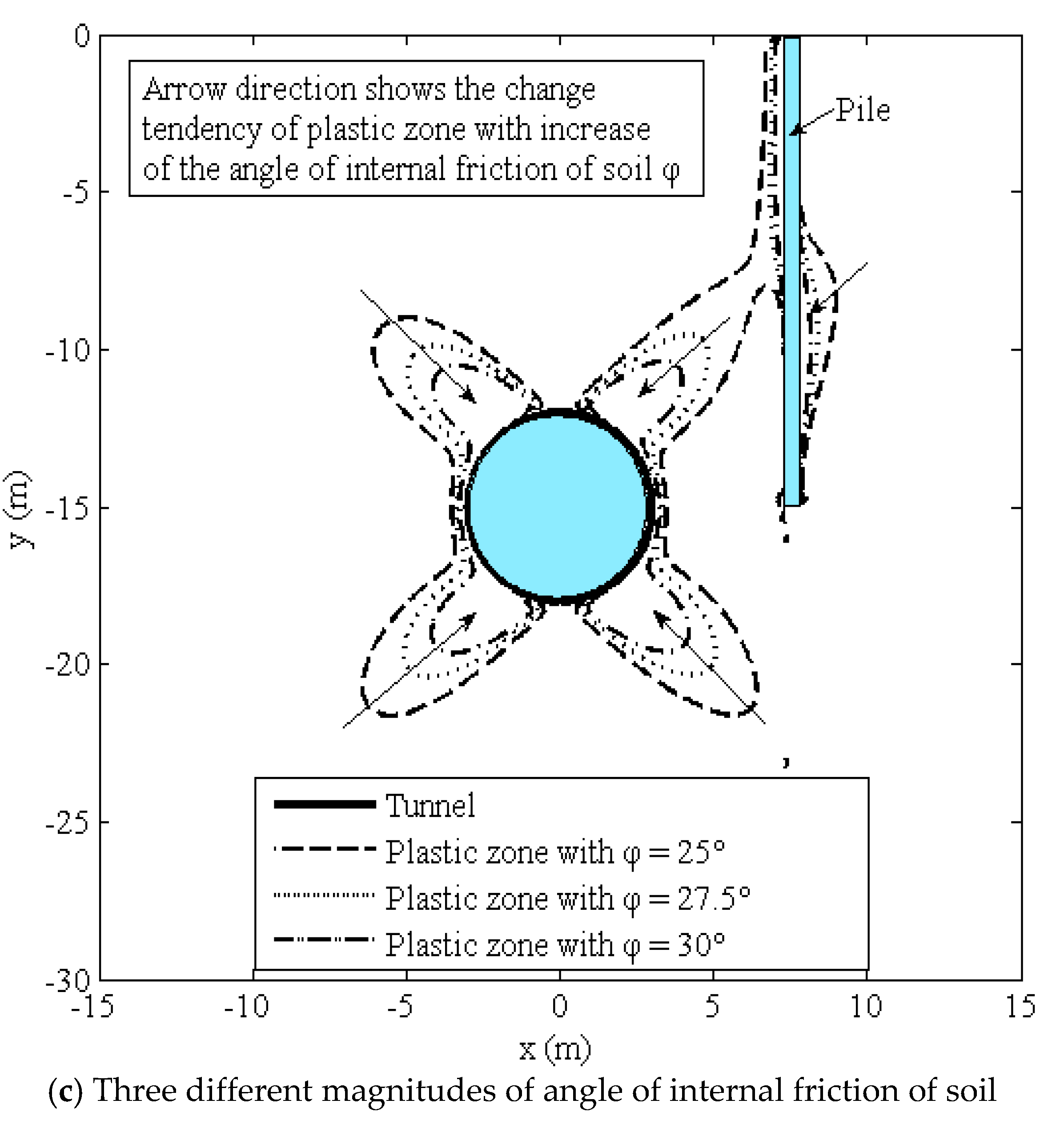

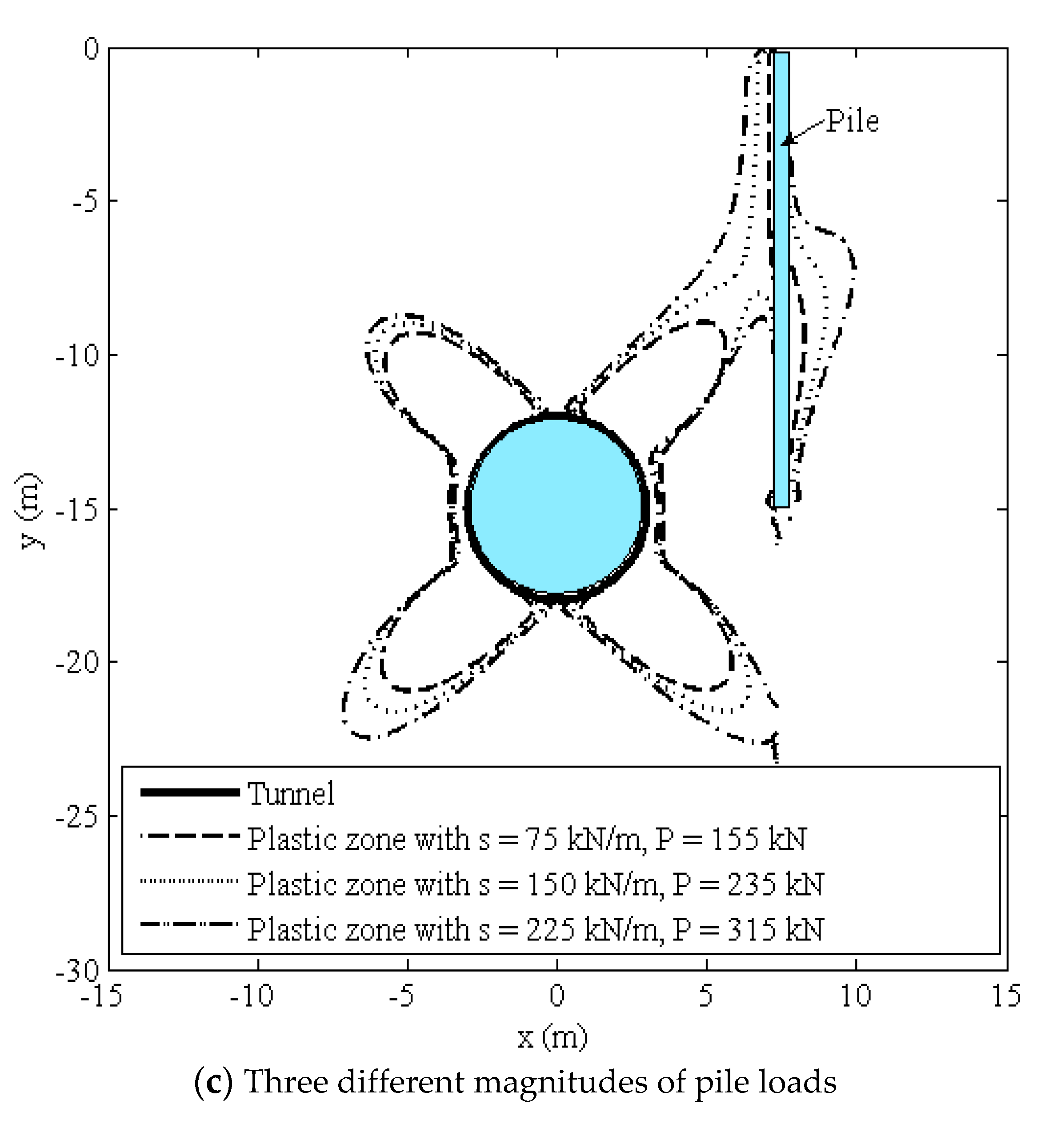

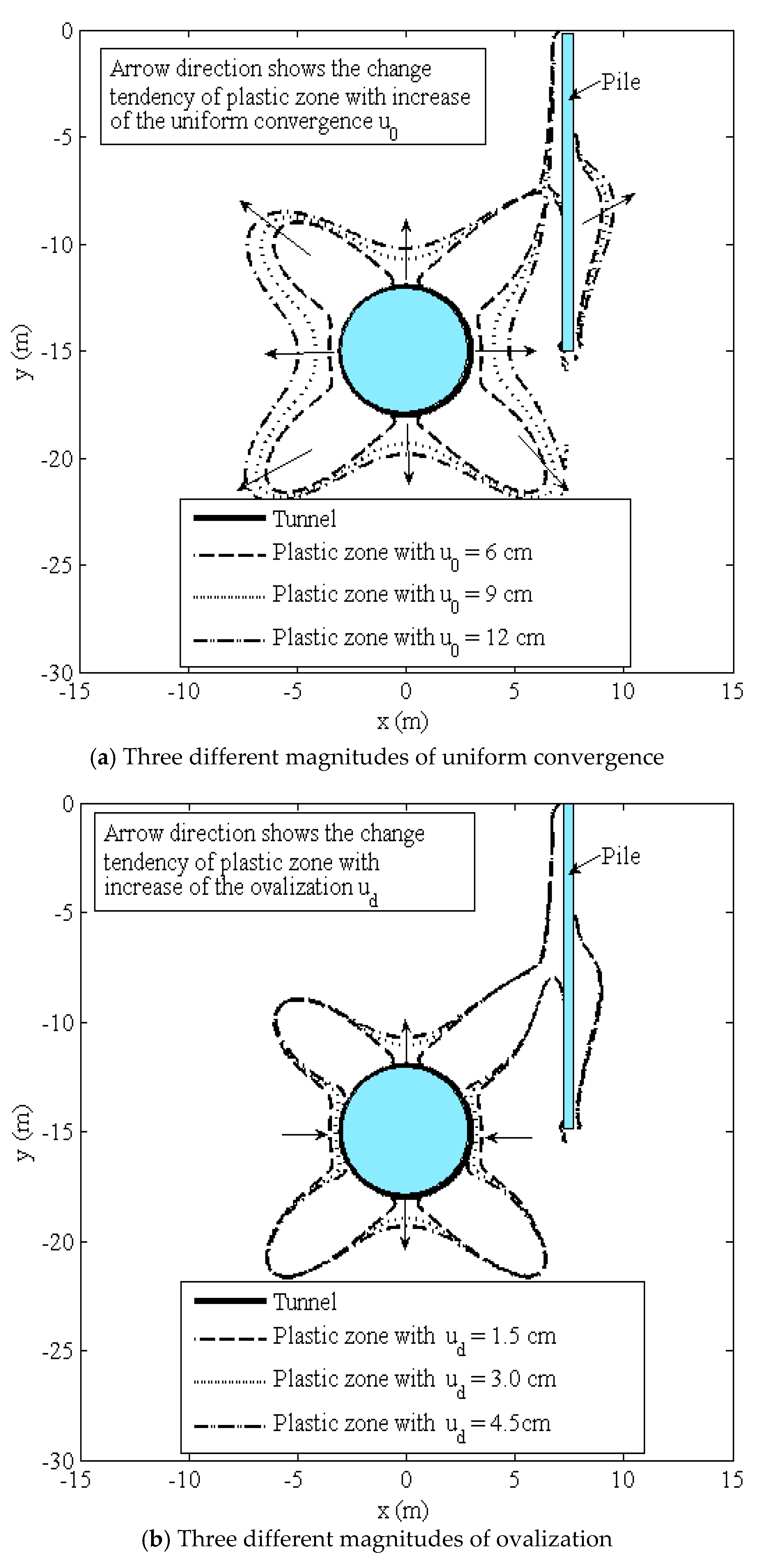

The construction of metro tunnels in urban areas often encounters existing underground structures, such as the pile foundations of adjacent existing buildings. Under the mutual effects and impacts of pile foundation load and tunnel excavation, the soil around tunnel and pile foundations can experience stress redistribution or even yield prior to support installation, which could adversely affect and even damage the adjacent pile foundations. This paper proposes an effective prediction model consisted of axisymmetric tunnel and pile foundation to investigate the shape and range of potential plastic zones induced by tunnel excavation adjacent to pile foundations. Then the results obtained from the proposed method are compared with the existing approaches and numerical simulations, which shows that the shape of the potential plastic zone develops towards a butterfly shape in a gravity field, similar to those from numerical simulations. Finally, a parametric analysis is performed to investigate the influences of different parameters, such as soil parameters, axisymmetric boundary conditions, and pile parameters on the boundaries of the potential plastic zone. This proposed prediction model might provide a certain basis for making protective measures for existing pile foundations influenced by tunnel excavation, and provide a quick estimate of the boundaries of the potential plastic zone induced by tunnel excavation adjacent to pile foundations in a gravity field, thus resulting in time and cost savings. View Full-Text
Keywords: metro tunnels; pile foundation; plastic zone; analytical prediction model; numerical simulation metro tunnels; pile foundation; plastic zone; analytical prediction model; numerical simulation
