# Effect of Plastic Anisotropy on the Distribution of Residual Stresses and Strains in Rotating Annular Disks

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

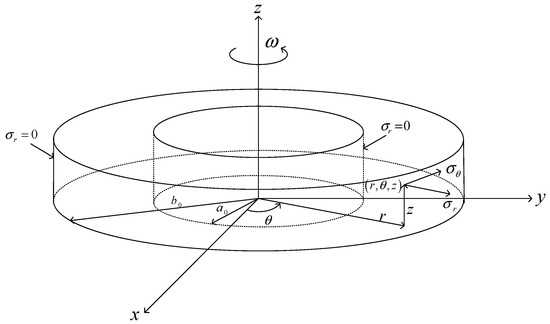

## 2. Statement of the Problem

_{r}is the radial strain, ε

_{θ}is the circumferential strain, and ε

_{z}is the axial strain. The superscript e denotes the elastic part of the strain and will denote the elastic part of the strain rate. The orthotropic yield criterion proposed in reference [14] and its associated flow rule are adopted in the plastic region. It is assumed that the principal axes of anisotropy coincide with coordinate curves of the cylindrical coordinate system. Under plane stress conditions, the yield criterion adopted reads $\left(G+H\right){\sigma}_{r}^{2}+\left(F+H\right){\sigma}_{\theta}^{2}-2H{\sigma}_{r}{\sigma}_{\theta}=1$ where G, H, and F are anisotropic constants. It is convenient to rewrite this criterion as:

## 3. Solution at Loading

#### 3.1. Purely Elastic Solution

#### 3.2. Elastic/Plastic Stress Solution

#### 3.3. Elastic/Plastic Strain Solution

## 4. Distribution of Residual Stresses and Strains

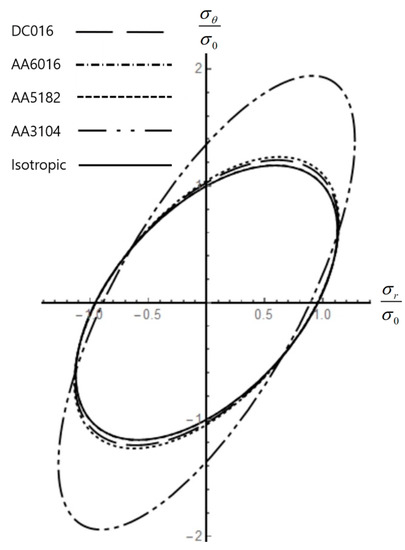

## 5. Illustrative Example

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Tahani, M.; Nosier, A.; Zebarjad, S.M. Deformation and stress analysis of circumferentially fiber-reinforced composite disks. Int. J. Solids Struct.
**2005**, 42, 2741–2754. [Google Scholar] [CrossRef] - Zare, H.R.; Darijani, H. Strengthening and design of the linear hardening thick-walled cylinders using the new method of rotational autofrettage. Int. J. Mech. Sci.
**2017**, 124–125, 1–8. [Google Scholar] [CrossRef] - Timoshenko, S.P.; Goodier, J.N. Theory of Elasticity, 3rd ed.; McGraw-Hill: New York, NY, USA, 1970. [Google Scholar]
- Arnold, S.M.; Saleeb, A.F.; Al-Zoubi, N.R. Deformation and life analysis of composite flywheel disk systems. Compos. Part B Eng.
**2002**, 33, 433–459. [Google Scholar] [CrossRef] - Yildirim, V. Numerical/analytical solution to the elastic response of arbitrarily functionally graded polar orthotropic rotating discs. J. Braz. Soc. Mech. Sci. Eng.
**2018**, 40, 320. [Google Scholar] [CrossRef] - Eraslan, A.N. Inelastic deformations of rotating variable thickness solid disks by Tresca and von Mises criteria. Int. J. Comput. Eng. Sci.
**2002**, 3, 89–101. [Google Scholar] [CrossRef] - Hojjati, M.H.; Hassani, A. Theoretical and numerical analyses of rotating disks of non-uniform thickness and density. Int. J. Press. Vessel. Pip.
**2008**, 85, 694–700. [Google Scholar] [CrossRef] - Alexandrova, N.; Alexandrov, S.; Vila Real, P. Displacement field and strain distribution in a rotating annular disk. Mech. Based Des. Struct.
**2004**, 32, 441–457. [Google Scholar] [CrossRef] - Argeso, H. Analytical solutions to variable thickness and variable material property rotating disks for a new three-parameter variation function. Mech. Based Des. Struct.
**2012**, 40, 133–152. [Google Scholar] [CrossRef] - Alexandrova, N.N.; Real, P.M.M.V. Effect of anisotropy on stress-strain field in thin rotating disks. Thin Walled Struct.
**2006**, 44, 897–903. [Google Scholar] [CrossRef] - Lomakin, E.; Alexandrov, S.; Jeng, Y.-R. Stress and strain fields in rotating elastic/plastic annular discs. Arch. Appl. Mech.
**2016**, 86, 235–244. [Google Scholar] [CrossRef] - Alexandrov, S.; Chung, K.; Jeong, W. Stress and strain fields in rotating elastic/plastic annular disks of pressure-dependent material. Mech. Based Des. Struct.
**2018**, 46, 318–332. [Google Scholar] [CrossRef] - Prime, M.B. Amplified effect of mild plastic anisotropy on residual stress and strain anisotropy. Int. J. Solids Struct.
**2017**, 118, 70–77. [Google Scholar] [CrossRef] - Hill, R. The Mathematical Theory of Plasticity; Clarendon Press: Oxford, UK, 1950. [Google Scholar]
- Singh, S.B.; Ray, S. Modeling the anisotropy and creep in orthotropic aluminum-silicon carbide composite rotating disc. Mech. Mater.
**2002**, 34, 363–372. [Google Scholar] [CrossRef] - Alexandrova, N.N.; Real, P.M.M.V. Singularities in a solution to a rotating orthotropic disk with temperature gradient. Meccanica
**2006**, 41, 197–205. [Google Scholar] [CrossRef] - Ari-Gur, J.; Stavsky, Y. On rotating polar-orthotropic circular disks. Int. J. Solids Struct.
**1981**, 17, 57–67. [Google Scholar] [CrossRef] - Liang, D.S.; Wang, H.J.; Chen, L.W. Vibration and stability of rotating polar orthotropic annular disks subjected to a stationary concentrated transverse load. J. Sound Vib.
**2002**, 250, 795–811. [Google Scholar] [CrossRef] - Koo, K.N. Vibration analysis and critical speeds of polar orthotropic annular disks in rotation. Compos. Struct.
**2006**, 76, 67–72. [Google Scholar] [CrossRef] - Peng, X.-L.; Li, X.-F. Elastic analysis of rotating functionally graded polar orthotropic disks. Int. J. Mech. Sci.
**2012**, 60, 84–91. [Google Scholar] [CrossRef] - Bert, C.W.; Paul, T.K. Failure analysis of rotating disks. Int. J. Solids Struct.
**1995**, 32, 1307–1318. [Google Scholar] [CrossRef] - You, L.H.; Zhang, J.J. Elastic-plastic stresses in a rotating solid disk. Int. J. Mech. Sci.
**1999**, 41, 269–282. [Google Scholar] [CrossRef] - Yahnioglu, N.; Akbarov, S.D. Stability loss analyses of the elastic and viscoplastic composite rotating thick circular plate in the framework of the three-dimensional linearized theory of stability. Int. J. Mech. Sci.
**2002**, 44, 1225–1244. [Google Scholar] [CrossRef] - Portnov, G.G.; Ochan, M.Y.; Bakis, C.E. Critical state of imbalanced rotating anisotropic disks with small radial and shear moduli. Int. J. Solids Struct.
**2003**, 40, 5219–5227. [Google Scholar] [CrossRef] - Çallıoğlu, H.; Topcu, M.; Tarakcılar, A.R. Elastic-plastic stress analysis of an orthotropic rotating disc. Int. J. Mech. Sci.
**2006**, 48, 985–990. [Google Scholar] [CrossRef] - Rees, D.W.A. A theory for swaging of discs and lugs. Meccanica
**2011**, 46, 1213–1237. [Google Scholar] [CrossRef] - Daghigh, V.; Daghigh, H.; Loghman, A.; Simoneau, A. Time-dependent creep analysis of rotating ferritic steel disk using Taylor series and Prandtl-Reuss relation. Int. J. Mech. Sci.
**2013**, 77, 40–46. [Google Scholar] [CrossRef] - Aleksandrova, N. Exact deformation analysis of a solid rotating elastic-perfectly plastic disk. Int. J. Mech. Sci.
**2014**, 88, 55–60. [Google Scholar] [CrossRef] - Alexandrov, S. Elastic/Plastic Disks under Plane Stress Conditions; Springer: New York, NY, USA, 2015. [Google Scholar]
- Alexandrova, N.N.; Alexandrov, S. Elastic-plastic stress distribution in a plastically anisotropic rotating disk. J. Appl. Mech.
**2004**, 71, 427–429. [Google Scholar] [CrossRef] - Bouvier, S.; Teodosiu, C.; Haddadi, H.; Tabacaru, V. Anisotropic work-hardening behavior of structural steels and aluminium alloys at large strains. J. Phys. IV France
**2003**, 105, 215. [Google Scholar] [CrossRef] - Wu, P.D.; Jain, M.; Savoie, J.; MacEwen, S.R.; Tugcu, P.; Neale, K.W. Evaluation of anisotropic yield functions for aluminum sheets. Int. J. Plast.
**2003**, 19, 121–138. [Google Scholar] [CrossRef] - Kammal, S.M.; Dixit, U.S.; Roy, A.; Liu, Q.; Silberschmidt, V.V. Comparison of plane-stress, generalized-plane-strain and 3D FEM elastic-plastic analyses of thick-walled cylinders subjected to radial thermal gradient. Int. J. Mech. Sci.
**2017**, 131–132, 744–752. [Google Scholar] [CrossRef] - Roberts, S.M.; Hall, F.R.; Bael, A.V.; Hartley, P.; Pillinger, I.; Sturgess, C.E.N.; Houtte, P.V.; Aernoudt, E. Benchmark tests for 3-D, elasto-plastic, finite-element codes for the modelling of metal forming processes. J. Mater. Process. Technol.
**1992**, 34, 61–68. [Google Scholar] [CrossRef] - Becker, A.A.; Hyde, T.H.; Sun, W.; Andersson, P. Benchmarks for finite element analysis of creep continuum damage mechanics. Comp. Mater. Sci.
**2002**, 25, 34–41. [Google Scholar] [CrossRef] - Helsing, J.; Jonsson, A. On the accuracy of benchmark tables and graphical results in the applied mechanics literature. J. Appl. Mech.
**2002**, 69, 88–90. [Google Scholar] [CrossRef] - Zharfi, H.; EkhteraeiToussi, H. Time dependent creep analysis in thick FGM rotating disk with two-dimensional patterns of heterogeneity. Int. J. Mech. Sci.
**2018**, 140, 351–360. [Google Scholar] [CrossRef] - Yildirim, V. A parametric study on the centrifugal force-induced stress and displacements in power-law graded hyperbolic discs. Lat. Am. J. Solids Strut.
**2018**, 15, e34. [Google Scholar]

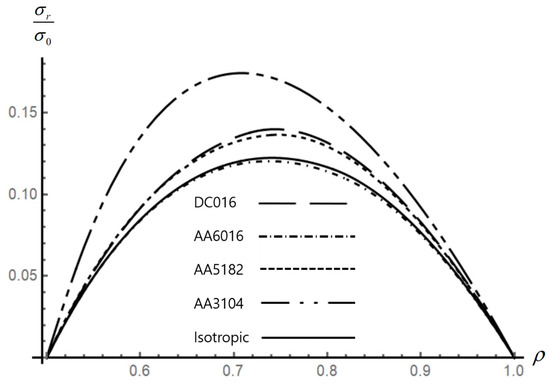

**Figure 2.**Effect of anisotropic properties on the distribution of the radial stress in an $a=0.5$ disk.

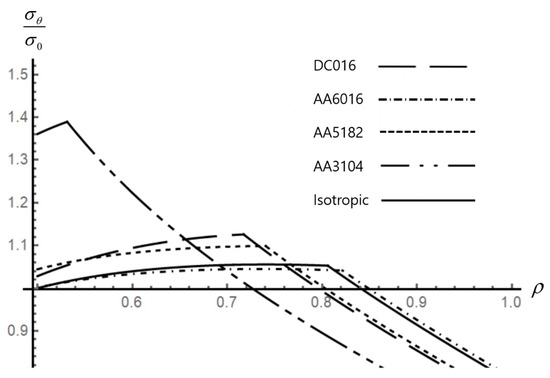

**Figure 3.**Effect of anisotropic properties on the distribution of the circumferential stress in an $a=0.5$ disk.

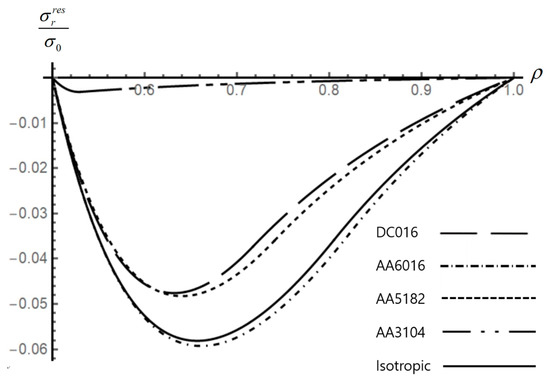

**Figure 4.**Effect of anisotropic properties on the distribution of the residual radial stress in an $a=0.5$ disk.

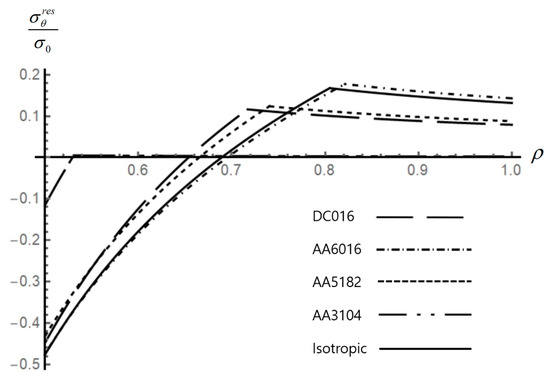

**Figure 5.**Effect of anisotropic properties on the distribution of the residual circumferential stress in an $a=0.5$ disk.

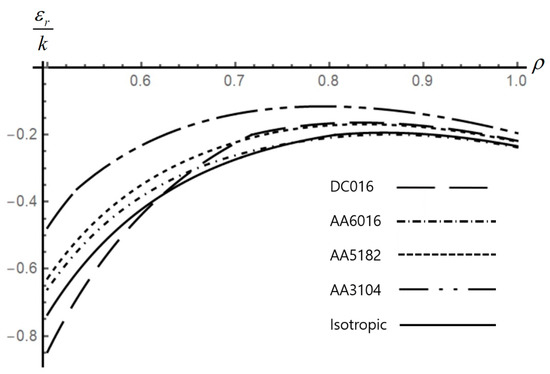

**Figure 6.**Effect of anisotropic properties on the distribution of the radial strain in an $a=0.5$ disk.

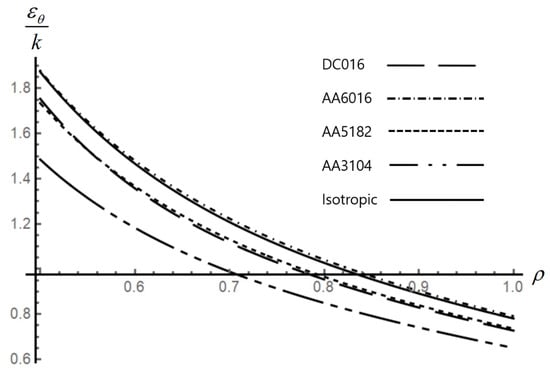

**Figure 7.**Effect of anisotropic properties on the distribution of the circumferential strain in an $a=0.5$ disk.

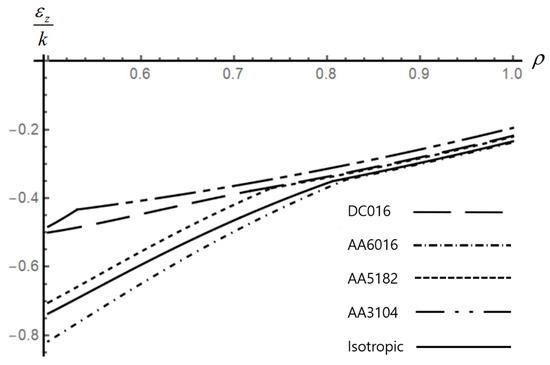

**Figure 8.**Effect of anisotropic properties on the distribution of the axial strain in an $a=0.5$ disk.

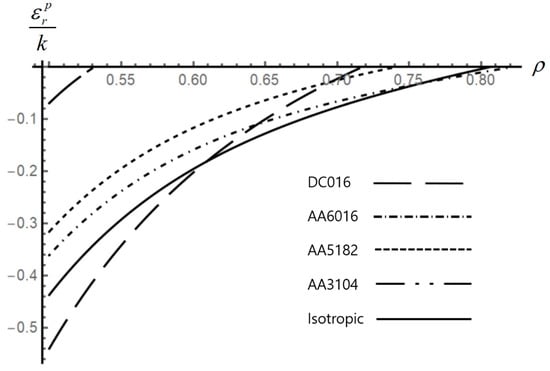

**Figure 9.**Effect of anisotropic properties on the distribution of the radial plastic strain in an $a=0.5$ disk.

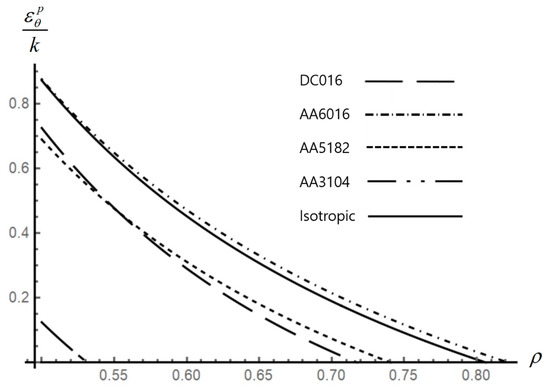

**Figure 10.**Effect of anisotropic properties on the distribution of the circumferential plastic strain in an $a=0.5$ disk.

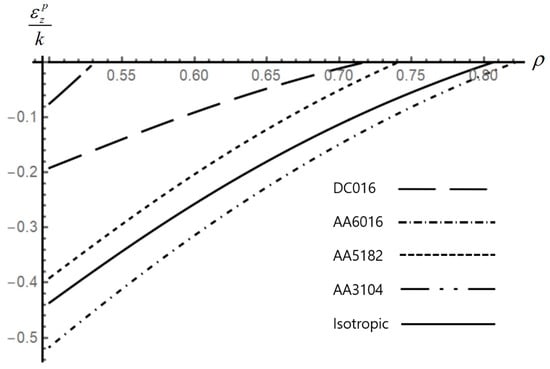

**Figure 11.**Effect of anisotropic properties on the distribution of the axial plastic strain in an $a=0.5$ disk.

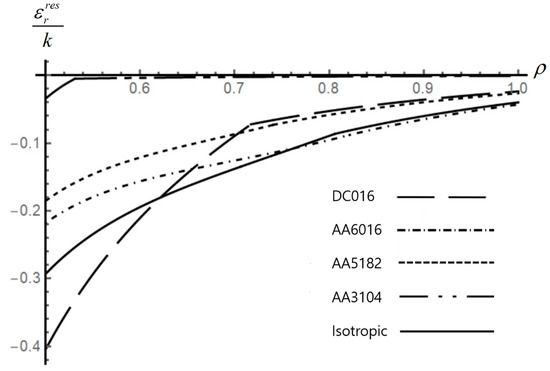

**Figure 12.**Effect of anisotropic properties on the distribution of the residual radial strain in an $a=0.5$ disk.

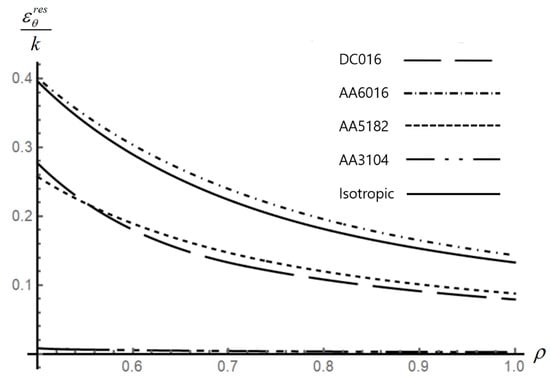

**Figure 13.**Effect of anisotropic properties on the distribution of the residual circumferential strain in an $a=0.5$ disk.

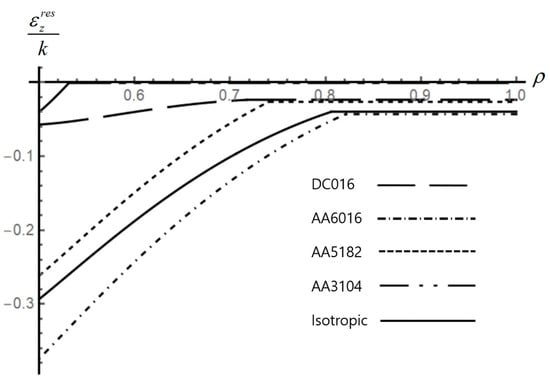

**Figure 14.**Effect of anisotropic properties on the distribution of the residual axial strain in an $a=0.5$ disk.

Material | F/(G + H) | H/(G + H) |
---|---|---|

DC06 | 0.243 | 0.703 |

AA6016 | 0.587 | 0.410 |

AA5182 | 0.498 | 0.419 |

AA3014 | 0.239 | 0.301 |

Isotropic | 0.5 | 0.5 |

**Table 2.**Comparison of the total circumferential strain at $\rho =a$ and ${\rho}_{f}=5/7$ found by the two methods.

F/(G + H) | H/(G + H) | ${\mathit{\epsilon}}_{\mathit{\theta},\mathit{F}\mathit{D}\mathit{M}}\text{}$ | ${\mathit{\epsilon}}_{\mathit{\theta},\mathit{N}}\text{}$ | $\mathbf{\Delta}$ (%) |
---|---|---|---|---|

0.452 | 0.681 | 0.00088 | 0.00134 | 26.3 |

0.421 | 0.615 | 0.0014 | 0.0019 | 34.4 |

0.283 | 0.634 | 0.00178 | 0.00212 | 16.0 |

0.811 | 0.454 | 0.0025 | 0.0036 | 30.6 |

0.5 | 0.5 | 0.0019 | 0.0022 | 13.6 |
