# A Comprehensive Comparative Analysis of the Basic Theory of the Short Term Bus Passenger Flow Prediction

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Short-Term Bus Passenger Flow Prediction Objects and Data Source

#### 2.1. Short-Term Bus Passenger Flow Prediction Objects

#### 2.2. Data Source

#### 2.3. Data Formats

#### 2.3.1. Data Format of AFC

#### 2.3.2. Data Format of the APC

#### 2.3.3. Data Format of the Vehicle Intelligent Terminal

## 3. Linear Methods for Short-Term Bus Passenger Flow Forecast

#### 3.1. Kalman Filter-Based Method

#### 3.1.1. Kalman Filter

#### 3.1.2. Applications of the Kalman Filter Method in Short-Term Bus Passenger Flow Prediction

#### 3.2. Time Series-Based Method for Short-Term Prediction

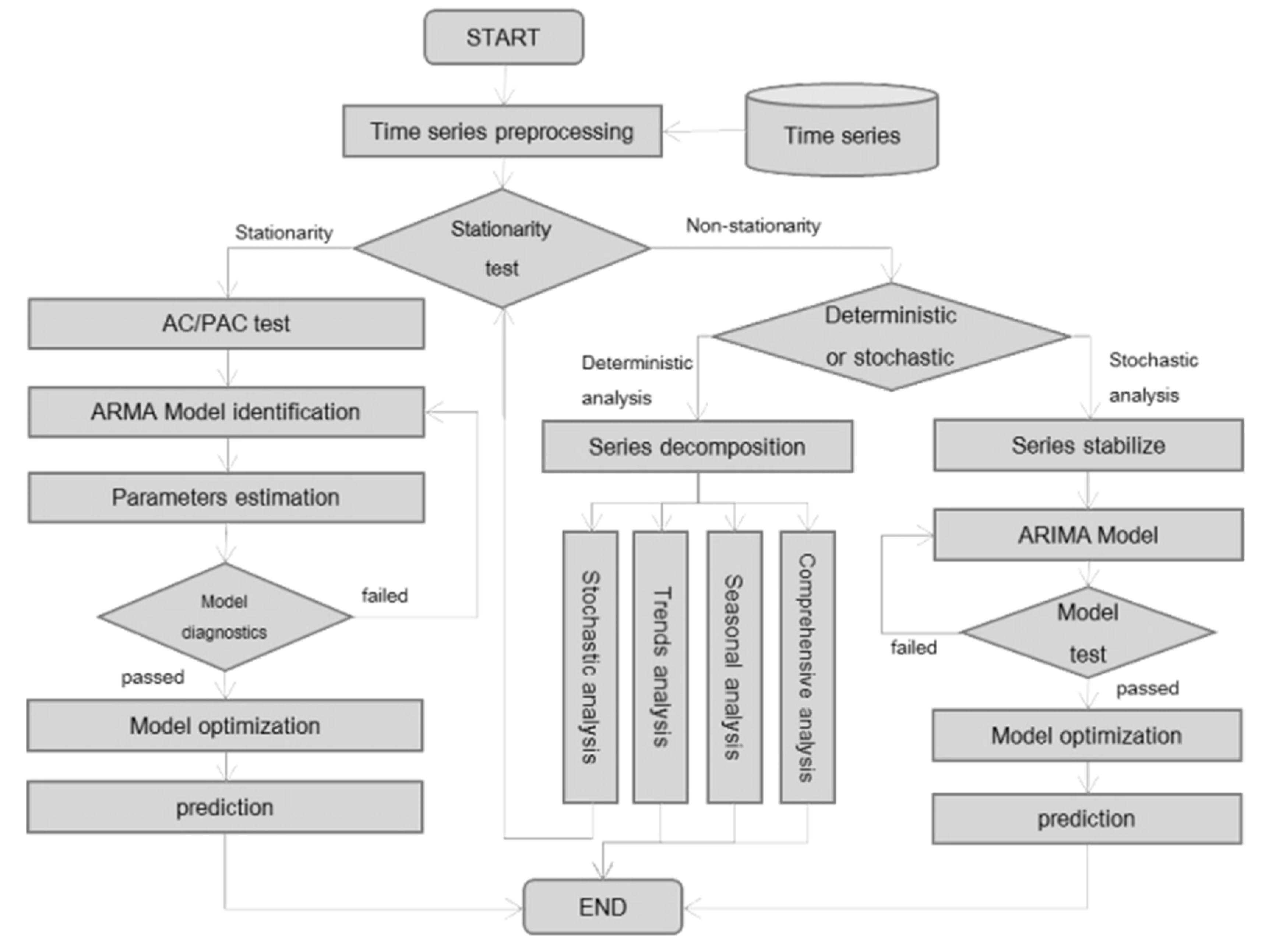

#### 3.2.1. Time Series Theory

#### 3.2.2. Applications of Time Series Method in Short-Term Bus Passenger Flow Prediction

^{7}for daily time series, and ARIMA(2,1,0) for hourly time series. Xue [36] selects ARMA(2,2) for weekly time series, SARIMA(2,0,3)(1,0,0)

^{24}for daily time series, and ARIMA(2,1,0) for hourly time series. The models selected by Ma [35] and Xue [36] fully prove that the weekly time series is a stationary sequence, from which it is speculated that the passenger variation is similar in the same time interval on the same weekday. The daily model reveals the cyclical variation of the passenger flow at the same time interval of different weekday during a cycle of week. The hourly model shows the obvious variation trend of the passenger flow in successive time intervals, such as the peak and off-peak period. Different time series model with different sampling interval will reveal different variation rules of passenger flow and, depending on different factors effecting the passenger flow variation, the predicted results will be different. Both studies propose an IMM-based algorithm, which combined different models prediction result together, and output final prediction in order to match the different situation. The details of the IMM algorithm will be discussed in Section 5.

#### 3.3. Other Linear Models for Short-Term Bus Passenger Flow Prediction

## 4. Nonlinear Methods for Short-Term Bus Passenger Flow Prediction

#### 4.1. Support Vector Machine Regression-Based Methods for Short-Term Passenger Flow Prediction

#### 4.1.1. Support Vector Machine Regression

_{i},x

_{j}) = ϕ(x

_{i}) · ϕ(x

_{j}) to change a non-linear regression problem in a low-dimensional space to a linear regression problem in a higher dimensional space. The detailed proof can be found in [39,42]. There are different kinds of kernel functions, such as linear kernel, polynomial kernel, radial base function (RBF), and sigmoid kernel function, etc., used for creating models. More information about the kernel function can be found in [43], which introduces the kernel functions used in the SVM application completely.

#### 4.1.2. Applications of SVR in Short-Term Bus Passenger Flow Prediction

#### 4.2. Artificial Neural Network-Based Methods for Short-Term Passenger Flow Prediction

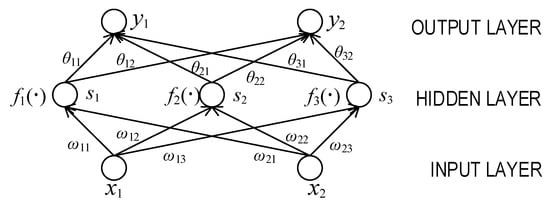

#### 4.2.1. Artificial Neural Network

#### 4.2.2. Applications of ANN in Short-Term Bus Passenger Flow Prediction

#### 4.3. Other Nonlinear Methods for Short-Term Passenger Flow Prediction

## 5. Combined Methods for Short-Term Bus Passenger Flow Prediction

^{7}model is selected to predict ArPC and ESC. Compared with real data, the average relative errors of prediction results are 2.94% of ArPC and 3.02% of ESC. The second stage is to predict the DPC, which is triggered by the bus arrival events (BAEs) at a bus stop in each time interval. Under the author’s assumption, the boarding count of BAE is the minimum of the passengers waiting at the stop and the empty space available on the bus. The boarding count $d$ is collected from the APC, so the DPC is the sum of the boarding count of every BAE happened during the time interval $t$. Therefore, predicting DPC is equivalent to predicting the BAEs at the corresponding stop. Using bus trajectory records from the AVL, an event-based algorithm is proposed to predict the bus arrival time, and combining with the predict results of ArPC and ESC in the first step, the DPC can be predicted. The third stage has been discussed in the previous section. At the end of the literature, a numerical experiments conducted at three typical bus stops are illustrated to demonstrate that the proposed framework is robust and accurate.

_{1}, M

_{2}, … M

_{z}} is the set of z models of interest to model a given time series and M

_{t}= {M

_{1t}, M

_{2t}, … M

_{zt}} is the set of prediction values of the next period in the time interval t by those models. P

_{i}H is the forecasting accuracy of the model M

_{i}in the time window [t − H, t]. The prediction results show that the accuracy of the ensemble framework is around 79%, which is better than the single models. The ensemble framework in [66] is used to develop a prototype APP for mobile phone users to predict the crowdedness of the bus.

## 6. Big Data Technology and Deep Learning Used for Short-Term Bus Passenger Flow Prediction

## 7. Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Rizzi, L.I.; De La Maza, C. The external costs of private versus public road transport in the metropolitan area of Santiago, Chile. Transp. Res. Part A Policy Pract.
**2017**, 98, 123–140. [Google Scholar] [CrossRef] - Vuchic, V.R. Urban public transportation systems. In Transportation Engineering and Planning; EOLSS: Paris, France, 2002; Volume 1. [Google Scholar]
- Suman, H.K.; Bolia, N.B.; Tiwari, G. Comparing public bus transport service attributes in Delhi and Mumbai: Policy implications for improving bus services in Delhi. Transp. Policy
**2017**, 56, 63–74. [Google Scholar] [CrossRef] - Land Transport Authority Academy. Passenger Transport Mode Shares in World Cities. Journeys
**2011**, 11, 54–64. [Google Scholar] - Moretti, L.; Moretti, M.; Ricci, S. Upgrading of Florence public transport to incorporate new tramlines. Ing. Ferrov.
**2017**, 72, 568–584. [Google Scholar] - Ceder, A. Public Transit Planning and Operation: Modeling, Practice and Behavior; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar]
- Vuchic, V.R. Urban Transit: Operations, Planning, and Economics; John Wiley & Sons: New York, NY, USA, 2017. [Google Scholar]
- Loprencipe, G.; Moretti, M.; Moretti, L.; Ricci, S. Rail accessibility to a planned new soccer stadium in Rome. Ing. Ferrov.
**2017**, 72, 287–305. [Google Scholar] - Noekel, K.; Viti, F.; Rodriguez, A.; Hernandez, S. Modelling Public Transport Passenger Flows in the Era of Intelligent Transport Systems; Gentile, G., Noekel, K., Eds.; Springer Tracts on Transportation and Traffic; Springer International Publishing: Cham, Switzerland, 2016; Volume 1, ISBN 978-3-319-25080-9. [Google Scholar]
- Hwang, M.; Kemp, J.; Lerner-Lam, E.; Neuerburg, N.; Okunieff, P.; Schiavone, J. Advanced Public Transportation Systems: The State of the Art Update 2006; U.S. Federal Transit Administration: Washington, DC, USA, 2006.
- Lehman Center for Transportation Research. Florida Advanced Public Transit Systems Program; Lehman Center for Transportation Research: Miami, FL, USA, 2009. [Google Scholar]
- Deng, H.; Zhu, X.; Zhang, Q.; Zhao, J. Prediction of short-term public transportation flow based on multiple-kernel least square support vector machine. J. Transp. Eng. Inf.
**2012**, 10, 84–88. [Google Scholar] - Gong, M.; Fei, X.; Wang, Z.; Qiu, Y. Sequential framework for short-term passenger flow prediction at bus stop. Transp. Res. Rec. J. Transp. Res. Board
**2014**, 2417, 58–66. [Google Scholar] [CrossRef] - Lu, B.; Deng, J.; Ma, Q.; Liu, Q.; Zhang, K. A short-term public transit volume forecasting model based on IC Card and RBF neural network. J. Chongqing Jiaotong Univ. Sci.
**2015**, 34, 106–110. [Google Scholar] - Ying, L.; Lijun, S.; Sui, T. A review of urban studies based on transit smart card data. Urban Plan. Forum
**2015**, 3, 70–77. [Google Scholar] [CrossRef] - Pelletier, M.-P.; Trépanier, M.; Morency, C. Smart card data use in public transit: A literature review. Transp. Res. Part C Emerg. Technol.
**2011**, 19, 557–568. [Google Scholar] [CrossRef] - Wade, R. Public Transportation Prices in 80 Worldwide Cities; Price of Travel: Los Angeles, CA, USA, 2017. [Google Scholar]
- Jiang, M. Analysis on the Subway with Bus Transfer Time Based on IC Card Data. Master’s Thesis, Southeast University, Nanjing, Jiangsu, China, 2015. [Google Scholar]
- Kotz, A.J.; Northrop, W.F.; Kittelson, D.B. Automated Passenger Counter Systems and Methods. US Patent 20170057316A1, 31 August 2015. [Google Scholar]
- Jose, D.; Prasad, S.; Sridhar, V.G. Intelligent vehicle monitoring using global positioning system and cloud computing. Procedia Comput. Sci.
**2015**, 50, 440–446. [Google Scholar] [CrossRef] - Kalman, R.E. A new approach to linear filtering and prediction problems. J. Basic Eng.
**1960**, 82, 35. [Google Scholar] [CrossRef] - Welch, G.; Bishop, G. An Introduction to the Kalman Filter; UNC: Chapel Hill, NC, USA, 2006; Volume 7, pp. 1–16. [Google Scholar]
- Zhang, C.; Song, R.; Sun, Y. Kalman filter-based short-term passenger flow forecasting on bus stop. J. Transp. Syst. Eng. Inf. Technol.
**2011**, 11, 154–159. [Google Scholar] - Grewal, M.S. Kalman Filtering. In International Encyclopedia of Statistical Science; Lovric, M., Ed.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 705–708. ISBN 978-3-642-04898-2. [Google Scholar]
- Grewal, M.S. Kalman Filtering Theory and Practice Using MATLAB; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; Volume 1, ISBN 978-8-578-11079-6. [Google Scholar]
- Chui, C.K.; Chen, G. Kalman Filtering: With Real-Time Applications; Springer Science and Business Media: Berlin, Germany, 2009; ISBN 978-3-540-87848-3. [Google Scholar]
- Chatfield, C. The Analysis of Time Series: An Introduction, 6th ed.; Chapman and Hall/CRC Press: Boca Raton, FL, USA, 2003; Volume 140, ISBN 1-58488-317-0. [Google Scholar]
- Brockwell, P.J.; Davis, R.A. Introduction to Time Series and Forecasting; Springer Science & Business Media: Berlin, Germany, 2006; ISBN 0-38721657X. [Google Scholar]
- Cochrane, J.H. Time Series for Macroeconomics and Finance; University of Chicago: Chicago, IL, USA, Unpublished Manuscript; pp. 1–136.
- Wang, Y. Applied Time Series Analysis, 4th ed.; China Renmin University Press: Beijing, China, 2015. [Google Scholar]
- Brandes, O.; Farley, J.; Hinich, M.; Zackrisson, U. The time domain and the frequency domain in time series analysis. Swedish J. Econ.
**1968**, 70, 25–42. [Google Scholar] [CrossRef] - Kirchgässner, G.; Wolters, J. Introduction to Modern Time Series Analysis, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2013; ISBN 978-3-540-73290-7. [Google Scholar]
- Washington, S.P.; Karlaftis, M.G.; Mannering, F.L. Statistical and Econometric Methods for Transportation Data Analysis, 2nd ed.; Chapman and Hall/CRC Press: Boca Raton, FL, USA, 2011; ISBN 1584880309. [Google Scholar]
- Gu, Y.; Han, Y.; Fang, X. Method of hub station passenger flow forecasting based on ARMA model. J. Transp. Inf. Saf.
**2011**, 29, 5–9. [Google Scholar] - Ma, Z.; Xing, J.; Mesbah, M.; Ferreira, L. Predicting short-term bus passenger demand using a pattern hybrid approach. Transp. Res. Part C Emerg. Technol.
**2014**, 39, 148–163. [Google Scholar] [CrossRef] - Xue, R.; Sun, D.J.; Chen, S. Short-term bus passenger demand prediction based on time series model and interactive multiple model approach. Discret. Dyn. Nat. Soc.
**2015**, 2015. [Google Scholar] [CrossRef] - Yang, Z.; Zhao, Q.; Zhao, S.; Jin, L.; Mao, Y. Passenger flow volume forecasting method based on public transit Intelligent Card (IC) survey data. Transp. Stand.
**2009**, 196, 115–118. [Google Scholar] - Liu, K.; Li, W.; Zhao, J. Study on wavelet forecast method for short-term passenger flow. J. Transp. Eng. Inf.
**2010**, 8, 111–117. [Google Scholar] - Smola, J.; Scholkopf, B. A tutorial on support vector regression. Stat. Comput.
**2004**, 14, 199–222. [Google Scholar] [CrossRef] [Green Version] - Vapnik, V.N. The Nature of Statistical Learning Theory; Springer: Berlin/Heidelberg, Germany, 1995; Volume 8, ISBN 0387945598. [Google Scholar]
- Kim, D.; Cho, S. ε-Tube based pattern selection for support vector machines. In Proceedings of the Pacific-Asia Conference on Knowledge Discovery and Data Mining, Singapore, 9–12 April 2006; Springer: Berlin/Heidelberg, Germany, 2006; pp. 215–224. [Google Scholar]
- Ancona, N. Properties of Support Vector Machines for Regression; Technical Report; Center for Biological and Computational Learning, Massachusetts Institute of Technology: Cambridge, MA, USA, 1999. [Google Scholar]
- Scholkopf, B.; Smola, A.J. Learning with Kernels: Support Vector Machines, Regularization, Optimization, and Beyond; MIT Press: Cambridge, MA, USA, 2002; ISBN 0262194759. [Google Scholar]
- Yang, X.; Liu, L. Short-term passenger flow forecasting on bus station based on affinity propagation and support vector machine. J. Wuhan Univ. Technol. Sci. Eng.
**2016**, 40, 36–40. [Google Scholar] - Guo, S.; Li, W.; Bai, W.; Zhang, D. Prediction of short-term passenger flow on a bus stop based on LSSVM. J. Wuhan Univ. Technol. Sci. Eng.
**2013**, 37, 603–607. [Google Scholar] - Wang, H.; Hu, D. Comparison of SVM and LS-SVM for regression. In Proceedings of the International Conference on Neural Networks and Brain (ICNN), Beijing, China, 13–15 October 2005; Volume 1, pp. 279–283. [Google Scholar]
- Gönen, M.; Alpaydın, E. Multiple kernel learning algorithms. J. Mach. Learn. Res.
**2011**, 12, 2211–2268. [Google Scholar] - Wang, H.-Q.; Sun, F.-C.; Cai, Y.-N.; Chen, N.; Ding, L.-G. On multiple kernel learning methods. Acta Autom. Sin.
**2010**, 36, 1037–1050. [Google Scholar] [CrossRef] - Lanckriet, G.; Cristianini, N. Learning the kernel matrix with semidefinite programming. J. Mach. Learn. Res.
**2004**, 5, 27–72. [Google Scholar] - Jain, A.K.; Mao, J.; Mohiuddin, K.M. Artificial neural networks: A tutorial. Computer
**1996**, 29, 31–44. [Google Scholar] [CrossRef] - Haykin, S. Neural Networks and Learning Machines; Prentice Hall: Upper Saddle River, NJ, USA, 2008; Volume 3, ISBN 9780131471399. [Google Scholar]
- Wu, J. Beauty of Mathematics, 2nd ed.; Posts and Telecom Press: Beijing, China, 2012; Volume 1, ISBN 9787115282828. [Google Scholar]
- Hecht-Nielsen, R. Theory of the backpropagation neural network. In Proceedings of the International 1989 Joint Conference on Neural Networks, Washington, DC, USA, 18–22 June 1989; Volume 1, pp. 593–605. [Google Scholar] [CrossRef]
- Bishop, C.M. Improving the generalization properties of radial basis function neural networks. Neural Comput.
**1991**, 3, 579–588. [Google Scholar] [CrossRef] - Buckley, J.J.; Hayashi, Y. Fuzzy neural networks: A survey. Fuzzy Sets Syst.
**1994**, 66, 1–13. [Google Scholar] [CrossRef] - Yu, S.; Shang, C.; Yu, Y.; Zhang, S.; Yu, W. Prediction of bus passenger trip flow based on artificial neural network. Adv. Mech. Eng.
**2016**, 8. [Google Scholar] [CrossRef] [Green Version] - Jiang, P.; Shi, Q.; Chen, W.; Zhang, W. Forecast of passenger volume based on neutral network. J. Wuhan Univ. Technol. Sci. Eng.
**2009**, 33, 414–417. [Google Scholar] - Yang, X.; Wang, W.; Gu, W.; Zhou, M. Applying fuzzy neural network to predict bus line passenger flow. J. Highw. Transp. Res. Dev.
**2000**, 17, 38–40. [Google Scholar] - Liu, C.; Zhang, Y.; Zhang, H. Transit station’s temporal getting on/off flow forecasting model based on BP neural network. Commun. Stand.
**2008**, 177, 186–189. [Google Scholar] - Wen, H.; Wang, X.; Rong, L.; Chen, X. Real-time forecast for passenger flow of bus based on fuzzy neural network. Microcomput. Inf.
**2009**, 12, 225–226. [Google Scholar] [CrossRef] - Dong, H. Real-time Analysis and Short-term Forecast of Bus Passenger Flow. Master’s Thesis, Dalian University of Technology, Dalian, Liaoning, China, 2013. [Google Scholar]
- Liu, Y. Grey Model Based Temporal Passenger Flow Prediction with IC Card Records. Master’s Thesis, Shandong University, Jinan, Shandong, China, 2011. [Google Scholar]
- Zhang, Z.; Xu, X.; Wang, Z. Application of grey prediction model to short-time passenger flow forecast. In AIP Conference Proceedings; American Institute of Physics: College Park, MD, USA, 2017; Volume 1839, p. 20136. [Google Scholar]
- Shen, J.; Wang, W.; Chen, J. Short-term urban public transit volume forecast based on gray-markov model. J. Highw. Transp. Res. Dev.
**2007**, 24, 120–123. [Google Scholar] - Wang, Q.; Zhang, Q. Forecasting of short-term urban public transit volume based on random gray ant colony neural network. Appl. Res. Comput.
**2012**, 29, 2078–2080. [Google Scholar] - Zhou, C.; Dai, P.; Li, R. The passenger demand prediction model on bus networks. In Proceedings of the IEEE 13th International Conference on Data Mining Workshops, ICDMW 2013, Dallas, TX, USA, 7–10 December 2013; pp. 1069–1076. [Google Scholar]
- Liu, J.; Heng, Y.; Zhao, H.; Gao, X.; Wang, P. A prediction model of short-term passenger flow for urban transit hubs. J. Transp. Inf. Saf.
**2014**, 32, 41–44. [Google Scholar] - Pekel, E.; Kara, S.S. Passenger flow prediction based on newly adopted algorithms. Appl. Artif. Intell.
**2017**, 31, 64–79. [Google Scholar] - Gan, W.; Kong, J. Study of combine-forecast method for passenger volume of urban public transit system. Sci. Mosaic
**2011**, 2, 106–108. [Google Scholar] [CrossRef] - Ge, L.; Wang, W.; Deng, W.; Shan, X. Research on practical forecast method of passenger volume for urban public transport hub. J. Highw. Transp. Res. Dev.
**2005**, 22, 110–113. [Google Scholar] - Cai, Z. Research on Prediction of Conventional Public Transit Passengers’ Volume in Small and Medium Sized Cities Based on Neural Networks. Master’s Thesis, Southwest Jiaotong University, Chengdu, Sichuan, China, 2013. [Google Scholar]
- Yang, Q.; Yang, Y.; Feng, Z.; Zhao, X. Prediction method of passenger volume of city public transit based on grey theory and markov model. China J. Highw. Transp.
**2013**, 26, 169–175. [Google Scholar] - Ling, H.; Xi, E. Prediction model of public transport passenger volume based on random fluctuations. J. Chang. Univ. Natural Sci. Ed.
**2012**, 32, 85–88. [Google Scholar] - Li, Z. Research of Bus Passenger Flow Analysis and Prediction Based on Hadoop. Master’s Thesis, Northeast Normal University, Changchun, Jilin, China, 2015. [Google Scholar]
- Liu, L.; Chen, R.-C. A novel passenger flow prediction model using deep learning methods. Transp. Res. Part C Emerg. Technol.
**2017**, 84, 74–91. [Google Scholar] [CrossRef]

Field Name | Illustration |
---|---|

Card ID | The unique number of the smart card |

Type of smart card | Normal card, coupon card, etc. |

Driver ID | The unique number of the current bus driver |

Line ID | The unique number of the bus line |

Vehicle ID | The unique number of the vehicle |

Balance | The balance of the smart card after the last transaction |

Transaction amount | The transaction amount of the last transaction |

Transaction count | The total number of the transaction count with this smart card |

Transaction time | The time of the last transaction |

Field Name | Illustration |
---|---|

Equipment ID | The unique number of the equipment |

On/off | Denotes the passenger getting on or off the bus |

Vehicle ID | The unique number of the vehicle |

Line ID | The unique number of the bus line |

Trip type | Denotes the current trip is up run or down run |

Stop ID | The unique number of stops, where the bus stops at the current time |

Count time | The time when the passenger scans through the AFC |

Stop accumulation | The total number of the passengers getting on or off at a stop |

Field Name | Illustration |
---|---|

Equipment ID | The unique number of the vehicle intelligent terminal system |

Vehicle ID | The unique number of the vehicle |

Driver ID | The unique number of the driver |

Longitude | The longitude of the current vehicle position |

Latitude | The latitude of the current vehicle position |

Speed | The vehicle real-time speed |

Heading | The vehicle heading direction at the current time |

Line ID | The unique number of the bus line |

Stop ID | The unique number of stop, where the bus stops at the current time |

Distance | The relative distance from the current position to the last station |

Cumulative distance | The total mileage of the vehicle |

State | The state of the vehicle intelligent terminal system |

Categories | AR(p) | MA(q) | ARMA(p, q) |
---|---|---|---|

ACF | Tails off exponentially | Cuts off after lag q | Tails off exponentially |

PACF | Cuts off after lag p | Tails off exponentially | Tails off exponentially |

Author(s) | Method | Contrast Method | Method Style | Predict Object | Data Source | Data Structure ^{a} | Modeling Difficulty ^{b} | Universality of Model ^{c} | Accuracy |
---|---|---|---|---|---|---|---|---|---|

Zhang (2011) [23] | Kalman filter | BP-ANN | Single | Stop | AFC Video | Simple | Complex | Weak | around 80% |

Gu (2011) [34] | ARMA(2,1) | GM(1,1) | Single | Hub | Manual survey | Simple | Easy | Middle | around 80% |

Yang(2009) [37] | Linear regression | Real data | Single | Line | AFC | Complex | Easy | Weak | NA |

Yang (2016) [44] | AP(6) based SVM | AP(p) based SVM | Single | Stop | Manual survey | Complex | Low complexity | Middle | Over 85% |

Guo (2013) [45] | LSSVM | LSSVM with different factors | Single | Stop | Manual survey | Low complexity | Low complexity | Weak | MAE 0.625 MSE 0.9145 |

Deng (2012) [12] | Multiple kernel LSSVM | Single kernel LSSVM | Single | Stops | AFC | Simple | Low complexity | Middle | EC 0.9544 |

Yang (2000) [58] | Fuzzy ANN | AR ARMA | Single | Line | Manual survey | Low complexity | Low complexity | Weak | ME 7.47% |

Liu(2008) [59] | BP-ANN | Real data | Single | Stops | NA | Low complexity | Low complexity | Middle | EC 0.901 |

Lu(2015) [14] | RBF-ANN | Real data | Single | Stops | AFC | Simple | Low complexity | High | ME/MSE less 1.5% |

Wen(2009) [60] | Fuzzy ANN | Real data | Single | Line (key stops) | Manual survey | Simple | Low complexity | Middle | ME less 10% |

Dong (2013) [61] | BP-ANN Improved BP-ANN RBF-ANN | Real data | Single | Line | AFC | Simple | Low complexity | Middle | EC 0.9697 EC 0.9758 EC 0.974 |

Liu (2011) [62] | GM(1,1) | Real data | Single | Line | AFC | Simple | Low complexity | Weak | RE less 10% |

Zhang(2017) [63] | GM(1,1) | Real data | Single | Line | Manual survey | Simple | Easy | Middle | RE Less 10% |

Li (2015) [74] | BP-ANN with Hadoop | MA, ES, real data | Single | Lines | AFC | Complex | Complex | Middle | RMSE 21.61% |

^{a}Complexity of data structure increased from simple, low complexity, complex, to highly complex;

^{b}Modeling difficulty increased by easy, low complexity, complex, to highly complex;

^{c}Universality of the model increased from weak, middle, to high.

Author(s) | Method | Contrast Method | Method Style | Predict Object | Data Source | Data Structure | Modeling Difficulty | Universality of Model | Accuracy |
---|---|---|---|---|---|---|---|---|---|

Gong (2014) [13] | Kalman filter based ARIMA | Direct-addition | Combination | Stop | APC and video | Complex | Complex | Weak | RE around 3% |

Ma (2014) [35] | IMMPH with AR, SARIMA, ARIMA | ANNPH | Combination | Line | AFC | Complex | Highly complex | Weak | MAPE 5.82% |

Xue (2015) [36] | IMM with ARMA, SARIMA,ARIMA | Real data | Combination | Line | AFC | Complex | Highly complex | Weak | MAPE 9.084% |

Liu (2010) [38] | Wavelet with ARMA | ARMA | Combination | Stop | Not available | Simple | Complex | Weak | MAPE 0.18 |

Liu (2014) [67] | BP-ANN LSSVM | Real data | Combination | Hub | History statistics | Simple | Low complexity | Middle | 94.05% |

Zhou (2013) [66] | Poisson model ARIMA | Real data | Combination | Stop | APTS | Complex | Complex | Weak | Around 79% |

Pekel (2017) [68] | POA-ANN IWD-ANN | GA-ANN | Combination | Line | AFC | Simple | Low complexity | Middle | MSE less 0.1 |

Liu (2017) [75] | SAE-DNN | Real data | combination | Stops | AFC | Complex | Complex | High | Best MAPE over 75% |
