Next Article in Journal
Deep Learning as a Tool for Automatic Segmentation of Corneal Endothelium Images
Previous Article in Journal
Cuckoo Search Algorithm with Lévy Flights for Global-Support Parametric Surface Approximation in Reverse Engineering
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Symmetry 2018, 10(3), 59; https://doi.org/10.3390/sym10030059

Microstructure and Properties of the Ferroelectric-Ferromagnetic PLZT-Ferrite Composites

1
Faculty of Computer Science and Material Science, Institute of Technology and Mechatronics, University of Silesia in Katowice, 12 Żytnia St., 41–200 Sosnowiec, Poland
2
Faculty of Computer Science and Material Science, Institute of Material Science, University of Silesia in Katowice, 1a, 75 Pułku Piechoty St., 41–500 Chorzów, Poland
*
Author to whom correspondence should be addressed.
Received: 29 December 2017 / Revised: 19 February 2018 / Accepted: 28 February 2018 / Published: 6 March 2018
(This article belongs to the Special Issue Multiferroic Dynamics)
Full-Text   |   PDF [2599 KB, uploaded 7 March 2018]   |

Abstract

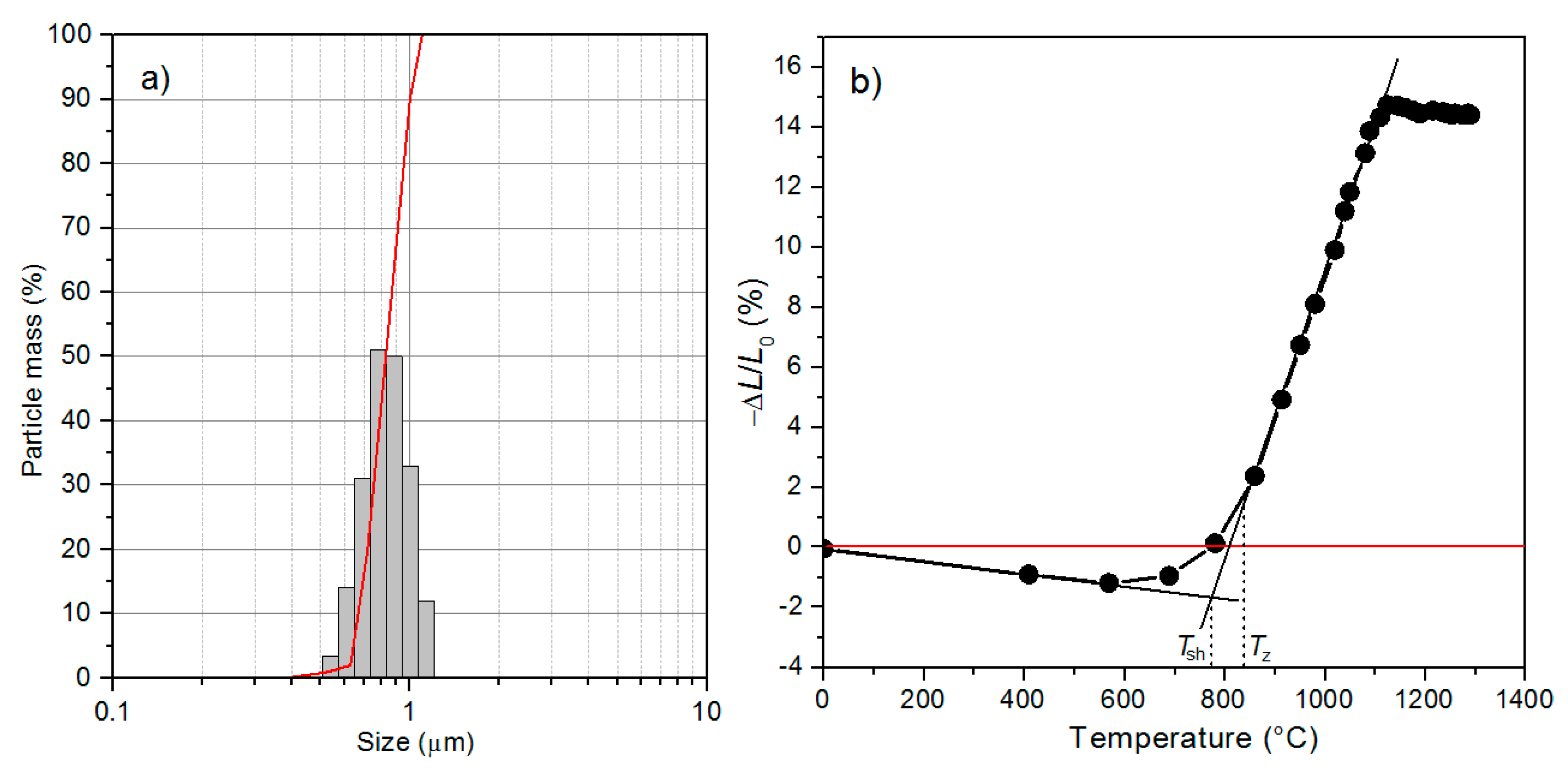

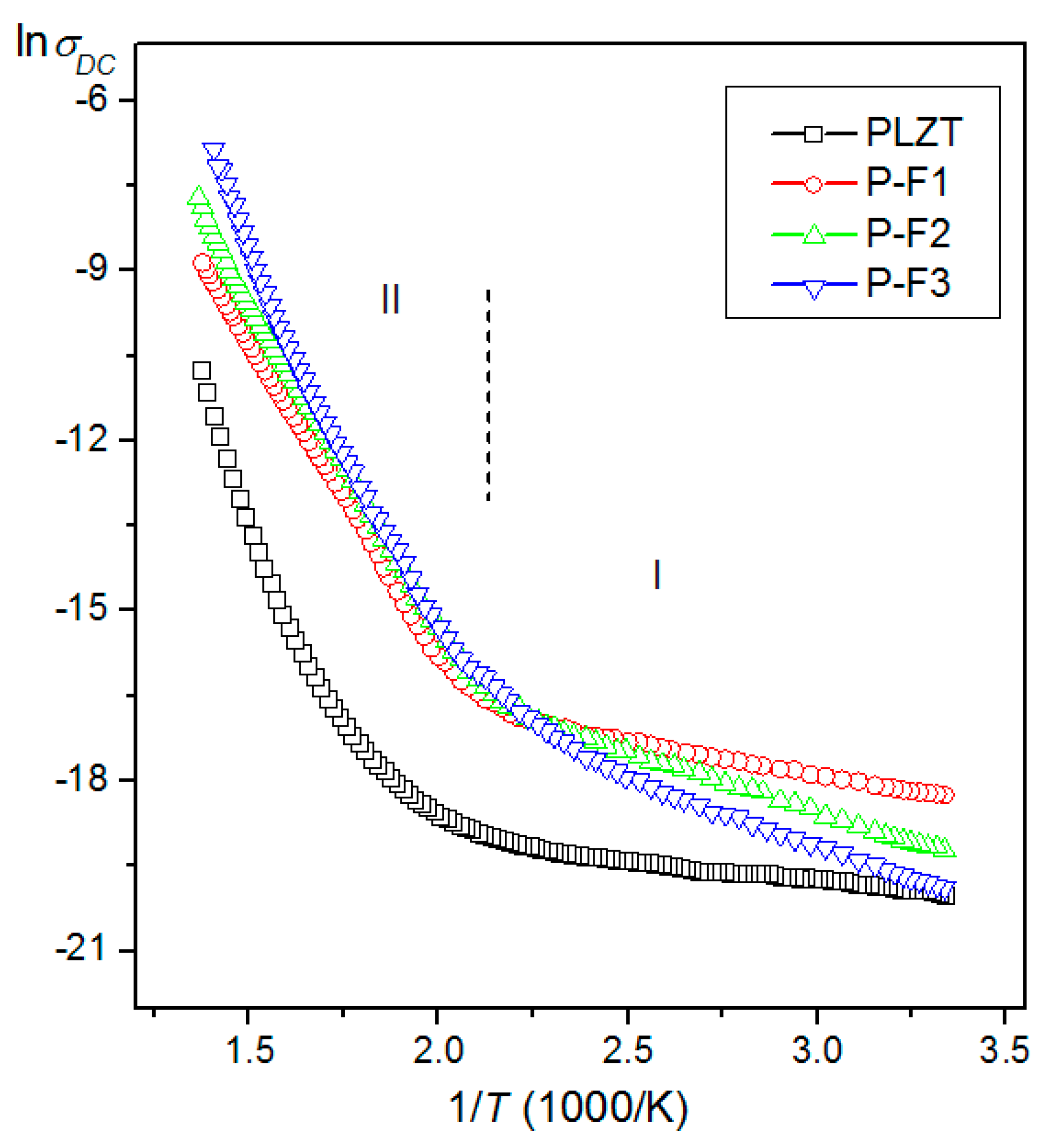

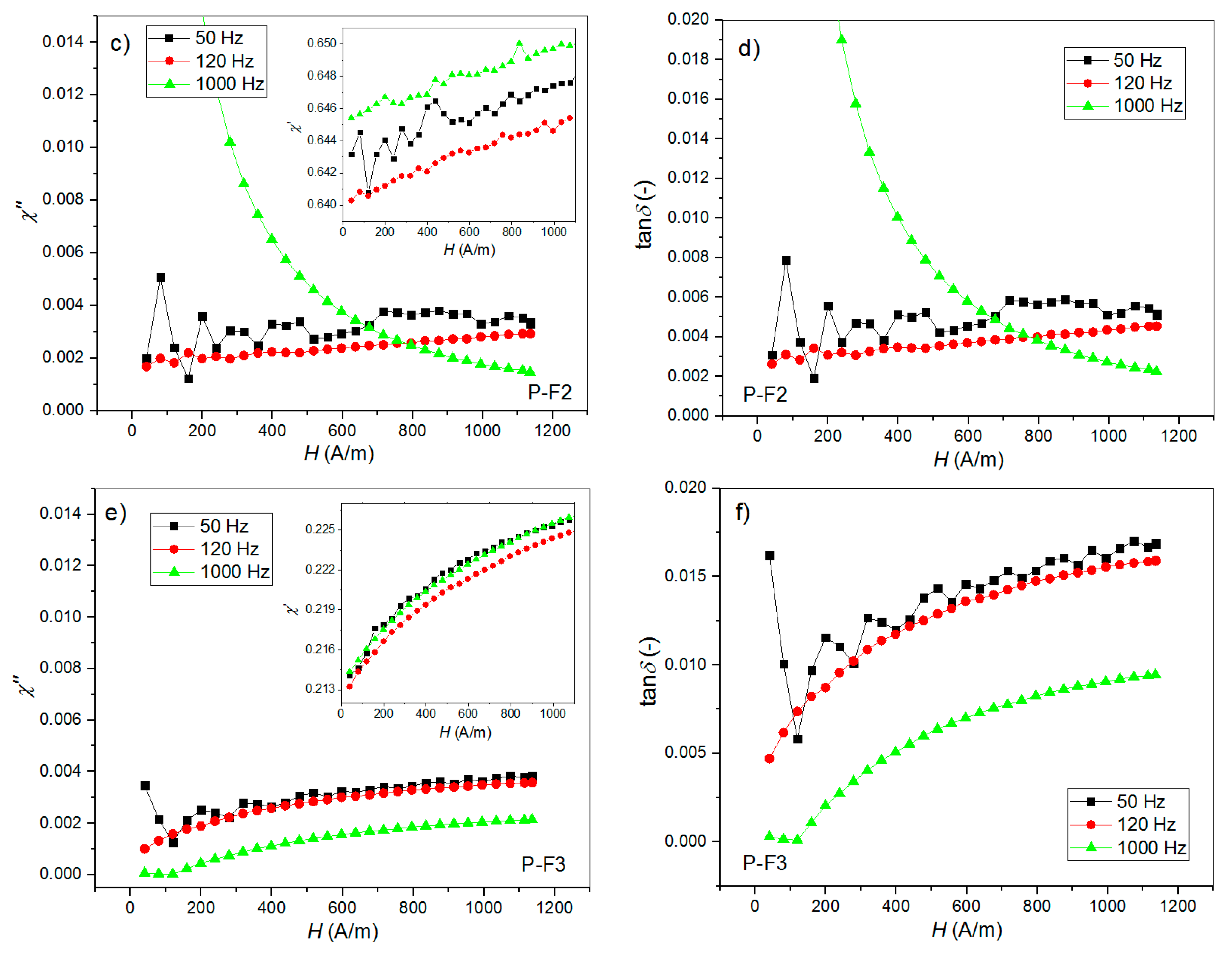

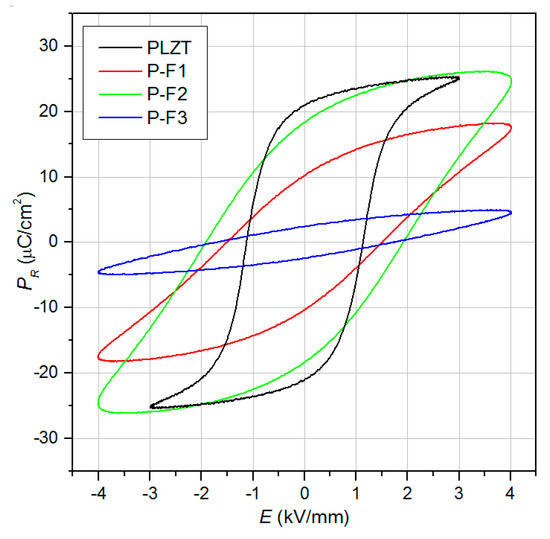

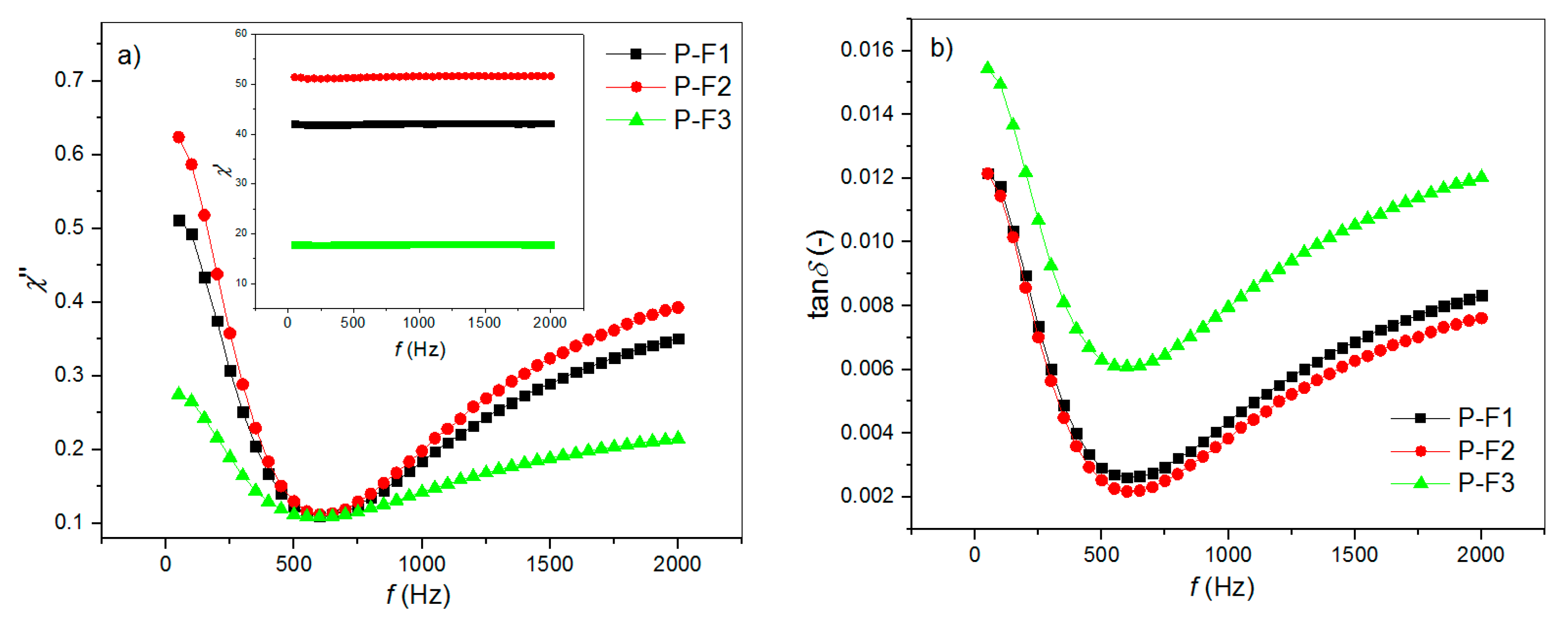

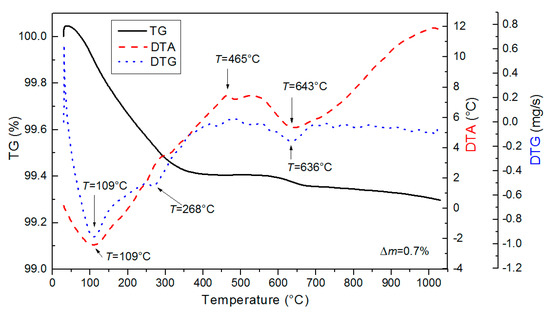

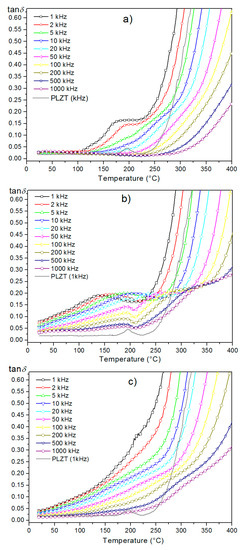

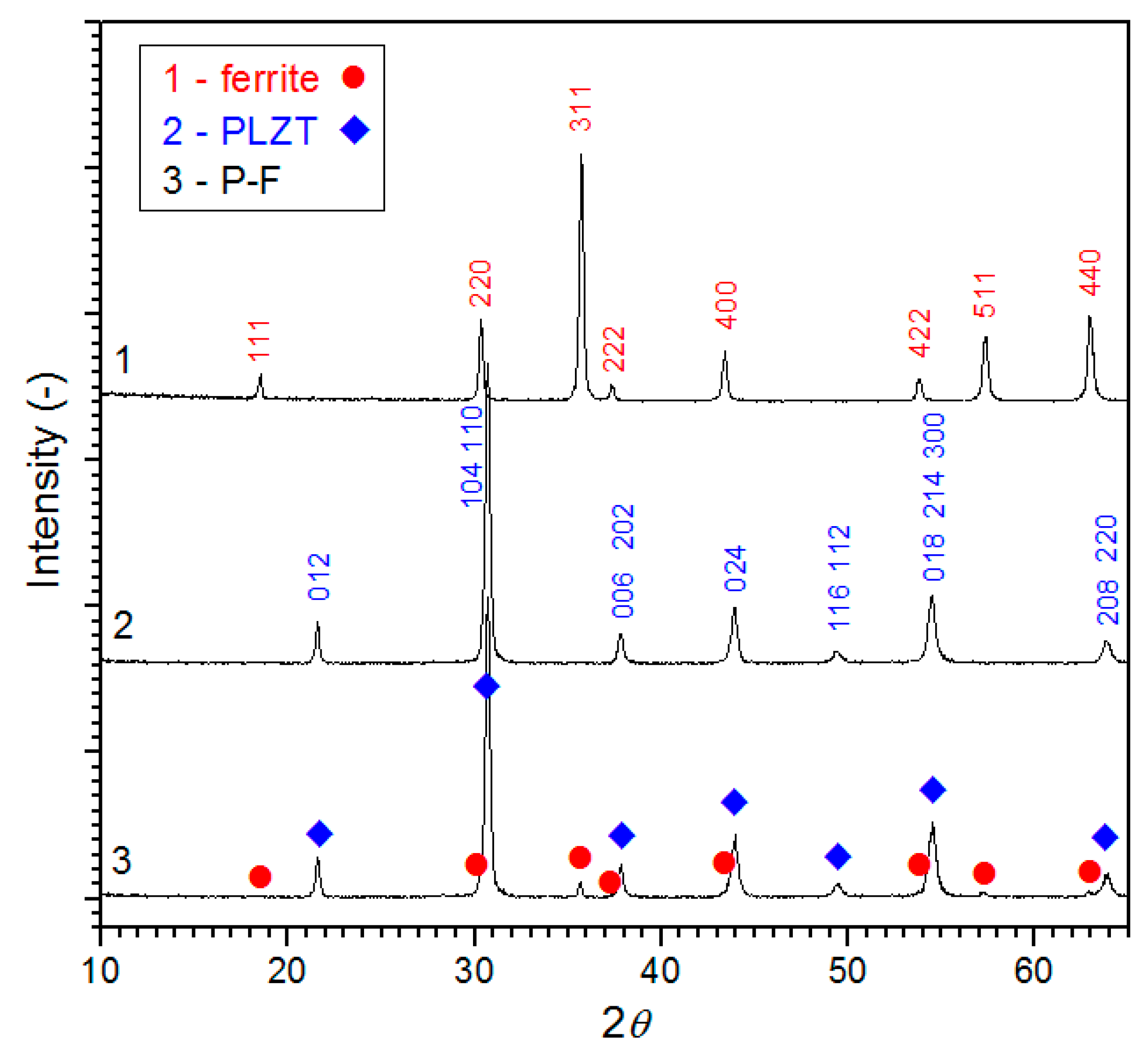

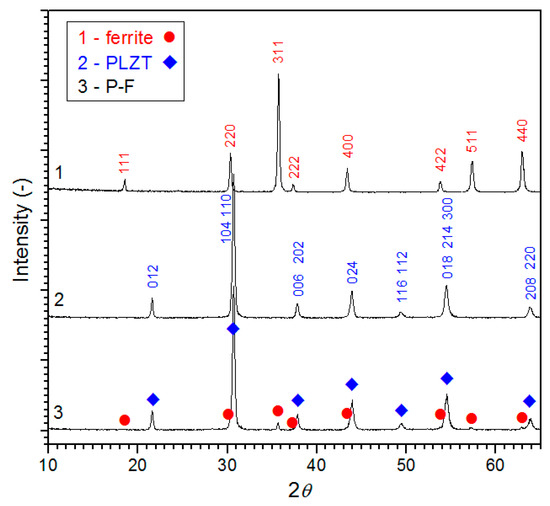

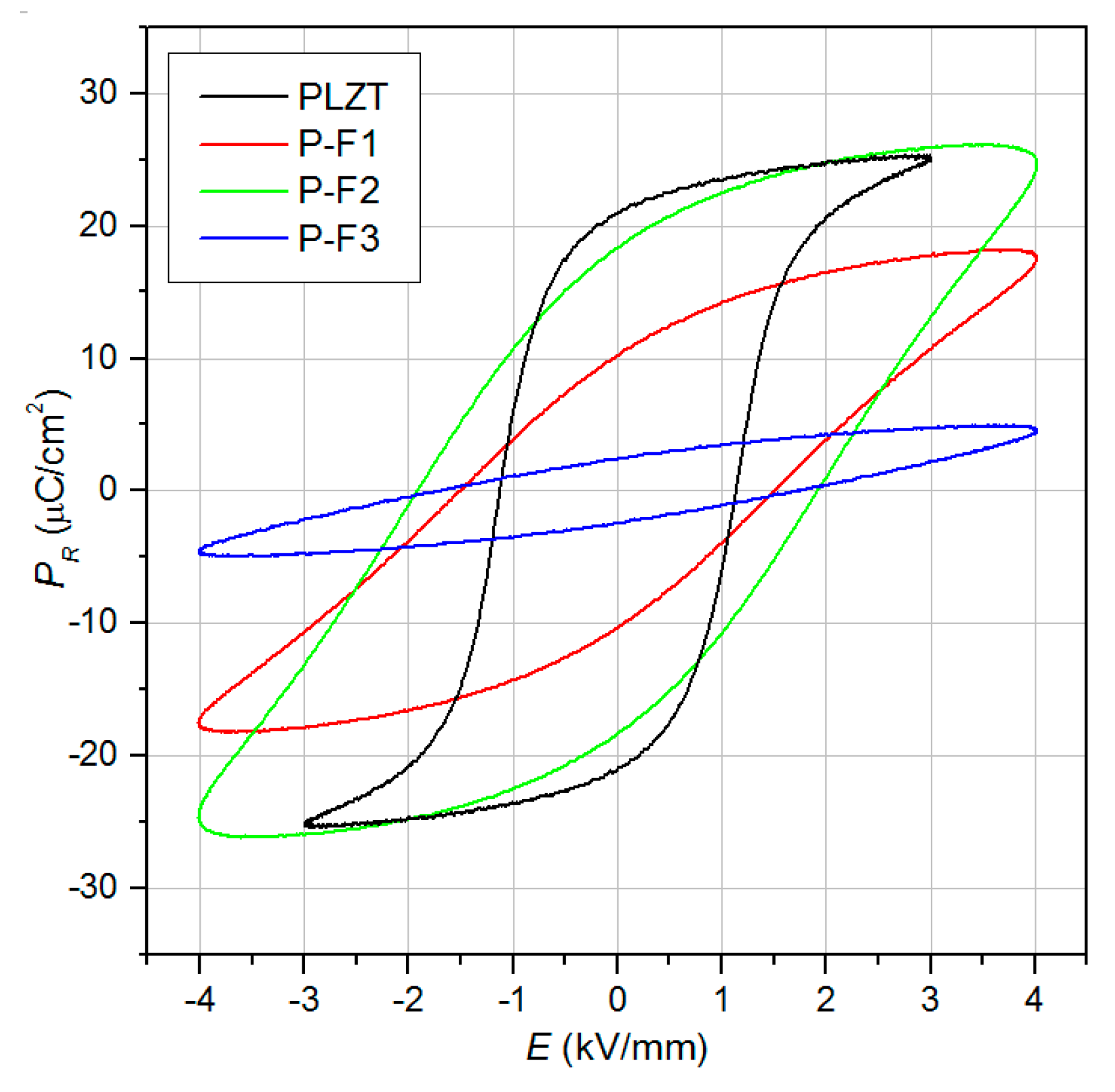

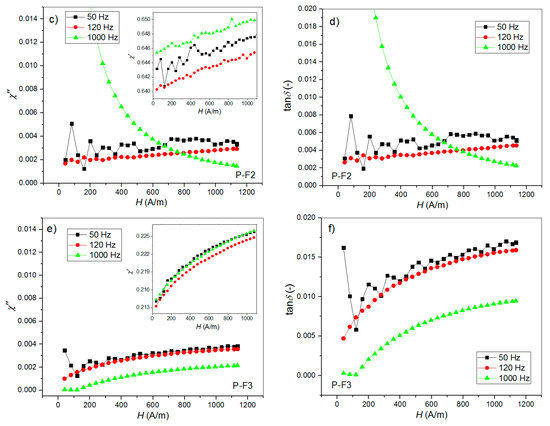

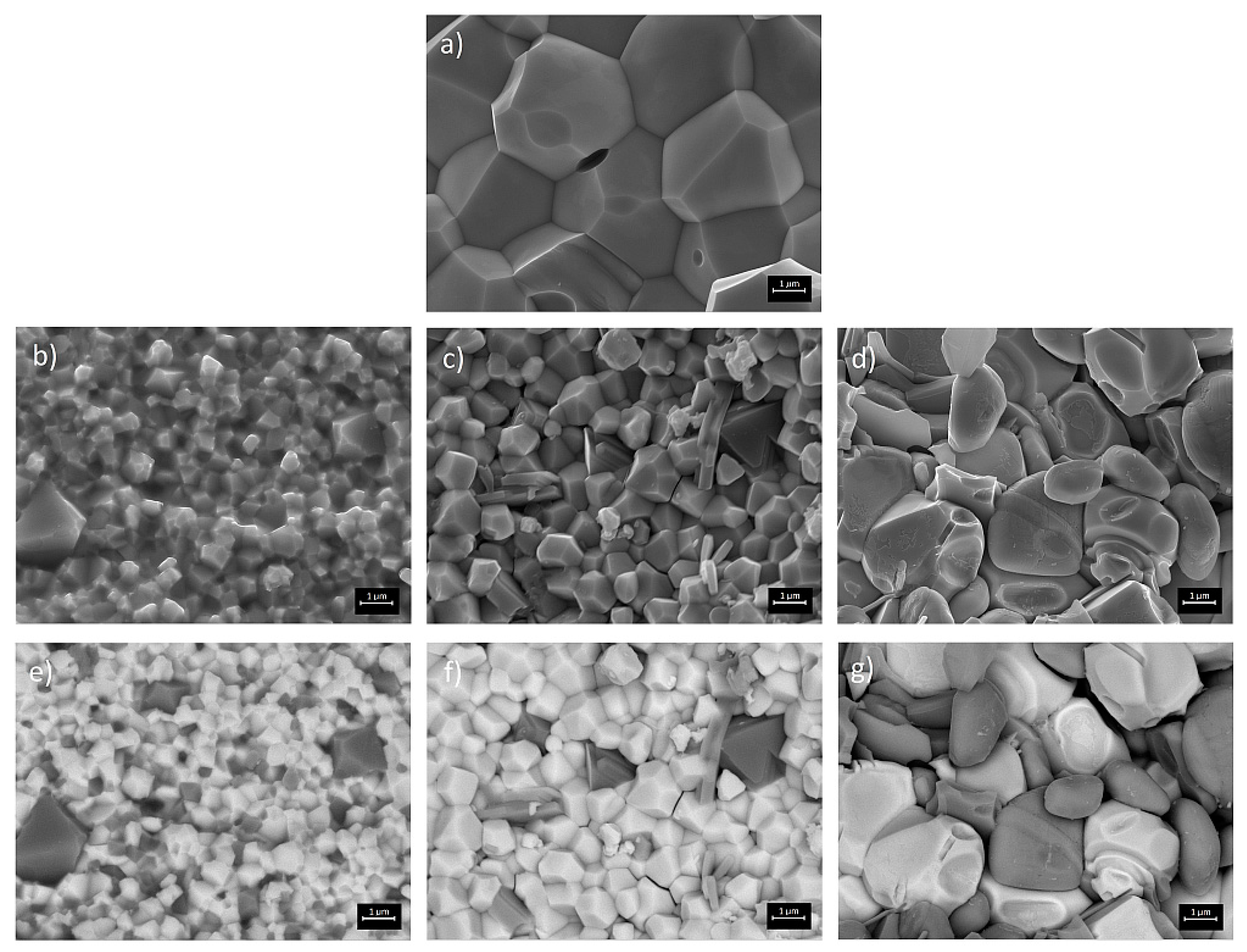

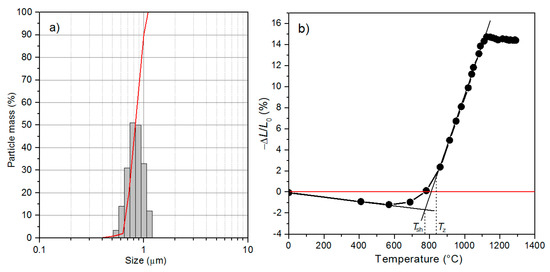

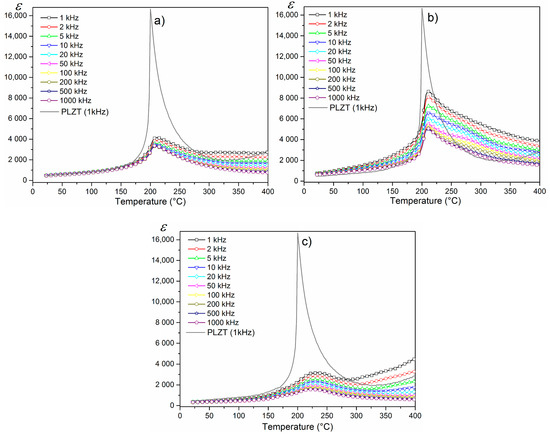

The paper presents the technology of ferroelectric-ferromagnetic ceramic composites obtained from PLZT powder (the chemical formula Pb0.98La0.02(Zr0.90Ti0.10)0.995O3) and ferrite powder (Ni0.64Zn0.36Fe2O4), as well as the results of X-ray powder-diffraction data (XRD) measurement, microstructure, dielectric, ferroelectric, and magnetic properties of the composite samples. The ferroelectric-ferromagnetic composite (P-F) was obtained by mixing and the synthesis of 90% of PLZT and 10% of ferrite powders. The XRD test of the P-F composite shows a two-phase structure derived from the PLZT component (strong peaks) and the ferrite component (weak peaks). The symmetry of PLZT was identified as a rhombohedral ferroelectric phase, while the ferrite was identified as a spinel structure. Scanning electron microscope (SEM) microstructure analysis of the P-F ceramic composites showed that fine grains of the PLZT component surrounded large ferrite grains. At room temperature P-F composites exhibit both ferroelectric and ferromagnetic properties. The P-F composite samples have lower values of the maximum dielectric permittivity at the Curie temperature and a higher dielectric loss compared to the PLZT ceramics, however, the exhibit overall good multiferroic properties. View Full-Text
Keywords: ferroelectromagnetics; multiferroics; ceramic composites; perovskite-type materials ferroelectromagnetics; multiferroics; ceramic composites; perovskite-type materials
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Bochenek, D.; Niemiec, P.; Korzekwa, J.; Durtka, B.; Stokłosa, Z. Microstructure and Properties of the Ferroelectric-Ferromagnetic PLZT-Ferrite Composites. Symmetry 2018, 10, 59.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Symmetry EISSN 2073-8994 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
