# Efficient Data Hiding Based on Block Truncation Coding Using Pixel Pair Matching Technique

^{1}

^{2}

## Abstract

**:**

## 1. Introduction

## 2. Related Works

#### 2.1. AMBTC Compression Technique

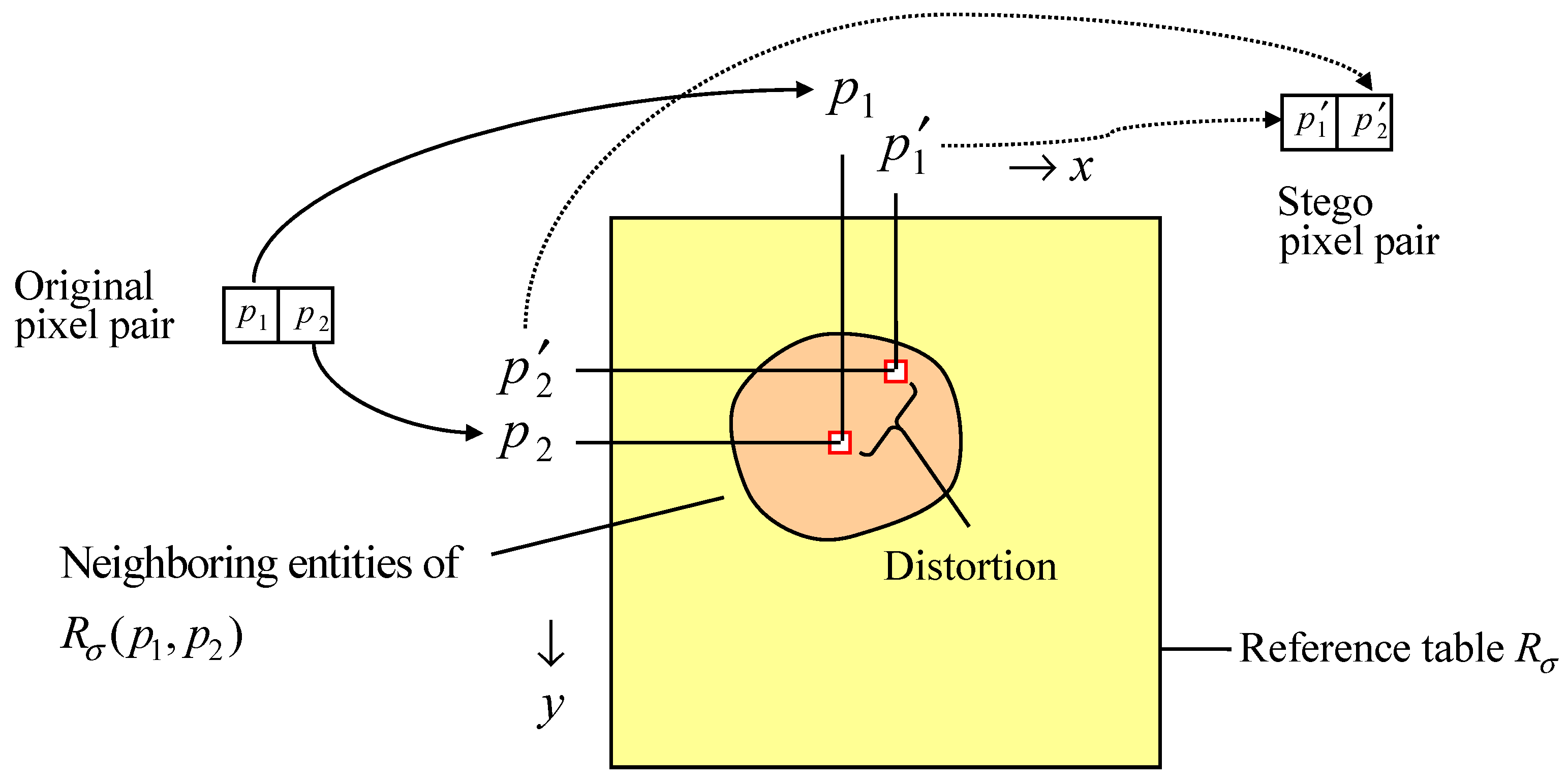

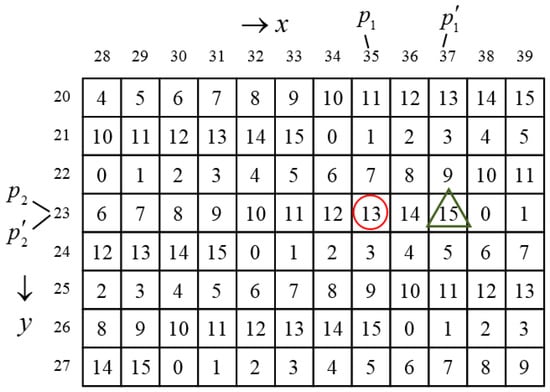

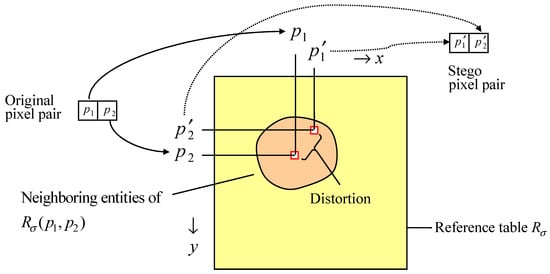

#### 2.2. Adaptive Pixel Pair Matching Technique

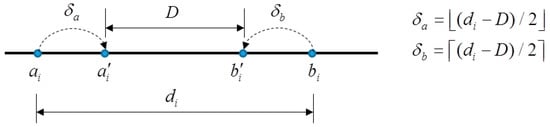

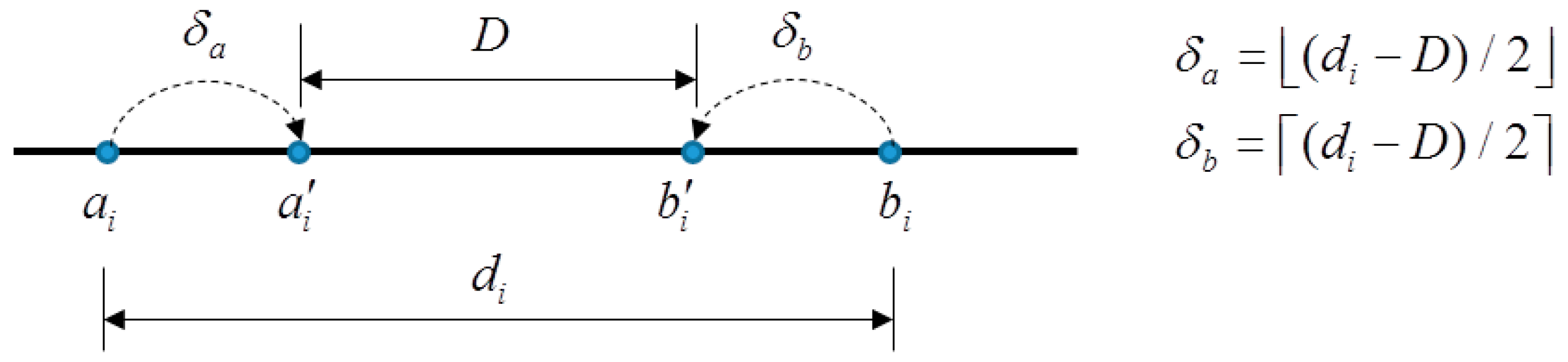

#### 2.3. Huang et al.’s Method

_{2}, the values of ${a}_{i}^{\prime}$ and ${b}_{i}^{\prime}$ are swapped and bitmap ${B}_{i}^{\prime}={\overline{B}}_{i}$ is set, where ${\overline{B}}_{i}$ is the flipped version of ${B}_{i}$. Otherwise, ${a}_{i}^{\prime}$ and ${b}_{i}^{\prime}$ are kept unchanged and set ${B}_{i}^{\prime}={B}_{i}$.

_{2}. Because ${d}_{i}={b}_{i}-{a}_{i}=5>T$, the block is complex, and we have $D={10}_{2}=2$, ${R}_{i}=\mathrm{mod}({d}_{i},T)=1$. According to Equation (4), because ${R}_{i}\le D$, we have ${a}_{i}^{\prime}={a}_{i}-\lfloor (D-{R}_{i})/2\rfloor =25-\lfloor (2-1)/2\rfloor =25$, ${b}_{i}^{\prime}=30+\lceil (2-1)/2\rceil =31$. To extract the embedded bits, which is the binary representation of $\mathrm{mod}({d}_{i}^{\prime},T)$, we calculate ${d}_{i}^{\prime}={b}_{i}^{\prime}-{a}_{i}^{\prime}=6$. Because $\mathrm{mod}({d}_{i}^{\prime},T)=2$, the embedded bits are 10

_{2}.

## 3. Proposed Method

#### 3.1. Optimal Quantization Level Adjustment

#### 3.2. Embedment Using APPM

#### 3.3. Division-Switching Technique

#### 3.4. Lossless Embedment Technique

_{2}, the trio is unmodified. If the to-be-embedded bit is 1

_{2}, the trio is modified to $({b}_{i},{a}_{i},{\overline{B}}_{i})$, where ${\overline{B}}_{i}$ is the flipped version of ${B}_{i}$. Note that the decoded blocks $I({a}_{i},{b}_{i},{B}_{i})$ and $I({b}_{i},{a}_{i},{\overline{B}}_{i})$ are identical. As a result, the embedment in the complex blocks results in no distortion but contribute one bit to payload per block.

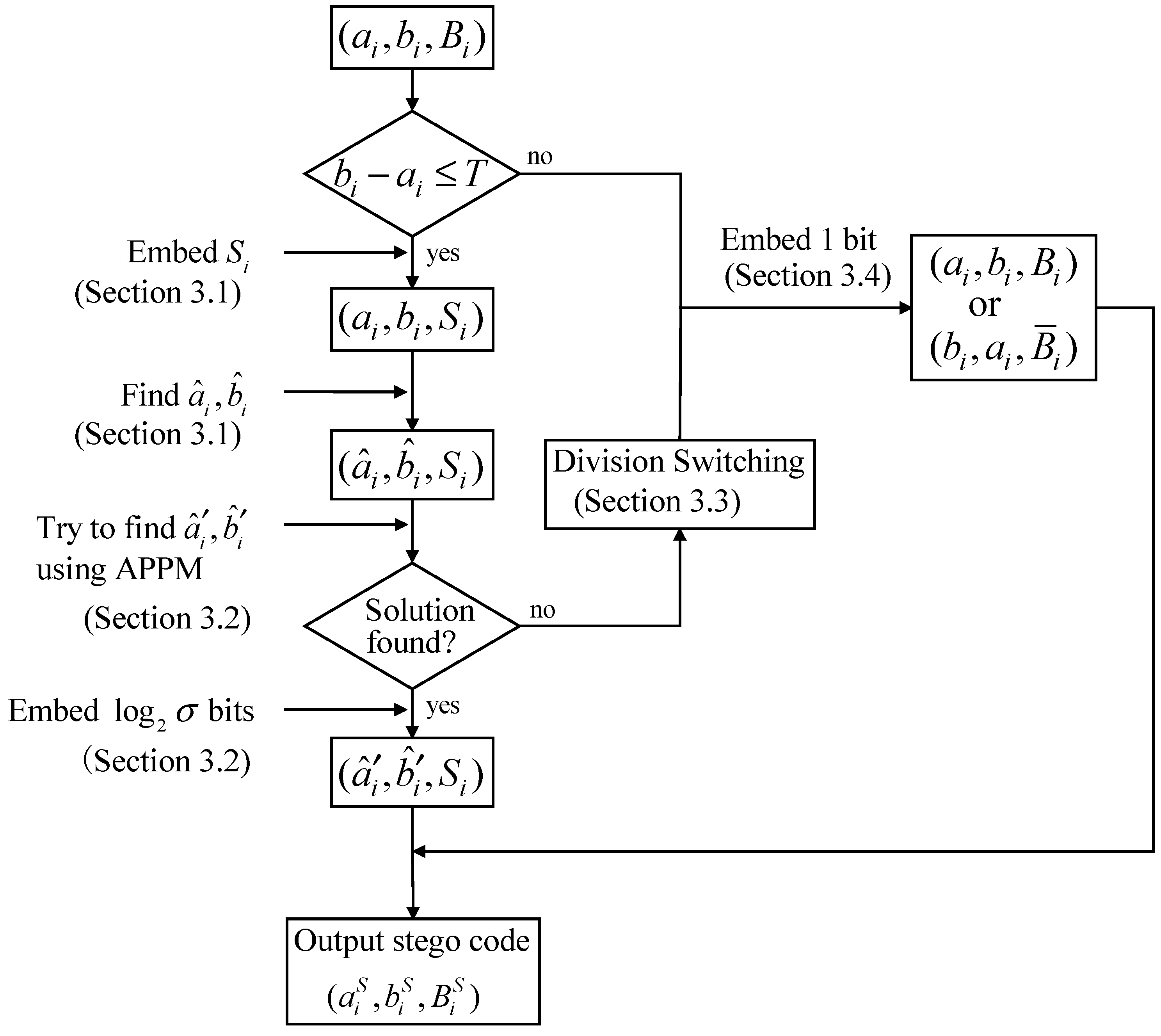

#### 3.5. Embedding Procedures

- Step 1:
- Use Equation (11) to determine the smallest threshold T.
- Step 2:
- Scan the AMBTC trios ${\{{a}_{i},{b}_{i},{B}_{i}\}}_{i=1}^{N}$.
- Step 3:
- If ${b}_{i}-{a}_{i}\le T$, the scanned trio is smooth. The following three steps are performed to embed ${\mathrm{log}}_{2}\sigma +m\times m$ bits into the scanned trio:
- (1)
- Extract $m\times m$ bits ${S}_{j}$ from S, and replace ${B}_{i}$ with ${S}_{j}$.
- (2)
- Adjust the quantization pair $({a}_{i},{b}_{i})$ to $({\widehat{a}}_{i},{\widehat{b}}_{i})$ by solving the Equation (6) given in Section 3.1.
- (3)
- Extract ${\mathrm{log}}_{2}\sigma $ bits from S, convert the extracted bits to a digit ${s}_{\sigma}$ in $\sigma -\text{ary}$ notational system, and perform the APPM embedding technique to embed ${s}_{\sigma}$ into the quantization pair $({\widehat{a}}_{i}^{\prime},{\widehat{b}}_{i}^{\prime})$ by solving Equation (9). In case the solution cannot be found, return the previously extracted ${\mathrm{log}}_{2}\sigma +m\times m$ to S, modify $({a}_{i},{b}_{i})$ to $({a}_{i}^{\prime},{b}_{i}^{\prime})$ according to the Equation (10), and go to Step 4 for embedding one additional bit.

- Step 4:
- If ${b}_{i}-{a}_{i}>T$, the scanned trio is complex. Extract one bit from S and losslessly embed the extracted bit, as described in Section 3.4.
- Step 5:
- Steps 2–4 are repeated until all bits in S are embedded.

#### 3.6. Extraction Procedures

- Step 1:
- Scan the stego codes ${\{{a}_{i}^{S},{b}_{i}^{S},{B}_{i}^{S}\}}_{i=1}^{N}$ sequentially.
- Step 2:
- If $|{a}_{i}^{S}-{b}_{i}^{S}|\text{\hspace{0.17em}}\le T$, extract $m\times m$ bits from the bitmap. Other ${\mathrm{log}}_{2}\sigma $ bits can be extracted by obtaining ${s}_{\sigma}={R}_{\sigma}({a}_{i}^{S},{b}_{i}^{S})$ first, and then convert ${s}_{\sigma}$ to its binary representation.
- Step 3:
- If $|{a}_{i}^{S}-{b}_{i}^{S}|\text{\hspace{0.17em}}>T$, one bit is embedded in this block. If ${a}_{i}^{S}<{b}_{i}^{S}$, a bit 0
_{2}is extracted. If ${a}_{i}^{S}>{b}_{i}^{S}$, a bit 1_{2}is extracted. - Step 4:
- Repeat Steps 2–4 until all the embedded data are extracted.

#### 3.7. A Simple Example

_{2}. The two trios and the corresponding AMBTC block are shown in Figure 6a–c, respectively. Let $T=20$ and $\sigma =16$ be the embedding parameters used, and the required reference table ${R}_{16}$ is shown in Figure 2. In this example, the bitmap is capable of carrying 16 bits while the pair of quantization levels are able to carry ${\mathrm{log}}_{2}16=4$ bits.

_{2}of S. Since the bitmap is replaced, a pair of quantization levels $({\widehat{a}}_{1},{\widehat{b}}_{1})$ has to find such that the distortion due to the bitmap replacement is the smallest. ${\widehat{a}}_{1}=31$ and ${\widehat{b}}_{1}=23$ can be obtained by solving Equation (6) with few calculations. Now, ${\widehat{a}}_{1}$ and ${\widehat{b}}_{1}$ can be modified to carry four additional bits. Extract the 17-th to 20-th bits 1011

_{2}from S and convert it to the 16-ary notational system, we have ${s}_{16}=11$. Because the coordinate (33, 23) is the nearest coordinate to (31, 23) satisfying ${R}_{16}(33,23)=11$ and $|23-33|\text{\hspace{0.17em}}<20$, we have ${\widehat{a}}_{1}^{\prime}=33$ and ${{\widehat{b}}^{\prime}}_{1}=23$. As a result, the final stego trio for the first AMBTC block is $({a}_{1}^{S},{b}_{1}^{S},{B}_{1}^{S})=(33,23,0010\text{\hspace{0.17em}}0010\text{\hspace{0.17em}}0110\text{\hspace{0.17em}}{0000}_{2})$. For the second block, because ${b}_{2}-{a}_{2}=86-65=21>T$, one bit can be embedded into this block losslessly. Because the 21-th bit is 1

_{2}, swapping the value of ${a}_{2}$ and ${b}_{2}$, and flipping the bitmap of ${B}_{2}$, we have the stego code $({a}_{2}^{S},{b}_{2}^{S},{B}_{2}^{S})=(86,65,0011\text{\hspace{0.17em}}00110000\text{\hspace{0.17em}}{1111}_{2})$. The final stego trios and the corresponding stego AMBTC block are shown in Figure 6d–f.

_{2}. Moreover, because ${R}_{16}(33,23)={11}_{16}={1011}_{2}$, four bits 1011

_{2}can be extracted. For the second block, since $|{a}_{2}^{S}-{b}_{2}^{S}|\text{\hspace{0.17em}}=\text{\hspace{0.17em}}|86-65|\text{\hspace{0.17em}}>T$ and ${a}_{2}^{S}>{b}_{2}^{S}$, a bit 1

_{2}is extracted. Concatenate these extracted bits, the embedded secret data 001000100110000010111

_{2}can then be successfully extracted.

## 4. Experimental Results

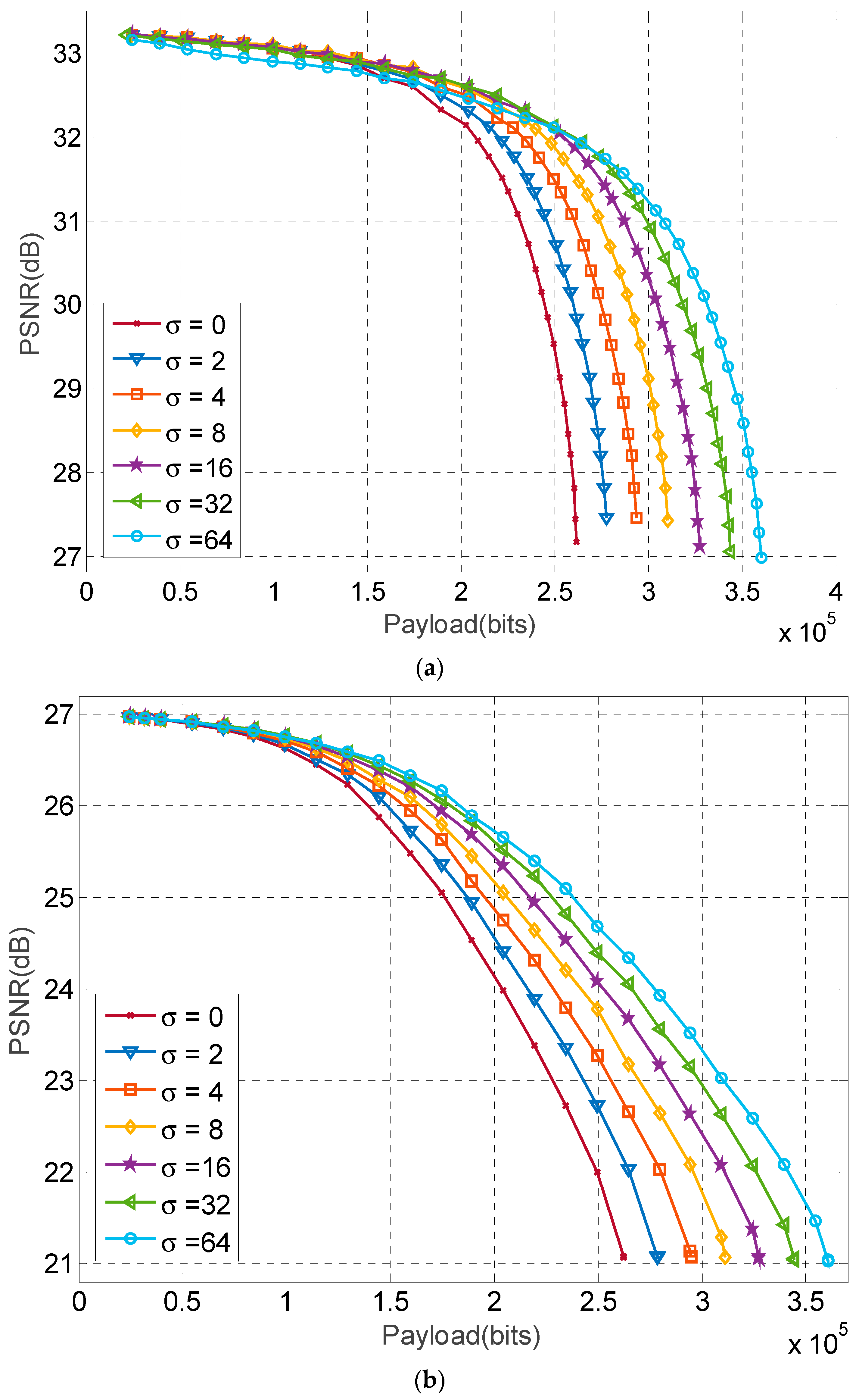

#### 4.1. Performance of the Proposed Method

#### 4.2. Comparison with Previous Schemes

## 5. Conclusions

## Conflicts of Interest

## References

- Zielińska, E.; Mazurczyk, W.; Szczypiorski, K. Trends in steganography. Commun. ACM
**2014**, 57, 86–95. [Google Scholar] [CrossRef] - Hong, W.; Chen, T.S.; Chen, J. Reversible data hiding using delaunay triangulation and selective embedment. Inf. Sci.
**2015**, 308, 140–154. [Google Scholar] [CrossRef] - Xia, Z.; Wang, X.; Sun, X.; Liu, Q.; Xiong, N. Steganalysis of LSB matching using differences between nonadjacent pixels. Multimed. Tools Appl.
**2016**, 75, 1947–1962. [Google Scholar] [CrossRef] - Holub, V.; Fridrich, J. Random projections of residuals for digital image steganalysis. IEEE Trans. Inf. Forensics Secur.
**2013**, 8, 1996–2006. [Google Scholar] [CrossRef] - Holub, V.; Fridrich, J. Low-complexity features for JPEG steganalysis using undecimated DCT. IEEE Trans. Inf. Forensics Secur.
**2015**, 10, 219–228. [Google Scholar] [CrossRef] - Liao, X.; Qin, Z.; Ding, L. Data embedding in digital images using critical functions. Signal Process. Image Commun.
**2017**, 58, 146–156. [Google Scholar] [CrossRef] - Hong, W.; Chen, T.S. A novel data embedding method using adaptive pixel pair matching. IEEE Trans. Inf. Forensics Secur.
**2012**, 7, 176–184. [Google Scholar] [CrossRef] - Muhammad, K.; Ahmad, J.; Rehman, N.U.; Jan, Z.; Sajjad, M. CISSKA-LSB: Color image steganography using stego key-directed adaptive LSB substitution method. Multimed. Tools Appl.
**2017**, 76, 8597–8626. [Google Scholar] [CrossRef] - Liao, X.; Guo, S.; Yin, J.; Wang, H.; Li, X.; Sangaiah, A.K. New cubic reference table based image steganography. Multimed. Tools Appl.
**2017**. [Google Scholar] [CrossRef] - Chen, W.S.; Wu, K.C.; Wang, C.M. A novel message embedding algorithm using the optimal weighted modulus. Inf. Sci.
**2017**, 388–389, 17–36. [Google Scholar] [CrossRef] - Pevný, T.; Filler, T.; Bas, P. Using high-dimensional image models to perform highly undetectable steganography. In Proceedings of the 12th International Workshop on Information Hiding, Calgary, AB, Canada, 28–30 June 2010; Lecture Notes in Computer Science. Volume 6387, pp. 161–177. [Google Scholar]
- Holub, V.; Fridrich, J. Designing steganographic distortion using directional filters. In Proceedings of the IEEE International Workshop on Information Forensics and Security (WIFS), Tenerife, Spain, 2–5 December 2012; pp. 234–239. [Google Scholar] [CrossRef]
- Holub, V.; Fridrich, J.; Denemark, T. Universal distortion function for steganography in an arbitrary domain. EURASIP J. Inf. Secur.
**2014**. [Google Scholar] [CrossRef] - Holub, V.; Fridrich, J. Digital image steganography using universal distortion. In Proceedings of the First ACM Workshop on Information Hiding and Multimedia Security, Montpellier, France, 17–19 June 2013; pp. 59–68. [Google Scholar]
- Hong, W.; Ma, Y.; Wu, H.C.; Chen, T.S. An efficient reversible data hiding method for AMBTC compressed images. Multimed. Tools Appl.
**2017**, 76, 5441–5460. [Google Scholar] [CrossRef] - Hong, W.; Chen, M.; Chen, T.S. An efficient reversible image authentication method using improved PVO and LSB substitution techniques. Signal Process. Image Commun.
**2017**, 58, 111–122. [Google Scholar] [CrossRef] - Xiong, L.; Xu, Z.; Shi, Y.Q. An integer wavelet transform based scheme for reversible data hiding in encrypted images. Multidimens. Syst. Signal Process.
**2017**. [Google Scholar] [CrossRef] - Fridrich, J. Steganography in Digital Media: Principles, Algorithms, and Applications; Cambridge University Press: Cambridge, UK, 2009. [Google Scholar]
- Qin, C.; Hu, Y.C. Reversible data hiding in VQ index table with lossless coding and adaptive switching mechanism. Signal Process.
**2016**, 129, 48–55. [Google Scholar] [CrossRef] - Manohar, K.; Kieu, T.D. An SMVQ-based reversible data hiding technique exploiting side match distortion. Multimed. Tools Appl.
**2017**. [Google Scholar] [CrossRef] - Chang, C.C.; Nguyen, T.S.; Lin, M.C.; Lin, C.C. A novel data-hiding and compression scheme based on block classification of SMVQ indices. Dig. Signal Process.
**2016**, 51, 142–155. [Google Scholar] [CrossRef] - Parah, S.A.; Sheikh, J.A.; Loan, N.A.; Bhat, G.M. Robust and blind watermarking technique in DCT domain using inter-block coefficient differencing. Dig. Signal Process.
**2016**, 53, 11–24. [Google Scholar] [CrossRef] - Chuang, J.C.; Chang, C.C. Using a simple and fast image compression algorithm to hide secret information. Int. J. Comput. Appl.
**2006**, 28, 329–333. [Google Scholar] - Chen, J.; Hong, W.; Chen, T.S.; Shiu, C.W. Steganography for BTC compressed images using no distortion technique. Imaging Sci. J.
**2010**, 58, 177–185. [Google Scholar] [CrossRef] - Hong, W.; Chen, J.; Chen, T.S.; Shiu, C.W. Steganography for block truncation coding compressed images using hybrid embedding scheme. Int. J. Innov. Comput. Inf. Control
**2011**, 7, 733–743. [Google Scholar] - Ou, D.; Sun, W. High payload image steganography with minimum distortion based on absolute moment block truncation coding. Multimed. Tools Appl.
**2015**, 74, 9117–9139. [Google Scholar] [CrossRef] - Bai, J.; Chang, C.C. A high payload steganographic scheme for compressed images with hamming code. Int. J. Netw. Secur.
**2016**, 18, 1122–1129. [Google Scholar] - Huang, Y.H.; Chang, C.C.; Chen, Y.H. Hybrid secret hiding schemes based on absolute moment block truncation coding. Multimed. Tools Appl.
**2017**, 76, 6159–6174. [Google Scholar] [CrossRef] - Kodovský, J.; Fridrich, J.; Holub, V. Ensemble classifiers for steganalysis of digital media. IEEE Trans. Inf. Forensics Secur.
**2012**, 7, 432–444. [Google Scholar] [CrossRef] - Xu, X.; Sun, Y.; Tang, G.; Chen, S.; Zhao, J. Deep learning on spatial rich model for steganalysis. In Proceedings of the International Workshop on Digital Watermarking, Magdeburg, Germany, 23–25 August 2017. [Google Scholar] [CrossRef]
- Couchot, J.F.; Couturier, R.; Salomon, M. Improving blind steganalysis in spatial domain using a criterion to choose the appropriate steganalyzer between CNN and SRM + EC. In Proceedings of the International Conference on ICT Systems Security and Privacy Protection, Rome, Italy, 29–31 May 2017. [Google Scholar] [CrossRef]
- Yuan, C.; Xia, Z.; Sun, X. Coverless image steganography based on SIFT and BOF. J. Internet Technol.
**2017**, 18, 435–442. [Google Scholar] - Chen, X.; Chen, S.; Wu, Y. Coverless information hiding method based on the Chinese character encoding. J. Internet Technol.
**2017**, 18, 313–320. [Google Scholar] - Lema, M.; Mitchell, O. Absolute moment block truncation coding and its application to color image. IEEE Trans. Commun.
**1984**, 32, 1148–1157. [Google Scholar] [CrossRef] - The USC-SIPI Image Database. Available online: http://sipi.usc.edu/database/ (accessed on 30 December 2017).
- BOWS-2 Image Database. Available online: http://bows2.ec-lille.fr/ (accessed on 30 December 2017).

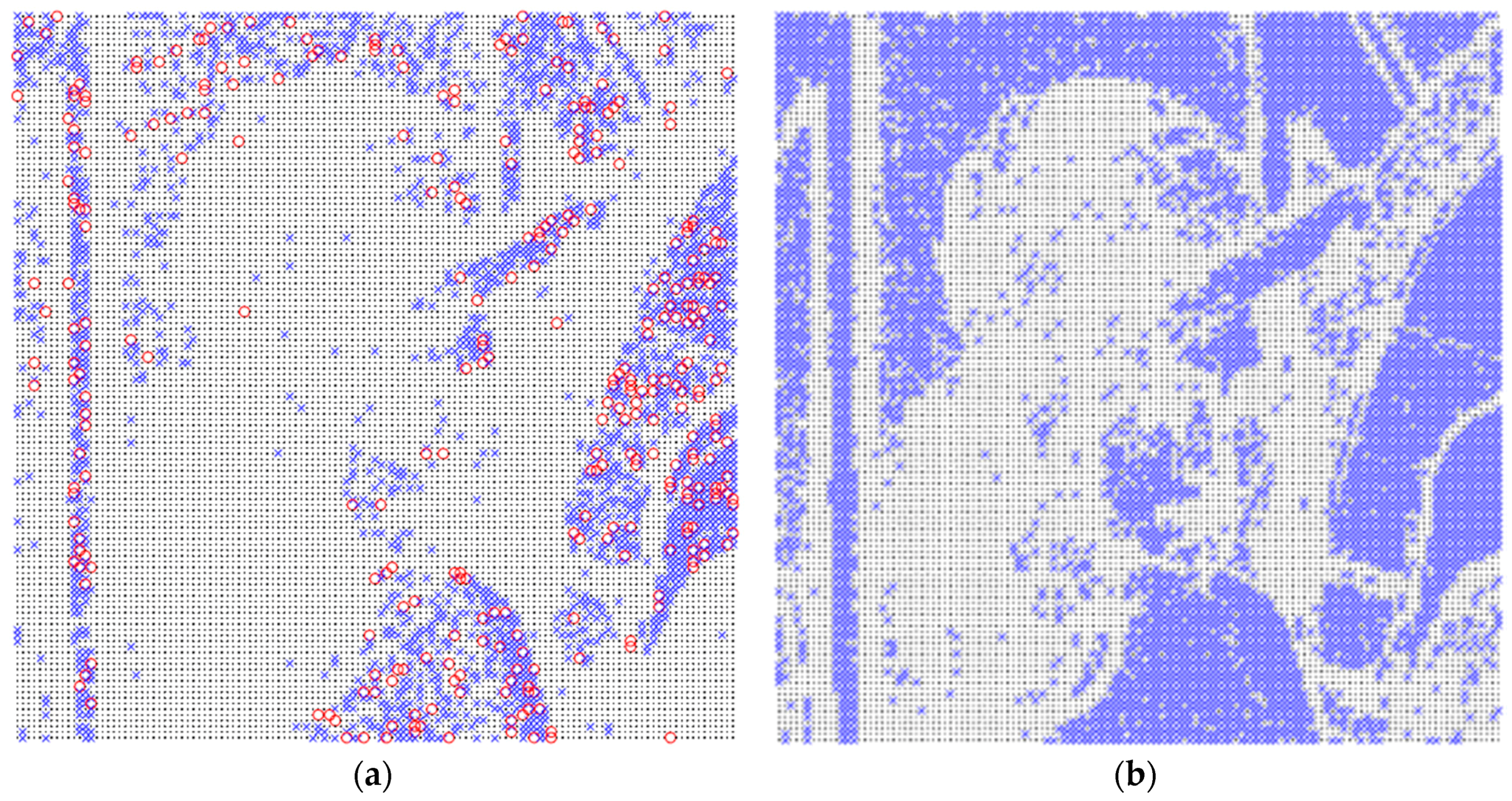

**Figure 4.**Distribution of the proposed embedding techniques. (

**a**) $T=3,\text{\hspace{0.17em}}\sigma =32$; (

**b**) $T=5,\text{\hspace{0.17em}}\sigma =32$.

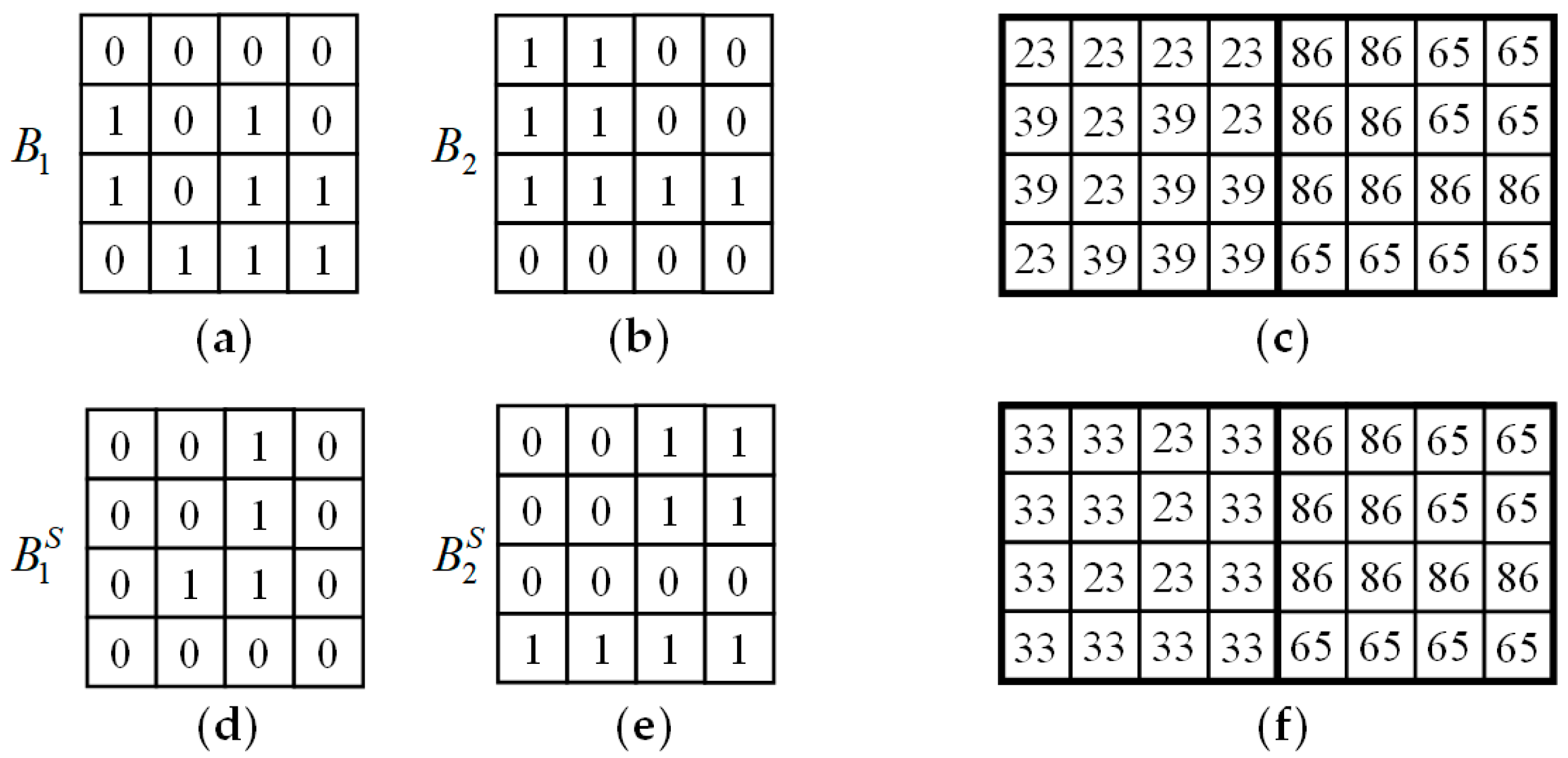

**Figure 6.**Examples of the proposed method. (

**a**) ${a}_{1}=23,{b}_{1}=39$; (

**b**) ${a}_{2}=65,{b}_{2}=86$; (

**c**) AMBTC compressed block; (

**d**) ${a}_{1}^{S}=33,{b}_{1}^{S}=23$; (

**e**) ${a}_{2}^{S}=86,{b}_{2}^{S}=65$; (

**f**) Stego image block.

**Figure 7.**Eight test images. (

**a**) Lena; (

**b**) Jet; (

**c**) Tiffany; (

**d**) Peppers; (

**e**) Tank; (

**f**) Boat; (

**g**) House; (

**h**) Baboon.

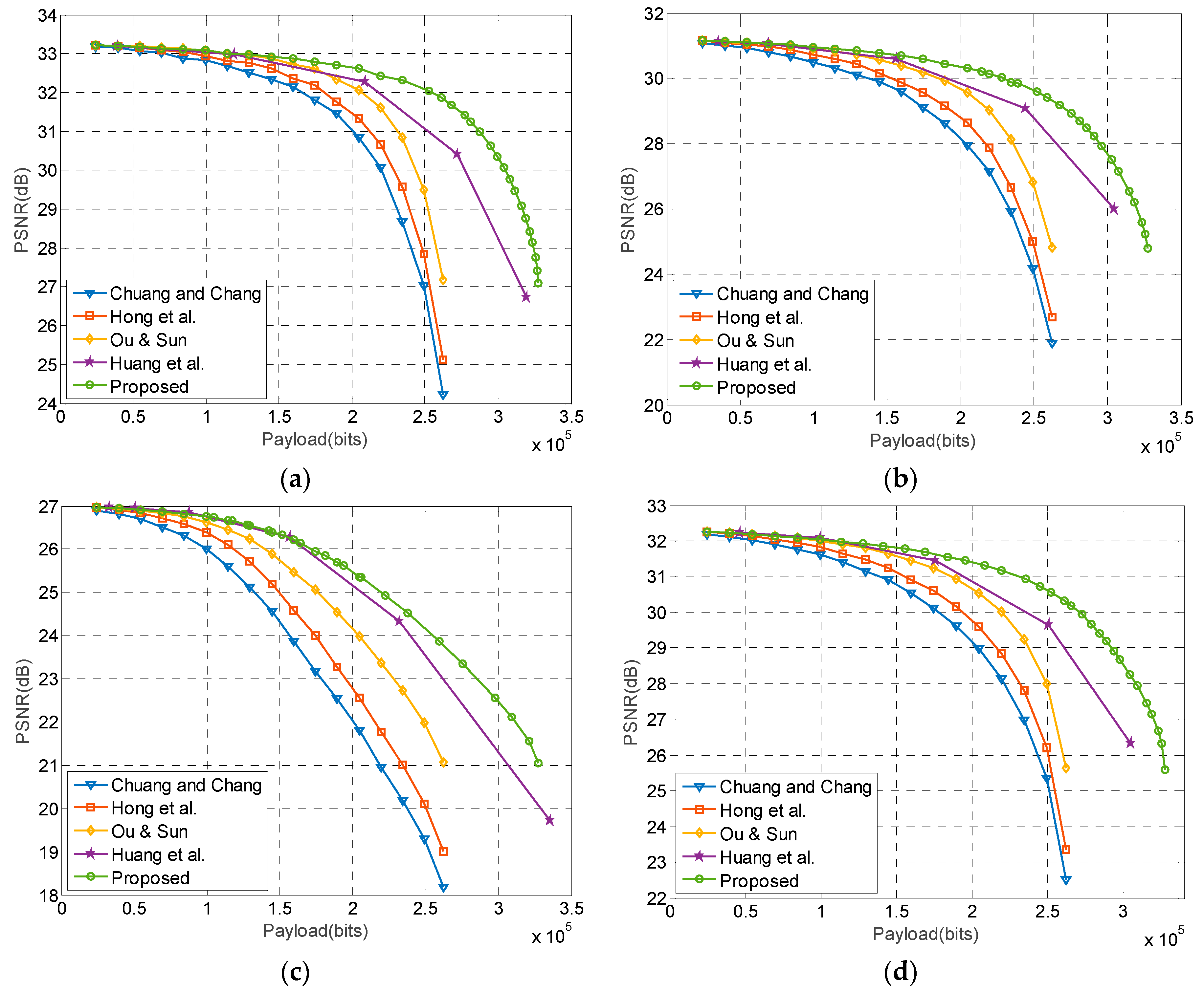

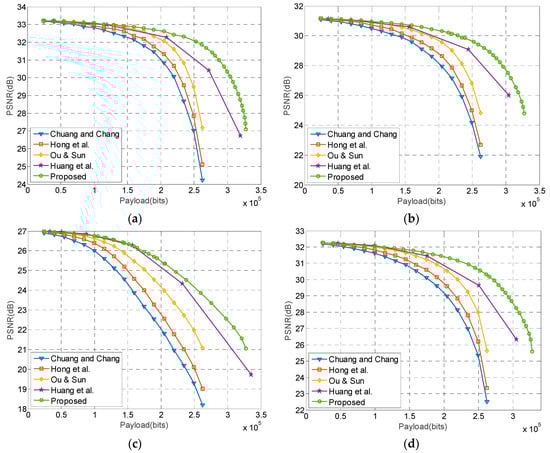

**Figure 9.**Performance comparison of the related works. (

**a**) Lena; (

**b**) Boat; (

**c**) Baboon; (

**d**) Averaged results.

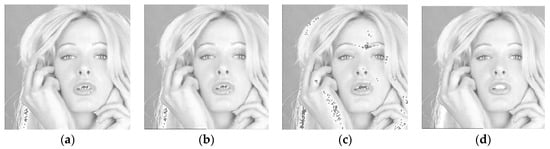

**Figure 10.**Stego AMBTC images. (

**a**–

**c**) Huang et al.’s method; (

**d**) The proposed method. (

**a**) T = 4, 136,647 bits 35.30 dB; (

**b**) T = 8, 219,721 bits 34.19 dB; (

**c**) T = 16, 283,145 bits 31.54 dB; (

**d**) T = 16, 283,125 bits 33.53 dB ($\sigma =32$).

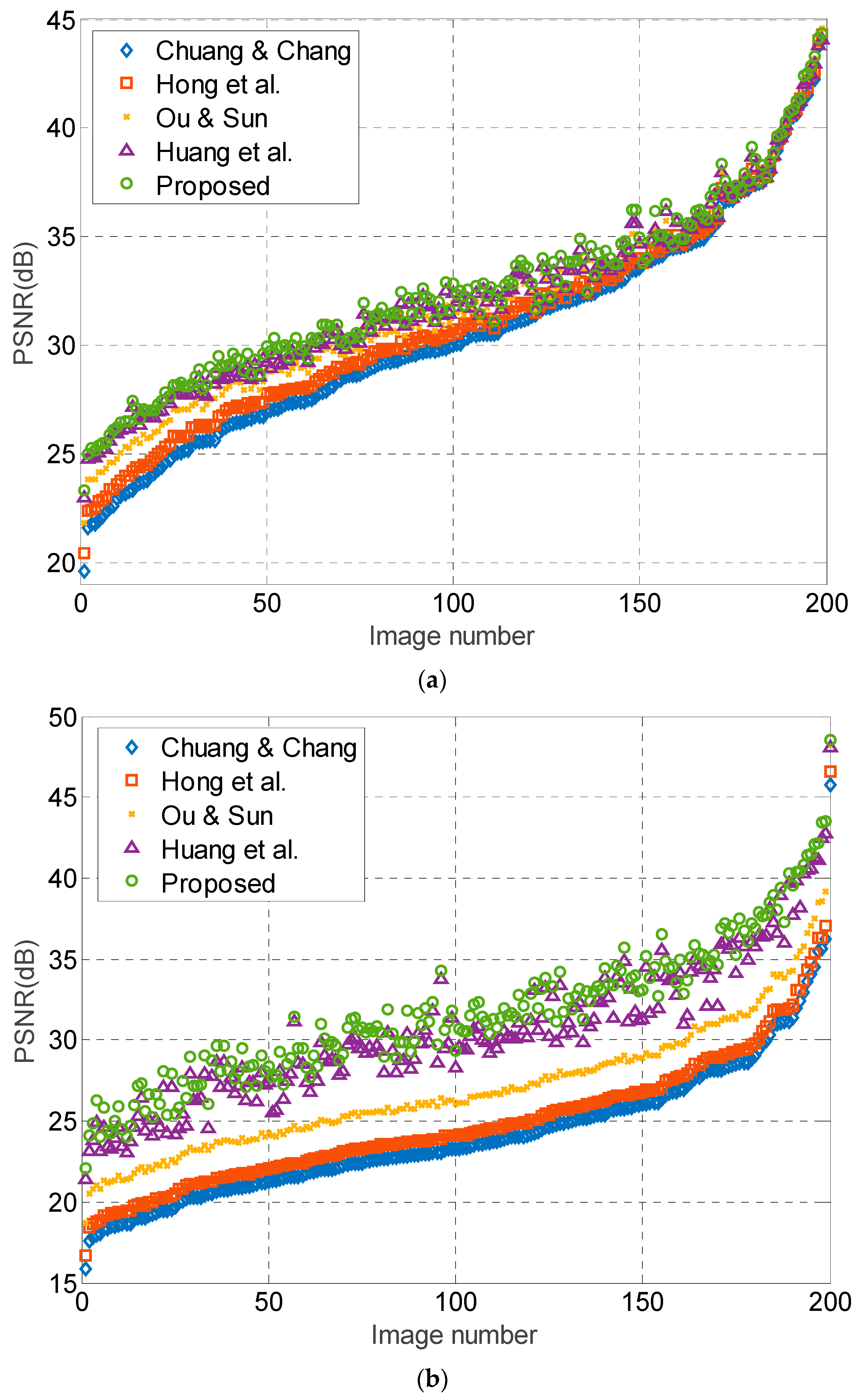

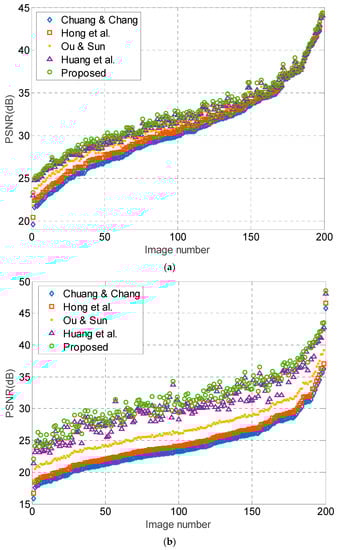

**Figure 11.**Performance comparison of 200 test images. (
